ASME A112.18.1 / CSA B125.1
1. Before Proceeding
We recommend calling a professional if you are
uncertain about installing this product! This product
should be installed in accordance with all local and
state plumbing and building code requirements.
2. Shut Off Water Supplies
Locate the water supply inlets and shut off both the
hot and cold water supply valves. If you are
replacing an existing faucet, remove the old faucet.
Clean the sink surface thoroughly in preparation for
the new faucet.
3. Position New Faucet
Place flat side of the putty plate against the wall.
Insert shower faucet shanks through putty plate and
pre-drilled holes on the wall. Position the shower
faucet on the wall.
Model 3210/4120
RV/Mobile Home Series
2 Hole Installation
You may need:
For easy installation of your faucet
please:
READ ALL the instructions,
warnings, care and maintenance
information before beginning
Purchase the correct water supply
hook-up
4. Secure New Faucet
Tighten the lock nuts from behind the wall as
shown.
5. Connect to Water Supplies (Hook-Ups Not
Provided)
Connect the hot and cold water supplies to the
shanks as shown.

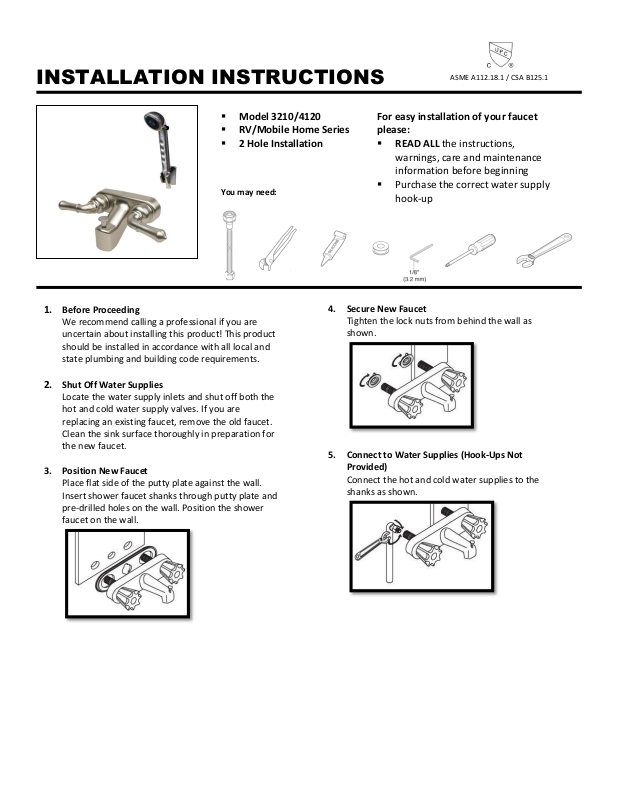

INSTALLATION INSTRUCTIONS
Page 2
Hand-held Shower Assembly
1. Install the Bracket
Insert the plastic anchors into pre-drilled 6mm
holes. Line up the holes on the bracket with inserted
anchors. Insert the screws (included) through the
holes and into the anchors.
2. Connect the Hose and Guide Ring
Insert the rubber washer (included) in the hose
connector and hand tighten the connector to handheld shower. DO NOT over tighten as it may break
the connector.
3. Mount the Guide Ring
Mount the guide ring at the desired position with
mounting hardware (included)
4. Connect to Shower Valve
Insert the rubber washer (included) in the hose
connector and hand tighten connector to the vacuum
breaker on the shower valve. DO NOT over tighten as it
may break the connector.
5. Flush System
Turn the handle all the way on. Turn on hot and cold
water supplies and flush water lines for one minute.
This flushes away any debris that could cause damage
to internal parts. Your shower faucet is now ready to
use.
Attention:
The toggle on the hand shower is a water saving design/feature. It
is not an on/off switch. The U.S. plumbing code requires a hand
shower not to shut off completely, unless the valve is turned off. It
is called "non-positive shut-off". This is a safety function to remind
users to always shut off the valve. Therefore it is normal for water
to trickle, when the hand shower toggle is at off position. This is
not a leaking defective.
Page 3
© 2017 Foremost Import LLC
CLEANING AND CARE
Care should be given to the cleaning of this product. Although the finish is extremely durable, it can be damaged by harsh
abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.
WARNING: SCRUBBING BUBBLES® BATHROOM CLEANER, LYSOL® BASIN TUB AND TILE CLEANER, and all other chemical
cleaners must not be used on the faucet body and handle. Use of these cleaners can crack and/or severely damage the faucet.
If overspray of these cleaners gets onto the faucet, immediately dry with a soft cotton cloth.
MAINTENANCE
If faucet exhibits very low flow
- Remove and clean aerator
If faucet leaks under the sink
- Inspect all supply line connections, tighten where necessary
If faucet leaks from under handle
- Remove handle. Ensure bonnet nut is tight. Clean or replace the o-ring
WARNING: Failure to securely tighten bonnet nut could result in water damage
FIVE YEAR LIMITED WARRANTY
Foremost Import LLC warrants to the original purchaser that its products will be free from defects in workmanship and
materials. We recommend using a professional plumber for all installation and repairs. This warranty DOES NOT COVER LABOR
CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION, REPAIR, OR REPLACEMENT AS WELL AS ANY OTHER KIND OF LOSS
OR DAMAGES. Any damage to this faucet as a result of misuse, abuse, or neglect, WILL VOID THE WARRANTY. This warranty
applies only for faucets installed in the United States of America.
Replacement parts may be obtained by writing to [email protected]
Proof of purchase from the original purchaser must be made available to Foremost Import LLC for all warranty claims. This
exclusive written warranty is not transferable.
