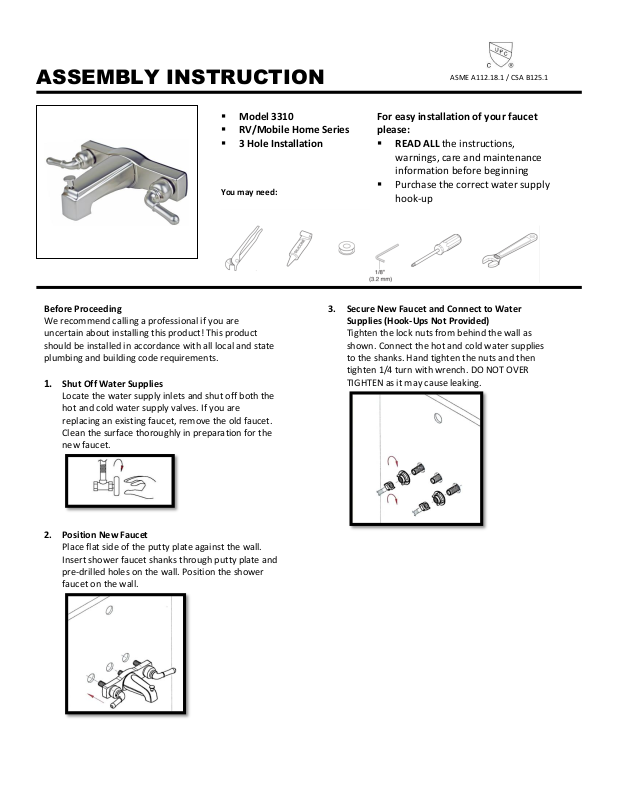

Page 1
ASME A112.18.1 / CSA B125.1
Before Proceeding
We recommend calling a professional if you are
uncertain about installing this product! This product
should be installed in accordance with all local and state
plumbing and building code requirements.
1. Shut Off Water Supplies
Locate the water supply inlets and shut off both the
hot and cold water supply valves. If you are
replacing an existing faucet, remove the old faucet.
Clean the surface thoroughly in preparation for the
new faucet.
2. Position New Faucet
Place flat side of the putty plate against the wall.
Insert shower faucet shanks through putty plate and
pre-drilled holes on the wall. Position the shower
faucet on the wall.
Model 3310
RV/Mobile Home Series
3 Hole Installation
You may need:
For easy installation of your faucet
please:
READ ALL the instructions,
warnings, care and maintenance
information before beginning
Purchase the correct water supply
hook-up
3. Secure New Faucet and Connect to Water
Supplies (Hook-Ups Not Provided)
Tighten the lock nuts from behind the wall as
shown. Connect the hot and cold water supplies
to the shanks. Hand tighten the nuts and then
tighten 1/4 turn with wrench. DO NOT OVER
TIGHTEN as it may cause leaking.
ASSEMBLY INSTRUCTION
Page 2
© 2016 Foremost Import LLC
4. Connect to Shower (Hook-Ups Not Provided)
Connect center outlet shank to shower piping and
install shower arm and shower head (not included
with model 3310) according to manufacturer’s
instructions.
5. Flush System/Check for Leaks
Turn the handle all the way on. Turn on hot and cold
water supplies and flush water lines for one minute.
This flushes away any debris that could cause
damage to internal parts. Check all connections for
leaks.
CLEANING AND CARE
Care should be given to the cleaning of this product. Although the finish is extremely durable, it can be damaged by harsh
abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.
WARNING: SCRUBBING BUBBLES® BATHROOM CLEANER, LYSOL® BASIN TUB AND TILE CLEANER, and all other chemical
cleaners must not be used on the faucet body and handle. Use of these cleaners can crack and/or severely damage the faucet.
If overspray of these cleaners gets onto the faucet, immediately dry with a soft cotton cloth.
MAINTENANCE
If faucet exhibits very low flow
- Remove and clean aerator
If faucet leaks under the sink
- Inspect all supply line connections, tighten where necessary
If faucet leaks from under handle
- Remove handle. Ensure bonnet nut is tight. Clean or replace the o-ring
WARNING: Failure to securely tighten bonnet nut could result in water damage
FIVE YEAR LIMITED WARRANTY
Foremost Import LLC warrants to the original purchaser that its products will be free from defects in workmanship and
materials. We recommend using a professional plumber for all installation and repairs. This warranty DOES NOT COVER LABOR
CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION, REPAIR, OR REPLACEMENT AS WELL AS ANY OTHER KIND OF LOSS
OR DAMAGES. Any damage to this faucet as a result of misuse, abuse, or neglect, WILL VOID THE WARRANTY. This warranty
applies only for faucets installed in the United States of America.
Replacement parts may be obtained by writing to [email protected]
Proof of purchase from the original purchaser must be made available to Foremost Import LLC for all warranty claims. This
exclusive written warranty is not transferable.
