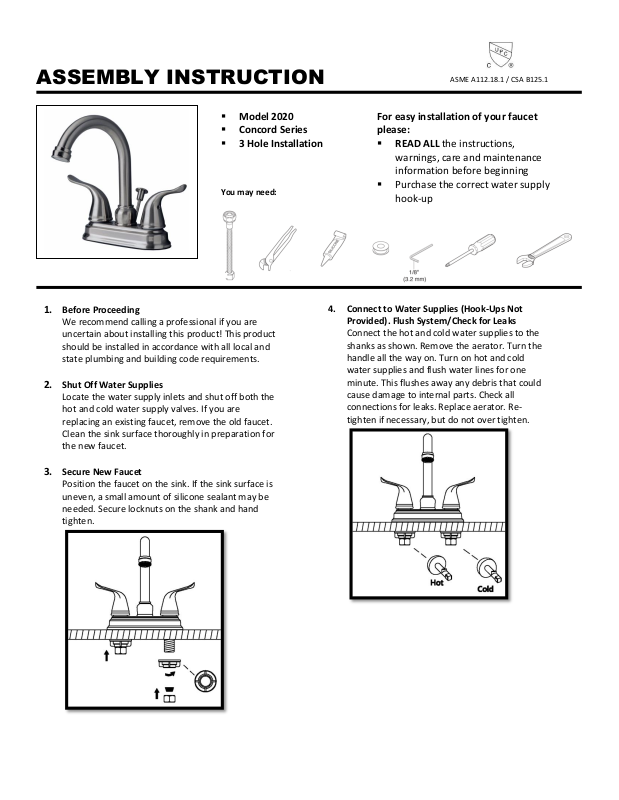

Page 1
ASME A112.18.1 / CSA B125.1
1. Before Proceeding
We recommend calling a professional if you are
uncertain about installing this product! This product
should be installed in accordance with all local and
state plumbing and building code requirements.
2. Shut Off Water Supplies
Locate the water supply inlets and shut off both the
hot and cold water supply valves. If you are
replacing an existing faucet, remove the old faucet.
Clean the sink surface thoroughly in preparation for
the new faucet.
3. Secure New Faucet
Position the faucet on the sink. If the sink surface is
uneven, a small amount of silicone sealant may be
needed. Secure locknuts on the shank and hand
tighten.
Model 2020
Concord Series
3 Hole Installation
You may need:
For easy installation of your faucet
please:
READ ALL the instructions,
warnings, care and maintenance
information before beginning
Purchase the correct water supply
hook-up
4. Connect to Water Supplies (Hook-Ups Not
Provided). Flush System/Check for Leaks
Connect the hot and cold water supplies to the
shanks as shown. Remove the aerator. Turn the
handle all the way on. Turn on hot and cold
water supplies and flush water lines for one
minute. This flushes away any debris that could
cause damage to internal parts. Check all
connections for leaks. Replace aerator. Retighten if necessary, but do not over tighten.
ASSEMBLY INSTRUCTION
Page 2
Pop-Up Drain Installation
1. Preparation
Unscrew the top portion off the drain body and
apply plumbers' tape on the top threaded end of the
drain body.
2. Secure Pop-Up to the Sink
Insert the drain body from under the sink and screw
the top portion onto the drain body. A small amount
of silicone might be needed if the sink surface is
uneven to seal top portion to sink. Tighten the
mounting nut with a wrench, but do not over
tighten.
3. Install the Pivot Rod
Insert the pivot rod into drain body and through the
hole at the end of plunger. Tighten the pivot nut by
hand.
4. Attach the Linker
Attach the linker to the end of the pivot rod as
shown.
5. Install the Lift Rod
Insert the lift rod from the lift rod hole in the faucet
and through both holes in the linker. Adjust the
linker position on the pivot rod and the lift rod
length that goes into the linker before locking the lift
rod onto the linker by tightening down the screw on
linker.
Page 3
© 2016 Foremost Import LLC
CLEANING AND CARE
Care should be given to the cleaning of this product. Although the finish is extremely durable, it can be damaged by harsh
abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.
WARNING: SCRUBBING BUBBLES® BATHROOM CLEANER, LYSOL® BASIN TUB AND TILE CLEANER, and all other chemical
cleaners must not be used on the faucet body and handle. Use of these cleaners can crack and/or severely damage the faucet.
If overspray of these cleaners gets onto the faucet, immediately dry with a soft cotton cloth.
MAINTENANCE
If faucet exhibits very low flow
- Remove and clean aerator
If faucet leaks under the sink
- Inspect all supply line connections, tighten where necessary
If faucet leaks from under handle
- Remove handle. Ensure bonnet nut is tight. Clean or replace the o-ring
WARNING: Failure to securely tighten bonnet nut could result in water damage
LIMITED LIFETIME WARRANTY
Foremost Import LLC warrants to the original purchaser that its products will be free from defects in workmanship and
materials. We recommend using a professional plumber for all installation and repairs. This warranty DOES NOT COVER LABOR
CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION, REPAIR, OR REPLACEMENT AS WELL AS ANY OTHER KIND OF LOSS
OR DAMAGES. Any damage to this faucet as a result of misuse, abuse, or neglect, WILL VOID THE WARRANTY. This warranty
applies only for faucets installed in the United States of America.
Replacement parts may be obtained by writing to [email protected]
Proof of purchase from the original purchaser must be made available to Foremost Import LLC for all warranty claims. This
exclusive written warranty is not transferable.
