laguna 16HD, 16HD classic, Resaw Master, LT18, LT32 User Manual

LAGUNA BANDSAWS 16HD-37 MANUAL

LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 www.lagunatools.com

3

Chapter 1.Safety rules and warranty Pg. 4-5

Chapter 2.Getting to know your bandsaw Pg. 6-13 Specification Pg. 6 Noise emission Pg. 7 Receiving your machine Pg. 7 Introduction to bandsaws Pg. 8 What you will receive with your machine Pg. 9 Parts of the bandsaw Pg. 10-13 Where to locate your bandsaw Pg. 13

Chapter 3. Assembling your bandsaw Pg. 14-36 Unpacking your machine Pg. 14-15 Assembling your bandsaw Pg. 16-22 Adjusting the bandsaw Pg. 23-36

Chapter 4. Using your bandsaw Pg. 37-40

Chapter 5. Blades Pg. 41-39

Introduction Pg. 41 Blade terms Pg. 41-36 Blade selection Pg. 36-48

Chapter 6. Maintenance and troubleshooting Pg. 49-56

Chapter 7. Accessories Pg. 57

Chapter 8. Electrical drawings Pg. 58-62

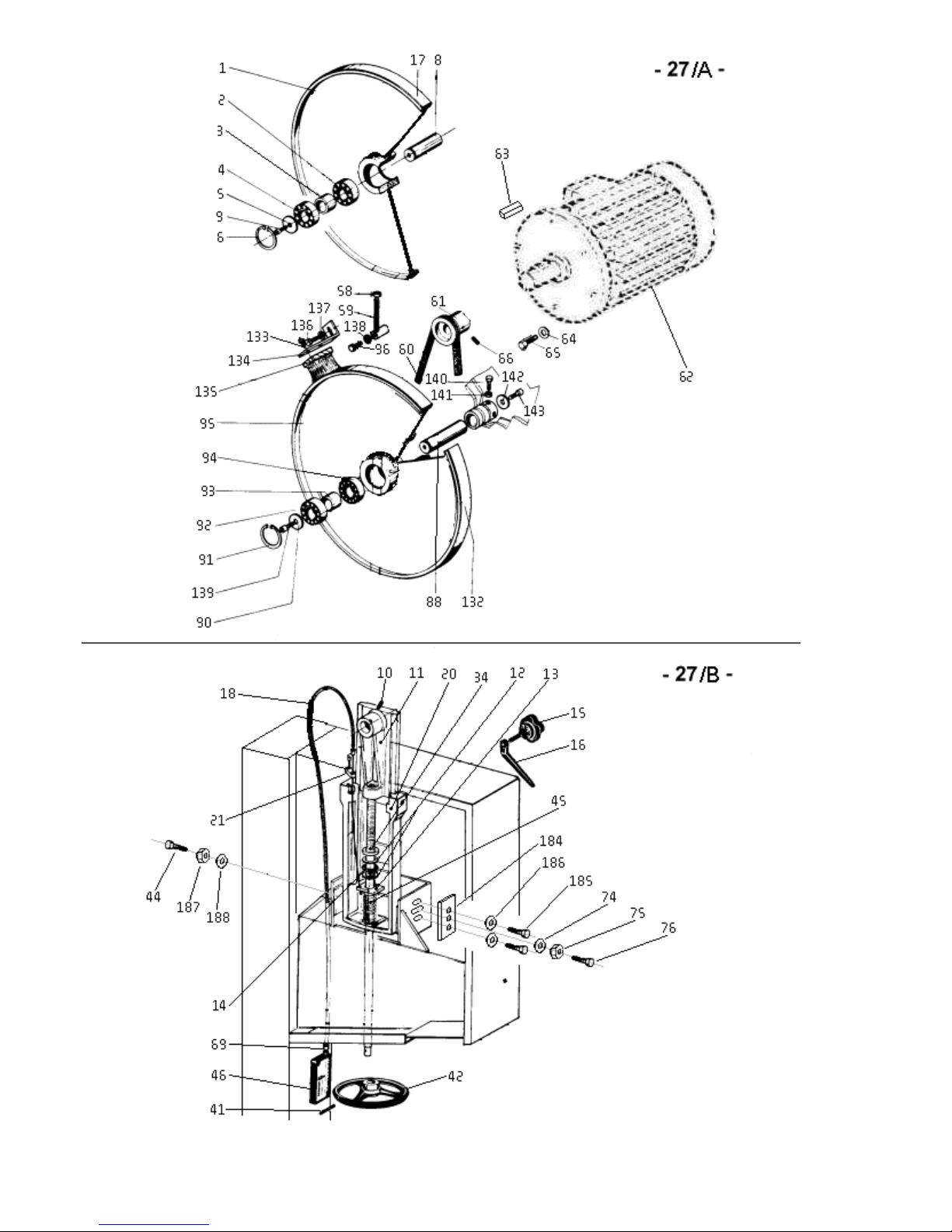

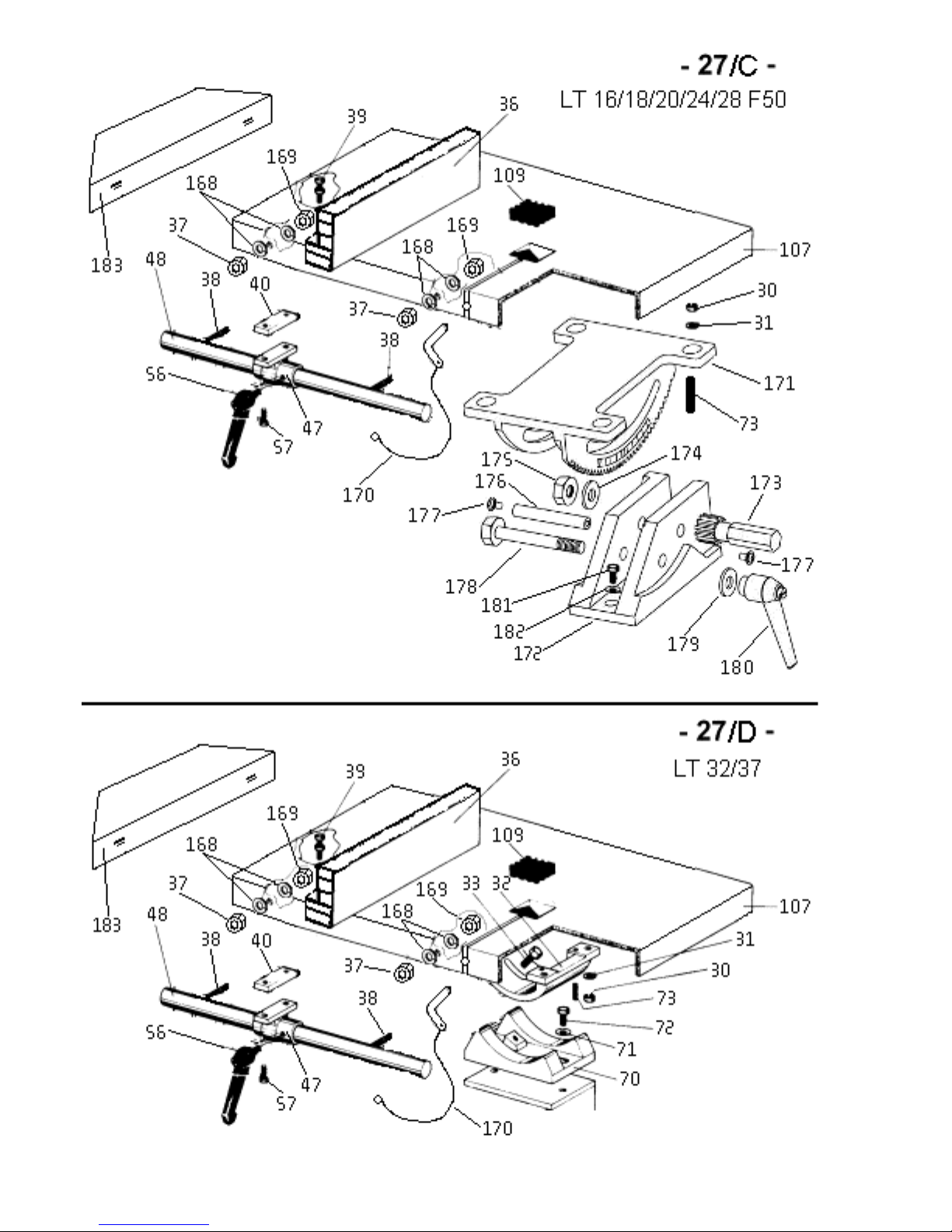

Chapter 9. Spare parts and exploded view drawings Pg. 63-64

4

Read First!!!

Safety Rules

As with all machinery there are certain hazards involved with the operation and use. Using each one with caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. If you have any questions relative to the installation and operation, do not use the equipment until you have familiarized yourself with the machine.

Read carefully before operating the band saw

1. Keep the working area clean and be sure adequate lighting is available.

2. Do not wear loose clothing, gloves, bracelets, necklaces or ornaments.

Wear face, eye, respiratory and body protection devices as indicated for the opera tion or environment.

3. Be sure that the power is disconnected from the machine before making

adjustments or fitting and removing an attachment.

4. Never leave the machine with the power on.

5. Do not use dull, gummy or cracked blades.

6. Be sure that the keys and adjusting wrenches have been removed and all

the nuts and bolts are secured.

Limited Warranty

New machines and accessories sold by Laguna Tools carry a one-year warranty effective from the date of shipping. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines and accessories sold to be free of manufacturers’ defective workmanship, parts and materials. We will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. We require that the defective item/part be returned to Laguna Tools with the complaint. Any machines returned to Laguna Tools must be returned with packaging in the same manner in which it was received. If a part or blade is being returned it must have adequate packaging to ensure no damage is received during shipping. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges. This limited warranty does not apply to natural disasters, acts of terrorism, normal wear and tear, product failure due to lack of maintenance or cleaning, damage caused by accident, neglect, lack of or inadequate dust collection, misuse/abuse or damage caused where repair or alterations have been made or attempted by others.

Laguna Tools, Inc. is not responsible for additional tools or modifications sold or performed (other than from/by Laguna Tools, Inc.) on any Laguna Tools, Inc. machine. Warranty maybe voided upon the addition of such described tools and/or modifications, determined on a case-by-case basis.

Software purchased through Laguna Tools Inc. is not covered under this warranty and all technical support must be managed through the software provider. Software is non-refundable.

Normal user alignment, adjustment, tuning and machine settings are not covered by this warranty. It is the responsibility of the user to understand basic machinery operation, settings and procedures and to properly maintain the equipment in accordance with the standards provided by the manufacturer.

Parts, under warranty, are shipped at Laguna Tools, Inc.’s cost either by common carrier, FEDEX ground service or a similar method. Technical support to install replacement parts is primarily provided by phone, fax, e-mail or Laguna Tools Customer Support Website. The labor required to install replacement parts is the responsibility of the user.

Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four hours of delivery. Please contact our Customer Service Department for more information.

Only new machines sold to the original owner are covered by this warranty. For warranty repair information, call 1-800-332-4094.

7

Measuring system

Standard ISO 7960 - annex J ( NFE 64-209 )

Measurements tolerance

< 4 dB

Working, without aspiration

L Aeq

LW (A)

Lpc

84,7 dB (A)

97,1 dBw (A)

5,1 mW (A) < 130 dB (A)

Noise emission

Notes concerning noise emission: Given that there exists a relationship between noise level and exposure times, it is not precise enough to determine the need for supplementary precautions. The factors affecting the true level of exposure to operators are clearly the amount of time exposed, the characteristics of the working environment, other sources of dust and noise, etc.: for example, adjacent machines, in other words the level of ambient noise. It is possible that exposure level limits will vary from country to country.

Measuring system Standard ISO 7960 - annex J ( NFE 64-209 )

Receiving your machine

Note: It is probable that your machine will be delivered by a third party. Before

you unpack your new bandsaw you will need to first inspect the packing, invoice and shipping documents supplied by the driver. Insure that there is no visible damage to the packing or the machine. You need to do this prior to the driver leaving. All damage must be noted on the delivery documents and signed by you and the delivery driver. You must then contact the seller [Laguna Tools] as soon as practical. If damage is found after delivery, contact the seller as soon as practical.

8

Introduction to bandsaws

This bandsaw is designed to give you years of safe service. Read this owner’s

manual in its entirety before assembly or use.

The bandsaw is generally defined as a saw blade in the form of an endless steel band that rotates around two or more wheels. This blade is a continuous metal band with teeth on one side. As the wheels rotate, so does the band, which creates the continuous sawing action. Because the direction of the blade is always downward toward the table, there is little danger [except for special cuts] that the wood will be thrown back at the operator, which is called a kickback. There is always danger of kickback when a circular saw is being used. For safety reasons many woodworkers prefer the bandsaw especially when cutting small pieces. The unique feature of the bandsaw is that the work piece can be rotated around the blade creating a curve. It is the tool most often used when curves have to be cut in wood. Because the bandsaw blade is fairly thin, it can cut thick stock with a minimum of horsepower. For this reason the bandsaw is often used when valuable pieces of wood are made into a thin piece of veneer.

9

Tool Kit

Fence, table insert, and door guard

Table

What you will receive with the bandsaw.

10

Parts of the bandsaw

The bandsaw does not have many parts. The major parts are discussed in this manual. If you are not familiar with the bandsaw, take the time to read this section and become familiar with the machine.

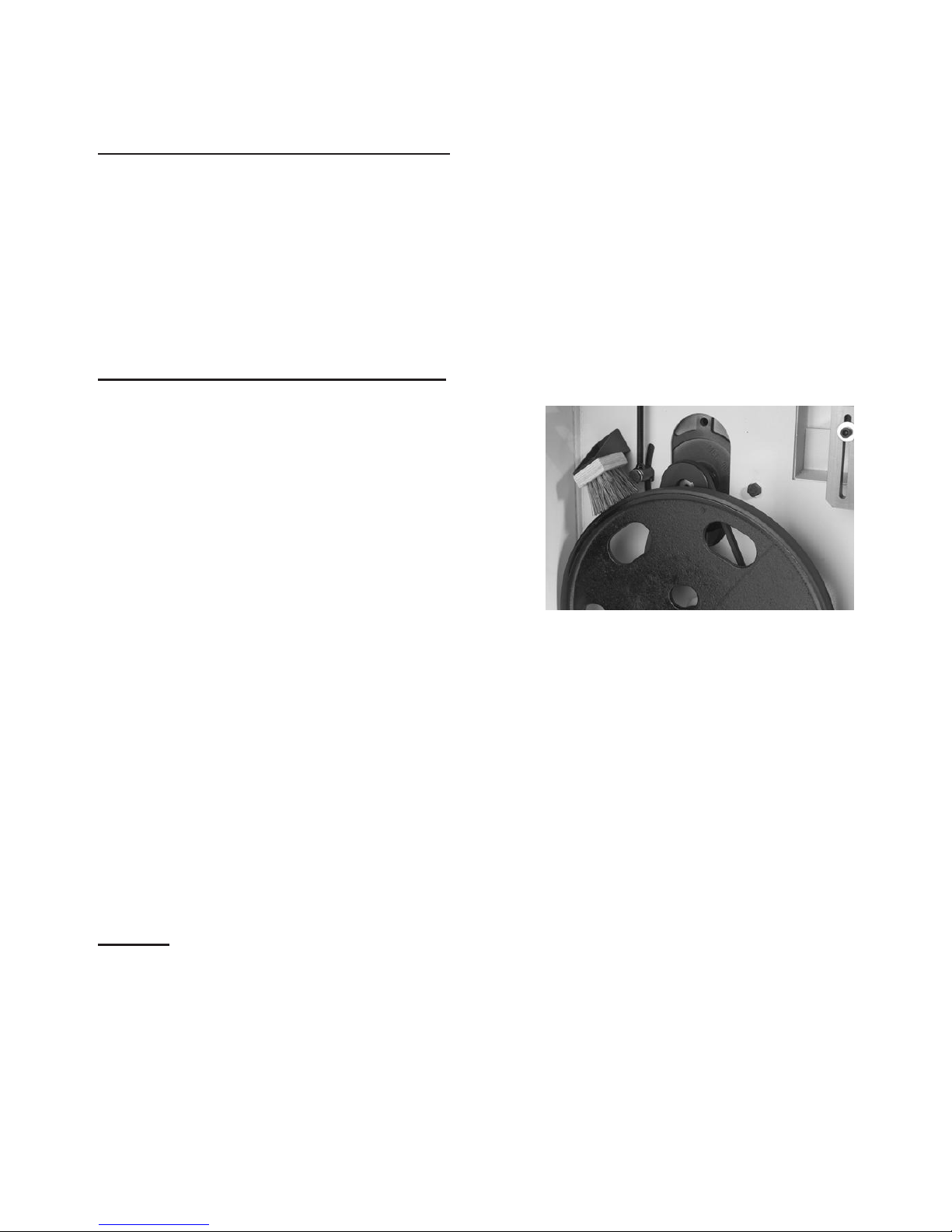

Flywheel

The blade is suspended over two wheels that are covered with rubber called a tire. The tire cushions the blade and protects the teeth from coming in contact with the metal of the flywheel. The lower wheel is the drive wheel and is attached to the motor with a rubber drive belt. The lower flywheel powers the blade and pulls the blade down through the work piece. The top wheel has two functions. One function is to balance or track the blade on the wheels, and the second one is to tension the blade. Both functions are adjustable.

11

Body

The body of the bandsaw is a "U"-shaped frame, which houses all the parts of the machine. This is the heart of the bandsaw and has to be very rigid as it takes the strain of the blade being tensioned.

Table

The table supports the workpiece and can tilt to produce cuts at various angles. It has a groove to the right-hand side of the blade which is used to guide the miter gauge. In the center there is a plastic table insert which the blade passes through. Should the blade wander off center, this table insert will protect the blade from damage as it is soft and will not damage the blade. The table also supports the adjustable fence, which is used for parallel cuts. There is an aligning pin, which joins both sides of the table and stops the table from warping [attached by a wire]. The pin must always be fitted in the table and only removed when removing or fitting a blade.

Blade guides

There are two sets of blade guides, one above and one below the table. The function of the guides is to give the blade stability and ensure that the blade movement left / right, forward / back is kept to a minimum. The guides above the table are fitted to a shaft that has vertical adjustment. The upper guides are adjustable so that the guides are held just above the job being cut. This gives the blade the maximum amount of stability and also keeps the amount of blade that is exposed to a minimum. If you are using blades narrower than ¼", you will need to purchase a cool block guide system.

Guards

When running, the blade can be very dangerous and the amount of blade that is exposed must be kept to a minimum. The machine is supplied with a number of guards all of which MUST be installed and used while the machine is running. There is a guard that is attached to the lower door and is adjustable vertically once the door is closed. There is a hinged guard on the guide vertical adjustment shaft. The guard is only opened to install or remove the blade. There is a clear plastic guard on the upper blade guide. This guard must be adjusted just above the wood being cut.

Drive

The drive [power] is supplied to the machine by an electric motor located at the back of the machine. It powers the lower flywheel through a rubber drive belt and is controlled by switches that are mounted on the frame vertical post at the front of the machine. It is also controlled by switches on the upper door and the

12

foot brake.

Electrical connection

This is achieved by connecting the electrical supply to a terminal box located at the back of the machine. Never connect directly to the electrical motor, and all electrical connections must be conducted by a qualified electrician. For detailed instructions see the assembly section of the manual.

Brake

The machine is supplied with a foot brake. It is located close to the ground on the righthand side of the machine. It has two functions. First, to remove the power to the motor, which is achieved with a switch that is mounted on the body of the machine. The second function is to slow the lower flywheel and this is achieved by applying a brake pad to the flywheel. The more pressure that is applied, the faster the flywheel slows.

Dust collection

The bandsaw produces a lot of sawdust, so extraction is very important. This is achieved by connecting a dust extraction hose to the back of the machine with a minimum capacity of 1,000 CFM.

Identification

There is a plate at the back of the machine listing all the manufacturing data including the serial number, model, blade length etc.

Tension scale

Tension scales are designed to indicate the compression of a spring. As a rule, the greater the spring compression, the greater the tension on the blade. The tension scale does not register until the blade is relatively taut and is located on the inside of the body vertical post. The tension scale is a general reference and not a rule.

Tilt and tension mechanism

The upper wheel is attached to the tilt and tension mechanism. This mechanism adjusts the wheel so that the bandsaw blade can be adjusted for tracking. This is achieved by a screwed handle at the back of the machine that pushes on the mechanism and adjusts the axis of the wheel so that it runs true with the lower wheel. The second function is to tension the blade, which is achieved by adjusting the upper flywheel vertically. A handle is located below the wheel

13

and, when rotated, will move the wheel up or down. The mechanism has a spring, which helps to keep the tension constant as the blade expands and contracts with the heat generated by the cutting action. The lower flywheel is also adjustable for tracking and has 4 bolts at the back of the machine that adjust the wheel shaft. The lower wheel is factory set and should not need adjustment.

Fence

The fence is located to the left of the blade and is used to assist in parallel cuts. It is adjustable for the drift of the blade and also the thickness of the cut.

Where to locate your bandsaw

Before you remove your bandsaw from the pallet, select the area where you will use your machine. There are no hard and fast rules for its location but below are a few guidelines.

1. There should be an area at the front and back of the machine suitable for

the length of wood that you will be cutting. If you intend to use your saw for scrollwork, this may not be important but should be considered at this stage.

2. Adequate lighting. The better the lighting, the more accurate and safely

you will be able to work

3. Solid floor. You should select a solid flat floor, preferably concrete or

something similar.

4. Close to power source and dust collection.

14

Unpacking your machine

To unpack your machine, you will need tin snips, knife and a wrench.

1. Using the tin snips, cut the banding that is securing the machine to the

pallet.

WARNING: EXTREAM CAUTION MUST BE USED BECAUSE THE BANDING WILL SPRING AND COULD CAUSE INJURY.

2. Lift the box off and discard.

3. Using the knife, cut the plastic wrap from the top. The table, motor, fence

and accessories that were ordered could be attached to the side of the machine and extreme caution must be taken that the parts do not fall and cause injury or damage. Remove them in order from the top and set aside.

4. Place the motor on the pallet behind the machine. Ensure that there is no

tension on the motor wiring. It is recommended that the motor be assembled to the bandsaw prior to removing the bandsaw from the pallet [see mounting motor]. If you decide to remove the bandsaw prior to assembling the motor to the bandsaw, ensure that there is no tension on the motor wiring at any stage of the operation.

5. Remove the base mounting bolts that secure

the machine to the pallet [shown removed].

6. It is recommended that the machine be

removed from the pallet by lifting it with a hoist or forklift. There is an eyebolt at the top of the machine, and this should NEVER be used to lift the machine. It is used to secure the machine horizontally during ship ping only and is not designed to take the load of the machine.

Place a sling through the bandsaw as shown below behind the tension-adjusting wheel and lift vertically.

Remove the pallet and lower to the floor.

The machine can be lifted using a forklift truck, sliding it onto the forks or by

using a forklift “SLING”, as shown with a lifting capability of 2,000 Kg (440lb).

15

If no lifting device is available, the machine can be removed from the pallet as follows: Note: The machine is heavy, and if you have any doubt about the described procedure, seek professional assistance. Do not attempt any procedure that you feel is unsafe or that you do not have the physical capability of achieving. With two or more people, move the machine so that the base of the bandsaw is over the edge of the pallet. Tilt the bandsaw away from the pallet so that the base of the machine touches the floor, slide the pallet from under the machine and then move the bandsaw to the vertical position so that

it is completely resting on the floor

16

Belt tensioning bolt

Mounting the motor

Two people are required to assemble the motor to the bandsaw; build up wooden blocks to the right height to rest the motor on. One person holds the motor in position, and the other will fit the drive belt and the bolts.

1. Remove the two mounting nuts on the rear of

the machine. Make sure that there are washers between the bolts and the inside face of the machine.

2. Hold the bolts to prevent them pushing through.

3. Using a block to

support the motor, guide the motor onto the mounting bolts. Insure that the drive belt is on both the motor pulley and the fly wheel pulley. The drive belt can be fitted later if you prefer, but it is preferable to assemble it at this stage. If you decide to fit the drive belt after fitting the motor, you will have to adjust the motor to its lowest position and once fitted the motor back up to the tensioned position.

4. Once the belt is mounted on both the

pulley "V" grooves, apply tension by adjusting the tensioning bolt, using the supplied 17 mm wrench. The correct tension is 3/16" deflection when using your thumb on one side of the belt. If the tension is too tight, you will experience motor strain: if it is too loose you will experience belt slippage and lack of power. After a few hours of operation it is necessary to check that the tension is correct, as the belts will bed into the "V" grooves. As a guide, the belt should have the same tension/deflection as the fan or alternator belt on your car.

17

Mobility kit

If you have purchased a mobility kit, now is the ideal time to fit it as the table has not been fitted to the machine and the bandsaw is lighter, but the mobility kit can be fitted later if you require it.

Mobility kit assembly procedure

1. Rest the bandsaw on a 2" X 4" wood or something similar.

2. Fit the shaft through the base of the bandsaw.

3. Fit the wheels, washers and split pins as shown on both sides of the base.

4. Fit the front bracket as shown. Note the number of holes in the bracket

may vary depending on the bracket supplied.

Note: The mobility kit may be supplied with 2 spacers that are used to adapt it for other machines. Discard the spacers.

Note: Leveling bolts and a flat head counter sunk screw are provided with the machine. If you are fitting a mobility kit you will not need the bolts/screw. Discard them.

18

Installing the Table

The bandsaw is supplied with a zero stop that is adjustable and comes

factory set

Insert

Two people are required to mount the table to the machine.

1. Remove the lock-down bolt, handle and

the pin from the trunnion.

2. Position the table on the

trunnion, taking care not to damage any of the table or trunnion surfaces.

3. While one person supports the

table, the other person feeds the bolts and the lock down through the trunnion slots.

4. The table can be tilted to a maximum of 45 degrees away from the

column. To angle the table, remove the table insert to allow the blade to pass through the hole. Loosen the lock-down handle, using the supplied wrench. Crank the trunnion gear so that the table moves to the required angle and lock in position. To return the table to the zero position, reverse the procedure.

Table insert

The machine is supplied with a removable table insert. The holes of the insert improve the dust collection near the blade. Adjusting screws at the bottom of the table allows the insert to be adjusted vertically so that the level between the table and the insert are level. It is recommended that the insert be replaced when the slot becomes

19

too wide; this will ensure that the job is supported efficiently and safely. When the insert is replaced, you will have to sand the sides so that the insert fits correctly in the table hole. You will also have to cut the blade slot to suit your machine.

20

Fence

The bandsaw is supplied with a cast iron or aluminum fence depending on the machine that you purchased. Assemble the fence to the cast-iron bracket with the bolts and steel block provided. Adjustment and squaring of the fence will be covered later in the manual. Slide the bracket onto the round steel bar [attached to the table]. The fence is used to the left of the blade, so ensure that it is on the correct side of the table before locking in position with the ratchet handle provided. Note: The aluminum fence can be fitted so that it can be used in high or low position [also covered later in the manual].

Dust collection

The bandsaw must be connected to a dust collection system or machine. As a general rule the stronger the extraction, the better; but 1,000 cubic feet a minute is the minimum that should be used. The diameter of the dust collection port on the bandsaw is 4". Most US standard hoses are 4" in diameter. You can purchase a step-down adaptor from Laguna Tools or from your local hardware store in the plumbing or heating department if you use a smaller hose.

21

Bottom blade guard

It is very important to have the blade covered for safety. A guard is provided at the top of the lower door. This guard must be moved vertically and clamped in position before operating the bandsaw. To open the door, the guard will have to be lowered. Should the blade break, this guard protects the

operator from the blade escaping under the table. To assemble the guard remove the thumbscrew that you will find stored on the inside of the door. Align the guard on the bolt and install the thumbscrew on the outside of the door. Foot brake

A foot brake is attached to an arm inside the machine with two bolts. As it is moved down, a switch removes power to the motor. Continued downward movement

contacts a brake pad that slows the lower flywheel. Should the blade break the foot brake only slows the lower flywheel and the upper flywheel may still be rotating, so care must be exercised when opening the doors. To assemble the foot brake, remove the bolts from the arm inside the bandsaw. Push the foot brake through the slot on the side of the bandsaw and assemble to the arm with the two screws.

Leveling the bandsaw

After you have located your bandsaw in its final position, you will have to level it [only applicable if you have not fitted a mobility kit]

1. Place a spirit level on the table. You will have to

level the saw in both directions [parallel with the saw blade and at 90 degrees to the saw blade].

2. The base of the machine is provided with four

threaded leveling holes and bolts. You can also bolt the machine to the floor [bolts not provided]

3. If you decide to bolt the machine to the floor, you will have to level it with

shims [shims not provided]. Do not over tighten the machine to the floor, as it could cause the machine to vibrate.

4. When leveling the machine that is not bolted to the floor, insert the

leveling bolts into the 4 corner holes. Make sure that you use the headless screw in the hole at the front on the lower door. If you use a bolt with a

22

head, the door will not be able to be opened.

5. Adjust the bolts so that the machine is level in both planes and does not

rock.

23

Phase

Distance

Wiring suggested

1 phase

0-10 ft

12/3

1 phase

10-15 ft

10/3

1 phase

15+ ft

8/3

3 phase

0-10 ft

12/4

3 phase

10-15ft

10/4

3 phase

15+ ft

8/4

Electrical connection

Note the machine is not supplied with an electrical cord or plug, as the size of the cable and the type of plug will be dependent on the installation.

A qualified electrician must carry out the electrical installation. The main connection should be made using the terminal box shown. Ensure that the main supply corresponds with that of the machine, single phase or threephases. Use wiring suitable for the power of the motor, which is 230 volts, and the cable is required.

All machines require the minimum of a 30-amp circuit breaker regardless of the phase.

Connect the electrical wires to the terminals opposite the wires going to the machine. On a single-phase machine you will find 3 wires. On a 3-phase machine you will find 4. On the machine you will see a wire that is yellow and green, which is the ground wire; the other colored wires are power. In either 1phase or 3-phase it does not matter what color combination you use. Green is ground; all other wiring is power (there is no neutral). On single-phase the wiring can be interchanged as you wish; it would not affect the rotation of the

24

motor. The direction of rotation of machines with a single phase supply is predetermined during production. On a 3-phase machine the lower wheel must rotate in a clockwise rotation. If it rotates in a counterclockwise direction you need to swap locations of 2 of the power leads, and it will rotate in the correct direction.

25

Before starting the machine

1. Read and understand the instruction manual before operating the saw.

2. If you are still not thoroughly familiar with the operation of the

bandsaw, get advice from a qualified person.

3. Make sure the machine is properly grounded and that the wiring codes

are followed.

4. Do not operate the bandsaw while under the influence of drugs,

alcohol, medicine or if tired.

5. Always wear eye protection, safety glasses or a safety shield, and

hearing protection.

6. Wear dust mask; long-term exposure to the fine dust created by the

band saw is not healthy.

7. Remove your tie, rings, watch and all jewelry. Roll up your sleeves;

you do not want anything to get caught in the saw.

8. Make sure that the guards are in place and use them at all times. The

guards protect you from coming in contact with the blade.

9. Make sure that the saw blade teeth point downward towards the table.

10. Adjust the upper blade guard so that it is just clearing the material

being cut.

11. Make sure that the blade has been properly tensioned and tracked.

12. Stop the machine before removing the scrap piece from the table.

13. Always keep your hands and fingers away from the blade.

14. Make sure that you use the proper size and type of blade.

15. Hold the work piece firmly against the table. Do not attempt to saw

stock that does not have a flat surface facing down, unless a suitable support is used.

16. Use a push stick at the end of a cut. This is the most dangerous time

because the cut is complete and the blade is exposed. Push sticks are commercially available.

17. Hold the wood firmly and feed it into the blade at a moderate speed.

18. Turn off the machine if you have to back the material out of an

uncompleted or jammed cut.

26

Stop switch in the on/out position (should see yellow ring)

Stop switch in the off/in position

Yellow ring showing

No yellow ring showing

Machine test

Now is the time to test the machine.

1. Close the doors. If you try to start the

machine with the doors open, the machine will not start, as the safety switch is not engaged.

2. Check that the foot break is in the fully up

position. The machine will not start if the foot break is not fully up, as the safety switch will not be engaged.

3. Check that the red safety switch is in the fully

out position.

4. Check that the machine is clear of all tools

and other loose objects.

5. Check that all the adjusting and locking

handles are tight.

6. Check that there is no blade fitted; it is far

safer to test the machine without a blade fitted.

7. Start the bandsaw by turning the start switch

fully to the right, and once started release the switch.

8. The lower flywheel is now turning.

9. Now is the time to check that all the safety

switches are functioning correctly before you fit a blade. Never complete the following tests with a blade fitted as it could cause injury.

10. With the machine running [no blade fitted],

operate the foot break. The motor should have the power removed and the lower wheel slowed down.

11. With the machine running [no blade fitted],

operate the red stop switch by pressing towards the machine. The motor should have the power removed and slowed down.

12. With the machine running [no blade fitted],

open the doors very slowly until the top door switch functions. The motor should have the power removed and slowed down. Close the door and wait for the flywheels to completely stop before you fully open the doors.

13. If any of the safety switches fail to operate correctly, do not use the

machine until the fault has been corrected.

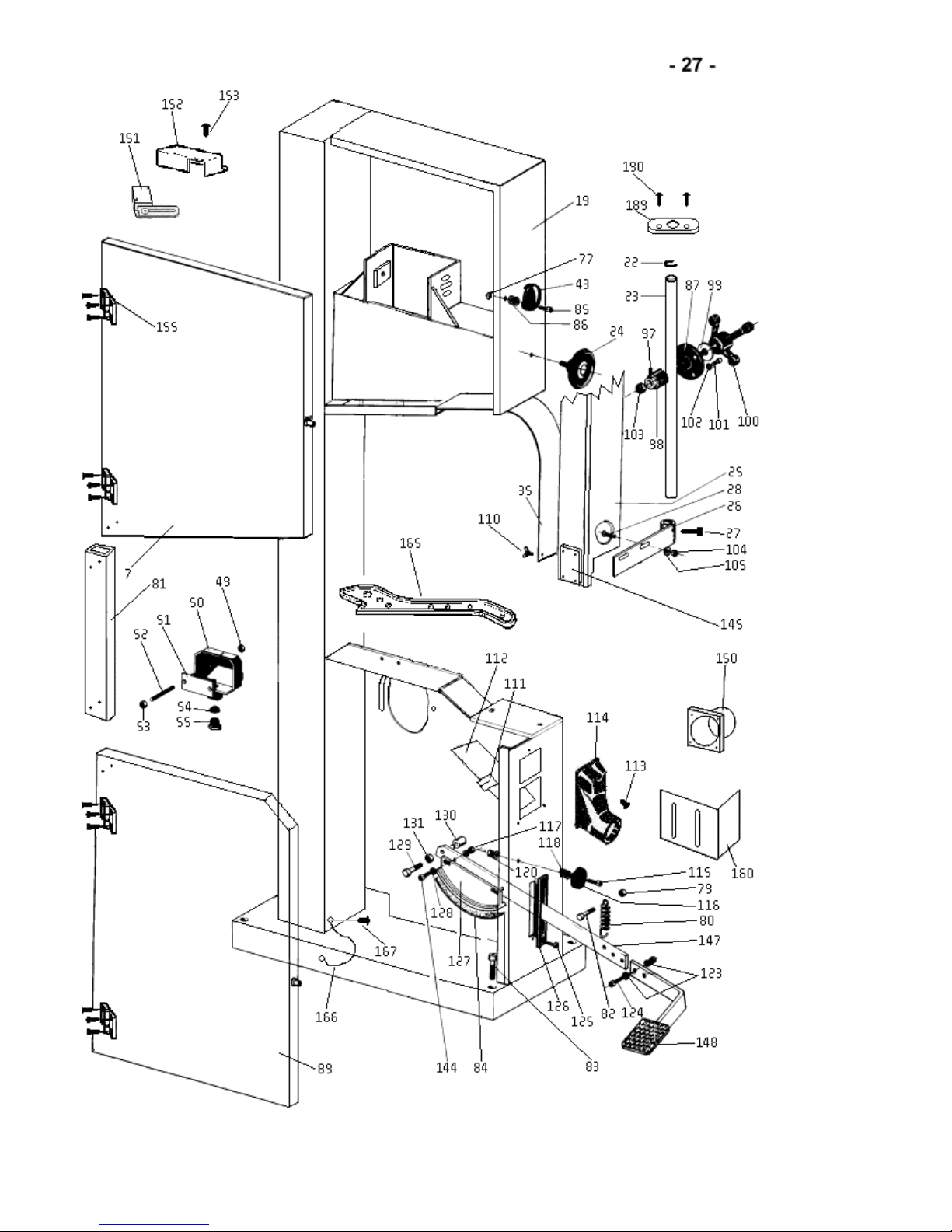

27

Adjusting the bandsaw

Fitting a blade to the bandsaw

A lot of people do not like to change the blades and go to great lengths to avoid doing it. To use the bandsaw to its greatest advantage, you will have to use the appropriate blade and track it quickly. This is a habit that can be easily developed. If you use a step-by-step method of tracking, the procedure should only take a minute or two. Be careful when using blades, especially wide ones. Always use gloves and safety glasses.

Installing the blade

Disconnect the power to the bandsaw.

Adjust the side guide and back guide out as far as they will go [both upper and lower guides]. This will ensure that they do not interfere with the blade while you are fitting, tracking and tensioning the blade.

1. Uncoil the blade. Remember to use gloves

and safety glasses. The blade may have dirt or oil on it so by using a clean rag, clean the blade and pull rearwards so that the cloth does not hook on the teeth.

2. Inspect the teeth and the general condition of

the blade. If the teeth are pointing in the wrong direction when you hold the blade up to the machine, you will have to turn it inside out. To do this, hold the blade with both hands and rotate. Remove the table pin.

3. With the hinged guard on the guide support

shaft open and the table insert removed, hold the blade with both hands with the teeth towards you. Slide it through the table slot and place it on the wheels. Hang the blade on the top wheel and then line it up with the lower wheel. If the top wheel needs to be lowered, rotate the tension handle wheel.

4. Apply tension to the blade by

adjusting the tension hand wheel. Do not fully tension the blade at this stage.

28

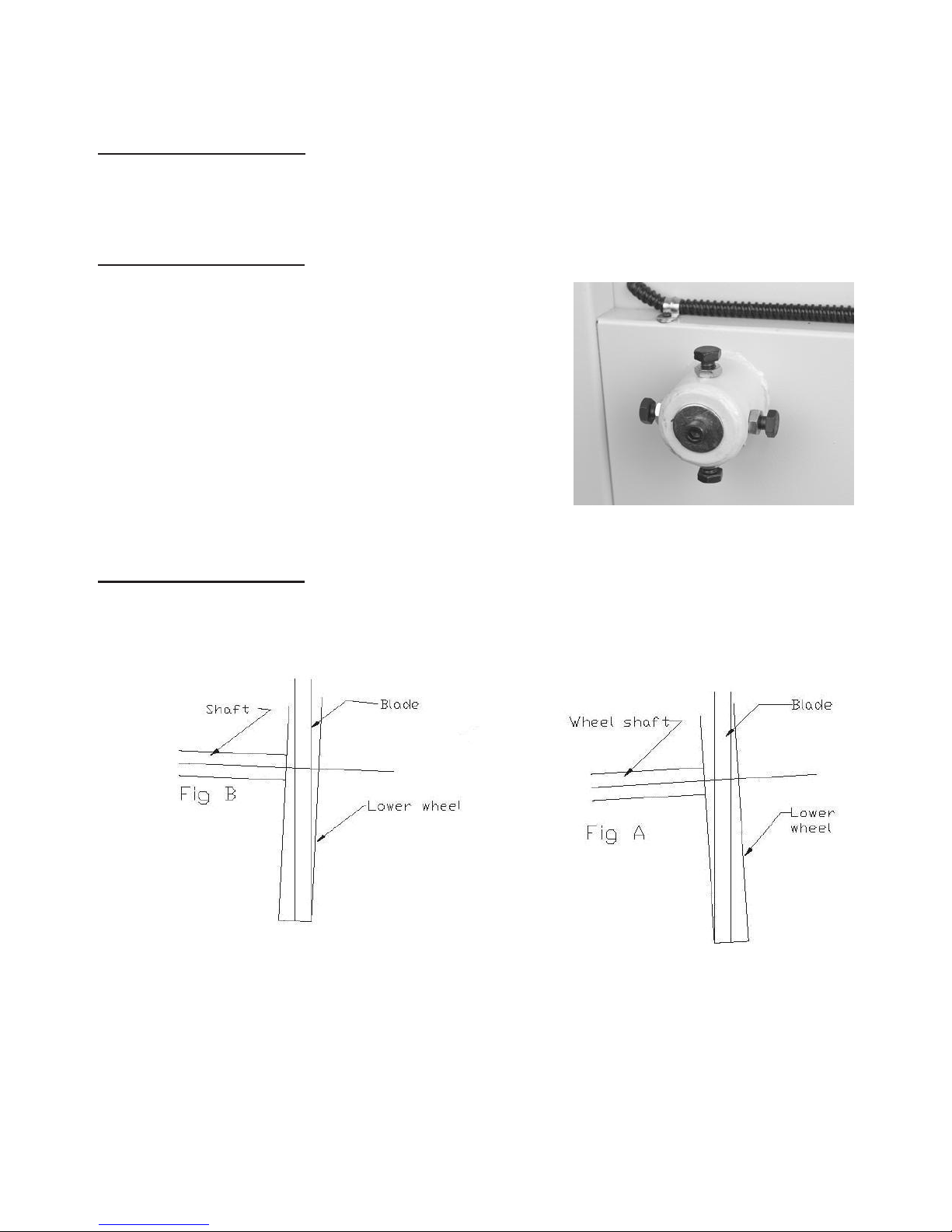

5. Start rotating the wheels by hand in the normal direction. As you do

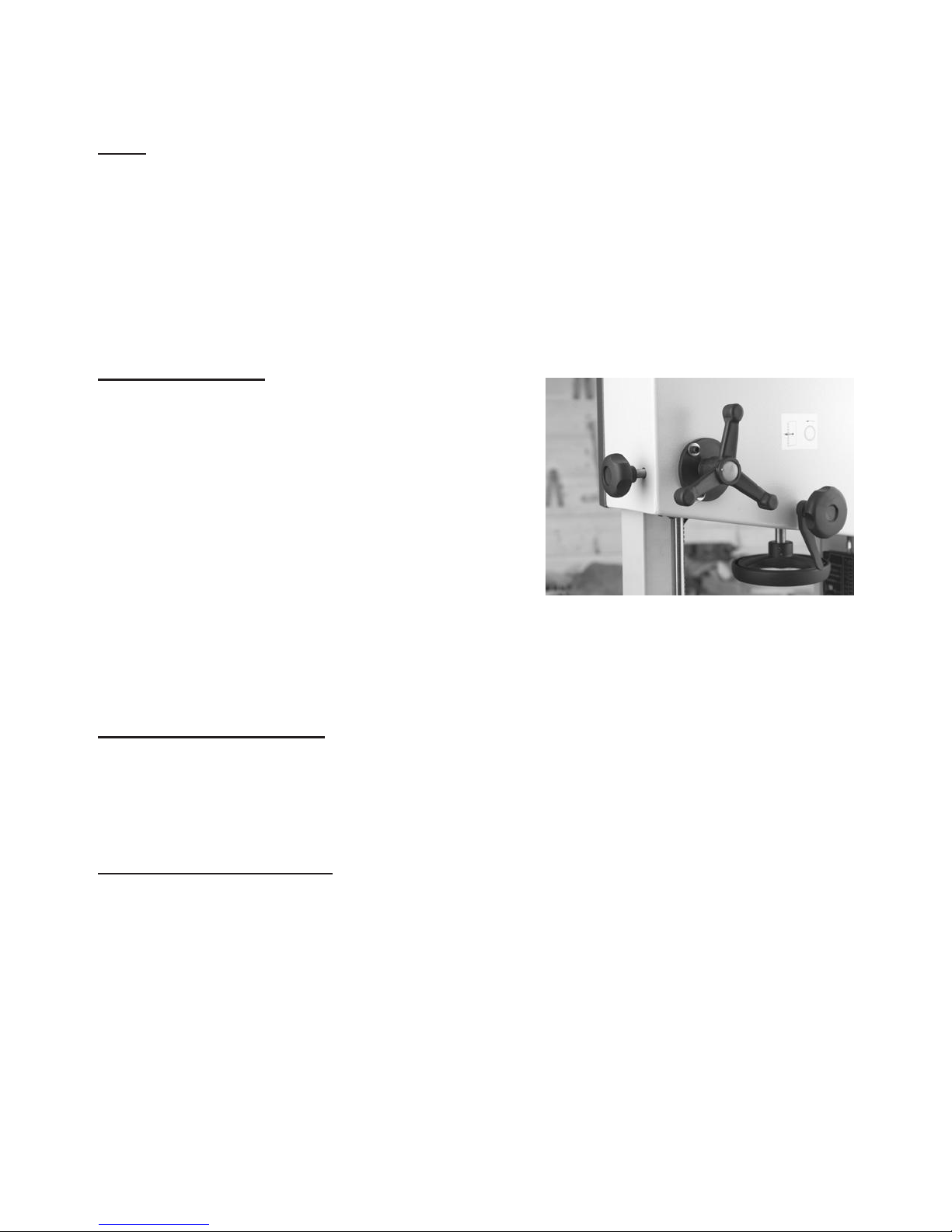

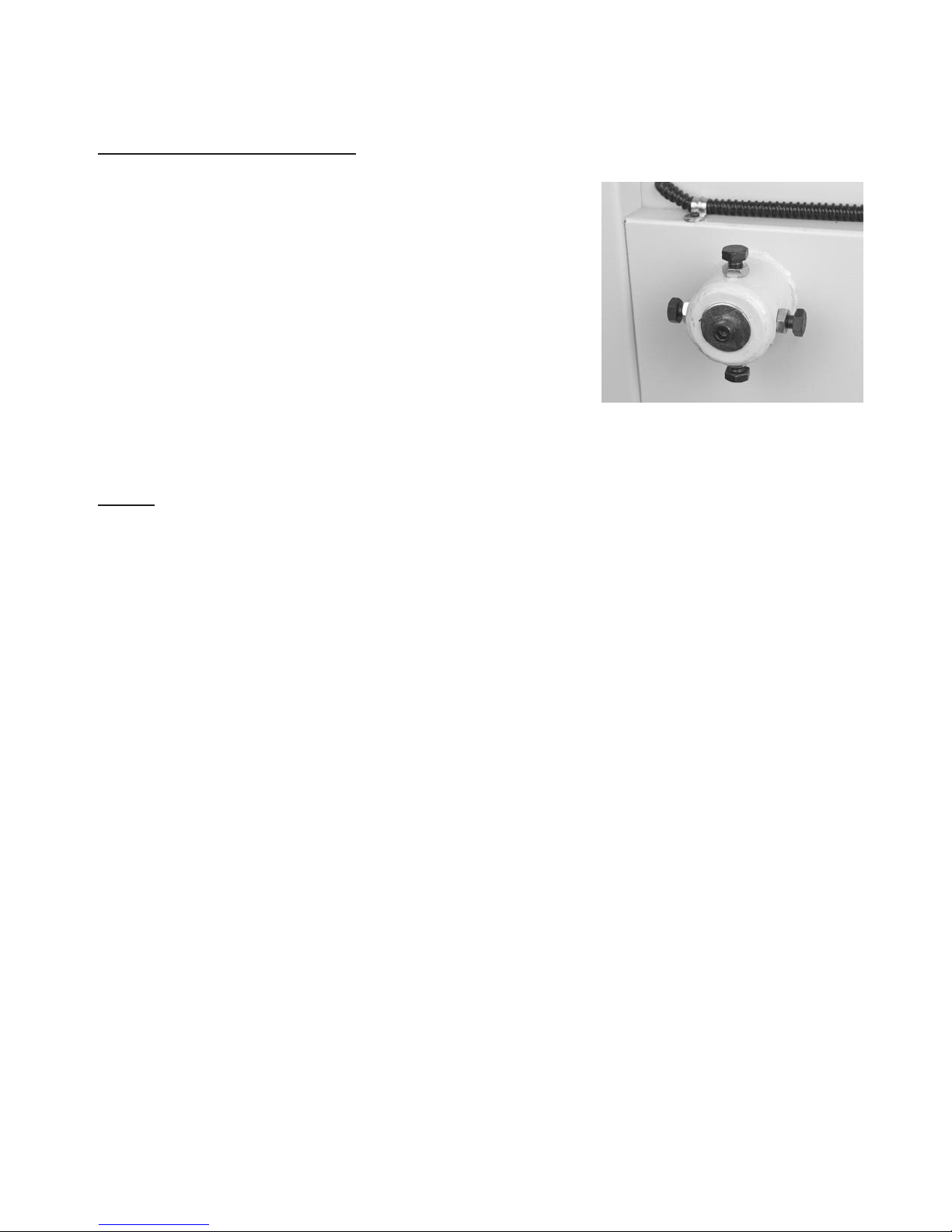

Tracking knob

Check deflection here

Tension gauge

Locking handle

this, watch the blade to determine where the blade wants to track. If the blade is tracking too far forward or backward, make small adjustments with the tracking adjustment knob located at the back of the bandsaw while still rotating the wheel. Once the blade is tracking in the correct position, fully tension the blade and re-track.

Note: The blade must be fully tensioned for final tracking. Note: Never track the blade with the saw running.

6. Lock the tracking adjustment handle.

7. Tensioning the blade The blade

tension indicator [mounted on the vertical post of the bandsaw]; is used as a general guide, and the following tensioning procedure is recommended.

Looking at the top wheel, place your finger at the 9 o'clock position. Move your finger down 6" and using moderate pressure with your thumb, press on the flat of the blade. You should get 3/16" to ¼" of deflection.

8. Note: If you are not using the bandsaw for extended periods of time

[overnight], remove the tension on the blade. This will increase the life of your blade and the machine. If tension is left on the machine, flat spots or grooves can be formed in the rubber of the wheels which will detract from the performance of the machine and in extreme cases cause vibration when the machine is run.

9. Close the guard on the upper guide support post. Close the doors

move the door blade guard up and lock in position. Replace the table insert, and check that the blade moves freely through the table insert. Replace the table pin. Check that all wrenches and loose parts are

29

removed from the machine.

10. Plug the machine into the power, turn the machine on for a second

and switch off. Watch how the blade runs. If the blade tracks well, then run the machine at full power.

30

Removing the blade from the band saw

1. Disconnect the power to the

bandsaw.

2. Remove the pin that aligns the

two table halves.

3. Open the upper-hinged blade

guard.

4. Remove the table insert.

5. Remove the tension on the upper

flywheel.

6. Open the doors and remove the

blade from the wheels [use gloves and eye protection], and gently slide the blade through the table slot.

Tracking position of the blade on the wheels

Tracking large blades. There has been a lot of discussion on the position that

the blade should be on the wheels. One group of people recommends that with large blades you should track the blade so that the teeth hang just over the front edge of the rubber. The second group recommends that all blades regardless of their size should run in the center of the wheel. The advantage of running the large blades with the teeth not contacting the rubber of the wheel is that they cannot damage the tire. The disadvantage is that the wheel is crowned and the blade is not tensioned in the center of the band, which gives the blade a tendency to wobble or flutter. The advantage of running large blades on the center of the wheels is that they are tensioned in the center of the band and have fewer tendencies to wobble and flutter. The disadvantage is that blades with a large set on the teeth have a tendency to damage the rubber of the tire. This does not have a great effect on the performance of the bandsaw as all blades are running on the center section of the tire which is not affected. We recommend that you balance all blades on the center of the wheels for optimum performance and a smoother cut.

Adjusting the blade guides

Introduction

Welcome to a new era in bandsawing. You have purchased a bandsaw with a revolutionary blade guide system [patent pending] that is designed to give you years of safe, high quality bandsawing. Most blade guides are designed to support the blade on the sides and either above or below the side guides the back of the blade. This can allow the blade to twist as pressure from the wood

31

being cut pushes against the back blade guide. The Laguna Guide eliminates this by supporting the blade above and below the back blade guide, giving the blade unsurpassed stability. The Laguna Guide also incorporates patented ceramic as the blade support material. The advantage of this material is its ability to resist wear, and with care it should give years of safe service.

32

Please read the following notes, as they will assist you in getting the optimum performance from your Laguna guide system.

1. As with the roller guide systems, the Laguna guide system will damage

your blade if it is not adjusted correctly. The guide blocks must not come in con tact with the teeth of the blade. It is advisable to run the blade by hand with the guide blocks completely clear of the blade, and only when you are completely sure that the blade is running consistently in the correct position, then adjust the surround guide blocks as detailed in this manual.

2. When fitting a new blade to your bandsaw, adjust the guide blocks and

run the blade by hand through the guide blocks for at least 2 complete revolutions. Note: The weld on a new blade may not be perfectly aligned, and the misalignment could hit the ceramic blocks [side and back], causing damage to the blocks and or the blade. If the blade has a bad weld, return it to your blade supplier or side dress and file the back of the blade as needed.

3. The back blade guide is manufactured from ceramic, so as the blade

pushes against it, friction between the blade and the ceramic occurs. This action generates a certain amount of sparks. This is normal and will reduce with time as the back of the blade guide smoothes out the back of the blade.

4. The back blade guide will slowly form a small grove as the blade is used

[this is normal]. It is recommended that for approximately every 8 hours of use the guide be rotated 15 degrees. This will insure that the grove does not become too deep and will greatly extend the life of your guide.

5. The Laguna guide system can be used with ¼" to 1¼" blades.

6. The Laguna guide system uses ceramic to support and guide the blade.

This has many advantages, [very poor conductor of heat, very resistant to wear, etc.] The disadvantage is that it is very brittle, so the guides must never be dropped, exposed to hard knocks, hit with hard objects or used with badly welded blades. Any of the above actions may cause the ceramic to chip or break and will detract from the performance of the Laguna guide system. Any mistreatment of the guide system will render the warranty void.

7. The side guide blocks must be tightened before running the machine to

avoid jamming the blade and damaging the machine and/or guide blocks.

8. When cutting gummy or green wood, the blade can become covered with

resin. You will find that the surround guide system ceramic blocks remove

33

the resin as the blade is moved through the guide blocks and keep that part of the blade clean. For this reason it is recommended that the blocks be adjusted as close to the gullet as possible but the teeth must not come in contact with the blocks as they will become damaged. Although the Guide blocks clean the blade, some woods will gum the blade and the resin will have to be removed with solvent.

34

Adjusting the blade guides

The blade should run through the center of the rear blade guide, and the side guides should be parallel with the blade. If they have been moved out of adjustment, adjust as follows:

1. Top upper side guides parallel adjustment. Loosen the clamp screw

that attaches the guide to the vertical shaft and rotate the assembly until the side guide is parallel to the blade. Retighten the clamp screw. There is no adjustment on the lower guides.

2. Centralizing the back guide to the blade. Loosen the 2 screws just above

the 2 side guide blocks and move the assembly left or right so that the blade runs through the center of the back blade guide. Retighten the clamp screws. We are now ready to adjust the guides to the blade.

Top guide

1. Rotate the blade by hand and ensure that it is

tracking consistently in the correct position.

2. Loosen the side guides.

3. Loosen the 2 clamp screws that allow the guide

assembly to move forward and back. Adjust so that the ceramic blocks are just behind the gullet of the tooth and retighten the clamp screws.

4. Gently push one side guide so that it touches the blade and lock in

position. Bring the other guide towards the blade so that there is minimal clearance between the blade and the guide. You can use a thin piece of paper to put between the blade and the guide to obtain the correct clearance until you gain experience. Tighten the clamp screws and remove the paper. Rotate the blade by hand ensuring that the weld of the blade does not hit the ceramic blocks, as this will cause damage. If the blade has a bad weld, dress the blade or return it to your supplier.

5. Loosen the rear guide clamp screw and

push the guide forward so that it just touches the back of the blade. Tighten the guide in position.

6. Rotate the blade by hand and check

that the back of the blade does not hit the blade guide with a bad weld. If the back of the blade hits the back blade guide at the weld, then dress the blade or, in excessive cases, return the blade to the supplier.

35

Lower blade guide

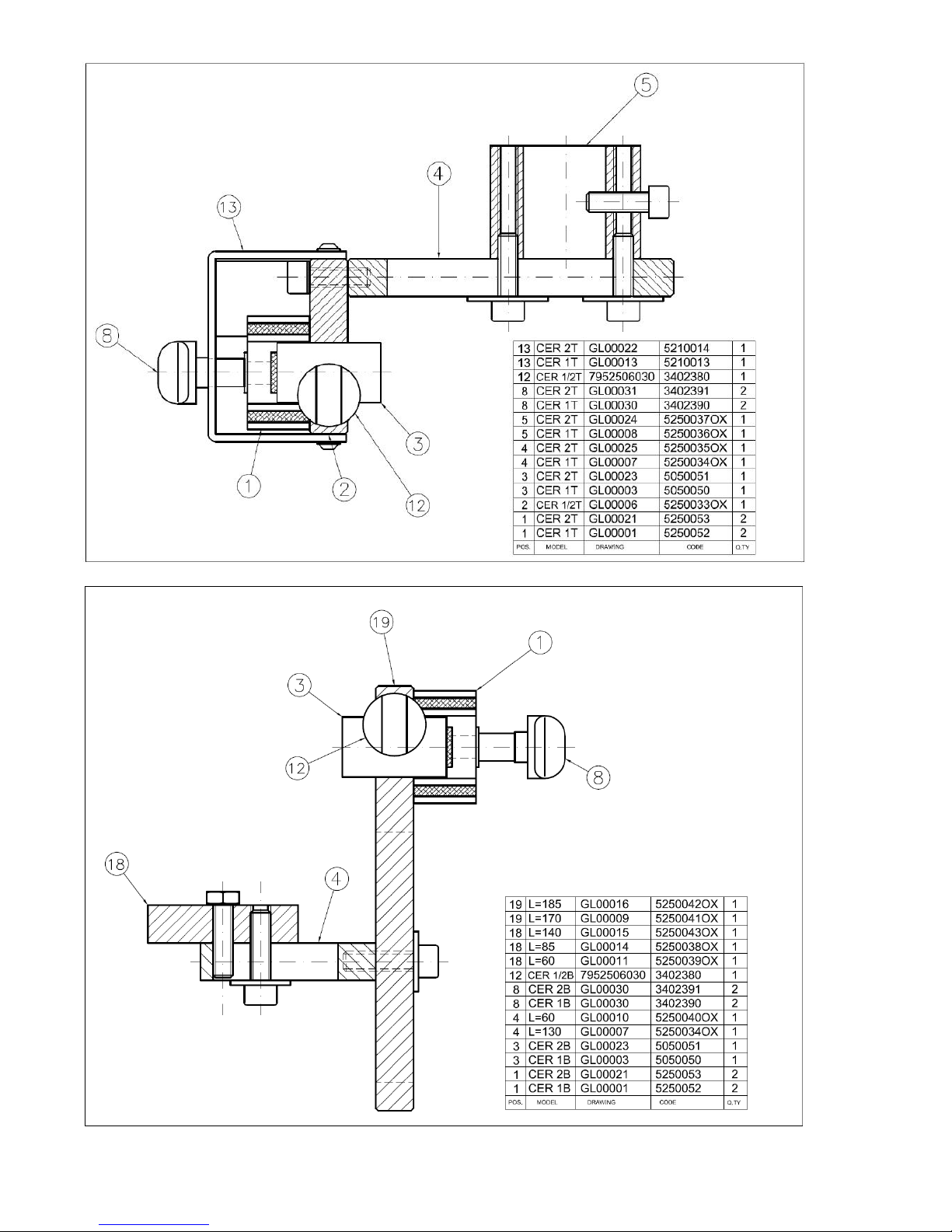

The lower blade guide is attached to a plate, which is slotted. The objective of the slots is to move the lower guide as close to the underside of the table as possible and give the blade maximum support. The shorter the distance that the blade is unsupported, the better the cut. If the bandsaw is operated with the table at an angle, the guide will have to be adjusted down as it could hit the table and reduce the amount of table movement.

1. Rotate the blade by hand and ensure that is

tracking consistently in the correct position.

2. Loosen the side guides.

3. Loosen the 2 clamp screws that allow the guide

assembly to move forward and back. Adjust so that the ceramic blocks are just behind the gullet of the blade and retighten the clamp screws.

4. Place a dollar bill or piece of paper of similar thickness between the guide

blocks and the blade. Gently bring both side guides towards the blade so that slight pressure is exerted on the blade. Tighten the clamp screws and remove the paper. Rotate the blade by hand, ensuring that the weld of the blade does not hit the ceramic blocks, as this will cause damage. If the blade has a bad weld, dress the blade or return it to your supplier.

5. Loosen the rear guide clamp screw and push the guide forward so that it

just touches the back of the blade. Tighten the guide in position.

6. Rotate the blade by hand and check that the back of the blade does not

hit the blade guide with a bad weld. If the back of the blade hits the rear blade guide at the weld then dress the blade or in excessive cases return the blade to the supplier.

Note: Rotate the back guide by approximately 15 degrees after every 8 hours of use. This will greatly extend the life of the back blade guide, as it will even out the wear.

36

Fitting cool block guide system [Optional, not supplied with the machine].

37

Before you cut any wood, read the safety rules at the front of this manual

Using the bandsaw

Although the bandsaw is usually associated with cutting curves, a variety of straight cuts are easily made with the saw. In fact, it is often used to rip wood because it is much safer than a radial arm saw and also has a smaller saw cut, so wastes less wood. This becomes very important when using expensive wood where wastage must be kept to a minimum. The cut is safer because the force of the cut is straight down on the table, the work cannot be pulled back or kicked back which sometimes happens with table or radial arm saws.

The bandsaw can also cut very thick stock, which the radial arm, or table saw cannot do. The disadvantage of cutting with the bandsaw is that the surface finish of the cut is not as good as with the table or radial arm saw. This can be overcome to a great degree by using the Resaw king blade from Laguna. The blade has a lot of advantages such as superior surface finish to the cut, thin kerf [low wood wastage], can be re-sharpened, will cut hard woods and a long life.

Ripping

Ripping is a cut made with the grain of the wood. The four most common cuts made with the grain of the wood are rip, bevel, taper and resaw cuts.

There are two frequently used techniques for making straight bandsaw cuts. One technique is to use a single point to guide the work. The rational for using a single point is that the saw may tend to cut at a slight angle. This is called drift or lead. The single point allows the operator to compensate for the drift and cut the wood straight. With a little practice, you will obtain satisfactory results using this method. However, you own a real bandsaw, so this method is not recommended.

Another method is to use the rip fence as a guide. Once set up, this takes the guesswork out of cutting, reduces the stress on the operator and is a must for volume work. Once you have mastered the setup procedure, you will tend to use the single point method less and less.

38

Adjusting the fence

Method 1

1. Make a straight pencil line on the edge of a board.

2. Feed the wood into the blade cutting next to the pencil mark. If the blade

is drifting, you will have to compensate by angling the wood to keep the cut straight.

3. Stop the cut in the middle of the wood and mark [pencil] the angle on the

table. This is the angle of drift and you will have to set the fence to the pencil line.

4. To adjust the fence, loosen the clamp bolts that attach it to the cast-iron

bracket. Move the fence so that it lines up with the pencil mark on the table and retighten the clamp screws.

39

Method 2

1. Set the fence parallel with the blade by loosening the clamp screws that

hold it to the cast-iron bracket. It is not important that it is exact as you will be readjusting later in the procedure.

2. Using a piece of scrap wood, make a cut while holding the wood against

the fence. Stop the cut in the middle of the wood.

3. Look at the position of the back of the blade within the saw cut. The back

of the blade should be in the center of the slot, but you will probably find that it is closer to one side.

4. Slightly loosen the clamp screws and adjust the fence to compensate.

5. Repeat 2, 3 and 4 until the blade is centered. Note: you may have to do

several fine adjustments, and it is better to do several small adjustments until you become skilled at the procedure. Once you have mastered the process, it should only take a minute to perform the adjustment.

Note: Each blade has a slightly different drift, and each time you change a blade, you must check and readjust if necessary.

Note: It is worth taking the time to set the fence accurately as it will save frustration and enhance the performance of your machine.

Fence positions

The aluminum fence can be used in two height positions [high and low] the low position is handy for cutting thin wood and is used were the fence in the high position would make it awkward to complete cuts. The fence in the high position is used for

supporting tall work.

Changing the fence height

1. Loosen the two clamp screws that are located on

the cast-iron bracket.

2. Slide the aluminum fence off the cast iron

bracket.

3. Slide the aluminum fence back onto the bracket

using the second slot and retighten the clamp screws.

40

Resawing

Resawing is the process of cutting a board in half along its height. The bandsaw is perhaps the most creative tool in the shop because of its ability to cut thick or thin, straight or curved. The ability to cut thick stock such as re-sawing, making veneers, book matching or cutting flitches from small logs has great appeal to the woodworker. These capabilities greatly enhance the woodworker’s design ability without the need for additional equipment. When a board is resawed and the two pieces are lying next to each other you will note that they are mirror images of each other. When these two boards are glued together, it is called book-matching.

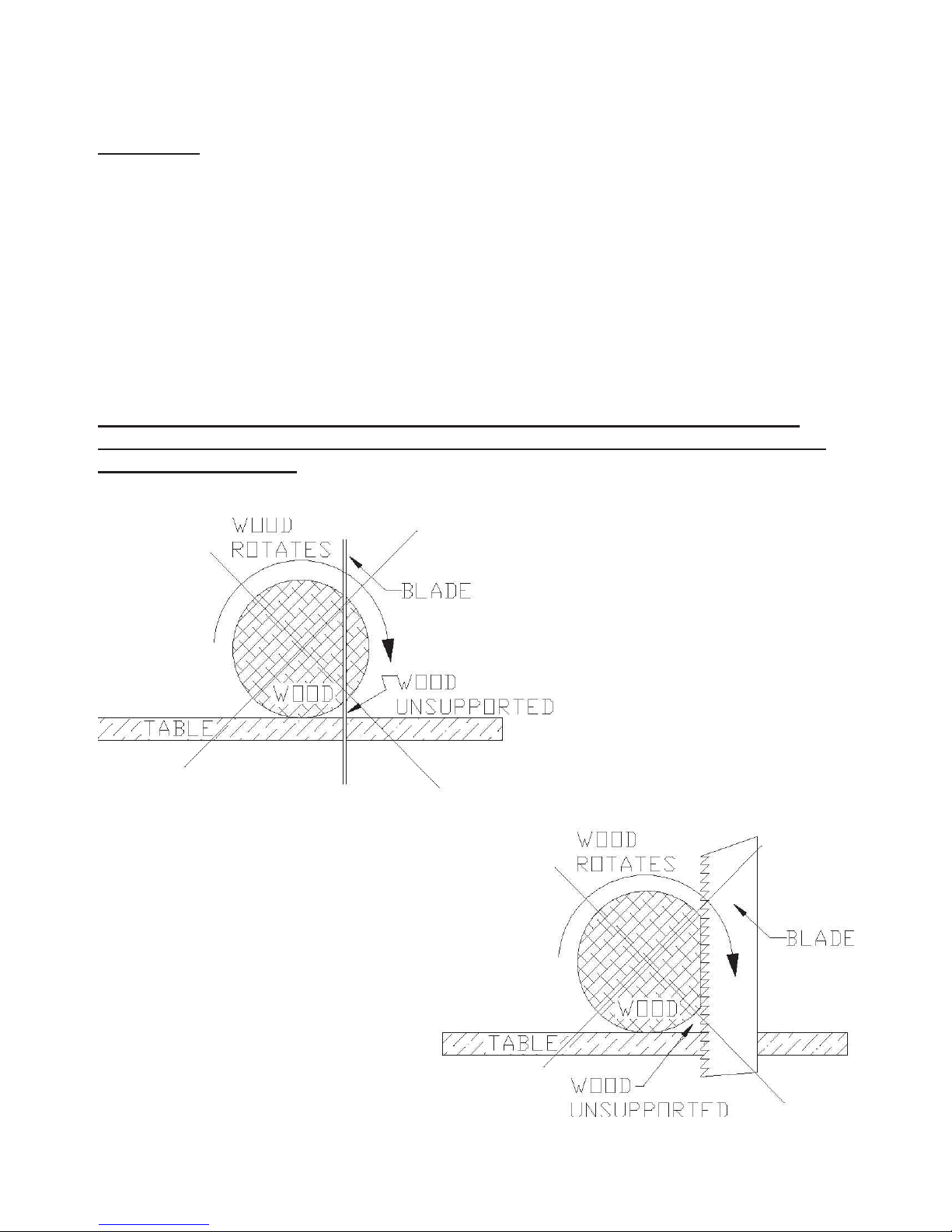

Note: It is unsafe to cut wood that is unsupported by the table and should never be attempted. This is especially important to note when cutting round logs.

41

42

Blades

Introduction

The selection and use of blades is a very extensive subject and there have been many books written on the subject. This section of the manual is intended as a general guide only.

Selecting a blade

Using the correct blade is important, as it is the first step in attaining good bandsaw performance. The most frequently asked question is "How do I decide on the correct blade to use?" The answer is not simple, and we will explore it in this section of the manual. Firstly, there is NO ideal blade that will do everything. The blades that you choose will be determined by the type of work that you are doing. Large-tooth wide blades are selected for fast course cuts, and fine thin blades are used for intricate scrollwork. You will find that you will need a large selection of blades if you do a lot of varied work and fewer blades if you are concentrating on one section of band-sawing such as re-sawing. Using the wrong blade is the best way to abuse it. Using a blade for its intended purpose allows for maximum efficiency and is the best way to prolong its life.

Blade terms

Set

The amount that the teeth are wider than the thickness of the backing material. The larger the set the larger the saw cut and the smaller the radius that can be cut. This can also be an advantage if you are cutting a job that has a tendency to nip the blade. The smaller the set, the smaller the saw cut and the larger the radius that can be cut, but the wood that is wasted is less. On tipped blades [Resaw king] there is no set as the tip is wider than the backing material

Thickness

The thicker the blade, the stiffer the blade and the straighter the cut. The thicker the band the greater the tendency for the blade to break.

43

·

Blades cut quickly.

·

A minimum amount of heat is created when the blade cuts.

·

Minimum feeding pressure is required.

·

Minimum horsepower is required.

·

The blade makes quality cuts for a long period.

Pitch

The size of the teeth. This is usually quoted in teeth per inch [T.P.I.] The larger the tooth, the faster the cut because the tooth has a large gullet and has a greater capacity to transport large amounts of sawdust through the job. The larger the tooth, the courser the cut and the poorer the surface finish of the cut. The smaller the tooth, the slower the cut as the tooth has a small gullet and can not transport large amounts of sawdust through the job. The smaller the tooth, the finer the cut and the better the surface finish of the cut

Material Hardness

When choosing the blade with the proper pitch, one factor you should consider is the hardness of the material that is being cut: the harder the material, the finer the pitch that is required. For example, exotic hardwoods such as ebony and rosewood require blades with a finer pitch than American hardwoods such as oak or maple. Soft wood such as pine will quickly clog the blade, decreasing its ability to cut. Having a variety of tooth configurations in the same width will most likely give you an acceptable choice for a particular job.

There are certain things that indicate if a blade has a proper pitch, too fine a pitch or too coarse a pitch. Some are listed below:

Proper Pitch

Pitch is Too Fine

The blade cuts slowly.· There is excessive heat which causes premature breakage or rapid dulling.· Unnecessarily high feeding pressure is required.· Unnecessarily high horsepower is required.· The blade wears excessively.

Pitch that is Too Coarse

The blade has a short cutting life. The teeth wear excessively. The bandsaw vibrates.

44

Width

The dimension from the back of the blade to the front of the teeth. The wider the blade, the stiffer the blade and the straighter the cut. This is usually called beam strength. But wide blades cannot cut small radiuses.

The narrower the blade, the more flexible the blade and the greater the tendency the blade has to wander. They have low-beam strength, but can cut small radiuses. Blades are available from 1/16" up for your machine, but for very narrow blades the normal guides have to be replaced with cool blocks [not supplied with the machine].

Kerf

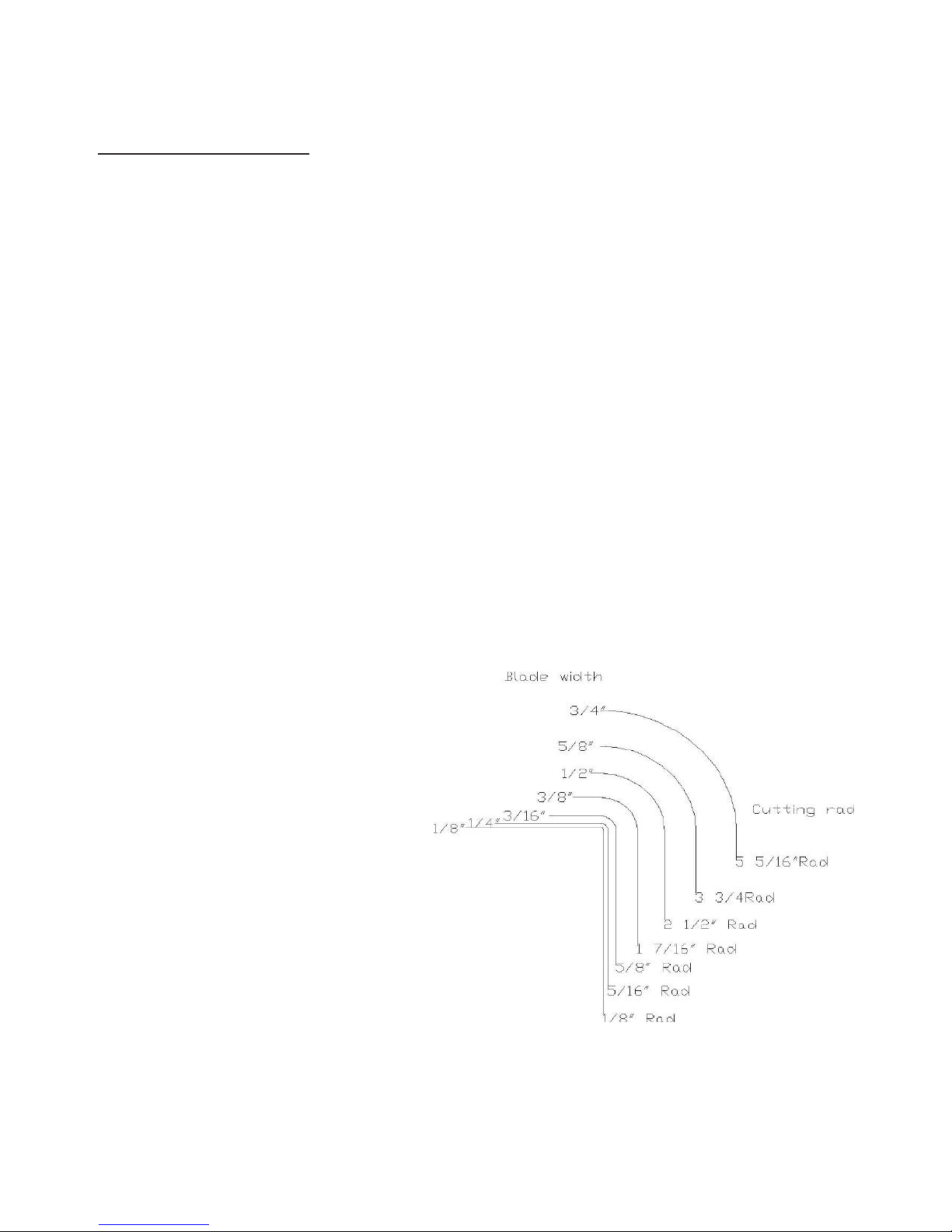

The width of the saw cut.The larger the kerf, the smaller the radius that can be cut. But the greater the amount of wood the blade has to be removed by the blade and the greater the horse power that is needed as the blade is doing more work. The greater the kerf, the larger the amount of wood that is being wasted by the cut.

Hook or rake

The cutting angle or shape of the tooth. The greater the angle, the more aggressive the tooth and the faster the cut. But the faster the cut, the faster the tooth will blunt and the poorer the surface finish the cut will have. Aggressive blades are suitable for soft woods but will not last when cutting hard woods. The smaller the angle, the less aggressive the tooth, the slower the cut and the harder the wood that the blade is suitable to cut. Hook teeth have a progressive cutting angle and take the form of a progressive radius. They are used for fast cutting where finish is not important. Rake teeth have a flat cutting angle and are used for fine surface finish of the cut.

Gullet

The area for the sawdust to be transported through the wood in. The larger the tooth [pitch], the bigger the gullet.

Relief

The angle from the tip of the tooth back. The greater the angle, the more aggressive the tooth but the weaker the tooth.

45

Beam strength

This is the ability of the blade to resist bending backwards. The wider the blade the stronger the beam strength, therefore a 1" blade has far greater beam strength than a 1/8" blade and will cut straighter and is more suitable for resawing.

Blade selection

As you will have seen from the previous section there are a great number of variables. The blade selection that you will make will greatly depend on the type of work that you are doing or intend to do with your machine. If you have experience with the bandsaw, you will probably have a good idea of the blades that are suitable for you. If you lack the experience or are unsure of the type of work you will be doing with your machine, we recommend that you purchase a selection similar to that listed below which is a good general selection and will tackle most jobs. As you gain experience, you will settle on the blades that suit you.

1. ¼" 6 T.P.I. This is a small aggressive blade that is suitable for tight

curves and fast cutting where good surface finish of the cut is not important.

2. ¼" 14 T.P.I. This is a small fine blade suitable for reasonably tight cuts

were the surface finish is important but speed of cut is less important.

3. ½" 3 T.P.I. This is a general-purpose blade that can cut large radiuses

and short sections of straight cuts. The cut is fast and the surface finish of the cut is poor.

4. ¾" 3 T.P.I. This is a general-purpose blade, which will be used for

straight cuts and is suitable for large radiuses.

5. 1" 2 T.P.I. This is a re-saw blade, which will be used for straight cuts and

is suit able for processing veneers.

6. If you are going to be cutting hard woods or require superb surface finish

then you should consider purchasing a Resaw king blade from Laguna.

46

Rounding the back of the blade

With most guide systems it is recommended that the back of the blade be rounded with a stone. As the machine is supplied with Laguna ceramic guides, this is not imperative as the ceramic will round the back of the blade as it is used. However, if you decide that you want to round the back of the blade, below is a procedure.

A round blade back creates smooth interaction between the thrust bearing and the blade. If the blade rotates slightly, there is no sharp blade corner to dig into the thrust bearing; also, the rounding process smoothes the weld. A blade with a round back makes tight turns better because the round back has smooth interaction with saw kerfs. After the guides have been adjusted and the machine is running, hold the stone against the back corner of the blade for about a minute. Wear safety glasses when rounding the blade. Then, do the same thing on the opposite corner. Next, slowly move the stone to round the back. The more pressure you put on the back, the faster you will remove the metal. Be careful that the inside of the machine is free of sawdust because sparks could start a fire. On small blades such as a 1/8" blade, the pressure on the back of the blade may bring the blade forward off the front of the wheels. Therefore be careful not to put too much pressure on the stone. When doing this, it is also important that the upper guides are positioned right above the stone.

The blade has teeth and extreme caution must be exercized, as your hands will be very close to them.

Causes of Blade Breakage

 Excessive blade thickness in relation to the flywheel diameter.  Defective welding.  Incorrect tension, particularly if the blade is over tensioned, the tension

spring no longer fulfills its function.

 After use it is recommended to slacken the tension, especially overnight

(placing a visible notice of this operation).

 Misalignment of the flywheels.  Irregularity of flywheel surface, e.g. an accumulation of sawdust while

cutting resinous materials.

 You can correct these problems by readjusting the machining, changing the

way you operate it, or by changing the blade. Try only one change at a time.

47

Causes of the blade dulling

 Poorly set side guides and/or rear thrust guide.  Poor tracking.  Wrong blade selection. If the blade is too narrow, it will flex more easily and

decrease the quality of the cut. The blade should also have the correct pitch and width.

 The tooth pitch is too fine (too many teeth per inch).  Certain woods will dull a steel blade very quickly, specially tropical

hardwoods [teak, koa, etc]. Other woods with a high silicon content will also

dull the blade quickly; even a cut as short as 6” will cause damage to the

blade.

 On certain exotic woods the ends have been painted. This is done to control the drying.

The paint is very abrasive and will dull the blade is you cut through it. It is recommended that you cut the painted ends off your wood.

48

Using a radius chart

Until you become well acquainted with your saw it is best to use the contour (radius) chart to determine which size blade to use for a specific application. Radius charts can be found in many woodworking books, magazine articles, and on blade boxes. They differ slightly from one another but are good as rough indicators of how tightly a curve can be cut with a particular blade. Each blade saw, and operator is different so it is impossible to make a truly accurate chart. A blade can cut continuously without backtracking any curve that has a radius as much as or more than is shown on the chart. For example: a 3/16" blade will cut a circle with a 5/16" radius or a 5/8" diameter. To test if a 3/16" blade would work for a particular curve place a dime, this is roughly 5/8” over the pattern. The 3/16" blade can cut a curve bigger than the dime, but not smaller. You can use everyday items such as coins or a pencil to determine which blade to use. A quarter is the size of the tightest cut that can be made with a ¼" blade. A dime is the size of the tightest curve that can be cut with a 3/16" blade. A pencil eraser is the size of the tightest turn that you can make with a 1/8" blade. After a while you won't even need an object to size the possible curve of a blade because you will have become familiar with this process. There are options to matching the blade to the smallest curve pattern. If there is only one very tight cut, it may be best to use a turning hole, a relief cut, successive passes, or to change the blade. If you have a lot of cutting to do, you can use a wider blade for the bigger curves and then switch to a narrower blade for the tighter curves. Changing the blades can often save cutting and finish time.

The chart to the right, is only a rough guide and is not to scale, but from the information you can construct your own guide.

49

Maintenance and troubleshooting

All tools and machines require regular maintenance, and the bandsaw is no exception. This section details the general maintenance and care of your bandsaw. In general, we recommend that you only use a Teflon-based lubricant on the bandsaw. Regular oil attracts dust and dirt and the Teflon tends to dry and has fewer tendencies to accumulate dirt and sawdust on your machine.

Cleanliness and tire maintenance

One of the major concerns is the cleanliness, in particular, how clean the tires are. As the saw cuts, some sawdust lands on the tire of the lower wheel. As the wheel rotates, the sawdust becomes compressed on the tire. This is especially true for woods such as pine. The compressed sawdust could have a negative effect, such as vibration, short blade life and cause the blade to drift.

A brush contacts the lower wheel and helps to prevent buildup. You should inspect the tires regularly to check that buildup is not happening, especially the lower wheel. The tires are made of rubber and wear just like car tires. They wear in the middle, which causes a concavity in the tire. The deformation makes it hard to track the blades, and for this reason it is important to maintain the original shape of the tire.

The best way to clean the tire surface and maintain the original shape is to sand it with sand paper. The old tire surface often hardens and glazes over and should be redressed occasionally. This can be done by sanding the wheel with 100-grit sandpaper. This will take off a little of the rubber and expose new rubber, which is desirable. Rotate the wheels by hand with the blade removed.

Guides

The ceramic side and back guides should be inspected regularly for cracks and chips. If they are damaged, they should be replaced as they could damage your blades and bad guides will detract from the performance of the bandsaw. The guides should be cleaned regularly and any wood gum or dirt removed. Any commercially available solvent can be used, and after cleaning they should be lubricated with Teflon-based lubricant.

50

Drive belt/s

The drive belt should last for many years [depending on the usage] but needs to be inspected regularly for cracks, cuts and general wear. If damage is found, replace the belt. If your machine is a 2-belt system, then both belts must be replaced at the same time, as they are a matched pair. Never change only one belt as this could cause vibration.

Replacing the drive belt(s)

To replace the belt/s you will have to remove the lower wheel.

1. Remove the allen screw that clamps the wheel to the axel.

2. Using a gear puller remove the lower wheel. Take care not to damage

the clamp screw thread.

3. Replace the drive belts.

4. Refit the lower wheel and re-clamp with the allen screw.

It is better to replace the drive belt/s early than to have a breakdown during an important job.

Table insert

The table insert [throat plate] is made of plastic and is designed not to damage the blade should they come in contact. If the blade slot becomes too wide or the insert becomes damaged by the blade, it should be replaced. The replacement insert will have to be fitted to the table hole, and you will have to sand the sides. You will also have to cut the blade slot, and this should be done prior to sanding the sides as the insert could spring and change size. The table is provided with 4 jacking screws that can be adjusted so that the insert is level with the top of the table.

Bearings

All bearings are sealed for life and do not require any maintenance. If a bearing becomes faulty, replace it.

51

Rust

The bandsaw is made from steel and cast iron. All non-painted surfaces will rust if not protected.

It is recommended that the table and fence bar be protected by coating with wax if the machine is not in constant use. All moving non-painted surfaces [guides, rack and pinion, etc.] should be lubricated / protected with a Teflon-

based lubricant.

Rack and pinion

The band saw is fitted with a rack and pinion, which rises and lowers the upper guides. It should run smoothly. If there is excessive play or it is too tight, the following adjustment can be made.

1. Loosen the 3 allen screws that clamp

the vertical adjustment handle to the band saw.

2. There is clearance in the holes and the

vertical adjustment handle can be adjusted.

Note: the machine comes factory-set, and no adjustment should be required.

Lower wheel tracking

This adjustment is achieved by loosening the shaft clamp screw and moving the shaft with the 4 bolts provided. The two vertical bolts control one axis and the two horizontal bolts control the other axis.

Adjustment procedure

Install a blade, tension and track. Use a 1/4” wide blade. Note the position of the blade on the lower wheel.

52

Vertical adjustment

Mark the bolts so that you have a reference to their original position. If you get confused, you can go back to the original position.

Correction for fig. A

Loosen the shaft clamp screw that is positioned in the center of the 4 adjusting bolts. Loosen the top vertical bolt ¼ turn and tighten the bottom bolt. Do not try to do big adjustments, but rather complete several small adjustments. Turn the wheel by hand and notice the change in position of the blade on the lower wheel. Repeat the adjustment procedure if required. Once the adjustment is completed retighten the shaft clamp screw.

Correction for fig. B

The procedure is the same as for Fig. A, but loosen the bottom bolt and tighten the top bolt.

53

Correction for horizontal

If the right-hand side of the wheel needs to come forward. Loosen the shaft clamp screw that is in the center of the 4 adjusting bolts. Loosen the bolt that is directly behind that side of the wheel ¼ turn and tighten the bolt opposite. Turn the wheel by hand and notice the change in position of the blade on the wheel. Repeat the adjustment procedure if required. Once the adjustment has been completed, tighten the shaft locking screw. If the left-hand side of the wheel needs to come forward, the procedure is the same as above, but loosen the left-hand bolt and tighten the right hand side bolt.

Note: Before connecting the machine to the power, ensure that all bolts and locking nuts are tight, including the shaft clamp screw.

54

Top guide vertical adjustment shaft

The top guide when moved vertically tracks the blade and comes factory-set. Adjustment is provided should that mechanism become misaligned. There is a plate at the top of the shaft with two bolts. This guides the top of the shaft. If the bolts are loosened the tracking of the guide can be adjusted. This is a tricky operation and should only be attempted if an extreme error has occurred.

Adjustment procedure

1. With the guide at its highest position, adjust the side guides so that there

is approximately 1/16” clearance on each side.

2. Adjust the back guide so that it is 1/16” behind the back of the blade.

3. Attach a piece of paper to the table with scotch tape/ masking tape in the

area covered by the blade guide.

4. Lower the guide and mark its position on the paper. This will give you a

reference point to work from.

5. Move the guide up and down and note any change in the relationship

between the blade and the guide [both side and back].

6. Only if adjustment is needed, loosen the two bolts on the guide plate &

move the guide back / forward, left / right depending on the adjustment needed.

7. Tighten the two bolts on the guide plate, move the guide up, down,

noting the relationship between the blade and the side and back guide.

8. If the adjustment needs to be refined, repeat the procedure.

Troubleshooting Bandsaw will not start

1. Check that the start switch is being turned fully to the right.

2. Check that the red stop switch is fully out. Press the switch in and then

pull the switch out. You will then hear a click.

3. Check that the electrical power cord is plugged into the power outlet.

4. Check that the electrical supply is on [reset the breaker].

5. Check that both doors are closed.

6. Check that the foot brake is fully in the up position.

7. With the power disconnected from the machine, check that the wiring in

the terminal box is correct. Check that the rubber insulation is stripped enough and is not causing a bad connection. Check that all the screws are tight.

8. Test the safety circuit. With the power disconnected from the machine,

use a multi-meter / circuit tester, to check that there is continuity

55

between 5L3 [red wire] and the red wire beside 2T1. To gain access to the terminals, you will have to remove the switch plate from the front of the machine. This circuit is a loop that has the foot brake, stop switch and door switch. It is designed to be fail-safe, and any switch that is not functioning or set correctly will cause the machine not to start. If there is no continuity you will have to trace the switch that is open or faulty and correct the fault.

9. Check that you have the correct power 220V not 110V

10. Check that the earth wire is wired correctly.

The machine will not stop

This is a very rare occurrence as the machine is designed to be fail-safe. If it should occur and you cannot fix the fault, seek professional assistance. The machine must be disconnected from the power and never run until the fault has been rectified.

1. Stop switch faulty. Replace the stop switch.

2. Internal breaker faulty. Replace the breaker.

Motor tries to start but will not turn

1. With the power disconnected from the machine open the doors and try to

turn the wheel by hand. If the wheel is not turning, check the reason for the jamming. Typical reasons are: guides too tight, wood jammed in the wheel.

2. Capacitor faulty. Replace the capacitor.

3. Motor faulty. Replace the motor.

Motor overheats

The motor is designed to run very hot, but should it overheat it has an internal terminal overload protector that will shut it down until the motor has cooled down and then it will reset automatically. If the motor overheats, wait until it has cooled down and restart. If the motor shuts down constantly, instantly check for the reason. Typical reasons are dull blade, over feeding the wood, motor cooling fan clogged or faulty, motor cooling fins clogged and excessive ambient temperature.

Squeaking noise

1. Check that the motor cooling fan is not contacting the fan cover.

2. Check the bearings.

3. Check the drive belt.

4. Check that the guides are adjusted correctly.

Upper guide shaft is tight or loose

1. Clean and lubricate.

56

2. Adjust rack and pinion.

3. Bent rack. Replace the rack.

Blade slows down during a cut

1. Loose drive belt. Re-tension the belt.

2. Dull blade. Replace the blade or have it re-sharpened.

3. Feeding the wood too fast. Slow down the feed rate.

4. Insufficient set on the teeth [wood nipping the blade]. Change blade for a

blade with the correct set.

5. Oil or dirt on the drive belt. Clean or replace the drive belts.

6. Fence not aligned correctly. Align fence.

Blade will not track on fly wheels

1. Bad blade. Change the blade.

2. Crown on the wheels worn or damaged tire. Dress the tires.

3. Wheels not co-planning. Adjust the lower wheel.

The blade kicks

Bad blade. Replace the blade.

The blade makes a clicking noise

Bad weld. Dress the weld or change the blade.

Blade overheats

1. Dull blade. Change the blade or re-sharpen the blade.

2. Pitch is too small for the depth of cut. Change to a blade with the correct

pitch.

3. Guides too tight. Adjust the guides.

4. Wood too hard for the selected blade. Change the blade.

5. Blade too thick for the diameter of the wheels. Change the blade.

Machine vibrates

1. Machine not level on the floor. Re-level the machine ensuring that it has

no movement.

2. Damaged drive belt. Replace the belt.

3. Double drive belt system. Only one belt changed and the belts are not

balanced. Replace both belts with a matched pair.

57

Accessories

The following accessories are available from Laguna Tools. Miter gage Mobility kit. Extension tables. Work benches. Tool cabinet [wall mounted]. Tool cabinet [floor standing]. Tool box. Bandsaw blades. Cool blocks. Cast-iron fence. Large Laguna Guides. Power feeder.

58

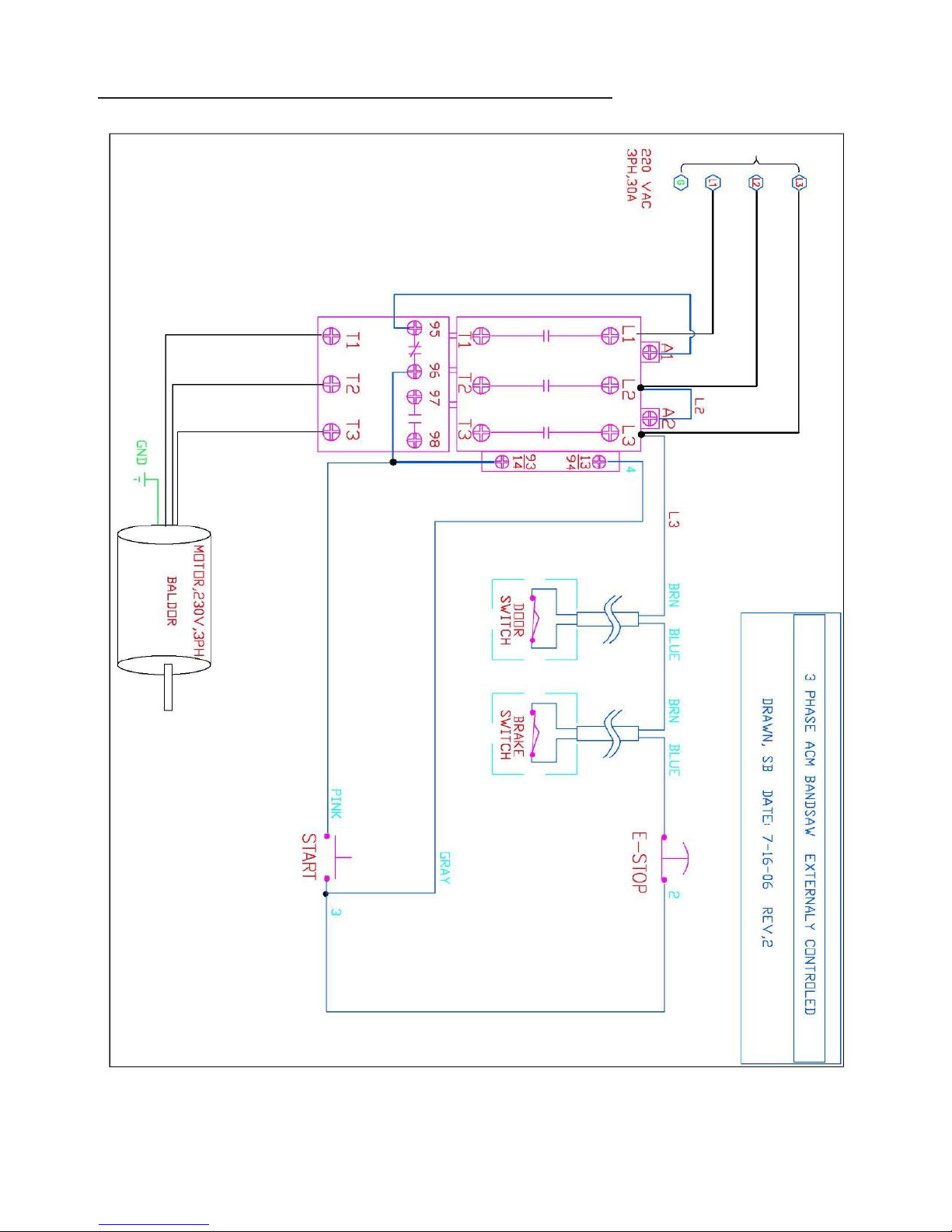

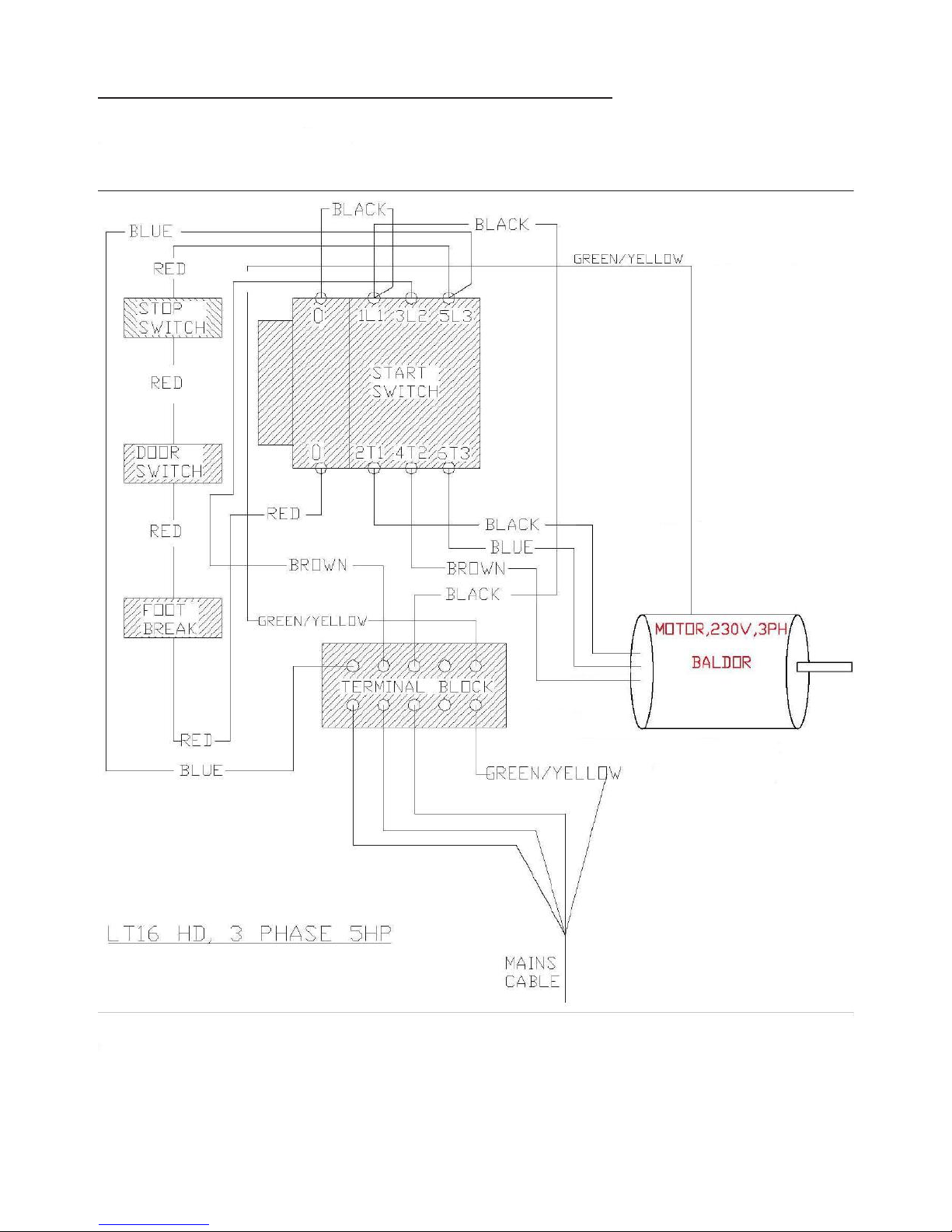

Electrical system drawing with switch (ON) knob

59

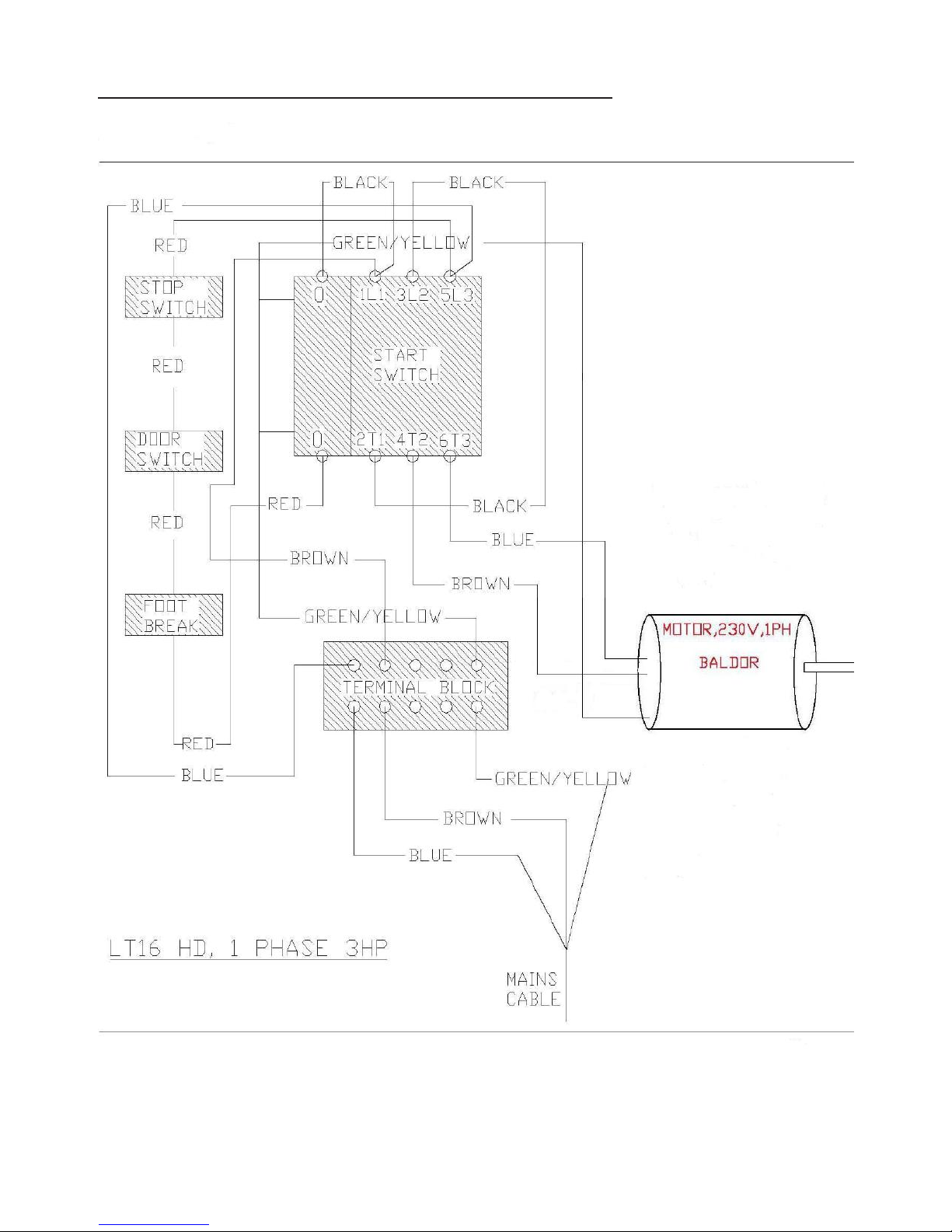

Electrical system drawing with switch (ON) knob

60

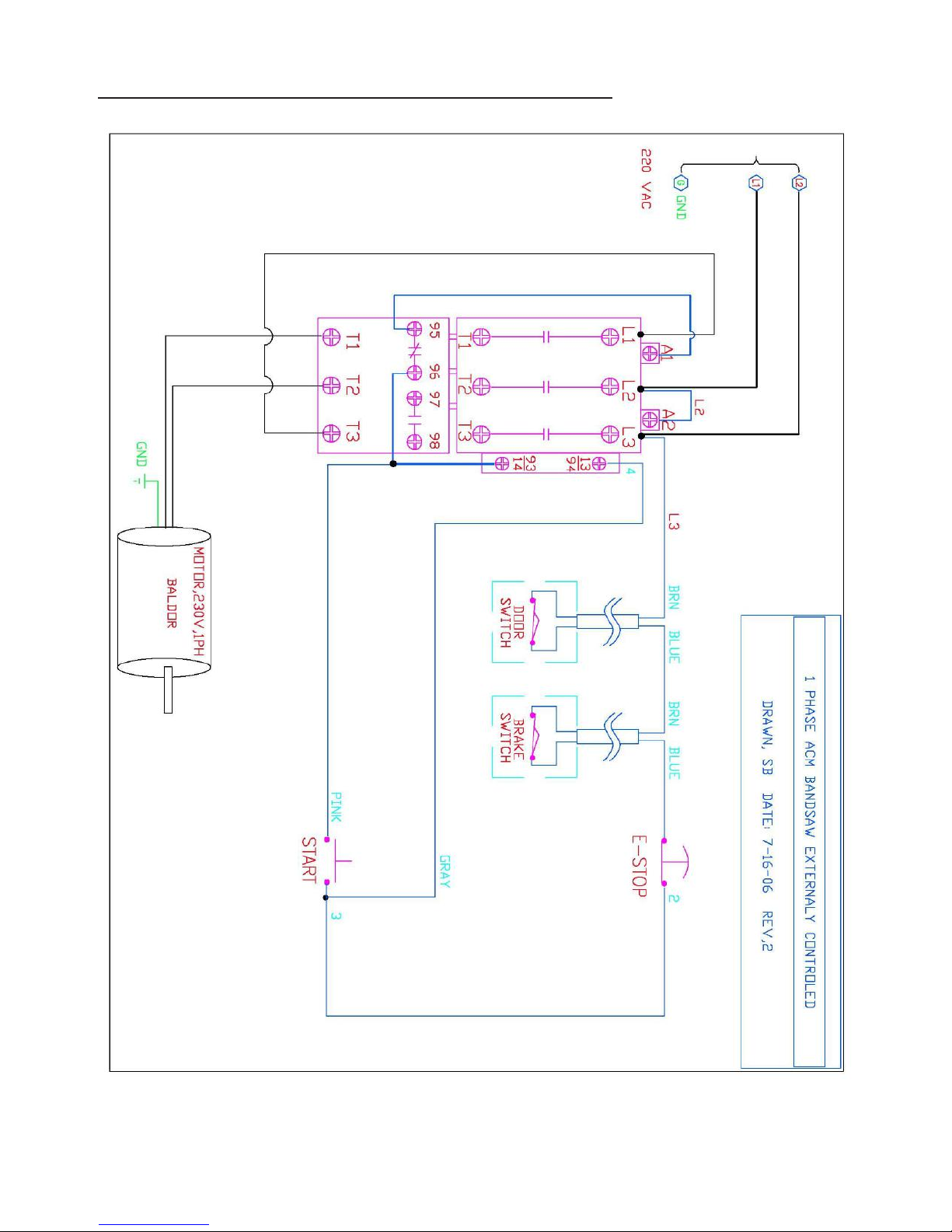

Electrical system drawing with push (ON) button

61

Electrical system drawing with push (ON) button

62

Ordering spare-parts

When ordering spare parts, specify: Machine Model and serial number. Part number required, taken from the exploded view drawing on the following page. Quantity required

EXAMPLE: TO ORDER LOWER FLY WHEEL FOR LT16HD Model : LT16HD Part name: Lower fly wheel Serial number: 12345 Part number: 95 Quantity: 1 piece

TOP GUIDE

BOTTOM GUIDE

64

Bandsaw LT 16 X 16

Drawing

N°

MACHINE

CODE

Part description

1

16-16

5020081

Upper fly wheel

2

16-16

3205040

Ball bearing

3

16-16

5210030

Spacer

4

16-16

3205040

Ball bearing

5

16-16

Washer UNI6593 ZNT M10 11x30x2,5

6

16-16

Seeger D=52 (hole)

7

16-16

5150089

Upper door

8

16-16

5050063

Shaft upper wheel

9

16-16

Screw TCEI 8.8 UNI5931 M10x20

10

16-16

Screw STEI UNI5927 M10x35

11

16-16

5030010

Sliding support upper wheel ( Group with #20)

12

16-16

3262009

Thrust bearing ( Group with #14 )

13

16-16

5120036

Tension blade steel plate

14

16-16

3261009

Thrust bearing ( Group with #12 )

15

16-16

3402081

Handle for inclination

16

16-16

3401501

Block for inclination handle

17

16-16

3458001

Wheel rubber cover

18

16-16

3177002

Steel wire for tension blade indication

19

16-16

Frame

20

16-16

5030011

Support sliding part ( Group with #11 )

21

16-16

5120034

Tension cable stop

22

16-16

Seeger D=30 (shaft)

23

16-16

5051111

Rack support blade protection

24

16-16

3402080

Handle locking rack

25

16-16

5120500

Blade protection

26

16-16

5250020

Support of blade protection

27

16-16

Screw TCEI 8.8 UNI5931 M6X16

28

16-16

Screw TSPEI 10.9 UNI5933 M6X16

30

16-16

Nut UNI5588 PG ZNT M12

31

16-16

Washer M12 12,5x28x3

34

16-16

5080002

Tensioning blade screw

35

16-16

5270011

Spring steel blade protection

36

16-16

5031032

Parallel fence

37

16-16

5051250

Special nut

38

16-16

5060011

Spacer ( Group with part #48 )

39

16-16

5400608

Table level register

40

16-16

5120027

Fence locking plate

41

16-16

Fixing pin ( included #42)

42

16-16

3410640

Hand-wheel for upper wheel rise and fall

43

16-16

3401270

Upper door closing handle

44

16-16

Screw TE 8.8 UNI5739 M12x60

45

16-16

5140001

Tension blade spring

46

16-16

7100900

Tension blade indication box

47

16-16

5030044

Support of parallel fence ( included #56 )

48

16-16

5400501

Round bar support fence ( included #38 )

49

16-16

included #50,51,52,53,54,55

50

16-16

5320150

Connection box ( included #49,51,52,53,54,55 )

51

16-16

3450001

Included #50,49,52,53,54,55

52

16-16

Included #49,50,51,53,54,55

65

53

16-16

included #50,51,52,49,54,55

54

16-16

Included #50,49,52,53,51,62

55

16-16

Included #50,49,52,53,54,51

56

16-16

3407257

Locking handle fence support

57

16-16

Screw TCEI 8.8 UNI5931 M8x25

58

16-16

Nut UNI5588 PG ZNT M10

59

16-16

5400604

V-Belt tensioning ( included #58,138 )

60

16-16

3417006

V Belt, per unit

61

16-16

Motor pulley

62

16-16

Electric motor : see separate price-list

63

16-16

Key

64

16-16

Washer UNI6593 ZNT M10 11x30x2,5

65

16-16

Screw TE 8.8 UNI5739 M10x35

66

16-16

Screw STEI UNI5923 M8x10

69

16-16

3179100

Tension cable adjustement ( Group with #46 )

73

16-16

3104110

All thread Screw M12x60

74

16-16

Washer M12 12,5x28x3

75

16-16

Nut UNI5588 PG ZNT M12

76

16-16

Screw TE 8.8 UNI5739 M12x60

77

16-16

Locknut DIN985 PG ZNT M10

79

16-16

Washer UNI6593 ZNT M6 6,6x18x2

80

16-16

5140006

Foot brake spring

81

16-16

5150091

Doors connection

82

16-16

Screw TCEI 8.8 UNI5931 M6x20

83

16-16

Screw TE 8.8 UNI5739 M12x70

84

16-16

Brake pad ( Group with #127 )

85

16-16

Screw TCEI 8.8 UNI5931 M10x25

86

16-16

Washer UNI6592 ZNT M10 10,5x21x2

87

16-16

5210003

Pinion flange

88

16-16

5050064

Shaft of bottom wheel

89

16-16

5150090

Bottom door

90

16-16

Washer UNI6593 ZNT M10 11x30x2,5

91

16-16

Seeger D=52 (hole)

92

16-16

3205040

Ball bearing

93

16-16

5210030

Spacer

94

16-16

3205040

Ball bearing

95

16-16

5020085

Bottom fly wheel

96

16-16

Screw TE 8.8 UNI5739 M12x70

97

16-16

Screw STEI UNI5923 M8x10

98

16-16

5190001

Pinion

99

16-16

3086114

Spring washer

100

16-16

3410740

Post rise and fall handle

101

16-16

Screw TCEI 8.8 UNI5931 M6x20

102

16-16

Washer UNI6593 ZNT M6 6,6x18x2

103

16-16

Locknut DIN985 PG ZNT M16

104

16-16

Nut UNI5588 PG ZNT M6

105

16-16

Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

16-16

5010012

Table

109

16-16

5210005

Table insert

110

16-16

Screw UNI5449 ZNT M6x16

115

16-16

Screw TCEI 8.8 UNI5931 M10x25

116

16-16

3401270

Lower door closing handle

117

16-16

Nut UNI5588 PG ZNT M10

66

118

16-16

Washer UNI6592 ZNT M10 10,5x21x2

120

16-16

Locknut DIN985 PG ZNT M10

123

16-16

Washer UNI6593 ZNT M6 6,6x18x2

124

16-16

Screw TCEI 8.8 UNI5931 M6x20

125

16-16

Blind Rivet alluminium body 4x8

126

16-16

5210007

Plastic cover

127

16-16

5120010

Brake lining ( included #84 )

128

16-16

Washer UNI6592 ZNT M8 8,4x17x1,6

129

16-16

Screw TE 8.8 UNI5739 M10x40

130

16-16

Nut UNI5588 PG ZNT M10

131

16-16

Washer UNI6592 ZNT M10 10,5x21x2

132

16-16

3458001

Wheel rubber cover

133

16-16

Screw TPS-TC 7505A ZNT 4x20

134

16-16

Brush support (Group with #135)

135

16-16

5400000

Bottom wheel brush (Group with #134)

136

16-16

Screw TCEI 8.8 UNI5931 M6x10

137

16-16

Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

16-16

Washer UNI6592 ZNT M10 10,5x21x2

139

16-16

Screw TCEI 8.8 UNI5931 M10x20

140

16-16

Screw TE 8.8 UNI5739 M12x35

141

16-16

Nut UNI5589 PG ZNT M12

142

16-16

Washer UNI6593 ZNT M10 11x40x2,5

143

16-16

Screw TCEI 8.8 UNI5931 M10x20

144

16-16

Screw TCEI 8.8 UNI5931 M6x20

145

16-16

5210008

Polycarbonate blade protection

147

16-16

5150200

Foot brake lever

148

16-16

5180001

Foot brake pedal

150

16-16

5210012

Side dust outlet

151

16-16

4505010

Doors microswitch

152

16-16

5120022

Microswitch protection

153

16-16

Screw TC-TC UNI8118 3,9x16

155

16-16

3162053

Hinge with fixing screws

160

16-16

5125020

Bottom table protection

166

16-16

5700031

Earth connecting cable

167

16-16

Screw TCEI 8.8 UNI5931 M4x14

168

16-16

Washer UNI6593 ZNT M10 11x30x2,5

169

16-16

Nut UNI5588 PG ZNT M10

170

16-16

5400609

Table-cut locking pin

171

16-16

5070021

Table trunnion

172

16-16

5070023

Support trunnion tilting table

173

16-16

5070027

Tilting pinion

174

16-16

Washer UNI6592 ZNT M10 10,5x21x2

175

16-16

Locknut DIN985 PG ZNT M10

176

16-16

5050240

Guide fence

177

16-16

Screw TBEI M6x10

178

16-16

Screw TE 8.8 UNI5737 M12x100

179

16-16

Washer M12 12,5x28x3

180

16-16

3406132

Block handle

181

16-16

Screw TE 8.8 UNI5739 M10x30

182

16-16

Washer UNI6592 ZNT M10 10,5x21x2

184

16-16

1030382

Adjustment plate

185

16-16

Screw TE 8.8 UNI5739 M10x16

186

16-16

Washer UNI6592 ZNT M10 10,5x21x2

67

187

16-16

Nut UNI5588 PG ZNT M12

188

16-16

Washer M12 12,5x28x3

189

16-16

1030344

No-rotation post plate

190

16-16

Screw TE 8.8 UNI5739 M6x16

191

16-16

5320100

Brake microswitch

68

Bandsaw LT18 X 18

Drawing

N°

MACHINE

CODE

Part description

1

18-18

5020089

Upper fly wheel

2

18-18

3205040

Ball bearing

3

18-18

5210035

Spacer

4

18-18

3205040

Ball bearing

5

18-18

Washer UNI6593 ZNT M10 11x30x2,5

6

18-18

Seeger D=52 (hole)

7

18-18

5150093

Upper door

8

18-18

5050065

Shaft upper wheel

9

18-18

Screw TCEI 8.8 UNI5931 M10x20

10

18-18

Screw STEI UNI5927 M10x35

11

18-18

5030010

Sliding support upper wheel ( Group with #20)

12

18-18

3262009

Thrust bearing ( Group with #14 )

13

18-18

5120036

Tension blade steel plate

14

18-18

3261009

Thrust bearing ( Group with #12 )

15

18-18

3402081

Handle for inclination

16

18-18

3401501

Block for inclination handle

17

18-18

3458001

Wheel rubber cover

18

18-18

3177002

Steel wire for tension blade indication

19

18-18

Frame

20

18-18

5030011

Support sliding part ( Group with #11 )

21

18-18

5120034

Tension cable stop

22

18-18

Seeger D=30 (shaft)

23

18-18

5051103

Rack support blade protection

24

18-18

3402080

Handle locking rack

25

18-18

5120501

Blade protection

26

18-18

5250020

Support of blade protection

27

18-18

Screw TCEI 8.8 UNI5931 M6X16

28

18-18

Screw TSPEI 10.9 UNI5933 M6X16

30

18-18

Nut UNI5588 PG ZNT M12

31

18-18

Washer M12 12,5x28x3

34

18-18

5080003

Tensioning blade screw

35

18-18

5270012

Spring steel blade protection

36

18-18

5031033

Parallel fence

37

18-18

5051250

Special nut

38

18-18

5060011

Spacer ( Group with part #48 )

39

18-18

5400608

Table level register

40

18-18

5120027

Fence locking plate

41

18-18

Fixing pin ( included #42)

42

18-18

3410640

Hand-wheel for upper wheel rise and fall

43

18-18

3401270

Upper door closing handle

44

18-18

Screw TE 8.8 UNI5739 M12x60

45

18-18

5140001

Tension blade spring

46

18-18

7100901

Tension blade indication box

47

18-18

5030044

Support of parallel fence ( included #56 )

48

18-18

5400511

Round bar support fence ( included #38 )

49

18-18

included #50,51,52,53,54,55

50

18-18

5320150

Connection box ( included #49,51,52,53,54,55 )

51

18-18

3450001

Included #50,49,52,53,54,56

52

18-18

Included #49,50,51,53,54,55

69

53

18-18

included #50,51,52,49,54,55

54

18-18

Included #50,49,52,53,51,63

55

18-18

Included #50,49,52,53,54,51

56

18-18

3407257

Locking handle fence support

57

18-18

Screw TCEI 8.8 UNI5931 M8x25

58

18-18

Nut UNI5588 PG ZNT M10

59

18-18

5400602

V-Belt tensioning ( included #58,138 )

60

18-18

3417008

V Belt, per unit

61

18-18

Motor pulley

62

18-18

Electric motor : see separate price-list

63

18-18

Key

64

18-18

Washer UNI6593 ZNT M10 11x30x2,5

65

18-18

Screw TE 8.8 UNI5739 M10x35

66

18-18

Screw STEI UNI5923 M8x10

69

18-18

3179100

Tension cable adjustement ( Group with #46 )

73

18-18

3104110

All thread Screw M12x60

74

18-18

Washer M12 12,5x28x3

75

18-18

Nut UNI5588 PG ZNT M12

76

18-18

Screw TE 8.8 UNI5739 M12x60

77

18-18

Locknut DIN985 PG ZNT M10

79

18-18

Washer UNI6593 ZNT M6 6,6x18x2

80

18-18

5140006

Foot brake spring

81

18-18

5150095

Doors connection

82

18-18

Screw TCEI 8.8 UNI5931 M6x20

83

18-18

Screw TE 8.8 UNI5739 M12x70

84

18-18

Brake pad ( Group with #127 )

85

18-18

Screw TCEI 8.8 UNI5931 M10x25

86

18-18

Washer UNI6592 ZNT M10 10,5x21x2

87

18-18

5210003

Pinion flange

88

18-18

5050066

Shaft of bottom wheel

89

18-18

5150094

Bottom door

90

18-18

Washer UNI6593 ZNT M10 11x30x2,5

91

18-18

Seeger D=52 (hole)

92

18-18

3205040

Ball bearing

93

18-18

5210035

Spacer

94

18-18

3205040

Ball bearing

95

18-18

5020093

Bottom fly wheel

96

18-18

Screw TE 8.8 UNI5739 M12x70

97

18-18

Screw STEI UNI5923 M8x10

98

18-18

5190001

Pinion

99

18-18

3086114

Spring washer

100

18-18

3410740

Post rise and fall handle

101

18-18

Screw TCEI 8.8 UNI5931 M6x20

102

18-18

Washer UNI6593 ZNT M6 6,6x18x2

103

18-18

Locknut DIN985 PG ZNT M16

104

18-18

Nut UNI5588 PG ZNT M6

105

18-18

Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

18-18

5010019

Table

109

18-18

5210005

Table insert

110

18-18

Screw UNI5449 ZNT M6x16

115

18-18

Screw TCEI 8.8 UNI5931 M10x25

116

18-18

3401270

Lower door closing handle

117

18-18

Nut UNI5588 PG ZNT M10

70

118

18-18

Washer UNI6592 ZNT M10 10,5x21x2

120

18-18

Locknut DIN985 PG ZNT M10

123

18-18

Washer UNI6593 ZNT M6 6,6x18x2

124

18-18

Screw TCEI 8.8 UNI5931 M6x20

125

18-18

Blind Rivet alluminium body 4x8

126

18-18

5210007

Plastic cover

127

18-18

5120011

Brake lining ( included #84 )

128

18-18

Washer UNI6592 ZNT M8 8,4x17x1,6

129

18-18

Screw TE 8.8 UNI5739 M10x40

130

18-18

Nut UNI5588 PG ZNT M10

131

18-18

Washer UNI6592 ZNT M10 10,5x21x2

132

18-18

3458001

Wheel rubber cover

133

18-18

Screw TPS-TC 7505A ZNT 4x20

134

18-18

Brush support (Group with #135)

135

18-18

5400000

Bottom wheel brush (Group with #134)

136

18-18

Screw TCEI 8.8 UNI5931 M6x10

137

18-18

Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

18-18

Washer UNI6592 ZNT M10 10,5x21x2

139

18-18

Screw TCEI 8.8 UNI5931 M10x20

140

18-18

Screw TE 8.8 UNI5739 M12x35

141

18-18

Nut UNI5589 PG ZNT M12

142

18-18

Washer UNI6593 ZNT M10 11x40x2,5

143

18-18

Screw TCEI 8.8 UNI5931 M10x20

144

18-18

Screw TCEI 8.8 UNI5931 M8x16

145

18-18

5210008

Polycarbonate blade protection

147

18-18

5150200

Foot brake lever

148

18-18

5180001

Foot brake pedal

150

18-18

5210012

Side dust outlet

151

18-18

4505010

Doors microswitch

152

18-18

5120022

Microswitch protection

153

18-18

Screw TC-TC UNI8118 3,9x16

155

18-18

3162052

Hinge with fixing screws

160

18-18

5125020

Bottom table protection

166

18-18

5700031

Earth connecting cable

167

18-18

Screw TCEI 8.8 UNI5931 M4x14

168

18-18

Washer UNI6593 ZNT M10 11x30x2,5

169

18-18

Nut UNI5588 PG ZNT M10

170

18-18

5400609

Table-cut locking pin

171

18-18

5070021

Table trunnion

172

18-18

5070023

Support trunnion tilting table

173

18-18

5070027

Tilting pinion

174

18-18

Washer UNI6592 ZNT M10 10,5x21x2

175

18-18

Locknut DIN985 PG ZNT M10

176

18-18

5050240

Guide fence

177

18-18

Screw TBEI M6x10

178

18-18

Screw TE 8.8 UNI5737 M12x100

179

18-18

Washer M12 12,5x28x3

180

18-18

3406132

Block handle

181

18-18

Screw TE 8.8 UNI5739 M10x30

182

18-18

Washer UNI6592 ZNT M10 10,5x21x2

184

18-18

1030382

Adjustment plate

185

18-18

Screw TE 8.8 UNI5739 M10x16

186

18-18

Washer UNI6592 ZNT M10 10,5x21x2

71

187

18-18

Nut UNI5588 PG ZNT M12

188

18-18

Washer M12 12,5x28x3

189

18-18

1030344

No-rotation post plate

190

18-18

Screw TE 8.8 UNI5739 M6x16

191

18-18

5320100

Brake microswitch

72

Bandsaw LT 20 X 20

Drawing

N°

MACHINE

CODE

Part description

1

20-20

5020097

Upper fly wheel

2

20-20

3205040

Ball bearing

3

20-20

5210031

Spacer

4

20-20

3205040

Ball bearing

5

20-20

Washer UNI6593 ZNT M10 11x30x2,5

6

20-20

Seeger D=52 (hole)

7

20-20

5150101

Upper door

8

20-20

5050067

Shaft upper wheel

9

20-20

Screw TCEI 8.8 UNI5931 M10x20

10

20-20

Screw STEI UNI5927 M10x35

11

20-20

5030010

Sliding support upper wheel ( Group with #20)

12

20-20

3262009

Thrust bearing ( Group with #14 )

13

20-20

5120036

Tension blade steel plate

14

20-20

3261009

Thrust bearing ( Group with #12 )

15

20-20

3402081

Handle for inclination

16

20-20

3401501

Block for inclination handle

17

20-20

3458002

Wheel rubber cover

18

20-20

3177002

Steel wire for tension blade indication

19

20-20

Frame

20

20-20

5030011

Support sliding part ( Group with #11 )

21

20-20

5120034

Tension cable stop

22

20-20

Seeger D=30 (shaft)

23

20-20

5051104

Rack support blade protection

24

20-20

3402080

Handle locking rack

25

20-20

5120502

Blade protection

26

20-20

5250020

Support of blade protection

27

20-20

Screw TCEI 8.8 UNI5931 M6X16

28

20-20

Screw TSPEI 10.9 UNI5933 M6X16

30

20-20

Nut UNI5588 PG ZNT M12

31

20-20

Washer M12 12,5x28x3

34

20-20

5080004

Tensioning blade screw

35

20-20

5270013

Spring steel blade protection

36

20-20

5031033

Parallel fence

37

20-20

5051250

Special nut

38

20-20

5060011

Spacer ( Group with part #48 )

39

20-20

5400608

Table level register

40

20-20

5120027

Fence locking plate

41

20-20

Fixing pin ( included #42)

42

20-20

3410640

Hand-wheel for upper wheel rise and fall

43

20-20

3401270

Upper door closing handle

44

20-20

Screw TE 8.8 UNI5739 M12x60

45

20-20

5140001

Tension blade spring

46

20-20

7100902

Tension blade indication box

47

20-20

5030044

Support of parallel fence ( included #56 )

48

20-20

5400511

Round bar support fence ( included #38 )

49

20-20

included #50,51,52,53,54,55

50

20-20

5320150

Connection box ( included #49,51,52,53,54,55 )

51

20-20

3450001

Included #50,49,52,53,54,57

73

52

20-20

Included #49,50,51,53,54,55

53

20-20

included #50,51,52,49,54,55

54

20-20

Included #50,49,52,53,51,64

55

20-20

Included #50,49,52,53,54,51

56

20-20

3407257

Locking handle fence support

57

20-20

Screw TCEI 8.8 UNI5931 M8x25

58

20-20

Nut UNI5588 PG ZNT M10

59

20-20

5400603

V-Belt tensioning ( included #58,138 )

60

20-20

3417011

V Belt, per unit

61

20-20

Motor pulley

62

20-20

Electric motor : see separate price-list

63

20-20

Key

64

20-20

Washer UNI6593 ZNT M10 11x30x2,5

65

20-20

Screw TE 8.8 UNI5739 M10x35

66

20-20

Screw STEI UNI5923 M8x10

69

20-20

3179100

Tension cable adjustement ( Group with #46 )

73

20-20

3104110

All thread Screw M12x60

74

20-20

Washer M12 12,5x28x3

75

20-20

Nut UNI5588 PG ZNT M12

76

20-20

Screw TE 8.8 UNI5739 M12x60

77

20-20

Locknut DIN985 PG ZNT M10

79

20-20

Washer UNI6593 ZNT M6 6,6x18x2

80

20-20

5140006

Foot brake spring

81

20-20

5150103

Doors connection

82

20-20

Screw TCEI 8.8 UNI5931 M6x20

83

20-20

Screw TE 8.8 UNI5739 M12x70

84

20-20

Brake pad ( Group with #127 )

85

20-20

Screw TCEI 8.8 UNI5931 M10x25

86

20-20

Washer UNI6592 ZNT M10 10,5x21x2

87

20-20

5210003

Pinion flange

88

20-20

5050068

Shaft of bottom wheel

89

20-20

5150102

Bottom door

90

20-20

Washer UNI6593 ZNT M10 11x30x2,5

91

20-20

Seeger D=52 (hole)

92

20-20

3205040

Ball bearing

93

20-20

5210031

Spacer

94

20-20

3205040

Ball bearing

95

20-20

5020101

Bottom fly wheel

96

20-20

Screw TE 8.8 UNI5739 M12x70

97

20-20

Screw STEI UNI5923 M8x10

98

20-20

5190001

Pinion

99

20-20

3086114

Spring washer

100

20-20

3410740

Post rise and fall handle

101

20-20

Screw TCEI 8.8 UNI5931 M6x20

102

20-20

Washer UNI6593 ZNT M6 6,6x18x2

103

20-20

Locknut DIN985 PG ZNT M16

104

20-20

Nut UNI5588 PG ZNT M6

105

20-20

Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

20-20

5010020

Table

109

20-20

5210005

Table insert

110

20-20

Screw UNI5449 ZNT M6x16

115

20-20

Screw TCEI 8.8 UNI5931 M10x25

116

20-20

3401270

Lower door closing handle

74

117

20-20

Nut UNI5588 PG ZNT M10

118

20-20

Washer UNI6592 ZNT M10 10,5x21x2

120

20-20

Locknut DIN985 PG ZNT M10

123

20-20

Washer UNI6593 ZNT M6 6,6x18x2

124

20-20

Screw TCEI 8.8 UNI5931 M6x20

125

20-20

Blind Rivet alluminium body 4x8

126

20-20

5210007

Plastic cover

127

20-20

5120012

Brake lining ( included #84 )

128

20-20

Washer UNI6592 ZNT M8 8,4x17x1,6

129

20-20

Screw TE 8.8 UNI5739 M10x40

130

20-20

Nut UNI5588 PG ZNT M10

131

20-20

Washer UNI6592 ZNT M10 10,5x21x2

132

20-20

3458002

Wheel rubber cover

133

20-20

Screw TPS-TC 7505A ZNT 4x20

134

20-20

Brush support (Group with #135)

135

20-20

5400000

Bottom wheel brush (Group with #134)

136

20-20

Screw TCEI 8.8 UNI5931 M6x10

137

20-20

Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

20-20

Washer UNI6592 ZNT M10 10,5x21x2

139

20-20

Screw TCEI 8.8 UNI5931 M10x20

140

20-20

Screw TE 8.8 UNI5739 M12x35

141

20-20

Nut UNI5589 PG ZNT M12

142

20-20

Washer UNI6593 ZNT M10 11x40x2,5

143

20-20

Screw TCEI 8.8 UNI5931 M10x20

144

20-20

Screw TCEI 8.8 UNI5931 M8x16

145

20-20

5210008

Polycarbonate blade protection

147

20-20

5150206

Foot brake lever

148

20-20

5180001

Foot brake pedal

150

20-20

5210012

Side dust outlet

151

20-20

4505010

Doors microswitch

152

20-20

5120022

Microswitch protection

153

20-20

Screw TC-TC UNI8118 3,9x16

155

20-20

3162052

Hinge with fixing screws

160

20-20

5125020

Bottom table protection

166

20-20

5700031

Earth connecting cable

167

20-20

Screw TCEI 8.8 UNI5931 M4x14

168

20-20

Washer UNI6593 ZNT M10 11x30x2,5

169

20-20

Nut UNI5588 PG ZNT M10

170

20-20

5400609

Table-cut locking pin

171

20-20

5070021

Table trunnion

172

20-20

5070023

Support trunnion tilting table

173

20-20

5070027

Tilting pinion

174

20-20

Washer UNI6592 ZNT M10 10,5x21x2

175

20-20

Locknut DIN985 PG ZNT M10

176

20-20

5050240

Guide fence

177

20-20

Screw TBEI M6x10

178

20-20

Screw TE 8.8 UNI5737 M12x100

179

20-20

Washer M12 12,5x28x3

180

20-20

3406132

Block handle

181

20-20

Screw TE 8.8 UNI5739 M10x30

182

20-20

Washer UNI6592 ZNT M10 10,5x21x2

184

20-20

1030382

Adjustment plate

185

20-20

Screw TE 8.8 UNI5739 M10x16

75

186

20-20

Washer UNI6592 ZNT M10 10,5x21x2

187

20-20

Nut UNI5588 PG ZNT M12

188

20-20

Washer M12 12,5x28x3

189

20-20

1030344

No-rotation post plate

190

20-20

Screw TE 8.8 UNI5739 M6x16

191

20-20

5320100

Brake microswitch

76

Bandsaw Resawmaster

Drawing

N°

MACHINE

CODE

Part description

1

F50 - RSM

5020201

Upper fly wheel

2

F50 - RSM

3205046

Ball bearing

3

F50 - RSM

5210036

Spacer

4

F50 - RSM

3205046

Ball bearing

5

F50 - RSM

Washer UNI6593 ZNT M10 11x40x2,5

6

F50 - RSM

Seeger D=62 (hole)

7

F50 - RSM

5150125

Upper door

8

F50 - RSM

5050079

Shaft upper wheel

9

F50 - RSM

Screw TCEI 8.8 UNI5931 M10x20

10

F50 - RSM

Screw STEI UNI5927 M10x35

11

F50 - RSM

5030014

Sliding support upper wheel ( Group with #20)

12

F50 - RSM

3262010

Thrust bearing ( Group with #14 )

13

F50 - RSM

5120036

Tension blade steel plate

14

F50 - RSM

3261010

Thrust bearing ( Group with #12 )

15

F50 - RSM

3402081

Handle for inclination

16

F50 - RSM

3401501

Block for inclination handle

17

F50 - RSM

3458006

Wheel rubber cover

18

F50 - RSM

3177002

Steel wire for tension blade indication

19

F50 - RSM

Frame

20

F50 - RSM

5030015

Support sliding part ( Group with #11 )

21

F50 - RSM

5120034

Tension cable stop

22

F50 - RSM

Seeger D=30 (shaft)

23

F50 - RSM

5051103

Rack support blade protection

24

F50 - RSM

3402082

Handle locking rack

25

F50 - RSM

5120506

Blade protection

26

F50 - RSM

5250020

Support of blade protection

27

F50 - RSM

Screw TCEI 8.8 UNI5931 M6X16

28

F50 - RSM

Screw TSPEI 10.9 UNI5933 M6X16

30

F50 - RSM

Nut UNI5588 PG ZNT M12

31

F50 - RSM

Washer M12 12,5x28x3

34

F50 - RSM

5080017

Tensioning blade screw

35

F50 - RSM

5270006

Spring steel blade protection

36

F50 - RSM

5031033

Parallel fence

37

F50 - RSM

5051250

Special nut

38

F50 - RSM

5060011

Spacer ( Group with part #48 )

39

F50 - RSM

5400606

Table level register

40

F50 - RSM

5120027

Fence locking plate

41

F50 - RSM

Fixing pin ( included #42)

42

F50 - RSM

3410641

Hand-wheel for upper wheel rise and fall

43

F50 - RSM

3401270

Upper door closing handle

44

F50 - RSM

Screw TE 8.8 UNI5739 M12x60

45

F50 - RSM

5140012

Tension blade spring

46

F50 - RSM

7100912

Tension blade indication box

47

F50 - RSM

5030044

Support of parallel fence ( included #56 )

48

F50 - RSM

5400511

Round bar support fence ( included #38 )

49

F50 - RSM

included #50,51,52,53,54,55

50

F50 - RSM

5320150

Connection box ( included #49,51,52,53,54,55 )

51

F50 - RSM

3450001

Included #50,49,52,53,54,62

52

F50 - RSM

Included #49,50,51,53,54,55

77

53

F50 - RSM

included #50,51,52,49,54,55

54

F50 - RSM

Included #50,49,52,53,51,69

55

F50 - RSM

Included #50,49,52,53,54,51

56

F50 - RSM

3407257

Locking handle fence support

57

F50 - RSM

Screw TCEI 8.8 UNI5931 M8x25

58

F50 - RSM

Nut UNI5588 PG ZNT M10

59

F50 - RSM

5400603

V-Belt tensioning ( included #58,138 )

60

F50 - RSM

3417008

V Belt, per unit

61

F50 - RSM

Motor pulley

62

F50 - RSM

Electric motor : see separate price-list

63

F50 - RSM

Key

64

F50 - RSM

Washer UNI6593 ZNT M10 11x30x2,5

65

F50 - RSM

Screw TE 8.8 UNI5739 M10x35

66

F50 - RSM

Screw STEI UNI5923 M8x10

69

F50 - RSM

3179100

Tension cable adjustement ( Group with #46 )

73

F50 - RSM

3104110

All thread Screw M12x60

74

F50 - RSM

Washer M12 12,5x28x3

75

F50 - RSM

Nut UNI5588 PG ZNT M12

76

F50 - RSM

Screw TE 8.8 UNI5739 M12x60

77

F50 - RSM

Locknut DIN985 PG ZNT M10

79

F50 - RSM

Washer UNI6593 ZNT M6 6,6x18x2

80

F50 - RSM

5140006

Foot brake spring

81

F50 - RSM

5150127

Doors connection

82

F50 - RSM

Screw TCEI 8.8 UNI5931 M6x20

83

F50 - RSM

Screw TE 8.8 UNI5739 M12x70

84

F50 - RSM

Brake pad ( Group with #127 )

85

F50 - RSM

Screw TCEI 8.8 UNI5931 M10x25

86

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

87

F50 - RSM

5210003

Pinion flange

88

F50 - RSM

5050080

Shaft of bottom wheel

89

F50 - RSM

5150126

Bottom door

90

F50 - RSM

Washer UNI6593 ZNT M10 11x40x2,5

91

F50 - RSM

Seeger D=62 (hole)

92

F50 - RSM

3205046

Ball bearing

93

F50 - RSM

5210036

Spacer

94

F50 - RSM

3205046

Ball bearing

95

F50 - RSM

5020205

Bottom fly wheel

96

F50 - RSM

Screw TE 8.8 UNI5739 M12x70

97

F50 - RSM

Screw STEI UNI5923 M8x10

98

F50 - RSM

5190001

Pinion

99

F50 - RSM

3086114

Spring washer

100

F50 - RSM

3410740

Post rise and fall handle

101

F50 - RSM

Screw TCEI 8.8 UNI5931 M6x20

102

F50 - RSM

Washer UNI6593 ZNT M6 6,6x18x2

103

F50 - RSM

Locknut DIN985 PG ZNT M16

104

F50 - RSM

Nut UNI5588 PG ZNT M6

105

F50 - RSM

Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

F50 - RSM

5010019

Table

109

F50 - RSM

5210005

Table insert

110

F50 - RSM

Screw UNI5449 ZNT M6x16

111

F50 - RSM

5210102

Wooden Insert chute

112

F50 - RSM

1030584

Chute

113

F50 - RSM

Screw TC-TC UNI8118 3,9x16

78

114

F50 - RSM

5210009

Front aspiration outlet

115

F50 - RSM

Screw TCEI 8.8 UNI5931 M10x25

116

F50 - RSM

3401270

Lower door closing handle

117

F50 - RSM

Nut UNI5588 PG ZNT M10

118

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

120

F50 - RSM

Locknut DIN985 PG ZNT M10

123

F50 - RSM

Washer UNI6593 ZNT M6 6,6x18x2

124

F50 - RSM

Screw TCEI 8.8 UNI5931 M6x20

125

F50 - RSM

Blind Rivet alluminium body 4x8

126

F50 - RSM

5210007

Plastic cover

127

F50 - RSM

5120011

Brake lining ( included #84 )

128

F50 - RSM

Washer UNI6592 ZNT M8 8,4x17x1,6

129

F50 - RSM

Screw TE 8.8 UNI5739 M10x40

130

F50 - RSM

Nut UNI5588 PG ZNT M10

131

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

132

F50 - RSM

3458006

Wheel rubber cover

133

F50 - RSM

Screw TPS-TC 7505A ZNT 4x20

134

F50 - RSM

Brush support (Group with #135)

135

F50 - RSM

5400002

Bottom wheel brush (Group with #134)

136

F50 - RSM

Screw TCEI 8.8 UNI5931 M6x10

137

F50 - RSM

Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

139

F50 - RSM

Screw TCEI 8.8 UNI5931 M10x20

140

F50 - RSM

Screw TE 8.8 UNI5739 M12x35

141

F50 - RSM

Nut UNI5589 PG ZNT M12

142

F50 - RSM

Washer UNI6593 ZNT M10 11x40x2,5

143

F50 - RSM

Screw TCEI 8.8 UNI5931 M10x20

144

F50 - RSM

Screw TCEI 8.8 UNI5931 M8x16

145

F50 - RSM

5210008

Polycarbonate blade protection

147

F50 - RSM

5150200

Foot brake lever

148

F50 - RSM

5180001

Foot brake pedal

150

F50 - RSM

5210012

Side dust outlet

151

F50 - RSM

4505010

Doors microswitch

152

F50 - RSM

5120022

Microswitch protection

153

F50 - RSM

Screw TC-TC UNI8118 3,9x16

155

F50 - RSM

3162052

Hinge with fixing screws

160

F50 - RSM

5125030

Bottom table protection

166

F50 - RSM

5700031

Earth connecting cable

167

F50 - RSM

Screw TCEI 8.8 UNI5931 M4x14

168

F50 - RSM

Washer UNI6593 ZNT M10 11x30x2,5

169

F50 - RSM

Nut UNI5588 PG ZNT M10

170

F50 - RSM

5400609

Table-cut locking pin

171

F50 - RSM

5070021

Table trunnion

172

F50 - RSM

5070023

Support trunnion tilting table

173

F50 - RSM

5070027

Tilting pinion

174

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

175

F50 - RSM

Locknut DIN985 PG ZNT M10

176

F50 - RSM

5050240

Guide fence

177

F50 - RSM

Screw TBEI M6x10

178

F50 - RSM

Screw TE 8.8 UNI5737 M12x100

179

F50 - RSM

Washer M12 12,5x28x3

180

F50 - RSM

3406132

Block handle

181

F50 - RSM

Screw TE 8.8 UNI5739 M10x30

79

182

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

184

F50 - RSM

1030382

Adjustment plate

185

F50 - RSM

Screw TE 8.8 UNI5739 M10x16

186

F50 - RSM

Washer UNI6592 ZNT M10 10,5x21x2

187

F50 - RSM

Nut UNI5588 PG ZNT M12

188

F50 - RSM

Washer M12 12,5x28x3

189

F50 - RSM

1030344

No-rotation post plate

190

F50 - RSM

Screw TE 8.8 UNI5739 M6x16

191

F50 - RSM

5320100

Brake microswitch

80

Bandsaw LT 24 X 24

Drawing

N°

MACHINE

CODE

Part description

1

24-24

5020113

Upper fly wheel

2

24-24

3205046

Ball bearing

3

24-24

5210032

Spacer

4

24-24

3205046

Ball bearing

5

24-24

Washer UNI6593 ZNT M10 11x40x2,5

6

24-24

Seeger D=62 (hole)

7

24-24

5150105

Upper door

8

24-24

5050075

Shaft upper wheel

9

24-24

Screw TCEI 8.8 UNI5931 M10x20

10

24-24

Screw STEI UNI5927 M10x35

11

24-24

5030014

Sliding support upper wheel ( Group with #20)

12

24-24

3262010

Thrust bearing ( Group with #14 )

13

24-24

5120037

Tension blade steel plate

14

24-24

3261010

Thrust bearing ( Group with #12 )

15

24-24

3402082

Handle for inclination

16

24-24

3401501

Block for inclination handle

17

24-24

3458003

Wheel rubber cover

18

24-24

3177002

Steel wire for tension blade indication

19

24-24

Frame

20

24-24

5030015

Support sliding part ( Group with #11 )

21

24-24

5120034

Tension cable stop

22

24-24

Seeger D=30 (shaft)

23

24-24

5151109

Rack support blade protection

24

24-24

3402080

Handle locking rack

25

24-24

5120503

Blade protection

26

24-24

5250020

Support of blade protection

27

24-24

Screw TCEI 8.8 UNI5931 M6X16

28

24-24

Screw TSPEI 10.9 UNI5933 M6X16

30

24-24

Nut UNI5588 PG ZNT M12

31

24-24

Washer M12 12,5x28x3

34

24-24

5080005

Tensioning blade screw

35

24-24

5270014

Spring steel blade protection

36

24-24

5031034

Parallel fence

37

24-24

5051250

Special nut

38

24-24

5060011

Spacer ( Group with part #48 )

39

24-24

3104085

Table level register

40

24-24

5120027

Fence locking plate

41

24-24

Fixing pin ( included #42)

42

24-24

3410641

Hand-wheel for upper wheel rise and fall

43

24-24

3401270

Upper door closing handle

44

24-24

Screw TE 8.8 UNI5739 M12x60

45

24-24

5140002

Tension blade spring

46

24-24

7100904

Tension blade indication box

47

24-24

5030044

Support of parallel fence ( included #56 )

48

24-24

5400503

Round bar support fence ( included #38 )

49

24-24

included #50,51,52,53,54,55

50

24-24

5320150

Connection box ( included #49,51,52,53,54,55 )

51

24-24

3450001

Included #50,49,52,53,54,58

81

52

24-24

Included #49,50,51,53,54,55

53

24-24

included #50,51,52,49,54,55

54

24-24

Included #50,49,52,53,51,65

55

24-24

Included #50,49,52,53,54,51

56

24-24

3407257

Locking handle fence support

57

24-24

Screw TCEI 8.8 UNI5931 M8x25

58

24-24

Nut UNI5588 PG ZNT M10

59

24-24

5400602

V-Belt tensioning ( included #58,138 )

60

24-24

3417010

V Belt, per unit

61

24-24

Motor pulley

62

24-24

Electric motor : see separate price-list

63

24-24

Key

64

24-24

Washer UNI6593 ZNT M10 11x30x2,5

65

24-24

Screw TE 8.8 UNI5739 M10x35

66

24-24

Screw STEI UNI5923 M8x10

69

24-24

3179100

Tension cable adjustement ( Group with #46 )

73

24-24

3104110

All thread Screw M12x60

74

24-24

Washer M12 12,5x28x3

75

24-24

Nut UNI5588 PG ZNT M12

76

24-24

Screw TE 8.8 UNI5739 M12x60

77

24-24

Locknut DIN985 PG ZNT M10

79

24-24

Washer UNI6593 ZNT M6 6,6x18x2

80

24-24

5140006

Foot brake spring

81

24-24

5150107

Doors connection

82

24-24

Screw TCEI 8.8 UNI5931 M6x20

83

24-24

Screw TE 8.8 UNI5739 M12x70

84

24-24

Brake pad ( Group with #127 )

85

24-24

Screw TCEI 8.8 UNI5931 M10x25

86

24-24

Washer UNI6592 ZNT M10 10,5x21x2

87

24-24

5210003

Pinion flange

88

24-24

5050076

Shaft of bottom wheel

89

24-24

5150106

Bottom door

90

24-24

Washer UNI6593 ZNT M10 11x40x2,5

91

24-24

Seeger D=62 (hole)

92

24-24

3205046

Ball bearing

93

24-24

5210032

Spacer

94

24-24

3205046

Ball bearing

95

24-24

5020117

Bottom fly wheel

96

24-24

Screw TE 8.8 UNI5739 M12x70

97

24-24

Screw STEI UNI5923 M8x10

98

24-24

5190001

Pinion

99

24-24

3086114

Spring washer

100

24-24

3410740

Post rise and fall handle

101

24-24

Screw TCEI 8.8 UNI5931 M6x20

102

24-24

Washer UNI6593 ZNT M6 6,6x18x2

103

24-24

Locknut DIN985 PG ZNT M16

104

24-24

Nut UNI5588 PG ZNT M6

105

24-24

Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

24-24

5010047

Table

109

24-24

5210005

Table insert

110

24-24

Screw UNI5449 ZNT M6x16

115

24-24

Screw TCEI 8.8 UNI5931 M10x25

116

24-24

3401270

Lower door closing handle

82

117

24-24

Nut UNI5588 PG ZNT M10

118

24-24

Washer UNI6592 ZNT M10 10,5x21x2

120

24-24

Locknut DIN985 PG ZNT M10

123

24-24

Washer UNI6593 ZNT M6 6,6x18x2

124

24-24

Screw TCEI 8.8 UNI5931 M6x20

125

24-24

Blind Rivet alluminium body 4x8

126

24-24

5210007

Plastic cover

127

24-24

5120013

Brake lining ( included #84 )

128

24-24

Washer UNI6592 ZNT M8 8,4x17x1,6

129

24-24

Screw TE 8.8 UNI5739 M10x40

130

24-24

Nut UNI5588 PG ZNT M10

131

24-24

Washer UNI6592 ZNT M10 10,5x21x2

132

24-24

3458003

Wheel rubber cover

133

24-24

Screw TPS-TC 7505A ZNT 4x20

134

24-24

Brush support (Group with #135)

135

24-24

5400001

Bottom wheel brush (Group with #134)

136

24-24

Screw TCEI 8.8 UNI5931 M6x10

137

24-24

Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

24-24

Washer UNI6592 ZNT M10 10,5x21x2

139

24-24

Screw TCEI 8.8 UNI5931 M10x20

140

24-24

Screw TE 8.8 UNI5739 M12x35

141

24-24

Nut UNI5589 PG ZNT M12

142

24-24

Washer UNI6593 ZNT M10 11x40x2,5

143

24-24

Screw TCEI 8.8 UNI5931 M10x20

144

24-24

Screw TCEI 8.8 UNI5931 M8x25

145

24-24

5210008

Polycarbonate blade protection

147

24-24

5150207

Foot brake lever

148

24-24

5180001

Foot brake pedal

150

24-24

5210012

Side dust outlet

151

24-24

4505010

Doors microswitch

152

24-24

5120022

Microswitch protection

153

24-24

Screw TC-TC UNI8118 3,9x16

155

24-24

3162052

Hinge with fixing screws

160

24-24

5125020

Bottom table protection

166

24-24

5700031

Earth connecting cable

167

24-24

Screw TCEI 8.8 UNI5931 M4x14

168

24-24

Washer UNI6593 ZNT M10 11x30x2,5

169

24-24

Nut UNI5588 PG ZNT M10

170

24-24

5400609

Table-cut locking pin

171

24-24

5070021

Table trunnion

172

24-24

5070023

Support trunnion tilting table

173

24-24

5070027

Tilting pinion

174

24-24

Washer UNI6592 ZNT M10 10,5x21x2

175

24-24

Locknut DIN985 PG ZNT M10

176

24-24

5050240

Guide fence

177

24-24

Screw TBEI M6x10

178

24-24

Screw TE 8.8 UNI5737 M12x100

179

24-24

Washer M12 12,5x28x3

180

24-24

3406132

Block handle

181

24-24

Screw TE 8.8 UNI5739 M10x30

182

24-24

Washer UNI6592 ZNT M10 10,5x21x2

183

24-24

5150250

Table extension

184

24-24

1030382

Adjustment plate

83

185

24-24

Screw TE 8.8 UNI5739 M10x16

186

24-24

Washer UNI6592 ZNT M10 10,5x21x2

187

24-24

Nut UNI5588 PG ZNT M12

188

24-24

Washer M12 12,5x28x3

189

24-24

1030344

No-rotation post plate

190

24-24

Screw TE 8.8 UNI5739 M6x16

191

24-24

5320101

Brake microswitch

84

Bandsaw LT 28

Drawing

N°

MACHINE

CODE

Part description

1

28

5020129

Upper fly wheel

2

28

3205046

Ball bearing

3

28

5210033

Spacer

4

28

3205046

Ball bearing

5

28 Washer UNI6593 ZNT M10 11x40x2,5

6

28 Seeger D=62 (hole)

7

28

5150113

Upper door

8

28

5050075

Shaft upper wheel

9

28 Screw TCEI 8.8 UNI5931 M10x20

10

28 Screw STEI UNI5927 M10x35

11

28

5030014

Sliding support upper wheel ( Group with #20)

12

28

3262010

Thrust bearing ( Group with #14 )

13

28

5120037

Tension blade steel plate

14

28

3261010

Thrust bearing ( Group with #12 )

15

28

3402082

Handle for inclination

16

28

3401501

Block for inclination handle

17

28

3458004

Wheel rubber cover

18

28

3177002

Steel wire for tension blade indication

19

28 Frame

20

28

5030015

Support sliding part ( Group with #11 )

21

28

5120034

Tension cable stop

22

28 Seeger D=30 (shaft)

23

28

5051104

Rack support blade protection

24

28

3402081

Handle locking rack

25

28

5120504

Blade protection

26

28

5250020

Support of blade protection

27

28 Screw TCEI 8.8 UNI5931 M6X16

28

28 Screw TSPEI 10.9 UNI5933 M6X16

30

28 Nut UNI5588 PG ZNT M12

31

28 Washer M12 12,5x28x3

34

28

5080007

Tensioning blade screw

35

28

5270004

Spring steel blade protection

36

28

5031035

Parallel fence

37

28

5051250

Special nut

38

28

5060011

Spacer ( Group with part #48 )

39

28

5400606

Table level register

40

28

5120027

Fence locking plate

41

28 Fixing pin ( included #42)

42

28

3410641

Hand-wheel for upper wheel rise and fall

43

28

3401270

Upper door closing handle

44

28 Screw TE 8.8 UNI5739 M12x60

45

28

5140002

Tension blade spring

46

28

7100906

Tension blade indication box

47

28

5030044

Support of parallel fence ( included #56 )

48

28

5400504

Round bar support fence ( included #38 )

49

28 included #50,51,52,53,54,55

50

28

5320150

Connection box ( included #49,51,52,53,54,55 )

51

28

3450001

Included #50,49,52,53,54,59

85

52

28 Included #49,50,51,53,54,55

53

28 included #50,51,52,49,54,55

54

28 Included #50,49,52,53,51,66

55

28 Included #50,49,52,53,54,51

56

28

3407257

Locking handle fence support

57

28 Screw TCEI 8.8 UNI5931 M8x25

58

28 Nut UNI5588 PG ZNT M10

59

28

5400601

V-Belt tensioning ( included #58,138 )

60

28

3417011

V Belt, per unit

61

28 Motor pulley

62

28 Electric motor : see separate price-list

63

28 Key

64

28 Washer UNI6593 ZNT M10 11x30x2,5

65

28 Screw TE 8.8 UNI5739 M10x35

66

28 Screw STEI UNI5923 M8x10

69

28

3179100

Tension cable adjustement ( Group with #46 )

73

28

3104111

All thread Screw M12x70

74

28 Washer M12 12,5x28x3

75

28 Nut UNI5588 PG ZNT M12

76

28 Screw TE 8.8 UNI5739 M12x60

77

28 Locknut DIN985 PG ZNT M10

79

28 Washer UNI6593 ZNT M6 6,6x18x2

80

28

5140006

Foot brake spring

81

28

5150115

Doors connection

82

28 Screw TCEI 8.8 UNI5931 M6x20

83

28 Screw TE 8.8 UNI5739 M12x70

84

28 Brake pad ( Group with #127 )

85

28 Screw TCEI 8.8 UNI5931 M10x25

86

28 Washer UNI6592 ZNT M10 10,5x21x2

87

28

5210003

Pinion flange

88

28

5050076

Shaft of bottom wheel

89

28

5150114

Bottom door

90

28 Washer UNI6593 ZNT M10 11x40x2,5

91

28 Seeger D=62 (hole)

92

28

3205046

Ball bearing

93

28

5210033

Spacer

94

28

3205046

Ball bearing

95

28

5020133

Bottom fly wheel

96

28 Screw TE 8.8 UNI5739 M12x70

97

28 Screw STEI UNI5923 M8x10

98

28

5190001

Pinion

99

28

3086114

Spring washer

100

28

3410743

Post rise and fall handle

101

28 Screw TCEI 8.8 UNI5931 M6x20

102

28 Washer UNI6593 ZNT M6 6,6x18x2

103

28 Locknut DIN985 PG ZNT M16

104

28 Nut UNI5588 PG ZNT M6

105

28 Washer UNI6592 ZNT M6 6,4x12,5x1,6

107

28

5010052

Table

109

28

5210005

Table insert

110

28 Screw UNI5449 ZNT M6x16

111

28

5210102

Wooden Insert chute

112

28

1030607

Chute

86

113

28 Screw TC-TC UNI8118 3,9x16

114

28

5210009

Front aspiration outlet

115

28 Screw TCEI 8.8 UNI5931 M10x25

116

28

3401270

Lower door closing handle

117

28 Nut UNI5588 PG ZNT M10

118

28 Washer UNI6592 ZNT M10 10,5x21x2

120

28 Locknut DIN985 PG ZNT M10

123

28 Washer UNI6593 ZNT M6 6,6x18x2

124

28 Screw TCEI 8.8 UNI5931 M6x20

125

28 Blind Rivet alluminium body 4x8

126

28

5210007

Plastic cover

127

28

5120013

Brake lining ( included #84 )

128

28 Washer UNI6592 ZNT M8 8,4x17x1,6

129

28 Screw TE 8.8 UNI5739 M10x40

130

28 Nut UNI5588 PG ZNT M10

131

28 Washer UNI6592 ZNT M10 10,5x21x2

132

28

3458004

Wheel rubber cover

133

28 Screw TPS-TC 7505A ZNT 4x20

134

28 Brush support (Group with #135)

135

28

5400001

Bottom wheel brush (Group with #134)

136

28 Screw TCEI 8.8 UNI5931 M6x10

137

28 Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

28 Washer UNI6592 ZNT M10 10,5x21x2

139

28 Screw TCEI 8.8 UNI5931 M10x20

140

28 Screw TE 8.8 UNI5739 M12x35

141

28 Nut UNI5589 PG ZNT M12

142

28 Washer UNI6593 ZNT M10 11x40x2,5

143

28 Screw TCEI 8.8 UNI5931 M10x20

144

28 Screw TCEI 8.8 UNI5931 M8x25

145

28

5210008

Polycarbonate blade protection

147

28

5150208

Foot brake lever

148

28

5180001

Foot brake pedal

150

28

5210012

Side dust outlet

151

28

4505010

Doors microswitch

152

28

5120022

Microswitch protection

153

28 Screw TC-TC UNI8118 3,9x16

155

28

3162051

Hinge with fixing screws

160

28

5125030

Bottom table protection

166

28

5700031

Earth connecting cable

167

28 Screw TCEI 8.8 UNI5931 M4x14

168

28 Washer UNI6593 ZNT M10 11x30x2,5

169

28 Nut UNI5588 PG ZNT M10

170

28

5400609

Table-cut locking pin

171

28

5070026

Table trunnion

172

28

5070023

Support trunnion tilting table

173

28

5070027

Tilting pinion

174

28 Washer UNI6592 ZNT M10 10,5x21x2

175

28 Locknut DIN985 PG ZNT M10

176

28

5050240

Guide fence

177

28 Screw TBEI M6x10

178

28 Screw TE 8.8 UNI5737 M12x100

179

28 Washer M12 12,5x28x3

180

28

3406132

Block handle

87

181

28 Screw TE 8.8 UNI5739 M10x30

182

28 Washer UNI6592 ZNT M10 10,5x21x2

183

28

5150253

Table extension

184

28

1030382

Adjustment plate

185

28 Screw TE 8.8 UNI5739 M10x16

186

28 Washer UNI6592 ZNT M10 10,5x21x2

187

28 Nut UNI5588 PG ZNT M12

188

28 Washer M12 12,5x28x3

189

28

1030344

No-rotation post plate

190

28 Screw TE 8.8 UNI5739 M6x16

191

28

5320101

Brake microswitch

88

Bandsaw LT32

Drawing

N°

MACHINE

CODE

Part description

1

32

5020153

Upper fly wheel

2

32

3205048

Ball bearing

3

32

5210034

Spacer

4

32

3205048

Ball bearing

5

32 Washer UNI6593 ZNT M10 11x40x2,5

6

32 Seeger D=72 (hole)

7

32

5150117

Upper door

8

32

5050081

Shaft upper wheel

9

32 Screw TCEI 8.8 UNI5931 M10x20

10

32 Screw STEI UNI5927 M10x35

11

32

5030022

Sliding support upper wheel ( Group with #20)

12

32

3262010

Thrust bearing ( Group with #14 )

13

32

5120038

Tension blade steel plate

14

32

3261010

Thrust bearing ( Group with #12 )

15

32

3402082

Handle for inclination

16

32

3401501

Block for inclination handle

17

32

3458005

Wheel rubber cover

18

32

3177002

Steel wire for tension blade indication

19

32 Frame

20

32

5030023

Support sliding part ( Group with #11 )

21

32

5120034

Tension cable stop

22

32 Seeger D=30 (shaft)

23

32

5051105

Rack support blade protection

24

32

3402081

Handle locking rack

25

32

5120504

Blade protection

26

32

5250021

Support of blade protection

27

32 Screw TCEI 8.8 UNI5931 M6X16

28

32 Screw TSPEI 10.9 UNI5933 M6X16

30

32 Nut UNI5588 PG ZNT M12

31

32 Washer M12 12,5x28x3

32

5070013

Tunnion tilting table

33

32 Screw TE 8.8 UNI5739 M12x40

34

32

5080008

Tensioning blade screw

35

32

5270005

Spring steel blade protection

36

32

5031036

Parallel fence

37

32

5051250

Special nut

38

32

5060011

Spacer ( Group with part #48 )

39

32

5400606

Table level register

40

32

5120027

Fence locking plate

41

32 Fixing pin ( included #42)

42

32

3410641

Hand-wheel for upper wheel rise and fall

43

32

3401270

Upper door closing handle

44

32 Screw TE 8.8 UNI5739 M12x60

45

32

5140016

Tension blade spring

46

32

7100908

Tension blade indication box

47

32

5030044

Support of parallel fence ( included #56 )

48

32

5400505

Round bar support fence ( included #38 )

49

32 included #50,51,52,53,54,55

50

32

5320150

Connection box ( included #49,51,52,53,54,55

89

)

51

32

3450001

Included #50,49,52,53,54,60

52

32 Included #49,50,51,53,54,55

53

32 included #50,51,52,49,54,55

54

32 Included #50,49,52,53,51,67

55

32 Included #50,49,52,53,54,51

56

32

3407257

Locking handle fence support

57

32 Screw TCEI 8.8 UNI5931 M8x25

58

32 Nut UNI5588 PG ZNT M10

59

32

5400601

V-Belt tensioning ( included #58,138 )

60

32

3417014

V Belt, per unit

61

32 Motor pulley

62

32 Electric motor : see separate price-list

63

32 Key

64

32 Washer UNI6593 ZNT M10 11x30x2,5

65

32 Screw TE 8.8 UNI5739 M10x35

66

32 Screw STEI UNI5923 M8x10

69

32

3179100

Tension cable adjustement ( Group with #46 )

70

32

5070015

Trunnion support

71

32 Washer M12 12,5x28x3

72

32 Screw TE 8.8 UNI5739 M10x40

73

32

3104111

All thread Screw M12x70

74

32 Washer M12 12,5x28x3

75

32 Nut UNI5588 PG ZNT M12

76

32 Screw TE 8.8 UNI5739 M12x60

77

32 Locknut DIN985 PG ZNT M10

79

32 Washer UNI6593 ZNT M6 6,6x18x2

80

32

5140006

Foot brake spring

81

32

5150119

Doors connection

82

32 Screw TCEI 8.8 UNI5931 M6x20

83

32 Screw TE 8.8 UNI5739 M12x70

84

32 Brake pad ( Group with #127 )

85

32 Screw TCEI 8.8 UNI5931 M10x25

86

32 Washer UNI6592 ZNT M10 10,5x21x2

87

32

5210003

Pinion flange

88

32

5050082

Shaft of bottom wheel

89

32

5150118

Bottom door

90

32 Washer UNI6593 ZNT M10 11x40x2,5

91

32 Seeger D=72 (hole)

92

32

3205048

Ball bearing

93

32

5210034

Spacer

94

32

3205048

Ball bearing

95

32

5020157

Bottom fly wheel

96

32 Screw TE 8.8 UNI5739 M12x70

97

32 Screw STEI UNI5923 M8x10

98

32

5190001

Pinion

99

32

3086114

Spring washer

100

32

3410746

Post rise and fall handle

101

32 Screw TCEI 8.8 UNI5931 M6x20

102

32 Washer UNI6593 ZNT M6 6,6x18x2

103

32 Locknut DIN985 PG ZNT M16

104

32 Nut UNI5588 PG ZNT M6

105

32 Washer UNI6592 ZNT M6 6,4x12,5x1,6

90

107

32

5010076

Table

109

32

5210005

Table insert

110

32 Screw UNI5449 ZNT M6x16

111

32

5210102

Wooden Insert chute

112

32

1030637

Chute

113

32 Screw TC-TC UNI8118 3,9x16

114

32

5210009

Front aspiration outlet

115

32 Screw TCEI 8.8 UNI5931 M10x25

116

32

3401270

Lower door closing handle

117

32 Nut UNI5588 PG ZNT M10

118

32 Washer UNI6592 ZNT M10 10,5x21x2

120

32 Locknut DIN985 PG ZNT M10

123

32 Washer UNI6593 ZNT M6 6,6x18x2

124

32 Screw TCEI 8.8 UNI5931 M6x20

125

32 Blind Rivet alluminium body 4x8

126

32

5210007

Plastic cover

127

32

5120018

Brake lining ( included #84 )

128

32 Washer UNI6592 ZNT M8 8,4x17x1,6

129

32 Screw TE 8.8 UNI5739 M10x40

130

32 Nut UNI5588 PG ZNT M10

131

32 Washer UNI6592 ZNT M10 10,5x21x2

132

32

3458005

Wheel rubber cover

133

32 Screw TPS-TC 7505A ZNT 4x20

134

32 Brush support (Group with #135)

135

32

5400002

Bottom wheel brush (Group with #134)

136

32 Screw TCEI 8.8 UNI5931 M6x10

137

32 Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

32 Washer UNI6592 ZNT M10 10,5x21x2

139

32 Screw TCEI 8.8 UNI5931 M10x20

140

32 Screw TE 8.8 UNI5739 M12x40

141

32 Nut UNI5589 PG ZNT M12

142

32 Washer UNI6593 ZNT M10 11x40x2,5

143

32 Screw TCEI 8.8 UNI5931 M10x20

144

32 Screw TCEI 8.8 UNI5931 M8x25

145

32

5210008

Polycarbonate blade protection

147

32

5150204

Foot brake lever

148

32

5180001

Foot brake pedal

150

32

5210012

Side dust outlet

151

32

4505010

Doors microswitch

152

32

5120022

Microswitch protection

153

32 Screw TC-TC UNI8118 3,9x16

155

32

3162051

Hinge with fixing screws

160

32

5125030

Bottom table protection

166

32

5700031

Earth connecting cable

167

32 Screw TCEI 8.8 UNI5931 M4x14

168

32 Washer UNI6593 ZNT M10 11x30x2,5

169

32 Nut UNI5588 PG ZNT M10

170

32

5400609

Table-cut locking pin

183

32

5150254

Table extension

184

32

1030382

Adjustment plate

185

32 Screw TE 8.8 UNI5739 M10x16

186

32 Washer UNI6592 ZNT M10 10,5x21x2

187

32 Nut UNI5588 PG ZNT M12

91

188

32 Washer M12 12,5x28x3

189

32

1030344

No-rotation post plate

190

32 Screw TE 8.8 UNI5739 M6x16

191

32

5320102

Brake microswitch

92

Bandsaw LT37

Drawing

N°

MACHINE

CODE

Part description

1

37

5020170

Upper fly wheel

2

37

3205060

Ball bearing

3

37

5210039

Spacer

4

37

3205060

Ball bearing

5

37 Washer UNI6593 ZNT M18 20x56x4

6

37 Seeger D=90 (hole)

7

37

5150121

Upper door

8

37

5050087

Shaft upper wheel

9

37 Screw TCEI 8.8 UNI5931 M10x20

10

37 Screw STEI UNI5927 M10x35

11

37

5030026

Sliding support upper wheel ( Group with #20)

12

37

3262010

Thrust bearing ( Group with #14 )

13

37

5120039

Tension blade steel plate

14

37

3261010

Thrust bearing ( Group with #12 )

15

37

3402090

Handle for inclination

16

37

3047059

Nut EN24032 PG ZNT M14

17

37

3458006

Wheel rubber cover

18

37

3177002

Steel wire for tension blade indication

19

37 Frame

20

37

5030027

Support sliding part ( Group with #11 )

21

37

5120034

Tension cable stop

22

37 Seeger D=35 (shaft)

23

37

5051107

Rack support blade protection

24

37

3402082

Handle locking rack

25

37

5120505

Blade protection

26

37

5120059

Support of blade protection

27

37 Screw STEI UNI5923 M8x16

28

37 Screw TSPEI 10.9 UNI5933 M6X16

30

37 Nut UNI5588 PG ZNT M12

31

37 Washer M12 12,5x28x3

32

37

5070013

Tunnion tilting table

33

37 Screw TE 8.8 UNI5739 M12x40

34

37

5080013

Tensioning blade screw

35

37

5270008

Spring steel blade protection

36

37

5031037

Parallel fence

37

5051250

Special nut

38

37

5060011

Spacer ( Group with part #48 )

39

37

3069010

Table level register

40

37

5120027

Fence locking plate

41

37 Fixing pin ( included #42)

42

37

3410641

Hand-wheel for upper wheel rise and fall

43

37

3401270

Upper door closing handle

44

37 Screw TE 8.8 UNI5740 M18x70

45

37

5140016

Tension blade spring

46

37

7100909

Tension blade indication box

47

37

5030045

Support of parallel fence ( included #56 )

48

37

5400510

Round bar support fence ( included #38 )

49

37 included #50,51,52,53,54,55

93

50

37

5320150

Connection box ( included #49,51,52,53,54,55 )

51

37

3450001

Included #50,49,52,53,54,61

52

37 Included #49,50,51,53,54,55

53

37 included #50,51,52,49,54,55

54

37 Included #50,49,52,53,51,68

55

37 Included #50,49,52,53,54,51

56

37

3407257

Locking handle fence support

57

37 Screw TCEI 8.8 UNI5931 M8x25

58

37 Nut UNI5588 PG ZNT M10

59

37

5400603

V-Belt tensioning ( included #58,138 )

60

37

3417033

V Belt, per unit

61

37 Motor pulley

62

37 Electric motor : see separate price-list

63

37 Key

64

37 Washer UNI6593 ZNT M10 11x30x2,5

65

37 Screw TE 8.8 UNI5739 M10x35

66

37 Screw STEI UNI5923 M8x10

69

37

3179100

Tension cable adjustement ( Group with #46 )

70

37

5070015

Trunnion support

71

37 Washer M12 12,5x28x3

72

37 Screw TE 8.8 UNI5739 M10x40

73

37

3104112

All thread Screw M12x80

74

37 Washer UNI6592 ZNT M18 19x34x3

75

37 Nut UNI5589 PF ZNT M18

76

37 Screw TE 8.8 UNI5740 M18x70

77

37 Locknut DIN985 PG ZNT M10

79

37 Washer UNI6593 ZNT M6 6,6x18x2

80

37

5140006

Foot brake spring

81

37

5150123

Doors connection

82

37 Screw TCEI 8.8 UNI5931 M6x20

83

37 Screw TE 8.8 UNI5739 M12x70

84

37 Brake pad ( Group with #127 )

85

37 Screw TCEI 8.8 UNI5931 M10x25

86

37 Washer UNI6592 ZNT M10 10,5x21x2

87

37

5210003

Pinion flange

88

37

5050088

Shaft of bottom wheel

89

37

5150122

Bottom door

90

37 Washer UNI6593 ZNT M18 20x56x4

91

37 Seeger D=90 (hole)

92

37

3205060

Ball bearing

93

37

5210039

Spacer

94

37

3205060

Ball bearing

95

37

5020173

Bottom fly wheel

96

37 Screw TE 8.8 UNI5739 M12x70

97

37 Screw STEI UNI5923 M8x10

98

37

5190001

Pinion

99

37

3086114

Spring washer

100

37

3410746

Post rise and fall handle

101

37 Screw TCEI 8.8 UNI5931 M6x20

102

37 Washer UNI6593 ZNT M6 6,6x18x2

103

37 Locknut DIN985 PG ZNT M16

94

104

37 Nut UNI5588 PG ZNT M6

105

37 Washer UNI6593 ZNT M6 6,6x18x2

107

37

5010083

Table

109

37

5210005

Table insert

110

37 Screw UNI5449 ZNT M6x16

111

37

5210102

Wooden Insert chute

112

37

1030811

Chute

113

37 Screw TC-TC UNI8118 3,9x16

114

37

5210009

Front aspiration outlet

115

37 Screw TCEI 8.8 UNI5931 M10x25

116

37

3401270

Lower door closing handle

117

37 Nut UNI5588 PG ZNT M10

118

37 Washer UNI6592 ZNT M10 10,5x21x2

120

37 Locknut DIN985 PG ZNT M10

123

37 Washer UNI6593 ZNT M6 6,6x18x2

124

37 Screw TCEI 8.8 UNI5931 M6x20

125

37 Blind Rivet alluminium body 4x8

126

37

5210007

Plastic cover

127

37

5120019

Brake lining ( included #84 )

128

37 Washer UNI6592 ZNT M8 8,4x17x1,6

129

37 Screw TE 8.8 UNI5739 M10x40

130

37 Nut UNI5588 PG ZNT M10

131

37 Washer UNI6592 ZNT M10 10,5x21x2

132

37

3458006

Wheel rubber cover

133

37 Screw TPS-TC 7505A ZNT 4x20

134

37 Brush support (Group with #135)

135

37

5400003

Bottom wheel brush (Group with #134)

136

37 Screw TCEI 8.8 UNI5931 M6x10

137

37 Washer UNI6592 ZNT M6 6,4x12,5x1,6

138

37 Washer UNI6592 ZNT M10 10,5x21x2

139

37 Screw TCEI 8.8 UNI5931 M10x20

140

37 Screw TE 8.8 UNI5739 M12x40

141

37 Nut UNI5589 PG ZNT M12

142

37 Washer UNI6593 ZNT M10 11x40x2,5

143

37 Screw TCEI 8.8 UNI5931 M10x20

144

37 Screw TCEI 8.8 UNI5931 M8x20

145

37

5210008

Polycarbonate blade protection

147

37

5150205

Foot brake lever

148

37

5180001

Foot brake pedal

150

37

5210012

Side dust outlet

151

37

4505010

Doors microswitch

152

37

5120022

Microswitch protection

153

37 Screw TC-TC UNI8118 3,9x16

155

37

3162051

Hinge with fixing screws

160

37

5125030

Bottom table protection

166

37

5700031

Earth connecting cable

167

37 Screw TCEI 8.8 UNI5931 M4x14

168

37 Washer UNI6593 ZNT M10 11x30x2,5

169

37 Nut UNI5588 PG ZNT M10

170

37

5400609

Table-cut locking pin

183

37

5150256

Table extension

184

37

5250003

Adjustment plate

185

37 Screw TE 8.8 UNI5739 M10x16

95

186

37 Washer UNI6592 ZNT M10 10,5x21x2

187

37 Nut UNI5589 PF ZNT M18

188

37 Washer UNI6592 ZNT M18 19x34x3

189

37

1030753

No-rotation post plate

190

37 Screw TE 8.8 UNI5739 M6x16

191

37

5320102

Brake microswitch

2072 Alton Parkway. Irvine, CA 92606

Ph: 800.234.1976 | www.lagunatools.com

Laguna Tools is not responsible for errors or omissions.

Speciﬁcations subject to change. Machines may be shown with optional accessories.
