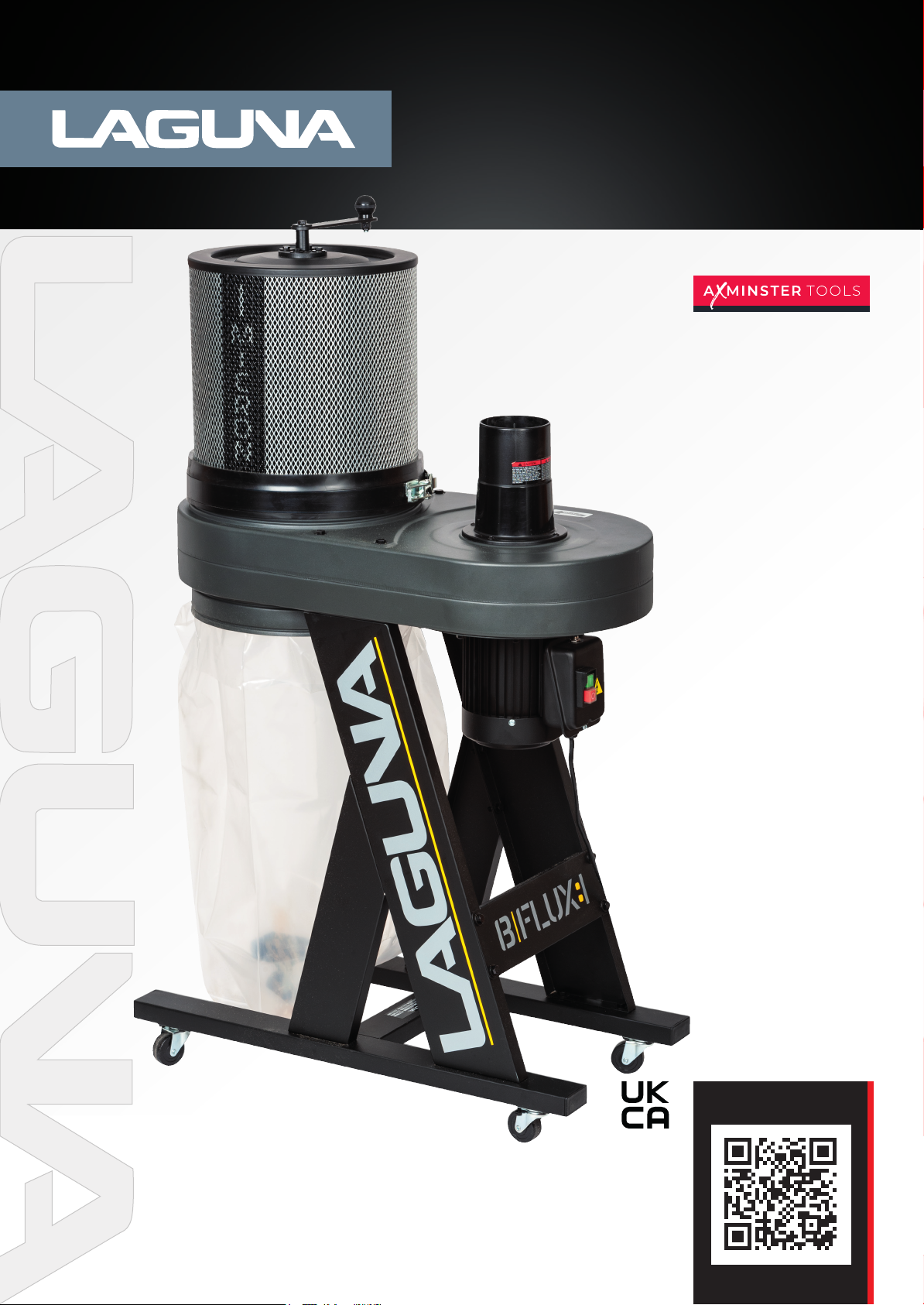

Page 1
B|Flux 1 Dust
Extractor 230v
Code: 111775
Distributed by
N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations
which differ slightly from the machine you purchased
Version: 3
Date: 1/10/25
DIGITAL MANUAL
Page 2
Contents
Important Safety Instructions 3
Safety Guidelines - Definitions 6
General Safety Rules 7
Additional Safety For Dust Collectors 8
Power Connections 10
Motor Specifications 10
Grounding Instructions 10
Extension Cords 11
Product Specifications 13
Assembly 14
General Tool Assembly 14
Cleaning the Filter 25
Trouble Shooting 26
Parts breakdown and parts list 28
Conformity Certificates 31
Warranty 33
2
Page 3
1HP One stage Dust Collector Manual
3

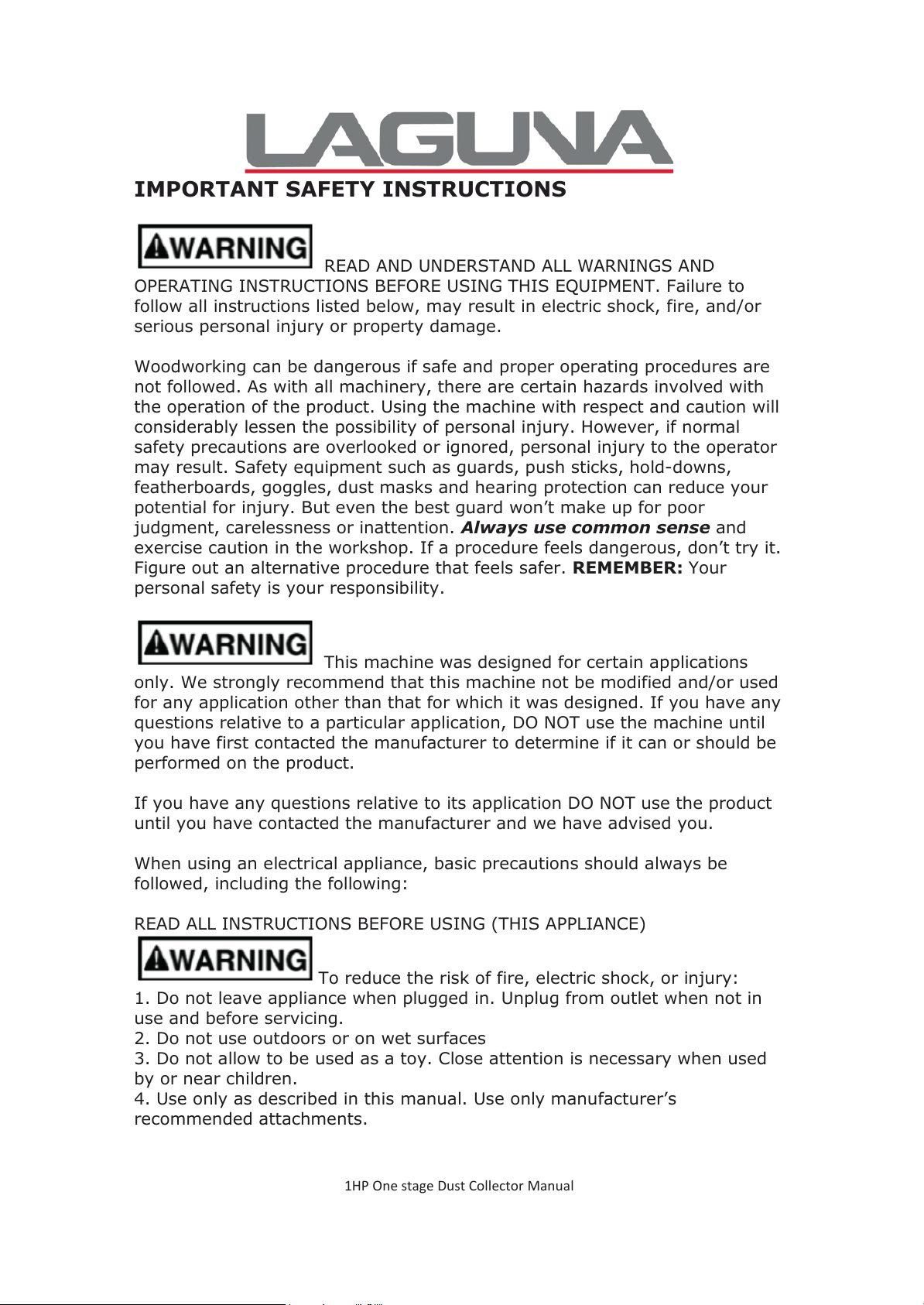

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND
OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to
follow all instructions listed below, may result in electric shock, fire, and/or
serious personal injury or property damage.
Woodworking can be dangerous if safe and proper operating procedures are
not followed. As with all machinery, there are certain hazards involved with
the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal
safety precautions are overlooked or ignored, personal injury to the operator
may result. Safety equipment such as guards, push sticks, hold-downs,
featherboards, goggles, dust masks and hearing protection can reduce your
potential for injury. But even the best guard won’t make up for poor
judgment, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, don’t try it.
Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility.
This machine was designed for certain applications
only. We strongly recommend that this machine not be modified and/or used
for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the machine until
you have first contacted the manufacturer to determine if it can or should be
performed on the product.
If you have any questions relative to its application DO NOT use the product
until you have contacted the manufacturer and we have advised you.
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in
use and before servicing.
2. Do not use outdoors or on wet surfaces
3. Do not allow to be used as a toy. Close attention is necessary when used
by or near children.
4. Use only as described in this manual. Use only manufacturer’s
recommended attachments.
3
Page 4
4
5. Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or
pull cord around sharp edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline,
or use in areas where they may be present.
14. Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
1. Read and understand the warnings posted on the machine and in this
manual. Failure to comply with all of these warnings may cause serious
injury.
2. Replace the warning labels if they become obscured or removed.
3. Do not use this machine for other than its intended use. If used for
other purposes, LAGUNA TOOLS INC., disclaims any real or implied
warranty and holds itself harmless from any injury that may result
from that use.
4. Always wear approved safety glasses/face shields while using this
machine.
5. Before operating this dust collector, remove tie, rings, watches and
other jewelry, and roll sleeves up past the elbows. Remove all loose
clothing and confine long hair. Non-slip footwear or anti-skid floor
strips are recommended. Do not wear gloves.
6. Wear ear protectors (plugs or muffs) during extended periods of
operation.
1HP One stage Dust Collector Manual
44
Page 5
5
8. Some dust created by power sanding, sawing, grinding, drilling and
other construction activities contain chemicals known to cause cancer,
birth defects or other reproductive harm. Some examples of these
chemicals are:
• Lead from lead based paint.
• Crystalline silica from bricks, cement and other masonry
products.
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals, work in a wellventilated area and work with approved safety equipment, such as
face or dust masks that are specifically designed to filter out
microscopic particles.
9. Do not operate this machine while tired or under the influence of drugs,
alcohol or any medication.
10.Make certain the switch is in the OFF position before connecting the
machine to the power source.
11.Make certain the machine is properly grounded.
12.Make all machine adjustments or maintenance with the machine
unplugged from the power source.
13.Form a habit of checking to see that all extra equipment such as
adjusting keys, wrenches, scrap, stock, and cleaning rags are removed
away from the machine before turning on.
14.Keep safety guards in place at all times when the machine is in use. If
removed for maintenance purposes, use extreme caution and replace
the guards immediately when maintenance is complete.
15.Make sure the dust collector is on a flat even surface and the wheels
locked in place before use.
16.Check damaged parts. Before further use of the machine, a guard or
other part that is damaged should be carefully checked to determine
that it will operate properly and perform its intended function. Check
for alignment of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect its operation.
A guard or other part that is damaged should be properly repaired or
replaced.
17.Provide for adequate space surrounding work area and non-glare,
overhead lighting.
1HP One stage Dust Collector Manual
5
Page 6
6
18.Keep the floor around the machine clean and free of scrap material, oil
and grease.
19.Keep visitors a safe distance from the work area. Keep children
away.
20.Make your workshop child proof with padlocks, master switches or by
removing starter keys.
21.Give your work undivided attention. Looking around, carrying on a
conversation and “horse-play” are careless acts that can result in
serious injury.
.
22.Maintain a balanced stance at all times so that you do not fall or lean
against the dust collector. Do not overreach or use excessive force to
perform any machine operation.
23.Use the right tool at the correct speed and feed rate. Do not force a
tool or attachment to do a job for which it was not designed. The right
tool will do the job better and safer.
24.Use recommended accessories; improper accessories may be
hazardous.
25.Maintain machinery with care. Follow instructions for lubricating and
changing accessories.
26.Turn off the machine before cleaning. Use a brush or compressed air
to remove dust or debris — do not use your hands.
27.Do not stand on the machine. Serious injury could occur if the machine
tips over.
28.Never leave the machine running unattended. Turn the power off and
do not leave the machine until it comes to a complete stop.
Familiarize yourself with the following safety notices used in this manual:
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information,
we use the symbols below. Please read the manual and pay attention to
these sections.
1HP One stage Dust Collector Manual
6
Page 7
1HP One stage Dust Collector Manual
7

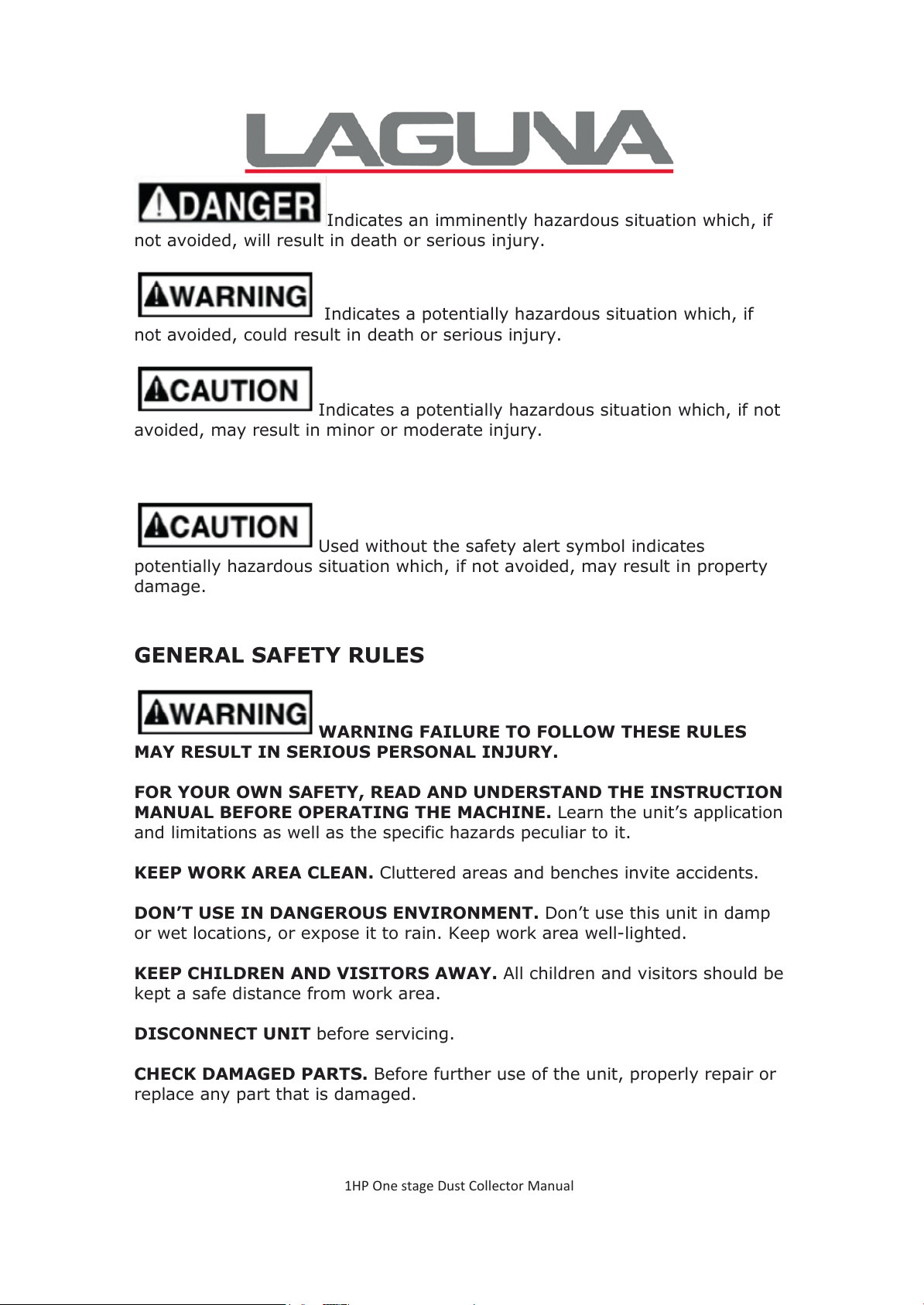

Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates
potentially hazardous situation which, if not avoided, may result in property
damage.
GENERAL SAFETY RULES
WARNING FAILURE TO FOLLOW THESE RULES
MAY RESULT IN SERIOUS PERSONAL INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE. Learn the unit’s application
and limitations as well as the specific hazards peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp
or wet locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be
kept a safe distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or
replace any part that is damaged.
7
Page 8
1HP One stage Dust Collector Manual
8

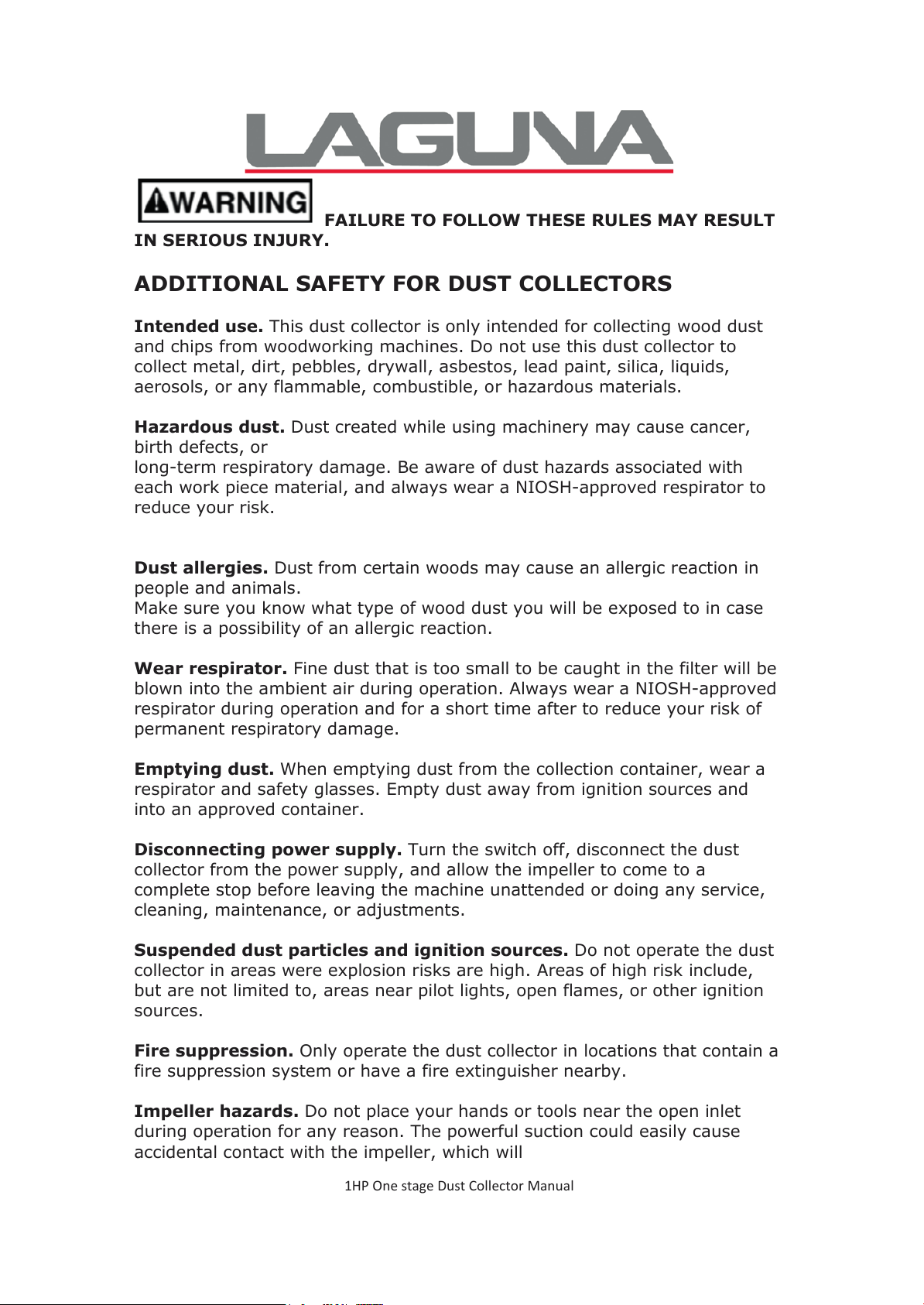

FAILURE TO FOLLOW THESE RULES MAY RESULT
IN SERIOUS INJURY.
ADDITIONAL SAFETY FOR DUST COLLECTORS
Intended use. This dust collector is only intended for collecting wood dust
and chips from woodworking machines. Do not use this dust collector to
collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica, liquids,
aerosols, or any flammable, combustible, or hazardous materials.
Hazardous dust. Dust created while using machinery may cause cancer,
birth defects, or
long-term respiratory damage. Be aware of dust hazards associated with
each work piece material, and always wear a NIOSH-approved respirator to
reduce your risk.
Dust allergies. Dust from certain woods may cause an allergic reaction in
people and animals.
Make sure you know what type of wood dust you will be exposed to in case
there is a possibility of an allergic reaction.
Wear respirator. Fine dust that is too small to be caught in the filter will be
blown into the ambient air during operation. Always wear a NIOSH-approved
respirator during operation and for a short time after to reduce your risk of
permanent respiratory damage.
Emptying dust. When emptying dust from the collection container, wear a
respirator and safety glasses. Empty dust away from ignition sources and
into an approved container.
Disconnecting power supply. Turn the switch off, disconnect the dust
collector from the power supply, and allow the impeller to come to a
complete stop before leaving the machine unattended or doing any service,
cleaning, maintenance, or adjustments.
Suspended dust particles and ignition sources. Do not operate the dust
collector in areas were explosion risks are high. Areas of high risk include,
but are not limited to, areas near pilot lights, open flames, or other ignition
sources.
Fire suppression. Only operate the dust collector in locations that contain a
fire suppression system or have a fire extinguisher nearby.
Impeller hazards. Do not place your hands or tools near the open inlet
during operation for any reason. The powerful suction could easily cause
accidental contact with the impeller, which will
8
Page 9
1HP One stage Dust Collector Manual
9
cause serious personal injury or damage to the machine. Always keep small
animals and children away from open dust collection inlets.
Avoiding sparks. Do not allow steel or rocks to strike the impeller—this
may produce sparks.
Sparks can smolder in wood dust for a long time before a fire is detected. If
you accidentally cut
Into wood containing tramp metal (nails, staples, spikes, etc.), immediately
turn off the dust collector, disconnect it from power, and wait for the
impeller to stop—then empty the collection container into an approved
airtight metal container.
Operating location. To reduce respiratory exposure to fine dust, locate
permanently installed dust collectors away from the working area, or in
another room that is equipped with a smoke detector. Do not operate the
dust collector in rainy or wet locations—exposure to water may create a
shock hazard or decrease the life of the machine.
Static electricity. Plastic dust lines generate high amounts of static
electricity as dust chips pass through them. Although rare, sparks caused by
static electricity can cause explosions or fire. To reduce this risk, make sure
all dust lines are thoroughly grounded by using a grounding wire.
Regular cleaning. Regularly check/empty the collection bags or drum to
avoid the buildup of fine dust that can increase the risk of fire. Make sure to
regularly clean the surrounding area where the machine is operated—
excessive dust buildup on overhead lights, heaters, electrical panels, or other
heat sources will increase the risk of fire.
This means that if precautions are not heeded, it may result in minor injury
and/or possible machine damage.
This means that if precautions are not heeded, it may result in serious injury
or possibly even death.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
9
Page 10
10
POWER CONNECTIONS
A separate electrical circuit should be used for your machines. This circuit
should not be less than #12 wire and should be protected with a 15 Amp
time lag fuse. If an extension cord is used, use only 3-wire extension cords
which have 3-prong grounding type plugs and matching receptacle which will
accept the machine’s plug. Before connecting the machine to the power line,
make sure the switch (s) is in the “OFF” position and be sure that the electric
current is of the same characteristics as indicated on the machine. All line
connections should make good contact. Running on low voltage will damage
the machine.
Do not expose the machine to rain or operate the machine in damp locations.
230V
MOTOR SPECIFICATIONS
Your machine is wired for 230V, 50 HZ alternating current.
Before connecting the machine to the power source, make
sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
This machine must be grounded while in use to protect the
operator from electric shock.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This
machine is equipped with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper
outlet installed by a qualified electrician. Improper connection of the
equipment-grounding conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
1HP One stage Dust Collector Manual
10
Page 11
11
GROUNDED OUTLET BOX
CURRENT CARRYING PRONGS
GROUNDING BLADE
LONGEST OF 3 BLADES
GROUNDING MEANS
ADAPTER
Fig. A
Fig. B
GROUNDED OUTLET BOX
Check with a qualified electrician or service personnel if the grounding
instructions are not completely understood, or if in doubt as to whether the
machine is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding type plugs and
matching 3-conductor receptacles that accept the machine’s plug, as shown
in Fig. A. Repair or replace damaged or worn cord immediately.
2. Grounded, cord-connected machines intended for use on a supply
circuit having a nominal rating less than 150 volts:
If the machine is intended for use on a circuit that has an outlet that looks
like the one illustrated in Fig. A, the machine will have a grounding plug that
looks like the plug illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect this plug to a
matching 2-conductor receptacle as shown in Fig. B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet can be installed by a qualified electrician. The
green-colored rigid ear, lug, and the like, extending from the adapter is used,
it must be held in a place with a metal screw. NOTE: In Canada, the use of a
temporary adapter is not permitted by the Canadian Electric Code.
In all cases, make certain that the receptacle in question
is properly grounded. If you are not sure, have a
qualified electrician check the receptacle.
EXTENSION
Use
condition
grounding type plug and matching receptacle which will accept the machine’s
plug. When using an
carry the
voltage,
line
shows
the
CORDS
proper extension cords.
and is a 3-wire
extension
current
correct gauge
of the
resulting in loss of power and
extension
cord, be sure to use one heavy
machine. Anundersized
to use
Make sure your
cordwhich has a 3-prong
overheating.
depending
on
extension
cord
will
causeadr
Fig. D.1 or D.2,
the
cord length.Ifin
cord is in good
enough
to
op
in
1HP One stage Dust Collector Manual
11
Page 12
12
doubt,
0-6
18
16
16
14
6-10
120
18
16
14
12
10-12
120
16
16
14
12
25-50
14
12 AWG
0-6
6-10
240
10-12
240
RECOMMENDED
use the next heavier
heavier the
cord.
gauge.
The smaller the
gauge number,
the
Ampere
Rating
0-6
0-6
0-6
6-10
6-10
6-10
10-12
10-12
10-12
12-16
12-16
12-16
MINIMUM
RECOMMENDED SIZES FOR USE
STATIONARY
Volts
GAUGE EXTENSION CORD
ELECTRIC MACHINES
Total Length
Cord in Feet
120
120
120
120
120
120
120
120
120
120
120
120
120
up to 25
25-50
50-100
100-150
up to 25
25-50
50-100
100-150
up to 25
25-50
50-100
100-150
up to 25
GREATER
of
THAN 50 FEET NOT
WITH
Gauge of
Extension
Cord
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
Ampere
Rating
0-6
0-6
0-6
6-10
6-10
6-10
10-12
10-12
10-12
12-16
12-16
12-16
MINIMUM
RECOMMENDED SIZES FOR USE
STATIONARY
Volts
240
240
240
240
GAUGE EXTENSION CORD
ELECTRIC MACHINES
Total Length
Cord in Feet
up to 50
240
240
240
240
240
240
240
240
240
50-100
100-200
200-300
up to 50
50-100
100-200
200-300
up to 50
50-100
100-200
200-300
up to 50
50-100
GREATER THAN 100 FEET NOT
of
WITH
Gauge of
Extension Cord
18 AWG
16 AWG
16 AWG
14 AWG
18 AWG
16 AWG
14 AWG
12 AWG
16 AWG
16 AWG
14 AWG
12 AWG
14 AWG
12 AWG
1HP One stage Dust Collector Manual
12
Page 13
1HP One stage Dust Collector Manual
13
PRODUCT SPECIFICATIONS
Motor
Power Supply
Running Amp
Recommended Breaker Size (MCB)
Airflow (Traditional Method)
Airflow (Realistic Method)
Max. Static Pressure
Fan Diameter
Inlet Diameter
Switch
Noise Level
Drum Collection Capacity
Packing Size (WxDxH)
Machine Weight (Net Weight)
Shipping Weight (Gross Weight)
Filter Media
Cartridge Filter
Filtration Size
Drum Collection Bag Layflat Size
Filter Collection Bag Layflat Size
750w (1HP)
220-240V / 50Hz / 1PH
(with 4" inlet) 4.7A @ 230v
884m3/hour (520cfm)
748m3/hour (440cfm)
123mm in water (4.86")
230mm (9")
100mm (4")
Motor mounted direct switch
76 dB(A) @ 3m
830 x 510 x 630mm
32Kg
35Kg
Filtering area: 1.6m2 (17.2ft2)
360mm diameter x 300mm height
99.7% @1 Micron
600 x 900mm (24" x 36")
13
Page 14
GENERAL TOOL ASSEMBLY
Tools Required
10mm wrench (supplied in hardware pack)
Phillips screwdriver (not supplied)
SEVERE LACERATION HAZARD. TURN THE UNIT “OFF”, DISCONNECT
THE UNIT from the power source and wait 2-1/2 minutes to allow time for
internal rotating components to stop before installing or removing accessories, before adjusting
or changing set-ups, clearing clogs or when making repairs. For your own safety, do not connect
the machine to the power source until the machine is completely assembled. Please also make
sure that you read and understand the entire instruction manual.
ASSEMBLY TIME ESTIMATE 1 hour to 2 hours
CASTERS
1. Locate the bag of hardware with the 1/4” flat washers and 1/4” hex bolts for the four
plate mount casters. Each caster requires four of each washer and bolt.
X 16pcs
X 16pcs
14
Page 15
2. Make sure you have the base in the position with the four bolt holes for each plate
mount caster facing upwards to assemble each caster.
3. Place each caster with the plate mount on the base. Take the 1/4” hex bolt and 1/4”
washer and insert through the plate mount and thread into the base. Tighten each
bolt. Do the same for the other three casters.
15
Page 16
16
Front side
Back side
SIDE SUPPORTS
1. Place the base with the casters on the bottom. Make sure you place
the side with the two bolt holes on each leg of the base to your
right side when looking down on it. See below on positioning; this is
important for assembling the correct side support to the
corresponding side.
2. Locate the side supports that have been labelled on the inside with
“L” and “R”.
1HP One stage Dust Collector Manual
16
Page 17
17
Long R
Short R
Long L
Short L
3. The base below shows where each side support needs to go.
4. Place the Long side support labeled “L” in an upright position with
the slant facing inwards towards the middle of the base. The angle
of the picture below has been taken on the opposite side to show
the label “L”.
1HP One stage Dust Collector Manual
17
Page 18
18
5. Align the two holes in the bottom end of the long side support with
the two holes in the base. Place a 5/16” flat washer onto the
5/16”x3/4” hex bolt and insert through each hole in the long side
support and base. Tighten the bolt securely.
6. Place the short side support labelled “L” in an upright position with
the slant facing long side support.
1HP One stage Dust Collector Manual
18
Page 19
19
7. Align the two holes on the top end of the short side support to with
the two bolt holes on the middle of the long side support. Place a
5/16” flat washer onto the 5/16”x3/4” hex bolt and insert through
each hole in the long side support and short side support. Tighten
the bolt securely.
8. Align the two holes on the bottom end of the short side support to
the two bolt holes in the base. Place a 5/16” flat washer onto the
5/16”x3/4” hex bolt and insert through each hole in the long side
support and short side support. Tighten the bolt securely.
9. Repeat this process for the remaining side supports labelled “R”.
10. The figure below shows both side supports assembled.
1HP One stage Dust Collector Manual
19
Page 20
20
11. Locate the support brace and place inside the two side supports.
NOTE: MAKE SURE THE SUPPORT IS ATTACHED TO THE SIDE
SUPPORTS CLOSEST TO THE MOTOR.
12. Align the four holes in the support brace with the four holes in
the side supports as shown below.
13. Place a 5/16” flat washer onto the 5/16”x3/4” hex bolt and insert
through the long side supports and support brace. Tighten the bolt
securely.
1HP One stage Dust Collector Manual
20
Page 21
21
A
A
B
C
Fig.3
ATTACHING THE MOTOR AND DUST CHUTE TO THE FRAME
1. Place the motor and dust chute on their side.
2. Align the four holes, two shown at C, on the top of the side
supports (A) Fig. 3, with the four holes on the dust chute (B).
3. Place a 5/16” flat washer onto a 5/16”x3/4” hex bolt and insert the
bolt through the side support and thread bolt into the tapped hole
on the dust chute and tighten securely.
4. Repeat this process for the three remaining holes.
5. Carefully lift the assembly up with the wheels on the bottom and
dust chute on top.
NOTE: Motor not shown in this figure.
1HP One stage Dust Collector Manual
21
Page 22
22
X
INTAKE ADAPTER TO THE DUST CHUTE
1. Line up four holes in the intake adapter (one shown as X) Fig.4 with
four holes in the dust chute.
2. Use the included #8 x 1/2” countersunk screws, fasten the intake
adapter to the dust chute.
SEVERE LACERATION HAZARD. TURN THE UNIT
"OFF," Disconnect the UNIT from the power source
and wait 2-1/2 minutes to allow time for internal rotating components
to stop before installing or removing accessories, before adjusting or
changing set-ups, clearing clogs or when making repairs. The dust
collector is not supplied with a 4" wide flexible dust intake hose. Please
assemble your own 4” wide flex hose to the intake adapter and secure
with a hose clamp. Assemble the other end of the flexible hose and to
the woodworking machine and secure with a hose clamp.
IMPORTANT: Do not operate the dust collector without the flexible
hose assembled to the intake adapter.
1HP One stage Dust Collector Manual
22
Page 23
23
X
CANISTER FILTER TO CHUTE
1. Take the canister filter and fit the open end to the top channel on
the dust chute.
2. Locate the adjustable band clamp from the hardware and take the
end with the clamp and key bolt. Adjust the length of the band
clamp by tightening or loosening the key bolt.
3. Secure adjustable band clamp around the bottom end of the
canister filter.
4. Hook the key bolt onto the other end of the clamp and push the
handle (one shown as A) down to secure tightly.
1HP One stage Dust Collector Manual
23
Page 24
1HP One stage Dust Collector Manual
24
COLLECTION BAGS TO CHUTE
DISCONNECT THE MACHINE FROM THE POWER SOURCE!
USING THE CLOTH SNAP BAND RING:
1. Place the cloth-covered snap band ring (A) Fig. 5 inside the opening
of the clear plastic collection bag. Fold about 6 inches of the bag
around the snap band ring.
2. Place the bag in the large opening (B) Fig. 6 in the dust chute. Fit
the snap band ring into the bottom channel (B) Fig.6. Bend and fold
the snap band ring to fit it into place.
3. Tug slight on the bag to eliminate any slack and make sure that the
bag is secure and will not detach during collection.
USING A METAL BAG CLAMP:
You can also attach the plastic bag to the outside of the dust collector using
the included metal bag clamp (B) Fig. 7.
1. Place the metal bag clamp (B) around the top of the plastic bag (A).
Fold about 4 to 6 inches of plastic bag over the clamp (Fig. 7).
2. Place the metal bag clamp and plastic bag (A) Fig. 8 on the dust
chute. Fasten the metal bag clamp (B) securely.
24
Page 25
1HP One stage Dust Collector Manual
25
CLEANING THE FILTER
To ensure proper operation of this Dust Cyclone, the canister filter must have
adequate air flow. This means the filter must be regularly maintained by
carefully blowing the filter clean using compressed air and an air gun to
release built-up particulates trapped between the filter pleats.
For heavy duty users, it is recommended to use compressed air on a regular
basis to maintain maximum filtration efficiency and longer life span of the
filter.
Using the Filter Cleaner Crank
The filter cleaner crank knocks dust particulate and small debris from the
pleated filter and into the filter bag.
To keep your machine in good working condition, it is recommended that you
use the filter cleaner crank to clean the filter after every use.
To clean the filter using the crank simply rotate the crank handle clockwise
four or five rotations.
Using Compressed Air
DISCONNECT MACHINE FROM POWER!
For heavy duty users, it is recommended to use compressed air on a weekly
basis to maintain maximum filtration efficiency and longer life span of the
filter.
ROUTINE INSPECTION
It is a good idea to routinely inspect any quality woodworking tool in order to
keep it in optimum condition. This includes inspecting all hardware for
tightness, ensuring the filter is clean, and cleaning debris and grime from any
surfaces and moving parts.
25
Page 26
26
TROUBLESHOOTING GUIDE
Symptom
Possible Cause
Possible Solution
Machine
Power supply switched
Motor is at fault.
Ensure power supply is ON and
Test/repair/replace.
Excessive
Loose component.
Inspect and tighten all bolts/nuts.
bearings if needed.
Loud,
Machine is on uneven
Stabilize on a flat surface.
does not
start or a
breaker
trips.
vibration or
noise during
operation.
OFF or is faulty.
Wall fuse/circuit breaker is
blown/tripped.
Incorrectly wired motor
connection.
On-board circuit breaker is
tripped.
Wiring is open/has high
resistance.
Faulty power switch.
Loose or broken motor
mount.
has the correct voltage.
Ensure adequate circuit size;
install inlet restrictor, replace
weak breaker.
Rewire or call certified service
technician or electrician.
Allow motor to cool, improve
ventilation, press reset button.
Check for broken wires or poor
connections, repair as necessary.
Replace switch.
Tighten or replace as needed.
Motor fan hitting fan
cover.
Bad motor bearings.
repetitive
noise, or
excessive
vibration
coming from
cyclone
surface.
Damaged/Unbalanced
impeller.
Loose connections.
Impeller is loose.
Check fan and cover; replace as
needed.
Rotate shaft manually, check for
grinding or loose shaft, replace
Inspect impeller for dents, bends,
loose fins. Replace if needed.
Check and re-tighten all
fasteners.
Replace the motor and impeller.
1HP One stage Dust Collector Manual
26
Page 27
27
Motor fan hitting fan
cover.
Check fan and cover; replace as
needed.
Dust
collector
Canister end bag is full.
Empty canister end bag.
fittings.
Sawdust
collector
Band clamp or end bag is
Re-install ensuring a tight fit.
does not
adequately
collect dust
or chips;
poor
performance.
Filter is dirty.
Restricted duct line.
Suction route is too long
or has too many sharp
bends.
Clean filter.
Clean inlet adapter.
Move machine closer to the point
of suction, and rerun ducts to
eliminate sharp bends.
being blown
into the air
from the
dust
Wet lumber is clogging
ducts.
Leaks in the duct work or
too many open ports.
Inadequate velocity in the
main suction line.
Wrong size ducting/ports
used.
not secure.
Loose or damaged seals.
Use lumber with less than 20%
moisture content.
Repair all duct leaks and close
any ports not being used.
Increase velocity by opening 1 or
2 more blast gates to different
branch lines.
Re-size and re-install ducts and
Replace seals and gaskets.
1HP One stage Dust Collector Manual
27
Page 28
Parts Breakdown
28
Page 29
29
Part List
Ref No
Part Name
Description
Q’TY
1
DUST CHUTE
1
2
INTAKE SPLITTER
4”
1
3
HEX BOLT
5/16”*3/4”
4
4
NUT
5/16”
8
5
SHEET METAL THREAD BOLT
#8x1/2”
4
6
HEX BOLT
5/16”*3/4”
4
7
FLAT WASHER
5/16”*OD18*2t
4
8
MOTOR BASE SUPPORT
1
8A
GASKET
1
9
HEX SPRING BOLT
5/16”*5/8”
12
10
HEX BOLT
5/16”*3/4”
1
11
FLAT WASHER
5/16”*OD30*3t
1
12
FAN9”1
13
MOTOR RUBBER GASKET
1
14
MOTOR
1HP/230V/50HZ/1PHASE
1
15
SIDE SUPPORT – LONG
Right
1
16
SIDE SUPPORT – LONG
Left
1
17
SIDE SUPPORT – SHORT
Left
1
18
SIDE SUPPORT – SHORT
Right
1
19
FLAT WASHER
5/16”*OD18*2t
4
20
HEX BOLT
5/16”*3/4”
4
21
HEX BOLT
5/16”*3/4”
8
22
FLAT WASHER
5/16”*OD18*2t
8
23
FLAT WASHER
5/16”*OD18*2t
4
24
HEX BOLT
5/16”*3/4”
4
25
SUPPORT BRACE
1
26
FLAT WASHER
5/16”*OD18*2t
4
27
HEX BOLT
5/16”*3/4”
4
28
PLUG
30*60mm
4
29
BASE
4
30
FLAT WASHER
3/8”*OD23*2t
4
31
2” WHEEL
4
32
HANDLE
22mmL
1
33
ROTATION ARM
1
34
HEX BOLT
5/16”*3/4”
1
35
FLAT WASHER
5/16”*OD30*3t
1
36
FLAT WASHER
3/8”*OD23*2t
1
37
LOCK NUT
3/8”
1
38
C-SHAPED CLAMP
Ø20
1
39
SEAL
OuterØ30*Inner Ø20*5t
1
40
HEX BOLT
1/4”*3/4”
4
1HP One stage Dust Collector Manual
29
Page 30
30
Ref No
Part Name
Description
Q’TY
41
FLAT WASHER
1/4”*OD19*2t
4
42
BEARING
Ø70* Ø20.5*7t
1
43
CANISTER FILTER
Ø350*300mm
1
44
ROTATION SHAFT
1
45
SUPPPORT PLATE
1
46
HEX BOLT
1/4”*5/8”
8
47
FLAT WASHER
1/4”*OD13*1t
16
48
CANVAS
2
49
PEDAL
2
50
LOCK NUT
1/4”
8
51
FLAT WASHER
5/16”*OD23*2t
1
52
HEX BOLT
5/16”*3/4”
1
53
LOCK NUT
1/4”
4
54
FLAT WASHER
1/4”*OD13*1t
4
55
HEX BOLT
1/4”*3/4”
4
56
ADJUSTABLE BAND CLAMP
Ø350mm
1
57
BLACK SNAP BAND
Ø350mm
1
58
SPRING BAG CLAMP
Ø350mm
1
59
PLASTIC BAG
Ø350mm*980mm
2
1HP One stage Dust Collector Manual
30
Page 31
Laguna Tools Inc.
UK DECLARATION OF CONFORMITY
‘original’
Product model: B/Flux Dust Extractor
Name and address of the manufacturer: Laguna Tools Inc. 2072 Alton Parkway, Irvine, California
92606, USA.
Name and address of the UK Authorised Representative: Axminster Tool Centre Ltd, Unit 10 Weycroft
Avenue, Axminster, Devon EX13 5PH, United Kingdom.
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Object of the declaration: B/Flux Dust Extractor
The object of the declaration described above is in conformity with the relevant GB legislation:
Supply of Machinery (Safety) Regulations 2008 as amended.
Electromagnetic Compatibility Regulations 2016 as amended.
References to the relevant harmonised standards used or references to the other technical
specifications in relation to which conformity is declared:
.
EN ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment and
risk reduction
EN 60204-1:2018 Safety of machinery - Electrical equipment of machines - Part 1: General
requirements
Additional information:
Name and address of person authorised to compile the technical file: Axminster Tool Centre
Ltd, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH, United Kingdom
The machinery fulfils all relevant provisions of Supply of Machinery (Safety) Regulations 2008
as amended.
Signed for and behalf of: Axminster Tool Centre Ltd.
(place and date of issue): Axminster, Devon, United Kingdom, 20
(name, function):
Andrew Parkhouse, Supply Chain Director
th
June 2024
Signature:
313233
Page 32
Page 33
Warranty
New machines and accessories sold by Laguna Tools carry a one-year
warranty effective from the date of shipping.
Laguna Tools guarantees all new machines and accessories sold to be
free of manufacturers’ defective workmanship, parts and materials.
We will repair or replace, without charge, any parts determined by
Laguna Tools, Inc. to be a manufacturer’s defect.
We require that the defective item/part be returned to the Laguna
appointed dealer you purchased from with the complaint. Photographic / videos maybe required when any fault is reported so we can
agree action needed. Any machines returned to Laguna appointed dealer must be returned with packaging in the same manner
in which it was received. If a part or blade is being returned it must
have adequate packaging to ensure no damage is received during
shipping. In the event the item/part is determined to be damaged
due to lack of maintenance, cleaning or misuse/abuse, the customer
will be responsible for the cost to replace the item/part, plus all related shipping charges. This limited warranty does not apply to natural
disasters, acts of terrorism, normal wear and tear, product failure due
to lack of maintenance or cleaning, damage caused by accident,
neglect, lack of or inadequate dust collection, misuse/abuse or damage caused where repair or alterations have been made or attempted
by others. Laguna Tools, Inc. is not responsible for additional tools or
modifications sold or performed (other than from/by Laguna Tools,
Inc.) on any Laguna Tools, Inc. machine.
Warranty maybe voided upon the addition of such described tools
and/or modifications, determined on a case-by-case basis.
Normal user alignment, adjustment, tuning, machine settings and
consumables I.E; blades are not covered by this warranty. It is the
responsibility of the user to understand basic machinery operation,
settings and procedures and to properly maintain the equipment in
accordance with the standards provided by the manufacturer.
The labour required to install replacement parts is the responsibility
of the user. Laguna Tools is not responsible for damage or loss caused
by a freight company or other circumstances not in our control.
All claims for loss or damaged goods must be notified to the authorised dealer within twenty-four hours, if the machine is received damaged it must be signed for damaged.
Only new machines sold to the original owner are covered by this
warranty.
Page 34
34
Page 35
35
Page 36
Distributed by
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
EU Countries Only
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
For after sales help visit
axminstertools.com or call 03332 406406
Axminster Tools, Axminster Devon EX13 5PH
36
Loading...
