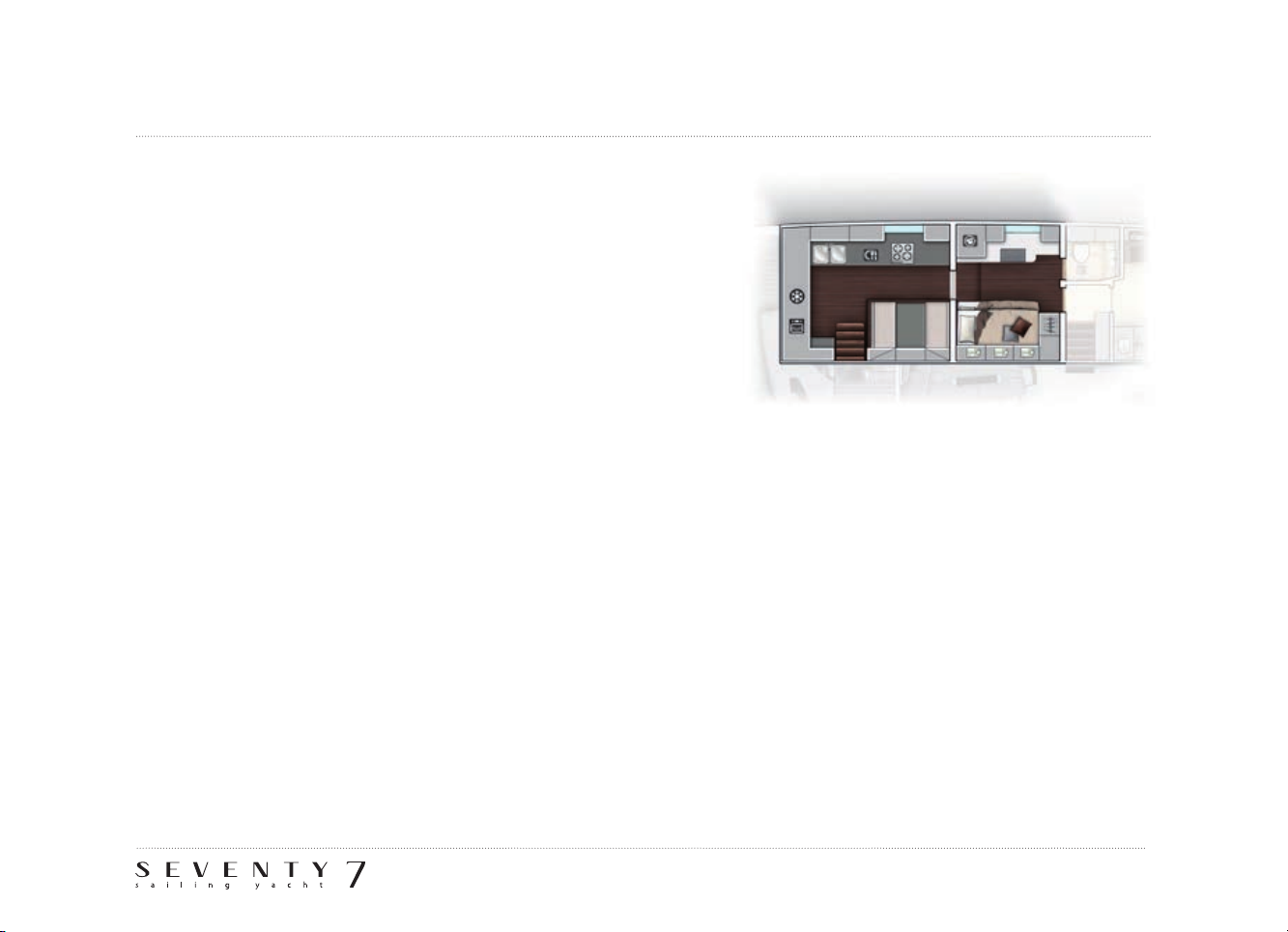

• Aft galley and crew quarters 3 cabin version
• Aft galley and crew quarters 4 cabin version
• Forward galley and crew quarters 4 cabin version
• Forward galley and crew quarters 5 cabin version
• Forward galley version - aft area custom station proposals
• Aft galley & crew quarter
• Forward galley & crew quarter
• Bow compartment

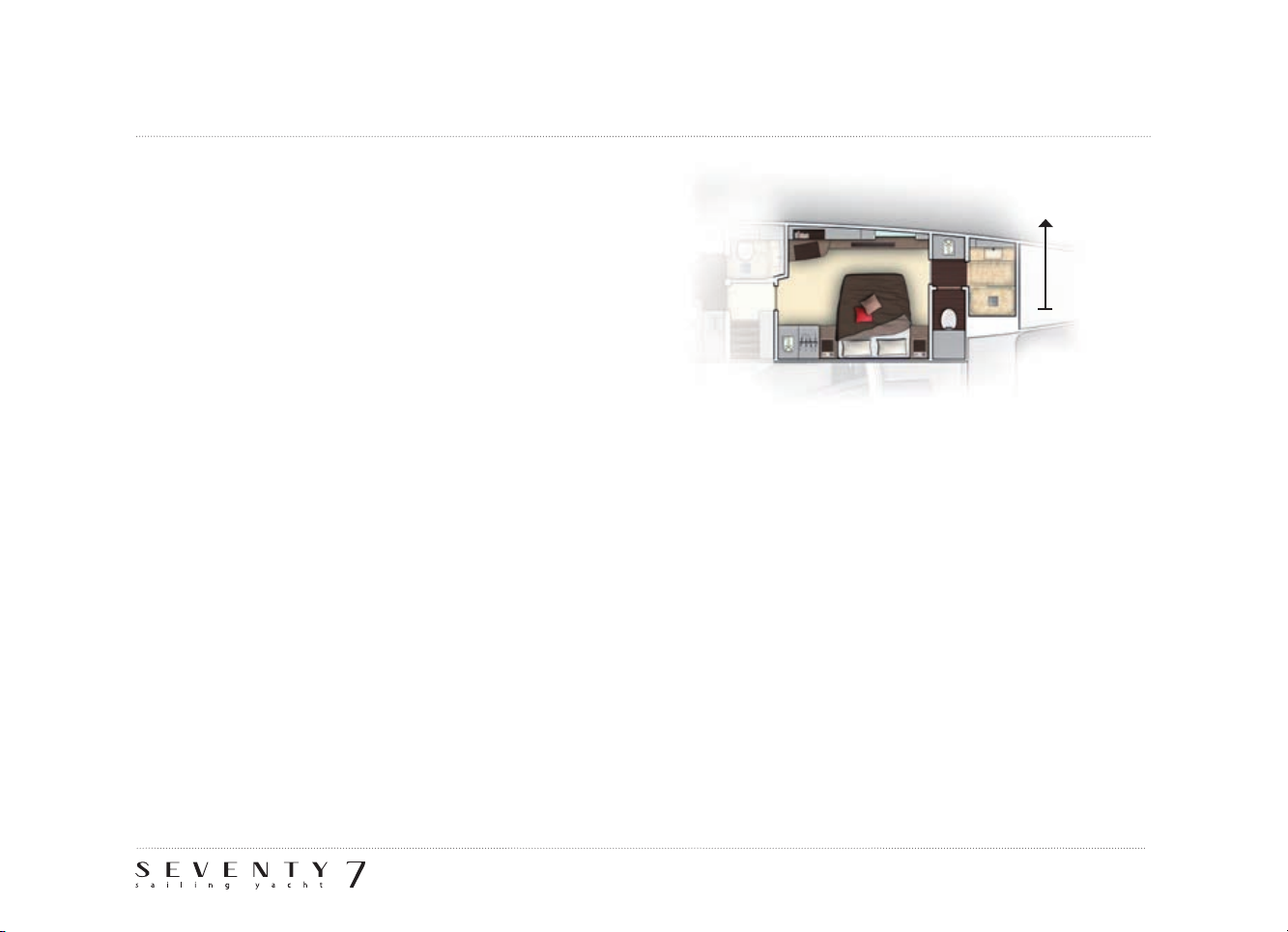

• Owner suite & bathroom - (4 cabin version)
...............................................................................................................................5
...........................................................................................................................................6
................................................................................................................................................8
....................................................................................................................................... 10
.................................................................................................................... 14
....................................................................................................................... 18
.......................................................................................................................... 19
................................................................................................................. 20
........................................................................................................................... 21
...................................................................................................................... 22
..................................................... 26
..................................................... 27
........................................ 28
........................................ 29
................... 30
.................................................................................................. 32
..................................................................................... 34
................................................................................................................. 36
...................................................... 38
• Owner suite & bathroom - balcony option ..........................................................40
• Midhsip starboard cabin
• Forward starboard cabin
• Aft starboard cabin
• VIP forward Port cabin
• Midship port cabin
• Aft port cabin & bathroom
• Lighting & plug
• HIFI & video
• Aircon
.................................................................................................................................. 51
............................................................................................................................................... 54
• Electrical main system
• AC distribution

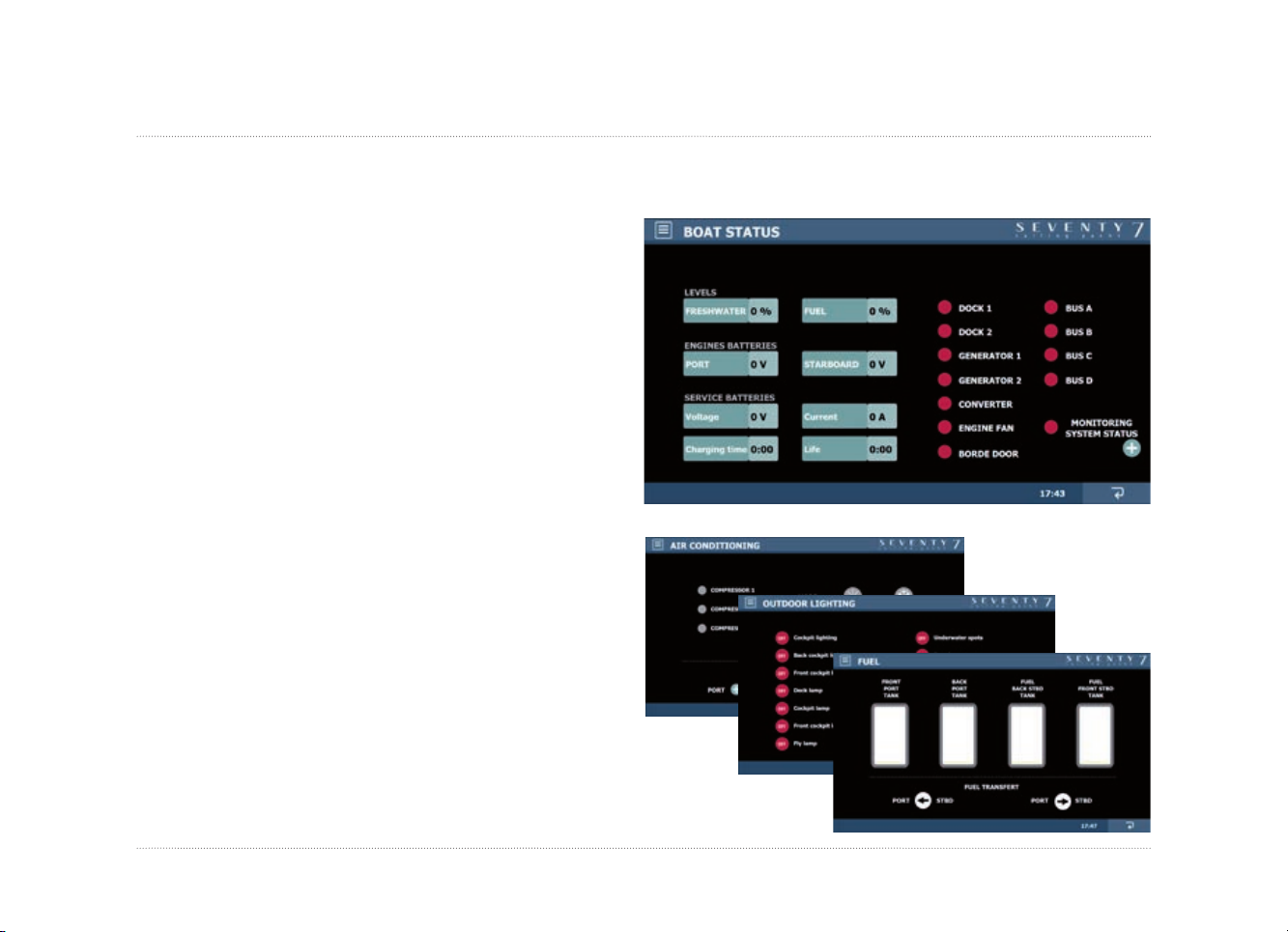

• Yacht management monitoring system
• Electronics
..................................................................................................................................... 62
• Fuel system and tanks
• Fresh water system and tanks
• Grey water system and tanks
• Black water system and tanks
• Bilge pump system
• Port engine room
• Starboard engine room
• Notes
................................................................................................................................................. 76
.................................................................................................... 42
.................................................................................................... 43
................................................................................................................. 44
......................................................................................................... 46
................................................................................................................. 48
............................................................................................... 49
......................................................................................................................... 50
........................................................................................................ 56
.......................................................................................................................... 58
.............................................................. 60
......................................................................................................... 64
....................................................................................... 66
........................................................................................ 68
...................................................................................... 70
................................................................................................................. 72
..................................................................................................................... 74
....................................................................................................... 75
Technical handbook
n Architects VPLP Design
n Exterior design Patrick Le Quément
n Interior design Nauta Design
n Length waterline 23,28 m / 76’5”
n LWL 22,60 m / 74’2”
n Beam 11 m / 36’1”
n Draft 1,90 m / 6’3”
n Light displacement (EEC) 57 t / 125,685 Lbs
n Mast clearance 36,60 m / 120’1”
n Sail area 337,4 m² / 3,630 sq.ft.
n Fresh water capacity 1 600 l / 396 US gal.
n Fuel capacity 2 800 l / 740 US gal.
n Standard Engine VOLVO D4 - 180 HP
TECHNICAL SHEET
l 3 l
n EC certication A : 14 - B : 18 - C : 24 - D : 40
Technical handbook
l 4 l

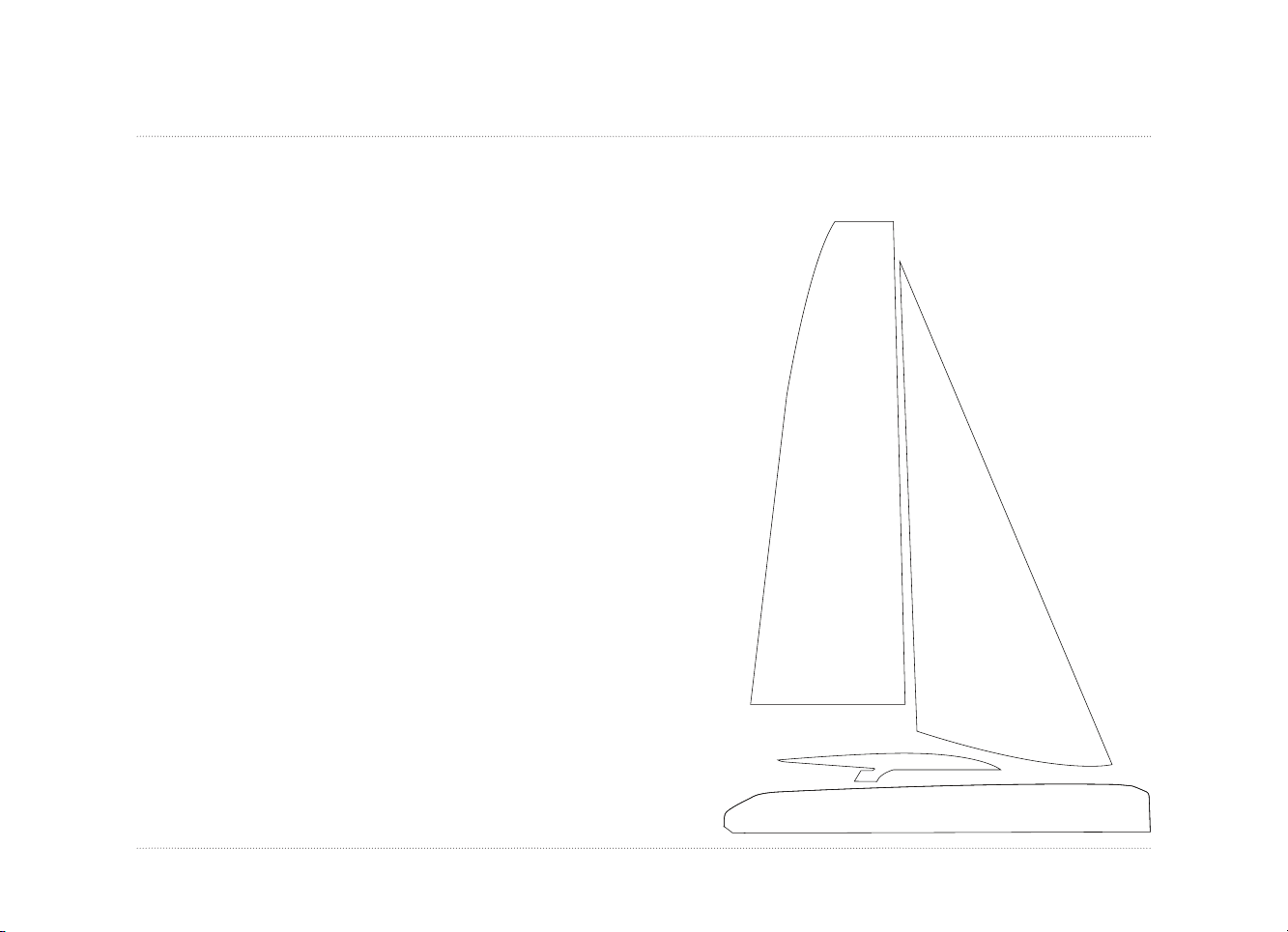

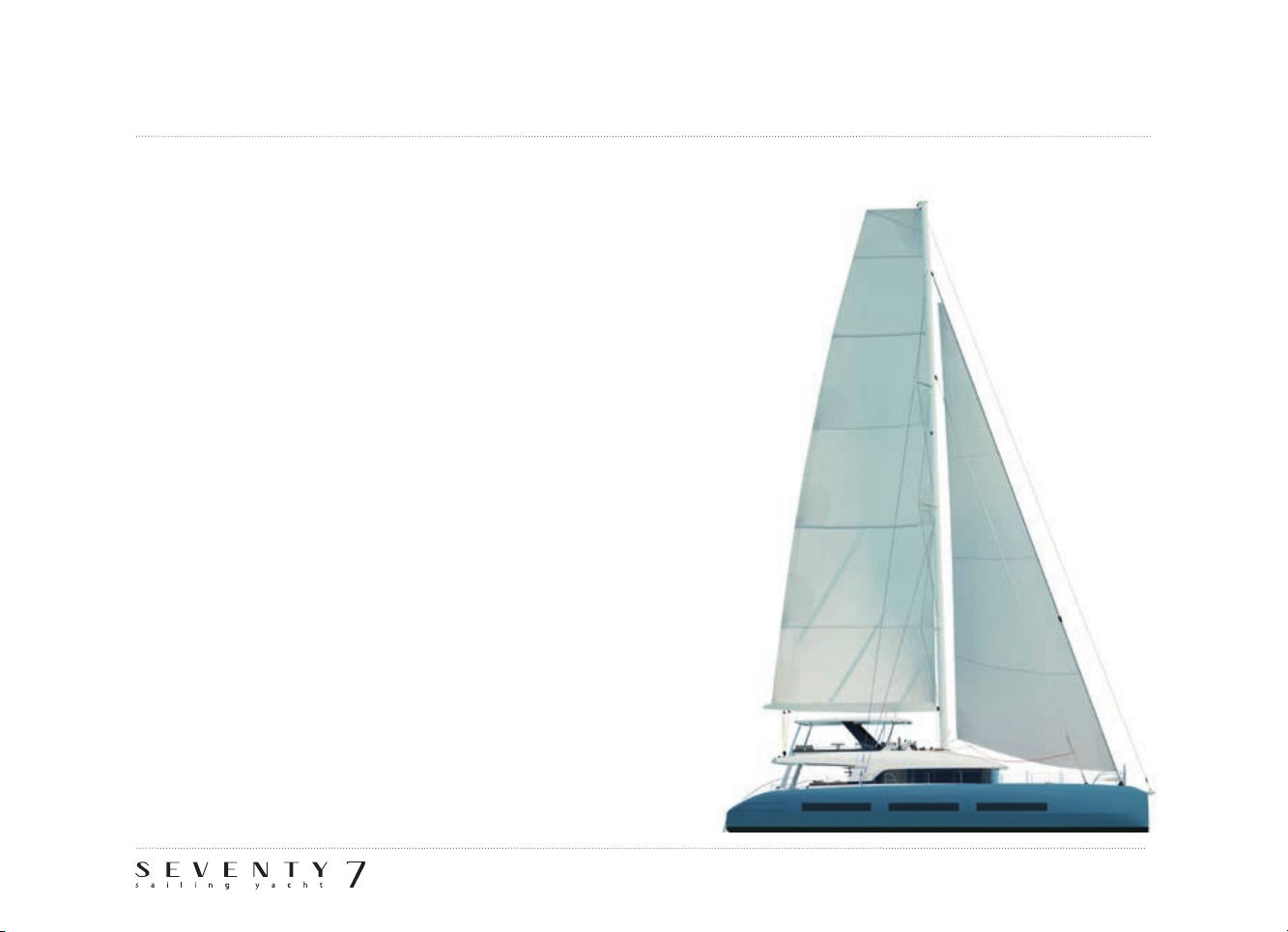

SAILS*
n Square Top Main Sail 205 m² / 2206 sq ft
Available in DFI or Hydranet
n Genoa 130,4 m² / 1403 sq ft
Available in DFI or Hydranet
n Furling Staysail 81 m² / 872 sq ft
Available in Dacron
n Code 0 208 m² / 2238 sq ft
Available in D4 Kevlar black
or Mylar Kevlar x Gold
n Asymmetrical spinnaker 458 m² / 4928 sq ft
Available in Nylon Maxilite
* All sails are in option.

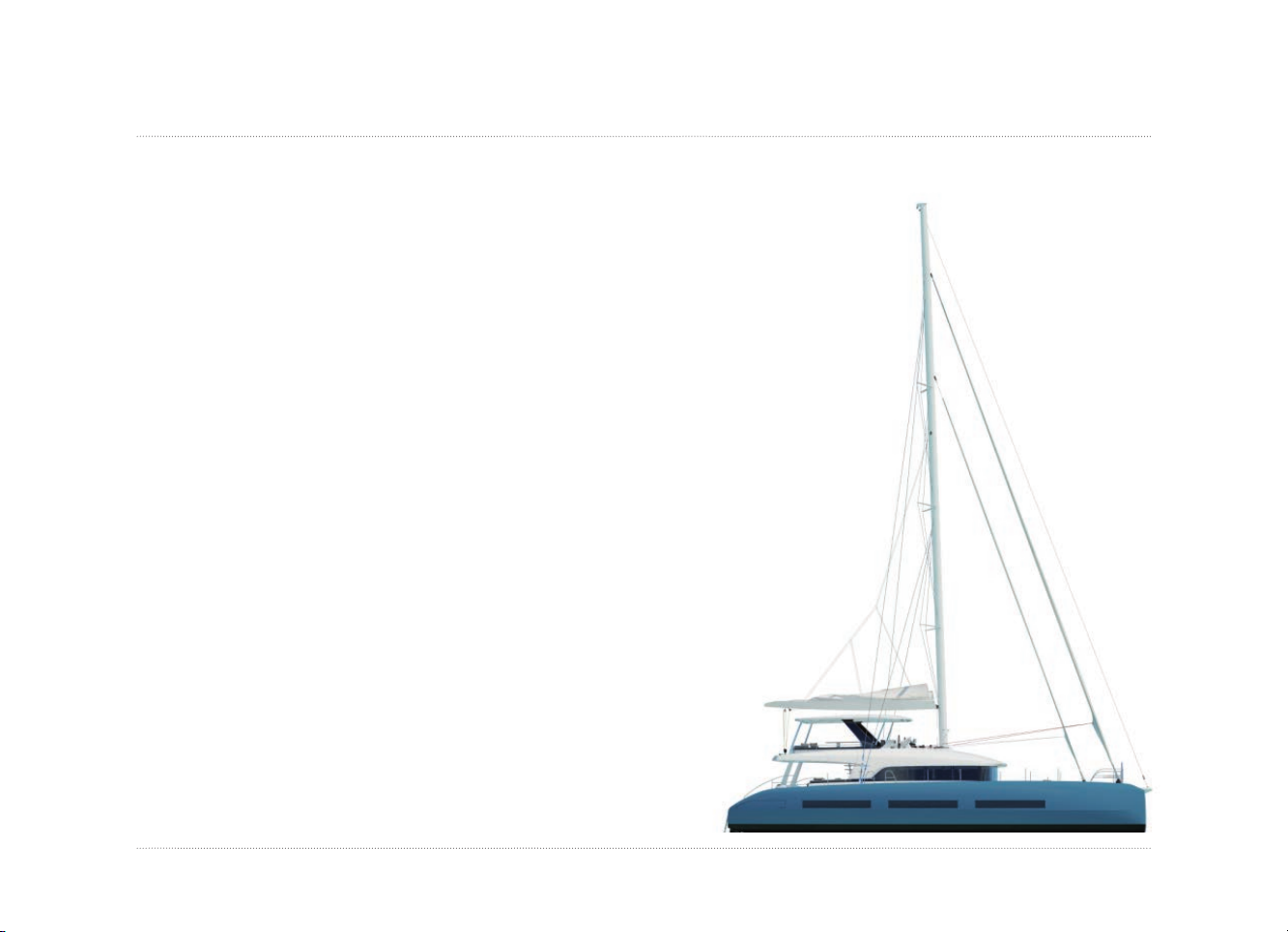

n White painted aluminum Mast - 3 spreaders
(forward deck light* in standard)
n White painted aluminum boom (integrated spot-lights*)
n White painted aluminum transverse beam
n Standing rigging Kevlar
n Running rigging Dynema
n Genoa furler HARKEN Hydraulic
n Staysail furler (Option) HARKEN Hydraulic
OPTION
n White carbon canoe boom (integrated light* and cover)
n White carbon mast & canoe boom (integrated light * and cover)
n Spreaders light* (2 white spots on second spreader)
n Decoration mast lights * (2 white spots on each spreader - Tot: 6)
SPARS & RIGGING
l 5 l
(*) All lights can be managed from the starboard helm station and chart table
Technical handbook
l 6 l

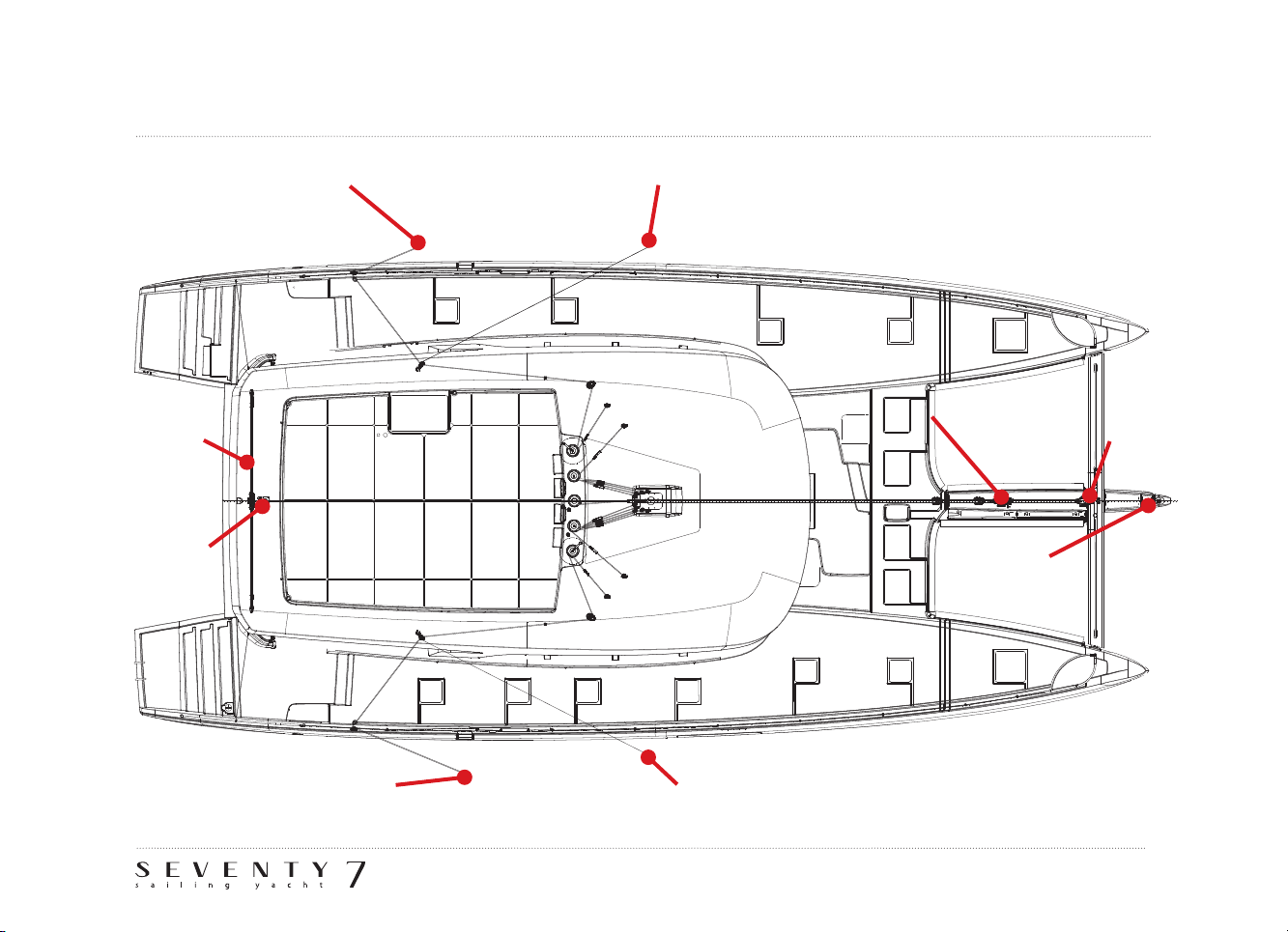

DECK GEAR
MAINSAIL
TRAVELLER
ELECTRICAL LINE
DRIVER
ASYMMETRICAL SPINNAKER
OPTION
CODE ZERO
OPTION
STAYSAIL FURLER
OPTION
CODE ZERO
FURLER
OPTION
GENOA
FURLER
ASYMMETRICAL SPINNAKER
OPTION
CODE ZERO
OPTION
DECK GEAR
nWinches HARKEN 80.2 STA 24V
l 7 l

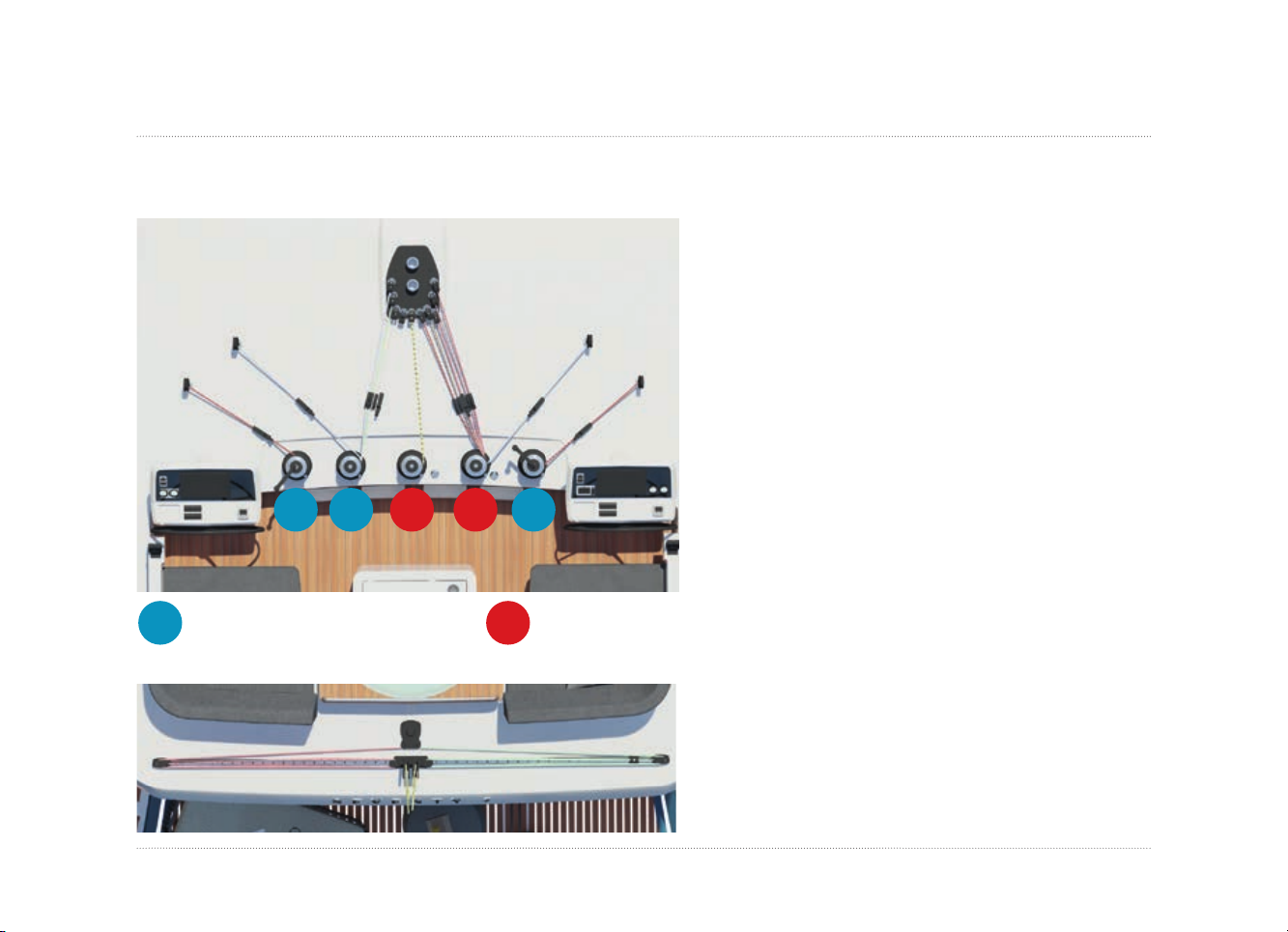

1 2 3 4 5
Electrical as an option Electrical in standard
1 • Winch
- Genoa
- Asymmetrical Spinnaker (Option)
- Code 0 (Option)
2 • Winch
- Reef 3
- Reeftack 3
- Topping lift
- Code 0 halyard (Option)
- Spinnaker halyard (Option)
3 • Winch
- Mainsail sheet
nElectrical line driver ANTAL 1 000 W LD
4 • Winch
- Mainsail halyard
- Reef 1
- Reef 2
- Reeftack 1
- Reeftack 2
5 • Winch
- Genoa sheet
- Asymmetrical Spinaker (Option)
- Code 0 (Option)
Technical handbook
l 8 l

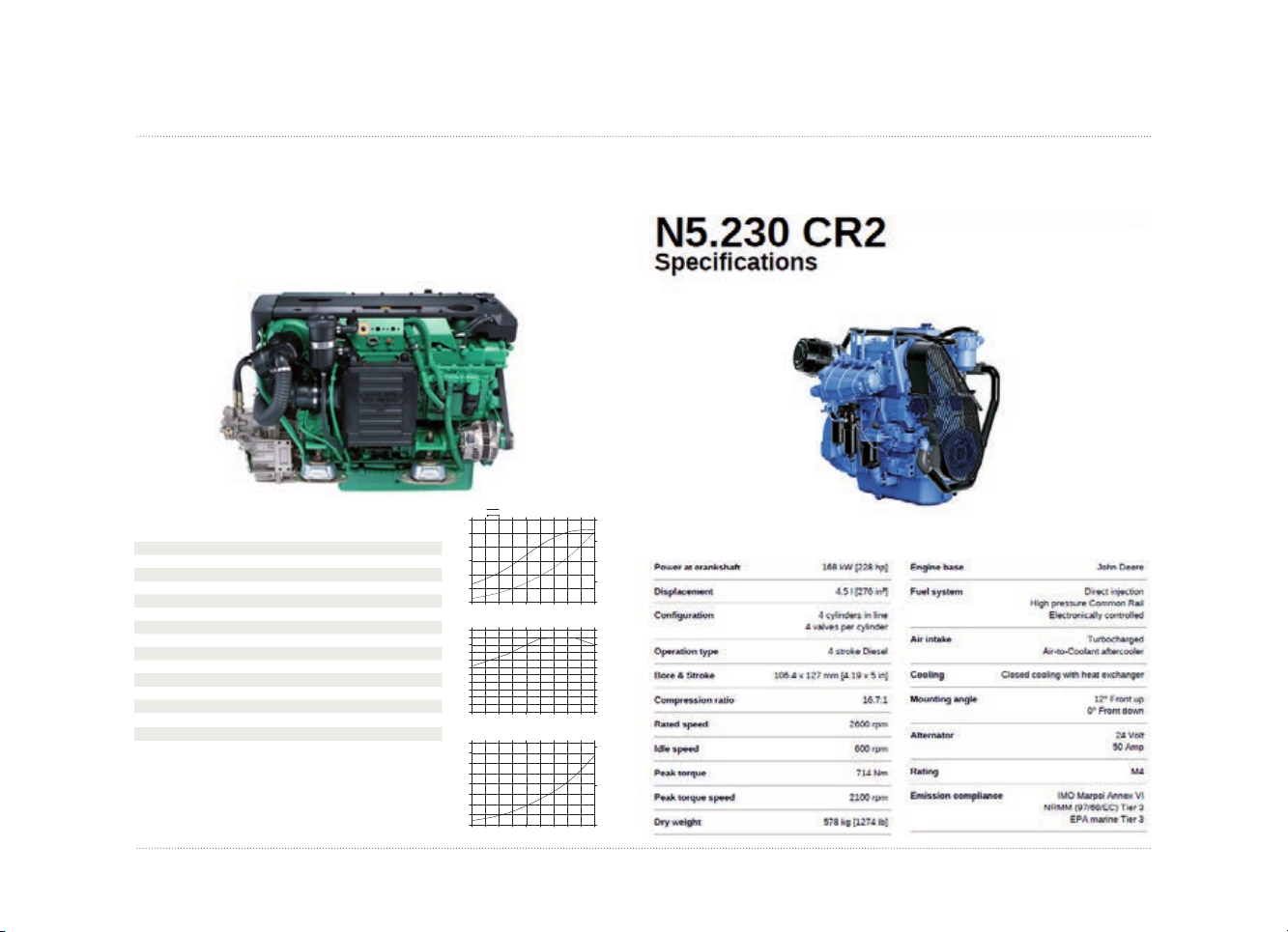

ENGINES
n Standard Engines VOLVO D4 – 180 HP (2x80 Ah 24V)
n Maneuvering system EVC E VOLVO
Engine throttles and control panel on starboard steering station on y bridge
Engine throttles on port steering station on y bridge as an option
Engine throttles at chart table as an option
n Optional Engines JOHN DEER N5.230 HP (2x150 Ah 24V)
n Propellers MAUCOUR Hydraskew 4.73 25‘’ - 4 blades
n Optional Propellers BRUNTONS Varifold 28‘’ - 4 blades
Rope cutters on the propeller shafts as an option
n Bow thruster SIDE POWER SD285 48V 285 Kg
Optional equipment located on starboard side
Dedicated batteries and chargers (2x75Ah & VICTRON)
D4-180
Rpm
Power
d4_inboard.pzm:180_ftp-bulletin - Mon Jan 17 16:09:17 2005
VOLVO PENTA INBOARD DIESEL
ENGINES
l 9 l
Technical Data
Engine designation D4-180 I
Crankshaft power, kW (hp) 132 (180)
Propeller shaft power, kW (hp) 128 (174)
Engine speed, rpm 2800
Displacement, l (in
Number of cylinders 4
Bore/stroke, mm (in.) 103/110 (4.05/4.33)
Compression ratio 17.5:1
Dry weight with HS45AE, kg (lb) 546 (1204)
Ratio HS45AE 2.04:1, 1.51:1
Ratio ZF63E 2.78:1
Ratio HS63AE 2.52:1, 2.04:1, 1.56:1
Ratio HS63IVE 2.48:1, 1.99:1, 1.56:1
Emission compliance IMO NOx, EU RCD, US EPA Tier 3
Rating R4* & R5**
Technical data according to ISO 8665. With fuel having an LHV of 42700 kJ/kg and density of
840 g/liter at 15 °C (60 °F).
Merchant fuel may differ from this specification which will influence engine power output and
fuel consumption.
*RATING 4. For light planing craft in commercial operation
**RATING 5. For pleasure craft applications, and can be used for high speed planing crafts in
commercial applications
3
) 3.7 (224)
Crankshaft power
Calcula ted propeller load e xp. 3
150
150
125
125
100
100
75
75
50
50
25
25
0
0
1000 1200 1400 1600 1800 2000 2200 2400 2600 2800
Nm kpm
550
550
500
500
450
450
400
400
350
350
300
300
250
250
200
200
150
150
100
100
50
50
0
0
1000 1200 1400 1600 1800 2000 2200 2400 2600 2800
40
40
35
35
30
30
25
25
20
20
15
15
10
10
5
5
0
0
1000 1200 1400 1600 1800 2000 2200 2400 2600 2800
Rpm
Torque
Torque measured at crankshaft
Rpm
Fuel consumptio n
At calcul ated propeller l oad exp. 3
cirtem ,phWk
200
150
100
50
0
55
50
45
40
35
30
25
20
15
10
5
0
h/lag SUh/sretiL
10
5
0
Technical handbook
l 10 l
FLYBRIDGE
n Access from the cockpit through a staircase with teak steps
and white lacquered aluminum structure
n Manual hatch for ybridge access (1380 x 960mm)
n 2 equipped steering stations on the ybridge
• Main one on starboard
- Helm seats with locker underneath
- Cushions for settees & backrest
- Steering wheel Ø 1100mm
- Hydraulic wheel
- Console for electronics
- Compass
- Engine control panel on starboard
- Windlass control & chain counter on starboard
- Light control panel on starboard
• Port furniture
- Corian® top
- Storage behind doors
- Optional electrical Teppanyaki grill
• Central furniture
- Corian® top with integrated sink
- Stainless still Cup holder
- Fridge (50 L)
- Optional ice maker
n General options
- Teak oor
- Composite bimini with windows and curtain,
lights & enclosures with windows
(Headroom : 2,15m)
- Hydraulic crane (Capacity 550kg at 4,50m)
Not available with the composite bimini

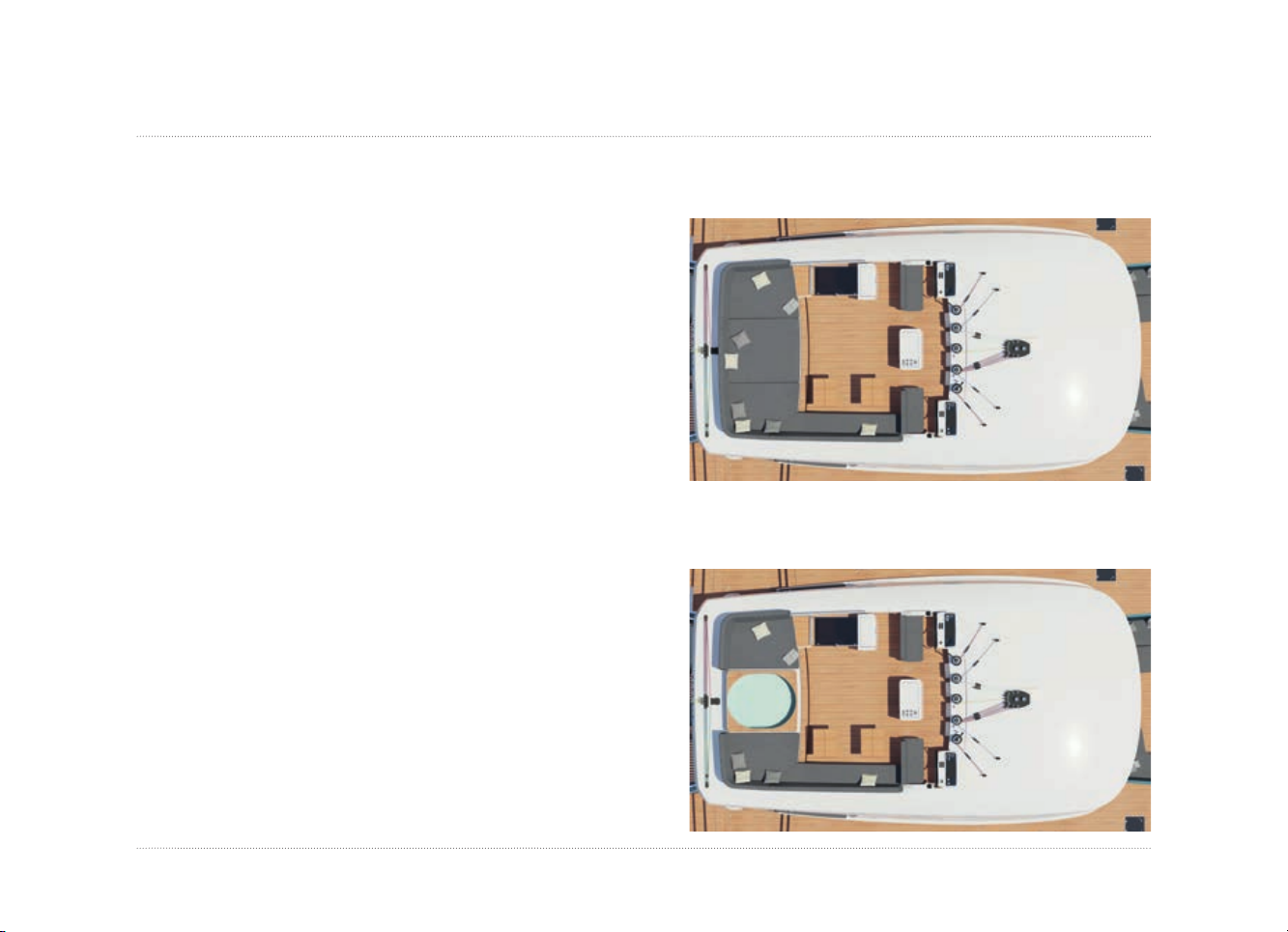

3 OPTIONAL LAYOUTS
n Sunlounger pads
- Sunlounger pad aft area
- Bench with teak table and chairs
- Cushions & Protection covers
- Storage under seats and sun pad
n Jacuzzi
- Sunlounger pad aft area
- Jacuzzi
- Bench with teak table and chairs
- Cushions & Protection covers
- Storage under seats and sun pad
FLYBRIDGE
l 11 l
Technical handbook
l 12 l
FLYBRIDGE

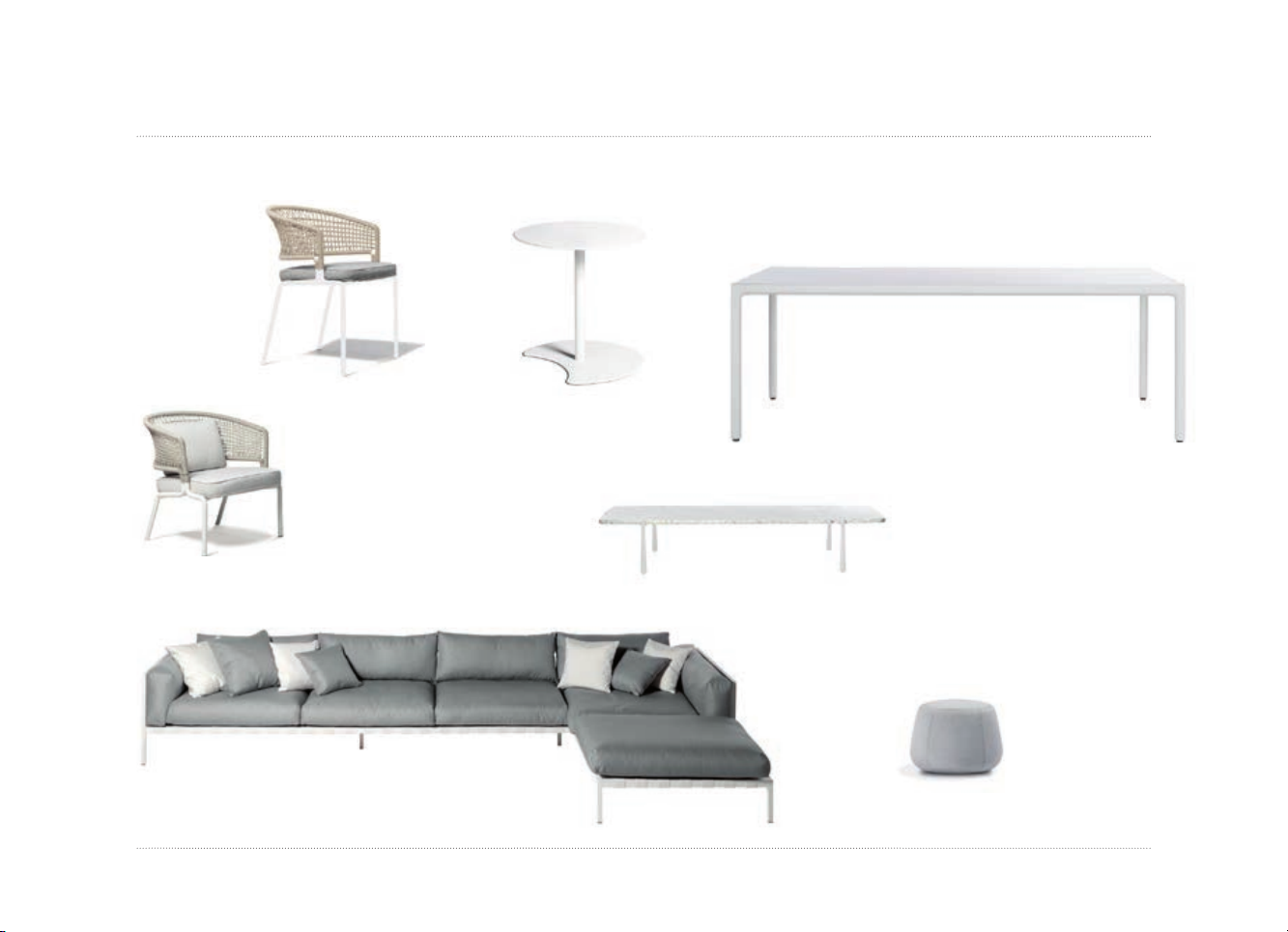

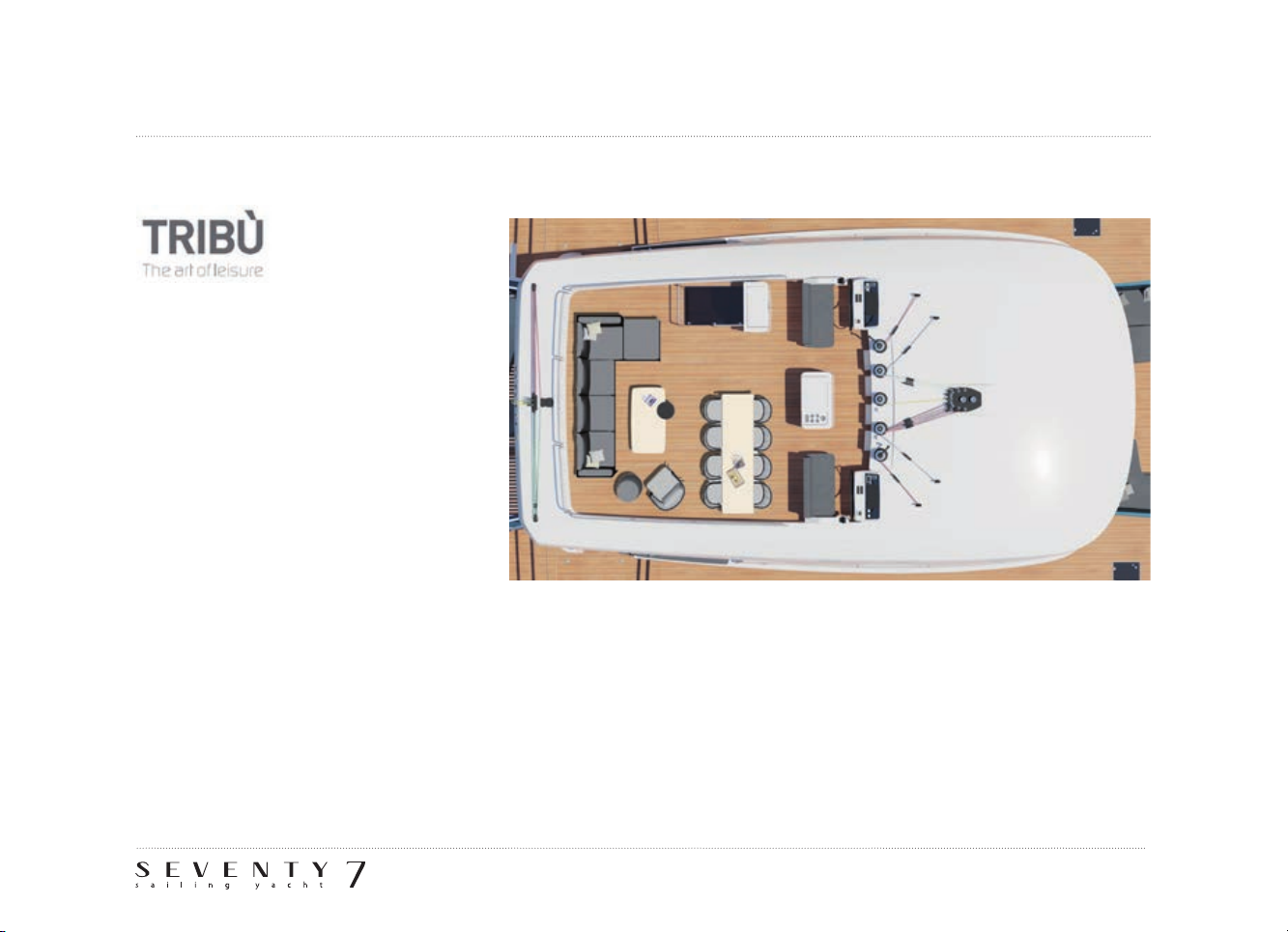

TRIBU aluminum furniture
• 1 table - Tribu ILLUM Table
White Frame Linen Top (2100 x 710 mm)
• 8 chair - Tribu CTR Chair
White Frame Linen Back
• 1 armchair - Tribu CU CTR Armchair
White Frame Linen Back
• 1 Low Table - Tribu BRANCH
White Frame & Linen Top (1530 x 790 mm)
• 1 Side Table - Tribu Drop side table
Linen
• Sofa - Tribu NATAL ALU Sofa
White frame (1880 x 3700 mm)
• Stool - Tribu NOMAD Pouf
610 mm Ø - H 485 mm
* Upholstery depending on client choice
FLYBRIDGE
l 13 l
Tribu CU CTR Armchair
Tribu CTR Chair
Tribu Drop side table
Tribu ILLUM Table
Tribu BRANCH Low table
Tribu NOMAD Pouf Tribu NATAL ALU Sofa
Technical handbook
l 14 l

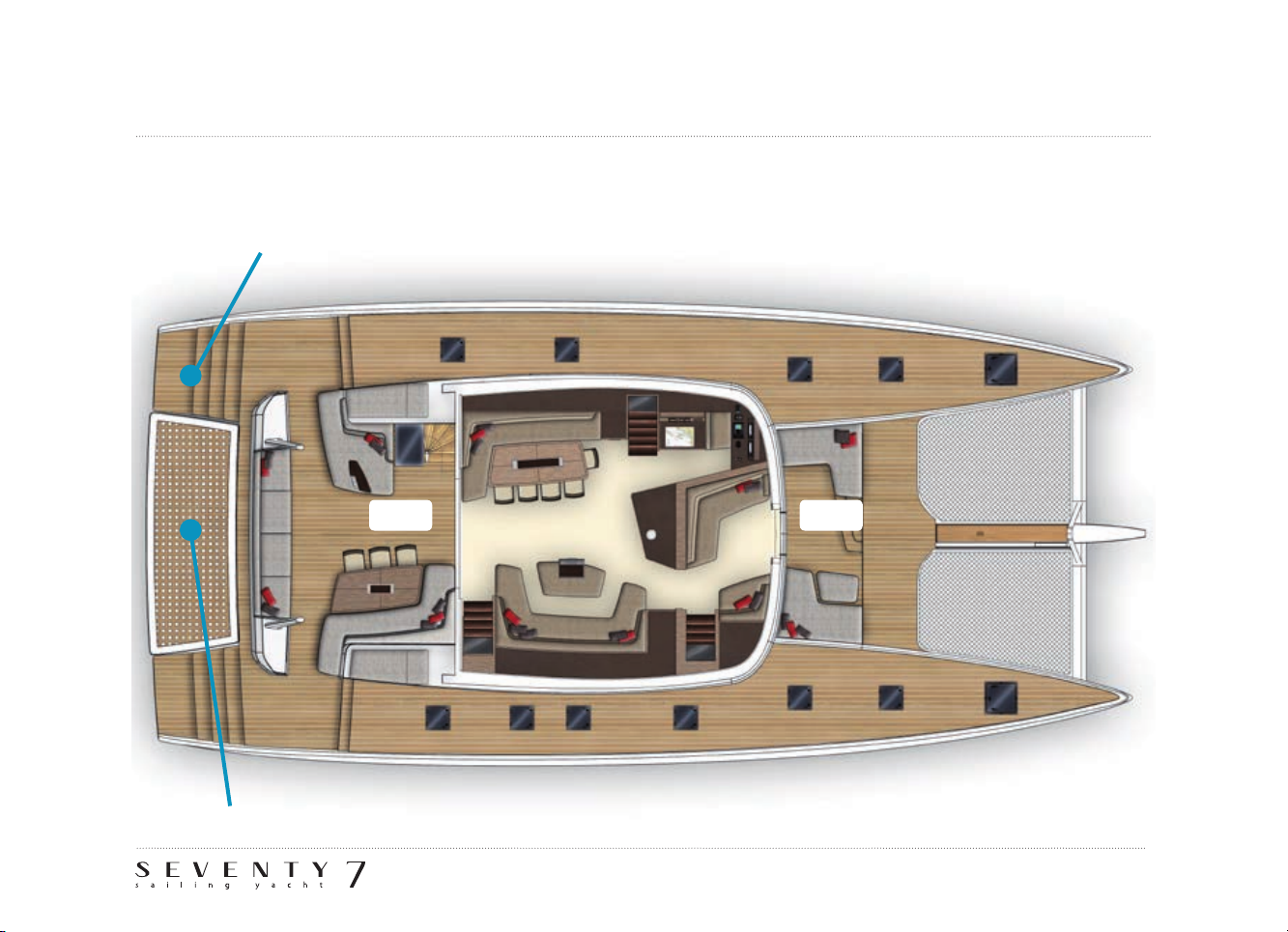

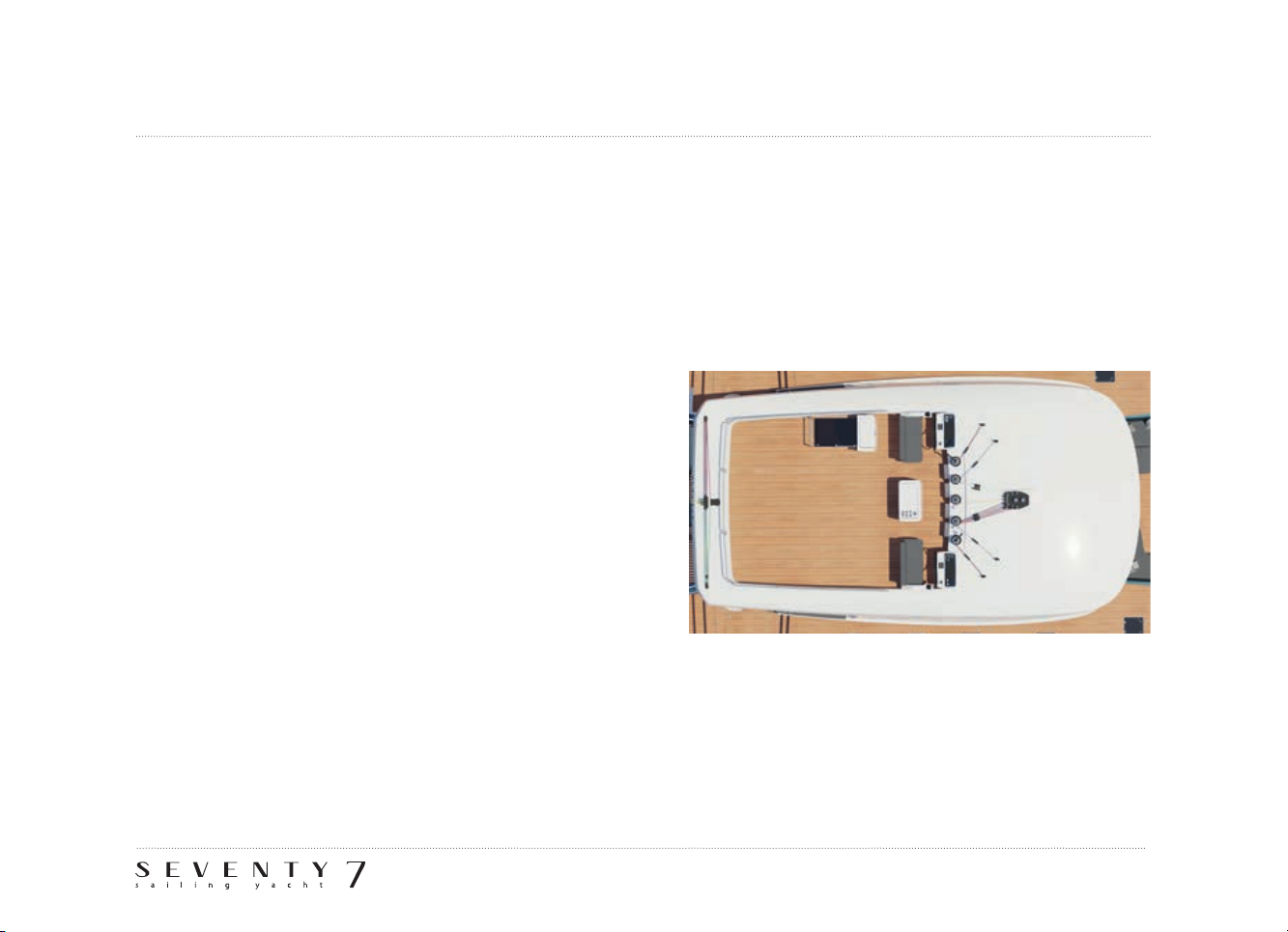

MAIN DECK LAYOUT
BBQ PLANCHA
OPTION
ICE MAKER
OPTION
GRP STOOL OPTIONFRIDGE 50 LSINK
l 15 l
n General characteristics
• Teak oor on transom, cockpit, foredeck and
deck passage way
• Deck passage way width from 1,25m to 2,3m
• Deck drain through gunwale
• Hatches
- Flush integrated Lewmar T60
- Flush integrated Lewmar T77 for forward bow
compartment
• Lighting
- Led spots on ceiling
- Strip led hidden in benches’ kickers
- Strip led underneath in transoms and deck steps
- Led spots along the bulwark
- Options
- 2 spotlights in aft beam
- 8 blue led underwater lights
• Humans protections
- Stanchions: 880mm (230 mm GRP bulwark on
deck passage way)
- 2 lifeline rows
- Aft retractable lifelines on transom
- Forward wooden seats 1,2 x 0,5m
- Option
- Boarding ladder
n Transoms
• Folding and removable swimm ladder with
s/s handle + Hot/cold cockpit shower on starboard
transom
• Shore power on starboard transom
• Fresh water inlet
• Options
nd
- 2
swimm ladder with hot/cold cockpit shower
- Hydraulic aft platform with remote
(Approx. 5,7 x1,9 m - Lifting capacity: 1500 kg )
- Retractable hydraulic gangway on portside
transom (3,5 m unfolded /1,8m overowing)
- Transom removable shower column
(starboard side)
- Deck wash pumps – sea/fresh water
(aft cockpit & foredeck)
Technical handbook
l 16 l
MAIN DECK LAYOUT
RETRACTABLE HYDRAULIC GANGWAY
HYDRAULIC AFT PLATFORM
33 m
2
8 m
2
MAIN DECK LAYOUT
l 17 l
n Aft Cockpit (33 m²)
• Starboard aft beam furniture
- Cup holders
- Storage behind doors
- Corian® counter top (DOVE – Light grey)
- Sink under GRP cover
- Exterior cockpit dustbin
- Cockpit fridge 65 L
• Port aft beam furniture
- Cup holders
- Storage behind doors
- Corian® counter top (DOVE – Light grey)
Options
- Electrical Teppanyaki grill, under GRP cover
- Ice Maker
• Teak table: 2,2 x 1,1 m
• 3 Exterior chairs (see page 13)
n Forward Cockpit (8 m²)
• GRP stool with cushion (included in
upholstery deck option)
n Forward deck
• Nylon polyester grey trampoline & gearing covers
n Cushions, covers & awnings (optional)
• Exterior cushions with protection covers
(aft & forward cockpit)
Including cushions on aft beam, starboard aft cockpit
bench, port aft cockpit bench, port&stb aft cockpit
sun pad, starboard fwd cockpit bench, port fwd
cockpit bench, grp stool with cushions
• Cockpit enclosures with windows & privacy curtains
• Forward cockpit sun awning with posts
• Kit of covers (steering wheel, nav stations, cockpit
tables...)
Technical handbook
l 18 l
WOOD - STANDARD
n SALON & CABINS
Furniture
n CREW QUARTER
Furniture
(grey oak UV varnish - Wengé oor - Corian)
Niche Floor
(nishing for all options)
Floor
Niche
Floor & Top (head)
Floor & Top
(head)
Top (galley)
n GREY OAK - SALON & CABINS (grey oak UV brushed & open grain varnish - Wengé oor - Marbre)
WOOD - OPTIONS
l 19 l
Furniture Niche Floor
n LIGHT OAK - SALON & CABINS (light oak UV brushed & open grain varnish - Wengé oor - Marbre)
Furniture Niche Floor
n DARK OAK - SALON & CABINS (dark oak UV brushed & open grain varnish - Grey oak oor - Marbre)
Furniture Niche Floor
Floor & Top (head)
Floor & Top (head)
Floor & Top (head)
Technical handbook
l 20 l
AMBIANCE NOMADE
Interior
Fabric covered bed frame
Fabric covered headboard and hull liner
Decorative cushions
Exterior
Enclosures Privacy curtains Sun awning
Decorative cushions
Canvas
AMBIANCE PURE
Interior
Exterior
l 21 l
Fabric covered bed frame
Fabric covered headboard and hull liner
Decorative cushions
Enclosures Privacy curtains Sun awning
Decorative cushions
Canvas
Technical handbook
l 22 l
AMBIANCE FUSION
Interior
Fabric covered bed frame
& fabric covered headboard and hull liner
Decorative cushions
Exterior
Enclosures Privacy curtains Sun awning
Decorative cushions
Canvas
l 24 l

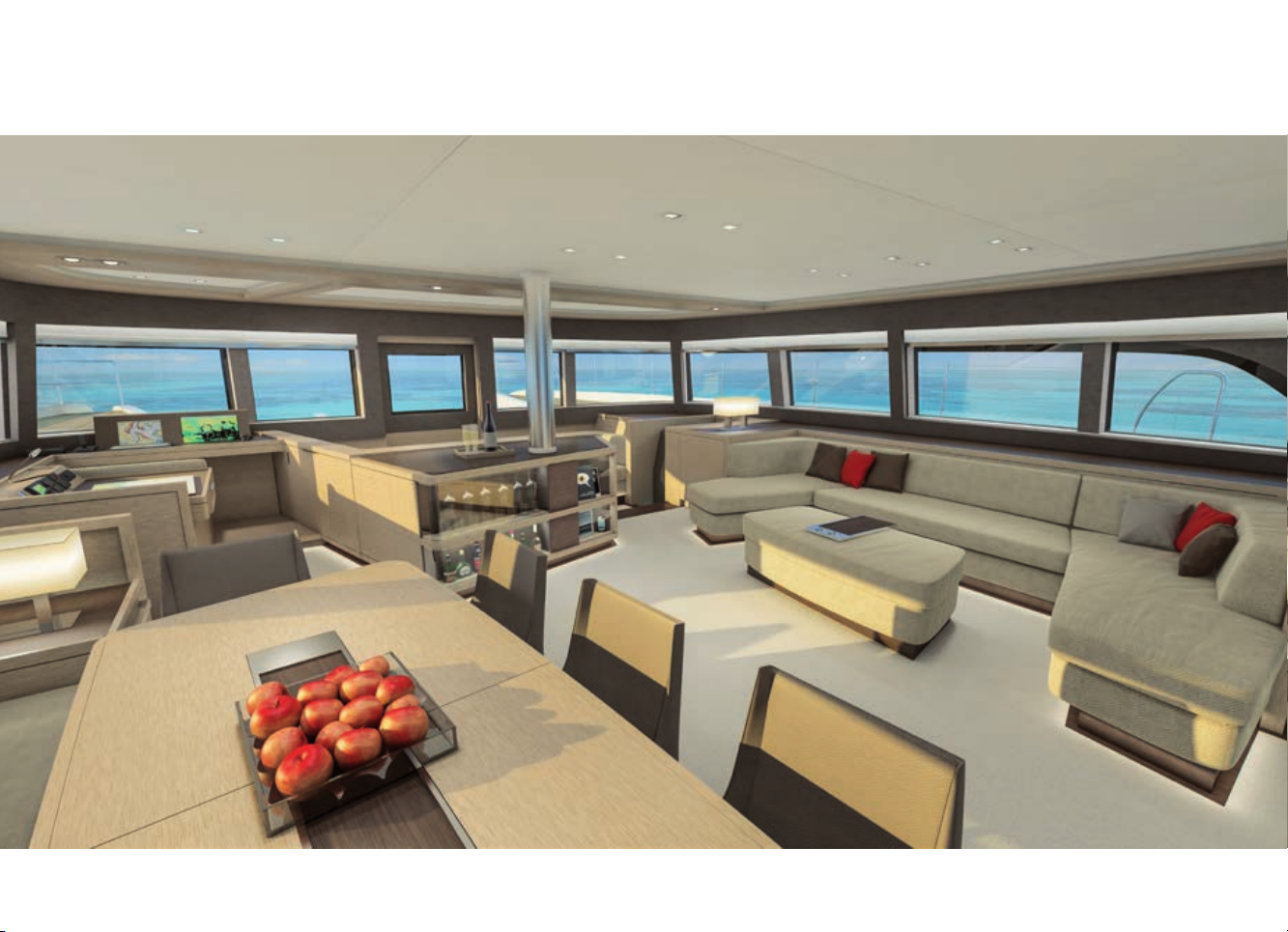

SALON
33 m
Standing
headroom
2,00 to
2,30 m
2
SALON
l 25 l
n General characteristics
• Access from the cockpit through sliding &
locking door: Overall width: 3,8 x1,95 m
Opening width: 2,3 x1,95 m
• Leather top on furniture and sides
• Windows frame covered with fabrics
• Roller blinds
n Salon Port side
• “L” shape sofa and cabinet whit shelves
and storage
- Wine cellar 22 bottles (option)
• Wooden table: 2,3 x 1,1 m
• 4 Leather chairs
n Salon Starboard side
• “U” shape sofa and cabinet whit shelves
and storage
• Central xed stool/table
n Central furniture
• Central furniture with leather top, storage,
“bar” equipment
- Fridge 80 L (option)
- Ice maker (option)
n Chart table
• Settee & equipped helm station with electronics
and control panel
• Modular sliding desk with storage and leather top
n Forward salon
• Sofas
• Cabinets & storage
• Direct access to the cockpit
- Electrical assistance upgrade as an option
n General Options
• Electrical roller blinds
• Privatized forward VIP salon with window
enclosures & doors
• Carpets in main salon
• Fitted carpet in Forward Salon
• HIFI MEDIA CENTER ATOLL & FOLDABLE CEILING TV 55’’
Technical handbook
l 26 l

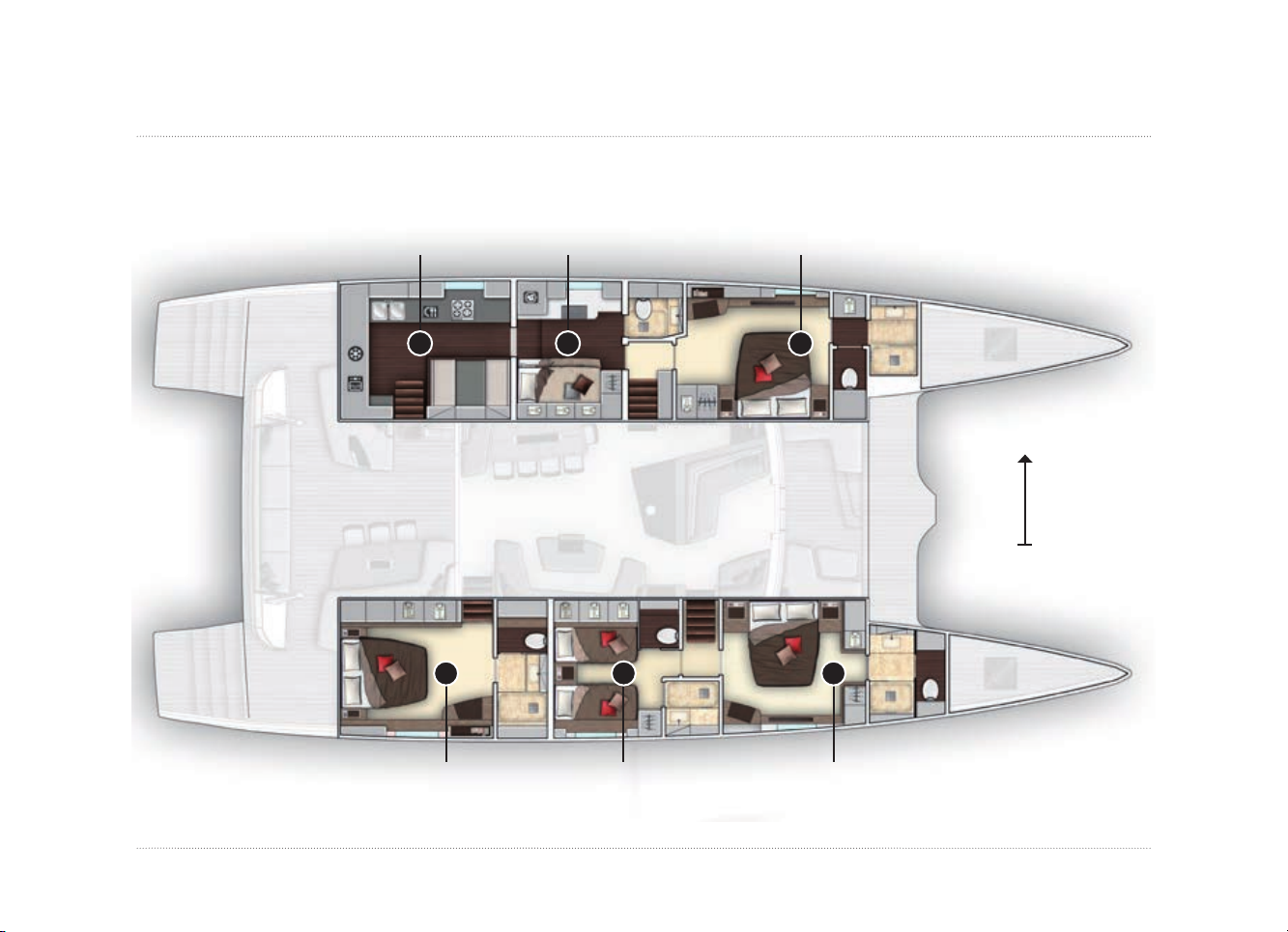

AFT GALLEY AND CREW QUARTERS 3 CABIN VERSION
12 m
14 m
2
9 m
2
16 m
2
Standing
headroom
2,05 to
2,10 m
2
5 m
2
16,5 m
2
3,5 m
2

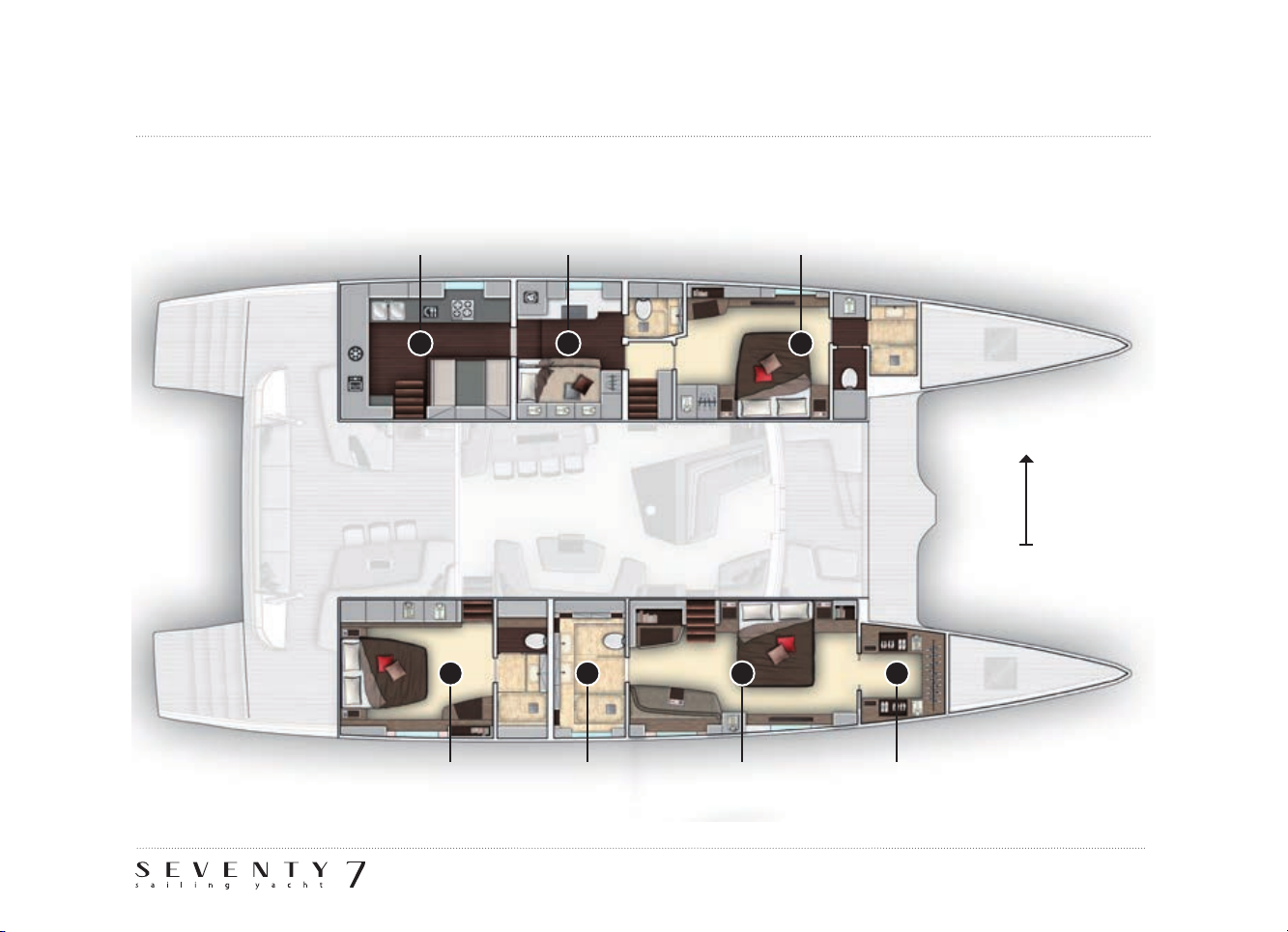

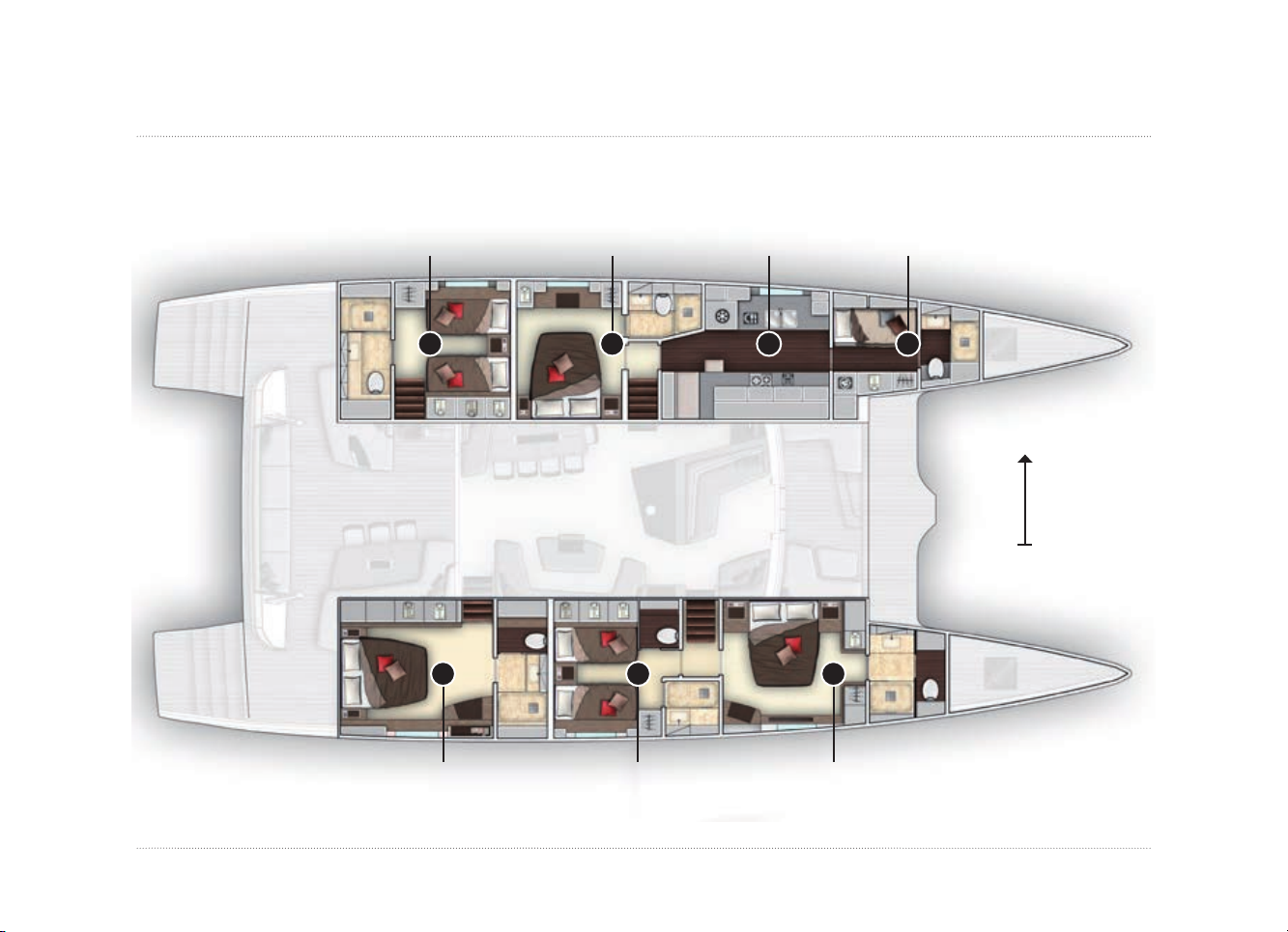

AFT GALLEY AND CREW QUARTERS 4 CABIN VERSION
l 27 l
12 m
14,5 m
2
9 m
2
16 m
2
Standing
headroom
2,05 to
2,10 m
2
10 m
2
14,5 m
2
Technical handbook
l 28 l

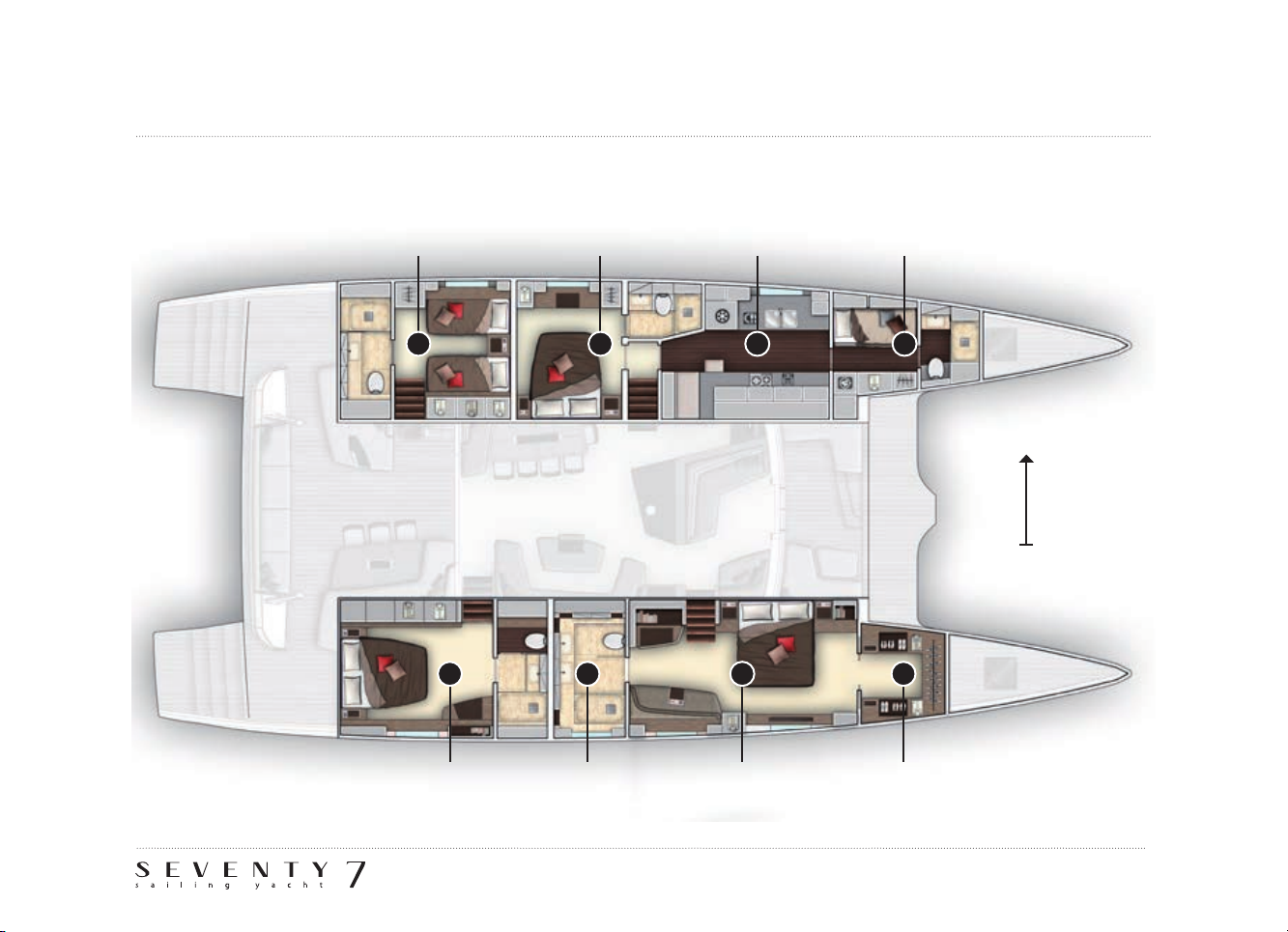

FORWARD GALLEY AND CREW QUARTERS 4 CABIN VERSION
12 m
14 m
2
9 m
2
9 m
2
7 m
2
Standing
headroom
2,05 to
2,10 m
2
5 m
2
16,5 m
2
3,5 m
2
FORWARD GALLEY AND CREW QUARTERS 5 CABIN VERSION
l 29 l
12 m
14 m
2
9 m
2
9 m
2
7 m
2
Standing
headroom
2,05 to
2,10 m
2
10 m
2
14,5 m
2
Technical handbook
l 30 l

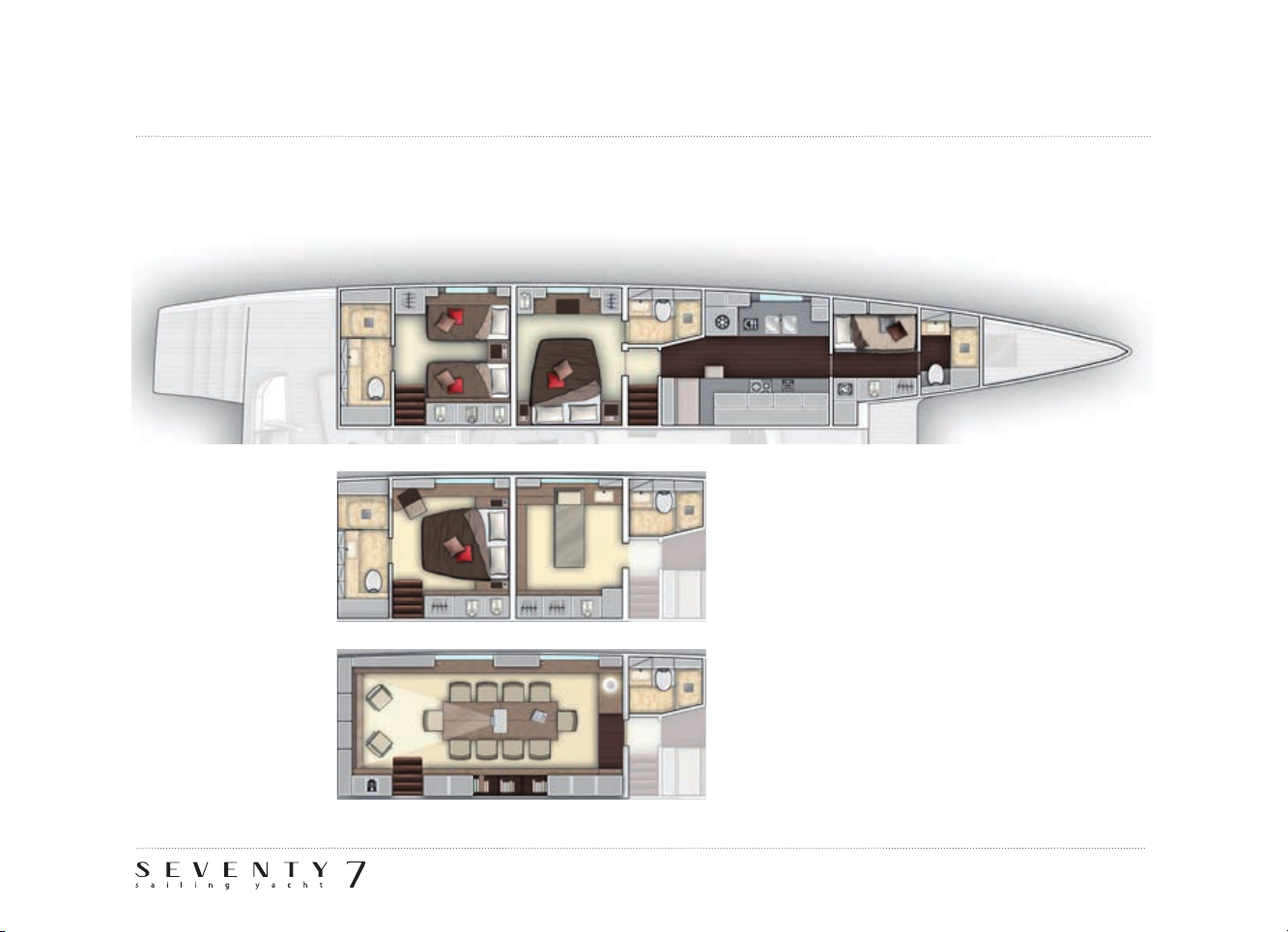

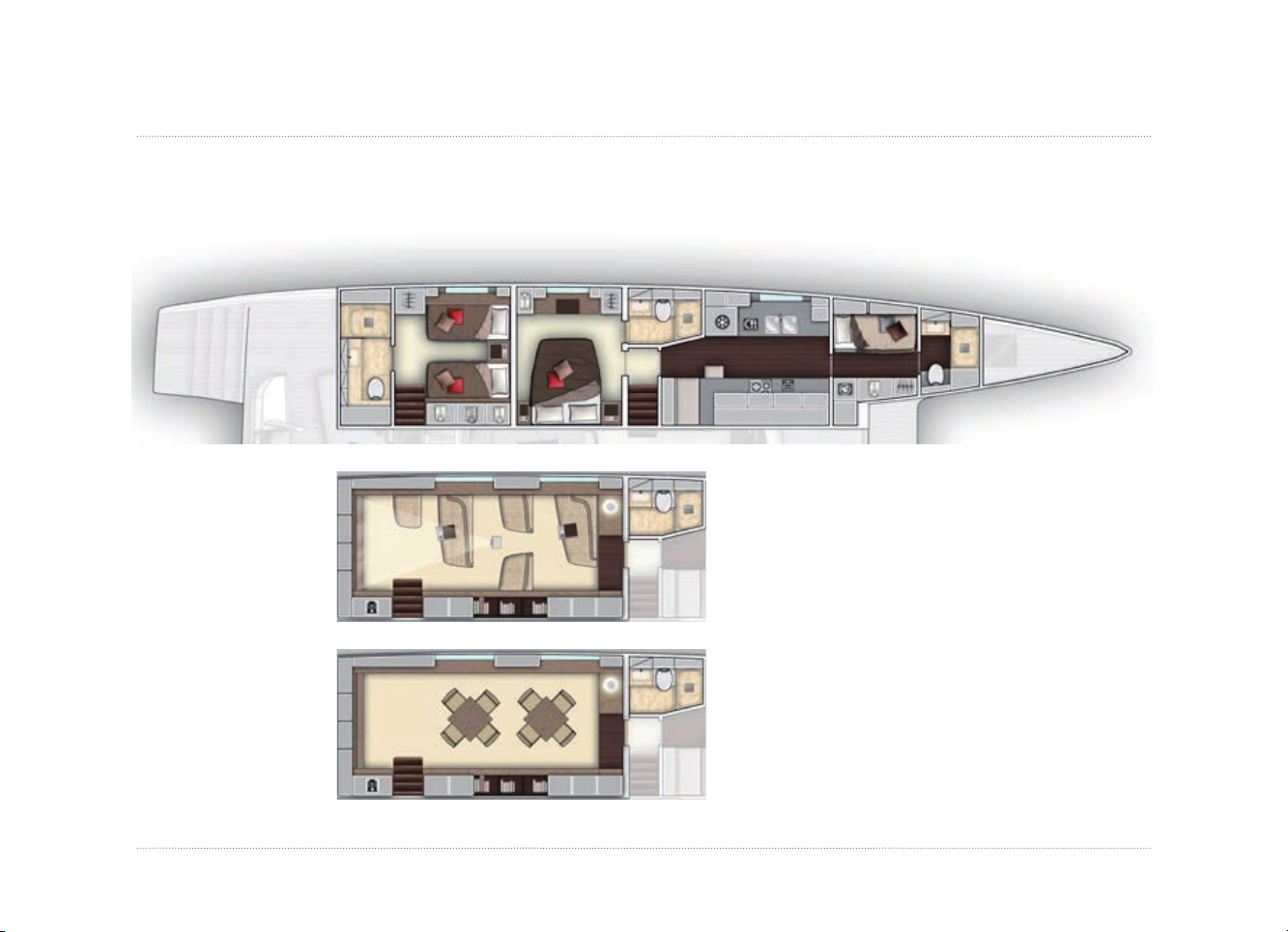

FORWARD GALLEY VERSION - AFT AREA CUSTOM STATION PROPOSALS
Cabin & massage room
2
22 m
Meeting room
2
22 m
FORWARD GALLEY VERSION - AFT AREA CUSTOMS STATION PROPOSALS
Cinema room
2
22 m
l 31 l
Playing room
2
22 m
Technical handbook
l 32 l

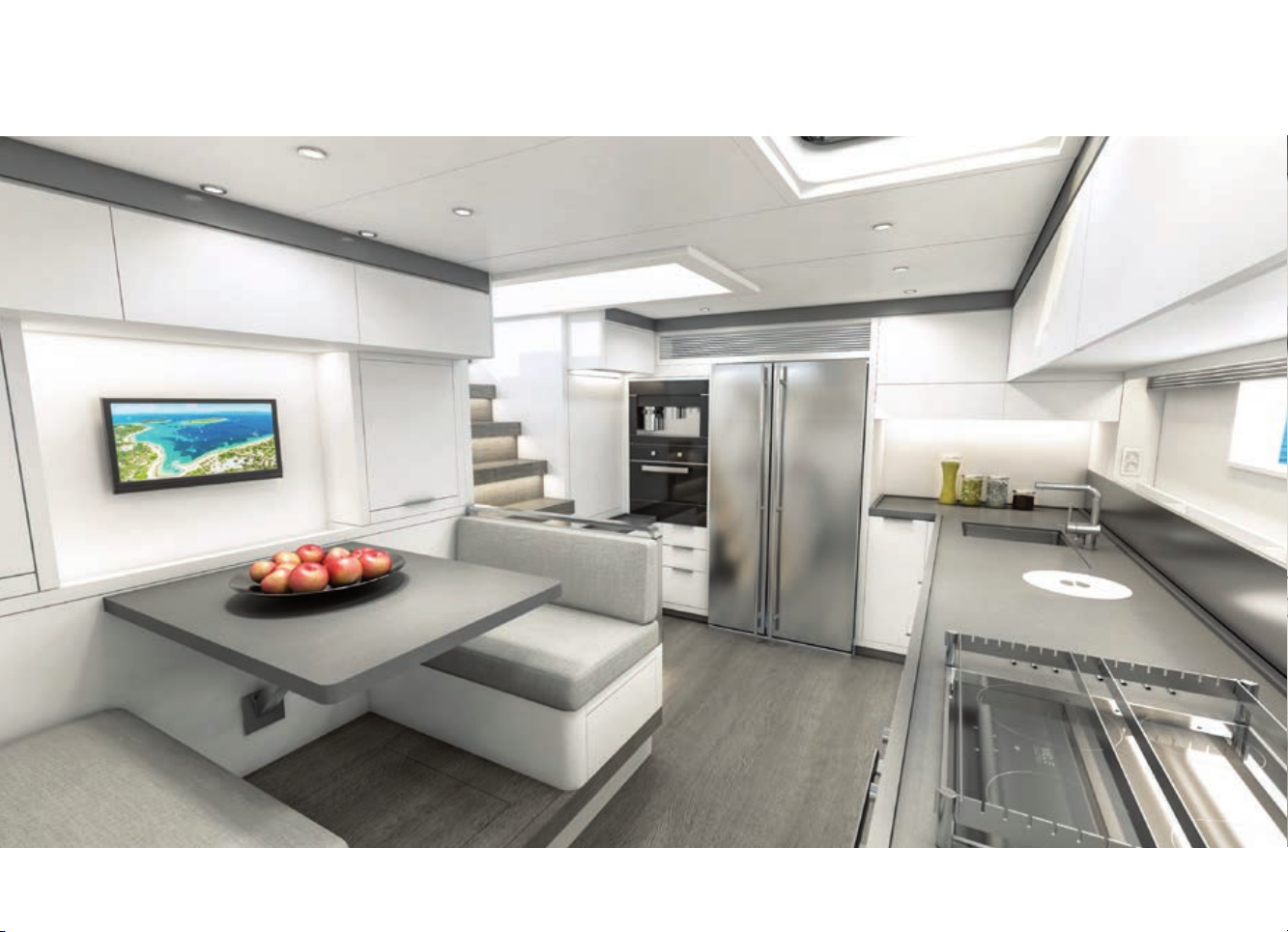

AFT GALLEY & CREW QUARTER
n Fully equipped galley with
• Stove: Induction (4 burners) (220V) Miele –
KM6386
• Hood (220V) Electrolux – EFG 50300X
• Electric oven (220V) Miele – H2661BP
• Combined fridge/freezer (220V) Samsung –
RFG23RESLI, integrated ice maker
Total Volume: 628L [(+) : 396L / (-) : 124L]
• Double s/s sink with hot/cold mixer tap
• Mess: Dining table (1100 x 750 MM) + 2 facing
sofas with storage underneath
• High and low furniture
• Under oor lockers
• Countertop area: 5.5 m²
• Integrated countertop dustbin
(Underneath volume: 140 L)
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) + aluminum venetian blind
• Materials
- Sofa: Sunbrella® Nature Grey
- Countertop: Corian® (Medea)
- Dining table: Corian® (Medea)
n Options
• Additional fridge/freezer under the oor
Webasto - BI 92 Dual (92 Lt) (+10 °C to -20 °C)
• Built-in coee machine (220V) Miele – CVA640 Inox
• Dishwasher (220V) Miele – G6670 SCVI (12 sets)
• Microwave oven + grill (220V) Miele – M6262TC (46 L)
• Sink crusher: Sink Erator Evolution 200
• Freshwater purier: Seagull IV X 1B
• Hi ATOLL & TV 32’, detail page 53
• Hi ATOLL, detail page 51
AFT GALLEY & CREW QUARTER
l 33 l

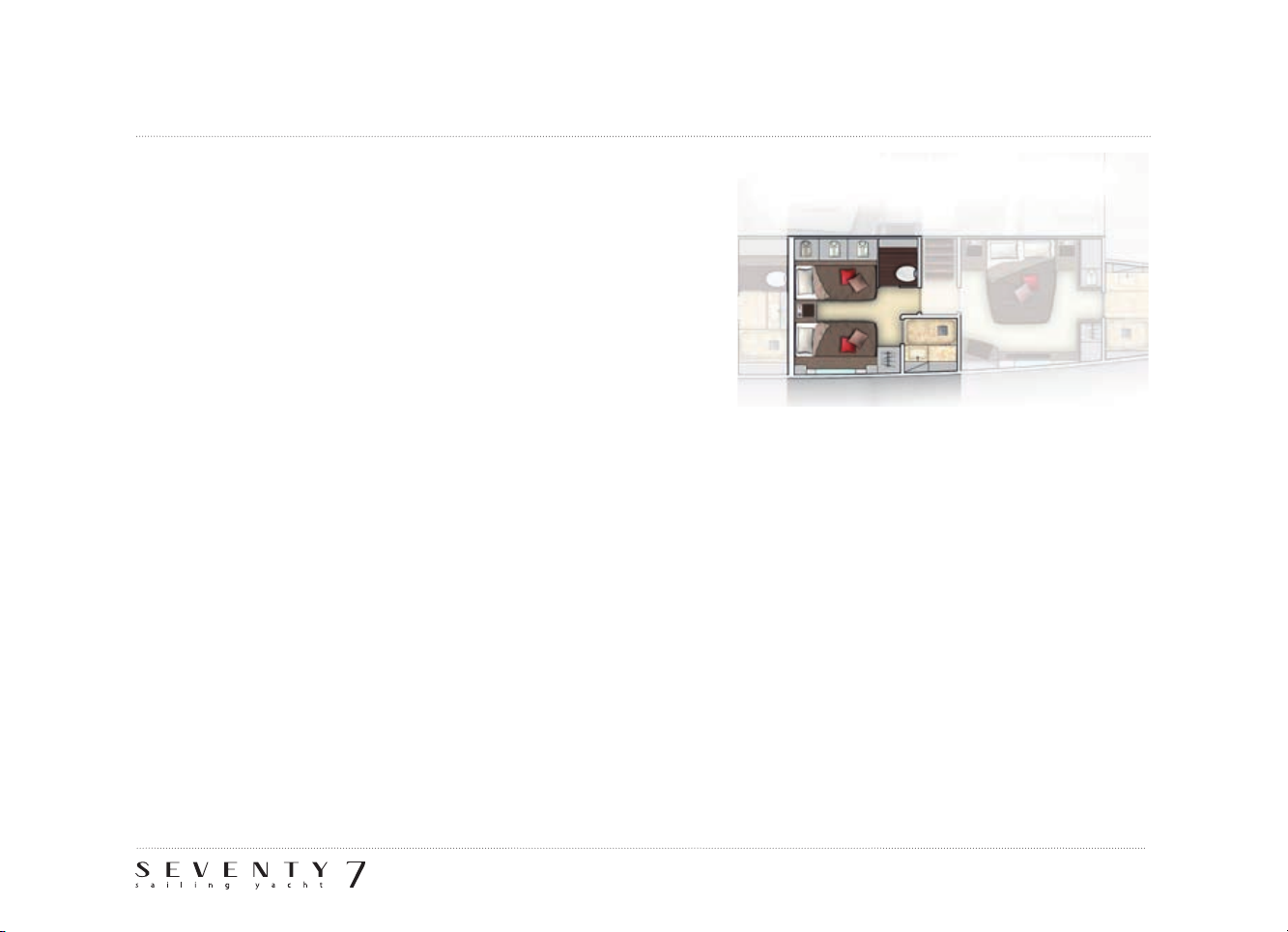

n Crew cabin
• 2 bunk beds (2050 x 900 mm)
• Slatted bed base
• Desk with dedicated seat
• Under bed drawer, lockers, cupboards
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) + roller with manual roller
blinds (White black out fabric) (Electrical
upgrade available)
• Fabric and Upholstery
• Fabric covered bed frame: Sunbrella® Nature Grey
• Desk’s leatherette insert: Peninsula Grey
n Options
• Washing machine (220V) Miele – WKF121(7kg)
• Dryer (220V) Miele – T8822C (7 kg)
• Washer/dryer (220V) Miele – WT2780S (5,5kg/3kg)
• Hi ATOLL, detail page 51
• Fans (integrated in the “Fans” option)
n Crew bathroom
• Integrated shover
• High and low furniture
• Electrical toilet Silence Short TECMA 24V
• Materials
- Counter top with integrated grp double sink:
Corian® (Medea)
- Floor : Corian® (Medea)
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre)
n Options
• Extra for integrated bidet
Technical handbook
l 34 l
FORWARD GALLEY & CREW QUARTER
n Fully equipped galley with
• Stove: Induction (4 burners) (220V) Miele - KM6386
• Hood (220V) - Electrolux - EFG 50300X
• Electric oven (220V) - Miele – H2661BP
• Combined fridge/freezer (220V)
Samsung - RFG23RESLI - Integrated ice maker
Total Volume: 628L [(+) : 396L / (-) : 124L]
• Double s/s sink with hot/cold mixer tap
• Mess: integrated dining table in the counter
top + 1 sofas & 1 stool
• High and low furnitures
• Under oor lockers
• Countertop area: 4 m²
• Integrated countertop dustbin
(Underneath volume: 140 L)
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) + aluminum venetian blind
- 1 opening hatch for direct deck access with
ladder
• Materials
- Sofa: Sunbrella® Nature Grey
- Countertop: Corian® (Medea)
n Options
• Additional fridge/freezer under the oor
Webasto - BI 92 Dual (92 Lt) (+10 °C to -20 °C)
• Built-in coee machine (220V) Miele –
CVA6401 Inox
• Dishwasher (220V) Miele – G6670 SCVI (12 sets)
• Microwave oven + grill (220V) Miele –
M6262TC (46 L)
• Sink crusher: Sink Erator Evolution 200
• Freshwater purier - Seagull IV X 1B
• Hi ATOLL & TV 32’, detail page 53
• Hi ATOLL, detail page 51
FORWARD GALLEY & CREW QUARTER
l 35 l
n Crew cabin
• 2 bunk beds (2050 x 900 mm)
• Slatted bed base
• Lockers, cupboards and storage
• Openings
- 1 deck hatch T60
• Fabric and upholstery
• Fabric covered bed frame: Sunbrella® Nature Grey
n Options
• Washing machine (220V) Miele – WKF121(7kg)
• Dryer (220V) Miele – T8822C (7 kg)
• Washer/dryer (220V) Miele – WT2780S (5,5kg/3kg)
• Hi ATOLL, detail page 51
• Fans (integrated in the “Fans” option)
n Crew bathroom
• Separated shower
• High and low furniture
• Electrical toilet Silence Short TECMA 24V
• Materials
- Counter top with integrated grp double sink:
Corian® (Medea)
- Floor: Corian® (Medea)
• Openings
- 1 deck hatch T77
Technical handbook
l 36 l
BOW COMPARTMENT

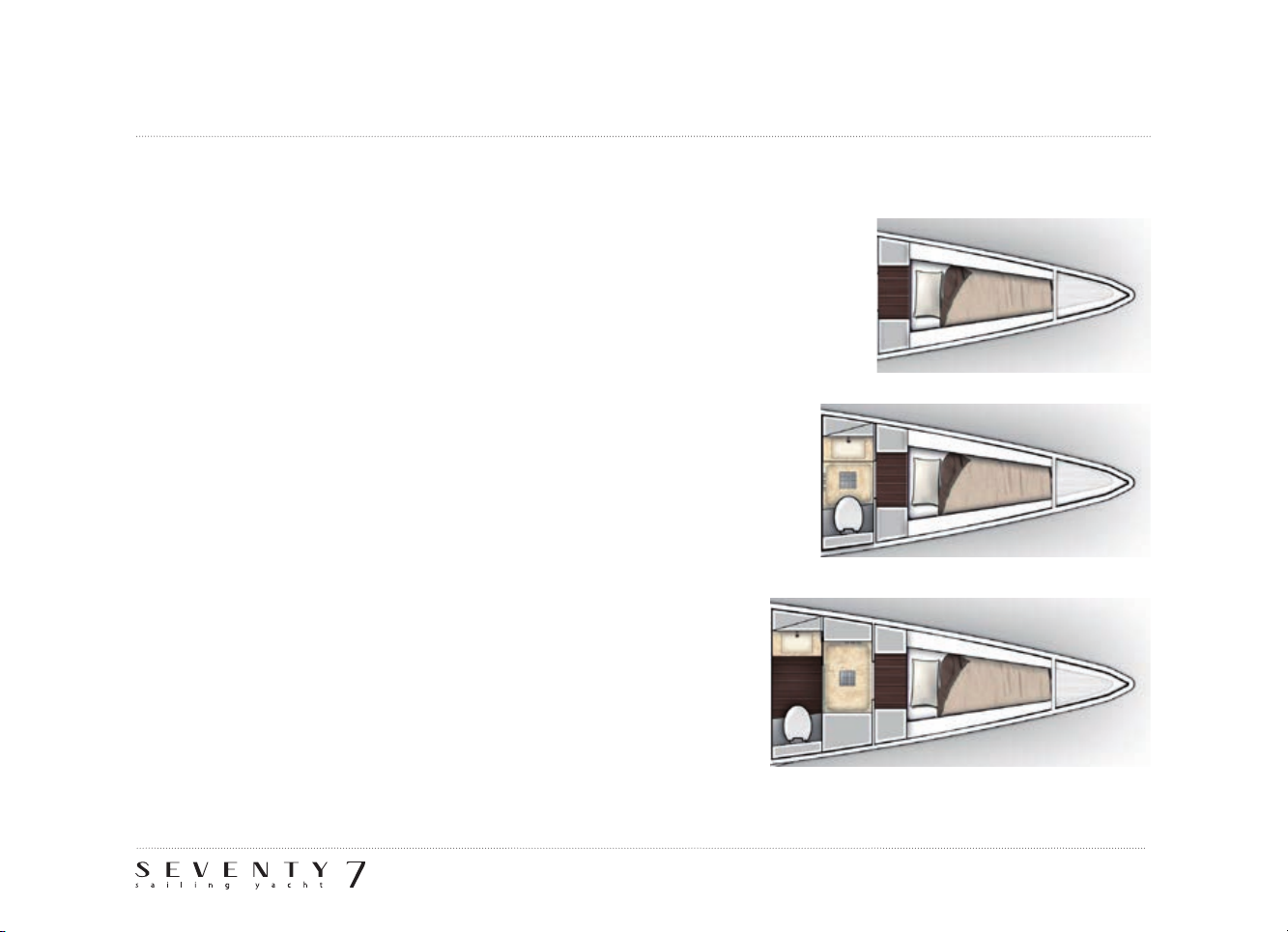

n Crew cabin in the port bow compartment
with access door from the crew area, 1 bunk
Forward galley only
n Crew cabin in port bow compartment
1 bunk, sink, shower, toilet
Aft galley only
n Crew cabin in starboard bow compartment
1 bunk, sink, shower, toilet
Aft & forward galley
Additional bunk in both bow crew cabins, available as an option.
l 38 l

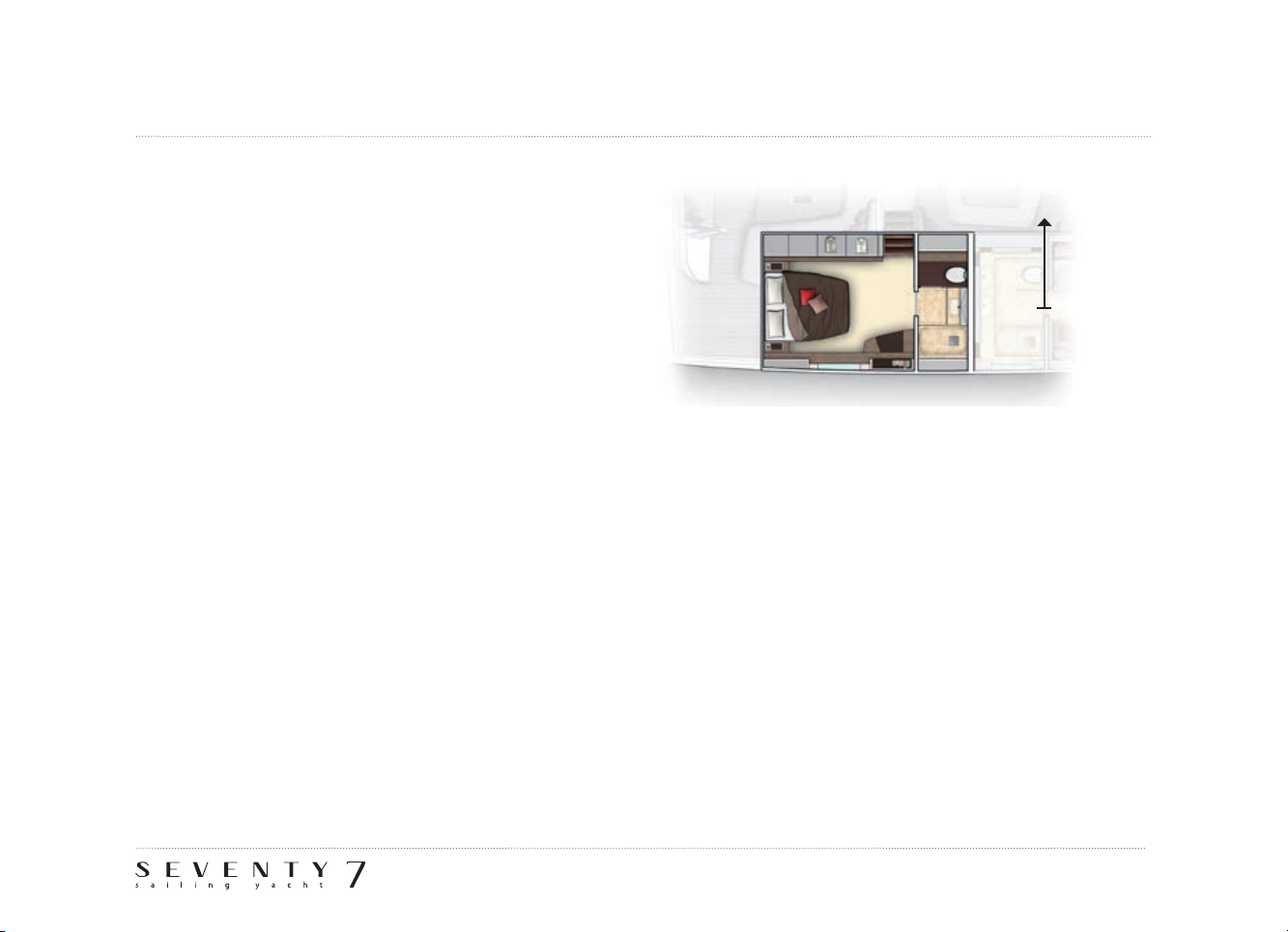

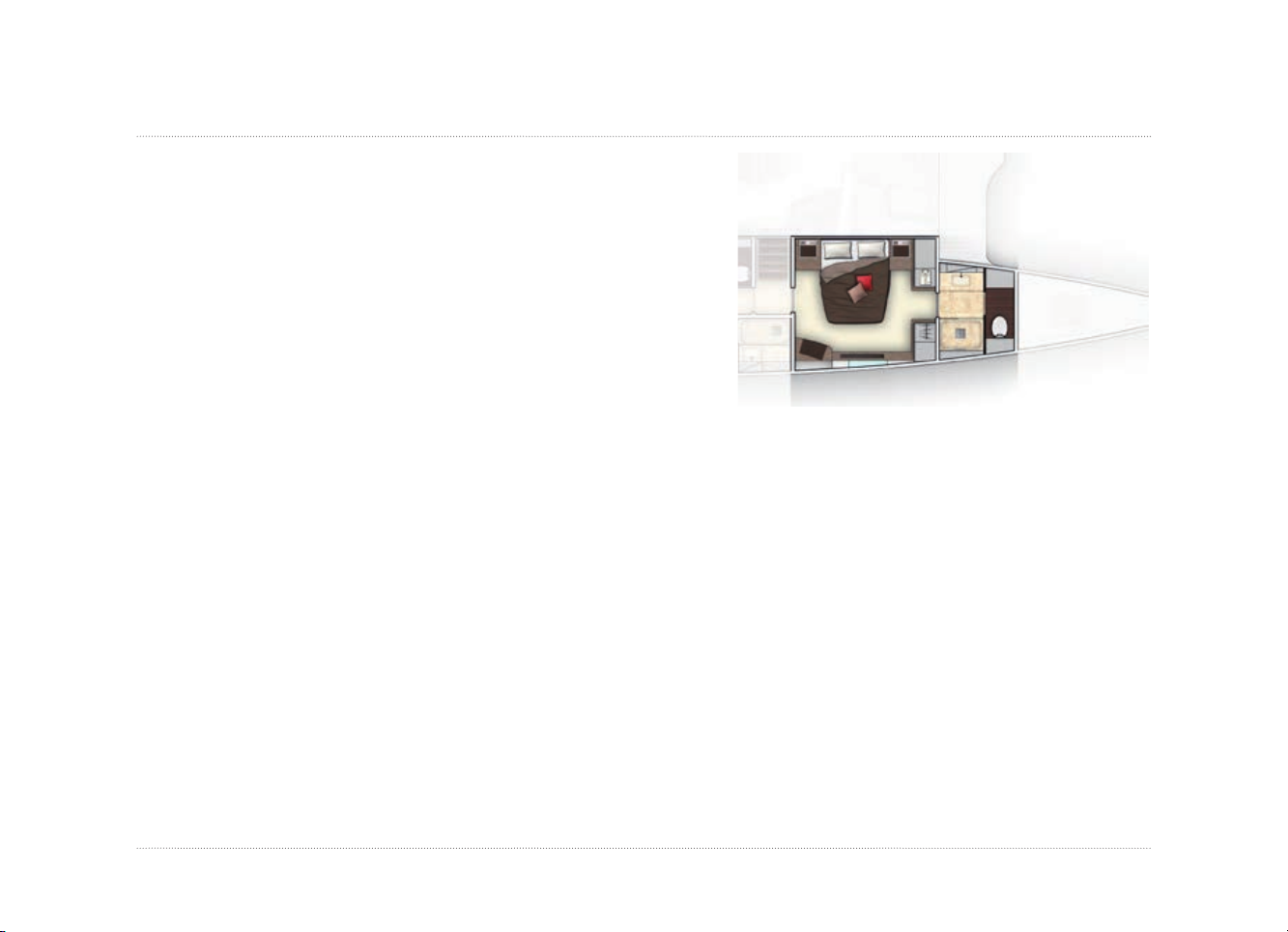

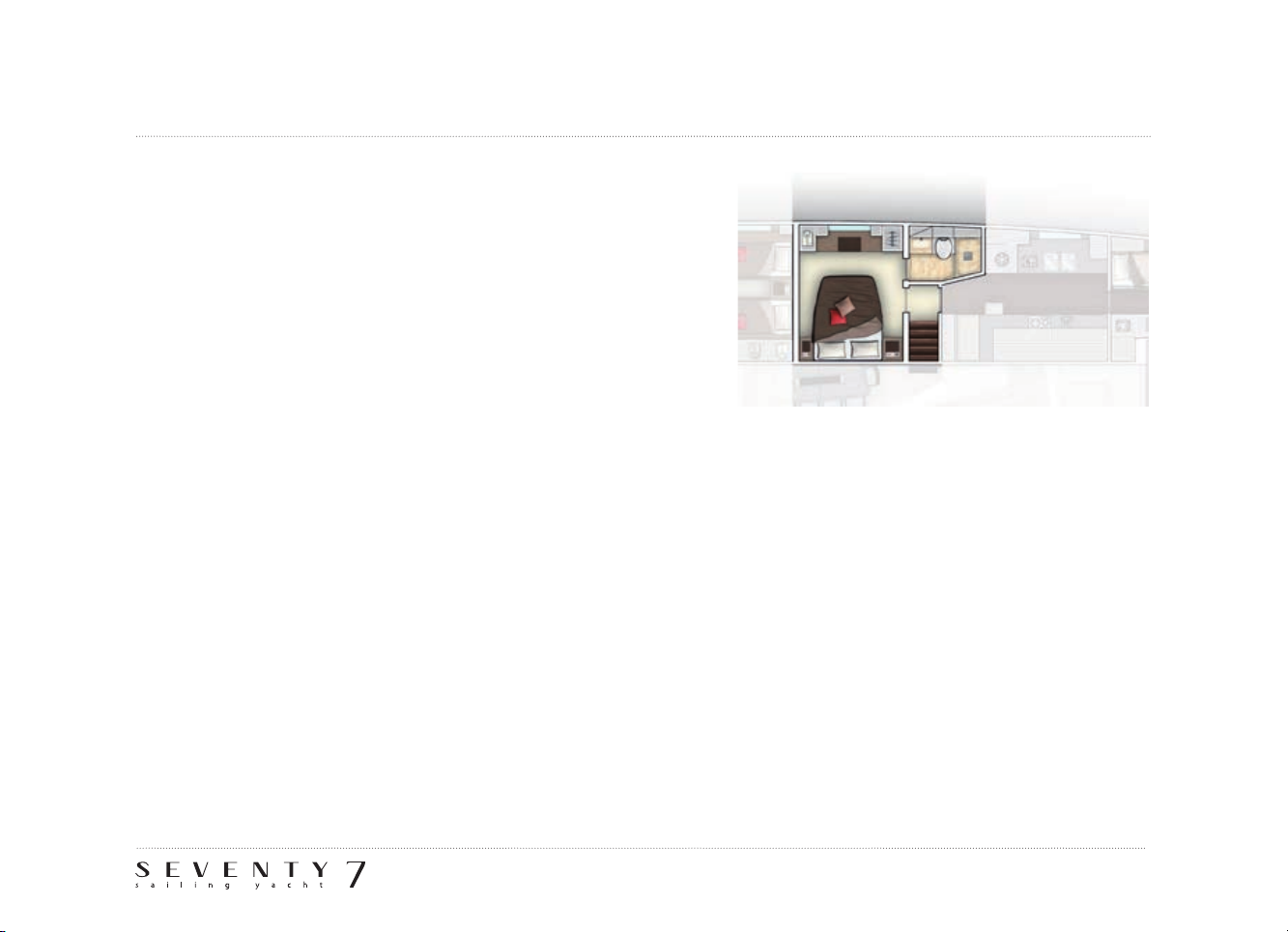

OWNER SUITE & BATHROOM - (4 CABIN VERSION)
n Owner suite
• Island bed (2050 x 1800 mm) with bedside tables
with drawers and storage
• Slatted bed base
• Desk with dedicated seat (inboard)
• Large SOFA (outboard)
• Book shelves
• Walk-in dressing room
• Openings
- Wood sliding door
- 3 deck hatches T60
- 2 hull windows with opening porthole T3
(Lewmar mitre) with manual roller blinds (Beige
black out fabric) (Electrical upgrade available)
• Fabric and Upholstery
- Sofa: Argile
- Bedside table leatherette insert: Ivory
- Desk’s leatherette insert: Bison Brown
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia Brown
- Fabric covered Headboard and hull liner:
Sunbrella® Canvas Beige
- Door’s insert (walk in dressing room):
Sunbrella® Canvas Beige
Standing
headroom
2,05 to
2,10 m
5 m
2
16,5 m
2
3,5 m
2
n Option
• Hi ATOLL & TV 40’, detail page 52
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet
in cabins” option). Color: beige
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp double sink :
Corian® (Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds
(White black out fabric) (Electrical upgrade
NOT available)
n Option
• Electrical heated towel rail
• Extra for integrated bidet
l 39 l
Technical handbook
l 40 l

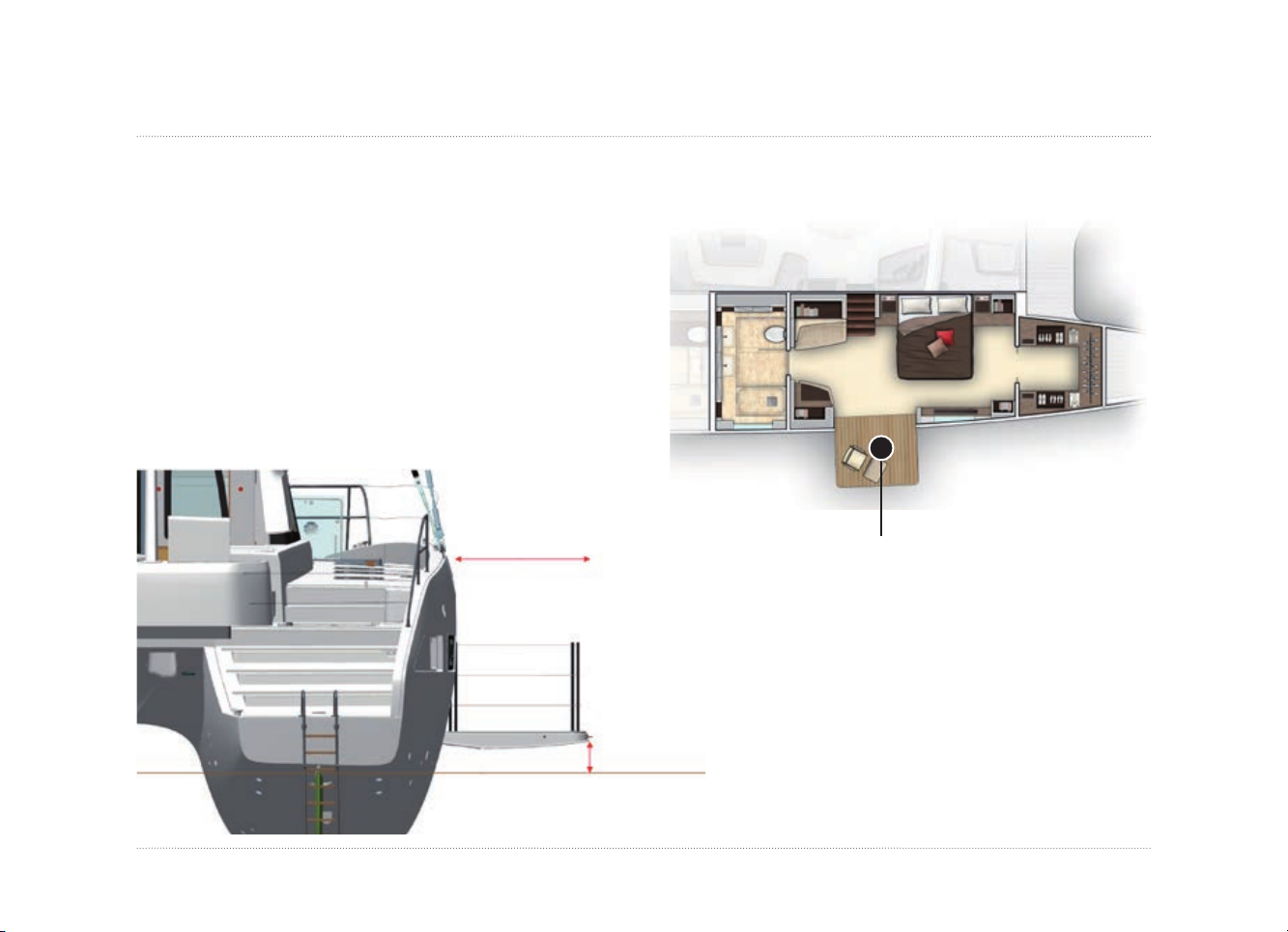

OWNER SUITE & BATHROOM - BALCONY OPTION
n Option
• Hydraulic opening hull door in owner cabin
- Teak terrace (grey seals) + removable teak
grating
- Area: 3m²
- Dimensions: 1900 x 1580 mm
- Removable swimming ladder
- Removable carbon human protection
- Hydraulic system: hydraulic central standard
on board
- Opening switch next to the door
(No remote available)
- An override locking system can disable the
system and enable any movements in order
to prevent unintentional opening
- Emergency manual unlocking
- Opening hull door clearance: 365 mm
• Owner suite layout evolutions
- Inboard smaller Sofa
- Outboard smaller desk
- Openings
- Wood sliding door
- 3 deck hatches T60
- 1 hull window with opening porthole T3 with
manual roller blinds (Beige black out fabric)
(Electrical upgrade available)
- 1 xed hull window in the opening hull door +
curtains (1 privacy + 1 blackout)
l 41 l
1 580 MM
365 MM
3 m
2
Technical handbook
l 42 l
MIDHSIP STARBOARD CABIN
n Midhsip starboard cabin
• Twin beds (2050 x 900 mm) convertible to one
double bed
• Slatted bed base
• Storage: wardrobe, cupboards, lockers
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds (Beige
black out fabric) (Electrical upgrade available)
• Fabric and Upholstery
- Bedside table leatherette insert : Ivory
- Desk’s leatherette insert: Bison Brown
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia Brown
- Fabric covered headboard and hull liner:
Sunbrella® Canvas Beige
n Options
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet in cabins”
option). Color: beige
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated head
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp sink: Corian®
(Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
• Extra for integrated bidet
n Forward starboard cabin
• Island bed (2050 x 1700 mm) with bedside tables
with drawers and storage
• Slatted bed base
• Desk with dedicated seat (outboard)
• Book shelves
• Storage: wardrobe, cupboards, lockers
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds
(Beige black out fabric) (Electrical upgrade available)
• Fabric and Upholstery
- Bedside table leatherette insert: Ivory
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia Brown
- Fabric covered headboard and hull liner: Sunbrella®
Canvas Beige
n Options
• Hi ATOLL & TV 40’, detail page 52
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet
in cabins” option). Color: beige
FORWARD STARBOARD CABIN
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated head
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp sink: Corian®
(Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
• Extra for integrated bidet
l 43 l
Technical handbook
l 44 l
AFT STARBOARD CABIN
n Aft starboard cabin
• Island bed (2050 x 1700 mm) with bedside
tables, drawers and storage
• Slatted bed base
• Desk with dedicated seat (outboard)
• Book shelves
• Storage: wardrobe, cupboards, lockers
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds
(Beige black out fabric) (Electrical upgrade
available)
• Fabric and Upholstery
- Bedside table leatherette insert: Ivory
- Desk’s leatherette insert: Bison Brown
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia
Brown
- Fabric covered headboard and hull liner:
Sunbrella® Canvas Beige
Standing
headroom
2,05 to
2,10 m
n Options
• Hi ATOLL & TV 40’, detail page 52
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet in
cabins” option). Color: beige
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated head
• Separated shower (head shower + additional hand shower)
• Materials
- Counter top with integrated grp sink: Corian® (Clam shell)
• Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
• Electrical heated towel rail
• Extra for integrated bidet
AFT STARBOARD CABIN
l 45 l
Technical handbook
l 46 l
VIP FORWARD PORT CABIN
n VIP forward port cabin
• Island bed (2050 x 1700 mm) with bedside
tables, drawers and storage
• Slatted bed base
• Desk with dedicated seat (outboard)
• Book shelves
• Storage: wardrobe, cupboards, lockers
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds
(Beige black out fabric) (Electrical upgrade
available)
• Fabric and Upholstery
- Bedside table leatherette insert: Ivory
- Desk’s leatherette insert: Bison Brown
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia
Brown
- Fabric covered headboard and hull liner:
Sunbrella® Canvas Beige
Standing
headroom
2,05 to
2,10 m
n Options
• Hi ATOLL & TV 40’, detail page 52
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet in
cabins” option). Color: beige
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated head
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp sink:
Corian® (Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
- Electrical heated towel rail
- Extra for integrated bidet
VIP FORWARD PORT CABIN
l 47 l
Technical handbook
l 48 l
MIDSHIP PORT CABIN
n Midship port cabin
• Island bed (2050 x 1700 mm) with bedside tables
with drawers and storage
• Slatted bed base
• Storage: wardrobe, cupboards, lockers
• Openings
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds (Beige
black out fabric) (Electrical upgrade available)
• Fabric and Upholstery
- Bedside table leatherette insert: Ivory
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia Brown
- Fabric covered headboard and hull liner:
Sunbrella® Canvas Beige
n Option
• Hi ATOLL & TV 40’, detail page 52
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet in
cabins” option). Color: beige
• Fans (integrated in the “Fans” option)
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp sink:
Corian® (Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
• Extra for integrated bidet
n Aft port cabin
• Twin beds (2050 x 900 mm) convertible to one
double bed
• Slatted bed base
• Storage: wardrobe, cupboards, lockers
• Openings
- Sliding door. Direct cockpit access
(Electrical upgrade available)
- 1 deck hatch T60
- 1 hull window with opening porthole T3
(Lewmar mitre) with manual roller blinds (Beige
black out fabric) (Electrical upgrade available)
• Fabric and Upholstery
- Bedside table leatherette insert: Ivory
- Door’s leatherette insert: Bison Brown
- Fabric covered bed frame: Sunbrella® Sepia Brown
- Fabric covered Headboard and hull liner:
Sunbrella® Canvas Beige
n Options
• Hi ATOLL, detail page 51
• Fitted carpet (integrated in the “tted carpet in
cabins” option). Color: beige
• Fans (integrated in the “Fans” option)
AFT PORT CABIN & BATHROOM
n Bathroom
• Electrical toilet Silence Short TECMA 24V
• Separated shower (head shower + additional
hand shower)
• Materials
- Counter top with integrated grp sink:
Corian® (Clam shell)
- Floor: Corian® (Clam shell)
• Openings
- 1 deck hatch T60
n Options
• Port aft electrical companionway door
• Electrical heated towel rail
• Extra for integrated bidet
l 49 l
Technical handbook
l 50 l
LIGHTING & PLUG
n220V PLUGS
• Salon: 13 plugs
- Port: 2 on sofa baseboard + 2 in the furniture
- Starboard : 2 on sofa baseboard + 1 in the hi
furniture
- Forward salon : 3 on baseboard + 2 on the bar
furniture
- Chart table: 1
• Cabins: 3 plugs
- 1 each bedside + 1 in baseboard
nUSB PLUGS
• Cabin: 1 each bedside + desk
• Salon: chart table, forward furniture, hi furniture,
port furniture
nLIGHTING
• Cabin
- Direct lighting
- Strip led (Power LED) 24V warm white: Ceiling
- Indirect lighting
- Strip led 24V warm white: beds, shelves, sofa,
steps
• Salon
- Direct lighting
- Spot 4kw warm white: Ceiling
- Strip led (Power LED) 24V warm white: Ceiling
- Indirect lighting
- Strip led 24V warm white: Bar, sofas, steps
• Exterior
- Direct lighting
- Spot 4kw warm white: Ceiling
- Indirect lighting
- Strip led 24V warm white: Benches,
furniture, steps
+ Courtesy light

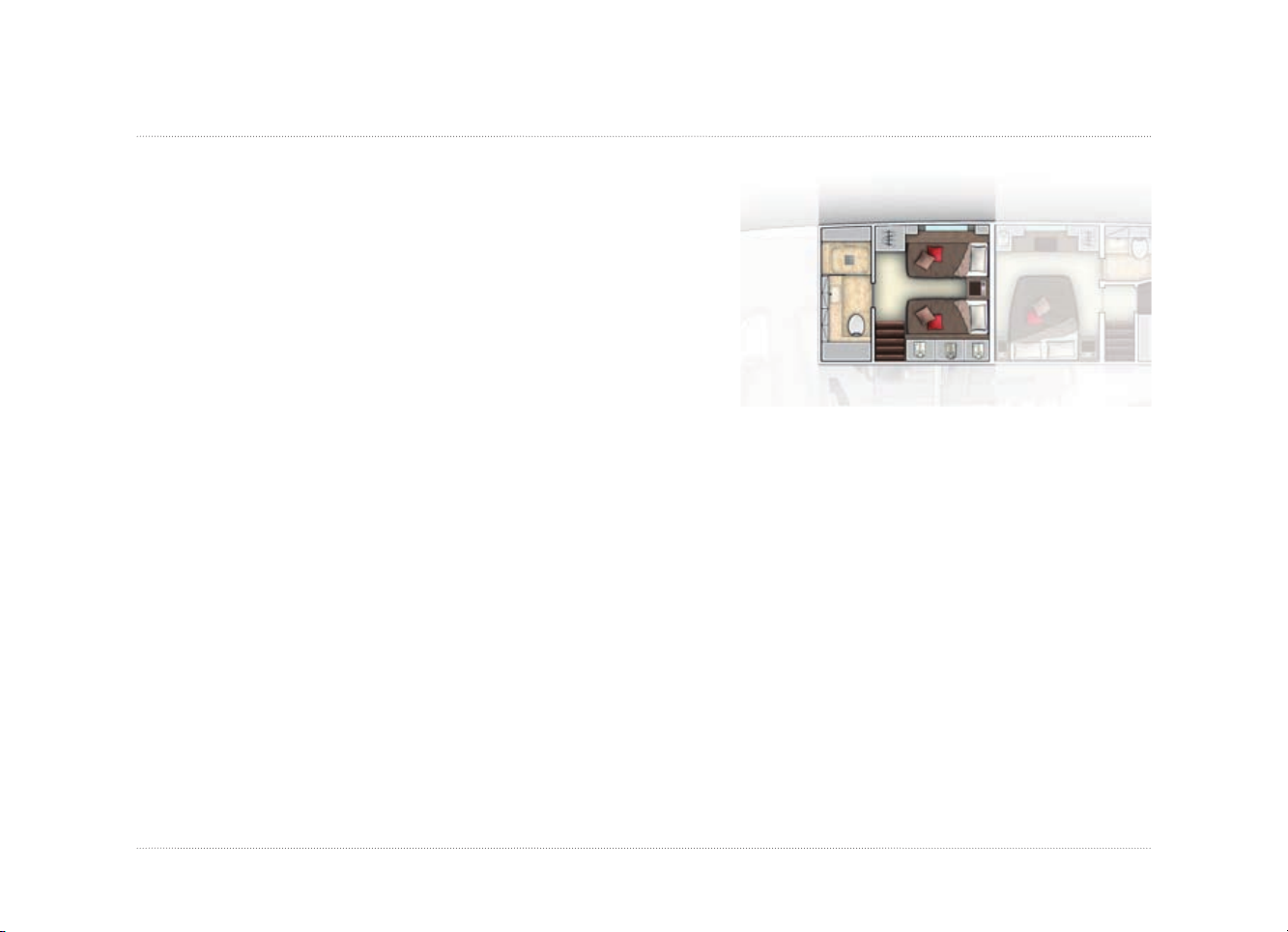

HIFI & VIDEO
l 51 l
n HIFI
A high-quality media centre solution from ATOLL®
that oers numerous advantages
• Multi-channel amplier: multiples zones with
independent sources and volume
• WiFi router
• NAS hard drive for multimedia storage
• Touchscreen operation and/or RF remote control
• RJ45 network in cabins, all cabins are connected
to the multimedia
• HDMI and USB connectivity
• Ability to control the system from a tablet (iPad or
Android)
• Bose speakers inside and outside
n TV PHILIPS®
n HIFI MEDIA CENTER ATOLL IN THE SALON
4 Zones
• Zone 1 Salon
• Zone 2 Aft Cockpit
• Zone 3 Flybridge
• Zone 4 Forward Cockpit
Independent volume control for all zones.
(TV audio available on loudspeakers (all zones))
Independent source selection only for zones:
• Zone 1
• Zone 2 + 3
• Zone 4
Content
• Ampliers
- 1 Multi-channel amplier for Zone 1 + 2 + 3
- 1 Mono-channel amplier for Zone 4
• HP & Subwoofer
- 4 BOSE JEWEL loudspeakers & 1 BOSE Freespace
Subwoofer
- 2 SONANCE loudspeakers in the aft cockpit
- 2 SONANCE loudspeakers in the forward cockpit
- 2 SONANCE loudspeakers in the ybridge
Technical handbook
l 52 l
HIFI & VIDEO
• TV 55”
• Foldable electrical system from ceiling
(Authorized movements: Descent/Rotation)
• NAS hard disk
• WIFI rooter
• DLNA Video - RJ45 network for cabins
• HDMI and USB connectivity, Bluetooth
• Touchscreen operation (control panel 3,5’’) and
RF remote control
From the TV
• Navigation of NAS hard drive folders: Music/
Videos/Pictures
From an iPad or Android Tablet: WiFi connection
with router
• Navigation of NAS hard drive folders: Music/
Videos/Pictures
• Simultaneous display and use of content
n HIFI ATOLL (2 Loudspeakers & Subwoofer) &

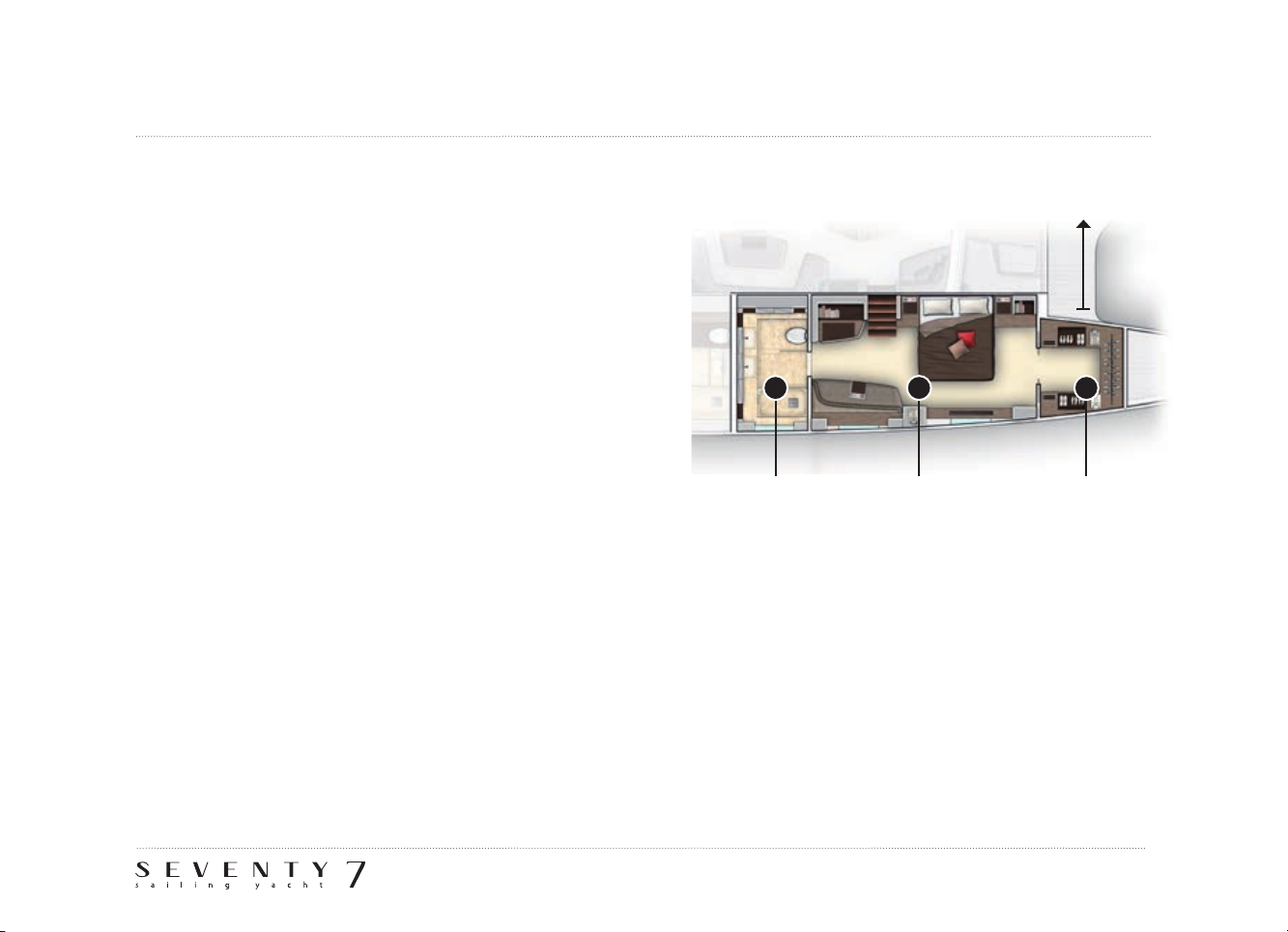

TV 40’’ WITH ELECTRICAL LIFT IN OWNER CABIN
• Multi-channel amplier
• 2 BOSE JEWEL loudspeakers + 1 BOSE Freespace
Subwoofer
• TV 40” with electrical lift with remote control
• Touchscreen operation (Bedhead control panel
2,4’’) and RF remote control
• DLNA Video - RJ45 network, HDMI and USB
connectivity, Bluetooth, Radio
ONLY AVAILABLE IN THE FOLLOWING CASE:
• Forward Starboard Owner Cabin
n HIFI ATOLL (2 Loudspeakers each) & TV 40’’
WITH ELECTRICAL LIFT IN THE CABIN
• Multi-channel amplier
• 2 BOSE Virtually S91 loudspeakers
• TV 40” with electrical lift
• Control panel: touch screen 2,4’’
• DLNA Video - RJ45 network, HDMI and USB
connectivity, Bluetooth, Radio
HIFI & VIDEO
l 53 l
ONLY AVAILABLE IN THE FOLLOWING CASE:
• Forward Port VIP Cabin
• Forward Starboard Guest Cabin
• Midship Port Guest Cabin
n HIFI ATOLL (2 Loudspeakers each) & TV 32’’
IN THE CABIN & GALLEY
• Multi-channel amplier
• 2 BOSE Virtually S91 loudspeakers
• TV 32” with manual wall support
• Control panel: touchscreen 2,4’’
• USB connectivity + Bluetooth, Radio
ONLY AVAILABLE IN THE FOLLOWING CASE:
• Forward Galley
• Aft Galley
• Aft Starboard Guest Cabin
- Scope to add an audio input using a3.5mm jack socket. (Jack socket accessible at the rear of the Atoll amplier.
- Scope for the customer to add a Blu-ray or DVD player after delivery. (Connection by means of an accessible
remote HDMI socket)
n HIFI ATOLL IN THE CABIN & GALLEY
(2 Loudspeakers each)
• Multi-channel amplier
• 2 BOSE Virtually S91 loudspeakers
• Control panel: touch screen 2,4’’
• USB connectivity + Bluetooth, Radio
AVAILABLE IN THE FOLLOWING CASE:
• All cabins , (Owner, VIP, Guest) + Galley & Crew
quarter
Technical handbook
l 54 l
AIRCON
n Reverse cycle chilled water air conditioning: 180 000 BTU
n Dedicated 100 Ah shore power
n Upgrade Generator 27kva needed
n Aircon central units: 3 x 60 000 BTU

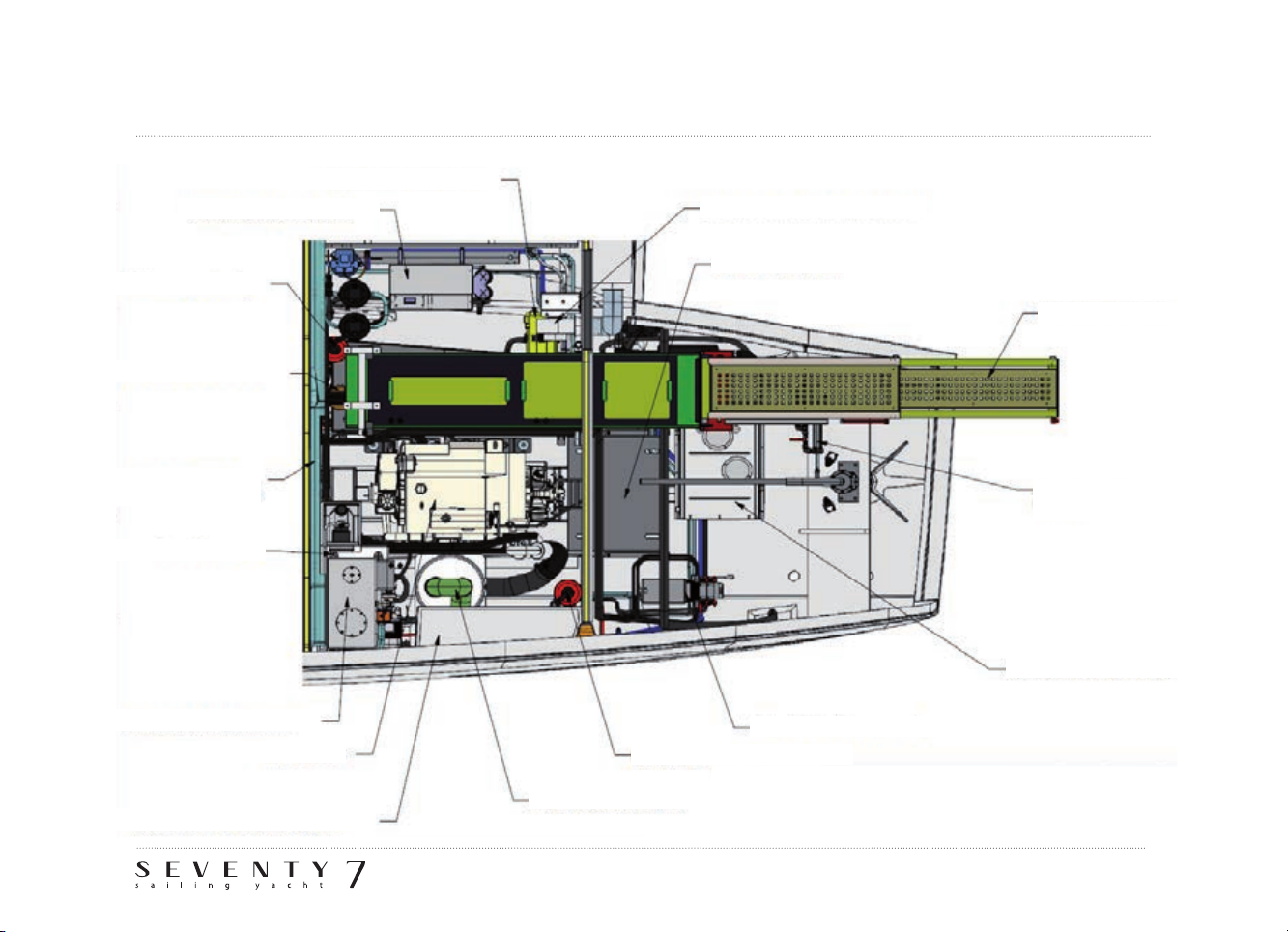

Located in starboard engine compartment
n Air handler (all versions)
- Salon: 3 x 24 000 BTU + 18 000 BTU (Fwd salon)
- VIP & Guests’ cabins: 24 000 BTU each
- Owner cabin: 2 x 12 000 BTU
- Galley & Crew cabin: 18 000 BTU each
- Forward crew cabin: 4 000 BTU each

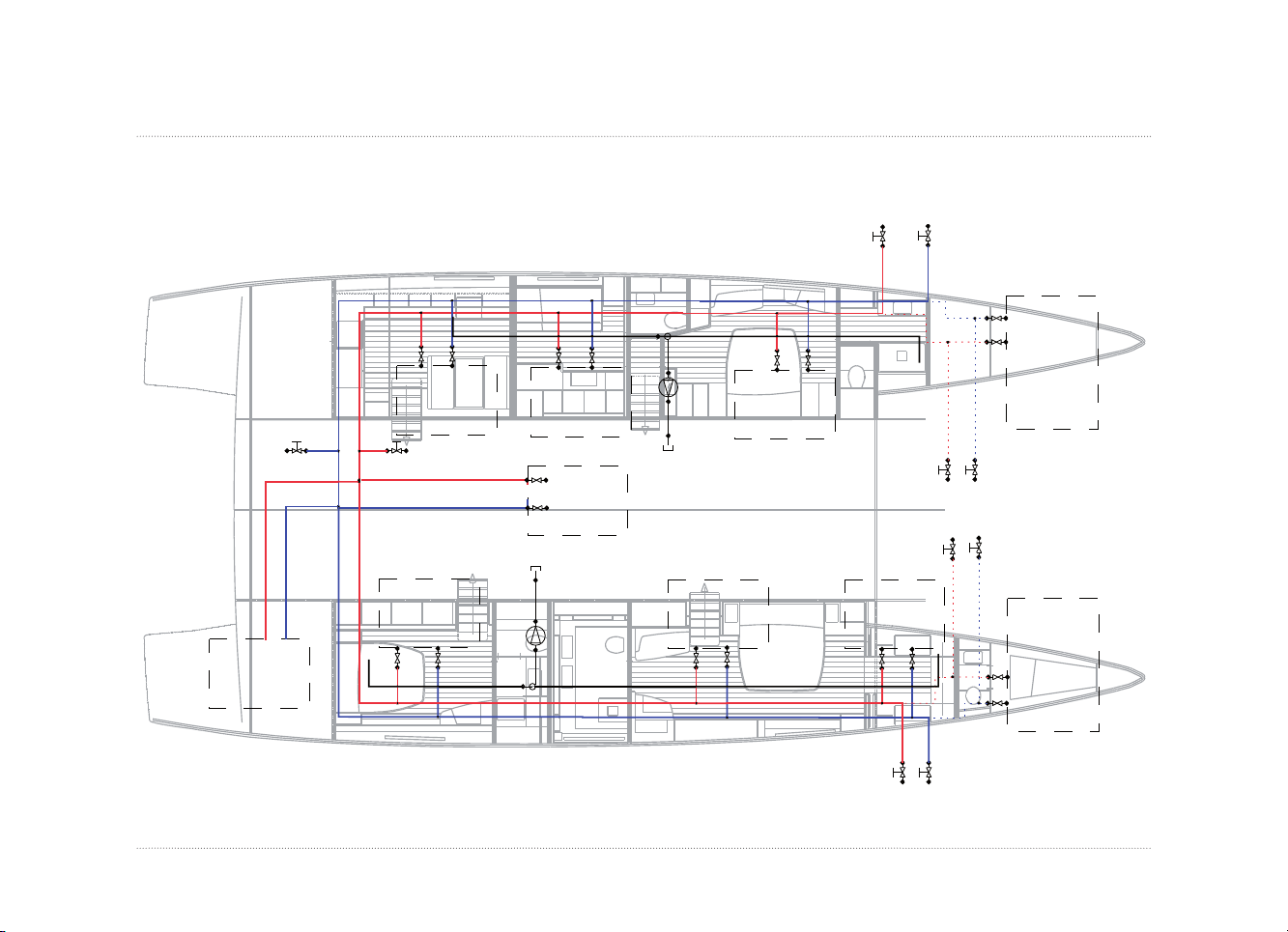

CLIMATISATION FLOTTEURS

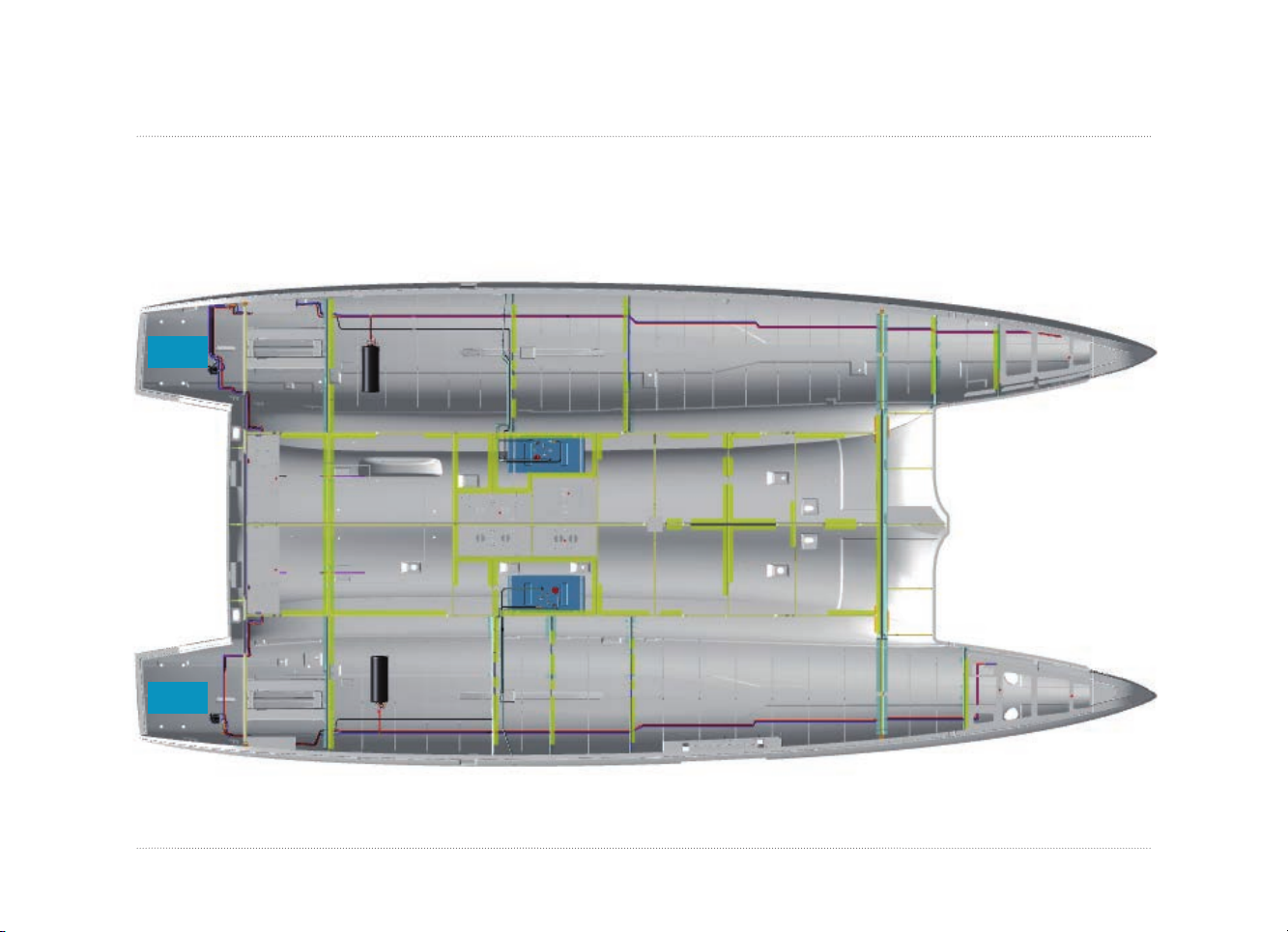

RP04
RP03
AIRCON
l 55 l
T-02 06
T-02 05
T-10 01
T-01 05
RCC03
T-11 01
RCC04
T-01 06
T-34 01
18 KBTU
T-08 01
T-04 01
T-03 01
T-09 01
T-02 02
T-01 03
K50
RP01RP02
T-06 01
T-07 01
RCC01
RCC02
CARRE H35
C60
PASC01
24 KBTU
CENTRALE
CLIMATISATION
T-02 08
T-01 08
RCC18
T-18 01
RCC17
T-37 01
T-19 01
CP01
T-39 01
P01
T-43 01
T-01 09
Owner 3 Cabins - 3 heads & Galley and crew quarters aft
Crew cabin in starboard bow compartment
T-12 01
RCC05
18 KBTU
C30
3 X 24 KBTU
18 KBTU
T-02 09
RCC06
T-13 01
T-02 07
T-01 07
CP02
T-42 01
P02
T-36 01
PASC02
T-41 01
24 KBTU
C10
T-14 01
RCC07
T-16 01
T-15 01
RCC08
C20-1 C20-2
12 KBTU
RCC15
RCC16
T-20 01
T-21 01
T-40 01
T-01 10
T-02 10
RCC14
T-17 01
T-27 02
12 KBTU
T-22 01
T-31 01
T-25 01
RCC13
T-23 01
RP06
T-30 01
T-24 01
T-26 02
T-28 01
RP05
T-27 01
T-32 01
T-26 01
T-29 01
RP08
RP10
T-33 01
T-31 02
T-30 02
RCC09
RCC10
4 KBTU
OPTION POINTE AV BABORD
RP07
RP09
OPTION POINTE AV TRIBORD
4 KBTU
RCC11
RCC12
Technical handbook
l 56 l
ELECTRICAL MAIN SYSTEM
n Electrical panels
• Main electrical panels are installed next to the chart table, port forward companionway:
- AC&DC Control panel
- AC Power switches
• Secondary electrical panels are installed in all areas of the yachts:
- Service DC breaker box
- AC Panel/AC Power switches
(Main location mentioned on the plan)

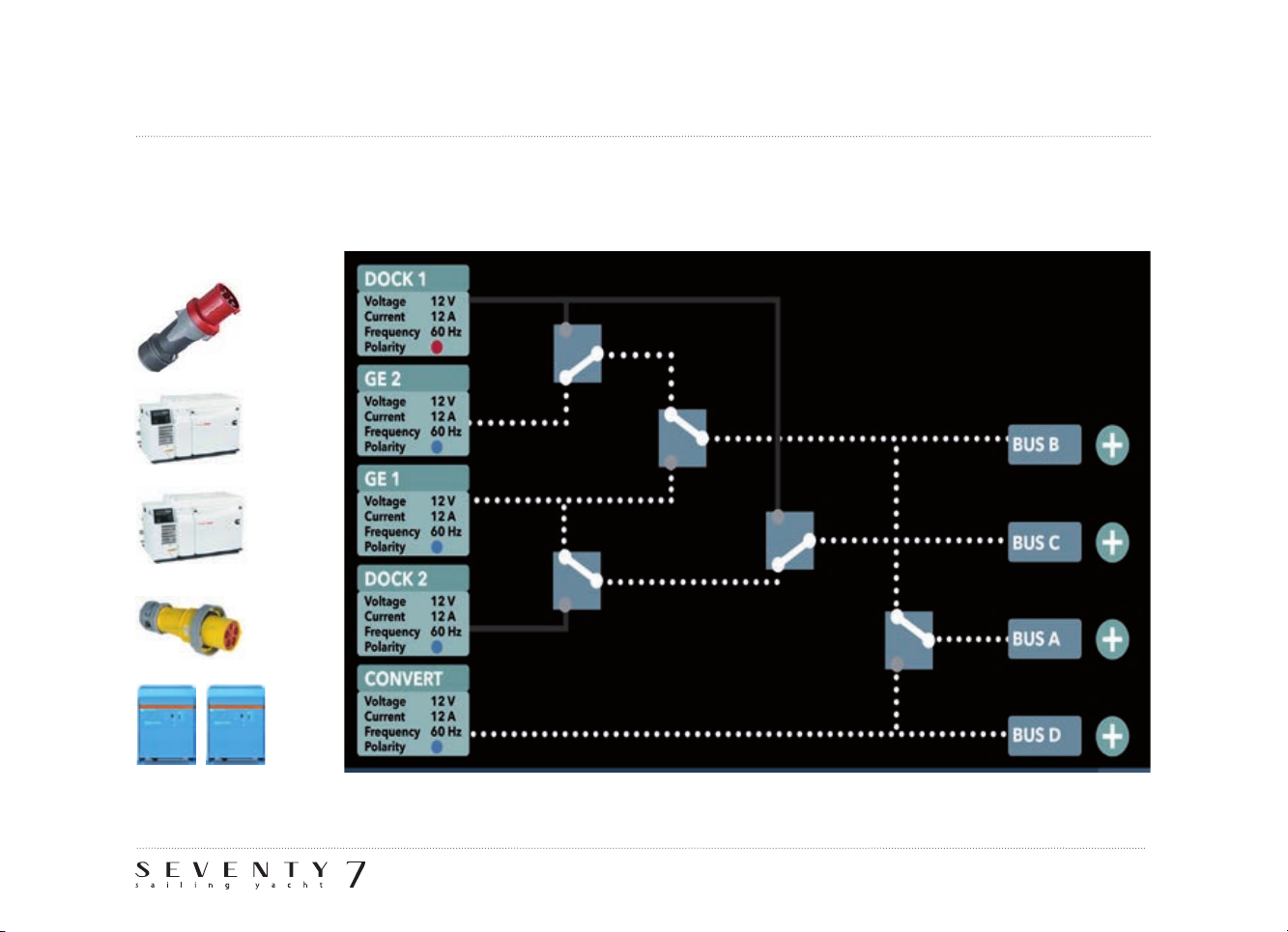

n 230V AC Power sources
• Shores Power
- 63 Ah Standard shore power
- 100 Ah Optional Aircon shore power
Electrical reel for shore power cord
• Alternators
- 2x80 Ah 24V (D4-180 HP Volvo)
- 2x150 Ah 24V (N5-230 HP John Deer)
• Generators
- ONAN, 13,5 Kva Starboard engine compartment (1)
- ONAN, 27 Kva optional upgrade (1)
- ONAN, 19 Kva additional option, port engine compartment (2)
• Inverters
- VICTRON, 2000 VA 24/220 V
- VICTRON, 2x5000 VA 24/220 V, optional upgrade
n 24V DC Power sources
• Batteries
- Main batteries 1050 Ah, 24V
- Engine batteries 75 Ah, 12V
- Bow thruster batteries 8 x 75 Ah, 12V (Optional)
• Battery charger
- VICTRON Skilla, 100 Ah 220V
- VICTRON Skilla, 2x100 Ah 220V, optional upgrade
- VICTRON Skilla, 100 Ah 220V, optional bow thruster
ELECTRICAL MAIN SYSTEM
l 57 l

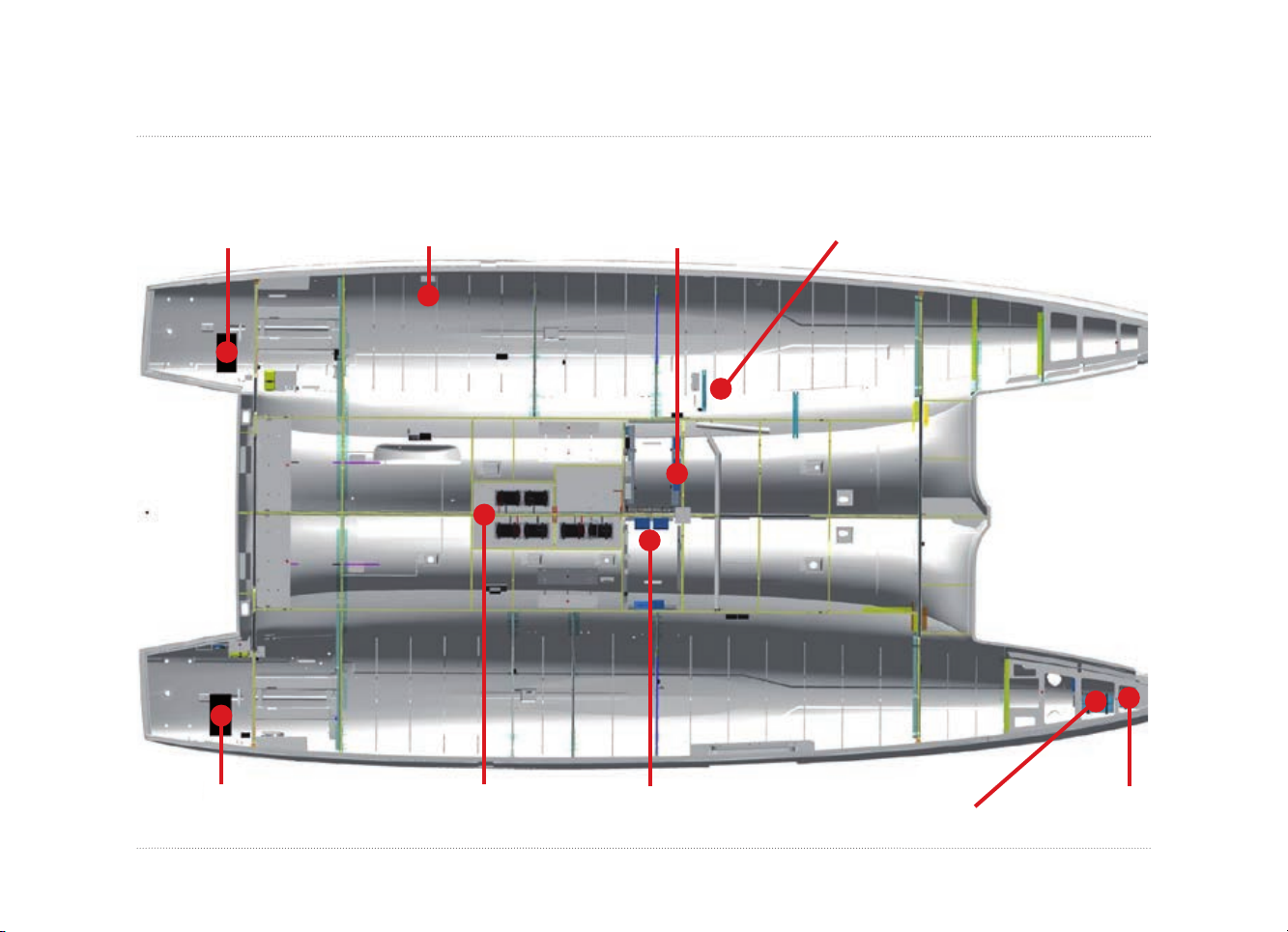

AC GENERATOR 2 MAIN ELECTRICAL PANEL (AC/DC)CHARGERS
GALLEY AC BOX
MAIN AC GENERATOR 1 AC INVERTERS
MAIN BATTERIES
BOW THRUSTER
CHARGER
BOW THRUSTER
BATTERIES
Technical handbook
l 58 l
AC DISTRIBUTION
n BUS A - Outlets
- Bathroom & Galley outlets
- Technical outlets
- Engine start battery charger
- Bow thruster battery charger
- Grey water treatment station
- Bow thruster charger
- Salon domestic electrical goods
- Water heater
- Ice maker (cockpit)
- Teppanyaki grill (cockpit)
- Freshwater maker
- Galley domestic electrical goods:
- Oven
- Extractor fan
- Dishwasher
- Microwave
- Coee Machine
- Stove
- Washing Machine
- Dryer
n BUS B - Service batteries chargers
AC DISTRIBUTION
l 59 l
n BUS C - Air handlers
n BUS D - Hi & Video
- Galley standard Fridge
Technical handbook
l 60 l

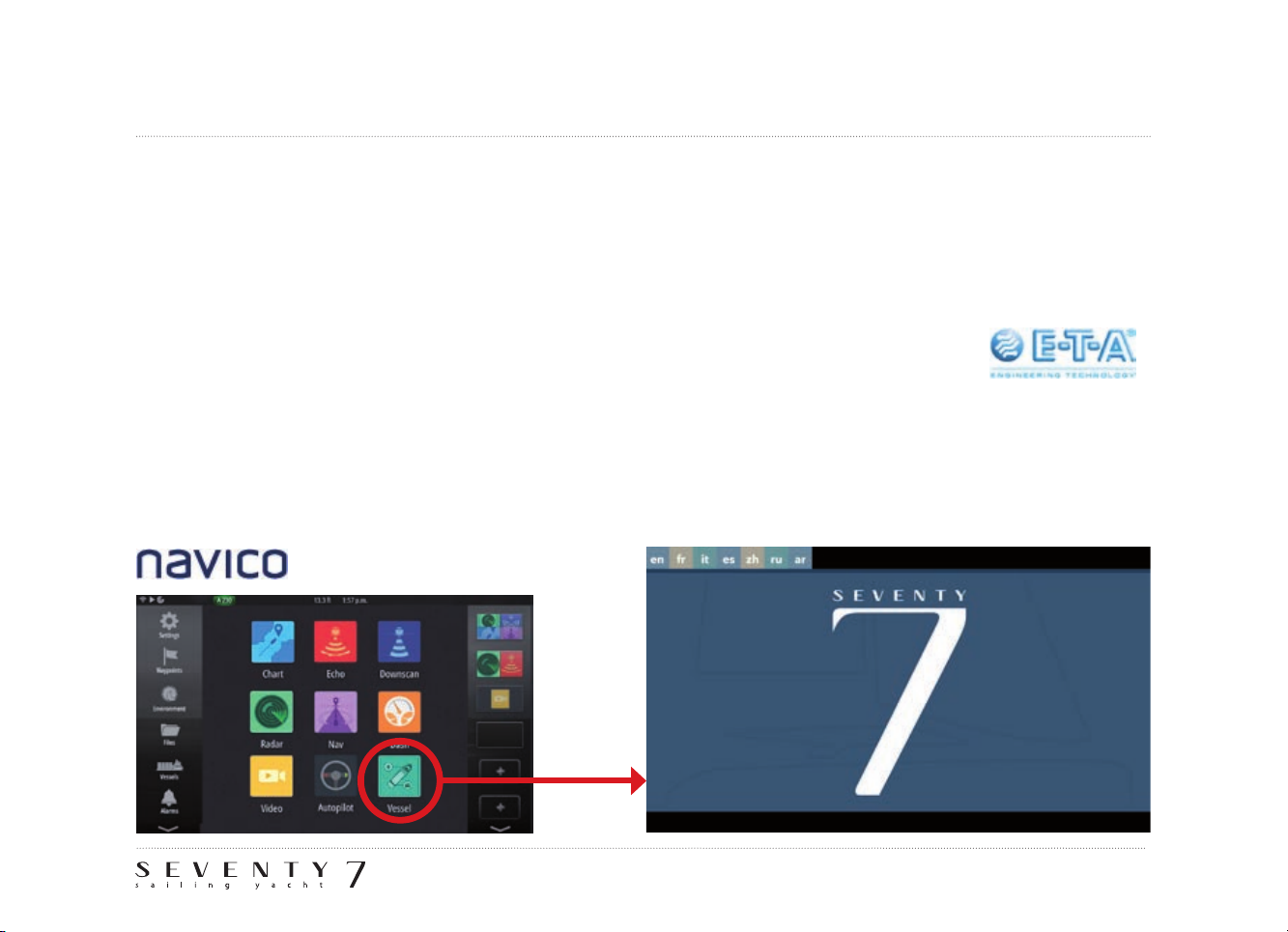

YACHT MANAGEMENT MONITORING SYSTEM (OPTION)
Monitoring oers a link between the look and feel of conventional technology and modern digital processing
oering extensive diagnosis, monitoring and control functions. The main benet for the boat owner besides having
a modern electrical system is the integration of a lot of features like alarm and remote control.
The Monitoring system installed on board is a decentralized, user congurable power distribution system.
The system has been developed with E.T.A.
• Access to the monitoring system from the navigation screens through an icon on the homepage
• Available on all navigation screens: Fly bridge helm stations & chart table
• Available also on IPAD or Android tablet (Wi connection): display and control
YACHT MANAGEMENT MONITORING SYSTEM (OPTION)
n Functions displayed (Monitoring/Control)
• DC
• AC
• Exterior lighting
• Navigation lighting
• Air conditioning
• Batteries level
• Fresh water tanks level
• Grey water tanks level
• Black water tanks level
• Fuel tanks level
All functions are always displayed and can be
manually managed from the main electrical panel.
Available languages: EN - FR - IT - ES - ZH - RU - AR
l 61 l
Technical handbook
LAGOON SEVENTY 7
TRIM
HELM PORT
HELM STARBOARD
Graphic
Display
H5000
Graphic
Display
H5000
Zeus
2
black box
H5000
Triton
Pilot
Controller
H5000
Triton
Pilot
Controller
ZM 19
19” touch screen
ZM 19
19” touch screen
Graphic
Display
H5000
MAST
LAGOON SEVENTY 7
TRIM
HELM PORT
CHART TABLE
HELM STARBOARD
Graphic
Display
H5000
Graphic
Display
H5000
Zeus
2
black box
Zeus
2
black box
H5000
Triton
Pilot
Controller
H5000
Triton
Pilot
Controller
ZM 19
19” touch screen
ZM 19
19” touch screen
ZM 16
16” touch screen
DT800
Depth/Temp
Transducer
SENSPD
(Speed)
H5000
Transducer
H5000
Triton
Pilot
Controller
MHU 213
Wind Vane
ZM 16
16” touch screen
NAIS400 AIS
Transponder
Graphic
Display
H5000
MAST
LAGOON SEVENTY 7
l 62 l
ELECTRONICS

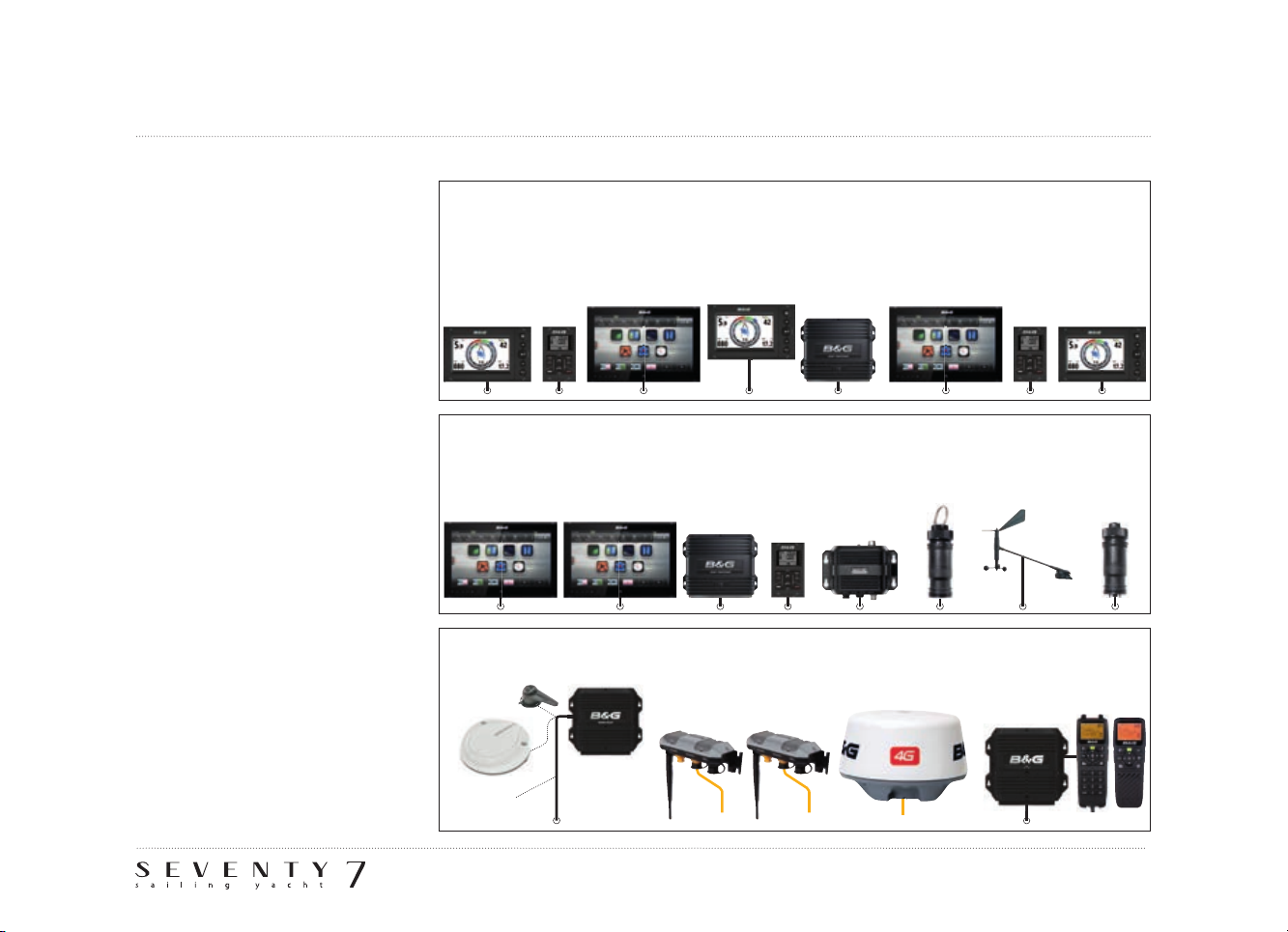

B&G NAVIGATION PACK
TRIM
HELM PORT
Graphic
Display
H5000
CHART TABLE
RF25 Rudder
ZM 16
16” touch screen
Autopilot System
Feedback
H5000
Triton
Pilot
Controller
ZM 19
19” touch screen
ZM 16
16” touch screen
MAST
Graphic
Display
H5000
2
Zeus
black box
H5000
Triton
Pilot
Controller
INTERNAL & EXTERNAL
WIFI-1™: Wireless Module
• Free “GoFree” application to view/control
the MFD available from web
2
Zeus
black box
NAIS400 AIS
Transponder
Broadband Radar 4G
HELM STARBOARD
ZM 19
19” touch screen
DT800
Depth/Temp
Transducer
H5000
Triton
Pilot
Controller
MHU 213
Wind Vane
V90 VHF System and H50
Wireless Handset
Graphic
Display
H5000
SENSPD
(Speed)
H5000
Transducer
Precision-9
Drive LS 40ST16
(from yard)
Pilot
Computer
H5000
Ethernet
Ethernet
Ethernet
ELECTRONICS
2016 � 2017 | Boat Denitions
LAGOON SEVENTY 7 / OPTIONS
2016 � 2017 | Boat Denitions
LAGOON SEVENTY 7 / OPTIONS
OPTIONAL
CREW CABIN
Zeus2 12” wide
• 12” LED Multifunction Colour/
Touch display
• Navionics regional cartography
included (on SDcard)
• I ntegrated Pilot control (optional)

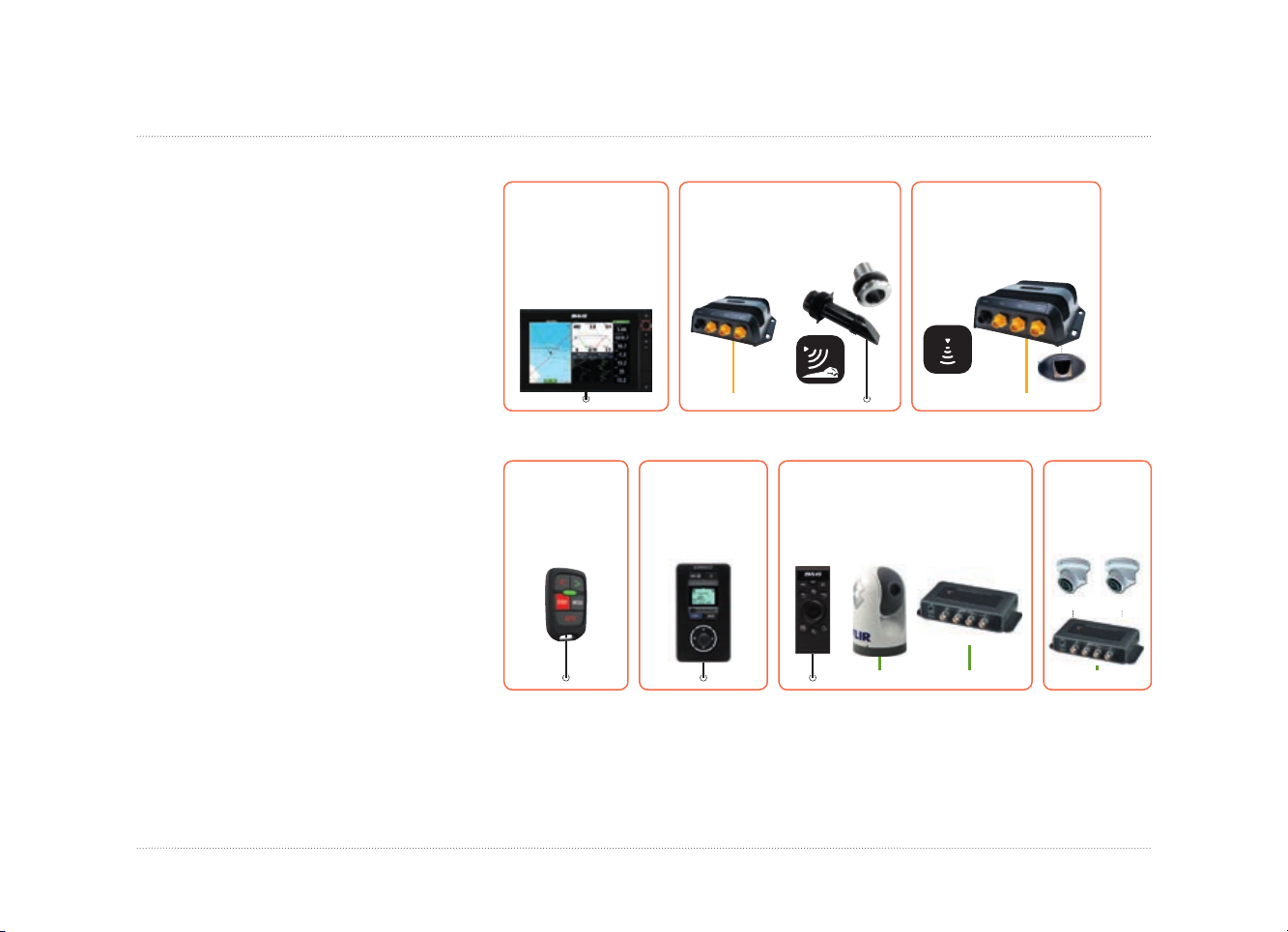

OPTIONAL
ZEUS MODULES
Ethernet
SonarHub™ & Bronze HDI
Transducer 50/200/455/800
DOWNSCAN
IMAGING™
OPTIONAL
ZEUS MODULES
SonarHub™ ForwardScan®
Ethernet
FORWARDSCAN®
l 63 l
B&G OPTIONS
OPTIONAL
CREW CABIN
Zeus2 12” wide
• 12” LED Multifunction Colour/
Touch display
• Navionics regional cartography
included (on SDcard)
• I ntegrated Pilot control (optional)
OPTIONAL
REMOTE
WR10 Wireless
Autopilot Remote
OPTIONAL
ZEUS MODULES
SonarHub™ ForwardScan®
Ethernet
OPTIONAL
CONTROL
QS 80 Joystick
OPTIONAL
ZEUS MODULES
SonarHub™ & Bronze HDI
Transducer 50/200/455/800
DOWNSCAN
FORWARDSCAN®
IMAGING™
OPTIONAL
THERMAL CAMERA PACK*
Thermal
ZC2
Remote
Camera
(M324XP)
RCA RCA
Video
Splitter
Ethernet
OPTIONAL
2 CAMERAS
Navcams &
Video Splitter
NavCam
NavCam
(rear)
(engine)
RCA
Technical handbook
l 64 l
FUEL SYSTEM AND TANKS
n 2 aluminum fuel tanks: 2 x 1400 L (360 US gal.)
One each hull, located under the oor, just forward the engine room bulkhead
n Fuel llers caps and vents
n Tanks levels are monitored in standard from the main electrical panel
n Electrical control for fuel tank transfer from PORT to STBD and vice versa, from main control panel

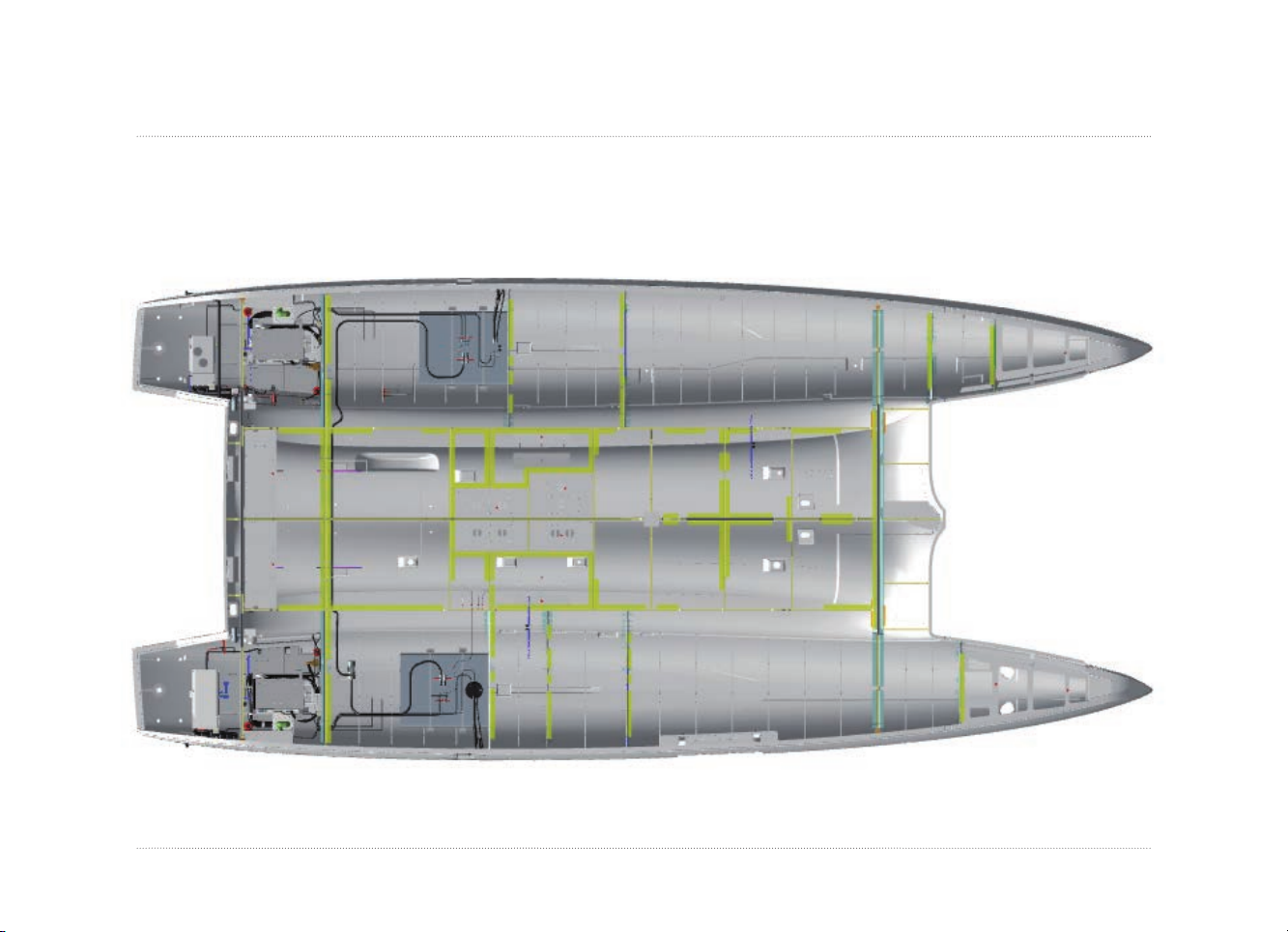

TANK
1400 L
TANK
1400 L
FUEL SYSTEM AND TANKS
l 65 l
Technical handbook
l 66 l
FRESH WATER SYSTEM AND TANKS
n 2 aluminum water tanks located under salon oors: 800 L x 2 – 198 US gal x 2
n Tanks levels are monitored in standard from the main electrical panel
n Fresh water circuit with 2x24V pressure pumps, (JOHNSON 36 l/m 24V)
One each hull, located in the engine compartment. Electrical control from the main electrical panel
n 2 x 100 l electrical water heaters linked to engines heat exchangers, one each hull, located aft under the oor
just after the engine room bulkhead (QUICK 100 l)
n 1 transom shower (hot/cold) on starboard
n Fresh water dock inlet
OPTIONS
n Water maker SEA RECOVERY 280l/h 230 V
n Water maker SEA RECOVERY 90l/h 24V
Remote tank’s selection for water makers, (PORT/STBD): main electrical panel
n Deck wash pumps - sea/fresh water (aft cockpit & foredeck)
n Starboard transom removable shower column (carbon & stainless steel)
nd
n 2
transom shower (hot/cold) on port
FWP
36 L / m
WH
100 L
TANK
800 L
TANK
800 L
FRESH WATER SYSTEM AND TANKS
l 67 l
FWP
36 L / m
WH
100 L
Technical handbook
l 68 l
GREY WATER SYSTEM AND TANKS
n All equipment are related to the grey water tanks
n 300 L tank each hull, located under the oor level, mid port and starboard
Capacity 600 L
Tanks levels are monitored in standard from the main electrical panel
Remote for tanks draining valve
OPTION
n Grey Water treatment system
TECNICOMAR - ECOMAR 8
- Treatment capacity (litres per day) 4000
- Treatment capacity (gallons per day) 1056
- Work cycles per hour (approx) 4
- Power supply 24 V DC / 230 / 400 AC
- Total capacity (litres/gallons) 127/ 33,5
- Waste water capacity (litres/gallons) 53 / 14
- Sea water capacity (litres/gallons) 38 / 10
- Treated water per cycle (litres/gallons) 91 / 24

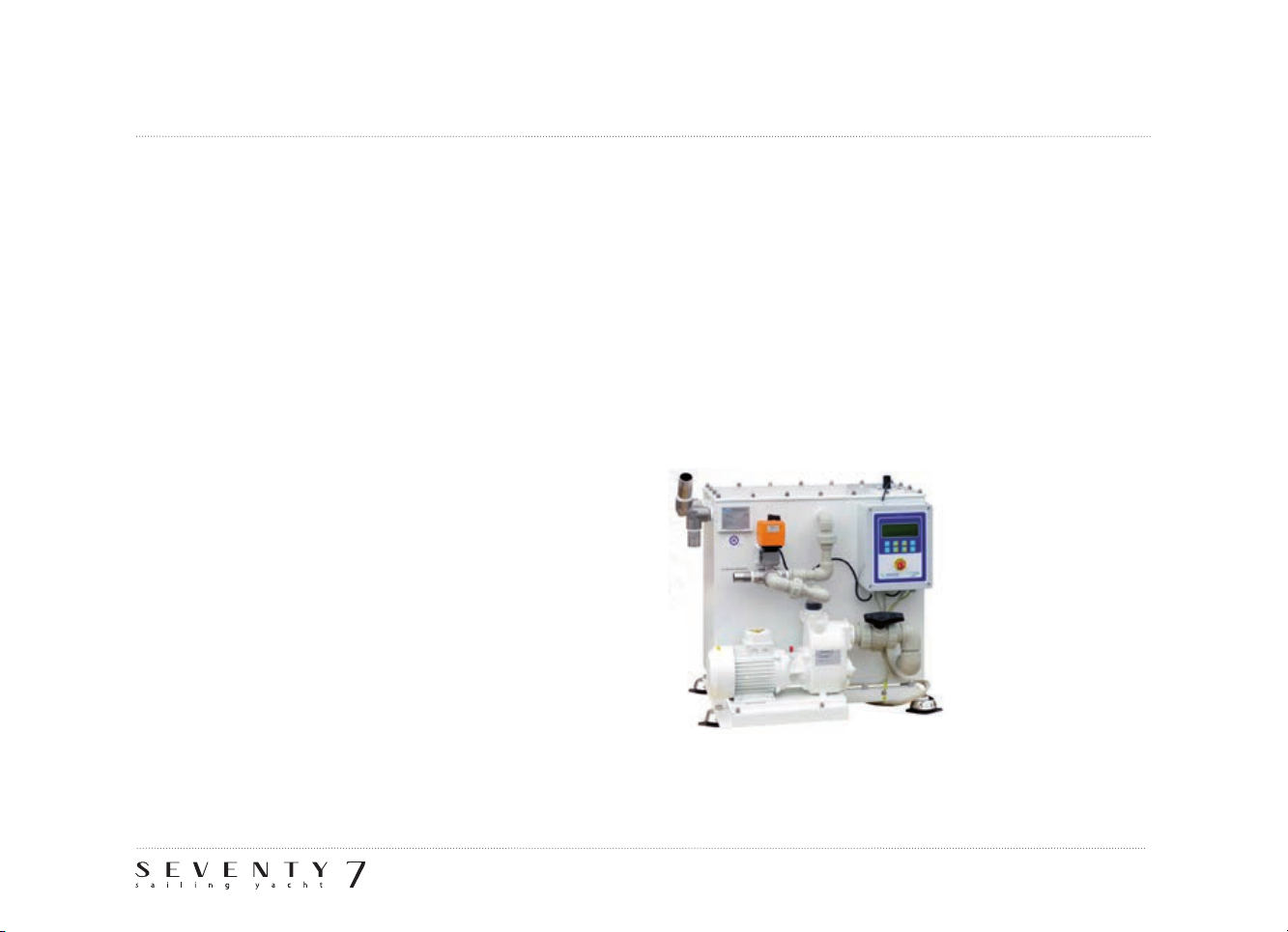

OPTION

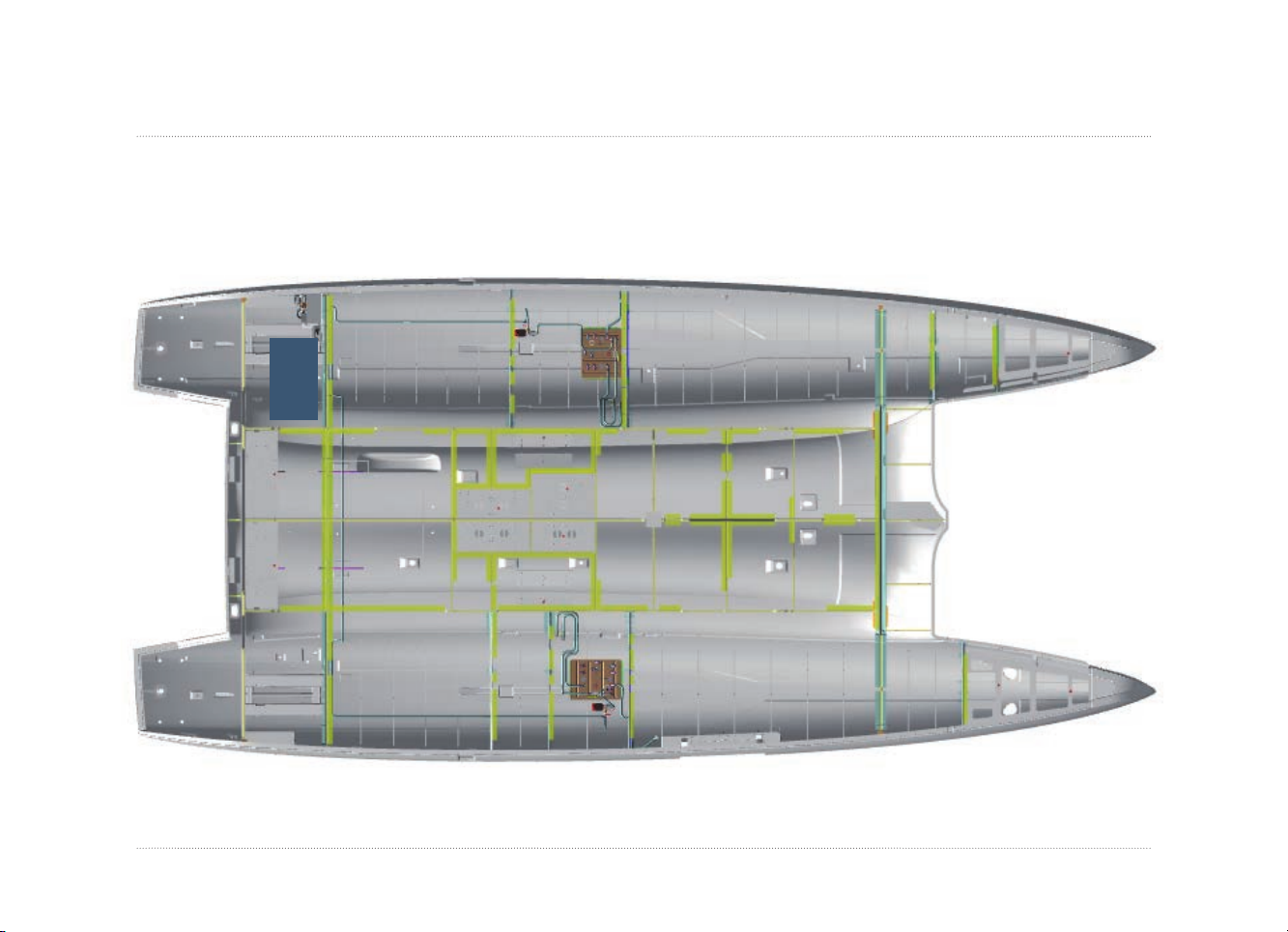

TECNICOMAR
TANK
300 L
TANK
300 L
GREY WATER SYSTEM AND TANKS
l 69 l
Technical handbook
l 70 l
BLACK WATER SYSTEM AND TANKS
n Electrical TECMA Silence Plus fresh water toilet in each head (24 V)
n Holding tanks
PORT HULL
All versions: 1 holding tank per toilet (73 L – 19 US Gal)
STARBOARD HULL
2 Cabin version: 1 common holding tank for owner’s & aft guest’s head (320 L)
3 Cabin version: 1 holding tank per toilet (73 L – 19 US Gal)
Crew cabin option in bow compartment (port & starboard): 1 holding tank per toilet (73 L – 19 US Gal)
Holding tanks level are monitored in standard from the main central panel, (aft port companionway)
Remote for tanks draining valve
BLACK WATER SYSTEM AND TANKS

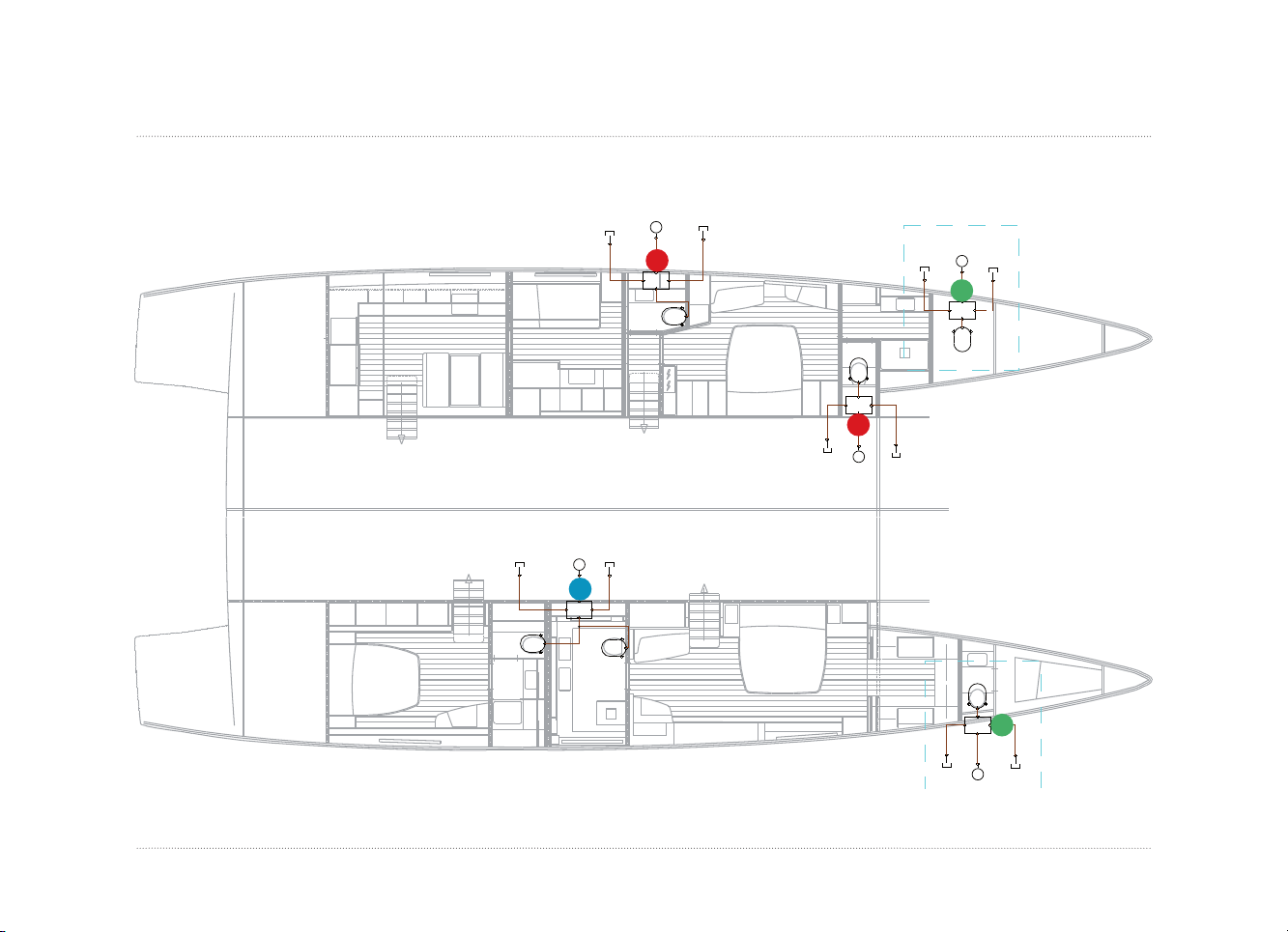

NBL06
l 71 l
PASC08
T-160 01
WC12
CIRCUIT EAUX NOIRES
NBL07
T-158 01
BWT04
T-161 02
T-161 01
PASC06
PASC09
T-162 01
T-159 01
WC11
T-150 01
NBL04
BWT02
T-152 01
T-153 01
WC09
PASC07
T-151 01
OPTION POINTE AVANT BABORD AMENAGEE
WC08
T-154 01
BWT03
T-155 01
PASC04
NBL05
T-156 01
T-157 01
PASC05
PASC14
T-200 01
PASC10
NBL09
BWT06
T-164 01
T-201 01
T-203 01
WC13
BWT05
PASC15
WC10
T-163 01
T-165 01
T-202 01
T-166 01
PASC11
Owner 3 Cabins - 3 heads & Galley and crew quarters aft
Crew cabin in starboard bow compartment
Technical handbook
l 72 l
BILGE PUMP SYSTEM
n Self-bailing cockpit following EC regulation
n 2 manual bilge pumps for use from the cockpit, (aft cockpit beam)
n 1 electrical bilge pump with auto oat switch and manual override & bilge level alarm in each hull
n
1 electrical bilge pump with auto oat switch and manual override & bilge level alarm in each engine compartments
n
1 electrical bilge pump with auto oat switch and manual override & bilge level alarm in the hull,
included for hydraulic opening hull door in owner cabin option
n Alarms and control
• Bilge level alarm at chart table and ybridge
• 24 V AC electric pump control panel integrated to the main electrical control panel, aft port companionway
• Bilge pumps switches at starboard helm station
BILGE PUMP SYSTEM

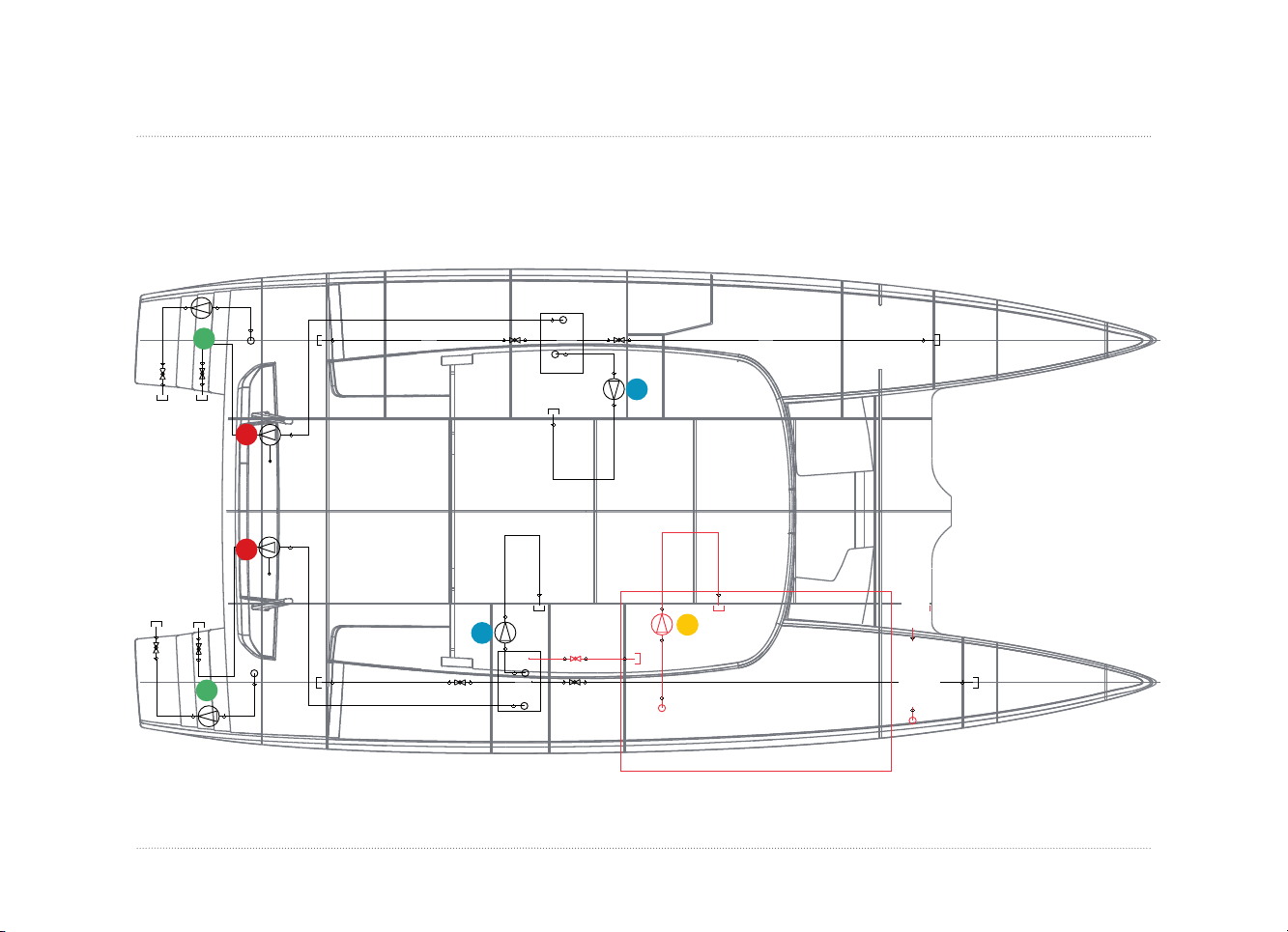

CIRCUIT ASSECHEMENT CALE
l 73 l
RBS09
RBS08
PASC12
PASC13
T-26 01
T-24 01
RBS06
RBS05
P05
PASC07
PASC08
RBS02
T-12 01
CP03
T-11 01
CP04
PUISARD
T-04 01
PASC06
P02
T-18 01
PUISARD
CP01
CP02
PASC05
T-06 01
RBS07
RBS03
T-02 01
T-10 01
T-09 01
T-17 01
RBS01
P01
T-20 01
PASC10
PASC09
P03
T-19 01
CP05
T-01 01
T-05 01
PASC01
T-22 01
T-21 01
CP06
PASC11
P04
PASC02
T-23 01
CP07
T-14 01
T-16 01
CP08
P06
T-25 01
PASC03
PM01
PM02
PASC04
T-13 01
T-03 01
T-07 01 T-08 01
T-15 01
RBS04
OPTION PORTE DE BORDE
Technical handbook
l 74 l

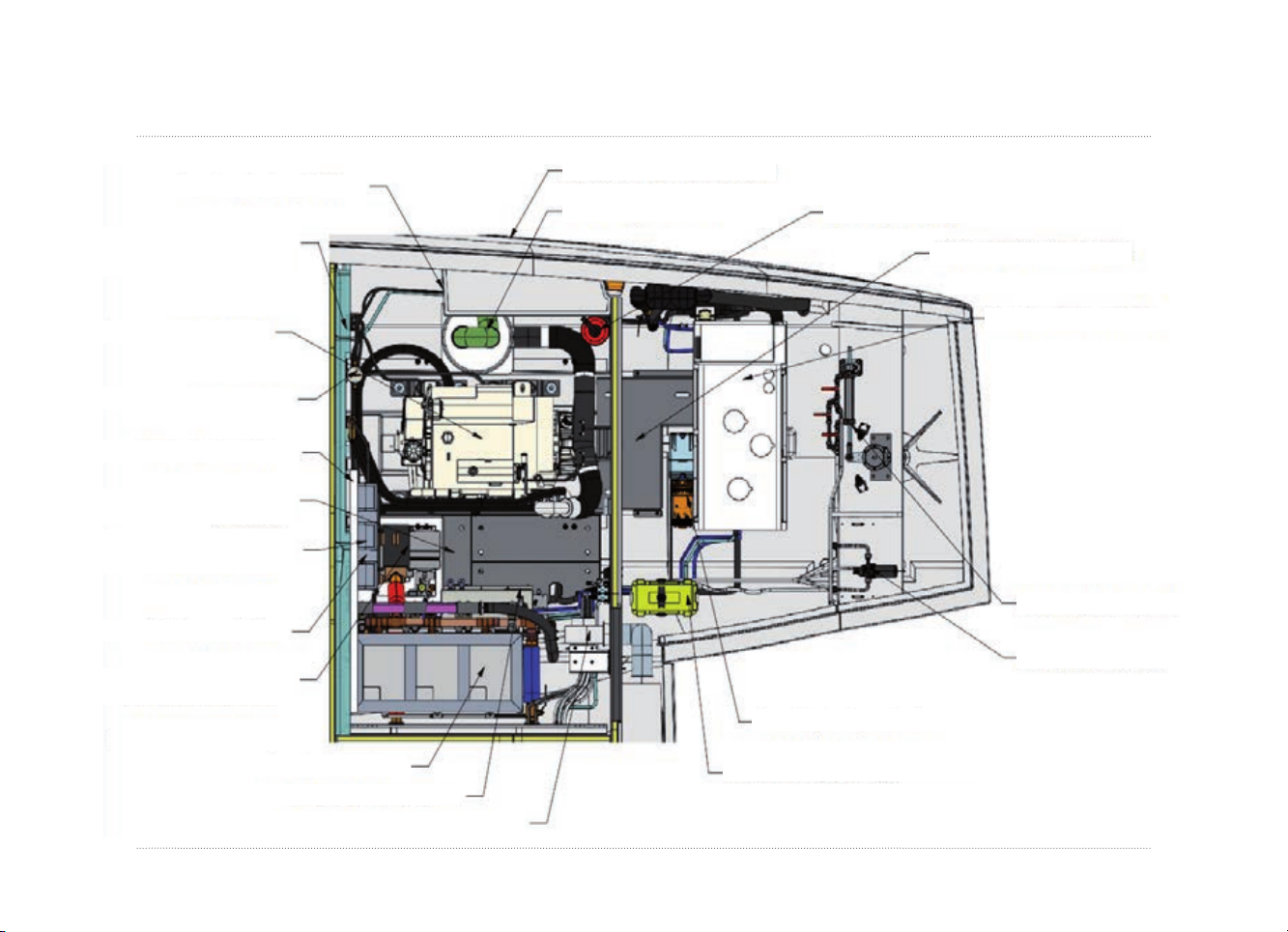

Dry powder re extinguisher 9 kg
PORT ENGINE ROOM
Freshwater maker 280 L / h 230V
Engine seawater lter
Port start battery
Ventilation air exhaust
Mechanical shaft seal
Hydraulic gangway
Optional source selector
Engine fuel lter
Grey water treatment unit
Air intake engine room 0.25m
Port engine
Port steering system
Electrical generator 19 kva
Gangway hydraulic central
Dry powder re extinguisher 9 kg
Port gaz exhaust system
STARBOARD ENGINE ROOM
l 75 l
Hydraulic gangway
Main source selector and
air conditionning
Starboard engine
Engine fuel lter
Engine seawater lter
Air conditionning seawater pump
Air conditionning electronic
and dimmerpump
Dry powder re extinguisher 9 kg
Air conditionning chilled water pump
Air intake engine room 0.25m
Starboard gaz exhaust system
Dry powder re extinguisher 9 kg
Mechanical shaft seal
Electrical generator 27 kva
Starboard steering system
Automatic pilote pump
Tenderlift hydraulic unit
Air conditionning central unit
Freshwater maker 24V 90 L / h
Ventilation air exhauts
Start battery and charger
Technical handbook
l 76 l
NOTES
NOTES
l 77 l
Technical handbook
l 78 l
NOTES
Loading...
