39E Operating instructions

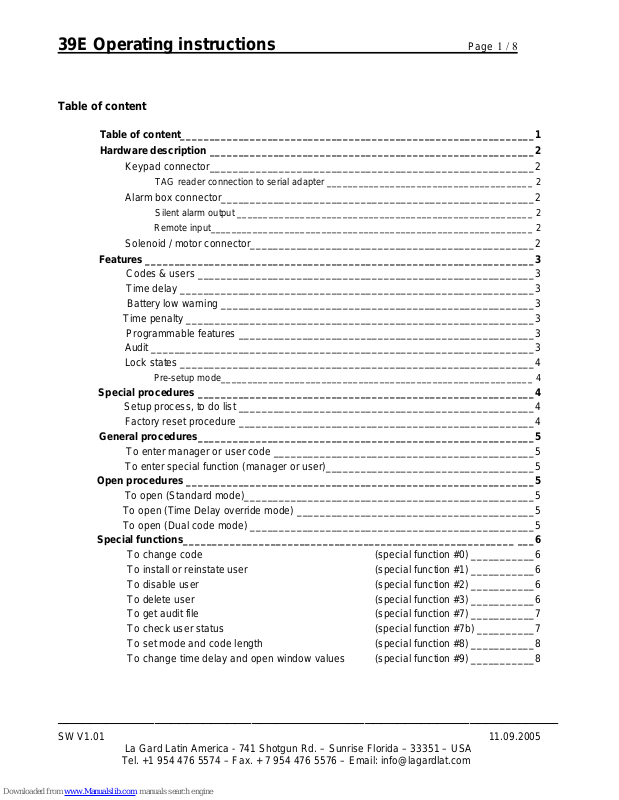

Table of content
Table of content_____________________________________________________________1
Hardware description ________________________________________________________2
Keypad connector________________________________________________________2
TAG reader connection to serial adapter _______________________________________ 2
Alarm box connector______________________________________________________2
Silent alarm output __________________________________________ ______________ 2
Remote input_____________________________________________________________ 2
Solenoid / motor connector_________________________________________________2
Features ___________________________________________________________________3
Codes & users __________________________________________________________3
Time delay _____________________________________________________________3
Battery low warning ______________________________________________________3
Time penalty ____________________________________________________________3
Programmable features ___________________________________________________3
Audit __________________________________________________________________3
Lock states _____________________________________________________________4
Pre-setup mode____________________________________________________ ____ ___ 4
Special procedures __________________________________________________________4
Setup process, to do list ___________________________________________________4
Factory reset procedure ___________________________________________________4
General procedures__________________________________________________________5
To enter manager or user code _____________________________________________5
To enter special function (manager or user)____________________________________5
Open procedures ____________________________________________________________5
To open (Standard mode)__________________________________________________5
To open (Time Delay override mode) _________________________________________5
To open (Dual code mode) _________________________________________________5
Special functions_________________________________________________________ ___6
To change code (special function #0) ___________6
To install or reinstate user (special function #1) ___________6
To disable user (special function #2) ___________6
To delete user (special function #3) ___________6
To get audit file (special function #7) ___________7
To check user status (special function #7b) __________7
To set mode and code length (special function #8) ___________8
To change time delay and open window values (special function #9) ___________8
Page
1 / 8
──────────────────────────────────────────────────────────────
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
2 / 8
Hardware description
66E electronic board without bolt switch, RTC and EEPROM.
Can drive solenoid (mot or option scheduled for next release).
Connectors to keypad, alarm box and solenoid.
Configuration can be done via keypad or PC.
Keypad conn ector
Standard 4 wires connector to keypad, LED, buzzer and emergency battery pads.
Keypad may include a TAG reader to allow use of serial connection to PC or other devices.
TAG reader connection to serial adapter
Serial connection specifications are: 1'200bauds, no parity, 8 data bits, 1 stop bit. PC and other serial devices may
be connected to setup the lock and the get audit file.
Alarm box connector
Standard 4 wires connector to external battery, silent alarm output and remote input.Also used to connect Reset Box
to initiate factory reset.
Silent alarm output
When silent alarm mode selected, code entered with last digit plus one will activate this output during 1.5s.
Remote input
When closed to ground, this input will either deny solenoid activation or override time delay. Selection done by PC
software.
Solenoid / motor connector
2 wires connector to solenoid (motor scheduled for next release, selection mode must be defined as procedure to
activate motor like forward / backward timing).
Solenoid is activated during 3s.
A built in battery measure detects battery low condition.
──────────────────────────────────────────────────────────────
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
3 / 8
Features
39E software is based on 37E, with motor driver and remote override.
Codes & user s
Up to ten codes:
• One manager (ID = 0): can open, changes his code, manage users, print audit, setup configuration, change
time delay values. Before changing his code for this first time, manager deleting user code will in fact block it.
Once his code is changed, cannot modify configuration nor install users that are blocked.
• Up to 9 users (ID = 1 - 9): each user can open and changes his code.
Codes length programmable from 4 to 9 digits long.New codes are rejected when less than 2 digits are different
from existing codes.
Time delay
Time delay programmable from 0 (no time delay) to 99 minutes. Open window from 1 to 19 minutes.
During time delay enabled LED flashes at two seconds intervals. Open window is indicated by LED then buzzer at 1
seconds intervals alternately (once LED, once beep).
Battery low warning
If battery low (< 6V) during solenoid activation, multiple beeps.
Time penalty
When entering code, a time penalty of 5 minutes will be started after the 4th consecutive wrong code entered.
During time penalty, LED flashes at 10s interval, no access possible to lock.
Any key pressed during time penalty emits a triple beep.
After time penalty, two consecutive wrong codes will start it again.
Programmable features
Additional features can be individually selected by manager or PC Setup software:
• Time delay override: user #9 overrides time delay and opens.
• Dual code: two codes needed to access / open.
• Silent alarm: last digit of code +1 activates silent alarm when dialing to open or to enter special functions.
Audit
On board non volatile memory records up to 63 last events, including user ID and action.
Audit file is sent to serial interface at each power-up and upon request of manager, using special function #7.
Audit file can not be deleted.
──────────────────────────────────────────────────────────────
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
4 / 8
Pre-setup mode
After factory reset lock enters pre-setup mode. Communication with lock using serial interface on TAG reader is
possible to test and setup the lock.
Into this mode, pressing key '1' activates solenoid, silent alarm and test remote input. Key '0' send power-upprompt
(request for PC Setup software). Other keys beep once.
Pre-setup mode cancelled by keeping down '0' key until double beep, and entering any valid code.
Special procedures
Setup process, to do list
The following steps are necessary to setup the lock from the ground:
• Factory reset. Configuration is res et to default.
• Select code length (manager function #8). Choose how many digits for manager and users codes. Select
standard mode (without additional features).
• Install users (manager function #1). Install all users you need with default codes. Deleted (or never installed)
users will not be available after manager changes his code.
• Select additional features (manager function #8). Enter ‘0’ as code length to not modify it. Choose optional
features.
• Freeze configuration (manager function #0). Manager changes his code to freeze configuration.
Lock is now fully operational.
Note that PC Setup software is able to set whole configuration using serial interface.
Factory reset procedure
Hold down key ‘0’ during 10s to discharge all internal capacitors.
Connect Reset Box to alarm box connector.
Put the batt ery back in place, factory reset is completed.
Disconnect Reset Box.
Lock configuration is: 6 digits code, only manager code exists, set to all ‘5’. Audit file not cleared.
Lock will be operational as soon as manager changes his code.
Remove battery.
──────────────────────────────────────────────────────────────
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
5 / 8
General procedures
To enter manager or user code
Enter code. Double beep if valid, triple beep if wrong code.
To enter special function (manager or user)
Enter code, holding down last digit. Double beep. Keep holding down last digit until double beep. Enter special
function number (0 - 9). Double beep if valid, triple beep if not.
Open procedures
To open (Standard mode)
Enter code.
If time delay enabled wait open window. Enter code again.
Solenoid / motor is activated.
To open (Time Delay override mode)
Enter user #9 code. Solenoid / motor is activated.
:
Note
• If dual code mode enabled, enter first manager or user code, then override code.
To open (Dual code mode)
Enter first code.
Enter second code.
If time delay enabled, first code will start time delay. During open window, enter both codes to activate solenoid /
motor.
Solenoid / motor is activated.
──────────────────────────────────────────────────────────────
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
6 / 8
Special functions
To change code (special function #0)
Enter special function #0.
Enter new code. Enter code again to confirm. Double beep if correct, triple beep if confirmation error.
Notes:
• To be compatible with older products, alternative way to change code is to enter an all ‘0’ code. Then
enter old code. Enter new code. Enter code again to confirm. Double beep if correct, triple beep if
confirmation error.
• When manager changes hits code, this will freeze configuration (function #8 no more available).
Alsoblocked users at that time can not more be installed (no more available to manager).
To install or reinstate user (special function #1)
Enter special function #1.
Enter user ID (1 - 9). Single beep if user exists; user is now enabled. Double beep if user does not exist. Triple
beep if user blocked. Enter new code. Enter code again to confirm. Double beep if correct, triple beep if
confirmation error.
Notes
:
• Manager only. When enrolled, he can install only users that were not blocked by PC Setup software or by
himself.
• Manager can install user #9 only if no time delay or during open window or if time delay override input
active.
If dual code mode enabled, manager code has to be entered after an user code to access special function.
To disable user (special function #2)
Enter special function #2.
Enter user ID. Single beep if user exists, he is now disabled. Triple beep if user does not exist.
Notes:
• Manager only.
• If dual code mode enabled: manager code has to be entered after an user code to access special function.
Manager can not disable user that allows him to access special function.
To delete user (special function #3)
Enter special function #3.
Enter user ID. Single beep if user exists, he is now deleted. Triple beep if user does not exist.
Notes:
• Manager only.
• If dual code mode enabled: manager code has to be entered after an user code to access special function.
Manager can not delete user that allows him to access special function.
────────────────────────────────────────────────────────────
──
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
7 / 8
To get audit file (special function #7)
Enter special function #7, but before pressing on ‘7’, connect serial adapter to TAG reader, and start acquisitionon
connected device.
Audit file is transmitted to serial interface.
After transmission, LED is still on a during search of audit beginning into memory.
Notes:
• Manager only.
• Audit file is automatically printed at each power-up (except in pre-setup mode).
• Audit printing may be stopped by sending a break signal to lock (or keeping down ‘0’ key).
• Audit file can not be cleared. When memory is full, older events are replaced by newer.
To check user status (special function #7b)
Enter special function #7, holding down function number until double beep.
By pressing user ID, you get his status: 1 beep = active, 2 = disabled, 3 = does not exist, long = blocked, not
available.
Enter ‘0’ to exit function.
:
Notes
• Manager only.
────────────────────────────────────────────────────────────
──
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
39E Operating instructions
Page
8 / 8
To set mode and code length (special function #8)
Enter special function #8.
Enter code length (from 6 to 9, 0 will not modify last entered length) and mode (see below). Double beep. Enter
values again to confirm. Double beep if correct, triple beep if confirmation error.
Mode Time delay
override
0
1
2
3
4
5
6
7
•
• •
•
• • •
Dual code Silent alarm
•
•
•
• •
Note:
Manager only, and only if not enrolled (his code was never changed).
Manager cannot choose dual code mode if no user installed nor active.
If code length is modified, users codes are deleted and manager code is set to all ‘5’.
Change in code length is not allowed if dual code mode is selected.
To change time delay and open window values (special function #9)
Enter special function #9.
Enter time delay value (from 00 to 99 minutes, 2 digits, 00 disables time delay) a nd open window (from 01 to 19
minutes, 2 digits). Double beep. Enter values again to confirm. Double beep if correct, triple beep if confirmation
error.
Note:
Manager only.
If manager changes values during time delay, the time delay value may only be increased. Smaller values
will be ignored.
────────────────────────────────────────────────────────────
──
SW V1.01 11.09.2005
La Gard Latin America - 741 Shotgun Rd. – Sunrise Florida – 33351 – USA
Tel. +1 954 476 5574 – Fax. + 7 954 476 5576 – Email: info@lagardlat.com
Loading...
