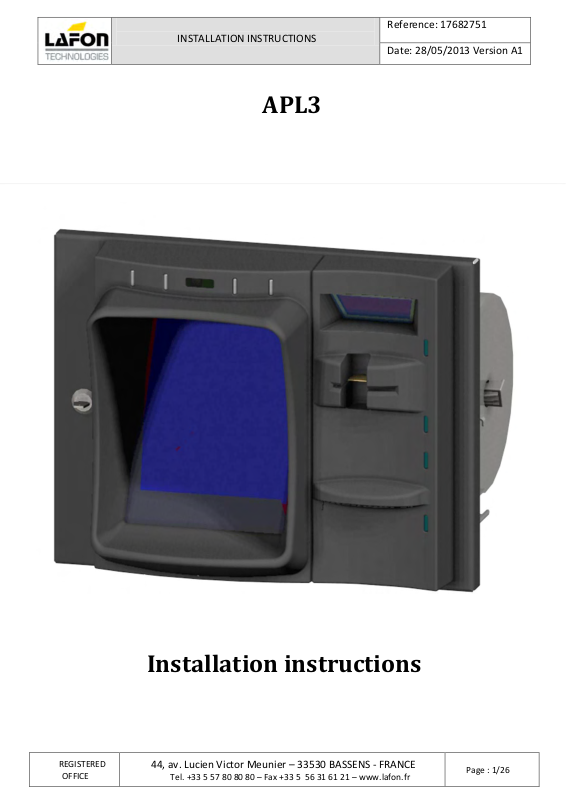

INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 1/26
APL3
Installation instructions
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 2/26
Version
Pages changes
Modification designation
Date
A
All
Creation
20/03/13
A1
22…
Commercial options
28/05/13
UPDATE SUMMARY
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 3/26
CONTENTS
UPDATE SUMMARY ......................................................................................................................................................... 2
CONTENTS ....................................................................................................................................................................... 3
GENERAL ......................................................................................................................................................................... 4
I. TECHNICAL DESCRIPTION ........................................................................................................................................... 4
1. The unit .................................................................................................................................................................. 4
2. Dimensions ............................................................................................................................................................ 5
II. WARNINGS ................................................................................................................................................................. 8
1. Safety advice ......................................................................................................................................................... 8
III. ATEX ZONING ............................................................................................................................................................... 9
I. FITTING THE GENERIC HOUSING: ............................................................................................................................. 10
II. Q5XX KIT .................................................................................................................................................................... 12
III. GLOBALSTAR KIT .......................................................................................................................................................... 13
IV. BOXTER 20 KIT ............................................................................................................................................................ 15
V. VEGA 710 AND 760 KIT ............................................................................................................................................... 16
VI. FREE-STANDING MODEL KIT ..................................................................................................................................... 18
VII. CABLING ................................................................................................................................................................ 20
VIII. END OF LIFE ......................................................................................................................................................... 22
IX. COMMERCIAL OPTIONS ........................................................................................................................................... 23
1. Door opening limitation device ........................................................................................................................... 23
2. Generic casing cover ............................................................................................................................................ 23
3. Generic pedestal raiser ........................................................................................................................................ 24
4. Generic casing strengthener ................................................................................................................................ 24
5. Barcode reader .................................................................................................................................................... 25
6. APLS/E card camera ............................................................................................................................................ 26
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 4/26
Ecran tactile 8.4''
Lecteur de cartes
Lecteur RFID
Lecteur de codes barres
Luxmètre
Sortie ticket
Serrure quart de tour
Joint d'étanchéité
Charnières porte générique
Porte générique
Rail imprimante
Terminal
Light meter
8.4” touch screen
Barcode reader
Card reader
RFID reader
Ticket dispenser
Generic housing
Seal
Four turn lock
Printer rail
Generic housing hinges
GENERAL
I. TECHNICAL DESCRIPTION
1. The unit
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 5/26
323
3
4
5
501,2
395,6
305,5
464,3
395,6
3
0
5
,5
420,7
2. Dimensions
Automatic unit on Q5XX housing
Automatic unit on generic housing with printer A
Automatic unit on generic housing with printer B
Weight of unit on generic housing: 10 Kg
Weight of unit on Q5XX housing: 14 Kg
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 6/26
This unit can be fitted with two printers A and B
Printer A specifications:
- Printer speed: 152 mm/sec— Default
127 mm/sec
101.6 mm/sec
76.2 mm/sec
- Resolution: 8 dots/mm (203 dpi)
- Maximum print width: 80 mm = 640 pixels
- Paper thickness: 0.054 – 0.11 mm
- Roll size: maximum 180 mm diameter
- Production evaluation: 24.0 Volts 2.92 Amps, +5° to +40° C
- Maximum output power: 24.0 V x 2.92 A = 70 Watts typical
- Printer A weight: 1.42 Kg
- Printer A weight with paper roll: 2.56 Kg
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 7/26
Printer B specifications:
- Maximum printer speed: 250mm/sec
- Resolution: 8 dots/mm
- Paper thickness: 65 ± 5 to 145 ± 10 μm
- Roll size: maximum 152 mm diameter
- Operating voltage range: 21.6 to 26.4V
- Printer B weight: 1.35 Kg
- Printer B weight with paper roll: 2.35 Kg
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 8/26
Fuel is inflammable and vapour and air mixtures are explosive.
Do not use a flame or heat source within the service station perimeter.
Do not smoke within the service station perimeter.
All interventions on electrical parts must be made by an authorised person.
Fuel is a harmful product. Avoid inhaling fuel and any contact with skin or
eyes.
If any part of the body, eyes or clothing comes into contact with fuel, rinse
immediately with copious amounts of water.
If you swallow any fuel, consult your doctor immediately.
Fuel is a pollutant and should not be allowed to enter any drains or to
contaminate the soil.
II. WARNINGS
1. Safety advice
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 9/26
Façade péripherique
Facade terminal
Caisson afficheur
Façade péripherique
Façade péripherique
Façade terminal
Façade terminal
5
0
200
200
50
200 200
200
200
cloison
hydraulique
IP23
.
Caisson afficheur
Support passage de câble
IP 54
Zone 1 Equipement de catégorie 2
Zone 2 Equipement de catégorie 3
Terminal facade
Display casing
Peripheral facade
Terminal facade
Peripheral facade
Terminal facade
Peripheral facade
Display casing
IP 54 cable
passage support
IP23 hydraulic
partition
Zone 1 Category 2 equipment
Zone 2 Category 3 equipment
III. ATEX ZONING
All the elements in this kit must be fitted outside the ATEX zone.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 10/26
Generic casing
Boxter 20 casing
Globalstar interface
Evolution interface
INTEGRATING THE AUTOMATIC UNIT
I. FITTING THE GENERIC HOUSING:
The automation unit on generic housing is compatible with the following elements:
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 11/26
4 Vis M6x8
Charnières porte générique
Porte générique
Points de fixation
Four M6 x 8 screws
Generic housing
Generic housing hinges
Fixing points
The automatic unit on a generic housing is fitted in the same way to each of these four elements.
All that is required is for the hinges to be fitted using four M6 x 8 screws in the oblong holes intended for
this use.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 12/26
Fix each slider to the
base plate using four M5 x
12 countersunk head screws
and four M5 nuts.
The oblong holes on the
base plate allow the depth
to be adjusted more
accurately.
There are two sliders per
side.
Plateau
Glissières
4 Vis M5x12 tête fraisée
4 écrous M5
Plateau
4 Vis sans tête M8
2 Goujons M5
2 Ecrous M5
Fit the base plate into the
casing using two M5 socket pins
and two nuts.
The four headless M8 screws on
the base plate should now be used
to adjust the stability and level of
the casing.
The sliders are hidden on this
drawing to enhance visibility.
Sliders
Four M5 x 12 countersunk head screws
Base plate
Four M5 nuts
Two M5 nuts
Base plate
Four M8 headless screws
Two M5 socket pins
II. Q5XX KIT
First stage: Fitting the sliders to the base plate.
Second stage: Fitting the base plate into the casing.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 13/26
4 Vis M6 Tête fraisée
Glissières
Porte QXX
Retour caisson
Appuis interface
4 Goujons M6
Position the interface by suspending
it on the casing flange using its
supports.
Four M6 countersunk head screws
Sliders
QXX port
Interface support
Case flange
Four M6 socket pins
Third stage: Fitting the automatic unit on Q5xx housing to the sliders
III. GLOBALSTAR KIT
Fitting the Globalstar interface to the distributor:
The interface is fitted to the standard Globalstar automation unit casing.
First stage: Positioning the interface
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 14/26
Ecrou papillon et rondelles M6
Traverse gauche
Traverse droite
Ecrou papillon et rondelles M6
M6 butterfly nut and washer
M6 butterfly nut and washer
Left cross-member
Right cross-member
Second stage: Fixing the interface in the casing
Fix the two cross-members (left and right) from the interior of the casing using the interface's M6
socket pins with nuts and washers (one smooth washer and one serrated washer)
The interface is ready for the automation units to be fitted. (see A)
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 15/26
Caisson APL3 B20
Tête afficheur
Trous clés
Vis M6
Passage de câble
Picots de positionnement
Lame d'air
Lame d'air
en position
Lame d'air
Vis M5
The casing is fixed to the head using six CHC
M6 screws. These are partly pre-tightened in the
inserts in the metal sheet. The casing is then
positioned using the key holes and the screws
fully tightened once it is in position.
Display head
APL3 B20 casing
Cable passage
M6 screw
Key holes
M5 screws
Air blade
Positioning spurs
Air blade in position
Air blade
IV. BOXTER 20 KIT
First stage: Fitting the casing to the distributor
Second stage: Fitting the air blades
The blades are positioned between the casing and hydraulic part of the distributor.
They are slid under the casing until they clip onto the positioning spurs.
The blade is then fixed in position from the interior of the casing using two CHC M5 screws.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 16/26
710 Spacer
760 Spacer
Points de fixation
sur la colonne
Vis M8
M8 screw
Points for fixing on the column
V. VEGA 710 AND 760 KIT
First stage: Positioning the spacer on the distributor column
The spacers (710 and 760) are used to replace the existing spacers and are fitted to the distributor
using four CHC M8 screws.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 17/26
Vis M8
Trous clés
Presses étoupe
Gland box
M8 screw
Key holes
Second stage: Fixing the generic casing to the spacer.
The two cables (power supply and network) should first be passed through the gland boxes intended
for this purpose and attached to the casing.
The casing is fixed to the spacer using six CHC M8 screws.
These are partly pre-tightened in the inserts in the metal sheet.
The casing is then brought into position using the key holes and the screws fully tightened once it is in
position.
The interface is ready for the automation units to be fitted. (see A).
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 18/26
A A
108
R 9
8380
20090
Pied
Renfort
Capot
Vis M6
Ecrou M6
Once the base is fixed to the
ground, the strengthener has to be
fitted (with the flange upwards) using
four M6 bolts.
The cover is then slid vertically
along the base until it clips into the
strengthener.
It is fixed in position by four M6
screws.
M6 nut
Hood
Base
M6 nut
Strengthener
VI. FREE-STANDING MODEL KIT
First stage: Fixing the base to the ground
The base is attached to the ground using four M10 - M16 socket pins.
Second stage: Fitting the strengthener to the base
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 19/26
Trous clé
Vis M8
Presse étoupe
Gland box
Key holes
M8 screws
Third stage: Fitting the generic casing to the upright
The two cables (power supply and network) should first be passed through the gland boxes intended
for this purpose and attached to the casing.
The casing is fixed to the base using six CHC M8 screws.
These are partly pre-tightened in the inserts in the metal sheet.
The casing is then brought into position using the key holes and the screws fully tightened once it is in
position.
The interface is ready for the automation units to be fitted. (see A).
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 20/26
Alimentation
Switch
Chaufferette
Condensateurs
Hygrothermostat
Power supply
Heater
Condensers
Thermo Hygro Sensor
VII. CABLING
The following drawing should be used for cabling the APL3 and the different components of the ALIM
CHAUFFERETTE SWITCH APL3 kit:
17681580 SCHEMA CABLAGE CONNEXION ALIMENTATION APL3. (wiring diagram for connecting the
APL3 power supply)
To fix these different components: the heater and thermostat must be within the APL3 casing on the
existing pins so that the hot air is not blown directly onto the thermal paper.
However, if there is not enough space in the casing, the cables are long enough to permit the DIN rail
with the power supply and switch and the rail with the condensers to be installed in the distributor's head.
It is possible to fit the 24 V power supply flat or on its edge depending on the available space.
The APL3 uses a 230 V AC power supply and consumes a maximum of 204 W for 2 faces (maximum
current: 1.5 A).
Example of an installation in a generic housing:
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 21/26
Vue arrière de l'automate sur porte générique
Point de fixation de
la tresse de masse
The ground strap is fixed on a hinge
pin of the generic door and on a pin
available inside the casing.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 22/26
VIII. END OF LIFE
The components must be consigned to companies that are specialised in eliminating and recycling
industrial waste, in particular:
Packaging:
The packaging consists of biodegradable cardboard that can be consigned to companies that recover
cellulose.
Metallic parts:
Metallic parts, such as ports and the supports in the various integration kits, whether painted or in
stainless steel, are normally recycled by companies specialised in scrap metal processing.
Electrical and electronic components:
Components such as the terminal, the printer or the power supply kit are considered as electrical and
electronic equipment waste and must be eliminated by companies specialised in recycling electronic
components.
Other parts:
Other parts, such as pipes, rubber seals and plastic parts, must be consigned to companies specialised
in treating industrial waste.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 23/26
Point de Fixation
sur la porte
Point de Fixation
sur l'interface
Chapeau caisson
générique
Points de fixation
du chapeau
The door opening limitation device is
fixed to the free part of the locking pin
between the two hinges on the generic
door on one side and to the free pin on the
interface or casing on the other side.
The cover is fixed using the holes
located on the top of the casing.
The adhesive film must be removed
first before positioning it on the top of
the casing and tightening the nuts.
Fixing point on
door
Fixing point on
interface
Generic casing
top
Casing top fixing
points
IX. COMMERCIAL OPTIONS
1. Door opening limitation device
2. Generic casing cover
A finishing top cover is available for the generic casing on a stand.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 24/26
Points de fixation
du rehausseur au sol
Points de fixation
du pied au réhausseur
Pied
Renfort caisson générique (X 2)
Point de fixation
The strengthener is fixed using
the M8 screws that are used to fix
the casing to its support.
The raiser is attached to the ground
at four points.
The pedestal is fixed to the raiser by
four M10 screws.
The raiser allows the pedestal to be
raised by up to 10 cm.
Pedestal
Points for fixing
pedestal to raiser
Points for fixing
raiser to ground
Generic casing
strengthener (x 2)
Fixing points
3. Generic pedestal raiser
4. Generic casing strengthener
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 25/26
1D bar code reader
2D bar code reader
Support lecteur 1D
Lecteur 1D
Ecrous M4 de fixation
Ecrous M4 de fixation
Support lecteur 2D
Lecteur 2D
Points de fixation du
lecteur code barre
Vue arrière de l'automate sur porte générique
Fixing points for
bar code reader
Rear view of automation unit on generic door
1D reader
2D reader
1D reader support
2D reader support
M4 fixing nuts
M4 fixing nuts
5. Barcode reader
Two different bar code readers are available: 1D and 2D.
Both readers are attached to the frame of the generic door using the two M4 pins intended for this
purpose.
The bar code reader's cable must be connected to the automation unit's IJ8 terminal.
INSTALLATION INSTRUCTIONS
Reference: 17682751
Date: 28/05/2013 Version A1
REGISTERED
OFFICE
44, av. Lucien Victor Meunier – 33530 BASSENS - FRANCE
Tel. +33 5 57 80 80 80 – Fax +33 5 56 31 61 21 – www.lafon.fr
Page : 26/26
Pièce de jonction
Carte Camera
Bandeau luxmètre
The optional camera is fixed
to the interface using four
screws.
This is done by removing the
terminal's interface then
removing the luminous strip
and fitting the card camera.
It is fitted between the
interface and the strip.
The camera cable is
connected to the MJ20
terminal.
Interface part
Card camera
Luminous strip
6. APLS/E card camera
Loading...
