WS-9116U
Wireless 433 MHz
Temperature Station
Instruction Manual
1
TABLE OF CONTENTS
Topic Page
Inventory of Contents 3
Quick Setup 4-6
Detailed Setup Guide
Battery Installation 7-8
Features
Minimum and Maximum
Temperatures
Resetting Minimum and
Maximum Temperatures
Additional remote
temperature sensors
(optional)
Mounting 12-14
Troubleshooting 14-16
Maintenance and Care 16
Specifications 17-18
Warranty Information 19-23
9
9
10-12
2
INVENTORY OF CONTENTS
1.
The indoor temperature station (Figure
1)
2.
The remote temperature sensor (TX6U)
and mounting bracket. (Figure 2)
3.
3 each, 1/2” Philips screws.
4.
One strip of double sided adhesive tape.
5.
Instruction Manual and Warranty Card.
Figure 1
ADDITIONAL EQUIPMENT
(not included)
1.
1 Philips screwdriver.
2.
2 Fresh AAA 1.5V batteries.
3.
2 Fresh AA 1.5V batteries.
Figure 2
3
QUICK SETUP
Hint: Use good quality Alkaline
Batteries and avoid rechargeable
batteries.
1. Have the indoor
temperature station and
remote temperature sensor
3 to 5 feet apart.
2. Batteries should be out of
both units for 10 minutes.
3. Place the batteries into the
remote temperature
sensor first then into the
indoor temperature station.
(All remote temperature sensors must be
started before the indoor temperature
station)
4. DO NOT PRESS ANY
BUTTONS FOR 15
MINUTES.
4
In this time the indoor temperature
station and remote temperature sensor
will start to talk to each other and the
display will show both the indoor
temperature and an outdoor temperature.
If the indoor temperature station does
not display both temperatures after the
15 minutes please retry the set up as
stated above. After both indoor and
outdoor temperatures are displayed for
15 minutes you can place your remote
temperature sensor outdoors and set
your time.
The remote temperature sensor should
be placed in a dry, shaded area. The
remote temperature sensor has a range
of 80 feet. Any walls that the signal
will have to pass through will reduce
distance. An outdoor wall or window
will have up to 20 feet of resistance and
an interior wall will have up to 10 feet
5
of resistance. Your distance plus
resistance should not exceed 80 ft. in a
straight line.
NOTE: Fog and mist will not harm
your remote temperature sensor but
direct rain must be avoided.
6

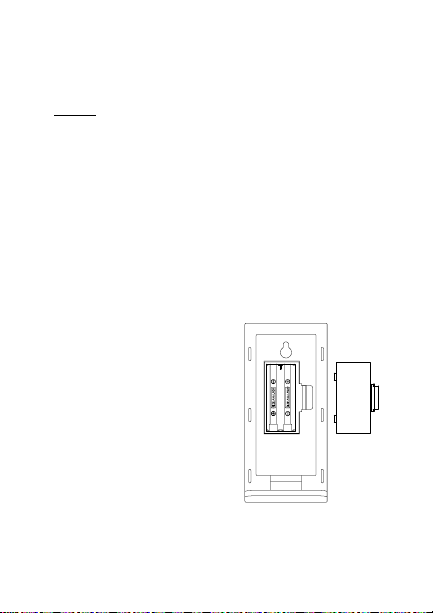

DETAILED SETUP GUIDE
I.
BATTERY INSTALLATION
A.
REMOTE TEMPERATURE
SENSOR
1.
Remove the mounting bracket.
2.
Remove battery cover
3.
Observing the correct polarity, install
2 AA batteries—make sure they do not
spring free, or start-up problems may
occur. Replace cover.
7
B.
INDOOR TEMPERATURE
STATION
Note:
After the batteries are installed, DO
NOT press any buttons. This may interfere
with the signals, causing temperatures to
register incorrectly.
1.
Remove the battery cover on the
backside.
2.
Observing the correct polarity, install
2 AAA batteries.
3.
Replace battery cover.
4.
Wait 15 minutes
before pressing
any buttons.
8
II.
FEATURES
A.
MINIMUM AND MAXIMUM
TEMPERATURES
1.
Press and release the “MIN/MAX”
button, “MIN” appears in the
temperature LCD’s and the recorded
minimum temperatures are displayed.
2.
Press and release the “MIN/MAX”
button to toggle to the maximum
temperatures.
B.
RESETTING THE MINIMUM AND
MAXIMUM TEMPERATURES
1.
To reset both the minimum and
maximum temperatures—press and
hold the “MIN/MAX” button for 5
seconds.
9
C. ADDING ADDITIONAL
REMOTE TEMPERATURE
SENSORS (OPTIONAL)
1.
The WS-9116U is able to receive
signals from 3 different remote
temperature sensors. Following are
some brief instructions for the basic
set-up of remote temperature sensor
units with the WS-9116U. These extra
sensors can be purchased through the
same dealer as this unit, or by
contacting La Crosse Technology
directly. A TX6 will monitor
temperature only, a TX3U will
monitor temperature and display the
temperature on its LCD, and the
TX3UP will monitor the temperature
via a probe for use in pools, spas, etc.
Note: When setting up multiple units it
is important to remove the batteries
from all existing units in operation,
then to insert batteries first into all the
remote temperature sensor units, and in
numeric sequence. Second, install
10
batteries into the indoor temperature
station. Transmission problems will
arise if this is not done correctly and if
the total time for set-up exceeds 6
minutes.
2.
It is necessary to remove the batteries
from all units currently in operation.
3.
Remove the battery covers to all
remote temperature sensor units.
4.
Place all remote temperature sensor
units in a numeric sequential order.
5.
In sequential order, install batteries
(follow the same battery installation
procedures seen in section “I” of the
Detailed Set-Up Guide).
6.
Install batteries into the indoor
temperature station.
D.
VIEWING AND OPERATING
WITH MULTIPLE REMOTE
TEMPERATURE SENSOR UNITS
1.
To view the temperature of a different
remote temperature sensor unit, press
and release the “CH” button. A shift
11
from one “boxed” number to the next
should be observed in the OUTDOOR
LCD.
2.
To view the Minimum/Maximum
temperature: first select from which
remote temperature sensor to read data
(indicated by the “boxed” number).
Pressing and releasing the
“MIN/MAX” button will toggle
through the minimum and maximum
indoor temperature, and the minimum
and maximum outdoor temperature.
3.
To reset the Minimum/Maximum
readings, press and hold the
“MIN/MAX” button for five seconds.
III.
MOUNTING
Note: To achieve a true temperature
reading, avoid mounting in direct sunlight.
We recommend that you mount the remote
temperature sensor on an outside Northfacing wall. The sending range is 80ft;
obstacles such as walls, concrete, and large
metal objects will reduce the range. Place
12
both units in their desired location before
permanently mounting.
A.
REMOTE TEMPERATURE
SENSOR
1.
Remove the mounting bracket from
the remote temperature sensor
2.
Mount using either screws or
adhesive tape.
3.
Reattach the remote temperature
sensor to the mounting bracket.
B.
THE TEMPERATURE STATION
1.
The indoor temperature station comes
with the table stand already mounted.
If you wish to use the table-stand, all
that is required is to place the indoor
temperature station in an appropriate
location.
2.
To wall mount, remove the table
stand. To do this, pull down on the
stand from the rear and rotate forward.
a)
Fix a screw (not included) into the
desired wall, and place the indoor
13
temperature station onto the screw
using the hanging hole on the
backside. Gently pull the indoor
temperature station down to lock the
screw into place.
TROUBLESHOOTING
NOTE: For problems not solved, please
contact La Crosse Technology via e-mail or
phone, or visit our website,
www.lacrossetechnology.com
Problem: The LCD is faint
Solution: Replace batteries
Problem: No outdoor temperature is
displayed.
Solution:
1) Remove all batteries, reinsert into remote
temperature sensor first, and then into the
indoor temperature station.
2) Place remote temperature sensor closer to
the indoor temperature station.
3) Be sure all batteries are fresh.
14
4) Place remote temperature sensor and
indoor temperature station in position so
the straight-line signal is not passing
through more than two or three walls.
Problem: Temperatures do not match if
units are placed next to each other.
Solution: Each temperature sensor is
manufactured to be accurate to within 1
degree plus or minus and under normal
conditions; so two temperature sensors could
be as much as 2 degrees different. However,
the difference can be exaggerated further
because the temperature sensors are
designed for different working
environments. The indoor sensor is less
responsive to ambient air currents because of
the shielding effect of the display's case. In
addition, the case can act as a heat sink to
absorb and store heat from external sources
(i.e. handling of the case or radiant heat). In
addition, the much greater range of the
outdoor temperature sensor requires a
different calibration curve than the indoor
range. Error is usually greater at the extreme
15
ends of a range, making it harder to compare
different ranges with different curves. Under
non-laboratory conditions, it is difficult to
compensate for the above factors and obtain
an accurate comparison.
MAINTENANCE AND CARE
INSTRUCTIONS
• Extreme temperatures, vibration, and
shock should be avoided to prevent
damage to the units.
• Clean displays and units with a soft,
damp cloth. Do not use solvents or
scouring agents; they may mark the
displays and casings.
• Do not submerge in water.
• Do not subject the units to unnecessary
heat or cold by placing them in the
oven or freezer.
• Opening the casings invalidates the
warranty. Do not try to repair the unit.
Contact La Crosse Technology for
repairs.
16
SPECIFICATIONS
Transmitting
Frequency
Measuring Temperatures
Indoor
Temperature
Station: Indoor
Indoor
Temperature
Station: Outdoor
433MHz
32°F to 140°F with
0.2°F resolution.
-21.8 °F to 157.8°F with
0.2°F resolution.
Transmitting
range
Temperature Checking Interval
Indoor Every 10 seconds
Outdoor Every 1 minute
Batteries—(Alkaline recommended)
Remote
Temperature
Sensor
Indoor
Temperature
Station
Maximum 80 feet (25m)
open space
2 x AA, 1.5V
2 x AAA, 1.5V
17
Dimensions: (H x W x D)
Indoor
Temperature
Station
Remote
Temperature
Sensor
Battery life Approximately 1 year
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited
warranty on this product against manufacturing
defects in materials and workmanship.
This limited warranty begins on the original date of
purchase, is valid only on products purchased and
used in North America and only to the original
purchaser of this product. To receive warranty
service, the purchaser must contact La Crosse
Technology, Ltd for problem determination and
service procedures. Warranty service can only be
performed by a La Crosse Technology, Ltd
authorized service center. The original dated bill of
sale must be presented upon request as proof of
purchase to La Crosse Technology, Ltd or La
Crosse Technology, Ltd’s authorized service center.
5 x 2.25 x 1 in
(excluding table stand)
(125 x 58 x 23mm)
5 x 1.5 x 1 in
(128 x 40 x 23 mm)
18
La Crosse Technology, Ltd will repair or replace this
product, at our option and at no charge as stipulated
herein, with new or reconditioned parts or products if
found to be defective during the limited warranty
period specified above. All replaced parts and
products become the property of La Crosse
Technology, Ltd and must be returned to La Crosse
Technology, Ltd. Replacement parts and products
assume the remaining original warranty, or ninety
(90) days, whichever is longer. La Crosse
Technology, Ltd will pay all expenses for labor and
materials for all repairs covered by this warranty. If
necessary repairs are not covered by this warranty,
or if a product is examined which is not in need or
repair, you will be charged for the repairs or
examination. The owner must pay any shipping
charges incurred in getting your La Crosse
Technology, Ltd product to a La Crosse Technology,
Ltd authorized service center. La Crosse
Technology, Ltd will pay ground return shipping
charges to the owner of the product to a USA
address only.
Your La Crosse Technology, Ltd warranty covers all
defects in material and workmanship with the
following specified exceptions: (1) damage caused
by accident, unreasonable use or neglect (including
the lack of reasonable and necessary maintenance);
(2) damage occurring during shipment (claims must
be presented to the carrier); (3) damage to, or
deterioration of, any accessory or decorative
surface; (4) damage resulting from failure to follow
19
instructions contained in your owner’s manual; (5)
damage resulting from the performance of repairs or
alterations by someone other than an authorized La
Crosse Technology, Ltd authorized service center;
(6) units used for other than home use (7)
applications and uses that this product was not
intended or (8) the products inability to receive a
signal due to any source of interference.. This
warranty covers only actual defects within the
product itself, and does not cover the cost of
installation or removal from a fixed installation,
normal set-up or adjustments, claims based on
misrepresentation by the seller or performance
variations resulting from installation-related
circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT
ASSUME LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, OR OTHER
SIMILAR DAMAGES ASSOCIATED WITH THE
OPERATION OR MALFUNCTION OF THIS
PRODUCT. THIS PRODUCT IS NOT TO BE USED
FOR MEDICAL PURPOSES OR FOR PUBLIC
INFORMATION. THIS PRODUCT IS NOT A TOY.
KEEP OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You
may also have other rights specific to your State.
Some States do no allow the exclusion of
consequential or incidental damages therefore the
above exclusion of limitation may not apply to you.
20
For warranty work, technical support, or information
contact:
La Crosse Technology
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.782.1610
Fax: 608.796.1020
e-mail:
support@lacrossetechnology.com
(warranty work)
sales@lacrossetechnology.com
(information on other products)
web:
www.lacrossetechnology.com
FCC DISCLAIMER
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
21
Freq. 433.92 MHz
La Crosse Technology
Made in China
WS-9116U
FCC ID: OMO-01RX (Receiver),
OMO-01TX (sensor)
THIS DEVICE COMPLIES WITH PART 15 OF
THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS:
1. THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
2. THIS DEVICE MUST ACCEPT INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
22
Loading...
