LA CROSS TECHNOLOGY WS-9080U-IT User Manual

915 MHz WIRELESS TEMPERATURE STATION

WS-9080U-IT

Instruction manual

Contents Language Page

___________________________________________________________________

English 1 French 41 Spanish 79

TABLE OF CONTENTS

Topic Page

Inventory of Contents 3 Features 4 Setting Up 6 Battery Installation 10 Function Keys 12 LCD Screen and Settings 14 Atomic Time -WWVB Radio Controlled Time 16 Manual Settings 17 Display of Indoor Temperature Reading 25 Display of Outdoor Temperature Reading 26 Display of Indoor Minimum and Maximum records 26 Display of Outdoor Minimum and Maximum records 28 Daily Indoor Minimum and Maximum Temperature display 29 Daily Outdoor Minimum and Maximum Temperature display 30 915 MHz Reception 31 Mounting 32 Care and Maintenance 34 Specifications 35 Warranty 36

This product offers:

INSTANT TRANSMISSION is the state-of-the-art new wireless transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you an immediate update (every 4 seconds!) of all your outdoor data measured from the sensors: follow your climatic variations in real-time!

INVENTORY OF CONTENTS

1. Wireless Temperature Station

2. Wireless Temperature Sensor (TX29U) and mounting bracket.

3. Instruction Manual and Warranty Card.

FEATURES:

The Temperature Station

LCD

Display

Hanging hole

Battery compartment cover

Function Keys

Foldout Stand

• Atomic Time function (WWVB Radio controlled time) or manual time setting o ptions

• Atomic Time reception On/Off

• Daylight Saving Time ON/OFF

• 12/24 hour display

• Hour and minute display

• Calendar display

• Time zone option ±12 hours

• Wireless transmission at 915 MHz

• Outdoor signal reception intervals at 4-second

• Temperature display in degrees Fahrenheit (°F) or Celsius (°C) selectable

• Indoor and Outdoor temperature display with MIN/MAX recording (records can be

reset)

• Can receive up to 3 outdoor sensors

• Daily minimum and maximum indoor temperature display

• Daily minimum and maximum outdoor temperature display

• Low battery indicator

• LCD contrast adjustable

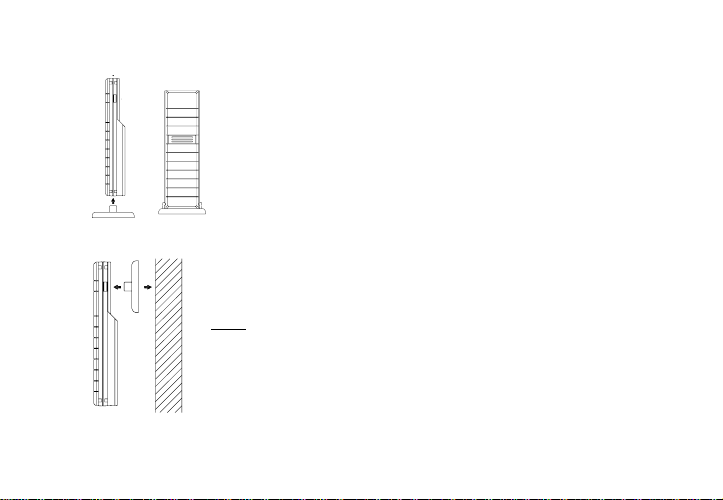

• Table standing/ Wall mounting

The Outdoor Temperature Sensor

• Remote transmission of outdoor temperature to

Temperature Station by 915 MHz

• Water-resistant casing

• Wall mounting case (Mount in a sheltered place. Avoid

direct rain and sunshine)

SETTING UP:

When one Sensor is used

1. First, insert the batteries into the temperature sensor. (see “Install and replace batteries in the temperature sensor“).

2. Immediately after and within 30 seconds, insert the batteries into Temperature Station (see “Install and replace batteries in the Temperature Station”). Once the batteries are in place, all segments of the LCD will light up briefly. Following the

time as 12:00 and the indoor temperature will be displayed. If these are not displayed after 60 seconds, remove the batteries and wait for at least 10 seconds before reinserting them.

3. After inserting the batteries into the sensor, the Temperature Station will start

receiving data from the sensor. The outdoor temperature and the signal reception icon should then be displayed on the Temperature Station. If this does not happen after 5 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In order to ensure sufficient 915 MHz transmission however, there should be no more

than 330 feet (100 meters) between the final position of the Temperature Station and the sensor (see notes on “Mounting” and “915 MHz Reception”).

5. Once the remote temperature has been received and displayed on the Temperature

Station, the WWVB time code reception is automatically started. This takes typically between 3-5 minutes in good conditions—but may take up to 4 nights.

When more than one sensor is to be used

1. User shall remove all the batteries from the Temperature Stati on and sensors and

wait 60 seconds if setting has been done with one sensor before.

2. Insert the batteries to the first sensor.

3. Within 30 seconds of powering up the first sensor, insert the batteries into to the

Temperature Station. Once the batteries are in place, all segments of the LCD will

light up briefly. Following time as 12:00 and the indoor temperature will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature from the first sensor (channel 1) should then be displayed

on the Temperature Station. Also, the signal reception icon will be displayed. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

5. Insert the battery into the second sensor immediately after (within 10 seconds after)

the reading form the first sensor is shown on LCD.

6. The outdoor temperature from the second sensor and the "channel 2" icon should

then be displayed on the Temperature Station. If this does not happen after 2 minute, the batteries will need to be removed from all the units and reset from step 1.

7. Insert the batteries into the third sensor immediately after (within 10 seconds after)

ithe reading from the second sensor is shown on LCD.

8. Then within 2 minutes, the channel 3 outdoor data from the third sensor will be

displayed and the channel icon will shift back to "1" once the third sensor is successfully received. If this is not happen, user shall restart the setting up from step

9. In order to ensure sufficient 915 MHz transmission there should be a distance of no

more than 330 feet (100 meters) between the final position of the Temperature Station and the sensor (see notes on “Mounting” and “915 MHz Reception”).

Note:

• Transmission problems will arise if the setting for additional sensors is not followed as

described above. Should transmission problems occur, it is necessary to remove the batteries from all units and follow the set-up from step 1.

• If the signal reception is not successful on the first frequency (915MHz) for 45

seconds, the frequency is changed to 920MHz and the learning is tried for another 45 seconds. If still not successful the reception is tried for 45 seconds on 910MHz. This will also be done for re-synchronization.

10. Once the remote temperature has been received and displayed on the Temperature

Station, the WWVB time code reception is automatically started. This takes typically between 3-5 minutes in good conditions.

IMPORTANT:

• Transmission problems will arise if the setting for additional sensors is not followed as

described above. Should transmission problems occur, it is necessary to remove the batteries from all units and follow the set-up from step 1.

• If after 10 minutes, the Atomic auto-set time (WWVB time) has not been received,

press the SET key to manually enter a time initially.

• Daily WWVB reception is attempted at full hour between 12:00 am to 6:00 am. If the

reception is successful, there will no reception attempt until the following day. When this is successful, the received time will override the manually set time. The date is also updated with the received time. (Please refer also to notes on “Atomic auto-set

time - WWVB Radio controlled Time” and “Manual Time Setting”).

BATTERY INSTALLATION

INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION

The Temperature Station uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below:

1. Remove the cover at the back of the Temperature Station.

2. Insert batteries observing the correct polarity (see marking).

3. Replace compartment cover.

INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE SENSOR

The temperature sensor uses 2 x AA, IEC LR6, 1.5V battery. To install and replace the batteries, please follow the steps below:

1. Remove the battery compartment cover.

2. Insert the batteries, observing the correct polarity (see marking).

3. Replace the battery cover on the unit.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the sensor at start-up and this code must be received and stored by the Temperature Station in the first 3 minutes of power being supplied to it

BATTERY CHANGE:

It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units (Batter y life see Specifications below).

Please participate in the preservation of the environment. Return used batteries to an authorized depot.

FUNCTION KEYS:

Temperature Station:

The Temperature Station has four easy to use function keys.

+ key

MIN/

MAX key

SET key CH/- key

SET key (Manual Setting):

• Press and hold to enter the setting mode for the following settings: LCD contrast,

Time zone, Daylight saving time ON/OFF, Atomic Time Reception (RCC) ON/OFF, 12/24 hr format, Manual time, Year, Month, Day and °C/°F settings.

MIN/ MAX key

• To toggle between the minimum/ maximum indoor and outdoor temperature records

• Press to exit the setting mode

• Press to reset the minimum and maximum or temperature records of the indoor and

the outdoor channel (will reset all records to current level)

+ key

• To make a "positive" adjustment for various settings

• In normal display, press to toggle between the display of the calendar data and

second of time in the time display of LCD

CH/- key

• To make a "negative" adjustment for various settings

• To toggle between different outdoor channel display (when more than 1 outdoor

sensor is adopted)

LCD SCREEN AND SETTINGS:

Time display

Indoor

Temperature

Daily indoor

min temp

Channel No.

(Outdoor Sensor ID)

Outdoor signal reception icon*

Daily outdoor

min temp

Time reception icon

"Weekday + Day" or Day + Month" or "Second" display

Receiver low battery icon

Daily indoor max temp

Outdoor Temperature

Sensor low battery icon

Daily outdoor max temp

*When the outdoor signal is successfully received by the temperature station, this icon will be switched on. (If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is currently taking place.

Note:

The Channel No. (Outdoor Sensor No.) will be shown when more than one outdoor sensor is adopted.

For better distinctness the LCD screen is split into 3 sections displaying the information for time and date, Indoor data and outdoor data.

Section 1 - TIME AND CALENDAR

• In normal mode, display the time and "weekday + day". Press the + key once to

display the "day + month"; twice to display the second of time.

• A signal reception symbol is shown indicating that Atomic auto-set time (WWVB

time) signal is received.

Section 2 - INDOOR TEMPERATURE

• Display current indoor temperature

• Display daily minimum and maximum indoor temperature

Section 3 - OUTDOOR TEMPERATURE

• Display current outdoor temp

• Display daily maximum and minimum outdoor temperature

ATOMIC TIME - WWVB RADIO CONTROLLED TIME

The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the Temperature Station. However, due to the nature of the Earth’s Ionosphere, reception is very limited during daylight hours. The wireless weather station will search for a signal every night when reception is best.

The WWVB radio station receives the time data from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is continually measuring every second, of every day, to an accuracy of ten billionths of a second per day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. For more detail, visit http://www.boulder.nist.gov/timefreq.htm. To listen to the NIST time, call (303)499-7111. This number will connect you to an automated time, announced at the top of the minute in “Coordinated Universal Time”, which is also known as Greenwich Mean Time (GMT). This time does not follow Daylight Saving Time changes. After the top of the minute, a tone will sound for every second. It is possible that your

Wireless Temperature Station may not be exactly on the second due to the variance in the quartz. However, the clock will adjust the quartz timing over the course of several days to be very accurate; under 0.10 seconds per day.

MANUAL SETTINGS:

The following manual settings can be done in the setting mode:

• LCD Contrast setting

• Time zone setting

• Daylight Saving Time ON/OFF setting (DST)

• Atomic Time reception ON/OFF setting (RCC)

• 12/24 hour time format setting

• Manual time setting

• Calendar setting (Year, Month, Date)

• °F/ °C temperature unit setting

Press and hold the SET key for about 3 seconds to advance to the setting mode:

LCD CONTRAST SETTING

flashing

The LCD contrast can be set to 8 different levels (0 to 7) to suit the user’s needs (default LCD contrast setting is LCD 4). To set the desired contrast level:

1. The above display will be seen. Press the + key or CH/- key to select the level of contrast desired.

2. Press the SET key to confirm and enter the “Time Zone setting” or exit the setting mode by pressing the MIN/MAX key

TIME ZONE SETTING:

flashing

The time zone default of the Temperature Station is -5 hr. To change to another time zone:

1. Using the + key or CH/- key, set the time zone. The range runs between -12 to +12 hour.

2. Press the SET key to confirm and enter the “Daylight Saving time ON/OFF setting” or exit the setting mode by pressing the MIN/MAX key.

DAYLIGHT SAVING TIME ON/OFF SETTING

flashing

1. The digit “ON DST” will start flashing on the LCD.

2. Use the + key or CH/- key to turn On or OFF the daylight saving time function.

3. Confirm with the SET key and enter the “Time reception On/Off setting” or exit the setting mode by pressing the MIN/MAX key.

TIME RECEPTION ON/OFF SETTING

flashing

In area where reception of the WWVB time is not possible, the time reception function can be turned OFF. The clock will then work as a normal Quartz clock. (Default setting is ON).

4. The digit “ON” and the time reception icon will start flashing on the LCD.

5. Use the + key or CH/- key to turn OFF the time reception function.

6. Confirm with the SET key and enter the “12/24-Hour Display setting” or exit the setting mode by pressing the MIN/MAX key.

Note:

If the Time Reception function is turned OFF manually, the clock will not attempt any reception of the WWVB time as long as the Time Reception OFF function is activated. The Time Reception icon will not be displayed on the LCD.

12/24 HOUR TIME DISPLAY SETTING

1. After setting time reception ON/OFF, press the SET key, “12 h” or “24 h” flashes in

flashing

the LCD. (default 12 h)

2. Press the + key or CH/- to select the “12 h” or “24 h” display mode.

3. Press the SET again to confirm and to enter the “Manual Time setting” or exit the setting mode by pressing the MIN/MAX key.

When 24 h mode display is selected, the calendar format will be "date and month"

Note:

display. When 12 h mode display is selected, the calendar format will be "month and date" display.

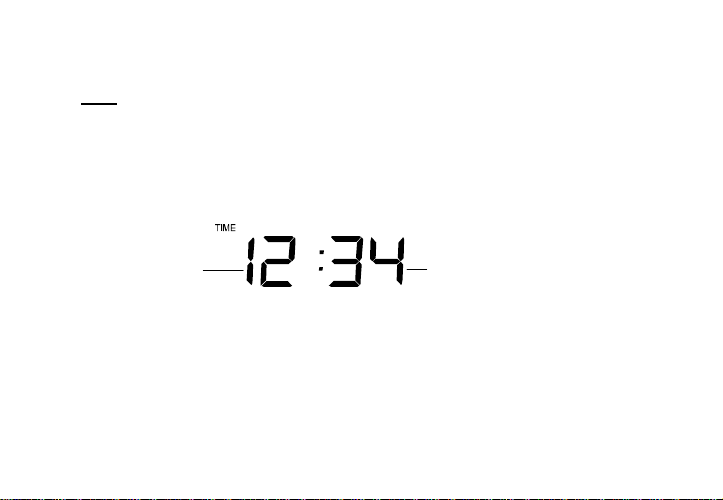

MANUAL TIME SETTING

In case the Temperature Station is not able to detect the Atomic time (WWVB) signal (disturbances, transmitting distance, etc.), the time can be manually set. The clock will then work as a normal Quartz clock.

Hours (flashing)

Minutes (flashing)

To set the clock:

1. The hour digits start flashing in the time display section.

2. Use the + key or CH/- key to adjust the hours and then press SET key to go to the minute setting.

3. The minute will be flashing. Press the + key or CH/- key to just the minutes.

4. Confirm with the SET key and enter the “Calendar Setting” or exit the setting mode by pressing the MIN/MAX key

CALENDAR SETTING

Year

"Date. Month." (for 24h time display) "Month. Date." (for 12h time display)

weekday

The date default of the temperature station is 1. 1. of the year 2006 after initial set-up. Once the radio-controlled time signals are received, the date is automatically updated. However, if the signals are not received, the date can also be set manually. To do this:

1. The year is flashing. Using the + key or CH/- key, set the year required. The range runs from 2006 to 2029 (default is 2006).

2. Press the SET key to enter the month setting mode.

3. The month digit will be flashing. Press the + key or CH/- key to set the month and then press the SET key to go to the day setting.

4. The day digit will be flashing. Press the + key or CH/- key to set the day.

5. Confirm with SET key and enter the “°F/°C TEMPERATURE UNIT SETTING” or exit the setting mode by pressing the MIN/MAX key.

Note:

The weekday of calendar will be automatically set after the month and day value is

input.

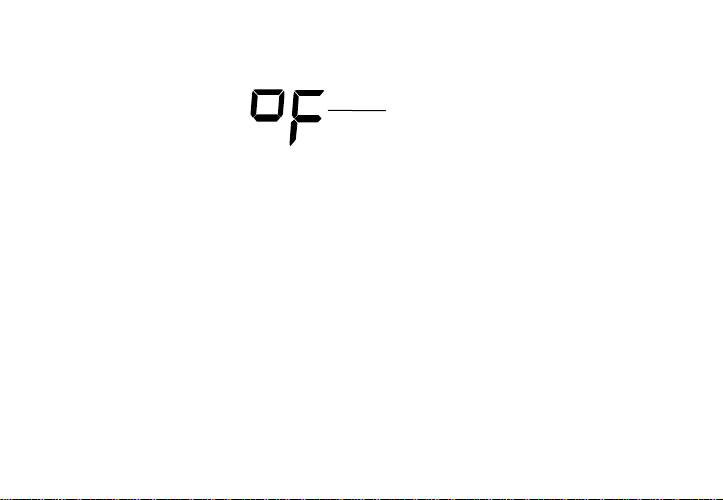

°F/°C TEMPERATURE UNIT SETTING

flashing

The default temperature reading is set to °F (degree Fahrenheit). To select °C (degree Celsius):

1. The “°F/ °C” will be flashing, use the + key or CH/- key to toggle between “°F” and

“°C”.

2. Once the desired temperature unit has been chosen, confirm with the SET key to exit the setting mode.

DISPLAY OF INDOOR TEMPERATURE READING:

The indoor temperature is measured and displayed on the second section of the LCD.

Indoor Icon

Indoor Temperature in °F

DISPLAY OF OUTDOOR TEMPERATURE READING:

The bottom LCD section shows the outdoor temperature.

Outdoor

icon

Outdoor Temperature in °F

DISPLAY OF INDOOR MINIMUM AND MAXIMUM RECORDS:

1. In normal display mode, press the MIN/MAX key once, the minimum indoor temperature will be shown in LCD. Also the time and date of recording this temperature will be displayed.

Indoor icon

Time and date of record

Minimum indoor

temp recorded

2. Then press the MIN/MAX button one more time, the maximum indoor temperature will be shown in LCD. Also the time and date of recording this temperature will be displayed.

3. Press three more time the MIN/ MAX button to go back to the normal display.

DISPLAY OF OUTDOOR MINIMUM AND MAXIMUM RECORDS:

1. In normal display mode, Press the MIN/MAX button three times, the outdoor

minimum temperature and the time and date of recording this temperature will be displayed.

2. Press the MIN/MAX button once more, the outdoor maximum temperature and the

time and date of recording this temperature will be displayed.

Outdoor icon

Outdoor

Channel No.

Time and date of record

Maximum outdoor temp recorded

RESETTING THE INDOOR AND OUTDOOR MINIMUM /MAXIMUM RECORDS

1. In normal display mode, press the MIN/MAX button once to advance to the indoor

MIN temp display.

2. Press and hold the MIN/MAX key for about 3 seconds, this will reset the currently

shown indoor and outdoor minimum and maximum data to the current time, date and temperature.

3. Then press the MIN/MAX button three more times to return to the normal display.

Note:

The indoor minimum and maximum record, as well as the minimum and maximum records of all outdoor channels, will be reset at the same time.

DAILY INDOOR MIN AND MAX TEMPERATURE DISPLAY

This temperature station shows the daily minimum and maximum indoor temperature in normal display.

Min daily

indoor temp

Max daily indoor temp

+ 93 hidden pages
