Page 1
LaCie Slim DVD±RW • Design by sam HecHt Table of Contents
User Manual page 1

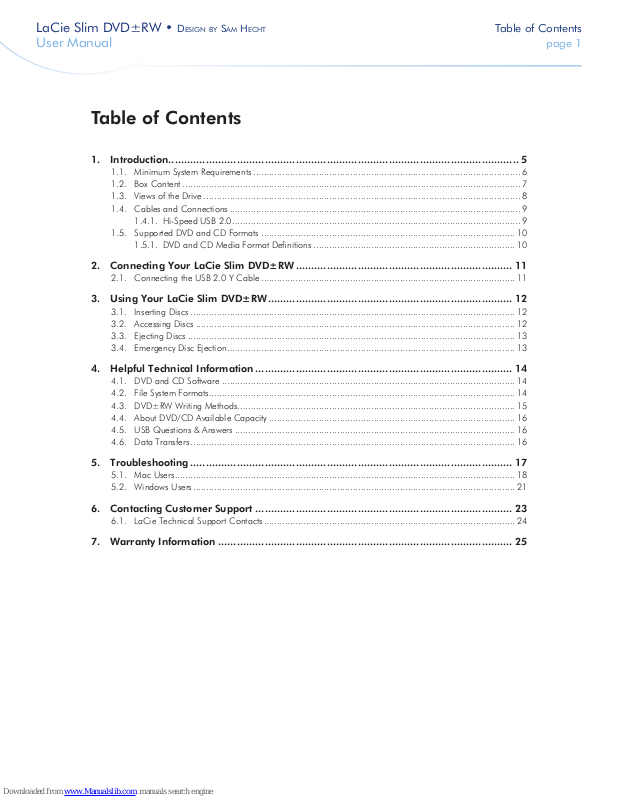

Table of Contents
1. Introduction................................................................................................................. 5
1.1. Minimum System Requirements ...................................................................................................... 6
1.2. Box Content ................................................................................................................................. 7
1.3. Views of the Drive ......................................................................................................................... 8
1.4. Cables and Connections ............................................................................................................... 9
1.4.1. Hi-Speed USB 2.0 .............................................................................................................. 9
1.5. Supported DVD and CD Formats ................................................................................................. 10
1.5.1. DVD and CD Media Format Definitions ............................................................................. 10
2. Connecting Your LaCie Slim DVD±RW ...................................................................... 11
2.1. Connecting the USB 2.0 Y Cable ................................................................................................. 11
3. Using Your LaCie Slim DVD±RW ............................................................................... 12
3.1. Inserting Discs ............................................................................................................................ 12
3.2. Accessing Discs .......................................................................................................................... 12
3.3. Ejecting Discs ............................................................................................................................. 13
3.4. Emergency Disc Ejection .............................................................................................................. 13
4. Helpful Technical Information ................................................................................... 14
4.1. DVD and CD Software ................................................................................................................ 14
4.2. File System Formats..................................................................................................................... 14
4.3. DVD±RW Writing Methods .......................................................................................................... 15
4.4. About DVD/CD Available Capacity .............................................................................................. 16
4.5. USB Questions & Answers ........................................................................................................... 16
4.6. Data Transfers ............................................................................................................................ 16
5. Troubleshooting ........................................................................................................ 17
5.1. Mac Users .................................................................................................................................. 18
5.2. Windows Users ........................................................................................................................... 21
6. Contacting Customer Support ................................................................................... 23
6.1. LaCie Technical Support Contacts ................................................................................................ 24
7. Warranty Information ............................................................................................... 25
Page 2
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 2
Copyrights
Copyright © 2011 LaCie. All rights reserved. No part of this publication may
be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without
the prior written consent of LaCie.
Trademarks
Apple, Mac, and Macintosh are registered
trademarks of Apple Inc. Microsoft, Windows, Windows XP, Windows Vista, and
Windows 7 are registered trademarks of
Microsoft Corporation. All trademarks
mentioned in this manual are the property
of their respective owners.
Changes
The material in this document is for information only and is subject to change
without notice. While reasonable efforts
have been made in the preparation of this
document to assure its accuracy, LaCie
assumes no liability resulting from errors
or omissions in this document, or from the
use of the information contained herein.
LaCie reserves the right to make changes
or revisions in the product design or the
product manual without reservation and
without obligation to notify any person of
such revisions and changes.
Canada Compliance Statement
This Class A digital apparatus meets all
requirements of the Canadian Interference-Causing Equipment Regulations.
Federal Communications
Commission Radio Frequency
Interference Statement (FCC)
Lacie Slim DVD±RW
Tested to comply with FCC
standards for home or office
use
WARNING: Changes or modifications
to this unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy, and if not
installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to correct the interference by one of
the following measures:
✦ Reorient or relocate the receiving
antennas.
✦ Increase the separation between the
equipment and the receiver.
✦ Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
✦ Consult the reseller or an experi-
enced radio/TV technician for help.
Shielded cables and I/O cards must be
used for this equipment to comply with the
relevant FCC regulations.
This device complies with Part 15 of the
FCC rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
Manufacturer’s
Declaration for CE
Certification
We hereby certify that this device is in
compliance with both the EMC Directive (2006/95/EC) and the Low Voltage
Directive (2004/108/EC) issued by the
Commission of the European Community.
Compliance with these directives implies
conformity to the following European
Norms:
Class B EN60950, EN55022, EN500821, EN61000-3-2
Class I Laser product
This equipment is certified to comply with
DHHS Rule 21 CFR Chapter I, subchapter
J in effect as of the date of manufacture.
This equipment is classified as a Class I
Laser product and no hazardous laser radiation is emitted outside the drive.
111220 v1.1
Page 3
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 3
This symbol on the product
or on its packaging indicates
that this product must not be
disposed of with your other
household waste. Instead, it
is your responsibility to dispose of your
waste equipment by handing it over to a
designed collection point for the recycling
of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time
of disposal will help to conserve natural
resources and ensure that it is recycled in
a manner that protects human health and
the environment. For more information
about where you can drop off your waste
equipment for recycling, please contact
your local city office, your household
waste disposal service, or the shop where
you purchased the product.
CAUTION: Modifications not authorized
by the manufacturer may void the user’s
authority to operate this device.
Health, Safety & General Use
Precautions
The drive you have just purchased includes a laser diode device, which classifies it as a “Laser Class I” product. This
laser is not dangerous for the user under
normal operating conditions. However,
we strongly advise you not to place any
reflective objects in the disc loading system, due to the risk of exposure to laser
emissions that may be reflected by such
objects. Always follow the basic precautions listed below to use your LaCie drive
safely and correctly. Respecting these
guidelines will help to avoid the possibility
of personal injury to yourself or others, as
well as to prevent damage to your device
and other computer equipment. These include, but are not limited to, the following
precautions.
Health & Safety Precautions
✦ Read this User Manual carefully,
and follow the correct procedure
when setting up the device.
✦ Do not look inside or place your
hand over the open media tray.
Never look directly or indirectly (with
a mirror) at the laser diode, even
when the device is not in operation.
If you expose your eyes to the laser
inside you drive, you risk damage or
loss of your vision or other injury.
✦ Do not open your drive or attempt
to disassemble or modify it. Never
insert any metallic object into the
drive to avoid any risk of electrical shock, fire, short-circuiting or
dangerous emissions. Your drive
contains no user-serviceable parts.
If it appears to be malfunctioning,
have it inspected by qualified LaCie
service staff.
✦ Never expose your device to rain or
use it near water or in damp or wet
conditions. Never place containers
on it containing liquids that may
spill into its openings. Doing so increases the risk of electrical shock,
short-circuiting, fire or personal injury.
✦ Make sure that the computer and
drive are electrically grounded. If
the devices are not grounded, there
is an increased risk of electrical
shock.
General Use Precautions
✦ Do not expose the drive to tempera-
tures outside the range of 5° C to
40° C (41° F to 104° F) during operation. Doing so may damage the
drive or disfigure its casing. Avoid
placing your drive near a source of
heat or exposing it to sunlight (even
through a window). Inversely, placing your drive in an environment
that is too cold or humid may damage the unit.
✦ Do not block the ventilation out-
lets on the rear of the drive. These
help to keep your drive cool during
operation. Blocking the ventilation
outlets may cause damage to your
drive and cause an increased risk of
short-circuiting or fire.
✦ Always unplug the drive if there is
a risk of lightning or if it will not be
used for an extended period of time.
Otherwise, there is an increased risk
of electrical shock, short-circuiting
or fire.
✦ Do not place heavy objects on top
of the drive or use excessive force
on its buttons, connectors and tray.
✦ Always place your drive in a hori-
zontal position before using it. This
LaCie drive has not been designed
to be used in an upright position.
This may result in damage to the
device or data loss.
✦ Always remove the disc from the
disc tray before transporting your
drive. Otherwise, written data may
be destroyed or the drive’s internal
components may be damaged.
✦ Never use excessive force on the
disc loading system; discs should be
inserted effortlessly into your drive.
If you detect a problem, consult the
Troubleshooting section and contact your after-sales department.
✦ Protect your drive from excessive
exposure to dust during use or storage. Dust can build up inside the
device, increasing the risk of damage or malfunction.
✦ Never use benzene, paint thin-
ners, detergent or other chemical
products to clean the outside of the
drive. Such products will disfigure
and discolor the front panel and
casing. Instead, use a soft, dry cloth
to wipe the device.
Page 4
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 4
IMPORTANT INFO: Any loss, corrup-
tion or destruction of data while using a
LaCie drive is the sole responsibility of
the user, and under no circumstances will
LaCie be held liable for the recovery or
restoration of this data. To help prevent
the loss of your data, LaCie highly recommends that you keep TWO copies of
your data; one copy on your external hard
drive, for instance, and a second copy either on your internal hard drive, another
external hard drive or some other form of
removable storage media. LaCie offers a
complete line of CD and DVD drives. If
you would like more information on backup, please refer to our website.
IMPORTANT INFO: 1GB =
1,000,000,000 bytes. 1TB =
1,000,000,000,000 bytes. Once formatted, the actual available storage capacity
varies depending on operating environment (typically 5-10% less).
Page 5
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 5
1. Introduction
Congratulations on the purchase of your new LaCie Slim DVD±RW.
Light and compact, the Slim DVD±RW is ideal for your DVD and
CD burning needs on your desk or on the go. Further, the Slim
DVD±RW can read and write to all the popular formats, such as
DVD±RDL, DVD±RW, CD-R, and CD-RW.
Double Layer DVD Recording
Double Layer (DL) discs are compatible with most consumer set-top
DVD players and computer DVD-ROM drives, enabling you to burn
DVDs that can play back in your living room.
On one DVD+RDL disc, you’ll be able to store up to four hours of
MPEG-2 video, sixteen hours of VHS quality video or increase the
video bit rate for higher quality movies. And with 8.5GB of storage
space on a single DL disc, they’re ideal for archiving and backup
applications.
At home or on the road, you have the right tool to backup your
important files, create high-quality DVDs, or watch a favorite film on
your computer.
Quick Links
Click a topic:
✦ Connecting Your LaCie Slim DVD±RW
✦ Using Your LaCie Slim DVD±RW
✦ Troubleshooting
Page 6
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 6
1.1. Minimum System Requirements
Windows Users
✦ USB 2.0 port
✦ Windows XP, Windows Vista, or Windows 7
✦ Pentium IV 2.0 GHz processor or higher
✦ 256MB RAM
Mac Users
✦ USB 2.0 port
✦ Mac OS X 10.4.x or higher
✦ Power PC G5 or later, Mac Intel processor
✦ 256MB RAM
Linux Users
✦ USB 2.0
✦ Linux-based system
✦ 256MB RAM
Page 7
LaCie Slim DVD±RW • Design by sam HecHt Foreword
Setup Steps
1. Connect the primary USB 2.0 A plug (without
the lightning bolt sticker) to your computer.
2. Your drive is ready to use.
Windows users: Right click My Computer and select
Properties>General. Your drive should be listed.
Mac users: In the Apple menu, choose About This
Mac, then More Info. This will open the Apple
System Profiler. Your drive should be listed under the
Hardware category.
NOTE: Your drive must be connected to a USB 2.0
port. Performance is not guaranteed using USB 1.1.
NOTE: The Y cable has a secondary USB 2.0 A
plug for additional power. Attaching the primary A
plug to most computers will provide ample signal
and power for the LaCie Slim DVD±RW. In the event
that the device does not receive enough power, you
may connect the additional A plug into a second
USB 2.0 port on your computer. Please note that the
secondary plug has a lightning bolt sticker.
See the User Manual for more information.
Quick Install Guide
Slim DVD±RW
Box Content
Note: Please find the User Manual on the CD.
Protect your investment – register for free
technical support at www.lacie.com/register
1. Primary USB 2.0 A plug (signal and power)
2. Secondary USB 2.0 A plug (power only)
3. Mini-USB plug
User Manual page 7
1.2. Box Content
1. LaCie Slim DVD±RW
2. USB 2.0 Y cable
3. Quick Install Guide
4. CD (User Manual)
IMPORTANT INFO: Please save your packaging. In the event that
the drive should need to be repaired or serviced, it must be returned
in its original packaging.
Page 8
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 8
1.3. Views of the Drive
Front View
1. Disc Tray – Open the tray by pressing the load/eject button,
then place a DVD or CD into the tray with the label facing up.
Close the tray by pushing the load/eject button or pushing the
front part of the tray. This drive has not been designed to accept media with cartridges.
2. Drive Activity LED
3. Load/Eject Button – Push this button to open the media tray.
4. Emergency Eject Hole – Insert a straightened paper clip (or
similar object) and push to eject the tray if the load/eject
button does not work. In normal operation, the eject button
should always be used to unload the tray. If you must use the
emergency eject hole, make sure the drive’s power is turned
off and wait until disc rotation has stopped.
Fig. 01
Rear View
1. Power Supply Connection – This is where you plug in the op-
tional AC adapter. See section 2. Connecting Your LaCie Slim
DVD±RW for more information.
2. Hi-Speed USB 2.0 Port – This is where you plug in the USB
2.0 Y cable supplied with the drive. See section 2. Connecting
Your LaCie Slim DVD±RW for more information.
IMPORTANT INFO: You may attach an optional external power
supply (not included) to the power supply connector.
Fig. 02
Page 9
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 9
1.4. Cables and Connections
1.4.1. Hi-Speed USB 2.0
USB is a serial input/output technology for connecting peripheral
devices to a computer or to each other. Hi-Speed USB 2.0 provides the necessary bandwidth and data transfer rates to support
high speed devices such as hard drives, CD/DVD drives, and digital
cameras.
USB 2.0 Y Cable
Your LaCie drive is shipped with a Hi-Speed USB 2.0 Y cable to
ensure maximum data transfer performance when connected to a
Hi-Speed USB 2.0 port. The Y cable has a secondary USB 2.0 A
plug to provide additional power to the LaCie Slim DVD±RW.
Please see Fig. 03 - USB 2.0 Y Cable Ends to become acquainted
with the USB 2.0 Y cable:
Fig. 03 - USB 2.0 Y Cable Ends
1. The primary USB 2.0 A plug that connects a device to a com-
puter. For most computers, attaching this primary A plug will
provide ample signal and power for the LaCie Slim DVD±RW.
This USB 2.0 A plug carries the data signal to and from your
device.
2. In the event that the device does not receive enough power via
the primary USB 2.0 A plug, you may connect this secondary
USB 2.0 A plug into a second USB 2.0 port on your computer.
Please note the sticker with the lightning bolt to indicate that
this plug is only meant for additional power and does not carry
the data signal to and from your device.
3. Mini-USB 2.0 plug for a device, such as the LaCie Slim
DVD±RW.
USB Icons
These icons will help you easily identify the USB interfaces. They appear on USB cables and next to the USB port connectors on certain
computers.
Fig. 04 - USB 2.0 logo
Fig. 05 - USB 1.0 logo
Page 10
LaCie Slim DVD±RW • Design by sam HecHt Foreword
User Manual page 10
1.5. Supported DVD and CD Formats
Table 01 - Supported DVD and CD Formats
Format Type of Disc Write
Speed
DVD DVD±R DL 6x 8.5GB
DVD±R 8x 4.7GB
DVD+RW 8x 4.7GB
DVD-RW 6x 4.7GB
DVD-ROM
(Single and dual
layer)
DVD-RAM 5x 4.7/8.5GB
CD CD-R 24x 700MB
CD-RW 24x 650MB
CD-ROM -- --
-- 4.7/8.5 GB
1.5.1. DVD and CD Media Format Definitions
DVD+RW Discs
✦ Best suited for: backing up and archiving digital content.
✦ These discs are functionally similar to CD-RW and DVD-RW
discs, but record in the same way as DVD+R. Using Direct
Overwrite (DOW) recording, this type of disc allows new data
to be written directly over existing data in a single pass.
Capacity
have the same capacity as DVD+R discs.
✦ There are two types of DVD-R discs: DVD-R General, which is
intended for home applications, and DVD-R Authoring, which
is intended for professional DVD-Video development applications.
DVD+RDL or DVD-RDL (Double Layer) Discs
✦ Ideal for: recording high-quality DVD videos, backing up, and
archiving large data DVDs.
✦ These discs follow the DVD+ recording techniques, but with
8.5GB of capacity versus 4.7GB for DVD±R discs.
✦ Larger disk capacity makes it possible to increase the video bit
rate for higher quality DVD videos.
DVD-RAM
✦ Best suited for camcorders and set-top boxes, as well as many
other situations where rewriting data is important.
✦ Considered a very reliable format thanks to its built-in error
control and defect management system.
CD-R Discs
✦ Best suited for: recording audio CDs and storing files, such as
photos or important documents.
✦ Files can not be deleted from CD-R discs, and you cannot
write over existing files on a CD-R disc.
CD-RW Discs
✦ Best suited for: exchanging files up to 650MB.
✦ Discs can be reformatted up to 1,000 times, and files can be
written over.
✦ Most CD-ROM drives and audio CD players cannot read CD-
RW discs.
TECHNICAL NOTE: For Best Recording Results:
DVD-RW Discs
✦ Best suited for: backing up and archiving digital content.
✦ These discs serve the same general purpose as CD-RW me-
dia, but with 4.7GB of space versus 650MB.
✦ Discs can be written and erased up to 1,000 times.
DVD+R Discs
✦ Best suited for: recording DVD videos, storing multiple photo
albums, and data storage under 4.7GB.
✦ Just as CD-R discs, DVD+R is write-once, but with 4.7GB of
capacity versus 700MB for CD-R discs.
✦ DVD+R supports “lossless linking” and the combination of
Constant Angular Velocity (CAV) and Constant Linear Velocity
(CLV) recording.
DVD-R Discs
✦ Best suited for: recording DVD videos, storing multiple photo
albums, and data storage under 4.7GB.
✦ These discs are also functionally similar to CD-R media and
✦ Close all other open programs and disconnect from the in-
ternet
✦ Copy data to your hard drive first
✦ Check media speed rating
✦ Use media that is free of scratches and fingerprints
Page 11
LaCie Slim DVD±RW • Design by sam HecHt Getting Connected
User Manual page 11
2. Connecting Your LaCie Slim DVD±RW
2.1. Connecting the USB 2.0 Y Cable
1. Connect the Y cable’s primary Hi-Speed USB 2.0 A connector
(see 1.4. Cables and Connections) to an available USB 2.0 port
on your computer.
IMPORTANT INFO: The Y cable has two USB 2.0 connectors: the
primary A connector for signal and power and the secondary A connector for additional power, if necessary. The difference is clearly
marked by a lightning bolt sticker on the secondary (power only)
connector. You must connect the primary A connector in order to
send and receive data. See 1.4. Cables and Connections.
2. Attach the other end (mini-USB) of the USB 2.0 Y cable to your
LaCie Slim DVD±RW. See Fig. 06
3. Your drive should now be ready for use. To verify that your drive
is correctly installed and communicating with your computer,
follow these steps:
Mac Users
In the Apple menu, choose About This Mac, then More Info. This will
open the Apple System Profiler. Your drive should be listed under the
Hardware category.
Windows Users
Right click your My Computer folder and select Properties>General.
Your drive should be listed.
4. If your Slim DVD±RW does not appear to be receiving adequate power, attach the secondary USB 2.0 A plug (with the
lightning sticker) to an available USB 2.0 port on your computer. See Fig. 07
TECHNICAL NOTE: Your drive must be connected to a USB 2.0
port. Performance is not guaranteed with USB 1.1. See section 1.4.
Cables and Connections.
Fig. 06
TECHNICAL NOTE: For more information on USB connections,
see sections 1.4. Cables and Connections and 4.5. USB Questions
& Answers.
IMPORTANT INFO: The LaCie Slim DVD±RW includes a power
supply connection (see 1.3. Views of the Drive) that will accept an
external power supply (not included).
Fig. 07
Page 12
LaCie Slim DVD±RW • Design by sam HecHt Using Your LaCie Slim DVD±RW
User Manual page 12
3. Using Your LaCie Slim DVD±RW
3.1. Inserting Discs
To insert a disc:
1. Push the Open/Close button on your LaCie Slim DVD±RW.
2. When the disc tray opens, put the DVD or CD media into the
tray with the label side facing up. Make sure the DVD or CD is
correctly placed in the center of the disc tray.
3. Push the Open/Close button to close it (Fig. 08).
Do not attempt to force the door open; you will damage the drive.
The power must be on in order to open the drive. The drive must be
on a flat surface to work correctly.
To close the disc tray:
Press the Open/Close button (Fig. 08). Pushing the media tray
closed is not recommended.
3.2. Accessing Discs
Mac Users
The DVD or CD volume will appear as an icon on the desktop. Click
on the icon to access the contents of the DVD or CD.
Windows Users
The DVD or CD volume will appear in your My Computer folder
(Windows XP users) or the Computer folder (Windows Vista and
Windows 7 users). Click on the icon to access the contents of the
disc.
CAUTION: Do not force the disc tray open or closed, as you will
damage the drive. Also always remove discs before transporting the
drive, and never move the drive while it is in operation.
Fig. 08
IMPORTANT INFO: This drive is not compatible with cartridges.
Page 13
LaCie Slim DVD±RW • Design by sam HecHt Using Your LaCie Slim DVD±RW
User Manual page 13
3.3. Ejecting Discs
Mac Users
1. Drag the DVD/CD icon on the desktop to the Trash (Fig. 09).
2. The disc tray will open.
3. Remove the disc.
Push the Open/Close button on the drive to close the disc tray.
Windows Users
1. Press the Open/Close button on the front of the drive.
2. Remove the disc.
3. Push the Open/Close button on the drive to close the disc tray.
CAUTION: Do not attempt to open the drive’s disc tray or remove
the disc while the unit is in use and being accessed by the computer.
You may injure yourself and/or damage the drive and/or your computer system. Do not transport the drive with the disc tray open or
with a DVD or CD disc inside. Doing so may damage the drive and/
or data stored on the disc, and will void your warranty.
3.4. Emergency Disc Ejection
In the event that a DVD or CD cannot be ejected with the Open/
Close button and software is not controlling the drive, use the emergency eject operation to open the disc tray.
1. Switch off the drive and unplug the interface cable.
Fig. 09
Fig. 10
2. Insert a small metal poker, such as an unbent paper clip, into
the emergency eject hole (see Fig. 10) until the poker presses
against the manual eject mechanism. You will feel the mechanism eject the disc tray.
Only use this method if the Open/Close button is not working.
CAUTION: Make sure the drive is off and the power unplugged
before attempting the emergency ejection procedure.
Page 14
LaCie Slim DVD±RW • Design by sam HecHt Helpful Technical Information
User Manual page 14
4. Helpful Technical Information
4.1. DVD and CD Software
All supported operating systems (see 1.1. Minimum System Require-
ments) include basic DVD and CD reading and writing functions.
However, if you require more features for your DVD and CD writing,
LaCie recommends Nero, Roxio, or Cyberlink.
IMPORTANT INFO: LaCie cannot guarantee that all third-party
software will work with the LaCie Slim DVD±RW.
4.2. File System Formats
When writing DVD±R/RW and CD-R/RW discs, you will have the
option to assign the disc a particular file format (the way in which
a computer names and organizes files for storage and to manage
data exchange).
LaCie recommends using one of three primary file system formats
when using the Slim DVD±RW:
✦ Universal Disk Format (UDF)
✦ ISO 9660
✦ Mac OS Extended (also known as HFS+)
✦ Hybrid discs (Mac & PC)
UDF – This specification, developed by Optical Storage Technolo-
gies Association, is the predominant file system that allows compatibility across various Bluray, DVD and CD applications, hardware
platforms, and computer operating systems.
ISO 9660 – This is the standard file system which allows media to
be read on a Mac, PC, or other major computer platform. Published
by the International Organization of Standardization, this standard
defines a file system for DVD-ROM and CDs. It supports Microsoft Windows, Mac OS, and operating systems that follow the Unix
specification, but doesn’t support custom features of Mac file systems such as long file names or icon options. Microsoft created an
extension to the format, called Joliet, which allows for Unicode file
character names and file names up to 64 characters in length (twice
as many as the ISO 9660 Level 2 and 3 specifications).
Mac OS Extended – Also known as HFS+, this is the file system used
by Macintosh. This is the preferred file format If you will be using
your disc only with the Mac OS.
Hybrid discs (Mac & PC) – Mac users can also choose to create
hybrid discs which contain two partitions: one to be viewed by Mac
users, one by Windows users. Certain software, such as Toast Titanium, offers this file system for formatting your disc.
Page 15
LaCie Slim DVD±RW • Design by sam HecHt Helpful Technical Information
User Manual page 15
4.3. DVD±RW Writing Methods
Disc at Once (DAO) – A DVD writing process in which the entire
DVD is recorded in one session, and data cannot be added after
the recording is finished. This differs somewhat from the CD-R DAO
method because the lead-in area, data area, and lead-out area are
all written sequentially.
Session at Once (SAO) – A writing process which is similar to DAO,
where information is written in a session, but allowing for record
further recording at a later time. This mode provides for greater
control of the recording process than Packet Writing (PW) or TAO,
and more disc space can be utilized because there is no need for
gaps between tracks.
Incremental Recording (IR) – A writing process that is similar to the
Session at Once (SAO) CDR writing method; files may be added
directly to the DVD-R disc one recording at a time, instead of recording the files to a hard drive before writing the disc. The minimum
recorded size, though, must be at least 32KB (even if the file to be
recorded is smaller than that), and capacities and write speeds are
decreased due to the overhead of combined lead-in/out areas and
data. Also, the disc must be finalized before it may be played back
by a drive other than the drive recording the disc.
Table 02 - DVD±RW Writing Methods
DAO SAO IR MBR RO PW
CD
DVD
✔ ✔ ✔
✔ ✔ ✔ ✔
Multi-Border Recording (MBR) – A writing process that is very similar
to IR, MBR allows you to make an IR disc and then play the disc
back on a device that recognizes this type of recording method.
MBR creates a very short boundary zone around a recording session so a compatible player or DVD-ROM drive does not attempt to
play beyond the border of the recorded area, instead allowing the
unfinished disc to be read by a player that supports this recording
method.
Restricted Overwriting (RO) – With this method, if a disc has already
been written to, new data segments can be randomly inserted anywhere within the recorded boundary. New data, however, can only
be added to an area of the disc that has already been recorded over
and from the point where the last session was stopped.
Packet Writing (PW) – A drag-and-drop writing process that is very
useful for data backup. Buffer underrun* is impossible in this mode,
because the data is written in “packets” of a few KBs. Packet Writing
is a CPU-intensive process because it constantly checks the available space on the disc.
* Buffer Underrun – The recording of a disc is a system-intensive application, and the rewritable drive needs a constant stream of data.
A buffer underrun occurs when the stream of data to the rewritable
drive is not fast enough to keep the rewritable drive’s buffer full,
causing an error in the recording process. If this problem occurs
often, turn down the recording speed.
Page 16
LaCie Slim DVD±RW • Design by sam HecHt Helpful Technical Information
User Manual page 16
4.4. About DVD/CD Available
Capacity
There are important factors to consider when recording video, audio, or data to CD or DVD discs. The DVD media specification provides for two physical sizes: 4.7” (12cm) and 3.1” (8cm) (both are
.47” (1.2cm) thick). DVD discs are single-sided and can have one
(SL) or two (DL) layers of data.
The amount of data or video that a disc can hold are dependent
upon factors such as the amount of audio and the degree of compression of the data, video or audio.
When media companies reference the amount of data that a disc
can hold, they represent the total amount in terms of gigabytes
(GB), or a billion bytes (1000 x 1000 x 1000 bytes). This number,
though, is not the way in which a computer addresses the data;
to a computer the value is binary and larger than a billion bytes –
1,073,741,824 (1024 x 1024 x 1024 bytes).
4.5. USB Questions & Answers
What Are the Benefits of the USB Interfaces?
✦ Cross-platform: All recent Macs and PCs include USB 2.0
ports.
✦ “Hot Swappable”: No need to shut down or restart your com-
puter when adding or removing a USB device. Plug it in and
its ready.
✦ Automatic configuration: Once your device is connected, your
computer recognizes the device and configures the software
(Windows XP, Windows Vista, and Windows 7).
✦ Daisy-Chaining: USB 2.0 ports on your computer support up
to 127 peripherals using hubs.
✦ Easy Installation: One standardized port and plug combina-
tion makes it simple to connect.
4.6. Data Transfers
Data transfers are the flow of data that accomplishes a task, usually related to moving data from storage to computer RAM or between storage devices. During data transfers, it’s best to wait before
launching other applications on the same USB port. Anomalies may
arise with USB controllers that do not conform to OHCI (Open Host
Controller Interface*) standards. LaCie cannot ensure proper operation when using interface controllers that are not OHCI compliant.
If you encounter a problem with an unsupported peripheral connectors, such as a time lag (“hanging”), proceed as follows:
1. Make sure that the USB cable is connected tightly and securely
on both ends of the cable, from the drive to the computer. If you
are using a USB cable other than the one supplied with your
LaCie drive, check that it is Hi-Speed USB 2.0 certified.
2. Check that the power supply and ground connection are seated
properly.
3. Disconnect your computer’s USB cable. Wait 30 seconds. Reconnect.
TECHNICAL NOTE: *Controller - This is a component or an elec-
tronic card (referred to in this case as a “controller card”) that enables a computer to communicate with or manage certain peripherals. An external controller is an expansion card which fills one of the
free slots (i.e. PCI or PCMCIA) inside your PC and which enables
a peripheral (i.e. DVD/RW drive, Hard Drive, scanner, or printer)
to be connected to the computer. If your computer is not equipped
with a USB controller card, you can purchase an external controller
through LaCie. Contact your LaCie reseller or LaCie Technical Support (section 6. Contacting Customer Support) for more information.
Will Hi-Speed USB 2.0 Devices Work on USB 1.1 Hubs
and Vice Versa?
You can use your Hi-Speed USB 2.0 devices with USB 1.1 hubs, but
the peripherals will be limited to USB 1.1 performance levels.
For more information about the USB interface, please visit the LaCie
website:
www.lacie.com/technologies
Page 17
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 17
5. Troubleshooting
In the event that your LaCie Slim DVD±RW is not working correctly,
please refer to the following checklist to determine the source of the
problem. If you have gone through all of the points on the checklist
and your drive is still not working correctly, please check the FAQs
that are regularly published on our Web site, www.lacie.com. One
of these FAQs may provide an answer to your specific question. You
can also visit the downloads page, where the most recent software
updates will be available.
If you need further assistance, please contact your LaCie reseller or
LaCie Technical Support (see section 6. Contacting Customer Sup-
port for details).
Manual Updates
LaCie is constantly striving to give you the most up-to-date, comprehensive User’s Manuals available on the market. It is our goal
to provide you with a friendly, easy-to-use format that will help you
quickly install and utilize the many functions of your new device.
If your manual does not reflect the configurations of the product
that you purchased, please check our Web site for the most current
version available.
Page 18
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 18
5.1. Mac Users
Problem Question Solution
The drive is not recognized
by the computer.
Does your computer’s configuration
meet the minimum system requirements for use with this drive?
Is the drive receiving enough power
through your computer’s USB bus?
Did you follow the correct installation
steps?
Is there an icon on your desktop? Look for an icon on your desktop that represents disc you have
Are both ends of the USB cable
securely attached?
See section 1.1. Minimum System Requirements.
The Slim DVD±RW may not be receiving sufficient power through
your computer’s USB bus. Please try attaching the additional USB
2.0 A connector (see 2.1. Connecting the USB 2.0 Y Cable) or an
optional external power supply (not included).
Review the installation steps in 2. Connecting Your LaCie Slim
DVD±RW.
inserted. If the disc does not appear, follow the rest of the Troubleshooting tips to isolate the problem.
✦ Disconnect the USB cable, wait 10 seconds and then recon-
nect.
✦ Ensure that USB connectors are properly aligned. USB cables
can only be inserted one way. Make sure that they are correctly oriented.
✦ Check that the USB connectors are straight and fully seated
in the USB ports.
✦ Only use certified USB cables, such as the cables provided
with your LaCie drive.
Is there a conflict with other device
drivers or extensions?
Did you attach the primary USB 2.0
A plug?
If you have followed all of these steps and the drive is still not
recognized, shut down your computer, wait 3 to 5 minutes, restart
your computer and try again.
Contact LaCie Customer Support for assistance. See 6.1. LaCie
Technical Support Contacts.
The USB 2.0 Y cable that is shipped with the device has two USB
2.0 A plugs: the primary (without the lightning bolt sticker) and
the secondary (with the lightning bolt sticker). For most computers,
attaching the primary plug will allow for sufficient power and carry
the data signal. The secondary plug does not carry a data signal as
it is only meant to provide additional power when necessary.
Page 19
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 19
Problem Question Solution
The drive is not running
noticeably faster when
connected via Hi-Speed
USB 2.0.
The drive is working
slowly.
The drive’s media tray will
not open.
Are there other USB devices connected to the same port or hub?
Is the drive connected to a USB hub? A Hi-Speed USB 2.0 device can only operate at Hi-Speed USB 2.0
Is the drive connected to a Hi-Speed
USB 2.0 port on your computer?
Does your computer or operating
system support Hi-Speed USB 2.0?
Is the drive connected directly to the
host computer?
Have you tried dragging the disc’s
icon to the Trash?
Has a software program locked the
eject function?
Disconnect any other USB devices and see if the drive’s performance improves.
speeds if it is connected to a Hi-Speed USB 2.0 port or hub. Make
sure your USB hub supports Hi-Speed USB 2.0.
Make sure that the Hi-Speed USB 2.0 drivers for both your host
bus adapter and device have been installed correctly. If in doubt,
uninstall the drivers and re-install them.
See 1.1. Minimum System Requirements and 4.6. Data Transfers
for more information.
Make sure that your drive is connected directly to the computer (see
2. Connecting Your LaCie Slim DVD±RW for more information).
For best performance, connect devices directly to the computer. For
more information, see 4.6. Data Transfers.
Drag the disc icon onto the Trash icon. The disc should then eject
automatically. If this does not work, try using the eject function of
the software program that you are using.
To check, disconnect the interface cable, then reconnect and push
the Open/Close button. If the disc still will not eject, see section
3.4. Emergency Disc Ejection for more information on how to eject
your media.
Page 20
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 20
Problem Question Solution
The drive’s media tray
automatically ejects a disc
when you try to record on
it, or the drive is not writing to CD/DVD correctly.
Is the disc full? To verify the contents of the disc:
✦ Use your recording software OR
✦ Select the disc on the desktop and select Get Info from the
File menu. If the disc appears empty but the problem persists,
try using another piece of media.
Does the drive support the format of
the disc you have inserted?
Is the disc damaged? Carefully inspect the disc. Look to see if there are highly visible
Has the recording software been installed correctly?
Are you receiving buffer underrun errors (has something interrupted the
stream of data to the recorder)?
Check section 1.5. Supported DVD and CD Formats for information
about the different formats supported by your drive.
scratches to the recording surface (the bright, shiny, reflective side)
of the disc. If in doubt, try another disc.
Double-check the installation of your recording software and reinstall the software, if necessary. Review the recording software’s
troubleshooting and help sections for more information about the
recording software.
For the best recordings, follow these tips to avoid buffer underrun
interruptions:
✦ Quit all other running software programs before starting to
record.
✦ De-activate File Sharing if it is running.
✦ If you are making a direct recording, such as a copy, from a
CD or a DVD, make sure that the speed of the drive playing
the CD or DVD is fast enough to provide a sufficient data
stream to the LaCie drive. When making copies, it is recommended that you transfer the material to be copied to your
hard drive, and then make the recording from the data on the
hard drive.
✦ Reduce the write speed of the LaCie drive using the appropri-
ate menu in the recording software.
Page 21
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 21
5.2. Windows Users
Problem Question Solution
The drive is not recognized
by the computer.
Does your computer’s configuration
meet the minimum system requirements for use with this drive?
Is the drive receiving enough power
through your computer’s USB bus?
Did you follow the correct installation
steps?
Is there an icon for the drive in My
Computer?
Are both ends of the USB cable
securely attached?
See section 1.1. Minimum System Requirements.
The Slim DVD±RW may not be receiving sufficient power through
your computer’s USB bus. Please try attaching the additional USB
2.0 A connector (see 2.1. Connecting the USB 2.0 Y Cable) or an
optional external power supply (not included).
Review the installation steps in 2. Connecting Your LaCie Slim
DVD±RW.
Go into My Computer and look for an icon and drive letter assigned to the LaCie drive. If the drive does not appear, follow the
rest of the Troubleshooting tips to isolate the problem.
✦ Disconnect the USB cable, wait 10 seconds and then recon-
nect.
✦ Ensure that USB connectors are properly aligned. USB cables
can only be inserted one way. Make sure that they are correctly oriented.
✦ Check that the USB connectors are straight and fully seated
in the USB ports.
✦ Only use certified USB cables, such as the cables provided
with your LaCie drive.
Is there a conflict with other device
drivers or extensions?
Did you attach the primary USB 2.0
A plug?
If you have followed all of these steps and the drive is still not
recognized, shut down your computer, wait 3 to 5 minutes, restart
your computer and try again.
Contact LaCie Customer Support for assistance. See 6.1. LaCie
Technical Support Contacts.
Go to Start > Control Panel > Performance and Maintenance
> System > Hardware tab > Device Manager button > USB
Controller. Click on the + sign next to the controller icon, and you
should see your device listed.
If you still can’t see your device, recheck the cables and try the
other troubleshooting tips listed here.
The USB 2.0 Y cable that is shipped with the device has two USB
2.0 A plugs: the primary (without the lightning bolt sticker) and
the secondary (with the lightning bolt sticker). For most computers,
attaching the primary plug will allow for sufficient power and carry
the data signal. The secondary plug does not carry a data signal as
it is only meant to provide additional power when necessary.
continued on the next page>>
Page 22
LaCie Slim DVD±RW • Design by sam HecHt Troubleshooting
User Manual page 22
Problem Question Solution
The drive is not running
noticeably faster when
connected via Hi-Speed
USB 2.0.
The drive is working
slowly.
The drive’s media tray
automatically ejects a disc
when you try to record on
it, or the drive is not writing to CD/DVD correctly.
Are there other USB devices connected to the same port or hub?
Is the drive connected to a USB hub? A Hi-Speed USB 2.0 device can only operate at Hi-Speed USB 2.0
Is the drive connected to a Hi-Speed
USB 2.0 port on your computer?
Does your computer or operating
system support Hi-Speed USB 2.0?
Is the drive connected directly to the
host computer?
Is the disc full? To verify the contents of the disc:
Disconnect any other USB devices and see if the drive’s performance improves.
speeds if it is connected to a Hi-Speed USB 2.0 port or hub. Make
sure your USB hub supports Hi-Speed USB 2.0.
Make sure that the Hi-Speed USB 2.0 drivers for both your host
bus adapter and device have been installed correctly. If in doubt,
uninstall the drivers and re-install them.
See 1.1. Minimum System Requirements and 4.6. Data Transfers
for more information.
Make sure that your drive is connected directly to the computer (see
2. Connecting Your LaCie Slim DVD±RW for more information).
For best performance, connect devices directly to the computer. For
more information, see 4.6. Data Transfers.
✦ Use your recording software OR
✦ Select the disc on the desktop and select Get Info from the
File menu. If the disc appears empty but the problem persists,
try using another piece of media.
The drive’s media tray
automatically ejects a disc
when you try to record on
it, or the drive is not writing to CD/DVD correctly.
Does the drive support the format of
the disc you have inserted?
Is the disc damaged? Carefully inspect the disc. Look to see if there are highly visible
Has the recording software been
installed correctly?
Are you receiving buffer underrun
errors (has something interrupted the
stream of data to the recorder)?
Check section 1.5. Supported DVD and CD Formats for information
about the different formats supported by your drive.
scratches to the recording surface (the bright, shiny, reflective side)
of the disc. If in doubt, try another disc.
Double-check the installation of your recording software and reinstall the software, if necessary. Review the recording software’s
troubleshooting and help sections for more information about the
recording software.
For the best recordings, follow these tips to avoid buffer underrun
interruptions:
✦ Quit all other running software programs before starting to
record.
✦ De-activate File Sharing if it is active.
✦ If you are making a direct recording, such as a copy, from a
CD or a DVD, make sure that the speed of the drive playing
the CD or DVD is fast enough to provide a sufficient data
stream to the LaCie drive. When making copies, it is recommended that you transfer the material to be copied to your
hard drive, and then make the recording from the data on
the hard drive.
✦ Reduce the write speed of the LaCie drive using the appropri-
ate menu in the recording software.
Page 23
LaCie Slim DVD±RW • Design by sam HecHt Contacting Customer Support
User Manual page 23
6. Contacting Customer Support
Before You Contact Technical Support
1. Read the manuals and review section 5. Troubleshooting.
2. Try to isolate the problem. If possible, make the drive the only
external device on the CPU, and make sure that all of the cables
are correctly and securely attached.
If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t get your LaCie drive to work
properly, contact us at www.lacie.com. Before contacting us, make
sure that you are in front of your computer and that you have the
following information on hand:
Information Where to Find Information
LaCie Slim DVD±RW serial number Located on a sticker at the back of drive or on the original packaging
Macintosh/PC model Mac users: Click on the Apple icon in the menu bar and select About This
Operating system version
Processor speed
Computer memory
The brands and models of other internal and external
peripherals installed on your computer
Mac.
Windows users: Right click My Computer and select Properties > General.
Mac users: Click on the Apple icon in the finder bar and select About This
Mac. Select More Info... The Apple System Profiler will launch and will list your
internal and external peripherals.
Windows users: Right click My Computer and select Properties > Hardware.
Page 24
LaCie Slim DVD±RW • Design by sam HecHt Contacting Customer Support
User Manual page 24
6.1. LaCie Technical Support Contacts
LaCie Asia
Contact us at:
http://www.lacie.com/asia/contact/
LaCie Belgium
Contact us at:
http://www.lacie.com/be/contact/ (Français)
LaCie Denmark
Contact us at:
http://www.lacie.com/dk/contact
LaCie France
Contact us at:
http://www.lacie.com/fr/contact/
LaCie Italy
Contact us at:
http://www.lacie.com/it/contact/
LaCie Netherlands
Contact us at:
http://www.lacie.com/nl/contact/
LaCie Australia
Contact us at:
http://www.lacie.com/au/contact/
LaCie Canada
Contact us at:
http://www.lacie.com/caen/contact/ (English)
LaCie Finland
Contact us at:
http://www.lacie.com/fi/contact/
LaCie Germany
Contact us at:
http://www.lacie.com/de/contact/
Japan - ELECOM CO. LTD.
Contact us at:
http://www.lacie.com/jp
LaCie Norway
Contact us at:
http://www.lacie.com/no/contact/
LaCie Spain
Contact us at:
http://www.lacie.com/es/contact/
LaCie Switzerland
Contact us at:
http://www.lacie.com/chfr/contact/ (Français)
LaCie Ireland
Contact us at:
http://www.lacie.com/ie/contact/
LaCie International
Contact us at:
http://www.lacie.com/intl/contact/
LaCie Sweden
Contact us at:
http://www.lacie.com/se/contact
LaCie United Kingdom
Contact us at:
http://www.lacie.com/uk/contact/
LaCie USA
Contact us at:
http://www.lacie.com/contact/
Page 25
LaCie Slim DVD±RW • Design by sam HecHt Warranty Information
User Manual page 25
7. Warranty Information
LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective
within the warranty period, LaCie will, at its option, repair or replace
the defective drive.
This warranty is void if:
✦ The drive was operated/stored in abnormal use or mainte-
nance conditions;
✦ The drive is repaired, modified or altered, unless such repair,
modification or alteration is expressly authorized in writing by
LaCie;
✦ The drive was subjected to abuse, neglect, lightning strike,
electrical fault, improper packaging or accident;
✦ The drive was installed improperly;
✦ The serial number of the drive is defaced or missing;
✦ The broken part is a replacement part such as a pickup tray,
etc.
✦ The tamper seal on the drive casing is broken.
LaCie and its suppliers accept no liability for any loss of data during
the use of this device, or for any of the problems caused as a result.
As a precaution, it is recommended that the CD-R/RW, DVD-R/RW
and DVD+R/RW media be tested after they have been written to.
Under no circumstances do LaCie or its suppliers guarantee the reliability of the DVD or CD media used in this drive.
Note to Australian Customers
Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Contact us:
LaCie Australia, 458 Gardeners Road Alexandria, NSW 2015 AUSTRALIA.
Phone: 02 8063 3711
Email: [email protected]
For fast technical support, create a support ticket after registering
your product at http://www.lacie.com/au/register.
LaCie will not, under any circumstances, be liable for direct, special
or consequential damages such as, but not limited to, damage or
loss of property or equipment, loss of profits or revenues, cost of
replacement goods, or expense or inconvenience caused by service
interruptions.
Any loss, corruption or destruction of data while using a LaCie drive
is the sole responsibility of the user, and under no circumstances will
LaCie be held liable for the recovery or restoration of this data. Under no circumstances will any person be entitled to any sum greater
than the purchase price paid for the drive.
To obtain warranty service, call LaCie Technical Support. You may
be asked to furnish proof of purchase to confirm that the drive is still
under warranty.
All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.
IMPORTANT INFO: Register online for free technical support:
www.lacie.com/register
Loading...
