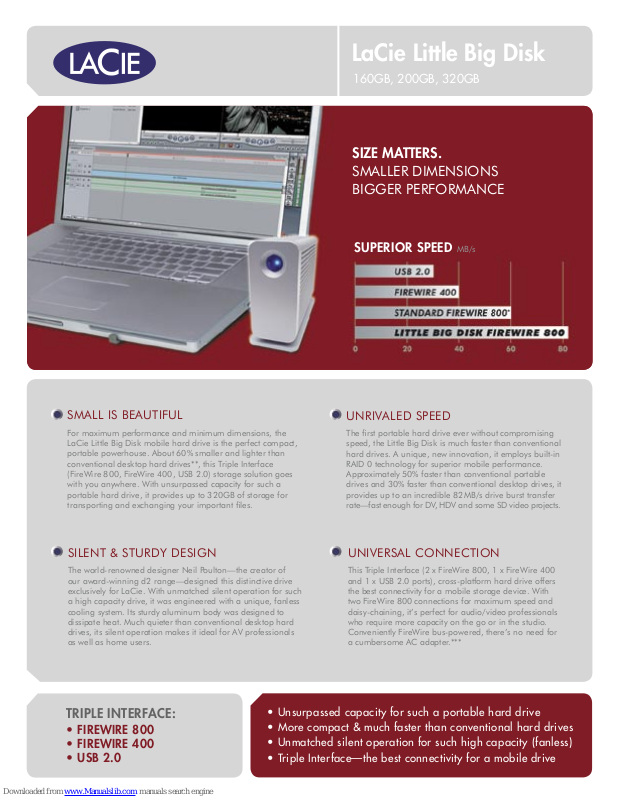

LaCie Little Big Disk
160GB, 200GB, 320GB
SIZE MATTERS.
SMALLER DIMENSIONS
BIGGER PERFORMANCE
SUPERIOR SPEED MB/s
SMALL IS BEAUTIFUL
For maximum performance and minimum dimensions, the
LaCie Little Big Disk mobile hard drive is the perfect compact,
portable powerhouse. About 60% smaller and lighter than
conventional desktop hard drives**, this Triple Interface
(FireWire 800, FireWire 400, USB 2.0) storage solution goes
with you anywhere. With unsurpassed capacity for such a
portable hard drive, it provides up to 320GB of storage for
transporting and exchanging your important fi les.
SILENT & STURDY DESIGN
The world-renowned designer Neil Poulton—the creator of
our award-winning d2 range—designed this distinctive drive
exclusively for LaCie. With unmatched silent operation for such
a high capacity drive, it was engineered with a unique, fanless
cooling system. Its sturdy aluminum body was designed to
dissipate heat. Much quieter than conventional desktop hard
drives, its silent operation makes it ideal for AV professionals
as well as home users.
UNRIVALED SPEED
The fi rst portable hard drive ever without compromising
speed, the Little Big Disk is much faster than conventional
hard drives. A unique, new innovation, it employs built-in
RAID 0 technology for superior mobile performance.
Approximately 50% faster than conventional portable
drives and 30% faster than conventional desktop drives, it
provides up to an incredible 82MB/s drive burst transfer
rate—fast enough for DV, HDV and some SD video projects.
UNIVERSAL CONNECTION
This Triple Interface (2 x FireWire 800, 1 x FireWire 400
and 1 x USB 2.0 ports), cross-platform hard drive offers
the best connectivity for a mobile storage device. With
two FireWire 800 connections for maximum speed and
daisy-chaining, it’s perfect for audio/video professionals
who require more capacity on the go or in the studio.
Conveniently FireWire bus-powered, there’s no need for
a cumbersome AC adapter.***
TRIPLE INTERFACE:
• FIREWIRE 800
• FIREWIRE 400
• USB 2.0
• Unsurpassed capacity for such a portable hard drive
• More compact & much faster than conventional hard drives
• Unmatched silent operation for such high capacity (fanless)
• Triple Interface—the best connectivity for a mobile drive
Page 2
FEATURES
• Built-in RAID 0 for audio-video pros
• FireWire 800, FireWire 400, USB 2.0
• 16MB cache
• Up to 7200rpm
• Driver-free for Windows 2000/XP, Mac OS X
• FireWire bus-powered
• Bootable in FireWire for Macintosh
®
• Up to 800Mbits/s per bus
• Fast enough for DV, HDV & some SD video
• Unique, silent fanless cooling system
• Stand upright or stack horizontally
PACKAGE CONTENTS
• LaCie Little Big Disk
• FireWire 800 (9-to-9 pin) cable
• FireWire 400 (6-to-6 pin) cable
• Hi-Speed USB 2.0 cable (USB 1.1 compatible)
• AC Power Adaptor Kit*** (includes AC adaptor and local power adaptor)
• Quick Install Guide
• Removable Drive Stand Foot Kit
• LaCie Utilities CD-ROM including: User Manual, LaCie ‘1-Click’ Backup
Software, Silverkeeper, Silverlining Pro Utilities
LaCie Little Big Disk
rotational speed
interface transfer rate
drive burst transfer rate
min. system requirements
dimensions (WxHxD)
item number
capacity****
interface
cache size
fan
software
weight
security
warranty
301088 301089 301092
160GB 200GB 320GB
2 x FireWire 800, 1 x FireWire 400, 1 x Hi Speed USB 2.0 ports
5400rpm 7200rpm 5400rpm
16MB
FireWire 800: up to 800Mbits/s (100MB/s); Hi-Speed USB 2.0: up to 480Mbits/s (60MB/s)
FireWire 400: up to 400Mbits/s (50MB/s)
FireWire 800: up to 82MB/s; Hi-Speed USB 2.0: up to 34MB/s;
FireWire 400: up to 41MB/s
fan-free operation
Mac OS 10.x/Mac OS 9.x or Windows 2000/Windows XP; Intel Pentium II 350 MHz compatible
processor or greater or Mac G3, G4, G5 processor or greater; minimum 128MB RAM
LaCie ‘1-Click’ Backup Software (Windows XP/2000 or greater; Mac OS 10.2 or greater);
SilverKeeper™ Backup Utilities (Mac OS 9, Mac OS X); Driver-free for Windows 2000, Windows XP
or Mac OS X; Silverlining® Pro Drive Management Utilities (Mac OS 9.x)
1.4 lbs / 650 g
1.6 x 3.3 x 5.5 in. / 40 x 85 x 140 mm
KensingtonTM Chain Lock compatible
1 year limited
*Maximum performance using FireWire 800 connection when tested and compared with LaCie fi rst generation FireWire 800 drives.
**When compared, for instance, to its “big” brother—LaCie d2 Hard Drive.
***The AC Power Adaptor Kit is for iLink and USB users only.
****1GB (gigabyte) = 1 billion bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less).
© 2006, LaCie. The LaCie logo is a trademark of LaCie Limited.
Other products and brand names mentioned herein may be trademarks or registered trademarks of their respective owners.
