LaCie Black RECORD User Manual

Download
Page 1

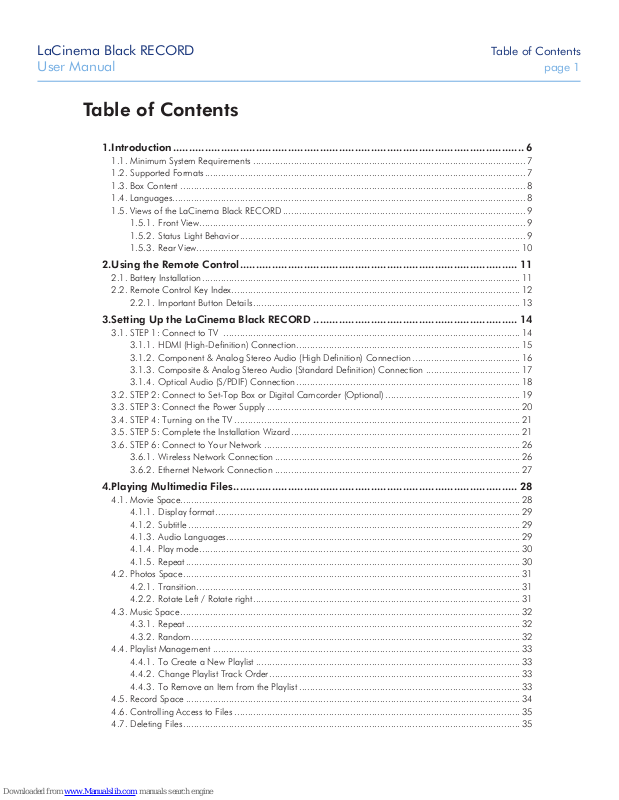

LaCinema Black RECORD Table of Contents
User Manual page 1
Table of Contents
1. Introduction .............................................................................................................. 6
1.1. Minimum System Requirements ..................................................................................................... 7
1.2. Supported Formats ....................................................................................................................... 7
1.3. Box Content ................................................................................................................................ 8
1.4. Languages................................................................................................................................... 8
1.5. Views of the LaCinema Black RECORD .......................................................................................... 9
1.5.1. Front View ......................................................................................................................... 9
1.5.2. Status Light Behavior .......................................................................................................... 9
2. Using the Remote Control ....................................................................................... 11
2.1. Battery Installation ...................................................................................................................... 11

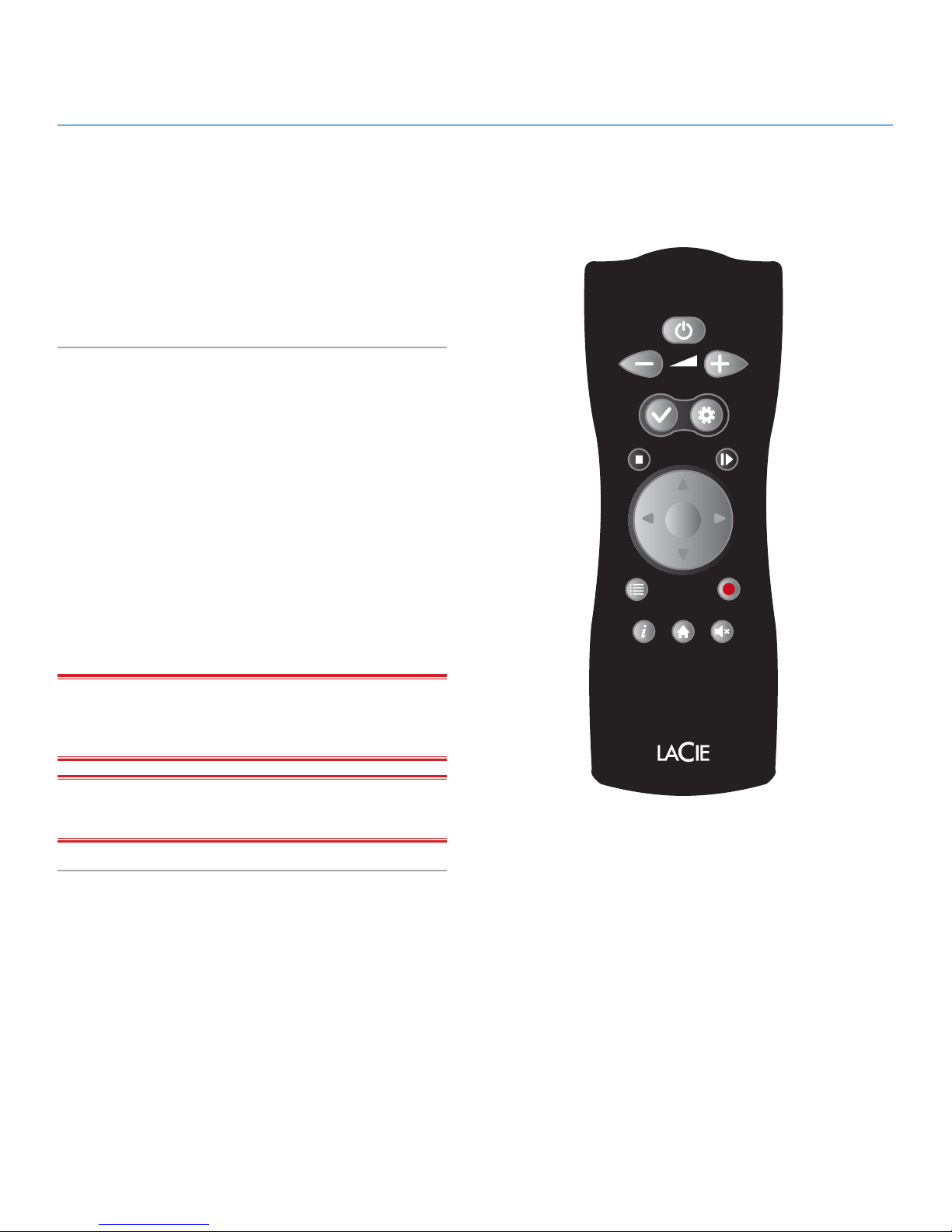

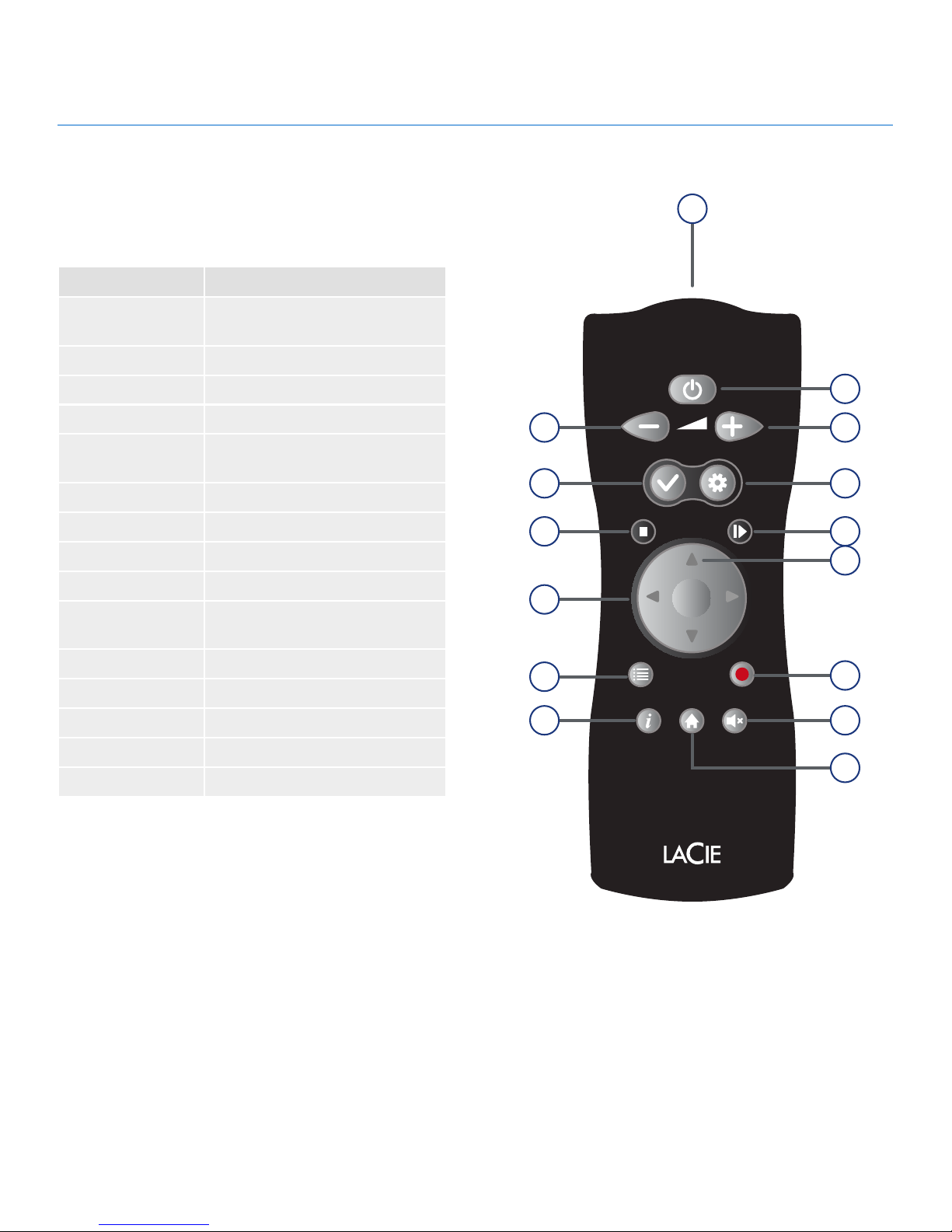

2.2. Remote Control Key Index ........................................................................................................... 12
3. Setting Up the LaCinema Black RECORD ................................................................ 14

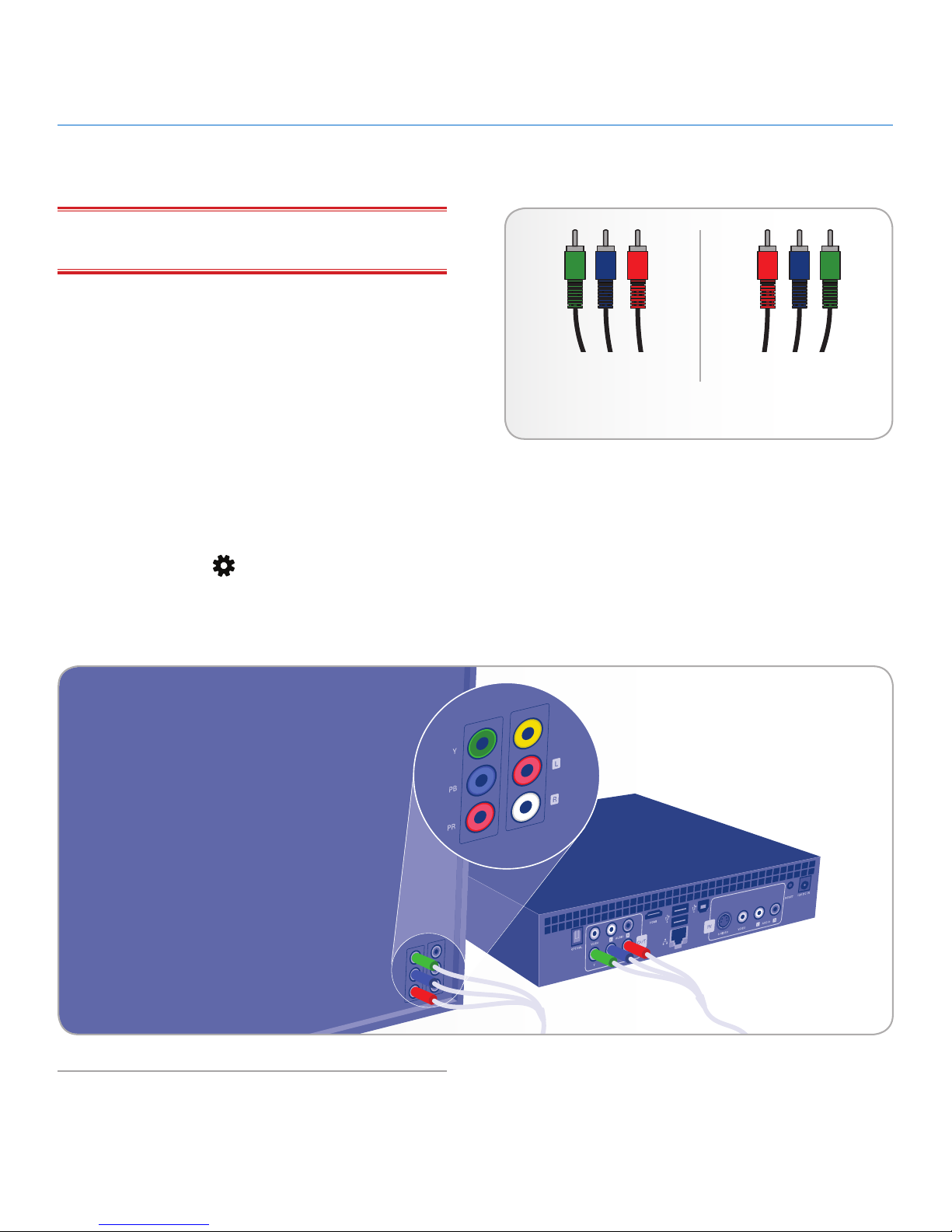

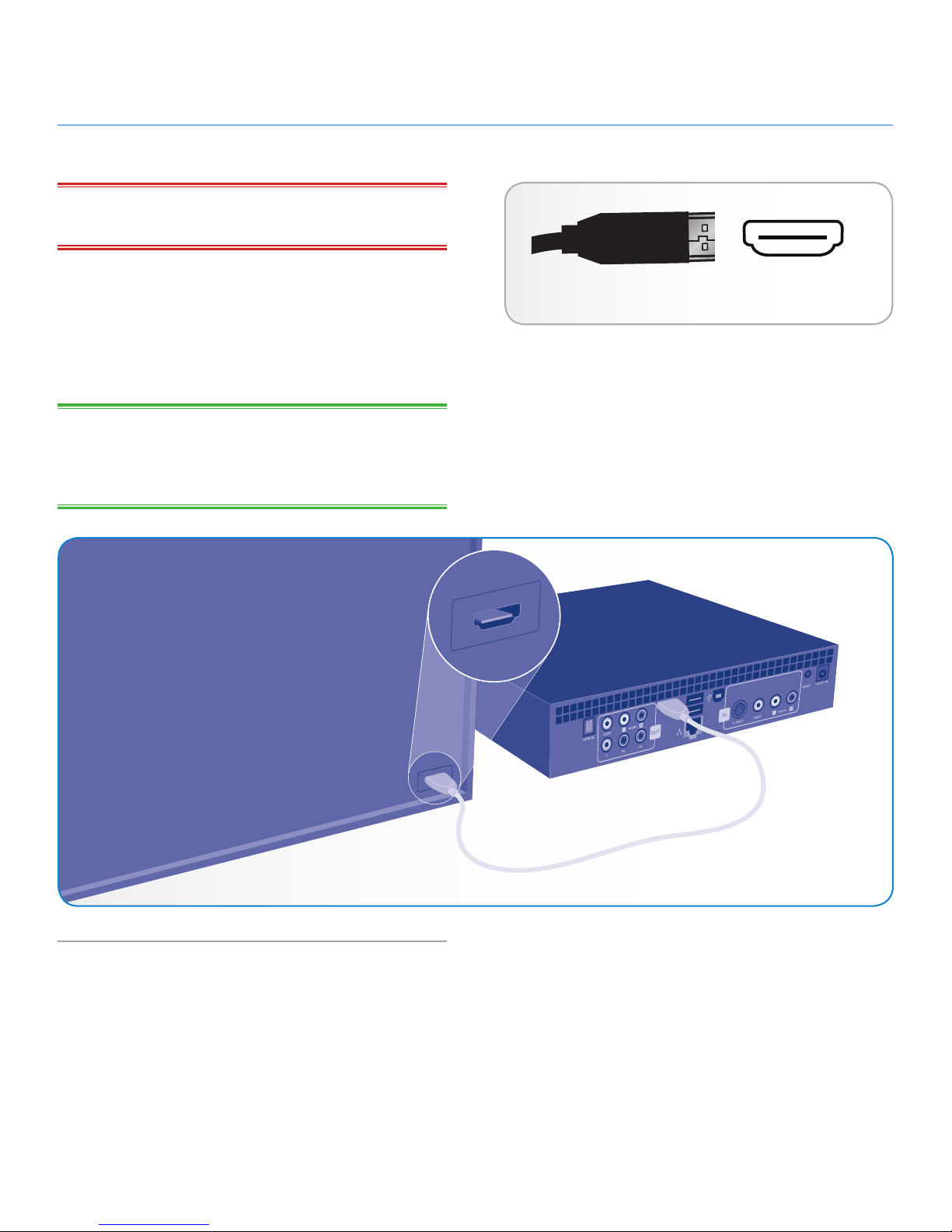

3.1. STEP 1: Connect to TV .............................................................................................................. 14
3.2. STEP 2: Connect to Set-Top Box or Digital Camcorder (Optional) .................................................. 19

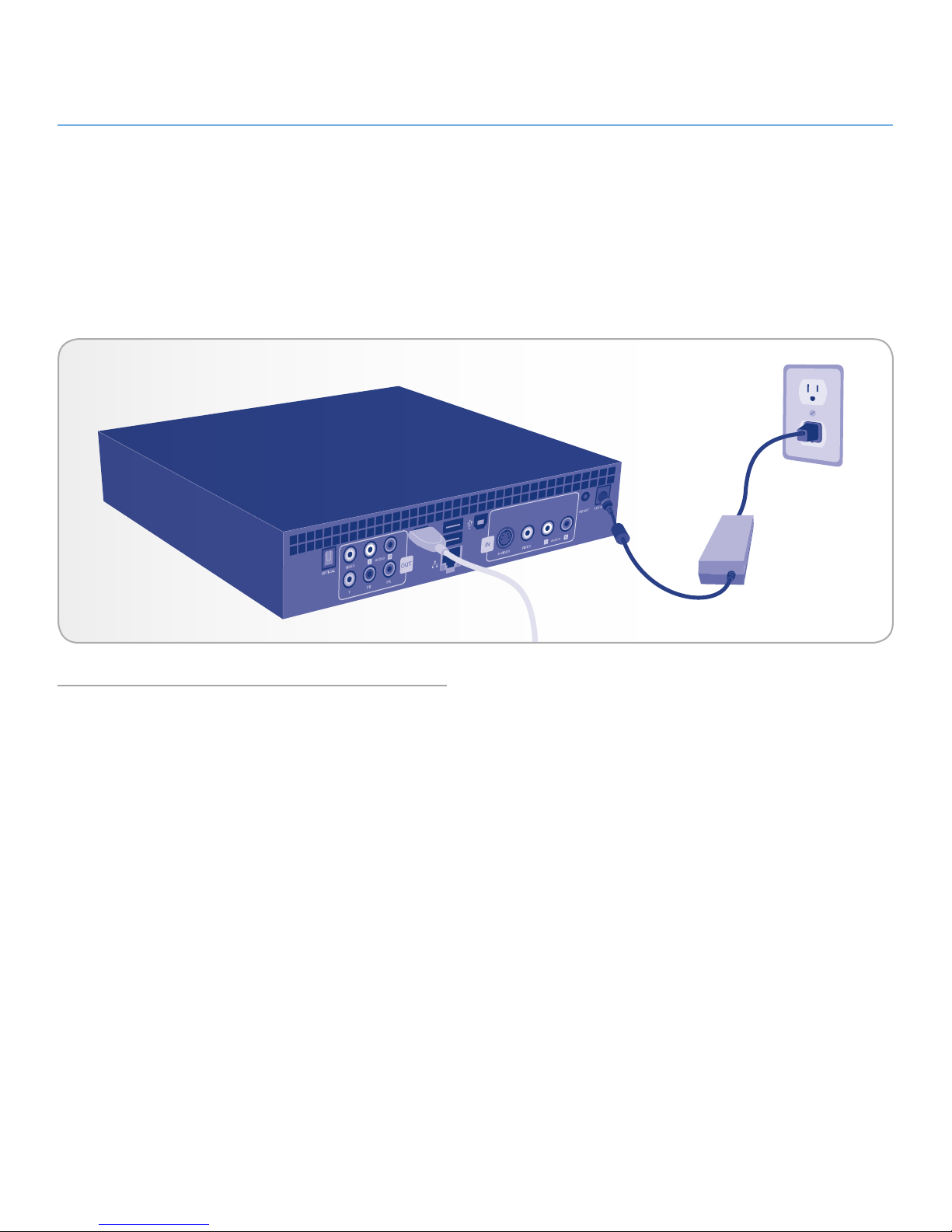

3.3. STEP 3: Connect the Power Supply .............................................................................................. 20

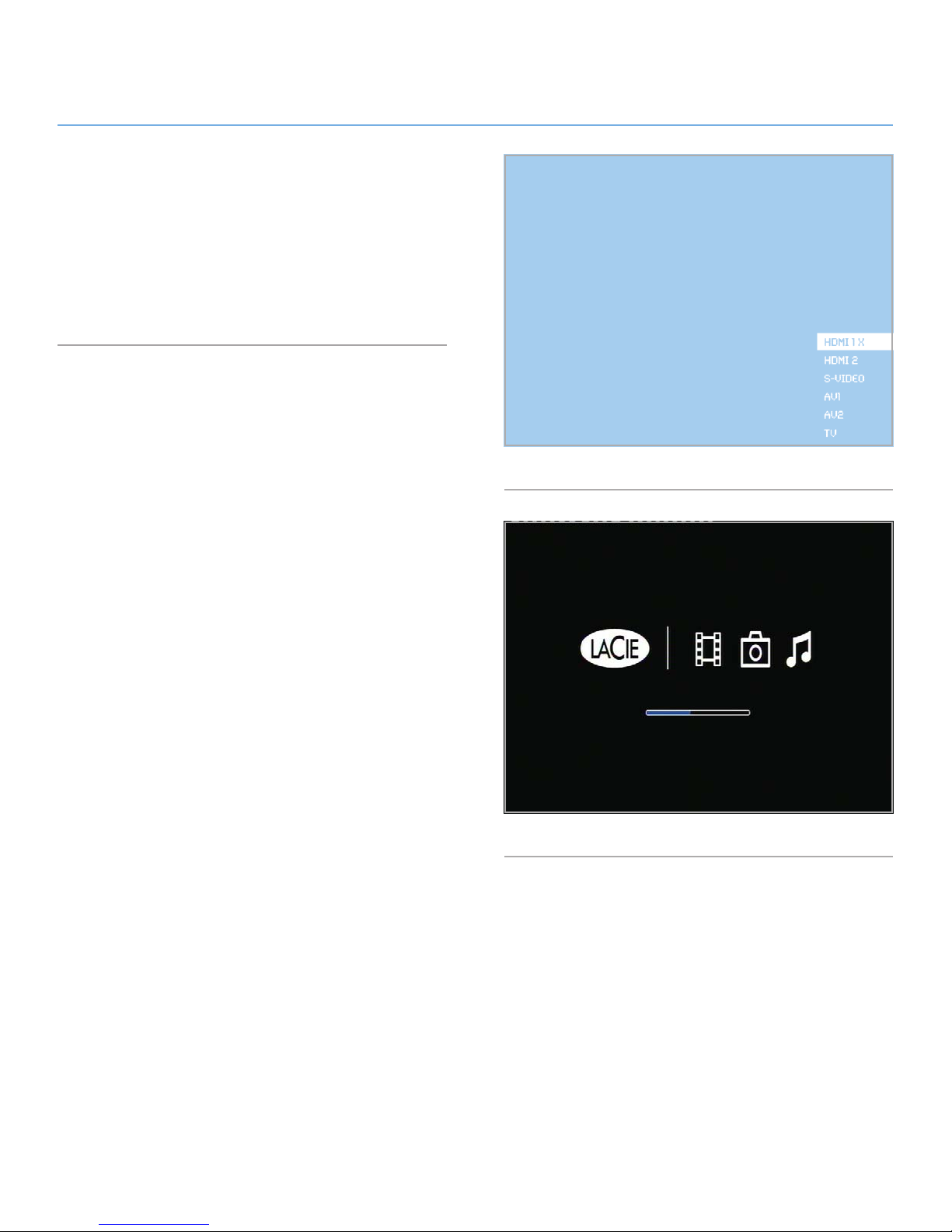

3.4. STEP 4: Turning on the TV .......................................................................................................... 21

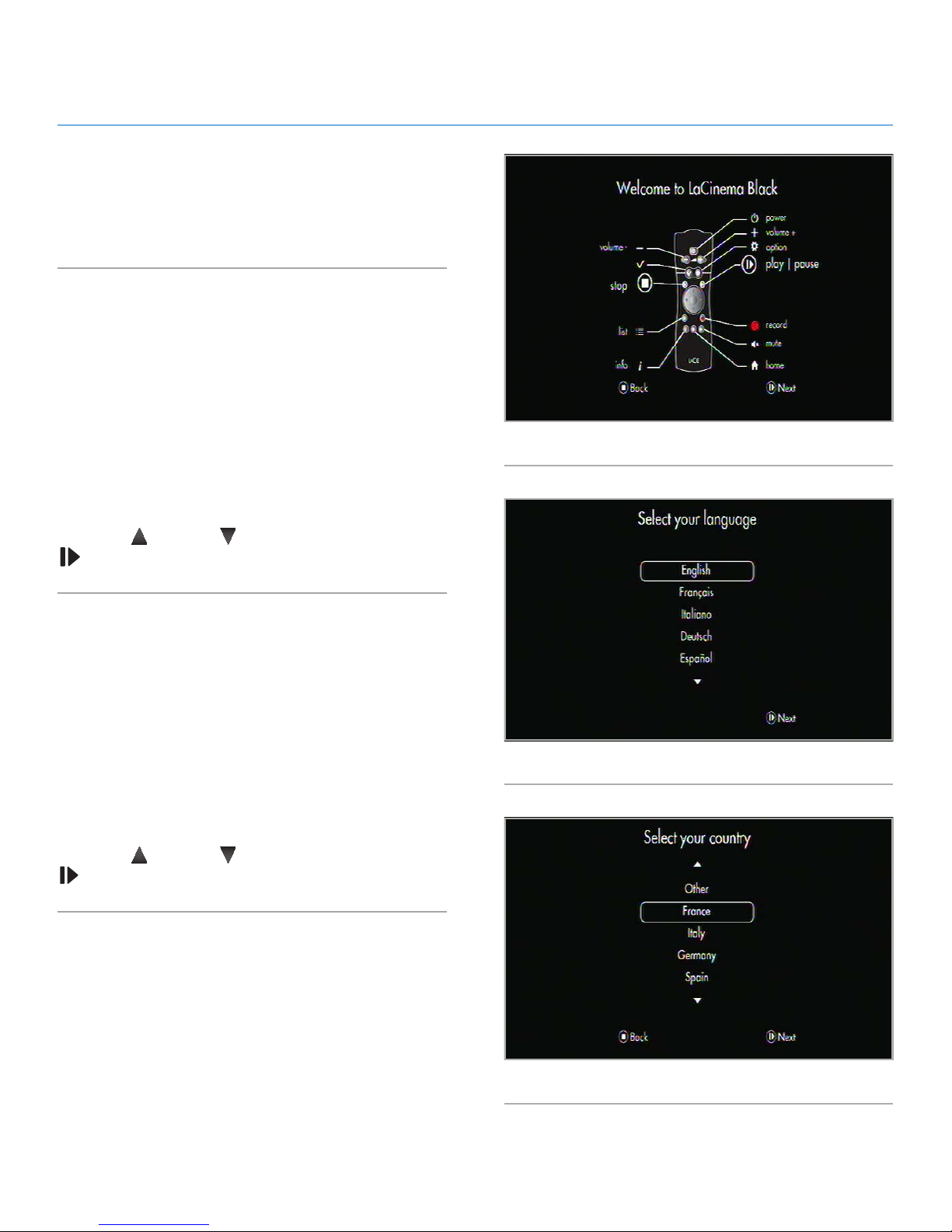

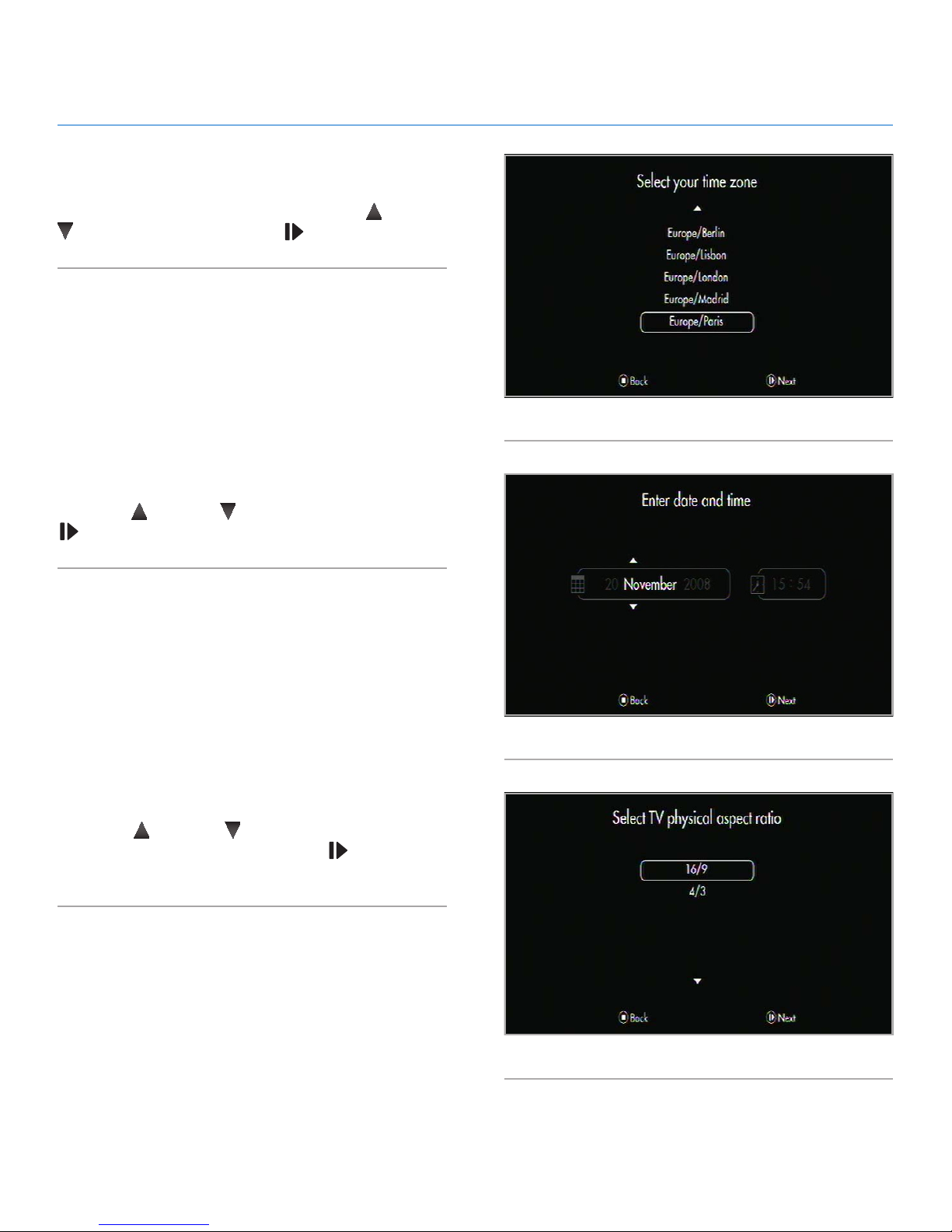

3.5. STEP 5: Complete the Installation Wizard ..................................................................................... 21

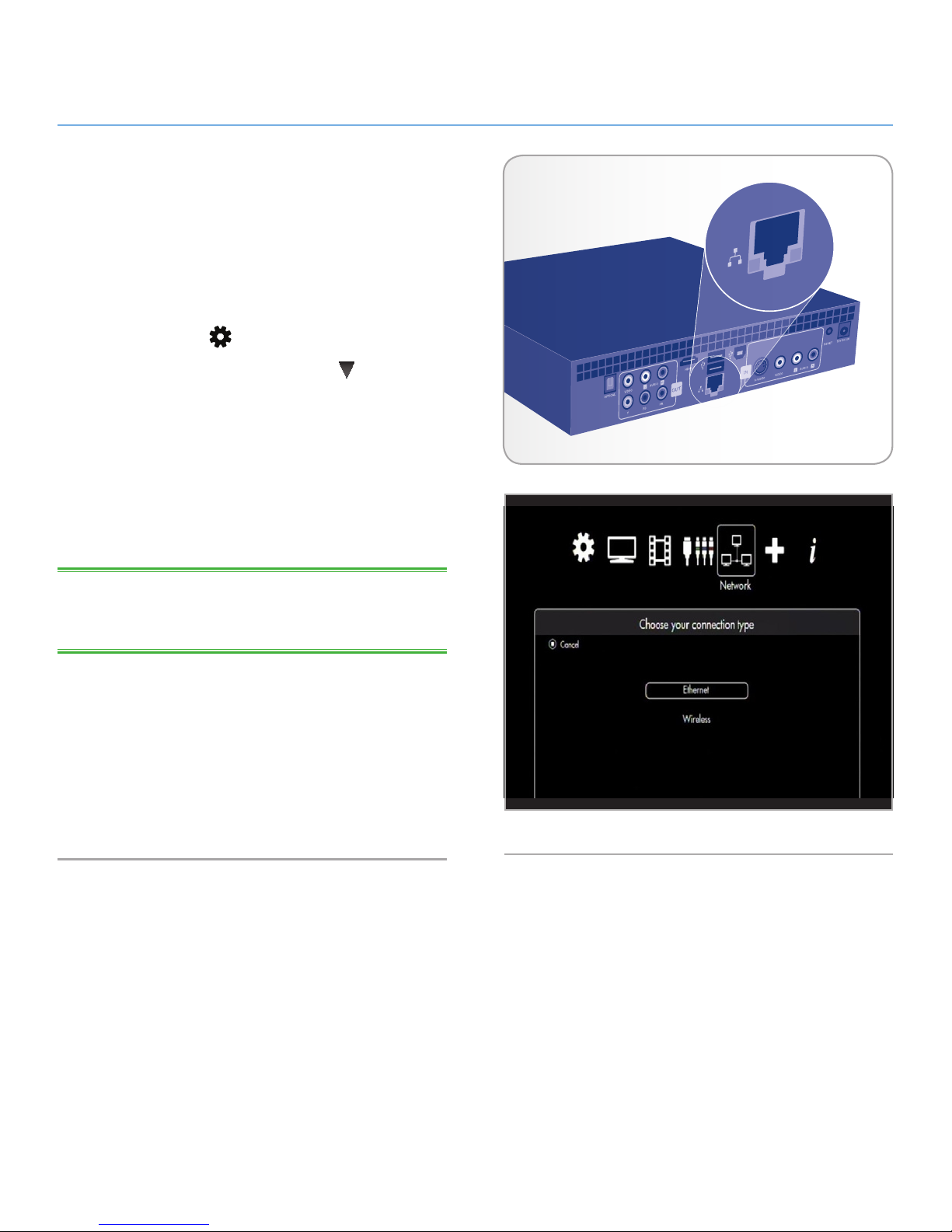

3.6. STEP 6: Connect to Your Network ............................................................................................... 26
4. Playing Multimedia Files ......................................................................................... 28

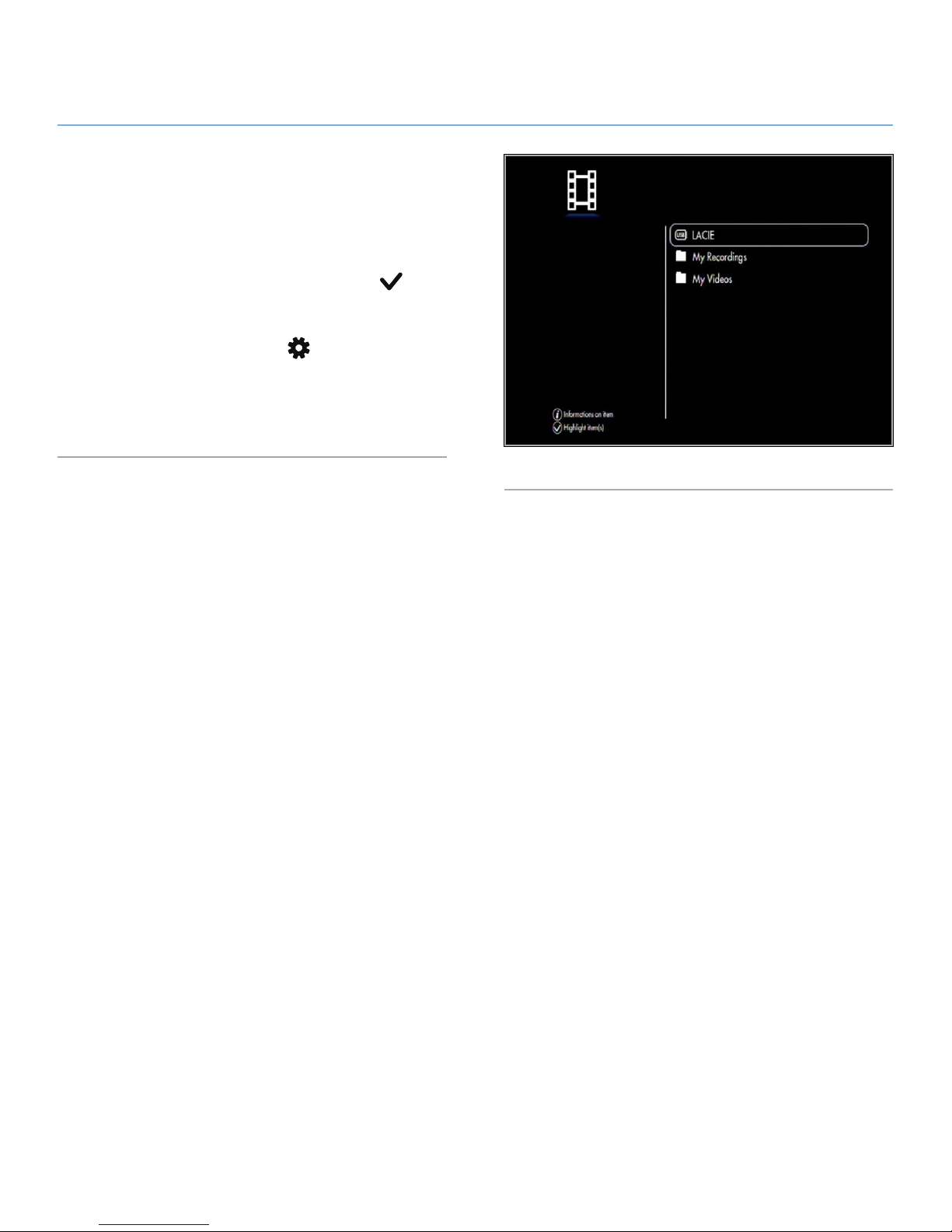

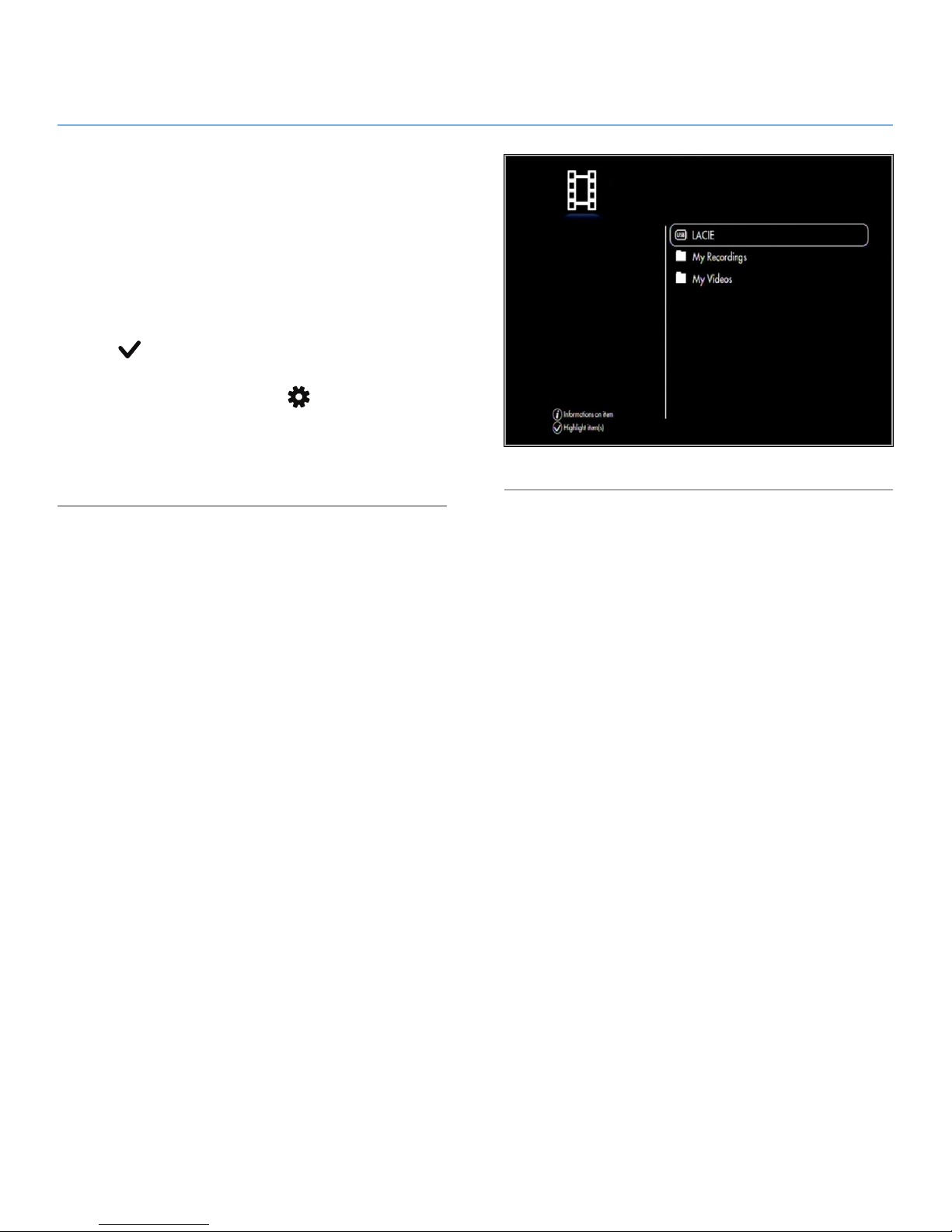

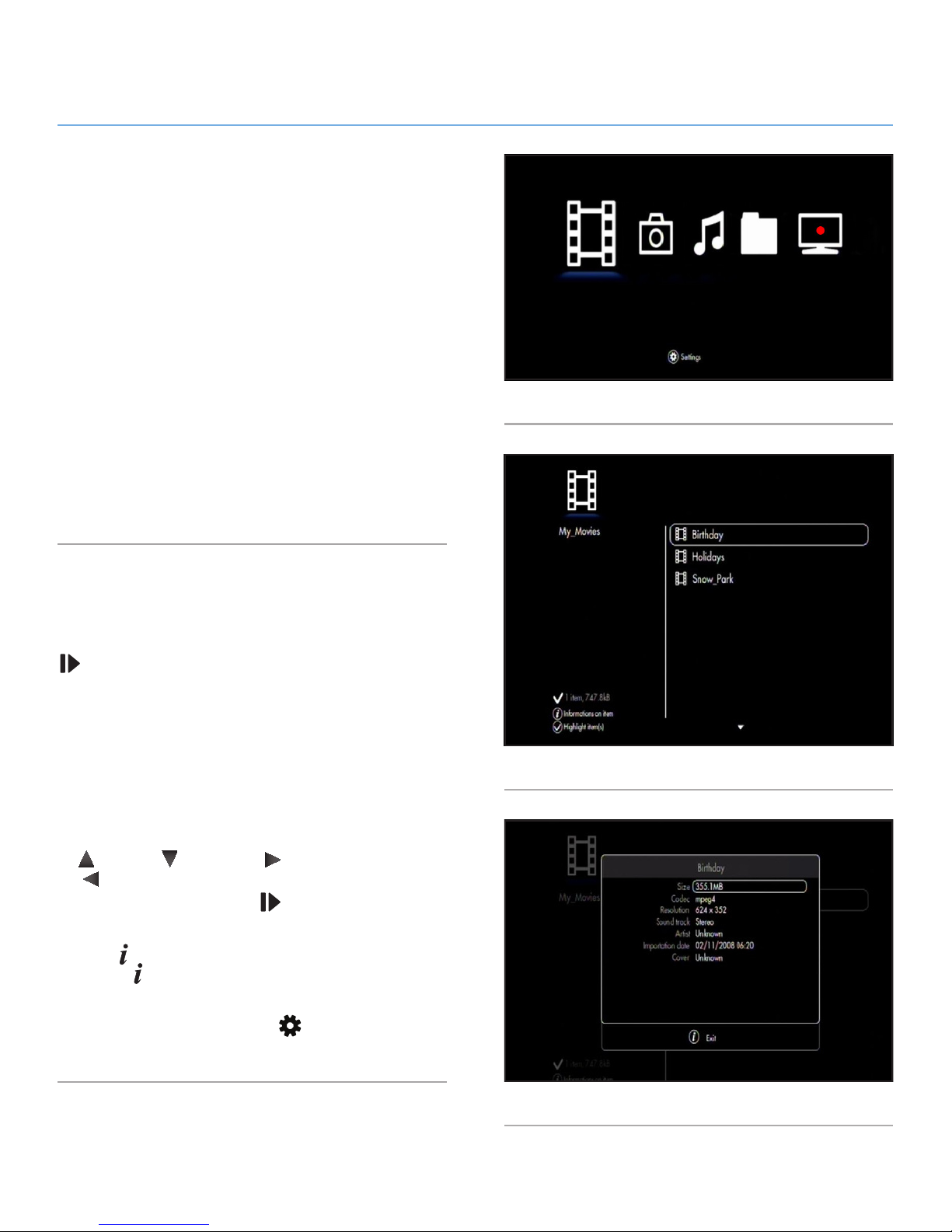

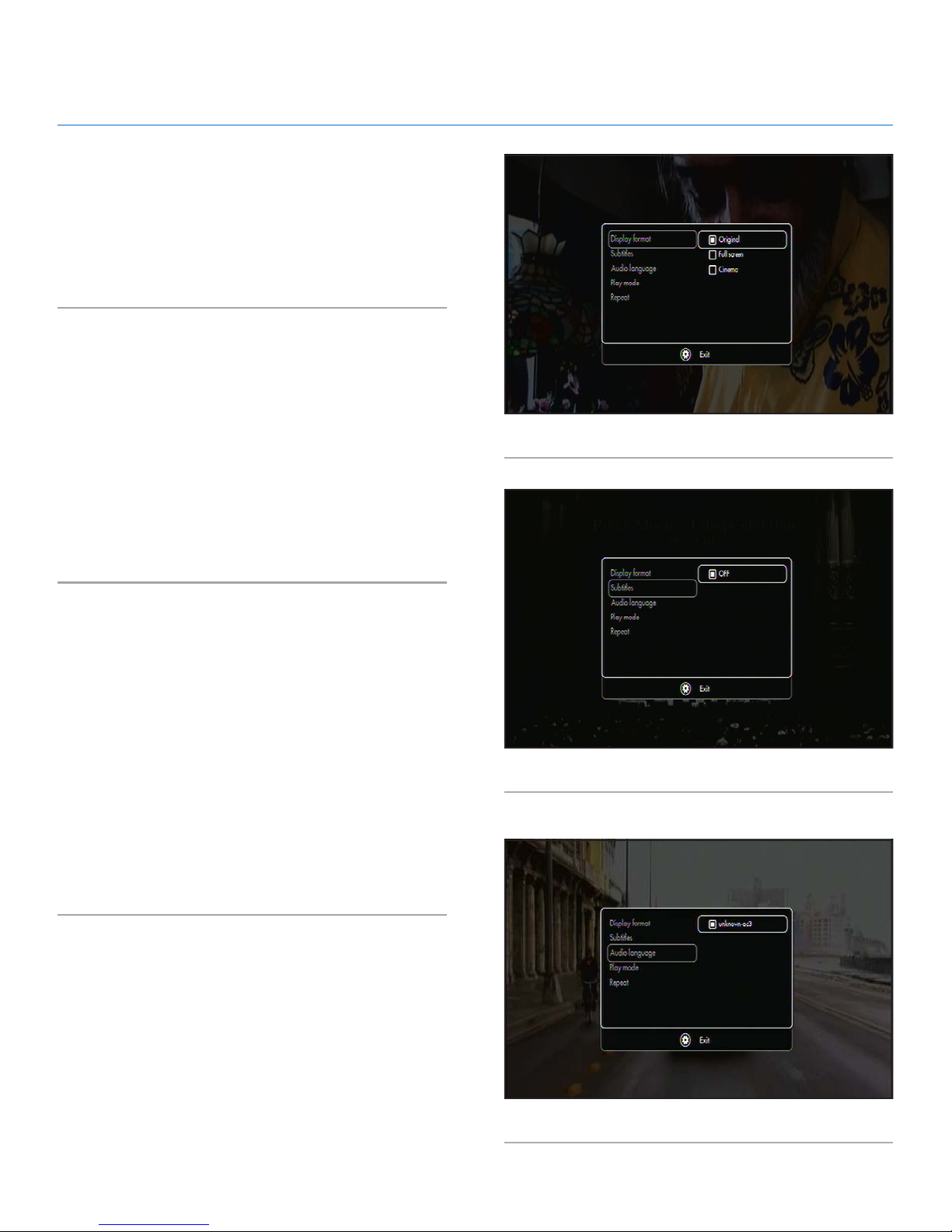

4.1. Movie Space.............................................................................................................................. 28

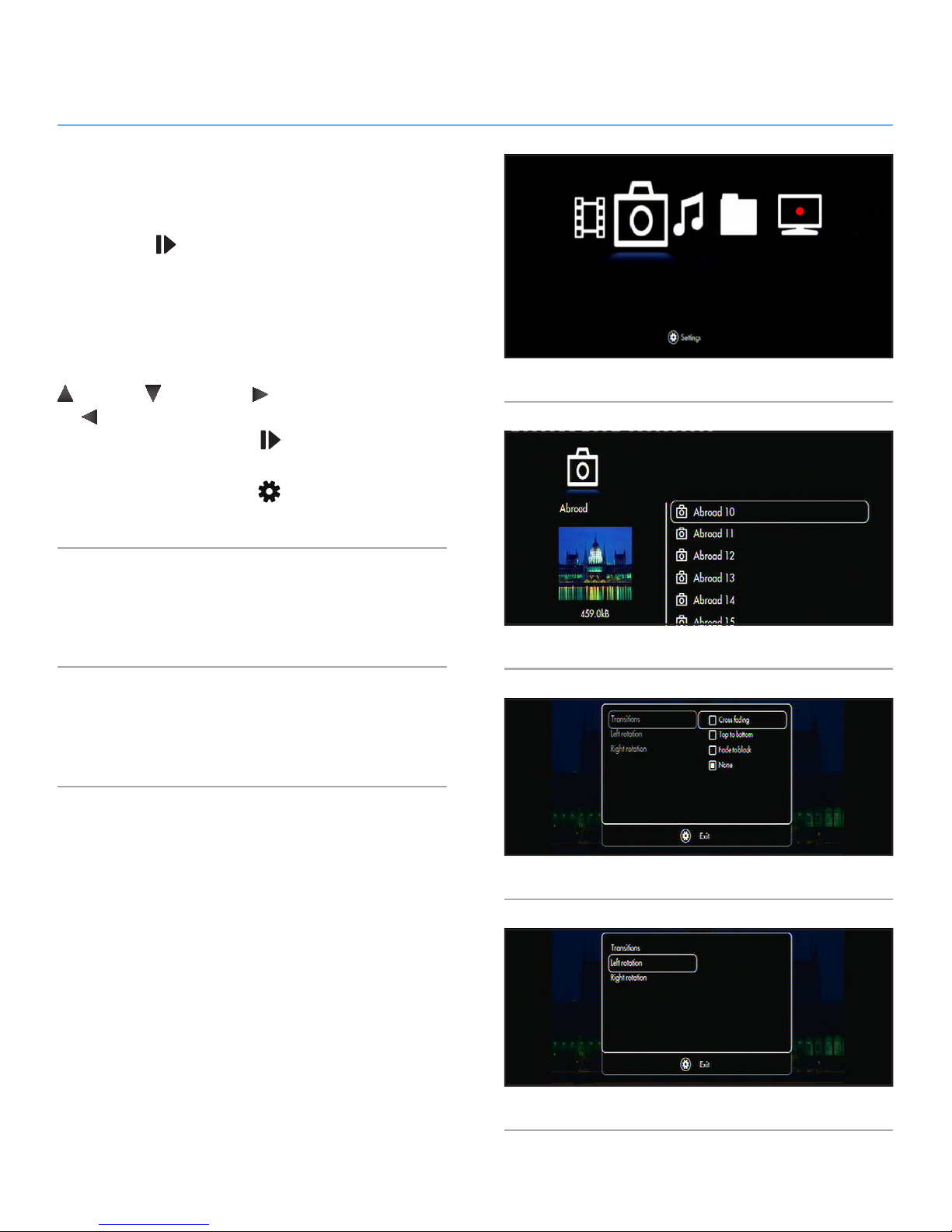

4.2. Photos Space ............................................................................................................................. 31

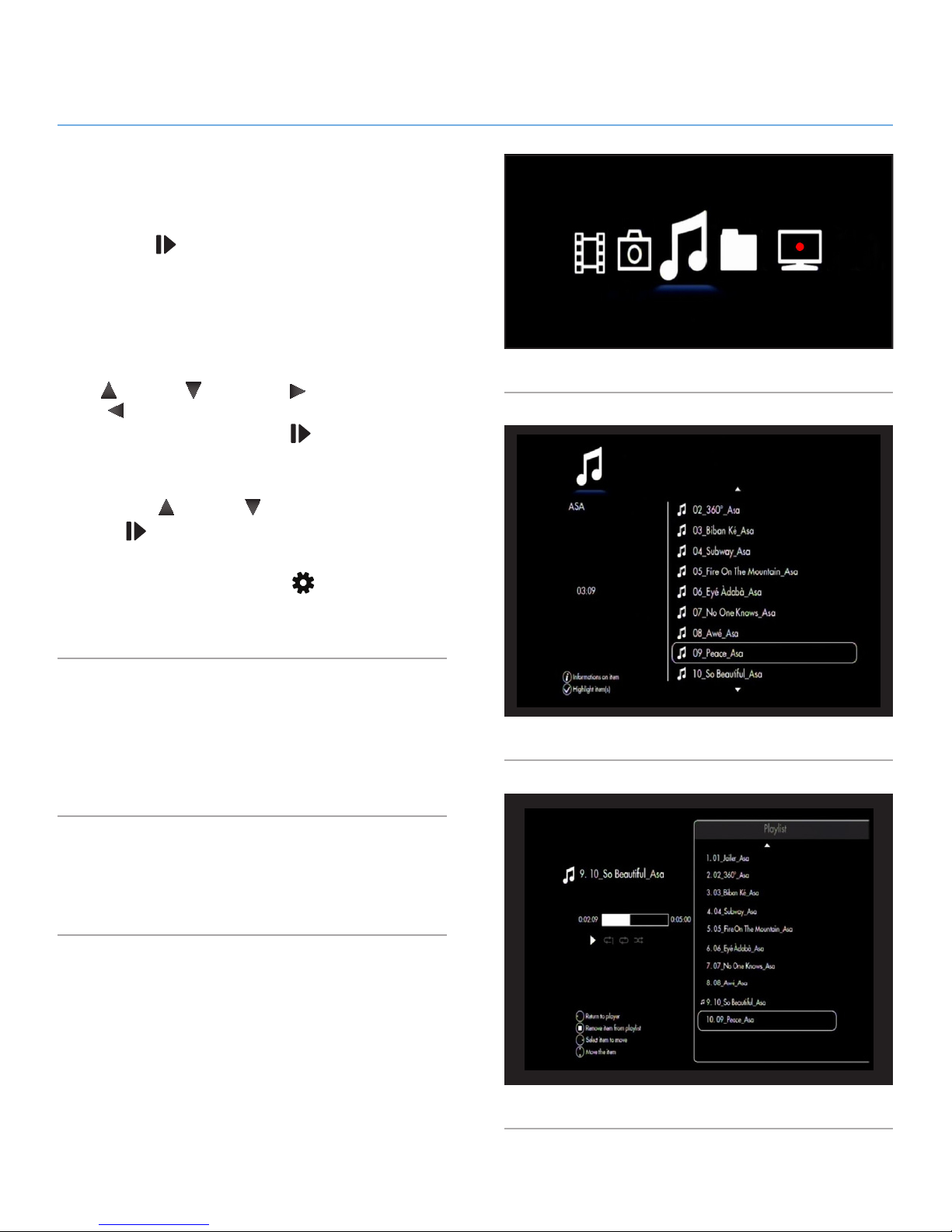

4.3. Music Space .............................................................................................................................. 32
4.4. Playlist Management .................................................................................................................. 33
4.5. Record Space ............................................................................................................................ 34
4.6. Controlling Access to Files .......................................................................................................... 35
4.7. Deleting Files ............................................................................................................................. 35
Page 2
LaCinema Black RECORD Table of Contents
User Manual page 2
5. Playing & Copying Files from External Sources ....................................................... 36

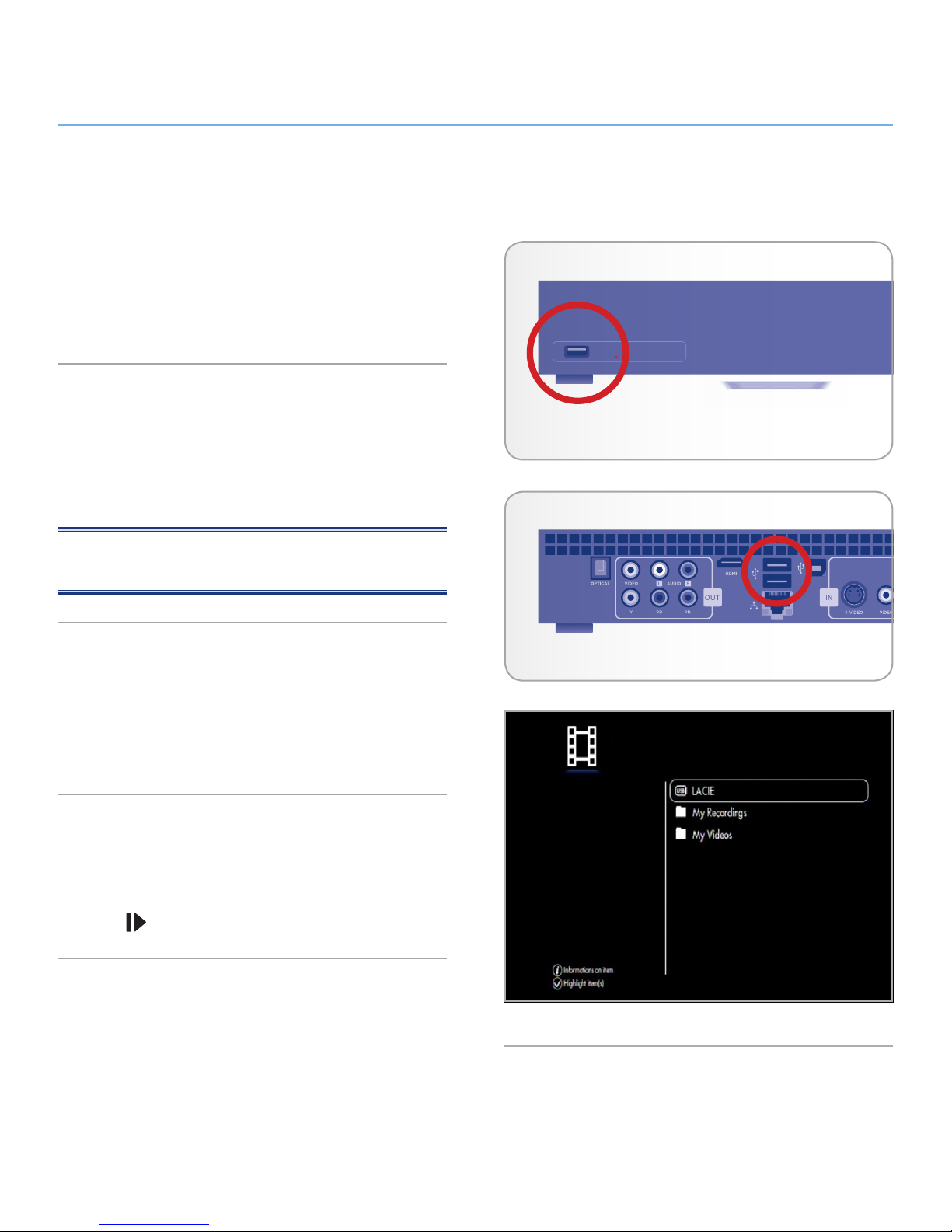

5.1. USB Hard Drive ......................................................................................................................... 36
5.2. Transferring Files via USB (Requires Windows Media Player 11) ..................................................... 38
5.3. Networked Media Server ............................................................................................................ 39
5.3.1.1. Playing Files ..................................................................................................... 39
5.3.1.2. Copying Files ................................................................................................... 39

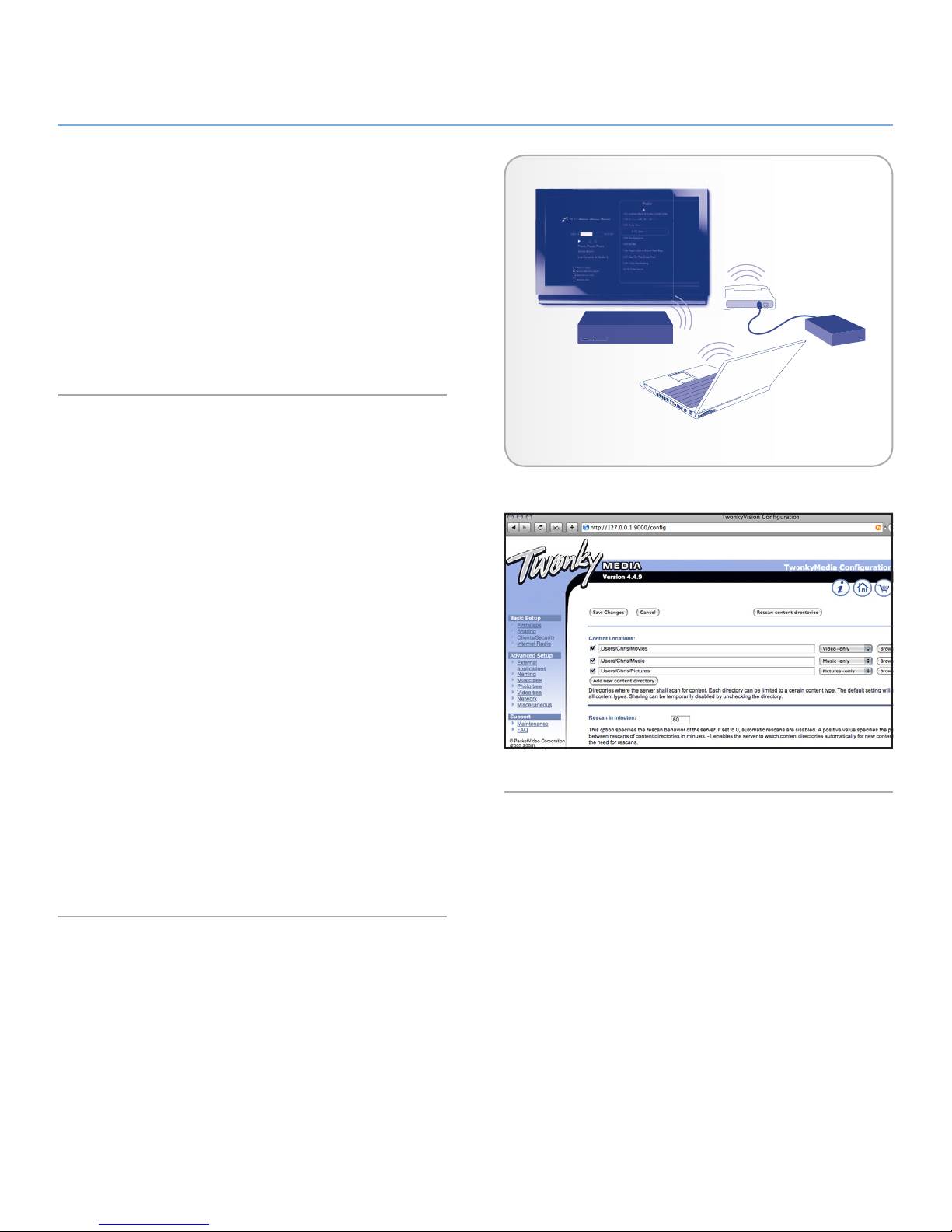

5.3.2.1. Playing Files Using TwonkyMedia Server (All users) .............................................. 40
5.3.2.2. Copying Files Using TwonkyMedia Server (All users) ............................................ 41

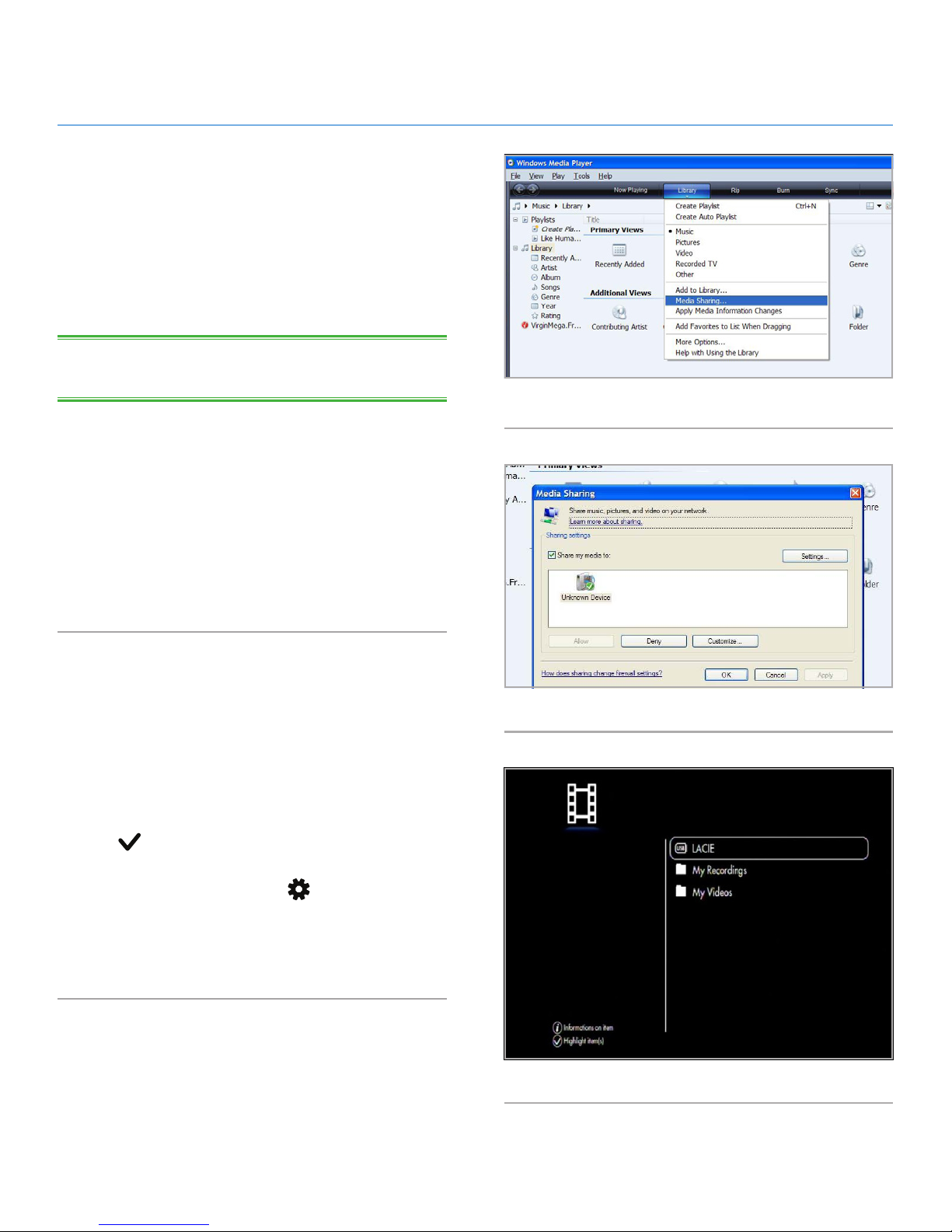

5.3.2.3. Playing Files via the Network Using Windows Media Player (Windows Only) .......... 42
5.3.2.4. Copying Files via the Network Using Windows Media Player (Windows Only) ........ 42

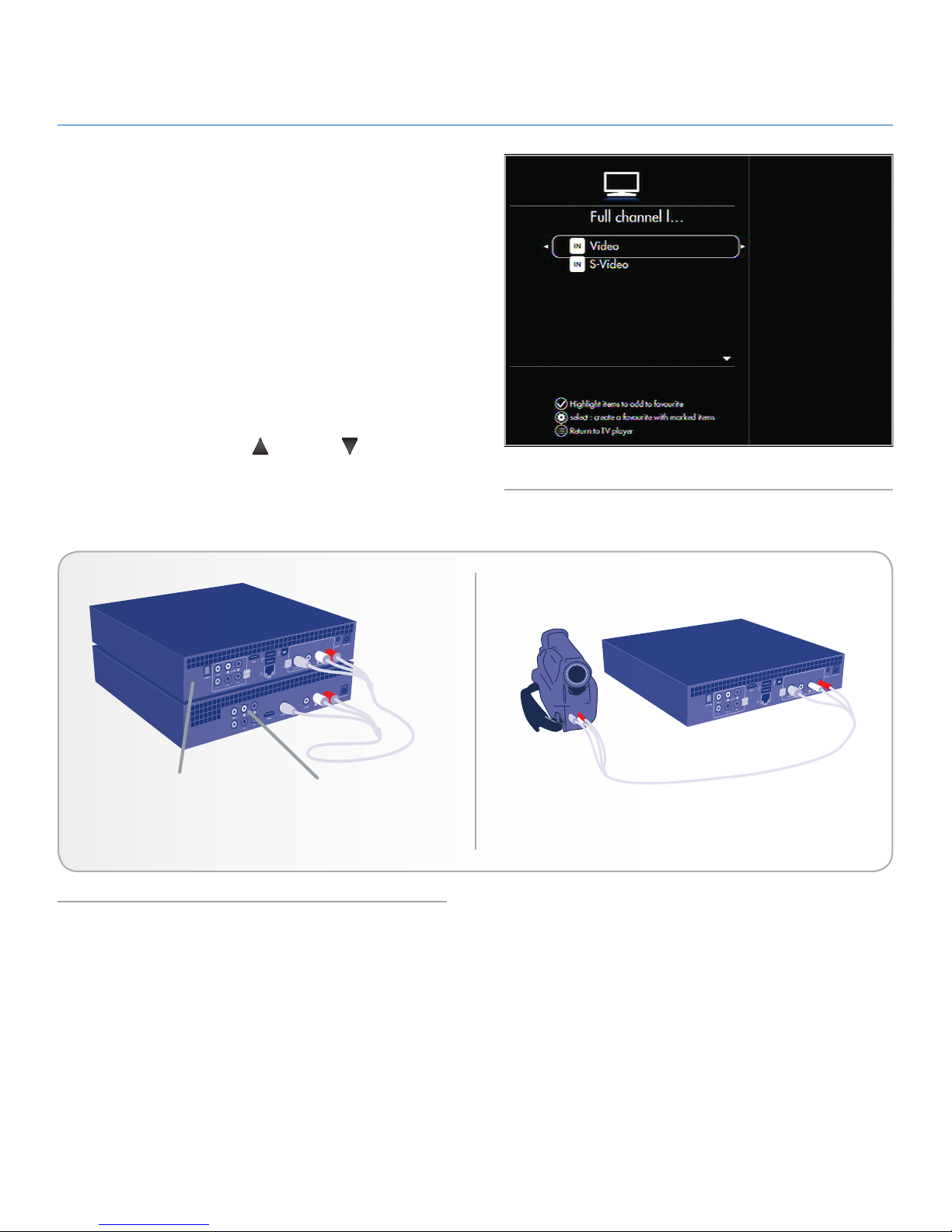

6. Capturing Video from a TV or Camcorder .............................................................. 43
6.1. Connect the External Video Source .............................................................................................. 43

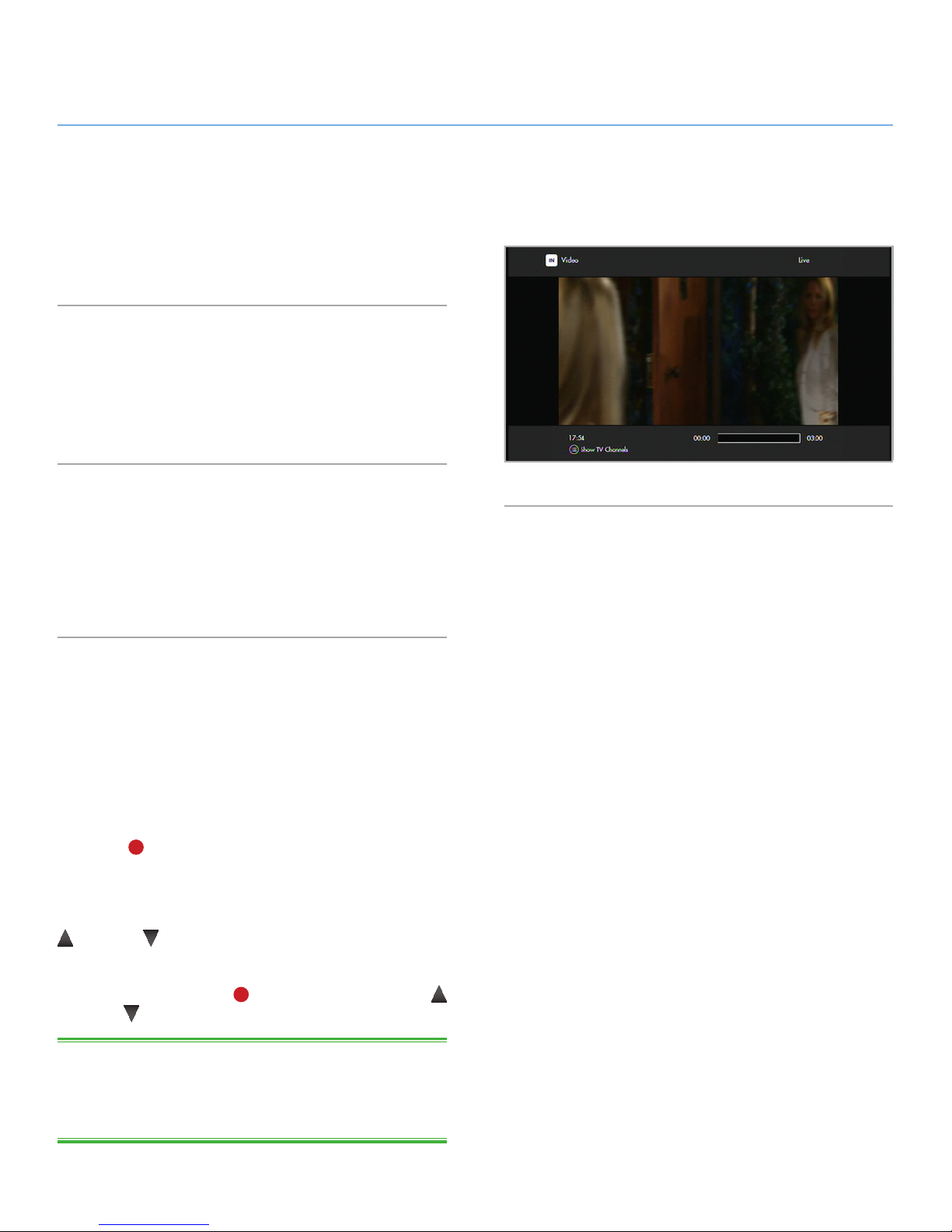

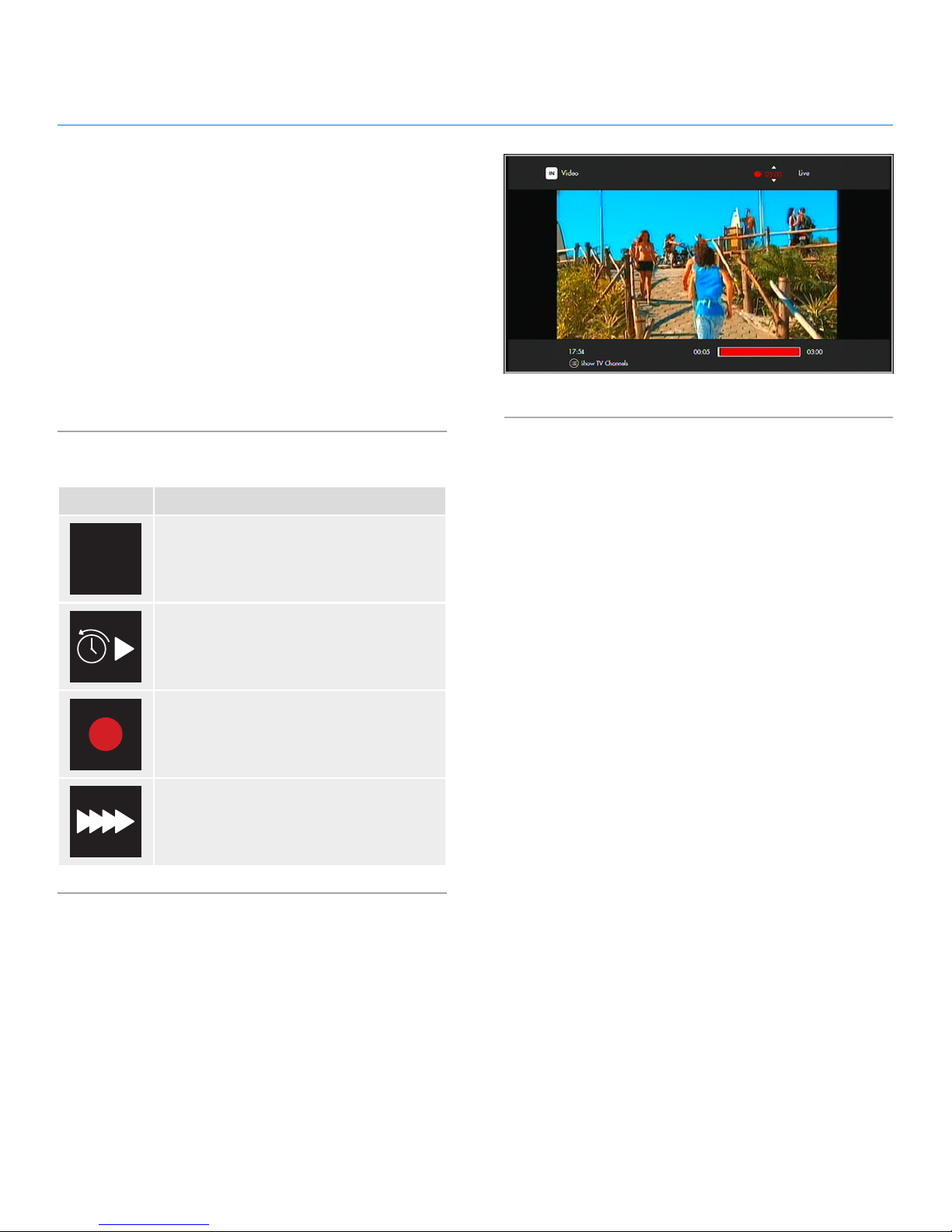

6.2. Recording Video ........................................................................................................................ 43

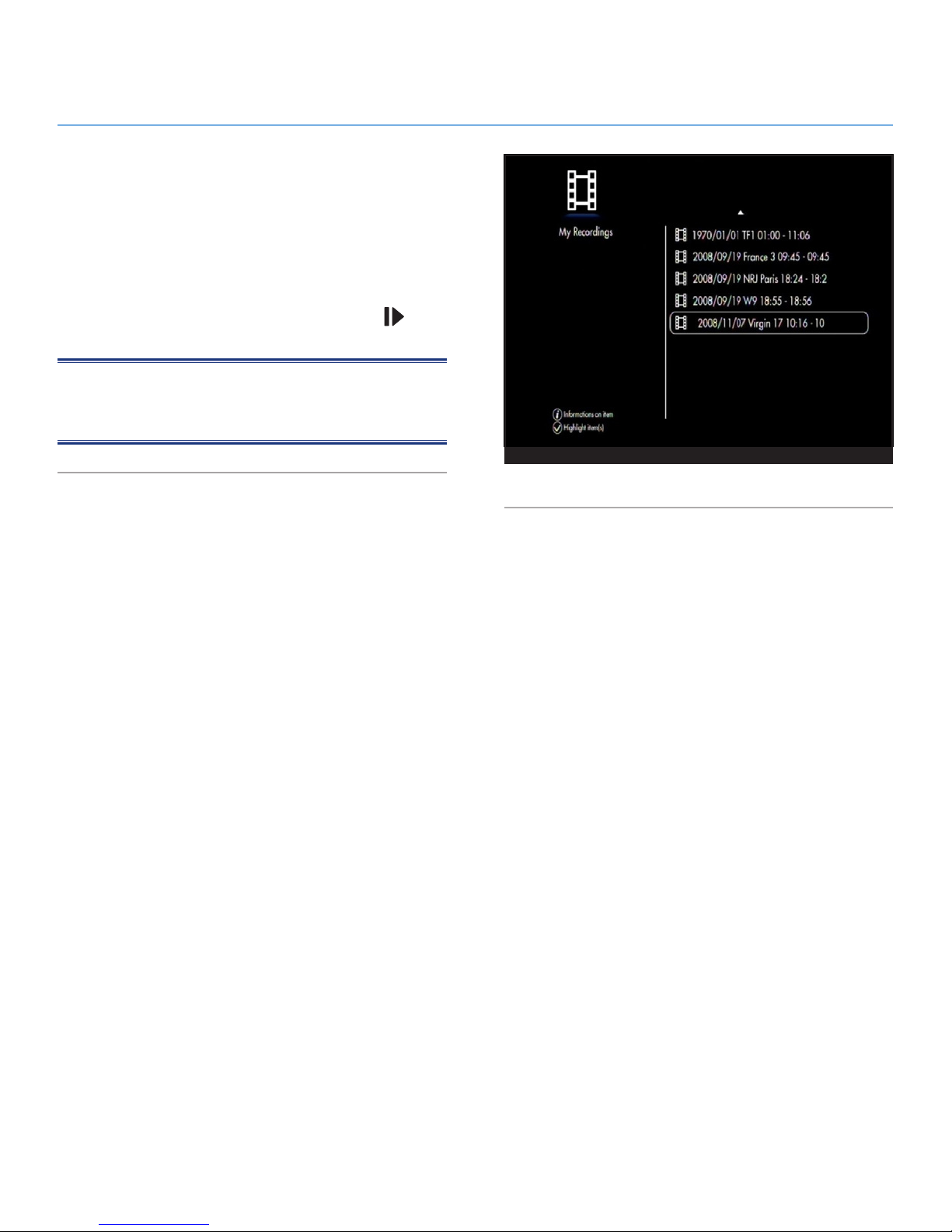

6.3. Accessing Recorded Video .......................................................................................................... 46

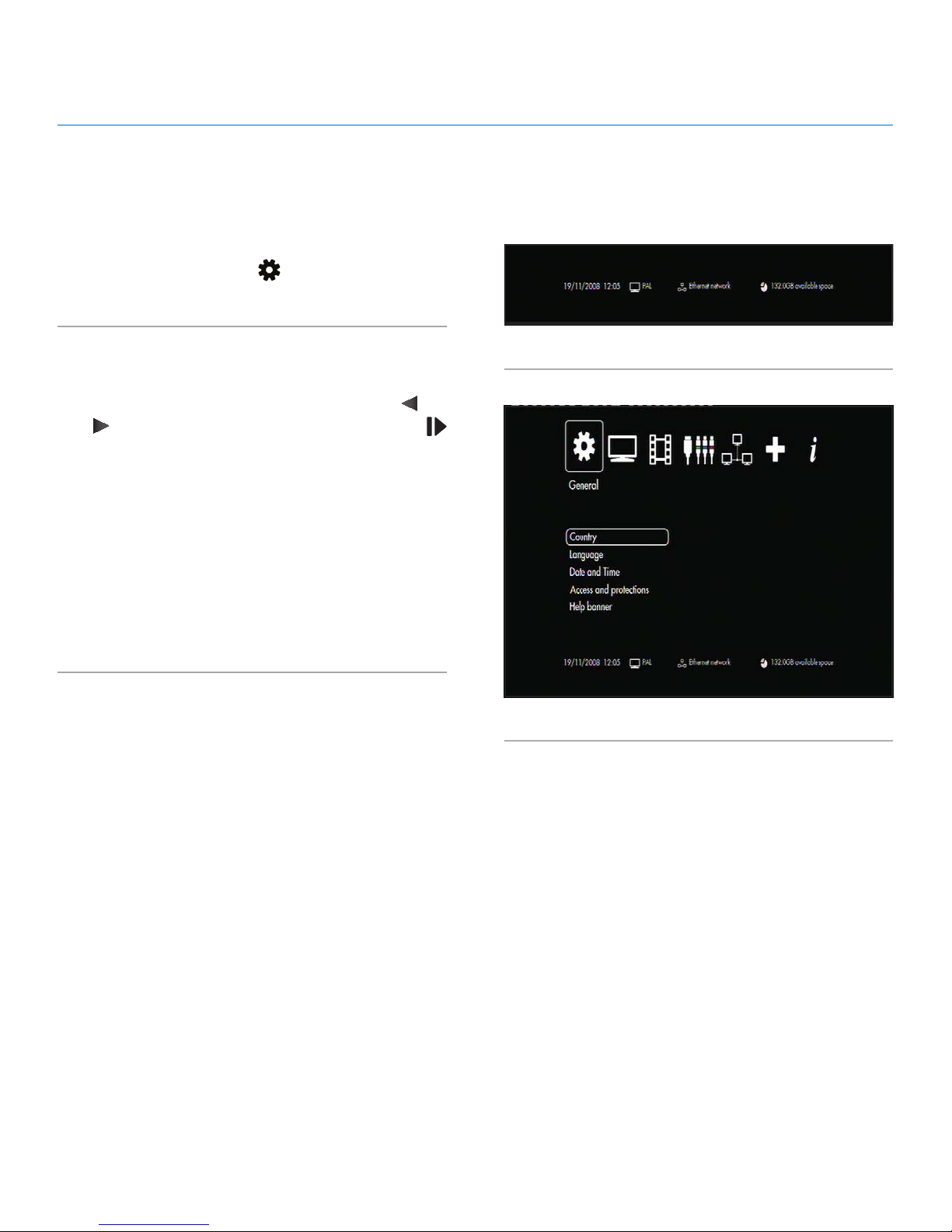

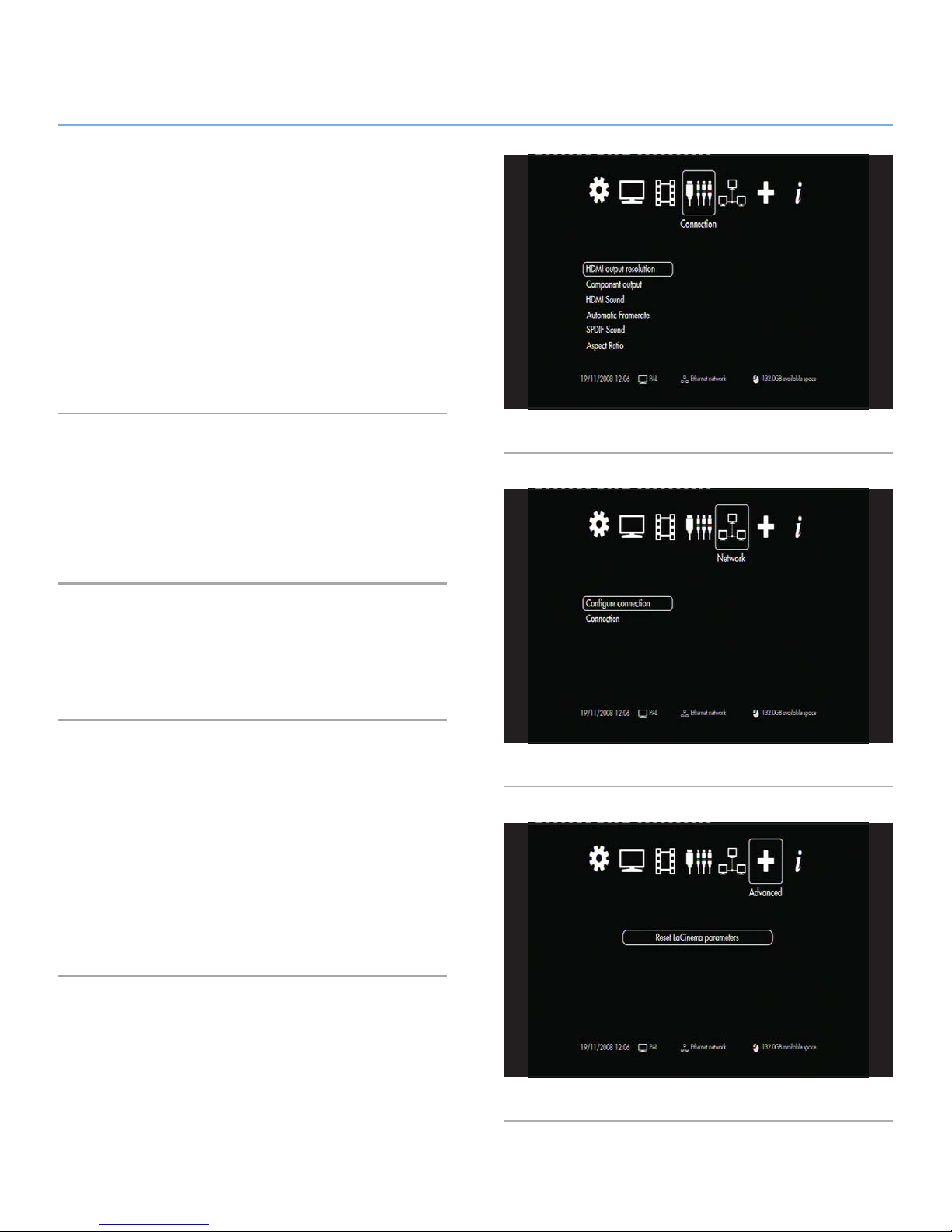

7. Settings Menu ......................................................................................................... 47
7.1. Settings Menu Overview ............................................................................................................. 47

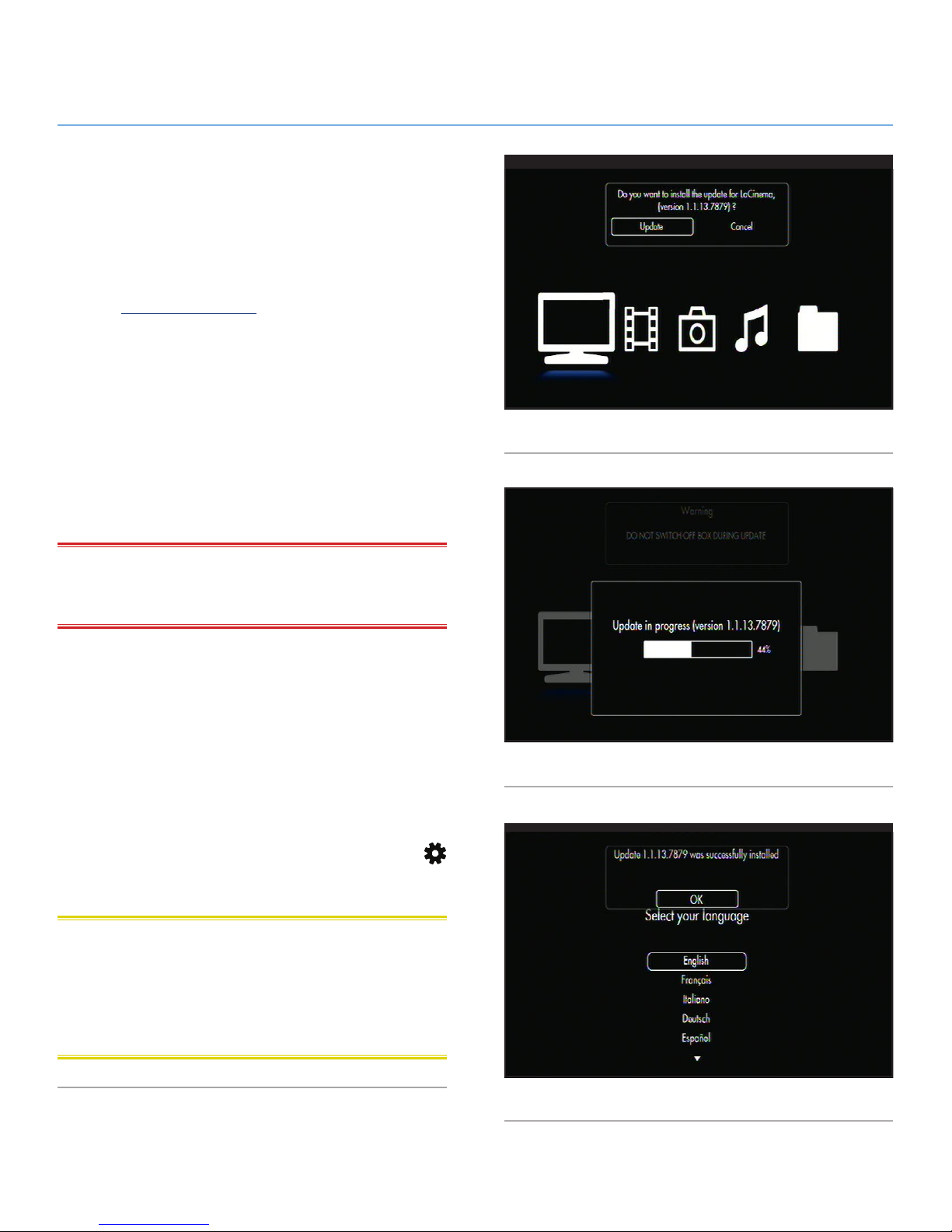

7.2. Firmware Update ....................................................................................................................... 50
8. Troubleshooting ..................................................................................................... 51
9. Contacting Customer Support ................................................................................. 53
9.1. LaCie Technical Support Contacts ............................................................................................... 54
10. Warranty Information ........................................................................................... 55
Page 3
LaCinema Black RECORD Foreword
User Manual page 3
Copyrights
Copyright © 2009 LaCie. All rights re­served. No part of this publication may be reproduced, stored in a retrieval sys­tem, or transmitted in any form or by any means, electronic, mechanical, photo­copying, recording or otherwise, without the prior written consent of LaCie.
Trademarks
Apple, Mac, and Macintosh are regis­tered trademarks of Apple Inc. Microsoft, Windows 98, Windows 98 SE, Windows 2000, Windows Millennium Edition, Windows XP and Windows Vista are reg­istered trademarks of Microsoft Corpora­tion. Other trademarks mentioned in this manual are the property of their respec­tive owners.
Changes
The material in this document is for in­formation only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
Canada Compliance Statement
This Class B digital apparatus meets all requirements of the Canadian Interfer­ence-Causing Equipment Regulations.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
1. The devices may not cause harmful interference
2. The devices must accept any interfer­ence received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro­vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc­tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interfer­ence by one or more of the following mea­sures:
✦ Reorient or relocate the receiving
antenna.
✦ Increase the separation between
the equipment and receiver.
✦ Connect the equipment into an out-
let on a circuit different from that to which the receiver is connected.
✦ Consult the dealer or an experi-
enced radio/TV technician for help.
Modifications to this product not autho­rized by LaCie could void the FCC & In­dustry Canada regulations and negate your authority to operate the product.
Manufacturer’s Declaration for CE Certification
We, LaCie, solemnly declare that this product conforms to the following Eu­ropean standards: Class B EN60950, EN55022, EN55024, EN61000-3-2: 2000, EN61000-3-3: 2001
With reference to the following condi­tions: 73/23/EEC Low Voltage Directive; 89/336/EEC EMC Directive
Others
For Switzerland, Annex 2.15 of SR 814.81 applies for batteries
NOTE: The main cable must be in con-
formity with CEI 60227 or CEI 60245 and the type of plug must match the stan­dards in the country of use.
CAUTION: Modifications not authorized
by the manufacturer may void the user’s authority to operate this device.
CAUTION: The LaCinema Black RE-
CORD’s warranty may be void as a result of the failure to respect the precautions listed above.
Tested to comply with FCC standards for home or office use
LaCinema Black RECORD
Document created on 26-03-2009
Page 4
LaCinema Black RECORD Foreword
User Manual page 4
This symbol on the product, remote control batteries, or on its packaging indicates that this product must not
be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designed collection point for the recy­cling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects hu­man health and the environment. For more information about where you can drop off your waste equipment for recy­cling, please contact your local city of­fice, your household waste disposal ser­vice, or the shop where you purchased the product.
Health and Safety Precautions
✦ Only qualified persons are autho-
rized to carry out maintenance on this device.
✦ Read this User Manual carefully
and follow the correct procedure when setting up the device.
✦ Do not open a disk drive or at-
tempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, short-cir­cuiting or dangerous emissions. The disk drives shipped with your LaCinema Black RECORD con­tain no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified LaCie Technical Support represen­tative.
✦ Never expose your device to rain,
or use it near water, or in damp or wet conditions. Never place objects containing liquids on the LaCinema Black RECORD, as they may spill into its openings. Doing so increas-
es the risk of electrical shock, short­circuiting, fire or personal injury.
✦ Make sure that the computer and
LaCinema Black RECORD are electrically grounded. If the devic­es are not grounded, there is an increased risk of electrical shock. Device power requirements 100­240 V~, 4A, 60-50 Hz, (Supply voltage fluctuations not exceeding ± 10% of the nominal, transient over-voltages according to over­voltage category II). This product is also designed for IT power dis­tribution system with phase-to­phase voltage 230V.
General Use Precautions
✦ Do not expo se the LaCine ma
Black RECOR D to tempera tures outside the range of 5 ° C to 30° C (41 ° F to 86° F); or to operational humid ity b eyond 5-80%, non-condensing, or non-operating humidity beyon d 10-90%, non -conden sing. Do­ing so may da mage the LaCin­ema Bla ck RECORD or disfig­ure it s ca sing. Avoid placing your LaC inema Black RECORD near a source of heat o r expos­ing it to sun light (even through a windo w). I nversel y, pl acing your LaC inema Black RECORD in an environment that is too cold or hum id may damage the unit.
✦ Always unplug the LaCinema
Black RECORD from the electrical outlet if there is a risk of lightning or if it will be unused for an ex­tended period of time. Otherwise, there is an increased risk of elec­trical shock, short-circuiting or fire.
✦ Use only the power supply shipped
with the device.
✦ Do not place objects on top of the
LaCinema Black RECORD or use excessive force on it.
✦ Never use excessive force on your
LaCinema Black RECORD. If you
detect a problem, see the Trouble­shooting section in this manual.
CAUTION: A shielded-type power cord
is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used.
Page 5
LaCinema Black RECORD Foreword
User Manual page 5

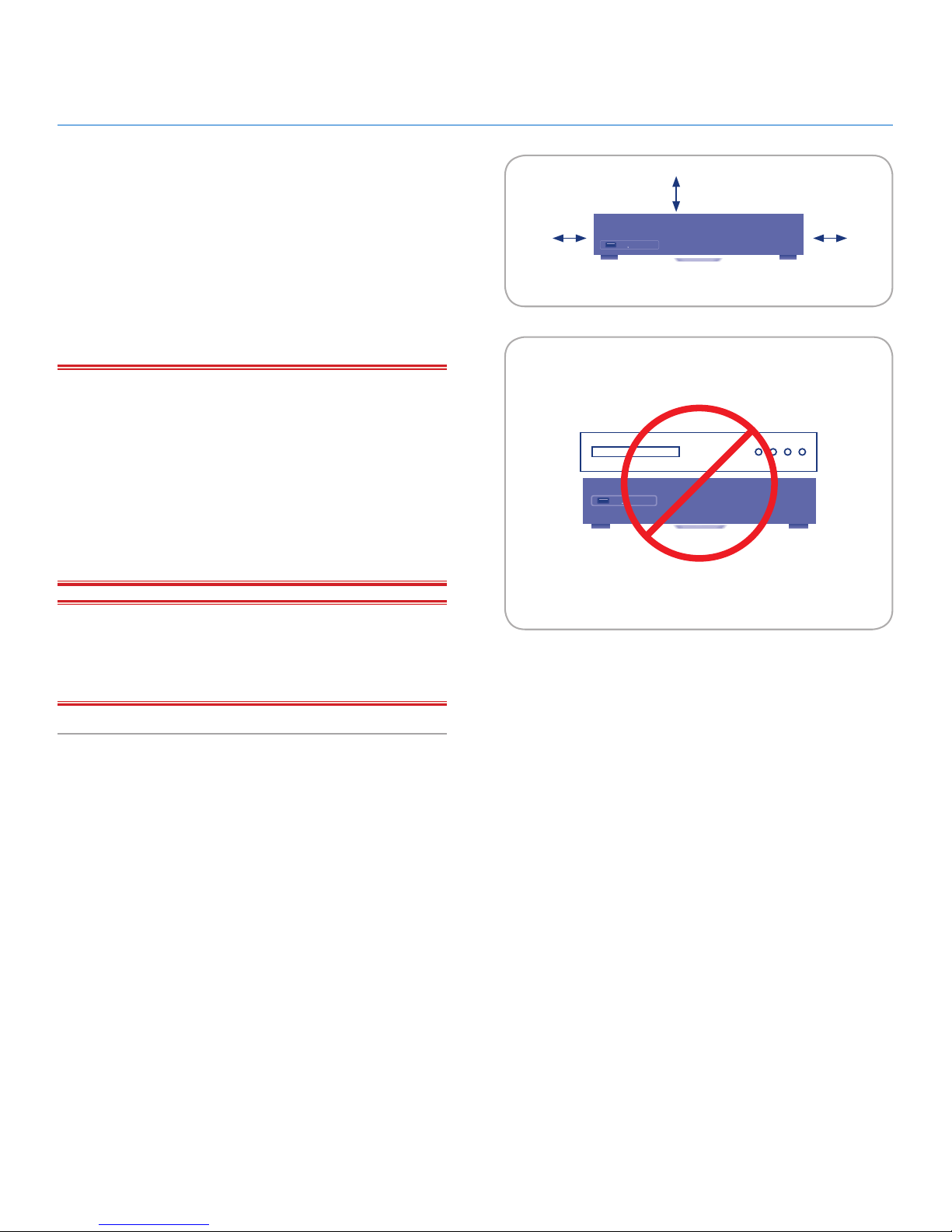

Operating Environment Temperatures
✦ Do not expose the LaCinema Black RECORD to temperatures
outside the range of 5° C to 30° C (41° F to 86° F). As high end audio/video appliance, the LaCinema Black RECORD has been designed with an efficient ventilation system. Allow 5 cm of clearance for airflow on all sides of the LaCinema Black RECORD to prevent overheating. See Fig. 01.
✦ Do not stack objects on top of the LaCinema Black RE-
CORD, as they may interfere with the built-in WiFi antenna. See Fig. 02.
IMPORTANT INFO: Any loss, corruption or destruction of data
while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recov­ery or restoration of this data. To help prevent the loss of your data, LaCie highly recommends that you keep TWO copies of your data; one copy on your external hard disk, for instance, and a second copy either on your internal hard disk, another external hard disk or some other form of removable storage media. LaCie offers a complete line of CD and DVD drives. If you would like more information on backup, please refer to our website.
IMPORTANT INFO: 1GB = 1,000,000,000 bytes. 1TB =
1,000,000,000,000 bytes. Once formatted, the actual available storage capacity varies depending on operating environment (typically 5-10% less).
5 cm
5 cm5 cm
Fig. 01
Fig. 02
Page 6
LaCinema Black RECORD Introduction
User Manual page 6
1. Introduction
Congratulations on the purchase of your new LaCinema Black RECORD! A premium media center, LaCinema Black RECORD plugs directly into a wide array of audio/visual equipment for in­stant playback of digital TV, home movies, music or photos.
Featuring the most advanced technologies, the LaCinema Black RECORD brings HD Digital TV, Live TV recording, Audio Video encoding and a UPnP network media player together in an el­egant glossy black design.
To get started, simply connect the LaCinema Black RECORD to your TV and use the included remote to easily navigate through the menus, called Spaces, to watch and record TV, listen to music, view photos or watch High definition movies.
LaCinema Black RECORD has been design to offer a new media experience providing ease of use in combination with the latest available technologies.
Click a topic:
✦ Setting Up the LaCinema Black RECORD
✦ Playing Multimedia Files
✦ Capturing Video from a TV or Camcorder
Quick Links
Page 7
LaCinema Black RECORD Introduction
User Manual page 7
Video Codecs
MPEG-1, MPEG-2 / HD, MPEG-4, DIVX, XVID, H.264 HD, WMV9 HD
Video Format
AVI, DIVX, MPG, MP4, MKV, WMV, MOV, ISO, VOB, IFO, ASF, TS, TP, TRP, M2TS
Max Decoding Resolution
1920 x 1080p
Mac Display Resolution
1080i
Upscaling 1080i for standard definition movies
Audio MP3, WMA, AAC, OGG, AC3, MP4, WAV/
LPCM
Playlist M3U
Recording format
MPEG2 TS at resolution 720x576p
DTS Pass-through to compatible audio amplifier
Photo Lossless JPEG (excluding progressive JPEG),
PNG, GIF, BMP, TIF
Output
✦ Video: HDMI, Component (YUV),
Composite (CVBS)
✦ Audio: Optical Audio, Audio Stereo
Input ✦ Video: Analog composite video or
S-Video
✦ Audio: Analog stereo audio
Network ✦ Ethernet 10/100 Mbps
✦ WiFi (802.11n)
TV Systems PAL / NTSC
TV Digital Terrestrial Television (DVB-T); High
definition supported
File Systems (external USB drive)
✦ NTFS (read/write)
✦ FAT32 (read/write)
✦ HFS+ (read only) (HFS+ Journaled is
NOT supported)
1.1. Minimum System Requirements
1.2. Supported Formats
Windows Users
✦ 500 MHz Intel Pentium II or later ✦ Windows 2000, XP or Vista ✦ 256 MB RAM ✦ USB interface port ✦ Internet connection (for downloading updates)
Mac Users
✦ Intel Core Duo ✦ Mac OS 10.3.9 ✦ 1GB RAM ✦ UPnP Media Server to stream content to your
LaCinema Black RECORD
✦ Internet connection (for downloading updates)
Page 8
LaCinema Black RECORD Introduction
User Manual page 8

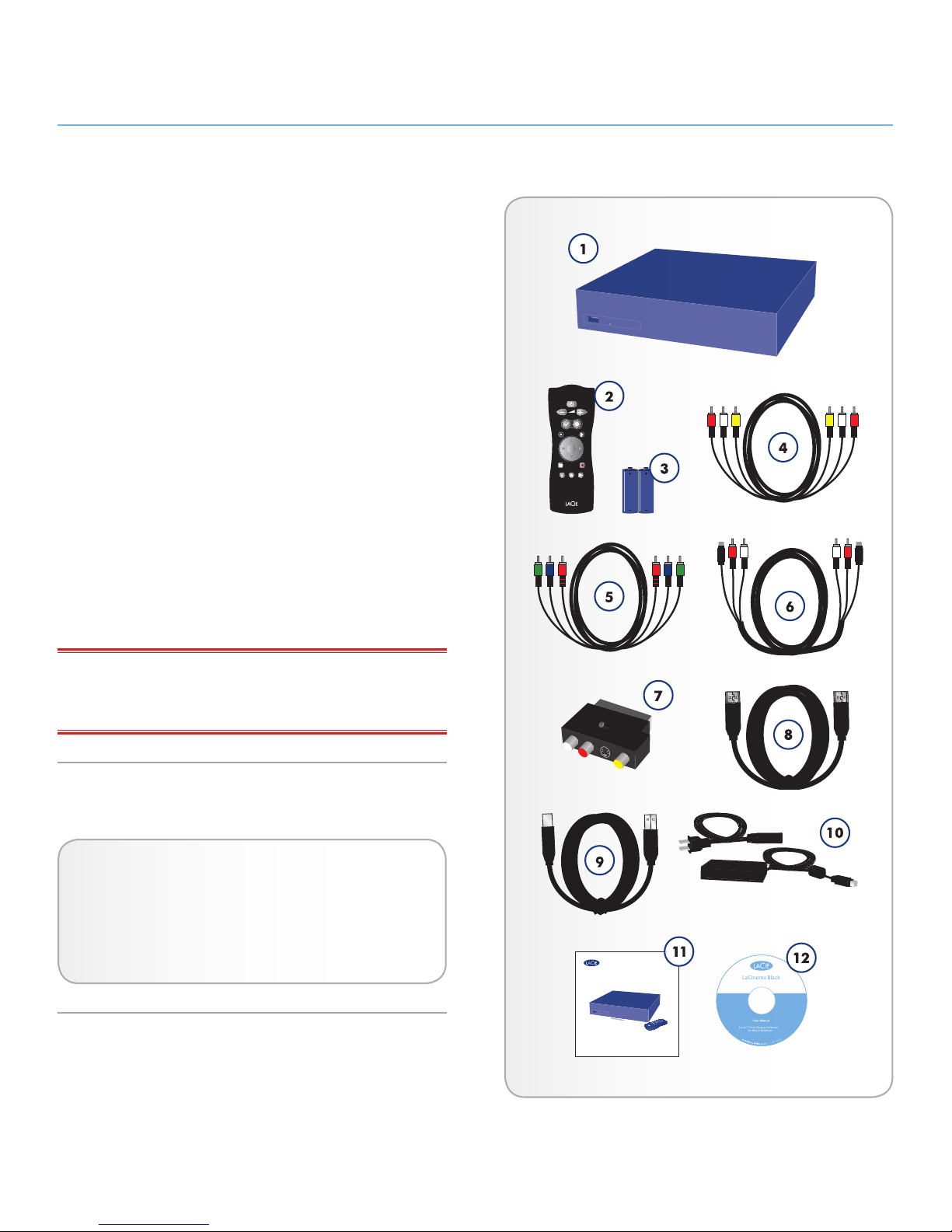

1.3. Box Content
Your LaCinema Black RECORD package contains the system tower and an accessories box containing the items listed below.
1. LaCinema Black RECORD
2. Remote control
3. 2 x AAA batteries
4. Component 3xRCA Male/Male cable
5. Composite/2 audio RCA Male/Male cable
6. S-Video Male/Male cable
7. SCART to S-Video/Composite adapter
8. HDMI cable
9. USB cable
10. External power supply
11. Quick Install Guide
12. Utilities CD-ROM
IMPORTANT INFO: Please save your packaging. In the event
that the drive should need to be repaired or serviced, it must be returned in its original packaging.
1.4. Languages
Quick Install Guide
LaCinema
B L A C K R E C O R D
DES I GN BY N E I L P O U LTO N
LaCinema Black
LaCie ‘1-Click’ Backup Software
for Mac & Windows
7
1
1
8
9
7
0
7
0
9
1
3
Supported Languages
❖ English ❖ French
❖ Italian ❖ German
❖ Spanish
INPUT OUTPUT
Page 9
LaCinema Black RECORD Introduction
User Manual page 9
1.5. Views of the LaCinema Black
RECORD

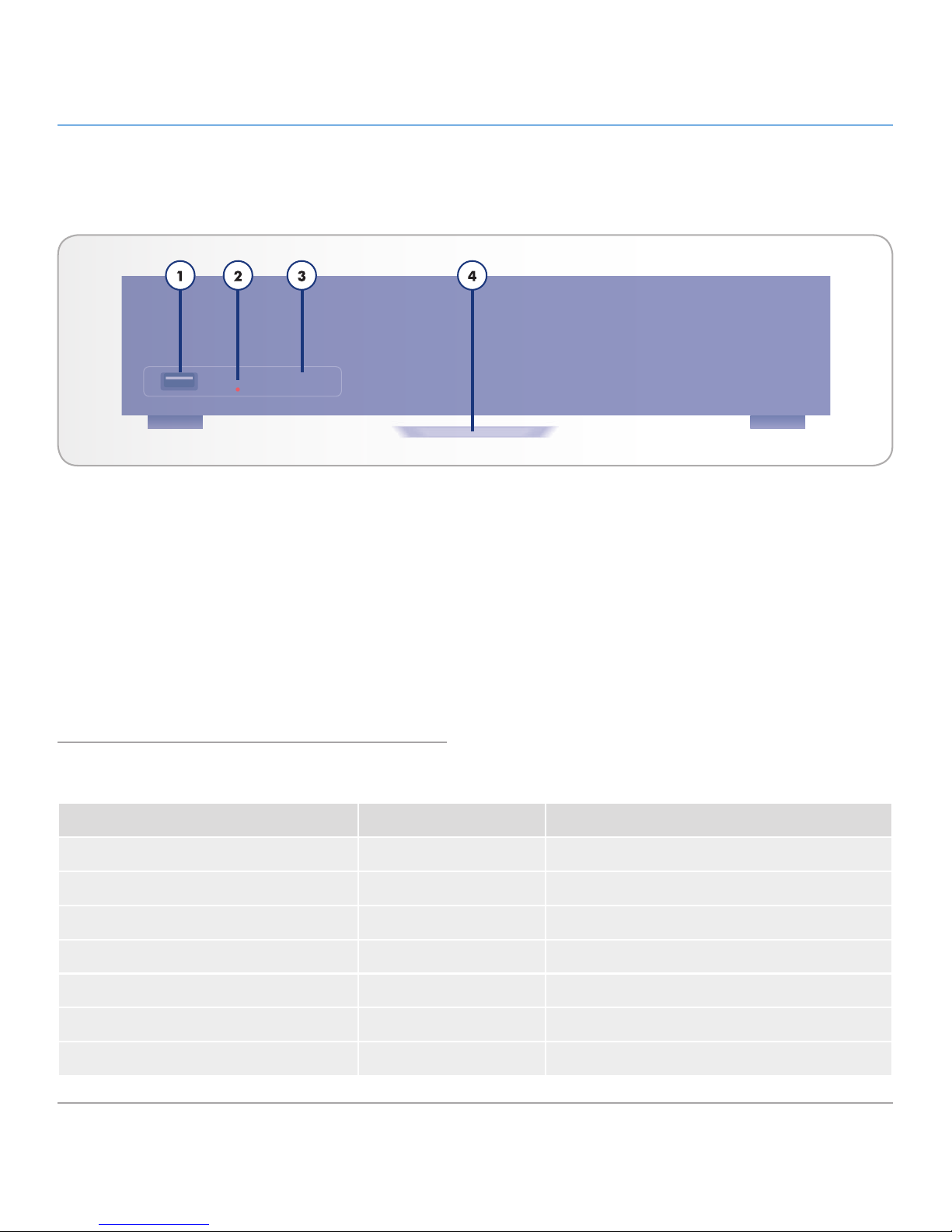

1.5.1. Front View
1. USB expansion port – Connect a USB flash disk, hard disk
or card reader to access its multimedia files directly from your TV.
2. Status light (Red) – Indicates recording and product de-
fault resetting.
3. Infrared receiver – Receives the infrared signal from the
remote control. Make sure the receiver is not obstructed.
4. Status light – See chart below.
1.5.2. Status Light Behavior
LaCinema Black RECORD behavior Blue status light Red status light
On On Off
Off or in Stand by Off Off
Starting up On Flashes for a few seconds before home screen appears
Playing video content Off Off
Resetting to default On On
Receiving a command from the remote Flashes once Off
Recording Depends on other actions On
Page 10
LaCinema Black RECORD Introduction
User Manual page 10

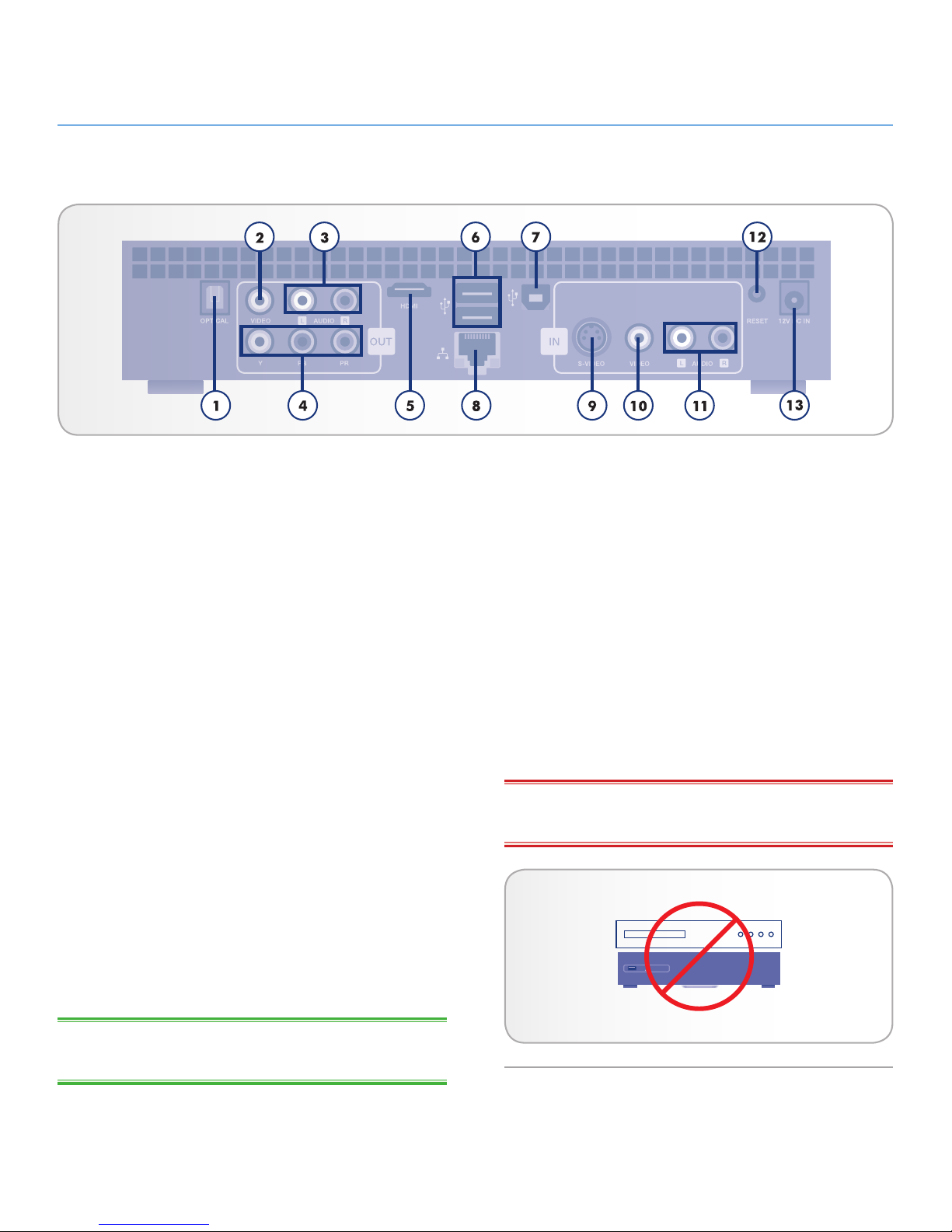

1. Digital Optical Audio OUT connector – Use an optical
digital audio cable (not included) to connect to your home theater system for digital sound
2. Composite Video (CVBS) OUT connector – Composite
video provides good video quality for non-high definition TV. Connect a separate cable for audio output.
3. Composite (Analog) Audio left (white) and right (red)
OUT connectors – Stereo audio provides good analog sound output
4. Component Video OUT connector – Component Video
provides high-definition picture up to 1080i using a Com­ponent Video cable. Connect a separate cable for audio (stereo cable or digital optical cable).
5. HDMI connector – Connects to a TV, A/V receiver, or
home theater system. HDMI provides a pure digital con­nection for high definition video and digital audio all in one cable. If your TV has a DVI (Digital Video Interface) jack, you can use an HDMI-to-DVI adapter (sold separately) for a digital video connection to your TV. You will need to con­nect a separate cable for audio.
6. USB 2.0 connector (for external disk connection) –
Connect USB external storage devices (such as hard disks or flash keys) or memory card readers to browse, play and manage content directly from your TV.
7. USB 2.0 connector (for PC connection) – Connects to a
computer in order to transfer multimedia files
TECHNICAL NOTE: Mac OS X users cannot directly connect the
LaCinema Black to their computers via USB.
8. Ethernet connector – Connects to a network in order to
transfer multimedia files
9. S-Video IN connector – connects to an analogue video
source for video capture
10. Composite Video (CVBS) IN connector – connects to
an analogue video source for video capture
11. Stereo Audio left (white) and right (red) IN connec-
tors – Connects to analog camcorders and projectors
12. Reset to Factory Settings button – Press this button if
your LaCinema Black RECORD does not respond. All the settings will be reset and the installation wizard will run.
13. External power supply connector – Plug in the power
supply
WiFi connection – Antenna is inside the product. Connect the LaCinema Black RECORD through WiFi to a network in order to transfer multimedia files
IMPORTANT INFO: Do not stack objects on top of the LaCin-
ema Black RECORD, as they may interfere with the WiFi antenna.
1.5.3. Rear View
Page 11
LaCinema Black RECORD Using the Remote Control
User Manual page 11
2. Using the Remote Control
Some of the buttons of the remote control have different functions or no function at all depending on the type of file you are viewing. This chapter discusses the button functions for each type of file (movies, photos and music) and battery installation.
2.1. Battery Installation
The remote control uses two AAA batteries. The batteries are not pre-installed, so you will need to install them before you can use the remote control.
To install the batteries:
1. Remove the battery compartment cover.
2. Load the batteries onto the battery compartment. Position the batteries so that the “+” symbols on the batteries face the same direction as the “+” symbols on the battery compart­ment.
3. Slide the battery compartment cover back into the remote.
IMPORTANT INFO: If you will not be using the remote control
for an extended period of time, LaCie recommends that you re­move the batteries.
IMPORTANT NOTE: Make sure there is a clear path between
the remote control and the LaCinema Black RECORD.
Page 12
LaCinema Black RECORD Using the Remote Control
User Manual page 12
2.2. Remote Control Key Index
The LaCinema Black RECORD’s remote control allows you to con­trol the LaCinema Black RECORD while its connected to your TV or home theatre center.
Button Function
1. Infra-red emitter Sends signals to the LaCinema Black
RECORD
2. Stand-by Resume stand-by
3. Volume down Adjust volume down
4. Volume up Adjust volume up
5. Mark Mark items for various actions; create
playlist
6. Options/Settings Action menu, Setup
7. Stop/Cancel Stop the current file playback
8. Play/Pause/OK Selects, plays, or pauses
9. Up/Down Scroll through lists
10. Left/Right Scroll through menus or fast forward/
rewind
11. List Show Record panel or file list
12. Record Instant record
13. Information File properties or movie information
14. Mute Mute sound
15. Home Go to home menu
continued on the next page >>
1
3
5
7
10
11
13
4
2
6
8
9
12
14
15
Page 13
LaCinema Black RECORD Using the Remote Control
User Manual page 13

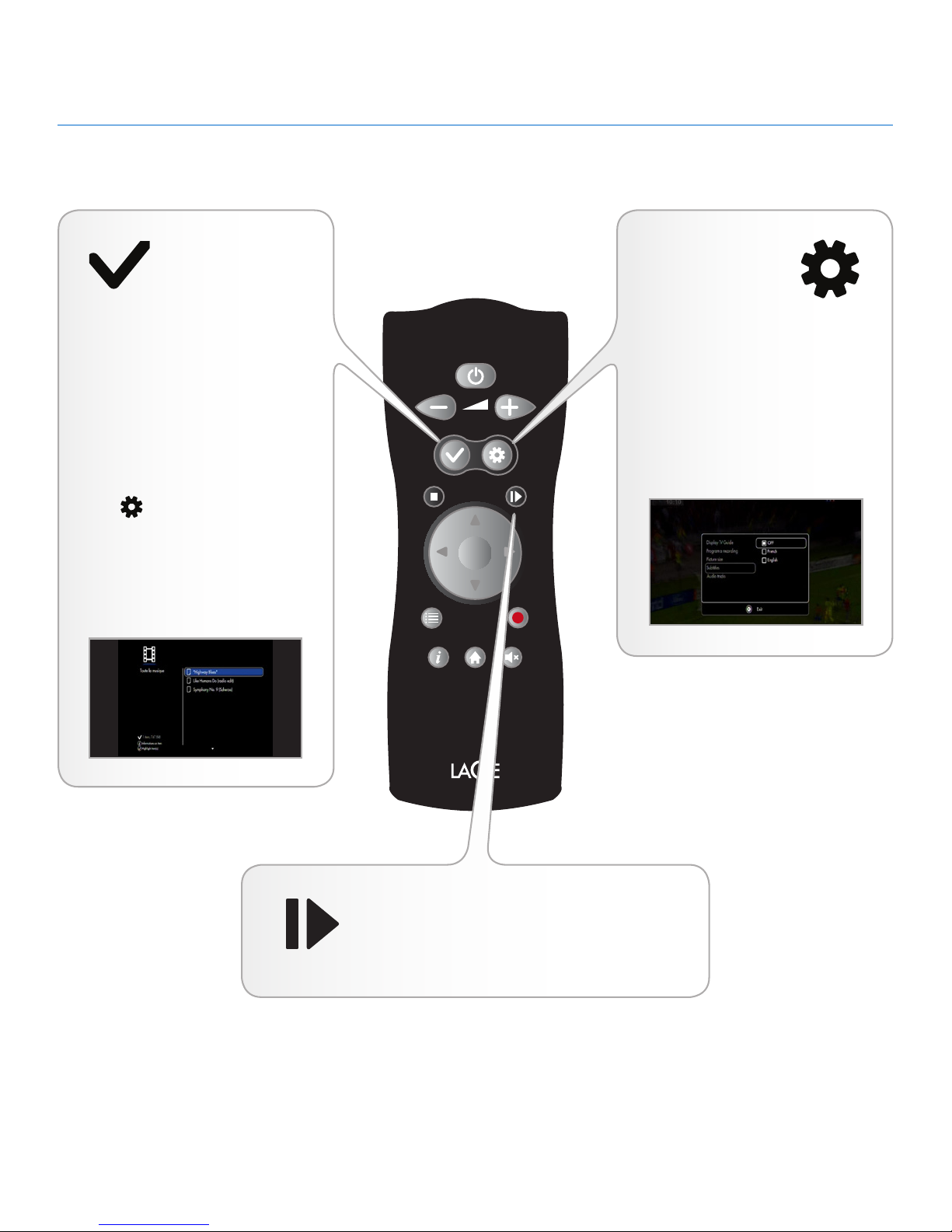

2.2.1. Important Button Details
Mark button: This
button is used to
mark or unmark a file or folder for future action, such as copy/paste or to create a playlist in the different media spaces.
Once the item is marked, the se­lected item’s summary is displayed with the number of files and total size.
You can display the list of marked items by pressing the Options/Set-
tings
button and selecting Show
Marked Item List from the contex-
tual menu.
The item’s list should then be cleared by selecting Unmark Mark-
er List from the contextual menu.
Play/Pause/OK button: This button has two
main functions, OK and Play/Pause. It allows you to confirm a selection and to start/pause playback in the different media spaces.
Opt i o ns/S e t tin g s button: This button
is used to display the available settings or actions in the different media spac-
es.
From the Home menu, this button will direct you to the LaCinema’s main Settings menu. In other media spaces or during playback, a con­textual menu will be displayed with available actions.
Page 14
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 14
Setup consists of six steps:
✦ STEP 1: Connect to TV (section 3.1)
✦ STEP 2: Connect to Set-Top Box or Digital Camcorder (Op-
tional) (section 3.2)
✦ STEP 3: Connect the Power Supply (section 3.3)
✦ STEP 4: Turning on the TV (section 3.4)
✦ STEP 5: Complete the Installation Wizard (section 3.5)
✦ STEP 6: Connect to Your Network (section 3.6)
3.1. STEP 1: Connect to TV
The LaCinema Black RECORD supports different ways of connect­ing to televisions. From the following methods, choose the setup that matches the ports on your television or receiver:
✦ HDMI (section 3.1.1) ✦ Component (section 3.1.2) ✦ Composite (section 3.1.3)
In each of the above connection methods, it is possible to con­nect the LaCinema Black RECORD to home theater systems by plugging an S/PDIF cable (not included) to your digital amplifier via the digital optical audio connector (see section 3.1.4. Optical
Audio (S/PDIF) Connection for details.
The chart at right illustrates the qualities made possible by the different connection methods.
TECHNICAL NOTE: The connectors on the rear of your TV may
not appear exactly the same as shown below. Please read the la­bels next to the connectors carefully to ensure correct connections.
continued on the next page >>
3. Setting Up the LaCinema Black RECORD
Definition Connection
Max Display Resolution
High Definition
HDMI 1080i
Component 1080i
Standard Definition
SCART RGB 576p
Composite 576p
Page 15
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 15
3.1.1. HDMI (High-Definition) Connection
IMPORTANT INFO: Before connecting the cable, power off
your TV.
1. Connect one end of the HDMI cable to your television’s
HDMI port (Fig. 04).
2. Connect the other end to the HDMI port on the back of the LaCinema Black RECORD.
Move on to the next step, 3.2.
TECHNICAL NOTE: If your TV’s HDMI port is being used by an-
other device, or if your TV doesn’t have an HDMI port, you can connect to the TV using Composite or Component (see section
3.1.2 or 3.1.3 for details).
Fig. 03 - HDMI Cable end and profile
Fig. 04
Page 16
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 16
3.1.2. Component & Analog Stereo Audio (High Definition) Connection
IMPORTANT INFO: Before connecting the cables, power off
your TV.
1. Connect one end of the component (red, green, and blue)
video cable to the component ports on your TV (Fig. 06). For Audio output, connect the stereo audio cable (with red and white ends) to the stereo audio port on your TV. The stereo audio connectors you should use are usually located close to the TV’s component ports.
2. Connect the other end of the component connectors to the three corresponding ports (red, green, and blue for video and white and red for audio) on the back of the LaCinema Black RECORD.
3. If you choose to use this connection method you will have to change the Component mode using the remote control. After turning on the television (see section 3.3 for details), press
the Options/Settings
button to navigate to the Settings
Space, and set the Component mode to YUV in the Video or
Photo section.
Move on to the next step, 3.2.
Fig. 05 - Component cable ends
To the LaCinema Black
RECORD
To the TV
Fig. 06
Page 17
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 17
3.1.3. Composite & Analog Stereo Audio (Standard Definition) Connection
IMPORTANT INFO: Before connecting the cables, power off
your TV.
1. Connect the yellow connector on one end of a analogue
composite/stereo cable to the CVBS port on your TV (Fig. 08).
2. Connect the yellow connector on the other end of the com­posite/stereo cable to the LaCinema Black RECORD
3. Connect the analog audio parts of the cable (red and white connectors), to your TV and to the LaCinema Black RECORD.
Move on to the next step, 3.2.
Fig. 07 - Composite cable ends
To the LaCinema Black
RECORD
To the TV
Fig. 08
Page 18
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 18

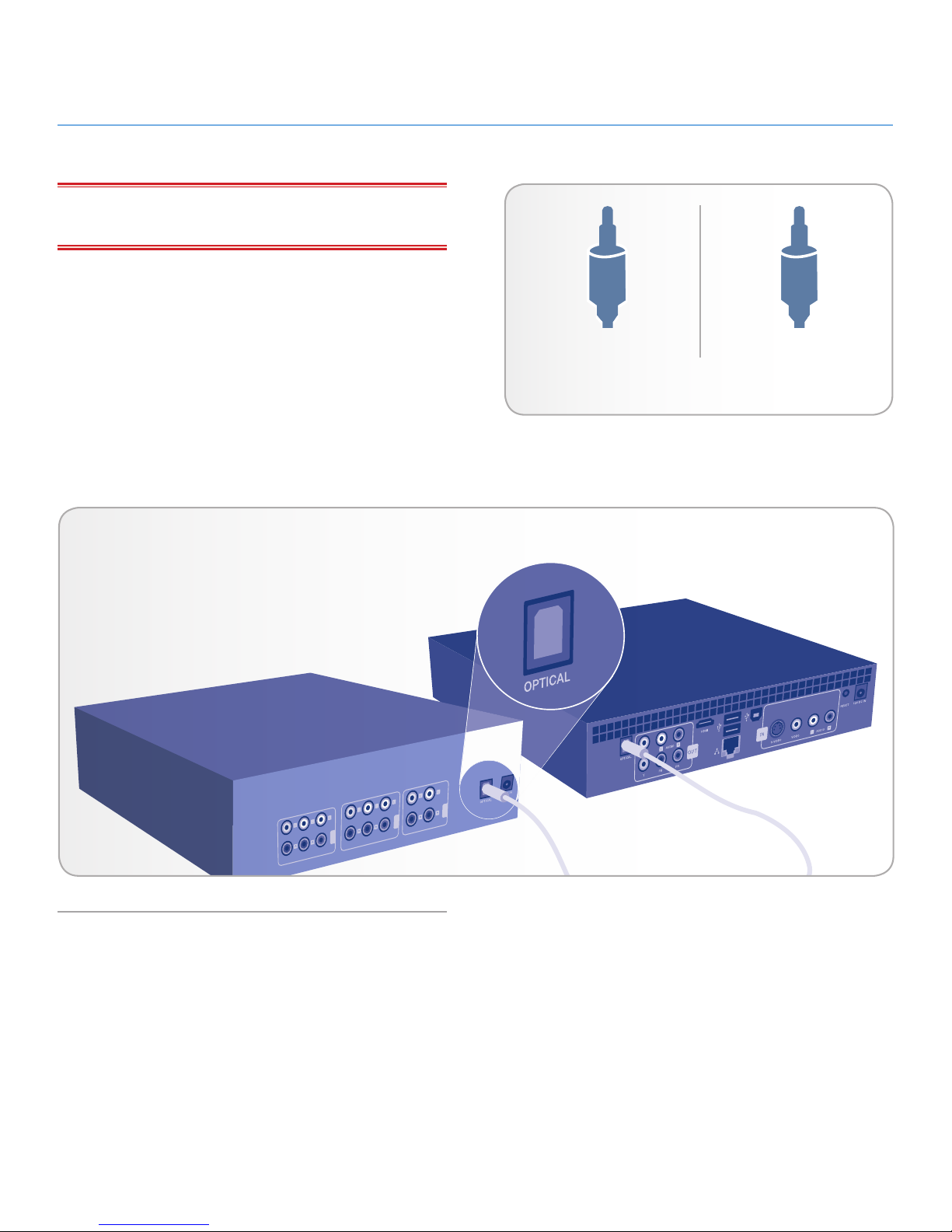

3.1.4. Optical Audio (S/PDIF) Connection
IMPORTANT INFO: Before connecting the cable, power off
your digital amplifier.
In each of the above connection methods, it is possible to connect the LaCinema Black RECORD to home theater systems by plug­ging the S/PDIF cable (not included) into your digital amplifier via the LaCinema Black RECORD’s digital optical audio connector.
1. Connect one end of a S/PDIF cable to your digital amplifier (Fig. 10).
2. Connect the other end of the cable to the back of the LaCin­ema Black RECORD.
Move on to the next step, 3.2.
Fig. 09 - S/PDIF cable ends
To the LaCinema Black To the stereo
Fig. 10
Home Stereo
LaCinema Black RECORD
Page 19
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 19
3.2. STEP 2: Connect to Set-Top Box or Digital Camcorder (Optional)
You can connect the LaCinema Black RECORD to a set-top box or digital camcorder in order to watch and record video using the LaCinema Black remote control.
1. Connect the white and red cable ends to the LaCinema Black and to the set-top box or camcorder.
2. Connect either the yellow end of the composite cable or the S-Video cable (show in Fig. 11 and Fig. 12) to the LaCinema Black and to the set-top box or camcorder.
3. Set the proper video setting: Using the LaCinema Black re­mote control, press the Up
and Down buttons to se-
lect either IN S-Video (if you used the S-Video cable) or IN Video (if you used the composite cable) (Fig. 13).
Move on to the next step, 3.3.
Fig. 11 – Set-top box connection
Set-top box
LaCinema Black RECORD
Fig. 12 – Camcorder connection
Fig. 13
Page 20
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 20
3.3. STEP 3: Connect the Power Supply
Plug one end of the power adapter cord into the back of LaCin­ema Black RECORD and the other end into a power outlet (Fig.
14).
Move on to the next step, 3.4.
Fig. 14
Page 21
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 21
3.4. STEP 4: Turning on the TV
Turn on the television.
If you don’t see the loading screen, adjust the video input on your TV to match the type of video cable you connected above (Fig.
15).
Move on to the next step, 3.5.
3.5. STEP 5: Complete the Installation Wizard
The first time you turn on the LaCinema Black RECORD, a wizard appears to help you configure your settings. The wizard appears only the first time you turn on the LaCinema Black RECORD un­less you have pressed the reset button on the back of the drive.
1. Connect the LaCinema Black RECORD to the TV, digital tele­vision (optional), and power supply as described in sections
3.1, 3.2, and 3.3, and 3.4.
2. A startup screen will appear during product initialization (Fig.
16). This may make more than a minute.
continued on the next page >>
Fig. 15
Fig. 16
Page 22
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 22
1. Setup Wizard: Remote
The first screen shows you the main functions of the remote con­trol (Fig. 17). For details on the remote control, see 2. Using the
Remote Control.
Fig. 17
Fig. 18
Fig. 19
2. Setup Wizard: Select your language
Use the Up and Down keys to select and Play/Pause/OK
to confirm (Fig. 18).
3. Setup Wizard: Select your country
Use the Up and Down keys to select and Play/Pause/OK
to confirm (Fig. 19).
Page 23
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 23
4. Setup Wizard: Time zone
Defines the time zone applicable for your country to allow auto­matic updates for daylight savings time. Use the Up
and Down
keys to select and Play/Pause/OK to confirm (Fig. 20).
5. Setup Wizard: Date and Time
Use the Up and Down keys to select and Play/Pause/OK
to confirm (Fig. 21).
6. Setup Wizard: TV Aspect Ratio
Use the Up and Down keys to select either “4:3 TV” or “16:9 Widescreen TV” and Play/Pause/OK to confirm (Fig.
22).
Fig. 20
Fig. 21
Fig. 22
Page 24
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 24
7. Setup Wizard: Parental Control
Use the Up and Down keys to select and Play/Pause/OK
to confirm (Fig. 23). For more information on controlling ac-
cess to files, refer to section 4.6. Controlling Access to Files.
8. Setup Wizard: Parental Rating
Use the Up and Down keys and Play/Pause/OK to confirm to control access to programs.
9. Setup Wizard: Parental Control Code
Use the Up and Down keys to enter the parental control code and Play/Pause/OK to confirm.
Fig. 23
Page 25
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 25
You have now completed the main LaCinema Black RECORD configuration. From the Home menu that appears when the wiz­ard has completed, press the Options/Settings
button to ac-
cess the Settings menu to finish product installation and to define advanced parameters (Fig. 24).
Move on to the next step, STEP 6: Connect to Your Network.
The following section explains how to connect your LaCinema Black RECORD to your home network in order to transfer files.
Fig. 24
Page 26
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 26
3.6. STEP 6: Connect to Your Network
The LaCinema Black RECORD helps you select and configure your home network connection. Choose to connect with an Ethernet or wireless network and follow the steps below depending on your choice.
3.6.1. Wireless Network Connection
The LaCinema Black RECORD has a built-in WiFi antenna. When connecting to your network via wireless, the LaCinema Black RE­CORD helps you select, connect with, and configure your network connection.
Use the remote control to:
1. Go to Home menu and enter the Settings Space by pressing the Options/Settings
button (Fig. 25).
2. Select the Network menu, press the Down button and se­lect Configure Network.
3. Select Wireless Connection Mode.
4. Select your wireless network from the list.
5. Enter the password if required.
6. Select the connection method, Automatic or Manual.
✦ In automatic, network parameters will be defined auto-
matically.
✦ If you choose manual, you will asked to enter the LaCin-
ema Black RECORD’s IP address.
TECHNICAL NOTE: If network is not managed by DHCP, you
may have to enter your IP address, subnet mask, router, and DNS addresses.
7. Once done, you will go to redirected to the Settings Space menu.
8. You can check the network by selecting Connection in the Network menu.
For details on how to transfer files from your computer to your LaCinema Black RECORD, see section 5.3.1. Network-Attached
Hard Disk (NAS).
Fig. 25
NOTE: Have your network password (if you use one) and your
LaCinema Black RECORD remote control handy.
IMPORTANT NOTE: Wired (Ethernet) and Wireless (WiFi) con-
nections cannot be active at the same time.
Page 27
LaCinema Black RECORD Setting Up the LaCinema Black RECORD
User Manual page 27
3.6.2. Ethernet Network Connection
When connecting to your network via Ethernet, the LaCinema Black RECORD automatically detects your network.
Connect the Ethernet cable (not included) to the back of the LaCinema Black RECORD and to an Ethernet port on your router (Fig. 26).
1. Go to Home menu and enter the Settings Space by pressing the Options/Settings
button.
2. Select the Network menu, press the Down button and se­lect Configure Network.
3. Select Ethernet Connection Mode.
4. Select the connection method, Automatic or Manual.
✦ In automatic, network parameters will be defined auto-
matically.
✦ If you choose manual, you will asked to enter the LaCin-
ema Black RECORD’s IP address.
TECHNICAL NOTE: If network is not managed by DHCP, you
may have to enter your IP address, subnet mask, router, and DNS addresses.
5. Once done, you will go to redirected to the Settings Space menu.
6. You can check the network by selecting Connection in the Network menu (Fig. 27).
For details on how to transfer files from your computer to your LaCinema Black RECORD, see section 5.3.1. Network-Attached
Hard Disk (NAS).
Fig. 26
Fig. 27
Page 28
LaCinema Black RECORD Playing Multimedia Files
User Manual page 28
4. Playing Multimedia Files
Thanks to the LaCinema Black RECORD’s ability to connect to UPnP media servers, host computers, and external USB drives, you can access both files saved on the LaCinema as well as files located on these external sources on your television using the remote control.
From the Home menu, select one of the media spaces – Movie, Photo, Music, Browser, and TV – to access multimedia files. Files located on connected external sources can be accessed in the appropriate space.
The following section outlines how to play files for each media space. For details on connecting external sources to the LaCin­ema Black RECORD, such as a UPnP media server, a host com­puter, and/or an external USB drive, refer to chapter 5. Playing &
Copying Files from External Sources.
4.1. Movie Space
Scroll through the menu using the navigation buttons. To confirm
your choice and enter the Movie Space, press the Play/Pause/OK
button (Fig. 28).
This menu will display all of the supported video files that you have up loaded to your LaCinema Black or located on an external source.
Only files recognized as video files will be displayed. Music and Photo files will not be displayed. To view all file types, select the
Browser Space.
You can scroll through the list of video files and folders using the
Up
and Down buttons, Right button to open a folder and
Left to move to upper folder level (Fig. 29). To confirm your
choice, press the Play/Pause/OK
button.
In the file list, you can retrieve file information by pressing the In-
formation
button (Fig. 30). To exit the info screen, press the
Information
button again.
During the file playback, you can adjust several playback pa­rameters. Press the Options/Settings button to display or exit the on-screen menu.
Fig. 28
Fig. 29
Fig. 30
Page 29
LaCinema Black RECORD Playing Multimedia Files
User Manual page 29
4.1.1. Display format
Select from these choices (Fig. 31):
✦ Original
✦ Full Screen
✦ Cinema
Fig. 31
Fig. 32
Fig. 33
4.1.2. Subtitle
✦ List of available subtitles (Fig. 32)
✦ Off
4.1.3. Audio Languages
Select from the list of available languages (Fig. 33).
Page 30
LaCinema Black RECORD Playing Multimedia Files
User Manual page 30

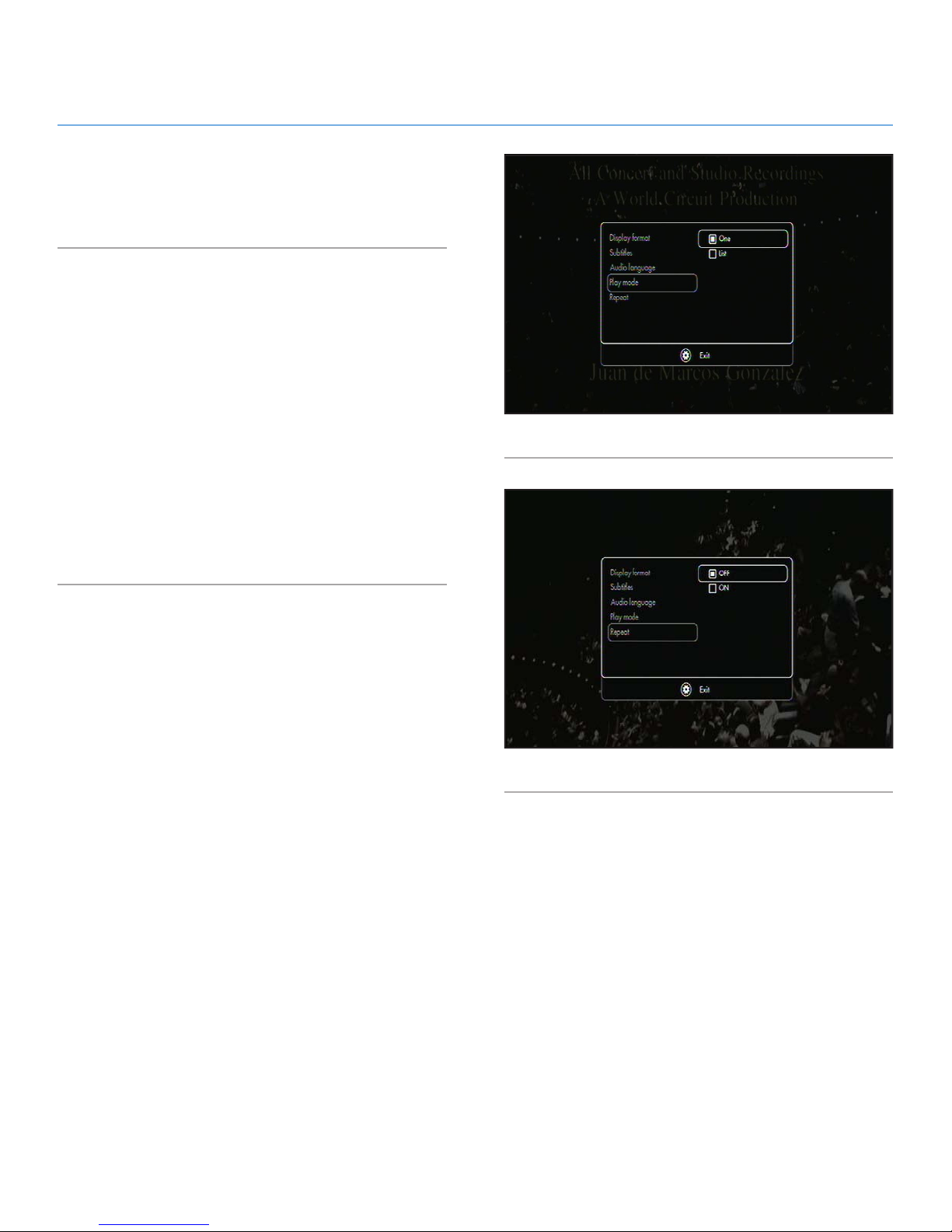

4.1.4. Play mode
✦ One > Play selected file (Fig. 34)
✦ List > play all files from the directory
4.1.5. Repeat
✦ Off > play once the select file or list of files (Fig. 35)
✦ On> play selected file or list of files in loop
Fig. 34
Fig. 35
Page 31
LaCinema Black RECORD Playing Multimedia Files
User Manual page 31
4.2. Photos Space
You can scroll through the menu using the navigation buttons (Fig. 36). To confirm your choice and enter a menu, press the
Play/Pause/OK
button.
This menu will display all of the image files that you have up­loaded to your LaCinema Black RECORD. Only files recognized as image files will be displayed. Movies and music files will not be displayed. To view all file types, select the Browser Space.
You can scroll through the list of photos and folders using the Up
and Down buttons, Right button to open a folder, and
Left to move to a higher folder level (Fig. 37). To confirm your
choice, press the Play/Pause/OK
button.
During the file playback, you can adjust several playback param­eters. Press the Options/Settings
button to display or exit the
on-screen menu.
4.2.1. Transition
This function allows you to define the transition effect between photos (Fig. 38).
4.2.2. Rotate Left / Rotate right
This function allows you to turn on automatic photo rotation to be displayed correctly on your TV (Fig. 39).
Fig. 36
Fig. 37
Fig. 38
Fig. 39
Page 32
LaCinema Black RECORD Playing Multimedia Files
User Manual page 32
4.3. Music Space
You can scroll through the menu using the navigation buttons (Fig. 40). To confirm your choice and enter a menu, press the
Play/Pause/OK
button.
This menu will display all of the audio files that you have up­loaded to your LaCinema Black RECORD. Only files recognized as music files will be displayed. Movies and photo files will not be displayed. To view all file types, select the Browser Space.
You can scroll through the list of music tracks and folders using
the Up
and Down buttons, Right button to open a folder
and Left to move to the upper folder level (Fig. 41). To confirm
your choice, press the Play/Pause/OK
button.
When the music player is started, you can pause or stop the cur­rent song. You can also change the track by scrolling through the
list using the Up
and Down buttons and pressing the Play/
Pause/OK
button.
During the file playback, you can adjust several playback param­eters by pressing the Options/Settings
button (Fig. 42). You
will then enter the Music player where playlists can be edited on the fly and play mode adjusted.
4.3.1. Repeat
Set the repeat mode. Select Track to repeat the current song con­tinually, List to repeat the songs in the folder continuously, and
Off to stop playback at the end when all song in the folder have
been played.
4.3.2. Random
Choose whether the tracks in a list should be played in a random order. Select On or Off.
Fig. 40
Fig. 41
Fig. 42
Page 33
LaCinema Black RECORD Playing Multimedia Files
User Manual page 33

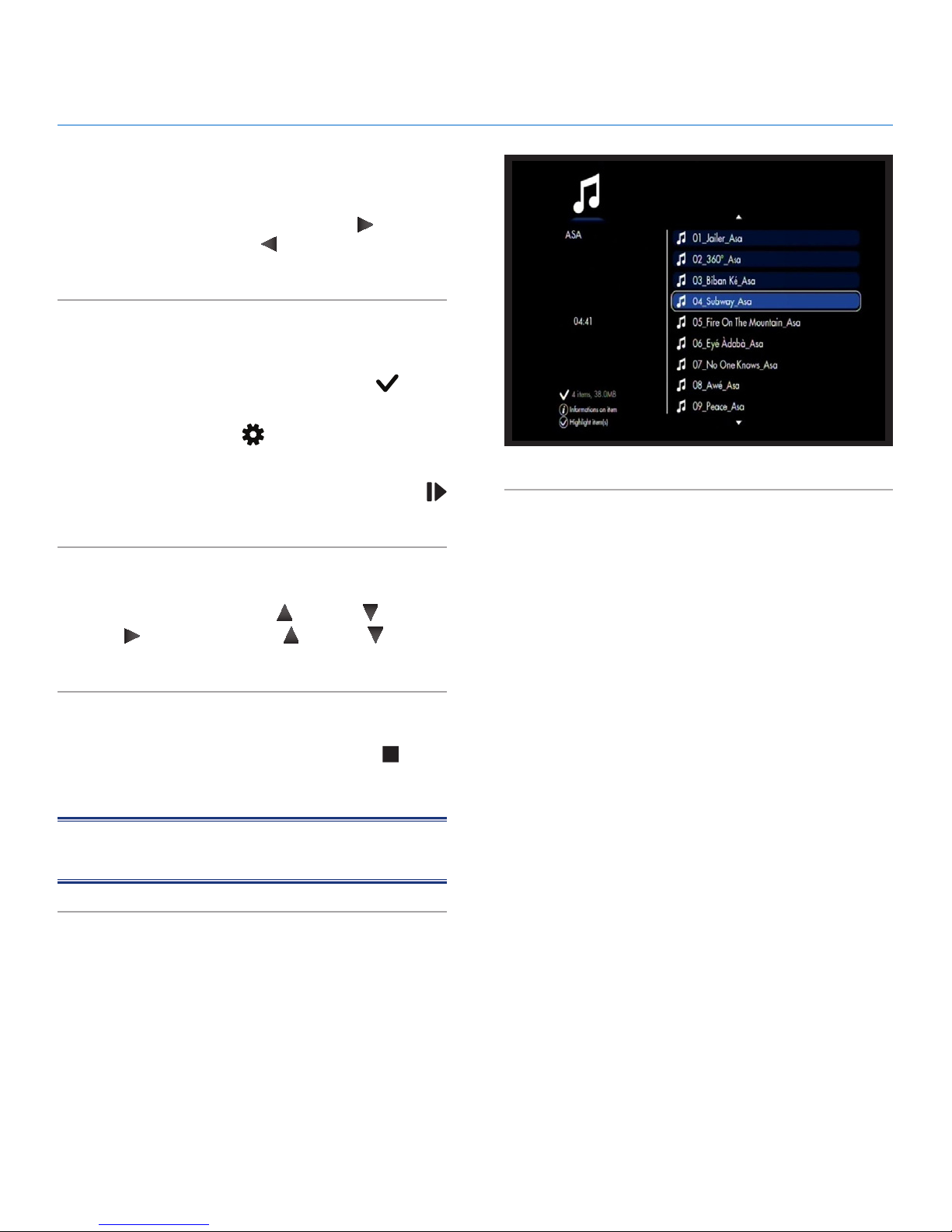

4.4. Playlist Management
Once the music player has started, you can create and edit playl-
ists to arrange songs as you want. Press the Right
key to enter the playlist management and Left key to close it and return to the player.
4.4.1. To Create a New Playlist
1. From the Music Space, mark the item you want to add to your list by selecting a track and pressing the Mark
button.
You can select files from different folders (Fig. 43).
2. Press the Options/Settings button and select Create Play-
list with the Marked Items.
3. Give the playlist a name and press the Play/Pause/OK button.
4.4.2. Change Playlist Track Order
To move a track in the list, press Up and Down to select it.
Press Right to move it and then Up and Down to change its position in the list.
4.4.3. To Remove an Item from the Playlist
To remove an item from the playlist, press the Stop button. This action does not delete the file but only removes it from the current playlist.
NOTE: The currently playing song cannot be removed from the
list.
Fig. 43
Page 34
LaCinema Black RECORD Playing Multimedia Files
User Manual page 34

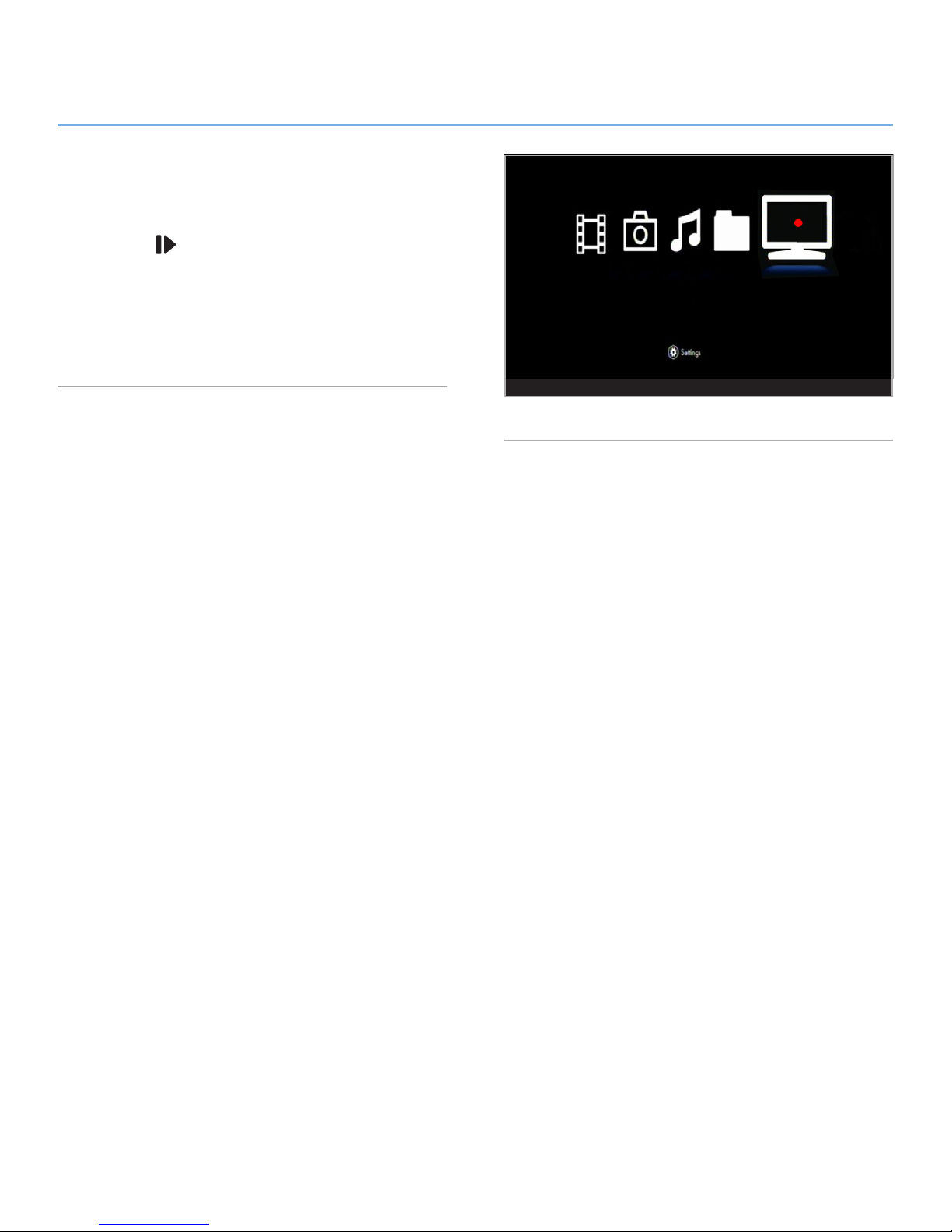

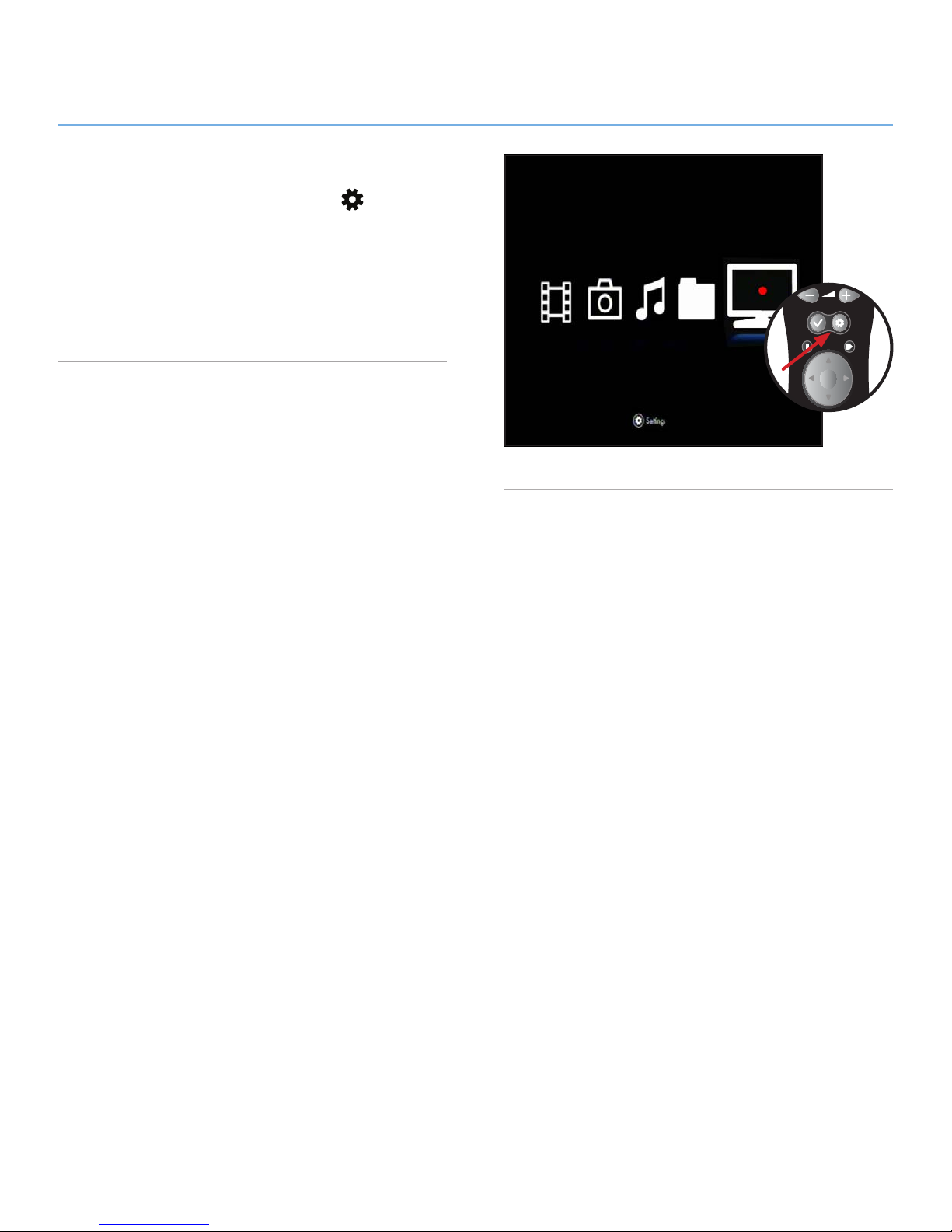

4.5. Record Space
You can scroll through the menu using the navigation buttons (Fig. 44). To confirm your choice and enter a menu, press the
Play/Pause/OK
button.
If you have connected your LaCinema Black to a set top box, when you enter the Record Space, you will see live television.
For further details on watching and recording live television, refer to chapter 6. Capturing Video from a TV or Camcorder.
Fig. 44
Page 35
LaCinema Black RECORD Playing Multimedia Files
User Manual page 35
4.6. Controlling Access to Files
You can control access to files by requiring a password to play files with certain ratings. The procedure consists of activating the service, defining an age threshold, then assigning ratings to files.
Follow these steps to control access:
1. Click the Options/Settings button on your remote con­trol.
2. Select General, then Access and protections, then Parental
control, and enable this function.
3. Enter your secrect code, then enter a question that will be posed in the event that you forget your secret code.
4. Next, select Set to Child Mode and confirm this setting.
5. Next, click Parental rating and define an age threshold, out­side of which a file can only be played if the correct password is given. For example, if your Child Mode level is set to -12, then any file tagged as -16 or above will not be available to be played unless a user types in the password set up in Gen-
eral > Access and protections > Modify secret code.
6. Navigate to a file in one of the spaces, press the Information
button, then select an age level. If this age is above the level you set in the Set to Child Mode setting, it will become invisible until the age threshold is changed in the Set to Child
Mode setting.
4.7. Deleting Files
1. Select a file or folder and press the Mark button.
2. Now click the Options/Settings button on your remote control.
3. From the menu, select Delete marked items.
Page 36
LaCinema Black RECORD External Sources
User Manual page 36
5.1. USB Hard Drive
Simply turn on and plug in external hard disks to the LaCinema Black RECORD’s front (Fig. 45) or rear (Fig. 46) USB ports to be able to play multimedia files on your television. See below for more details.
5.1.1. Connection
Power on the external hard disk and plug its USB cable into either the LaCinema Black RECORD’s front or rear USB expansion slot. Once connected, a pop up message will notify you and show the storage volumes on the selected Space. You will be able to browse through the list of files.
NOTE: Only files supported in the current media space will be
displayed (i.e., music files in the Music Space).
5.1.2. Compatibility
In addition to hard disks, you can also connect card readers, digital cameras, or digital camcorders with USB Mass storage support.
Hard drives with the following file system formats are supported:
FAT32, NTFS, HFS+, and Linux file systems (EXT 2, EXT3).
5.1.3. Playing Files
Files located on the external volume will be listed alongside the locally stored files in the various Spaces. To play files, simply
navigate to the proper Space, select the file, and press the Play/
Pause/OK
button (Fig. 47).
5. Playing & Copying Files from External Sources
Fig. 45 - Front USB port
Fig. 46 - Rear USB ports
Fig. 47
Page 37
LaCinema Black RECORD External Sources
User Manual page 37
5.1.4. Copying Files
1. Verify the external hard drive is connected (see section 5.1.1) and is recognized by the LaCinema Black RECORD.
2. Files located on the external hard drive will be listed along­side the locally stored files in the various Spaces. Select the
file or folder to be copied and press the Mark
button
(Fig. 48).
3. Then, navigate to the directory where you’d like to copy the file
and the press the Options/Settings
button and select Paste
marked items to [Current Directory].
4. The file copy window will appear and show the copying prog­ress.
Fig. 48
Page 38
LaCinema Black RECORD External Sources
User Manual page 38

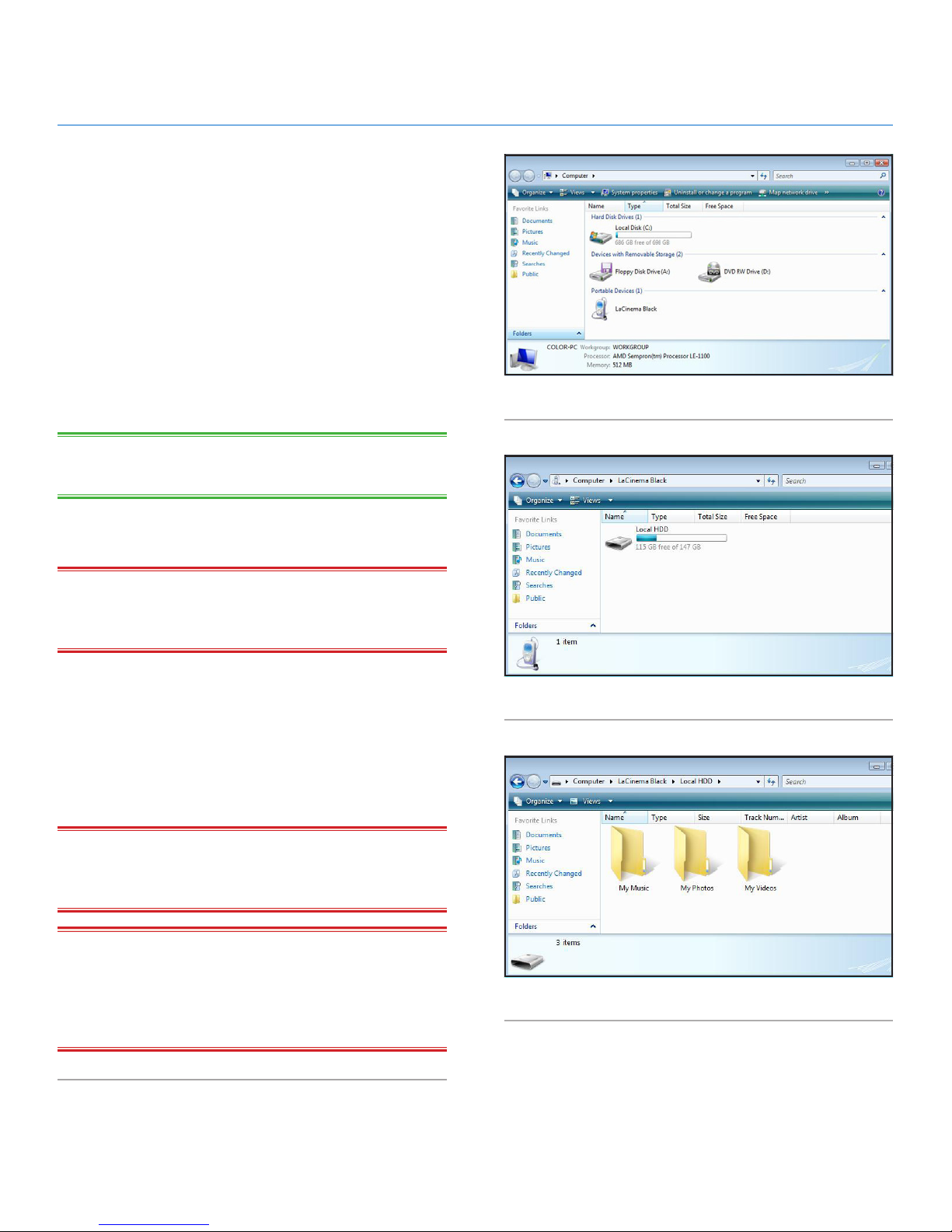

5.2. Transferring Files via USB (Requires Windows Media Player 11)
When you install Windows Media Player, drivers are also installed that allow your LaCinema Black RECORD to be connected to your computer via USB and mount similarly to an external hard drive. You will see its icon in My Computer (XP users) or Computer (Vista users). You can then transfer files from your computer to the LaCinema Black and vice versa in the same way as you would with a standard external hard drive.
1. Make sure that the software is installed on your computer.
TECHNICAL NOTE: WMP is preinstalled on Vista, but XP users
may have to download and install the software.
2. Connect the LaCinema Black to your computer via the USB cable.
IMPORTANT INFO: Connecting your LaCinema Black RE-
CORD directly to a host computer via USB is not supported for Mac OS X users.
3. In My Computer or Computer, open the volume entitled
LaCinema Black (Fig. 49).
4. Next, open the volume named Local HDD (Fig. 50).
5. Drag files from your local hard drive into one of the three folders according to the type of file (for instance, mp3 files go in My Music, while jpg files go in My Pictures) (Fig. 51).
IMPORTANT INFO: Make sure to correctly categorize the files
according to type, if you want the files to be available for playback on your TV.
TECHNICAL NOTE: The Recording folder is not accessible
while the LaCinema Black is connected to computer. This folder is an optimized partition for recording and timeshifting. To copy re­corded content, follow the procedure outlined in section 5.3.1.2.
Copying Files.
Fig. 49
Fig. 50
Fig. 51
Page 39
LaCinema Black RECORD External Sources
User Manual page 39

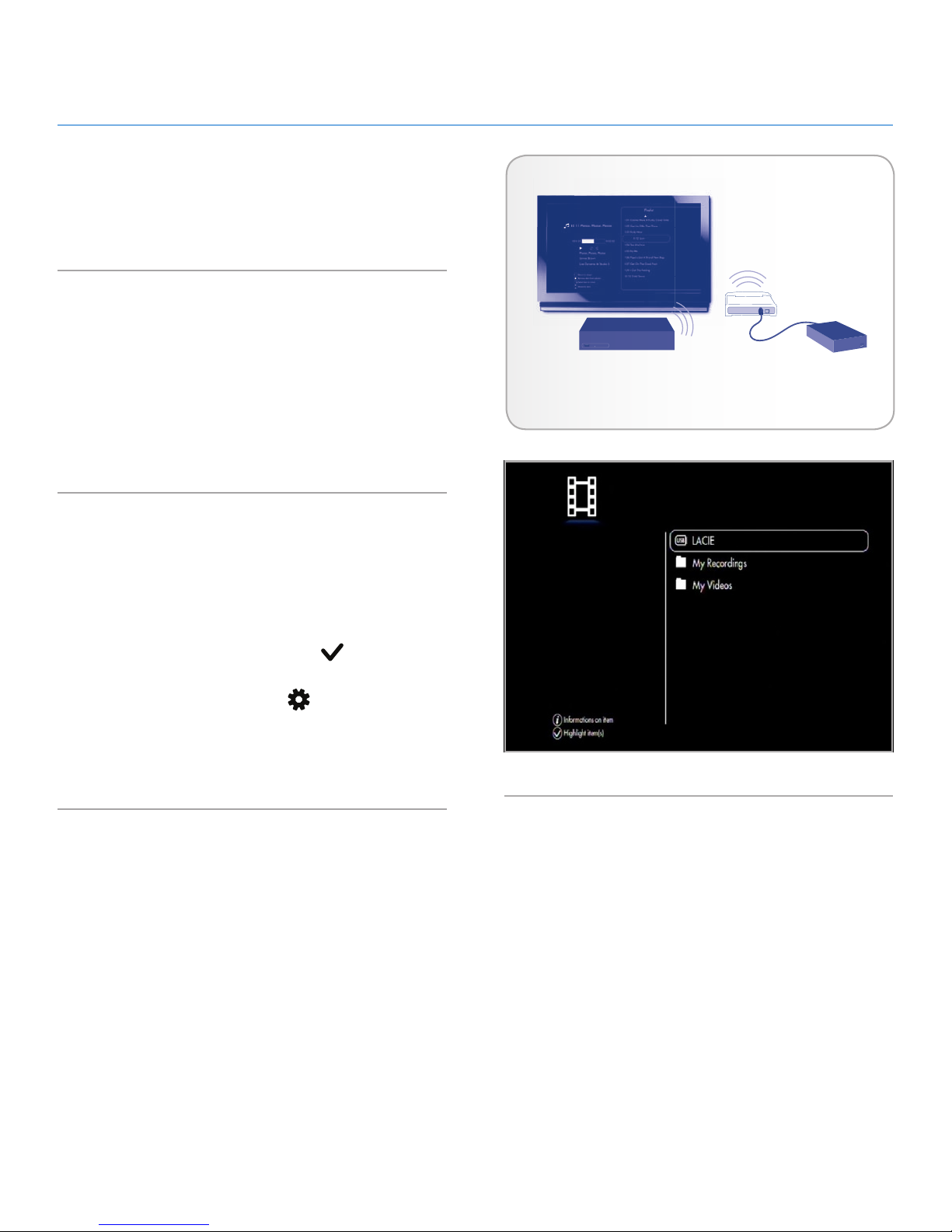

5.3. Networked Media Server
You can stream content to your LaCinema Black RECORD from a networked UPnP server located on a host computer (Mac or PC) or a network-attached hard disk (NAS). For details, see below.
5.3.1. Network-Attached Hard Disk (NAS)
5.3.1.1. Playing Files
If you have a NAS running a media server, it is possible to stream this content to the LaCinema Black RECORD. In order to view your NAS content on LaCinema Black RECORD, first make sure that both devices are connected to the network (see Fig. 52). Once connected, files located on the NAS will appear in the vari­ous Spaces on the LaCinema Black RECORD.
5.3.1.2. Copying Files
1. Make sure that both the NAS and the LaCinema Black are connected to the network (Fig. 52).
2. Files located on the external volume will be listed alongside the locally stored files in the various Spaces. Select the file or
folder to be copied and press the Mark
button (Fig. 53).
3. Then, navigate to the directory where you’d like to copy the file
and the press the Options/Settings
button and select Paste
marked items to [Current Directory].
4. The file copy window will appear and show the copying prog­ress.
Television
Network Router
NAS Media Server
LaCinema Black RECORD
Fig. 52
Fig. 53
Page 40
LaCinema Black RECORD External Sources
User Manual page 40
5.3.2. Host Computer
You can connect your LaCinema Black to a computer in order to stream or copy files.
✦ If you wish to connect via USB, you must use Windows Me-
dia Player (see section 5.3.1. Network-Attached Hard Disk
(NAS)).
✦ If you choose a Network connection, you can either use
TwonkyMedia server (see 5.3.2.1. Playing Files Using Twon-
kyMedia Server (All users)) or Windows Media Player (Win-
dows users only).
5.3.2.1. Playing Files Using TwonkyMedia Server (All users)
You can install software which will enable your PC or Mac to act as a UPnP media server. Once the software has been installed and configured, files located on the host computer will appear in the various Spaces on the LaCinema Black RECORD (see Fig.
54).
1. From the Utilities CD-ROM, install the Packet Video TwonkyVi­sion software.
2. Once installed, launch the server from the Start Menu (Win­dows users) or the Applications folder (Mac users).
3. In the configuration page that opens in your web browser, click on the Sharing link and then select the folders on your computer that contain the multimedia content you wish to ac­cess from the LaCinema Black RECORD (Fig. 55). Make sure to click the Save Changes button when you finish.
4. It may be necessary to restart the server. To do so, select the
First Steps link and click Restart server.
5. You will now be able to access your computer’s multimedia content using the LaCinema Black RECORD remote control. Files will appear in the various Spaces on the LaCinema Black RECORD.
Television
Network Router
PC or Mac with Twonky Media Server Installed
NAS Media Server
LaCinema Black RECORD
Fig. 54
Fig. 55
Page 41
LaCinema Black RECORD External Sources
User Manual page 41
5.3.2.2. Copying Files Using TwonkyMedia Server (All users)
1. Make sure that both the host computer and the LaCinema Black are connected to the network and the TwonkyMedia server has been set up as described in section 5.3.2.1.
2. Files located on the host computer will be listed alongside the locally stored files in the various Spaces on the LaCinema Black. Select the file or folder to be copied and press the
Mark
button (Fig. 56).
3. Then, navigate to the directory where you’d like to copy the file
and the press the Options/Settings
button and select Paste
marked items to [Current Directory].
4. The file copy window will appear and show the copying prog­ress.
Fig. 56
Page 42
LaCinema Black RECORD External Sources
User Manual page 42
5.3.2.3. Playing Files via the Network Using Windows Media Player (Windows Only)
Windows Media Player (WMP) 11 provides a network media serv­er, which can use your LaCinema Black RECORD as a network media player. This allows you to play back files on your TV that are located on your computer, via the LaCinema Black RECORD. Follow these steps to configure the connection:
1. Make sure that the software is installed on your computer.
TECHNICAL NOTE: WMP is preinstalled on Vista, but XP users
may have to download and install the software.
2. Make sure that both devices are connected to the network.
3. In WMP, turn on Media Sharing by clicking on Library > Me-
dia Sharing... (Fig. 57).
4. In the Media Sharing dialogue box, select Share My Media
to... You must then tell WMP to share content with the LaCin-
ema Black. Below the Share My Media check box, select the LaCinema Black RECORD and click Allow (Fig. 58).
5. Multimedia content imported into WMP will now be acces­sible in the various Spaces on the LaCinema Black RECORD.
5.3.2.4. Copying Files via the Network Using Windows Media Player (Windows Only)
1. Make sure the host computer and the LaCinema Black are connected to the network and WMP has been installed and configured (see 5.3.2.3).
2. Files located on the host computer will be listed alongside the locally stored files in the various Spaces on the LaCinema Black. Select the file or folder to be copied and press the
Mark
button (Fig. 59).
3. Then, navigate to the directory where you’d like to copy the file
and the press the Options/Settings
button and select Paste
marked items to [Current Directory].
4. The file copy window will appear and show the copying prog­ress.
Fig. 57
Fig. 58
Fig. 59
Page 43
LaCinema Black RECORD External Sources
User Manual page 43
The LaCinema Black RECORD can capture video from external devices such as a camcorder or set-top box.
6.1. Connect the External Video Source
Refer to section 3.2. STEP 2: Connect to Set-Top Box or Digital
Camcorder (Optional) for the procedure.
6.2. Recording Video
The LaCinema Black RECORD can record video input in two dif­ferent ways:
✦ Instant recording ✦ Scheduled recording
6.2.1. Instant Recording
1. From Camcorders:
Connect (see chapter 3.2) and play the video on your camcorder.
From a Set-Top Box:
Connect (see chapter 3.2) and navigate to the channel on which the show you wish to record is playing.
2. Using the LaCinema Black RECORD remote control, press the
Record
on your remote control to start capturing the video
(Fig. 60).
The default recording length is for three hours and can be modi­fied immediately after pressing the reocrd button by using the Up
and Down keys with 30 minute intervals.
During the recording, you can increase or reduce the recording
length by pressing the Record
button again and then the Up
and Down buttons.
TECHNICAL NOTE: Initially you may experience slow response
time from the set-top box remote control when using the device in conjunction with the LaCinema Black RECORD. This is normal and with cease within a few moments.
6. Capturing Video from a TV or Camcorder
Fig. 60
Page 44
LaCinema Black RECORD External Sources
User Manual page 44
3. You can then stop the recording when you wish to create the video file.

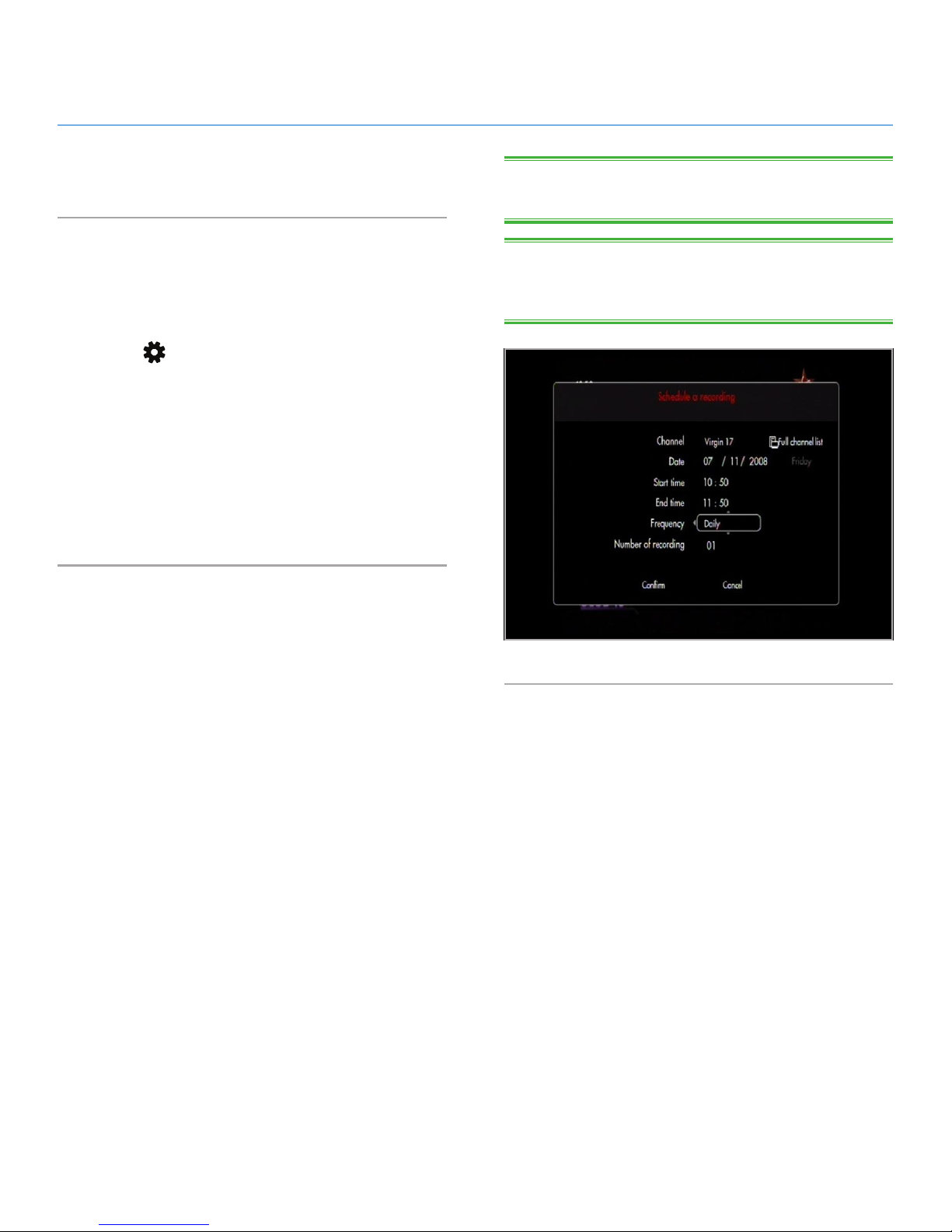

6.2.2. Scheduled Recording
Scheduled recording is very useful for recording repeating pro­grams, such as a daily or weekly show.
To record a program, open the task window by pressing the Op-
tions/Settings
button and selecting Manual Recording and
defining the following parameters (Fig. 61):
✦ Channel list containing the available sources
✦ Recording date
✦ Start and finish times
✦ Frequency
✦ Number of repetitions: the recording can be repeated sev-
eral times
TECHNICAL NOTE: The device cannot record protected content
sources such as commercial DVD-Video.
TECHNICAL NOTE: Pressing pause pauses the video on-screen,
but doesn’t stop the recording. Additionally, if you turn off the set­top box, the LaCinema Black will record a black screen.
Fig. 61
Page 45
LaCinema Black RECORD External Sources
User Manual page 45
6.2.3. Timeshifting: Taking Control of Live TV
One of the LaCinema Black RECORD’s key benefits is the ability to pause and rewind live TV. The LaCinema Black RECORD auto­matically records TV as you are watching it, keeping the last three hours of recorded television. This buffer allows you to rewind up to three hours. If you rewind while watching live television, you can then fast-forward until you reach the live television time.
This icon in the information banner shows you that you are watching TV in timeshifting mode (Fig. 62).
Additionally, a progress bar shows you how far you are from the live television point.
6.2.4. Record Space Icon Details
Icon Meaning
Live
You are watching live television
You are timeshifting and watching recorded television
You are recording
Fast return/Forward during a program
Fig. 62
Page 46
LaCinema Black RECORD External Sources
User Manual page 46
6.3. Accessing Recorded Video
Recorded shows are saved in a predefined location that can be accessed from the Movie Space or Browser Space.
Go to the Home menu, select the Movie Space or Browser Space, and open the My Recordings folder (Fig. 63). This folder contains all recordings made with from Video IN capture (see section 6.2.
Recording Videofor details). Press the Play/Pause/OK
button
to start watching your video.
NOTE: Recordings can be exported to a PC or Mac by copying
them to a USB hard disk for further editing or to be archived to a DVD.
Fig. 63
Page 47
LaCinema Black RECORD Settings Menu
User Manual page 47
7. Settings Menu
From the Home menu, access LaCinema Black RECORD settings
by pressing the Options/Settings
button on the remote con-
trol.
7.1. Settings Menu Overview
Navigate through the settings categories using the Left and
Right buttons and confirming using the Play/Pause/OK
button.
An info bar at the bottom of the screen provides the following information (Fig. 64):
✦ Current time and date
✦ Free space on the hard disk
✦ Network connection
✦ TV connection and resolution
A description of the settings categories follows.
7.1.1. Settings: General
Allows you to specify general parameters (Fig. 65):
✦ Country – Select your country for time and broadcasting
preferences
✦ Language – Select the language for the on-screen menu
✦ Date and Time –
• Update mode – defines how time is updated
– Manual – User inputs time and date – Automatic – time and date updated from TV signal
• Date format – Defines how time is displayed
– Year/Month/Day – Day/Month/Year – Month/Day/Year
• Time format –
– 12 Hours – 24 Hours
• Time Set – Set current Time and date (only available
when Update mode is set to Manual)
• Time zone – Define the time zone per Country / City
Fig. 64
Fig. 65
Page 48
LaCinema Black RECORD Settings Menu
User Manual page 48
✦ Access and Protections –
• Parental control – Enable or Disable parental control
• Set to child mode – Turns Parental control on requiring
secret code to enter some menus and some hidden files
• Modify secret code – Enter current code and new code
• Modify answer/question – Change the question that
helps to remember the secret code
• Parental rating – Defines age restriction for broad-
casted shows
✦ Help banner – Enable or Disable Help banner during de-
vice use

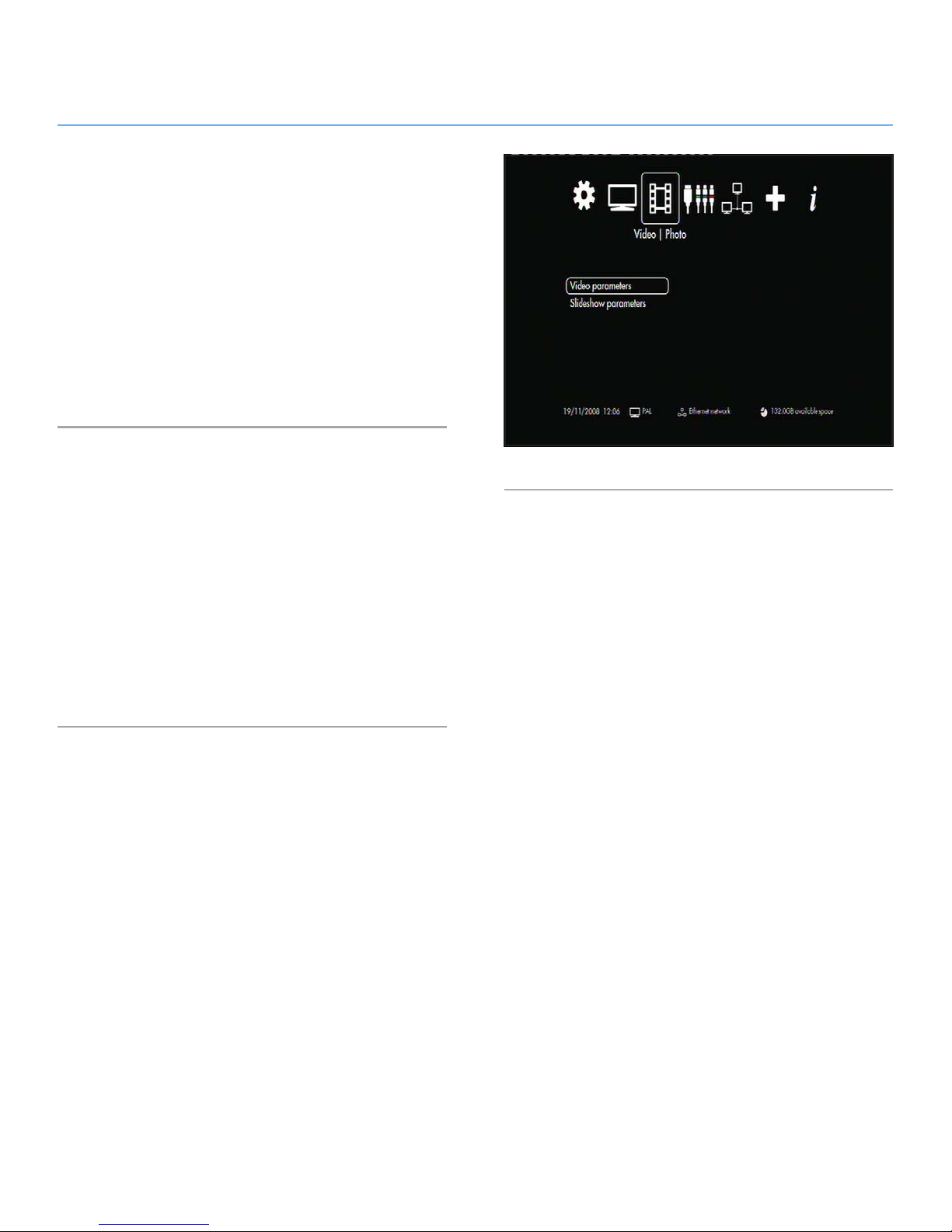

7.1.2. Settings: Video/Photo
Allows you to specify video and photo parameters (Fig. 66):
✦ Video parameters –
• Default audio track –
– French / English / Spanish
✦ Slide Show Parameters –
• Transitions –
– Without transition – Fade to black – Cross fading – Top to bottom
Fig. 66
Page 49
LaCinema Black RECORD Settings Menu
User Manual page 49
7.1.3. Settings: Connection
Allows you to specify video connection parameters (Fig. 67):
✦ HDMI/YUV output resolution
✦ Composite output
✦ Component output
✦ HDMI sound
✦ Automatic frame rate
✦ S/PDIF sound
✦ Aspect ratio
Fig. 67
Fig. 68
Fig. 69
7.1.4. Settings: Network
For basic network setup, refer to 3.6. STEP 6: Connect to Your
Network.
7.1.5. Settings: Advanced
LaCinema Black reset – Pressing this button will cause all the
settings to be reset and the installation wizard launched after au­tomatic restart has concluded (Fig. 68).
7.1.6. Settings: Version
Allows you to view (Fig. 69):
✦ Software version
✦ Serial number
✦ Copyright
Page 50
LaCinema Black RECORD Settings Menu
User Manual page 50
7.2. Firmware Update
The LaCinema Black RECORD allows you to update its firmware by loading downloaded firmware updates located on a connected USB external hard drive.
To update the firmware:
1. Go to www.lacie.com/support and click on the Downloads link.
2. Select and download the most recent LaCinema Black RE­CORD firmware.
3. Save the downloaded file to the top-most directory on an external hard drive volume (i.e. not within a folder on the volume).
4. Connect the external hard drive to the LaCinema Black RE­CORD.
5. Start the LaCinema Black RECORD.
IMPORTANT INFO: No other process should be running at the
same time as the firmware update, such as recording or copying files.
6. The system will detect the new firmware file and offer to con­duct an update (Fig. 70).
7. Accept the offer, and the update will begin (Fig. 71). Do not disconnect the USB external hard disk during the update.
8. Once the update is completed, the LaCinema Black RECORD will restart and confirm that the update was successful (Fig.
72).
9. Firmware information can be accessed from the Settings
menu. From the Home menu, press the Options/Settings button to access the Settings Space. Go to the Information tab to display the current firmware version.
CAUTION: Never turn off the LaCinema Black RECORD dur-
ing the Firmware Update process! Doing so may damage your device. If, for any reason, the procedure fails (e.g. a power fail­ure occurs during the update), you may not be able to use your LaCinema Black RECORD. Please contact your reseller or LaCie Customer Support for more information.
Fig. 70
Fig. 71
Fig. 72
Page 51
LaCinema Black RECORD Troubleshooting
User Manual page 51
8. Troubleshooting
If your LaCinema Black is not working correctly, please refer to the following checklist to determine the source of the problem. If you have gone through all of the points on the checklist and your LaCinema Black still does not work properly, please check the FAQs that are regularly published on our website – www.lacie.com. One of these FAQs may provide an answer to your specific question. You can also visit the downloads page, where the most recent software updates will be available.
If you need further assistance, please contact your LaCie reseller or LaCie Customer Support (see section 9. Contacting Customer
Support for details).
Manual Updates
LaCie strives to give you the most up-to-date, comprehensive user manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device.
If your user manual does not reflect the configuration of the prod­uct you purchased, please check our website for the most current version of the user manual.
www.lacie.com
Problem Question Answer
Checking the firm­ware version.
How do you know which firmware version your LaCinema Black is using?
To check which firmware is currently installed on your LaCinema Black, use the remote control to navigate to the Settings > Version menu. The firmware version will be displayed.
How do you get new firmware, and how do you install it?
For a detailed explanation, please see section 7.2. Firmware Update or go to www.lacie.com.
DivX® and XviD® compatibility.
When a new version of DivX® or XviD® is released, will the LaCin­ema Black be able to play those files, too?
Provided that the new version complies with the ISO MPEG- 4 stan­dard, the LaCinema Black should be able to play the new versions.
Does the LaCinema Black support external subtitles with DivX® files?
Yes, the LaCinema Black does support this functionality by using Unicode text files with extensions .sub (MicroDVD format) and .smi. In order to work correctly, use the same file name for both the video file and subtitle text file, and store both of them in the same folder location on your LaCinema Black. For example, if the file name of the video file is “Movie.avi,” then you will need to re-name the subtitle text as either “Movie.sub” or “Movie.srt.”
Page 52
LaCinema Black RECORD Troubleshooting
User Manual page 52
Problem Question Answer
TV picture distortion. Are all of the cables connected
correctly?
Ensure that all of the cables are connected correctly. Make sure that only one video signal cable is attached at a time. See section 3.1.
STEP 1: Connect to TV.
Do your TV video settings cor­respond to the video connection method you have used?
You can modify the video settings in the Settings Space to match your TV’s settings and the video connection method. Using the remote
control, click Options/Settings
, then Connection, then choose
your options.
Audio problems. Are the audio cables connected
properly?
For composite, component, SCART, and S-Video connections, make sure that the stereo audio (red and white) connectors are plugged in.
Does the file you’re attempting to play have sound, or is it compatible with the LaCinema Black?
Check the file’s audio codec against the list of compatible files (see section 1.2. Supported Formats).
My file won’t play. Is the file compatible with the
LaCinema Black?
Check the file’s audio codec against the list of compatible files (see section 1.2. Supported Formats).
Optimizing video connections.
What connectivity method will pro­duce the best quality?
For optimal quality and performance, the best video connection is the HDMI cable (included).
Viewing photos. Does it take several seconds to load
a picture?
Depending on file size, photos may take several seconds to load prop­erly. Reducing the photo’s resolution will reduce the file size, as well, and allow the file to load faster.
“Empty Folder” mes­sage appears.
Are there compatible files in the ap­propriate folder?
If you know that there are compatible files in the folder and they are not being displayed, move the power switch on the back of the LaCin­ema Black to the OFF position, wait several seconds, and then turn the LaCinema Black on. Your files should now be displayed.
Make sure also that parental controls have not prevented the file from being displayed. See 4.6. Controlling Access to Files.
Page 53
LaCinema Black RECORD Contacting Customer Support
User Manual page 53
Before You Contact Technical Support
1. Read the manuals.
2. Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are cor­rectly and firmly attached.
If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t get your LaCie drive to work properly, contact us at www.lacie.com. Before contacting us, make sure that you are in front of your computer and that you have the following information on hand:
Information Where to Find Information
1. LaCie hard drive serial number Located on a sticker at the back of drive or on the original packaging
3. Macintosh/PC model
Mac users: Click on the Apple icon in the menu bar and select About This Mac.
Windows users: Right click My Computer and select Properties > Gen- eral.
4. Operating system version
5. Processor speed
6. Computer memory
7. The brands and models of other internal and external peripherals installed on your computer
Mac users: Click on the Apple icon in the finder bar and select About This Mac. Select More Info... The Apple System Profiler will launch and will list
your internal and external peripherals.
Windows users: Right click My Computer and select Properties > Hard- ware.
9. Contacting Customer Support
Page 54
LaCinema Black RECORD Contacting Customer Support
User Manual page 54
9.1. LaCie Technical Support Contacts
LaCie Asia, Singapore, and Hong Kong Contact us at:
http://www.lacie.com/asia/contact/
LaCie Australia Contact us at:
http://www.lacie.com/au/contact/
LaCie Belgium Contact us at:
http://www.lacie.com/be/contact/ (Français)
LaCie Canada Contact us at:
http://www.lacie.com/caen/contact/ (English)
LaCie Denmark Contact us at:
http://www.lacie.com/dk/contact
LaCie Finland Contact us at:
http://www.lacie.com/fi/contact/
LaCie France Contact us at:
http://www.lacie.com/fr/contact/
LaCie Germany Contact us at:
http://www.lacie.com/de/contact/
LaCie Italy Contact us at:
http://www.lacie.com/it/contact/
LaCie Japan Contact us at:
http://www.lacie.com/jp/contact/
LaCie Netherlands Contact us at:
http://www.lacie.com/nl/contact/
LaCie Norway Contact us at:
http://www.lacie.com/no/contact/
LaCie Spain Contact us at:
http://www.lacie.com/es/contact/
LaCie Sweden Contact us at:
http://www.lacie.com/se/contact
LaCie Switzerland Contact us at:
http://www.lacie.com/chfr/contact/ (Français)
LaCie United Kingdom Contact us at:
http://www.lacie.com/uk/contact
LaCie Ireland Contact us at:
http://www.lacie.com/ie/contact/
LaCie USA Contact us at:
http://www.lacie.com/contact/
LaCie International Contact us at:
http://www.lacie.com/intl/contact/
Page 55
LaCinema Black RECORD Warranty Information
User Manual page 55
LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, re­pair or replace the defective drive.
This warranty is void if:
✦ The drive was operated/stored in abnormal use or mainte-
nance conditions;
✦ The drive is repaired, modified or altered, unless such re-
pair, modification or alteration is expressly authorized in writing by LaCie;
✦ The drive was subjected to abuse, neglect, lightning strike,
electrical fault, improper packaging or accident;
✦ The drive was installed improperly;
✦ The serial number of the drive is defaced or missing;
✦ The broken part is a replacement part such as a pickup
tray, etc.
✦ The tamper seal on the drive casing is broken.
LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result.
LaCie will not, under any circumstances, be liable for direct, spe­cial or consequential damages such as, but not limited to, dam­age or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconvenience caused by service interruptions.
Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circum­stances will LaCie be held liable for the recovery or restoration of this data.
Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive.
To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty.
All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.
IMPORTANT INFO: Register online for free technical support:
www.lacie.com/register
10. Warranty Information
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
