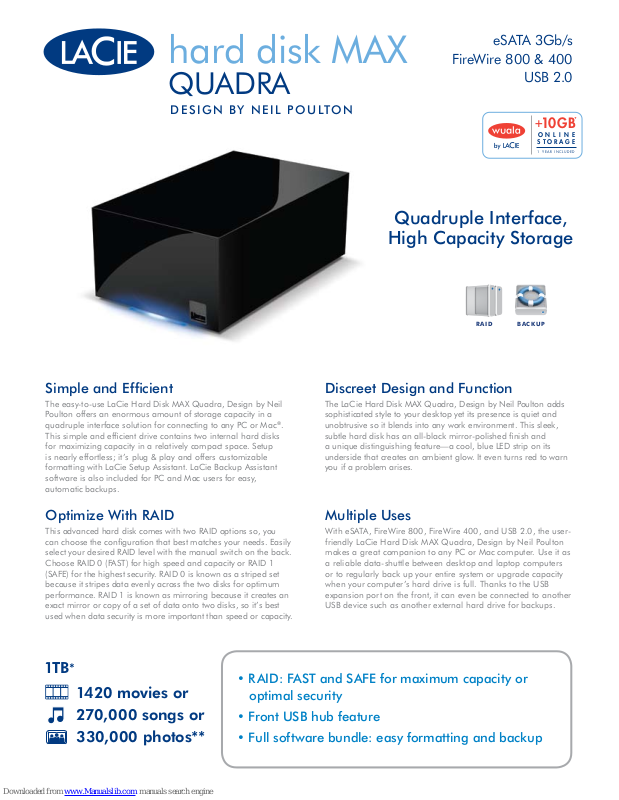

Page 1
eSATA 3Gb/s
BACKUP
BACKUP
SYNCWEB PORTAL
MEDIA
STREAMING
RAID
COMPUTER
RECOVERY
USB BOOST
+
10GB
Ç
O NLINE
STORAGE
1 YEAR INCLUDED
+
4GB
Ç
O NLINE
STORAGE
2 YEARS INCLUDED
hard disk MAX
QUADRA
DESIGN BY NEIL POULTON
Quadruple Interface,
High Capacity Storage
FireWire 800 & 400
USB 2.0
Simple and Efcient
The easy-to-use LaCie Hard Disk MAX Quadra, Design by Neil
Poulton offers an enormous amount of storage capacity in a
quadruple interface solution for connecting to any PC or Mac
This simple and efficient drive contains two internal hard disks
for maximizing capacity in a relatively compact space. Setup
is nearly effortless; it’s plug & play and offers customizable
formatting with LaCie Setup Assistant. LaCie Backup Assistant
software is also included for PC and Mac users for easy,
automatic backups.
Optimize With RAID
This advanced hard disk comes with two RAID options so, you
can choose the configuration that best matches your needs. Easily
select your desired RAID level with the manual switch on the back.
Choose RAID 0 (FAST) for high speed and capacity or RAID 1
(SAFE) for the highest security. RAID 0 is known as a striped set
because it stripes data evenly across the two disks for optimum
performance. RAID 1 is known as mirroring because it creates an
exact mirror or copy of a set of data onto two disks, so it’s best
used when data security is more important than speed or capacity.
1TB
*
1420 movies or
• RAID: FAST and SAFE for maximum capacity or
optimal security
Discreet Design and Function
The LaCie Hard Disk MAX Quadra, Design by Neil Poulton adds
®
.
sophisticated style to your desktop yet its presence is quiet and
unobtrusive so it blends into any work environment. This sleek,
subtle hard disk has an all-black mirror-polished finish and
a unique distinguishing feature—a cool, blue LED strip on its
underside that creates an ambient glow. It even turns red to warn
you if a problem arises.
Multiple Uses
With eSATA, FireWire 800, FireWire 400, and USB 2.0, the userfriendly LaCie Hard Disk MAX Quadra, Design by Neil Poulton
makes a great companion to any PC or Mac computer. Use it as
a reliable data-shuttle between desktop and laptop computers
or to regularly back up your entire system or upgrade capacity
when your computer’s hard drive is full. Thanks to the USB
expansion port on the front, it can even be connected to another
USB device such as another external hard drive for backups.
270,000 songs or
330,000 photos**
• Front USB hub feature
• Full software bundle: easy formatting and backup
Page 2
Features
SCHEDULE
PDF
disk 1disk 2
disk 1disk 2
Capacity
RAID 0
(FAST)
Security
RAID 1
(SAFE)
Calculations are based on average read time.
0 1 2 3 4 5 6 7 8 9
minutes
eSATA 3Gb/s
1 minute 18 seconds
FireWire 800
3 minutes 7 seconds
FireWire 400
6 minutes 15 seconds
USB 2.0
8 minutes 20 seconds
1 HD VIDEO
Plug & play•
Cool blue LED; turns red as a warning indicator•
Easy RAID selection•
USB hub port feature•
LaCie Setup Assistant: easy customizable formatting•
LaCie Backup Assistant software for PC/Mac•
Mac: Time Machine•
Box Content
LaCie Hard Disk MAX Quadra, Design by Neil Poulton•
eSATA 3Gb/s cable•
FireWire 800 cable•
FireWire 800 to 400 cable (6-to-9 pin)•
USB 2.0 cable•
External power supply•
Quick Install Guide•
LaCie Software Utilities and User Manual preloaded•
hard disk MAX
QUADRA
®
compatible
On/Of f
eSATA
Power
3Gb /s
Upper a nd lower
drive s tatus L ED
RA ID selectio n
USB 2.0
FireWire 800
FireWire 800
Minimum System Requirements
Computer with an eSATA, FireWire 800, FireWire 400, or •
USB 2.0 port
High-speed Internet for online storage•
Latest version of Windows•
Mac OS X 10.5, 10.6
Minimum free disk space: 600MB recommended•
Capacity availability varies from region to region.
Please visit www.lacie.com for up-to-date information.
Item Number
Capacity*
Interfaces
Interface Transfer Rate
Average Read Transfer Rate
RAID Modes
Dimensions (WxDxH)
Weight
Warranty
®
XP, Windows Vista®, Windows 7 /
301850 301883EK
2TB 4TB
eSATA 3Gb/s, USB 2.0, FireWire 400, and FireWire 800
eSATA 3Gb/s: Up to 3Gbits/s, FireWire 800: Up to 800Mbits/s, FireWire 400: Up to 400Mbits/s,
USB 2.0: Up to 480Mbits/s
eSATA 3Gb/s: Up to 190MB/s, FireWire 800: Up to 80MB/s, FireWire 400: Up to 40MB/s,
USB 2.0: Up to 30MB/s
RAID 0 (FAST); RAID 1 (SAFE)
117 x 193 x 77 mm / 4.6 x 7.6 x 3 in.
1.8 kg / 4 lbs.
2-year limited
Statu s LED
USB expansio n port
*1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5–10% less).
**Calculations are based on approximately 700MB/MPEG-4 movie, 3.6MB/song and 3MB/JPEG photo.
Cannot be combined with any other Wuala offer. Full terms and conditions available at www.wuala.com/lacie.
© 2010, LaCie. The LaCie logo is a trademark of LaCie. Other product and brand names mentioned herein may
be trademarks or registered trademarks of their respective owners. Specifications and appearance are given as
guidelines and are subject to change without notice. www.lacie.com
100616
