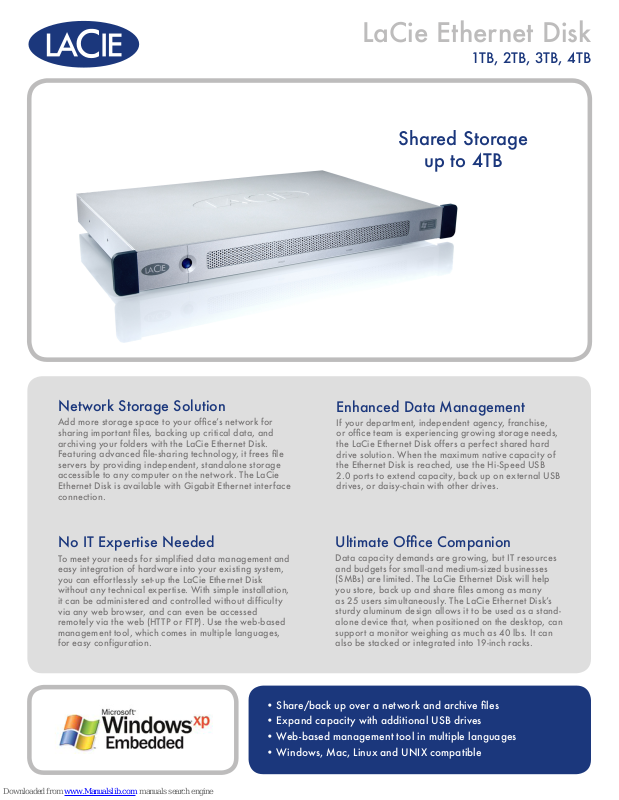

LaCie Ethernet Disk
1TB, 2TB, 3TB, 4TB
Shared Storage
up to 4TB
Network Storage Solution
Add more storage space to your ofce’s network for
sharing important les, backing up critical data, and
archiving your folders with the LaCie Ethernet Disk.
Featuring advanced le-sharing technology, it frees le
servers by providing independent, standalone storage
accessible to any computer on the network. The LaCie
Ethernet Disk is available with Gigabit Ethernet interface
connection.
No IT Expertise Needed
To meet your needs for simplified data management and
easy integration of hardware into your existing system,
you can effortlessly set-up the LaCie Ethernet Disk
without any technical expertise. With simple installation,
it can be administered and controlled without difficulty
via any web browser, and can even be accessed
remotely via the web (HTTP or FTP). Use the web-based
management tool, which comes in multiple languages,
for easy configuration.
Enhanced Data Management
If your department, independent agency, franchise,
or ofce team is experiencing growing storage needs,
the LaCie Ethernet Disk offers a perfect shared hard
drive solution. When the maximum native capacity of
the Ethernet Disk is reached, use the Hi-Speed USB
2.0 ports to extend capacity, back up on external USB
drives, or daisy-chain with other drives.
Ultimate Ofce Companion
Data capacity demands are growing, but IT resources
and budgets for small-and medium-sized businesses
(SMBs) are limited. The LaCie Ethernet Disk will help
you store, back up and share les among as many
as 25 users simultaneously. The LaCie Ethernet Disk’s
sturdy aluminum design allows it to be used as a standalone device that, when positioned on the desktop, can
support a monitor weighing as much as 40 lbs. It can
also be stacked or integrated into 19-inch racks.
• Share/back up over a network and archive les
• Expand capacity with additional USB drives
• Web-based management tool in multiple languages
• Windows, Mac, Linux and UNIX compatible
Page 2
Features
• Powered by Windows XP® Embedded
• Active Directory support to join a Windows Domain
• Access control: share, groups and user privileges
• Remote data access via the web – HTTP or FTP
• 4 x USB 2.0 ports for backup on external drives or
capacity expansion
• Firewall application
• LaCie Ethernet Agent for automatic drive mapping &
conguration
• Slender, aluminum rackable design
Box Content
• LaCie Ethernet Disk
• CD including Ethernet Agent & User Manual
• LaCie feet for stand-alone use
• Ethernet cable
• Power cords and power plugs
LaCie Ethernet Disk
System Requirements
Network:
• Auto-sensing 10/100/1000 Base-T
• SMB (Windows), AFP v3.1 (Mac), FTP, HTTP
• DHCP auto-IP assignment
• Apple Bonjour protocol
• Microsoft Active Directory
• Kerberos Authentication v5.0
• DNS, WINS
• File Level Security (ACLs)
• Network Logon
Client Types:
• Microsoft Windows® 98SE, Windows 2000, Windows Me,
Windows XP, Windows Vista™
• Mac® OS 9**, Mac OS X
• Linux 2.4 & higher; UNIX
Web Browser:
• Microsoft® Internet Explorer
• Mozilla Firefox
• Apple Safari
™
Capacity
Item Number
Interface
Network Protocols
Special OS Features
Rotational Speed
Cache
Expansion Ports
Processor/RAM
Software
Dimensions (WxHxD)
Weight
Warranty
*1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 10–15% less).
**Not compatible with Mac OS 9 in all double-byte character languages.
©2007, LaCie. The LaCie logo is a trademark of LaCie. Other product and brand names mentioned herein may be trademarks or
registered trademarks of their respective owners. Specications and appearance are given as guidelines and are subject to
change without notice. www.lacie.com 070822
1TB 2TB 3TB 4TB
301297 301298 301299 301300
1 x Gigabit Ethernet 10/100/1000 Mbits/s
SMB (Windows), AFP (Mac), FTP, HTTP, Bonjour
Windows XP® Embedded; Share among up to 25 users
7200rpm
8MB or greater
4 x USB 2.0; 1 x VGA; 1 x mouse port, 1 x keyboard port
VIA C7 1GHz / 256MB DDR RAM
New LaCie Ethernet Agent for Mac & PC
16.9 x 1.77 x 16.9 in / 430 x 45 x 430 mm
20.6 lb / 9350 g
3 years limited
