Page 1

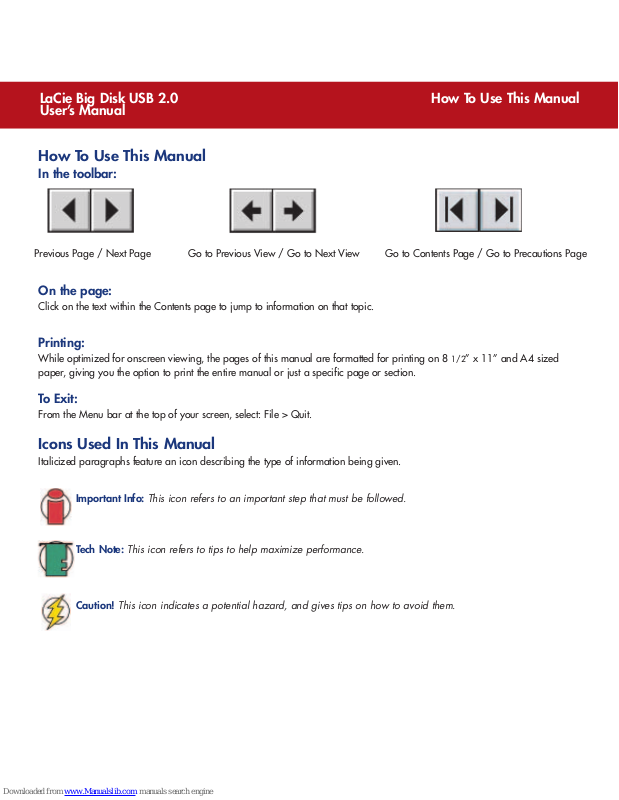

How To Use This Manual

LaCie Big Disk USB 2.0 User’s Manual

How To Use This Manual

In the toolbar:

On the page:

Click on the text within the Contents page to jump to information on that topic.

Printing:

While optimized for onscreen viewing, the pages of this manual are formatted for printing on 8 1/2” x 11” and A4 sized paper, giving you the option to print the entire manual or just a specific page or section.

To Exit:

From the Menu bar at the top of your screen, select: File > Quit.

Icons Used In This Manual

Italicized paragraphs feature an icon describing the type of information being given.

Important Info:

This icon refers to an important step that must be followed.

Tech Note:

This icon refers to tips to help maximize performance.

Caution!

This icon indicates a potential hazard, and gives tips on how to avoid them.

Previous Page / Next Page

Go to Previous View / Go to Next View

Go to Contents Page / Go to Precautions Page

Page 2

Table of Contents

LaCie Big Disk USB 2.0 User’s Manual

Table of Contents

Foreword 4 Precautions 6

1. Introduction 7

1.1. What Your LaCie Drive Can Do 7

2. Your LaCie Drive 8

2.1. Minimum System Requirements 8

2.2. Package Contents And Views Of The Drive 9

2.2.1. Package Contents 9

2.2.2. Views Of The Drive 10

2.3. USB 12

3. Installing Your LaCie Drive 13

3.1. Connecting The Power Supply 14

3.2. Connecting The Interface Cable 15

3.2.1. Mac Users 15

3.2.2. Windows Users 19

3.3. Installing Multiple Devices 21

3.4.. Disconnecting Your LaCie Drive 22

3.4.1. Mac Users 22

3.4.2. Windows Users 22

4. Using Your LaCie Drive 23

4.1. Formatting And Partitioning Your LaCie Big Disk USB 2.0 24

4.1.1. Mac Users 24

4.1.2. Windows Users 26

5. Tech Tips 28

5.1. File System Formats 28

5.1.1. Mac Users 28

5.1.2. Windows Users 29

5.2. Available Storage Capacity 30

5.3. Optimizing Data Transfers 30

Page 3

Table of Contents

LaCie Big Disk USB 2.0 User’s Manual

5.3.1. Hi-Speed USB 2.0 Ports And Performance 31

5.3.2. Computer with only USB ports 31

6. USB Questions & Answers 32

7. Troubleshooting 34

7.1. Mac Users 35

7.2. Windows Users 38

8. Contacting Customer Support 41

9. Warranty 43 Glossary 44

Page 4

Foreword

page 4

LaCie Big Disk USB 2.0 User’s Manual

Copyrights

Copyright © 2005 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.

Trademarks

Apple, Mac, and Macintosh are registered trademarks of Apple Computer, Inc. Microsoft, Windows 98, Windows 98 SE, Windows 2000, Windows Millennium Edition and Windows XP are registered trademarks of Microsoft Corporation.

Changes

The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement:

Caution!

Modifications not authorized by the manufacturer may void the user’s authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Tested To Comply With FCC standards

FOR HOME OR OFFICE USE

LaCie Big Disk USB 2.0

Page 5

Foreword

page 5

LaCie Big Disk USB 2.0 User’s Manual

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canada Compliance Statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Manufacturer’s Declaration for CE Certification

We, LaCie, solemnly declare that this product conforms to the following European standards: Class B EN60950, EN55022, EN50082-1, EN61000-3-2 With reference to the following conditions:

73/23/EEC Low Voltage Directive 89/336/EEC EMC Directive

Page 6

Precautions

page 6

LaCie Big Disk USB 2.0 User’s Manual

Health And Safety Precautions

Only qualified persons are authorized to carry out maintenance on this device.

• Read this User's Guide carefully, and follow the correct procedure when setting up the device.

• Do not open your hard drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions. Your hard drive contains no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified LaCie Technical Support representative.

• Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

General Use Precautions:

• Do not expose the hard drive to temperatures outside the range of 5° C to 35° C (41° F to 95° F). Doing so may damage the drive or disfigure its casing. Avoid placing your drive near a source of heat or exposing it to sunlight (even through a window). Inversely, placing your drive in an environment that is too cold or humid may damage the unit.

• Always unplug the hard drive from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.

• Use only the power supply shipped with the device.

• Do not use the hard drive near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.

• Do not place the drive near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic interference can affect the operation and stability of your hard drive.

• Do not place heavy objects on top of the drive or use excessive force on it.

• Never use excessive force on your drive. If you detect a problem, consult the "Troubleshooting" section in this manual.

• Protect your hard drive from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.

• Never use benzene, paint thinners, detergent or other chemical products to clean the outside of the drive. Such products will disfigure and discolor the casing. Instead, use a soft, dry cloth to wipe the device.

Caution!

The drive's warranty may be void as a result of the failure to respect the precautions listed above.

Page 7

1. Introduction

page 7

LaCie Big Disk USB 2.0 User’s Manual

1. Introduction

Thank you for the purchase of your new LaCie Big Disk USB 2.0! This hard drive system combines compatibility, convenience and a generous storage capacity to help you manage your data. Your LaCie external hard drive system is cross-platform, which enables you to use it on both Macs and PCs and you can customize the format and partitions of your LaCie drive to match your exact needs.

LaCie’s Hard Drive is ideally suited for a wide range of high-end, high-traffic environments, including:

• Workstations

• Audio/Video Editing

• Database Management

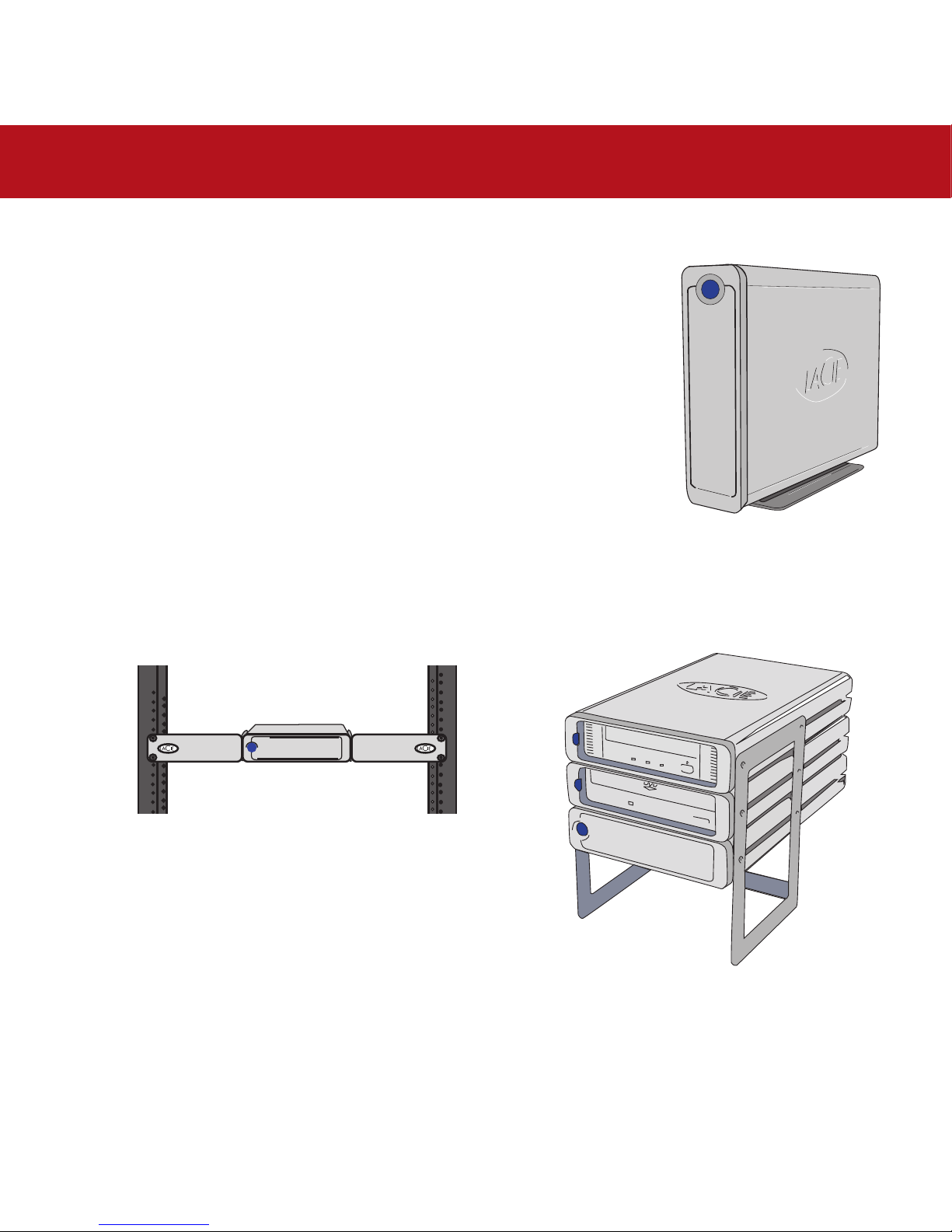

Engineered to fit seamlessly in to any work environment, the LaCie Big Disk USB 2.0 can be stood vertically on the LaCie Drive Stand (included), placed in the LaCie Desk Rack (sold separately) or incorporated into standard 19” computer equipment racks with the LaCie Rackmount Kit (sold separately).

1.1. What Your LaCie Drive Can Do

• Back up your computers’ internal hard drive.

• Store and exchange data between several computers.

Page 8

2. Your LaCie Drive

page 8

LaCie Big Disk USB 2.0 User’s Manual

2. Your LaCie Drive

2.1. Minimum System Requirements

Hi-Speed USB 2.0

Hardware Requirements for USB:

• Pentium II or higher -compatible processor, with a USB 2.0 or 1.1 interface card

• 32MB RAM or greater System Requirements for USB:

• Windows 2000 and Windows XP

Hi-Speed USB 2.0

Hardware Requirements for USB:

• G3 or greater, with USB 2.0 or 1.1 interface card System Requirements for USB:

• OS 9.x and 10.x (Apple USB support 1.3.5 and greater)

Windows Users

Mac Users

Tech Note:

Mac OS 9.x and Mac OS 10.1 are

limited to USB 1.1 speed.

Page 9

2.2. Package Contents and Views of the Drive

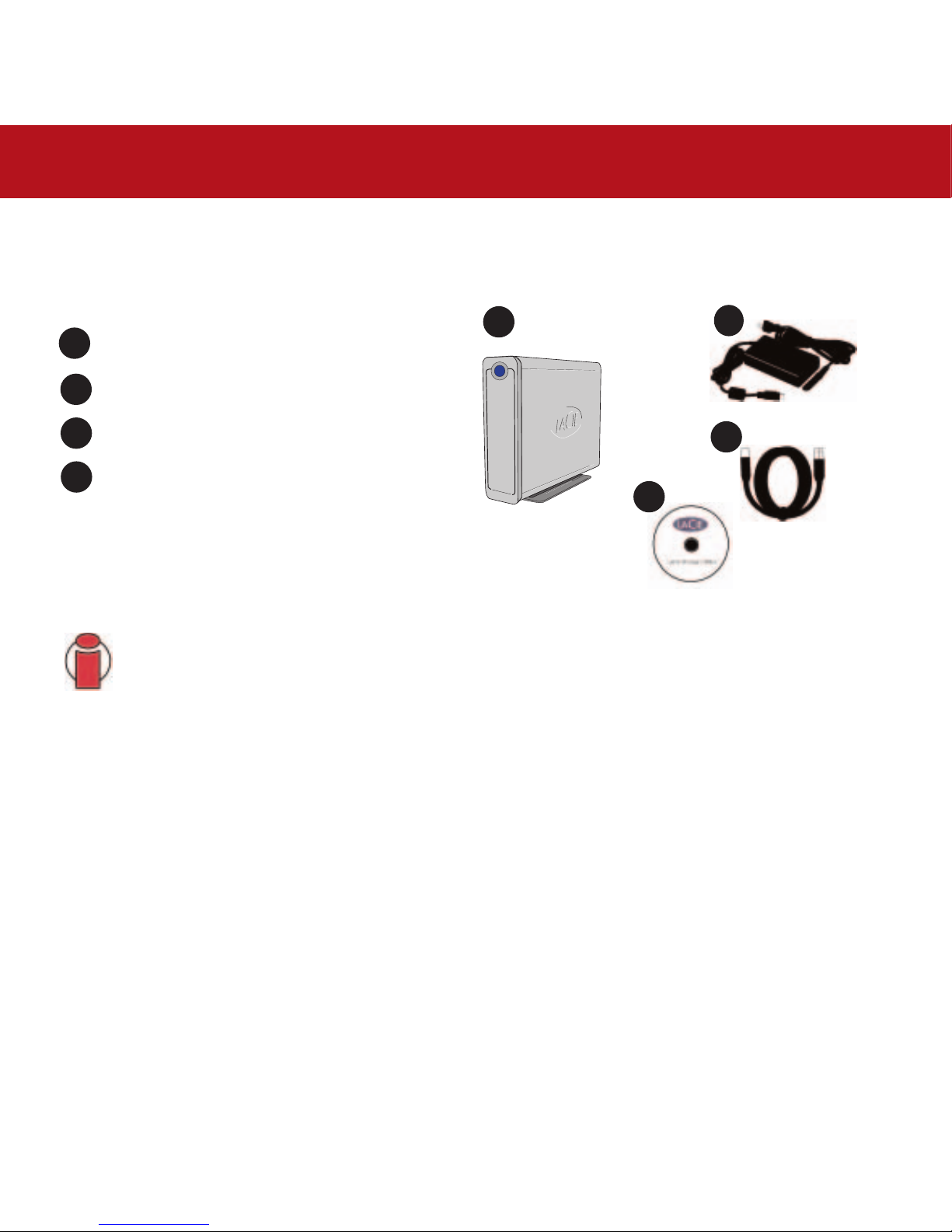

2.2.1. Package Contents

LaCie Big Disk USB 2.0 and Drive Stand kit

External power supply

Hi-Speed USB 2.0 cable

LaCie Storage Utilities CD-ROM

Important Info:

Please keep your box. In the event that the drive should need to be repaired or serviced, it must

be returned in its original packaging.

2. Your LaCie Drive

page 9

LaCie Big Disk USB 2.0 User’s Manual

Page 10

2. Your LaCie Drive

page 10

LaCie Big Disk USB 2.0 User’s Manual

2.2.2. Views of the Drive

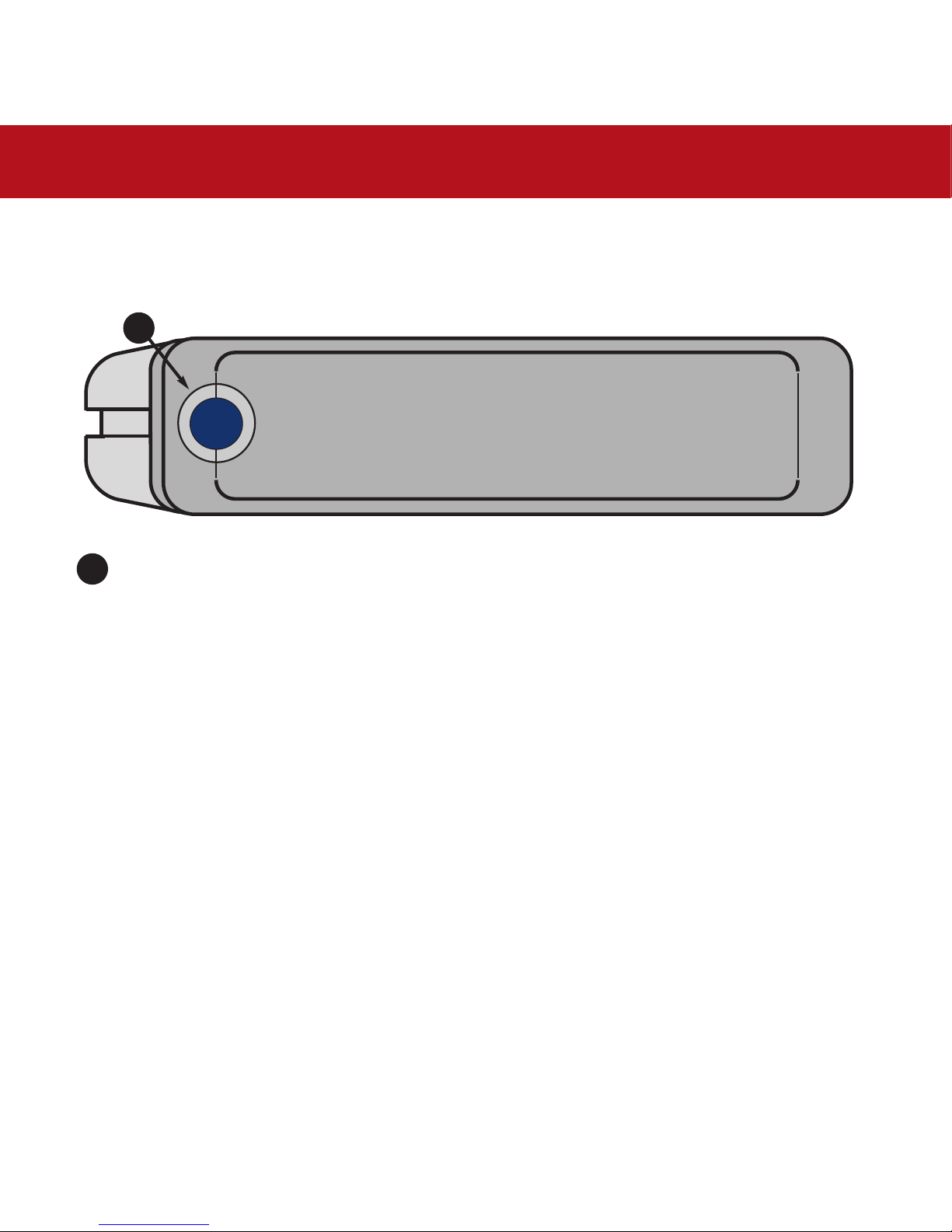

2.2.2.1. Front View

On/Off Button / Power LED /Activity LED

Push the button to power the drive on. The LED remains lit to show that the drive is on, and blinks to indicate drive activity.

Page 11

2. Your LaCie Drive

page 11

LaCie Big Disk USB 2.0 User’s Manual

Power Supply Connector - This is where you plug in the AC adapter supplied with the drive. See section

3.1. Connecting The Power Supply

for more information.

Ventilation Outlet - These holes help to keep your drive cool during operation. Be sure not to block these openings when using your drive.

Rackmount Grooves - These grooves are used for mounting the drive in the Desk Rack kit (sold separately) or placing your drive in standard 19” computer equipment racks using the LaCie Rackmount Kit (sold separately).

Serial Number Sticker - This is where you will find your LaCie drive's serial number. Write down the serial number and keep it in a safe place, because you will need to provide the number in the event you have to call LaCie Technical Support for any reason in regards to the drive’s performance. The serial number would also come in handy if your drive is lost or stolen.

Hi-Speed USB 2.0 Port - This is where you plug in the Hi-Speed USB 2.0 cable furnished with the drive. See section

3.2. Connecting the Inter

face Cable for more information.

Lock Slot - This slot is used to connect an anti-theft system, such as the LaCie Security Lock, for maximum protection. Refer to your anti-theft system documentation for details on how to connect the lock.

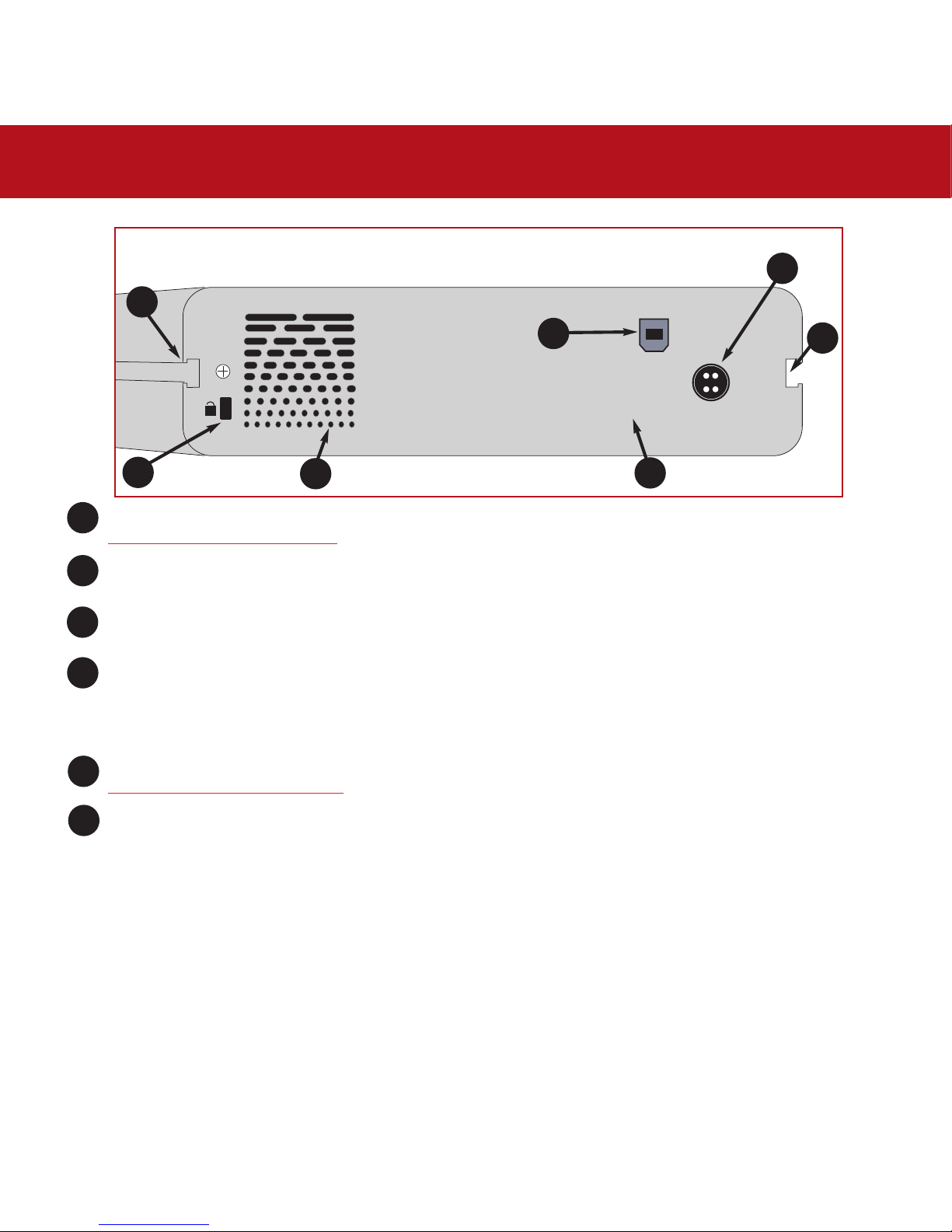

2.2.2.2. Back View

Page 12

2. Your LaCie Drive

page 12

LaCie Big Disk USB 2.0 User’s Manual

2.3. USB

USB is a serial input/output technology for connecting peripheral devices to a computer or to each other. Hi-Speed USB 2.0 is the latest implementation of this standard, and it provides the necessary bandwidth and data transfer rates to support highspeed devices such as hard drives, CD/DVD drives and digital cameras.

Benefits of the USB standard include:

• Backwards compatibility: Hi-Speed USB 2.0 works with the original USB specifications.

• Hot-swappable: no need to shut down or restart your computer when adding or removing devices.

Please see USB Questions And Answers

for a more detailed discussion of USB’s uses and capabilities.

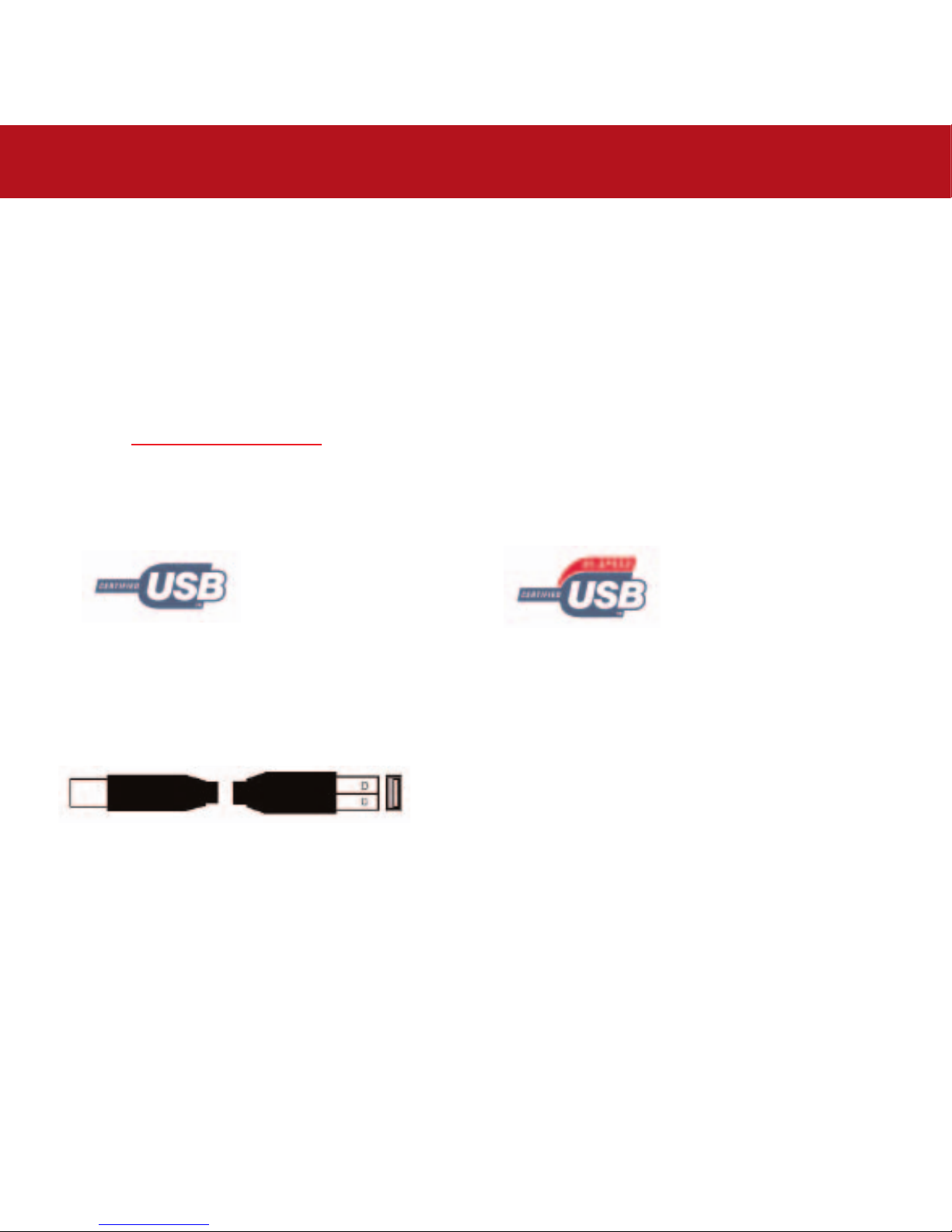

USB Icons

These icons will help you easily identify the USB interfaces. They appear on USB cables and next to the USB port connectors on certain computers.

USB Cables

Your LaCie drive is shipped with a Hi-Speed USB 2.0 cable, to ensure maximum data transfer performance when connected to a Hi-Speed USB 2.0 port. The cable will also work when connected to a USB port, but drive performance will be limited to USB 1.1 transfer rates.

Hi-Speed USB 2.0 2.0 cable: Connects USB devices to USB ports.

USB 1.1 icon USB 2.0 icon

Page 13

3. Installing Your LaCie Drive

page 13

LaCie Big Disk USB 2.0 User’s Manual

3. Installing Your LaCie Drive

Getting your LaCie drive installed and connected is very simple; essentially there are two steps: 1) connect the power supply to the drive and to an outlet, and 2) connecting an interface cable to the drive and to your computer.

To get started, go to section 3.1. Connecting The Power Supply

Caution!

The LaCie Big Disk USB 2.0 utilizes the aluminum alloy casing to help dissipate heat. There are important location consideration precautions to keep in mind when setting up your drive. Make sure to place your drive in a well ventilated space, do not block the ventilation outlet on the back of the drive and keep the area in front of the drive unobstructed to allow for proper airflow. If you will be stacking or racking your drive, please follow these considerations:

• When stacking drives, place no more than three drives on top of each other.

• When stacking drives, make sure and adhere the rubber feet to the bottom of the drives.

• When racking drives in the LaCie Desk Rack (sold separately), place no more than three drives in the rack.

• When racking in 19” equipment racks, only rack the equipment in a regulated, air-conditioned room, keep cables and other obstructions away from the rear of the drive and do not place more than three drives on top of each other.

Page 14

3. Installing Your LaCie Drive

page 14

LaCie Big Disk USB 2.0 User’s Manual

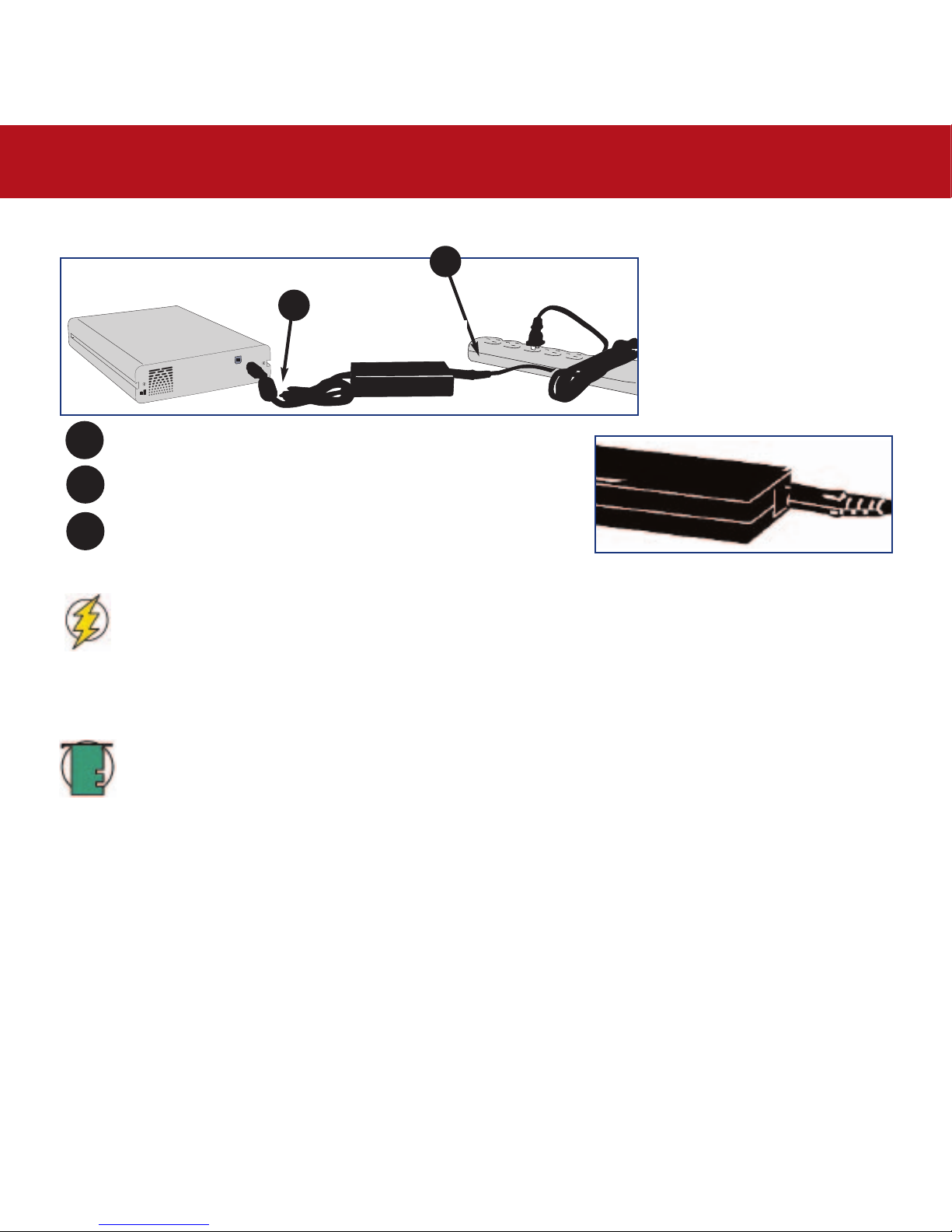

3.1. Connecting the Power Supply

There are two cables that are supplied with the power supply: one cable (A) connects to the LaCie drive; and the other cable (B) connects to a power outlet, such as a wall outlet or a surge protector.

Connect Cable A to your LaCie Drive.

Connect Cable B to the Power Supply brick.

Connect Cable B to a surge protector or wall outlet.

You are now ready to connect the interface cable to your drive and to your computer.

Caution!

•Only use the AC adapter supplied with your specific LaCie drive. Do not use a power supply from another LaCie drive or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

•Always remove the AC adapter before transporting your LaCie drive. Failure to remove the adapter may result in damage to your drive and will void your warranty.

Tech Note:

• Your LaCie Big Disk USB 2.0 comes with an autoswitching power supply. This means that if the drive is connected to a USB connector on your computer, when you turn on the computer, the LaCie drive will turn on automatically. Likewise, when you turn off your computer, your LaCie drive will turn off automatically. To turn the drive off, simply push the blue On/Off button on the front of the drive. Do not turn the drive off, though, when it is reading or writing information!

• The LaCie Big Disk USB 2.0 also manages power consumption. If the system’s power save feature supports it, the drive will spin down during the power save mode. After the system comes of out of power save, the drive will take a few seconds to spin up to full power before it can be accessed.

• You may use your LaCie drive when in a foreign country, thanks to its autoswitching 100-240 Volt power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord. Consult LaCie Technical Support for assistance in choosing the right adapter. LaCie accepts no responsibility for any damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other than one authorized by LaCie will void your warranty.

Power Supply brick

Step 2)

Page 15

3. Installing Your LaCie Drive

page 15

LaCie Big Disk USB 2.0 User’s Manual

3.2. Connecting the Interface Cable

The installation steps below follow the connectivity options for a Hi-Speed USB 2.0, depending on your operating system.

Important Info:

Windows Users! Move to section 3.2.2. Windows Users to view installation steps for the Windows OS.

3.2.1. Mac Users

These installation steps are separated by interface and Mac OS. To view the installation steps of the interface you plan on using, click on the appropriate operating system and interface:

Mac OS 10.x – Hi-Speed USB 2.0 Mac OS 9.x – USB

Tech Note:

If you will be using your LaCie drive in a cross-platform (Mac/Windows) environment, it is recommended that you re-format the drive to the MS-DOS (also known as FAT 32) File System format. Please see section 5.1. File System Formats

for more information.

Page 16

3. Installing Your LaCie Drive

page 16

LaCie Big Disk USB 2.0 User’s Manual

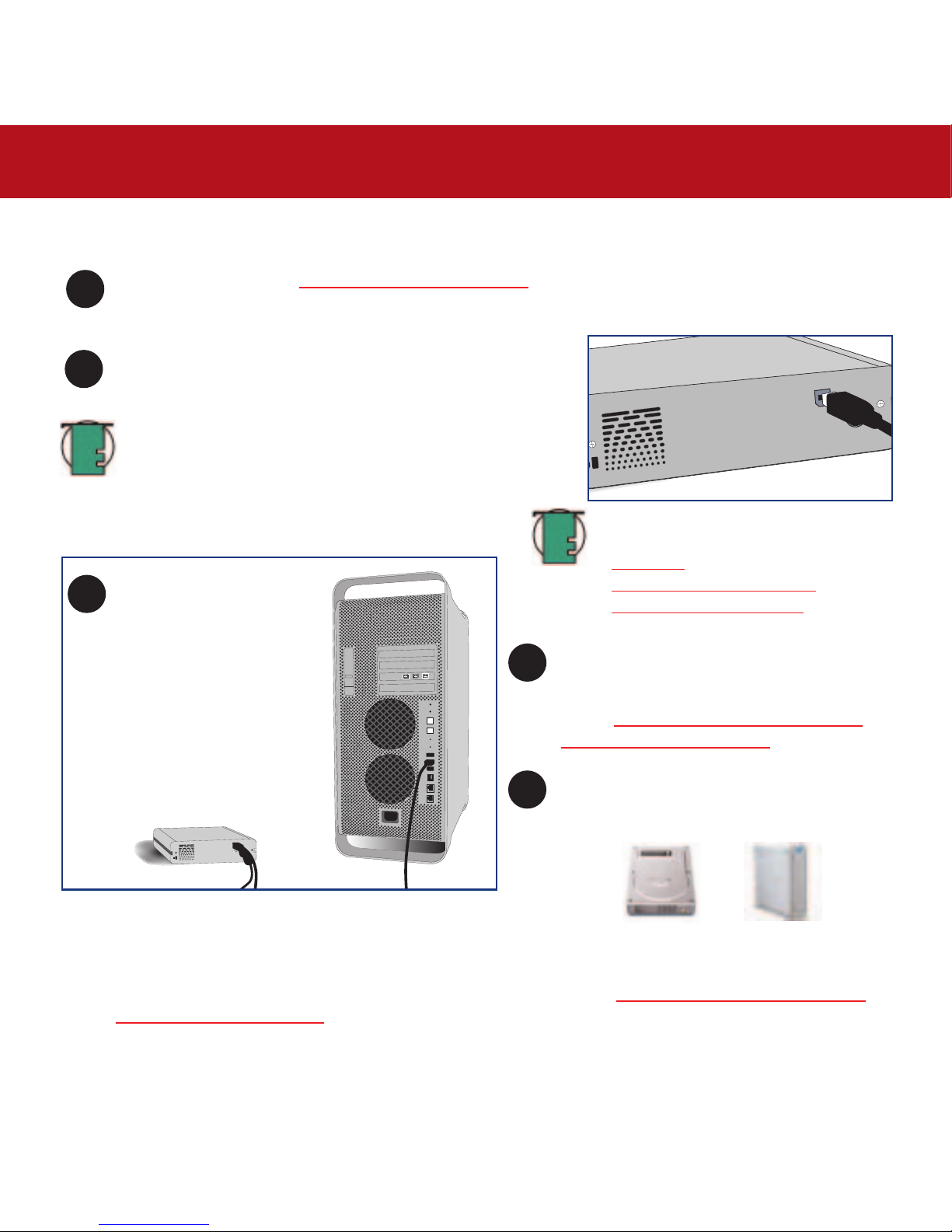

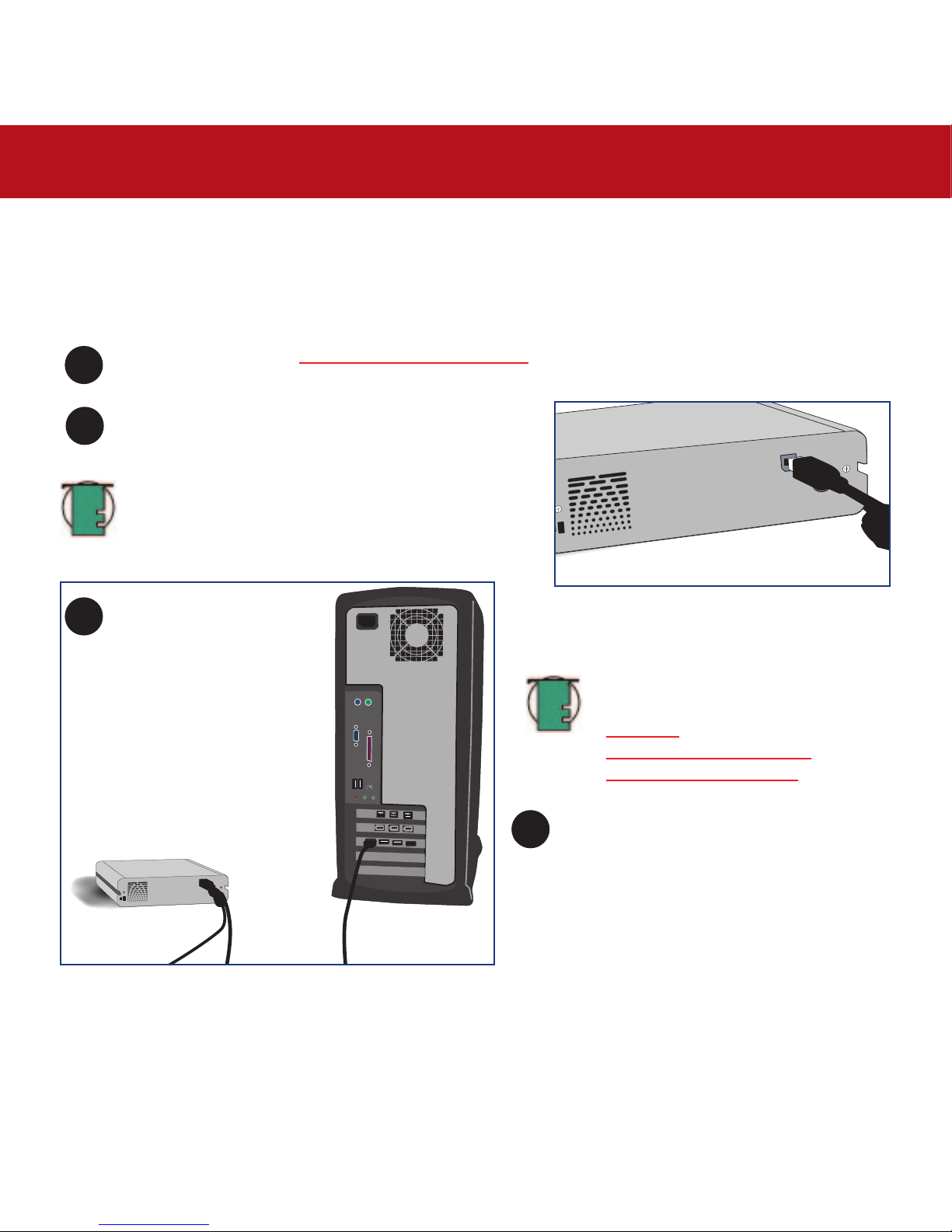

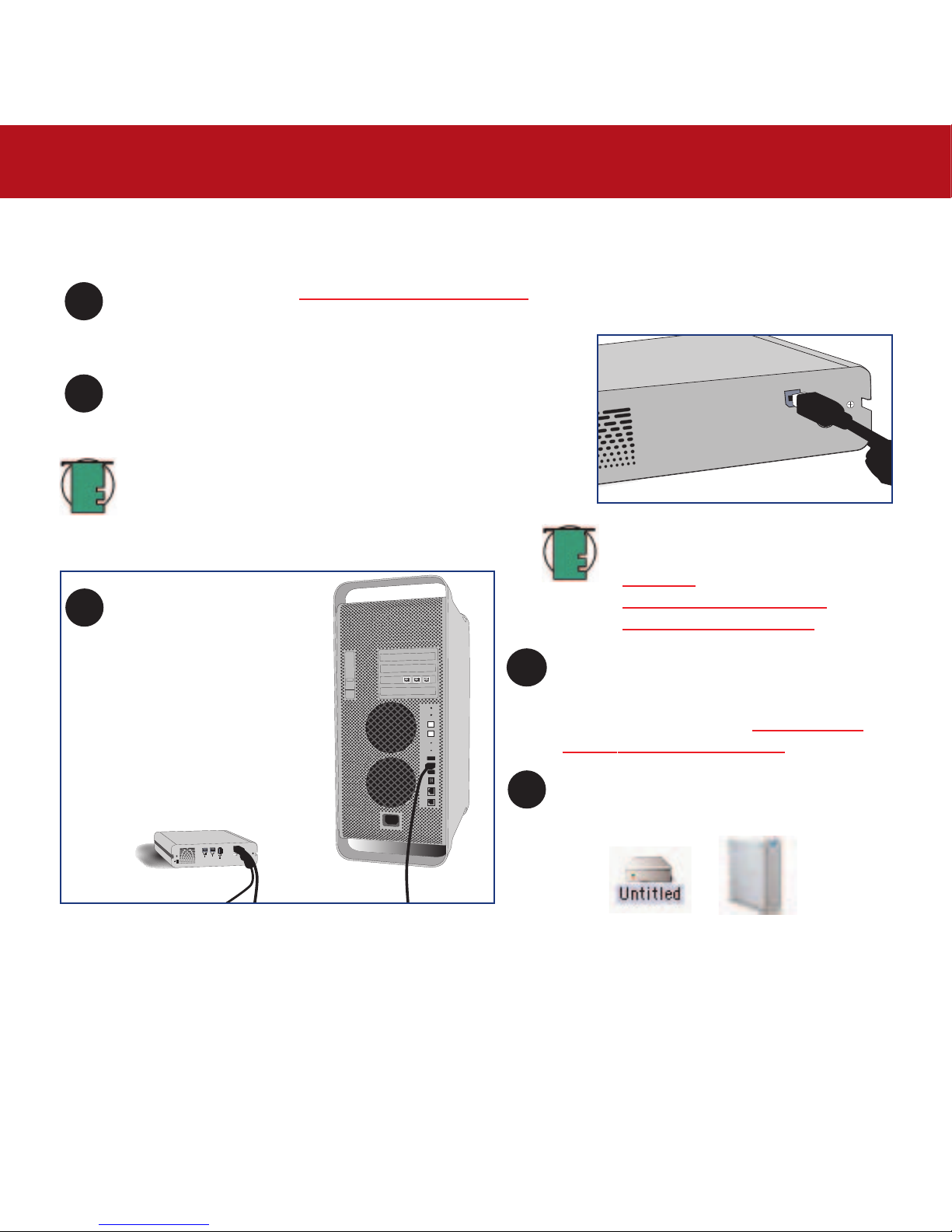

Mac OS 10.x – Hi-Speed USB 2.0

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk USB 2.0.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

Please use Apple Disk Utilities to format in HFS+ or use several partitions FAT 32 for crossplatform. For more information please refer to 4.1. For

matting And Partitioning Your

LaCie Drive – 4.1.1. Mac Users

Mac OS Drive Icons

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

Apple has just recently begun incorporating native Hi-Speed USB 2.0 host bus interface adapters. To achieve Hi-Speed USB 2.0 data transfer rates, you will need to purchase a third-party Hi-Speed USB 2.0 host interface PCI or PC card. Otherwise, you will be limited to USB 1.1 speeds.

Your LaCie Big Disk USB 2.0 will now be ready for use. You can then use the formatting and partitioning capabilities in the Apple Disk Utility to configure your hard drive system. Please refer to 4.1. For

matting And Partitioning Your

LaCie Drive – 4.1.1. Mac Users for more information.

Page 17

3. Installing Your LaCie Drive

page 17

LaCie Big Disk USB 2.0 User’s Manual

Mac OS 9.x – USB

To use your new LaCie Big Disk USB 2.0, first install the necessary driver software.

Silverlining Pro Installation

1) Insert the LaCie Storage Utilities CD in your computer’s internal CD/DVD drive.

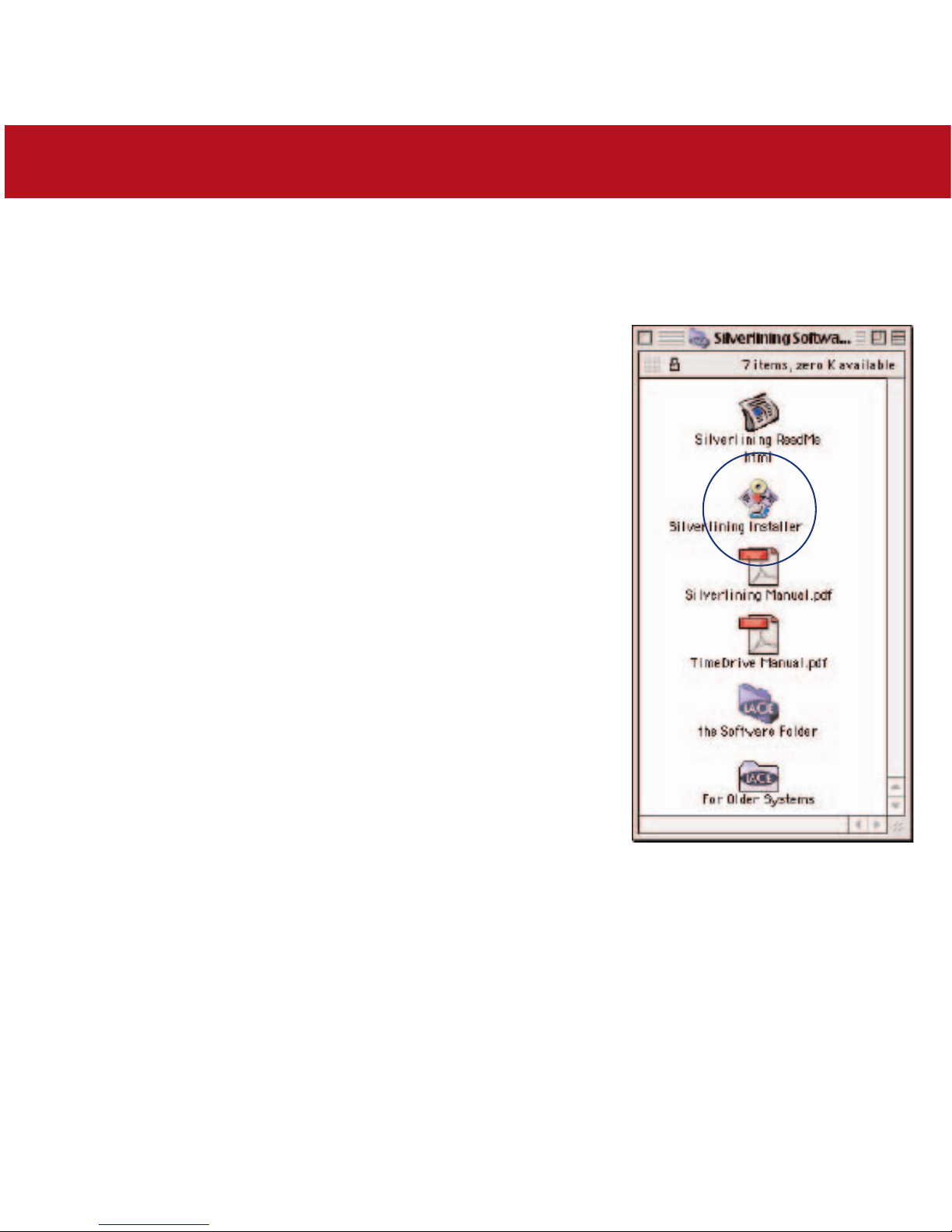

2) Open the CD icon and double-click on the

Silverlining Installer.

3) The Silverlining Utilities screen appears. Click on

Continue.

4) The

About to Install screen appears. Read the following information and click

Continue.

5) The

License Agreement screen appears. Click on Agree.

6) The

Installation screen appears.

7) Check the

Silverlining Pro and USB Support boxes.

8) Click on

Install.

9) A message appears to confirm that the installation was successful.

10) Click on

Restart to use your USB peripheral immediately.

Now you are ready to move to the next step, Connecting the Drive to the Computer.

Page 18

3. Installing Your LaCie Drive

page 18

LaCie Big Disk USB 2.0 User’s Manual

Mac OS 9.x – USB

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk USB 2.0.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk USB 2.0 will now be ready for use. You can then use the formatting and partitioning capabilities in

Silverlining Pro to configure your hard drive system. Please refer to the Silverlining Pro documentation on the

LaCie Storage Utilities CD-ROM for more information.

Tech Note:

Apple does not support the Hi-Speed USB 2.0 standard under Mac OS 9.x. You will be limited to USB 1.1 speeds.

Mac OS Drive Icons

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

With Silver Lining pro you will have to reformat in HFS+ . If you need to cross platform, you will have to use several FAT 32 partitions. For more informations, please refer to 4.1.1 For

matting

And Partitioning Your LaCie Drive

Page 19

3. Installing Your LaCie Drive

page 19

LaCie Big Disk USB 2.0 User’s Manual

3.2.2. Windows Users

To view the installation steps of the interface and operating system you plan on using, see the following section:

indows 2000/Windows XP – Hi-Speed USB 2.0

• If you will be using your LaCie drive in a cross-platform (Mac/Windows) environment, please see the following sections for more information

4.1. Formatting

And Partitioning Your LaCie Drive - 4.1.2. Windows Users

5.1. File System Formats - 5.1.2. Windows Users

Page 20

3. Installing Your LaCie Drive

page 20

LaCie Big Disk USB 2.0 User’s Manual

Windows 2000 And Windows XP – Hi-Speed USB 2.0

After the first connection of a USB-based peripheral, Windows detects the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same USB bus. Let Windows install the USB drivers of your LaCie drive.

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk USB 2.0.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

To achieve Hi-Speed USB 2.0 transfer rates, you have to be connected to a Hi-Speed USB 2.0 port on your computer. Otherwise, you will be limited to USB 1.1 data transfer rates.

Your LaCie Big Disk USB 2.0 will now be ready for use.

Page 21

3. Installing Your LaCie Drive

page 21

LaCie Big Disk USB 2.0 User’s Manual

3.3. Installing Multiple Devices

Technically, you can connect up to 127 individual USB peripherals at one time. However, you probably will not use more than 6 to 8 peripherals on your USB system. Most computers only have two USB ports, so you would need a hub to connect more than two peripheral drives. The hub regenerates the signals, generally providing between 4 to 7 connections. To add even more drives, connect a new hub to a connector of the original hub, creating a new series of peripherals, etc. But the hub slows down the transfer rate by lengthening the path of the signal. To optimize performance, connect your drive directly to one of the built-in ports in your computer.

Tech Note:

For more information about USB and improving performance, please sections

5.3. Optimizing Data

Transfers and 7. USB Questions & Answers.

Page 22

3. Installing Your LaCie Drive

page 22

LaCie Big Disk USB 2.0 User’s Manual

3.4. Disconnecting Your LaCie Drive

USB external devices feature “plug & play” connectivity, which means that your drive can be connected and disconnected while the computer is running. To prevent failures, it is important you follow these steps when disconnecting your Big Disk USB

2.0.

Caution!

Do not disconnect the USB when the drive is reading or writing. Disconnecting while the drive is operating could cause the loss of data. Make sure that your drive is not reading or writing and that the activity LED is off before disconnecting the USB cable.

3.4.1. Windows Users

From the System Tray (located in the lower right-hand side of your screen), click on the Eject icon (a small green arrow over a hardware image).

A message will appear, detailing the devices that the

Eject icon controls, i.e. “Safely remove…” Click on this prompt.

You will then be given the following message: “Safe to Remove Hardware” (or similar). It is now safe to disconnect the device.

3.4.2. Mac Users

You must unmount the hard drive system before disconnecting it or powering it down. Either:

• Drag the hard drive icon to the trash.

• Launch

Silverlining Pro, highlight the hard drive and select “Unmount.”

The drive can now be disconnected.

Mac OS 10.x

Mac OS 9.x

Page 23

4. Using Your LaCie Drive

page 23

LaCie Big Disk USB 2.0 User’s Manual

4. Using Your LaCie Drive

Once you’ve connected your drive, you are ready to format and partition the drive. In order to store information on a hard drive, it must have a file system and be divided into sections that will contain the data that you wish to store. This process is called formatting.

In order to utilize a hard disk drive, it has to be formatted first. Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal address tables that it later uses to locate information. Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 10% less than the non-formatted capacity.

Tech Note:

Windows Users! This LaCie Hard Drive is formatted in NTFS for Windows 2000 and Windows XP.

You will need to re-format the drive in order for it to appear and operate under the Mac operating system.

After you’ve formatted the drive, you will have the opportunity to divide the hard drive into sections, called partitions. A partition is a section of the hard drive’s storage capacity that is created to contain files and data. For instance, you could create three partitions on your drive: one partition for your word documents, one for your spreadsheets and one for your multi-media files.

File System Formats

There are essentially three different file system formats: FAT 32, NTFS, and Mac OS Extended (HFS+).

Use FAT 32 if:

• you will be using your drive between both Windows and Mac OS 9.x or 10.x; or sharing the drive between Windows 2000 and XP

Use NTFS if:

• you will be using the drive only under Windows 2000 or Windows XP; performance will generally be greater when compared to FAT 32

Use HFS+ if:

• you will be using the drive on Macs only; performance will generally be greater when compared to FAT 32

For more information, please refer to section 5.1 File System For

mats.

Page 24

4. Using Your LaCie Drive

page 24

LaCie Big Disk USB 2.0 User’s Manual

4.1. Formatting And Partitioning Your LaCie Big Disk USB 2.0

Once you have set-up your LaCie Big Disk USB 2.0, you can reformat or partition it to suit your needs.

4.1.1. Mac Users

• Mac OS 9.x – Install and use LaCie Silverlining Pro, which is included with your drive.

• Mac OS 10.x – Use the Apple Disk Utility application, which is native to the operating system. For instructions on installing and using

Silverlining Pro, please refer to the Silverlining manual, located on your LaCie Storage

Utilities CD, in PDF format. For instructions on using the Mac OS 10.x Apple Disk Utility application, please refer to the section below.

Formatting And Partitioning Using Mac OS 10.x

Caution!

Following these steps will erase anything that is on the hard drive. Therefore, if you have information

that you want to protect or continue to use, backup this information before performing these steps.

1) Connect the drive to the computer via one of the interface ports.

2) Once the drive mounts onto the desktop, go to the

Menu Bar, and open Go.

3) From the

Go menu, click on Applications.

4) In the

Applications menu, open the Utilities folder, and then double-click Disc Utility from the Utilities folder.

5) The

Disc Utility window will open. In the left

side of the window will be a list of the available hard disk drives. You should see a volume that represents your internal hard drive, and one that reads LaCie.

6) Select the LaCie drive, and then click on the Partition tab.

7) From the

Volume Scheme: button, choose the

number of partitions you want to divide the drive into by clicking on the pull down menu starting with

Current (Mac OS 10.x gives you

the option of dividing the drive into at most 8 partitions). You can customize the size of the partitions by using the slide bar between the partitions in the

Volume Scheme: area.

Page 25

4. Using Your LaCie Drive

page 25

LaCie Big Disk USB 2.0 User’s Manual

8) In the Volume Information section, create a name for each partition, choose the volume format (Mac OS Extended, Mac OS Standard, MS-DOS File System or UNIX File System) and the volume size.

Tech Note:

• Please refer to section 5.1.1. File System Formats – Mac Users, for a more detailed discussion on

the differences between the two systems.

• If you want to format the drive in the MS-DOS File System (also known as FAT 32), you will need to create multiple partitions no larger than 128GB.

• Apple recommends that unless you have a specific reason to use the UNIX File System (UFS), you should use the Mac OS Extended format since it provides a more familiar experience to Macintosh users.

9) In the Options section, click the Install Mac OS 9 Disk Drivers box if you plan on sharing the drive between the Mac OS

9.x and Mac OS 10.x.

10) Once you have finalized the volume format, number of partitions, size and options, click OK. The following message will appear:

“Warning! Saving the new volume will erase all existing volumes. This can NOT be undone. Are you sure you

want to do that?”

Click Partition to continue.

11) Mac OS 10.x will automatically setup the disk with the partitions and volume format you selected, and your new drive will be available for use.

Page 26

4. Using Your LaCie Drive

page 26

LaCie Big Disk USB 2.0 User’s Manual

4.1.2. Windows Users

• Windows 2000 and XP – Use the Disk Management Utility, which is native to the operating system.

Formatting And Partitioning Using Windows 2000 And Windows XP

The process of formatting and partitioning a drive on a computer running Windows 2000 or Windows XP consists of two steps: (1) installing a signature on the drive, and (2) partitioning/formatting the drive. These steps will erase anything that is on the disk.

1) Connect the drive to the computer via one of the interface ports.

2) Right-click

My Computer and click Manage.

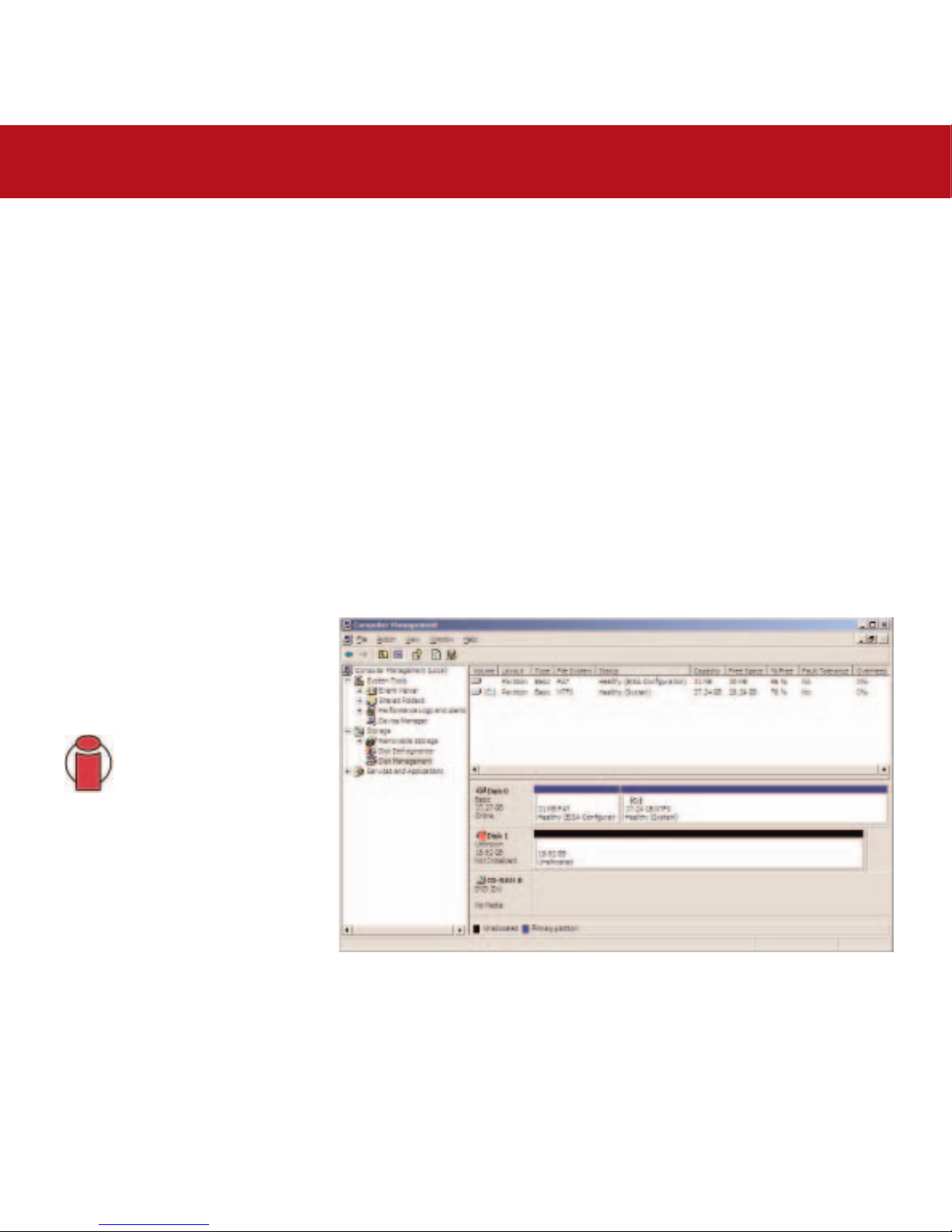

3) From the

Computer Management window, select Disk Management (located below the Storage group).

4) If this is the first time the drive is being formatted, Windows 2000 will launch the

Write Signature Wizard (Write Initialize

Wizard

in Windows XP). Click Next.

5) Windows will list the new drive(s) attached. If you are formatting a single drive, only one drive should be visible. Select the checkbox next to the drive and click

Next.

Important Info: Check the

"quick format" box.

6) Click Finish to exit the Wizard.

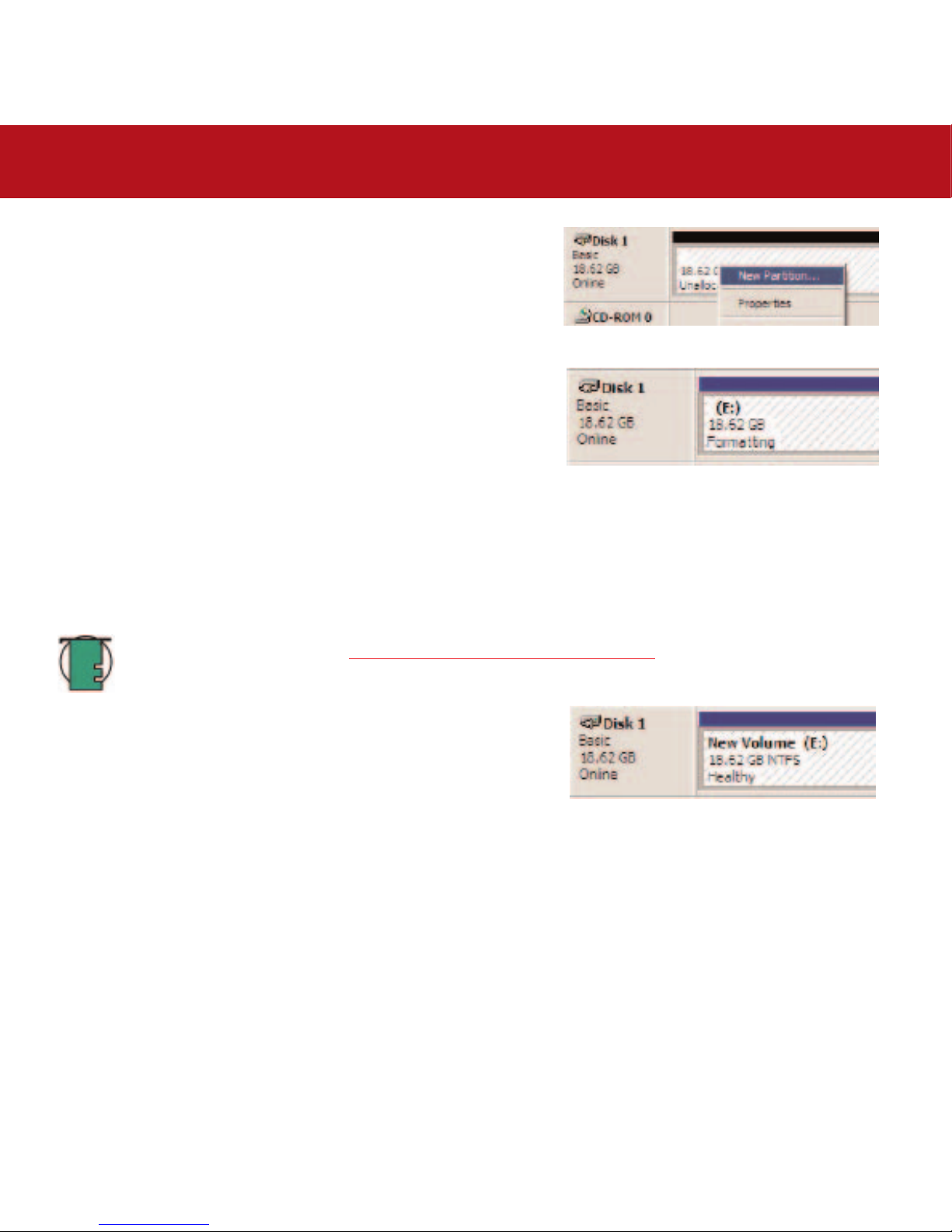

7) Now, with the disk management window open, a new drive will be visible. Right-click on the available space and select

Create Partition...

8) This will bring up the Create Partition Wizard

. Click Next.

Page 27

4. Using Your LaCie Drive

page 27

LaCie Big Disk USB 2.0 User’s Manual

9) Select Primary Partition. Click Next.

10). Here you must specify partition size. It is recommended that you leave the partition set to the maximum available size, unless you want multiple partitions on the same drive. Click

Next.

11) Select

Assign drive letter and select the desired letter for the drive.

Click

Next.

12) Select

Format this partition… and then select a file system:

FAT32

FAT32 is a file system that is compatible with Windows 98 SE, Windows Me, Windows 2000 and Windows XP; however, it has limitations. In Windows 2000 and Windows XP, you will not be able to create a partition greater than 32GB.

NTFS

NTFS is a newer file system that is compatible only with Windows NT, Windows 2000 and Windows XP. It has fewer limitations than FAT 32 and will enable a partition to be created that is larger than 32GB.

Tech Note:

Please refer to section 5.1.2. File System Formats – Windows Users, for a more detailed discussion

on the differences between the two systems.

13) Click Next.

14) Click

Finish.

15)

Disk Management will create the partition and begin formatting the

drive. Once completed, close

Disk Management and your new drive will be ready to use.

Page 28

5. Tech Tips

page 28

LaCie Big Disk USB 2.0 User’s Manual

5. Tech Tips

5.1 File System Formats

5.1.1. Mac Users

Mac OS 9.x Users:

You will be able to format the drive in one of two formats, using Silverlining Pro (for specific instructions, please refer to the Silverlining User’s Manual, in the Silverlining folder): HFS (Mac OS Standard) or HFS+ (Mac OS Extended).

Important Info:

If you will be sharing the hard drive between Mac and Windows operating environments, you

will want to format the drive in MS-DOS (FAT 32).

Mac OS 10.x Users:

You have the option of formatting the drive in one of four formats: Mac OS Standard (HFS), Mac OS Extended (HFS+), MSDOS File System and UNIX File System (UFS).

HFS - Mac OS Standard

Mac OS Standard refers to the file system used by Mac OS 8.0 and earlier. This is no longer a modern file sytem specification, and Mac OS Extended is more efficient. Only use this file system if you are creating a volume smaller than 32MB, using a Mac with a 680X0 processor, or you are creating a file structure that will be need to be used by Macs using Mac OS 8.0 or earlier.

HFS+ - Mac OS Extended

Mac OS Extended refers to the file system used by Mac OS 8.1 and later. HFS+ represents an optimization of the older HFS file system by using hard disk space more efficiently. Building off of HFS, they increased the number of blocks from 65,536 to

4.29 billion. With HFS+, you are no longer limited by block size.

MS-DOS File System

This is the Microsoft file system, more typically known as FAT 32. This is the file system to use if you are going to be using your LaCie Big Disk USB 2.0 between Macs and Windows operating systems.

UNIX File System

This is the file system based on UNIX, and is preferrable for users developing UNIX-based applications within Mac OS 10.x. Unless you have a specific reason to use the UNIX File System, you should instead format your drive using Mac OS Extended (HFS+), because it provides Mac users with a more familiar operating experience.

Page 29

5. Tech Tips

page 29

LaCie Big Disk USB 2.0 User’s Manual

5.1.2. Windows Users

There are basically two file system formats for Windows: FAT 32 and NTFS. The following information will hopefully make choosing one or the other a little easier.

FAT 32

FAT is an acronym for File Allocation Table, which dates back to the beginnings of DOS programming. Originally, FAT was only 16 bits, but after the second release of Windows 95 it was upgraded to 32 bits, hence the name FAT 32. In theory, FAT 32 volume sizes can range from less than 1MB all the way to 2TB. It is the native file system of Windows 98 and Windows Me, and is supported by Windows 2000 and XP. When FAT 32 is used with Windows 2000 and XP, though, volume size is limited to 32GB (by the Windows partition utility, i.e. Disk Manager), and the individual file size is limited to 4GB.

NTFS

This acronym stands for New Technology Filing System, and it is the native file system for Windows NT, Windows 2000 and XP. NTFS offers several features that are not available with FAT 32; i.e. file compression, encryption, permissions, and auditing, as well as the ability to mirror drives and RAID 5 capabilities. The minimum supported volume size for NTFS is 10MB, with a maximum of 2TB, with no limit to file size. Volumes created in NTFS can only be directly accessed (not through shares) by Windows NT, Windows 2000 and XP, without resorting to help from third-party products.

Guidelines for Choosing FAT 32 Or NTFS

Use FAT 32 if:

• You want to access your data on any Operating System - FAT 32 is compatible with Windows 2000, XP, NT, Mac OS 9.x and Mac OS 10.x.

• You will be dual booting with an Operating System other than Windows NT or Windows 2000.

• You may need the ability to dual boot down the line. Once you have converted a volume from FAT 32 to NTFS, there is no going back. You can convert from FAT 32 to NTFS, but not the other way around.

Use NTFS if:

• You want to optimize drive performance under Windows 2000 or XP.

• You want to encrypt files, assign permissions to files, or want to audit files for access.

• You will be formatting partitions larger than 32GB.

• You need to store individual files that are larger than 4GB.

• You need a filing system that can be mirrored or structured like a RAID 5 configuration.

Page 30

5. Tech Tips

page 30

LaCie Big Disk USB 2.0 User’s Manual

5.2. Available Storage Capacity

A gigabyte (GB) means 1,000,000,000 bytes. In order to utilize a hard disk drive, it has to be formatted first. Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal address tables that it later uses to locate information. Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 10% less than the non-formatted capacity.

5.3. Optimizing Data Transfers

Data transfers are the flow of data that accomplishes a task, usually related to moving data from storage to computer RAM, or between storage devices. With external drives, such as the LaCie Big Disk USB 2.0, the data is transferred from the drive to the computer via the USB interface. The data is fed from the drive through the USB port on the drive, and passes to the computer through either the USB host-bus adapter interface.

Computer manufacturer’s implementation of the USB host-bus adapter interfaces vary widely. For computers running Windows 2000 and later, the Hi-Speed USB

2.0 interface is a fairly standard feature. Nearly all recent Apple computers support the original USB standard*, while Hi-Speed USB 2.0 has only just recently been adopted.

The USB interfaces specify certain requirements, filed under the OHCI (Open Host Controller Interface) standards. All LaCie drives comply to OHCI standards and have been rigorously tested on computers that have host bus adapters that also comply to OHCI standards. Unfortunately, not all manufacturers respect these guidelines, and anomalies may arise with computers that have host bus adapters that do not conform to OHCI standards.

For the best performance, connect your LaCie Big Disk USB 2.0 directly to a native USB port on your computer. During data transfers, it’s best to wait before launching other applications that will be using the same port.

If you do not have a native USB port, LaCie offers USB host bust adapter cards, also known as PCI or PC/PCMCIA cards, that have been tested and comply with LaCie drives. Please contact your reseller or

LaCie Customer Suppor

t for more information.

*Tech Note:

For more information on USB interfaces, please see:

6.USB Questions &

Answers.

Tech Note:

Please see

3.4 Installing Multiple Devices

for more information.

Tech Note:

Another important factor in file transfer speeds is how the drive has been formatted. For more information in choosing the correct file system fomat, please see section

5.1 File System Formats

Page 31

5. Tech Tips

page 31

LaCie Big Disk USB 2.0 User’s Manual

5.3.1. Hi-Speed USB 2.0 Ports And Performance

To utilize the enhanced Hi-Speed USB 2.0 performance, your computer must be equipped with a Hi-Speed USB 2.0 host bus adapter card (either sold separately, or integrated by your computer’s manufacturer) and the appropriate drivers. These host bus adapter cards, which include one or more USB ports, are shipped with special Hi-Speed USB 2.0 drivers that enable the computer to control the card. These drivers must be installed in order for USB 2.0 devices connected to the port to work at their correct speeds.

Computers running Windows 2000 and Windows XP automatically manage Hi-Speed USB 2.0 devices and drivers.

Mac OS 9.x does not support Hi-Speed USB 2.0 functionality, and all Hi-Speed USB 2.0 devices will only operate at the original USB specifications. Mac OS 10.2.7 and later supports Hi-Speed USB 2.0, and Mac OS 10.x also supports Hi-Speed USB 2.0, but you will have to purchase a third-party PCI or PC Card and appropriate drivers.

Contact your LaCie reseller or LaCie Customer Suppor

t for information about Hi-Speed USB 2.0 PCI or PC Cards, or visit our

Web site:

www.lacie.com.

5.3.2 Computer With Only USB Ports

If your computer is only equipped with a USB port, connect via the USB cable provided with your drive. Hi-Speed USB 2.0 is backward compatible and can be used in USB ports. Again, you will be limited to USB speeds and performance.

Another alternative is to purchase a Hi-Speed USB 2.0 host adapter card that you would install into a PCI or PCMCIA slot on your computer, thereby allowing your computer to take advantage of the performances that FireWire and Hi-Speed USB 2.0 have to offer.

Contact your LaCie reseller or LaCie Customer Suppor

t for information about FireWire and Hi-Speed USB 2.0 PCI or PC

Cards, or visit our Web site:

www.lacie.com.

Page 32

6. USB Questions & Answers

page 32

LaCie Big Disk USB 2.0 User’s Manual

6. USB Questions & Answers

What Are The Benefits Of The USB Interfaces?

• Cross-platform: Use your USB peripherals on both Mac and Windows platforms.

• “Hot Swappable”: No need to shut down or restart your computer when adding or removing a USB device. Plug it in and its ready.

• Automatic configuration: Once your device is connected, your computer recognizes the device and automatically configures the necessary software.

• Daisy-Chaining: with USB ports on your computer, you can connect up to 127 peripherals using hubs.

• Easy Installation: One standardized port and plug combination makes it simple to connect.

What Is The Difference Between USB And Hi-Speed USB 2.0?

The main difference is speed. The original version of the interface is capable of throughput up to 12Mb/s. Hi-Speed USB 2.0 supports data speeds up to 480 Mb/s, making it 40 times faster than its predecessor. This increased bandwidth translates into higher performance in demanding applications requiring high transfer rates.

What Are The Ideal Uses For USB?

USB is perfect for more traditional connections such as keyboards, mice, joysticks and scanners. These types of devices don’t require fast data transfer rates, and operate very successfully at the slower speeds.

What Are The Ideal Applications For Hi-Speed USB 2.0?

Digital cameras, CD/DVD drives, hard drives and scanners will all benefit from the added bandwidth and performance gains of the new implementation of the USB standard. Hi-Speed USB 2.0 provides the necessary fast data transfer rates that today’s devices require, and combines the earlier specifications so older devices that operated under the original USB standards will still work with Hi-Speed USB 2.0.

Will USB Devices Run Faster When Connected To A Hi-Speed USB 2.0 Bus?

Unfortunately, no. The Hi-Speed USB 2.0 specification is specifically written to allow developers to design higher speed peripherals that can take advantage of the extra bandwidth. USB devices, though, will still operate at 12Mb/s at full-speed and 1.5Mb/s at low-speed on a Hi-Speed USB 2.0 bus. Even though USB devices won’t run any faster, they can work alongside Hi-Speed USB 2.0 devices on the same bus. However, if you plug in a Hi-Speed USB 2.0 device to a USB bus, the speed of the Hi-Speed USB 2.0 device will decrease to 12Mb/s.

Page 33

6. USB Questions & Answers

page 33

LaCie Big Disk USB 2.0 User’s Manual

What Is A USB Hub?

Technically, you can connect up to 127 devices to a single USB bus. For more than two devices, though, you must make new connections using a peripheral called a "hub.” A hub, which you hook up directly to a USB connector on your computer, usually has 4 or 7 output connections enabling you to connect the same number of peripherals. One of the hub's main functions is to regenerate signals that lose part of their strength as they are transmitted via the USB cable. By connecting yet another hub to a connector on the existing hub, you can then plug in a new set of peripherals and so on, up to a maximum of 127.

Some hubs have no power supply and others are self-powered. When you choose a hub, opt for the self-powered variety, as they have their own AC adapter. The most powerful hubs provide 0.5A of power to each port.

If you buy a hub, make sure that it supports per-port switching. This function prevents the entire chain of peripherals from freezing up if one of them is not working properly or is down.

Will Hi-Speed USB 2.0 Devices Work On USB Hubs And Vice Versa?

You can use your Hi-Speed USB 2.0 devices with USB hubs, but the peripherals will be limited to USB performance levels. There are Hi-Speed USB 2.0 hubs that are able to communicate in three modes: high-speed (480Mb/s), full-speed (12Mb/s), and low-speed (1.5Mb/s). Hi-Speed USB 2.0 is backwards compatible, so you will be able to connect USB devices to HiSpeed USB 2.0 hubs; however, the USB devices will still maintain their normal performance levels (i.e. 12 Mb/s).

In order to achieve the fast data transfer rates of Hi-Speed USB 2.0, you must connect your Hi-Speed USB 2.0 device directly to a Hi-Speed USB 2.0 port on either a computer or hub.

Tech Note:

• Avoid using USB connectors found on certain peripherals such as keyboards. These are passive (or passthrough) connectors that lead to power loss and unstable operation.

• Only use USB cables shorter than 5 meters (approximately 15 feet). Using longer cables may cause the peripherals to malfunction due to excessive reduction in electrical signal strength.

For more information about the USB interface, please visit:

www.lacie.com/technologies

Page 34

7. Troubleshooting

page 34

LaCie Big Disk USB 2.0 User’s Manual

7. Troubleshooting

In the event that your LaCie Big Disk USB 2.0 is not working correctly, please refer to the following checklist to find out where the problem is coming from. If you have gone through all of the points on the checklist and your drive is still not working cor-

rectly, please have a look at the FAQs that are regularly published on our Web site –

www.lacie.com. One of these FAQs

may provide an answer to your specific question. You can also visit the drivers pages, where the most recent software updates will be available.

If you need further assistance, please contact your LaCie reseller or LaCie Technical Support (see 9. Contacting Customer

Service for details).

Manual Updates

LaCie is constantly striving to give you the most up-to-date, comprehensive User’s Manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device.

If your manual does not reflect the configurations of the product that you purchased, please check our Web site for the most current version available.

These Troubleshooting tips are divided up by operating system. Mac Users, see 7.1 Mac Users

, Windows Users, see 7.2

Windows Users.

Page 35

7. Troubleshooting

page 35

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is not recognized by the computer.

The drive turns on and off when you turn your computer on and off.

Questions to Ask

Is there an icon for the drive appear on the desktop?

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Is the drive’s power supply connected and turned on?

Did you follow the correct installation steps for the specific interface and operating system.

Are both ends of the USB cables firmly attached?

Possible Solutions

There should be an icon for the LaCie drive on the desktop. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.

Check section 2.1. Minimum System Requir

ements – Mac

Users for more information.

Make sure that the power supply is properly connected (see section 3.1. Connecting The Power Supply

), that the drive has been turned on by pressing the On/Off button the front of the drive, and that the outlet the power supply is connected to is also turned on.

Review the installation steps under 3.2. Connecting The

Interface Cable – 3.2.1. Mac Users.

Check both ends of the USB cables and make sure that they are fully seated in their respective ports. Try disconnecting the cables, waiting 10 seconds, and then reconnecting them. If the drive is still not recognized, restart your computer and try again.

7.1. Mac Users

This is normal. Your drive has an autoswitching power feature, which means that if your drive is connected to your computer, turning the computer on will automatically turn the drive on. Likewise, turning the computer off will automatically turn the drive off. If you wish to power off the drive while it is connected to your computer, first make sure that your computer is not accessing the drive and then follow the steps in section 3.5. Disconnecting Y

our LaCie Drive.

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.

Page 36

7. Troubleshooting

page 36

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is not recognized by the computer.

Error messages under Mac OS 10.x.

Questions to Ask

Have the USB drivers been installed correctly and enabled?

Is there a conflict with other device drivers or extensions?

Has the drive been formatted?

Does your computer’s operating system support the file system?

Did you get an “Error –50” message while copying to a FAT 32 volume?

Did you get an error message telling you that the drive has been disconnected when coming out of sleep mode?

Possible Solutions

Mac Users: Open Apple System Profiler and click on the Devices and Volumes tab. If your device is not listed,

recheck the cables and try the other troubleshooting tips listed here.

Contact LaCie T

echnical Support for help.

Make sure that the drive has been formatted properly. Please see sections 4.1. For

matting And Partitioning Your LaCie

Drive and 5.1. File System Formats for more information.

Check your computer’s documentation and see sections 4.1.

Formatting And Partitioning Your LaCie Drive and 5.1. File System Formats for more information.

When copying files or folders from Mac OS 10.x to a FAT 32 volume, certain characters cannot be copied. These characters include, but are not limited to: ? < > / \ : Check your files and folders to ensure that these types of characters are not being used.

Simply ignore this message. The drive will remount to the desktop. LaCie drives conserve power by spinning down when you set your computer to sleep mode, and when the computer is “woken” from sleep, it does not give the drive enough time to spin-up from its sleep mode.

Page 37

7. Troubleshooting

page 37

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is working slowly.

The drive is not running noticeably faster when connected via Hi-Speed USB 2.0.

Questions to Ask

Are there other USB devices connected to the same port or hub?

Are you operating in Mac OS

9.x?

Are you operating in Mac OS

10.x?

Is the drive connected to a USB port on your computer, or to a USB hub?

Is the drive connected to a HiSpeed USB 2.0 port on your computer?

Does your computer or operating system support HiSpeed USB 2.0?

Possible Solutions

Disconnect any other USB devices and see if the drive’s performance increases.

Apple does not support the Hi-Speed USB 2.0 standard under Mac OS 9.x. You will be limited to the slower transfer rates of the original USB standard. For more information, please see 5.3.1. Hi-Speed USB 2.0 Por

ts And Performance.

Apple has only recently begun incorporating native HiSpeed USB 2.0 ports in their computers. To achieve HiSpeed USB 2.0 transfer rates, you will need to add a HiSpeed USB 2.0 PCI or PC card to your computer. For more information, please see 5.3.1. Hi-Speed USB 2.0 Por

ts And

Performance.

If your drive is connected to a USB port or hub, this is normal. A Hi-Speed USB 2.0 device can only operate at HiSpeed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port or hub. Otherwise, the Hi-Speed USB 2.0 device will operate at the slower USB transfer rates. For more information, please see sections

5.3.1. Hi-Speed USB 2.0 Por

ts and Performance and

6. USB Questions And Answers

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections 2.1. Minimum System Requir

ements – Mac Users and 5.3. Optimizing Data Transfers for more

information.

Page 38

7. Troubleshooting

page 38

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is not recognized by the computer.

Questions to Ask

Has the drive been formatted?

Does your computer’s operating system support the file system?

Is there an icon for the drive in My Computer?

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Is the drive’s power supply connected and turned on?

Did you follow the correct installation steps for the specific interface and operating system.

Are both ends of the USB cables firmly attached?

Possible Solutions

Make sure that the drive has been formatted properly. Please see sections 4.1. For

matting And Partitioning Your LaCie

Drive and 5.1. File System Formats for more information.

Check your computer’s documentation and see sections 4.1.

Formatting And Partitioning Your LaCie Drive and 5.1. File System Formats for more information.

Go into

My Computer and look for an icon and drive letter

assigned to the LaCie drive. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.

Check section 2.1. Minimum System Requir

ements –

Windows Users for more information.

Make sure that the power supply is properly connected (see section 3.1. Connecting The Power Supply

), that the drive has been turned on by pressing the On/Off button the front of the drive, and that the outlet the power supply is connected to is also turned on.

Review the installation steps under 3.2. Connecting The

Interface Cable – 3.2.2. Windows Users.

7.2. Windows Users

Page 39

7. Troubleshooting

page 39

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is not recognized by the computer.

The drive turns on and off when you turn your computer on and off.

Questions to Ask

Have the USB drivers been installed correctly and enabled?

Is there a conflict with other device drivers or extensions?

Possible Solutions

Windows 2000 Users: Go to Start > Settings > Control Panel

> System > Hardware tab > Device Manager button

USB Controller. Click on the + sign next to the controller

icon, and you should see your device listed.

Windows XP Users: Go to Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager button > USB Controller. Click on the +

sign next to the controller icon, and you should see your device listed.

If you still can’t see your device, recheck the cables and try the other troubleshooting tips listed here.

Contact LaCie T

echnical Support for help.

our LaCie Drive.

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.

Page 40

7. Troubleshooting

page 40

LaCie Big Disk USB 2.0 User’s Manual

The Problem

The drive is working slowly.

The drive is not running noticeably faster when connected via Hi-Speed USB 2.0.

Questions to Ask

Are there other USB devices connected to the same port or hub?

Is the drive connected to a USB port on your computer, or to a USB hub?

Is the drive connected to a HiSpeed USB 2.0 port on your computer?

Does your computer or operating system support HiSpeed USB 2.0?

Are you using a certified HiSpeed USB 2.0 cable to connect your drive?

Possible Solutions

Disconnect any other USB devices and see if the drive’s performance increases.

5.3.1. Hi-Speed USB 2.0 Por

ts and Performance and

6. USB Questions And Answers

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections 2.1. Minimum System Requir

ements – Windows Users and 5.3. Optimizing Data Transfers for

more information.

Ensure that the cable you are using has been properly certified. The Hi-Speed USB 2.0 cable that was shipped with your LaCie drive has been properly certified and tested to comply with USB standards.

Page 41

8. Contacting Customer Support

page 41

LaCie Big Disk USB 2.0 User’s Manual

8. Contacting Customer Support

Before You Contact Technical Support

1) Read the manuals and review the Troubleshooting section.

2) Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are correctly and firmly attached.

If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can't get your LaCie drive to work properly, contact us via the provided Web link. Before contacting us, make sure that you are in front of your computer and that you have the following information on hand:

• Your LaCie drive's serial number

• Operating system(Mac OS or Windows) and version

• Computer brand and model

• Names of CD or DVD drives installed on your computer

• Amount of memory installed

• Names of any other devices installed on your computer

Page 42

9. Contacting Customer Support

page 42

LaCie Big Disk USB 2.0 User’s Manual

LaCie Technical Support

LaCie Asia, Singapore and Hong Kong

LaCie Belgium

LaCie Denmark

LaCie France

LaCie Italy

LaCie Netherlands

LaCie Spain

LaCie Switzerland

LaCie USA

LaCie Australia

LaCie Canada

LaCie Finland

LaCie Germany

LaCie Japan

LaCie Norway

LaCie Sweden

LaCie United Kingdom & Ireland

LaCie Grand Export

Page 43

9. Warranty

page 43

LaCie Big Disk USB 2.0 User’s Manual

9. Warranty

LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective drive.

This warranty is void if:

• The drive was operated/stored in abnormal use or maintenance conditions;

• The drive is repaired, modified or altered, unless such repair, modification or alteration is expressly authorized in writing by LaCie;

• The drive was subjected to abuse, neglect, lightning strike, electrical fault, improper packaging or accident;

• The drive was installed improperly;

• The serial number of the drive is defaced or missing;

• The broken part is a replacement part such as a pickup tray, etc.

• The tamper seal on the drive casing is broken.

LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result.

LaCie will not, under any circumstances, be liable for direct, special or consequential damages such as, but not limited to, damage or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconvenience caused by service interruptions.

Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data.

Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive.

To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty.

All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.

Important Info:

Page 44

Glossary

page 44

LaCie Big Disk USB 2.0 User’s Manual

Glossary

Asynchronous – Data transfer method where the data is transferred independently of other processes. With this transfer

method, the intervals between transmissions can vary, and data can be resent if it is initially missed.

Backup – (1) The act of creating at least one additional copy of data onto a different (and safe) storage device from where it can be retrieved at a later time if needed. (2) A copy of a file, directory, or volume on a separate storage device from the original, for the purposes of retrieval in case the original is erased, damaged, or destroyed.

Bit – The smallest measure of computerized data, either a 1 or a 0. Eight bits equal one byte, or one character.

Block – A very small section of the storage media comprised of one or more sectors. A block is the smallest amount of space allocated on a drive for data storage. By default, a sector of data consists of 512 bytes.

Buffer – RAM cache that is faster than the data that is being delivered. Buffers are used so data may be stored and delivered to the receiving item as it is needed.

Bus – Electronic links that enable data to flow between the processor, RAM and extension cables (peripherals).

Byte – A sequence of adjacent binary digits, or bits, considered as a unit, 8 bits in length. There are 8 bits in 1 byte. See also

MB (Megabyte) or GB (Gigabyte).

Cache, -ing – This is an area of electronic storage (usually RAM) set aside to store frequently used data from electromechanical storage (hard drives, floppy disks, CD/DVD-ROM, tape cartridges, etc.) Therefore, storing frequently used data in RAM can enhance your system’s overall response to disk-intensive operations significantly.

Configuration – When talking about a PC, configuration is understood to be the sum of the internal and external components of the system, including memory, disk drives, the keyboard, the video subsystem and other peripherals, such as the mouse, modem or printer. The configuration also implies software: the operating system and various device managers (drivers), as well as hardware settings and options set by the user via configuration files.

Controller – This is a component or an electronic card (referred to in this case as a "controller card," such as PCI or PCMCIA cards) that enables a computer to communicate with or manage certain peripherals. The controller manages the operation of the peripheral associated with it, and links the PC bus to the peripheral via a ribbon cable inside the PC. An external controller is an expansion card which fills one of the free slots inside your PC and which enables a peripheral (CD-ROM drive, scanner or printer, for instance) to be connected to the computer.

Cross-platform – Term that refers to a device that is able to be operated by both Mac and Windows operating systems.

Data Stream – The flow of data that accomplishes a task, usually related to moving data from storage to computer RAM or

between storage devices.

Page 45

Glossary

page 45

LaCie Big Disk USB 2.0 User’s Manual

Digital – Discrete information that can be broken down to zero or one bits.

Driver (peripheral manager) – A software component that enables the computer system to communicate with a peripheral.

Most peripherals will not operate correctly – if at all – if the appropriate drivers are not installed on the system.

File System – Links the physical map of a disc to its logical structure. Thanks to the file system, users and computers can easily display path, directories and files recorded onto the disc.

Firmware – Permanent or semi-permanent instructions and data programmed directly into the circuitry of a programmable read-only memory or an electronically-erasable, programmable read-only memory chip. Used for controlling the operation of the computer or tape drive. Distinct from the software, which is stored in random access memory and can be altered.

Folder – A list created on a disk to store files. Creating folders and sub-folders enables you to organize the storage of your files in a logical, hierarchical manner so that you can find and manage them more easily.

Format, -ting, -ted – This is a process where a device is prepared to record data. In this process, the hard disk writes special information onto its own recording surfaces into areas (blocks) that are ready to accept user data. Since this operation causes all current user data stored on the hard disk to be lost, this is an infrequent operation that usually only happens at the factory that created the hard disk. It is unusual for something to happen to a hard disk that requires the end-user to initially perform this operation.

GB (GigaByte) – This value is normally associated with data storage capacity. Basically, it means a thousand million or a billion bytes. In fact, it equals 1,073,741,824 bytes (or 1,024 x 1,024 x 1,024).

Hardware – Physical components of a computer system, including the computer itself and peripherals such as printers, modems, mice, etc.

Host Bus Adapter (HBA) – A printed circuit board that installs in a standard microcomputer and an interface between the device controller and the computer. Also called a controller.

Initialize, -ed, Initialization – After a hard drive (or other storage device) is formatted and partitioned, some special data needs to be written to it that helps the Mac and Windows create files and save data. The process is called initialization. This process, like formatting, causes all user data on the storage device to be lost.

Interface – The protocol data transmitters, data receivers, logic and wiring that link one piece of computer equipment to another, such as a hard drive to an adapter or an adapter to a system bus. Protocol means a set of rules for operating the physical interface, such as: do not read or write before the drive is ready.

I/O (Input/Output) – Refers to an operation, program or device whose purpose is to enter data into or to extract data from a computer.

Isochronous – Data transfer method that ensures that data flows continuously and at a steady rate. These transfers provide guaranteed transmission opportunities at defined intervals.

Page 46

Glossary

page 46

LaCie Big Disk USB 2.0 User’s Manual

Kb (Kilobit) – Equivalent to 1,000 bits.

Kb/s – Kilobits per second. 480Kb/s is equal to 60KB/s.

KB (KiloByte) – Basically, this means 1,000 bytes, but it is actually 1,024 bytes.

KB/s – Kilobytes per second. A means of measuring throughput.

Mb (Megabit) – Equivalent to 1,000,000 bits.

Mb/s – Megabits per second. A means of measuring throughput. 480Mb/s is equal to 60MB/s.

MB (Megabyte) – Basically means one million bytes, but is actually 1,024 Kilobytes or 1,024 x 1,024 bytes, which equals

1,048,576 bytes.

MB/s – Megabytes per second. A means of measuring throughput.

Media – The material or device used to store information in a storage subsystem, such as a tape cartridge, CD, DVD or disk

drive.

Operating System (OS) – Software that controls the assignment and use of hardware resources such as memory, processor time, disk space and peripherals. An operating system is the basis on which software (applications) run. Windows, Mac OS and UNIX are among the most common.

Overwrite – To write data on top of existing data thus erasing the original data.

Partition, -ing – After formatting, the hard drive is not yet ready to store files. It must be divided into sections that will contain

special information required for a Mac or PC to operate and other sections that will contain the files. This process of dividing up the hard drive is called partitioning. A partition is just one section of the hard drive that will contain either special data put there by Silverlining or other files and data.

Peripheral – A generic term applied to printers, scanners, mice, keyboards, serial ports, graphics cords, disk drives and other computer subsystems. This type of peripheral often relies on its own control software, known as a peripheral driver.

Port, hardware – A connection component (SCSI port, for example) that enables a microprocessor to communicate with a compatible peripheral.

Port, software – A memory address that identifies the physical circuit used to transfer information between a microprocessor and a peripheral.

RAM (Random Access Memory) – Generally referred to as a computer’s “memory.” An integrated circuit memory chip that allows information to be stored and retrieved by a microprocessor or controller. The information can be stored or accessed in any order, and all storage locations are equally accessible.

Page 47

Glossary

page 47

LaCie Big Disk USB 2.0 User’s Manual

Seek Time – The amount of time (in thousandths of a second, or milliseconds) that it takes a hard drive’s read/write head to

move to a specific location on the disk. Average seek, then, is the average of a large number of random samplings all over the disk. Seek time is CPU independent, meaning that seek time is the same for a disk drive, whether it is attached to a computer or not.

Software – In a nutshell, software is a set of instructions for the computer. A set of instructions to perform a particular task is called a program. There are two main types of software: system software (an operating system such as Mac OS or Windows) which controls the operation of the computer and application software (programs such as Word or Excel) which enable users to perform tasks such as word processing, spreadsheet creation, graphics, etc.

Storage – In computers, any equipment in which information may be kept. PCs generally use disk units and other external storage media (diskettes, CD-ROMs, magnetic disks, etc.) for permanent storage of information.

Striping – Spreading data evenly over multiple disk drives to enhance performance. Data striping can be performed on a bit, byte or block basis for optimum application performance.

Transfer Rate – The rate at which the drive sends and receives data from the controller. Transfer rates for reading data from the disk drive may not be the same as the transfer rate for writing data to the disk drive. Transfer rates are CPU dependent, meaning that regardless of how great a transfer rate your drive is capable of, the actual transfer rate can only be as fast as the slowest of your hard drive and computer.

Volume – A desktop mountable storage area, may be a partition of a hard drive, a removable disk or a cartridge. Typically measured in Megabytes or Gigabytes.

Utility – Software designed to perform maintenance tasks on the system or its components. Examples include backup programs, programs to retrieve files and data on disk, programs for preparing (or formatting) a disk or and resource editors.
