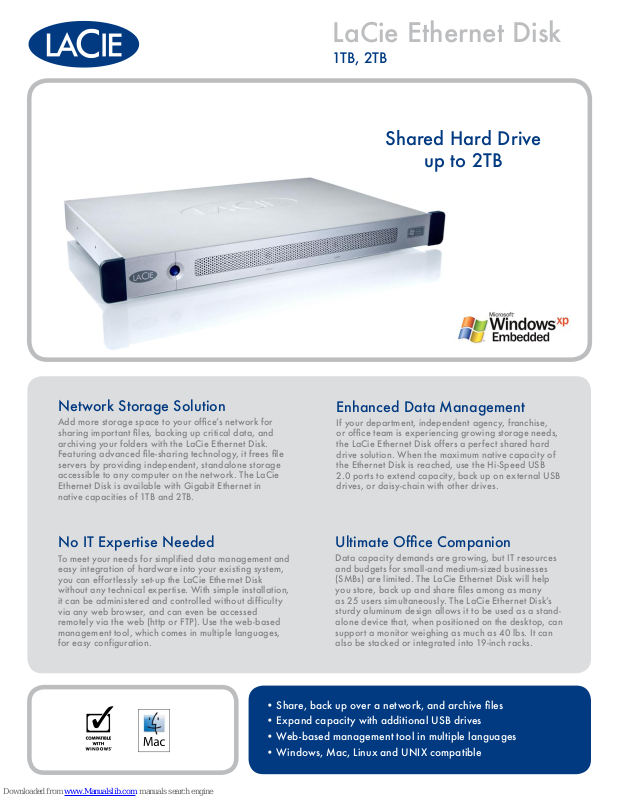

Page 1
LaCie Ethernet Disk
1TB, 2TB
Shared Hard Drive
up to 2TB
Network Storage Solution
Add more storage space to your ofce’s network for
sharing important les, backing up critical data, and
archiving your folders with the LaCie Ethernet Disk.
Featuring advanced le-sharing technology, it frees le
servers by providing independent, standalone storage
accessible to any computer on the network. The LaCie
Ethernet Disk is available with Gigabit Ethernet in
native capacities of 1TB and 2TB.
No IT Expertise Needed
To meet your needs for simplified data management and
easy integration of hardware into your existing system,
you can effortlessly set-up the LaCie Ethernet Disk
without any technical expertise. With simple installation,
it can be administered and controlled without difficulty
via any web browser, and can even be accessed
remotely via the web (http or FTP). Use the web-based
management tool, which comes in multiple languages,
for easy configuration.
Enhanced Data Management
If your department, independent agency, franchise,
or ofce team is experiencing growing storage needs,
the LaCie Ethernet Disk offers a perfect shared hard
drive solution. When the maximum native capacity of
the Ethernet Disk is reached, use the Hi-Speed USB
2.0 ports to extend capacity, back up on external USB
drives, or daisy-chain with other drives.
Ultimate Ofce Companion
Data capacity demands are growing, but IT resources
and budgets for small-and medium-sized businesses
(SMBs) are limited. The LaCie Ethernet Disk will help
you store, back up and share les among as many
as 25 users simultaneously. The LaCie Ethernet Disk’s
sturdy aluminum design allows it to be used as a standalone device that, when positioned on the desktop, can
support a monitor weighing as much as 40 lbs. It can
also be stacked or integrated into 19-inch racks.
• Share, back up over a network, and archive les
• Expand capacity with additional USB drives
• Web-based management tool in multiple languages
• Windows, Mac, Linux and UNIX compatible
Page 2
Features
• Powered by Windows XP® Embedded
• Two Hi-Speed USB 2.0 ports for expanding capacity
• Access control: different share levels, groups,
and user privileges
• Access data over distances via the web – HTTP or FTP
• Scheduler backup over a network or on external
USB hard drives
• Firewall application
• Network IP Congurator provides automatic drive mapping
• Slender, aluminum rackable design
Box Content
• LaCie Ethernet Disk
• CD including Network IP Congurator software
and User Manual
• LaCie feet for stand-alone use
• Ethernet cable
• Power cords and power plugs
LaCie Ethernet Disk
System Requirements
Network:
• Auto-sensing 10/100/1000 Base-T
• SMB (Windows), AFP v3.1 (Mac), FTP, HTTP
• DHCP auto-IP assignment
• Apple Bonjour protocol
• Microsoft Active Directory
• Kerberos Authentication v5.0
• DNS, WINS
• File Level Security (ACLs)
• Network Logon
Client Types:
• Windows 98SE, Windows Me, Windows 2000, Windows XP,
Windows Vista
• Mac OS 9, Mac OS X
• Linux 2.4 and higher; UNIX
Internet Browser:
• Microsoft® Internet Explorer
• Netscape® Navigator™
• Apple Safari™
TM
Capacity
Item Number
Interface
Network Protocols
Special OS Features
Rotational Speed
Cache
Expansion Ports
Dimensions (WxHxD)
Weight
Processor/RAM
Software
Warranty
*1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 10–15% less).
©2007, LaCie. The LaCie logo is a trademark of LaCie. Other product and brand names mentioned herein may be trademarks or registered trademarks of their respective owners. Specications and appearance are given as guidelines and are subject to change without notice. 070418
1TB 2TB
300963 300961
Gigabit Ethernet
TCP/IP, Windows: SMB/CIFS, Mac: AppleTalk/AFP v3.1, FTP, HTTP
Windows XP® Embedded; Share among up to 25 users
7200rpm
8MB
2 x Hi-Speed USB 2.0 ports, 1 x VGA, 1 x mouse port, 1 x keyboard port
16.9 x 1.77 x 16.9 in / 430 x 45 x 430 mm
20.6 lb / 9350 g
VIA C3 800MHz/256MB DDR RAM
LaCie Network IP Congurator
2 years limited
