Page 1

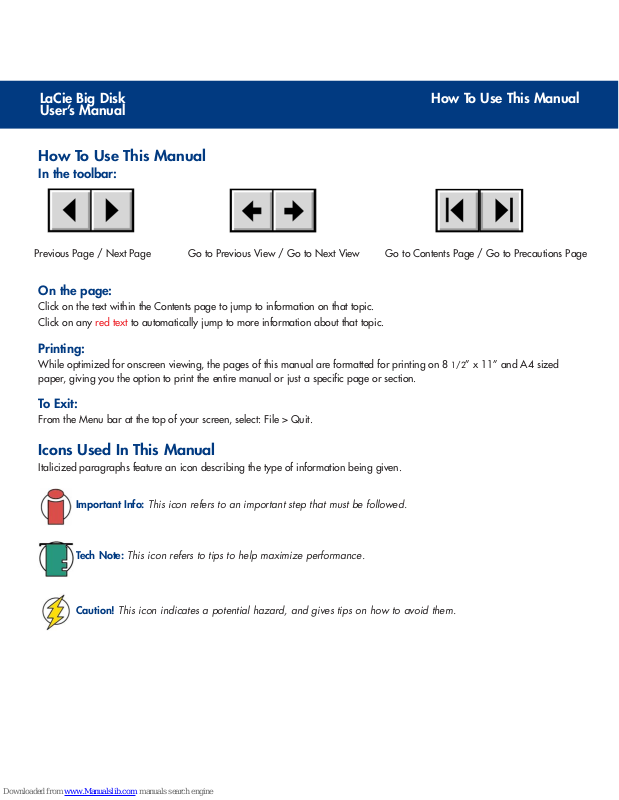

How To Use This Manual

LaCie Big Disk User’s Manual

How To Use This Manual

In the toolbar:

On the page:

Click on the text within the Contents page to jump to information on that topic. Click on any red text to automatically jump to more information about that topic.

Printing:

While optimized for onscreen viewing, the pages of this manual are formatted for printing on 8 1/2” x 11” and A4 sized paper, giving you the option to print the entire manual or just a specific page or section.

To Exit:

From the Menu bar at the top of your screen, select: File > Quit.

Icons Used In This Manual

Italicized paragraphs feature an icon describing the type of information being given.

Important Info:

This icon refers to an important step that must be followed.

Tech Note:

This icon refers to tips to help maximize performance.

Caution!

This icon indicates a potential hazard, and gives tips on how to avoid them.

Previous Page / Next Page

Go to Previous View / Go to Next View

Go to Contents Page / Go to Precautions Page

Page 2

Table of Contents

LaCie Big Disk User’s Manual

Table of Contents

Foreword 4 Precautions 6

1. Introduction 7

1.1. What Your LaCie Drive Can Do 7

2. Your LaCie Drive 8

2.1. Minimum System Requirements 8

2.2. Package Contents And Views Of The Drive 9

2.2.1. Package Contents 9

2.2.2. Views Of The Drive 10

2.3. Cables And Connectors 12

2.3.1. FireWire 12

2.3.2. USB 13

3. Installing Your LaCie Drive 14

3.1. Connecting The Power Supply 15

3.2. Connecting The Interface Cable 16

3.2.1. Mac Users 16

3.2.2. Windows Users 24

3.3 Connecting Digital Video Cameras To The Drive 33

3.4. Installing Multiple Devices 34

3.5. Disconnecting Your LaCie Drive 35

3.6. Switching Interfaces 36

4. Using Your LaCie Drive 37

4.1. Formatting And Partitioning Your LaCie Drive 38

4.1.1. Mac Users 38

4.1.2. Windows Users 40

5. Tech Tips 42

5.1. File System Formats 42

5.1.1. Mac Users 42

5.1.2. Windows Users 43

Page 3

Table of Contents

LaCie Big Disk User’s Manual

5.2. Available Storage Capacity 44

5.3. Optimizing Data Transfers 44

5.3.1. FireWire 800 Ports And Performance 45

5.3.2. Hi-Speed USB 2.0 Ports And Performance 45

5.4. Hi-Speed USB 2.0 vs. FireWire 400 vs. FireWire 800 46

6. FireWire Questions & Answers 47

7. USB Questions & Answers 49

8. Troubleshooting 51

8.1. Mac Users 52

8.2. Windows Users 55

9. Contacting Customer Support 59

10. Warranty 61 Glossary 62

Page 4

Foreword

page 4

LaCie Big Disk User’s Manual

Copyrights

Copyright © 2003 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.

Trademarks

Apple, Mac, Macintosh and FireWire are registered trademarks of Apple Computer, Inc. Microsoft, Windows 98, Windows 98 SE, Windows 2000, Windows Millennium Edition and Windows XP are registered trademarks of Microsoft Corporation. Sony and iLink are registered trademarks of Sony Electronics. Other trademarks mentioned in this manual are the property of their respective owners.

Changes

The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement:

Caution!

Modifications not authorized by the manufacturer may void the user’s authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

Tested To Comply With FCC standards

FOR HOME OR OFFICE USE

LaCie Big Disk

Page 5

Foreword

page 5

LaCie Big Disk User’s Manual

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canada Compliance Statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Manufacturer’s Declaration for CE Certification

We, LaCie, solemnly declare that this product conforms to the following European standards:

Class B EN60950, EN55022, EN50082-1, EN61000-3-2 With reference to the following conditions: 73/23/EEC Low Voltage Directive 89/336/EEC EMC Directive

Page 6

Precautions

page 6

LaCie Big Disk User’s Manual

Health And Safety Precautions

Only qualified persons are authorized to carry out maintenance on this device.

• Read this User's Guide carefully, and follow the correct procedure when setting up the device.

• Do not open your hard drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions. Your hard drive contains no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified LaCie Technical Support representative.

• Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

General Use Precautions:

• Do not expose the hard drive to temperatures outside the range of 5° C to 45° C (41° F to 104° F). Doing so may damage the drive or disfigure its casing. Avoid placing your drive near a source of heat or exposing it to sunlight (even through a window). Inversely, placing your drive in an environment that is too cold or humid may damage the unit.

• Always unplug the hard drive from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.

• Use only the power supply shipped with the device.

• Do not use the hard drive near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.

• Do not place the drive near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic interference can affect the operation and stability of your hard drive.

• Do not place heavy objects on top of the drive or use excessive force on it.

• Never use excessive force on your drive. If you detect a problem, consult the "Troubleshooting" section in this manual.

• Protect your hard drive from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.

• Never use benzene, paint thinners, detergent or other chemical products to clean the outside of the drive. Such products will disfigure and discolor the casing. Instead, use a soft, dry cloth to wipe the device.

Caution!

The drive's warranty may be void as a result of the failure to respect the precautions listed above.

Page 7

1. Introduction

page 7

LaCie Big Disk User’s Manual

1. Introduction

Thank you for the purchase of your new LaCie Big Disk! This triple interface hard drive system combines compatibility, convenience and a generous storage capacity to help you manage your data. Your LaCie external hard drive system is cross-platform, which enables you to use it on both Macs and PCs; it can be connected via FireWire 800, FireWire, iLink/DV or Hi-Speed USB 2.0 interfaces; and you can customize the format and partitions of your LaCie drive to match your exact needs.

LaCie’s Hard Drive is ideally suited for a wide range of high-end, high-traffic environments, including:

• Servers

• Workstations

• Audio/Video Editing

• Database Management

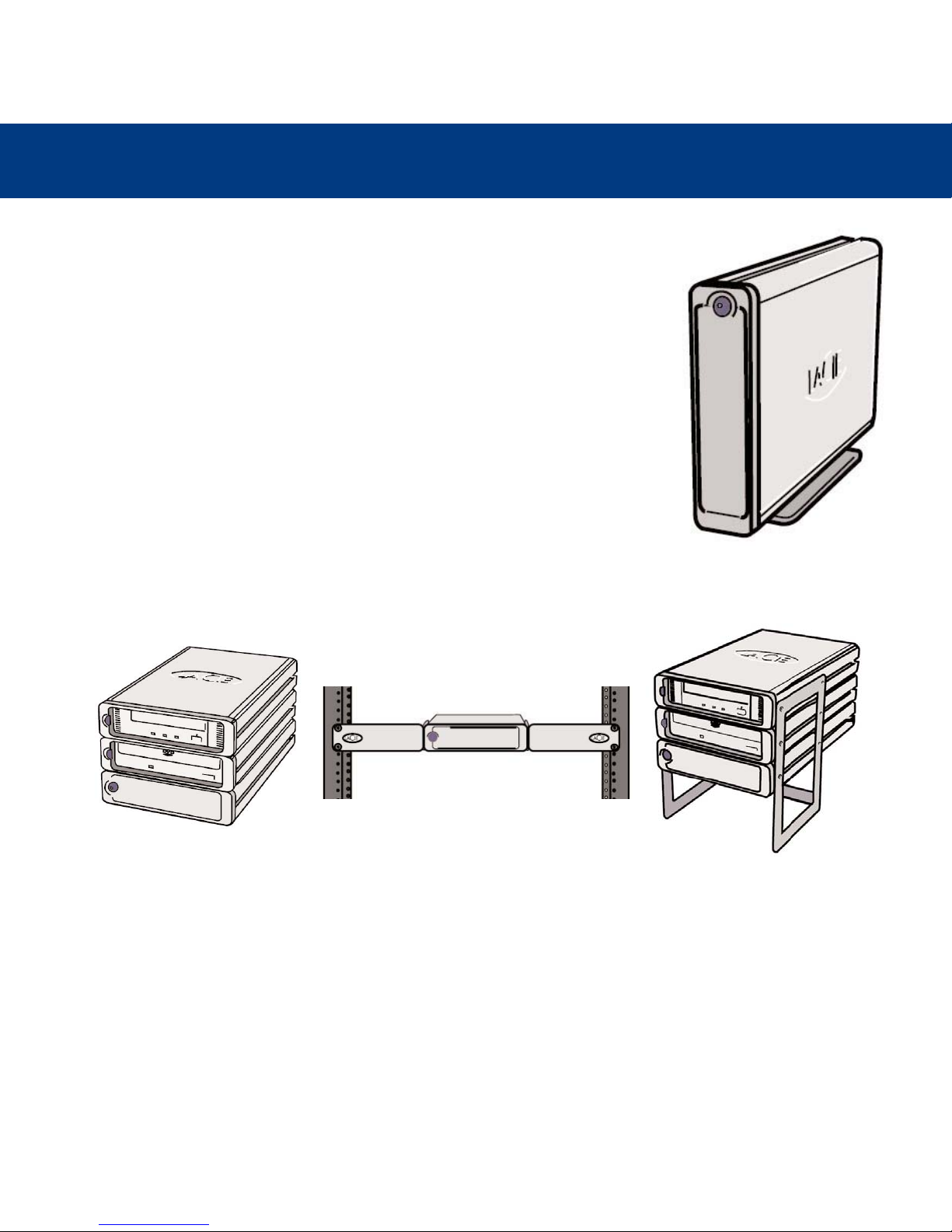

Engineered to fit seamlessly in to any work environment, the LaCie Big Disk can be stood vertically on the LaCie Drive Stand (included), placed in the LaCie Desk Rack (sold separately) or incorporated into standard 19” computer equipment racks with the LaCie Rackmount Kit (sold separately).

1.1. What Your LaCie Drive Can Do

• Daisy-chain digital video cameras directly to the drive.

• Connects to all of the FireWire and USB standard interfaces.

• Back up your computers’ internal hard drive.

• Store and exchange data between several computers.

Page 8

2. Your LaCie Drive

page 8

LaCie Big Disk User’s Manual

2. Your LaCie Drive

2.1. Minimum System Requirements

FireWire 800

Hardware Requirements for FireWire 800:

• Pentium III or higher compatible processor, with a FireWire 800/IEEE 1394b interface card

• 128MB RAM or higher System Requirements for FireWire 800:

• Windows 2000 and Windows XP

FireWire/IEEE 1394/iLink

Hardware Requirements for FireWire 400:

• Pentium II or higher -compatible processor, with a FireWire/IEEE 1394/iLink interface card (SBP-2 compatible) that supports mass storage devices.

• 64MB RAM or greater System Requirements for FireWire 400:

• Windows 98 SE, Windows Me, Windows 2000 and Windows XP

Hi-Speed USB 2.0

Hardware Requirements for USB:

• Pentium II or higher -compatible processor, with a USB 2.0 or 1.1 interface card

• 32MB RAM or greater System Requirements for USB:

• Windows 2000 and Windows XP

FireWire 800

Hardware Requirements for FireWire 800:

• G4 with a FireWire 800/IEEE 1394b interface card System Requirements for FireWire 800:

• OS 10.2.4 or higher

FireWire

Hardware Requirements for FireWire 400:

• G3 or greater, with FireWire 400/IEEE 1394a interface card System Requirements for FireWire 400:

• OS 9.x (Apple FireWire support 2.3.3 and greater) and

10.x

Hi-Speed USB 2.0

Hardware Requirements for USB:

• G3 or greater, with USB 2.0 or 1.1 interface card System Requirements for USB:

• OS 9.x and 10.x (Apple USB support 1.3.5 and greater)

Windows Users

Mac Users

Page 9

2.2. Package Contents and Views of the Drive

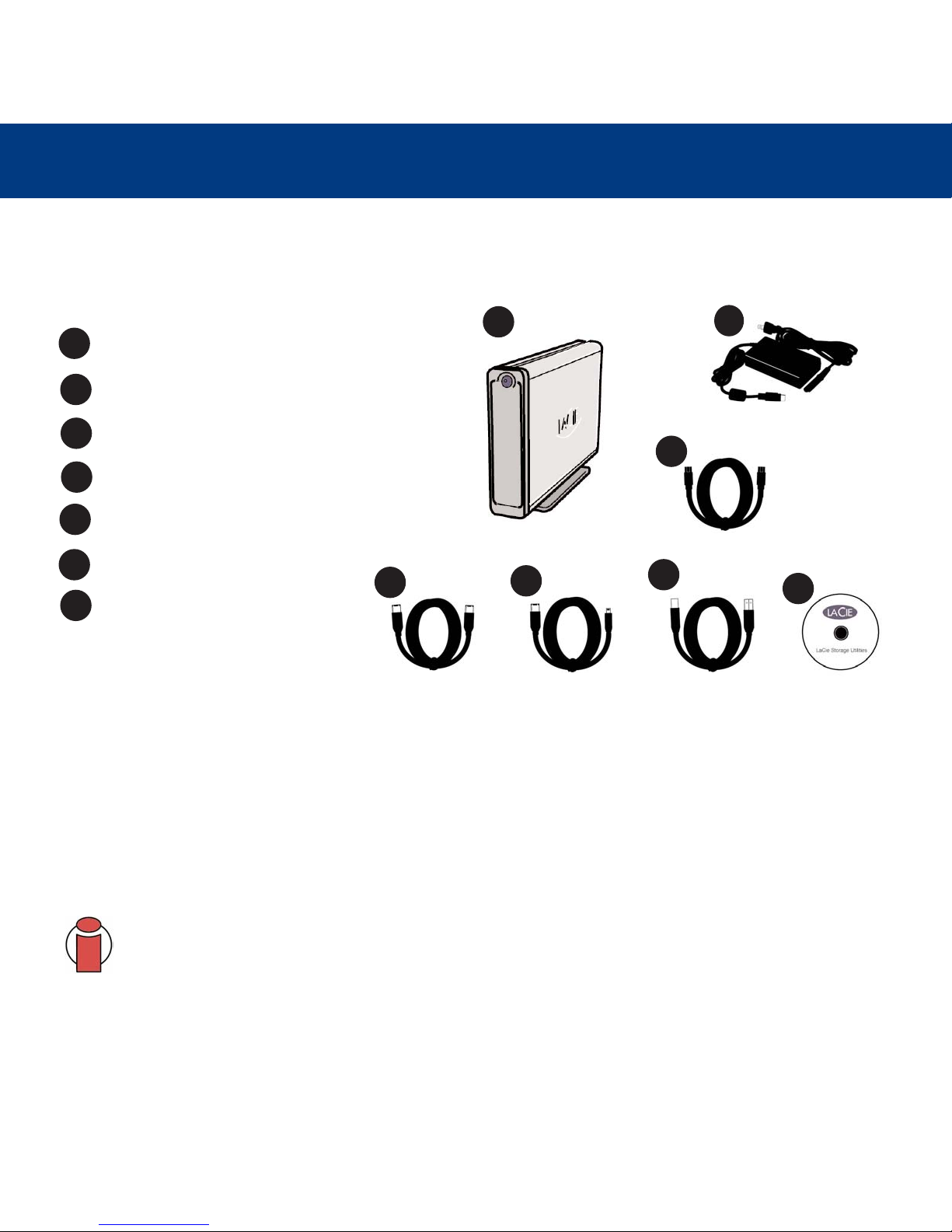

2.2.1. Package Contents

LaCie Big Disk and Drive Stand kit

External power supply

FireWire 800 9-to-9-pin cable

FireWire 400 6-to-6-pin cable

iLink/DV 6-to-4-pin cable

Hi-Speed USB 2.0 cable

LaCie Storage Utilities CD-ROM

Important Info:

Please keep your box. In the event that the drive should need to be repaired or serviced, it must

be returned in its original packaging.

2. Your LaCie Drive

page 9

LaCie Big Disk User’s Manual

Page 10

2. Your LaCie Drive

page 10

LaCie Big Disk User’s Manual

2.2.2. Views of the Drive

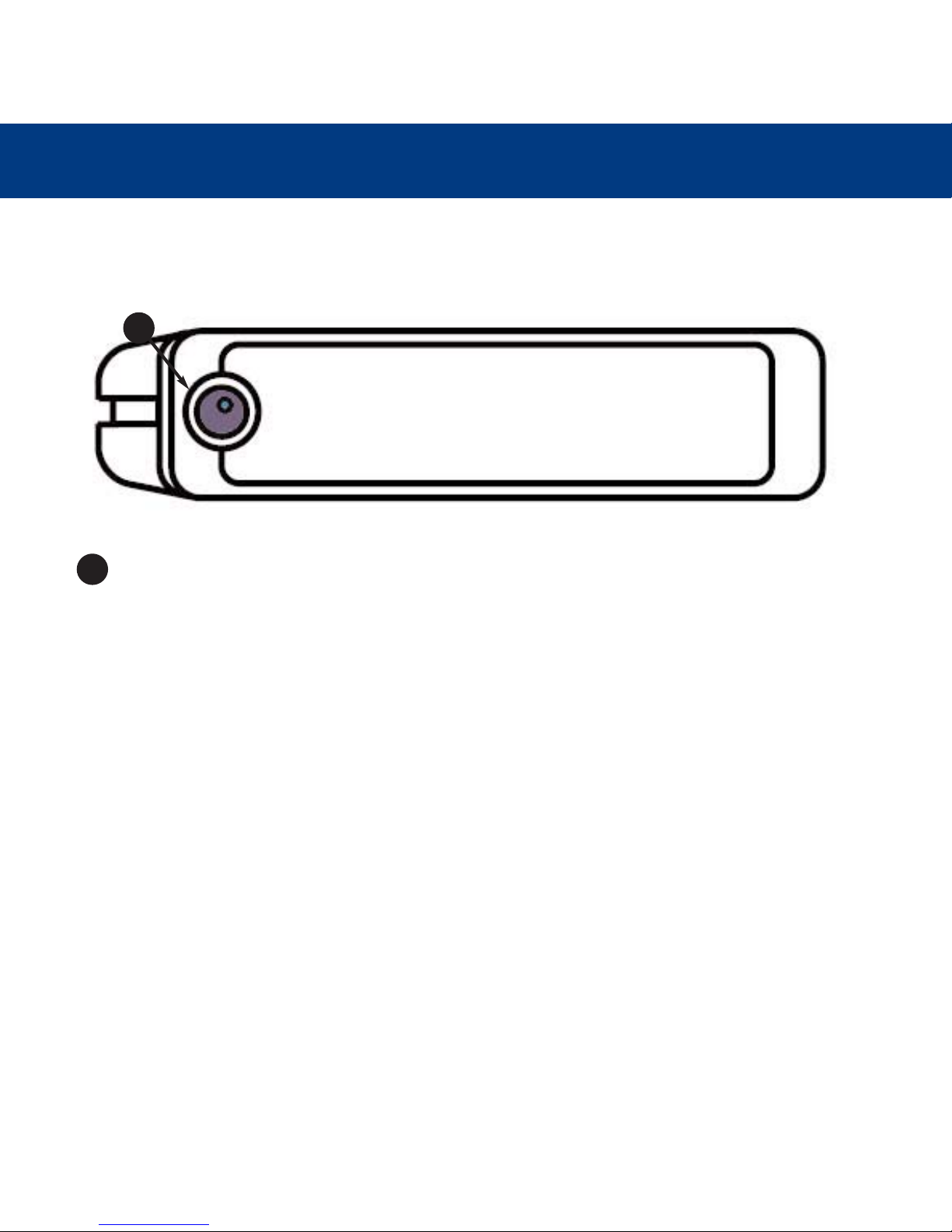

2.2.2.1. Front View

On/Off Button / Power LED /Activity LED

Push the button to power the drive on. The LED remains lit to show that the drive is on, and blinks to indicate drive activity.

Page 11

2. Your LaCie Drive

page 11

LaCie Big Disk User’s Manual

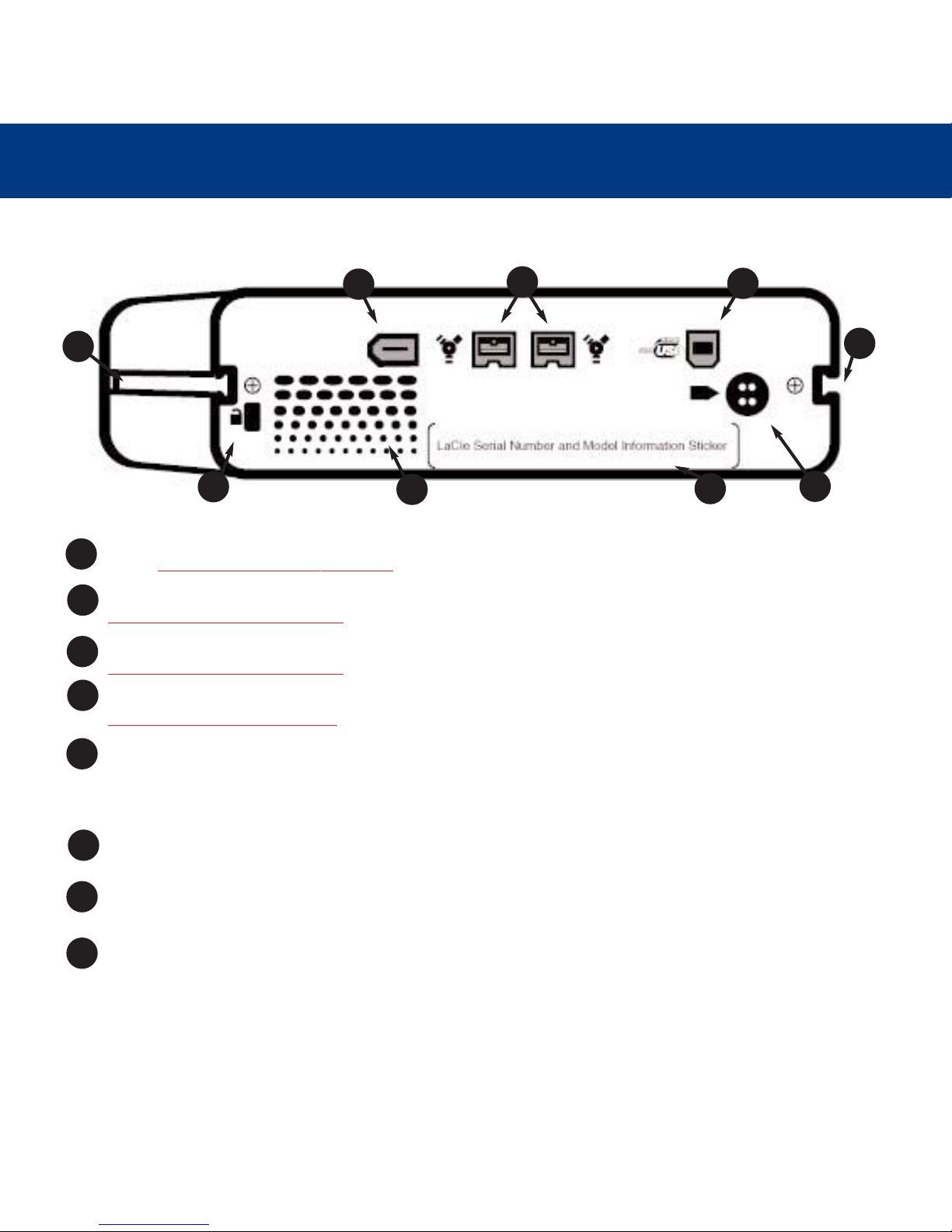

2.2.2.2. Back View

FireWire 400 Port - This is where you plug in the FireWire 400 or iLink/DV cables furnished with the drive. See

section 3.2. Connecting the Inter

face Cable for more information.

FireWire 800 Ports - This is where you plug in the FireWire 800 cable furnished with the drive. See section

3.2. Connecting the Inter

face Cable for more information.

Hi-Speed USB 2.0 Port - This is where you plug in the Hi-Speed USB 2.0 cable furnished with the drive. See section

3.2. Connecting the Inter

face Cable for more information.

Power Supply Connector - This is where you plug in the AC adapter supplied with the drive. See section

3.1. Connecting The Power Supply

for more information.

Serial Number Sticker - This is where you will find your LaCie drive's serial number. Write down the serial number and keep it in a safe place, because you will need to provide the number in the event you have to call LaCie Technical Support for any reason in regards to the drive’s performance. The serial number would also come in handy if your drive is lost or stolen.

Ventilation Outlet - These holes help to keep your drive cool during operation. Be sure not to block these openings when using your drive.

Lock Slot - This slot is used to connect an anti-theft system, such as the LaCie Security Lock, for maximum protection. Refer to your anti-theft system documentation for details on how to connect the lock.

Rackmount Grooves - These grooves are used for attaching your drive to the Drive Stand, mounting in the Desk Rack kit (sold separately) or placing your drive in standard 19” computer equipment racks using the LaCie Rackmount Kit (sold separately).

Page 12

2. Your LaCie Drive

page 12

LaCie Big Disk User’s Manual

2.3. Cables and Connectors

2.3.1. FireWire

FireWire 400, also known as IEEE 1394, is a high-speed serial input/output technology for connecting peripheral devices to a computer or to each other, and FireWire 800 is the implementation of the new IEEE 1394b standard.

Pushing the speed barrier to new limits, FireWire 800 offers increased bandwidth and extended cabling distance between devices. FireWire 800 is ideal for bandwidth-intensive applications, such as audio, video and graphics. Benefits of FireWire 800 include:

• Resourceful architecture: FireWire 800 reduces delays in arbitration and signal distortion, and increases throughput.

• Backwards compatibility: adapter cables allow FireWire 400 devices to operate under the FireWire 800 port.

FireWire 400 and FireWire 800 also share the following features:

• Hot-pluggable: devices can be added and removed while the bus is active.

• Isochronous data delivery: no dropped frames – FireWire supports real-time data delivery.

• Flexible: up to 63 devices can be connected on a single bus.

Please see Fir

eWire Questions And Answers for a more detailed discussion of FireWire’s uses and capabilities.

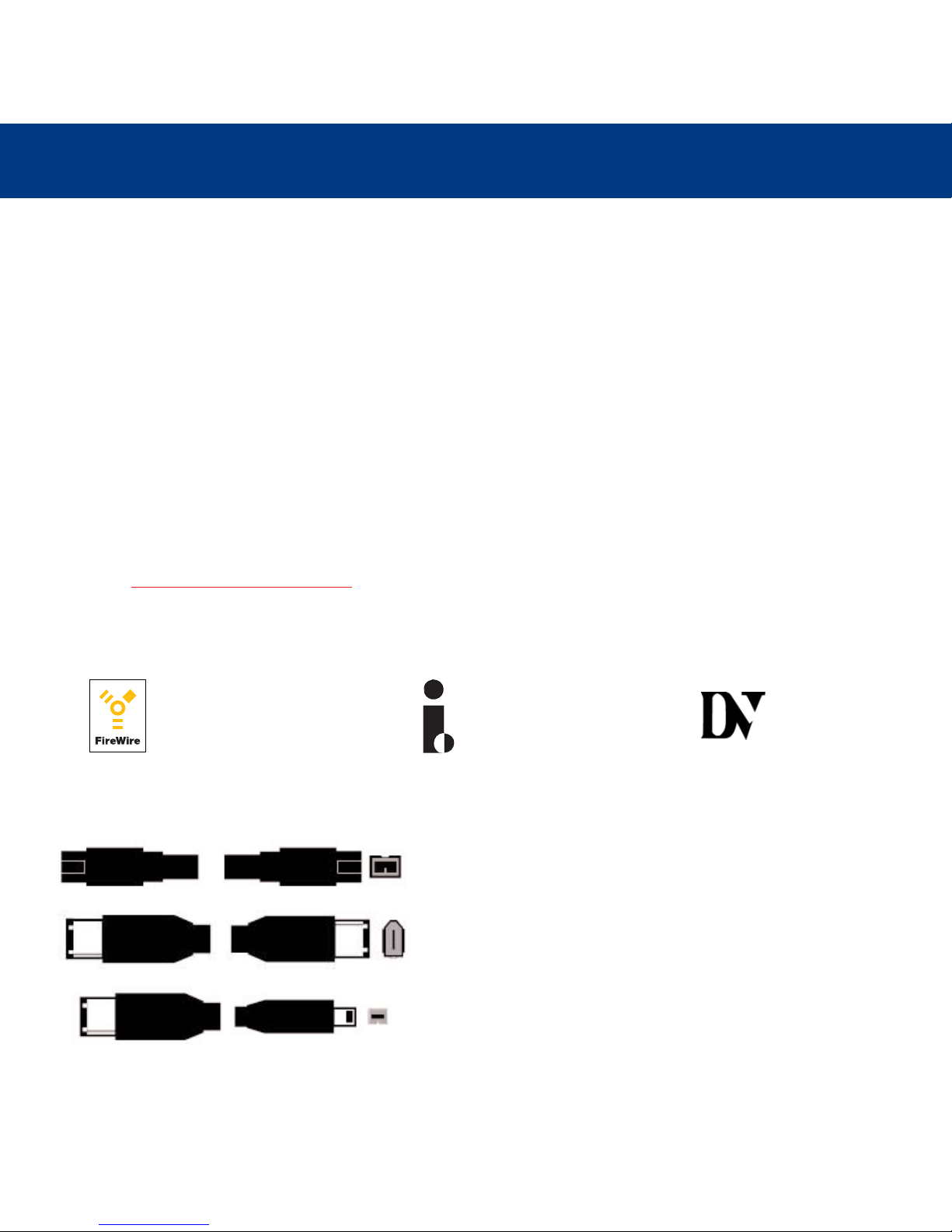

FireWire Icons

Theses icons will help you easily identify the FireWire interface. They appear on FireWire cables, and next to the FireWire port connectors on certain computers.

FireWire Cables

There are two categories of FireWire cables on the market: FireWire 800 cables, which feature the 9-to-9-pin, 9-to-6-pin, and 9-to-4-pin cables; and the original FireWire cables which feature the 6-to-6-pin and 6-to-4-pin cables.

DV icon

FireWire icon

iLink icon

9-to-9-pin cable: Connects FireWire 800 devices to FireWire 800 ports.

6-to-6-pin cable: Connects FireWire 400 devices to FireWire 400 ports.

6-to-4-pin cable: Connects FireWire 400 devices to iLink/DV ports.

Page 13

2. Your LaCie Drive

page 13

LaCie Big Disk User’s Manual

2.3.2. USB

USB is a serial input/output technology for connecting peripheral devices to a computer or to each other. Hi-Speed USB 2.0 is the latest implementation of this standard, and it provides the necessary bandwidth and data transfer rates to support highspeed devices such as hard drives, CD/DVD drives and digital cameras.

Benefits of the USB standard include:

• Backwards compatibility: Hi-Speed USB 2.0 works with the original USB specifications.

• Hot-swappable: no need to shut down or restart your computer when adding or removing devices.

Please see USB Questions And Answers

for a more detailed discussion of USB’s uses and capabilities.

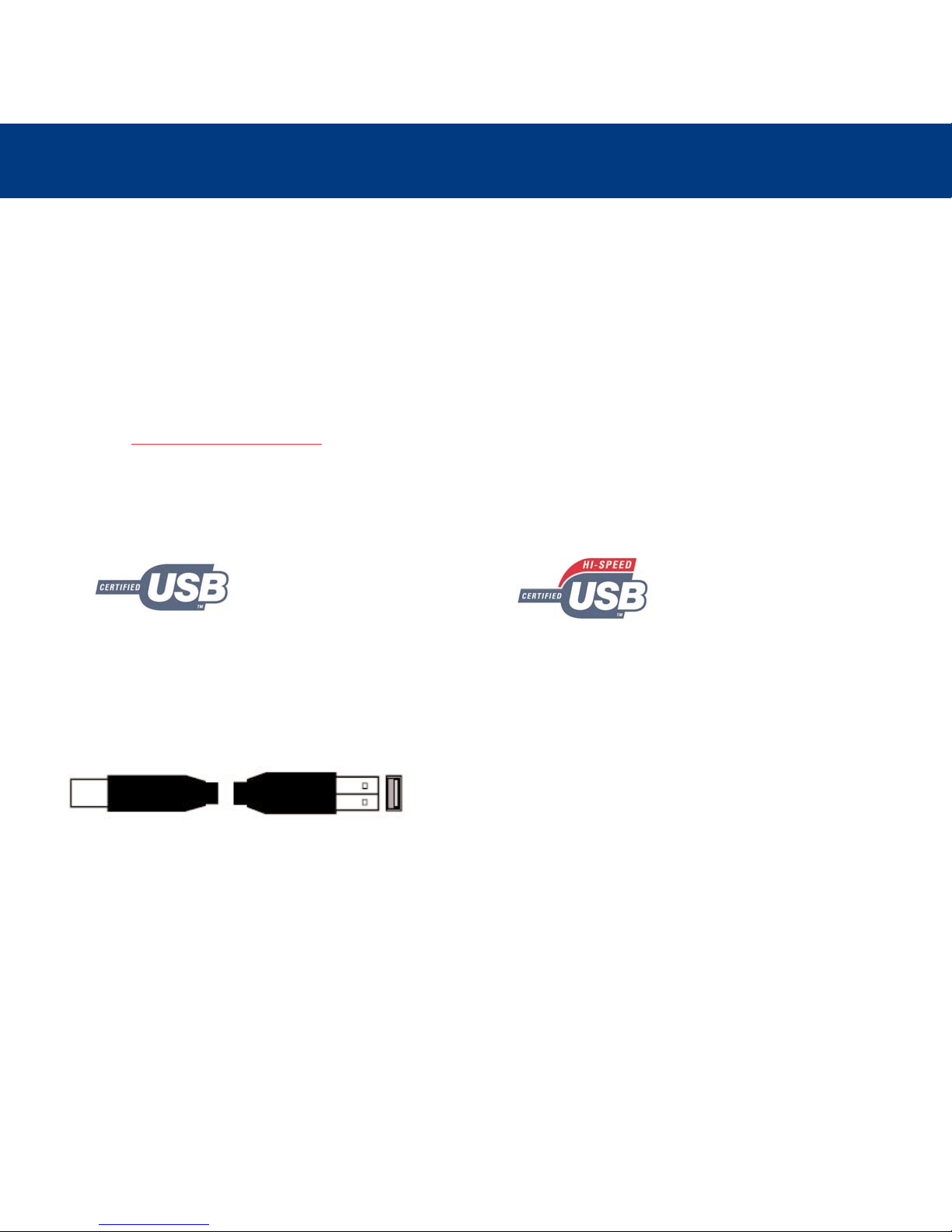

USB Icons

These icons will help you easily identify the USB interfaces. They appear on USB cables and next to the USB port connectors on certain computers.

USB Cables

Your LaCie drive is shipped with a Hi-Speed USB 2.0 cable, to ensure maximum data transfer performance when connected to a Hi-Speed USB 2.0 port. The cable will also work when connected to a USB port, but drive performance will be limited to USB 1.1 transfer rates.

Hi-Speed USB 2.0 2.0 cable: Connects USB devices to USB ports.

USB 1.1 icon USB 2.0 icon

Page 14

3. Installing Your LaCie Drive

page 14

LaCie Big Disk User’s Manual

3. Installing Your LaCie Drive

Getting your LaCie drive installed and connected is very simple; essentially there are two steps: 1) connect the power supply to the drive and to an outlet, and 2) connecting an interface cable to the drive and to your computer.

Thanks to its support of three different interfaces and its support of both the Mac and Windows operating system, the LaCie Big Disk gives you several different connectivity options. These steps are divided into sections by operating system (Mac or Windows) and the type of interface cable (FireWire 800, FireWire 400, iLink and Hi-Speed USB 2.0).

This chapter also has helpful information about connecting digital video cameras to the LaCie drive, connecting multiple devices and special steps that need to be followed when disconnecting the drive or switching between the different interfaces.

To get started, go to section 3.1. Connecting The Power Supply

Page 15

3. Installing Your LaCie Drive

page 15

LaCie Big Disk User’s Manual

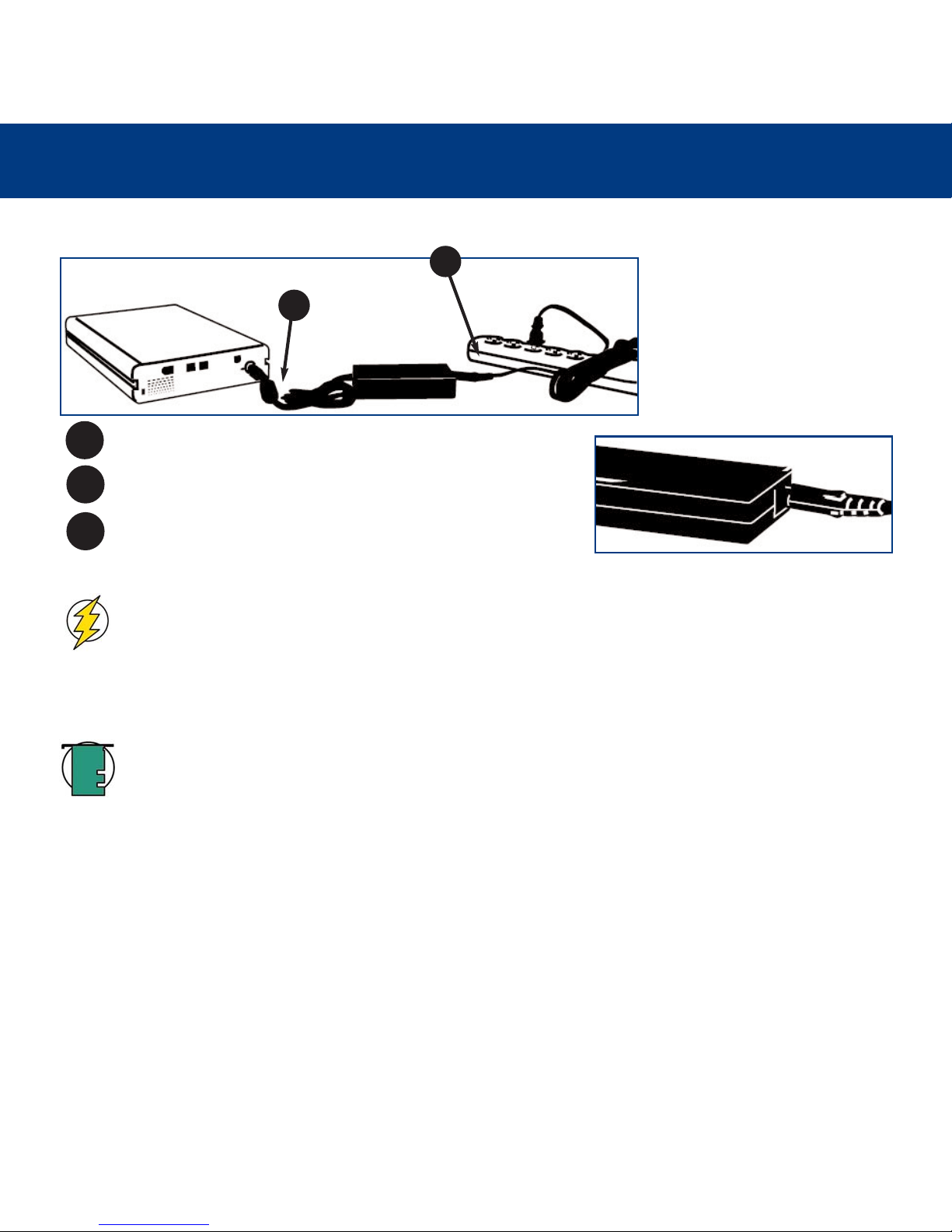

3.1. Connecting the Power Supply

There are two cables that are supplied with the power supply: one cable (A) connects to the LaCie drive; and the other cable (B) connects to a power outlet, such as a wall outlet or a surge protector.

Connect Cable A to your LaCie Drive.

Connect Cable B to the Power Supply brick.

Connect Cable B to a surge protector or wall outlet.

You are now ready to connect the interface cable to your drive and to your computer.

Caution!

•Only use the AC adapter supplied with your specific LaCie drive. Do not use a power supply from another LaCie drive or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

•Always remove the AC adapter before transporting your LaCie drive. Failure to remove the adapter may result in damage to your drive and will void your warranty.

Tech Note:

• Your LaCie Big Disk comes with an autoswitching power supply. This means that if the drive is connected to a FireWire connector on your computer, when you turn on the computer, the LaCie drive will turn on automatically. Likewise, when you turn off your computer, your LaCie drive will turn off automatically. To turn the drive off, simply push the blue On/Off button on the front of the drive. Do not turn the drive off, though, when it is reading or writing information!

• The LaCie Big Disk also manages power consumption. If the system’s power save feature supports it, the drive will spin down during the power save mode. After the system comes of out of power save, the drive will take a few seconds to spin up to full power before it can be accessed.

• You may use your LaCie drive when in a foreign country, thanks to its autoswitching 100-240 Volt power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord. Consult LaCie Technical Support for assistance in choosing the right adapter. LaCie accepts no responsibility for any damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other than one authorized by LaCie will void your warranty.

Power Supply brick

Step 2)

Page 16

3. Installing Your LaCie Drive

page 16

LaCie Big Disk User’s Manual

3.2. Connecting the Interface Cable

There are three interface connectivity options when connecting your LaCie Big Disk to your computer: FireWire 800, FireWire 400 and Hi-Speed USB 2.0. The installation steps below follow the connectivity options for each of the specific interfaces, depending on your operating system.

Important Info:

Windows Users! Move to section 3.2.2. Windows Users to view installation steps for the

Windows OS.

3.2.1. Mac Users

These installation steps are separated by interface and Mac OS. To view the installation steps of the interface you plan on using, click on the appropriate operating system and interface:

Mac OS 10.x – Fir

eWire 800 Mac OS 10.x – FireWire 400 Mac OS 9.x – FireWire 400 Mac OS 10.x – Hi-Speed USB 2.0 Mac OS 9.x – USB

Important Info:

You can not have the FireWire and USB interfaces connected at the same time! If you will be

switching between interfaces, you must also follow the steps in section 3.6. Switching Inter

faces.

Tech Note:

To daisy-chain devices, you must be using the same interface, either FireWire or USB, and a hub if you are using USB. Your computer will not recognize the daisy-chained device if the interfaces are mixed, i.e. a FireWire device attached to a drive that is connected to the computer via the Hi-Speed USB 2.0 interface. Daisy-chain configurations:

• FireWire 400 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• iLink/DV device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• FireWire 800 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

Tech Note:

If you will be using your LaCie drive in a cross-platform (Mac/Windows) environment, it is

recommended that you re-format the drive to the MS-DOS (also known as FAT 32) File System format. Please see section 5.1. File System For

mats for more information.

Page 17

3. Installing Your LaCie Drive

page 17

LaCie Big Disk User’s Manual

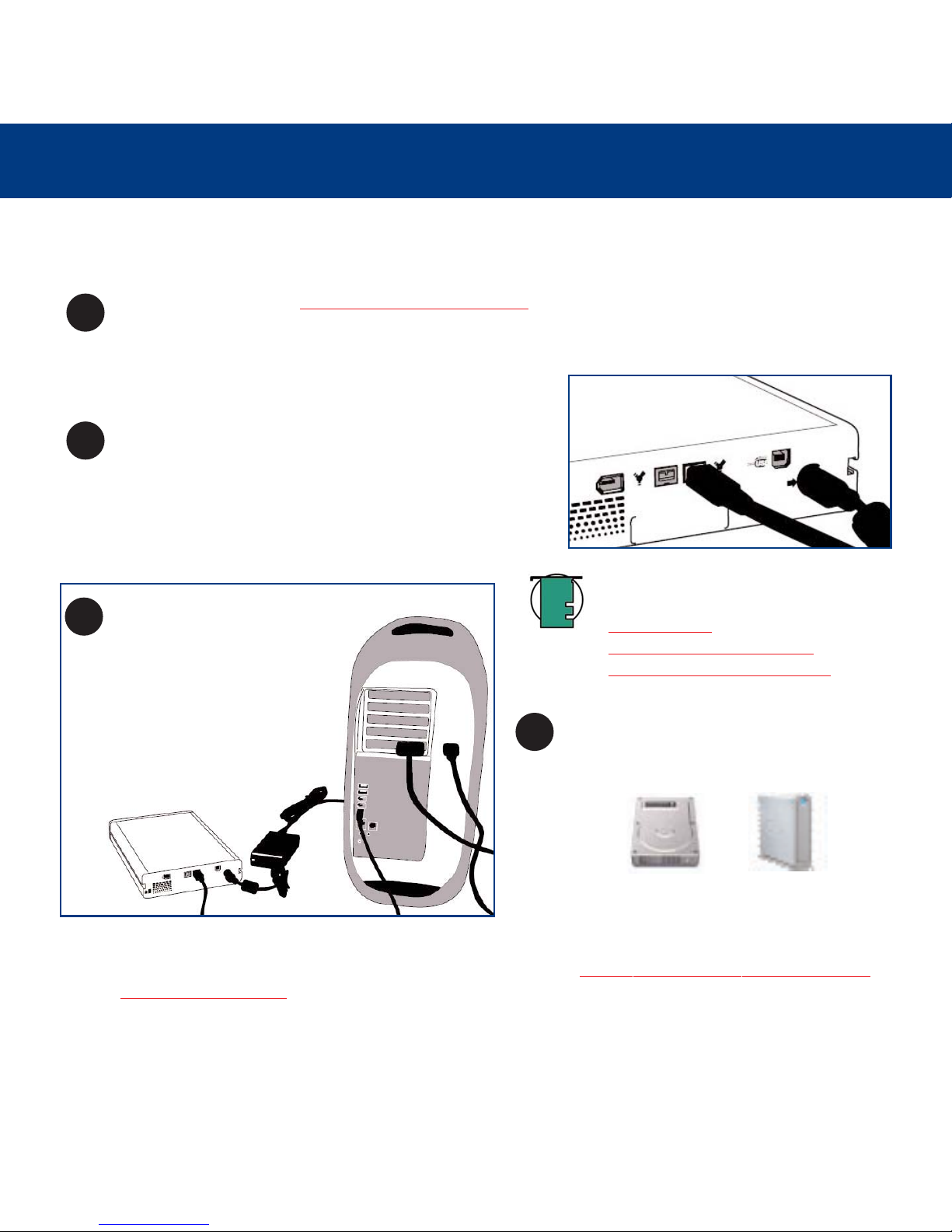

Mac OS 10.x – FireWire 800

Connect the 9-pin end of the FireWire 800 cable into the FireWire 800 port on the back of the LaCie Big Disk.

Connect the other end of the 9-pin FireWire 800 cable into an available FireWire 800 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk will now be ready for use. You can then use the formatting and partitioning capabilities in the Apple Disk Utility to configure your hard drive system. Please refer to 4.1. For

matting And Partitioning Your LaCie

Drive – 4.1.1. Mac Users for more information.

Mac OS Drive Icons

Page 18

3. Installing Your LaCie Drive

page 18

LaCie Big Disk User’s Manual

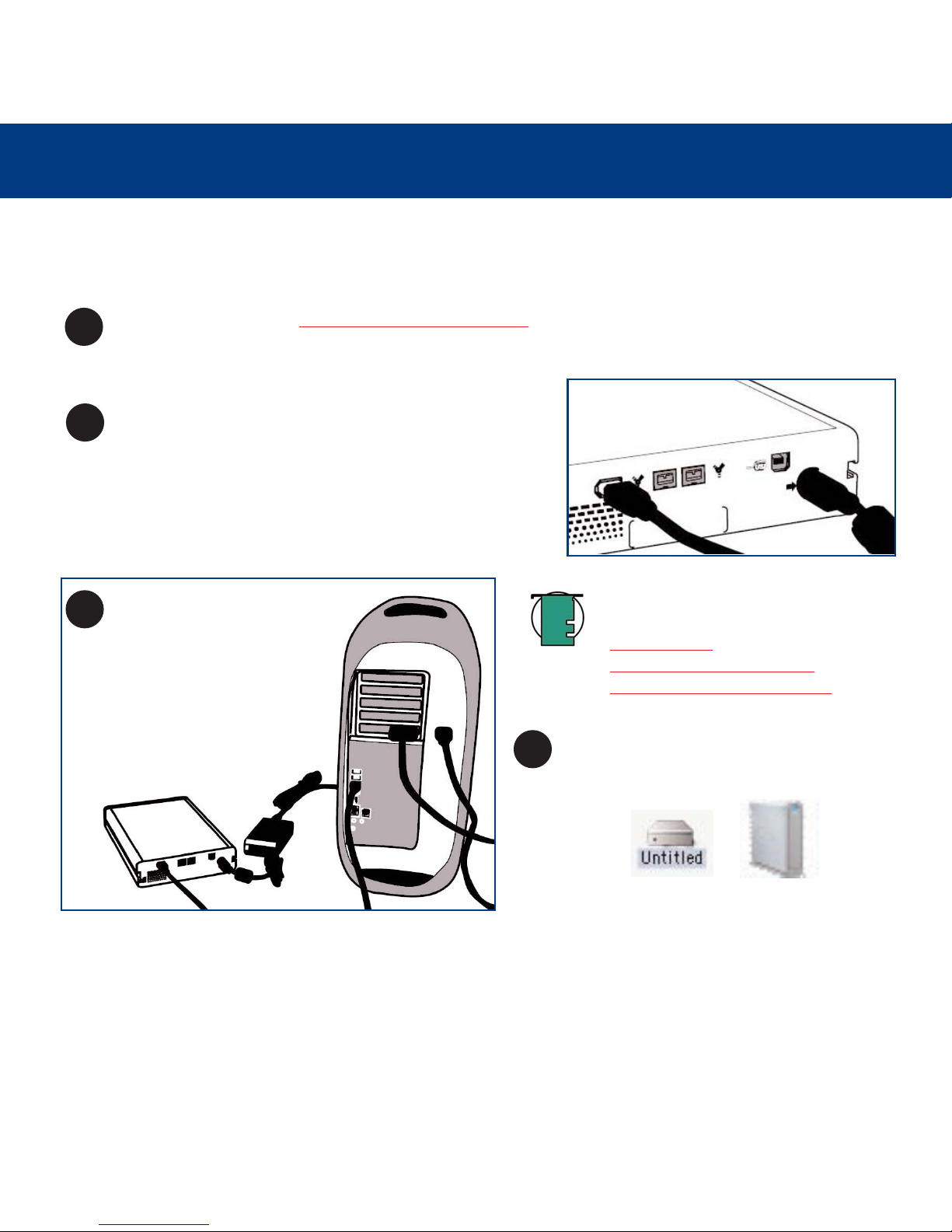

Mac OS 10.x – FireWire 400

Connect the 6-pin end of the FireWire 400 cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the other end of the 6-pin FireWire 400 cable into an available FireWire 400 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk will now be ready for use. You can then use the formatting and partitioning capabilities in the Apple Disk Utility to configure your hard drive system. Please refer to 4.1. Formatting And Partitioning Your LaCie

Drive – 4.1.1. Mac Users

for more information.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

Mac OS Drive Icons

Page 19

3. Installing Your LaCie Drive

page 19

LaCie Big Disk User’s Manual

Mac OS 9.x – FireWire 400

To use your new LaCie Big Disk, first install the necessary driver software.

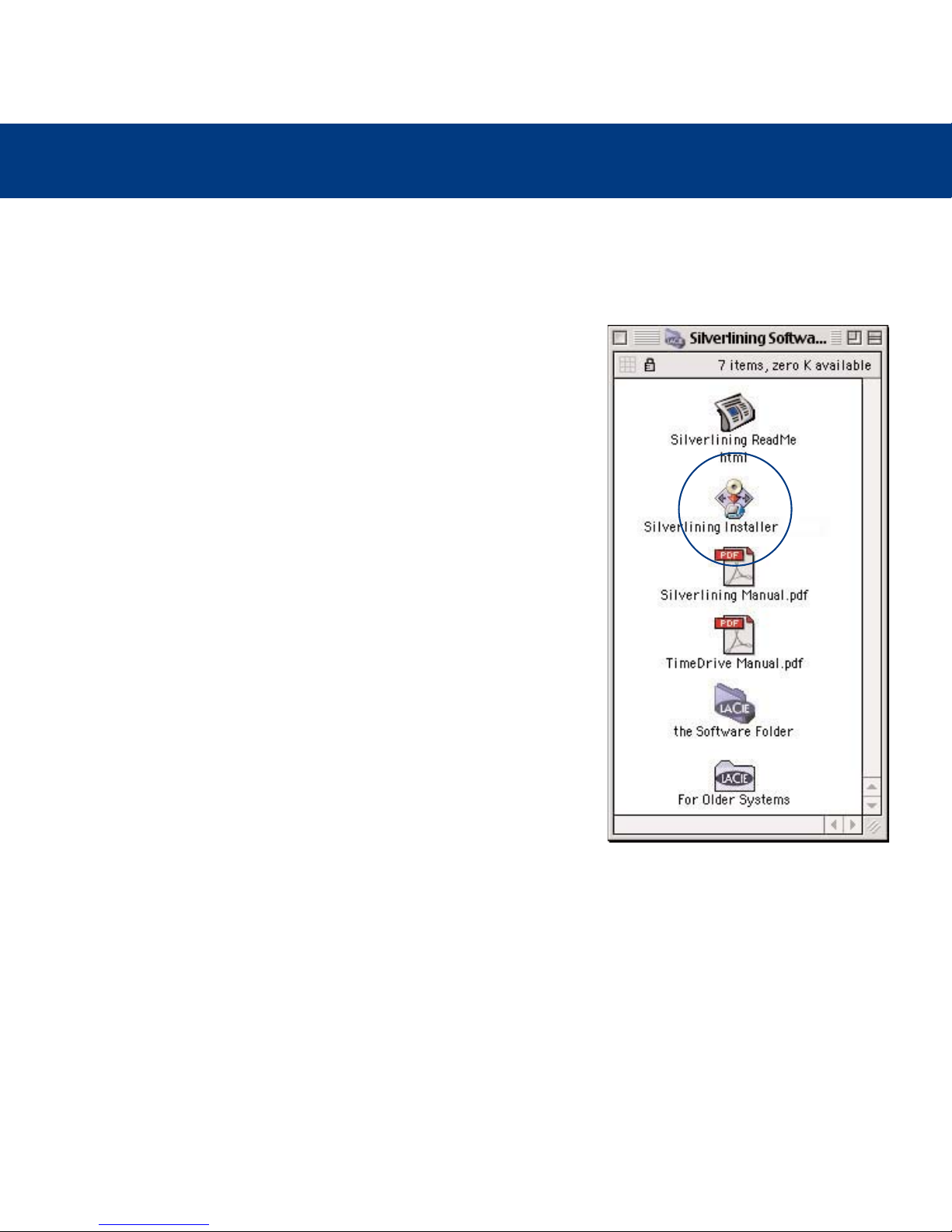

Silverlining Pro Installation

1) Insert the LaCie Storage Utilities CD in your computer’s internal CD/DVD drive.

2) Open the CD icon and double-click on the Silverlining Installer.

3) The Silverlining Utilities screen appears. Click on Continue.

4) The About to Install screen appears. Read the following information and click on Continue.

5) The License Agreement screen appears. Click on Agree.

6) The Installation screen appears.

7) Check the Silverlining Pro and FireWire Support boxes.

8) Click on Install.

9) A message appears to confirm that the installation was successful.

10) Click on Restart to use your FireWire peripheral immediately.

Now you are ready to move to the next step, Connecting the Drive to the Computer.

Page 20

3. Installing Your LaCie Drive

page 20

LaCie Big Disk User’s Manual

Mac OS 9.x – FireWire 400

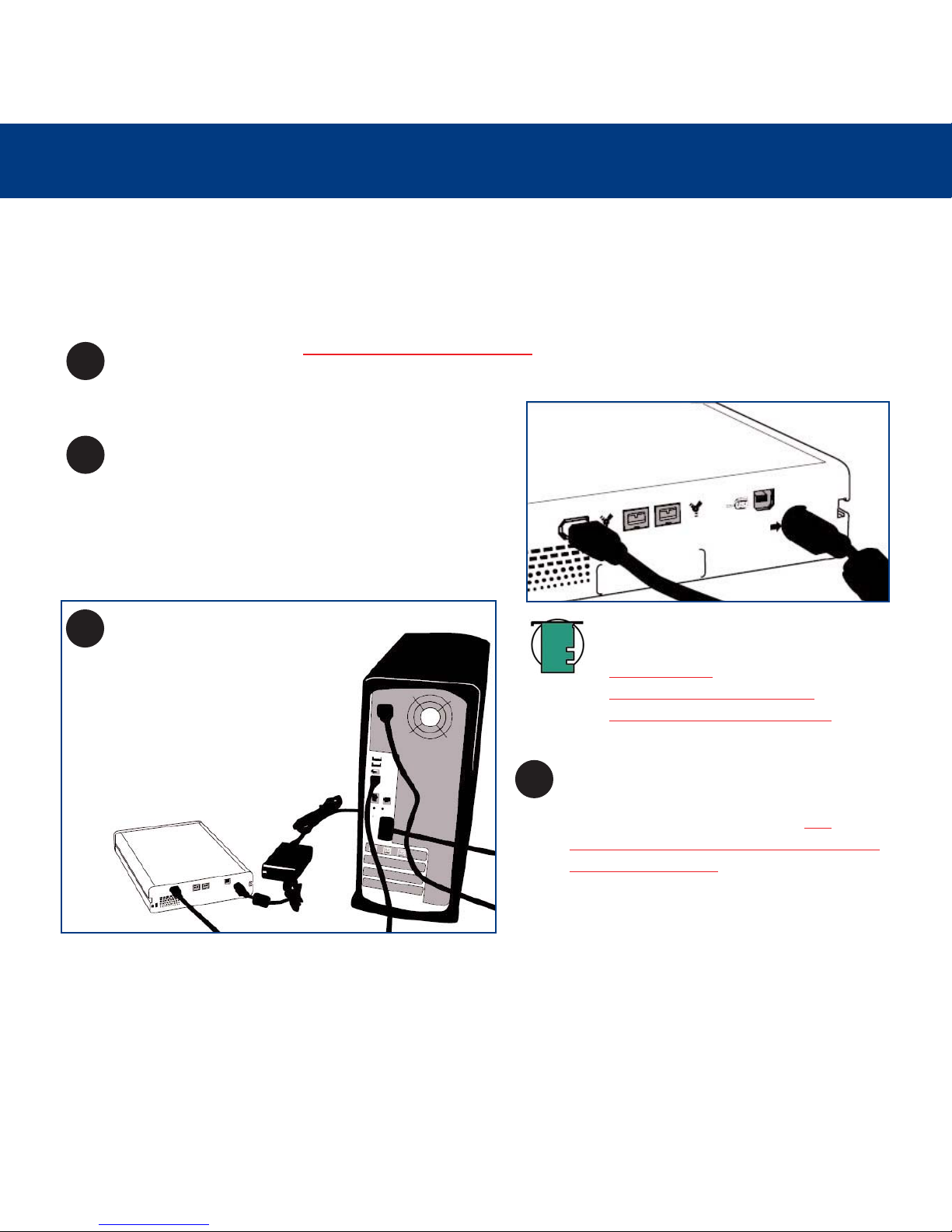

Connecting the Drive to the Computer

Connect the 6-pin end of the FireWire 400 cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the other end of the 6pin FireWire 400 cable into an available FireWire 400 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk will now be ready for use. You can then use the formatting and partitioning capabilities in Silverlining Pro to configure your hard drive system. Please refer to the Silverlining Pro documentation on the LaCie Storage Utilities CD-ROM for more information.

Mac OS Drive Icons

Page 21

3. Installing Your LaCie Drive

page 21

LaCie Big Disk User’s Manual

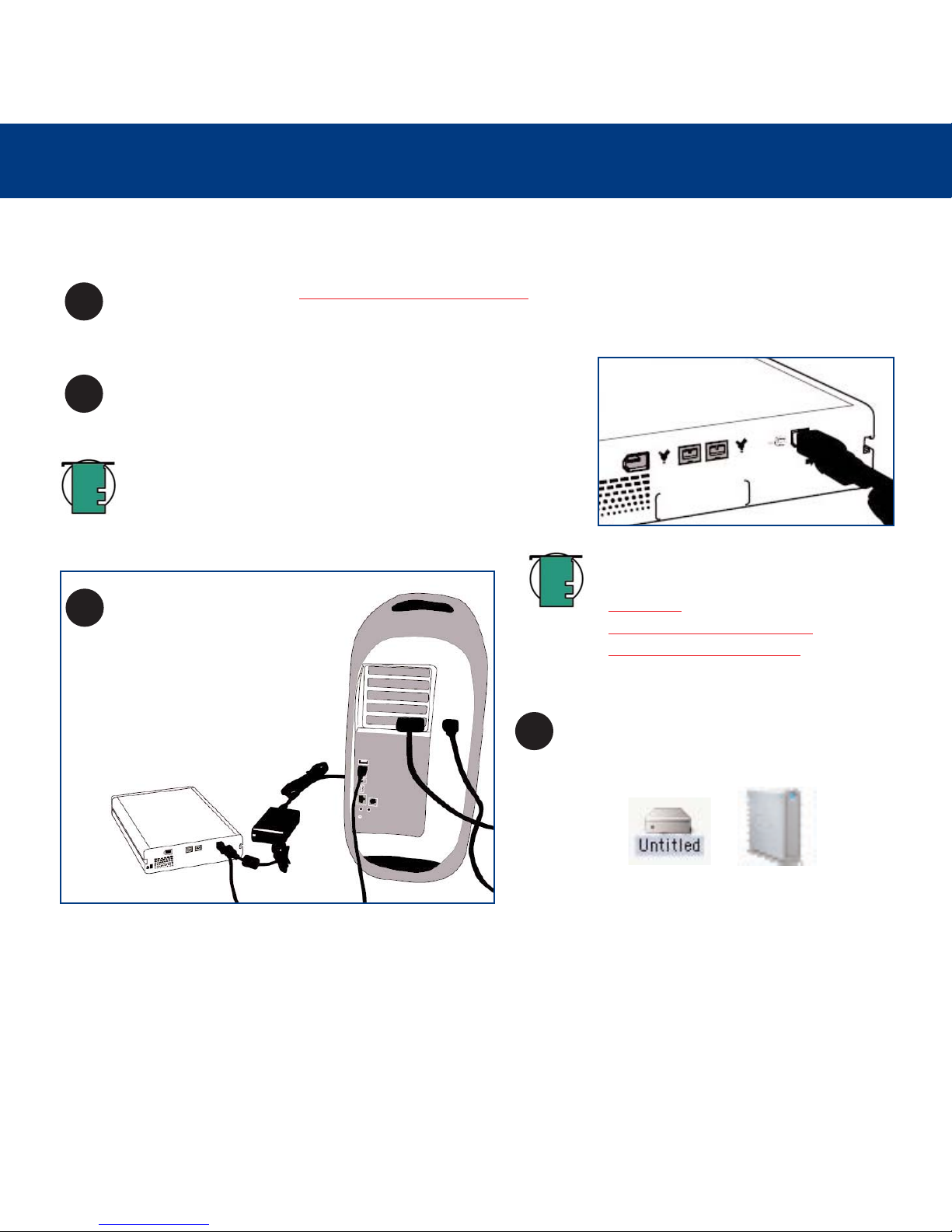

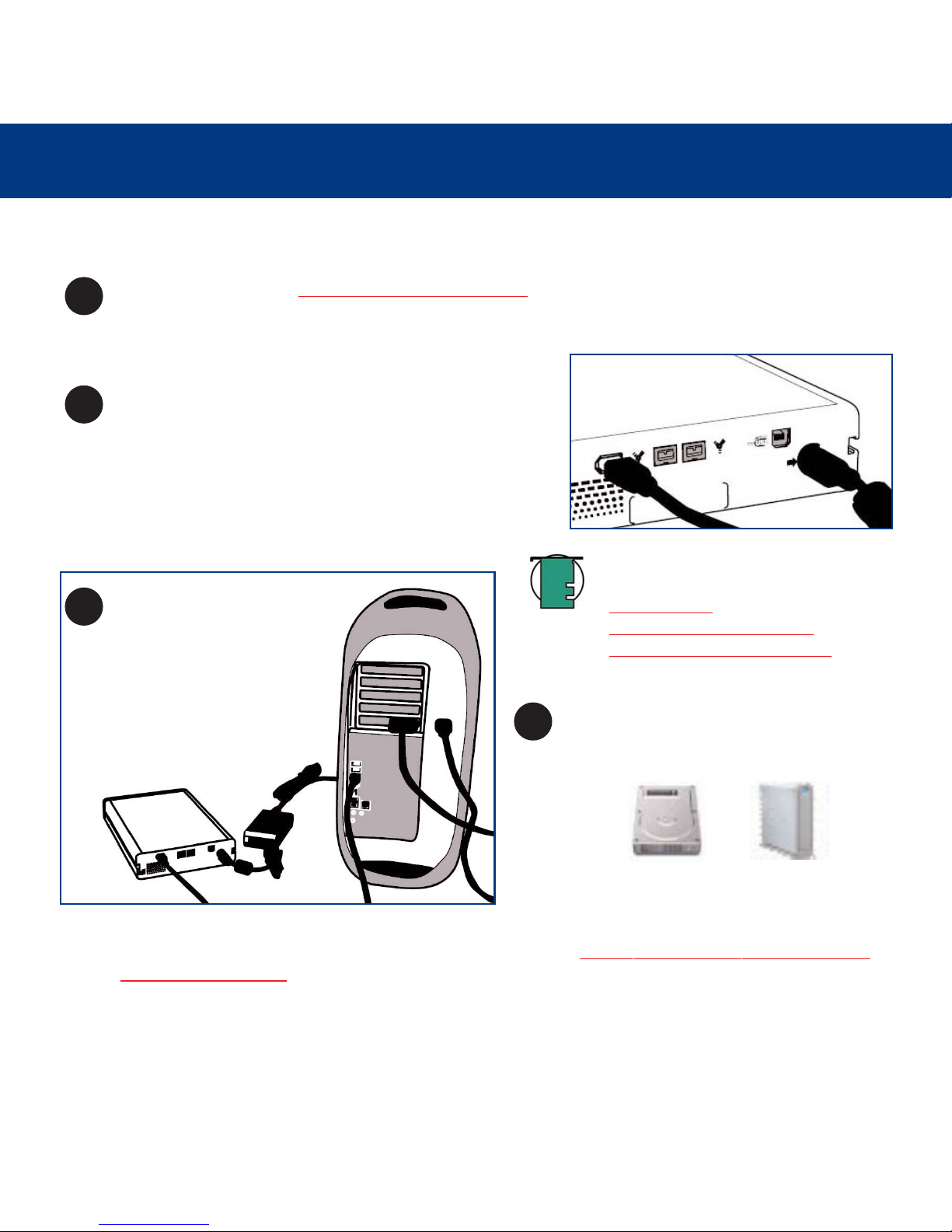

Mac OS 10.x – Hi-Speed USB 2.0

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

Mac OS Drive Icons

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

Apple has just recently begun incorporating native Hi-Speed USB 2.0 host bus interface adapters. To achieve Hi-Speed USB 2.0 data transfer rates, you will need to purchase a third-party Hi-Speed USB 2.0 host interface PCI or PC card. Otherwise, you will be limited to USB 1.1 speeds.

Your LaCie Big Disk will now be ready for use. You can then use the formatting and partitioning capabilities in the Apple Disk Utility to configure your hard drive system. Please refer to 4.1. For

matting And Partitioning Your LaCie

Drive – 4.1.1. Mac Users for more information.

Page 22

3. Installing Your LaCie Drive

page 22

LaCie Big Disk User’s Manual

Mac OS 9.x – USB

To use your new LaCie Big Disk, first install the necessary driver software.

Silverlining Pro Installation

1) Insert the LaCie Storage Utilities CD in your computer’s internal CD/DVD drive.

2) Open the CD icon and double-click on the Silverlining Installer.

3) The Silverlining Utilities screen appears. Click on Continue.

4) The About to Install screen appears. Read the following information and click on Continue.

5) The License Agreement screen appears. Click on Agree.

6) The Installation screen appears.

7) Check the Silverlining Pro and USB Support boxes.

8) Click on Install.

9) A message appears to confirm that the installation was successful.

10) Click on Restart to use your USB peripheral immediately.

Now you are ready to move to the next step, Connecting the Drive to the Computer.

Page 23

3. Installing Your LaCie Drive

page 23

LaCie Big Disk User’s Manual

Mac OS 9.x – USB

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

Your drive should appear on your desktop. It may take a few seconds for your computer to recognize the drive and for it to appear on the dektop.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

Apple does not support the Hi-Speed USB 2.0 standard under Mac OS 9.x. You will be limited to USB 1.1 speeds.

Mac OS Drive Icons

Page 24

3. Installing Your LaCie Drive

page 24

LaCie Big Disk User’s Manual

3.2.2. Windows Users

These installation steps are separated by interface and version of Windows operating system. To view the installation steps of the interface and operating system you plan on using, click on the appropriate interface:

indows 2000/Windows XP – FireWire 800 Windows 2000/Windows XP – FireWire/IEEE 1394 Windows 98 SE/Windows Me – FireWire/IEEE 1394 Windows 2000/Windows XP – iLink/DV Windows 98 SE/Windows Me – iLink/DV Windows 2000/Windows XP – Hi-Speed USB 2.0

Important Info:

You can not have the FireWire and USB interfaces connected at the same time! If you will be

switching between interfaces, you must also follow the steps in section 3.6. Switching Inter

faces.

Tech Note:

• FireWire 400 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• iLink/DV device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• FireWire 800 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

Page 25

3. Installing Your LaCie Drive

page 25

LaCie Big Disk User’s Manual

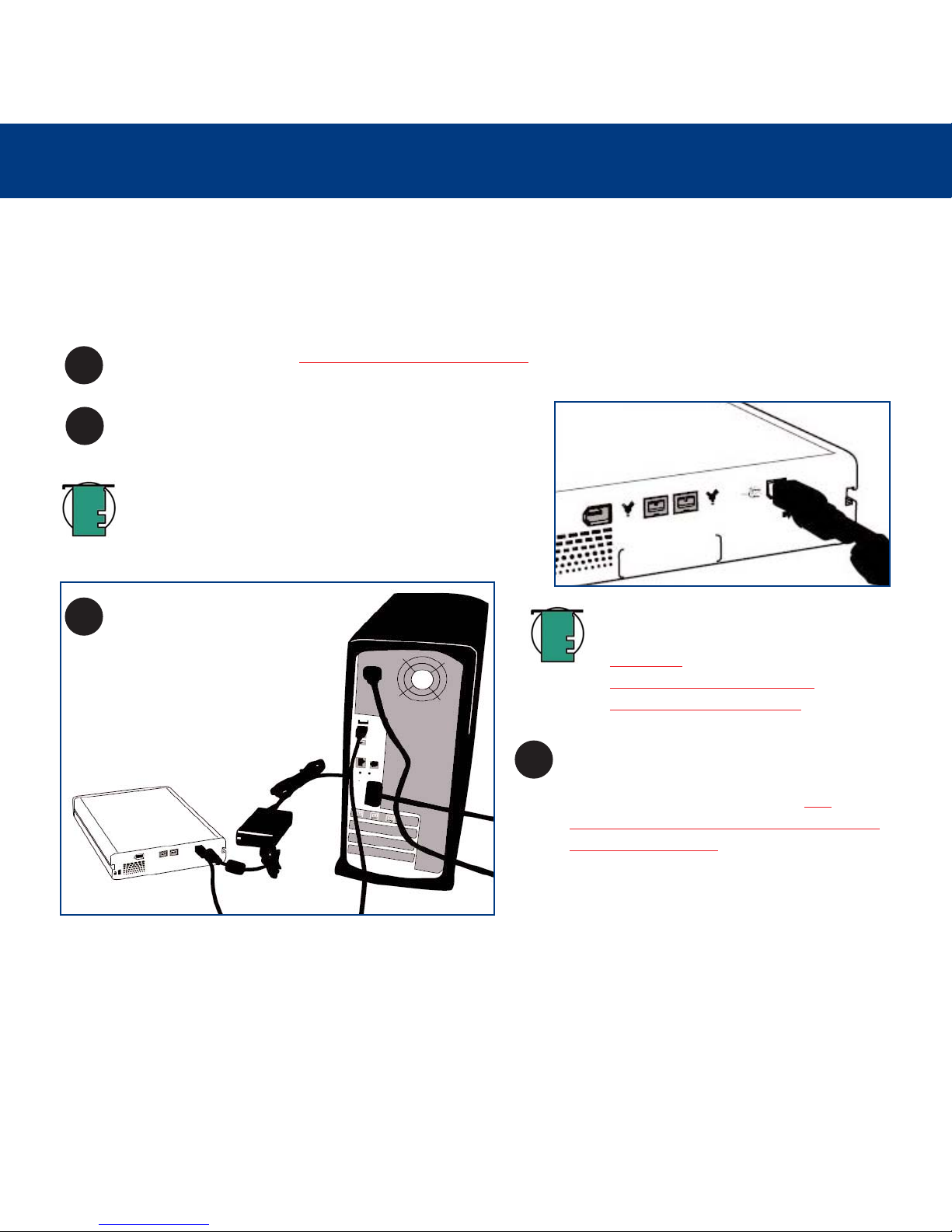

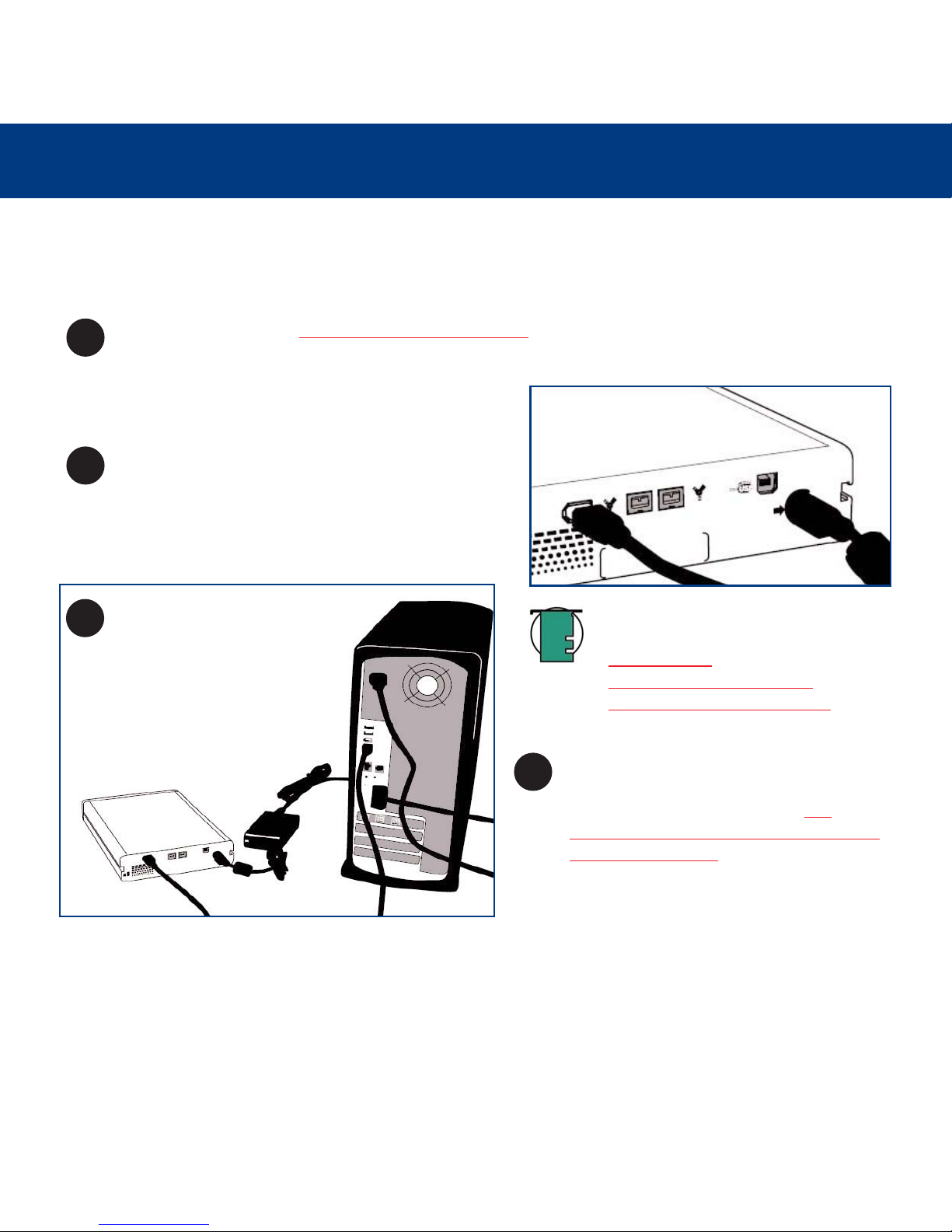

Windows 2000 And Windows XP – FireWire 800

After the first connection of a FireWire 800-based peripheral, Windows detects the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same FireWire bus. Let Windows install the FireWire 800 drivers of your LaCie drive.

Connect the 9-pin end of the FireWire 800 cable into the FireWire 800 port on the back of the LaCie Big Disk.

Connect the other end of the 9-pin FireWire 800 cable into an available FireWire 800 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

Page 26

3. Installing Your LaCie Drive

page 26

LaCie Big Disk User’s Manual

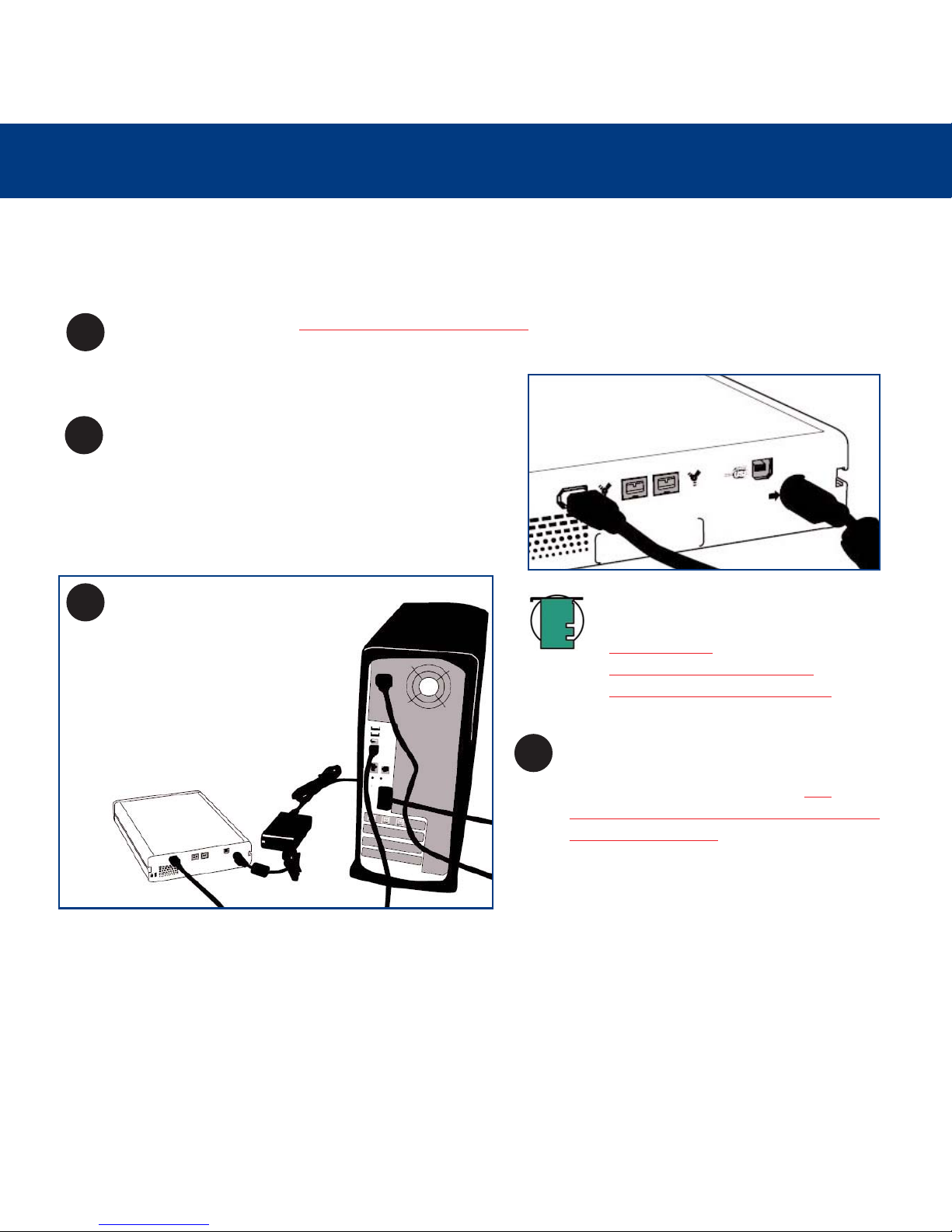

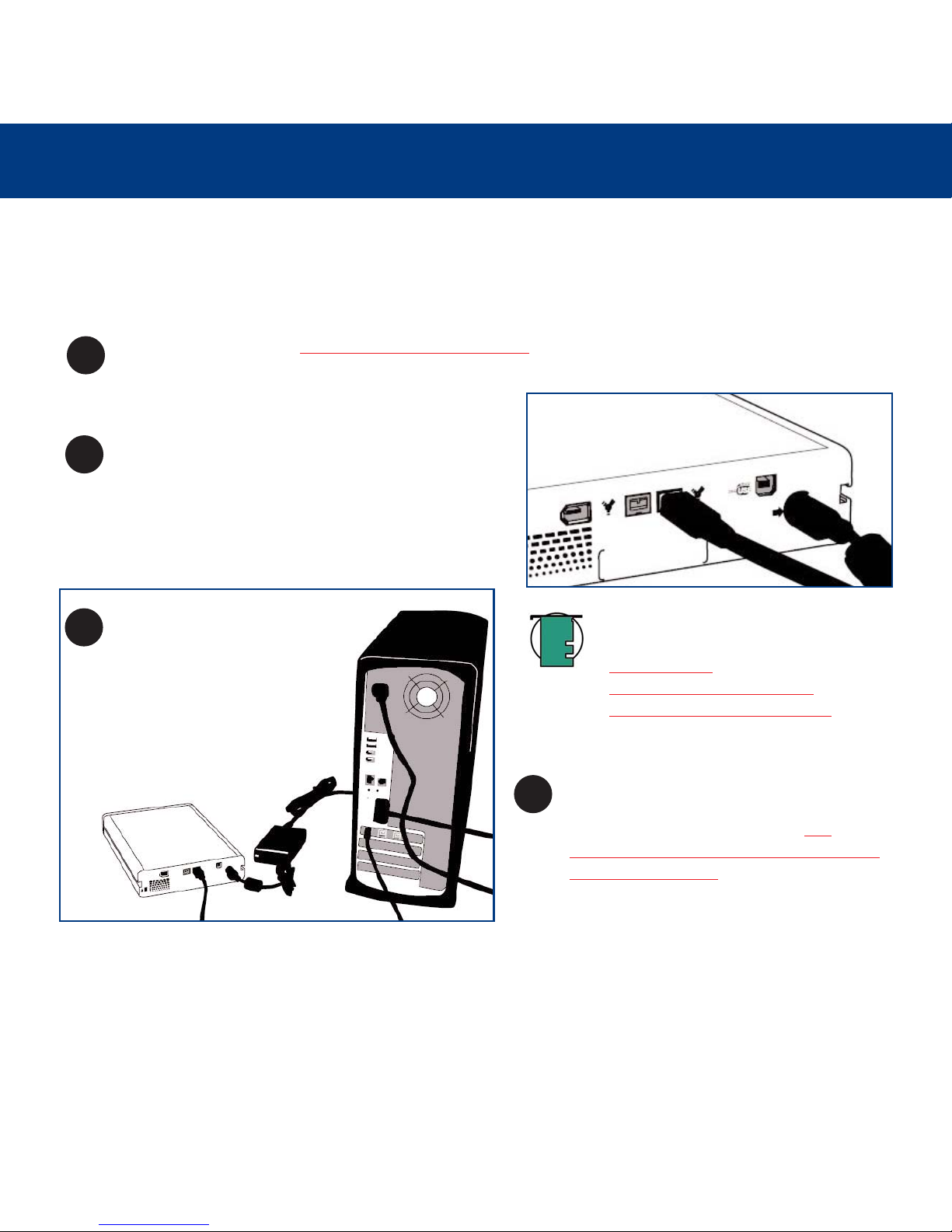

Windows 2000 And Windows XP – FireWire 400

After the first connection of a FireWire-based peripheral, Windows detects the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same FireWire bus. Let Windows install the FireWire drivers of your LaCie drive.

Connect the 6-pin end of the FireWire 400 cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the 6-pin end of the FireWire 400 cable into an available FireWire 400 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply

, power on the drive by pressing the On/Off button

on the front of the drive.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

Page 27

3. Installing Your LaCie Drive

page 27

LaCie Big Disk User’s Manual

Windows 98 SE and Windows Me – FireWire 400

There are two steps to the installation of your drive under Windows 98 SE and Windows Me:

– Install the drive management software

– Connect the drive to your computer

Silverlining 98 Installation

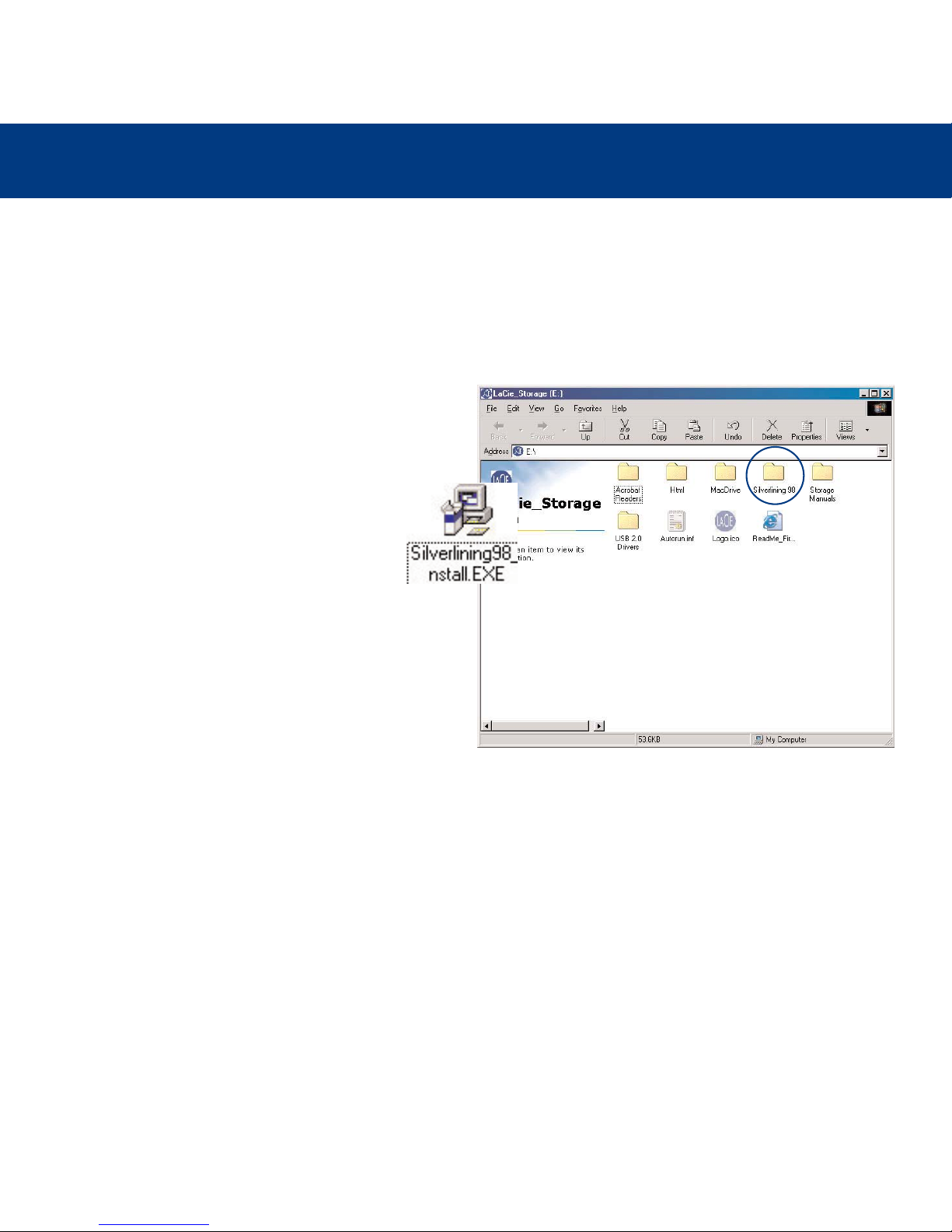

1) Insert the LaCie Storage Utilities CD-ROM in your computer’s internal CD/DVD drive and open the disc.

2) Double-click the Silverlining 98 folder.

3) Double-click the Silverlining98_Install.EXE icon.

4) Silverlining 98 will then initialize the install screen.

5) The “Welcome” screen will appear. Click Next.

6) The “Destination Location” screen will appear. To alter the location where the software is installed on your system, click the Browse button. If you do not want to change the location, do not click on the Browse button, and allow the software to be installed in its default location. Click Next to continue.

7) Next is the “Start Installation” screen. Click Next.

8) The software installation will begin, and you will see the installation screens.

9) Finally, you will see the “Silverlining 98 has been installed correctly” screen. Click Finish to complete the installation.

Now you are ready to move to the next step, Connecting the Drive to the Computer.

Page 28

3. Installing Your LaCie Drive

page 28

LaCie Big Disk User’s Manual

Windows 98 SE and Windows Me – FireWire 400

Connecting the Drive to the Computer

Connect the 6-pin end of the FireWire 400 cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the 6-pin end of the FireWire 400 cable into an available FireWire 400 port on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

Page 29

3. Installing Your LaCie Drive

page 29

LaCie Big Disk User’s Manual

Windows 2000 And Windows XP – iLink/DV

Connect the 6-pin end of the iLink/DV cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the 4-pin end of the iLink/DV cable into an available iLink/DV port on your computer or device.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

Page 30

3. Installing Your LaCie Drive

page 30

LaCie Big Disk User’s Manual

Windows 98 SE and Windows Me – iLink/DV

There are two steps to the installation of your drive under Windows 98 SE and Windows Me:

– Install the drive management software

– Connect the drive to your computer

Silverlining 98 Installation

1) Insert the LaCie Storage Utilities CD-ROM in your computer’s internal CD/DVD drive and open the disc.

2) Double-click the Silverlining 98 folder.

3) Double-click the Silverlining98_Install.EXE icon.

4) Silverlining 98 will then initialize the install screen.

5) The “Welcome” screen will appear. Click Next.

7) Next is the “Start Installation” screen. Click Next.

8) The software installation will begin, and you will see the installation screens.

9) Finally, you will see the “Silverlining 98 has been installed correctly” screen. Click Finish to complete the installation.

Now you are ready to move to the next step, Connecting the Drive to the Computer.

Page 31

3. Installing Your LaCie Drive

page 31

LaCie Big Disk User’s Manual

Windows 98 SE and Windows Me – iLink/DV

Connecting the Drive to the Computer

Connect the 6-pin end of the iLink/DV cable into the FireWire 400 port on the back of the LaCie Big Disk.

Connect the 4-pin end of the iLink/DV cable into an available iLink/DV port on your computer or device.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

FireWire, please see sections:

• 2.3.1. Fir

eWire

• 5.3. Optimizing Data Transfers

• 6. FireWire Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply

, power on the drive by pressing the On/Off button

on the front of the drive.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

Page 32

3. Installing Your LaCie Drive

page 32

LaCie Big Disk User’s Manual

Windows 2000 And Windows XP – Hi-Speed USB 2.0

After the first connection of a USB-based peripheral, Windows detects the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same USB bus. Let Windows install the USB drivers of your LaCie drive.

Connect the Hi-Speed USB 2.0 cable into the Hi-Speed USB

2.0 port on the back of the LaCie Big Disk.

Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.

Tech Note:

For more information about

USB, please see sections:

• 2.3.2. USB

• 5.3. Optimizing Data Transfers

• 7. USB Questions & Answers.

After following the steps in 3.1. Connecting The Power Supply, power on the drive by pressing the On/Off button on the front of the drive.

Tech Note:

To achieve Hi-Speed USB 2.0 transfer rates,

you have to be connected to a Hi-Speed USB 2.0 port on your computer. Otherwise, you will be limited to USB 1.1 data transfer rates.

Your LaCie Big Disk will now be ready for use. Now you will need to format and partition the drive to suit your needs. Please see 4.1.

Formatting And Partitioning Your LaCie Drive –

4.1.2. Windows Users for more information.

Page 33

3. Installing Your LaCie Drive

page 33

LaCie Big Disk User’s Manual

3.3 Connecting Digital Video Cameras To The LaCie Drive

With both FireWire 400 and FireWire 800 interfaces, it is possible to connect a digital video camera directly to the LaCie Big Disk (this connection is called “daisy-chaining”).

Important Info:

You can not have the FireWire and USB interfaces connected at the same time! If you will be

switching between interfaces, you must also follow the steps in section 3.6. Switching Inter

faces.

Tech Note:

• FireWire 400 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• iLink/DV device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• FireWire 800 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

Follow the steps in either W

indows 2000/Windows XP – FireWire 800 or Mac OS 10.x – FireWire 800 to connect

the LaCie Big Disk to the FireWire 800 interface.

Tech Note:

If you do not have FireWire 800 capability on your computer, there are two options to be able to use the daisy-chaining functionality: 1) add a FireWire 800 PCI or PC Card to your computer (see section 5.3.

Optimizing Data Transfers for more

information); 2) purchase a FireWire 800 9-pinto-6-pin interface cable, which you can use to attach to the FireWire 800 port of your LaCie drive and a FireWire 400 port on your computer.

Using the iLink/DV cable, connect the 4-pin end of the cable to the 4-pin port on your digital camera.

Connect the 6-pin end of the iLink/DV cable to the 6-pin FireWire port on the back of the LaCie Hard Drive.

The digital camera should now appear under My Computer (Windows users) or on the desktop (Mac users).

Tech Note:

When a FireWire 800 device is daisy-chained to a FireWire 400 device, which is then connected to the computer via either a FireWire 400 or FireWire 800 port, the FireWire 800 device will operate at FireWire 400 speeds.

Page 34

3. Installing Your LaCie Drive

page 34

LaCie Big Disk User’s Manual

3.4. Installing Multiple Devices

Both the FireWire and USB interfaces allow for multiple devices to be connected.

3.4.1. FireWire

FireWire 400 and FireWire 800 allow for the connection of up to 63 devices on the bus, with a maximum of 16 devices on one branch. FireWire 400 and FireWire 800 devices can be connected on a chain and do not necessarily need a hub. Simply connect the first peripheral to a FireWire 400 or FireWire 800 port on your computer. Connect the second peripheral to the other FireWire 400 or FireWire 800 port on the first drive etc., using the cables provided with your drives.

FireWire 800 devices can be chained together with the original FireWire 400 standard (provided the correct cables are used), but transfer rates will be limited to the original FireWire 400 speeds.

Tech Note:

To daisy-chain devices, you must be using the same interface, either FireWire or USB. Your computer will not recognize the daisy-chained device if the interfaces are mixed, i.e. a FireWire device attached to a drive that is connected to the computer via the Hi-Speed USB 2.0 interface. Daisy-chain configurations:

• FireWire 400 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• iLink/DV device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

• FireWire 800 device connected directly to the LaCie Big Disk, which is connected to the computer via the FireWire 800 port.

Tech Note:

For more information about FireWire and improving performance, please sections

5.3. Optimizing Data Transfers and 6. FireWire Questions & Answers.

3.4.2. USB

Technically, you can connect up to 127 individual USB peripherals at one time. However, you probably will not use more than 6 to 8 peripherals on your USB system. Most computers only have two USB ports, so you would need a hub to connect more than two peripheral drives. The hub regenerates the signals, generally providing between 4 to 7 connections. To add even more drives, connect a new hub to a connector of the original hub, creating a new series of peripherals, etc. But the hub slows down the transfer rate by lengthening the path of the signal. To optimize performance, connect your drive directly to one of the built-in ports in your computer.

Tech Note:

For more information about USB and improving performance, please sections

5.3. Optimizing Data T

ransfers and 7. USB Questions & Answers.

Page 35

3. Installing Your LaCie Drive

page 35

LaCie Big Disk User’s Manual

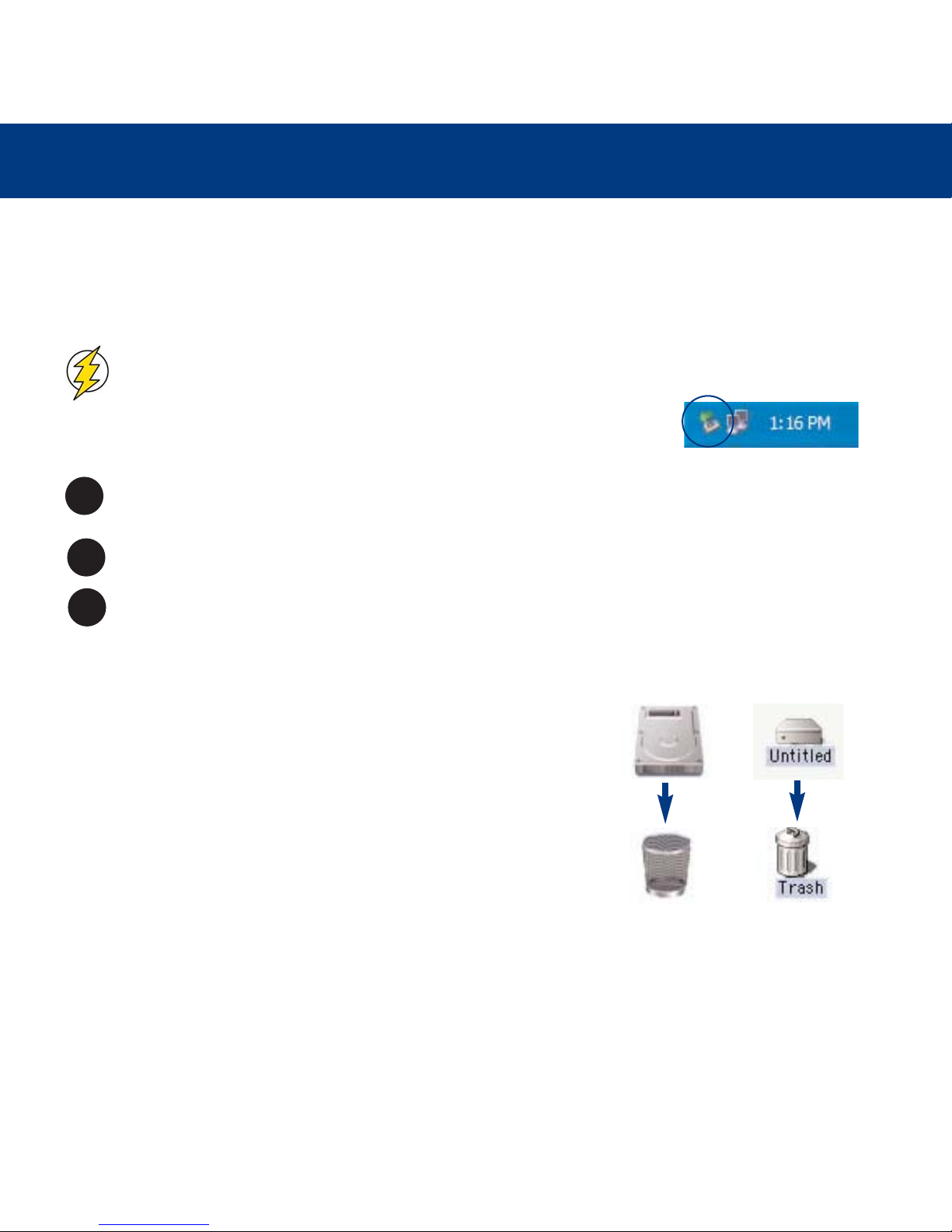

3.5. Disconnecting Your LaCie Drive

FireWire and USB external devices feature “plug & play” connectivity, which means that your drive can be connected and disconnected while the computer is running. To prevent failures, it is important you follow these steps when disconnecting your FireWire or USB peripheral device.

Caution!

Do not disconnect the USB or FireWire cable when the drive is reading or writing. Disconnecting while the drive is operating could cause the loss of data. Make sure that your drive is not reading or writing and that the activity LED is off before disconnecting the USB or FireWire cable.

3.5.1. Windows Users

From the System Tray (located in the lower right-hand side of your screen), click on the Eject icon (a small green arrow over a hardware image).

A message will appear, detailing the devices that the Eject icon controls, i.e. “Safely remove…” Click on this prompt.

You will then be given the following message: “Safe to Remove Hardware” (or similar). It is now safe to disconnect the device.

3.5.2. Mac Users

You must unmount the hard drive system before disconnecting it or powering it down. Either:

• Drag the hard drive icon to the trash.

• Launch Silverlining Pro, highlight the hard drive and select “Unmount.”

The drive can now be disconnected.

Mac OS 10.x

Mac OS 9.x

Page 36

3. Installing Your LaCie Drive

page 36

LaCie Big Disk User’s Manual

3.6. Switching Between USB And FireWire Connections

Hi-Speed USB 2.0, FireWire 400 and FireWire 800 are “hot-pluggable,” meaning that you can connect a drive to a USB or FireWire port on your computer even when the computer is running. However, there are important steps to follow for your drive to function properly. When changing from a Hi-Speed USB 2.0 connection to a FireWire 400 or FireWire 800 connection (and vice versa), follow these steps:

Follow the steps in section 3.5 Disconnecting Y

our LaCie Drive to unmount the drive.

Disconnect the USB or FireWire cable.

Connect either the USB or FireWire cable.

After switching between interfaces, you may need to quit the application that you were using to access the drive and then reboot the program. The drive should then be visible and accessible.

Page 37

4. Using Your LaCie Drive

page 37

LaCie Big Disk User’s Manual

4. Using Your LaCie Drive

Once you’ve connected your drive, you are ready to format and partition the drive. In order to store information on a hard drive, it must have a file system and be divided into sections that will contain the data that you wish to store. This process is called formatting.

In order to utilize a hard disk drive, it has to be formatted first. Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal address tables that it later uses to locate information. Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 10% less than the non-formatted capacity.

Tech Note:

Windows Users! This LaCie Hard Drive is formatted for the Mac operating system, and you will need

to re-format the drive in order for it to appear and operate under the Windows operating system.

After you’ve formatted the drive, you will have the opportunity to divide the hard drive into sections, called partitions. A partition is a section of the hard drive’s storage capacity that is created to contain files and data. For instance, you could create three partitions on your drive: one partition for your word documents, one for your spreadsheets and one for your multi-media files.

File System Formats

There are essentially three different file system formats: FAT 32, NTFS, and Mac OS Extended (HFS+).

Use FAT 32 if:

• you will be using your drive between both Windows and Mac OS 9.x or 10.x; or sharing the drive between Windows 98 SE, Me, 2000 or XP

Use NTFS if:

• you will be using the drive only under Windows 2000 or Windows XP; performance will generally be greater when compared to FAT 32

Use HFS+ if:

• you will be using the drive on Macs only; performance will generally be greater when compared to FAT 32

For more information, please refer to section 5.1 File System For

mats.

Page 38

4. Using Your LaCie Drive

page 38

LaCie Big Disk User’s Manual

4.1. Formatting And Partitioning Your LaCie Big Disk

Once you have set-up your LaCie Big Disk, you can reformat or partition it to suit your needs.

4.1.1. Mac Users

• Mac OS 9.x – Install and use LaCie Silverlining Pro, which is included with your drive.

• Mac OS 10.x – Use the Apple Disk Utility application, which is native to the operating system.

For instructions on installing and using Silverlining Pro, please refer to the Silverlining manual, located on your LaCie Storage Utilities CD, in PDF format.

For instructions on using the Mac OS 10.x Apple Disk Utility application, please refer to the section below.

Formatting And Partitioning Using Mac OS 10.x

Caution!

Following these steps will erase anything that is on the hard drive. Therefore, if you have information that you want to protect or continue to use, backup this information before performing these steps.

1) Connect the drive to the computer via one of the interface ports.

2) Once the drive mounts onto the desktop, go to the Menu Bar, and open Go.

3) From the Go menu, click on Applications.

4) In the Applications menu, open the Utilities folder, and then double-click Disc Utility from the Utilities folder.

5) The Disc Utility window will open. In the left side of the window will be a list of the available hard disk drives. You should see a volume that represents your internal hard drive, and one that reads LaCie.

6) Select the LaCie drive, and then click on the Partition tab.

7) From the Volume Scheme: button, choose the number of partitions you want to divide the drive into by clicking on the pull down menu

Page 39

4. Using Your LaCie Drive

page 39

LaCie Big Disk User’s Manual

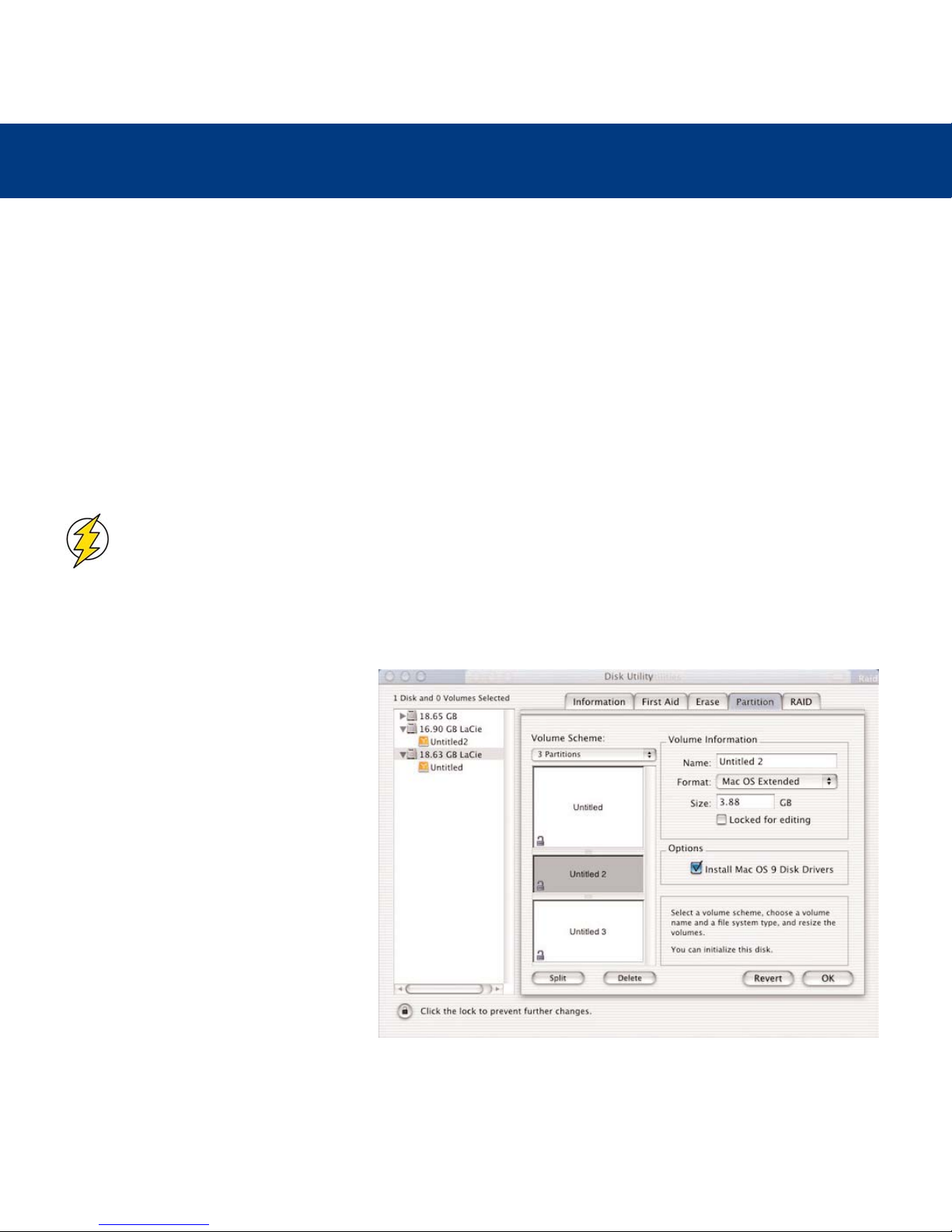

starting with Current (Mac OS 10.x gives you the option of dividing the drive into at most 8 partitions). You can customize the size of the partitions by using the slide bar between the partitions in the Volume Scheme: area.

8) In the Volume Information section, create a name for each partition, choose the volume format (Mac OS Extended, Mac OS Standard, MS-DOS File System or UNIX File System) and the volume size.

Tech Note:

• Please refer to section 5.1.1. File System Formats – Mac Users, for a more detailed discussion on the differences between the two systems.

• If you want to format the drive in the MS-DOS File System (also known as FAT 32), you will need to create multiple partitions no larger than 128GB.

• Apple recommends that unless you have a specific reason to use the UNIX File System (UFS), you should use the Mac OS Extended format since it provides a more familiar experience to Macintosh users.

9) In the Options section, click the Install Mac OS 9 Disk Drivers box if you plan on sharing the drive between the Mac OS

9.x and Mac OS 10.x.

10) Once you have finalized the volume format, number of partitions, size and options, click OK. The following message will appear: “Warning! Saving the new volume will erase all existing volumes. This can NOT be undone. Are you sure you want to do that?” Click Partition to continue.

11) Mac OS 10.x will automatically setup the disk with the partitions and volume format you selected, and your new drive will be available for use.

Page 40

4. Using Your LaCie Drive

page 40

LaCie Big Disk User’s Manual

4.1.2. Windows Users

• Windows 98 SE and Me – Install and use LaCie Silverlining 98, which is included with your drive.

• Windows 2000 and XP – Use the Disk Management Utility, which is native to the operating system.

For instructions on installing and using Silverlining 98, please refer to the Silverlining 98 manual, located on your LaCie Storage Utilities CD, in PDF format.

Formatting And Partitioning Using Windows 2000 And Windows XP

The process of formatting and partitioning a drive on a computer running Windows 2000 or Windows XP consists of two steps: (1) installing a signature on the drive, and (2) partitioning/formatting the drive. These steps will erase anything that is on the disk.

1) Connect the drive to the computer via one of the interface ports.

2) Right-click My Computer and click Manage.

3) From the Computer Management window, select Disk Management (located below the Storage group).

4) If this is the first time the drive is being formatted, Windows 2000 will launch the

Write Signature Wizard (Write Initialize Wizard in Windows XP). Click Next.

5) Windows will list the new drive(s) attached. If you are formatting a single drive, only one drive should be visible. Select the checkbox next to the drive and click Next.

6) Click Finish to exit the Wizard.

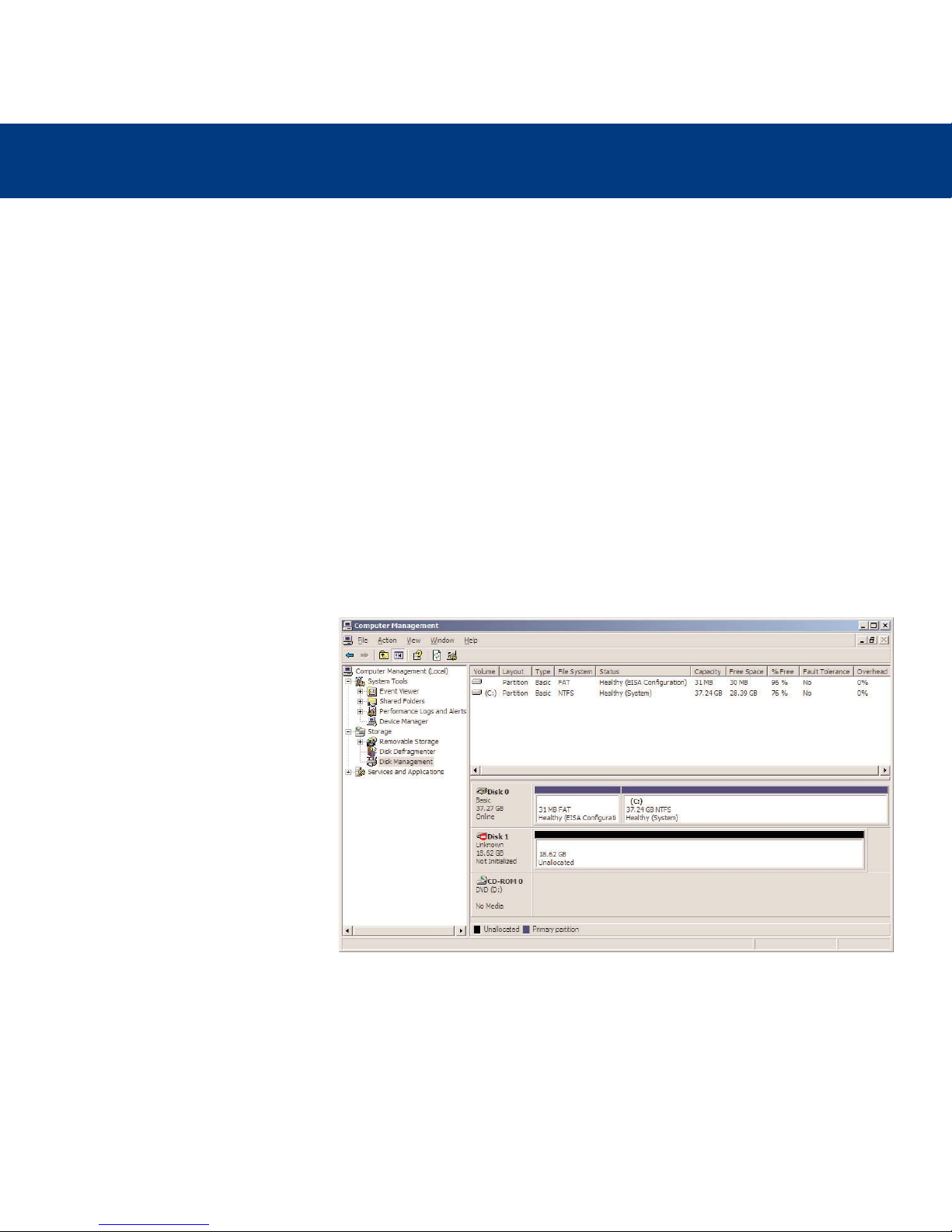

7) Now, with the disk management window open, a new drive will be visible. Right-click on the available space and select Create Partition...

8) This will bring up the Create Partition Wizard. Click Next.

Page 41

4. Using Your LaCie Drive

page 41

LaCie Big Disk User’s Manual

9) Select Primary Partition. Click Next.

10). Here you must specify partition size. It is recommended that you leave the partition set to the maximum available size, unless you want multiple partitions on the same drive. Click Next.

11) Select Assign drive letter and select the desired letter for the drive. Click Next.

12) Select Format this partition… and then select a file system:

FAT32

FAT32 is a file system that is compatible with Windows 98 SE, Windows Me, Windows 2000 and Windows XP; however, it has limitations. In Windows 2000 and Windows XP, you will not be able to create a partition greater than 32GB.

NTFS

NTFS is a newer file system that is compatible only with Windows NT, Windows 2000 and Windows XP. It has fewer limitations than FAT 32 and will enable a partition to be created that is larger than 32GB.

Tech Note:

Please refer to section 5.1.2. File System Formats – Windows Users, for a more detailed discussion

on the differences between the two systems.

13) Click Next.

14) Click Finish.

15) Disk Management will create the partition and begin formatting the drive. Once completed, close Disk Management and your new drive will be ready to use.

Page 42

5. Tech Tips

page 42

LaCie Big Disk User’s Manual

5. Tech Tips

5.1 File System Formats

5.1.1. Mac Users

Mac OS 9.x Users:

You will be able to format the drive in one of two formats, using Silverlining Pro (for specific instructions, please refer to the Silverlining User’s Manual, in the Silverlining folder): HFS (Mac OS Standard) or HFS+ (Mac OS Extended).

Important Info:

If you will be sharing the hard drive between Mac and Windows operating environments, you

will want to format the drive in MS-DOS (FAT 32).

Mac OS 10.x Users:

You have the option of formatting the drive in one of four formats: Mac OS Standard (HFS), Mac OS Extended (HFS+), MSDOS File System and UNIX File System (UFS).

HFS - Mac OS Standard

Mac OS Standard refers to the file system used by Mac OS 8.0 and earlier. This is no longer a modern file sytem specification, and Mac OS Extended is more efficient. Only use this file system if you are creating a volume smaller than 32MB, using a Mac with a 680X0 processor, or you are creating a file structure that will be need to be used by Macs using Mac OS 8.0 or earlier.

HFS+ - Mac OS Extended

Mac OS Extended refers to the file system used by Mac OS 8.1 and later. HFS+ represents an optimization of the older HFS file system by using hard disk space more efficiently. Building off of HFS, they increased the number of blocks from 65,536 to

4.29 billion. With HFS+, you are no longer limited by block size.

MS-DOS File System

This is the Microsoft file system, more typically known as FAT 32. This is the file system to use if you are going to be using your LaCie Big Disk between Macs and Windows operating systems.

UNIX File System

This is the file system based on UNIX, and is preferrable for users developing UNIX-based applications within Mac OS 10.x. Unless you have a specific reason to use the UNIX File System, you should instead format your drive using Mac OS Extended (HFS+), because it provides Mac users with a more familiar operating experience.

Page 43

5. Tech Tips

page 43

LaCie Big Disk User’s Manual

5.1.2. Windows Users

There are basically two file system formats for Windows: FAT 32 and NTFS. The following information will hopefully make choosing one or the other a little easier.

FAT 32

FAT is an acronym for File Allocation Table, which dates back to the beginnings of DOS programming. Originally, FAT was only 16 bits, but after the second release of Windows 95 it was upgraded to 32 bits, hence the name FAT 32. In theory, FAT 32 volume sizes can range from less than 1MB all the way to 2TB. It is the native file system of Windows 98 and Windows Me, and is supported by Windows 2000 and XP. When FAT 32 is used with Windows 2000 and XP, though, volume size is limited to 32GB (by the Windows partition utility, i.e. Disk Manager), and the individual file size is limited to 4GB.

NTFS

This acronym stands for New Technology Filing System, and it is the native file system for Windows NT, Windows 2000 and XP. NTFS offers several features that are not available with FAT 32; i.e. file compression, encryption, permissions, and auditing, as well as the ability to mirror drives and RAID 5 capabilities. The minimum supported volume size for NTFS is 10MB, with a maximum of 2TB, with no limit to file size. Volumes created in NTFS can only be directly accessed (not through shares) by Windows NT, Windows 2000 and XP, without resorting to help from third-party products.

Guidelines for Choosing FAT 32 Or NTFS

Use FAT 32 if:

• You want to access your data on any Operating System - FAT 32 is compatible with Windows 98 SE, Me, 2000, XP, NT, Mac OS 9.x and Mac OS 10.x.

• You will be dual booting with an Operating System other than Windows NT or Windows 2000.

• You may need the ability to dual boot down the line. Once you have converted a volume from NTFS to FAT 32, there is no going back. You can convert from FAT 32 to NTFS, but not the other way around.

Use NTFS if:

• You want to optimize drive performance under Windows 2000 or XP.

• You want to encrypt files, assign permissions to files, or want to audit files for access.

• You will be formatting partitions larger than 32GB.

• You need to store individual files that are larger than 4GB.

• You need a filing system that can be mirrored or structured like a RAID 5 configuration.

Page 44

5. Tech Tips

page 44

LaCie Big Disk User’s Manual

5.2. Available Storage Capacity

A gigabyte (GB) means 1,000,000,000 bytes. In order to utilize a hard disk drive, it has to be formatted first. Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal address tables that it later uses to locate information. Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 10% less than the non-formatted capacity.

5.3. Optimizing Data Transfers

Data transfers are the flow of data that accomplishes a task, usually related to moving data from storage to computer RAM, or between storage devices. With external drives, such as the LaCie Big Disk, the data is transferred from the drive to the computer via the FireWire or USB interface. The data is fed from the drive through the FireWire or USB port on the drive, and passes to the computer through either the FireWire or USB host-bus adapter interface.

Computer manufacturer’s implementation of the FireWire and USB host-bus adapter interfaces vary widely. For computers running Windows 2000 and later, the Hi-Speed USB 2.0 interface is a fairly standard feature, while FireWire, which is referred to as either IEEE 1394 or iLink on PCs*, is less common as a native host-bus adapter. Nearly all recent Apple computers have native FireWire interface ports, and they also support the original USB standard*, while Hi-Speed USB 2.0 has only just recently been adopted.

The FireWire and USB interfaces specify certain requirements, filed under the OHCI (Open Host Controller Interface) standards. All LaCie drives comply to OHCI standards and have been rigorously tested on computers that have host bus adapters that also comply to OHCI standards. Unfortunately, not all manufacturers respect these guidelines, and anomalies may arise with computers that have host bus adapters that do not conform to OHCI standards.

For the best performance, connect your LaCie Big Disk directly to a native FireWire or USB port on your computer, and avoid daisy-chaining* or using hubs*. During data transfers, it’s best to wait before launching other applications that will be using the same port.

If you do not have a native FireWire or USB port, LaCie offers FireWire and USB host bust adapter cards, also known as PCI or PC/PCMCIA cards, that have been tested and comply with LaCie drives. Please contact your reseller or

LaCie Customer Suppor

t for more information.

*Tech Note:

For more information on the FireWire and USB interfaces, please see:

6.FireW

ire Questions & Answers

7.USB Questions & Answers.

Tech Note:

Please see

3.4 Connecting Multiple Devices

for more information.

Tech Note:

Another important factor in file transfer speeds is how the drive has been formatted. For more information in choosing the correct file system fomat, please see section

5.1 File System For

mats.

Page 45

5. Tech Tips

page 45

LaCie Big Disk User’s Manual

5.3.1. FireWire 800 Ports And Performance

To utilize the newly enhanced FireWire 800 performances, your computer must be equipped with a FireWire 800 host bus adapter card (either sold separately, or integrated by your computer’s manufacturer). These host bus adapter cards include one or more FireWire 800 ports, but you must be running Mac OS 10.2.4 and higher, or Windows 2000 or Windows XP in order to achieve FireWire 800 performance and functionality.

At the time of publication (September, 2003), only Mac OS 10.2.4 and higher, and Windows 2000 and Windows XP, support FireWire 800 functionality, and the IEEE 1394b interface is not a standard feature implemented on the motherboards of all PC-compatible computers.

Contact your LaCie reseller or LaCie Customer Suppor

t for information abut FireWire 800 PCI or PC Cards, or visit our Web

site:

www.lacie.com.

5.3.2. Hi-Speed USB 2.0 Ports And Performance

To utilize the enhanced Hi-Speed USB 2.0 performance, your computer must be equipped with a Hi-Speed USB 2.0 host bus adapter card (either sold separately, or integrated by your computer’s manufacturer) and the appropriate drivers. These host bus adapter cards, which include one or more USB ports, are shipped with special Hi-Speed USB 2.0 drivers that enable the computer to control the card. These drivers must be installed in order for USB 2.0 devices connected to the port to work at their correct speeds.

Computers running Windows 2000 and Windows XP automatically manage Hi-Speed USB 2.0 devices and drivers, while Windows 98 SE and Windows Me will require that drivers be installed before a Hi-Speed USB 2.0 device is attached.

Mac OS 9.x does not support Hi-Speed USB 2.0 functionality, and all Hi-Speed USB 2.0 devices will only operate at the original USB specifications. Mac OS 10.2.7 and later supports Hi-Speed USB 2.0, and Mac OS 10.x also supports Hi-Speed USB 2.0, but you will have to purchase a third-party PCI or PC Card and appropriate drivers.

Contact your LaCie reseller or LaCie Customer Suppor

t for information about Hi-Speed USB 2.0 PCI or PC Cards, or visit our

Web site:

www

.lacie.com

Page 46

5. Tech Tips

page 46

LaCie Big Disk User’s Manual

5.6. Hi-Speed USB 2.0 vs. FireWire 400 vs. FireWire 800

Trying to decide which interface to use, Hi-Speed USB 2.0, FireWire 400 or FireWire 800, can be a complicated decision. Your decision should be based on the following:

Computer With Hi-Speed USB 2.0, FireWire 400 And FireWire 800 Ports

If your computer is equipped with all three interfaces, you have several options to consider. The key decision in this equation is simple: speed. FireWire 800 effectively offers twice the bandwidth of both Hi-Speed USB 2.0 and FireWire 400. So, if you are running bandwidth-intensive applications, such as digital audio, video or graphics, FireWire 800 is your clear choice.

Computer With Hi-Speed USB 2.0 And FireWire 400 Ports

If your computer is equipped with both Hi-Speed USB 2.0 and FireWire ports, drive performance will be relatively similar. The theoretical transfer rates are 480Mb/s for Hi-Speed USB 2.0 and 400Mb/s for FireWire. Realistically, the two are extremely close to each other in terms of performance and speed.

The main reason for choosing one over the other should be hinged on the existing devices you are already using. For instance, if you are already using both of your Hi-Speed USB 2.0 ports on your computer, you would use the FireWire port to connect your drive, and vice versa. Avoiding hubs (for USB topology) and daisy-chains (for FireWire topology) will help improve performance because your drive will be connected directly to your computer.

Computer With USB And FireWire 400 Ports

If your computer is equipped with a USB port and a FireWire port, you will get noticeably better performance by using the FireWire connection. Even though your LaCie drive comes with a Hi-Speed USB 2.0 cable and interface, by connecting through the USB port, the drive will be limited to USB 1.1 speeds and performance.

Computer With Only USB Ports

If your computer is only equipped with a USB port, your decision is fairly simple: connect via the USB cable provided with your drive. Hi-Speed USB 2.0 is backward compatible and can be used in USB ports. Again, you will be limited to USB speeds and performance.

Another alternative is to purchase a FireWire or Hi-Speed USB 2.0 host adapter card that you would install into a PCI or PCMCIA slot on your computer, thereby allowing your computer to take advantage of the performances that FireWire and HiSpeed USB 2.0 have to offer.

Contact your LaCie reseller or LaCie Customer Suppor

t for information about FireWire and Hi-Speed USB 2.0 PCI or PC

Cards, or visit our Web site:

www

.lacie.com

Page 47

6. FireWire Questions & Answers

page 47

LaCie Big Disk User’s Manual

6. FireWire Questions & Answers

What Does IEEE 1394 Mean?

IEEE (the Institute of Electrical and Electronics Engineers) refers to the engineering corps that developed the 1394th standard, defining the high-performance serial input/output (I/O) bus used to connect peripheral devices. There are now two standards: IEEE 1394a, which refers to the original standard adopted in 1995, and IEEE 1394b, which refers to the new standard, adopted in 2002.

What Is The Relationship Between IEEE 1394, FireWire, iLink And DV?

These four names all refer to the same interface:

• IEEE 1394 is the term commonly used in the computer industry.

• FireWire is the brand name used by Apple.

• iLink is the brand name used by Sony for both consumer electronics and personal computers.

• DV is short for “Digital Video,” and is used as the logo for the interface on most video camcorders.

What Are The Benefits Of The FireWire Interfaces?

The FireWire interface is a fast, cross-platform serial bus, and is ideal for digital audio, video and graphic applications that demand plenty of bandwidth. Both versions of FireWire offer Plug & Play connectivity, so all you have to do is plug in your drive and begin using it, they also allow up to 63 devices to be connected via a single bus and offer peer-to-peer connectivity, enabling multiple computers and FireWire devices to be connected at the same time. FireWire also supports both isochronous and asynchronous capabilities, meaning that it can guarantee real-time data delivery, so there is no danger of inaccurately ordered or delayed frames.

What Is The Difference Between FireWire 400 And FireWire 800?

Essentially, the main difference between the two interfaces can be summed up in one word: speed. FireWire 800 effectively doubles the bandwidth of the original FireWire 400 interface. The new FireWire 800 interface offers truly impressive results, with speeds up to 800Mb/s for a single bus, and even greater for several buses in RAID0 configurations.

Other key advancements include the support of increased cabling distances and a newly enhanced arbitration architecture. Utilizing cables constructed of professional-grade glass optical fiber, when both devices are connected via a FireWire 800 hub, FireWire 800 can burst data across 100 meters of cable.

The new arbitration scheme greatly improves on the existing architecture by incorporating advanced 8B10B data encoding (based on codes used by Gigabit Ethernet and Fibre Channel), which reduces signal distortion, and also improves the arbitration time by prepping the arbitration while the current data packet is being sent, so that data is sent as soon as the current transmission is completed.

Page 48

6. FireWire Questions & Answers

page 48

LaCie Big Disk User’s Manual

What Are The Ideal Uses For FireWire?

FireWire helped fuel a revolution for digital content creators, and was awarded a 2001 Primetime Emmy Engineering Award by the Academy of Television Arts & Sciences for its contribution. Due to its high bandwidth and support of both isochronous and asynchronous data delivery, FireWire has found a very successful place in both the computer and consumer electronics industries. Whether connecting game consoles, personal video recorders, home stereo equipment, digital TVs, hard drives, CD/DVD-RW drives, printers, scanners, tape drives or other digital hardware equipment, FireWire is well-suited to handle all these various requirements.

With the advent of the new FireWire 800 standard, the revolution created by the original will only grow. For those working with digital video, the new standard will enable new bandwidth-intensive applications, such as multiple-stream, uncompressed, standard-definition video.

Will FireWire 400 Devices Run Faster When Connected To A FireWire 800 Port?

Unfortunately, this is not the case. In order to attain FireWire 800 speeds, both the device and port have to be FireWire 800 enabled. For instance, an external hard drive with a FireWire 800 9-pin connection will only reach FireWire 800 transfer rates when it is connected to a FireWire 800 9-pin host bus adapter card via a properly certified FireWire 800 9-pin to 9-pin beta cable.

When a FireWire 400 device is connected to a FireWire 800 port, the FireWire 400 device will only operate at the original FireWire 400 speeds.

Will FireWire 800 Devices Work On FireWire 400 Ports And Vice Versa?

The new standard was designed to be backwards compatible, meaning that FireWire 800 devices will still operate via the original FireWire 400 port. To connect a FireWire 800 device to a FireWire 400 port, a specific adapter cable must be used, though. There are two types of FireWire 400 ports: 6-pin and 4-pin. For FireWire 800 devices to work, they must be connected by placing the 9-pin end of the FireWire cable into the FireWire 800 port of the device, and the opposite 6-pin or 4-pin end into the FireWire 400 port.

The same holds true for FireWire 400 devices being connected to a FireWire 800 host port. The 4-pin or 6-pin end of the FireWire cable must be connected to the FireWire 400 port of the device, and the 9-pin end must be connected to the FireWire 800 port.

When FireWire 400 and FireWire 800 devices are mixed, all transfer rates revert to the original FireWire 400 speed.

What Do I Do If My Computer Does Not Have A FireWire Port?

Most computers manufactured today incorporate at least one FireWire port. If your computer does not have a native port, you can install one by adding a PCI or PCMCIA host bus adapter card. Please contact your computer supply specialist for a specific card that will work with your system.

For more information about the FireWire interface, please visit:

www.lacie.com/technologies

Page 49

7. USB Questions & Answers

page 49

LaCie Big Disk User’s Manual

7. USB Questions & Answers

What Are The Benefits Of The USB Interfaces?

• Cross-platform: Use your USB peripherals on both Mac and Windows platforms.

• “Hot Swappable”: No need to shut down or restart your computer when adding or removing a USB device. Plug it in and its ready.

• Automatic configuration: Once your device is connected, your computer recognizes the device and automatically configures the necessary software.

• Daisy-Chaining: with USB ports on your computer, you can connect up to 127 peripherals using hubs.

• Easy Installation: One standardized port and plug combination makes it simple to connect.

What Is The Difference Between USB And Hi-Speed USB 2.0?

The main difference is speed. The original version of the interface is capable of throughput up to 12Mb/s. Hi-Speed USB 2.0 supports data speeds up to 480 Mb/s, making it 40 times faster than its predecessor. This increased bandwidth translates into higher performance in demanding applications requiring high transfer rates.

What Are The Ideal Uses For USB?

USB is perfect for more traditional connections such as keyboards, mice, joysticks and scanners. These types of devices don’t require fast data transfer rates, and operate very successfully at the slower speeds.

What Are The Ideal Applications For Hi-Speed USB 2.0?

Digital cameras, CD/DVD drives, hard drives and scanners will all benefit from the added bandwidth and performance gains of the new implementation of the USB standard. Hi-Speed USB 2.0 provides the necessary fast data transfer rates that today’s devices require, and combines the earlier specifications so older devices that operated under the original USB standards will still work with Hi-Speed USB 2.0.

Will USB Devices Run Faster When Connected To A Hi-Speed USB 2.0 Bus?

Unfortunately, no. The Hi-Speed USB 2.0 specification is specifically written to allow developers to design higher speed peripherals that can take advantage of the extra bandwidth. USB devices, though, will still operate at 12Mb/s at full-speed and 1.5Mb/s at low-speed on a Hi-Speed USB 2.0 bus. Even though USB devices won’t run any faster, they can work alongside Hi-Speed USB 2.0 devices on the same bus. However, if you plug in a Hi-Speed USB 2.0 device to a USB bus, the speed of the Hi-Speed USB 2.0 device will decrease to 12Mb/s.

Page 50

7. USB Questions & Answers

page 50

LaCie Big Disk User’s Manual

What Is A USB Hub?

Technically, you can connect up to 127 devices to a single USB bus. For more than two devices, though, you must make new connections using a peripheral called a "hub.” A hub, which you hook up directly to a USB connector on your computer, usually has 4 or 7 output connections enabling you to connect the same number of peripherals. One of the hub's main functions is to regenerate signals that lose part of their strength as they are transmitted via the USB cable. By connecting yet another hub to a connector on the existing hub, you can then plug in a new set of peripherals and so on, up to a maximum of 127.

Some hubs have no power supply and others are self-powered. When you choose a hub, opt for the self-powered variety, as they have their own AC adapter. The most powerful hubs provide 0.5A of power to each port.

If you buy a hub, make sure that it supports per-port switching. This function prevents the entire chain of peripherals from freezing up if one of them is not working properly or is down.

Will Hi-Speed USB 2.0 Devices Work On USB Hubs And Vice Versa?

You can use your Hi-Speed USB 2.0 devices with USB hubs, but the peripherals will be limited to USB performance levels. There are Hi-Speed USB 2.0 hubs that are able to communicate in three modes: high-speed (480Mb/s), full-speed (12Mb/s), and low-speed (1.5Mb/s). Hi-Speed USB 2.0 is backwards compatible, so you will be able to connect USB devices to HiSpeed USB 2.0 hubs; however, the USB devices will still maintain their normal performance levels (i.e. 12 Mb/s).

In order to achieve the fast data transfer rates of Hi-Speed USB 2.0, you must connect your Hi-Speed USB 2.0 device directly to a Hi-Speed USB 2.0 port on either a computer or hub.

Tech Note:

• Avoid using USB connectors found on certain peripherals such as keyboards. These are passive (or passthrough) connectors that lead to power loss and unstable operation.

• Only use USB cables shorter than 5 meters (approximately 15 feet). Using longer cables may cause the peripherals to malfunction due to excessive reduction in electrical signal strength.

For more information about the USB interface, please visit:

www.lacie.com/technologies

Page 51

8. Troubleshooting

page 51

LaCie Big Disk User’s Manual

8. Troubleshooting

In the event that your LaCie Big Disk is not working correctly, please refer to the following checklist to find out where the problem is coming from. If you have gone through all of the points on the checklist and your drive is still not working correctly,

please have a look at the FAQs that are regularly published on our Web site –

www.lacie.com. One of these FAQs may

provide an answer to your specific question. You can also visit the drivers pages, where the most recent software updates will be available.

If you need further assistance, please contact your LaCie reseller or LaCie Technical Support (see 9. Contacting Customer

Service for details).

Manual Updates

LaCie is constantly striving to give you the most up-to-date, comprehensive User’s Manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device.

If your manual does not reflect the configurations of the product that you purchased, please check our Web site for the most current version available.

These Troubleshooting tips are divided up by operating system:

Mac Users – click here

Windows Users – click here

Page 52

8. Troubleshooting

page 52

LaCie Big Disk User’s Manual

The Problem

The drive is not recognized by the computer.

The drive turns on and off when you turn your computer on and off.

Questions to Ask

Is there an icon for the drive appear on the desktop?

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Is the drive’s power supply connected and turned on?

Did you follow the correct installation steps for the specific interface and operating system.

Are both ends of the FireWire or USB cables firmly attached?

Possible Solutions

There should be an icon for the LaCie drive on the desktop. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.

Check section 2.1. Minimum System Requir

ements – Mac

Users for more information.

Make sure that the power supply is properly connected (see section 3.1. Connecting The Power Supply

), that the drive has been turned on by pressing the On/Off button the front of the drive, and that the outlet the power supply is connected to is also turned on.

Review the installation steps under 3.2. Connecting The

Interface Cable – 3.2.1. Mac Users.

Check both ends of the FireWire or USB cables and make sure that they are fully seated in their respective ports. Try disconnecting the cables, waiting 10 seconds, and then reconnecting them. If the drive is still not recognized, restart your computer and try again.

8.1. Mac Users

This is normal. Your drive has an autoswitching power feature, which means that if your drive is connected to your computer, turning the computer on will automatically turn the drive on. Likewise, turning the computer off will automatically turn the drive off. If you wish to power off the drive while it is connected to your computer, first make sure that your computer is not accessing the drive and then follow the steps in section 3.5. Disconnecting Y

our LaCie Drive.

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.

Page 53

8. Troubleshooting

page 53

LaCie Big Disk User’s Manual

The Problem

The drive is not recognized by the computer.

Error messages under Mac OS 10.x.

Questions to Ask

Have the USB or FireWire drivers been installed correctly and enabled?

Is there a conflict with other device drivers or extensions?

Has the drive been formatted?

Does your computer’s operating system support the file system?

Did you get an “Error –50” message while copying to a FAT 32 volume?

Did you get an error message telling you that the drive has been disconnected when coming out of sleep mode?

Are you having problems getting your FireWire device to be recognized?

Possible Solutions

Mac Users: Open Apple System Profiler and click on the Devices and Volumes tab. If your device is not listed,

recheck the cables and try the other troubleshooting tips listed here.

Contact LaCie T

echnical Support for help.

Make sure that the drive has been formatted properly. Please see sections 4.1. For

matting And Partitioning Your LaCie

Drive and 5.1. File System Formats for more information.

Check your computer’s documentation and see sections 4.1.

Formatting And Partitioning Your LaCie Drive and 5.1. File System Formats for more information.

When copying files or folders from Mac OS 10.x to a FAT 32 volume, certain characters cannot be copied. These characters include, but are not limited to: ? < > / \ : Check your files and folders to ensure that these types of characters are not being used.

Simply ignore this message. The drive will remount to the desktop. LaCie drives conserve power by spinning down when you set your computer to sleep mode, and when the computer is “woken” from sleep, it does not give the drive enough time to spin-up from its sleep mode.

If you are having problems with your FireWire connection under Mac OS 10.2.x, upgrade to the latest version.

Page 54

8. Troubleshooting

page 54

LaCie Big Disk User’s Manual

The Problem

The drive is working slowly.

The drive is not running noticeably faster when connected via Hi-Speed USB 2.0.

Questions to Ask

Are there other USB or FireWire devices connected to the same port or hub?

Are you operating in Mac OS

9.x?

Are you operating in Mac OS

10.x?

Is the drive connected to a USB port on your computer, or to a USB hub?

Is the drive connected to a HiSpeed USB 2.0 port on your computer?

Does your computer or operating system support HiSpeed USB 2.0?

Possible Solutions

Disconnect any other USB or FireWire devices and see if the drive’s performance increases.

Apple does not support the Hi-Speed USB 2.0 standard under Mac OS 9.x. You will be limited to the slower transfer rates of the original USB standard. For more information, please see 5.3.2. Hi-Speed USB 2.0 Por

ts And Performance.

Apple has only recently begun incorporating native HiSpeed USB 2.0 ports in their computers. To achieve HiSpeed USB 2.0 transfer rates, you will need to add a HiSpeed USB 2.0 PCI or PC card to your computer. For more information, please see 5.3.2. Hi-Speed USB 2.0 Por

ts And

Performance.

If your drive is connected to a USB port or hub, this is normal. A Hi-Speed USB 2.0 device can only operate at HiSpeed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port or hub. Otherwise, the Hi-Speed USB 2.0 device will operate at the slower USB transfer rates. For more information, please see sections

5.3.2. Hi-Speed USB 2.0 Por

ts and Performance and

7. USB Questions And Answers

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections 2.1. Minimum System Requir

ements – Mac Users and 5.3. Optimizing Data Transfers for more

information.

Page 55

8. Troubleshooting

page 55

LaCie Big Disk User’s Manual

The Problem

The drive is not recognized by the computer.

Questions to Ask

Has the drive been formatted?

Does your computer’s operating system support the file system?

Is there an icon for the drive in My Computer?

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Is the drive’s power supply connected and turned on?

Did you follow the correct installation steps for the specific interface and operating system.

Are both ends of the FireWire or USB cables firmly attached?

Possible Solutions

Make sure that the drive has been formatted properly. Please see sections 4.1. For

matting And Partitioning Your LaCie

Drive and 5.1. File System Formats for more information.

Check your computer’s documentation and see sections 4.1.

Formatting And Partitioning Your LaCie Drive and 5.1. File System Formats for more information.

Go into My Computer and look for an icon and drive letter assigned to the LaCie drive. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.

Check section 2.1. Minimum System Requir

ements –

Windows Users for more information.

Make sure that the power supply is properly connected (see section 3.1. Connecting The Power Supply

), that the drive has been turned on by pressing the On/Off button the front of the drive, and that the outlet the power supply is connected to is also turned on.

Review the installation steps under 3.2. Connecting The

Inter

face Cable – 3.2.2. Windows Users.

8.1. Windows Users

Page 56

8. Troubleshooting

page 56

LaCie Big Disk User’s Manual

The Problem

The drive is not recognized by the computer.

The drive turns on and off when you turn your computer on and off.

Questions to Ask

Have the USB or FireWire drivers been installed correctly and enabled?

Is there a conflict with other device drivers or extensions?

Possible Solutions

Windows 98 SE and Windows Me Users: Go to Start > Settings > Control Panel > System > Device Manager > USB Controller or IEEE 1394 Controller. Click on the + sign

next to the controller icon, and you should see your device listed.

Windows 2000 Users: Go to Start > Settings > Control Panel > System > Hardware tab > Device Manager button

> USB Controller or IEEE 1394 Controller. Click on the + sign next to the controller icon, and you should see your device listed.

Windows XP Users: Go to Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager button > USB Controller or IEEE 1394 Controller. Click on the + sign next to the controller icon,

and you should see your device listed.

If you still can’t see your device, recheck the cables and try the other troubleshooting tips listed here.

Contact LaCie T

echnical Support for help.

our LaCie Drive.

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.

Page 57

8. Troubleshooting

page 57

LaCie Big Disk User’s Manual

The Problem

The drive is not recognized by the computer.

FireWire 800 does not work under Windows

2000.

The drive is working slowly.

The drive is “hanging” when connected via FireWire 400.

Questions to Ask

Was the drive originally formatted as a removable disk?

Have you installed the Windows 2000 Service Pack 4?

Are there other USB or FireWire devices connected to the same port or hub?

Are you running Windows 98 SE?

Possible Solutions

If the drive is configured as a removable disk drive under Windows 98 SE or Windows Me, the removable setting will need to be re-checked each time that the drive is taken to a new system. To do this, go the Device Manager (Start > Settings > Control Panel > System > Device Manager) and click on the Drives Settings tab.

In order to operate FireWire 800 devices under Windows 2000, the Service Pack 4 update must be installed. This is a free download offered on Microsoft’s Web site.

Disconnect any other USB or FireWire devices and see if the drive’s performance increases.

If you are using your LaCie Big Disk under Windows 98 SE and you are going to be using the FireWire 400 port to connect your device, you must be running version

4.10.2222A and above. Microsoft has released an IEEE 1394 Storage Supplement update to enhance compatibility and help alleviate lock-ups. Check Microsoft’s Web site,

suppor

t.microsoft.com, for more information.

Page 58

8. Troubleshooting

page 58

LaCie Big Disk User’s Manual

The Problem

The drive is not running noticeably faster when connected via Hi-Speed USB 2.0.

Questions to Ask

Is the drive connected to a USB port on your computer, or to a USB hub?

Is the drive connected to a HiSpeed USB 2.0 port on your computer?

Does your computer or operating system support HiSpeed USB 2.0?

Are you using a certified HiSpeed USB 2.0 cable to connect your drive?

Are you using Windows 98 SE or Windows Me?

Possible Solutions

5.3.2. Hi-Speed USB 2.0 Por

ts and Performance and

7. USB Questions And Answers

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections 2.1. Minimum System Requir

ements – Windows Users and 5.3. Optimizing Data Transfers for

more information.

Ensure that the cable you are using has been properly certified. The Hi-Speed USB 2.0 cable that was shipped with your LaCie drive has been properly certified and tested to comply with USB standards.

These systems are not supported; USB will not work with either Windows 98 SE or Windows Me.

Page 59

9. Contacting Customer Support

page 59

LaCie Big Disk User’s Manual

9. Contacting Customer Support

Before You Contact Technical Support

1) Read the manuals and review the Troubleshooting section.

2) Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are correctly and firmly attached.

If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can't get your LaCie drive to work properly, contact us via the provided Web link. Before contacting us, make sure that you are in front of your computer and that you have the following information on hand:

• Your LaCie drive's serial number

• Operating system(Mac OS or Windows) and version

• Computer brand and model

• Names of CD or DVD drives installed on your computer

• Amount of memory installed

• Names of any other devices installed on your computer

Page 60

9. Contacting Customer Support

page 60

LaCie Big Disk User’s Manual

LaCie Australia

LaCie Canada

LaCie Finland

LaCie Germany

LaCie Japan

LaCie Norway

LaCie Sweden

LaCie United Kingdom & Ireland

LaCie Grand Export

LaCie Belgium

LaCie Denmark

LaCie France

LaCie Italy

LaCie Netherlands

LaCie Spain

LaCie Switzerland

LaCie USA

LaCie Technical Support

Page 61

10. Warranty

page 61

LaCie Big Disk User’s Manual

10. Warranty

LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective drive.

This warranty is void if:

• The drive was operated/stored in abnormal use or maintenance conditions;

• The drive is repaired, modified or altered, unless such repair, modification or alteration is expressly authorized in writing by LaCie;

• The drive was subjected to abuse, neglect, lightning strike, electrical fault, improper packaging or accident;

• The drive was installed improperly;

• The serial number of the drive is defaced or missing;

• The broken part is a replacement part such as a pickup tray, etc.

• The tamper seal on the drive casing is broken.

LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result.

LaCie will not, under any circumstances, be liable for direct, special or consequential damages such as, but not limited to, damage or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconvenience caused by service interruptions.

Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data.

Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive.

To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty.

All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.

Important Info:

.lacie.com/register

Page 62

Glossary

page 62

LaCie Big Disk User’s Manual

Glossary

Asynchronous – Data transfer method where the data is transferred independently of other processes. With this transfer

method, the intervals between transmissions can vary, and data can be resent if it is initially missed.

Backup – (1) The act of creating at least one additional copy of data onto a different (and safe) storage device from where it can be retrieved at a later time if needed. (2) A copy of a file, directory, or volume on a separate storage device from the original, for the purposes of retrieval in case the original is erased, damaged, or destroyed.

Bit – The smallest measure of computerized data, either a 1 or a 0. Eight bits equal one byte, or one character.

Block – A very small section of the storage media comprised of one or more sectors. A block is the smallest amount of space allocated on a drive for data storage. By default, a sector of data consists of 512 bytes.

Buffer – RAM cache that is faster than the data that is being delivered. Buffers are used so data may be stored and delivered to the receiving item as it is needed.

Bus – Electronic links that enable data to flow between the processor, RAM and extension cables (peripherals).

Byte – A sequence of adjacent binary digits, or bits, considered as a unit, 8 bits in length. There are 8 bits in 1 byte. See also

MB (Megabyte) or GB (Gigabyte).

Cache, -ing – This is an area of electronic storage (usually RAM) set aside to store frequently used data from electromechanical storage (hard drives, floppy disks, CD/DVD-ROM, tape cartridges, etc.) Therefore, storing frequently used data in RAM can enhance your system’s overall response to disk-intensive operations significantly.

Configuration – When talking about a PC, configuration is understood to be the sum of the internal and external components of the system, including memory, disk drives, the keyboard, the video subsystem and other peripherals, such as the mouse, modem or printer. The configuration also implies software: the operating system and various device managers (drivers), as well as hardware settings and options set by the user via configuration files.

Controller – This is a component or an electronic card (referred to in this case as a "controller card," such as PCI or PCMCIA cards) that enables a computer to communicate with or manage certain peripherals. The controller manages the operation of the peripheral associated with it, and links the PC bus to the peripheral via a ribbon cable inside the PC. An external controller is an expansion card which fills one of the free slots inside your PC and which enables a peripheral (CD-ROM drive, scanner or printer, for instance) to be connected to the computer.

Cross-platform – Term that refers to a device that is able to be operated by both Mac and Windows operating systems.

Data Stream – The flow of data that accomplishes a task, usually related to moving data from storage to computer RAM or

between storage devices.

Page 63

Glossary

page 63

LaCie Big Disk User’s Manual

Digital – Discrete information that can be broken down to zero or one bits.

Driver (peripheral manager) – A software component that enables the computer system to communicate with a peripheral.

Most peripherals will not operate correctly – if at all – if the appropriate drivers are not installed on the system.

File System – Links the physical map of a disc to its logical structure. Thanks to the file system, users and computers can easily display path, directories and files recorded onto the disc.

Firmware – Permanent or semi-permanent instructions and data programmed directly into the circuitry of a programmable read-only memory or an electronically-erasable, programmable read-only memory chip. Used for controlling the operation of the computer or tape drive. Distinct from the software, which is stored in random access memory and can be altered.

Folder – A list created on a disk to store files. Creating folders and sub-folders enables you to organize the storage of your files in a logical, hierarchical manner so that you can find and manage them more easily.

Format, -ting, -ted – This is a process where a device is prepared to record data. In this process, the hard disk writes special information onto its own recording surfaces into areas (blocks) that are ready to accept user data. Since this operation causes all current user data stored on the hard disk to be lost, this is an infrequent operation that usually only happens at the factory that created the hard disk. It is unusual for something to happen to a hard disk that requires the end-user to initially perform this operation.

GB (GigaByte) – This value is normally associated with data storage capacity. Basically, it means a thousand million or a billion bytes. In fact, it equals 1,073,741,824 bytes (or 1,024 x 1,024 x 1,024).

Hardware – Physical components of a computer system, including the computer itself and peripherals such as printers, modems, mice, etc.

Host Bus Adapter (HBA) – A printed circuit board that installs in a standard microcomputer and an interface between the device controller and the computer. Also called a controller.

Initialize, -ed, Initialization – After a hard drive (or other storage device) is formatted and partitioned, some special data needs to be written to it that helps the Mac and Windows create files and save data. The process is called initialization. This process, like formatting, causes all user data on the storage device to be lost.

Interface – The protocol data transmitters, data receivers, logic and wiring that link one piece of computer equipment to another, such as a hard drive to an adapter or an adapter to a system bus. Protocol means a set of rules for operating the physical interface, such as: do not read or write before the drive is ready.

I/O (Input/Output) – Refers to an operation, program or device whose purpose is to enter data into or to extract data from a computer.

Isochronous – Data transfer method that ensures that data flows continuously and at a steady rate. These transfers provide guaranteed transmission opportunities at defined intervals.

Page 64

Glossary

page 64

LaCie Big Disk User’s Manual

Kb (Kilobit) – Equivalent to 1,000 bits.

Kb/s – Kilobits per second. 480Kb/s is equal to 60KB/s.

KB (KiloByte) – Basically, this means 1,000 bytes, but it is actually 1,024 bytes.

KB/s – Kilobytes per second. A means of measuring throughput.

Mb (Megabit) – Equivalent to 1,000,000 bits.

Mb/s – Megabits per second. A means of measuring throughput. 480Mb/s is equal to 60MB/s.

MB (Megabyte) – Basically means one million bytes, but is actually 1,024 Kilobytes or 1,024 x 1,024 bytes, which equals

1,048,576 bytes.

MB/s – Megabytes per second. A means of measuring throughput.

Media – The material or device used to store information in a storage subsystem, such as a tape cartridge, CD, DVD or disk

drive.

Operating System (OS) – Software that controls the assignment and use of hardware resources such as memory, processor time, disk space and peripherals. An operating system is the basis on which software (applications) run. Windows, Mac OS and UNIX are among the most common.

Overwrite – To write data on top of existing data thus erasing the original data.

Partition, -ing – After formatting, the hard drive is not yet ready to store files. It must be divided into sections that will contain

special information required for a Mac or PC to operate and other sections that will contain the files. This process of dividing up the hard drive is called partitioning. A partition is just one section of the hard drive that will contain either special data put there by Silverlining or other files and data.

Peripheral – A generic term applied to printers, scanners, mice, keyboards, serial ports, graphics cords, disk drives and other computer subsystems. This type of peripheral often relies on its own control software, known as a peripheral driver.

Port, hardware – A connection component (SCSI port, for example) that enables a microprocessor to communicate with a compatible peripheral.

Port, software – A memory address that identifies the physical circuit used to transfer information between a microprocessor and a peripheral.

RAM (Random Access Memory) – Generally referred to as a computer’s “memory.” An integrated circuit memory chip that allows information to be stored and retrieved by a microprocessor or controller. The information can be stored or accessed in any order, and all storage locations are equally accessible.

Page 65

Glossary

page 65

LaCie Big Disk User’s Manual

Seek Time – The amount of time (in thousandths of a second, or milliseconds) that it takes a hard drive’s read/write head to

move to a specific location on the disk. Average seek, then, is the average of a large number of random samplings all over the disk. Seek time is CPU independent, meaning that seek time is the same for a disk drive, whether it is attached to a computer or not.

Software – In a nutshell, software is a set of instructions for the computer. A set of instructions to perform a particular task is called a program. There are two main types of software: system software (an operating system such as Mac OS or Windows) which controls the operation of the computer and application software (programs such as Word or Excel) which enable users to perform tasks such as word processing, spreadsheet creation, graphics, etc.

Storage – In computers, any equipment in which information may be kept. PCs generally use disk units and other external storage media (diskettes, CD-ROMs, magnetic disks, etc.) for permanent storage of information.

Striping – Spreading data evenly over multiple disk drives to enhance performance. Data striping can be performed on a bit, byte or block basis for optimum application performance.

Transfer Rate – The rate at which the drive sends and receives data from the controller. Transfer rates for reading data from the disk drive may not be the same as the transfer rate for writing data to the disk drive. Transfer rates are CPU dependent, meaning that regardless of how great a transfer rate your drive is capable of, the actual transfer rate can only be as fast as the slowest of your hard drive and computer.

Volume – A desktop mountable storage area, may be a partition of a hard drive, a removable disk or a cartridge. Typically measured in Megabytes or Gigabytes.

Utility – Software designed to perform maintenance tasks on the system or its components. Examples include backup programs, programs to retrieve files and data on disk, programs for preparing (or formatting) a disk or and resource editors.
