Page 1

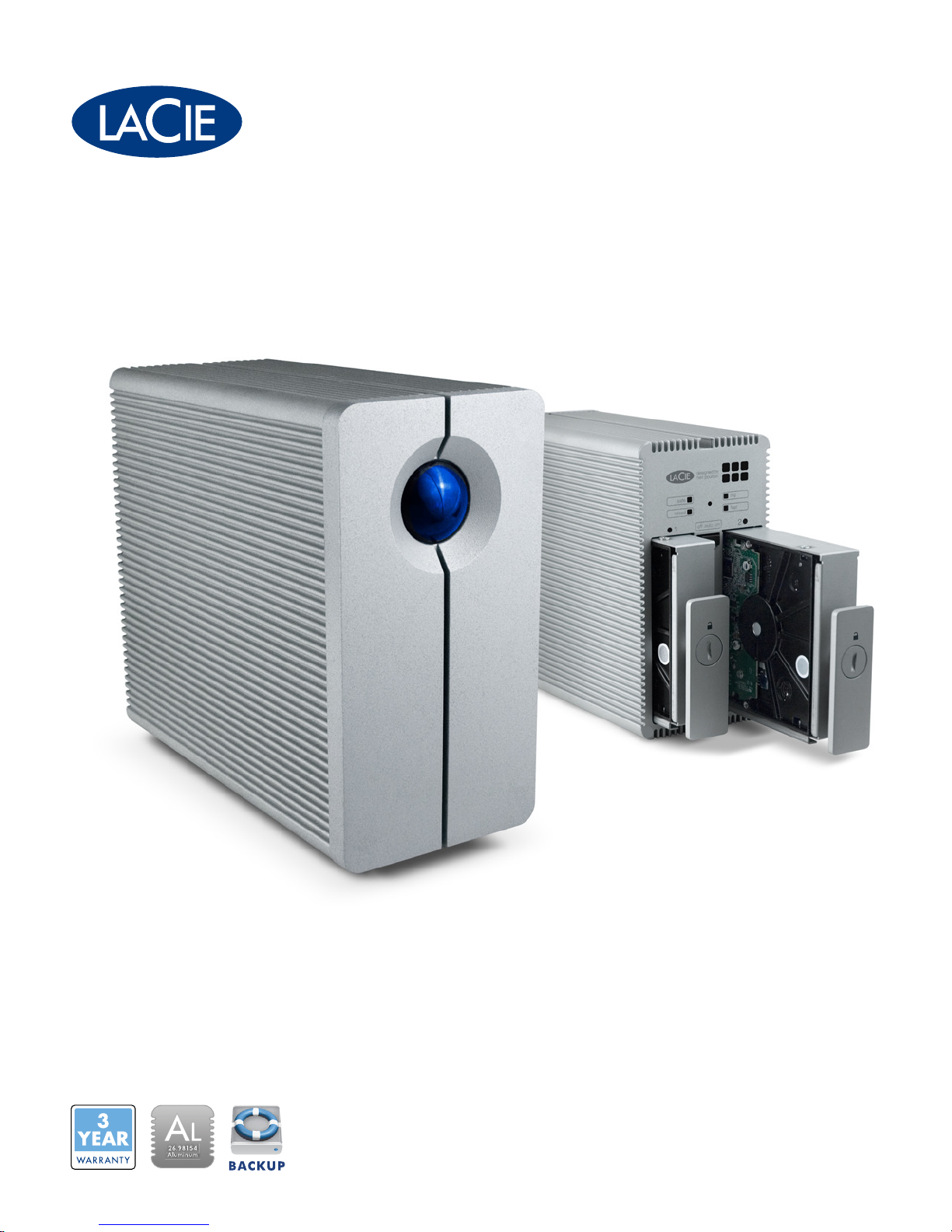

2big quadra
DESIGN BY NEIL POULTON
Professional 2-Disk RAID
eSATA 3Gb/s | FireWire 800 & 400 | USB 2.0
Page 2
Two Disks in One for
2BIG QUADRA RAID FLEXIBILITY
MODE CAPACITY PROTECTION SPEED
RAID 0 100%
Concatenation 100%
RAID 1 50%
Mixed Partition 75%
LACIE SHORTCUT BUTTON
****
Launch any backup/library application in 1 push
2BIG QUADRA RAID FLEXIBILITY
MODE CAPACITY PROTECTION SPEED
RAID 0 100%
Concatenation 100%
RAID 1 50%
Mixed Partition 75%
LACIE SHORTCUT BUTTON
****
Launch any backup/library application in 1 push
Storage and Protection
The LaCie 2big Quadra has been developed for professionals who
expect high speed and large capacities from a storage and backup
device. Offering amazing transfer speeds through eSATA 3Gb/s and
FireWire 800, the 2big Quadra also comes with FireWire 400 and
USB 2.0 for universal connectivity to Mac
two-bay solution, it features four RAID modes to customize speed
and protection, and comes with advanced backup sof tware with a
computer recovery option.
®
and PC. As a complete
RAID selection switch
Drive status LEDs
Off/Auto/On
eSATA 3Gb/s
Disk tray handle
USB 2.0
Disk lock
FireWire 800
FireWire 400
Power input connection
PERFORMANCE COMPARISON
The best performance for audio/video & photo professionals
Read burst transfer rate benchmark*
USB 2.0
FireWire 400
FireWire 800
eSATA 3Gb/s
MB/s
0 25 50 75 100 125 150 175
Customizable RAID Protection
Featuring four R AID modes, the LaCie 2big Quadra lets users
easily customize R AID speed and protection levels. In R AID 1, it
offers full data protection for library archiving and backup, with
hot-swappable disks for non-stop data access—even during
maintenance. A convenient Mixed Partition mode enables creative
professionals to work on “daily” data in a RAID 0 partition and to
get another RAID 1 partition for backup and protect sensitive data.
Extra spare disks are also available as an option for immediate
replacement.
RAID Performance for Creative Pros
Taking advantage of a native controller that preserves computer
resources, the LaCie 2big Quadra reaches large capacity and an
impressive speed of 165MB/s in RAID 0 through eSATA 3Gb/s.
These performances are ideal for creative professionals that need
to work with applications that demand high speeds, such as 3D
imaging programs or even with audio/video post-production
software with multiple SD and HD streams. It’s even possible to
daisy-chain FireWire or an iLink DV camera through FireWire.
• Speed and security for audio, video, and photo professionals
• Large capacity for backing up all of your data
• Quadruple interface for universal connectivity
Page 3
Backup, Restore, and Recover
LACIE SHORTCUT BUTTON
****
Launch any backup/library application in 1 push
With the LaCie Shortcut Button** it’s easy to launch applications
like Genie
Manager Pro for Mac, both of which come with the LaCie 2big
Quadra. This software lets you reliably and efficiently back up
your documents, emails, settings, or other digital assets. With its
ease of use, you can schedule and customize the type of backup
you create. The Genie and Intego programs are ideal for creative
professionals, and users can easily find previous versions of their
documents and restore them. With computer recovery options,
users will be able to restore their configuration and to go right
back to work in the event of a disaster with their workstation. It’s
easy to back up directly from your Mac with the native solution,
since the 2big Quadra is compatible with Time Machine
®
Backup Manager Pro for Windows® or Intego® Backup
®
.
LACIE SHORTCUT
BUTTON**
Launch Any Backup/Library
Application In 1 Push

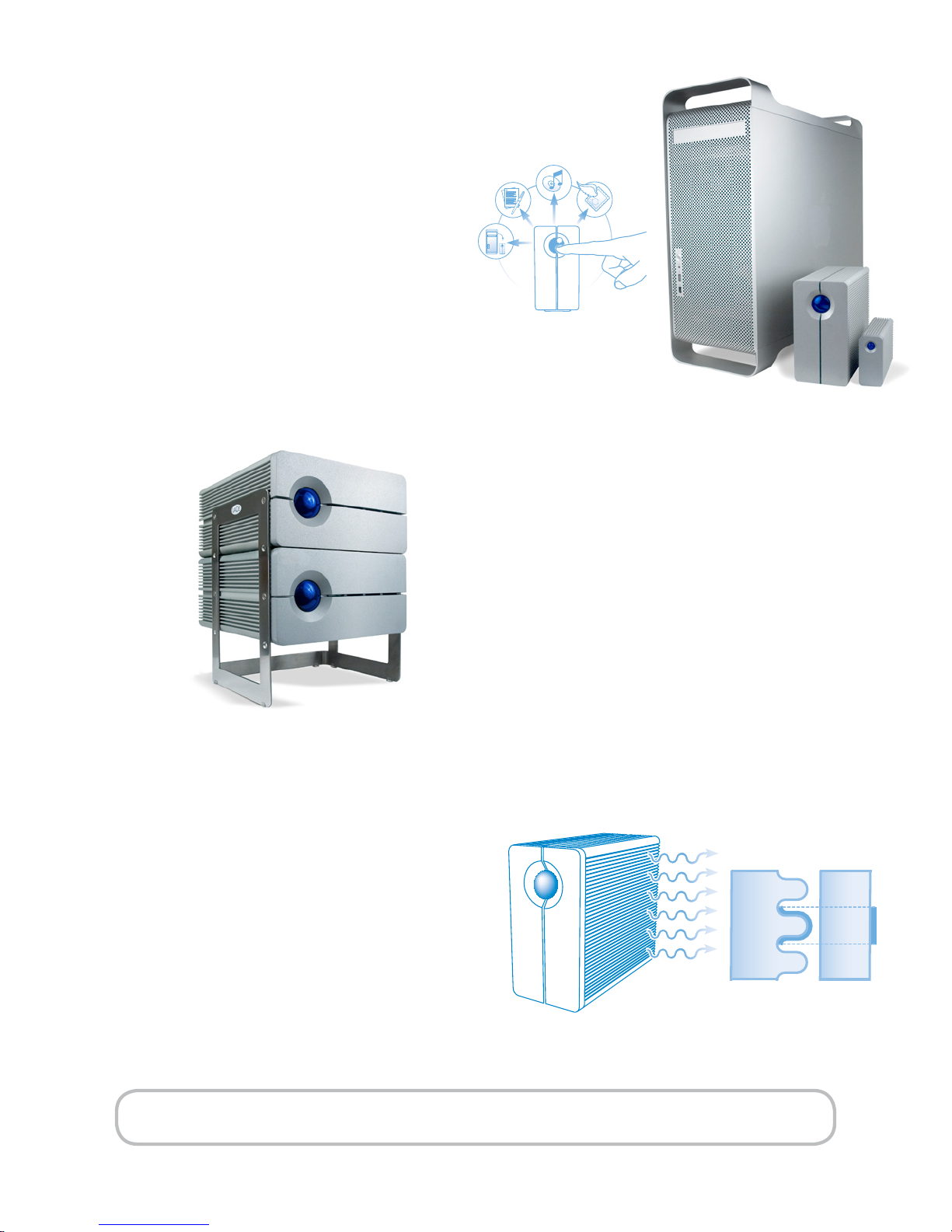

Versatile and Space-Saving
Designed with a sturdy aluminum body by Neil Poulton, the LaCie
2big Quadra easily integrates into any Mac or PC environment.
With versatile configurations such as upright, horizontal, stacked
with other drives, or rack-mounted, it offers significant space saving
abilities. Thanks to its FireWire bus, it can be daisy-chained with
fewer cables connected to your computer, and offers a near-limitless
storage capacity when connected to other hard disks.
Reliable Cooling System
and Power Savings
The LaCie 2big Quadra’s fully aluminum, sturdy heat sink design
provides 60% more surface area, which naturally draws heat away
from the internal components, keeping it cool and safe at all times.
It also offers Triple Power Management with a manual switch: “Auto”
for energy efficiency; “On” for instant access; or “Off” for data
protection.
1TB
***
2 hours of uncompressed HD video or 70 hours of DVD or 77,500 raw photos
=
EXCLUSIVE d2 HEAT SINK DESIGN
Provides 60% more area for
heat dissipation & high reliability
Aluminum
Heat Sink
Design
Standard
Design
Page 4
2big quadra
DESIGN BY NEIL POULTON
Box Content
• LaCie 2big Quadra
• eSATA-to-eSATA (3Gb/s) cable
• FireWire 800 (9-to-9 pin) cable
• FireWire 400 (6-to-6 pin) cable
• USB 2.0 cable
• Power supply kit
• Quick Install Guide
• LaCie Utilities and User Manual on CD-ROM
Item Number
Capacity***
Interfaces
Interface Transfer Rates
(maximum theoretical bus speed)
Burst Transfer Rates*
(Read RAID 0 maximum drive speed)
Rotational Speed / Cache*
Seek Time (Read)
RAID Modes
LaCie Shortcut Button**
Backup Software
Triple Power Management
Power Supply and Consumption
Cooling System
Dimensions (WxDxH)
Weight
Warranty
301352 301431 301432 301561
2TB 3TB 4TB 6TB
eSATA 3Gb/s, FireWire 800, FireWire 400, USB 2.0
eSATA 3Gb/s: up to 3Gbits/s (300MB/s)
FireWire 800: up to 800Mbits/s (100MB/s)
FireWire 400: up to 400Mbits/s (50MB/s)
USB 2.0: up to 480Mbits/s (60MB/s)
eSATA 3Gb/s: 140-165MB/s
FireWire 800: 80-90MB/s
FireWire 400: 35-40MB/s
USB 2.0: 30-35MB/s
7200 rpm / up to 64MB (2x32MB) or greater
<10ms eSATA
Easy RAID selection: RAID 1, RAID 0
Launch any application (backup, music, slideshows) with one push
Genie Backup Manager Pro software with computer recovery for Windows XP, Vista, 7
Intego Backup Manager Pro software with computer recovery for Mac OS X 10.5, 10.6
“Auto” for energy efficiency; “On” for instant access; “Off” for data protection
n
100-240 Vca; 50/60Hz; Standby: 4W; Idle: 20.6W; Seek: 20W
Thermoregulated quiet fan, advanced heat sink design for greater heat dissipation
93 x 200 x 183 mm / 3.6 x 7.8 x 7.2 in.
3.6 kg / 7.9 lbs.
3-year limited
Minimum System Requirements
• Computer with an eSATA, FireWire 800, FireWire 400, or
USB 2.0 port
• Latest version of Windows XP
Mac OS X 10.5, 10.6
• Minimum free disk space: 600MB recommended
, mixed partition (RAID 0 and RAID 1) or concatenation
, Windows Vista®, Windows 7 /
Premium 3-Year Warranty
The LaCie 2big Quadra comes with a 3-Year Limited Warranty. For superior service, it also comes with the LaCie Advance
Care Option, which can be purchased separately online within 30 days of the purchase date. Under the Advance Care
Option, LaCie will immediately swap out the product without it needing to be returned first for minimal interruption of your
workflow. LaCie covers all freight costs. Availability depends on the sales area. See www.lacie.com for details.
*Maximum interface transfer rate = theoretical bus bandwidth, whereas burst transfer rate = maximum drive speed.
Performance depends on the RAID mode selected and burst transfer rates vary from one computer to another and may vary
slightly from one drive to another. Average speed is usually lower depending on host configuration.
**The LaCie Shortcut Button feature is available via FireWire and USB but not eSATA.
***1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment
(typically 5-10% less). Capacity varies depending upon RAID mode.
Calcula tions ar e base d on 1080i 6 0 (8-bit) for unc ompre ssed H D video, N TSC DV 25 s tanda rd-de finiti on 720x4 86, 29.97 fps
for digit al vide o; and an estimati on of Digi tal SLR r esolution of 10 meg apixels for R AW photo s of 12MB. The se calc ulatio ns are
only es timati ons and may vary w ith the c odec used.
Window s XP doe s not sup port h ard driv es with c apacit ies gre ater than 2TB.
Hot-swapping i s not pos sible in R AID 0 and conca tenat ion mod es.
n
These measurements are indications and may vary by ±10%.
© 2011, LaCie. The LaCie logo is a trademark of LaCie. Other products and brand names mentioned herein may be
trademarks or registered trademarks of their respective owners. Specifications and appearance are given as guidelines
and may change without notice. www.lacie.com
110128
LaCie 2big Quadra
Spare Drive
Item #
Capacity
301475 301469 301996
1TB 2TB 3TB
