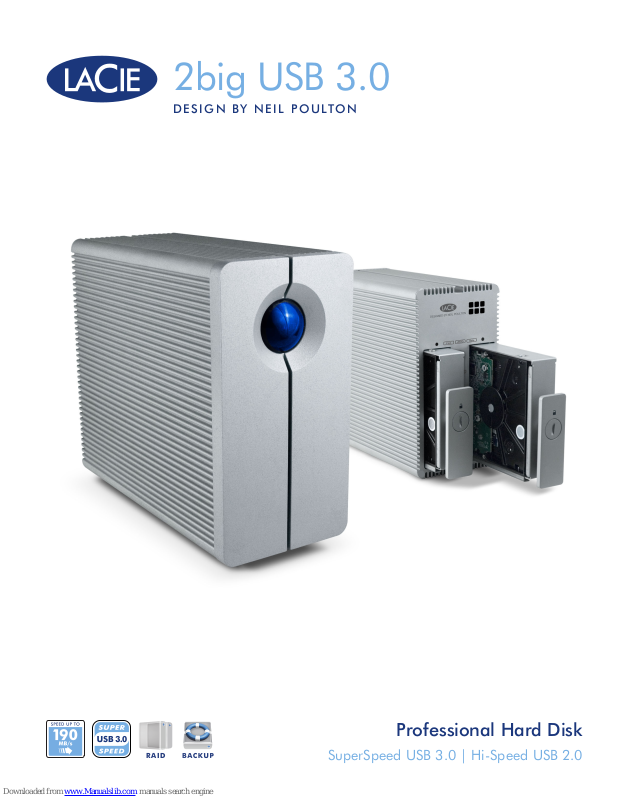

Page 1
2big USB 3.0
DESIGN BY NEIL POULTON
RAID
Professional Hard Disk
SuperSpeed USB 3.0 | Hi-Speed USB 2.0
Page 2
SuperSpeed Dual Drive
Developed for professionals looking for storage and
per formance, the 2big USB 3.0 features the new SuperSpeed
USB 3.0 interface, can support multiple HD streams, and deliver
more power to devices that need them. With three R AID modes
for flexibility, speed, and protection the 2big USB 3.0 can perform
up to 190MB/s in RAID 0. With its 7200 rpm drive and compatibilit y
with USB 2.0, it’s the only hard drive you need.
Status LEDs
RAID selection switch
RAID confirmation button
Swappable disks with locks
SuperSpeed USB 3.0/
Hi-Speed USB 2.0
Power connector
• Up to 190MB/s
• USB 3.0 connection compatible with USB 2.0
• RAID 0, RAID 1, and JBOD
• Two hot-swappable disks
• Advanced power management
RAID Hardware Protection
The 2big USB 3.0 is user-friendly and lets you change your RAID
mode easily and safely. For maximum protection, choose R AID 1
for automatic mirroring of one disk to the other. This mode allows
protection in case of a one-disk failure. It also offers full data
protection for librar y archiving and backup, with hot-swappable
disks for non-stop data access— even during maintenance.
Page 3
EXCLUSIVE d2 HEAT SINK DESIGN
Provides 60% more area for
heat dissipation & high reliability
Aluminum
Heat Sink
Design
Standard
Design
1-CLICK POWER SETTING
SWITCH
ON/OFF
Simply switch on or off with
one button
Space–Saving Versatility
Designed by Neil Poulton with a sturdy aluminum body, the
LaCie 2big USB 3.0 easily integrates into any Mac or PC
environment. With upright, horizontal, stacked or rack-mounted
configuration options, the 2big USB 3.0 offers significant space–
saving abilities.
Power Savings
The unique, fanless aluminum heat sink design has 60%
more surface area, which provides the most efficient heat
dissipation, keeps it ultra-quiet, and protects the hard
disk. The LaCie 2big USB 3.0 helps you to reduce power
consumption by switching to idle mode after a determined
inactivity time. You can schedule a deep sleep on/ off mode
according your needs, and the 2big USB 3.0 can be switched
back to operating mode from the client side.
**
2 hours of uncompressed HD video or 70 hours of DVD or 77,500 raw photos
1TB
=
***
Page 4
2big USB 3.0
DESIGN BY NEIL POULTON
Box Content
• LaCie 2big USB 3.0
• 1m USB 3.0 Cable (compatible with USB 2.0)
• Power supply kit
• LaCie CD Utilities
- LaCie Backup software with data restore
for Windows® and Mac
• Quick Install Guide
• LaCie USB 3.0 PCI Express Card
(not Mac compatible)
Item Number
Capacity**
Interfaces
Interface Transfer Rates
(maximum theoretical bus speed)
RAID 0 Maximum Drive Speed
Rotational Speed / Cache
RAID Modes
Advanced Power Management
Cooling System
Dimensions (WxDxH)
Weight
Warranty
301534 301535
2TB 4TB
1 x SuperSpeed USB 3.0 port (USB 2.0 and 1.1-compatible)
SuperSpeed USB 3.0: up to 5Gb/s
USB 2.0: up to 480Mb/s
SuperSpeed USB 3.0: Read/Write: 190MB/s / 160MB/s
USB 2.0: Read/Write: 33MB/s / 27MB/s
7200RPM / 32MB (2 x 16MB) or greater
Easy switch-button RAID selection: RAID 0, JBOD, RAID 1
“Auto” mode for energy efficiency (default setting); “On” for instant access; “Off” for data protection
Advanced heat sink design for greater heat dissipation
93 x 200 x 183 mm / 3.7 x 7.9 x 7.2 in.
3.6 kg / 7.9 lbs.
3-year limited
Minimum System Requirements
• Computer with a SuperSpeed USB 3.0
(Host adaptors available at www.lacie.com) or USB 2.0 port
• Latest version of Windows XP®, Windows Vista®, Windows 7 /
Mac OS X 10.5, 10.6 (USB 2.0 only)
• Minimum free disk space: 600MB recommended
Premium 3-Year Warranty
The LaCie 2big USB 3.0 comes with a 3-Year Limited Warranty.
For superior service, it also comes with the LaCie Advance Care Option,
which can be purchased separately online within 30 days of the
purchase date. Under the Advance Care Option, LaCie will immediately
swap out the product without it needing to be returned first for minimal
interruption of your workflow. LaCie covers all freight costs.
Availability depends on the sales area. See www.lacie.com for details.
*Maximum interface transfer rate = theoretical bus bandwidth, whereas burst transfer rate = maximum drive speed.
Performance depends on the RAID mode selected and burst transfer rates vary from one computer to another and may vary
slightly from one drive to another. Average speed is usually lower depending on host configuration.
**1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment
(typically 5-10% less). Capacity varies depending upon RAID mode.
***Calculations are based on 1080i 60 (8-bit) for uncompressed HD video, NTSC DV 25 standard-definition 720x486, 29.97 fps
for digital video; and an estimation of Digital SLR resolution of 10 megapixels for RAW photos of 12MB. These calculations are only
estimations and may vary with the codec used.
Windows XP does not support hard drives with capacities greater than 2TB.
© 2010, LaCie. The LaCie logo is a trademark of LaCie. Other products and brand names mentioned herein may be
trademarks or registered trademarks of their respective owners. Specifications and appearance are given as guidelines
and may change without notice. www.lacie.com
100903
LaCie USB 3.0
PCI Express Card
LaCie USB 3.0
ExpressCard/34
