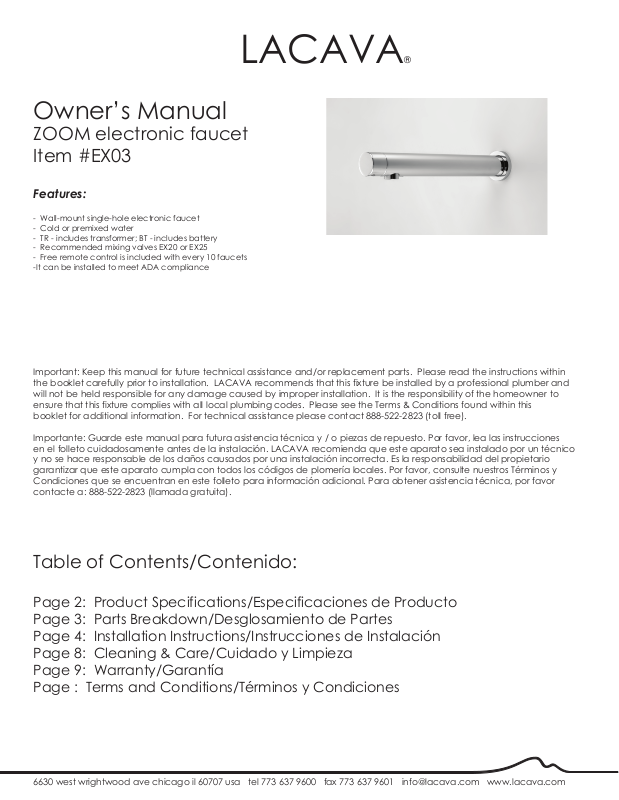

LACAVA®
Owner’s Manual
ZOOM electronic faucet
Item #EX03
Features:
- Wall-mount single-hole electronic faucet
- Cold or premixed water
- TR - includes transformer; BT - includes battery
- Recommended mixing valves EX20 or EX25
- Free remote control is included with every 10 faucets
-It can be installed to meet ADA compliance
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Please see the Terms & Conditions found within this
booklet for additional information. For technical assistance please contact 888-522-2823 (toll free).
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 888-522-2823 (llamada gratuita).
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4: Installation Instructions/Instrucciones de Instalación
Page 8: Cleaning & Care/Cuidado y Limpieza
Page 9: Warranty/Garantía
Page : Terms and Conditions/Términos y Condiciones
6630 west wrightwood ave chicago il 60707 usa tel 773 637 9600 fax 773 637 9601 [email protected] www.lacava.com
Page 2
Product Specifications/Especificaciones de Producto
3/16”
3
8 5/8”
220
15/16”
23
5/8”
16
2 3/4”
70
7 3/16”
183
1 3/16”
Ø28
Note:
Drawings provided herein are meant to give the user an idea of the product and are not made to scale. The sizes in
inches are rounded up to the nearest 1/16.
Nota:
Los planos proporcionados en este documento tienen el propósito de dar al usuario una idea del producto y no
están hechos a escala. Los tamaños de pulgadas se redondean al más cercano 1 / 16.
LACAVA LLC 2
Page 3
Parts Breakdown/Desglosamiento de Partes
1 x Spout and atta chments
(incl. elect ronic unit)
1 x Wall rosette
1x Tubular base
1 x M4x6 scre w
1x S olenoid h ousing
kit with lter adaptor
1 x Filter
Recommended Accessories (sold separately):
EX30 - Remote control with 13 functions
EX20 - Mechanical mixing valve for 3/8” inlets
EX25 - Integrated thermostatic mixing valve
1x Allen key
Battery Box Transformer
Note:
Please reference this sheet and the corresponding part number when requesting parts.
Nota:
Por favor referirse a esta pagina y la parte correspondiente cuando ordene partes.
LACAVA LLC3
Page 4
Installation Instructions/Instrucciones de Instalación
Wa rning
1) To avoid reflection problems keep
11 3/4”
Preparation for installation
Flush water supply lines thoroughly before installing the faucet. Do not
allow dirt, Teflon tape or metal particles to enter the faucet. Shut off
water supply.
a distance of more than 11 3/4”
(300 mm) between the sink and spout.
2) This faucet model, with an infrared
sensor pointing down, is not intended
to be used together with a sink of a
reflective material such as stainless
steel.
3) If a sink strainer is straight below
the faucet sensor, use a strainer with
a non reflective finish (do not use a
chrome plated one).
Step 1 – Installing the faucet
1. Shut off the water supply
2. Drill a hole 7/8” (24mm) at the place where you want to install the spout of
the tap.
3. If your model includes an optional anti-rotation pin, drill a small hole just
above the previous one for the anti-rotation pin.
1/8”
7/8”
2”
4. Insert the spout and its attachments through the wall. The aerator must
face the washbasin.
5. Insert the anti-rotation pin into the small hole (if needed)
6. Fix the base behind the wall with the hexagonal nut and
9/16”
the disk.
LACAVA LLC 4
Page 5
Installation Instructions/Instrucciones de Instalación

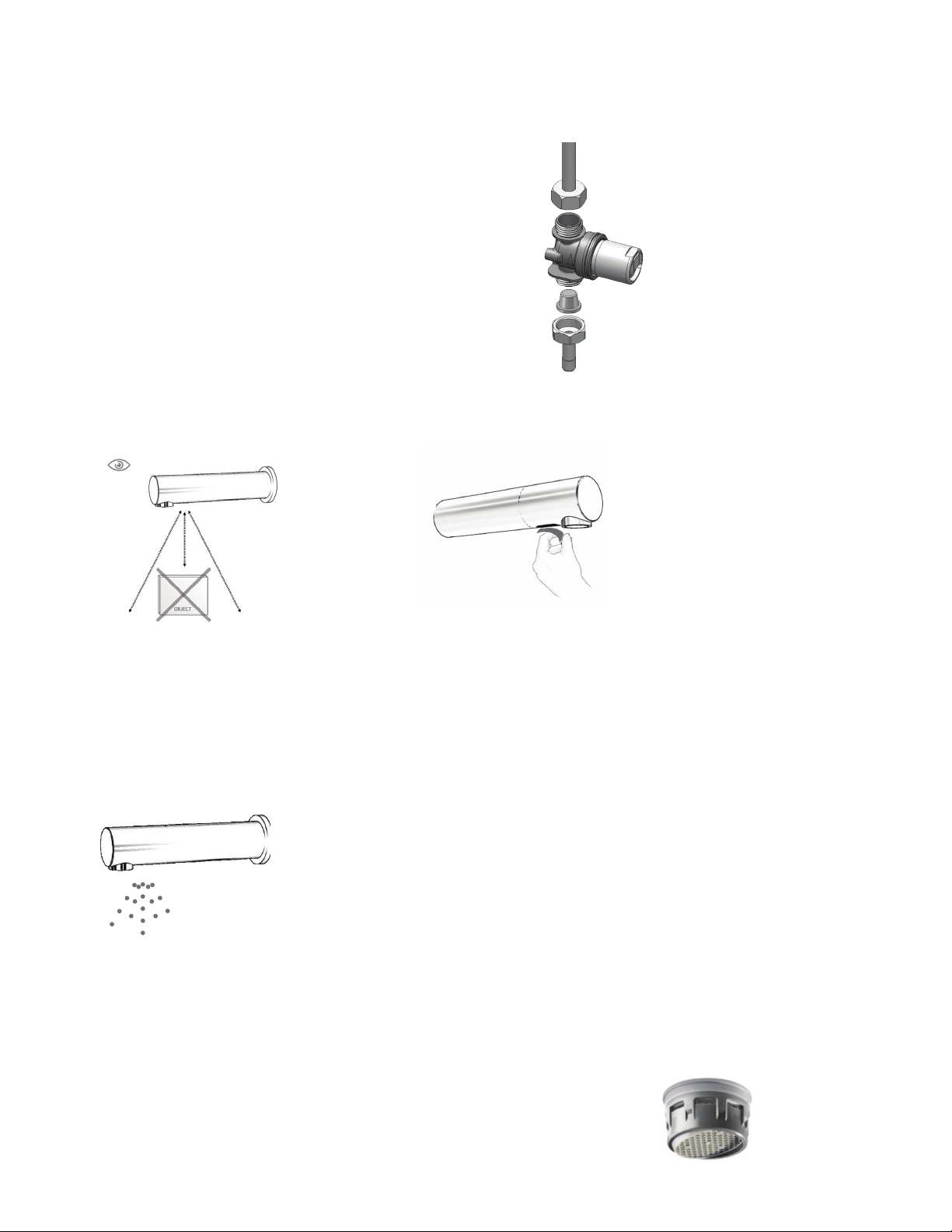

Step 2 - Connecting the water supply
1. Fit the flexible pipe coming from the
base to the solenoid valve housing.
2. Fit the water supply inlet to the adapter at
the solenoid valve housing.
Inlet and outlet should follow the indicating
arrow at the solenoid housing.
Note: Make sure the filter is located at the
solenoid inlet.
3. Connect the cable coming from the
electronic unit to the solenoid valve.
Important: f i x t u r e was supplied with a Self
Adjusting Sensor. The ideal sensor range for the specific location
automatically.
will be set
Before proceeding to step 3 check that
no objects are in front of the sensor
besides the washbasin.
Step 3 – Connecting the power source
1. For fixture transformer: Connect the other cable coming
from the electronic unit at the fixture base to
the transformer. Plug the transformer into the
electricity socket.
2. After you have connected the power source
(Transformer) wait 15 seconds in order
to allow the system to set the ideal sensor range.
As an indication that the self adjusting is taking place,
a red light in the sensor eye will flash continuously.
The solenoid v
second as an indication that the ideal sensor range
was set and the product is ready for use.
3. Turn on the central water supply. Check for leaks.
Note: The fixture includes a special aerator that allows you to adjust
the water stream direction on site in order to prevent water
splashing if needed. To change the angle of the water stream,
simply move the adjustable tilting plate by pressing it smoothly.
Now, remove the protecting sticker that
covers the sensor.
alve will be opened and closed for 1
ATTENTION! The aerator is tightened to prevent removal by hand.
LACAVA LLC5
Page 6
DETECTION RANGE
DELAY OUT TIME
D ELAY I N T I M E
E NT R A N C E T O T H E
S EL F AD J U ST M E NT M OD E
LOCK OUT TI M E
TEMPORARY OFF FUNCTION
R ES E T
24 HOUR H YGIEN E FLU SH

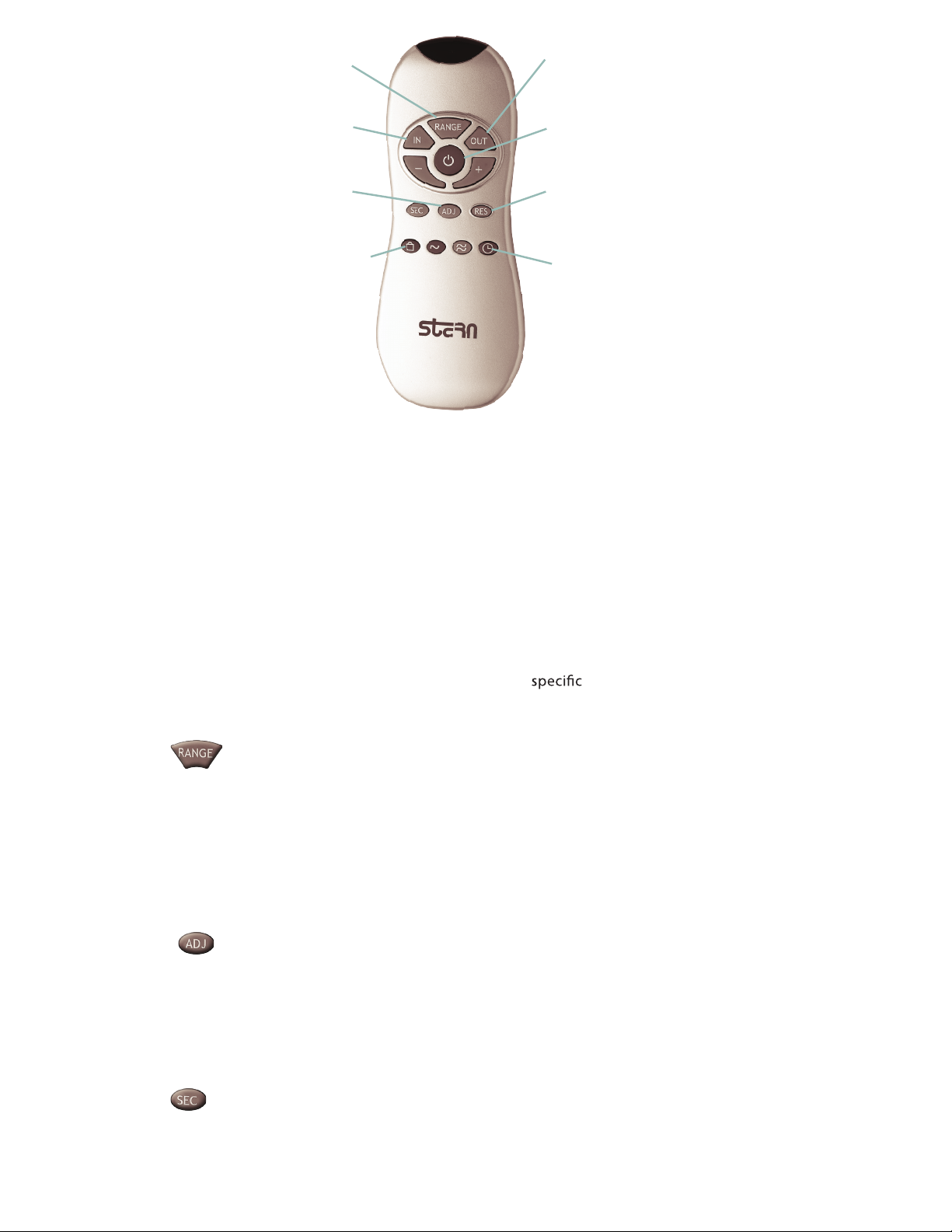

Adjusting the settings with the remote control
If necessary, the sensor settings can be adjusted as follows:
Shut off the water supply. In order to adjust the sensor with the remote control,
hold the remote control straight in front of the sensor in a distance of about
6-8” (15-20cm). Choose the function you want to adjust by pressing once on
the function buttons. After pressing once on a specific function button, a
quick flashing of the red light at the front of the sensor will occur. At this stage,
you can change the setting by pressi
ng the (+) or the (-) buttons, every push will
increase or decrease one level. After finishing the adjustment, turn the water
supply back on.
DETECTION RANGE This faucet was supplied with a Self Adjusting
Sensor. The ideal detection range for the location will be
set automatically.
Only if necessary, use the remote control to adjust the sensor
range as follows:
Press the RANGE button. Wait until a quick flashing of the red light of
the sensor eye is perceived. Then, press + to increase the delay out
time and – to reduce it. Every push will increase or decrease one
level.
ENTRANCE TO THE SELF ADJUSTMENT MODE
Check that no objects
Press the ADJ button. Once a quick flashing
sensor
control and move away from the sensor area. The ideal sensor
range for the specific location will be set automatically.
Once the self adjustment has taken place the solenoid valve will be
opened and closed for 1 second as an indication that the ideal sensor
range was set and the product is ready for use.
SECURITY TIME The Security time, prevents continuous running
of water due to reflections or vandalism. By default, if the sensor
is covered for more than 90 seconds the water flow will shut
automatically. To resume regular operation any obstruction must be
removed.
Press the SEC button. Wait until a quick flashing of the red light of the
sensor eye is perceived. Then, press + to increase the security time
and – to reduce it.
eye is perceived, remove your hand
are in front of the sensor.
of the red light of the
holding the remote
LACAVA LLC6
Page 7

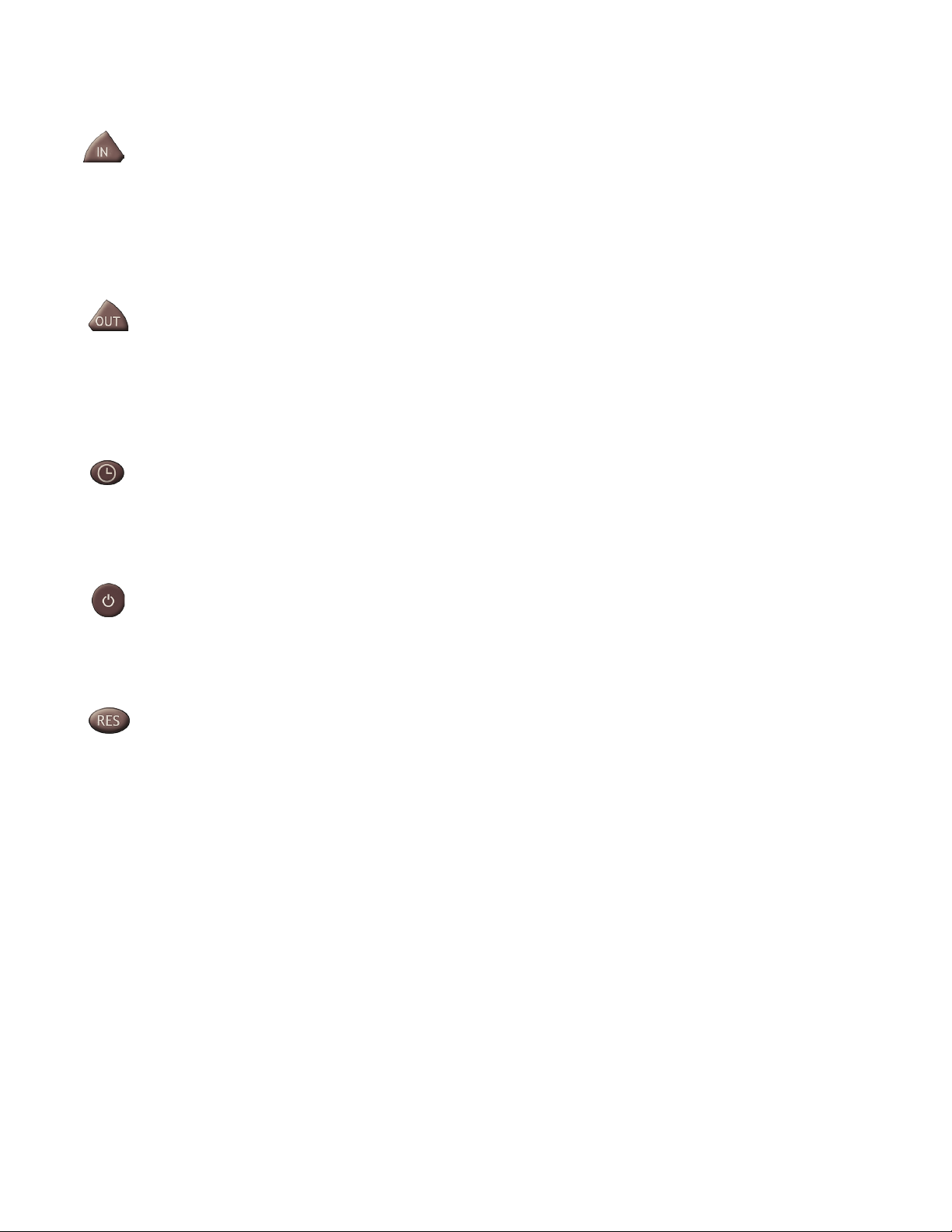

DELAY IN TIME It is recommended to change the delay in time for
flush valves for urinals or toilets only.
If required, the delay in time can also be modified in faucets as follows:
Press the IN button. Wait until a quick flashing of the red light of the
sensor eye is perceived. Then, press + to increase the delay in time
and – to reduce it.
DELAY OUT TIME This button allows modifying the water flow time
after the user removes his hands from the faucet. A delay out time
close to 0 will save more water. An increased delay out time will make
the user experience more comfortable.
If required, the delay out time can be modified as follows:
Press the OUT button. Wait until a quick flashing of the red light of the
sensor eye is perceived. Then, press + to increase the delay out time
and – to reduce it.
24 HOUR HYGIENE FLUSHIf you have a compatible model with a 24
hours hygiene ush it is possible to enable and disable it .
To activate the hygiene ush, press the clock button. Wait until a
quick ashing of the red light of the sensor eye is perceived. Then
press + to activate the hygiene ush or – to deactivate it.
TEMPORARY OFF FUNCTION This function is ideal to perform any
kind of activity in front of the sensor without operating the system (for
example, cleaning).
The faucet will remain shut for 1 minute when this button is pressed
once. To cancel this function and to return to normal operation press
the On/O button again or wait 1 minute.
RESET BUTTON This function restores all the factory settings except
for the sensor range. If required, press the Reset button and without
releasing it, press the + button once.
Note: To enter the self adjusting mode, use the ADJ button. To change the sensor
range, use the RANGE button.
7LACAVA LLC
Page 8
Cleaning and Care
For best results, please care for this product in accordance with the following instructions:
- Only use warm water and a mild detergent (i.e. dishwashing soap) for cleaning.
- If another cleaner is used, check the label to make sure that it is safe for use on the material being cleaned and
always test in an inconspicuous area first.
- Make sure to wipe any excess cleaners off with a damp sponge or cloth and then rinse with water.
- Dry the surface with a soft cloth until dry after each use.
- Never use abrasive materials or cleaners that contain ammonia, bleach or acid, since they can cause damage
to the finished surface.
We would like to thank you for your purchase and are confident that you will be able to enjoy our products for
many years to come!
Cuidado y Limpieza
Para mejores resultados, por favor cuide des este producto de acuerdo con las siguientes instrucciones:
- Sólo utilice agua tibia y un detergente suave (es decir, el jabón para lavar la vajilla) para la limpieza.
- Si se utiliza otro limpiador, revise la etiqueta para asegurarse de que es seguro para el uso del material para su
limpieza y siempre prueba en un área discreta primero.
- Asegúrese de limpiar cualquier exceso de productor de limpieza con una esponja o un trapo húmedo y luego
enjuague con agua.
- Seque la superficie con un paño suave hasta que se seque después de cada uso.
- Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden
causar daños a la superficie acabada.
¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos
por muchos años!
LACAVA LLC
8
Page 9
Warranty
LACAVA LLC provides a Limited Lifetime Warranty on its faucetry. This warrants any faucet, installed in a residential
application, to be free of defects in material and workmanship for as long as the original consumer owns his or her
home. Any product installed in a commercial application is covered under warranty for one year. LACAVA warrants
all other products to be free from any defects in materials or workmanship, during normal residential or commercial
use including all hinges, drawer slides, finishes, and general workmanship of the item for a period of one year.
LACAVA warranties do not cover normal wear and tear, damages due to negligence, faulty installation, improper
alterations and repairs, improper cleaning and care, or damages due to uses of the product other than its intended
and normal use. If a defect is found under normal use, while under warranty, LACAVA will repair or replace the
product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges).
Under no circumstances is LACAVA responsible for installation/service fees or any dollar amount beyond the cost of
the item. In addition, all LACAVA products are to be installed by experienced professionals properly licensed and
bonded; otherwise, any LACAVA warranty and liability is to be considered waived. All warranties are non-transferable and proof of purchase is required for any warranty claim.
In accordance with the laws of limitation and exclusion state by state, and therefore provided the duly exceptions,
LACAVA will not be held liable, in any event, for any special, indirect, incidental or consequential damages or losses
(including but not limited to damages for loss of business, loss of profits, etc.) for breach of contract, tort (including
negligence), product liability or otherwise, even if it has been advised of the possibility of such damages. LACAVA’s
liability on any claim (including negligence) will not in any case exceed the contract price paid by the original
purchaser for the product claimed defective or unsuitable. It is the responsibility of the homeowner to ensure that all
installed fixtures comply with all local plumbing codes.
Garantía
LACAVA LLC proporciona una Garantía Limitada de por Vida en sus grifos. Esto garantiza que cualquier grifo,
instalado en una aplicación residencial, no presentara defectos en el material o de fabricación, mientras que el
consumidor original posea su casa. Cualquier producto instalado en una aplicación comercial está cubierto bajo
garantía por un año. LACAVA garantiza que todos los otros productos no presentaran defectos en el material o de
fabricación, durante el uso normal, residencial o comercial incluyendo las bisagras, rieles, acabados, y confección
en general del artículo, por un período de un año. Las garantías de LACAVA no cubren el desgaste normal, los
daños debido a negligencia, instalación errónea, modificaciones y reparaciones impropias, limpieza y cuidado
impropio, o daños debido a la utilización de los productos distintos de su uso previsto y normal. Si un defecto es
encontrado bajo el uso normal, mientras bajo garantía, LACAVA reparará o reemplazará el producto (el costo
menor a LACAVA) a su cargo (excluyendo cargos de envío e instalación). Bajo ninguna circunstancia LACAVA
será responsable por servicios de instalación, compensaciones por servicios o cualquier cantidad que exceda el
costo del artículo. Además, todos los productos de LACAVA deben de ser instalados por profesionales experimentados con licencia y seguro; de otro modo, cualquier garantía de LACAVA y obligación será cancelada. Todas las
garantías son intransferibles y el comprobante de compra es requerido para cualquier reclamo de garantía.
En conformidad con las leyes de la limitación y exclusión de estado a estado, y con las excepciones aquí debidamente presentadas, LACAVA no será responsable, en cualquier caso, por ningún daño especial, indirecto,
incidental o consecuencial o pérdidas (incluyendo pero no limitadas a daños por pérdida de negocio, pérdida de
beneficios, etc) por incumplimiento de contrato, agravio (incluyendo negligencia), responsabilidad por
Productos defectuosos o de otro modo, incluso si se ha advertido de la posibilidad de tales daños. La Responsabilidad de LACAVA en caso de reclamaciones (incluyendo negligencia) no superarán en ningún caso el precio del
contrato pagado por el comprador original del producto reclamado defectuoso o no apto. Es la responsabilidad
del propietario garantizar que todos los accesorios instalados cumplan con todos los códigos de plomería locales.
LACAVA LLC 9
Page 10
Terms and Conditions
UNIQUENESS:
Many LACAVA products are made of natural stone, woods, or metals. Because of the natural variations, and/or
handmade nature of the products, slight differences are expected and are not deemed manufacturing defects.
SHIPPING POLICIES:
Once the merchandise is released to and accepted by the carrier, LACAVA's responsibility ends. LACAVA LLC is
not responsible for damages occurring in transit. After the merchandise is delivered and the shipping document is
signed, it becomes the property of the purchaser. We constantly improve the packaging as new technologies
become available, but damages in transit may still occur. Therefore, we recommend that all packages be
inspected by the purchaser in the carrier's presence upon delivery. In case of damages, either visible or concealed,
the purchaser is responsible for filing any damage claim against the carrier. In this regretful circumstance, we
suggest utter diligence to have the carrier's agent explain the steps to submit a valid claim against the carrier, as
each carrier has different claim policies. Please document everything in writing, preferably on the shipping
documents and have also the carrier's agent sign along. If you wish that Lacava assists you in the claim process,
please fax or email us copies of the shipping and claim documents at your earliest convenience. In the case of
missing items, which could occur due to our mistake or a theft during transit, please follow same procedures as for
shipping damages above, with the only difference that the claim concerns something completely missing, rather
than damaged. Please take note of any visible tampering with the packaging in the presence of the carrier's agent
before accepting the delivery with your signature. In case of missing items, you must also inform LACAVA and send
us all related documents within 24 hours from the delivery date. We will open an internal investigation and check
the inventory count to determine whether it was our error. If we verify it was our mistake, we will promptly ship the
missing item(s) to the purchaser by standard ground at our cost.
RETURN POLICIES:
If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA LLC up to 30
days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is
not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the
product. The merchandise must be in salable condition, in its original packaging, and packed safely with the RGA
number clearly marked on the outside packaging. To obtain an RGA number, please fax or email the request with
a description of the reason for return. The merchandise must be in its original packaging and packed safely in
accordance with the carrier's packing requirements, with the RGA number clearly marked on the outside
packaging. LACAVA reserves the right not to issue any credit, if an approved RGA number has not been obtained.
A restocking fee of 25 percent and applicable shipping charges to the customer and back will be deducted from
the credit amount. Credit (excluding shipping and handling charges) will be given only for returns of intact products
up to 30 days from the shipping date. After 30 days from the shipping date, no returns will be accepted. All returned
merchandise is at the purchaser's risk and cost. Special order and custom made items are not returnable. Products
must be inspected prior to installation and installation of the product means its acceptance. Product, once installed,
cannot be returned. Damages occurring in installation are not considered defects and are not subject to return or
refund. LACAVA will replace any defective item for free only after the non-conforming product is safely returned to
LACAVA’s warehouse safely in accordance with the carrier's packing requirements, and in its original packaging,
within 30 days from the shipping date. If the product is not found to be defective and is damaged in any way, there
may be a charge for any replacement. In any case, LACAVA does not cover installation costs.
LACAVA LLC10
Page 11
Términos y Condiciones
SINGULARIDAD:
Muchos productos están hechos de piedra natural, maderas o metales. Debido a las variaciones naturales, y / o la
naturaleza de los productos artesanales, pequeñas diferencias se pueden esperar y no se consideran defectos de
fabricación.
POLÍTICAS DE ENVÍO:
Una vez que la mercancía es entregada y aceptada por la compañía de transporte, la responsabilidad de LACAVA
termina. LACAVA LLC no es responsable por daños ocurridos en tránsito. Después que la mercancía se entrega y el
cliente firma el documento de transporte, la mercancía se convierte en la propiedad del comprador. Con el avance
de tecnología estamos constantemente mejorando nuestros modos de empaque. Pero los daños en tránsito aun
pueden ocurrir. Por lo tanto, se recomienda que todos los paquetes sean inspeccionados por el comprador en
presencia de la compañía ala hora de entrega. En el caso de daños, ya sea visible o encubierto, el comprador es
responsable de presentar cualquier reclamo por daños contra el transportista. En esta circunstancia lamentable, le
sugerimos que ser muy cauteloso y pedir a el agente de la compañía que le explique los pasos para presentar una
demanda legal contra la compañía (ya que cada compañía tiene políticas de demanda diferentes). Documente
todo por escrito, de preferencia en los documentos de embarque, también pida a el agente/chofer que firme a lo
largo. Si usted desea que nosotros, le ayudemos en el proceso de reclamo, envíenos por fax copias de los
documentos de envío y reclamo a la más brevedad posible. En el caso de que falte mercancía a su orden, ya que
no sabemos si se debe nuestro error o de un robo durante el transporte, por favor, siga el mismo proceso que el
anterior. Con la única diferencia de que el reclamo será por algo completamente desaparecido, y no por daño. Por
favor note, en la presencia del agente/chofer de la compañía, cualquier alteración visible en el empaque. En el
caso que falten artículos, también hay que informar a LACAVA y enviar todos los documentos relacionados con un
plazo de 24 horas a partir de la fecha de entrega. Vamos a abrir una investigación interna y verificar el recuento de
inventario para determinar si fue un error de nuestra parte. Si nos damos cuenta que fue nuestro error, rápidamente
se le enviara el artículo que falta al comprador por UPS (tierra) sin costo extra.
PÓLIZAS DE DEVOLUCIÓN:
LACAVA reemplazará cualquier producto defectuoso debido a defectos de fabricación sólo después de la no
conformidad del producto se devuelve al almacén LACAVA en condición vendible plazo de 30 (treinta) días a partir
de la fecha de envío. En cualquier caso, LACAVA no cubre los costes de instalación. Si el producto no es satisfactorio,
por cualquier motivo diferente de los defectos, que pueden ser devueltos a LACAVA LLC hasta 30 (treinta) días a
partir de la fecha de envío después de obtener una Autorización de Devolución de Bienes (RGA), válida por 60 días.
Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos
para el producto. La mercancía debe estar en su embalaje original y embalado de forma segura. Una tasa de
reposición de 25 por ciento y los gastos de envío aplicables a los clientes y la espalda se deducirá de la cantidad
del crédito. De crédito (excluyendo gastos de envío) se dará sólo para las devoluciones de productos intactos hasta
30 días a partir de la fecha de envío. Después de 30 días a partir de la fecha de envío, no se aceptarán devoluciones.
Toda la mercancía devuelta es a riesgo del comprador y el costo. Especial orden y artículos personalizados no son
retornables. Los productos deben ser inspeccionados antes de la instalación y la instalación del producto, su
aceptación. Producto, una vez instalado, no pueden ser devueltos. Los daños se producen en la instalación no se
consideran defectos y no están sujetos a devolución o reembolso.
LACAVA LLC 11
Loading...
