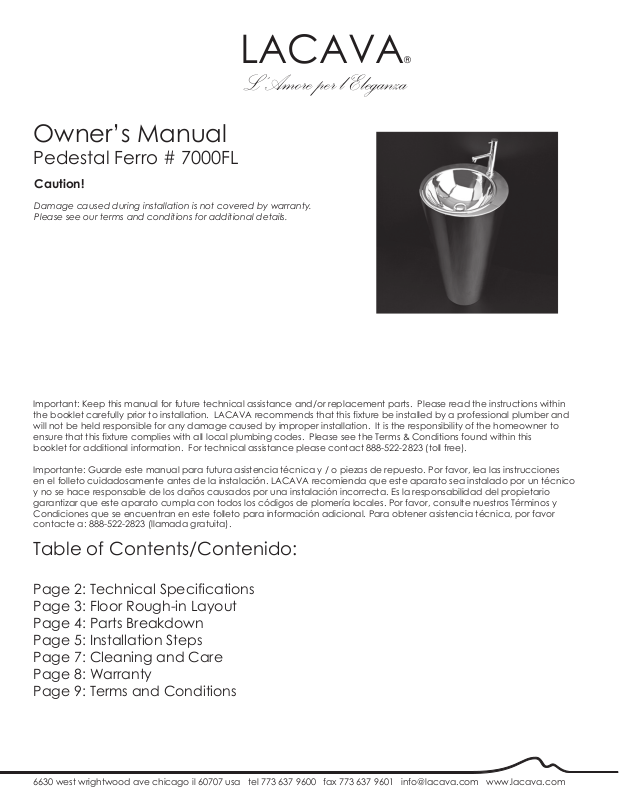

Lacava 7000 User Manual [en, es]

LACAVA®

L’Amore per l’Eleganza

Owner’s Manual

Pedestal Ferro # 7000FL

Caution!

Damage caused during installation is not covered by warranty.
Please see our terms and conditions for additional details.

Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Please see the Terms & Conditions found within this
booklet for additional information. For technical assistance please contact 888-522-2823 (toll free).

Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 888-522-2823 (llamada gratuita).

Table of Contents/Contenido:

Page 2: Technical Specifications
Page 3: Floor Rough-in Layout
Page 4: Parts Breakdown
Page 5: Installation Steps
Page 7: Cleaning and Care
Page 8: Warranty
Page 9: Terms and Conditions

6630 west wrightwood ave chicago il 60707 usa tel [phone] fax [phone] [e-mail] www.lacava.com

Technical Specifications

4"

100

1 3/4"

45

9 3/4"

250

17 1/2"

445

13 1/4"

335

14 5/8"

370

1 3/4"

45

12"

305

4 3/4"

120

32 3/4"

830

10"

255

Notes:

Drawings provided herein are meant to give the user an idea of the
product and are not made to scale. The size in inches is rounded up
to the nearest 1/16”. Slight variances can often occur with porcelain and
woodwork. Therefore, LACAVA will not be held resposible for any cutouts,
countertops, or furniture made without the actual product or template
from LACAVA. Plumbing specifications are only a guidline and may need
to be altered based on the application.

LACAVA is comitted to the highest level of customer service. Please feel
free to contact us at 1-888-522-2827 (toll free) or by email at
[e-mail] for technical assistance or any general inquiries.

LACAVA LLC 2

FLOOR ROUGH-IN LAYOUT

wall/fixed obstructions

Installation

1. Trace the bottom layout on the floor
where the pedestal is to be placed
(As shown in Fig. 1)

2. Prepare in-floor 1 1/2” drain outlet with
a PVC pipe sticking 12” above the finished
floor. Add 1 1/4” p-trap adapter.

BACK

4 3/4"

Min.

9 1/2"

240

4 3/4"

120

*Water supply (hot and cold) only if needed for deck-mount faucet, needs to be prepared
after consulting with the faucet being installed. In most cases, 3/8” compression valves are
expected. The water supplies should also be raised 10-12” above the floor.

H* C*

120

FRONT

2 x screws to the floor

(not supplied)

Bottom of the pedestal
diam. 10” (255mm)

1 1/2” drain outlet raised

12“ above the floor

Fig. 1

LACAVA LLC3
