Operating manual for

universal centrifuge

Z 306

CONTENT

1. PRODUCT DESCRIPTION....................................................................................................3

1.1 Usage in accordance with safety standards............................................................................................. .........3

1.2 Brief description....................................................................................................................................................3

1.3 Delivery package.................................................................................... ...............................................................3

1.4 Operating and display elements ............................................ ... .. .. ..... .. ... .. .. ... .... ... .. ... .. ..... .. .. ... .. .........................2

1.4.1 LCD-Display................................. .................................................................................. .....................................3

1.5 Signs and indications of the centrifuge.............................................................................................................3

1.5.1 General...............................................................................................................................................................3

1.5.2 Product-nameplate (Example)......................................................... ........................................................ ...........4

1.5.3 Warning and information signs......................... ... .. .. ..... .. ... .. .. ..... .. ... .. ..... .. .. ... .. ..... .. .. ... .. ..... .. ... ....... ....................5

1.5.4 Danger, precautions and warranty.....................................................................................................................5

1.5.5 Following rules must strictly be adhered to:.......................................................................................................6

1.5.6 Warranty.............................................................................................................................................................6

1.6 Installation of the centrifuge...................................................... ...................................................... ....................7

1.6.1 Unpacking the centrifuge....................................................................................................................................7

1.6.2 Space requirements.................................................................................................................. .........................7

1.6.3 Installation...........................................................................................................................................................7

1.7 Basic adjustments ................................................................................................................................................8

1.7.1 Access to mode „Operating Data“......................................................................................................................8

1.7.2 Sound signal turn on / off...................................................................................................................................9

1.7.3 Volume pre-selection of sound signal................................................................................................................9

1.7.4 Song selection for sound signal - end of run................................................. .......................... .........................10

1.7.5 Keyboard sound turn on- / off......................................................................................................... ..................10

1.7.6 Call up operatin g data (by skilled personnel or service engineer only!)..........................................................11

2. OPERATION........................................................................................................................12

2.1 Mounting and loading angle rotor ........................................................................................................... .........12

2.1.1 Installation of rotors..........................................................................................................................................12

2.1.2 Loading angle rotors.............................................. ...................................................... .....................................12

2.1.3 Loading swing out rotors.................. ................................................................................................................13

2.1.4 Loading and overloading of rotors.................................................................................................................. ..14

2.1.5 Removing the rotor................................................ .. ... .. ..... .. .. ... .... ... .. .. ... .... ... .. .. ... ..... .. .. ... ................................14

2.2 Lid...................... ............................ ........................................................ ...............................................................15

2.2.1 Lid release....................... ..... .. ... .. ..... .. .. ... ..... .. .. ... .... ... .. ..... .. .. ... .... ... .. .. ..... .. ... .. ..... .. ... .. .....................................15

2.2.2 Lid lock........................................................................ ............................ ..........................................................15

2.3 Preselection........................................... ............................ ........................................................... .......................16

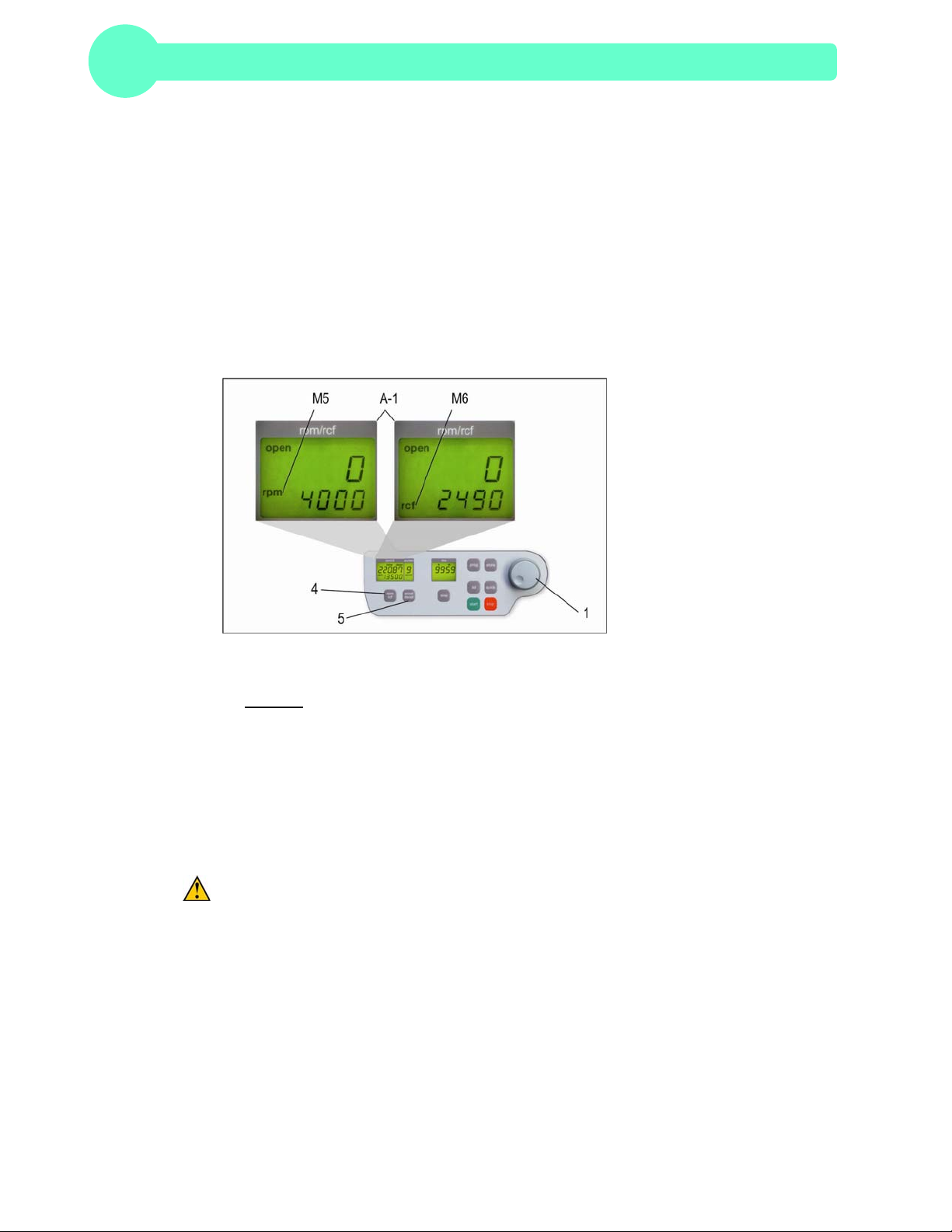

2.3.1 Preselection of speed / RCF-value..................................................................................................................16

2.3.2 Preselection of running time........................................................................................ .....................................16

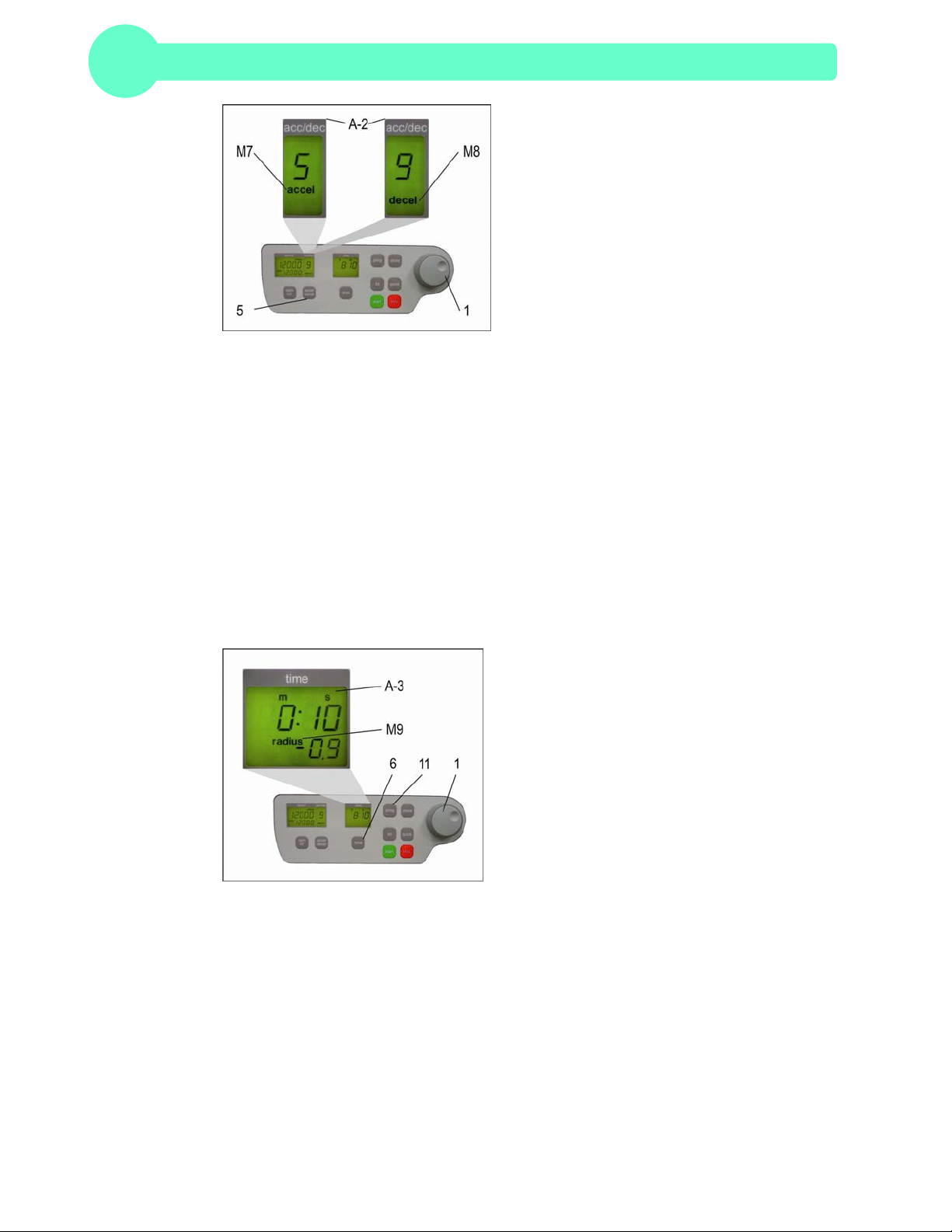

2.3.3 Preselection of brake intensity and acceleration.......................................... ............................ .......................17

2.4 Radius correction.................................... ....................................................................................... .....................18

2.5 Program........................................................................................................................... .....................................18

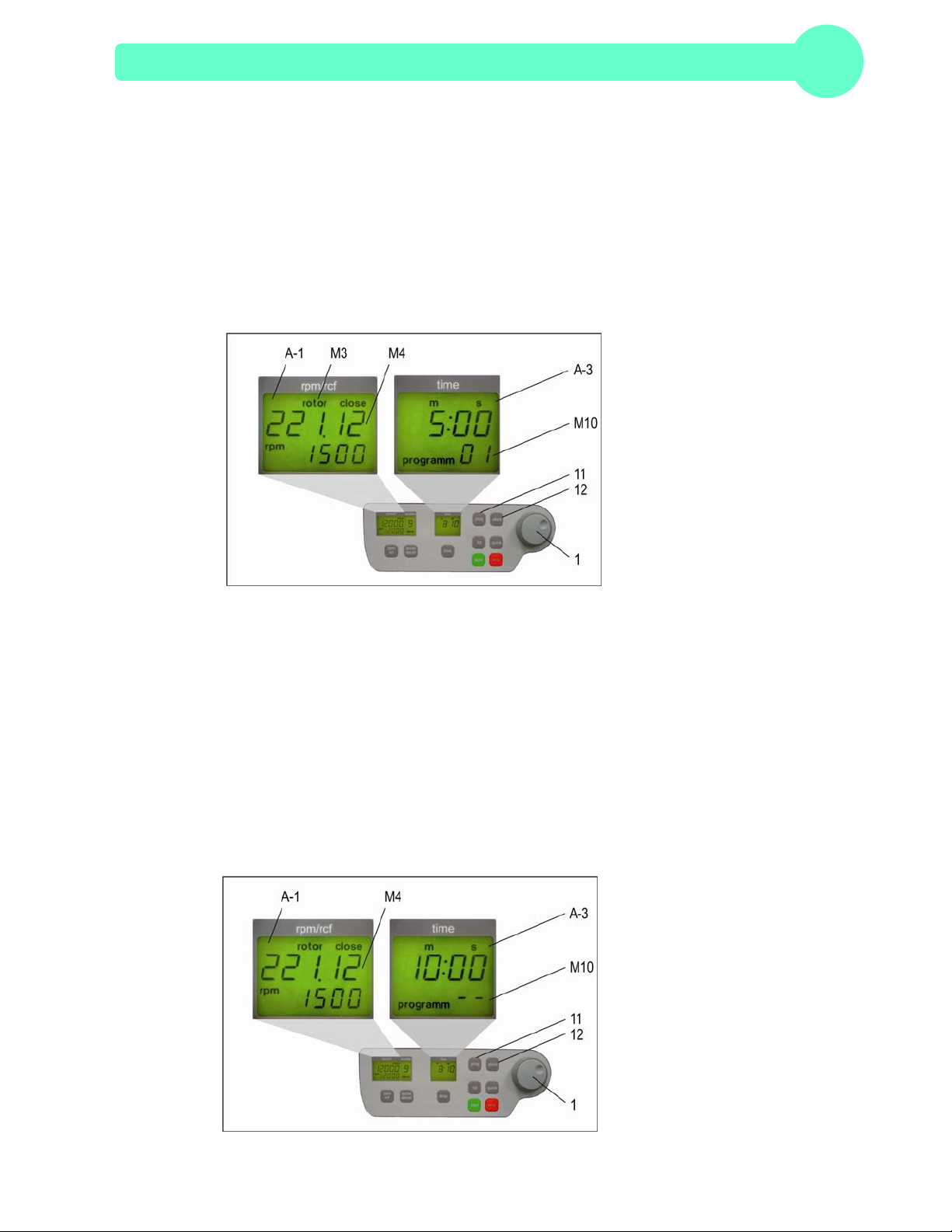

2.5.1 Storage of programs.........................................................................................................................................18

2.5.2 Recall of stored programs.......................................................... ............................ ............................... ...........19

2.5.3 Leaving program mode.....................................................................................................................................20

CONTENT

2.6 Starting and stopping the centrifuge........................................ .. .. ..... .. ... .. ..... .. .. ... .... ... .. ... .... ... .. .......................20

2.6.1 Starting the centrifuge......................................................................................................................................20

2.6.2 The „STOP“ key......................................................................................................................... .......................20

2.7 Imbalance detection ...........................................................................................................................................21

3. Maintenance........................................................................................................................22

3.1 Maintenance and cleaning............................................. ...................................................... ..............................22

3.1.1 General.................................................................................................................................... .........................22

3.1.2 Cleaning and disinfection of the unit........... .....................................................................................................23

3.1.3 Cleaning and disinfection of the rotor........................ .......................................................................................23

3.1.4 Disinfection of aluminium-rotors................................... ..... .. .. ... .. .. ..... .. ... .. .. ..... .. ... .. ... .. ..... .. .. ... .........................23

3.1.5 Disinfection of PP-rotors........................................ .. ..... .. ... .. .. ... .... ... .. .. ... .. ..... .. ... .. .. ..... .. ... .. ..............................23

3.1.6 Glass breakage....................... ................................................................................... .......................................24

3.2 Service life of rotors, round and rectangular buckets, accessories ............................................................24

4. Trouble Shooting................................................................................................................26

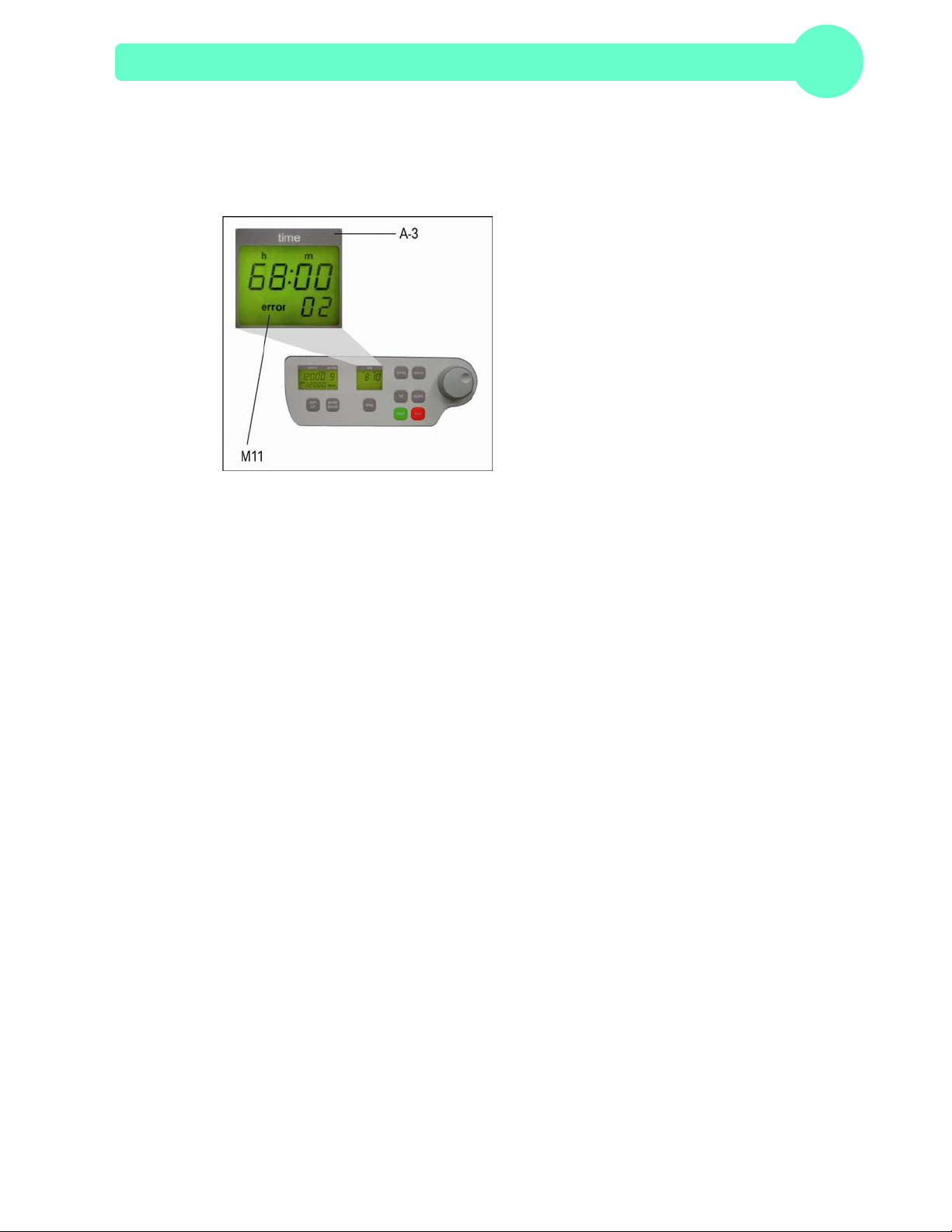

4.1 Error messages: Cause / Solution....................................................................................................................26

4.2 Survey of possible error messages and their solutions................................................................................26

4.2.1 Lid release during power failure (Emergency Lid Release)............................ .................................................26

4.2.2 Description of the error message system........................................................................................................27

5. Receipt of centrifuges to repair........................................................................................29

6. TRANSPORT, STORAGE AND DISPOSAL.......................................................................30

6.1 Transport.......................................................................................... ....................................................................30

6.2 Storage..................................................................................................................................... ............................30

6.3 Disposal ...............................................................................................................................................................30

7. APPENDIX......................................................................................................................XXXI

EC - Conformity Declaration................................................ ............................ .............................. .............................IV

Table 1: Technical Data .............................................................................................................................................V

Table 2: Permissible net weight........................................................................................ .........................................VI

Table 3: Max. speed and RCF-values for permissible rotors...................................................................................VII

Table 4: Acceleration and deceleration times............................................................... ...........................................VIII

Table 5: Error messages............................................................................................................................................IX

Tabelle 6: Radius correction........................................................................................................................... .............X

Table 7: Abbreviations used....................................................... ...............................................................................XII

Redemption form / Decontamination certificate.......................................................................................... .............XIII

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

CONTENT

1. PRODUCT DESCRIPTION

1.1 Usage in accordance with safety standards

This symbol indicates safety instructions and points to potential dangerous situations. Before using the centrifuge the first time, please read the operating manual.

Failure to follow these instructions can result in personal injury an property damage . Intended use includes the observ ance of all instructions in the instr uction manual and carrying out

inspection and maintenance. This Hermle centrifuge was designed only for the separation of materials or mixtures with different

density, specifically for the prep aration and processing of sampl es from the human body in context of an in vitro diagnostic use, to allow the use of in-vitro diagnostic in accordance to its intended purpose. The designat ed device and its accessories listed in the techni cal documentation for this device are in accordance with Directive 98/79/EC on in vitro diagnostic medical devices.

Hermle centrifuges are intended exclusively for indoor use and for use by qualified personnel. Only Hermle original rotors and accessories might be used. Any other use or intended use is

considered improper. From the resulting damage the company Hermle Labortechnik is not liable.

1.2 Brief description

1.3 Delivery package

The unit type Z 306 is a non refrigerated universal centrifuge, which we offer in two voltage variations 230V or 120V.

The centrifuge can be used with swing-out and angle rotors. All parameters are accessible via bu ttons and sel ecte d with the ce ntral a dj u ster. All pre-s el ec ted an d

current values will be shown permanently on the LCD-display. The centrifuge is powered by a maintenance-free induction motor. Detailed technical data are in "table 1 Technical data" (see APPENDIX P.V).

• 1 Centrifuge Z 306

• 1 Operating Manual Z 306

• 1 Rotor key

Rotor(s) / Accessories will be packed separate.

PRODUCT DESCRIPTION

1.4 Operating and display elements

4 5

1 central adjuster run parameters 2 0-I power switch 3 LCD control panel display 4 rpm/rcf speed/ g-force 5 accel/decel acceleration- / Deceleration intensity 6 time centrifugation time 7 lid lid release 8 quick short running 9 start start centrifugation 10 stop stop centrifugation 11 prog calling stored programs 12 store program store

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

PRODUCT DESCRIPTION

1.4.1 LCD-Display

The following picture shows the individual elements of the LCD-display.

Figure 1

Display fields: A-1 Display field – „rpm/rcf“ A-2 Display field – „acc/dec“ A-3 Display field – „time“

Messages/logos of the display fields: M1 „close“ M8 „decel“ M2 „open“ M9 „radius“ M3 „rotor“ M10 „program“

M4 Rotor-No. M11 „error“ M5 „rpm“ M12 „service“ M6 „rcf“ M13 h m s M7 „accel“

1.5 Signs and indications of the centrifuge

1.5.1 General

Instructions for disposal (see chapter 6, P. 28)

Direction of rotation – clockwise rotation for the rotor drive

PRODUCT DESCRIPTION

Reference for loading rotors

1.5.2 Product-nameplate (Example)

Company address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen

TYPE: Type designation of the product

REF: Order no. of the product

SN: Serial number of the product

Date of manufacture

MAX. Drehzahl: max. allowed speed of the unit

KIN. EN.: max. kinetic energy with corresponding rotor

U/I/f: Allowable voltage / max. current / frequency

P: Electrical input power

Before operating, read the operating manual!

Labeling, standards and guidelines that are considered

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

PRODUCT DESCRIPTION

1.5.3 Warning and information signs

Four carrier must be used at all times o n four place swing out rotors or damage will occur to the centrifuge. Such damage will not be covered under the product warranty.

Attention! Check the fastening of the rotor nut before each run.

Take off mains plug before opening the housing or the emergency release

1.5.4 Danger, precautions and warranty

This device may only be ope rated by trained specialist stuff. They must hav e carefully read

the operating manual and be familiar with the function of the device.

To protect people and environment the following precautions should be observed:

• During centrifugation, the presence of people and the setting up of hazardous materials is prohibited within 30 cm arou nd the centrifuge according to the regulations o f EN 61010-2-

020.

• The HERMLE Z 306 is non explosion-proof and must therefore not be operated in explosion- endangered areas or lo cations. Centrifugation of fl ammable, explosive, radioac tive, or such substances, which chemic ally react with high energy, i s strictly prohibited. The fi nal decision on the risks associated with the use of such substances is the responsibility of the user of the centrifuge.

• Never spin toxic or pathogenic material without adequate safety precautions, i.e. centrifugation of buckets / tubes without or with defective hermetic sealings is strictly prohibited. The user is obliged to perform appropriate disinfection procedures in case dangerous substances have contaminated the centrifuge and or its accessories. When centrifuging infectious substances, always pay attention to the General Laboratory Precautions. If necessary, contact your safety officer!

• It is prohibited to run the centrifuge with rotors other than listed for this unit.

• Under no circumstances open the lid of the cen tri fug e whi le the r otor is s till runn i ng or rota ting with a speed of > 2m/s

PRODUCT DESCRIPTION

1.5.5 Following rules must strictly be adhered to:

• Do not operate the centrifuge in case it is not installed correctly.

• Do not operate the centrifuge when dismounted (e.g. without housing).

• Do not run the centrifuge when mechanical or electrical assembly groups have been tampered with unauthorized persons.

• Do not use ac cessories such as rotors and buckets , which are not exclusively approved by HERMLE Labortechnik GmbH, except commercially available centrifuge tubes made of glass or plastic.

• Do not spin extremly corrosive substanc es, as they m ay cause materi al damages an d impair mechanica l resistance.

• Do not operate the centrifuge with rotors or buckets, which show any signs of corrosion or

mechanical damage.

The manufacturer is responsible for safety and reliability of the centrifu ge, only if:

• the unit is operated in accordance with this instruction manual.

1.5.6 Warranty

• modifications, repairs or other adjus tments are performed by HERMLE-authorized personnel and the electrical installation of the related locatio n corresponds to the IEC-regulations.

The centrifuge has been subjected to thorough testing and quality controls. In the unlikely case of any manufacturing faults occ urring, the c entrifug e and rotor s are cover ed by warr anty for a period o f two years from date of delivery. This warranty becomes invalid in case of mishandling, damage and negligence and further in case of usage of inappropriate spare parts and / or accessories or unauthorized modification of the unit.

Technical modification rights are reserved by the manufacturer in respect to technical improvement!

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

PRODUCT DESCRIPTION

1.6 Installation of the centrifuge

1.6.1 Unpacking the centrifuge

Model Z 306 is supplied in a carton. Remove the strap retainer, open the carton and remove the centrifuge. The instruction manual must

always be kept with the centrifuge!

1.6.2 Space requirements

The centrifuge should b e installed on an even solid surface, if possi ble on a laboratory cabinet / table or some other solid vibration free surface.

During centrifugation, the centrifuge must be placed in a way, that there is a minimum space of 30 cm on each side of the unit according to the standards EN 61010-2-020.

Do not place the centrifuge next to a window or a heater, where it could be dispos ed to excessive heat, as the performance of the unit is based on an ambient temperature of 23°C.

1.6.3 Installation

Follow these steps:

• Check whether power supply corresponds with the one named on the manufacturer's rating label, which is mounted on the rear panel.

• The line voltage circuit braker is max. 10 A (type K) slow release for commonly used instruments.

• In c ase of emerge ncy, there mus t be an emergenc y switch off in stalled outsi de the room in or der to disconnect the power supply of the unit.

• Connect the centrifuge with the mains.

(The socket for the power cord must be easy to reach respectively easy to disconnect). Switching it on using the mains power switch (I).

Open the lid by using the button LID.

• Remove the transport securing device of the mo tor.

PRODUCT DESCRIPTION

1.7 Basic adjustments

At commissioning of the centrifuge, you have the options to make the following basic settings:

- Acustic signal turn on / off

- Keyboard sound turn on -/ off

- Volume pre-selection of sound signal

- Song selection of sound signal „end of run“

1.7.1 Access to mode „Operating Data“

If the centrifuge is still turned off, press simultaneously the keys „time“ (6) and „lid“ (7) and turn on the main switch of the centrifuge. Now release both keys again. As a result a display test is excecuted for approx. 5 seconds. All possible indications will appear at the same time (see Figure

2).

Figure 2

Attention:

- Please notice that you must enter the program as described under point 1.7.1 to

change the adjustments of the points 1.7.2 - 1.7.6. After you have stored the settings you change the normal program mode again by switch off the centrifuge for a short while.

- All changed settings must be confirmed by the key „start“ (9). As an optical

confirmation appears the word „store“ in the display „rpm/rcf“(A-1) - Only then the pre-selections are valid! (see figure 3)

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

PRODUCT DESCRIPTION

Figure 3

1.7.2 Sound signal turn on / off

Proceed as described under point 1.7.1 to enter this program mode and then press the key „accel/decel“ (5). In the displ ay „accel/decel“ (A-2) flashes the wor d „service“. Now select the letter „L“. with the adjusting knob (1). As a result appear in the display „rpm/rcf“ (4) the words „On Sound“. If you press the key „rpm/r cf“ (4) now, the word „On“ flashes and you can switch o ff the sound wi th the adjusting knob (1) (see figure 4).

After you have stored the setting s you chan ged to the n ormal prog ram mode a gain by s witch of f the centrifuge for a short while.

Figure 4

1.7.3 Volume pre-selection of sound signal

Proceed as described under point 1.7.1 to enter this program mode and then press the key „accel/decel“ (5). In the displ ay „accel/decel“ (A-2) flashes the wor d „service“. Now select the letter „U“ with the adjusting knob (1). As a result appear in the display „rpm/rcf“ (A- 1) the words „Vol=09/Sound“. After pressi ng the key „rpm/rcf“ (4), you can adju st the desired volume between 0 (low) and 9 (loud) with the adjusting knob (1) (see figure 5).

After you have stored the settings (see 1.7.1) you changed to the normal program mode again by switch off the centrifuge for a short while.

Figure 5

PRODUCT DESCRIPTION

1.7.4 Song selection for sound signal - end of run

Proceed as described under point 1.7.1 to enter this program mode and then press the key „accel/decel“ (5). In the displ ay „accel/decel“ (A-2) flashes the wor d „service“. Now select the letter „G“. with the adjusting knob (1). As a result appears in the display „rpm/rcf“ (A-1) the word „ SonGo/Sound“. After pressing the key „rpm/rcf“ (4), you can select a song with the adjusting knob (1). (see figure 6).

After you have stored the settings (see 1.7.1) you changed to the normal program mode again by switch off the centrifuge for a short while.

Figure 6

1.7.5 Keyboard sound turn on- / off

Proceed as described under point 1.7.1 to enter this program mode and then press the key „accel/decel“ (5). In the displ ay „accel/decel“ (A-2) flashes the wor d „service“. Now select the letter „b“. with the adjusting knob (1). As a result appears in the display „rpm/rcf“ (A-1) the word „ON/BEEP“. After pressing the key „rpm/rcf“ (4), you can turn the keyboard sound (On) or (Off) with the adjusting knob (1). (see figure 7).

After you have stored the settings (see 1.7.1) you changed to the normal program mode again by switch off the centrifuge for a short while.

Figure 7

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

PRODUCT DESCRIPTION

1.7.6 Call up operating data (by skilled personnel or service engineer only!)

In the mode „Basic Adjustments“ you can call up the operating data of the centrifuge. Please proceed as described under point 1.7.1 to enter this program mode. Press the key „accel/decel“ (5). In the display „accel/decel“ (A-2) flashes the word „service“.

With the adjusting knob (1) the different information can be called up: A = previous starts of the centifuge H = previous operating hours S = software version r = converter software E = list of previous error mas sage h = running time of the motor The list of the last 99 error mess ages ca n be lo oked over by pressi ng the key „rp m/rcf“ (4) and scroll through it by the adjusting knob (1). The respec tive error co des appear in the display „rp m/rcf“ (A-1) . Please look up in „Table 5: error messages“ (see APPENDIX S. IX).

Here as well you must shortly switch off the ce ntrifuge for changing to the normal program mode again.

Figure 8

OPERATION

2. OPERATION

2.1 Mounting and loading angle rotor

2.1.1 Installation of rotors

Clean the drive shaft as well as the collet with a clean, grease-fr ee piece of cloth. Place the rotor onto the drive shaft. (see figure 9) Take care that the rotor is fully installed onto th e motor shaft.

Figure 9

Hold the rotor with one hand and sec ure the rotor to the shaft by turning the fixing n ut clockwise. Tighten fixing nut with enclosed allan key (see figure 10)

Figure 10 Figure 11

ATTENTION: For safety always ensure that rotor fixing screw is tightened before each run!! (see figure 10)

2.1.2 Loading angle rotors

Rotors must be load symetrically and with eq ual weight (se e figure 12+ 13). Th e adapt er may only be load with the appropriate ves sels. The weight differences betwe en the filled vessels are as low as possible to keep. Therefore we recommend to weighting with a balance. This reduces the wear of drive and the acoustic operating noise.

On each rotor is designated how lar ge the maximu m load per hole is . (It is allowed to op erate e.g a 12-place-rotor with 2 or 4 loaded tubes only. But the loaded borings must be opposite each other).

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

OPERATION

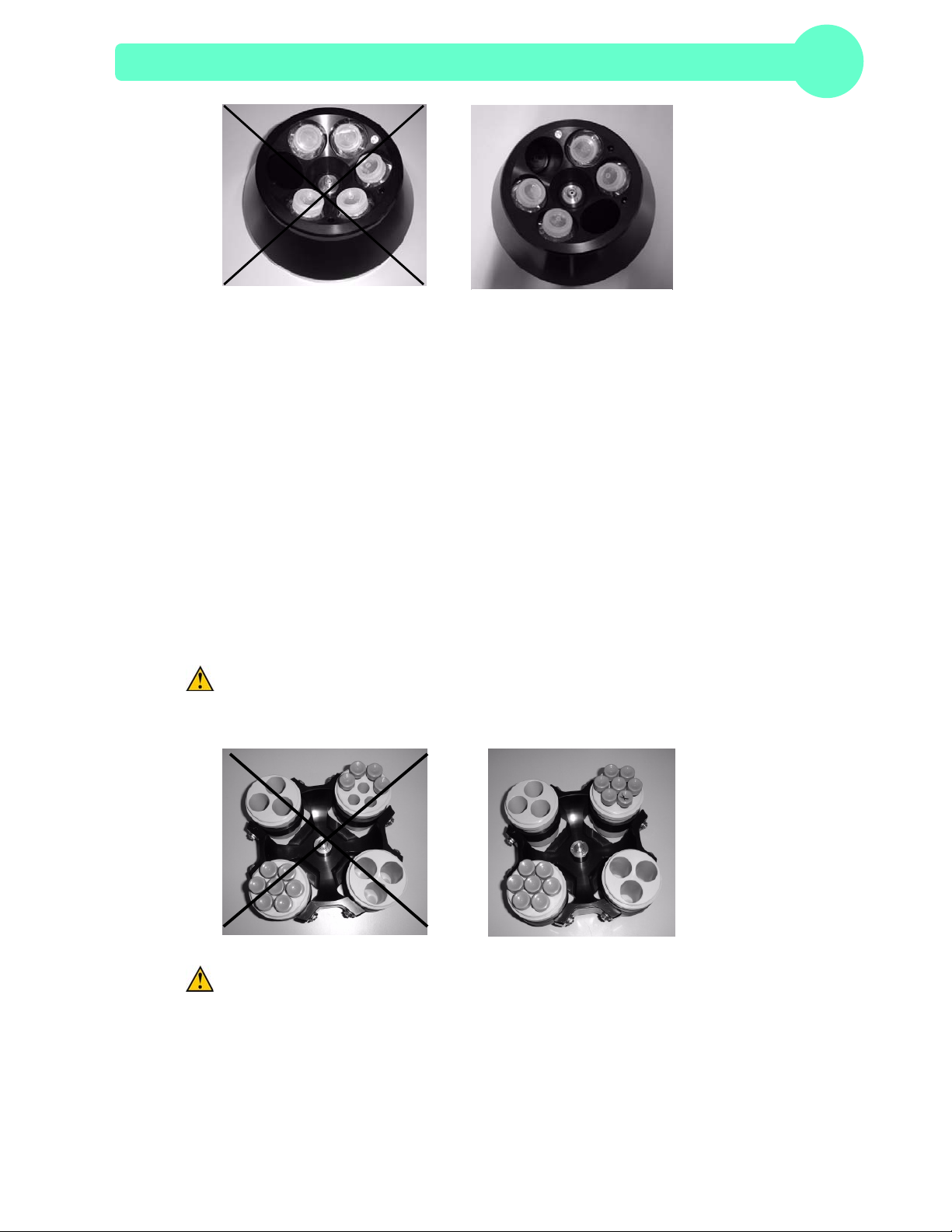

Figure 12: wrong

Figure 13: correct (4 tubes)

2.1.3 Loading swing out rotors

Loading of the buckets / vessels must be made in accordance to figure 15 It is allowed to operate e.g. a 4-place-rotor with 2 loaded buckets only. But the loaded buckets must

be opposite to each other. Make sure that the unloaded buckets also be put inside the rotor (see figure 14 and 15).

In principle swing out rotors may not be taken in operation until all buckets or racks are put into the rotor.

The bolts at the rotor must be greased with the HERMLE High EF oil (Order No. 34-5147). The

sample tubes have to be filled evenly by eye and put into the drillings or tube racks The weight difference of the loaded buckets should not exceed approx. 1,0 g.

ATTENTION!

Swing out rotors may be taken in operation only if all locations are filled in with either four buckets or four carriers – do not mix buckets and carriers up!!

Figure 14: wrong

Figure 15: correct

ATTENTION! Do not operate the centrifuge with rotors or buckets which show any signs of

corrosion or mechanical damage. Do not operate with extremel y corrosive substances, which could damage the rotor

and buckets. In case of any questions, please contact the manufacturer!

OPERATION

2.1.4 Loading and overloading of rotors

All approved rotors are listed with their maximum speed and maximum filling weight in „table 2: permissible net weight“ (see APPENDIX P. VI).

The maximum load permitted for a rotor, which is determined by the manufacturer, as well as the maximum speed allowed for this rotor (see label on rotor), must not be exceeded. The liquids the rotors are loaded with, should hav e an max. ho moge neous densi ty of 1,2 g/ml or less when th e rotor is running at maximum speed.

In order to spin liquids with a higher density, the speed has to be reduced according to the following formula:

Reduced speed n

= x max. speed (n

red

) of the rotor

max

Example:

= x 4.000 = 3.360 rpm

red

If In case of any questions, please contact the manufacturer!

2.1.5 Removing the rotor

Untighten the rotor fixing nut complete (2. screw over the stiff point) and lift the rotor vertical out of the centrifuge. (See figure 10 and 11)

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

OPERATION

2.2 Lid

2.2.1 Lid release

After the run, respectively closing the lid of the centrifuge, it appears in the display „rpm/rcf“(A-1) the word „close“ (M1). If there is a rotor in the centrifuge, it appears additional the word „rotor“ (M3), as well as the code number of the resp ecti ve rotor , which is in the centrifuge i. e. „221.28“ (M4). If there is no rotor in the centrifuge it flashes the word „rotor“ (M3) and additional the word „no“ (M4). ). By pressing the key „lid“ (7) you can release the lid of centrifuge. As soon as the electromagnetic lid is completely released, it appears the word „open“ (M2 ). Now you can open the lid of the centrif ug e.

All with number marked passages refer to figure 16

Figure 16

During the run you can call up the rotor type at any time by pressing the key “lid” (7).

2.2.2 Lid lock

The lid must be pressed down. An electromagnetic lid lock closes the lid, at the same time disappears the word „open“ (M2).

As a sign that the centrifuge is ready for starting it appears in the display „rpm/rcf“(A-1) the word „close“ (M1). Simultane ously it appears in that display the word „rotor“ (M 3), as well as the code number of the rotor, which is in the centrifuge i. e. „nr 22x.xx“ (M 4). With that all rotor specific ally data, like e. g. max. speed, acceleration etc., are adopted.

All with number marked passages refer to figure 16

ATTENTION: Don't grip your fingers between lid and device or locking mechanism

when closing the lid!

OPERATION

2.3 Preselection

2.3.1 Preselection of speed / RCF-value

Through the key „rpm/rcf“ (4) this pre-selection is activated. By pressin g t he key once the word „rpm“ (M5) flashes. By pressing the key once again the pre-selection of the centrifugal forces may be chosen. Then it appears the flashing word „rcf“ (M6). You can set the desired values with the adjusting knob (1). In the display (A-1) the regulated value is shown permanently, before, during and after the run.

All with number marked passages refer to figure 17

Figure 17

As long as no rotor is inserted, the spee d is adjus table between 20 0 rpm and maximu m revo lutio n of the centrifuge

If there is a rotor in the centrifug e the s pee d can only be pr e-selec ted un til the maxi mum per miss ible revolution of that rotor. It is the same with the pre-selection of the RCF-value. The setting range is between 20 xg and the maximum permissible centrifugal force of the rotor.

See „table 3: max. speed and RCF-values for permissible rotor“ (see APPENDI X P. VII). There are listed all important values.

ATTENTION: Please also check the maximum permissible revolutions of your test tubes! (Producer

Indication)

2.3.2 Preselection of running time

The running time can be pre -selected in three dif ferent ranges from 10 secon ds up to 99 hours 59 minutes.

1. Range from 10 seconds up to 59 minutes 50 seconds in steps of 10 seconds

2. Range from 1 hour up to 99 hours 59 minutes in steps of 1 minutes

3. Range continuous run „cont”, which can be interupted by the key “stop” (10).

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

OPERATION

The running time can be pre-selected with the lid open or closed. To activate the setting of the running time press the key „time“ (6). In the display „time“ (A-3) flashes the indication „m : s“ or „h : m“, depending on the previous

setting. To set the desired value use the adjusting knob (1). After exceeding of 59 min 50 sec the indication

changes automatically into „h : m“. After exceeding of 99 hours 59 min the word „cont” appears in the display „time” (A-3). That continuous run can only be interrupted by pressing the key „stop” (10). The time countdown as soon as the setted speed is reached.

The display shows always the remaining running time. (see figure 18) All with number marked passages refer to figure 18

Figure 18

2.3.3 Preselection of brake intensity and acceleration

Through the key „accel/decel“ (5) this function is activated. By pressing the key once the word „accel“ (M7) flashes in the display „accel/decel“ (A-2). The

desired acceleration can be pre-selected by the adjusting knob (1). The value 0 is equivalent to the lowest and the value 9 to the highest acceleration.

By pressing the key „accel/decel“ (5) twice, in the display „accel/decel“ (A-2) indicates the word „decel“ (M8). Now th e desired brake intensity can be pre-selected by the adjusting knob (1). The value 9 is equivalent to the shortest and the value 0 to longest possible brake time.

All with number marked passages refer to figure 19 See „table 4: acceleration and deceleration times“ (APPENDIX P. VIII). There are shown the

acceleration and deceleration times for the acceleration and deceleration stages 0 to 9 for permissible rotors.

OPERATION

Figure 19

2.4 Radius correction

If you use adapters or reducers it could change the centrifugal radius of the respective rotor. In that case you can correct the radius manually. Please proc eed as follows:

Press the key „time“ (9) and the key „prog“ (11) at the same time and hold them. In the display „time“ (A-3) appears the wor d „radius“ (M9). By the adjusting knob (1) y ou can pre-

select then the respective radius correction (see table 6, APPENDIX P. X) in steps of 0,1 cm. As soon as you have set a radius corr ection the word „radius“ (M9) appears. This hin t is as long

visible as you put the radius correction back to 0 again.

All with number marked passages refer to figure 20

Figure 20

2.5 Program

2.5.1 Storage of programs

You can store up to 99 runs with all r eleva nt parame ters, incl . the use d rotors . You can us e any free program number and call it up again.

Put the needed rotor into the centrifuge. By pressing the key „prog“ (11) in the display „time“ (A-3) appears the word „program“. With the adjusting knob (1) you can chose the desired program number.

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

OPERATION

If a program number is alrea dy occupied in the di splay „rpm/rcf “ (A-1) will appear the wor ds „rotor” (M3) and „22x.xx“ (M4). In case of free program numbers it appears 0.

Close the lid of the centrifuge. Now proceed as already described to set all important run parameters.

For adaption of data press the key „store“ (12) for approx. 1 second. As a result the word „program“ (M10) disappears. As soon as the key „store“ (12) is no longer anymore, it reappears the word „programm xx“ (M10) – the (xx) sta n ds for the chosen program plac e .

If all program numbers are occupied you can take an old number that is not necessary anymore and just put in the new parameters.

All with number marked passages refer to figure 21.

Figure 21

2.5.2 Recall of stored programs

To recall stored programs press the key „prog“ (11) while the lid is already closed. Inside the display „time“ (A-3) appears „programm --“(M10). With the adjusting knob (1) you pre-select the desired program number.

In the respective displays there will appear the stored values for that program. If there is not the right rotor inside the centrifuge for the pre-selected program, in the display

„rpm/rcf“ (A-1) flashes the word „rotor“ (M3) . At the same time the word „FALSE“ and the stored rotor number „22x. xx“ (M4) will flashing by turns.

All with number marked passages refer to figure 22.

Figure 22

OPERATION

2.5.3 Leaving program mode

To leave the program mode jus t press the key „prog“ (11). Then inside the display „time“ appears the word „Programm".

Set the display to „programm--“ (M10) with the adjusting knob (1). All with number marked passages refer to figure 22.

2.6 Starting and stopping the cen trifuge

2.6.1 Starting the centrifuge

You can start the centrifuge either with the „start“ key (9) or the „quick“ key (8). By the „start“ key (9) you can start stored runs or runs with manually pre-selected parameters. When the respective pre-selected running time has ended then the centrifuge will stop automatically. By the „quick“ key (8) you can start runs, which will last just a few seconds. By pressing the „quick” key (8) the centrifuge accelerates up to the pre-selected revolution. In the display „time“ (A-3) the passed ru nning time is indi cated from the date of press ing the „quick ” key (8). By releasing the „quick” key (8) the centrifuge stops and the running time is indicated until the opening of the lid.

All with number marked passages refer to figure 23

Figure 23

2.6.2 The „STOP“ key

By the „stop“ key (10) (se e figure 24) you can interrup t the run at any time. After pressing the key the centrifuge decelerates with the respective pre- selected intensity down to stand still.

Figure 24

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

OPERATION

2.7 Imbalance detection

In case of the rotor not being equally loaded, the drive will turn off during acceleration. The rotor decelerates to stand still.

When in the display “time” (A-3) the word “error” (M11) together with the number “01” appear, the weight difference of the samples is too huge. Weigh out the samples exactly!

Load the rotor as described in chapter 2.1.1 and 2.1.2.

When inside the display “time” (A-3) t he word “error” together with the number “02“ (see figure 25) appear, there could be following reasons: The imbalance switch is defective.

Figure 25

MAINTENANCE

3. Maintenance

3.1 Maintenance and cleaning

3.1.1 General Care:

Maintenance of the centrifuge is confined to keeping the rotor, the rotor chamber and the rotor accessories clean as well as to regularly lubricating the rotor insert bolts of a swing out rotor (if available).

The most suitable lubricant is the offered HERMLE High TEF oil – Order no.: 34-5147. Lubricants containing molycote and graphite are not allowed. Please pay special attention to anodized aluminium parts. Breakage of rotors can be caused even

by slightest damages.

In case of rotors, buckets or tube racks getting in touch with corrosive substances the concerned spots have to be cleaned carefully.

Corrosive substances are for instance: alkalis, alkaline soap solutions, alkaline amines, concentrated acids, solutions containing heavy metals, water-free chlorinated solvents, saline solutions, e.g. salt water, phenol, haloge n ated hydrocarbons.

Cleaning – units, rotors, accessories:

- Turn the device off and disconnect it from the power supply before you begin any cleaning or

disinfecting. Do not pour liquids into the housing interior.

- Do spray disinfectant on the device.

- Thorough cleaning not only has its purpose in hygiene but also in avoiding corrosion based

on pollution.

- In order to avoid damaging anodized parts such as rotors, reduction plates etc., only pH-

neutral Detergents with a pH-value of 6-8 may be used for cleani ng. Alkaline cleaning agents (pH-value > 8) must not be used.

- After cleaning, please ensure all parts are dried thoroughly, either by hand or in a hot-air

cabinet (max. Temperature + 50°C).

- It is necessary to coat anodi zed aluminium parts with anti-corrosion o il regularly in order to

increase their life-spans and reduce corrosion predisposition.

- Due to humidity or not hermetically sealed samples, condensate may be formed. The

condensate has to be removed from the rotor chamber with a soft cloth regularly.

The maintenance procedure has to be repeated every 10 to 15 runs, but at least once a week!

- Connect the unit to the power supply, after the equipment is completely dry.

- Do not carry out disinfection with UV-, beta- and gamma-raysor other high energy radiation.

- Metal rotors can be autoclaved.

- Rotor lid and adapters can also be autoclaved (max. 121°C, 20 min).

- The tube racks are made of PP and can not be autoclaved at 134°C.

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

MAINTENANCE

3.1.2 Cleaning and disinfection of the unit

1. Open the lid before you turn off the unit. Disconnect it from the power supply.

2. Open the rotor nut by turning the rotor key counter clockwise.

3. Remove the rotor.

4. For cleaning and desinfection of the unit and the rotor chamber using the above mentioned

cleaner.

5. Clean all accessible are as of the device and its accessori es, including the power cord with a

damp cloth.

6. Wash the rubber seals and rotor chamber thoroughly with water.

7. Rub the dry rubber seals with glycerol or talc to prevent these to becoming brittle. Other

components of the unit, e.g. the lid lock, motor shaft and rotor must not be greased.

8. Dry the motor shaft with a soft, dry and lint-free cloth.

9. Control the unit and accessories for damage. Remove at least every six months adherent dust from the ventilation slots in the centrifuge by using

a soft brush.

3.1.3 Cleaning and disinfection of the rotor

1. Clean and disinfect the rotors, rotor lids and adapters with the above mentioned c leaner.

2. Use a bottle brush to clean and disinfect the rotor bores.

3. Rinse the rotors, rotorlid and adapter with clear water. Particular the drillings of angle rotors.

4. For drying of the rotors and access ories set them on a towel. Pl ace the angle rotors with bores

down, to dry them to.

5. Dry the rotor cone with a soft, dry and lint-free cloth and look for damage. Do not grease the

rotor cone.

3.1.4 Disinfection of aluminium-rotors

In case of infectious material spilling into the centrifuge, the rotor and rotor chamber have to be disinfected right after the run. Rotors may be autoclaved at a maximum temperature of 121°C.

3.1.5 Disinfection of PP-rotors Autoclaving

The recommended time for autoclaving: 15 – 20 min at 121°C (1 bar)

ATTENTION: The sterilization time of 20 min. must not be exceeded. Sterilizati on again and again will cause reduction of the mechanical resistance of the plastic material

Before the autoclaving the PP-rotor and adapter must thoroughly be cleaned to avoid the burning in of dirty residues.

You can disregard the consequences of some chemical residues to plastic materials at ambient temperatures. But at the high temperatures of the autoclaving those residues may corrode and

MAINTENANCE

destroy the plastic. The objects must be thoroughly washed up with distilled water after the cleaning but before the autoclaving. Residues of any cleaning liquids may cause fissures, whitening and stains.

Gassterilization

Adapters, bottles and rotors may be gassterilized with Ethylenoxyd. According to the duration of the application you may give lo ng enough an airing to the items after the sterilization and befor e using them again.

ATTENTION: Because the temperature may rise during the st erilization, rotors, adapters and bottles must not be closed respectively must be totally unscrewed

Chemical sterilization

Bottles, adapters and rotors may be treated with the usual liquid disinfectants.

ATTENTION: Before applying any other cleaning resp. Decontamination method than recommended by the manufacturer, contact the manufacturer to ensure that it will not damage the unit or the rotor.

3.1.6 Glass breakage

With high g-values, the r ate of glass tube br eakage increases. Glas s splinters have to be removed immediately from rotor, buckets, adapters and the rotor chamber itself. Fine glass splinters will scratch and therefore dam age the protective surface coati ng of a rotor. If glass splinters remain in the rotor chamber, fine metal dust will build up due to air ci rculation. Th is very fine, blac k metal dust will extremely pollute the rotor chamber, the rotor, the buckets and the samples.

If necessary, replace the ada pters, t ubes and ac cessor ies to av oid furth er dama ges. Ch eck the rot or bores regulary for residues and damages.

ATTENTION: Please check the relevant specifications of the tubes centrifuges with the manufacturer!

3.2 Service life of rotors, round and rectangular buckets, accessories

Rotors and rotor lid made of aluminium or s tainless steel , have a operati ng life of max. 7 years fro m first use.

Transparent rotor lids and caps made of PC or PP as well as rotors, tube racks and adapters of PP have a maximum service life up to 3 years from first use.

Condition for the operating life: Proper use, damage-free condition, recommended care.

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

MAINTENANCE

TROUBLE SHOOTING

4. Trouble Shooting

4.1 Error messages: Cause / Solution

The error messages are listed to help localize possible errors faster. The diagnose referred to this chapter may not always be the case, as they are only theoretically

occurring errors and solutions. Always, please keep us infor med about any kin d of error occurring, whic h is not listed in this ch apter.

Only through your information we are able to improv e and complete this operation manual.

Many thanks in advance for your support.

HERMLE Labortechnik GmbH

4.2 Survey of possible error messages and their solutions

4.2.1 Lid release during power failure (Emergency Lid Release)

In case of power failure or malfunction, the lid of the centrifuge can be opened manually in order to protect your samples.

Please proceed as foll ows (see Figure 26):

• Switch the centrifuge off and unplug the power cord, wait until the rotor stands still (this

may take several minutes) At the right side of the centrifuge there is a plastic stopper (Figure 26). Remove this stopper, which is connected to the lid lock, horizontally from the housing until the centrifuge lid opens.

• Now open the lid of the centrifuge.

Figure 26

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

TROUBLE SHOOTING

4.2.2 Description of the error message system

The error message „error“ (M11) is shown in the „time“ (A-3) display (see figure 27). Detailed information about possible error messages are in „table 5: error messages" (see Appendix P.IX).

Figure 27

TROUBLE SHOOTING

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

REPAIR

5. Receipt of centrifuges to repair

Health risk from contaminated equipment, rotors and accessories

In case of returning the centrifuge for repairing to the manufacturer, please notice the following: The centrifuge must

be decontaminated and cleaned before the shipment for the protection of

persons, environment and materi al.

Decontamination certificate at goods return delivery (see APPENDIX P. XIV)

We reserve the right to accept contaminated centrifuges. Further on all costs occurred for the cleaning and disinfection of the units will go to the debit of the

customer’s account.

TRANSPORT / STORAGE / DISPOSAL

6. TRANSPORT, STORAGE AND DISPOSAL

6.1 Transport

Before transporting, take out the rotor. Only transport the unit in the original packaging. Use a transport aid for transporting over longer distances to fix the motor shaft.

Airtemperature rel.humidity Airpressure

6.2 Storage

6.3 Disposal

Generaltransportation ‐25bis60°C 10bis75%30bis106kPa

During storage of the centrifuge the following environmental conditions must be observed:

Airtemperature rel.Humidity Airpressure

intransportpackaging ‐25bis55°C 10bis75%70bis106kPa

In the event of disposing of the product, please observe the app licable legal regulations.

Information on the disposal of the electrical and electronic devices in the European Community:.

The disposal of the electrical devices is regulated within the European Community by national regulations based on EU Directive 2002/96/EC pertaining to waste electrical and electronic equipment (WEEE).

In accordance with this, any devices delivered after 13/08/2005 on a business-to-b usiness basis, which includes the product, may no longer be disposed of in household waste. To document this they have been marked with the following identification:

Because disposal regulatio ns may differ from one country to anoth er within the EU please contact your supplier if necessary.

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

TRANSPORT / STORAGE / DISPOSAL

7. APPENDIX

EC - Conformity Declaration ............................................................................................... IV

Table 1: Technical Data ....................................................................................................... V

Table 2: Permissible net weight.......................................................................................... VI

Table 3: Max. speed and RCF-values for permissible rotors.......................................... VII

Table 4: Acceleration and deceleration times................................................................. VIII

Table 5: Error messages...................................................................................................... IX

Tabelle 6: Radius correction................................................................................................ X

Table 7: Abbreviations used .............................................................................................. XII

Redemption form / Decontamination certificate............................................................. XIII



APPENDIX

EC - Conformity Declaration

EG Konformitätserklärung

EC Conformity Declaration

Hermle Labortechnik GmbH - Siemensstr. 25 - D-78564 Wehingen – Germany

Das bezeichnete Produkt entspricht den einschläg ig en gru nd l eg en de n Anf orde rungen der aufgeführten EG-Richtlinien und

Normen. Bei einer nicht mit uns abgestimmten Änderung des Produktes oder einer nicht bestimmungsgemäßen Anwendung

verliert diese Erklärung ihre Gültigkeit.

The Product named below fulfills the relevant fundamental requirements of the EC directives and standards

listed. In the case of unauthorized modifications to the product or an unintended use this declaration

becomes invalid.

Produkttyp

Product type

Laborzentrifugen mit Zubehör nach „IVD (andere)”

Laboratory centrifuge with accessories to “IVD (others)”

Typenbezeichnung

Typ designation

Z 100 M; Z 160 M; Z 206 A; Z 233 M-2; Z 306; Z 326; Z 366; Z 383; Z 400; Z 513;

Z 216 MK; Z 32 HK; Z 326 K; Z 36 HK; Z 383 K; Z 400 K; Z 513 K

Einschlägige EG-Richtlinien / Normen

Relevant EC directives / standards

98/79/EG ; 2006/95/EG ; 2004/108/EG

EN 61 010-1; EN 61 010-2-020; EN 61 010-2-101

EN ISO 14971:2007; DIN ISO 13485

Wehingen, den 01.01.2012 Alexander Hermle

Z306 Instruction manual.docx © Hermle Labortechnik GmbH

Geschäftsführer, Managing Director

Table 1: Technical Data

APPENDIX

Weight wit hout roto r m ax. speed max. volume max. RCF allowable density allowable kinetic energy M ains power connection AC Voltage fluctation ± 10 % Current consumpt ion 1,3 A Power consum pt ion 0,24 KW Radio interference

30 kg 13500 m in

-1

4 x 100 m l 18625 x g

1,2 kg/ dm

5595 Nm ( Rot or 221. 17 V 03) 230 V / 50 H z 1 ph

VDE 0871, radio interference B

120 V / 60 H z 1 ph

± 10 %

2,4 A

0,3 KW

Audit requirement (BGR 500) no Am b ient cond itions (EN/ IEC 61010-1) Environement High Am b ient temperature Max. relative humidity

Use up to an altitude of 2000 m above MSL

Max. relative humidity 80 % for temperatures up to 31°C,

for indoor use only

2°C up to 35 °C

decreasing linearly to 50% relativ e humidity up t o 35° C Overvoltage cat egory (IEC 60364-4-443) II Degree of cont amination Class of protect ion

Not suitable for use in hazardous environements EMV EN / IEC FCC Class B EN / IEC FCC Class B Interference emission, noise immunity

61326-1

Category B Category B

Nois e leve l (depend in g on the rot o r)

≤

63dB(A) Write from operator Inventory-No.: Monitoring-Nr.: Environement: Maintenance contract:

HERMLE Labortechnik GmbH or dealer service office Siemensstrasse 25

responsible service office

78564 Wehingen Tel.: (49)7426 / 96 22-17 Fax: (49)7426 / 96 22-49

responsible dealer

APPENDIX

Table 2: Permissible net weight

Max. speedRotor number

Permissible

net weight

220.50 V08

220.72 V06

220.87 V09

3500 min-1 4000 min-1

13500 min-1

4 x 200 g 4 x 465 g

24 x 3,4 g

220.87 V10 13500 min-1 24 x 3,4 g

220.96 V04

220.97 V04

221.12 V03

221.16 V03

221.17 V03

221.19 V02

221.24 V02

221.25 V03

6000 min-1 6000 min-1 4500 min-1 4500 min-1

12000 min-1

4500 min-1 3250 min-1 5000 min-1

12 x 25 g

6 x 72 g 4 x 340 g 2 x 400 g

30 x 3,4 g

30 x 32 g

2 x 70 g 6 x 110 g

Table 3: Max. speed and RCF-values for permissible rotors

APPENDIX

Rotor number

220.50 V08

220.72 V06

220.87 V09

220.87 V10

220.96 V04

220.97 V04

221.12 V03

221.16 V03

221.17 V03

221.19 V02

221.24 V02

221.25 V03

RCFMax. speed

value 3500 min-1 1424 xg 4000 min-1 3885 xg

13500 min-1 17319 xg 13500 min-1 17319 xg

6000 min-1 4185 xg 6000 min-1 3823 xg 4500 min-1 3350 xg 4500 min-1 2716 x g

12000 min-1 15133 xg

4500 min-1 2830 xg 3250 min-1 1700 xg 5000 min-1 3801 xg

APPENDIX

Table 4: Acceleration and deceleration times

Acceleration values Deceleration values

Rotor number

220.50 V08 110 14 250 19

220.72 V06 110 14 170 17

220.87 V09 200 22 230 35

220.87 V10 200 25 230 35

220.96 V04 105 13 200 13

220.97 V04 105 13 200 13

221.12 V03 110 14 170 19

221.16 V03 230 25 340 26

221.17 V03 250 27 280 34

221.19 V02 157 19 370 20

221.24 V02 95 12 230 15

221.25 V03 206 24 870 30

level 0 level 9 level 0 level 9

in se c o nds

DecelertaiontimeAccelertaiontime

from0min

‐1

‐>U

max

fromU

‐>0min

max

‐1

VIII

Table 5: Error messages

Error-No.: Description

1 Imbalance arose 2 Imbalance sensor is defective 4 Imbalance switch has been activated for longer than 5 seconds 8 Transponder in the rotor is defective

Leap of speed is too big between two measurements

CLOSE lid

33 Open lid while motor is running 40 Communication with frequency converter disturbed during start

41 Communication with frequency converter disturbed during stop 42 Short circuit in the frequency converter 43 Undervoltage frequency converter

APPENDIX

44 Overvoltage frequency converter 45 Over temperature frequency converter 46 Over temperature motor 47 Over current frequency converter 48 Timeout between control unit and frequency converter 49 Other error frequency converter 55 Overspeed 99 Rotor is not allowed in this centrifuge

FALSE

rotorno

Inserted rotor does not exist in the program Rotor is not detected

APPENDIX

Tabelle 6: Radius correction

Rotorno. Adapter/Tube‐

rackOrderno.

Swingoutrotor

220.72V04

605.004 220.72.60.03 14,6 0

Drawing.no. Radius

(cm)

Correction

(cm)

 605.005 220.72.61.03 14,6 0,0  605.000/001 220.72.06.03 14,2 ‐0,4  705.002 220.72.73.04 14,0 ‐0,6  705.003 220.72.74.04 14,0 ‐0,6  705.005 220.72.76.04 13,7 ‐0,9  705.007 220.72.79.14 14,0 ‐0,6  705.008 220.72.80.14 14,0 ‐0,6  705.009 220.72.84.04 14,6 0  705.010 220.72.85.04 14,0 ‐0,6  705.012 220.72.62 14,0 ‐0,6  705.013 220.72.63 13,9 ‐0,7  705.014 220.72.64 13,1 ‐1,5  705.015 220.72.65 14,0 ‐0,6  705.016 220.72.66 14,0 ‐0,6   220.72.88 13,9 ‐0,7

Anglerotor

220.87V09

 

8,6 0

220.87V10

 704.004 220.56.55.04 8,2 ‐0,4

 704.005 220.56.56.04 7,5 ‐1,1

Anglerotor

220.96V04

601.005 220.96.05.04 10,5 0

 Special 220.96.17 9,8 ‐0,6

 220.96.17

With

220.96.08.04

9,0 ‐1,5

       220.96.12.04 10,7   220.96.12.04 With 9,8 ‐0,6   220.96.08.04    220.96.05.04 With 9,7 ‐0,8

  220.96.08.04  

 701.011 220.96.06.04 9,7 ‐0,8

 701.012 220.96.07.04 8,3 ‐2,2

Anglerotor

220.97V04

Swingoutrotor

220.50V08

603.000 220.97.04.04 9,8 0

  10,2 0

Table 6 (part 2): Radius correction

APPENDIX

Rotorno. Adapter/Tube‐

rackOrderno.

Swingoutrotor

221.12.01.02

Swingoutrotor

221.16.01.02

Anglerotor

221.17.01

Anglerotor

221.19.01

Swingoutgrotor

221.24.0 1

Anglerotor

221.25.01

Drawingno. Radius(cm) Correction

(cm)

626.003 221.12.09.03 14,8 0

626.000 221.12.08.03 14,1 ‐0,7

626.001 221.12.10.03 14,1 ‐0,7

626.002 221.12.07.03 14,6 ‐0,2

626.004 221.12.11.03 14,5 ‐0,3

626.005 221.12.13.03 14,2 ‐0,6

626.006 221.12.06.03 14,2 ‐0,6

626.007 221.12.12.03 14,0 ‐0,8

626.008 221.12.16 14,2 ‐0,6

626.009 221.12.17 14,2 ‐0,6

626.010 221.12.18 14,3 ‐0,5

626.011 221.12.19 13,8 ‐1,0

626.012 221.12.20 14,4 ‐0,4

626.013 221.12.21 14,5 ‐0,3

626.014 221.12.22 9,9 ‐4,9

626.015 221.12.24 11,6 ‐3,2

10,2 0

706.000 220.50.25.04 10,2 0

9,5 0

704.004 220.56.55.04 9,1 ‐0,4

704.005 220.56.56.04 8

4 ‐1,1

12,5 0 10,9

701.000 225.52.71.04 8 ‐4,5 6,4

701.010 220.96.08.04 11,3 ‐1,2 9,7

701.011 220.96.06.04 12,2 ‐0,3

10,6

701.012 220.96.07.04 10,5 ‐2,0 8,9

221.24.03 14,36 0

13,6 0

221.25.06 13,3 ‐0,3

APPENDIX

Table 7: Abbreviations used

Symbol/Abbreviation

U(=rpm)

Unit Description

‐1

[min

revolutionsperminute

]

RZB(=rcf) [xg] relativecentrifugalforce

PP ‐ Polypropylen PC ‐ Polycarbonat accel ‐ acceleration decel ‐ deceleration

XII

APPENDIX

Redemption form / Decontamination certificate

Decontamination certificate at goods return delivery

Enclose at all returns of equipment and assemblies absolutely!

The completely full declaration about the decontamination is prerequisite for the assumption and further processing of the return. If no corresponding explanation is enclosed, we carry out decontamination with costs at your expense.

Surname; last name: _____________________________________ Organization / company: ____________________________________ _ Street: _____________________________________ ZIP CODE: _____________ place:____________________ Telephone: _____________ fax:____________________ E-Mail: _____________________________________

capitals!

Please fill out in block

Pos. Crowd Decontaminated

object 1 2 3 4

Are these parts listed above in touch with the following substances?

Health endangering watery solutions, buffers, acids, alkalis:……….............. .....  Yes  No

Potentially infectious agents: ………………………………………………………...  Yes  No

Organic reagents and solvent: ………………………………...…….....................  Yes  No

Radioactive substances: ………………………………………..… α.. β.. γ..  Yes  No

Health endangering proteins: …………………………………….…………….........  Yes  No

DNA: ………………………………………………………………………………….….  Yes  No

These substances have reached the equipment/assembly? …………………………..  Yes  No

Which one, if yes: ________________________________________________________________

Description of the measures for the decontamination of the listed parts:

Serial number Description / Comment

I confirm the proper decontamination:

Company/dept ._____________ place and date: ____________________________________

APPENDIX

Signature of the authorized person: ________________________________________

XIV

NOTES

31 Mayfield Ave. Edison, NJ 08837 • USA • US • toll free: 888-LABNET1 • fax: 732 417-1750 • International • phone: +1-732-417-0700 • fax +1-732-417-1750 website: http://www.labnetinternational.com

email: labnetinfo@corning.com

Labnet Z306 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
