Labgear FV100 User Manual
DIGITAL SET TOP BOX
FV100
INSTRUCTION MANUAL
FV100
ON
OFF
Please read this Instruction manual carefully to ensure proper use of this
product and keep this manual for future reference.
Table of Contents
Introduction----------------------------------------------------------------------------- 1
Safety Information--------------------------------------------------------------------- 2
Remote Control-------------------------------------------------------------------------- 3
Front and Rear panel illustration--------------------------------------------------- 5
Connecting to a Television ----------- ----------------------------------------------- 6
Connecting to a Television and Video--------------------------------------------- 7
Connecting to a Surround Sound System--------------------------------------- 8
Getting Started ------------------------------------------------------------------------ 9
Switching on for the first time------------------------------------------------------ 9

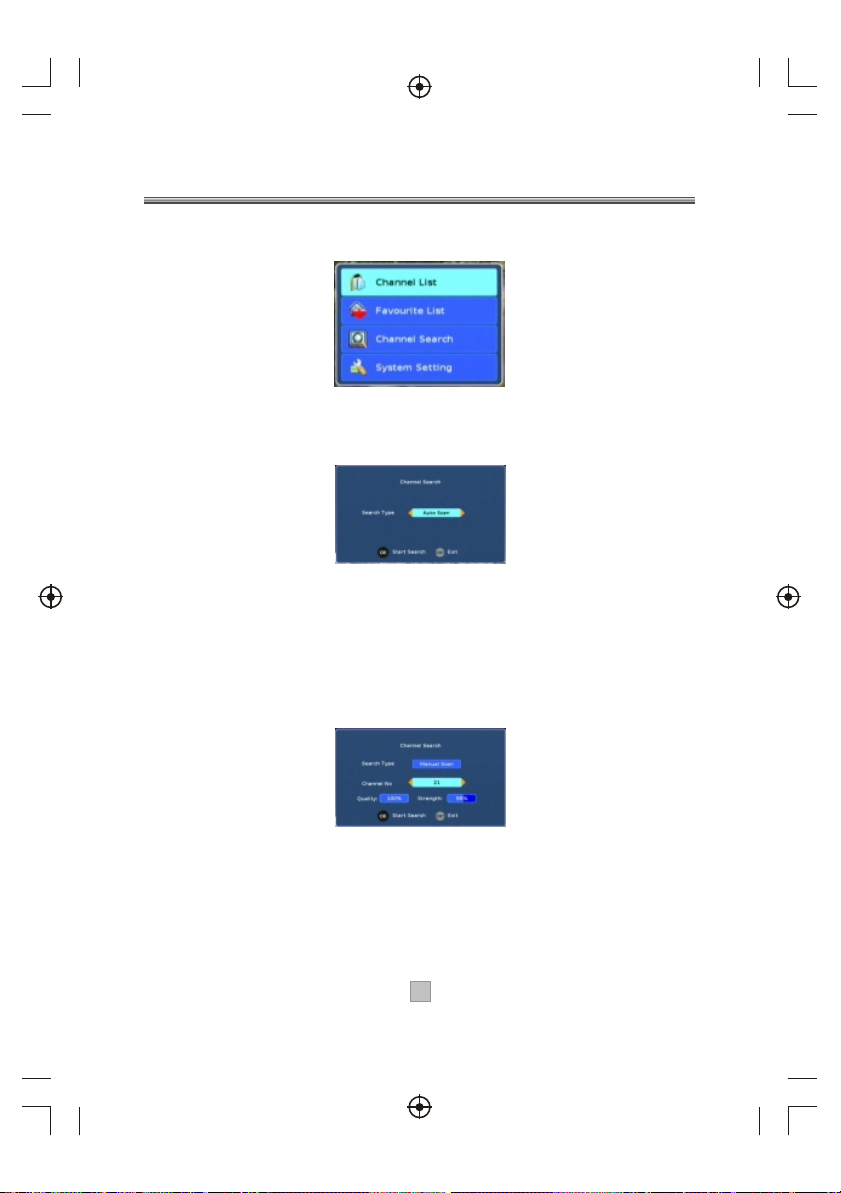

Automatic channel scan------------------------------------------------------------ 10
Manual channel scan---------------------------------------------------------------- 10
System Setting
A/V Setting---------------------------------------------------------------------------- 11
Antenna Power----------------------------------------------------------------------- 12
First Time Installation--------------------------------------------------------------- 12
System Info---------------------------------------------------------------------------- 12
Change Pin Code--------------------------------------------------------------------- 13
Software Update--------------------------------------------------------------------- 13
Basic Operations---------------------------------------------------------------------- 14
Changing Channels----------------------------------------------------------------- 14
Volume Control---------------------------------------------------------------------- 16
Teletext/Subtitle---------------------------------------------------------------------- 16
TV Format------------------------------------------------------------------------------16
Pausing the current picture---------------------------------------------------------16

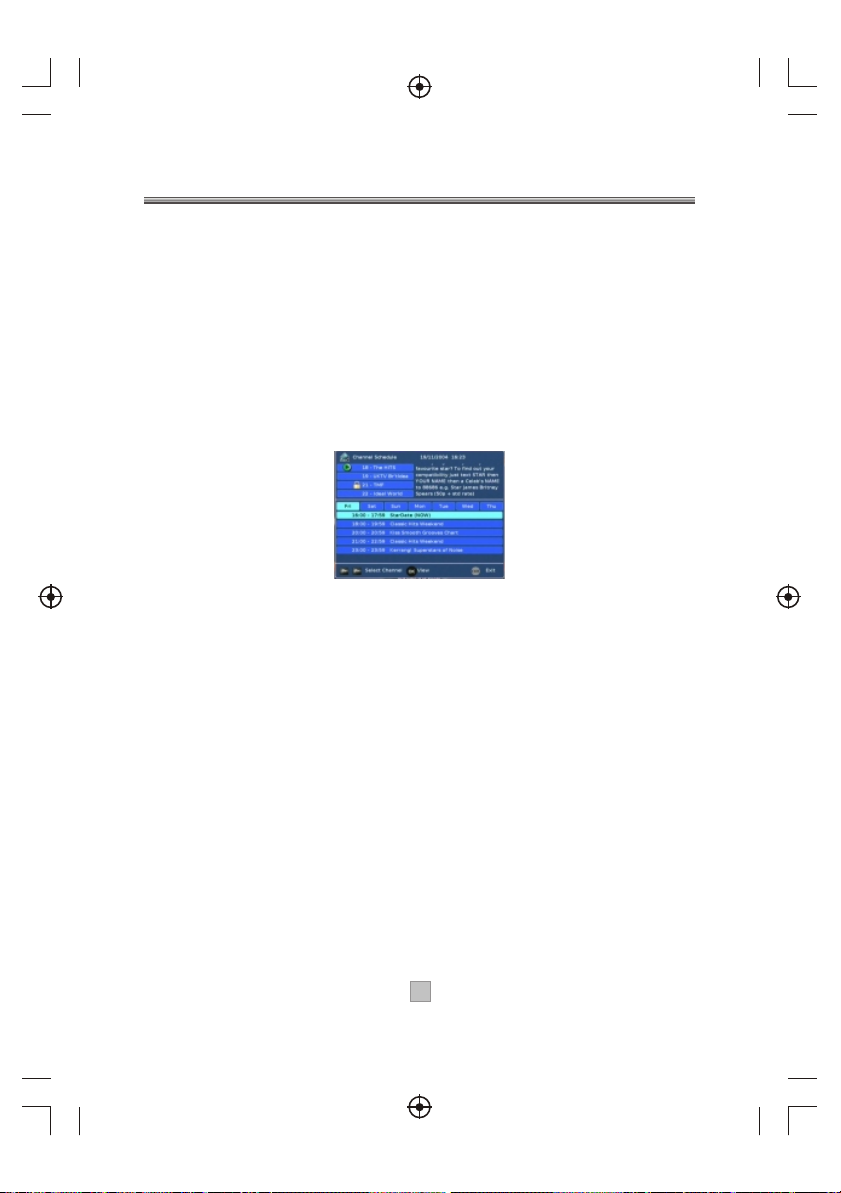

Channel Schedule
Channel List----------------------------------------------------------------------------- 18
Delete a channel---------------------------------------------------------------------- 18
Lock/Unlock a channel---------------------------------------------------------------18
Favourite List--------------------------------------------------------------------------- 19
Adding channels to favourite list
--------------------------------------------------- 19
Remove favourite channels from favourite list---------------------------------- 19
Accessing the favourite channels
Help and Advice------------------------------------------------------------------------- 20
Technical Specifications -------------------------------------------------------------21
-------------------------------------------------------------------------- 11
--------------------------------------------------------------------- 17
------------------------------------------------- 19
Introduction
Thank you for purchasing this product which has been designed and
manufactured to give you many years of trouble-free service.
About This User Guide
This user guide contains all the information you need to know about how to
setup and watch available free view Channels using your set top box.
What is Freeview?
It is the new, free digital service currently providing up to thirty digital channels,
over twenty digital radio stations plus a whole new world of interactive services. It
is broadcast from transmitters and is received via a rooftop aerial.Freeview works
like traditional TV, but because the signals are digital you need a set top box or
interactive digital TV to convert them. This means more channels can be
transmitted with extra features such as interactivity and widescreen pictures.
Accessories In the Box
Remove your Digital set top box carefully from the box ,and remove the
packaging from each part.
You will find the following items:
Digital set top box with fitted mains plug
Remote Control with 2xAAA batteries (not installed)
User Manual
Quick Start Guide
Digital Video
Broadcasting
Trade Mark of the DVB Digital Video Broadcasting
Project(1991 to 1996)
11
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Safety is Important
To ensure your safety and the safety of others, please ensure you read
the Safety Instructions before you operate this product.
Keep this information in a safe place for future reference. Please read all
the safety information before using the product.
Safety Considerations.
Position the cables so that they cannot be walked on or pinched by items
placed on or against them.
Do not use the set top box in humid or damp conditions.
Do not allow the set top box to get wet.
Do not expose the set top box to dripping or splashing.
Do not place water filled objects such as vases on top of the set top box.
Do not place naked flame sources, such as candles, on the top of the set
top box.
Cleaning
ALWAYS unplug the set top box before you clean it.
Do not use liquid or aerosol cleaners.
Clean the set top box with a soft, damp (not wet) cloth.
Ventilation
The slots and openings on the set top box are for ventilation. Do not cover
or block them as it may cause overheating.
NEVER let children push anything into the holes or slots on the case.
Servicing
There are no user serviceable parts in this set top box.
When servicing, refer to qualified service personnel.
Consult your dealer if you are ever in doubt about the installation, operation
or safety of this unit.
Battery Disposal
Please ensure batteries are disposed of safely.
Never dispose of batteries in a fire or with other household waste.
Check with your local authority for disposal regulations.
22
Remote Control
STANDBY
MUTE
VOL+
PAUSE
VOL-
OK
1 2 3
4 5 6
7 8 9 0
LANGUAGESUBTITLE
TEXT
DTV/VCR
P+
P-
EXITMENU
INFOEPG
FAVOURITE
RECALL
WIDE
Remote Key Function:
1. DTV/VCR Used to switch between the VCR SCART input
and the DTV output mode.
2. MUTE Used to turn the sound on or off.
3. P+: Used to change the channels.
4. PAUSE Used to pause or playback the programme being
viewed .
5. P-: Used change the channels.
6. EXIT Used to return to the previous screen or menu.
7. OK Used to confirm a selection within a menu.
8. CURSORS(Up/Down/Left/Right): Used to move around
the menu screens.
9. INFO Used to display information about the channel being
viewed or further information about the programme when in
small EPG screen.
10 FAVOURITE Used to access your favourite channels.
11. RECALL Used to switch between the last two viewed
channels.
12. LANGUAGE Used to switch between different audio
languages that are broadcasted.
13. WIDE: Used to change the TV picture aspect.
14. STANDBY Used to switch the set top box to on and off.
15. VOL+ Used to change the volume.
16. VOL- Used to change the volume.
17. MENU Used to open the main menu window.
18. EPG Used to display information about the programme being
viewed and what's on next.
19. NUMBER KEYS Used to select channel numbers or input
numbers in menus.
20. TEXT: Used to open interactive digital teletext display if
teletext available in the broadcasted stream.
21. SUBTITLE: Used to switch among different subtitles that
are broadcasted.
22. COLOUR KEYS(Red/Green/Yellow/Blue): Used to operate
different functions in TEXT screen or other menus.
Note: SUBTITLE/TEXT/LANGUAGE may not be available
for all channels.
33
Installing the Batteries
Remove the battery cover from the remote control and put 2xAAA size batteries
inside the compartment.
The diagram inside the battery compartment shows the correct way to install the
batteries.
1.Open the cover
N
E
P
O
2.Install batteries
3.Close the cover
N
E
P
O
Using the Remote Control
To use the remote control, point it towards the front of the digital set top box
The remote control has a range of up to 7 metres from the set top box at an angle
of up to 60 degrees.
The remote control will not operate if its path is blocked.
Sunlight or very bright light will decrease the sensitivity of the remote
control.
44
Front Panel and Rear Panel Illustration
1. Front panel
3 4
FV100
ON
OFF
1 POWER BUTTON: Used to switch the set top box on and off.
2 REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.
3 CHANNEL UP/DOWN: Used to change channels without using the remote control.
4 Standby Indicator: Used to visually show power state of the set top box, the green
LED will show if turned on the set top box and the red LED will be light if the set top box
entered standby mode.
Serial No.:
ININRRFF
1 RF IN : This socket connects to your external aerial.
2 RF LOOP THROUGH: This socket will bypass the RF signal to either your TV or another
video system.
3 COAXIAL: This socket connects to a coaxial socket on your surround sound system.
4 VCR SCART: This socket connects to either a DVD or other video system.
5 TV SCART: This socket connects to your TV.
6 RS-232 PORT: This socket is only used for software upgrade.
7 MAINS CABLE: This is used to connect to your main power supply.
THROUGHTHROUGH
Digital
Digital
Audio
Audio
CoaxialCoaxial
LOOPLOOPRRF F
DIGITAL TERRESTRIAL RECEIVER
POWER SUPPLY: 100-240V~ 50/60Hz
MAX POWER CONSUMPTION: 10WATTS
VCR O OVCR O O
FV100
Made in China
100-240V~
50/60Hz
TVTV
SERVICE
55
Connecting to a Television
TV
Set top box
100-240V~
50/60Hz
66
