Labelmate UCAT-1 User Manual

© LABELMATE – User_UCAT-1-CE – 05/17 – Original user manual. ● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●

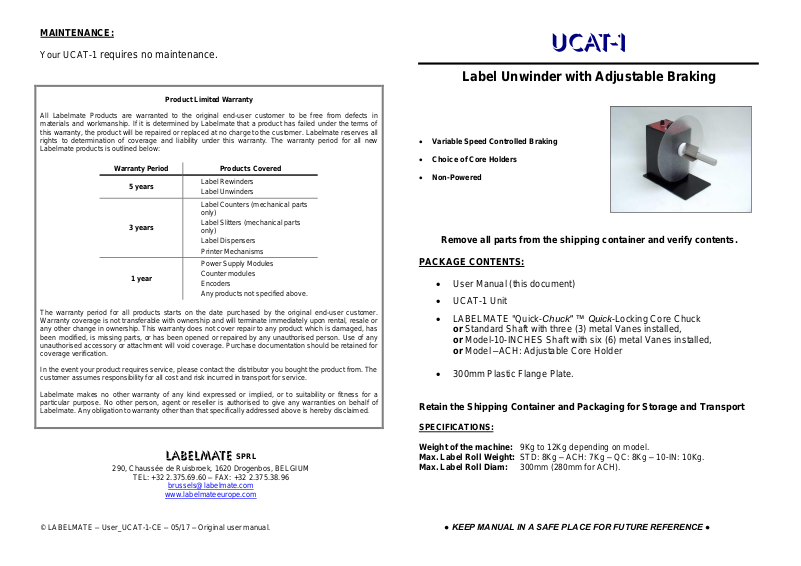

MAINTENANCE:

Your UCAT-1 requires no maintenance.

Product Limited Warranty

All Labelmate Products are warranted to the original end-user customer to be free from defects in
materials and workmanship. If it is determined by Labelmate that a product has failed under the terms of
this warranty, the product will be repaired or replaced at no charge to the customer. Labelmate reserves all
rights to determination of coverage and liability under this warranty. The warranty period for all new
Labelmate products is outlined below:

The warranty period for all products starts on the date purchased by the original end-user customer.
Warranty coverage is not transferable with ownership and will terminate immediately upon rental, resale or
any other change in ownership. This warranty does not cover repair to any product which is damaged, has
been modified, is missing parts, or has been opened or repaired by any unauthorised person. Use of any
unauthorised accessory or attachment will void coverage. Purchase documentation should be retained for
coverage verification.

In the event your product requires service, please contact the distributor you bought the product from. The
customer assumes responsibility for all cost and risk incurred in transport for service.

Labelmate makes no other warranty of any kind expressed or implied, or to suitability or fitness for a
particular purpose. No other person, agent or reseller is authorised to give any warranties on behalf of
Labelmate. Any obligation to warranty other than that specifically addressed above is hereby disclaimed.

Warranty Period

Products Covered

5 years

Label Rewinders
Label Unwinders

3 years

Label Counters (mechanical parts
only)

Label Slitters (mechanical parts
only)

Label Dispensers
Printer Mechanisms

1 year

Power Supply Modules
Counter modules
Encoders
Any products not specified above.

SPRL

290, Chaussée de Ruisbroek, 1620 Drogenbos, BELGIUM

TEL: [phone] – FAX: [phone]

[e-mail]

www.labelmateeurope.com

Label Unwinder with Adjustable Braking

• Variable Speed Controlled Braking

• Choice of Core Holders

• Non-Powered

Remove all parts from the shipping container and verify contents.

PACKAGE CONTENTS:

• User Manual (this document)

• UCAT-1 Unit

• LABELMATE "Quick-Chuck" ™ Quick-Locking Core Chuck

or Standard Shaft with three (3) metal Vanes installed,
or Model-10-INCHES Shaft with six (6) metal Vanes installed,
or Model –ACH: Adjustable Core Holder

• 300mm Plastic Flange Plate.

Retain the Shipping Container and Packaging for Storage and Transport

SPECIFICATIONS:
Weight of the machine: 9Kg to 12Kg depending on model.

Max. Label Roll Weight: STD: 8Kg – ACH: 7Kg – QC: 8Kg – 10-IN: 10Kg.
Max. Label Roll Diam: 300mm (280mm for ACH).

IMPORTANT INFORMATION:

• This product is a label unwinder. It is only to be used to unwind labels of the
recommended dimensions and weight in an indoor, dry environment.

• The machine is to be used on a flat surface, if the surface is not flat, it is to
be fixed using the holes in the base plate.

• The ambient light of the working area needs to be sufficient to avoid any risk.

• The unwinder can be used in ambient temperatures of +2°C to 40°C.

SET-UP:

(if you have the ACH Adjustable Core Holder option Skip to step 4).

1. STANDARD AND 10": Identify the inner Label Flange Plate. Slide the

Flange Plate onto the hollow end of the Rewind Shaft. For maximum width,
the Flange face should be flush with the end of the Shaft. Tighten the screw
in the Hub until it is snug. Not too tight.

2. CHUCK: Mount the inner Flange onto the Quick-Chuck with two screws

provided.

3. Slide the Shaft and Flange Assembly onto the UCAT-1 Motor Shaft allowing

for clearance to the UCAT-1 Chassis and Motor Screws. Tighten the Allen
Screw onto the flat part of the Motor Shaft until it is tight.

4. ACH: Slide the Hub of the ACH over the motor Shaft of the CAT-2. Position

the Hub so there is a gap between the ACH Hub and the Rewinder Drive
Unit case. Tighten the Allen Screw onto the flat part of the Motor Shaft until it
is tight.

5. Set the UCAT-1 in place near the label entrance path to the printer or

LABELMATE Label Slitter depending on the job to be run.

6. CAUTION: AVOID ACCIDENTS. THE UCAT-1 WEIGHS OVER 9KG, SO

CHOOSE ONLY A STURDY SURFACE ON WHICH TO SET THE UNIT.

LABEL UNWINDING FOR PRINTING:

The UCAT-1 is bi-directional. It can unwind labels in either direction.

1. Slide the roll of labels to be unwound over the Quick-Chuck or Vanes on the
shaft until the core is against the inner Flange Plate. On the Quick-Chuck,
tighten the Lock Knob (for an ACH see the ACH user manual).

2. Thread the labels into the printer as required

3. The “BRAKING” Control Knob adjusts the amount of “Frictionless Braking”™

that will be applied to the label roll being unwound. LABELMATE’s
“Frictionless Braking”™ is speed proportional. This means that for large
label rolls, you will want the “BRAKING” Control Knob turned to a higher

setting to provide braking for the slowly turning roll. For small rolls, you can
use a lower braking force setting as the roll will be turning faster.

4. Begin the printing or slitting operation and adjust the “BRAKING” Control to
provide the least braking that will adequately tension the label roll.

LABEL UNWINDING FOR LABEL SLITTING:

The UCAT-1 Label Rewinder is ideal as part of a setup to slit labels. If small

labels are printed several “up” (across) and then slit to their desired width, you

realize much greater effective print speed and you also achieve much greater
print head and ribbon efficiency. LABELMATE offers three Label Slitters (Models
S-100, S-200 and S-100-SP) that can be used with the UCAT-1. Slitting can take

place either “in-line” (except with the S-100-SP) directly after exiting the printer,
or “off-line” where a roll of printed labels is unwound from a LABELMATE UCAT-

1 Label Unwinder.

5.

WARNING!

This Product is for indoor use only.

Not for use in wet locations.
