Labelmate LD-100S, LD-200S User Manual

© LABELMATE – User_LDS-CE – 01/13 – Original user manual. ● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●

MAINTENANCE:

Keep the Label Sensor and Stripper Bar clean, following instructions page 1

.

Product Limited Warranty

All Labelmate Products are warranted to the original end-user customer to be free from defects in
materials and workmanship. If it is determined by Labelmate that a product has failed under the terms of
this warranty, the product will be repaired or replaced at no charge to the customer. Labelmate reserves all
rights to determination of coverage and liability under this warranty. The warranty period for all new
Labelmate products is outlined below:

The warranty period for all products starts on the date purchased by the original end-user customer.
Warranty coverage is not transferable with ownership and will terminate immediately upon rental, resale or
any other change in ownership. This warranty does not cover repair to any product which is damaged, has
been modified, is missing parts, or has been opened or repaired by any unauthorised person. Use of any
unauthorised accessory or attachment will void coverage. Purchase documentation should be retained for
coverage verification.

In the event your product requires service, please contact the distributor you bought the product from. The
customer assumes responsibility for all cost and risk incurred in transport for service.

Labelmate makes no other warranty of any kind expressed or implied, or to suitability or fitness for a
particular purpose. No other person, agent or reseller is authorised to give any warranties on behalf of
Labelmate. Any obligation to warranty other than that specifically addressed above is hereby disclaimed.

Warranty Period Products Covered

5 years

Label Rewinders
Label Unwinders

3 years

Label Counters (mechanical parts
only)

Label Slitters (mechanical parts
only)

Label Dispensers
Printer Mechanisms

1 year

Power Supply Modules
Counter modules
Encoders
Any products not specified above.

LABELMATE LLC

69 AVENUE ALPHONSE XIII, 1180 BRUSSELS, BELGIUM

TEL: [phone] – FAX: [phone]

[e-mail]

www.labelmateeurope.com

LD-100S / LD-200S

Label Dispenser for Very Small or Odd-shaped Labels

• Variable Speed Control

• Press-to-Run Foot Switch

• Works with labels as small as 5mm

Remove all parts from the shipping container and verify contents.

PACKAGE CONTENTS:

• User Manual (this document)

• Label Dispenser Unit

• Foot Switch

• Power Supply Module

Retain the Shipping Container and Packaging for Storage and Transport.

VERY IMPORTANT:

• Keep Tape Stripper Bar and Web Guide Bars clean. Use isopropyl alcohol or

"Goo-Gone"™ to clean adhesive residue from parts. Adhesive build-up can
cause malfunction and damage to your unit.

SPECIFICATIONS:
Weight of the machine: 5 Kg.

Max. Label Roll Weight: 4.5 Kg.
Max. Label Roll Size: 220 mm diameter – 300 mm with LD-DE.
Power Supply: Input: 220-240VAC – 50-60Hz.

Output: 11VAC – 2.5A

IMPORTANT INFORMATION:

• This product is a label dispenser. It is only to be used to dispense la bels of the
recommended dimensions and weight in an indoor, dry environment.

• The machine has to be unplugge d before any manipulation.

• The machine is to be used on a flat surface, if the surface is not flat, it is to be fixed

using the holes in the base plate.

• Do not leave the power cable in a passageway.

• The ambient light of the working area needs to be sufficient to avoid any risk.

• The dispenser can be used i n ambient temperatures of +2°C to 40°C.

• All measures have been taken to minimise risks of injuries with the take-up shaft but

the operator has to be careful when manipulating the bail.

• Connection of the machine to the po wer source must respect local and European
legislations.

SET-UP AND USE:

1. Set the LD-100S in place an d plug the cord from the Power Supply Module into the

Power Input Jack on the rear of the Unit.

2. Place the Foot Switch as desired and plug the c ord into the Foot Switch Jack on the

front of the Unit. The Unit will operate without the Switch.

3. Make sure the Power Switch is in the “OFF” position.

4. Connect the Po wer Supply M odule to a suitable AC power source.

5. Place your roll of labels o n the Label Roll Hold er & slide t he plastic Roll Lock R ing on

the Roll Holder to the width of your label web.

6. Thread the label web between the Strip Bar and the Round Rod directly above it.

There should be about 1- to 2-mm between the inside edge of the label web and the
Strip Bar frame.

7. Pull the label web back u nder the W eb Gui de and s lid e the width adjuster to the width

of the web.

8. Pull the web up over the Round Rod directly in front of the Strip Bar and around the

front of the Web Roller.

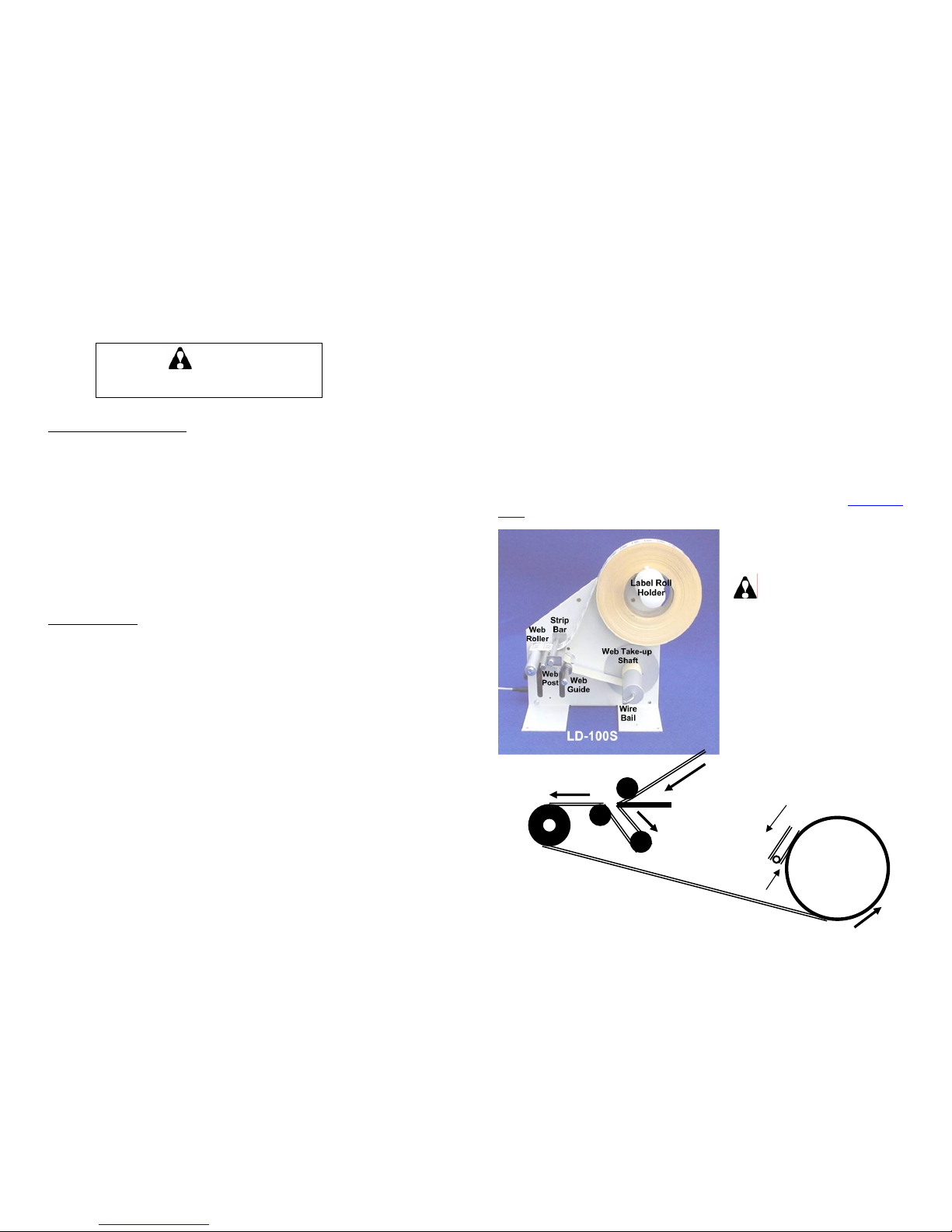

9. Now pull the web under the Take-Up Shaft and loop the web UNDER the Wire Bail on

the Take-Up Shaft as shown in the illustration.

10. Place the Power Switch in the “ON” position.

11. When the Foot Switch is depressed, labels will advance.

12. Adjust the Speed Control as desired.

13. Optional Label Flanges are available. Order LD-FLANGES. Recommended for

narrow or loosely wound labels that may have a tendency to telescope or fall off the
label core.

A vacuum handling tool might help pick up very small labels in some cases, but often
labels are very sticky and may be pushed back onto the label web by the tool. If you want
to try it, a simple “Handi-Vac”® tool is available from Virtual Industries, Inc. www.virtual-

ii.com

FOR YOUR SAFETY:

Switch off device before

removing the bail.

WARNING!

This Product is for indoor use only.

Not for use in wet locations.

WEB ROLLER

LOOP WEB UNDER BAIL

WEB GUIDE

ROLLLER

TAKE-UP

SHAFT

STRIP BAR
