Concentrators and Cold Traps
Models
78100 Series
78110 Series
74600 Series
73850 Series
79820 Series
79830 Series
79840 Series
74750 Series
CentriVap®Centrifugal
err’’ss
e
M
M
a
a
n
n
u
u
all
a
To receive important product updates,
complete your product registration card
online at register.labconco.com
Labconco Corporation
8811 Prospect Avenue
Kansas City, MO 64132-2696
800-821-5525, 816-333-8811
FAX 816-363-0130
E-MAIL labconco@labconco.com
HOME PAGE www.labconco.com
Please read the User’s Manual before operating equipment.
Copyright © 2005, 2007, 2010 Labconco Corporation. All rights reserved.
The information contained in this manual and the accompanying products are copyrighted and all rights
reserved by Labconco Corporation. Labconco Corporation reserves the right to make periodic design
changes without obligation to notify any person or entity of such change.
Warranty
Labconco provides a warranty on all parts and factory workmanship. The warranty includes areas of
defective material and workmanship, provided such defect results from normal and proper use of the
equipment.
The warranty for all Labconco products will expire one year from date of installation or two years
from date of shipment from Labconco, whichever is sooner, except the following;
• Purifier® Logic® Biological Safety Cabinets and PuriCare® Lab Animal Research Stations
carry a three-year warranty from date of installation or four years from date of shipment from
Labconco, whichever is sooner.
• SteamScrubber® & FlaskScrubber® Glassware Washers carry a two-year warranty from date
of installation or three years from date of shipment from Labconco, whichever is sooner.
• Blood Drawing Chairs carry a ten year warranty.
• Carts carry a lifetime warranty.
• Glassware is not warranted from breakage when dropped or mishandled.
This limited warranty covers parts and labor, but not transportation and insurance charges. In the
event of a warranty claim, contact Labconco Corporation or the dealer who sold you the product. If
the cause is determined to be a manufacturing fault, the dealer or Labconco Corporation will repair or
replace all defective parts to restore the unit to operation. Under no circumstances shall Labconco
Corporation be liable for indirect, consequential, or special damages of any kind. This statement may
be altered by a specific published amendment. No individual has authorization to alter the provisions
of this warranty policy or its amendments. Lamps and filters are not covered by this warranty.
Damage due to corrosion or accidental breakage is not covered.
Returned or Damaged Goods
Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be
accepted. If your shipment was damaged in transit, you must file a claim directly with the freight carrier.
Labconco Corporation and its dealers are not responsible for shipping damages.
The United States Interstate Commerce Commission rules require that claims be filed with the delivery
carrier within fifteen (15) days of delivery.
Limitation of Liability
The disposal and/or emission of substances used in connection with this equipment may be governed by
various federal, state, or local regulations. All users of this equipment are required to become familiar with
any regulations that apply in the user’s area concerning the dumping of waste materials in or upon water,
land, or air and to comply with such regulations. Labconco Corporation is held harmless with respect to
user’s compliance with such regulations.
Contacting Labconco Corporation
If you have questions that are not addressed in this manual, or if you need technical assistance, contact
Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-5525
or 1-816-333-8811, between the hours of 7:00 a.m. and 6:00 p.m., Central Standard Time.
Part #7539800, Rev. F
ECO F695
T
AABBLLEE
T
CHAPTER 1: INTRODUCTION 1
Safety Symbols 2
CHAPTER 2: PREREQUISITES 3
Electrical Requirements 4
Location and Exhaust Requirements 4
Vacuum Pump Requirements 5
Vacuum Line Traps 5
Space Requirements 5
CHAPTER 3: GETTING STARTED 6
Unpacking Your CentriVap 7
CentriVap Components 7
Emergency Access Into the Chamber 10
Component Orientation & Hose Connections 10
Electrical Connection 12
Rotor Installation 12
Ground Wire 12
Chemical Resistance of CentriVap Components 12
Chemical Resistance Chart 13
Solvent Safety Precautions 14
CHAPTER 4: USING YOUR CENTRIVAP 16
Planning 16
Glassware Selection 16
Loading Glassware Into the CentriVap 17
Temperature Setting Guidelines 17
Time Setting Guidelines 17
Heat Boost Operation 17
CentriVap Controls 18
Operating the CentriVap Controls 18
Operating The CentriVap 20
Operational Notes 21
Cycle Interruption 21
Safety Precautions 21
O
O
FF
C
C
OONNTTEENNTTSS
CHAPTER 5: MAINTAINING YOUR CENTRIVAP 22
CHAPTER 6: ACCESSORIES FOR YOUR CENTRIVAP 24
Installing a Glass Lid 27
Installing a Secondary Chemical Trap 27
Installing a Vacuum Gauge 28
Installing a CentriZap Strobe Light 29
Installing a Glass Trap in the Cold Trap 30
CHAPTER 7: TROUBLESHOOTING 31
APPENDIX A: CENTRIVAP COMPONENTS 34
APPENDIX B: CENTRIVAP DIMENSIONS 42
APPENDIX C: CENTRIVAP SPECIFICATIONS 46
Electrical Specifications 46
Environmental Conditions 47
Evaporation Rates 48
DECLARATION OF CONFORMITY 49
CChhaapptteerr 11::
IInnttrroodduuccttiioonn
Congratulations on your purchase of a Labconco CentriVap Concentrator System.
Models are available for operation on 115V or 230V.
The CentriVap Concentrator, when combined with the CentriVap Cold Trap, uses
centrifugal force with heat and vacuum to rapidly evaporate and condense
solvents from biological and analytical samples. Centrifugation eliminates
bumping and foaming as vacuum is applied and also concentrates the solute in the
bottom of the vial. This allows recovery of solutes from sample volumes as small
as a few microliters. The concentrator is equipped with a 300 watt heater to speed
evaporation by warming the chamber during processing. A timed outlet for the
vacuum pump connection delays the start of the pump until the rotor reaches
operating speed. A safety switch prevents the concentrator from starting when the
lid is in the open position and a latch prevents the lid from being opened while the
rotor is turning. The compact, low profile design allows the concentrator to be
placed on a benchtop or other laboratory work surface.
The microprocessor, which controls the operation of the heater and the motor,
provides excellent regulation and reproducibility of protocols. The end of the run
can be signaled by a manually preset timer. Nine different protocols can be stored
in memory so exact test parameters can be easily repeated.
As the companion to the Concentrator, the CentriVap Cold Trap protects the
vacuum pump by trapping moisture, vapors and corrosive fumes as they evaporate
from the samples. The stainless steel trap is used for aqueous and organic
applications. For corrosive applications, the optional Glass Trap insert should be
used. The 230V 50Hz models comply with CE regulations.
Product Service 1-800-522-7658
1
Chapter 1: Introduction
Safety Symbols
Your CentriVap Concentrator was designed with safety in mind, however
conditions may exist that could be hazardous.
Throughout this manual potentially hazardous conditions are identified using the
following words and symbols.
It is important that you understand the warnings listed throughout this manual
before you operate the CentriVap Concentrator.
2
Product Service 1-800-522-7658
CChhaapptteerr 22::
PPrreerreeqquuiissiitteess
Before you install your CentriVap, you need to prepare your site for installation.
You must be certain that the area is level and of solid construction. In addition, a
means to exhaust the vacuum pump must be provided. An electrical source must
be located near the installation site.
Carefully read this chapter to learn:
• The electrical supply requirements.
• The exhaust requirements.
• The vacuum pump requirements.
Refer to Appendix C: CentriVap Specifications for complete electrical and
environmental conditions, specifications and requirements.
Product Service 1-800-522-7658
3
Chapter 2: Prerequisites
Electrical Requirements
The CentriVap Concentrator requires a dedicated grounded electrical outlet. This
outlet requires a 15 Amp circuit breaker or fuse for models rated at 115V (60 Hz).
An 8 Amp circuit breaker or fuse is required for models rated at 230V (50/60 Hz).
If the power cord supplied with the Concentrator does not match the available
receptacle, replace it with an approved power cord of the suitable style. See
CentriVap Components in Chapter 3 for power cord specifications.
The CentriVap Cold Trap requires a dedicated electrical outlet. 115V (-50°C &
-85°C) Models require a 15 Amp circuit breaker or fuse rated at 115V (60 Hz).
115V (-105°C) Models require a 20 Amp circuit breaker or fuse rated at 115V (60
Hz). 230V Models require an 8 Amp circuit breaker or fuse rated at 230V (50/60
Hz). If the power cord supplied with the Cold Trap does not match the available
receptacle, replace it with an approved power cord of the suitable style. See
CentriVap Components in Chapter 3 for power cord specifications.
Location and Exhaust Requirements
The CentriVap Concentrator should be located on a surface that is stable, flat and
level.
WARNING: The CentriVap System should be located within a fume hood if
hazardous or flammable solvents are used. Heating of materials could lead
to the liberation of hazardous gases. In all cases, regardless of the solvent
used, it is strongly recommended that the vacuum pump is vented in a fume
hood. An accessory secondary trap is available to minimize the exhausting of
solvents into the atmosphere. This does not, however, negate the need to
exhaust the vacuum pump into a fume hood. Failure to properly vent the
CentriVap will expose personnel to potentially harmful chemicals.
The CentriVap has not been evaluated by an approval agency for the use of
biological, radio toxins or flammable liquids or materials.
4
Product Service 1-800-522-7658
Chapter 2: Prerequisites
Vacuum Pump Requirements
A vacuum pump must be provided by the user. A vacuum pump with a free air
flow rate of 82 liters per minute and < 2 mBar ultimate pressure is adequate for
aqueous samples. More volatile samples can be satisfactorily processed using a
diaphragm pump with a free airflow of 42 liters per minute and 200 mBar
vacuum. The inlet fitting on the vacuum pump must be suitable for 0.50 ID hose.
Vacuum pumps used with 115V models should be equipped with a 115V, 15 Amp
NEMA 5-15P plug. Vacuum pumps used with 230V models should be equipped
with a “reverse” IEC 320 plug. This will allow the vacuum pump to be plugged
into the receptacle on the back of the CentriVap.
IMPORTANT NOTE: To ensure that aggressive samples used in the
CentriVap do not damage the vacuum pump, it is recommended that all
internal wetted parts are Teflon®* or Teflon coated.
When selecting the vacuum pump it is very important to consider the
flammability of the solvent that will be used. If the solvents are flammable,
an explosion-proof vacuum pump or one suitable for the solvents to be
processed is recommended. See Chapter 3 Solvent Safety Precautions for
solvents suitable for use in the CentriVap.
Vacuum Line Traps
When using a mechanical pump that is not corrosion resistant, the CentriVap Cold
Trap or equivalent trap must be used in the vacuum line to prevent damage from
solvent vapors. When evaporating acids, it is advisable to include a soda lime
acid secondary trap in the vacuum line. This adds additional protection for the
pump.
NOTE: Several components within the CentriVap are made from stainless
steel or aluminum and can be degraded if exposed to acids. Contact
Labconco before evaporating acids.
A moisture trap, solvent trap and radioisotope trap are also available. Refer to
Chapter 6: Accessories for Your CentriVap for ordering information.
Space Requirements
Refer to Appendix C: CentriVap Specifications for dimensional drawings of the
CentriVap.
No person or any hazardous material should be within 12 inches of the CentriVap
Concentrator while it is operating.
*Teflon® is a registered trademark of DuPont
Product Service 1-800-522-7658
5
CChhaapptteerr 33::
GGeettttiinngg SSttaarrtteedd
Now that the site for your CentriVap is properly prepared, you are ready to
unpack, inspect, install, and test your CentriVap. Read this chapter to learn how
to:
• Unpack and move your CentriVap.
• Set up your CentriVap.
• Connect the electrical supply source to your CentriVap.
• Properly exhaust your CentriVap.
• Safely use solvents with your CentriVap.
CAUTION: The CentriVap Concentrator weighs over 42 lbs. (19 Kg). The
carton allows for lifting with a mechanical lift truck or hand truck. If you
must lift the CentriVap manually, use at least two (2) persons and follow safe
lifting guidelines.
The CentriVap Cold Trap weighs over 70 lbs. (33 Kg). The carton allows for
lifting with a mechanical lift truck or hand truck. If you must lift the Cold
Trap manually, use at least two (2) persons and follow safe lifting guidelines.
6
Product Service 1-800-522-7658
Chapter 3: Getting Started
Unpacking Your CentriVap
Carefully unpack your CentriVap and inspect it for damage that may have
occurred in transit. If your CentriVap is damaged, notify the delivery carrier
immediately and retain the entire shipment intact for inspection by the carrier.
The United States Interstate Commerce Commission rules require that claims be
filed with the delivery carrier within fifteen (15) days of delivery.
Do not discard the carton or packing material for your CentriVap until you have
checked all of the components and installed and tested the CentriVap.
NOTE: Do not return goods without the prior authorization of Labconco.
Unauthorized returns will not be accepted. If your CentriVap was damaged
in transit, you must file a claim directly with the freight carrier. Labconco
Corporation and its dealers are not responsible for shipping damage.
CentriVap Components
Locate the model of CentriVap you received in the following tables. Verify that
the components listed are present.
Cold Traps
Description Power Cords Accessories
1334500
1336100
1332600
1332700
1338000
1336400
1336500
1332601
1332701
1342100
7828606
1488800
7464600
Catalog #
7811020 -50˚C 115 60 X X X X X
7811030 -50˚C 230 50 X X X X X
7811035 -50˚C 230 50 X X X X X
7811037 -50˚C 230 50 X X X X X
7811040 -50˚C 230 60 X X X X X
7460020 -85˚C 115 60 X X X X X
7460030 -85˚C 230 50 X X X X X
7460035 -85˚C 230 50 X X X X X
7460037 -85˚C 230 50 X X X X X
7460040 -85˚C 230 60 X X X X X
7385020 -105˚C 115 60 X X X X X
7385030 -105˚C 230 50 X X X X X
7385035 -105˚C 230 50 X X X X X
7385037 -105˚C 230 50 X X X X X
7385040 -105˚C23060 XXXXX
Temperature
Rating
Plug: CEE 7/7
Voltage (V)
Plug: NEMA 5-15
Connector: IEC C13
Frequency (Hz)
Plug: BS 1363
Plug: CH1-10P
Connector: IEC C13
Connector: IEC C13
Plug: NEMA 6-15
Connector: IEC C13
Connector: IEC C13
Plug: CEE 7/7
Plug: BS 1363
Plug: NEMA 5-20
Connector: IEC C19
Connector: IEC C19
Plug: CH2-16P
Connector: IEC C19
Connector: IEC C19
Tubing
Plug: NEMA 6-20
Connector: IEC C19
clamps (2)
Wire Assembly
7539800
User's Manual
Product Service 1-800-522-7658
7
Chapter 3: Getting Started
Description Power Cords Accessories
Concentrators
1334500
1336100
1332600
1332700
1338000
7828606
1488800
7397601
7396206
7539800
Connector: IEC C13
Plug: NEMA 6-15
Tubing
clamps (2)
Coupling Insert (Std.)
Coupling Insert (AR)
Catalog #
Options
Voltage (V)
Frequency (Hz)
Connector: IEC C13
Plug: NEMA 5-15
Connector: IEC C13
Plug: CEE 7/7
Connector: IEC C13
Plug: BS 1363
Connector: IEC C13
Plug: CH1-10P
7810010 standard 115 60 X X X X X
7810011 standard 230 60 XXXX X
7810012 heat boost 115 60 X X X X X
7810013 heat boost 230 60 XXXX X
7810014 glass lid 115 60 X X X X X
7810015 glass lid 230 60 XXXX X
7810016 acid resistant 115 60 X X X X X
7810017 acid resistant 230 60 X X X X X
7810030 standard 230 50 X X X X X
7810031 heat boost 230 50 X X X X X
7810032 glass lid 230 50 X X X X X
7810033 acid resistant 230 50 X X X X X
7810034 standard 230 50 X X X X X
7810035 heat boost 230 50 X X X X X
7810036 glass lid 230 50 X X X X X
7810037 acid resistant 230 50 X X X X X
7810038 standard 230 50 X X X X X
7810039 heat boost 230 50 X X X X X
7810040 glass lid 230 50 X X X X X
7810041 acid resistant 230 50 X X X X X
User's Manual
8
Product Service 1-800-522-7658
Chapter 3: Getting Started
Accessories
1486000
1488800
7474001
7828606
1553800
7397605
7455101
7455100
7815200
7814800
7814900
7460900
Clamps (2) .48 - .78"
Clamps (2) .56 - 1.25"
Valve Assembly
Tubing 1/2" ID
Tubing 1/4" ID
Glass Trap
12-13mm (Teflon)
Rotor Assembly
12-13mm
Rotor Assembly
Solvent Insert
Acid Insert
Moisture Insert
Clear Cannister
4330150
Gel Dryers
Concentrator Systems
4330100
7811040
7811037
7811035
7811030
7811020
7810041
7810040
7810038
7810037
7810036
7810034
7810033
7810032
7810030
7810017
7810016
7810015
7810014
7810011
7810010
Frequency (Hz)
Voltage (V)
System Type
Description Concentrators Cold Traps
Catalog #
7982010 Aqueous 115 60 X X X X X
7982011 Aqueous 230 50 X X X X X
Product Service 1-800-522-7658
7982012 Aqueous 230 60 X XXXX
7982035 Aqueous 230 50 X X X X X
7982037 Aqueous 230 50 X X X X X
7983013 Acid 115 60 X X X X X X
7983014 Acid 230 50 X X X X X X
7983015 Acid 230 60 X X X X X X
7983035 Acid 230 50 X X X X X X
7983037 Acid 230 50 X X X X X X
7984010 Solvent 115 60 X X X X X
7984011 Solvent 230 50 X X X X X
7984012 Solvent 230 60 X X X X X
7984035 Solvent 230 50 X X X X X
7984037 Solvent 230 50 X X X X X
7475010 Gel Drying 115 60 X X X X XXXXX
7475011 Gel Drying 230 50 X X X X XXXXX
7475012 Gel Drying 230 60 X X X X XXXXX
9
Chapter 3: Getting Started
If you do not receive one or more of the components listed for your CentriVap,
contact Labconco Corporation immediately for further instructions.
Emergency Access into the Chamber
The CentriVap is designed to prevent access to the chamber in the event of a
power disruption. If it is necessary to open the lid when there is no electrical
power connected to the CentriVap, insert a small screwdriver or similar
instrument into the small round hole on the left side of the case near the top
behind the control panel. This will unlock the lid latch mechanism. While
holding the screwdriver in place, raise the lid with the other hand.
CAUTION: Never attempt to defeat the latch or open the lid while the
CentriVap is running. Personnel injury can result from moving parts and
chemicals.
Component Orientation & Hose Connections
The relative position of the CentriVap Concentrator, Cold Trap and the vacuum
pump may be as shown or may be reversed. The refrigeration system in the Cold
Trap draws air in through the right side of the cabinet and exhausts air through the
left side of the cabinet. A minimum of 3" should be allowed between the sides of
the Cold Trap and the adjacent wall surfaces. Restriction of the airflow through
the cabinet during operation could adversely affect performance.
10
Product Service 1-800-522-7658
Chapter 3: Getting Started
After positioning the components, it is necessary to join the system together using
the hoses provided. Attach one hose to the tube that extends out the back of the
Concentrator. Attach the other end of this hose to one of the barb fittings on the
Cold Trap Cover Assembly. Secure the hoses with the clamps supplied. Attach
another hose to the remaining barb fitting on the Cold Trap Cover and clamp
securely. If the accessory Secondary Trap is not used, attach the other end of the
hose to the inlet port on the vacuum pump. If the accessory Secondary Trap is
used, install the Secondary Trap as explained in Chapter 6: Accessories for Your
CentriVap. Then attach the hose from the Cold Trap Cover to the “out” connector
on the Secondary Trap and clamp securely. Attach another hose from the
remaining connector on the Secondary Trap to the inlet port on the vacuum pump
and clamp securely.
WARNING: It is recommended that the vacuum pump be located inside a
fume hood or other laboratory ventilation device if hazardous solvents are
used in the CentriVap. If this is not possible, the vacuum pump should have a
hose attached to the exhaust port and the other end of the hose should be
positioned inside the fume hood or ventilation device.
Product Service 1-800-522-7658
11
Chapter 3: Getting Started
Electrical Connection
Plug the power cord into the receptacle on the back of the CentriVap Concentrator
and plug the other end into a suitable power receptacle. Plug the power cord into
the receptacle on the back of the CentriVap Cold Trap and plug the other end into
a suitable power receptacle. Plug the power cord from the vacuum pump into the
receptacle on the back of the Concentrator. If the vacuum pump has an off/on
switch, turn the switch ON. The vacuum pump will be controlled by the
Concentrator.
Rotor Installation
Place the rotor onto the shaft of the Concentrator. Rotate the rotor slightly to
engage the drive pin in the shaft with the slots in the rotor hub. The top of the
shaft should be in line with the top of the rotor hub.
INPORTANT NOTE: Do not use a rotor if it shows any signs of damage.
Failure of a spinning rotor could damage the CentriVap or cause samples to
be lost.
Ground Wire
Attach one end of the included ground wire to the stainless steel elbow on the
drain tubing on the right or left side (depending on model) of the Cold Trap.
CAUTION: When draining the CentriVap Cold Trap always attach the
other end of the grounding clip to the solvent catch pot to eliminate the risk
of electrostatic spark ignition.
Chemical Resistance of CentriVap Components
Your CentriVap Centrifugal Concentrator and Cold Trap are designed to be
chemical resistant to most compounds that are commonly used in concentration
processes. However, by necessity, the CentriVap is comprised of a number of
different materials, some of which may be attacked and degraded by corrosive
chemicals. The degree of degradation is obviously dependent on the concentration
and duration of exposure. Some major components of the CentriVap that are
susceptible to degradation are as follows:
12
Product Service 1-800-522-7658
Chapter 3: Getting Started
C-Moderate Degradation - Questionable use
D-Severe Degradation - Infrequent use recommended - immediate thorough
neutralizing and cleaning is required.
• If a rotary vane vacuum pump is used, frequent oil changes are required.
Most compounds used in the CentriVap will degrade the oil if allowed to
enter to pump.
• Diaphragm vacuum pumps sold by Labconco have wetted parts either made
from Teflon or protected by Teflon coatings and are suitable for nearly all
procedures.
• When using compounds in the CentriVap that are hostile to the materials of
construction, it is imperative that the equipment is appropriately maintained.
After each run, clean up all residues, spills and materials that might have
splashed in the chamber.
• Drain the Cold Trap immediately after the collected ice is melted to prevent
corrosive liquids from residing in the trap. Flush out the trap with water after
draining.
DO NOT chip ice off the Cold Trap walls as damage may occur.
DO NOT start a rotary vane pump when the Cold Trap contains any liquid.
The liquid will be drawn into the pump and will contaminate the vacuum
pump oil.
Product Service 1-800-522-7658
13
Chapter 3: Getting Started
• If the compounds used attack acrylic, consider using the optional glass
chamber lid. See Chapter 6: Accessories for Your CentriVap.
• If the stainless steel cold trap chamber is attacked by the compounds in use
consider using the optional Glass Trap insert. See Chapter 6: Accessories for
Your CentriVap.
• When using a rotary vane vacuum pump the oil in the pump should be
checked often. It must be changed if it is cloudy, shows particles or is
discolored. The useful life of vacuum pump oil can be extended if the
vacuum pump is operated for an extended of time after the CentriVap run is
over. This allows contaminants to be purged from the hot oil. This must be
done with the inlet to the pump blocked off to prevent air from free flowing
through the pump. If the pump is operated at an elevated vacuum level, oil
will be expelled from the pump and damage will occur.
• If optional secondary traps are used, monitor their condition often and
replace them when they are saturated. A new acid trap is off-white and
changes color to purple when used up. A new moisture trap is blue and
changes color to pink when used up. The solvent trap molecular sieve does
not change color when saturated so extra care must be taken to determine
when a replacement cartridge should be installed.
Solvent Safety Precautions
CAUTION: The CentriVap is not classified as “explosion proof.” It has
been designed with safety as a primary consideration and should be used in a
prudent manner using “good laboratory practices.” It has been designed
for use with compounds as described in the United States National Electrical
Code Class I, Group D. The heater may be programmed to run as hot as
100°C, however, the heater element may normally run at 110°C. A thermal
fuse limits the heater to a maximum temperature of 141°C. It is important
that the solvents used are compatible with these temperatures. Do not
evaporate solvents that have an autoignition temperature below 180°C. Do
not evaporate solvents that are classified as Group A, B, or C by the
National Electrical Code. Evaporate only non-flammable or Group D
solvents with autoignition temperatures 180°C or above. Use of other
compounds could cause an explosion.
14
Product Service 1-800-522-7658
Chapter 3: Getting Started
CAUTION: Solvents used in the CentriVap may be flammable or hazardous.
Use extreme caution and keep sources of ignition away from the solvents.
When using flammable or hazardous solvents, both the CentriVap and the
vacuum pump should be operated inside a fume hood.
If a sample is spilled in the chamber it must immediately be cleaned up.
Hazardous materials, such as strong acids or bases, radioactive substances
and volatile organics, must be handled carefully and promptly cleaned up if
spilled.
Do not store flammable or hazardous solvents within 12 inches (300 mm) of
the CentriVap.
IMPORTANT NOTE: The disposal of substances used in connection with
this equipment may be governed by various Federal, State or local
regulations. All users of this equipment are urged to become familiar with
any regulations that apply in the user’s area concerning the dumping of
waste materials in or upon water, land or air and to comply with such
regulations.
Product Service 1-800-522-7658
15
CChhaapptteerr 44::
UUssiinngg YYoouurr CCeennttrriiVVaapp
After your CentriVap has been installed as detailed in Chapter 3: Getting Started,
you are ready to begin using your CentriVap. Read this chapter to learn how to:
• Set operating parameters.
• Operate the controls.
• Properly select and position glassware inside your CentriVap.
• Understand the display.
• Interrupt a cycle after it has begun.
Note: See Appendix C: CentriVap Specifications for electrical requirements.
Note: Do not store or stack supplies or equipment on top of the CentriVap.
Planning
Thoroughly understand procedures and the equipment operation prior to
beginning work. The unique performance of the CentriVap is dependent upon the
proper balance of heat, vacuum and centrifugal force. If the proper balance is not
established, it is possible to damage or lose a portion of the sample. Therefore, if
you are unfamiliar with the CentriVap or are attempting a new protocol, it may be
helpful to make a trial run that is void of the sample you are attempting to
concentrate.
Glassware Selection
Normally, sample tubes should be filled no more than approximately half full.
Select the size of the sample tube so it is compatible with the rotor and the desired
sample size. Tubes should not be loose in the rotor. Rotors are available with
holes for various size tubes. Refer to Chapter 6: Accessories for Your CentriVap
for available rotor sizes.
16
Product Service 1-800-522-7658
Chapter 4: Using Your CentriVap
Loading Glassware into the CentriVap
Smooth operation of the CentriVap is dependent upon proper balance of the
machine. Therefore, if less than a full load of samples is run, it is important to
load samples into the CentriVap in a fairly symmetrical manner distributing the
weight of the samples evenly in the sample rotor.
Temperature Setting Guidelines
The evaporation rate achieved by the CentriVap is dependent upon a variety of
factors. These include the nature of the solvent, the temperature and the pressure
in the vacuum system.
As a general guideline, to speed the evaporation process, the CentriVap
temperature should be set as high as possible as long as the temperature will not
damage the sample or cause the sample to bump.
Time Setting Guidelines
The CentriVap Concentrator has two timers. The “RUN TIME” turns the entire
concentrator off after the user set period of time. This stops the rotation, turns off
the heater and vacuum pump and bleeds vacuum from the system. The heater
may be turned off prior to the concentrator turning off so heat-sensitive samples
may be protected from exposure to excessive heat after the solvent has
evaporated. To turn the heater off prior to stopping the entire system, enter a set
time into the memory at the “HEATER TIME.” When the programmed time
expires, the heater will turn off but the rotation and vacuum will continue until the
run time expires.
The tables in Appendix C: CentriVap Specifications indicate approximate times
required to evaporate various common solvents. Actual times must be determined
by the user. The CentriVap can be set to alarm after a preset period of operation.
When the time expires, the CentriVap will give an audible alarm and turn itself
off.
Heat Boost Operation
Some CentriVap models are equipped with a secondary “Heat Boost” heater,
which is positioned on the sidewall of the chamber near the top. It provides
additional heat to the samples to speed evaporation. The “Heat Boost” heater is
controlled by the microprocessor to maintain the set point temperature at the
bottom of the chamber to prevent excessive overheating of the samples.
Product Service 1-800-522-7658
17
Chapter 4: Using Your CentriVap
CentriVap Controls
The control panel for the CentriVap is shown below with a description about its
function.
1. Display – The liquid crystal display (LCD) shows set point parameters and
actual measured conditions.
2. Program Buttons – Used to initiate the start of a run with the use of just one
button.
3. Run/Stop Button – Press this to start or stop a run.
4. Preheat Button – Used to turn on the heater to preheat the chamber prior to
loading samples.
5. Increase Button – When pressed, the last selected set point will increase.
6. Decrease Button – When pressed, the last selected set point will decrease.
7. Set Point Select Button – To select a parameter to change, press the select
button. Arrows on the display will point to the parameter that may be altered.
8. Heat Boost Button (not shown) – If the model is so equipped, pressing the
button will activate or deactivate the auxiliary Heat Boost heater.
Operating the CentriVap Controls
Preheat:
To preheat the chamber, press the “PREHEAT” button. The display will show:
SP: XXX ACT: XXX
Press the increase or decrease button until the desired set point (SP) is displayed.
The actual chamber temperature, (ACT) is displayed to the right. When power is
being supplied to the heaters, a bar under the actual temperature will illuminate.
The chamber will continue to preheat until either the “PREHEAT” button is
pressed again or the “RUN” button is pressed.
18
Product Service 1-800-522-7658
Chapter 4: Using Your CentriVap
Select existing program:
Operating parameters can be stored in memory so protocols can be repeated.
Nine programs can be stored. To select a program, press the set point “SELECT”
button until arrows point to the program number indicating that this set point can
be run or altered. To change the program number, press the increase or decrease
button until the desired program number is displayed. When the program number
is changed, all its set points change also to indicate the last entered parameters for
that program.
Store frequently run protocols in program 1, 2, or 3. Then, by pressing “PROG
1,” “PROG 2” or “PROG 3,” the stored program will be initiated without having
to press any other button. Pressing just the one button starts the rotor, the heater,
the timers and the vacuum pump.
Change “Temperature” Set Point:
To change the “Temperature” set point, press the set point “SELECT” button until
arrows point to the “Temperature” set point, which can be changed from - (OFF)
up to 99° by pressing the increase or decrease buttons. The set point is 100°C if
the display shows “HI.” The last entered set point is stored in memory.
Change “Run Time” or “Heater Time” set point:
To change the time set point, press the set point “SELECT” button until arrows
point to the “Heater Time” or “Run Time” set point which can be changed from 1
to 999 minutes by pressing the increase or decrease buttons. If it is desired to
have the CentriVap run continuously without alarming at the end of a time period,
press the increase button until the ”Run Time” display says “ON.” The last
entered set point is stored in memory.
If during a run the “STOP” button is pressed, the timers remember the time at
which stop occurred. If “RUN” is then pressed, the timers continue to count
down from the time at which they were stopped. If you are running program 1,
program 2 or program 3, pressing “PROG 1,” “PROG 2” or “PROG 3” resets the
timers to the original set point time and the CentriVap starts a new run.
To reset the timers to the original set point time when running programs other
than program 1, program 2 or program 3, press the start button and hold it for five
seconds. The display will indicate that the timer is reset.
Product Service 1-800-522-7658
19
Chapter 4: Using Your CentriVap
Operating the CentriVap
CAUTION: To avoid personnel injury; Do not operate the CentriVap if the
lid is scratched or nicked, or shows signs of damage. A damaged lid could fail
under vacuum.
While the CentriVap Concentrator is operating, do not lean on the lid, do not
stand near it longer than necessary and do not place hazardous materials within 12
inches.
1. Press the Cold Trap “ON” switch. The top amber indicator will illuminate.
Additional indicators will illuminate, as the Cold Trap gets colder. A green
indicator will illuminate when the Cold Trap reaches operating temperature.
2. Press the CentriVap “ON” switch.
3. Select a program or set the set point parameters.
4. Preheat the chamber if desired.
5. Turn on Heat Boost if the CentriVap is so equipped and additional heat is
desired.
6. Place samples in vials. Normally the vials should be no more than half full.
Place vials in a rotor.
7. Load the rotor with samples into the chamber.
8. Close the lid. A safety switch prevents the CentriVap from starting when the
lid is open.
9. Press “RUN.” If the display was showing set point parameters, it will change
to show actual parameters. Press “RUN” again. The “S” (STOP) in the
display changes to “R” (RUN). The program on the display alternately
displays “R” or the number of the program that is running. If you intend to
run program 1, 2 or 3, simply press “PROG 1,” “PROG 2” or “PROG 3” to
start the CentriVap. A latch will activate to lock the lid closed, the rotor will
start, the vacuum break valve will close and the vacuum pump will start after
the rotor reaches operating speed.
20
Product Service 1-800-522-7658
Chapter 4: Using Your CentriVap
10. Set point parameters can be altered at any time during a run by first selecting
the parameter using the set point “SELECT” button and then pressing the
“INCREASE” or “DECREASE” switch.
11. If the time set point is used, at the end of the set time an alarm sounds. All
functions cease.
12. Press “STOP” to terminate operation if the CentriVap has not already stopped
itself.
13. When the evaporation is complete, allow the rotor to stop moving, lift the lid
and remove the samples.
Operational Notes
As solvent is evaporated in the Concentrator and then condensed in the Cold Trap,
it is normal for the Cold Trap temperature to rise as its load increases.
Depending on which solvent is used, the volume of the sample and the system
operating parameters, the Cold Trap may warm up sufficiently to cause the
“GREEN” indicator to turn off. As the sample reaches completion, the load on
the Cold Trap will decrease and its temperature will decrease. The “GREEN”
indicator will once again illuminate.
When the CentriVap is turned ON, the CentriVap returns to the same mode
(“RUN” or “STOP”) that it was in when the power was turned OFF. If the
CentriVap was in the “RUN” mode when the power was turned OFF, when the
power is turned ON, the CentriVap attempts to return to the programmed set
points and continue the run.
Cycle Interruption
At any time during a run, the cycle may be stopped by pressing the “STOP”
button. This shuts off all operating functions. After the rotor stops, the lid may
be opened. If it is necessary to re-start the CentriVap, close the lid and press
“RUN.” The CentriVap resumes operation at the same set point parameters and
the timer continues to count down from the time at which the CentriVap was
stopped.
Safety Precautions
Special precautions must be observed if the materials used in the CentriVap
Concentrator are known to be hazardous, toxic, radioactive, or contaminated with
pathogenic micro organisms. These actions should include but are not limited to
the following:
• Refer to the World Health Organization Laboratory Biosafety Manual,
paying special attention to information about centrifuges and the handling
of hazardous materials.
• Operate or vent the CentriVap Concentrator inside a suitable fume hood or
ventilation device. Load rotors in a ventilation device.
• Periodically inspect all parts of the CentriVap Concentrator including the
lid, gasket, chamber, plumbing components and rotors.
Product Service 1-800-522-7658
21
CChhaapptteerr 55::
MMaaiinnttaaiinniinngg YYoouurr CCeennttrriiVVaapp
Under normal operation, the CentriVap requires little maintenance. The
following maintenance schedule is recommended. Before servicing the
CentriVap, disconnect electrical power. Special precautions must be observed if
materials used in the CentriVap Concentrator are known to be hazardous, toxic,
radioactive or contaminated with pathogenic micro organisms. Before servicing,
the CentriVap Concentrator must be suitably decontaminated. Wear appropriate
eyewear, gloves and other safety apparel.
As needed:
Before using any cleaning or decontamination method except those recommended
by the manufacturer, users should check with the manufacturer that the proposed
method will not damage equipment.
1. Clean up all spills; remove liquids from the chamber. Clean or decontaminate
all surfaces using agents suitable for the substance spilled.
2. Clean lid and gasket using soft cloth, sponge or chamois and a mild, non-
abrasive soap or detergent.
3. Check oil level of the vacuum pump, if applicable. It should be between MIN
and MAX. If the oil level is less than an inch (25.4 mm) above MIN, add oil
to proper level.
4. If oil shows cloudiness, particles or discoloration, drain the pump and replace
with fresh oil.
5. Utilization of acids requires immediate cleaning and neutralization after a run
or physical damage to the collection chamber will result.
6. Check the Cold Trap for condensed or frozen solvents and dispose of
appropriately. Completely empty the trap before the next run. The Cold Trap
cover is removed by first lifting and rotating the two retainers that secure the
lid in place. If solvents are frozen in the glass trap, run it under cold water
immediately after operating.
NOTE: IF THE ICE HAS MELTED, THE GLASS TRAP INSERT MUST
BE EMPTIED BEFORE THE COLD TRAP IS STARTED AGAIN.
22
Product Service 1-800-522-7658
Chapter 5: Maintaining Your CentriVap
7. If the Glass Trap is used, check to see that the ethanol in the stainless steel
trap is free of ice or water. Drain the ethanol and replace it with fresh ethanol.
8. If the media in the cartridge in the optional clear canister has changed color,
discard and replace the insert with a new insert. For the radiochemical trap
insert, no indicator exists; therefore, it should be discarded after each use. In
radioactive applications, the system should be monitored with a Geiger
counter.
9. Check rotors for loose or missing parts. Tighten or replace as required. Do
not use defective rotors.
10. Inspect the chamber to insure that there are no cracks or structural damage.
Call Labconco if defects exist.
11. Check the continuity of the protective earth between the ground terminal on
the power inlet and a bare metal housing panel. Contact Labconco if there is
no continuity.
12. Repair any defects to the surface where the CentriVap is installed.
Monthly:
1. The rubber components on the CentriVap may eventually deteriorate and
require replacement. The effective life of rubber parts depends upon both
their usage and the surrounding environment. Check all rubber hoses and
gaskets and replace any that show signs of hardening, permanent set or
deterioration.
2. Using a soft cloth, sponge or chamois and a mild, non-abrasive soap or
detergent, clean the glass lid.
3. Using a soft cloth, sponge, or chamois and a mild, non-abrasive soap or
detergent, clean the exterior surfaces of the unit. Liquid spray cleaners and
polishes may be used on the exterior surfaces. Do not use solvents to remove
stains from the exterior surfaces as they may damage the finish.
Annually:
1. Every 12 months, or more often, if the Cold Trap is operated in a dusty
environment, the refrigeration system condenser of the Cold Trap should be
cleaned. Using a vacuum cleaner with brush attachment, clean the condenser
to ensure proper airflow for peak performance. Disconnect power to the Cold
Trap prior to removing covers.
Product Service 1-800-522-7658
23
CChhaapptteerr 66::
AAcccceessssoorriieess ffoorr YYoouurr CCeennttrriiVVaapp
The configuration of your CentriVap can be changed to accommodate your needs.
If the solvents used in the CentriVap degrade the acrylic lid, it may be replaced
with an optional glass lid to gain added chemical resistance. You may wish to
add a secondary trap to trap vapors exhausted from the vacuum pump. To observe
the samples while they are processing, an optional CentriZap Strobe light may be
installed. Read this chapter to learn how to:
• Install a glass lid
• Install a chemical trap.
• Install a vacuum gauge.
• Install a CentriZap™ strobe light.
• Install a glass trap in the Cold Trap chamber.
24
Product Service 1-800-522-7658
Chapter 6: Accessories for Your CentriVap
The following accessories are available for the CentriVap Concentrator and Cold
Trap System.
PART # DESCRIPTION
7462900
7462901*
Rotor (DNA)
Holds (72) 0.5 ml microcentrifuge tubes
and
(60) 1.5 ml microcentrifuge tubes or
(60) 2.0 ml microcentrifuge tubes
7450700
7450701*
7455000
7455001*
7455100
7455101*
7455200
7455201*
7461900
7461901*
Rotor (1.5 ml)
Holds (132) 1.5 ml microcentrifuge tubes or
(132) 2.0 ml microcentrifuge tubes
Rotor (15 ml)
Holds (44) 12 x 55 mm tubes or
(36) 12 x 75 mm tubes or
(36) 12 x 95 mm tubes or
(36) 13 x 75 mm tubes or
(36) 13 x 100 mm tubes
and
(24) 16 x 100 mm tubes or
(18) 16 x 120 mm conical tubes or
(18) 17 x 95 mm tubes or
(18) 17 x 100 mm centrifuge tubes or
(18) 17 x 120 mm tubes
Rotor (12-13 mm)
Holds (40) 1.5 ml microcentrifuge tubes or
(40) 2.0 ml microcentrifuge tubes
and
(16) 12 x 55 mm tubes or
(100) 12 x 75 mm tubes or
(64) 12 x 95 mm tubes or
(100) 13 x 75 mm tubes or
(64) 13 x 100 mm tubes
Rotor (50 ml)
Holds (32) 1.5 ml microcentrifuge tubes or
(32) 2.0 ml microcentrifuge tubes
and
(12) 28 x 115 mm conical tubes or
(12) 28 x 135 mm conical tubes or
(12) 28 x 140 mm conical tubes
Rotor (96 well plate)
Holds (4) Standard 96 well plates or
(2) Deep well 96 well plates
7460900 Clear Canister - Accommodates inserts listed below
7814800 Acid Trap Insert
7814900 Moisture Trap Insert
*Teflon Coated
Product Service 1-800-522-7658
25
Chapter 6: Accessories for Your CentriVap
7995600 Ammonia Trap Insert
7815000 Radiochemical Trap Insert
7815200 Solvent Trap Insert
7456600 Glass Lid for Concentrator – Direct replacement for standard equipment acrylic
lid. For use with chemicals that could craze acrylic.
7464300
CentriZap™ Strobe Light – For observing samples while the rotor is spinning.
1472100 Direct Drive Vacuum Pump – 117 liters/minute pumping capacity with gas
ballast. Ultimate pressure 1.3 x 10
-4
mBar. 115 VAC, 60 Hz, single phase, 4.6
amp.
1467700 Direct Drive Vacuum Pump – 195 liters/minute capacity with gas ballast.
Ultimate pressure 1.3 x 10
-4
mBar. 115 VAC, 60 Hz, single phase, 7.8 amp.
7739402 Direct Drive Vacuum Pump – 117 liters/minute. Same as 1472100 except
220/208-230 VAC, 50/60 Hz, single phase, 2.4 amp operation.
7739403 Direct Drive Vacuum Pump – 195 liters/minute. Same as 1467700 except
220/208-230 VAC, 50/60 Hz, single phase, 4.0 amp operation.
7393000 Diaphragm Vacuum Pump – Corrosion resistant, 115V, 50/60 Hz, 3.5 amps,
single phase, 82 liters/minute, < 2 mBar vacuum.
7393001 Diaphragm Vacuum Pump – Corrosion resistant, 230V, 50/60 Hz, 2.0 amps,
single phase, 82 liters/minute at 60Hz, < 2 mBar vacuum.
1473400 Vacuum Pump Exhaust Filter – Installs on pumps PN 1472100, 1467700,
7739402 and 7739403 to eliminate oil mist from the exhaust.
7397700 Two Place Freeze Dry Manifold – Manifold has 1/2" neoprene valves and is used
for freeze drying small volume samples.
7397605 Glass Trap for Cold Trap.
1988000 Vacuum Pump Oil, 1 Liter
A molecularly distilled hydrocarbon oil with low vapor pressure.
For vacuum pumps 1472100, 7422100, 7739402 and7739403.
1473400 Pump Exhaust Filter
Disposable filter that removes visible oil mist and odor from vacuum pump
exhaust. Fits vacuum pumps 1472100 and 7739402.
1473200 Replacement Element, Oil Mist, Pump Exhaust Filter
Fits pump exhaust filter 1473400.
1473300 Replacement Element, Odor and Pump Exhaust Filter (package of 5)
Fits pump exhaust filter 1473400 or vacuum pumps 1472100 1467700, 7739402,
and 7739403.
26
Product Service 1-800-522-7658
Chapter 6: Accessories for Your CentriVap
Installing a Glass Lid
Turn off the CentriVap. Unplug the power cord from the wall receptacle. Pull
outward on the hinge pin knob. Lift and remove the old lid. To install the new
lid, reverse the process.
Installing a Secondary Chemical Trap
An accessory secondary chemical trap is available to minimize the exhausting of
solvents into the atmosphere. It may be attached to either side of the Cold Trap.
After selecting the side, remove the two small plastic hole plugs. Attach the
bracket to the side of the Cold Trap housing using the screws provided. Attach
the hose from the Cold Trap Lid Assembly to the “out” connector of the canister
housing. Connect another hose from the remaining fitting on the Secondary Trap
to the inlet port on the vacuum pump. Clamp hoses securely. Unscrew the clear
bowl of the canister housing from the head. Remove both the upper and lower
caps from the filter cartridge and insert the small end of the cartridge into the hole
in the center of the head. Reinstall the clear bowl.
Be sure to use the proper cartridge for your application. The moisture cartridge is
used to trap water vapor. The acid cartridge is used to trap acid vapors. The
solvent cartridge is used to trap solvent vapors and the radiochemical cartridge is
used to trap radioactive waste.
When the media in the insert has changed color, discard the insert and replace it
with a new insert. For the radiochemical trap insert, no color indicator exists
therefore it should be discarded after each use. Use a Geiger counter to monitor
the pump exhaust.
NOTE: This radiochemical cartridge does not meet NRC filter design
recommendations. After operating, properly dispose of all hazardous
materials in compliance with all applicable codes. Labconco is not
responsible for improper disposal of any materials.
Product Service 1-800-522-7658
27
Chapter 6: Accessories for Your CentriVap

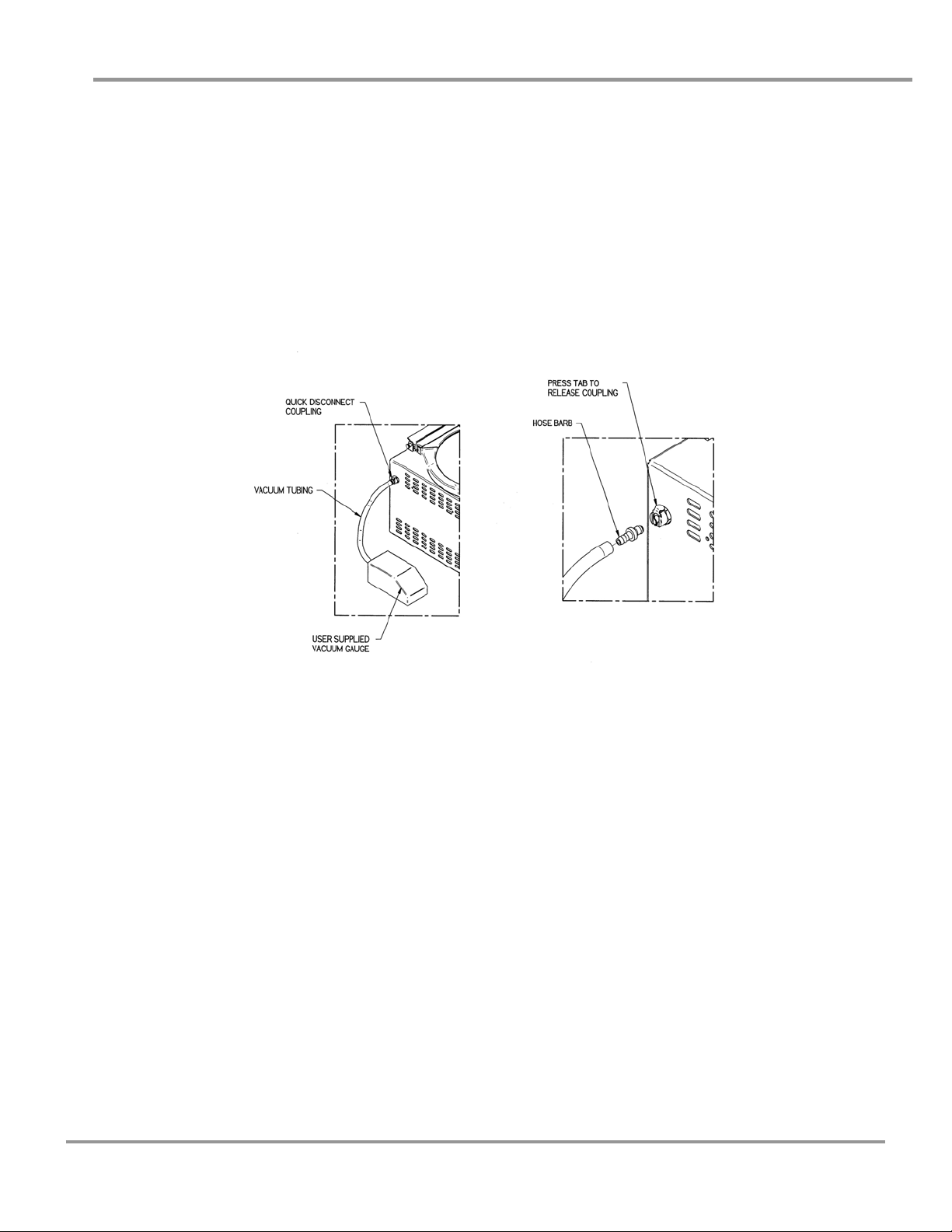

Installing a Vacuum Gauge
A user-supplied vacuum gauge may be attached to the CentriVap to monitor the
vacuum level. Attach the vacuum gauge to the barb end of the Quick Disconnect
Coupling fitting that was supplied with the CentriVap using a length of suitable
rubber hose. The Quick Disconnect Coupling fitting can then be pushed into the
mating connector on the left side of the CentriVap located towards the rear. The
Quick Disconnect Coupling fitting can be removed from the mating connector by
pressing on the tab on the connector and then pulling out the Quick Disconnect
Coupling fitting. Always remove the Quick Disconnect Coupling from the
CentriVap if a vacuum gauge is not attached to it.
28
Product Service 1-800-522-7658
Chapter 6: Accessories for Your CentriVap
Installing a CentriZap™ Strobe Light
An accessory strobe light is available to enable you to see the samples as they are
rotating in the rotor. Attach the holder to the right hand side of the CentriVap
Concentrator using the screws provided. Plug the connector on the strobe light
harness into the receptacle on the back of the CentriVap marked “STROBE
OUTLET.” Peel the protective backing off the enclosed Velcro® and attach it to
the back of the Concentrator. Secure the power supply box on the harness to the
Velcro. Place the light in the holder.
To use the strobe light while the CentriVap is operating, remove the light from its
holder, press the trigger and shine the light on the samples in the rotor.
*Velcro is a registered trademark at Velcro Industries B.V.
Product Service 1-800-522-7658
29
Chapter 6: Accessories for Your CentriVap
Installing a Glass Trap in the Cold Trap
An accessory Glass Trap is available for use in the Cold Trap for use when
corrosive chemicals are used that could attack the stainless steel chamber of the
Cold Trap. Lift and rotate the two lid retainers. Disconnect the hose and remove
the Cold Trap Lid Assembly. Attach the hose from the Concentrator to the fitting
on the center tube of the Glass Trap and clamp securely. Attach the hose from the
vacuum pump or Secondary Trap to the other fitting on the Glass Trap and clamp
securely. Be certain that the drain valve is closed. Add approximately 500 ml of
ethyl alcohol to the stainless steel trap or enough to insure that the Glass Trap is at
least two-thirds immersed. Place the Glass Trap inside the stainless steel trap, lift
and rotate the two retainers to hold the Glass Trap in place.
NOTE: After a run, if the ice in the glass trap has melted, the trap must be
emptied before the cold trap is started again to prevent it from breaking.
30
Product Service 1-800-522-7658
CChhaapptteerr 77::
TTrroouubblleesshhoooottiinngg
Refer to the following if your CentriVap fails to operate properly. If the
suggested corrective actions do not solve your problem, contact Labconco for
additional assistance. The following failure codes may appear on the display
when problems are sensed by the internal self check systems.
CAUTION: Disconnect power before corrective action is taken.
DISPLAY ERROR CODE CAUSE CORRECTIVE ACTION
Heat Sensor
Close Lid
Latch Fail
Mem Fail P1
MOTOR ERROR
Sensor failure Replace sensor assembly.
Connection failure Repair connection.
Lid open Close lid.
Solenoid failure Check component.
Switch or sensor failure Check connections.
Memory failure Push program button #1.
New memory IC chip Push program button #1.
Bad memory IC chip Call Labconco – Replace IC chip or
control PCB.
Defective motor Replace motor.
Hall effect sensor failure Replace sensor.
Wire failure Replace wire.
Product Service 1-800-522-7658
31
Chapter 7: Troubleshooting
Other corrective actions for potential problems are as follows:
PROBLEM CAUSE CORRECTIVE ACTION
Unit will not operate
Excessive vibration
Sample odor in lab
Evaporation rate is
Unit not connected to
electrical power
Circuit breaker blown Correct electrical problem and reset circuit
Lid open Close lid.
Sample tubes not located
symmetrically in rotor
Vent hose exhausting
into lab area
Heater inoperable Contact Labconco.
Connect unit to proper electrical
receptacle.
breaker by pressing button.
Reposition sample tubes.
Redirect hose to fume hood.
reduced
No vacuum/poor vacuum
Vacuum pump failure Check pump.
Obstruction in hose Remove obstruction or replace hose.
Lack of adequate
vacuum
Pump not on Turn on pump.
Control valve open Check control valve.
Leaks in lines or
connectors or gasket
Foreign material on lid
gasket
Pump is not functioning
properly
If pump is faulty, seek authorized service or
Cold Trap or
Concentrator gasket is
not sealing properly
Cold Trap lid not seated Hold lid down until vacuum is initiated.
See below.
Locate and repair.
Clean gasket and lid.
Check pump by locating vacuum gauge
closer to pump and close off rest of system.
Check pump oil for cloudiness or particles
and change.
replace pump.
Check gasket for cleanliness. Adjust gasket
as needed.
32
Product Service 1-800-522-7658
Chapter 7: Troubleshooting
PROBLEM CAUSE CORRECTIVE ACTION
No vacuum/poor vacuum
(cont.)
Ice formed on Cold
Defrost and wipe dry.
Trap lid sealing surface
Secondary Trap
Cannister not fitted
Tighten all connections to and from the
Secondary Trap Cannister.
properly
Recovery of condensate in
Cold Trap is less than
normally expected
Frequent oil change needed
in pump
Unit starts and shuts off
Secondary Trap Insert
Replace with new insert.
is spent
New Secondary Trap
has moisture in it
Run vacuum pump for 24 hours to
remove moisture.
Cold Trap is not ON Check to make sure switch is ON and
condensing unit fan is moving air out
of the rear of the cabinet.
Cold Trap does not cool
down
Turn vacuum pump OFF and allow
Cold Trap to cool for at least 30 min. to
reach temperature.
-50°C temperature can be checked with
a solvent thermometer or digital
thermometer.
Secondary Trap insert
Change insert often.
is spent
Cold Trap is not
emptied after each run
Empty the traps (glass or stainless
steel) after each run and replace.
and dried
Vacuum too strong for
chemical
Use a Secondary Trap insert and
diaphragm pump.
Latch optical sensor
improperly calibrated
Unplug power cord. Wait 10 seconds.
Plug in power cord.
Product Service 1-800-522-7658
33
AAppppeennddiixx AA::
CCeennttrriiVVaapp CCoom
The following pages list components that are available for your CentriVap. The
parts shown are the most common replacement parts. If other parts are required,
contact Product Service.
Item Quantity Part No. Description
1 1 7459000 Motor w/Capacitor
2 1 7481700 Valve, Vacuum Break (115V)
2A 1 7481701 Valve, Vacuum Break (230V)
2B 1 7396308 Valve Assy, Teflon (Acid Resistant Models)
3 1 7453500 Heater (115V)
3A 1 7453501 Heater (230V)
4 1 1647106 O-Ring, Outer
5 1 1647105 O-Ring, Inner
6 1 7975902 Fuse, High Temp Limiter
7 1 7456000 Harness, Temp & Speed Sensor
8 1 7479400 Printed Circuit Board
9 1 1289200 Relay Vacuum Pump (115V)
9A 1 1289100 Relay Vacuum Pump (230V)
10 1 7826000 Switch, Latch
11 1 7478700 Solenoid, Latch
12 1 7403701 Display
13 1 7398400 Label/Switch Pad
13A 1 7398401 Label/Switch Pad with Heat Boost
14 1 7452600 Gasket, Lid
15 1 7456600 Lid, Glass
15A 1 7452500 Lid, Acrylic
16 42.2 inch 7451700 Extrusion
17 2 7452200 Hinge, Bracket Assembly
18 1 1289300 Circuit Breaker (115V)
18A 2 1289308 Circuit Breaker (230V)
19 1 1289200 Relay – Heat Boost (115V and 230V)
20 1 1334500 Power Cord 115V
20A 1 1336100 Power Cord 230V EU (Not Shown)
20B 1 1332600 Power Cord 230V UK (Not Shown)
20C 1 1332700 Power Cord 230V China (Not Shown)
20D 1 1338000 Power Cord 230V US (Not Shown)
mppoonneennttss
34
Product Service 1-800-522-7658
Appendix A: CentriVap Components
Product Service 1-800-522-7658
35
Appendix A: CentriVap Components
CentriVap Cold Trap Components (-50°C Models)
Item Quantity Part No. Description
1 1 7398100 Label
2 1 7394400 Printed Circuit Board
3 1 1302300 Switch
4 1 1327208 Circuit Breaker (115V)
4A 2 1327204 Circuit Breaker (230V)
5 1 1333800 Power Cord Inlet
6 1 7437700 Compressor (115V)
6A 1 7437701 Compressor (230V/50Hz)
6B 1 7734402 Compressor (230/60Hz)
7 1 7936200 Drier
8 1 7387300 Line Assembly
9 1 1360500 Valve
10 1 7464600 Wire Assembly – Ground
11 1 7399700 Lid Assembly
12 2 1554800 Stem Adapter
13 2 1554900 Elbow
14 2 1554700 Stem
15 1 7397606 Lid Assembly for Glass Trap
16 1 7871500 Glass Trap
17 1 1334500 Power Cord 115V (Not Shown)
17A 1 1336100 Power Cord 230V EU (Not Shown)
17B 1 1332600 Power Cord 230V UK (Not Shown)
17C 1 1332700 Power Cord 230V China (Not Shown)
17D 1 1338000 Power Cord 230V US (Not Shown)
36
Product Service 1-800-522-7658
Appendix A: CentriVap Components
Product Service 1-800-522-7658
37
Appendix A: CentriVap Components
CentriVap Cold Trap Components (-85°C Models)
Item Quantity Part No. Description
1 1 7398100 Label
2 1 7394402 Printed Circuit Board
3 1 1302300 Switch – Power
4 1 7474200 Timer (115V)
4A 1 7474400 Timer (230V)
5 1 7431700 Switch – Pressure
6 1 1360500 Valve
7 1 7464600 Wire Assembly – Ground
8 1 1327207 Circuit Breaker (115V)
8A 2 1327208 Circuit Breaker (230V)
9 2 1548603 Stem Adapter
10 2 1544501 Elbow
11 2 1548101 Stem
12 1 7398900 Insulation – Lid Assembly
13 1 1334500 Power Cord 115V (Not Shown)
13A 1 1336100 Power Cord 230V EU (Not Shown)
13B 1 1332600 Power Cord 230V UK (Not Shown)
13C 1 1332700 Power Cord 230V China (Not Shown)
13D 1 1338000 Power Cord 230V US (Not Shown)
14 1 7871500 Glass Trap
15 1 7397606 Lid Assembly Complete, Glass Trap
16 1 7397608 Insulation – Glass Trap
17 2 7591800 Compressor 115V
17A 2 7591801 Compressor 230V/50Hz
17B 2 7591802 Compressor 230V/60Hz
18 1 7399700 Cover Assembly Complete, Acrylic
38
Product Service 1-800-522-7658
Appendix A: CentriVap Components
Product Service 1-800-522-7658
39
Appendix A: CentriVap Components
CentriVap Cold Trap Components (-105°C Models)
Item Quantity Part No. Description
1 1 7398100 Label
2 1 7394402 Printed Circuit Board
3 1 1302300 Switch – Power
4 1 7474200 Timer (115V)
4A 1 7474400 Timer (230V)
5 1 7431700 Switch – Pressure
6 1 1360500 Valve
7 1 7464600 Wire Assembly – Ground
8 1 1289315 Circuit Breaker (115V)
8A 2 1289308 Circuit Breaker (230V)
9 2 1548603 Stem Adapter
10 2 1544501 Elbow
11 2 1548101 Stem
12 1 7398900 Insulation – Lid Assembly
13 1 1336400 Power Cord 115V (Not Shown)
13A 1 1336500 Power Cord 230V EU (Not Shown)
13B 1 1332601 Power Cord 230V UK (Not Shown)
13C 1 1332701 Power Cord 230V China (Not Shown)
13D 1 1342100 Power Cord 230V US (Not Shown)
14 1 7871500 Glass Trap
15 1 7397606 Lid Assembly Complete, Glass Trap
16 1 7397608 Insulation – Glass Trap
17 2 7591800 Compressor 115V
17A 2 7591801 Compressor 230V/50Hz
17B 2 7591802 Compressor 230V/60Hz
18 1 7399700 Cover Assembly Complete, Acrylic
40
Product Service 1-800-522-7658
Appendix A: CentriVap Components
Product Service 1-800-522-7658
41
AAppppeennddiixx BB::
CCeennttrriiVVaapp DDiim
meennssiioonnss
CentriVap Concentrator
42
Product Service 1-800-522-7658
Appendix B: CentriVap Dimensions
CentriVap Cold Trap (-50°C Models)
Product Service 1-800-522-7658
43
Appendix B: CentriVap Dimensions
CentriVap Cold Trap (-85°C Models)
44
Product Service 1-800-522-7658
Appendix B: CentriVap Dimensions
CentriVap Cold Trap (-105°C Models)
Product Service 1-800-522-7658
45
AAppppeennddiixx CC::
CCeennttrriiVVaapp SSppeecciiffiiccaattiioonnss
This Appendix contains technical information about the CentriVap including
specifications, environmental operating conditions, wiring diagrams and
evaporation rates.
Electrical Specifications
• Nominal amperage for 115V CentriVap Concentrator (model 7810010,
7810014 & 7810016) (excluding vacuum pump): 3.1A (with vacuum
pump) 12.00A max.
• Nominal amperage for 230V CentriVap Concentrator (model 7810011,
7810015 & 7810017) (excluding vacuum pump): 1.6A (with vacuum
pump) 6.0A max.
• Nominal amperage for 115V CentriVap Concentrator (model 7810012)
(excluding vacuum pump): 5.1A (with vacuum pump) 12.0A max.
• Nominal amperage for 230V CentriVap Concentrator (model 7810013)
(excluding vacuum pump): 2.6A (with vacuum pump) 6.0A max.
• Nominal amperage for 115V/60Hz Cold Trap (-50° Models): 6.0A.
• Nominal amperage for 230V 50/60Hz Cold Trap (-50° Models): 2.5A.
• Nominal amperage for 115V/60Hz Cold Trap (-85° Models): 10.0A.
• Nominal amperage for 230V 50/60Hz Cold Trap (-85° Models): 5.1A.
• Nominal amperage for 115V 60Hz Cold Trap (-105°C Models): 13A.
• Nominal amperage for 230V 50/60Hz Cold Trap (-105°C Models): 7A.
• Frequency: All Concentrators – 50/60 Hz.
• Phase: Single
• Rotor Speed: Up to 1,725 RPM
46
Product Service 1-800-522-7658
Appendix C: CentriVap Specifications
Environmental Conditions
• Indoor use only.
• Maximum altitude: 6562 feet (2000 meters).
• Ambient temperature range: 41° to 104°F (5° to 40°C).
• Maximum relative humidity: 80% for temperatures up to 88°F (31°C),
decreasing linearly to 50% relative humidity at 104°F (40°C).
• Main supply voltage fluctuations not to exceed ±10% of the nominal
voltage.
• Transient overvoltages according to Installation Categories II
(Overvoltage Categories per IEC 1010). Temporary voltage spikes on the
AC input line that may be as high as 1500V for 115V models and 2500V
for 230V models are allowed.
• Used in an environment of Pollution degrees 2 (i.e., where normally only
non-conductive atmospheres are present). Occasionally, however, a
temporary conductivity caused by condensation must be expected, in
accordance with IEC 664.
Product Service 1-800-522-7658
47
Appendix C: CentriVap Specifications
Evaporation Rates
Tube
Size (ml)
Methylene
Chloride
50 12 25 45 off Diaphragm 80 no 3.75
50 12 25 45 on Diaphragm 78 no 3.85
15 18 10 45 off Diaphragm 45 no 4.00
15 18 10 45 on Diaphragm 45 no 4.00
Toluene bp 111
50 12 25 45 off Diaphragm 204 no 1.47
50 12 25 45 on Diaphragm 187 no 1.60
50 12 25 100 off Diaphragm 96 no 3.13
50 12 25 100 on Diaphragm 66 no 4.55
15 18 10 45 off Diaphragm 119 no 1.51
15 18 10 45 on Diaphragm 99 no 1.82
15 18 10 100 off Diaphragm 42 no 4.29
15 18 10 100 on Diaphragm 34 no 5.29
Acetonitrile bp 82
50 12 25 45 off Diaphragm 184 no 1.63
50 12 25 45 on Diaphragm 181 no 1.66
50 12 25 100 off Diaphragm 81 no 3.70
50 12 25 100 on Diaphragm 77 no 3.90
15 18 10 45 off Diaphragm 106 no 1.70
15 18 10 100 off Diaphragm 52 no 3.46
15 18 10 100 on Diaphragm 45 no 4.00
1.5 132 1 45 off Diaphragm 55 no 2.40
1.5 90 1 45 off Diaphragm 47 no 1.92
1.5 132 1 60 off Diaphragm 37 no 3.57
1.5 132 1 75 off Diaphragm 33 no 5.74
1.5 132 1 100 off Diaphragm 21 no 6.29
1.5 132 1 100 on Diaphragm 17 no 7.76
Methanol bp 65
50 12 25 45 off Diaphragm 233 no 1.29
15 18 10 45 off Diaphragm 141 no 1.28
1.5 132 1 35 off Diaphragm 88 no 1.50
1.5 132 1 45 off Diaphragm 64 no 2.06
1.5 132 1 60 off Diaphragm 50 no 2.64
1.5 90 1 75 off Diaphragm 38 no 2.37
1.5 132 1 75 off Diaphragm 39 no 3.38
1.5 132 1 100 off Diaphragm 25 no 5.28
1.5 132 1 100 on Diaphragm 22 no 6.00
Water bp 100
50 12 25 45 off Diaphragm 1397 no 0.21
50 12 25 100 off Diaphragm 445 no 0.67
50 12 25 100 on Diaphragm 430 no 0.70
15 18 10 45 off Diaphragm 841 no 0.19
1.5 132 1 45 off Diaphragm 427 no 0.30
1.5 132 1 60 off Diaphragm 303 no 0.44
1.5 132 1 75 off Diaphragm 196 no 0.67
1.5 132 1 100 off Diaphragm 117 no 1.13
1.5 132 1 100 on Diaphragm 108 no 1.22
50 12 25 45 off rotary vane 1002 yes 0.30
50 12 25 100 off rotary vane 424 yes 0.70
50 12 25 100 on rotary vane 373 yes 0.80
15 18 10 45 off rotary vane 565 yes 0.32
15 18 10 60 off rotary vane 456 yes 0.39
1.5 132 1 45 off rotary vane 299 yes 0.44
1.5 132 1 75 off rotary vane 207 yes 0.64
1.5 132 1 100 off rotary vane 131 yes 1.01
1.5 132 1 100 on rotary vane 122 yes 1.08
Vacuum Pumps:
Diaphragm – Rated at 12 mbar ultimate vacuum and 34 L/min displacement
Rotary vane – Rated at 2.0 x 10
Chamber preheated prior to each run to run temp
Number
of Samples
Sample
Size (ml)
bp 40
-3
mbar ultimate vacuum and 195 L/min displacement
Heater
Temp (C)
Heat
Boost
Vacuum
Pump
Time to
Dry (min)
Cold
Trap
Rate
Overall (ml/min)
48
Product Service 1-800-522-7658
DECLARATION OF CONFORMITY
Application Council Directive(s): 73/23/EEC, 89/336/EEC, 2002/95/EC (RoHS),
Standard(s) to which conformity is declared: EN61010-1, EN61326-1, EN61000-3-2/3,
EN55022
Manufacturer’s Name: Labconco Corporation
Manufacturer’s Address: 8811 Prospect Avenue
Kansas City, MO 64132 USA
Importer’s Name: See Shipping/Customs Documents
Importer’s Address: See Shipping/Customs Documents for your equipment
Type of Equipment: Laboratory Equipment
Model No.:
CentriVap DNA System 79700 followed by two digit number based on options
CentriVap Benchtop Concentrator 78100 followed by two digit number based on options
CentriVap Refrigerated Concentrator 73100 followed by two digit number based on options
CentriVap Cold Trap 78110, 74600, or 73850 followed by two digit number based on options
CentriVap Mobile Console 78120 followed by two digit number based on options
CentriVap Aqueous System 79820 followed by two digit number based on options
CentriVap Acid System 79830 followed by two digit number based on options
CentriVap Solvent System 79840 followed by two digit number based on options
Serial No.: Various – See Individual Declaration
Year of Manufacture: 2005 and Subsequent
I, the undersigned, hereby declare that the equipment specified above conforms to the above
Directive(s) and Standard(s).
See individual Declaration of Conformity which will be signed by the importer for your country.
Place: _______________________________________
(Signature)
Date: _______________________________________
(Full Name)
_______________________________________
(Position)
Labconco P/N 3696004, Rev. H ECO F800
2004/108/EC
Product Service 1-800-522-7658
49
Loading...
