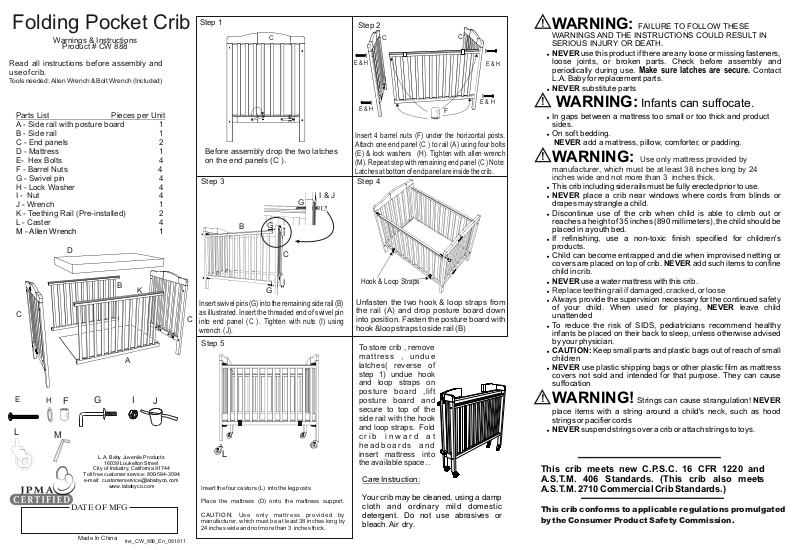

L.A. Baby CW-888 User Manual
Folding Pocket Crib
Warnings & Instructions
Product # CW 888
Read all instructions before assembly and
use of crib.
Tools needed: Allen Wrench & Bolt Wrench (Included)
Step 1
Step 2
C
E & H
C
C
E & H
!
!
WARNING: FAILURE TO FOLLOW THESE
WARNINGS AND THE INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
! NEVER use this product if there are any loose or missing fasteners,
loose joints, or broken parts. Check before assembly and
periodically during use. Make sure latches are secure. Contact
L.A. Baby for replacement parts.
! NEVER substitute parts
Parts List Pieces per Unit
A - Side rail with posture board 1
B - Side rail 1
C - End panels 2
D - Mattress 1
E- Hex Bolts 4
F - Barrel Nuts 4
G - Swivel pin 4
H - Lock Washer 4
I - Nut 4
J - Wrench 1
K - Teething Rail (Pre-installed) 2
L - Caster 4
M - Allen Wrench 1
D
B
K
C
A
E
L
H
F
M
Toll free customer service: 800-584-3094
e-mail: customerservice@lababyco.com
DATE OF MFG
Made In China
G
L.A. Baby Juvenile Products
16039 Loukelton Street
City of Industry, California 91744
www.lababyco.com
I
Ins_CW_888_En_081811
J
Before assembly drop the two latches
on the end panels (C ).
Step 3
G
B
Insert swivel pins (G) into the remaining side rail (B)
as illustrated. Insert the threaded end of swivel pin
C
into end panel (C ). Tighten with nuts (I) using
wrench (J).
Step 5
G
I
C
I
G
L
Insert the four castors (L) into the leg posts
Place the mattress (D) onto the mattress support.
CAUTION: Use only mattress provided by
manufacturer, which must be at least 38 inches long by
24 inches wide and not more than 3 inches thick.
I & J
E & H
E & H
Insert 4 barrel nuts (F) under the horizontal posts.
Attach one end panel (C ) to rail (A) using four bolts
(E) & lock washers (H). Tighten with allen wrench
(M). Repeat step with remaining end panel (C ) Note:
Latches at bottom of end panel are inside the crib.
Step 4
Hook & Loop Straps
Unfasten the two hook & loop straps from
the rail (A) and drop posture board down
into position. Fasten the posture board with
hook &loop straps to side rail (B)
To store crib , remove
mattress , undue
latches( reverse of
step 1) undue hook
and loop straps on
posture board ,lift
posture board and
secure to top of the
side rail with the hook
and loop straps. Fold
crib inward at
headboards and
insert mattress into
the available space. .
Care Instruction:
Your crib may be cleaned, using a damp
cloth and ordinary mild domestic
detergent. Do not use abrasives or
bleach. Air dry.
F
!
WARNING: Infants can suffocate.
! In gaps between a mattress too small or too thick and product
sides.
! On soft bedding.
NEVER add a mattress, pillow, comforter, or padding.
!
! Use only mattress provided by
WARNING:
manufacturer, which must be at least 38 inches long by 24
inches wide and not more than 3 inches thick.
! This crib including side rails must be fully erected prior to use.
! NEVER place a crib near windows where cords from blinds or
drapes may strangle a child.
! Discontinue use of the crib when child is able to climb out or
reaches a height of 35 inches (890 millimeters), the child should be
placed in a youth bed.
! If refinishing, use a non-toxic finish specified for children's
products.
! Child can become entrapped and die when improvised netting or
covers are placed on top of crib. NEVER add such items to confine
child in crib.
! NEVER use a water mattress with this crib.
Replace teething rail if damaged, cracked, or loose
!
! Always provide the supervision necessary for the continued safety
of your child. When used for playing, NEVER leave child
unattended
! To reduce the risk of SIDS, pediatricians recommend healthy
infants be placed on their back to sleep, unless otherwise advised
by your physician.
! CAUTION: Keep small parts and plastic bags out of reach of small
children
! NEVER use plastic shipping bags or other plastic film as mattress
covers not sold and intended for that purpose. They can cause
suffocation
!
WARNING! Strings can cause strangulation! NEVER
!
place items with a string around a child's neck, such as hood
strings or pacifier cords
! NEVER suspend strings over a crib or attach strings to toys.
This crib meets new C.P.S.C. 16 CFR 1220 and
A.S.T.M. 406 Standards. (This crib also meets
A.S.T.M. 2710 Commercial Crib Standards.)
This crib conforms to applicable regulations promulgated
by the Consumer Product Safety Commission.
