Installation and Operation Instructions Document 1320C

Installation and Operation Instructions for

THE

SERIES

Floor-Standing, Modulating Gas, Condensing, Combination Boiler

Model MFTCF

140,000 BTU/hr 199,000 BTU/hr

• Natural Gas (NG) - Factory Conguration

• Propane Gas (LP) - Field-Convertible

FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,

qualied in hot water boiler and heater installation and maintenance. Improper installation and/or operation could create carbon monoxide gas in ue gases which could cause serious injury, property damage, or death. Improper installation and/or operation will void the warranty.

WARNING

If the information in this manual is not

followed exactly, a re or explosion may result causing property damage, personal

injury or loss of life.

Do not store or use gasoline or other

ammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a nearby phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the re department.

Installation and service must be performed by a qualied installer, service agency, or gas supplier.

AVERTISSEMENT

Assurez-vous de bien suivres les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

Ne pas entreposer ni utiliser d’essence ou ni d’autres vapeurs ou liquides inammables dans le à proximité de cet appareil ou de tout autre appareil.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE

GAZ:

• Ne pas tenter d’allumer d’appareils.

• Ne touchez à aucun interrupteur. Ne pas vous servir des téléphones dans le bâtiment où vous vous trovez.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions

du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le sservice des incendies.

L’installation et l’entretien doivent être assurés par un installateur ou un service d’entretien qualié

ou par le fournisseur de gaz.

H2373000C

Page 2

SECTION 1

TABLE OF CONTENTS

Product Accessories

1.1 Introduction ........................................................... 1

1.2 Included with the Appliance ................................1-2

SECTION 2 Product Characteristics

2.1 Model Nomenclature (model number) ................... 3

2.2 Specications ........................................................ 4

2.3 Dimensions ........................................................... 6

2.4 Names of Components ......................................... 8

2.5 Product Flow and Characteristics ....................... 10

2.5.1 Central Heating Flow ..................................10

2.5.2 Domestic Hot Water Flow...........................11

SECTION 3 Safety Regulations

3.1 Safety Symbols ................................................... 12

3.2 Safety Precautions and Proper Use ....................14

SECTION 4 Installation

4.1 Location and Clearances .....................................16

4.2 Wall Mount Bracket

4.2.1 Installation Height and Location .................17

4.2.2 Hang the Boiler ..........................................17

4.3 Combustion Air ..................................................... 18

4.3.1 Combustion Air from Room ........................ 18

4.3.2 Ducted Combustion Air .............................. 18

4.4 Venting (exhaust) ................................................. 20

4.5 General Location Guidelines ................................21

4.6 Locations for Vent Pipe Terminator ......................23

4.6.1 Direct Venting Clearances ..........................23

4.6.2 Non-Direct Venting Clearances ..................24

4.6.3 Venting Requirements in Massachusetts ... 25

4.7 Air Supply and Vent Connections at the Appliance . 26

4.7.1 Vent / Air Pipe Lengths ...............................26

4.7.2 Direct Venting .............................................26

4.7.3 Indoor Combustion Air ................................27

4.8 Vent / Air Pipe Termination ...................................27

4.9 Gas Supply and Piping ......................................... 29

4.10 Gas Supply Pressure ..........................................32

4.11 Gas Set Up and Adjustment ................................32

4.12 High Altitude Installations. 2,000' to 10,000' ........33

4.13 Natural Gas to Propane Conversion ...................34

4.14 Plumbing Guideline .............................................38

4.15 Pressure Relief Valves ........................................42

..............................................17

4.16 Disposal of Condensate ......................................43

4.17 Electrical Wiring Connections ........................... 44

4.18 DIP Switches .................................................... 45

4.19

Control Board, Electrical Diagram

4.20 Ladder Diagram ................................................ 48

4.21 Electrical Connections ...................................... 49

..................... 47

SECTION 5

Control Display and Operation

5.1 Control Dial and Buttons ......................................50

5.2 LCD Overview ......................................................51

5.3 Operating Mode ................................................. 52

5.4 Status Display Mode ......................................... 53

5.5 DHW Set Point Change Mode ........................... 54

5.6 CH Set Point Change Mode .............................. 55

5.7 Storage Mode .................................................... 55

5.8 Installer Mode .................................................... 56

5.9 Outside Temperature (option) ............................ 58

5.10 External Set Point Temperature Control ............ 58

5.11 Error Mode ........................................................ 59

SECTION 6 Error Codes

6.1 Error Codes ....................................................... 60

6.2 Fault Tree Analysis ............................................ 63

SECTION 7

Trouble Shooting

7.1 Diagnostics ........................................................ 65

7.2 Suggested Corrective Actions ........................... 67

SECTION 8 Maintenance

8.1 Annual Startup and General Maintenance ........ 68

8.2 Flushing or Draining .......................................... 70

SECTION 9 Installation Check

9.1 Quick View ........................................................ 71

9.2 Final Check Lists ............................................... 72

SECTION 10

Repair Part Diagrams

10.1 Parts List and Illustrations ............................ 74-85

Page 3

The FT Series Floor Standing, Combination Boiler

SECTION 1 Product Accessories

1.1 Introduction

This manual provides information necessary for the installation, operation, and maintenance of the oorstanding FT. All application and installation procedures must be read and reviewed completely before proceeding with the installation. Consult the factory , or your local factory representative, with any problems or questions regarding this equipment. Experience has shown that most operating problems are caused by improper installation.

All installations must be made in accordance with

1) American National Standard Z223.1/NFPA54-Latest Edition “National Fuel Gas Code” or

2) CSA B149.1 “Natural Gas and Propane Installation Code” and with the requirement of the local utility or other authorities having jurisdiction. Such applicable requirements take precedence over the general instructions contained herein.

All electrical wiring is to be done in accordance with the local codes, or in the absence of local codes, with: 1) The National Electrical Code ANSI/NFPA No. 70-latest Edition, or 2) CSA STD. C22.1 “Canadian Electrical Code - Part 1”. This appliance must be electrically grounded in accordance with these codes.

1.2 Included with the Appliance

Item Description Qty

Page 1

Floor-Standing,

Combination Boiler

FTCF140 or FTCF199

LP Conversion Kit.

This kit includes the new LP orice and

the gas conversion instructions.

Installation Instructions and

User’s Manual

FTCF140 FTCF199

This boiler was converted on ____/____/____/ to____ gas with Kit No._________ by _________ ( name and address of organization making this conversion, who accepts the responsibility for the correctness of this coversion)."

« Cette chaudière a été convertie le (annéemoisjour) ____ pour fonctionner au gaz ____ à l’aide de la trousse n° par (nom et adresse de l’organisme qui a effectué la conversion), qui a effectué la conversion), qui accepte l’entière responsabilité de la qualité de la conversion. »

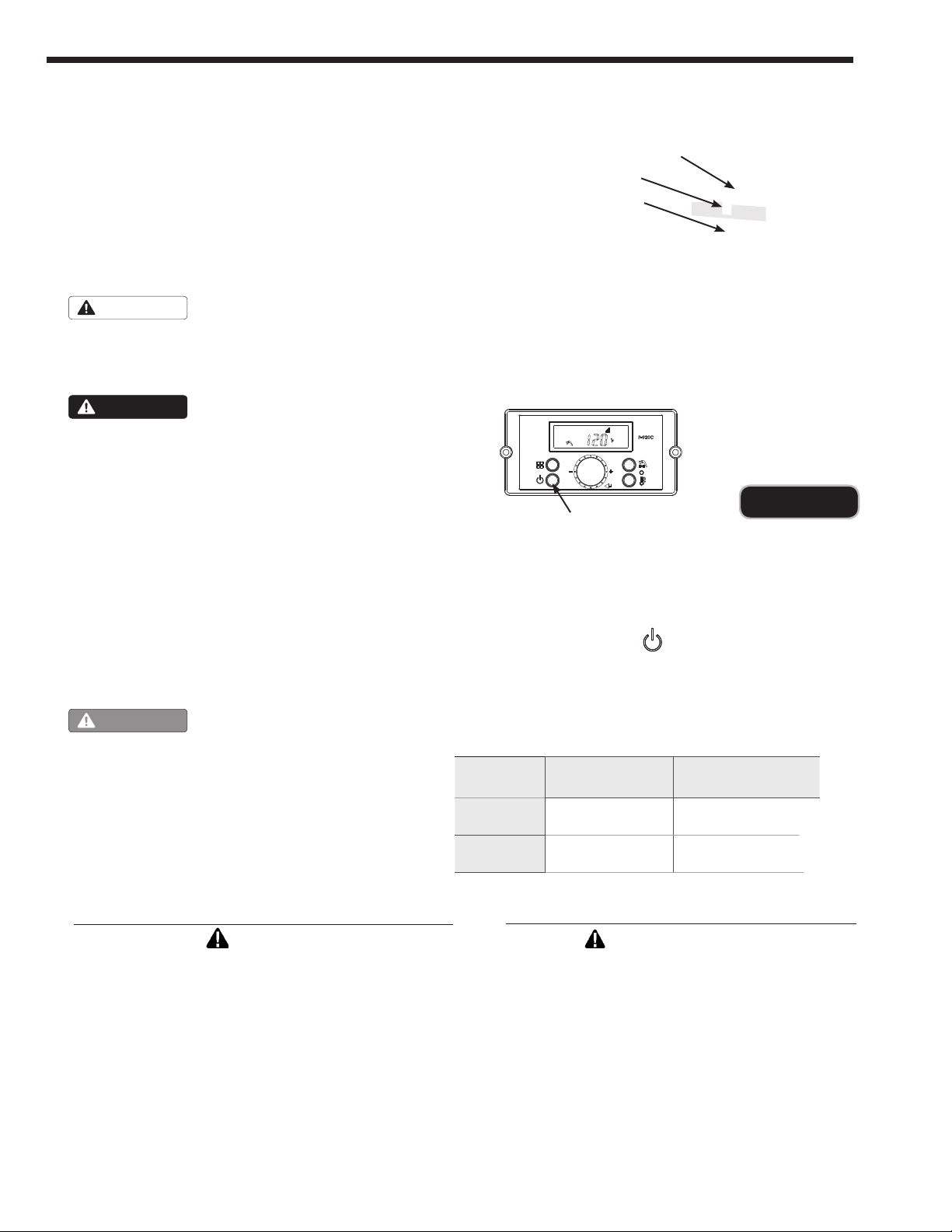

The FT Series, Floor-Standing, Gas Conversion Kit

Kit # R20771

The FT Series,  oor standing, condensing boiler is con gured

for Natural Gas (NG) from the factory.

Conversion Kit is included with every FT. The gas conversion kit will show you how to convert your FT boiler to propane gas. If your FT does not have the bag containing the conversion kit, a replacement kit can be obtained. Contact the manufacturer and request a replacement conversion kit.

NOTICE

If your installation altitude is greater than 2000 ft, please check that the ‘High Altitude’ Installer Setting has been adjusted to suit your installation altitude. Refer to Section

4.12 of the Installation and Operation Instructions (Document 1320).

WARNING

This gas conversion kit shall be installed by a quali ed service

agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. The information in these instructions must be

followed to minimize the risk of  re or explosion or to prevent property damage, personal injury or death. The quali ed service

agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the

converted appliance is checked as speci ed in the manufacturer’s

instructions supplied with the kit. Installation must conform to local codes and the latest edition of the National Fuel Gas Code, ANSI Z223.1 and CAN-B149.1. Failure to follow instructions could result in serious injury or property damage.

The quali ed agency performing this work assumes

responsibility for gas conversion.

CAUTION

This combination boiler has already been set to burn natural gas, but can be converted to burn LP gas. Before placing the combination boiler into operation, verify that your fuel source is natural gas. Or verify that your fuel source is propane if you are converting this combination unit to propane.

This conversion shall be installed by a quali ed service

agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions

is not followed exactly, a  re, an explosion or production

of carbon monoxide may result causing property damage,

personal injury or loss of life. The quali ed service agency is

H2373900B

responsible for the proper and complete installation of this kit. The installation is not proper and complete until the operation

of the converted appliance is checked as speci ed in the

manufacturer's instruction supplied with the kit.

Document 4290B

Top Access Panel

Front Panel Knob

A Natural Gas to Propane

Front Panel

Figure A

ON / OFF

Steps 1 thru 26

To convert from Natural Gas to Propane Gas

Turn OFF the FT.

The ON / OFF button is

located at the bottom left of the Control Display. Turn OFF the GAS and WATER supply to the

FT (valves are located on the plumbing pipes.)

Natural Gas

Propane Gas

(NG) Part #

(LP) Part #

.18

Nozzle

FTCF140

FT1722 FT1722P

FTCF199

FT1780 FT1802

Ori ce

Table A

WARNING

AVERTISSEMENT

Ce conversion doit être installé par un organisme de service conformément aux instructions du fabricant et tous les codes et les exigences de l’autorité compétente. Si les informations contenues dans ces instructions n’est pas suivi à la lettre, un incendie, une explosion ou de la production de monoxyde de carbone mais résultat causant des dommages matériels, des blessures ou des pertes de vie. Le service est responsable pour la bonne et complète l’installation de ce kit. L’installation n’est pas correcte et complète jusqu’à ce que

le fonctionnement de l’appareil converti est véri ée comme spéci é dans le manuel d’instruction fourni avec le kit.

pg 1 of 4

THE

This water heater applied to the ____ gas. (Ce chauffe-eau appliquee au gaz ____.) Gas conversion date : ____ / ____ / ____ (Date de conversion de gaz :) Converted by the technicians : (Converti par les techniciens:) _________________________________

THE

The FT Series, Floor-Standing, Gas Conversion Kit

Kit # R20771

The FT Series,  oor standing, condensing boiler is con gured

A Natural Gas to Propane

for Natural Gas (NG) from the factory.

NOTICE

If your installation altitude is greater than 2000 ft, please check that the ‘High Altitude’ Installer Setting has been adjusted to suit your installation altitude. Refer to Section

4.12 of the Installation and Operation Instructions (Document 1320).

WARNING

This gas conversion kit shall be installed by a quali ed service

agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. The information in these instructions must be

followed to minimize the risk of  re or explosion or to prevent property damage, personal injury or death. The quali ed service

agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the

converted appliance is checked as speci ed in the manufacturer’s

The quali ed agency performing this work assumes

responsibility for gas conversion.

CAUTION

WARNING

This conversion shall be installed by a quali ed service

agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions

is not followed exactly, a  re, an explosion or production

of carbon monoxide may result causing property damage,

personal injury or loss of life. The quali ed service agency is

H2373900B

responsible for the proper and complete installation of this kit. The installation is not proper and complete until the operation

of the converted appliance is checked as speci ed in the

manufacturer's instruction supplied with the kit.

Top Access Panel

Front Panel Knob

Front Panel

ON / OFF

Steps 1 thru 26

To convert from Natural Gas to Propane Gas

Turn OFF the FT.

located at the bottom left of the Control Display. Turn OFF the GAS and WATER supply to the

FT (valves are located on the plumbing pipes.)

Natural Gas (NG) Part #

FTCF140

FT1722 FT1722P

FTCF199

FT1780 FT1802

Table A

AVERTISSEMENT

le fonctionnement de l’appareil converti est véri ée comme spéci é dans le manuel d’instruction fourni avec le kit.

The ON / OFF button is

Document 4290B

Figure A

Propane Gas (LP) Part #

.18

Nozzle

Ori ce

pg 1 of 4

1 Each

Spare Parts Kit

(Gaskets and O-Rings)

Condensate Hose 1

Page 4

Page 2

1.2 Included with the Appliance (continued)

Items Descriptions Qty

Mesh screen

mesh)

Outdoor Sensor with Screws and Anchors

Pressure Relief Valve

(CH LINE 3/4″ 30psi)

Model : CASH ACME F-82

Page 5

The FT Series Floor Standing, Combination Boiler

SECTION 2.

Product Characteristics

2.1 Model Nomenclature (model number)

The Model Nomenclature is shown on your Rating Plate and consists of a series of letters and numbers ( Nomenclature ) that further identies the characteristics of your FT.

2 3 4 5 6 7 8 9 10 11 12 13

F T C F A 1 X N

SERIES

C - Combi

CONFIG

F - Floor Stnd

Figure 1. Model Nomenclature

SIZE

MBTU/h

140 199

FUEL

N - Natural P - Propane

ALTITUDE

A -

0 -10,000 Feet

REVISION

1 -

First

OPTIONS

X - Standard

Page 3

PUMP

N - with Pump

Figure 2. Locating the model number

MODEL NUMBER

Page 6

Page 4

Document 4290B

Manifold pressure

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

MAX Fire

-0.15" WC -0.216" WC -0.15" WC -0.216" WC

MIN Fire

0” WC 0.002” WC 0.1” WC 0.079” WC

FTCF199

MAX Fire

-0.134” WC -0.173” WC

MIN Fire

-0.015” WC -0.015” WC

Figure D

change dip switch 6 to ON and 7 to OFF.

measurement for MAX  re. Refer to Table D for acceptable MAX  re

readings at MAX Fire. Do NOT attempt to adjust

change dip switch 6 to OFF and 7 to ON. The unit will cycle down to MIN Fire.

measurement at MIN  re. Refer to

ON OFF

MIN Fire Normal Operation

MAX Fire Normal Operation

2” Vent Size

NOT

value

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

MAX Fire 8.5~10.5% 9.5~11 %

MIN Fire 8~10% 9~10.5 %

2.2 Specications

Model Name FTCF140

Gas Input Rate

Hot Water Capacity

Gas Supply Pressure

Installation Indoor / Floor stand type

Flue System Sealed Combustion Direct / Single / Concentric Vent/ SideW all Vent

Vent Run 2"(50ft) , 3"(100ft) Schedule 40 CPVC, PP

Manifold Pressure

Power Supply

Ignition System Direct Electronic Ignition / Automatic Flame Sensing

Burner System Single Orice Premixed Fuel Modulation Ceramic Infrared

MAX 140,000 Btu/h

MIN 28,000 Btu/h

°F

Rise 7.1 Gal

°F

Rise 5.5 Gal

45 77

°F

Rise 3.2 Gal

NG 3.5" WC to 10.5" WC

LP 8.0" WC to 13" WC

Gas Type LP NG

Vent size 2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

Min re

Low re

Main Supply 120V 60Hz / 6A

Maximum Power

Consumption

-0.15" WC -0.216" WC -0.15" WC -0.216" WC

0.1" WC 0.079" WC 0" WC 0.002" WC

160W

Sub Heat Exchanger Water Capacity(DHW) Under 15 Gallon

Connection Sizes

Materials

Gas Valve System Combination modulating (Current proportional)

Minimum Flow Rate 0.5 GPM

Dimensions W15.7" - H52.4" – D26.7"

Shipping Weight 230 lbs ( 104 kg )

Main Controller / Control Panel GTX-920CP / P-920C

Water Pressure Min 15 ~ Max 150 PSI

Cold Water Inlet / Hot

Safety Devices

Water Outlet

Space Heating

Supply / Return

Gas Inlet 3/4" NPT

Casing Cold Rolled Carbon Steel

Heat Exchanger

Primary Heat Exchanger : Stainless Steel

Sub Heat Exchanger : Stainless Steel

3/4" NPT

1" NPT

Flame Rod, Overheat Cut Off Device, Gas Valve Operation

Detector, Exhaust Temperature High Limit Switch, Water

Temperature High Limit Switch

Page 7

The FT Series Floor Standing, Combination Boiler

Document 4290B

Manifold pressure

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

MAX Fire

-0.15" WC -0.216" WC -0.15" WC -0.216" WC

MIN Fire

0” WC 0.002” WC 0.1” WC 0.079” WC

FTCF199

MAX Fire

-0.134” WC -0.173” WC

MIN Fire

-0.015” WC -0.015” WC

Figure D

change dip switch 6 to ON and 7 to OFF.

measurement for MAX  re. Refer to Table D for acceptable MAX  re

readings at MAX Fire. Do NOT attempt to adjust

change dip switch 6 to OFF and 7 to ON. The unit will cycle down to MIN Fire.

measurement at MIN  re. Refer to

ON OFF

MIN Fire Normal Operation

MAX Fire Normal Operation

NG Natural LP Propane

2” Vent Size

NOT

value

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

Table C

Document 4290B

Manifold pressure

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

MAX Fire

-0.15" WC -0.216" WC -0.15" WC -0.216" WC

MIN Fire

0” WC 0.002” WC 0.1” WC 0.079” WC

FTCF199

MAX Fire

-0.134” WC -0.173” WC

MIN Fire

-0.015” WC -0.015” WC

Figure D

change dip switch 6 to ON and 7 to OFF.

measurement for MAX  re. Refer to Table D for acceptable MAX  re

readings at MAX Fire. Do NOT attempt to adjust

change dip switch 6 to OFF and 7 to ON. The unit will cycle down to MIN Fire.

measurement at MIN  re. Refer to

ON OFF

MIN Fire Normal Operation

MAX Fire Normal Operation

NG Natural LP Propane

2” Vent Size

NOT

value

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

MAX Fire 8.5~10.5% 9.5~11 %

MIN Fire 8~10% 9~10.5 %

FTCF199

MAX Fire 8.5~10.0% 9.5~11 %

MIN Fire 8~10% 9~10.5 %

Table C

Page 5

Model Name FTCF199

Gas Input Rate

Hot Water Capacity

Flue System Sealed Combustion Direct / Single / Concentric Vent/ SideW all Vent

Gas Supply Pressure

Manifold Pressure

Power Supply

MAX 199,000 Btu/h

MIN 19,900 Btu/h

°F

Rise 9.88 Gal

°F

Rise 7.7 Gal

45 77

°F

Rise 4.8 Gal

Installation Indoor / Floor stand type

Vent Run 2"(50ft) , 3"(100ft) Schedule 40 CPVC, PP

NG 3.5" WC to 10.5" WC

LP 8.0" WC to 13" WC

Gas Type LP NG

Vent size 2" VENT 3" VENT 2" VENT 3" VENT

FTCF140

Min re

Low re

Main Supply 120V 60Hz / 6A

Maximum Power

Consumption

-0.15" WC -0.216" WC -0.15" WC -0.216" WC

0.1" WC 0.079" WC 0" WC 0.002" WC

160W

Note; The greatest installation difference between the FTCF140 and FTCF199, other than general output capability (BTU’s), is that the air inlet and exhaust vents are opposite. See Section 2.4

Ignition System Direct Electronic Ignition / Automatic Flame Sensing

Sub Heat Exchanger Water Capacity(DHW) Under 15 Gallon

Connection Sizes

Main Controller / Control Panel GTX-920CP / P-920C

Materials

Burner System Single Orice Premixed Fuel Modulation Ceramic Infrared

Gas Valve System Combination modulating (Current proportional)

Minimum Flow Rate 0.5 GPM

Dimensions W15.7” - H53.7” – D26.7”

Shipping Weight 242 lbs ( 110 kg )

Water Pressure Min 15 ~ Max 150 PSI

Safety Devices

Cold Water Inlet / Hot

Water Outlet

Space Heating

Supply / Return

Gas Inlet 3/4" NPT

Casing Cold Rolled Carbon Steel

Heat Exchanger

Primary Heat Exchanger : Stainless Steel

Sub Heat Exchanger : Stainless Steel

Flame Rod, Overheat Cut Off Device, Gas Valve Operation

Detector, Exhaust Temperature High Limit Switch, Water

Temperature High Limit Switch

3/4" NPT

1" NPT

Page 8

Page 6

52.4" 133 cm

15.7" 40 cm

3.3" 8 cm

9.2" 23 cm

68 cm

9.3"

2.7"

4.3"

5.8"

9.2"

3.7"

12.9"

18.7"

23"

27.3"

30"

39.3"

3.0" 7.6 cm

20.5"

23.3"

26.7"

19.7"

D E

TOP

SIDE

FRONT

3” O EXHAUST VENT

GAS CONNECTION

HYDRONIC SUPPLY

HYDRONIC RETURN

DHW

CONDENSATE

DRAIN ADAPTER

OUTLET INLET

DHW

3” O AIR INLET

2.3 Dimensions

FTCF140

Description Diameter A Gas Connection 3/4" NPT B ‘CH supply’ Connection 1" NPT

C ‘CH return’ Connection 1" NPT D ‘DHW outlet’ Connection 3/4" NPT

E ‘DHW inlet’ Connection 3/4" NPT F Condensate 1/2" NPT

G Drain 1/2" NPT

Page 9

The FT Series Floor Standing, Combination Boiler

53.7" 137 cm

15.7" 40 cm

4.0" 10.4 cm

6.6" 16.9 cm

68 cm

18.9"

2.6"

4.3"

5.7"

8.8"

3.7"

12.5"

18.2"

22.5"

26.8"

29.4"

48.3"

17.9"

23.3"

26.7"

19.7"

3.0" 7.6 cm

5.0" 13 cm

D E

TOP

SIDE

FRONT

3” O EXHAUST VENT

GAS CONNECTION

HYDRONIC SUPPLY

HYDRONIC RETURN

DHW

CONDENSATE

DRAIN ADAPTER

OUTLET INLET

DHW

3” O AIR INLET

FTCF199

Note: The greatest installation difference between the FTCF140 and FTCF199, other than general output capability (BTU’s), is that the air inlet and exhaust vent are opposite. See Section 2.4

Page 7

Description Diameter A Gas Connection 3/4" NPT B ‘CH supply’ Connection 1" NPT C ‘CH return’ Connection 1" NPT D ‘DHW outlet’ Connection 3/4" NPT E ‘DHW inlet’ Connection 3/4" NPT F Condensate 1/2" NPT G Drain 1/2" NPT

Page 10

Page 8

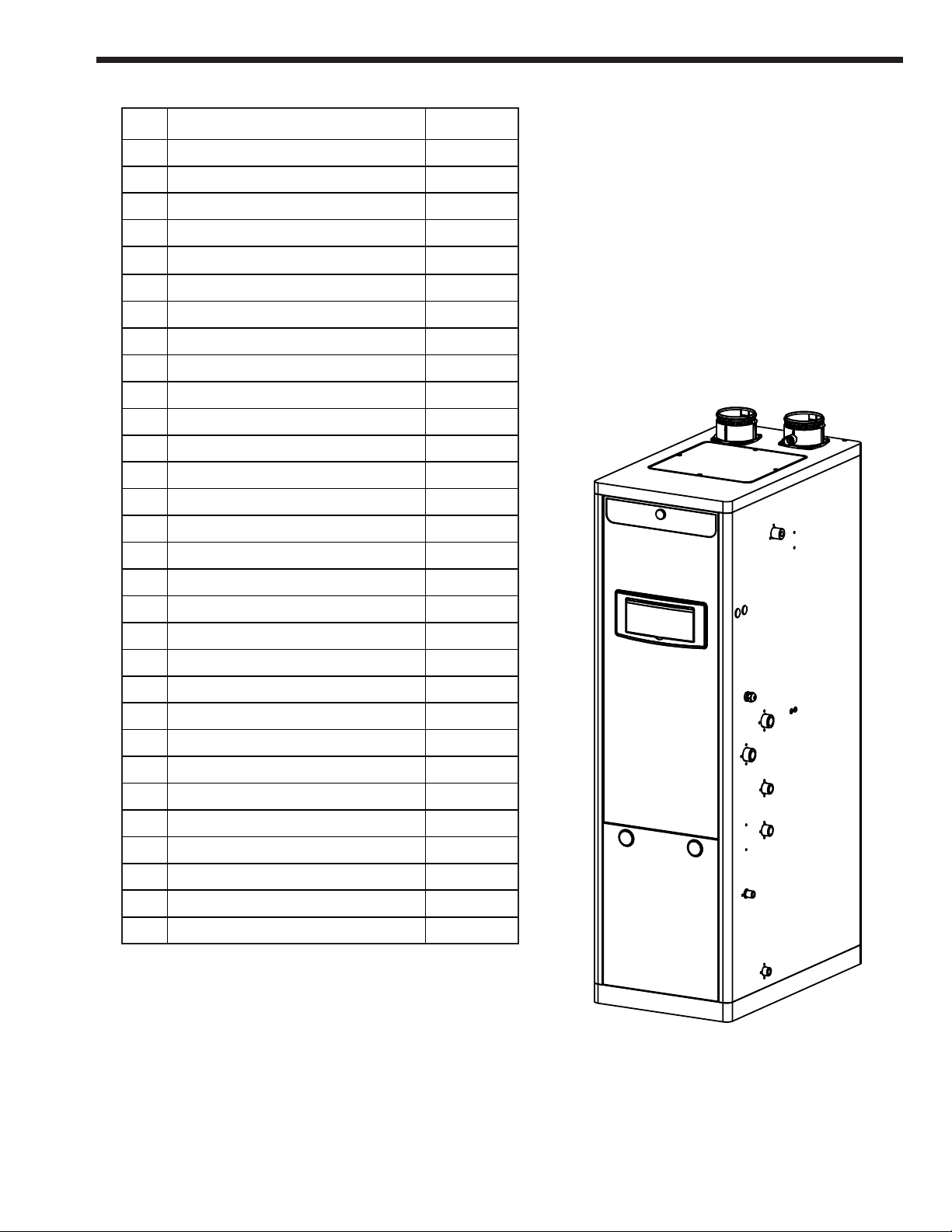

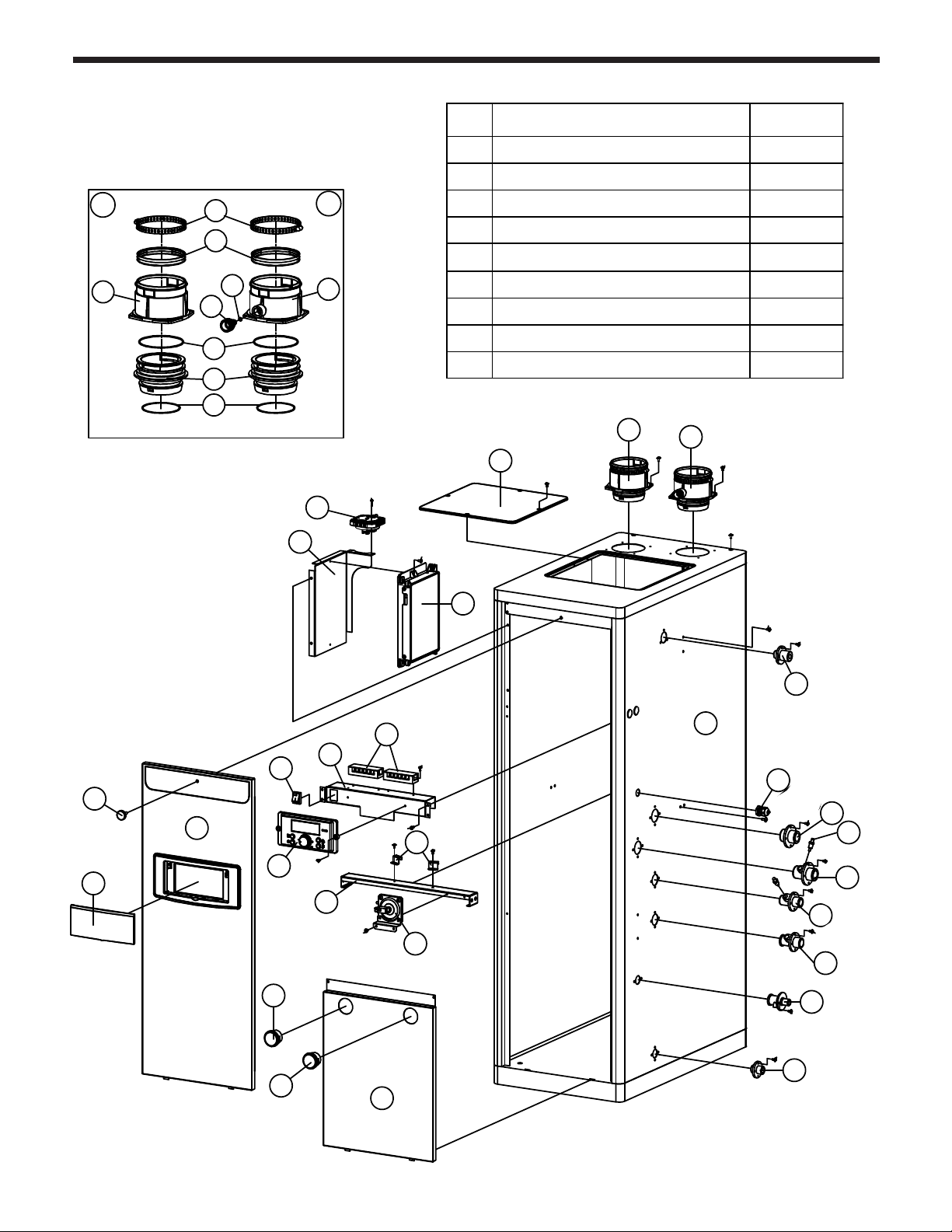

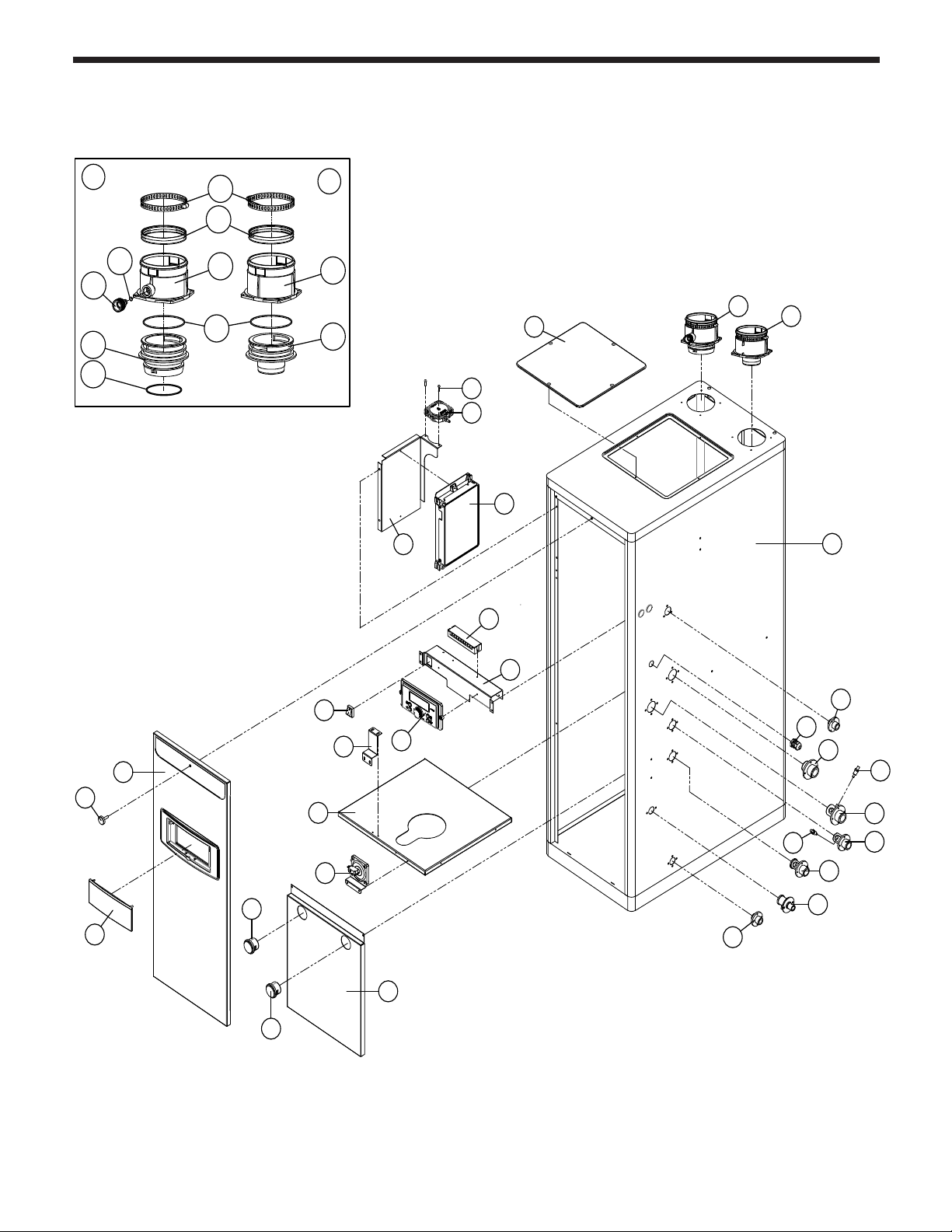

2.4 Names of Components FTCF140

NO Name of Component

Exhaust Vent

Air Pressure Sensor

Blower

PCB Bracket

Flame Detection Sensor

Sight Glass

Manual Switch

Display Control

Exhaust Pipe

Recirculation Pump (CH)

Mixing Valve

Recirculation Pump (DHW)

DHW Tank Assembly

Water Drain Valve

Water Drain Adapter

Condensate Trap Adapter

NO Name of Component

Condensate Drain Hose

DHW Inlet Adapter

Condensate Trap

DHW Outlet Adapter

Condensate Heat Exchanger Hose

CH Return Connection

Air Pressure Switch

CH Supply Connection

Heat Exchanger

Gas Inlet Connection

Gas Valve

Air Vent (air eliminator)

Ignition Transformer

Igniter

Air Intake Pipe

Air Inlet

Page 11

The FT Series Floor Standing, Combination Boiler

FTCF199

Note: The greatest installation difference between the FTCF140 and FTCF199, other than general output capability (BTU’s), is that the air inlet and exhaust vent are opposite.

Page 9

NO Name of Component

Air Inlet

Air Pressure Sensor

Blower

PCB Bracket

Sight Glass

Flame Detection Window

Manual Switch

Display Control

Air Intake Pipe

Recirculation Pump (CH)

Mixing Valve

Recirculation Pump (DHW)

DHW Tank Assembly

Water Discharge Valve

Water Discharge Adapter

Condensate Trap Adapter

NO Name of Component

Condensate Drain Hose

DHW Inlet Adapter

Condensate Trap

DHW Outlet Adapter

Condensate Heat Exchanger Hose

CH Return Connection

CH Supply Connection

Air Pressure Switch

Heat Exchanger

Igniter

Gas Valve

Ignition Transformer

Gas Inlet Connection

Air Vent (air eliminator)

Exhaust Pipe

Exhaust Vent

Page 12

Page 10

Operating Mode

ustion

nlet

Gas Inlet

Space Heating

Water Return

Space Heating

Water Supply

2.5 Product Flow Paths and Characteristics

2.5.1 Central Heating ow. Combination Boiler Heating Mode.

Water in the heating pipe is used for space heating.

Comb

Air I

Space Heating Water Supply

Space Heating Water Return

Gas Inlet

Space Heating Water Supply

Space Heating Water Return

Space Heating Water Supply

Space Heating Water Return

Note: The

condensate trap has been hidden to simplify the

view

Page 13

The FT Series Floor Standing, Combination Boiler

Operating Mode

Domestic Hot

Water Outlet

Domestic Hot

Water Inlet

Gas Inlet

bustion

nlet

2.5 Product Flow Paths and Characteristics

2.5.2 Domestic Hot Water ow. Combination Boiler Domestic Hot Water Mode.

Cold water passes through the exchanger and is heated via a mini indirect tank. The domestic hot water (DHW) is provided on demand.

Com Air I

Page 11

Gas Inlet

Domestic Hot Water Outlet

Domestic Hot Water Inlet

Domestic Hot Water Outlet

Domestic Hot Water Inlet

Note: The

condensate trap has been hidden to simplify the

view

Page 14

Page 12

SECTION 3.

Safety Regulations

3.1 Safety Symbols

WARNING

To avoid product damage, personal injury, or even possible death, carefully read, understand, and follow all the instructions in the Installation and Operation manual before installation, operation and service the Boiler.

The manufacturer cannot anticipate every circumstance that might involve a potential hazard. Therefore, all possible incidents are not included in our warnings. Proper installation, operation, and service are your responsibility. You must make sure that the operation and settings of the Boiler are safe for you and for others.

This manual provides Safety Symbols. When the user fails to adhere to the following requirement, it may cause death, serious injury, and substantial property damage.

For safety symbols, ‘DANGER’, ‘WARNING’,

CAUTION’ are indicated and the denitions for these

terms are as follow:

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme situations.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

WARNING

FOR YOUR SAFETY READ BEFORE OPERATING

If you do not follow these instructions exactly, a

re or explosion could result causing property

damage, personal injury or loss of life.

A. This appliance does not have a pilot. It

is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand.

B. BEFORE OPERATING smell all around the

appliance area for gas. Be sure to smell next

to the oor because some gas is heavier than air and will settle on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the

re department.

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair

it, call a qualied service technician. Force or attempted repair may result in a re or

explosion.

D. Do not use this appliance if any part has

been under water. Immediately call a qualied

service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It is also used to alert against unsafe practices and hazards involving only property damage.

This appliance must be installed in accordance with local codes if any; if not, follow ANSI Z224.1/NFPA 54 or CAN/CSA B149.1, Natural Gas and Propane Installation Code, as applicable.

This appliance is certied for use at altitudes up

to 4,500ft(1,370m) in accordance to the latest CSA/ CGA 2.17-M91 Gas-Fired Appliances for Use at High Altitudes.

Page 15

The FT Series Floor Standing, Combination Boiler

DANGER

Vapors from ammable liquids can explode and

catch on re, resulting in severe burns or death. Do not use or store ammable products such

as gasoline, solvents or adhesives in the same room or area near the appliance.

Page 13

damaging condition that might affect the operation

of the unit. Boiler must be checked by a qualied

technician before resuming operation.

DO NOT use this Boiler if any part has been under

water. Immediately call a qualied technician for

inspecting the Boiler and replacing any part of the control system and gas control which have been under water.

Do not power up the unit until the gas and water

supply valves are fully opened. Make sure that the fresh air intake port and exhaust gas port are opened and functional.

Keep ammable products

Far away from boiler In approved containers Tightly closed Out of children’s reach

Vapors

Cannot be seen Are heavier than air

Spread on the oor

Can spread from other rooms to the main burner

by air currents

Do not install the appliance where ammable

products will be stored.Read and follow boiler warnings and instructions thoroughly. If owner’s manual is missing, contact the retailer or manufacturer.

This combination boiler must be installed by a

qualied plumber, a licensed gas tter, and/or a

professional service technician.

Improper installation and/or operation will cause a

potentially hazardous situation, such as serious injury or death. Also, it will void the warranty.

• The National Fuel Gas Code NFPA 54 / ANSI Z224.1

• National Electric Code ANSI/NEPA 70

• All applicable local, state, national and provincial codes, regulations and laws.

DO NOT attempt to install, repair, or service this

Boiler by yourself.

Do not change any part of the Boiler.

Contact a qualied technician if the Boiler needs

repair or maintenance.

Ask your gas supplier for a list of qualied service

providers.

DO NOT use spray paint, hair spray, or any other

ammable spray near Boiler or near the exterior fresh

air inlet port. DO NOT place any items in or around the exterior exhaust gas outlet port and/or fresh air

inlet port. These could restrict or block the ow in or

out of the vent system.

“Caution: While repairing control, all wires are

labeled. You must connect the wires in accordance with the instruction. Wiring errors can cause improper and dangerous

operation.

“Verify proper operation after servicing operation” This consists of the gas ignition system components

which are protected from water (dripping, spraying, rain, etc.) during operation and service (circulator replacement, condensate trap, control replacement, etc.).

After installing the heater, safety devices must be

tested.

This boiler is equipped with a blocked vent shutoff

system. If the error code ‘41’ occurs, follow the instructions below.

Proper care is your responsibility. Carefully read and

understand the Operating Information in this manual before operating the boiler.

Be aware of the location of the gas shut-off valve

and operation method. Close the gas shut-off valve

immediately if the appliance is subjected to re, overheating, ood, physical damage, or any other

- First, turn off the manual gas valve.

- Make sure that there is no foreign object in the vent passage or rodent screen.

- If you do not nd any problem, do the following.

- Turn off the error state by pressing the power button

of control panel.

- If the error occurs repeatedly, call your service technician or gas supplier.

Page 16

Page 14

SECTION 3.

Safety Regulations

3.2 Safety Precautions and Proper Use

Before Operation

1. Check the Gas Type (NG/LP)

When using or moving the unit for the rst time, check

if gas type matches with the gas type of the Boiler. Check whether the gas type which is supplied is NG (Natural Gas) or LP (Propane) and also check the Boiler gas type. The gas type is indicated on the rating plate on side of the Boiler.

2. Check the Power (120V 60Hz) Check that the appliance is connected properly .

3. Check the Cold Water Inlet valve. Please keep the appliance water inlet valve open at all times. The appliance

will not ignite when insufcient

water or no water is in the heating pipes. (valve: always open position)

4. Check the Gas V alve Check that the manual gas shut-off valve that supplies the FT is opened.

open

When in Operation

1. Caution for Gas leak Frequently check for a gas leak at the gas connection portion with soapy water.

Steps to take if you have a Gas leak.

1. Shut down the boiler as soon as gas fumes are detected.

2. Close the intermediate gas valve.

3. Open windows for ventilation.

4. Call a qualied service technician for immediate

repair.

2. Caution for Ventilation

Make sure that there is sufcient inow and outow of air

ventilation while using the unit. If the ventilation is improper, combustion quality may deteriorate inside the appliance and cause shortened life of the appliance.

3. Burn Warning

Be careful not to burn yourself on the ue or pipes. They

become extremely hot during operation.

CAUTION

5. Check the area around the appliance and remove

any combustible or ammable materials. Remove

laundry or any other items that are on or near the boiler or vent pipe.

Page 17

The FT Series Floor Standing, Combination Boiler

WARNING

Do not use the appliance for any other purpose than for heating and hot water.

Do not store combustibles or ammable material

such as gasoline near the appliance. Do not store other items on or near this boiler.

Do not store combustible (ammable) materials

such as papers. Do not hang clothes on the vent pipe. This may

start a re.

CAUTION

Scalding Risk: Manufacturer recommends the use of a thermostatic mixing valve at domestic hot water outlet (boiler location) to reduce potential for scalding.

Contact Manufacturer for

recommended models.

Page 15

__________________________________________

After repair of gas pipeline or gas regulator

replacement, call A qualied contractor for inspection

before starting it up.

Carbon monoxide poisoning

If vent pipe fumes enter the room, it could cause poisoning by carbon monoxide gas. Check that the vent pipes are properly connected. Open windows

for ventilation. Call a qualied service technician for

immediate repair.

Gas leakage test.

Gas supply line must be inspected regularly.

Do not shut off the Boiler.

When you leave home for a long time, do not shut off Boiler. The Boiler has a freeze protection function. The ceramic heater is installed inside of the heater’s internal pipe to protect the heater from freezing.

Do not wipe the appliance or control panel with wet cloth. Electric shock may occur, or

internal parts may fail due to the exposure to moisture.

Do not disassemble the Boiler.

If repair is required, call your local qualied

technician.

Page 18

Page 16

SECTION 4. Installation

4.1 Location and Clearances

The appliance should be located to provide clearances on all sides for maintenance and inspection. It should not be located in an area where leakage of any connections will result in damage to the area adjacent to

the appliance or to lower oors of the structure.

When such a location is not available, it is recommended that a suitable drain pan, adequately drained, be installed under the appliance. FT Boilers must never be installed on carpeting. The location for the appliance should be chosen with regard to the vent pipe lengths and external plumbing and on a level surface. The unit shall be installed such that the gas ignition system components are protected

from water (dripping, spraying, rain, etc.) during operation and service (circulator replacement, control replacement, etc.). When vented vertically, the FT must be located as close as practical to the vertical section of the vent. If the vent terminal and/ or combustion air terminal terminate through a wall, and there is potential for snow accumulation in the local area, both terminals should be installed at an appropriate level above grade or the maximum expected snow line.

1.6 cm

3 in

8 cm

15 in

38 cm

10 in

25 cm

10 in

25 cm

Minimum Clearance

Suggested Service Clearance

25 in

64 cm

Minimum Clearances

For installation Suggested From Non-Combustibles Service /combustibles Clearance

Top of appliance 15 in (38 cm) 15 in (38 cm)

Back of

appliance

Front of

appliance

Side of

appliance(right)

Side of

appliance(left)

Bottom of appliance

5/8 in (1.6 cm) 5/8 in (1.6 cm)

10 in (25 cm)

3 in (8 cm) 3 in (8 cm)

0in (0 cm) 0in (0 cm)

40 in (101 cm)

or more

25 in (64 cm)

or more

Table 1. Minimum Clearances

to Combustibles and

Suggested Service Clearance.

Suggested Service Clearance

101 cm

Figure 3. Locating the Appliance.

Minimum clearances to Combustibles.

40 in

Page 19

The FT Series Floor Standing, Combination Boiler

WARNING

Installations must comply with

• All the local, state, provincial, and national codes, laws, regulations and ordinances.

• National Fuel Gas Code, ANSI Z223.1 – The latest version.

• National Electrical Code.

• A National Standard of Canada CAN/CSA-B149.1

Check before placing the Combination boiler

• Always check the connected components which are near to the heater. The components are below.

Water piping position / Venting adapter / Gas supply

piping / Electrical power / Condensate drain hose.

• Inspect area around Combination boiler. Remove any combustible materials, gasoline and other

ammable liquids. Failure to keep Combination

boiler area clear and free of combustible materials,

gasoline and other ammable liquids and vapors can

result in severe personal injury, death or substantial property damage.

• The Combination boiler which has gas control system components must be protected from any possible danger during operation and service.

• If new Combination boiler replaces an existing appliance, check and correct system problems, for example:

- Do not install if: System leaks causing oxygen corrosion or heat exchanger cracks from hard water deposits.

Page 17

Provide clearances

• If the heater was installed in a narrow space

or corner, please ensure that there is sufcient

space for service and maintenance access. For regular maintenance, gas and water lines must be accessible.

The boiler must be installed on a wall that can bear its weight.

WARNING

CLEARANCES FOR SERVICE ACCESS

• If you do not provide the minimum clearances shown, it might not be possible to service the boiler without removing it from the space.

• Space must be provided with combustion / ventilation air openings correctly sized for all other appliances located in the same space as the boiler. The boiler cover must be securely fastened to prevent it from drawing air from the boiler room. This is particularly important if the boiler is in a room with other appliances. Failure to comply with the above warnings could result in substantial property damage, severe personal injury, or death.

Page 20

Page 18

SECTION 4. Installation

4.3 Combustion Air

FT boilers must have provisions for combustion and ventilation air in accordance with the applicable requirements for Combustion Air Supply and Ventilation in the National Fuel Gas Code, ANSI Z223 1; or in Canada, the Natural Gas and Propane Installation Code, CSA B149.1. All applicable provisions of local building codes must also be adhered to.

A FT unit can take combustion air from the space in which it is installed, or the combustion air can be ducted directly to the unit. Ventilation air must be provided in either case.

4.3.1 Combustion Air from Room

In the United States, the most common requirements specify that the space shall communicate with the outdoors in accordance with method 1 or 2, which follow. Where ducts are used, they shall be of the same crosssectional area as the free area of the openings to which they connect.

Method 1: Two permanent openings, one commencing

within 12” (300mm) of the top and one commencing within 12” (300mm) of the bottom, of the enclosure shall be provided. The openings shall communicate directly, or by ducts, with the outdoors or spaces that freely communicate with the outdoors. When directly communicating with the outdoors, or when communicating to the outdoors through vertical ducts, each opening shall have a minimum free area of 1 square inch per 4000 Btu/hr (550 square mm/kW) of total input rating of all equipment in the enclosure. When communicating to the outdoors through horizontal ducts, each opening shall have a minimum free area of not less than 1 square inch per 2000 Btu/hr (1100 square mm/kW) of total input rating of all equipment in the enclosure.

Method 2: One permanent opening, commencing

within 12” (300mm) of the top of the enclosure, shall

be permitted. The opening shall directly communicate with the outdoors or shall communicate through a vertical or horizontal duct to the outdoors or spaces that directly communicate with the outdoors and shall have a minimum free area of 1 square inch per 3000 Btu/hr (734 square mm/kW) of the total input rating of all equipment located in the enclosure. This opening must not be less than the sum of the areas of all vent

connectors in the conned space.

Other methods of introducing combustion and ventilation air are acceptable, providing they conform to the requirements in the applicable codes listed above.

In Canada, consult local building and safety codes or, in absence of such requirements, follow CAN/CGA B149.1

4.3.2 Ducted Combustion Air

The combustion air can be taken through the wall, or through the roof. When taken from the wall, it must be taken from out-of-doors by means of the horizontal wall

terminal. When taken from the roof, a eld-supplied rain

cap or an elbow arrangement must be used to prevent entry of rain water.

Use ABS, PVC, CPVC, polypropylene, or galvanized pipe for the combustion air intake. Route the intake to the boiler as directly as possible. Seal all joints. Provide adequate hangers. The unit must not support the weight of the combustion air intake pipe. Maximum linear pipe length allowed is shown in Table 6. Subtract 5 allowable linear ft. (1.5m) for every elbow used.

The connection for the intake air pipe is at the top of the unit.

In addition to air needed for combustion, air shall also be supplied for ventilation, including air required for comfort and proper working conditions for personnel.

COMBUSTION AIR INSTALLATION STANDARDS

MATERIAL UNITED STATES CANADA ABS ANSI/ASTM D1527 PVC, sch 40 ANSI/ASTM D1785 or D2665 Air p i p e m a t e r i a l m u s t b e c h o s e n CPVC, sch 40 ANSI/ASTM F441 CPVC, sch 40, ANSI/ASTM, Polypropylene

Polypropylene UL1738, ULC S636. based upon the intended application of the boiler. Single wall galv. steel 26 gauge

Table 2. Required Combustion Air Pipe Material.

Page 21

The FT Series Floor Standing, Combination Boiler

Page 19

The instructions for the installation of the venting system shall specify that the horizontal portions of the venting system shall be supported to prevent sagging; the methods of and intervals for support

shall be specied. These instructions shall also

specify that the venting system: Category I, II and IV boilers must be installed so

that horizontal sections have a slope of at least ¼ inch per foot (21 mm/m) to prevent accumulation of condensate; and For Category II and IV boilers, where necessary, have means provided for drainage of condensate.

NOTICE

CAUTION

The FT is standard as a Natural Gas Boiler and

must be converted if propane is the desired gas, unless

specically manufactured for propane.

Adequate drainage

• The appliance should be installed not to damage the adjacent area. If such locations cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed under the appliance. The pan must not block combustion air

ow.

Les instructions d'installation du système d'évacuation doivent préciser que les sections horizontales doivent être supportées pour prévenir

le échissement. Les méthodes et les intervalles de support doivent être spéciés. Les instructions

doivent aussi indiquer les renseignements suivants:

les chaudières de catégories I, II et IV doivent présenter des tronçons horizontaux dont la pente montante est d'au moins ¼ po par pied (21 mm/m) entre la chaudière et l'évent; les chaudières de catégories II et IV doivent être installées de façon à empêcher l'accumulation de condensat;

et si nécessaire, les chaudières de catégories II et IV doivent être pourvues de dispositifs d'évacuation du condensat.

AVIS

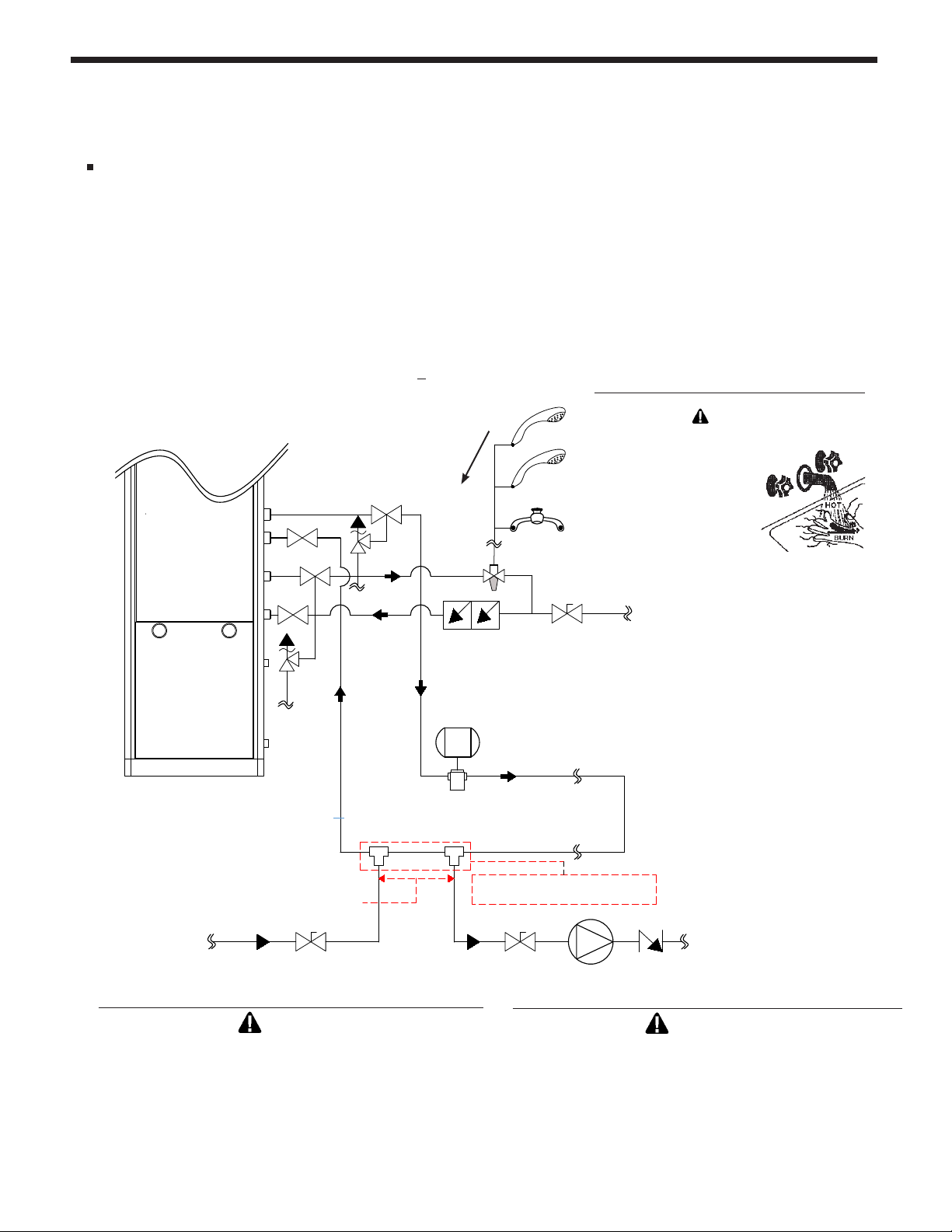

Connecting the Water Supply

• To conserve water and energy, insulate all water piping—especially the hot and recirculation water lines. Never cover the drain or pressure relief valve.

Having a backow preventer in the cold water

supply line will prevent thermal expansion

backow. Contact the water supplier or local

plumbing inspector for information about how to control this situation.

If overheating occurs or the gas supply fails to shut

off, turn off the manual gas valve.

This installation must conform with below section

• “Air for Combustion and Ventilation” of the National Fuel Gas Code, ANSI Z224.1/NFPA 54, or Sections 8.2, 8.3 or 8.4 of Natural Gas and Propane Installation Code, CAN/CSA B149.1, or applicable provisions of the local building codes.

Page 22

Page 20

SECTION 4. Installation

4.4 Venting (Exhaust)

DO NOT COMMON VENT FT UNITS.FT units are never permitted to share a vent with Category I appliances.

The ue temperature of the FT changes dramatically with changes in operating water temperature. Therefore, it is necessary to assess the application of the boiler to determine the required certied vent class. If the FT is installed in an application where the ambient temperature is elevated, and/or installed in a closet/alcove, CPVC, polypropylene, or stainless steel material is required. If the system temperatures are unknown at the time of installation, stainless, polypropylene or CPVC material is recommended.

The FT is a Category IV appliance and may be installed with PVC, CPVC or polypropylene that complies with ULC-S636, ANSI/ASTM D1785 F441 (see Table 3) or a stainless steel venting system that complies with UL

1738 Standard and ULC S636.

Use of cellular core PVC (ASTM F891), cellular core CPVC, or Radel® (polyphenolsulfone) in venting systems shall be prohibited.

Failure to use the appropriate vent material, installation techniques, glues/sealants could lead to vent failure causing property damage, personal injury or death.

All venting must be installed according to this manual and any other applicable local codes, including but not limited to, ANSI Z224.1/NFPA 54, CAN/CSA B149.1 and ULC-S636. Failure to follow this manual and applicable codes may lead to property damage, severe injury, or death.

NOTICE

WARNING

NE PAS ÉVENT COMMUNE FT UNITÉS. FT unités

ne sont jamais autorisés à partager un évent Catégorie I avec les appareils.

AVIS

Use of cellular core PVC (ASTM F891), cellular core CPVC, or Radel® (polyphenolsulfone) in non-metallic venting systems is prohibited and that covering non-

metallic vent pipe and ttings with thermal insulation is

prohibited. __________________________________________

INSTALLATIONS IN CANADA require the use of venting material certied to ULCS636. All Gas vents connected to the FT, plastic, stainless steel or otherwise must be certied to this ULC standard. Appropriate selection of vent material is very important for proper performance and safe operation of the FT.

The ue temperature of the FT changes dramatically with changes in operating water temperature. Therefore, it is necessary to assess the application of the boiler to determine the required certied vent class. If the FT is installed in an application where the outlet water temperature exceeds 145°F, and/or installed in a closet, class IIB or higher vent material is required. If the system temperatures are unknown at the time of installation, class IIB or higher venting material is

recommended.

IN CANADA all venting used must meet the following requirements:

1. ULC-S636 certied and marked

2. The rst 3 feet of venting must be accessible for visual inspection.

3. All components used in the vent system must be from a certied manufacturer.

4 . Vent system components must not be mixed

with alternate manufacturers certied

WARNING

___________________________________________

VENTING INSTALLATION STANDARDS

MATERIAL UNITED STATES CANADA

Stainless Steel UL 1738 Venting must be ULC-S636 certied for use as

PVC, sch 40 ANSI/ASTM D1785 venting material. The venting material must be chosen CPVC, sch 40 ANSI/ASTM F441 based upon the intended application of the boiler. Polypropylene UL1738 or ULC-S636

Table 3. Required Exhaust Vent Material.

Page 23

The FT Series Floor Standing, Combination Boiler

Page 21

components and/or unlisted components.

5 . The venting must be installed according

to the vent manufacturers installation

instructions.

The unit’s vent can terminate through the roof, or through an outside wall.

Vent pipe must pitch upward, toward the vent terminal, not less than 1/4” per foot, so that condensate will run back to the FT to drain. Route vent pipe to the heater as directly as possible. Seal all joints and provide adequate hangers as required in the venting system manufacturer’s Installation Instructions. Horizontal portions of the venting system must be supported to prevent sagging and may not have any low sections that could trap condensate. The unit must not support the weight of the vent pipe.

WARNING

Failure to vent this Boiler in accordance with

these instructions could cause a re, resulting

in severe property damage, personal injury or death.

Do not interchange vent systems or materials

unless it is specied.

The use of thermal insulation covering pipe and

ttings is prohibited.

Do not apply an electric damper, draft hood or

vent damper with this Boiler.

Do not locate vent termination where exposed

to prevailing winds. Moisture and ice may fall on surface around vent termination. To prevent deterioration, surface must be in good repair

(sealed, painted, etc.).

4.5 General Location Guideline

1. Vent system installation must be in accordance with Local codes or, in the absence of local codes, the National Fuel Gas Code, ANSI Z224.1 /NFPA 54 and/or CSA B149.1, Natural Gas and Propane Installation Code.

2. The Boiler is designed to be installed as a Direct Vent (sealed combustion) type. The air for combustion must be supplied directly from the

outside to the burner. Also, the ue gases must be

vented directly to the outdoors (through wall or roof).

3. Do not install venting system components on the

exterior of building except as specically required by

these instructions

- Vent terminals must be at least 1 foot from any door, window, or gravity inlet into the building.

- Maintain the correct clearance and orientation between the vent and air intake terminals.

The vent and air intake terminals must be at the

same height and their center lines must be spaced

apart 12˝ minimum.

- The bottom of the vent and air intake terminal must

be at least 12˝ above the normal snow line. In no case should they be less than 12˝ above grade

level.

- Do not install the vent terminal directly over windows or doors.

- Air intake terminal must not terminate in areas that might contain combustion air contaminates, such as near swimming pools.

- For sidewall venting, the minimum horizontal distance between any adjacent individual Module (Boiler) vent terminations is twelve (12) inches. It is better to be far more than 12 inches for avoiding frost damage to building surfaces where vent terminations are placed.

- The minimum horizontal distance between any adjacent individual module (boiler) roof vent endpiece is one (1) foot.

Page 24

Page 22

SECTION 4. Installation

4.6 Locations for Vent Pipe Terminator

* For clearances not specied in ANSI Z224.1 / NFPA 54 or CAN/CSA-B 149.1, please use clearances in

accordance with local installation codes and the requirement of the gas supplier.

within

US Direct Vent Instal-

lations

* *

12 in (30 cm) 36 in (91 cm)

3 ft (91 cm) above if

within 10 ft (3 m) hori-

zontally

* 7 ft (2.13 m)

Canadian Direct Vent

Installations

3 ft (91 cm) within a

height 15 ft (457 cm)

above the meter/

regulator assembly

6 ft (1.83 m)

4.6.1 Direct Venting Clearances

Description

A B

E F G

Clearance above grade, veranda, porch, deck, or balcony 12 in (30 cm) 12 in (30 cm)

Clearance to window or door that may be opening 12 in (30 cm) 36 in (91 cm)

Clearance to permanently closed window * *

Vertical clearance to ventilated soft located above the terminal

a horizontal distance of 2 feet from the center line of the terminal

Clearance to unventilated soft * *

Clearance to outside corner * *

Clearance to inside corner * *

Clearance to each side of center line extended above meter/

regulator assembly

Clearance to service regulator vent outlet * 3 ft (91 cm)

Clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other appliance

Clearance to a mechanical air supply inlet

Clearance above paved sidewalk or paved driveway located on

public property

Clearance under veranda, porch, deck, or balcony * 12 in (30 cm)

Table 4. Direct Vent Clearances

Page 25

The FT Series Floor Standing, Combination Boiler

4.6.2 Non-Direct Venting (Single Pipe) Clearances

Description US Non-Direct Canadian Non-Direct

Clearance above grade, veranda, porch, deck, or balcony 12 in (30 cm) 12 in (30 cm)

Clearance to window or door that may be opening

Clearance to permanently closed window * *

Vertical clearance to ventilated soft located above the terminal

within a horizontal distance of 2 feet from the center line of the

terminal Clearance to unventilated soft * *

Clearance to outside corner * *

Clearance to inside corner * *

Clearance to each side of center line extended above meter/

regulator assembly

Clearance to service regulator vent outlet * 36 in (91 cm)

Clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other appliance

Clearance to a mechanical air supply inlet

Clearance above paved sidewalk or paved driveway located on

public property Clearance under veranda, porch, deck, or balcony * 12 in (30 cm)

48 in (120 cm) below or to side of opening; 12 in (30 cm) above opening

* *

48 in (120 cm) below or to side of opening; 12 in (30 cm) above opening

36 in (91 cm) above if within 10 ft (3 m) horizontally

* 7 ft (2.13 m)

36 in (91 cm)

36 in (91 cm) within a height 15 ft (4.57 m) above the meter/ regulator assembly

36 in (91 cm)

6 ft (1.83 m)

Page 23

Table 5. Non-Direct Vent Clearances

Page 26

Page 24

SECTION 4. Installation

4.6.3 Venting Requirements in the

Commonwealth of Massachusetts

In Massachusetts the following items are required if the side-wall exhaust vent termination is less than

seven (7) feet above nished grade in the area

of the venting, including but not limited to decks and porches. From Massachusetts Rules and regulations 248 CMR 5.08

1. Installation of Carbon Monoxide Detectors At the time of installation of the side wall

vented gas fueled appliance, the installing plumber

or gastter shall observe that a hard-wired carbon

monoxide detector with an alarm battery back-up is

installed on the oor level where the gas appliance

is to be installed. In addition, the installing plumber

or gastter shall observe that a battery operated or

hard-wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side-wall horizontally vented gas fueled equipment. It shall be the responsibility of the property owner to secure

the services of qualied licensed professionals

for installation of hard-wired carbon monoxide detectors.

a. In the event that the side-wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide with alarm and battery back-up may be installed on

the next adjacent oor level.

b. In the event that the requirements of the subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements, provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm be installed.

2. Approved Carbon Monoxide Detectors Each carbon monoxide detector shall comply

with NFPA 720 and be ANSI/UL 2034 listed and IAS

certied.

3. Signage. A metal or plastic identication plate

shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print no less than one-half (1/2) inch in size: “GAS VENT DIRECTLY BELOW, KEEP CLEAR OF ALL OBSTRUCTIONS”.

4. Inspection The state or local gas inspector of the side-wall horizontally vented gas fueled appliance shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1-4.

Page 27

The FT Series Floor Standing, Combination Boiler

Page 25

NOTICE

DO NOT COMMON VENT FT UNITS.FT units are never permitted to share a vent with Category I appliances.

Common Vent Test

NOTE: This section does not describe a method for common venting FT units. It describes what must be done when an existing unit is removed from a common vent system.

At the time of removal of an existing boiler, the following steps shall be followed with each appliance remaining connected to the common venting system placed in operation, while the other appliances remaining connected to the common venting system are not in operation.

1. Seal any Not Used openings in the common venting system.

2. Visually inspect the venting system for proper size and horizontal pitch and determine there is no blockage or

restriction, leakage, corrosion and other deciencies which

could cause an unsafe condition.

3. Insofar as is practical, close all building doors and windows and all doors between the space in which the appliances remaining connected to the common venting system are located and other spaces of the building. Turn on clothes dryers and any appliance not connected to the common venting system. Turn on any exhaust fans, such as range hoods and bathroom exhausts, so they will operate at maximum speed.

4. Place in operation the appliance being inspected. Follow the lighting instructions. Adjust thermostat so the appliance will operate continuously .

5. Operate the main burner for 5 minutes then, determine if the

cut-draw overows to the discharge opening. Use the ame

of a match or a candle or the smoke of a cigarette, a cigar or a pipe

6. Once it has been determined, according to the method indicated above, that each device connected to the drainage system is placed in the open air in an adequate manner. Install the doors and windows, fans, the registers of chimneys and gas appliances to their original position

7. Any malfunction of the venting system should be corrected so that the installation conforms to the National Fuel Gas Code, ANSI Z223.1/NFP A 54 and (or) the installation codes CAN/ CSA-B149.1. If the size of a section of the evacuation system

must be changed, the system should be modied to comply

with the minimum values of the relevant tables of appendix F of the National Fuel Gas Code, ANSI Z223.1/NFPA 54 and (or) the installation codes CAN/CSA-B149.1

NOTICE

AVIS

NE PAS ÉVENT COMMUNE FT UNITÉS. FT unités

ne sont jamais autorisés à partager un évent Catégorie I avec les appareils.

Au moment du retrait d'une chaudière existante, les mesures suivantes doivent être prises pour chaque appareil toujours raccordé au système d'évacuation commun et qui fonctionne alors que d'autres appareils toujours raccordés au système d'évacuation ne fonctionnent pas:

1. Sceller toutes les ouvertures non utilisées du système d'évacuation.

2. Inspecter de façon visuelle le système d'évacuation pour déterminer la grosseur et l'inclinaison horizontale qui conviennent et s'assurer que le système est exempt d'obstruction, d'étranglement, de fuite, de corrosion et autres défaillances qui pourraient présenter des risques.

3. Dans la mesure du possible, fermer toutes les portes et les fenêtres du bâtiment et toutes les portes entre l'espace où les appareils toujours raccordés au système d'évacuation sont installés et les autres espaces du bâtiment. Mettre en marche les sécheuses, tous les appareils non raccordés au système d'évacuation commun et tous les ventilateurs d'extraction comme les hottes de cuisinière et les ventilateurs des salles de bain. S'assurer que ces ventilateurs fonctionnent à la vitesse maximale. Ne pas faire fonctionner les ventilateurs d'été. Fermer les registres des cheminées.

4. Mettre l'appareil inspecté en marche. Suivre les instructions d'allumage. Régler le thermostat de façon que l'appareil fonctionne de façon continue.

5. Faire fonctionner le brûleur principal pendant 5 min ensuite, déterminer si le coupe-tirage déborde à l'ouverture de décharge.

Utiliser la amme d'une allumette ou d'une chandelle ou la fumée

d'une cigarette, d'un cigare ou d'une pipe.

6. Une fois qu'il a été déterminé, selon la méthode indiquée cidessus, que chaque appareil raccordé au système d'évacuation est mis à l'air libre de façon adéquate. Remettre les portes et les fenêtres, les ventilateurs, les registres de cheminées et les appareils au gaz à leur position originale.

7. T out mauvais fonctionnement du système d'évacuation commun devrait être corrigé de façon que l'installation soit conforme au National Fuel Gas Code, ANSI Z223.1/NFPA 54 et (ou) aux codes d'installation CAN/CSA-B149.1. Si la grosseur d'une section

du système d'évacuation doit être modiée, le système devrait être modié pour respecter les valeurs minimales des tableaux

pertinents de l'appendice F du National Fuel Gas Code, ANSI Z223.1/NFP A 54 et (ou) les codes d'installation CAN/CSA-B149.1

AVIS

Page 28

Page 26

SECTION 4. Installation

4.7 Air Supply and Vent Connections at the Appliance

Combination Boiler Model

FTCF140/199 100´ (30M) 6

Table 6. Maximum Vent / Air Pipe Lengths for either 3” or 2 “ Pipes

NOTE : For additional elbows, reduce maximum allowable length

• 5 feet (1.5M) for each additional 3-inch 90-degree elbow

• 2.5 feet (0.75M) for each additional 3-inch 45-degree elbow

• 8 feet (2.4M) for each additional 2-inch 90-degree elbow

• 4 feet (1.2M) for each additional 2-inch 45-degree elbow

 •Thethicknessofthewallventsinstalled:Min4˝~Max20˝

NOTE: When using a 2” vent pipe, DIP Switch 4 must be in the OFF position.

For 3” Pipe vent, the default setting for DIP 4 is ON. Refer to Section 4.19

4.7.2 Direct Venting

The boiler uses 3˝ or 2˝ diameter exhaust and 3˝ or 2˝diameter intake air ducts. To

ensure the draw of air directly from and exhaust of air directly to the outside of the building, create an airtight seal from the boiler collar to the vent termination.

3˝ Combustion Air / Vent Pipe 2˝ Combustion Air / Vent Pipe

Max Elbow Max Max Elbow Max

50´

(15M*)

Propane models are limited to 25 equivalent feet of 2” vent

Shown is the FTCF140. The inlet and outlet are reversed

3” pipe

on the FTCF

199.

(For installations in Canada) eld-supplied

plastic vent piping must comply with CAN/

CSA B149.1 (latest edition) and be certied

by the Standard For Type BH Gas Venting Systems, ULC-S636. Components of this listed system must not be interchanged with other vent systems or unlisted pipes or

ttings. All plastic components and specied primers and glues of the certied vent system

must be from a single system manufacturer and must not be intermixed with another system manufacturer’s parts.

Tightening — Boiler Collar (Socket) to

Vent Pipe & Inlet Pipe

- Clean and dry your selected PVC, CPVC vent pipe and boiler collar (socket).

- You can select to the size of vent pipe(2˝ & 3˝), according to the installation conditions.

- Push the pipe into the collar (socket) until

it touches the bottom of the socket tting.

- For 2” installations, install using the supplied 3” to 2” adaptor. Adaptor must be installed in vertical section of piping only.

2” pipe connected, using an adapter

3” to 2” adapter

is NOT included.

Page 29

The FT Series Floor Standing, Combination Boiler

4.7.3 Indoor Combustion Air

Page 27

Read and Follow Sections 4.3 Guidelines First.

1. Insert the termination end cap into the intake air duct.

2. Provide two openings to allow for circulation of

combustion air as specied by ANSI Z224.1/NFPA 54.

In Canada refer to CAN/CSA B-149.1

Model FTCF140 FTCF140

Maximum Input (BTU/H) 140,000 199,000

Indoor make up air is provided, a

minimum free area of 1 in

1,000 BTU/H

per

140 in2 13 1/4"

(W) x 13 1/4" (H)

199 in2 13 1/4"

(W) x 13 1/4" (H)

NOTE: The FT needs fresh air for safe operation and

must be installed so there are provisions for adequate combustion and ventilation air.

4.8 Vent / Air Pipe Termination

Note : For using pipe more than 1 elbow, reduce maximum allowable length

• 5 feet (1.5M) for each additional 3-inch 90-degree elbow

• 2.5 feet (0.75M) for each additional 3-inch 45-degree elbow

• 8 feet (2.4M) for each additional 2-inch 90-degree elbow

• 4 feet (1.2M) for each additional 2-inch 45-degree elbow

• The thickness of the wall vents installed : Min

4˝ ~ Max 20˝

Shown is the FTCF140. The inlet and outlet are reversed

on the FTCF

Vent Termination

1. Rodent Screen Installation

• Install Rodent Screen and Vent Terminal (additional purchase), see Figure for appropriate

conguration.

• After connecting vent/air inlet terminal, it is

required to install screen for the terminal to prevent incoming of rodent, which might cause damage to the unit. (Extra purchase accessory

2/3˝ screen vent 1/4˝ mesh)

199.

Horizontal Vent Termination

• Direct Vent - Sidewall Terminations

Page 30

Page 28

SECTION 4. Installation

4.8 Vent Pipe Termination (cont)

Horizontal Vent Termination (cont)

• Direct Vent - Optional Sidewall Snorkel Terminations

Vertical Vent Termination

• Direct Vent - Vertical Terminations with Sloped Roof

Concentric Vent Termination

• Direct Vent - Optional Horizontal and Vertical Concentric Vent

Side wall Vent (2"or 3")

Roof Vent (2"or 3")

Side wall Vent (2"or 3")

Page 31

The FT Series Floor Standing, Combination Boiler

Page 29

4.9 Gas Supply and Piping

Gas piping should be supported by suitable hangers or

oor stands, not the appliance.

Review the following instructions before proceeding with the installation.

1. Verify that the appliance is tted for the proper type

of gas by checking the rating plate. FT will function properly at elevations up to 10,000 feet (3050 m). Refer to Section 4.12 for High Altitude Settings.

2. The maximum inlet gas pressure must not exceed 13" W.C. (3.2kPa). The minimum inlet gas pressure is 3.5" W.C. (1.0kPa).

3. Refer to Table 7, Table 8, and Table 9 to size piping.

4. Run gas supply line in accordance with all applicable codes.

5. Locate and install manual shutoff valves in accordance with state and local requirements.

6. A sediment trap must be provided upstream of the gas controls.

7. All threaded joints should be coated with piping

compound resistant to action of liqueed petroleum

gas.

8. The appliance and its individual shutoff valve must be disconnected from the gas supply piping during any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.45kPa).

9. The unit must be isolated from the gas supply system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG (3.45kPa).

10. The appliance and its gas connection must be leak tested before placing it in operation.

11. Purge all air from gas lines.

CAUTION

PRV (included) must be installed immediately at the top of boiler outlet to PRV, with no valves between. Refer to Section 4.15 __________________________________________

WARNING:

Open ame can cause gas to ignite and result in

property damage, severe injury, or loss of life.

NOTE: The FT appliance and all other gas appliances

sharing the gas supply line must be ring at maximum

capacity to properly measure the inlet supply pressure. The pressure can be measured at the supply pressure port on the gas valve. Low gas pressure could be an indication of an undersized gas meter, undersized gas supply lines and/or an obstructed gas supply line.

SCHED 40 METAL PIPE CAPACITY FOR 1.50 SPECIFIC GRAVITY

NOMINAL PIPE SIZE @ 11" W.C. INLET AND 0.5" W.C. PRESSURE DROP

SIZE 1/2" 3/4" 1"

LENGTH MAXIMUM CAPACITY IN THOUSANDS OF BTU PER HOUR

20 200 418 787 40 137 287 541 60 - 231 434 80 - 197 372 100 - 175 330

NOTES: 1. Follow all local and national propane gas codes for line sizing and equipment requirements. 2. Verify that inlet gas pressure remains between 4 and 13 inches of water column before and during operation.

Source: ANSI Z223.1-80 National Fuel Gas Code.

UNDILUTED PROPANE

Table 7. Nominal Pipe Size, Propane

SCH 40 METAL PIPE CAPACITY FOR 0.60 SPECIFIC GRAVITY NATURAL GAS

NOMINAL PIPE SIZE @ 0.30" W.C. PRESSURE DROP

LENGTH 3/4" 1"

FT CUBIC FEET OF GAS PER HOUR

20 190 350 40 130 245 60 105 195 80 90 170 100

Table 8. Nominal Pipe Size, Natural Gas

ATTENTION

PRV (inclus) doit être installé immédiatement en haut de la chaudière sortie de PRV, sans les vannes entre. Se reporter à la Section 4.15 __________________________________________

EQUIVALENT LENGTHS OF STRAIGHT PIPE FOR TYPICAL SCH 40 FITTINGS

NOMINAL PIPE SIZE

FITTING 1/2" 3/4" 1"

LINEAR FEET

90° ELBOW 3.6 4.4 5.2

TEE 4.2 5.3 6.6

Table 9. Equivalent Pipe Lengths

Page 32

Page 30

SECTION 4. Installation

The gas connection tting on the unit is

1/2”(FTCF140) or 3/4”(FTCF199) female NPT.

The supply line must be sized for the maximum

output of the combination boiler model being installed. If there are additional gas appliances from the main supply line, you must measure sizes of the supply line according to the COMBINED total maximum BTUH draw for the appliances as if they were all operating at the same time.

Measure the length of the gas supply line from

the gas meter to the Combination boiler.

Use the tables in this manual or refer to the gas

line manufacturers sizing information to determine the correct supply pipe size.

The gas shut-off valve in the gas supply line

should be installed close to the unit.

4.9 Gas Supply and Piping

To facilitate any future maintenance, it is also

recommended that an approved gas union tting

be installed in the supply line between the shut-off valve and the 3/4” female NPT connection on the Combination boiler.

1) Install an approved gas line pipe to gas line connection to the combination boiler.

Include manual shut off valve and gas union

connection, as shown.

2) Test gas pressure to make sure it meets the minimum standards and does not exceed .the maximum standards for the combination boiler.

3) Leak test the gas line pipe before placing the unit in operation. Use approved leak detector liquid solutions only to check for leaks.

Do not operate the combination boiler until all

connections have been completed and the heat

exchanger is lled with water.

FTCF140

FTCF199

Closed Position

Gas Pipe (1/2")

Manual Shut-Off Valve

Closed Position

Manual Shut-Off Valve

Gas Pipe (3/4

Page 33

The FT Series Floor Standing, Combination Boiler

AUTODESK � � � � � � � � � �

Combination boiler must be installed downstream of the gas meter for adequate gas supply. Combination boiler gas connection pipe not less than a 1/2” (FTCF140) or 3/4” (FTCF199).

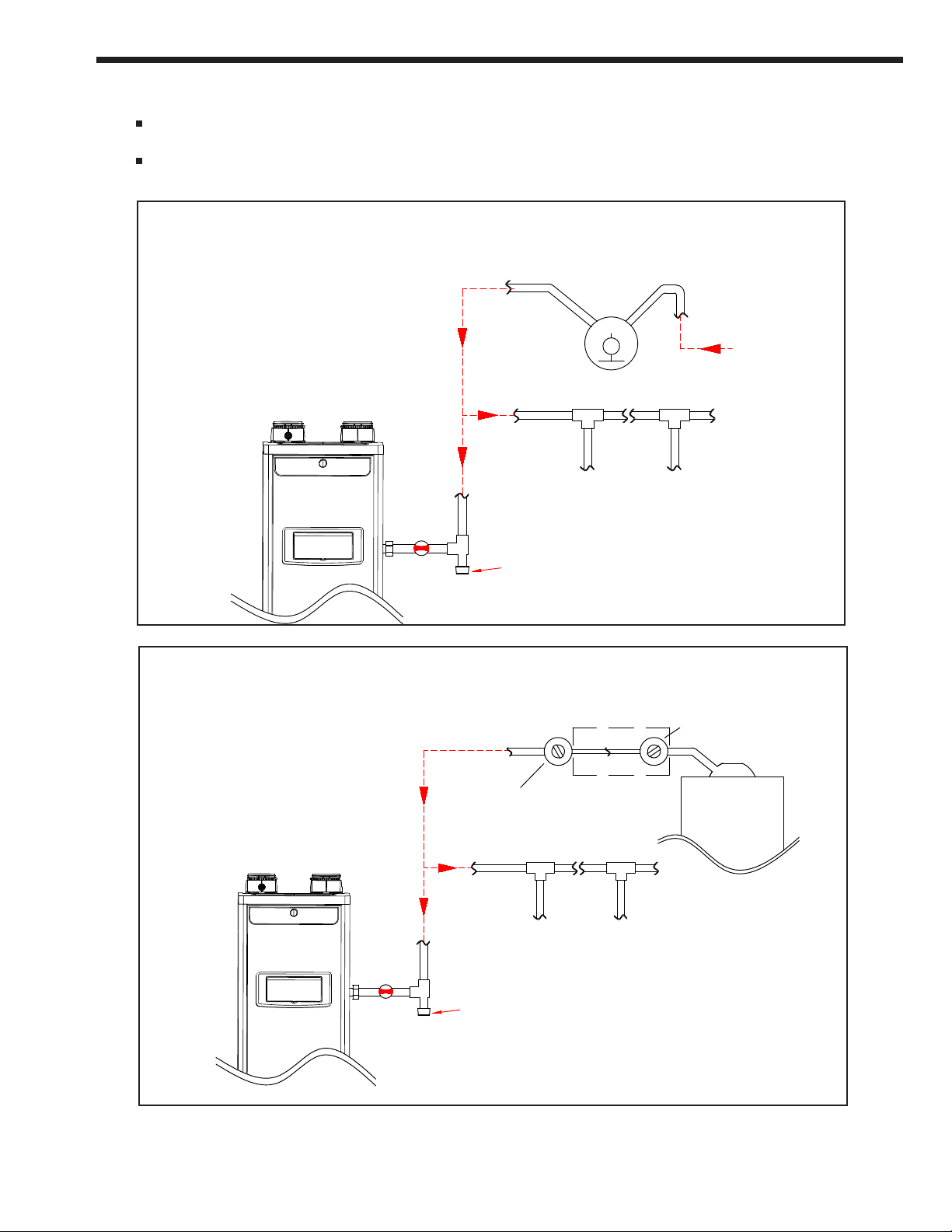

Suggested Natural Gas (NG) Layout

Capacity : Not less than 'total capacity of connected appliances'

Page 31

4.9 Gas Supply and Piping

Gas meter

Other appliance

Suggested Propane Gas (LP) Layout

Capacity : not less than 'total capacity of connected appliances'

Gas Regulator (supply press 12")

Sediment Trap

1/2" pipe

3/4"

Other appliance

Gas Regulator (21bar)

LP GAS TANK

Page 34

Page 32

SECTION 4. Installation

4.10 Gas Supply Pressure

The minimum and maximum inlet gas line pressures must be

LP Gas Natural Gas

Maximum Pressure 13.0" WC Maximum Pressure 10.5" WC

Minimum Pressure 8.0" WC Minimum Pressure 3.5" WC

CAUTION

The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve

during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

Loosen the pressure port bolts before you check the gas inlet pressure.

FTCF140

Inlet Gas Pressure Port

FTCF199

4.11 Gas Setup and Adjustment

For the Step by step process to measure CO2 values on the FT, please refer to Section 4.13 of this Installation Manual. Step 11 thru Step 23 will guide you on how to combustion test your FT

Page 35

The FT Series Floor Standing, Combination Boiler

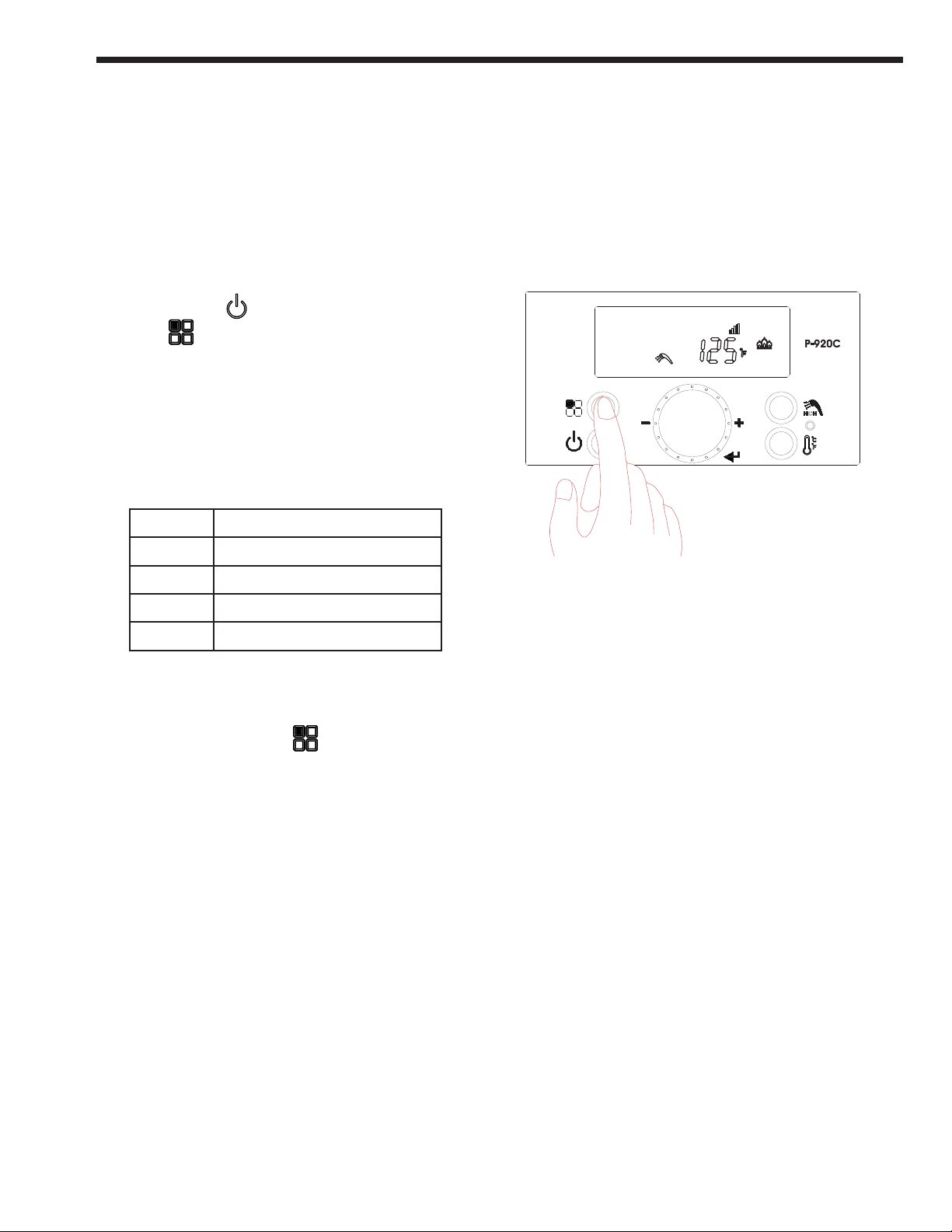

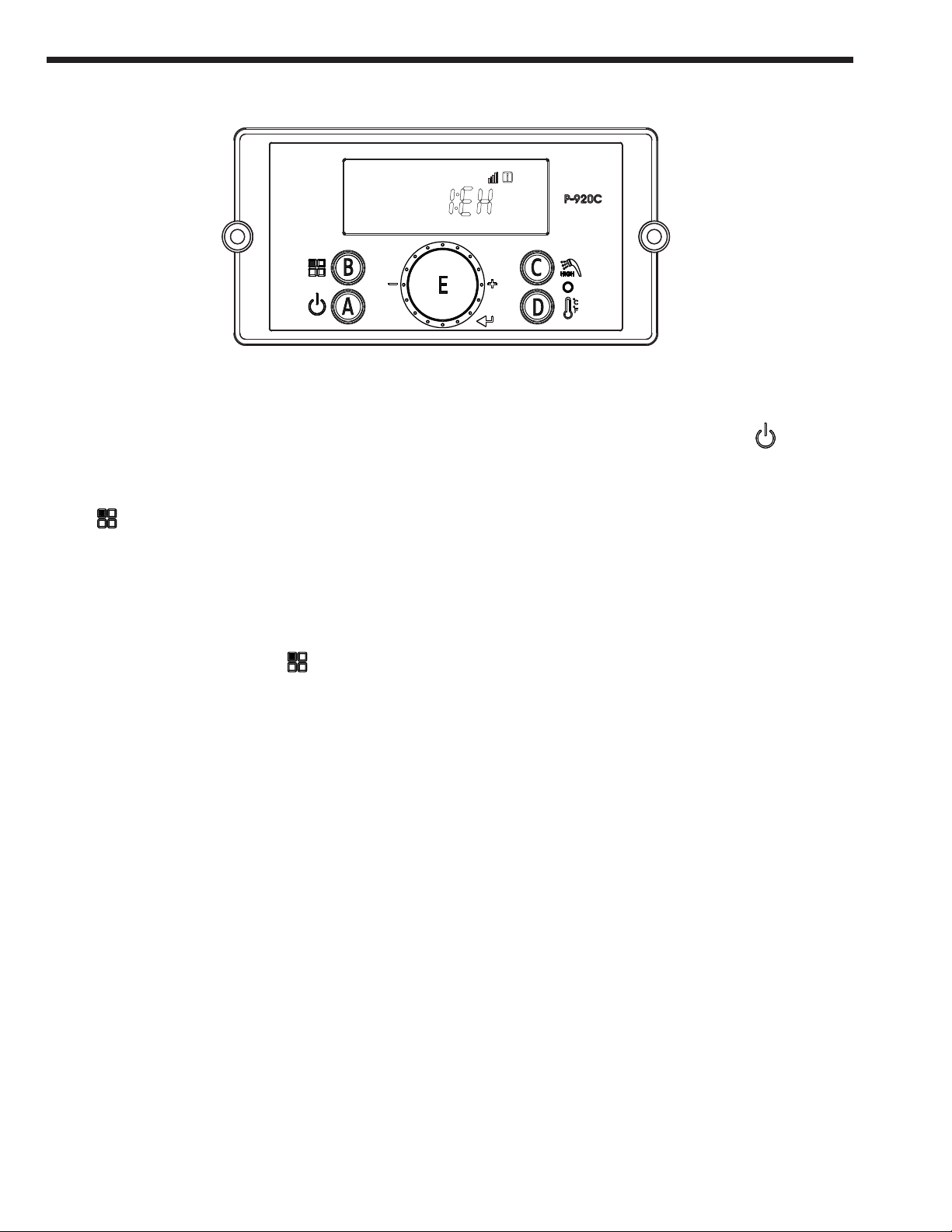

4.12 High Altitude Installations. 2,000’ to 10,000’

The FT is shipped with a default factory setting for installation at an

altitude of 0 to 2000’ (approx). For maximum efciencies at higher

altitudes (2,000’ to 10,000’), the FT does have an adjustment in the Installer Parameters Mode.

Follow these instructions if your installation is at 2,000’ - 10,000’.

1. With the Power turned OFF, press the 'Modes button' for 5 seconds to get into the Installer

Parameters Mode.

Page 33

2. Turn the dial (E) until ‘

3. Press the dial (E).

4. Set the high altitude value by turning the dial. Refer to table.

# Altitude of Installation 0 0~1999 ft (0~609 m) 1 2,000~4,499 ft (610~1,645 m) 2 4,500~7,699 ft (1,646~2,346 m) 4 7,700~10,000 ft (2,347~3,048 m)

5. Press the dial again (E) to save the setting.

6. Press the ‘Modes button’ for one second, to Save the number and to go back to initial status.

28:HA’ appears.

Page 36

Page 34

Document 4290B

The FT Series, Floor-Standing, Gas Conversion Kit

SECTION 4. Installation

4.13 Natural Gas to Propane Conversion Kit Document #4290

Kit # R20771

The FT Series,  oor standing, condensing boiler is con gured

for Natural Gas (NG) from the factory.

Conversion Kit is included with every FT. The gas conversion kit will

A Natural Gas to Propane

T op Access Panel

Front Panel Knob

Front Panel

show you how to convert your FT boiler to propane gas. If your FT does not have the bag containing the conversion kit, a replacement kit can be obtained. Contact the manufacturer and request a replacement conversion kit.

NOTICE

If your installation altitude is greater than 2000 ft, please check that the ‘High Altitude’ Installer Setting has been adjusted to suit your installation altitude. Refer to Section

4.12 of the Installation and Operation Instructions (Document 1320).

WARNING

This gas conversion kit shall be installed by a quali ed service

agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. The information in these instructions must be

followed to minimize the risk of  re or explosion or to prevent property damage, personal injury or death. The quali ed service

agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the

converted appliance is checked as speci ed in the manufacturer’s

The quali ed agency performing this work assumes

responsibility for gas conversion.

CAUTION

Steps 1 thru 26

To convert from Natural Gas to Propane Gas

Turn OFF the FT.

located at the bottom left of the Control Display .

Turn OFF the GAS and WATER supply to the

FT (valves are located on the plumbing pipes.)

Figure A

ON / OFF

The ON / OFF button is

WARNING

This conversion shall be installed by a quali ed service

agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions

is not followed exactly, a  re, an explosion or production

of carbon monoxide may result causing property damage,

personal injury or loss of life. The quali ed service agency is

H2373900B

responsible for the proper and complete installation of this kit. The installation is not proper and complete until the operation

of the converted appliance is checked as speci ed in the

manufacturer's instruction supplied with the kit.

FTCF140

FTCF199

Natural Gas

(NG) Part #

FT1722 FT1722P

FT1780 FT1802

Propane Gas

(LP) Part #

Table A

A VERTISSEMENT

le fonctionnement de l’appareil converti est véri ée comme spéci é dans le manuel d’instruction fourni avec le kit.

Nozzle

Ori ce

pg 1 of 4

.18

Page 37

The FT Series Floor Standing, Combination Boiler

Document 4290B

The FT Series, Floor-Standing, Gas Conversion Kit

pg 2 of 4

FTCF140

GAS VALVE

GAS INLET PIPE

GAS VALVE

GAS INLET PIPE

FTCF199

Remove the existing natural gas nozzle or ori ce. If your unit is a FTCF199, note that the conical end of the ori ce

is towards the valve. Save the packing for re-use. See Figure C.

Replace the old Nozzle (or Ori ce) with the new one for LP (propane).

Re-use the packing from previous.

Return the Gas Inlet Pipe to its original position and tighten the Brass Fittings.

10.

Per Table B, set DIP Switch 5 to the ‘OFF’ setting (the #5 DIP switch setting for LP Propane is the OFF side).

11.

Turn ON the GAS and WATER supply to the FT.

12.

Turn ON the FT.

13.

Connect a manometer to the Manifold Pressure Port. See Figure E. For dual port manometers, use the positive pressure side. Check for proper manifold gas pressure. Refer to Table C on next page.

14.

Establish a call for heat. You may need to disconnect the outdoor reset if you are making this gas conversion during warm weather.

Loosen the hex-nuts on the Gas Inlet Pipe and remove the nozzle or ori ce (See Figure C). Save the Packing

for re-use with the replacement Gas Ori ce.

NOZZLE

ORIFICE

PACKING

FTCF140

FTCF199

Using a Phillips screwdriver, remove the 4 screws on the Top Access Panel, and then lift out the Top Access Panel.

Unthread the Front Panel Knob at the top of the front panel and then remove the entire panel. See Figure A.

With the internal components exposed, locate the gas inlet pipe of your model. See Figure B.

Figure C

Figure B

Page 35

Page 38

Page 36

Document 4290B

The FT Series, Floor-Standing, Gas Conversion Kit

SECTION 4. Installation

4.13 Natural Gas to Propane Conversion

ON OFF

MIN Fire Normal Operation

MAX Fire Normal Operation

NG Natural LP Propane

3” Vent Size

ON OFF ON ON

2” Vent Size

ON OFF OFF ON

REFERENCE

MBH N/A 140 N/A 199

ONLY.

15.

16.

17.

18.

19.

20.

21.

OFF ON ON ON

Table B DIP Switch Settings

Setup your combustion analyser and place the sensor

CHANGE

into the combustion test port

Per Table B for Max Fire, change dip switch 6 to ON and 7 to OFF.

The unit will cycle up to MAX  re.

WAIT for your combustion analyser to stabilize. This may take up to 3 minutes depending on your combustion analyser. Then check the CO

combustion readings. At this point, just record the CO2 readings at MAX Fire. Do NOT attempt to adjust

CO2 at MAX Fire. ONLY in MIN Fire, so...

Per Table B for MIN Fire, change dip switch 6 to OFF and 7 to ON. The unit will cycle down to MIN Fire. WAIT for your combustion analyser to stabilize. Then check the CO

Table D for acceptable MIN  re combustion readings.

If CO

readings in Max Fire and MIN  re are acceptable, then skip ahead to Step 23. If not, then open the

2 Gas Valve Adjustment Port by removing the cap screw with a 4mm Allen wrench. See Figure E. Then use the 4 mm Allen wrench to make a minor adjustment (1/8 turn) to either increase or decrease CO2.

NOT

measurement for MAX  re. Refer to Table D for acceptable MAX  re

Figure D

measurement at MIN  re. Refer to

Manifold pressure

FTCF140

FTCF199

Table C

value

FTCF140

FTCF199

Table D

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

MAX Fire

MIN Fire

MAX Fire

MIN Fire

MAX Fire 8.5~10.5% 9.5~11 %

MIN Fire 8~10% 9~10.5 %

MAX Fire 8.5~10.0% 9.5~11 %

MIN Fire 8~10% 9~10.5 %

-0.15" WC -0.216" WC -0.15" WC -0.216" WC 0” WC 0.002” WC 0.1” WC 0.079” WC

-0.134” WC -0.173” WC

-0.015” WC -0.015” WC

‘NG’ type combustibility ‘LP’ type combustibility

2" VENT 3" VENT 2" VENT 3" VENT

pg 3 of 4

Page 39

The FT Series Floor Standing, Combination Boiler

Document 4290B

The FT Series, Floor-Standing, Gas Conversion Kit

SECTION 4. Installation

4.13 Natural Gas to Propane Conversion

Page 37

FTCF140

Gas V alve Adjustment Port (under the cap screw)

Manifold Pressure Port

Figure E

It may be necessary to go back and forth between HI Fire and LOW Fire several times (and making

22.

adjustments ONLY at LOW Fire), before CO2 at both are within acceptable levels. Be sure to put the cap screw back onto the gas valve adjustment port when done.

Once the CO2 and manifold pressure measurements for both MIN and MAX Fire are acceptable per

23.

Table D, set DIP switches 6 and 7 to the OFF position for Nominal Fire (normal operation). The FT is now operating in it’s normal mode.

Write in the correct Conversion Date and the Technicians Name to the included gas conversion sticker.

24.

See Figure F. Then apply that sticker adjacent to the rating plate.

Remove your combustion analyser from the combustion test port and be sure to thread the test port plug

25.

back into position.

Re-connect outdoor reset if it was disconnected previously in this conversion and put the Front Panel

26.

and Top Access Panel back on. Tighten them into place using the knob and 4 fasteners that you disassembled in Step 3.

FTCF199

H2373900B

This unit was converted on ____/____/___to _____gas with kit #____________by______________________ (name and company __________________________ accountable)_________________________________ ___________________________________________ Cette unité a été converti ____/____/____ten ______gaz en utilisant le kit numéro _____ par______________ (nom et société_________________________________ responsable)___________________________________ _____________________________________________

Figure F (Conversion label)

Page 40

Page 38

3/4" PIPE (DHW OUTLET)

(GAS INLET)

3/4" PIPE

SECTION 4. Installation

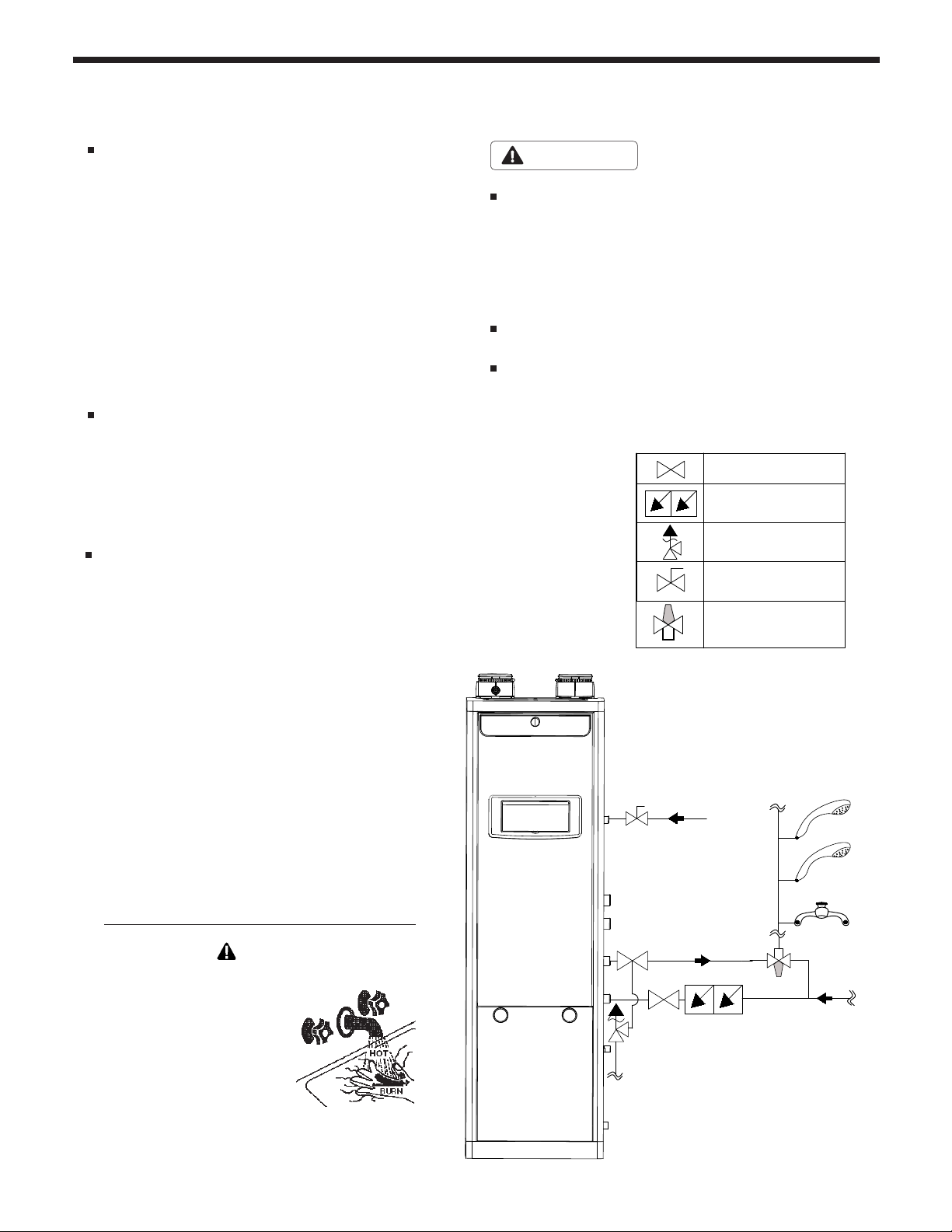

4.14 Plumbing Guidelines

External Plumbing and Water Connection

Guidelines

- Ensure pipe material meets local codes and industry standards.

- The pipe end must be clean and free of debris.

- Do not apply torch heat within 12˝ of the bottom

connections of the unit.

- The size of the DHW pipe should be 3/4˝

diameter and central heating water pipe should

be 1˝ diameter.

- Isolation valves(Shutoff valve) will be used.

- All piping should be insulated.

Applicable Backow Preventer

- Apply a backow preventer valve in the DHW

supply inlet (water Inlet) to the unit as required by local codes.

Closed type Expansion tank

- Apply 1" pipe to the expansion tank to allow air within the system for exhausting.

- Pitch any horizontal piping up towards tank 1 inch per 5 feet of piping.

- DO NOT install automatic air vents on closed type expansion tank systems. Air must remain in the system and return to the tank to provide its air cushion.

- DO NOT use a closed type expansion tank in a system with the FT Combination Boiler. (Automatic air vent has been installed inside of the boiler.)

- If the combination boiler is installed in a closed water supply system, such as one having a

backow preventer in the cold water supply line,

it will control thermal expansion.

CAUTION

Use at least the MINIMUM pipe size for the entire

boiler loop piping (connecting boiler to and from the primary/secondary connection). Use only primary/secondary piping as shown.

Failure to follow these guidelines could result in system problems.

CH pipe minimum size : 1˝ DWH pipe minimum size : 3/4˝

Isolation valve Backflow preventer

Pressure relief valve

Ball valve

Anti-scald rated Mixing Valve

3/4" PIPE

(GAS INLET)

CAUTION

Scalding Risk: Manufacturer recommends the use of a thermostatic mixing valve at domestic hot water outlet (boiler location) to reduce potential for scalding. Contact Manufacturer for

recommended models.

__________________________________________

3/4" PIPE (DHW OUTLET)

Backflow preventer

3/4" PIPE

(DHW INLET)

Page 41

The FT Series Floor Standing, Combination Boiler

PRIMARY LOOP

SECONDARY LOOP (SPACE HEATING)

(SPACE HEATING)

PRIMARY/SECONDARY

CONNECTION

1" PIPE

(CH SUPPLY)

1" PIPE

(CH RETURN)

3/4" PIPE

(DHW OUTLET)

Backflow preventer

3/4" PIPE

(DHW INLET)

SECTION 4. Installation

4.14 Plumbing Guidelines

Diaphragm Type Expansion Tank

- The air in a diaphragm-type expansion tank is separated from the water by a exible rubber membrane.

When the tank is installed in and connected to the piping of the system, water enters the other side of the tank chamber and presses down on the diaphragm.

- You should always install an ‘Automatic Air Vent (Under gure ‘A’)’ on the top of the air separator to remove

residual air from the system.

- Automatic air vent has been installed on the inside of the FT combination boiler.

- The installation of additional air vent is optional.

- If the combination boiler is installed in a closed water supply system, such as one having a backow

preventer in the cold water supply line, it will control thermal expansion.

- Pump for primary loop is included with FT for < 15 ft.

CAUTION

PRV

Scalding Risk: Manufacturer recommends the use of a thermostatic mixing valve at domestic hot water outlet (boiler location) to reduce potential for scalding. Contact Manufacturer for

recommended models.

Page 39

Do not exceed 12" apart

< 15 ft

__________________________________________

EXPANSION TANK

CAUTION

PRV (included) must be installed immediately at the top of boiler outlet to PRV, with no valves between. Refer to Section 4.15 __________________________________________

ATTENTION

PRV (inclus) doit être installé immédiatement en haut de la chaudière sortie de PRV, sans les vannes entre. Se reporter à la Section 4.15 __________________________________________

Page 42

Page 40

3/4" PIPE (DHW OUTLET)

(GAS INLET)

3/4" PIPE

SECTION 4. Installation

4.14 Plumbing Guidelines

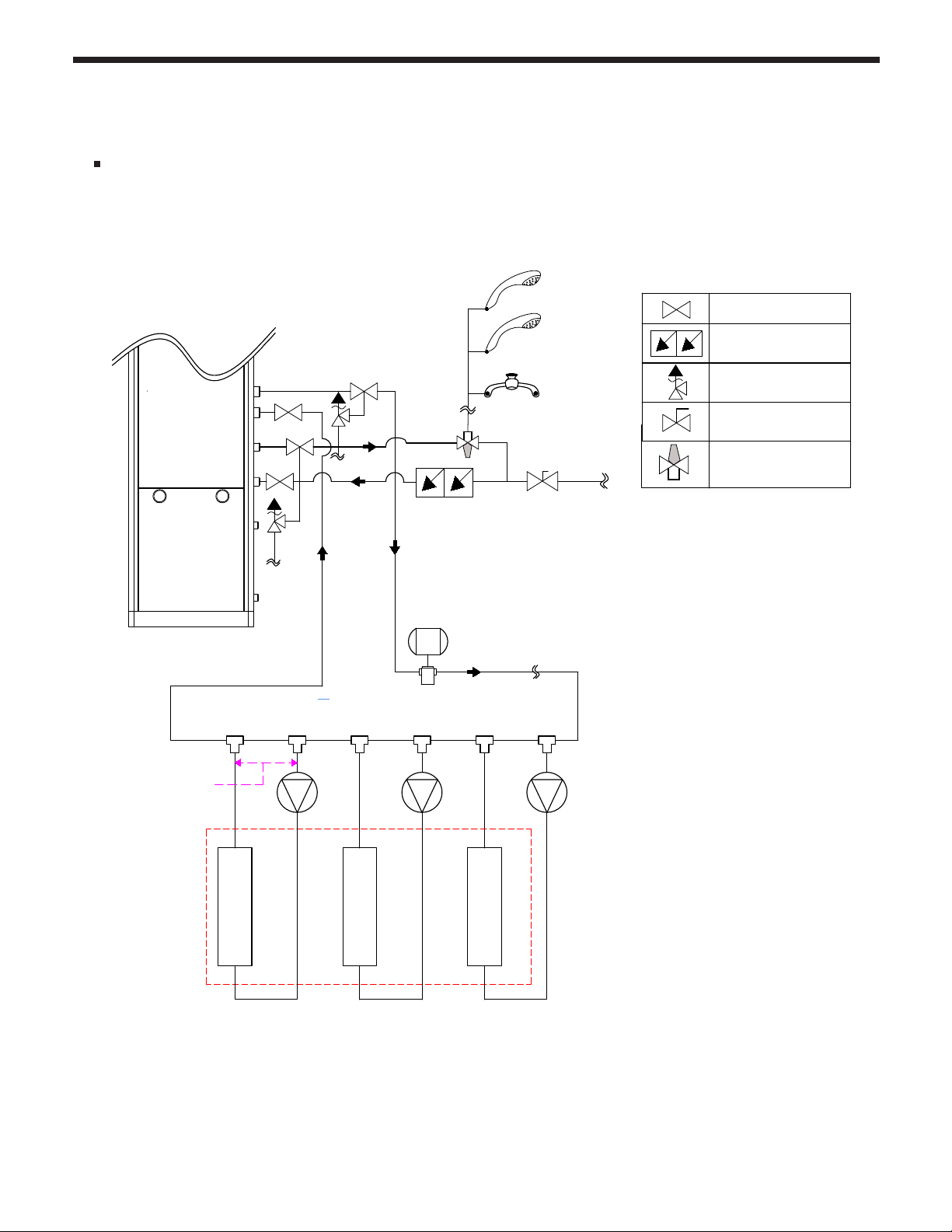

Zoning with Circulation Pump

- Each heating zone of a pump based system has its own circulator pump which runs when the zone needs it.

- Each zone thermostat goes to a controller which controls the pumps.

Isolation valve Backflow preventer

1" PIPE

(CH SUPPLY)

3/4" PIPE

(DHW OUTLET)

Pressure relief valve

Ball valve

Anti-scald rated Mixing Valve

Do not exceed 12" apart

FLOOR HEATING

1" PIPE

(CH RETURN)

ZONE 3

< 15 ft

ZONE 2

Backflow preventer

EXPANSION TANK

PRIMARY LOOP

(SPACE HEATING)

ZONE 1

3/4" PIPE

(DHW INLET)

SECONDARY LOOP (SPACE HEATING)

Page 43

The FT Series Floor Standing, Combination Boiler

SECTION 4. Installation

4.14 Plumbing Guidelines

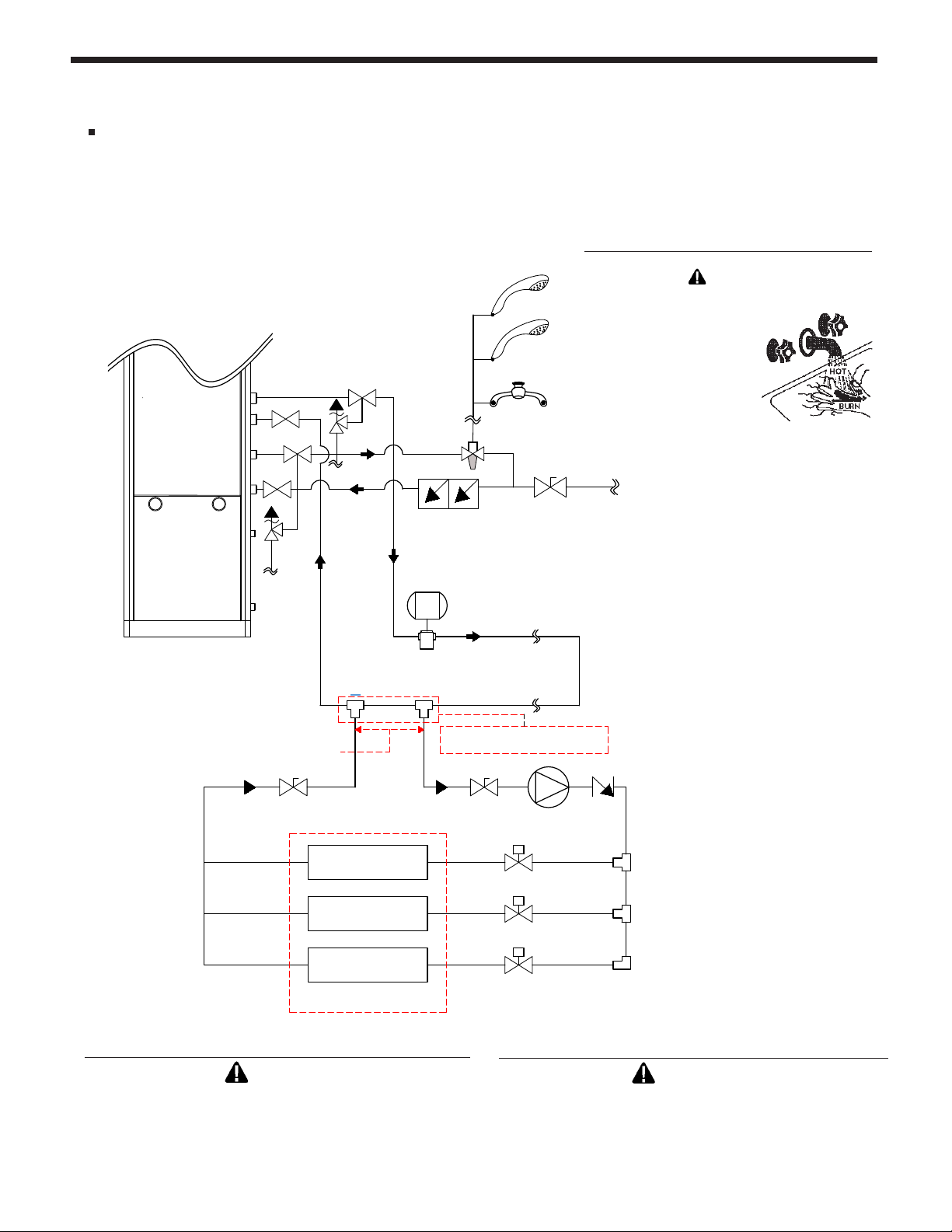

Zoning with Zone Valve

- In a valve based system, there is one circulator pump at the boiler and each heating zone has a zone valve which opens when the zone.

- Each thermostat is wired directly to the corresponding zone valve. Contacts in the zone valves provide a proper signal to the boiler when the valve is opened.

CAUTION

Scalding Risk: Manufacturer recommends the use of a thermostatic mixing valve at domestic hot water outlet (boiler location) to

1" PIPE

(CH SUPPLY)

3/4" PIPE

(DHW OUTLET)

reduce potential for scalding. Contact Manufacturer for

recommended models.

__________________________________________

Page 41

1" PIPE

(CH RETURN)

Do not exceed 12" apart

SECONDARY LOOP (SPACE HEATING)

< 15 ft

ZONE 1

ZONE 2

ZONE 3

Backflow preventer

EXPANSION TANK

PRIMARY LOOP

(SPACE HEATING)

PRIMARY/SECONDARY

(DHW INLET)

CONNECTION

3/4" PIPE

FLOOR HEATING

CAUTION

PRV (included) must be installed immediately at the top of boiler outlet to PRV, with no valves between. Refer to Section 4.15 __________________________________________

ATTENTION

PRV (inclus) doit être installé immédiatement en haut de la chaudière sortie de PRV, sans les vannes entre. Se reporter à la Section 4.15 __________________________________________

Page 44

Page 42

SECTION 4. Installation

4.15 Pressure Relief Valves

External pressure relief valves must be installed.

Observe the following. Failure to comply with the guidelines on installing the pressure relief valve and discharge piping can result in personal injury , death or substantial property damage.

WARNING

Do not operate this combination boiler before installing a Pressure Relief Valve (PRV) that is rated in accordance with the ASME Rating Plate on the boiler.

This hot water boiler is provided with 30 psi safety relief

valve that complies with the ANSI/ASME Boiler and Pressure Vessel Code, Section IV (“Heating Boilers). (Model : CASE ACME F-82)

This safety relief valve (30 psi) is shipped loose for eld

installation.

An approved ASME HV Pressure Relief Valve must be

installed on the DHW supply line as close to the unit as possible. V alve size 3/4”, maximum 150 psi. Not included with boiler.

For safety, the relief valve(s) must be installed into it’ s

designed location and not be removed or plugged. Failure to comply with the guidelines on installing the pressure relief valves and discharge piping can result in personal injury , death or substantial property damage.

Direct the discharge piping of the pressure relief valve

so that hot water will not splash on anyone or any nearby equipment. Attach the discharge line to the pressure relief valve and run the end of the line within

6-12″ (150-300mm) of the oor.

3/4" 30psi

Relief Valve

3/4" 150psi

Relief Valve

Shown is the model 140. The model 199 is very similar

WARNING

DO NOT install a CH pipe line relief valve with a

pressure higher than 30psi and DHW pipe line relief valve with a pressure higher than 150psi. This is the maximum allowable relief valve setting for the combination boiler.

Test the operation of the valve after lling and

pressurizing system by lifting the lever. Make sure the valve discharges freely . If the valve fails to operate correctly , replace it with a new relief valve. Ensure that the discharge capacity of the pressure relief valve is equal to or greater than the maximum pressure rating of the combination boiler.

Ensure that the maximum BTU/H rating on the

pressure relief valve is equal to or greater than the maximum input BTU/H rating of the combination boiler.

Pressure Relief Valve must be installed on the CH

supply line & DHW outlet line as close to the unit as

possible. (CH supply line: maximum 30psi, DHW outlet line : maximum 150psi). No other valves should be placed between the pressure relief valve and the appliance.

This appliance has a high-temperature shut off switch

built in as a standard safety feature .Therefore a “pressure only” relief valve is required.

Page 45

The FT Series Floor Standing, Combination Boiler

SECTION 4. Installation

4.16 Disposal of Condensate

High efciency gas condensing Boilers create

condensation when operating. Condensation has acidic (pH) of approximately 4-5.

Condensate must be drained in accordance with all

local regulations. Follow your local code with regards to the disposal of condensation.

One of 4 disposal methods must be followed

1. to oor drain

2. to neutralizer (optional kit)

3. to laundry tub

4. to condensate pump (eld supplied)

If a neutralizer is installed, periodic replacement of the

lime stone (or neutralizing agent) will be required. The rate of depletion of the lime stone varies upon usage

of the boiler. During the rst year of operation, please

check the neutralizer every few months for depletion.

Page 43

Apply only corrosion-resistant materials for the

condensate drain lines such as 1/2˝ PVC, CPVC,

Polypropylene pipe or included plastic hose.

For Category II and IV boilers, be installed so as to prevent accumulation of condensate; and

For Category II and IV boilers, where necessary , have means provided for drainage of condensate.

les chaudières de catégories II et IV doivent être installées de façon à empêcher l'accumulation de condensat; et

si nécessaire, les chaudières de catégories II et IV doivent être pourvues de dispositifs d'évacuation du condensat.

NOTICE

AVIS

Condensate Trap and Drain Pipe

(viewed from left front corner and as if the side and front panel are semi-transparent).

2 3

CAUTION

Condensate is mildly acidic (pH=5), and may harm

some oor drains and/or pipes, particularly those

that are metal. Ensure that the drain, drainpipe, and anything that will come in contact with the condensate can withstand the acidity, or neutralize the condensate before disposal. Damage caused by failure to install

a neutralizer kit or to adequately treat condensate will not be the manufacturer’s responsibility.

Contact the factory to order Neutralizer Kit# A2123601

_________________________________________

Page 46

Page 44

SECTION 4. Installation

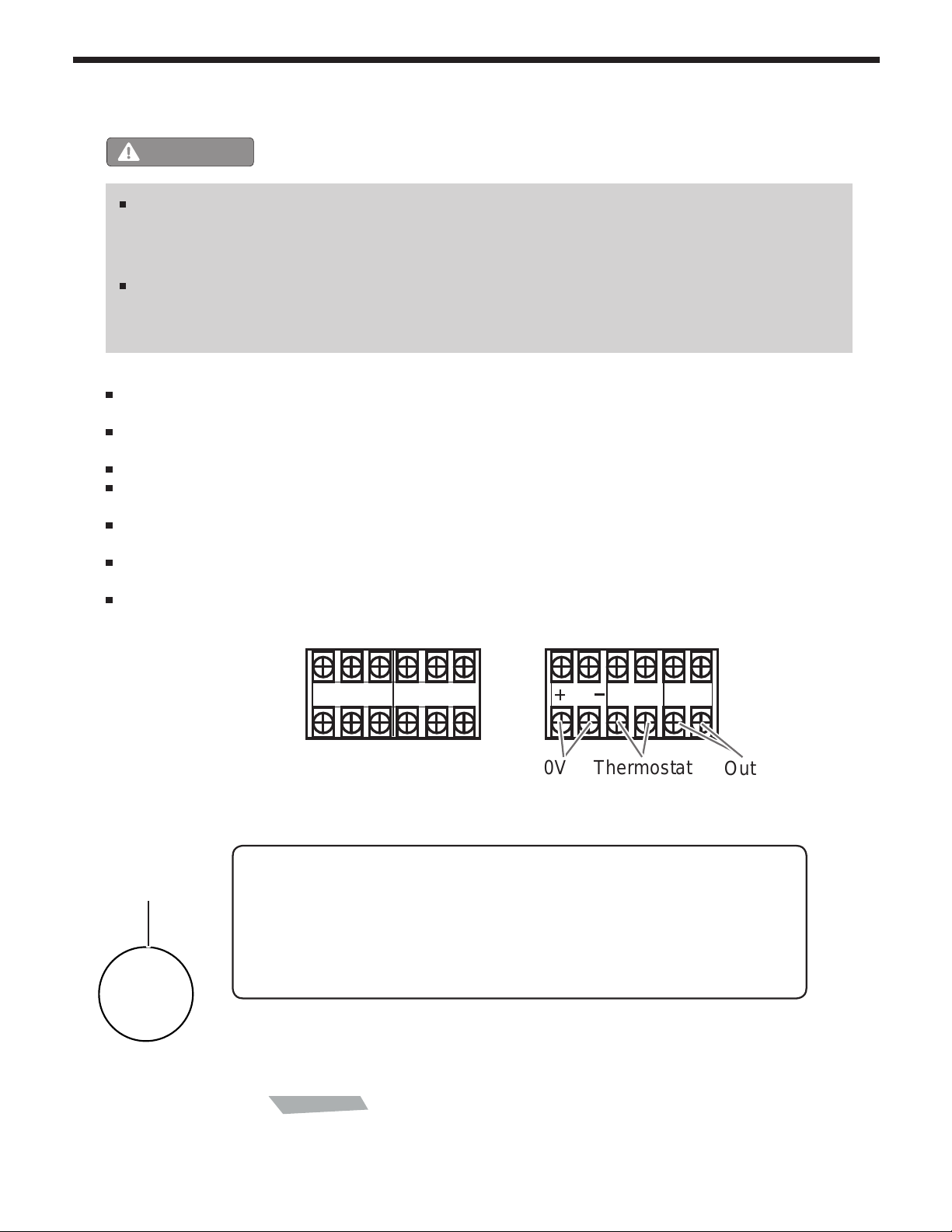

4.17 Electrical Wiring Connections

WARNING

Install wiring and electrically ground boiler in accordance with authority having jurisdiction or, in the

absence of such requirements, follow the National Electrical Code, NFPA 70, and/or CSA C22.1 Electrical Code-Part 1 in Canada.

ELECTRICAL SHOCK HAZARD — For your safety, turn off electrical power supply at service

entrance panel before making any electrical connections to avoid possible electric shock hazard. Failure to do so can cause severe personal injury or death.

This appliance must be electrically grounded. Ensure the electrical receptacle that the combination boiler will

be plugged into, is properly grounded; if wiring directly.

Do not attach the ground wire to either the gas or the water piping as plastic pipe or dielectric unions may

isolate the Combination boiler electrically. The wiring diagrams contained in this manual are for reference purposes only. Refer to these diagrams and diagrams from external controls used with this appliance. Read, understand,

and follow all wiring instructions. Do not disconnect the power supply when the unit is in normal operation. Damage caused by freezing is

not covered under the warranty. Manual(Rocker) switch maximum allowable current for each circulator is 16 amps at 125VAC.

( Housing : Nylon #66 UL 94V-2 , Rocker : Nylon #66 UL 94V-2, Terminal : Copper Alloy )

Terminal block (External power connector) :

DFT-20A-10P (20 amps at 300VAC)

R W

Terminal Block

Manual

Power

Switch

L N G L N G T T

Main Power CH/Boiler

Pump

0 - 10V

External

0-10V

INPUT

Thermostat Connection

Input

O / S

Outdoor Sensor

Page 47

The FT Series Floor Standing, Combination Boiler

Document 4290B

The FT Series, Floor-Standing, Gas Conversion Kit

15.

Setup your combustion analyser and place the sensor

Table B DIP Switch Settings

MBH N/A 140 N/A 199

ON OFF

MIN Fire Normal Operation

MAX Fire Normal Operation

NG Natural LP Propane

3” Vent Size

2” Vent Size ON OFF ON ON ON OFF OFF ON

OFF ON ON ON

NOT

CHANGE

REFERENCE

ONLY.

SECTION 4. Installation

4.18 DIP Switches

DIP switches 6 and 7 have to be set in the OFF position when the boiler is running normally.

Page 45

System Control Setting

Maximum ame detecting voltage 2.4V

Pre-purge time (Tp) Maximum 10s, minimum 1s

Safety Time (igniting time) (Ts) 3s

Igniting interval time 10s

Post-purge time (Tip) 120S (1st : 60s + 2nd 60s)

Over-heating 1,2,3 protection detection time <3s

Pump1 post circulating time (T1pv) 60s Pump2 post circulating time (T1pv) 60s

High & Low Water Level detection time <6s

High & Low Water Level Recover time <6s

Page 48

Page 46

SECTION 4. Installation

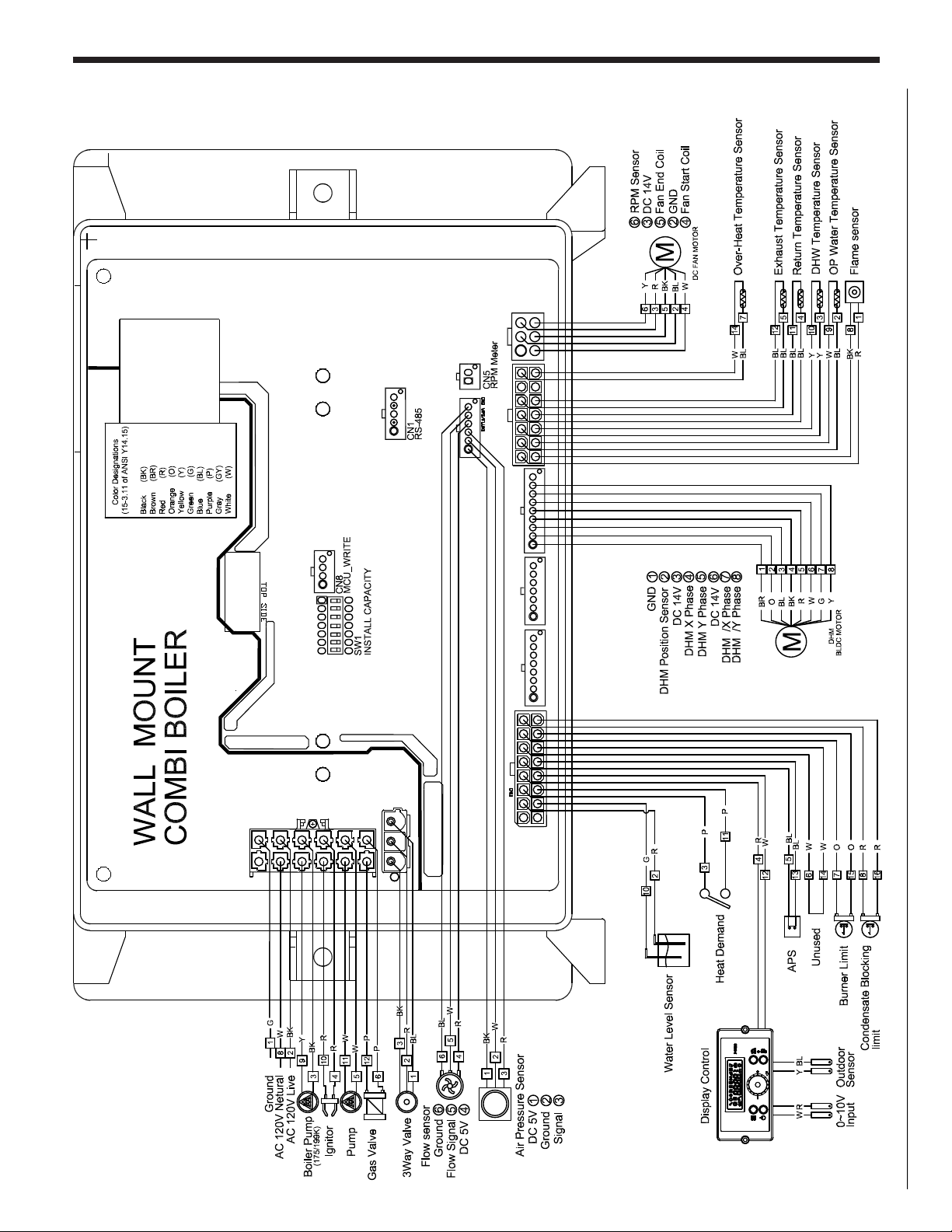

4.19 Control Board, Electrical Diagram

Page 49

The FT Series Floor Standing, Combination Boiler

Page 47

SECTION 4. Installation

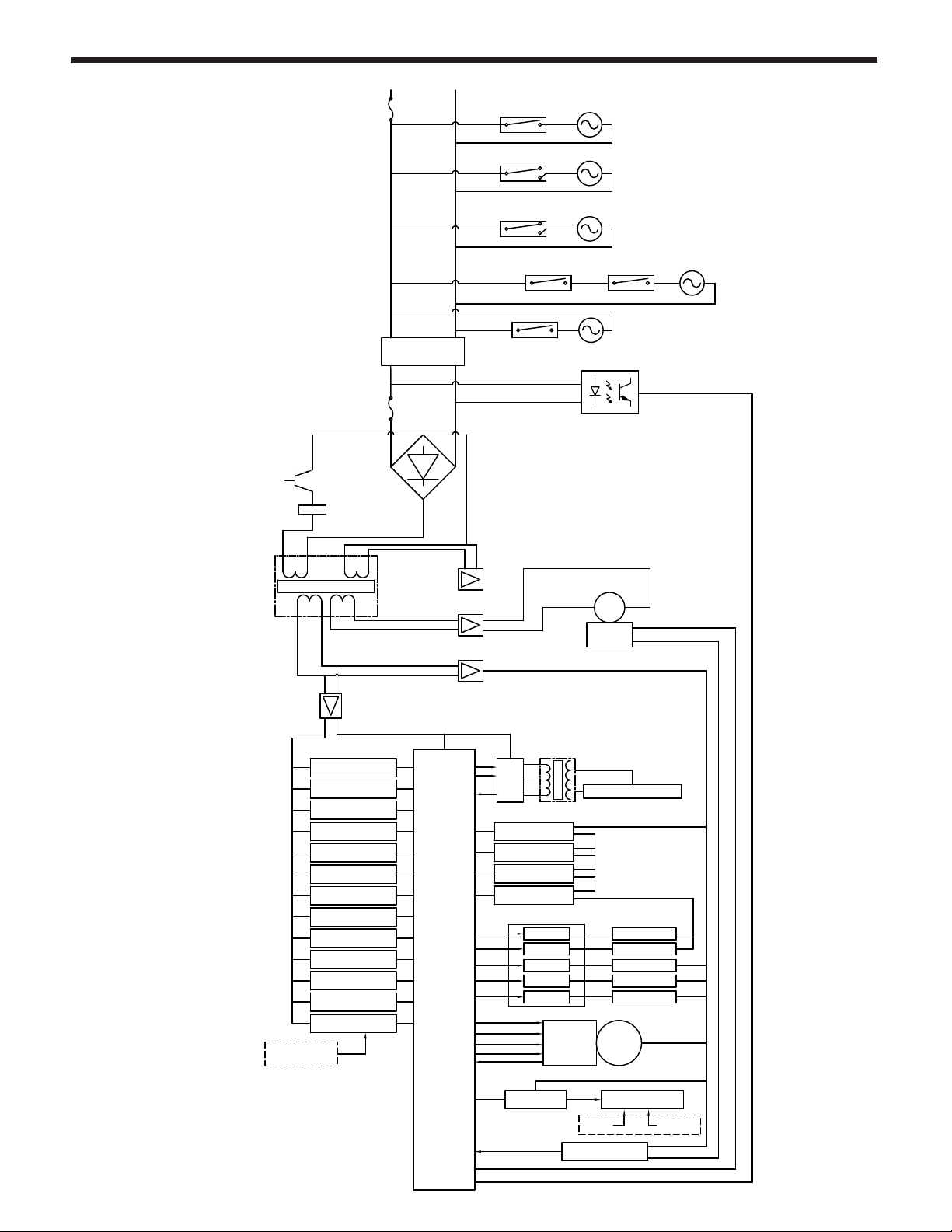

4.20 Ladder Diagram

PWM

HOT NEUTRAL

4 A

EMI FILTER

2 A

Relay 1

Relay 2

Relay 6

Relay 3

Relay 4

Pump1

Pump2

Pump3

Relay 5

Ignitor

Power Detector

Gas Valve

Primary

Secondary

Flow _SENSOR

Fire _SENSOR

OP Water TEMP

Return _TEMP

Exhaust _TEMP

Over Heat TEMP

Storage TEMP

Power Display

Dry contact input On/O

External terminals

SMPS

DC 14 V

DC 5V

Air Pressure Sensor

Gas Sensor

AD Test

DHW_TEMP

Heat Demand

DC 30V

F/B

MCU

Water Level Sensor Driver

High Limit

Burner Limit

Unuse(JUMP)

Driving Circuit

External terminals

DHM Driving circuit

FAN

Low level Sensor

Relay 4

Relay 5

Relay 1

Relay 2

Relay 3

DISPLAY CONTROL

O/S

Speed Control

0-10V

Fan RPM Sensor

Page 50

Page 48

SECTION 4. Installation

4.21 Electrical Connections

Connector

#, Location, Type PIN Label

1 - GROUND 2 L Power Supply Line HT (120VAC) 3 CP1 Mixing Pump HT (120V~) 4 IT Igniter HT (120V~)

CN9

65001WS-12

CN4

LWD1140-06D

CN11

LWD1140-16

5 HEAT/CP2 Central Heating Pump HT (120V~) 6 GV Gas Valve HT (120V~) 7 8 N Power Supply Neutral HT (120V~)

9-12

1 2 GND SELV (26VDC) 3 VDD SELV (14VDC) 4 Fan power(start coil) SELV (26VDC) 5 Fan power(end coil) SELV (26VDC) 6 Fan speed feedback signal SELV (14VDC) 1 8 2

FAN

HWL Unuse SELV (12V~)

LWL Low Water Level Leakage Sensor SELV (12V~)

HD Central Heating Demand SELV (5V)

APS

BL Burner Limit SELV (14V)

HL Condensate Block SELV (14V)

Description

- -

AC Power COM Line HT (120V~) Unuse -

Connect to the Display Control(Thermostat)

Jump (not used) SELV (14V)

SELV

SELV (14V)

Page 51

The FT Series Floor Standing, Combination Boiler

SECTION 4. Installation

4.21 Electrical Connections

Page 49

Connector

#, Location, Type PIN Label

CN7

LWD1140-14

CN14

SMW250-09D

CN3

SMW250-06D

1 8 2 9 3

1 2 DHM Stepper motor position SELV (14VDC) 3 VDD SELV (14VDC) 4 DHM Stepper motor coil X phase SELV (14VDC) 5 DHM Stepper motor coil Y phase SELV (14VDC) 6 VDD SELV (14VDC) 7 DHM Stepper motor coil /X phase SELV (14VDC) 8 DHM Stepper motor coil /Y phase SELV (14VDC) 9 Unuse 1 2 3 4 5 Water Flow Sensor SELV (5VDC) 6 GND SELV (5VDC)

F.S Flame Detect Sensor SELV (5VDC)

OP.S Operation water temperature sensor SELV (5VDC)

DH.S DHW temperature sensor SELV (5VDC)

I.S

BG.S Exhaust temperature sensor SELV (5VDC)

ST.S Storage water temperature sensor SELV (5VDC)

SP.S Over heat temperature sensor SELV (5VDC)

IWM

APS

SEN-

SOR

FLUX1

Description

CH Return sensor SELV (5VDC)

GND SELV (14VDC)

VCC SELV (5V) GND SELV (5V) Voltage input SELV (5V) VCC SELV (5VDC)

SELV

Page 52

Page 50

SECTION 5. Control Display and Operation

The Control Display

The Control Display has a Control Dial (E), 4 buttons (A, B, C, D), and a Liquid Crystal Display (with 72 back-lit segments). This section of this manual gives instruction on how to navigate into the many functions of the FT and to change temperature set points, set system variables and controller parameters.

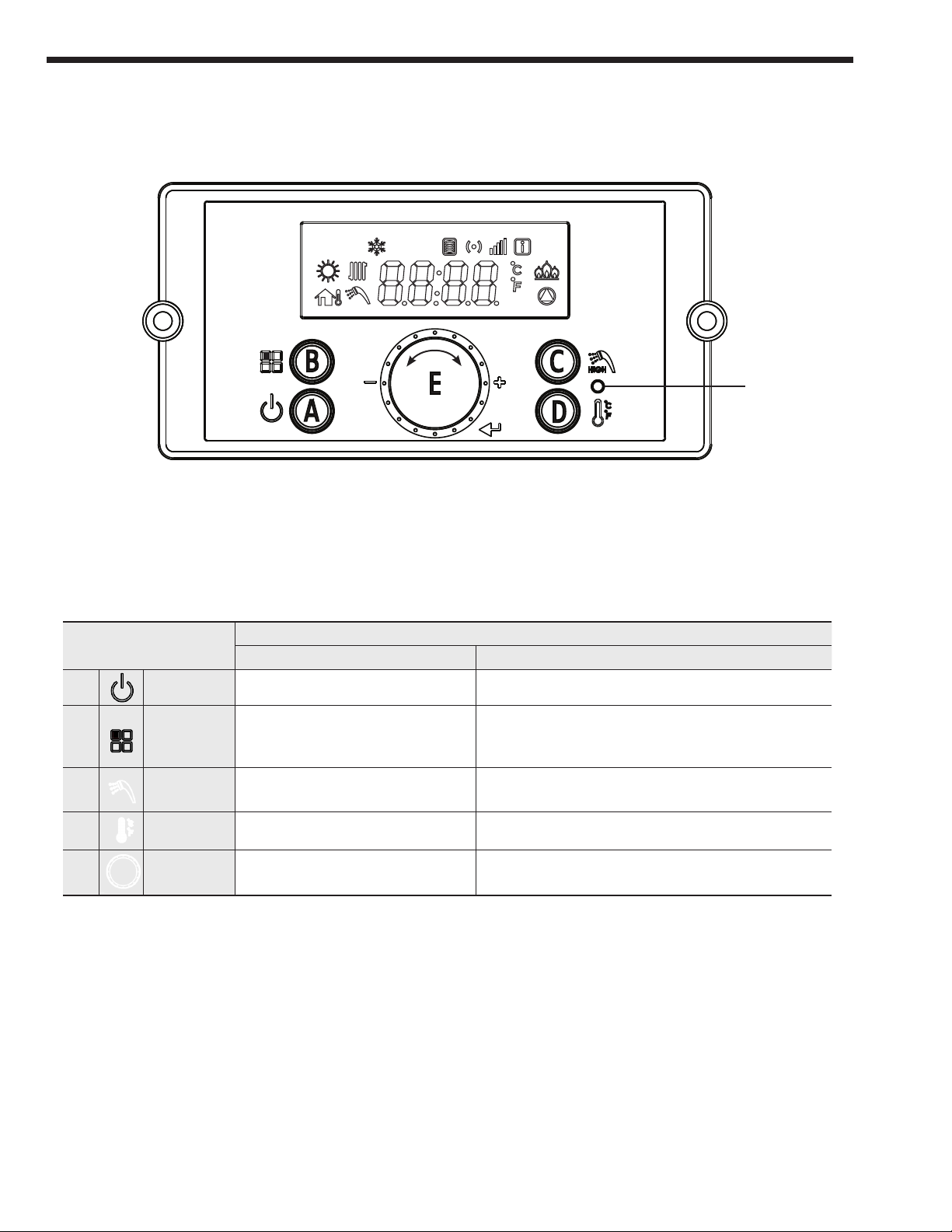

5.1 Control Dial and Buttons

Status Light

(constant green

when operating

normally)

Buttons

B Modes Tap to return to menu

• Temperature Specications

Operating ambient Temperature Range : -10 to 60°C. Operating Relative Humidity up to: 90% at 40°C.

Shipping & Storage Temperature Range of : -20 to 80°C.

Display Power

Hot Water

Central Heat

Scroll / Select

Turns Control Display ON / OFF

DHW Set-Point LOW Range

CH set-point mode (boiler only) Toggle (°C / °F)

(clockwise or counterclockwise)

PRESS (Tap) PRESS and HOLD (5 seconds)

95 - 120°F (35 - 49°C)

Turn to scroll, tap to select

Functionality

(If Display Power was On )

(If Display Power was Off ) Installer Mode

Status Display Mode

DHW Set-Point HIGH Range

121 - 140°F (49.5 - 60°C)

Page 53

The FT Series Floor Standing, Combination Boiler

Page 51

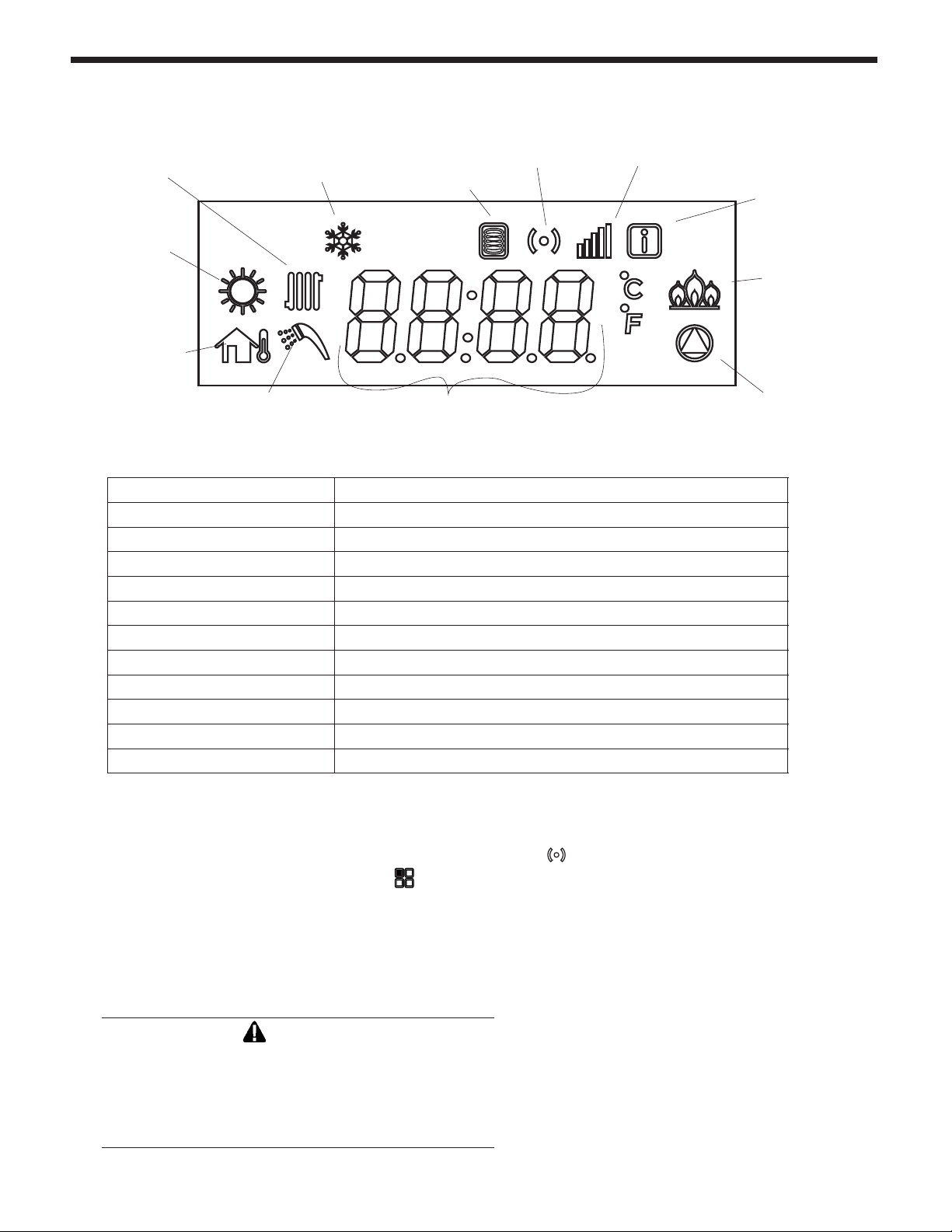

SECTION 5. Control Display and Operation

Central

Heat

Summer Mode

(warm

weather

shutdown)

Outside

Temp Mode

or 0-10V

Domestic Hot Water Mode

CH mode Central Heat mode icon can be adjusted

Anti-freeze mode Anti-freeze mode icon

Storage Heating mode Stored Water Being Heated, can be adjusted

Lock mode Buttons-locked mode icon

Communication Communication icon

Summer mode Only DHW Mode, can be adjusted (warm weather shutdown)

Status and Installer mode The Status Mode or the Installer Mode is Active (all parameters)

Flame signal Flame Signal icon

Pump icon Water pump operation (CH or DHW) icon

Numeric Display Number and character display, to display all parameters

DHW mode Combination boiler Set Point, can be adjusted

Outside temp or 0-10 V mode Operating by outside temperature or 0-10V

Anti-Freeze

Mode

Storage

Heating

Numeric Display

5.2 LCD Overview

Lock Communicating

Status and

Installer

Modes

Flame

Signal

Pump

The LCD will illuminate when a user action is detected (a button is pressed) and will turn back off after 20 seconds.

* NOTE: The display will not allow changes when the lock mode is activated.

To exit the Lock mode, press the

WARNING

Do not use this appliance if any part has been under

water. Immediately call a qualied service technician

to inspect the appliance and to replace any part of the control system and any gas control that may have been under water.

button.

Page 54

Page 52

SECTION 5. Control Display and Operation

Operating Mode

After the Power is turned on, and/or the Control Display is turned on , the Control Display

will go through a ‘Start Up’ checklist and briey show a sequence of diagnostic codes before

entering into the ‘Operating Mode. It will then display the following information.

5.3 Operating Mode

Indicate Example

Current Operating Temperature Temperature sign Celsius or Fahrenheit letter Display and Controller are communicating

If ame detected

If pump is operating Outdoor sensor or 0-10V

110°F

°C or °F

Page 55

The FT Series Floor Standing, Combination Boiler

Page 53

SECTION 5. Control Display and Operation

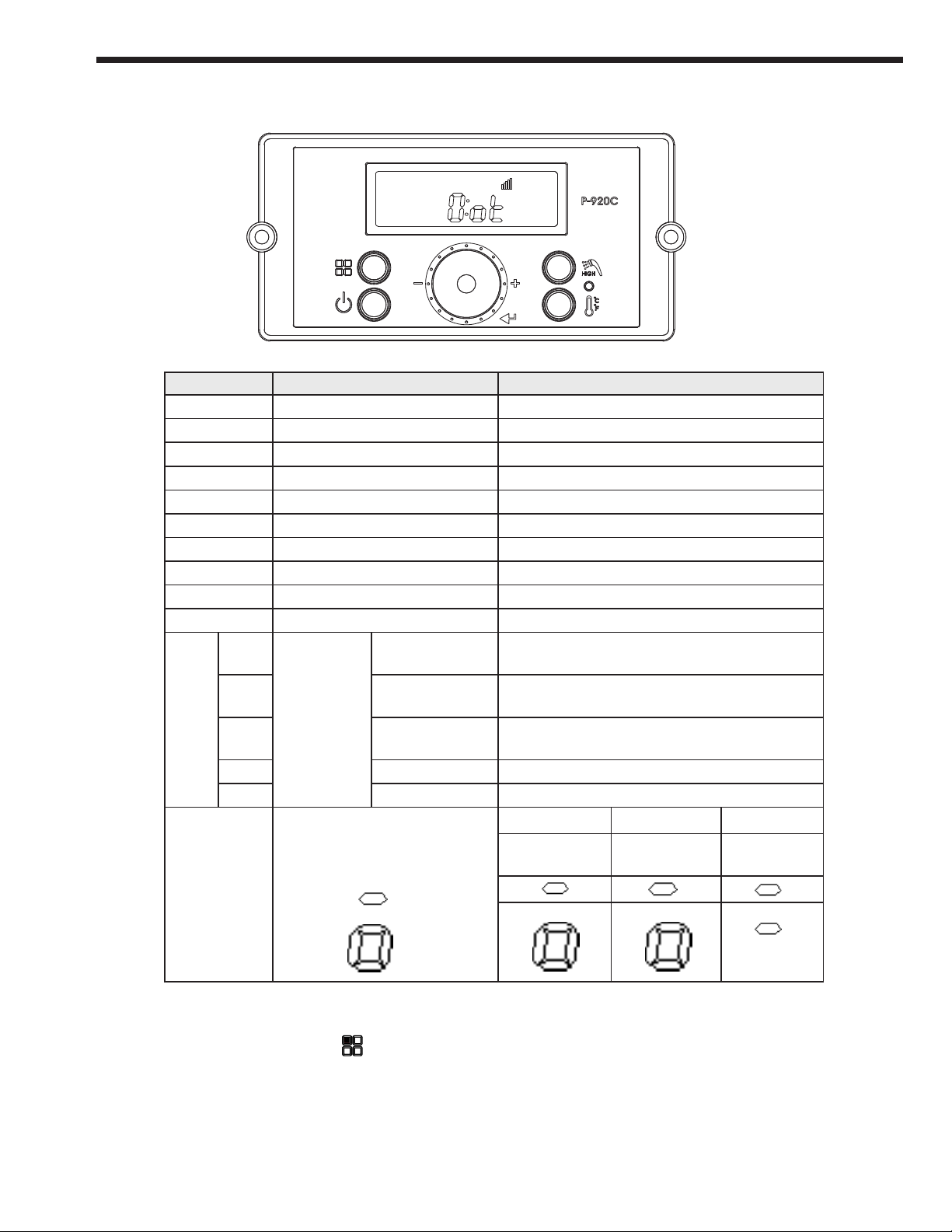

Digital Display Status Display Parameter Description

O:ot Outdoor temperature Current Outdoor temperature A: Li or A: GA Flow unit Current ow value(Li: L/m, GA: GPM) b: It CH Return Water Temperature Current Return Water Sensor Temperature C: Fr Fan rpm Current fan rpm value d: Lc Lock mode Lock mode ON/OFF E: oP OP temperature Current OP temperature F: dH DHW temperature Current DHW temperature H: Eh Exhaust temperature Current Exhaust temperature I : St Storage Temperature Current Storage Temperature J: oH Overheat temperature Current Overheat temperature

Supply power time

Burner operation time

- Off

Supply power time x 100 hour

Burner operation time x 1 hour

Burner operation time x 1,000 hour

1st Icon 2nd Icon 3rd Icon

Internal

Pump

L: rt

P: Ou

1: PH

2: rh

3: rH 4: It Ignition cycles Ignition cycles x 10 times

5: IH Ignition cycles Ignition cycles x 10,000 times

Burner Operation Time

Displays output condition for internal primary pump and three way valve.

5.4 Status Display Mode

Pump

Not Used

- On

To change any of the above listed Status Parameters,

Press and Hold Button B

Rotate Dial E until you nd the Parameter that you wish to change. Tap Dial E to enter that Parameter.

All other modes except d:Lc (Lock mode) are to display current status, therefore you need to check the current setting and press button to exit.

to get into the Status Display Mode.

Page 56

Page 54

AUTODESK � � � ��

SECTION 5. Control Display and Operation

DHW Set Point Change Modes

The display shows the following information when changing water heating temperature set points.

Changing between Celsius and Fahrenheit

When the button D is pressed (for more than 5 seconds), temperature unit will toggle between °C and °F.

Indicate Example

Current DHW set-point temperature Temperature sign Celsius or Fahrenheit letter If display is communicating with the main controller normally, the

communication icon will be indicated. When DHW set-point range is high : from 121°F (49.5°C) to 140°F (60.0°C)

When changing DHW setpoint, the DHW icon will ash

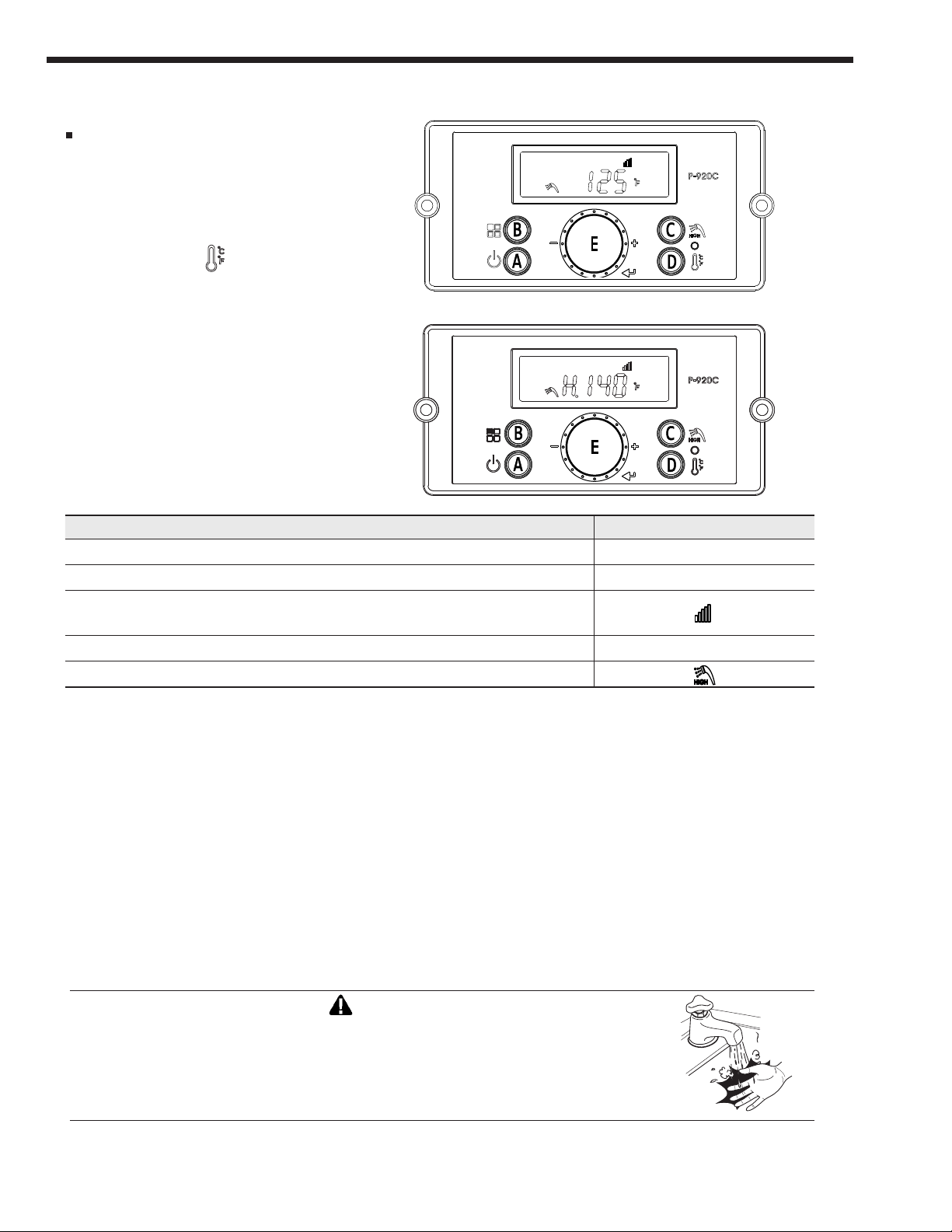

5.5 DHW Set Point Change Mode

125°F

°C or °F

H . 140°F

S24

* Default DHW set-point is 125°F (51°C)

• DHW 95-120°F (35 - 49°C) LOW range (Default)

-To change LOW range, press the C Button. The DHW icon and current DHW LOW will ash (a

ashing value means it can be changed).

-Turn dial E clockwise to increase and counterclockwise to decrease until desired temperature is reached.

-Press dial E to save setpoint changes.

• DHW 121 - 140°F (49.5 - 60°C) HIGH range

-To change HIGH range, press and HOLD the C button for more than 5 seconds. The DHW icon

and current DHW HIGH will ash (a ashing value means it can be changed).

-Turn dial E clockwise to increase and counterclockwise to decrease until desired temperature is reached.

-Press dial E to save setpoint changes and to Exit.

DANGER

Scalding may occur within 5 seconds at a setting of 140°F (60°C). Water temperatures over 125°F can cause severe burns, or death from scalding. Children, disabled, and elderly are at highest risk of being scalded. Read all instructions before setting temperature at appliance. Feel water before bathing or showering.

Page 57

The FT Series Floor Standing, Combination Boiler

Page 55

SECTION 5. Control Display and Operation

Changing between Celsius and Fahrenheit

When the button D is pressed (for more than 5 seconds), temperature unit will toggle between °C and °F.

Indicate Example

Current Operating Temperature Temperature sign Celsius or Fahrenheit letter Display and Controller are communicating

If ame detected

If pump is operating

When changing CH Setpoint, the CH Icon will ash

Default CH set-point is 120°F (49°C) CH set-point range is 86 - 180°F (30.0 ~ 82.0°C)

5.6 CH Set Point Change Mode

110°F

°C or °F

To change CH Setpoint, press the button D

current CH Setpoint will ash.

Turn the E dial clockwise to increase, and counterclockwise to decrease CH setpoint, until

desired temperature is reached.

Press E dial to save changes and to Exit.

button. The CH Icon and

5.7 Storage Mode

Indicate Example

Current Operating Temperature Temperature sign Celsius or Fahrenheit letter Display and Controller are communicating

If ame detected

Storage mode indication

110°F

°C or °F

If Pump is operating

To change Storage Mode Temp, First turn OFF the power to the Control Display.

Then Press and Hold Button B Rota te Dial E until you nd 24:SF Tap Dial E to enter Storage Mode. Storage Mode indicates that the

boiler is heating the water held in the internal storage tank. When Storage Mode is active, the display

will appear as shown. Turn the E dial clockwise to increase, and counterclockwise to decrease setting. Press E dial to save changes and to Exit.

to get into the Installer Mode.

Page 58

Page 56

AUTODESK � � � � ��

AUTODESK � � � ��

SECTION 5. Control Display and Operation

These changes are to be made only by a qualied technician.

To c hange any of the Installer Parameters,

to the Display Control.

Then, with the power to the Display Control OFF, Press and HOLD (more than 5 seconds) the Button B

to get into the Installer Mode.

Start by turning OFF the Power

5.8 Installer Mode

Rotate Dial E until you nd the Installer Parameter (full list on facing page) that you wish to change.

Tap Dial E to enter that Parameter.

Adjust to the setting that you require and then press (tap) Dial E to save and to Exit.

Finish by pressing button B

Page 59

The FT Series Floor Standing, Combination Boiler

Page 57

SECTION 5. Control Display and Operation

Index Parameter Description

1: EH 2: cE 3: In 4: Fu 5: St

6: OH

7: OL

8: FH

9: FL 10: dr

11: dI

12: bt

13: Ft

14: bo

15: OF

16:cH

17:cL

18:dH

19:cb

20:db

21:PP 22:Po 23:PF

24:SF

25:So

26:dt

27:PE

28: HA

29: AP

30: dP

History entry History fault code (E0~E9) Clear Error History Clearing of error History buffer System initialize System initialize to default Flow unit gallon / liter Heat storage function Heat storage function On/Off

Maximum Outdoor Temperature

Minimum Outdoor Temperature

Max fan

Min fan Delete running time Delete running time

Delete igniting times Delete igniting times Outside Unit Function

Delay Time (boost time) Delay time for heating

burner operation

Setting temperature of burner ON.

Warm Weather Shutdown Setting for Heating

Maximum Temperature Setting for Heating

Minimum Temperature Setting for Hot Water

Maximum Temperature Heating Combustion Rate 50%~100%, Default 100% Hot Water Combustion Rate 50%~100%, Default 100% Pump Post-Purge Time (Heating Pump) 1min ~ 60min, Default 40min Pump on Time (Heating Pump Repeat ON Time) 1 min ~60 min, Default 5 min Pump off Time (Heating Pump Repeat Off Time) 0min ~60 min, Default 10 min Heat storage off

Temperature Heat storage on

Temperature. Delay time when switching

from DHW mode to CH mode

Internal CH Pump PostPurge Time,

T/T Satised

High Altitude setting (Normal)0<1<2<4 (High) Internal CH Pump and

3-way valve Pump Test Mode

Internal CH Pump and 3-way valve Pump Test Mode

DHW Timeout Feature Range: 0~12 Hours, '0' OFF, Default: 4 Hours

When used with an outdoor sensor, sets the maximum outdoor design temperature for the system design. Warm weather shut down will disable the appliance if the programmed outdoor temperature is exceeded. Maximum outdoor temperature must be set 9°F above the minimum outdoor temperature. Range: (Minimum Outdoor T emperature + 9°F) to 1 10°F Default 68°F (20°C)

Sets the minimum outdoor design temperature for the system. Minimum outdoor temperature must be set 9°F below the maximum outdoor temperature. Range: -4°F to (Maximum Outdoor Temperature - 9°F)

Adjusts Maximum Fan Speed Range: -30 - +30

Adjusts Minimum Fan Speed Range: -30 -+30

When heating in the outside unit function for the rst time, there will be a delay. (0~120 min, Default 0)

Burner does not operate during the delay time when the burner is turned off due to the temperature during heating operation. (0~20 min, Default 1 min)

Heating temperature setting during heating operation – Operate in burner ON temperature setting Range:

-12.7°C(9°F)~-2.7°C(27°F), Default 2.7°C(27°F) This warm weather temperature setting will shut down CH Mode 10°C(50°F)~43°C(110°F),

Default 38°C (100°F) Range:[Minimum Temperature -12.7°C(9°F)]~82°C(180°F), Default 82°C(180°F)

Range: 30°C(86°F)~[Maximum Temperature-12.7°C(-9°F)],Default 30°C(86°F)

49°C(120°F)~60°C(140°F), Default 60°C(140°F)

60°C(140°F)~75°C(167°F),Default(70°C)158°F (off Temperature-Setting Temperature) -12.7°C(9°F)~2.2°C(36°F),

Default (-2.7°C) 27°F

Range: 0 – 2 minutes,Default 2min

Allows the user to set the appliance pump post purge time once the appliance CH setpoint

and thermostat are satised. Range: 1-5 minutes,Default 1min

This function sets the time to run both the Internal CH and 3-way valve pumps to purge air from the system. Range: 1 – 30 minutes ,Default 5min

Turn this function on to activate Internal CH and 3-way valve pump testing. Only works in installation mode. Turns off when in normal mode. Default OFF

5.8 Installer Mode

The Full List of Installer Mode Parameters

Page 60

Page 58

SECTION 5. Control Display and Operation

Outdoor Reset varies the control setpoint based on the outdoor temperature. The reset function works as shown in Figure ‘CH Outdoor Reset’. When the outdoor air temperature reaches 6:OH “high outdoor temperature setpoint”, the control point setting is adjusted to 17:cL “low boiler temperature setpoint”. When the outdoor air temperature reaches 7:OL “low outdoor temperature setpoint” the control setpoint is adjusted to 16:cH “high boiler temperature”.

Default outdoor reset setpoint is 100°F (38°C) The Outdoor Temperature Mode Icon on the display

will ash if an Outdoor Sensor or 0-10 Volt is not

connected to the appliance. To check the CH Target Temperature while using

Outdoor Temperature Mode, press the while the appliance is operational and the display panel is powered on.

Connect to terminal strip as outlined 4.17 Electrical Connections.

button

5.9 Outdoor Reset Adjustment

Operating condition

(warm weather shutdown)

CH Outdoor Reset

NOTE: 0 - 10VDC terminals may not be used for both outdoor reset and 0 - 10VDC temp

setpoint simultaneously.

5.10 External Set Point Temperature Control

A signal from a building management system may be connected to the appliance to enable remote control. This signal should be a 0-10 volt DC signal. When this input is enabled, a building control system can be used to control the set point temperature of the appliance.

The control interprets the 0-10 volt signal as follows; when the signal is between 0 and 1.5 volts, the

appliance will be in standby mode, not ring.

When the signal rises above 1.5 volts, the appliance will ignite. As the signal continues to rise towards its maximum of 10 volts, the appliance will increase in set point temperature. Adjust 16:cH and 17:cL to set MIN and MAX boiler water temperatures respectively.

Connect a building management system or other auxiliary control signal to the terminals marked for this purpose on the appliance terminal block (shown in Piping Diagrams, this manual). Caution should be used to ensure that the 0-10 VOLT + connection does not become connected to ground.

Connect to terminal strip as outlined 4.17 Electrical Connections.

NOTE: 0 - 10VDC terminals may not be used for both outdoor reset and 0 - 10VDC temp

setpoint simultaneously.

Page 61

The FT Series Floor Standing, Combination Boiler

Indicate Example

Error ‘ Er : ’ will ash

Error Code

Page 59

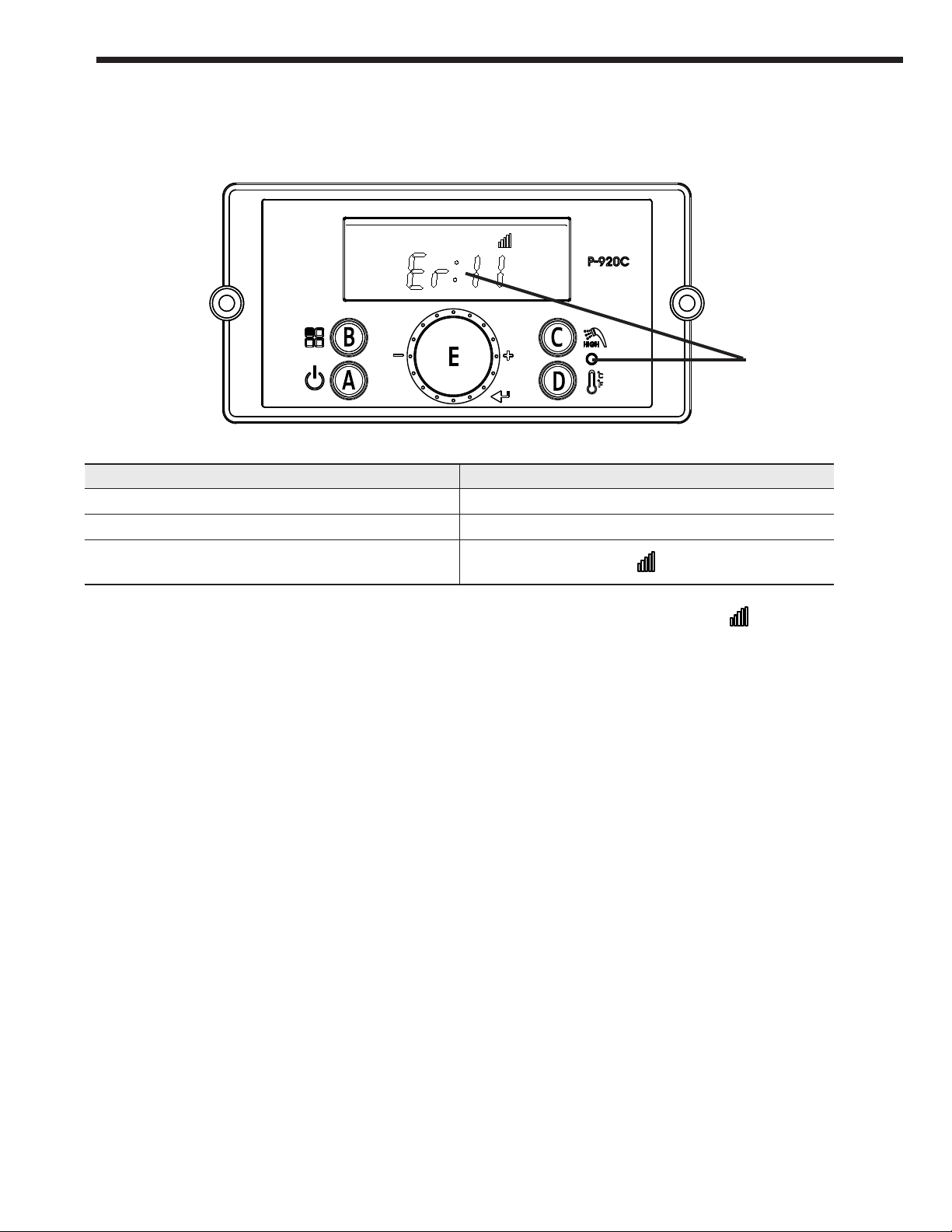

5.11 Error Mode

Flashing

Er:11 Er:11

Display and Controller are communicating

NOTE: When communication between the Control Display and the main controller is lost, the will not be displayed.

Page 62

Page 60

SECTION 6. Error Codes

Error

Code

Error Code Description

Flame has Extinguished 8 (Eight) Times

Ignition has Failed 10 (Ten) Times

Operating Temperature Sensor detects Water Temperature Greater than 203°F (95°C)

Condensate – Closed is Normal, Open is Fault (Condensate Drain Trap)

Overheat Sensor Open or Short

DHW Storage Temperature Sensor Open or Short

DHW Sensor Open or Short

CH Temperature Sensor Open or Short

Possible Remedies

Press the Power button to clear the Error Code. If Error happens again:

1. Monitor the gas pressure to the appliance while in operation. Ensure pressure is between 3.5 and 14” WC.

2. Check gas valve wire. Ensure connection is secure.

3. Check ame detection sensor. Ensure connections are secure. Normal operating

settings are more than 2.5DC before ignition, less than 2.5DC after ignition.

4. Check vent terminations. Ensure there are no blockages.

5. Assure that the ame is stable when lit.

6. If the problem persists, replace the main control. Press the Power button to clear the Error Code.

If Error happens again:

1. Monitor the gas pressure to the appliance while in operation. Ensure pressure is between 3.5 and 14” WC.

2. Check gas valve wire. Ensure connection is secure.

3. Check ame detection sensor. Ensure connections are secure. Normal operating

settings are more than 2.5DC before ignition, less than 2.5DC after ignition.

4. Check igniter transformer for proper connection.

5. Clean the spark igniter with steel wool to remove oxides. Ensure proper separation (3-4 mm).

6. Replace the spark igniter if damaged.

7. Assure that the ame is stable when lit.

8. If the problem persists, replace the main control. Press the Power button to clear the Error Code.

If Error happens again:

1. Check if dip switch Max Fire setting is ON. Switches 6 and 7 should be OFF for normal operation.

2. Check if CH inlet pipe is blocked. Ensure there is enough water owing to the

appliance.

3. Check Operating Temperature sensor at CH heat exchanger outlet. If resistance is zero, replace the sensor.

4. If the problem persists, replace the main control Press the Power button to clear the Error Code.

1. Check Condensate and main controller connections. Ensure all are secure.

2. Check Condensate sensor resistance. If resistance is zero, replace the switch.

3. Check Condensate hose. Ensure it is connected and in good condition.

4. Check condensate line and termination for blockages.

5. Check Vent Pipe for blockages.

6. If the problem persists, replace the main control. This Error Code will go away when CH temperature decreases.

If Error happens again:

1. Check overheat temperature sensor. Ensure connections are secure.

2. Check overheat sensor resistance. If resistance is zero, replace the sensor.

3. If the problem persists, replace the main control. This error Code will go away when outlet stroage temperature decreases.

If Error happens again:

1. Check stroage temperature sensor. Ensure connections are secure.

2. Check sensor resistance. If resistance is zero, replace the sensor.

3. If the problem persists, replace the main control. This Error Code will go away when outlet DHW temperature decreases.

If Error happens again:

1. Check DHW outlet temperature sensor. Ensure connections are secure.

2. Check sensor resistance. If resistance is zero, replace the sensor.

3. If the problem persists, replace the main control. This Error Code will go away when CH temperature decreases.

If Error happens again:

1. Check CH temperature sensor. Ensure connections are secure.

2. Check CH sensor resistance. If resistance is zero, replace the sensor.

3. If the problem persists, replace the main control.

Recover methods

Hard Lock

Soft Lock

Page 63

The FT Series Floor Standing, Combination Boiler

SECTION 6. Error Codes (continued)

Page 61

Error Code

36 Abnormal Supply Voltage

37 Abnormal Supply Frequency

42 Jumped Wire Disconnected

Error Code Description Possible Remedies

Venting (Exhaust) Sensor Open or Short

Error Appears When Control Stores Data, but Data is not Saved

Gas Leakage is Detected for Greater than 5 seconds, or three times within 10 minutes

Fan Speed too High with Flame On

Burner Overheat Switch Open

Air Pressure Sensor (APS) Fault

Air Pressure Sensor (APS) Open

Fan Speed Feedback Signal Abnormal

This Error Code will go away when exhaust temperature decreases. If Error happens again:

1. Check Venting (exhaust) temperature sensor. Ensure connections are secure.

2. Check sensor resistance. If resistance is zero, replace the sensor.

3. Check vent pipes for blockage.

4. If the problem persists, replace the main control Supply voltage is too low to operate. This Error Code will go away when supply

voltage returns to normal operating range. If Error happens again:

1. Ensure appliance is properly wired to a power source meeting the requirements on the rating plate.

2. If problem persists, replace the main control Supply frequency is too high to operate. This Error Code will go away when

supply frequency returns to normal operating range. If Error happens again:

1. Ensure appliance is properly wired to a power source meeting the requirements on the rating plate.

2. If problem persists, replace the main control.

Press the Power button to clear the Error Code. Replace the main control.

IMPORTANT: If you smell gas, STOP! Follow the instructions on page 2, this

manual, and call a qualied ser vice technician or the fuel gas utility.

Press the Power button to clear the Error Code. If Error happens again:

1. Check the appliance cover. Ensure it is secure.

2. Check gas connections for leakage with a soapy solution. Fix any leaks.

3. Check condition of the burner assembly.

4. If the problem persists, replace the main control. Press the Power button to clear the Error Code.

If Error happens again:

1. Check the vent connections for blockages.

2. Check the burner assembly.

3. Check fan operation. If fan appears to be operating normally but RPMs are too high, replace the fan.

4. If the problem persists, replace the main control.

Press the Power button to clear the Error Code. If Error happens again:

1. Ensure the jumped wire is properly connected.

2. If the problem persists, replace the main control.

Press the Power button to clear the Error Code. If Error happens again:

1. Check burner overheat switch connections. Ensure connections are secure.

2. Check switch resistance. If resistance is zero, replace the switch.

3. If the problem persists, replace the main control.

Press the power button to reset If error happens again:

1. Check the vent pipe for blockages.

2. Check the vent pipe for blockages.

3. If error do not clear, replace the APS

4. If the problem persists, replace the main control.

Check the aps connection.

1.If APS is closed and connections are secure, check APS connection.

2. If the problem is not happen, replace the APS

3. If the problem persists, replace the main control.

This Error Code will go away when the condition is remedied. If Error happens again:

1. Check the connections to the fan. Ensure all are secure.

2. If the fan does not rotate during the ignition sequence, check for AC8V~26.5V

power at the fan connection. If AC8V~26.5V power is present at the control, replace the fan. If the blower does not have AC8V~26.5V power, check power at the control. If AC8V~26.5V power is not present at the control, replace the control.

3. If the problem persists, replace the main control.

Recover methods

Soft Lock

Hard Lock

Soft Lock

Hard Lock

Soft Lock

Page 64

Page 62

SECTION 6. Error Codes (continued)

Error

Code

76 Poor Communication

81 Low Water Level Circuit

Error Code Description Possible Remedies

Mixing Valve Initial Value Error (Mixing Valve Cannot Return to Initial Position)

Mixing Valve Operation Error (Mixing Valve Stuck in Initial Position)

Flame Signal Detected before Ignition

Low Water Level Sensor (Low Water Level Detected Four (4) Consecutive times)

Freeze Protection (Appliance has detected water temperature below 34°F(1°C)

Exhaust Sensor detects Vent Temperature is Greater than 190°F (88°C)

This Error Code will go away when the condition is remedied. If Error happens again:

1. Turn power OFF and ON at the main power switch internal to the appliance.

2. Check wiring connections to mixing valve. Ensure all are secure.

3. Replace mixing valve.

4. If the problem persists, replace the main control. This Error Code will go away when the condition is remedied.

If Error happens again:

1. Turn power OFF and ON at the main power switch internal to the appliance.

2. Check wiring connections to mixing valve. Ensure all are secure.

3. Replace mixing valve.

4. If the problem persists, replace the main control. This Error Code will go away when the condition is remedied.

If Error happens again:

1. Turn power OFF and ON at the main power switch internal to the appliance.

2. If the problem persists, replace the main control. This Error Code will go away when the condition is remedied.

If Error happens again:

1. Check th e applianc e cover. Ensure it is secu re. Flame detec tion sens or can detec t an external light source.

2. Check f lame detec tion senso r. Ensure connect ions are sec ure. Norm al operatin g settings are more than 2.5DC before ignition, less than 2.5DC after ignition.

3. If the problem persists, replace the main control.

This Error Code will go away when the condition is remedied. If Error happens again:

1. Check connections from main control to display panel.

2. If the problem persists, replace the display and/or the main control.

This Error Code will go away when the condition is remedied. If Error happens again:

1. Ensure all valves are open to the appliance and there are no leaks.

2. Ensure all air has been purged from the system.

3. Check wiring connections to low water level sensor. Ensure all are secure.

4. Check low water level sensor resistance. If resistance is zero, replace the sensor.

5. If the problem persists, replace the main control.

This Error Code will go away when the condition is remedied. If Error happens again:

1. Ensure all valves are open to the appliance and there are no leaks.

2. Check wiring connections to low water level sensor. Ensure all are secure.

3. Check low water level sensor resistance. If resistance is zero, replace the sensor.

4. If the problem persists, replace the main control.

This Error Code will go away when the freezing condition is remedied. If Error happens again:

1. Ensure appliance is located in a mechanical room protected from freezing conditions.

2. Ensure all valves are open to the appliance, there are no leaks.

2. Check wiring connections to low water level sensor. Ensure all are secure.

3. Check low water level sensor resistance. If resistance is zero, replace the sensor.

4. If the problem persists, replace the main control.

This Error Code will go away when the condition is remedied. If Error happens again:

1. Check if dip swi tch Max Fire s etting is O N. Switche s 6 and 7 should b e OFF for

normal operation.

2. Check exhaust temperature sensor. Ensure connections are secure.

3. Check sensor resistance. If resistance is zero, replace the sensor.

4. Check exhaust vent for blockage.

5. If the problem persists, replace the control.

6. If the problem persists, replace the heat exchanger.

Recover methods

Soft Lock

Page 65

The FT Series Floor Standing, Combination Boiler

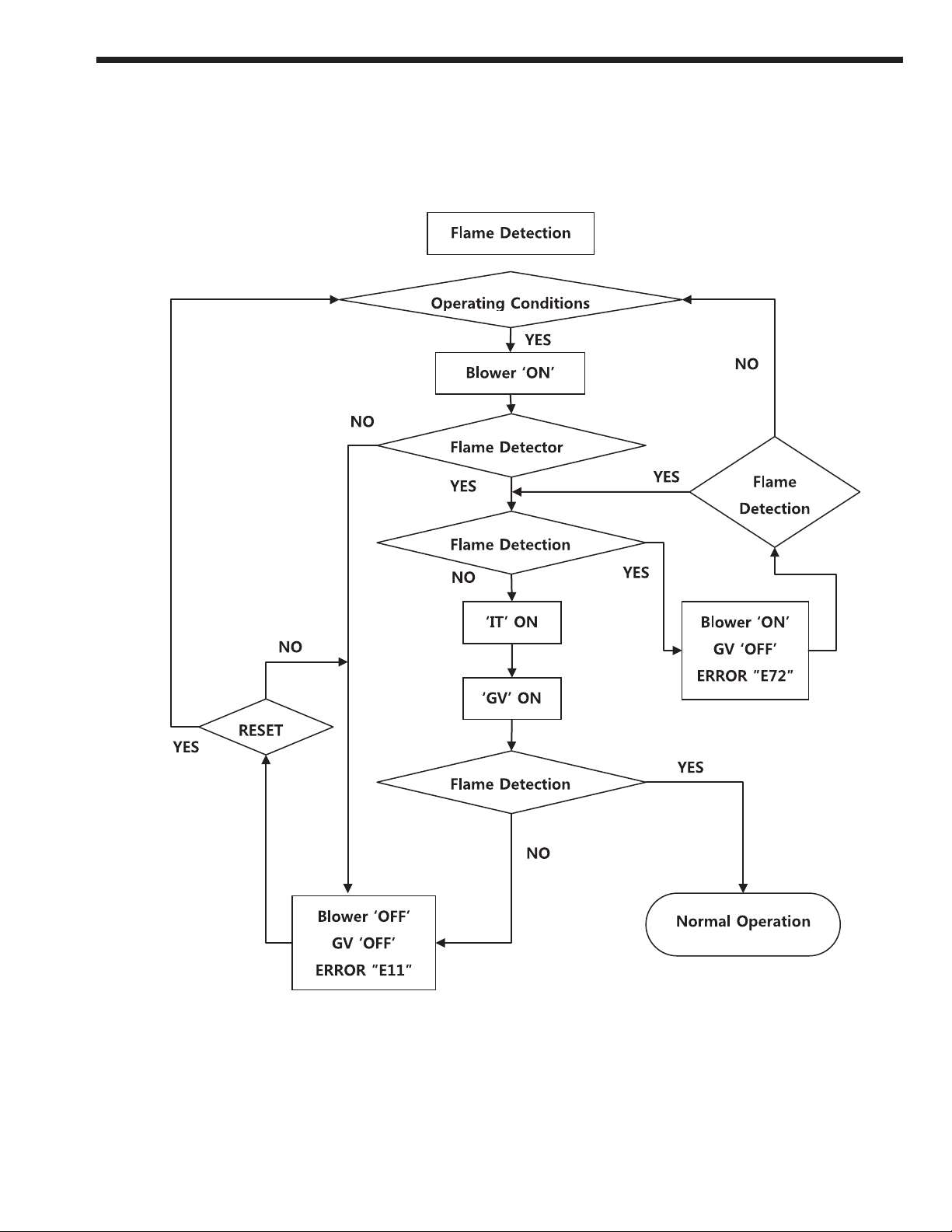

6.2 Fault Tree Analysis

1. Flame detection

Page 63

Page 66

Page 64

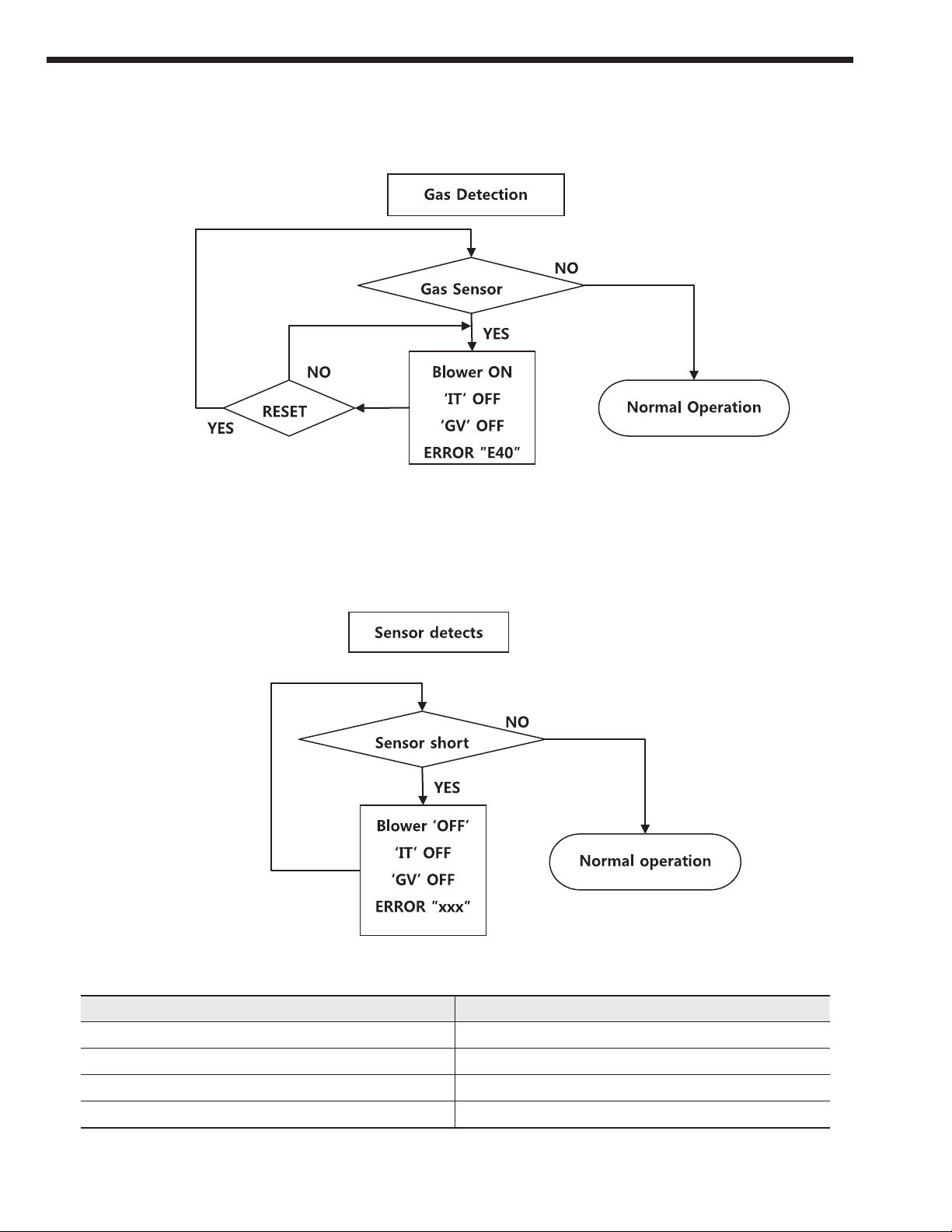

6.2 Fault Tree Analysis

2. Gas Detection

3. ‘Storage’, ‘DHW’, ‘OP’, ‘CH overheat’, ‘Exhaust heat’ Sensor detects

Error code contents

E30 DHW Storage Temperature Sensor open or short E32 DHW NTC open or short E33 OP NTC open or short E35 Exhaust NTC open or short

Page 67

The FT Series Floor Standing, Combination Boiler

Page 65

SECTION 7. Trouble Shooting

Question Answer

Make sure that the ON/OFF button on the Control Panel has been turned ON. If the monitor on the Control Panel is blank, make sure the power cord is

plugged and 4A fuses on the main controller in the units are good.

Burner dose not ignite when the hot water is opened.

Water is not ho t enough.

Make sure that there is water supplied to the unit. The unit activates once

the inlet water ow is over 0 gpm.

Make sure the cold and hot water lines are not plumbed in reverse side. Make sure that the cold water and gas supply lines are opened. Make sure that the water lines are not frozen. Check that the setting temperature on the unit is not too low

Make sure that the lter in the cold water supply line is not clogged with

debris. Make sure that the gas supply type is correct. Check the supply and manifold gas pressures are in accordance with

specications.

Make sure that the water ow sensor with three wires has been properly

connected on the top of heat exchanger.

7.1 Diagnostics

Water is too hot.

Hot water temperature

uctuates at the opened

tap.

The blower is still operating after the combustion stops.

Temperature Rise too Quickly

Abnormal sounds come from unit during operation.

Make sure that the setting temperature on the unit is not too hot.

Make sure that the lter in the cold water supply line is not clogged with

debris. Make sure that the gas supply type is correct.

Make sure that the lter in the cold water supply line is clean.

Make sure that the gas supply type is correct.

Check the supply gas pressure is sufcient.

This is normal because the blower keeps operating for 1 minute to vent

(exhaust) the ue gas from the chamber once the combustion has

stopped.

Occurs when supply water temperature in heat exchanger rises faster

than 2°F per second during the rst two minutes the burner is on.

Automatically resets after a few minute delay or using manual reset on control panel. See message displayed TEMPERATURE SENSOR and follow procedure for loose connections.

A leak of combustion gas between sealed chamber and exhaust tube

inside the unit. Call a qualied service technician for evaluation.

Improper venting termination, make sure that the venting termination

complies with specication.

Check the supply gas pressure is sufcient. Insufcient gas pressure will cause unstable burner ame and noise.

Page 68

Page 66

SECTION 7. Trouble Shooting (continued)

This controller is able to record information about the boiler’s condition at the time of the ve previous faults or

errors. Refer to the Section ‘5.10 Error Mode’ of this manual.

Display Condition Diagnostic Corrective Action(s)

Check wiring for short circuit or incorrect

Nothing shown on display control panel and blower running at full speed.

Control is not receiving power.

wiring. Check transformer

connection to the control per wiring diagram. Check for 12V output of transformer.

Check service switch and/or circuit breaker to boiler turned is on.

Is there 120 Volts at the service switch?

7.2 Suggested Corrective Actions

Correct wiring per wiring diagram including connection of transformer to the control.

Replace transformer if it is receiving 120V, but not outputting 12Vac.

Turn on service switch to power boiler.

Troubleshoot and correct the power supply to the manual switch.

Nothing is shown in display control panel and no other boiler components are operating.

Nothing is shown on control panel, but boiler is operating.

Control is not receiving 120V power.

Occurs when the communication is lost from the control to the display.

Is the ON/OFF POWER SWITCH (inside boiler case) turned on?

Check for 120 volts at the line voltage terminal block located inside the boiler case.

Inspect the fuse. Replace if necessary.

Check for loose connections and proper pin alignment/ engagement on the Control's plug.

Cycle power off and on using boiler power switch and check for operation.

Turn ON the manual power switch inside the boiler case.

Correct wiring inside the boiler case using the wiring diagram in this manual.

Replace the fuse with proper part found in the replacement part section of this manual. If fuse blows again recheck wiring per diagram.

Check for continuity on the wire harness from the display to the control. See repair parts section for proper replacement part.

Replace with new display module. See repair parts section for proper replacement part.

Page 69

The FT Series Floor Standing, Combination Boiler

Fault Condition Diagnostic Corrective Action(s)

Occurs when a temperature sensor has

TEMPERATURE SENSOR

FLAME FAULT

electrically shorted (SHORT) or has become disconnected (OPEN).

Occurs when

ame is

detected when there should be

no ame.

Reset using manual reset screen on control panel. (Power button)

Page 67

7.2 Suggested Corrective Actions (continued)

Check all the temperature readings of the boiler on the DIAGNOSTICS

- TEMPERATURES menu to determine if any sensors are currently displayed as SHORT or OPEN.

Check wire harness for loose connections and pin engagement at sensor Connection and Control module.

If problem persists after checking items above replace Control. Refer to repair parts section for kit number.

Burner may be operating too hot due

to incorrect combustion. Inspect ame

and conduct combustion test.

Check for ame at burner via ame

current with burner off. Turn boiler off

and watch ame through observation port. If ame continues after shutdown

replace gas valve.

Check wire harness for loose connections and pin engagement at blower. Connections.

BLOWER FAULT

IGNITION FAULT

GAS VALVE FAULT

Blower unable to reach required speed or does not reach 0 RPM when turned off.

Even if boiler went through 8 ignitron attempts, but cannot detect

ame

The Control has detected a problem with it gas valve output circuit.

Reset using manual reset screen on control panel. (Power button)

Power off and on.

Reset using manual reset screen on control panel. (Power button)

Boiler in standby mode and blower not running. If BLOWER SPEED is not 0 RPM then replace blower.

If blower does not rotate during ignition sequence check for 120V power at blower connection. If 120Vac power at blower motor and it doesn't start replace blower. Check power at Control. If 120Vac is not present at Control when boiler is powered replace Control.

Dirty burner and/or heat exchanger will cause high back pressure and poor ignition.

Visual inspection of ue ways often will

not be able to diagnose condition. Check incoming gas pressure with

boiler off and at Max re. Adjust within

limits on rating label.

Check for ue pipe and intake pipe

restrictions or blockage Check burner fasteners and gaskets

Check air intake pipe and proper

propane orice

Check wire harness connections between gas valve and Control.

If lockout re-occurs replace Control.

Page 70

Page 68

SECTION 8. Maintenance

Regular Maintenance

- This Manual should be placed in a safe and dry location near the Combination boiler. Maintenance instructions should be carried out by the following guidelines.

Maintenance procedures [ Daily ]

- Check that the boiler casing is closed.

Check if there is any problem with the Combination

boiler casing and the two upper and lower screws are tightened well. Combination boiler casing must be closed while it is running.

WARNING

To prevent potential severe personal injury,

death or substantial property damage,

remove all contaminated materials. If contaminants are found: Remove products immediately from the area. In order to check the status of Combination

boiler, call a qualied service technician to

inspect the Combination boiler for possible

damage from acid corrosion.

WARNING

DO NOT store combustible materials, gasoline

or any other ammable vapors or liquids near

the Water Heater . Remove them immediately or store them other places.

8.1 Annual startup & general maintenance

- Check the power source. Make sure that the power cord is correctly connected. The main power line is connected to the manual switch box inside a Combination boiler. (Power line through the strain relief in the bottom of

the combination boiler casing and x it.)

- Check the status of the control panel

Check status of the power supply. Please check for any debris on the button.

Maintenance procedures [ Monthly ]

- Check the vent pipe.

Visually inspect the ue gas vent piping for detecting

any signs of blockage, leakage or deterioration

of the piping. Please contact a qualied service technician immediately if you nd any problem.

- Check the air inlet pipe.

Visually inspect the air inlet to be sure it is unobstructed. Inspect entire length of air piping for ensuring that piping is intact and all joints

are properly sealed. Call your qualied service

technician if you notice any problems.

- Check the relief valve.

Inspect the Combination boiler relief valve and the relief valve discharge pipe for any signs of weeping or leakage. If the relief valve often

weeps, immediately contact your qualied service

technician for inspecting the Combination boiler and system.

- Check the condensate outlet.

While the Combination boiler is running, check the discharge end of the condensate drain tubing.

Make sure that no ue gas is escaping from the

condensate drain tubing.

If ue gas is continuously escaping, it is a serious problem. Call your qualied service technician for

inspecting the Combination boiler and condensate

line. Also, rell the condensate trap if problem

persists regularly.

- Check the vent terminal screen vent (rodent screen).

If you encounter a problem of combustion

specications, visually inspect the terminal screen.

And then replace it with spare parts or clean the screens.

Page 71

The FT Series Floor Standing, Combination Boiler

Page 69

SECTION 8. Maintenance

- Check the air vent

If the air vent valve seems to work freely without leaking, replace cap “A” by twisting all the way on. Loosen cap “A” one turn to allow vent to operate. If vent does not operate correctly, replace the vent.

FTCF 1 40

8.1 Annual startup & general maintenance

- Check the pressure relief valve

WARNING

Leaks must be xed by a qualied service technician

immediately. Failure to comply with this instruction could result in severe personal injury, death or substantial property damage. This discharge line

must be installed by a qualied heating installer or a

service technician.

Before proceeding, verify that relief valve outlet has been piped to a safe place of discharge, avoiding any possibility of scalding from hot water. If water

ows freely, release the lever and allow the valve

to seat. Watch the end of the relief valve discharge pipe to ensure that the valve does not weep after the line has had time to drain. If the valve weeps, lift the seat again to attempt to clean the valve seat. If

the valve continues to weep, contact your qualied

service technician for inspecting the valve and

system. If water does not ow from the valve even

though you have lifted the lever completely, the valve or discharge line may be blocked. Shut down the

Combination boiler immediately. Call your qualied

service technician to inspect the combination boiler and system.

FTC F 199

Maintenance procedures [Every 6 Months]

- Check the boiler piping (gas and water)

Visually inspect for leaks around internal water piping. Also inspect external water piping,

circulators, relief valve and ttings. Immediately call a qualied service technician to repair any leaks. Leaks must be xed by a qualied service

technician immediately. Failure to comply with this instruction could result in severe personal injury, death or substantial property damage.

- Check the burner state

You can clean the exterior of burner. However, if you need to clean the inside of the burner stage, you should

call a qualied service technician.

Page 72

Page 70

8.2 Flushing or Draining

Flushing the Heat Exchanger is a complicated procedure that should only be done by an authorized technician or licensed professional. Keep in mind that improper maintenance can void your warranty .

1. Disconnect electric power to the combination boiler.

2. Close the shutoff valves on both hot water outlet

and cold water inlet lines. (V1 & V2)

4. Pour the cleaning solution into the bucket. Place the drain hose (D1) and the hose (D2) to the pump inlet into the cleaning solution.

5. Open service valves (V3 & V4) on the hot water outlet and cold

water inlet lines.

6. Turn on the circulation pump (Operate the pump and allow the cleaning solution to circulate through the combination boiler for at least 1 hour at a rate of 4 gallons per minute.)

7. Rinse the cleaning solution from the combination boiler as follows:

- Remove the free end of the drain hose (D1) from the

bucket.

- Close service valve, (V4), and open shut off valve, (V2).

Do not open shut off valve, (V1).

- Allow water to ow through the combination boiler for 5

minutes.

- Close shut off valve (V2).

3. Connect one hose “D1” to the valve “V3” and place the free end in the bucket. Connect one of the hoses “D3” to the circulation pump outlet and the cold water inlet line at the valve “V4”. Connect other hose “D2” to the circulation pump inlet and place the free end in the bucket.

8. Disconnect all hoses.

9. Remove the cold water inlet lter from the combination boiler and clean out any residues.

10. Connect electrical power to the combination boiler.

Draining the Combination Boiler.

1. Place a bucket under the appliance to collect the residual water inside the combination boiler.

2. Press Power button on the front control panel to turn OFF the electrical power to the combination boiler.

3. Turn off the gas valve.

4. Close water supply valve on the inlet to the appliance. If there is no valve, turn off main water valve.

5. Open the hot water faucets completely.

6. To rell the combination boiler, follow the steps of “Draining the Combination Boiler ” in reverse.

Page 73

The FT Series Floor Standing, Combination Boiler

Section 9 – Installation Check

Page 71

9.1 Quick View

Before Installing

- Make sure that there is enough space for installing Water and gas line.

Verify vent/air termination is located as required.

- All models need for propane Conversion which requires a separate gas conversion manual.

Install Water Piping

- Boiler loop piping must be sized to the minimums listed in the Boiler manual. Using smaller piping will cause performance problems.(page 35)

Install Vent & Air Piping

- Slide the air inlet pipe and vent pipe into the Boiler pipe connector.

- Make sure the terminations are placed as required in the manual and that air intakes are at least 12 inches above normal snow line.

- Refer to the material check list in this guide for a list of items needed.

Install Condensate Piping / Tubing &

Components

- Fill out the material check list in this guide to ensure you have the tubing or PVC pipe and all components needed for the condensate piping.

- Connect internal components that are supplied with the Boiler.

Install Gas Piping

- Install a union and shutoff valve.

Wire the Boiler

- Connect power wiring and control wiring per boiler manual wiring diagram.(Section 4.19)

Start up, Adjust & Test

- Follow the Boiler manual instructions to clean

the system if needed, then ll and check water

chemistry.

9.2 Final Check Lists

Final check : Installation Conditions.

• Is the Boiler properly mounted on the wall?

• Is there space for a drain which is close to the Boiler?

• Are there any combustible materials near the Boiler and vent pipe?

• Is the air supply sufcient for proper operation of

the Boiler?

• Are the proper service clearances maintained?

• Is the distance between the Boiler and point of vent termination minimized?

• Is the proper distance from windows, doors, and other intake vents maintained?

Final check : Gas pipe installation

• Is the gas supply line equipped with a manual shut off valve?

• Is the gas supply line a minimum of 3/4˝ inner

diameter?

• Is the gas supply line length and diameter adequate to deliver the required BTU’s?

• Has the gas supply line pressure been measured?

• Does the supply gas type match the type indicated on the boiler rating plate?

Final check: Air/Vent pipe installation

• Has the Boiler been vented with 3˝ or 2” PVC,

CPVC, Polypropylene or BH Special

Gas Vent (S636 PVC, CPVC) for Category IV

appliances in accordance with this manual and/or your local code?

• Is the vent termination at least 12˝ above the

exterior grade?

• Is the total vent length within the maximum vent length restriction?

• Have you checked the air/vent piping for leaks?

• Have you properly supported the vent termination?

• Are all vent runs properly supported?

• Is the vent sloped upward toward the vent

termination at a rate of 1/4˝ per foot (2% grade)?

Final check : Condensate drain installation

• Have you installed a condensate drain line from the Boiler to a drain or laundry tub?

Final check : Setting the DIP switches

• Are all DIP switches correctly set on the main board?

Page 74

Page 72

9.2 Final Check Lists (continued)

Final check : Connecting the power supply

• Please check that the power is 120V AC.

• Have you checked the polarity of the electrical connection?

Final check : Pressure relief valve

• Have you installed an approved pressure relief valve on the boiler?

• Is the pressure relief valve of CH Plumbing at least 1˝ in diameter?

• Is the pressure relief valve of DHW Plumbing at least 3/4˝ in diameter?

• Have you installed the pressure relief valve on the hot water outlet pipe near the Boiler?

Final check : Burner ame

• The burner ame must be checked periodically for a constant proper blue color.

• If the ame does not appear normal, the burner may need to be cleaned.

• If the burner needs to be cleaned, it must be performed by a qualied service technician.

Sight Glass

Blue ame

Page 75

The FT Series Floor Standing, Combination Boiler

Page 73

Page 76

Page 74

40 41

16-1

16-2

16-4

16-5

16-7

15-2

15-1

16-6

16-3

SECTION 6. Parts List and Illustrations. CASE

FTCF140

Page 77

The FT Series Floor Standing, Combination Boiler

1-Jul-15 For IOM

Part

Number

45 Drain Adaptor FT1641

No. Description

1 O- Rin g, P7 FT1601

15 Air Inlet Duct Assembly FT1002 15-1 Air Inlet Duct FT1611 15-2 Air Inlet Adaptor FT1612

16 Exhaust Vent Duct Assembly FT1010 16-1 Stainless band FT1603 16-2 Packing FT1604 16-3 Exhaust Vent Duct FT1605 16-4 Exhaust vent testing cap FT1606 16-5 O-Ring P85 FT1607 16-6 Exhaust vent adaptor (out) FT1608 16-7 O-Ring P75 FT1609

17 Top Access Panel FT1613

18 Bolt FT1614

19 Air Pressure Sensor FT1015

20 PCB FT1616

21 PCB Bracket FT1617

22 Terminal Block FT1618

23 Bracket FT1619

24 Control Display FT1620

25 Power switch FT1020

26 DHW Tank Cover bracket FT1622

27 Casing Shelf FT1623

28 Front Cover (upper) FT1624

29 Threaded Knob FT1625

30 Display cover/window FT1024

31 Air pressure switch FT1627

32 Pressure Gauge DHW 150 PSI FT1628

33 Pressure Gauge 60 PSI FT1629

34 Lower Front Cover FT1630

35 Case Assembly FT1631

36 Gas inlet connector FT1632

37 W ir e adapt or FT1633

38 CH supply connector FT1634

39 CH Return sensor FT1635

40 CH return adaptor FT1636

41 DHW adaptor FT1637

42 Outlet sensor FT1638

43 DHW inlet c onnector FT1639

44 Stainless connector FT1640

Page 75

Page 78

Page 76

Heat Exchanger

FTCF140

Page 79

The FT Series Floor Standing, Combination Boiler

6 O-Ring P22 FT1644

Part

Number

No. Description

Part

Number

1 O-Ring, P7 FT1601

15 Air Inlet Duct Assembly FT1002 15-1 Air Inlet Duct FT1611 15-2 Air I nlet Adapt or FT1612

16 Exhaust Vent Duct Assembly FT1010 16-1 Stainless band FT1603 16-2 Packing FT1604 16-3 Exhaust Vent Duct FT1605 16-4 Exhaust vent testing cap FT1606 16-5 O -Ring P85 FT1607 16-6 Exhaust vent adaptor ( out ) FT1608 16-7 O -Ring P75 FT1609

17 Top Access Panel FT1613

18 Bolt FT1614

19 Air Pressure Sensor FT1015

20 PCB FT1616

21 PCB Bracket FT1617

22 Terminal Block FT1618

23 Bracket FT1619

24 Control Display FT1620

25 Power s witch FT1020

26 DHW Tank Cover bracket FT1622

27 Casing Shelf FT1623

28 Front Cover (upper) FT1624

29 Threaded Knob FT1625

30 Display cover/window FT1024

31 Air pressure switch FT1627

32 Pressure Gauge DHW 150 PSI FT1628

33 Pressure Gauge 60 PSI FT1629

34 Lower Front Cover FT1630

35 Case Assembly FT1631

36 Gas inlet connector FT1632

37 Wire adaptor FT1633

38 CH supply connector FT1634

39 CH Return sensor FT1635

40 CH return adaptor FT1636

41 DHW adaptor FT1637

42 Outlet sensor FT1638

43 DHW inlet connector FT1639

44 Stainless connector FT1640

45 Drain Adaptor FT1641

2 O-Ring P14 FT1642 4 O-Ring P16 FT1643

No. Description

7 1/2" Packing FT1645

9 3/4" Packing FT1646 12 Flow Sensor Clip FT1208 59 Air Vent Pipe FT1648 62 Heat Exchanger bracket FT1649 63 Air Vent FT1321 64 Exhaust sensor FT1307 65 Exhaust sensor bracket FT1652 66 Bolt FT1653 67 Exhaust pipe FT1654 68 Heat Exchanger Assembly FT1655

68-1 Burner Assembly FT1656 68-2 Overheat s ensor FT1310 68-3 Burner upper c ase FT1658 68-4 Ceram ic paper FT1659 68-5 Burner FT1660 68-6 Burner cas e sealing O-Ring FT1661 68-7 Ignitor FT1315 68-8 Burner gasket FT1663 68-9 Burner downside case FT1664

68-10 Refractory FT1665

69 Packing for internal pipe (lower) FT1666 70 Low level sensor FT1325 71 Flame detector sensor FT1327 72 Flame detector BK FT1669 73 Temp. sensor FT1324 74 Pipe for internal circulation (upper) FT1671 75 Pump FT1672 76 Pipe for internal ciruculation (lower) FT1673 77 CH outlet pipe (upper) FT1674 78 CH return pipe (lower) FT1675 79 CH outlet pipe (lower) FT1676 80 Clamp Ø 34 FT1677 81 Condensate hose (EPDM) FT1678 82 Clamp Ø 40 FT1679 83 Condensate Trap Assembly FT1328 84 Condensate outlet hose FT1681 85 Clamp Ø 23 FT1682 86 Condensate outlet fitting FT1683

Page 77

Page 80

Page 78

9 1" Pack ing FT1691

No. Description

Part

Number

6 O-Ring P22 FT1644 7 1/2" Pack ing FT1645

9 3/4" Pack ing FT1646 12 Flow Sensor Clip FT1208 59 Air Vent Pipe FT1648 62 Heat Exchanger bracket FT1649 63 Air Vent FT1321 64 Exhaust sensor FT1307 65 Exhaust sensor bracket FT1652 66 Bolt FT1653 67 Exhaust pipe FT1654 68 Heat Exchanger Assembly FT1655

68-1 Burner Assembly FT1656 68-2 Overheat sensor FT1310 68-3 Burner upper case FT1658 68-4 Ceramic paper FT1659 68-5 Burner FT1660 68-6 Burner case sealing O-Ring FT1661 68-7 Ignitor FT1315 68-8 Burner gasket FT1663 68-9 Burner downside case FT1664

68-10 Refractory FT1665

2 O-Ring P14 FT1642

Domestic Hot Water

FTCF140

3 O-Ring P15 FT1685 4 O-Ring P16 FT1643 5 O-Ring P18 FT1687 6 O-Ring P22 FT1644 7 1/2" Pack ing 8 3/4" Pack ing FT1646

13 Clip for Cold water inlet 1 FT1692 14 Clip for Cold water inlet 2 FT1693 46 DHW Tank FT1694 47 Temperature sensor FT1695 48 DHW Tank brack et FT1696 49 Stainless band FT1697 50 Water Storag e Tank Cover FT1698 51 DHW Outlet P ipe FT1699 52 15 O-Ring adapter FT1700 53 Mixing valve FT1116 54 16 O-Ring adapter FT1702 55 Cold water inlet pipe FT1703 56 18 O-Ring adapter FT1704 57 Flow sensor FT1115 58 Storage tank outlet pipe FT1706 59 Drain Pipe connector FT1648 60 Drain valve FT1708 61 Drain Pipe connector FT1709

FT1645

Page 81

The FT Series Floor Standing, Combination Boiler

9 1" Packing FT1691 13 Clip for Cold water inlet 1 FT1692 14 Clip for Cold water inlet 2 FT1693 46 DHW Tank FT1694 47 Temper at ure sensor FT1695 48 DHW Tank bracket FT1696 49 Stainless band FT1697 50 Water Storage Tank Cover FT1698 51 DHW Outlet Pipe FT1699 52 15 O-Ring adapt er FT1700 53 Mixing valve FT1116 54 16 O-Ring adapt er FT1702 55 Cold water inlet pipe FT1703 56 18 O-Ring adapt er FT1704 57 Flow sensor FT1115 58 Storag e t ank outlet pipe FT1706 59 Drain Pipe connector FT1648 60 Drain valve FT1708 61 Drain Pipe connector FT1709

Part

Number

Blower

FTCF140

No. Description

10 Packing 1 FT1710 11 Packing 2 FT1710 87 Intake Hose FT1712 88 Intake silicon adaptor FT1713

89 Fan Assembly FT1714 89-1 Fan FT1715 89-2 Fan sealing O-Ring FT1716 89-3 Air Gas Mixer FT1717 89-4 Intake Orifice FT1718 89-5 Bolt FT1719

90 Mesh (screen) FT1720

91 Rubber gasket FT1721

92 Nozzle NG (Natural) FT1722

92 Nozzle LP (Propane) FT1722P

93 Gas pipe (upper) FT1723

94 Gas Valve Assembly FT1724 94-1 Gas Valve FT1725 94-2 Gas Valve bracket FT1726 94-3 Gas valve O-Ring FT1727 94-4 Gas valve inlet adaptor FT1728

95 Gas pipe (lower) FT1729

96 Ignit ion T r ans former FT1016

Page 79

Page 82

Page 80

B-6

B-4

B-23

B-24

B-23

B-5

B-3

B-8

B-3

B-13

B-3

B-7

B-23

B-3

B-23

B-26

12-1

12-2

12-5

12-3

12-6

12-8

13-1

12-4

12-7

Q’ty Price

$7.00

5 $1.00

CASE

FTCF199

No. Description Part #

12 Exhaust Vent Duct Assembly 12-1 Stainless band Ø100 (16-1) 12-2 Duct Packing (larger) 12-3 Exhaust Vent Duct

FT1010 FT1603 FT1604

FT1605 12-4 O-Ring P7 12-5 Exhaust testing cap(16-4) 12-6 O-Ring P85 12-7 Port adaptor 12-8 O-Ring P7

FT1601

FT1606

FT1607

FT1608

FT1609

Page 83

The FT Series Floor Standing, Combination Boiler

Q’ty Price

1 $8.50

1 $55.0

1 $2.0

5 $2.0

1 $20.0

1 $4.0

5 $10.0

5 $3.5

1 $3.5

5 $3.0

1 $5.0

5 $5.0

1 $2.0

Page 81

No. Description

13 Air Inlet Duct Assembly

13-1 Air inlet Duct

14 Top acc ess panel 15 Air pressure sensor 16 Bracket 17 Control (PCB) 18 Termi nal blocks 19 Bracket 20 Power switch 21 Brackets FT1828 22 Control Display 23 Bracket FT1828 24 Air pressure switch 25 Front cover (upper) FT1829 26 Threaded Knob FT1830 27 Display cover/window 28 Pressure gauge DHW 150 PSI 29 Pressure gauge 60 PSI 30 Front lower cover 31 Case Assembly 32 Gas inlet connector 33 Wire adaptor 34 CH supply connector 35

CH Return sensor 36 CH return adaptor 37 Outlet sensor 38 DHW connector 39 Cold water inlet connector 40 Stainless connector 41 Drain adaptor

Part #

FT1002

FT1611

FT1613

FT1804

FT1617

FT1616

FT1827

FT1619

FT1020

FT1620

FT1627

FT1024

FT1628

FT1629

FT1831

FT1832

FT1632

FT1633

FT1634

FT1635

FT1636

FT1638

FT1637

FT1639

FT1640

FT1641

Page 84

Page 82

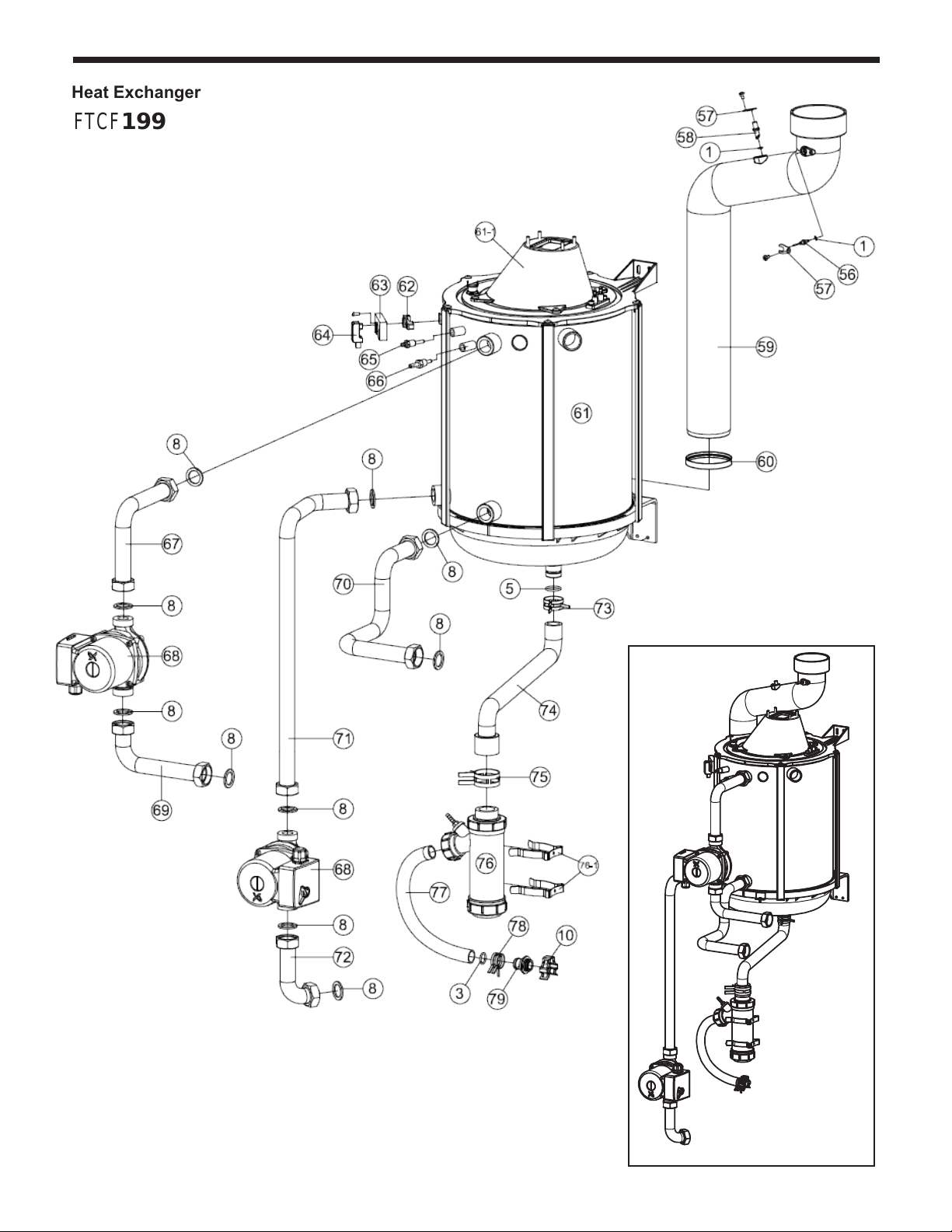

Heat Exchanger & Pump_ Feature&List

Heat Exchanger

FTCF199

Page 85

The FT Series Floor Standing, Combination Boiler

Q’ty Price

Description Part # Q’ty Price

$5.0

$9.0

$55.0

5 $3.50 1 $15.0

1 $12.0 1

$11.0

1 $11.0

5 $2.0

$35.0

$2.0

(condensate outlet fitting)

$14.0

No. Description Part #

Page 83

1 O-Ring P7 3 O-Ring P16

5 O-Ring P22 8 1" Packing

10 Clip for flow sensor

56 Exhaust sensor 57 Exhaust sensor bracket 58 Exhaust adaptor 59 Exhaust pipe 60 packing for internal pipe (bottom)

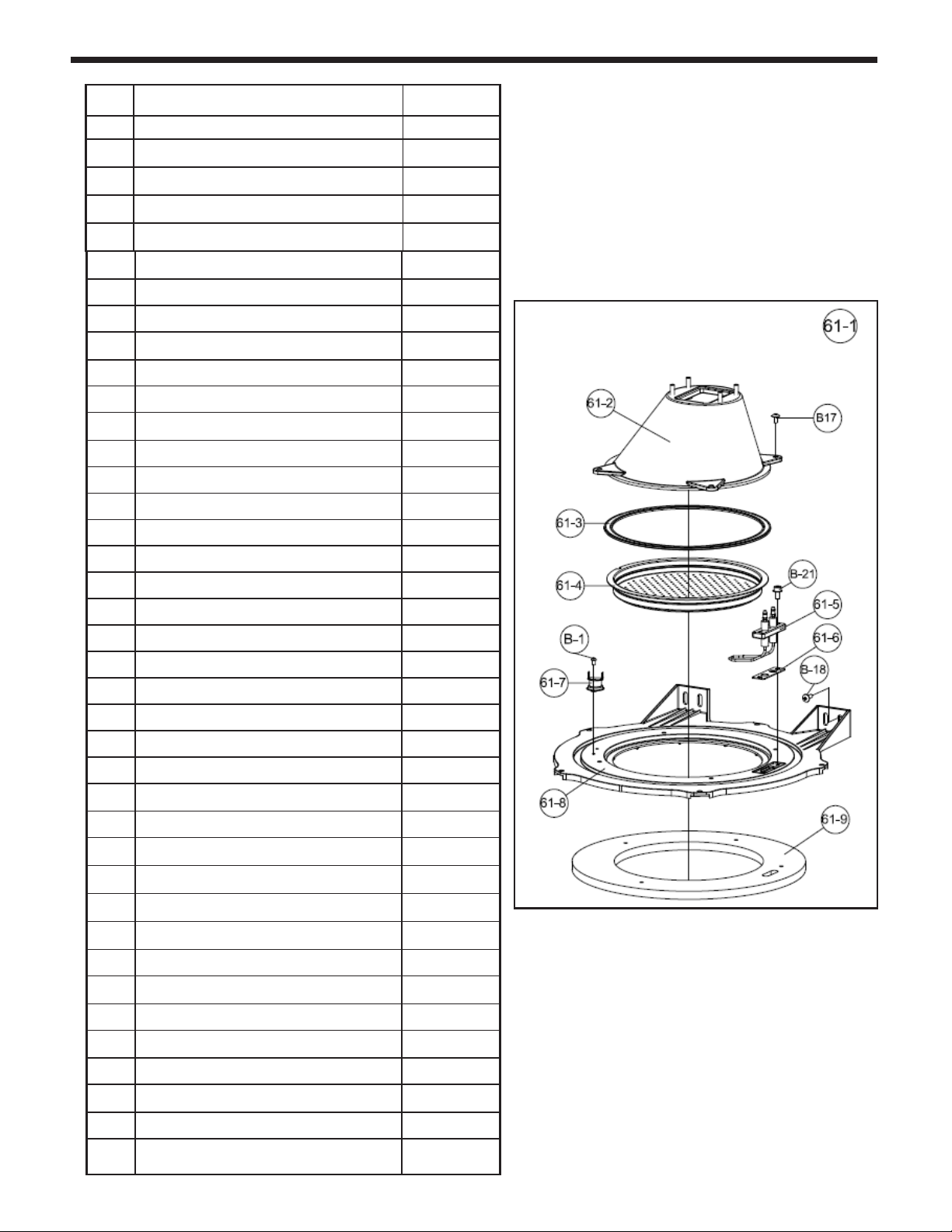

61 Heat exchanger 61-1 Burner Assembly 61-2 Burner upper case 61-3 Burner packing 61-4 Burner 61-5 Ignitor 61-6 Burner gasket 61-7 Overheat sensor 61-8 Burner lower side case 61-9 Refractory

62 Flame detector

63 Flame sensor cover

64 Infrared light sensor

65 Low level sensor

66 T emperat ure Sensor

FT1601 FT1643

FT1644 FT1691 FT1208

FT1307 FT1306 FT1784 FT1823 FT1836 FT1837 FT1796 FT1760 FT1824

Ft1838 FT1763 FT1663 FT1310 FT1764 FT1826 FT1669 FT1069 FT1327 FT1325 FT1324

67 Pipe for internal circulation (upper ) 68 Circulation pump 69 Pipe for internal circulation (l ower) 70 CH return pipe (lower) 71 CH return pipe (upper) 72 CH outlet pipe (lower) 73 Clamp Ø34 74 Condensate EPDM hose 75 Clamp Ø40 76 Condensate trap

76-1 Condensate trap brackets

77 Condensate outlet hose 78 Clamp Ø 23

Condensate hose adaptor

FT1839 FT1840 FT1841 FT1842 FT1843 FT1677 FT1844 FT1679 FT1328 FT1845 FT1681 FT1682

FT1683

Page 86

Page 84

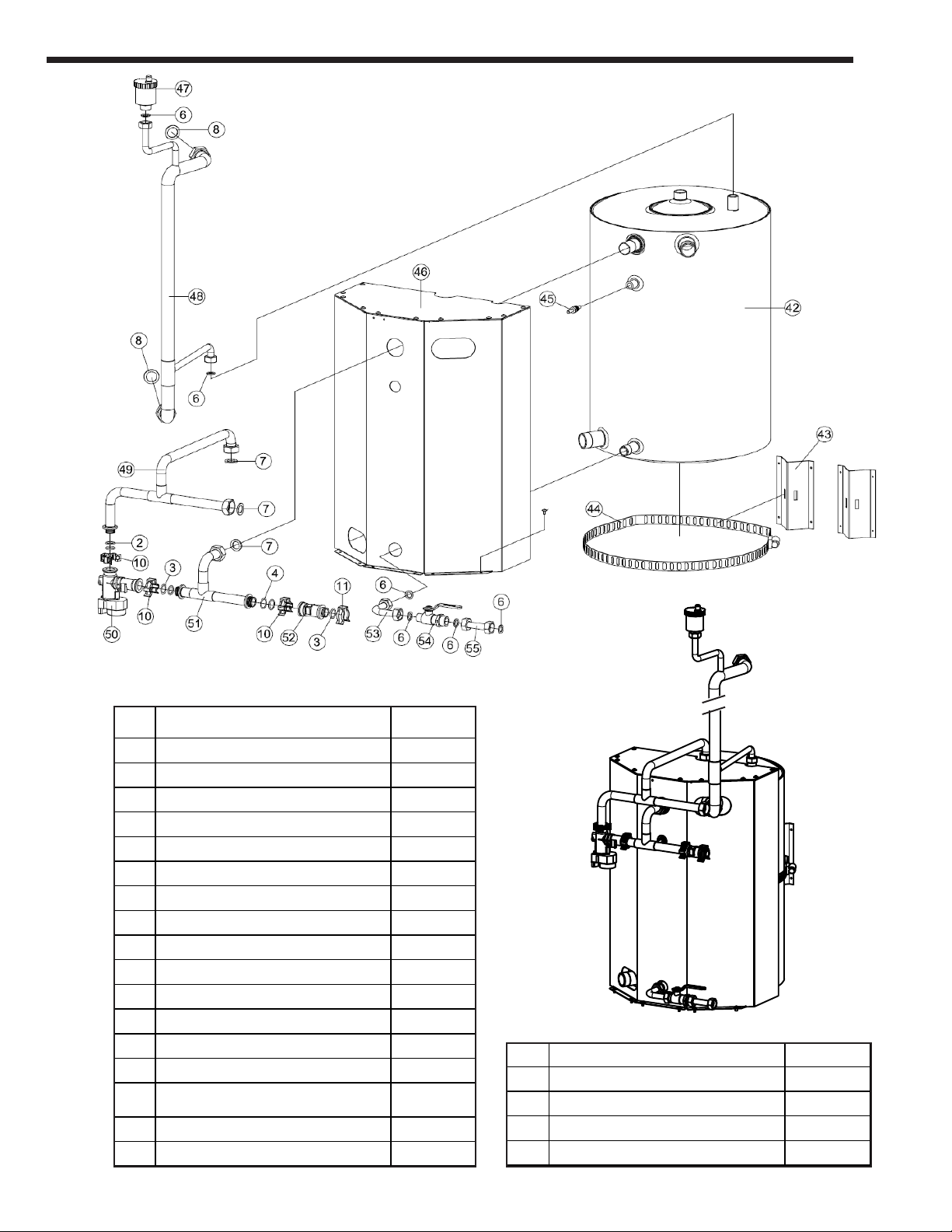

DHW Tank _

Feature

Q’ty Price

10 $0.5

$3.0

$5.0

1 $12.0 1 $5.5

No. Description Part # Q’ty Price

2 O-Ring P15

FT1685

3 O-Ring P16

FT1643

4 O-Ring P18

FT1687

6 1/2" packing

FT1645

7 3/4" packing

FT1646

8 1" packing

FT1691

10 Clip for flow sens or

FT1208

11 Clip for Cold water / outlet

FT1692

42 DHW T ank

FT1694

43 DHW T ank bracket

FT1696

44 Stainless band

FT1697

10 $0.5

45 Temperature sensor

FT1695

$3.0

46 Water stor age tank cover

FT1698

$5.0

47 Air vent FT1321 48 Upper pipe for internal circ ulation

FT1833

1 $12.0

49 DHW outlet pipe

FT1834

1 $5.5

50 Mixing valve

FT1701

1 $5.5

$3.0

$2.5

$2.0

Domestic Hot Water

FTCF199

No. Description Part #

2 O-Ring P15 3 O-Ring P16 4 O-Ring P18 6 1/2" packing 7 3/4" packing 8 1" packing

10 Clip for flow sens or

11 Clip for Cold water / outlet 42 DHW T ank 43 DHW T ank bracket 44 Stainless band 45 Temperature sensor 46 Water stor age tank cover 47 Air vent FT1321

48 Upper pipe for internal circ ulation 49 DHW outlet pipe

50 Mixing valve

FT1685 FT1643 FT1687 FT1645 FT1646 FT1691 FT1208 FT1692 FT1694 FT1696 FT1697 FT1695 FT1698

FT1833

FT1834 FT1701

51 Cold water inlet pipe 52 Flow sensor 53 Drain pipe connector 54 ½” Ball valve 55 Drain pipe

FT1835

FT1115 FT1648 FT1708 FT1709

Page 87

The FT Series Floor Standing, Combination Boiler

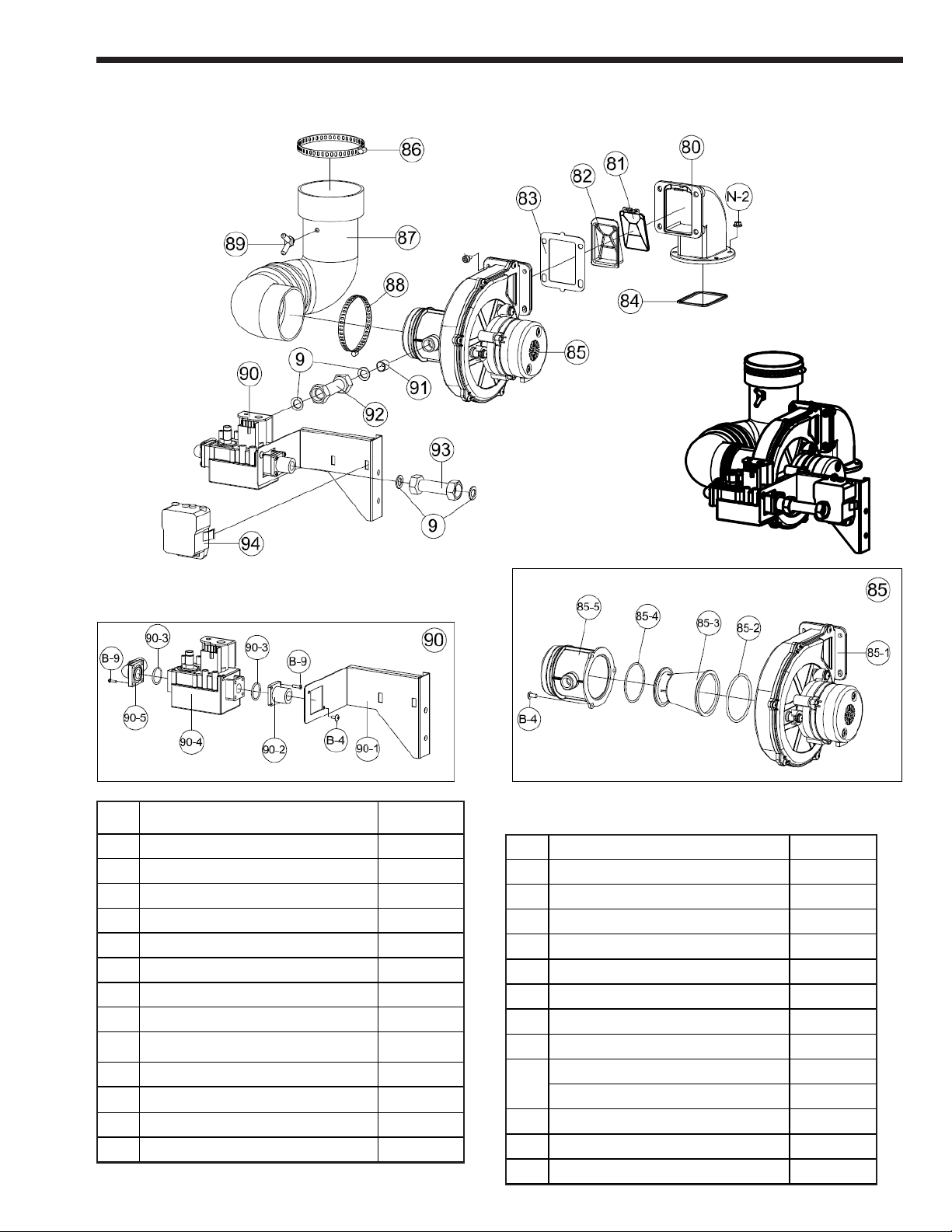

Fan & Gas Valve _

Feature

Q’ty Price

10 $0.5

3 $5.5 5 $0.3 5 $1.0 5 $0.5 5 $0.5 1

$42.0

$22.0

$0.5

10 $0.3

1 $10.0

No. Description Part # Q’ty Price

9 1/2" Packing

FT1710

10 $0.5

80 Fan Guide

FT1769

3 $5.5

81 Flapper Packing

FT1770

5 $0.3

82 Damper Body

FT1081

5 $1.0

83 Air Blow Rubber Pad

FT1082

5 $0.5

84 Fan Guide Packing

FT1772

5 $0.5

85 Fan Assembly

FT1799

$42.0

85-1 Fan

FT1803

$22.0

85-2 Fan Sealing O-Ring

ST1038

$0.5

85-3 AGM Venturi

FT1773

85-4 AGM O-Ring

FT1774

10 $0.3

85-5 AGM Body

FT1775

1 $10.0

86 Stainless Band Ø100

FT1603

1 $3.0

10 $0.3

3 $2.0

10 $0.3

1 $42.0 3 $3.0

1 $5.0 1 $4.5 1

$12.0

Blower

FTCF199

Page 85

No. Description Part #

9 1/2" Packing 80 Fan Guide 81 Flapper Packing 82 Damper Body 83 Air Blow Rubber Pad 84 Fan Guide Packing 85 Fan Assembly

85-1 Fan 85-2 Fan Sealing O-Ring 85-3 AGM Venturi

85-4 AGM O-Ring 85-5 AGM Body

86 Stainless Band Ø100

FT1710 FT1769 FT1770 FT1081 FT1082 FT1772 FT1799 FT1803

ST1038 FT1773

FT1774 FT1775 FT1603

87 Intake Hose 88 Stainless Band Ø89 89 APS Hose Distributor

90 Gas Valve Assembly 90-1 Gas Valve bracket 90-2 Gas Inlet Adaptor 90-3 Gas Valve O-ring 90-4 Gas Valve 90-5 Gas Outlet Adaptor

Nozzle, Natural

Nozzle, Propane 92 Gas pipe 1 93 Gas pipe 2 94 Ignition Transformer

FT1846 FT1777 FT1821 FT1847 FT1848 FT1417 FT1727 FT1416 FT1414 FT1780 FT1802 FT1849 FT1850

ST1006

Page 88

Notes:

For Product and

Service VIDEOS

Dimensions and specications subject to change without notice in accordance with our policy of continuous product improvement.

H2373000C

Customer Service and Product Support: 800.900.9276 • Fax 800.559.1583

20 Industrial Way, Rochester, NH, USA 03867

1708 Document 1320C
