L3 Technologies AISD1 User Manual

ProTec

AUTOMATIC IDENTIFICATION SYSTEM

HARDWARE

INSTALLATION AND OPERATION MANUAL

Initial Issue

AIS PART NUMBER

AISD1000-00

P/N: 165M0601-00Feb. 01/05

Aviation Recorders

Marine Systems

AIS Hardware I&O Manual 165M0601-00

The AIS products/software are being exported from the
United States in accordance with the Export Adminis­tration Regulations ECCN 4D994, No License Re­quired. Diversion contrary to U.S. law is prohibited. In
accordance with U.S. Law (31 CFR Part 746, and Sup­plement No.1 to Part 774, and CFR Part 550) resale/re–
export or transfer to the countries identified therein is
prohibited without the prior written consent of the U.S.
Department of Commerce.

This manual contains date sensitive information.
To verify the latest revision level of this manual,
visit our document download site at
http://www.L-3ar.net.

Initial Issue

Feb. 01/05

ECopyright 2005 by L-3 Communications.

All rights reserved. No part of this manual may be re­produced or utilized in any form or by any means, elec­tronic or mechanical, including photocopying, record­ing, or by information storage and retrieval system,
without permission in writing.

Inquiries should be addressed to:
L-3 Communications
Aviation Recorders Publications
Vendor Code: 06141
P. O. Box 3041
Sarasota, Florida 34230
Phone: [phone]
FAX: [phone]

Initial Issue 165M0601-00
Feb. 01/05

Page ii

Aviation Recorders

Marine Systems

GENERAL

This product and related documentation must be reviewed for familiarization with safety
markings and instructions before operation.

This board was constructed in an ESD (electroćstatic discharge) protected environment. This is
because most of the semiconductor devices used in this board are susceptible to damage by static
discharge.

Depending on the magnitude of the charge, device substrates can be punctured or destroyed by
contact or mere proximity of a static charge. The results can cause degradation of device perforĆ
mance, early failure, or immediate destruction.

These charges are generated in numerous ways such as simple contact, separation of materials,
and normal motions of persons working with static sensitive devices.

When handling or servicing equipment containing static sensitive devices, adequate precautions
must be taken to prevent device damage or destruction.

Only those who are thoroughly familiar with industry accepted techniques for handling static senĆ
sitive devices should attempt to service circuitry with these devices.

In all instances, measures must be taken to prevent static charge buildćup on work surfaces and
persons handling the devices.

Feb. 01/05

Initial Issue165M0601-00

Page iii

Aviation Recorders

Marine Systems

RETURN MATERIAL POLICY

Components and spare parts purchased from L–3 that are discrepant for any of the following reasons may be re­turned immediately provided the extended value of the parts are in excess of $100.00.

1. Overshipments

Quantity of parts received in excess of quantity specified on purchase order.

2. Wrong Part Numbers

Receipt of parts numbered other than those identified on a customer order where L–3 has not advised the cus­tomer by purchase order acknowledgment, by telex, or by notification on the shipping document that the received
part is a replacement for the ordered part.

3. Parts Nonconforming to Specifications

If the extended value of the items is less than $100.00, the items are to be scrapped instead of returned. When
this occurs, notification must be sent to L–3 advising: (1) the reason for the rejection; (2) the items are less than
$100.00 in extended value and have been scrapped, and; (3) whether credit or replacement is desired.

If you wish to return material to L–3 for reasons other than warranty returns or those specified above, please contact
an L–3 Account Administrator for authorization before proceeding. A Return Authorization Number will be assigned at
this time. Your request should specify the relevant Return Authorization Number, purchase order number, part num­ber, quantity and the reason you wish the part returned.

To assist us in processing these items more efficiently, we ask that all returned goods be accompanied by paperwork
that clearly indicates the following:

1. Reason for return.

2. Purchase Order Numbers.

3. Correspondence Reference Number.

4. Return Authorization Number.

4. Copies of returned goods paperwork should be mailed to:

L–3 COMMUNICATIONS CORPORATION
A VIATION RECORDERS DIVISION
P. O. Box 3041
Sarasota, FL 34230–3041
Attn: Tom Meloche / Marine Systems Product Support Department

5. Parts returned under the above conditions should be addressed to:

L–3 COMMUNICATIONS CORPORATION
A VIATION RECORDERS DIVISION
6000 E. Fruitville Road
Sarasota, FL 34232
Attn: SERVICE DEPARTMENT

Component and spare parts purchased from L–3 that have been on the customer’s shelf for more than 10 weeks from
date of receipt; have been installed in a component or on a vessel, are not covered by this procedure. Such parts
may be covered by warranty in which case they should be returned through normal warranty channels.

Initial Issue 165M0601-00
Page iv

Feb. 01/05

Aviation Recorders

Marine Systems

RETURN OF MATERIAL UNDER WARRANTY

1. Material should be returned to the following address:

L–3 COMMUNICATIONS CORPORATION
A VIATION RECORDERS DIVISION
6000 E. Fruitville Road
Sarasota, FL 34232
Attn: WARRANTY RETURNS

2. For returning overseas shipments, the following customs broker must be used:

L–3 COMMUNICATIONS CORPORATION
A VIATION RECORDERS DIVISION
c/o A.J. Arango
Air Cargo Bldg.
Hoover Blvd.
Tampa Int’l Airport
Tampa, Florida 33634
Tel: [phone]
Fax: [phone]

To ensure prompt handling of material returned under warranty, your return order and shipment should clearly
identify the item as a warranty return, and a copy of such return order should accompany the shipment. Status of
warranty in process will be provided by the Warranty Administrator.

3. Warranty claims and warranty return orders pertaining to components and spare parts returned should be
mailed to the following address:

L–3 COMMUNICATIONS CORPORATION
A VIATION RECORDERS DIVISION
P. O. Box 3041
Sarasota, FL 34230–3041

Attn: Marine Systems Warranty Administrator

Tel: [phone]
Fax: [phone]

RETURNED GOODS

Goods returned to stock for credit at the request of the Buyer and authorized by the Seller, will be subject to a restock­ing charge of 10% of the purchase price if notified within 30 days of the order, and 25% of the purchase price if notified
after 30 days of the order.

CANCELLATION CHARGE

Any order wishing to be canceled must be approved by the pertinent Account Administrator and may be accountable
for a cancellation fee of 15%. This cancellation fee shall take into account expenses already incurred and commit­ments made by L–3.

Initial Issue165M0601-00

Feb. 01/05

Page v

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page vi

Feb. 01/05

Aviation Recorders

Marine Systems

TABLE OF CONTENTS

AUTOMATIC IDENTIFICATION SYSTEM

SUBJECT/DESCRIPTION PAGE
SECTION 1 – ProTec AIS Introduction

1.1. General 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1.1. System Overview 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1.2. References 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1.3. Acronyms 1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2. Technical Specifications 1–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3. AIS Description 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.1. Compact Design 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.2. Integral Minimum Keyboard Display (MKD) 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.3. Integral GPS 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.4. Data Interface 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.5. Equipment List 1–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.6. Operational Modes 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.6.1 Autonomous and Continuous 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.6.2 Assigned 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.6.3 Polled 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.6.4 Initialization 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.7. DSC Functionality 1–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.8. AIS Broadcast Parameters 1–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.9. AIS Frequencies 1–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.10. AIS Input Sentences 1–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4. Interface Description 1–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.1. Pilot Systems Input Data and Formats 1–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.2. Pilot Systems Output Data and Formats 1–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.3. Pilot Input / Output Port 1–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.4. Long Range equipment interface 1–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.5. Long Range Input Data and Formats 1–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4.6. Long Range Output Data and Formats 1–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue165M0601-00

Feb. 01/05

Page vii

Aviation Recorders

Marine Systems

TABLE OF CONTENTS

(Continued)

SUBJECT/DESCRIPTION PAGE

1.4.7. Sensor Input Data and Formats 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5. Data Field Assignments 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1. GPS and Sensor Input Sentences 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.1 DTM – Datum Reference 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.2 GBS – GNSS Satellite Fault Detection 1–20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.3 GGA – Global Positioning System Fix Data 1–20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.4 GLL – Geographic Position – Latitude / Longitude 1–20. . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.5 GNS – GNSS Fix Data 1–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.6 HDT – Heading True 1–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.7 RMC – Recommended Minimum Specific GNSS Data 1–21. . . . . . . . . . . . . . . . . . . . . . .

1.5.1.8 ROT – Rate of Turn 1–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.9 VBW – Dual Ground / Water Speed 1–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.10 VTG – Course Over Ground and Ground Speed 1–22. . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.1.11 ZDA – Time and Date 1–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2. AIS Specific Input Sentences 1–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.1 ABM – Addressed Binary and Safety–Related Message 1–23. . . . . . . . . . . . . . . . . . . . . .

1.5.2.2 ACA – AIS Regional Channel Assignment Message 1–24. . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.3 ACK – Acknowledge Alarm 1–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.4 AIQ – Query Sentence 1–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.5 AIR – AIS Interrogation Request 1–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.6 BBM – Broadcast Binary Message 1–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.7 SSD – Ship Static Data 1–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5.2.8 VSD – Voyage Static Data 1–26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 – ProTec AIS Operation

2.1. Operation 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

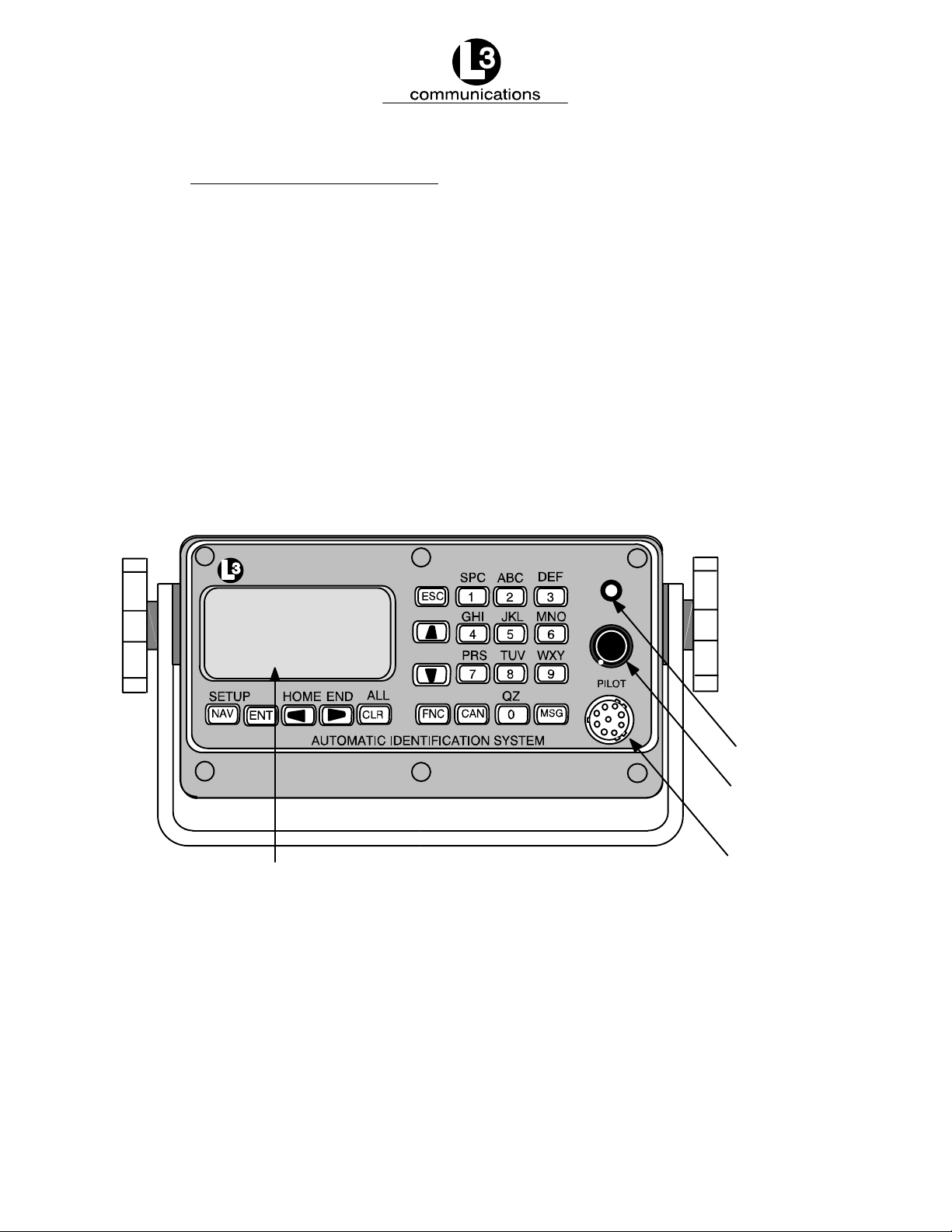

2.1.1. Minimum Keyboard Display 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.1.1 Power/Dim Control 2–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.1.2 Liquid Crystal Display 2–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.1.3 Key Pad 2–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue 165M0601-00
Page viii

Feb. 01/05

Aviation Recorders

Marine Systems

TABLE OF CONTENTS

(Continued)

SUBJECT/DESCRIPTION PAGE

2.1.1.4 Pilot Port 2–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.2. Keypad Description 2–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.3. Data Display Screens 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.3.1 NAV Display Screen (Default Screen) 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.3.2 Own Ship Information 2–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4. Data Entry Screens 2–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.1 AIS Main System Menu 2–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.2 Logon / Logoff Screen 2–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.3 System Information and Configuration 2–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

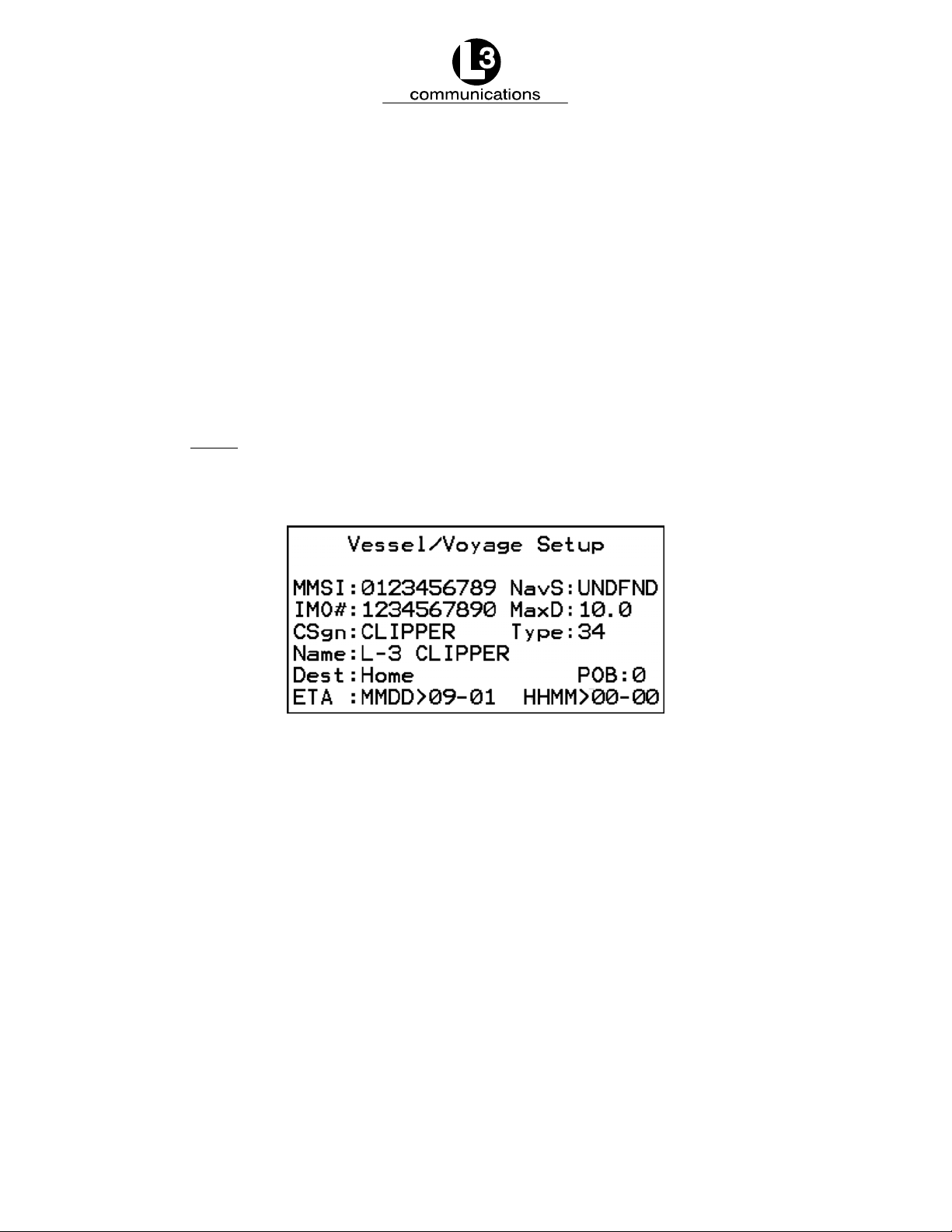

2.1.4.4 Vessel/Voyage Setup 2–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.5 Channel Management 2–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.6 Antenna Position 2–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.7 Text Messaging 2–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.8 View Safety Text Log 2–20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.9 Change Password 2–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.10 System Alert Screen 2–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.11 Alarm Status 2–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.12 General Status Screen 2–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.13 Down–Time Log 2–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.14 LCD Viewing Angle Adjustment 2–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.15 Baud Rate Setup 2–28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4.16 Set AIS Channels 2–29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3 – ProTec AIS Installation

3.1. Installation 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.1. Transponder 3–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2. Connecting the IEC Data Interface Cable 3–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2.1 Data Channels 3–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2.2 Data Cable 3–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2.3 Terminal Block 3–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue165M0601-00

Feb. 01/05

Page ix

Aviation Recorders

Marine Systems

TABLE OF CONTENTS

(Continued)

SUBJECT/DESCRIPTION PAGE

3.1.3. Installing the VHF Antenna 3–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.4. Installing the GPS Antenna 3–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5. PowerUp and Configuration 3–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5.1 PowerUp the Transponder 3–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5.2 Vessel / Voyage Setup 3–18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5.3 Antenna Position Configuration 3–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5.4 Verify Transponder Linkup to Ship’s dGPS & GYRO 3–23. . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4 – ProTec AIS Installation

ProTec AIS DRAWINGS 4–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIST OF APPENDIXES

APPENDIX TITLE PAGE
APPENDIX A – ProTec AIS Installation Checklist

ProTec AIS Installation Checklist A–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue 165M0601-00
Page x

Feb. 01/05

Aviation Recorders

Marine Systems

LIST OF FIGURES

FIGURE TITLE PAGE

Figure 1–1. AIS Transponder 1–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–1. AIS Transponder 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–2. NAV Display Screens 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–3. Own Ship Data Display 2–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–4. AIS Main System Menu 2–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–5. Password Entry Screen 2–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–6. System Information and Configuration Screen 2–12. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–7. Vessel Data Setup 2–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–8. Channel Management Settings Screen 2–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–9. Antenna Position Screen 2–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–10. Antenna Position Measurements 2–18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–11. Safety Text Message 2–20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–12. Safety Text Review Screen 2–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–13. Password Change Screen 2–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–14. System Alert Screen 2–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–15. Alarm Status Screen 2–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–16. General Status Screen 2–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–17. Down–Time Log Screen 2–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–18. LCD Viewing Angle Adjust Screen 2–28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–19. Baud Rate Setup Screen 2–28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2–20. AIS Channel Setup Screen 2–29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–1. AIS Transponder Interconnection Diagram 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–2. IEC Data Cable External Wiring Diagram 3–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–3. AIS Transponder Power Cable 3–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–4. Pilot Port Cable 3–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–5. AIS Transponder Antenna Diagram 3–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–6. AIS Transponder Rear View 3–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–7. AIS Transponder MKD 3–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–8 UAIS Main System Menu 3–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–9. Vessel/Voyage Setup 3–20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3–10. Antenna Position 3–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue165M0601-00

Feb. 01/05

Page xi

Aviation Recorders

Marine Systems

LIST OF FIGURES

(Continued)

FIGURE TITLE PAGE

Figure 3–11. Calculating Antenna Position 3–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4–1. AIS Transponder O&D Drawing with Trunion Bracket 4–3. . . . . . . . . . . . . . . . . . . . .

Figure 4–2. AIS Transponder O&D Drawing 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4–3. IEC Data Cable Interconnect Diagram 4–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIST OF TABLES

TABLE TITLE PAGE

Table 1–1. AIS Parts List 1–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1–2. Pilot System High–Speed Input Data Formats 1–13. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1–3. Pilot System High–Speed Output Data Formats 1–14. . . . . . . . . . . . . . . . . . . . . . . .

Table 1–4. Pilot Port Pinout 1–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1–5. Long Range Input Data and Formats 1–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1–6. Long Range Output Data and Formats 1–18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1–7. Sensor Input Data and Formats 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2–1. ProTec AIS Default Passwords 2–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2–2. Password Type Menu Screen Access 2–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2–3. Vessel Type Codes 2–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2–4. Integrity Alarm Conditions Signalled Using ALR Sentence Formatter 2–24. . . . . .

Table 2–5. Sensor Status Indications Signalled Using TXT Sentence Formatter 2–26. . . . . .

Table 3–1. Data Channels 3–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3–2. IEC Cable and Junction Box Pinouts 3–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3–3. Pilot Port Pinout 3–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3–4. ProTec AIS Default Passwords 3–18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3–5. Vessel Type Codes 3–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Issue 165M0601-00
Page xii

Feb. 01/05

Aviation Recorders

Marine Systems

SECTION 1

ProTec

AUTOMATIC IDENTIFICATION SYSTEM (AIS)

INTRODUCTION

Feb. 01/05

Initial Issue165M0601-00

Page 1–1

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 1–2

Feb. 01/05

1.1. General

The L-3 ProTec is an Automatic Identification System transponder which is fully com­pliant to the technical specifications defined by the IMO and outlined in ITU.R.M
1371-1. The transponder employs the latest radio frequency and SOTDMA and DSC
controller technology to provide a high performance, automated, and reliable identifi­cation system for commercial mariners. The Transponder is a fully automated sys­tem which ties into ship’s navigational instruments to provide automatic transmission
of ships identity, status, and maneuvering intentions via standard marine VHF com­munication techniques. Sequencing of transmission between all vessels within VHF
range is provided through SOTDMA controlling software to handle high traffic vol­ume situations.

The Transponder is a fully automated system. This means that once it is installed
and turned on, no maintenance is required to keep it operational. The only time the
user needs to perform any function on the transponder is to change the ship’s Ves­sel/Voyage data as required.

Aviation Recorders

Marine Systems

ProTec AIS Introduction

1.1.1. System Overview

The L-3 ProTec is an Automatic Identification System fully compliant with the IMO
specifications defined in IMO MSC.74(69) Annex 3, IEC 61993-2, and ITU.R
M.1371-1. This AIS transponder has been developed using technology applied in
the design of our VHF DSC Class A radio, a design which has been field tested for
over a decade with over 10000 units operational in the field. With the addition of the
SOTDMA controllers, the L-3 ProTec provides a cost-effective AIS solution which will
meet the needs of any vessel required to carry AIS. The compact, single-box design
allows the L-3 ProTec to be easily incorporated into any bridge layout thus simplify­ing installation and cabling requirements.

The L-3 ProTec has been designed as maintenance-free unit which makes extensive
use of surface mount technology (SMT). The repair of printed wiring assemblies
(PWAs) containing SMT components requires specialized factory equipment, train­ing, and techniques, therefore, such PWAs are not field-repairable.

As a result, maintenance philosophy for the L-3 ProTec is replacement of failed as­semblies. In the case of the L-3 ProTec, the replaceable assemblies are the Face­plate Assembly (192M0093-00), the RF PWA (205M0597-00), the CPU PWA
(205M0596-00), and the PS PWA (205M0598-00).

Feb. 01/05

Initial Issue165M0601-00

Page 1–3

Aviation Recorders

Marine Systems

When it has been determined that one or more of these assemblies is faulty, the
faulty assembly(ies) should be removed and returned to the Aviation Recorders fac­tory for repair or replacement. Attempts to repair any of these assemblies will void
the warranty. Extreme care should be used when handling these assemblies.

For repair service, ship units to:

L-3 Communications, Aviation Recorders
6000 East Fruitville Road
Sarasota, FL 34232 USA
Attn: Repair Department
Tel: [phone]
Fax #: [phone]

CAUTION

: THE L-3 ProTec CIRCUIT BOARDS ARE SUSCEPTIBLE TO

1.1.2. References

IMO Resolution MSC.74(69), Annex 3, Recommendation on Performance Standards
for an Universal Shipborne Automatic Identification Systems (AIS)

IMO SN/Circ. 227, Guidelines for the INstallation of a Shipborne Automatic Identifi­cation System (AIS)

International Telecommunications Union Sector for Radio Communications (ITU-R)
Recommendation M.1371-1, Technical Characteristics for a Universal Shipborne Au­tomatic Identification System Using Time Division Multiple Access in the Maritime
Mobile Band.

ELECTROSTATIC DESTRUCTION (ESD). PRIOR TO HANDLING
PWAs, ENSURE PROPER PERSONNEL GROUNDING TECH­NIQUES ARE USED. ENSURE THAT CARDS ARE PLACED INTO
STATIC SHIELDING CONDUCTIVE BAGS WHEN HANDLING OR
STORING.

IEC 61993-2 Edition1, Maritime Navigation and Radiocommunication Requirements

- Automatic Identification Systems (AIS) - Part 2: Class A shipborne Equipment of
the Universal Automatic Identification System (AIS) - Operational and Performance
Requirements, Methods of Test and Required Test Results

IEC 60945 Edition 4, Maritime Navigation and Radiocommunication Equipment and
Systems - General Requirements - Methods of Testing and Required Test Results.

IALA Recommendation on AIS Shore Stations and Networking Aspects Relating to
the AIS Service, Edition 1.0, September 5, 2002

Initial Issue 165M0601-00
Page 1–4

Feb. 01/05

IEC 61162-1 Edition 1.0, Maritime Navigation and Radiocommunication Equipment
and Systems - Digital Interfaces - Part 100: Single Talker and Multiple Listeners

IEC 61162-2 Edition 1.0, Maritime Navigation and Radiocommunication Equipment
and Systems - Digital Interfaces - Part 100: Single Talker and Multiple Listeners,
High-Speed Transmissions

1.1.3. Acronyms

ABM Addressed Binary Message
ABK Acknowledgement Message
ACA AIS Channel Assignment
ACK Ackowledgement Message
ASPA Automatic Radar Plotting Aid
BBM Broadcast Binary Message
COG Course Over Ground
DGPS Differential Global Positioning System
GGA Global Positioning Fix Data
GLL Geographic Position, Latitude/Longitude
GNSS Global Navigation Satellite System
GPS Global Positioning System
GSA GPS DOP and Active Satellites
GSV GPS Satellites in View
HDG Heading, Deviation & Variation
HDT Heading, True
IEC International Electrotechnical Commission
IMO International Maritime Organization
LRF Long Range Function
LFI Long Range Interrogation
MMSI Maritime Mobile Service ID
NMEA National Marine Electronics Association
RAIM Receiver Autonomous Integrity Monitoring
RMC Recommended Minimum Data for GPS
ROT Rate of Turn
SOG Speed Over Ground
SOTDMA Self Organized Time Division Multiple Access
SSD Station Static Data
TDS Target Display Software
TXT Status/Indication Message
VBW Dual Ground/Water Speed
VDL VHF Data-link Other Vessel Message
VDM VHF Data-link Message
VDO VHF Data-link Own-vessel Message
VSD Voyage Static Data
VTG Track Made Good and Ground Speed
ZDA Date and Time

Aviation Recorders

Marine Systems

Feb. 01/05

Initial Issue165M0601-00

Page 1–5

Aviation Recorders

communications

Marine Systems

STATUS

ON/OFF/DIM

PILOT

NOTE:

1. Front Panel Mating Connectors
Pilot Port - L3 PN: 063-98-02113

TYCO PN: 206485-1

Figure 1–1. AIS Transponder

1.2. Technical Specifications

Standards IMO MSC.74(69) Annex 3, IEC 61993-2 Ed. 1, ITU.R.M.1371-1
Ship reporting capacity

2250 reports per minute, 4500 reports per minute on two channels

TDMA Transmitter

TX Frequency: 156.025 MHz - 162.025 MHz, manual/automatic setting
Transmitter Power: 2 W, 12.5 W manual/automatic selection

TDMA Receiver

RX Frequency: 156.025 MHz - 162.025 MHz, 2 channels
RX1: Default CH87B (161.975 MHz), manual/automatic setting
RX2: Default CH88B (162.025 MHz), manual/automatic setting
Channel Spacing: 25 kHz and 12.5 kHz

DSC Receiver

RX Frequency: CH70 (156.525 MHz)

Initial Issue 165M0601-00
Page 1–6

Feb. 01/05

Aviation Recorders

Marine Systems

Internal GPS Receiver

12 Channel, UTC Synchronization Jitter: ± 100 ms
[Time between slot start and transmitter on.]

Navigational data

COG/SOG, ROT, POS, Heading from external sources

Display

Integral MKD with 160 x 64 Dots backlit LCD

INTERFACE
Input ABM, ACA, ACK, AIR, BBM, DTM, GBS, GGA, GLL, GNS, HDT,

OSD, SSD, RMC, ROT, VBW, VSD, VTG

Output ABK, VDO, VDM, ACA, ACS, ALR, LRF, LR1, LR2, LR3, TXT
Power Supply

24 VDC nominal, complies with IEC 60945 Ed. 4

NOTE

: Due to the stringent transmit attack and release times spe-

cified in ITU 1371, a robust power source is required for
proper operation. Recommended current ratings for power
sources are:

24 VDC - 10 Amps
The transponder may operate improperly if the power
source does not have the recommended minimum current
ratings.

Environment

IEC 60945 Ed. 4 for Protected Environment

Frequency

VHF Marine Band

Feb. 01/05

Initial Issue165M0601-00

Page 1–7

Aviation Recorders

Marine Systems

1.3. AIS Description

1.3.1. Compact Design

The completely self-contained L-3 ProTec is the most compact AIS unit available on
the market today with outside dimensions of 6.5” W (16.5 cm.) x 3.4” H (8.6 cm.) x

7.4” D (18.8 cm.). It is easily mounted on any surface using either a trunion bracket
or flush-mount bracket. The data port on the faceplate provides for easy connection
to any external display in either mounting configuration.

1.3.2. Integral Minimum Keyboard Display (MKD)

In line with the compact design, the L-3 ProTec is a single-box design incorporating
an integral MKD which is fully IMO compliant. The interface includes a 2.58” L (6.5
cm.) x 1.16” H (2.9 cm.) (160 x 64 Dots) backlit LCD screen for displaying alphanu­meric text and a multifunction keypad. The closest three vessels within AIS range
will be displayed with each vessel identified by MMSI and ship name and will display
both range and bearing to each vessel.

The interface has been designed to facilitate data entry and retrieval with a minimum
of keystrokes. It also includes a Pilot port designed to allow any user to quickly and
easily attach a portable AIS-compatible display system directly to the AIS transpond­er for display of the AIS data. This display system can consist of any system which
recognizes the NMEA AIS string whether it’s installed on a handheld PC, laptop PC,
or dedicated display.

1.3.3. Integral GPS

The L-3 ProTec includes an internal GPS receiver card. The internal GPS provides
timing data required for synchronization of transmission. By specifications, ship posi­tional information in NMEA format is to be fed to the transponder from the ships ex­ternal electronic position indicating system through the supplied data cable. The in­ternal GPS requires a dedicated GPS antenna to be mounted on the superstructure
and the appropriate connections are supplied on the transponder unit back panel.

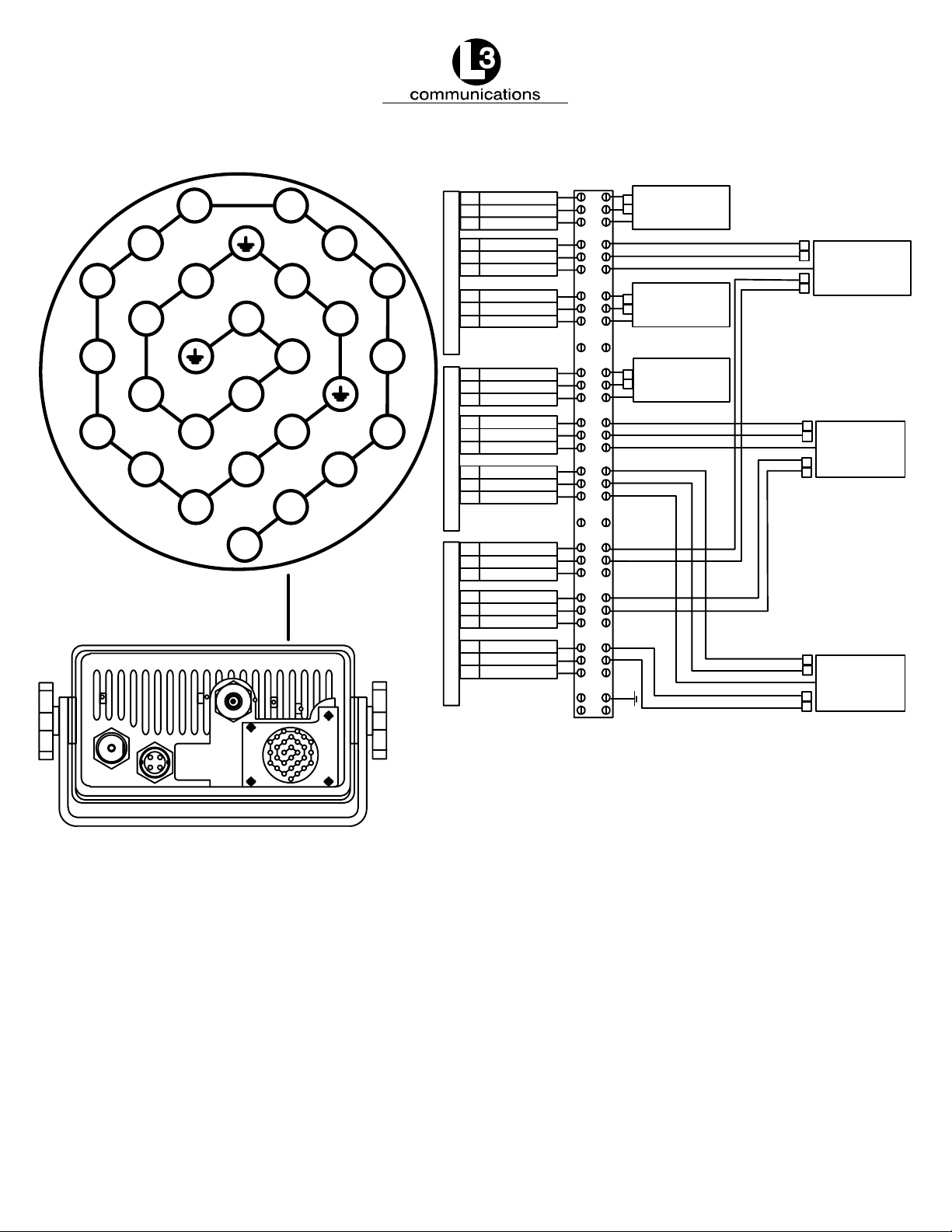

1.3.4. Data Interface

Each transponder will be delivered with an IEC-specified NMEA standard data cable
required to interface to ship’s sensors and external display. The description of this
interface cable is given in the Installation Section of this manual. The standard kit
includes an eight (8) ft. (2.9 meters) cable and a terminal block to facilitate the final
linkup to the ship’s navigational instruments.

Initial Issue 165M0601-00
Page 1–8

Feb. 01/05

1.3.5. Equipment List

The Standard AIS Installation Kit includes the following equipment:

F Transponder Unit
F Flush Mount Kit
F Trunion Mount Kit
F IEC NMEA Data Cable
F Terminal Strips (Qty: 3)
F Power Cable
F Ground Cable
F Installation Manuals

In order to complete the installation, the following items will be required.

F GPS Antenna with coaxial cable
F VHF Antenna with coaxial cable

Aviation Recorders

Marine Systems

F Gyro Interface (if gyro output is not NMEA)
F DGPS Interface (if ships dGPS output is not NMEA)

Table 1–1. AIS Parts List

Component Part Number

Transponder AISD1000-00
Flush Mount Kit 147M0092-01
Trunion Mount 147M0092-02
IEC Cable 024M0599-00
Terminal Strip 2469800177
422 to 232 Adapter 415-98-00079
Power Cable 024M0600-00
Ground Cable 024M0043-00
Installation Manual 165M0601-00

Feb. 01/05

Initial Issue165M0601-00

Page 1–9

Aviation Recorders

Marine Systems

1.3.6. Operational Modes

The ProTec AIS is designed to operate in each of three modes: Autonomous and
Continuous, Assigned and Polled which are defined below.

1.3.6.1 Autonomous and Continuous

This is the default mode. The ProTec AIS will determine its own schedule for trans­mission of position and identification and will automatically resolve scheduling con­flicts with other stations using the Self Organized Time Division Multiple Access
(SOTDMA) methodology.

1.3.6.2 Assigned

The ProTec will automatically switch to assigned mode when it is commanded by a
competent authority, such as a base or repeater station, to transmit on a specific
transmission schedule. In this mode, the ProTec allocates the defined slots and be­gins transmitting on these slots. It will continue to transmit in these slots with a zero
slot time-out and a zero slot offset, until those slots have been removed from the
transmission schedule. The assigned slots use the SOTDMA access scheme, with
the time-out value set to the assigned slot time-out. The assignment terminates
when the slot time-out reaches zero of any assigned slot, and the ProTec returns to
autonomous and continuous mode.

1.3.6.3 Polled

The ProTec AIS will transmit a response to DSC interrogation messages from a ship
or competent authority and respond back on the same channel without interfering
with either of the other two modes. When an automatic response is required, trans­mitted responses will be made on channel 70 unless the unit is instructed to transmit
on another channel. The ProTec is inhibited from transmitting on the AIS 1 and AIS
2 channels. If and when frequency channels other than channel 70 are used for
DSC transmissions, the receive capability of TDMA operations should not be
impaired more than it would be if all DSC messages were transmitted on channel

70.

1.3.6.4 Initialization

The ProTec AIS will enter into an Initialization mode at Power-Up during which it will
monitor the TDMA channels for one minute. During this initialization period, a dy­namic directory of all users in the system will be created which includes user IDs,
slot assignments, positions, and other transmitted data. After this initialization period
of 1 minute, the ProTec will enter the required operational mode and begin transmis­sion of the AIS data on the required schedule.

Initial Issue 165M0601-00
Page 1–10

Feb. 01/05

Aviation Recorders

1.3.7. DSC Functionality

The Assigned and Polled operational modes are activated through a DSC message
transmitted by the competent authority. In order to provide for this, the ProTec AIS
contains a dedicated DSC receiver that is tuned to channel 70. DSC messages
originating from shore stations of competent authorities will define regional AIS fre­quencies, regions of coverage, required transmission schedule and/or interrogation
request. The ProTec AIS will respond back to such DSC interrogations on the fre­quency specified in a manner such that it does not interfere with the TDMA transmis­sions by interleaving the transmission between TDMA transmissions. The DSC re­sponse will be made after a random delay of 0 - 20 secs provided the signaling
channel is clear and the TDMA transmissions are not interrupted.

1.3.8. AIS Broadcast Parameters

A Class A AIS unit broadcasts the following information every 2 to 10 seconds while
underway, and every 3 minutes while at anchor at a power level of 12.5 watts. The
information broadcast includes:

Marine Systems

F MMSI number - unique referenceable identification.
F Navigation status
F Speed over ground - 1/10 knot resolution.
F Position accuracy - differential GPS.
F Longitude - to 1/10000 minute and Latitude - to 1/10000 minute.
F Course over ground - relative to true north to 1/10th degree.
F True Heading - 0 to 359 degrees derived from heading sensor.
F Time stamp - The universal time to nearest second that this information

was generated.

In addition, the Class A AIS unit broadcasts the following information every 6
minutes:

F MMSI number - same unique identification used above, links the data

above to described vessel.

F IMO number - unique referenceable identification (related to ship’s

construction).

F Radio call sign - international call sign assigned to vessel, often used on

voice radio.

Feb. 01/05

F Name - Name of ship, 20 characters are provided.
F Type of ship/cargo - there is a table of possibilities that are available.

Initial Issue165M0601-00

Page 1–11

F Dimensions of ship - to nearest meter.
F Location on ship where reference point for position reports is located.
F Type of position fixing device - various options from differential GPS to un-

defined.

F Draught of ship - 1/10 meter to 25.5 meters [note “air-draught” is not pro-

vided].

F Destination - 20 characters are provided.

1.3.9. AIS Frequencies

The International Telecommunications Union World Radio Conference in 1997 desig­nated two VHF radio frequencies: 161.975 MHz (AIS1, or channel 87B) and 162.025
MHz (AIS2, or channel 88B) for AIS. In the US, the first channel is owned by Mari­TEL, a public coast station operator, and the second by the federal government. The
USCG signed a Memorandum of Agreement with MariTEL for use of AIS 1, and has
authority from the National Telecommunications and Information Administration to
use both AIS1 and AIS 2 US-wide for AIS operation. The USCG has asked the Fed­eral Communications Commission to authorize any US vessel to operate AIS on
these two channels under its existing ship station license. The FCC released a No­tice authorizing operation of AIS under a ship’s existing station license.

Aviation Recorders

Marine Systems

1.3.10. AIS Input Sentences

This section lists the input sentences received by the L-3 ProTec AIS Transponder.
The input sentences are categorized as Pilot, Long Range, and Sensor, which are
listed as follows:

Pilot

ABM, BBM, AIR, VSD, SSD, ACK, ACA, AIQ

Long Range

LRI, LRF

Sensor

RMC, VTG, ROT, HDT, GNS, GLL, GGA, GRS, GSA, GST, GSV, ZDA, GBS, DTM,
VBW

Initial Issue 165M0601-00
Page 1–12

Feb. 01/05

Aviation Recorders

Marine Systems

1.4. Interface Description

1.4.1. Pilot Systems Input Data and Formats

The input data and formats are shown in Table 1–2, and the details of the sentences
can be found in IEC 61162-1.

Table 1–2. Pilot System High-Speed Input Data Formats

Data IEC 61162-1 Sentences

Normal Access - Parameter Entry

Static station information

- (Vessel name)

- (Call sign)

- Antenna location

- Length and beam
Voyage Information

- Vessel type and cargo category

- Navigational status

- Draught, max. actual static

- Destination

- ETA date and time

- Regional application flags

Long Range Acknowledgement

External manual LR acknowledgement LRF - Long Range Function

Initiate VHF Data Link Broadcasts

Safety messages ABM - Addressed Binary Message

Binary messages ABM - Addressed Binary Message

Interrogation message AIR - AIS Interrogation Information

Channel Setting

Channel assignment message (set frequency) ACA - AIS Channel Assignment Message

Alarm / indication acknowledgement ACK - Acknowledgement Message

Own Station Settings Queries

Query messages AIQ, ACA - Query AIS Channel Assignment

SSD - Station Static Data

- (not used, field sets to null by MKD)

- (not used, field sets to null by MKD)

- used to set the antenna location for the
MKD external GPS only (saved in MKD
memory)

VSD - Voyage Static Data

BBM - Broadcast Binary Message

BBM - Broadcast Binary Message

BIIT Input

Feb. 01/05

Initial Issue165M0601-00

Page 1–13

Aviation Recorders

Marine Systems

1.4.2. Pilot Systems Output Data and Formats

The output data and formats are shown in Table 1–3, and the details of the sen­tences can be found in IEC 61162-1.

Table 1–3. Pilot System High-Speed Output Data Formats

Data IEC 61162-1 Sentences

Prepared by AIS Transponder

Notification that a session initiated by messages
ABM, BBM, ACA, AIR is terminated

AIS Own-ship broadcast data (all transmissions
available)

Query response messages ACA - AIS Channel Assignment

BIIT Results

AIS equipment status ALR - Alarm Message

Received from Long Range Equipment

LR Interrogation LRI - Long Range Interrogation
LR Function identification LRF - Long Range Function

Received on VHF Data Link by AIS Transponder

All VDL AIS messages received

- Broadcast or

- Addressed to own station

ABK - Acknowledgement Message

VDO - VHF Data-link Own-vessel Message

SSD - Station Static Data
VSD - Voyage Static Data

TXT - Status / Indication Message

VDM - VHF Data Link Message

1.4.3. Pilot Input / Output Port

The Pilot input/output port is a part of the AIS Class A stations. If the installation of
the AIS equipment is such that a pilot cannot connect his Personal Pilot Unit (PPU)
with a reasonable length of cable, an extension cable must be installed with a con­nector located on the bridge such that the PPU can be connected on the normal
working position of the port.

Initial Issue 165M0601-00
Page 1–14

Feb. 01/05

Aviation Recorders

Marine Systems

The Pilot input/output port defined by IEC 61193-2 for connections of ship’s pilot
equipment shall, if fitted, be connected using the pilot port cable, p/n: 024M0099-03.
The Pilot input/output port meets the requirement of IEC 61162-2 and is terminated
as shown in Table 1–4.

Table 1–4. Pilot Port Pinout

J1 Pin Name Description Pair Color P2 Pin

1 PILOT_TXA RS4–22 Compliant Output A Blue 2
2 GND Signal/Power 0 Volt Reference Black 5
3 + 8V

4 PILOT_TXB RS–422 Compliant Output B Black 7
5 PILOT_RXA RS–422 Compliant Input A Green 8
6 PILOT_RXB RS–422 Compliant Input B Black 3
7 TRACE/BOOT_TX TTL–Level RS–232 Serial Output (Trace Message/

8 RX_SINAD TDMA / DSC FM Discriminator Output used to

9 NO CONNECT Not Used

+ 8.0 Volt ( 5%) Output Used to Power External
Test Equipment. External Equipment should be
Current Limited to 300mA

Bootload Output)

Test Receiver Performance during Special Test
Modes.

NOTE: Some early transponders had incorrect Pilot Port wiring.

See factory for more details.

1.4.4. Long Range Equipment Interface

The range of operation of standard AIS is limited to the range of VHF transmissions
which is around 30 miles. The Long Range mode is intended to allow the exchange
of ships position information from ship to a competent authority via a satellite inter­face such as Inmarsat-C which is already onboard many ships. This port is intended
to interface with the Long Range equipment.

The Long Range reply can be set in either:

F automatic mode (AUTO)
F manual mode L-3 ProTec (MANUAL)
F manual mode external application (EXT APPL).

The Long Range reply, when in AUTO mode, is made as soon as a request is re­ceived on the Long Range communication port.

Feb. 01/05

Initial Issue165M0601-00

Page 1–15

Aviation Recorders

Marine Systems

The Officer of the Watch must approve the Long Range reply when in MANUAL
mode, by a means of pressing a keyboard button on the L-3 ProTec before the reply
is performed.

The Long Range reply, when in EXT APPL mode, is made by the L-3 ProTec upon
reception of confirmation / acknowledgement from the external application via the
high-speed ports. The external application acknowledges the interrogation by return­ing the LRF sentence (updated with reply information).

1.4.5. Long Range Input Data and Formats

The input data and formats are in the form of two Long Range interrogation sen­tences, LRI and LRF, refer to Table 1–5.

F The LRI -sentence contains the information needed to determine if a reply

needs to be constructed.

F The LRF-sentence identifies the information items that are being re-

quested. Details of each sentence can be found in IEC 61162-1.

Table 1–5. Long Range Input Data and Formats

Data IEC 61162-1 Sentences

Long Range Interrogation
Type of request:

- Geographic area request

- AIS transponder request
Long Range Function identification

Requestor MMSI and Name
Request for:

- Ship’s name, call sign and IMO number (A)

- Date and time of message composition (B)

- Position (C)

- Course over ground (E)

- Speed over ground (F)

- Destination and ETA (I)

- Draught (O)

- Ship / Cargo (P)

- Ship’s length, breadth and type (U)

- Number of persons on board (W)

LRI - Long Range Interrogation

LRF - Long Range Function

Initial Issue 165M0601-00
Page 1–16

Feb. 01/05

Aviation Recorders

Marine Systems

1.4.6. Long Range Output Data and Formats

The output data and formats are in the form of four Long Range reply sentences,
LRF, LR1, LR2, and LR3, refer to Table 1–6.

F The LRF sentence provides the “Function Reply Status” for the requested

information. Following is a list of “Function Reply Status” characters with
the status:

2 = Information available and provided in the following LR1, LR2, and
LR3 sentences.

3 = Information not available from the AIS system.
4 = Information is available but not provided (i.e. restricted access deter-

mined by ship’s master).

F The LR1 sentence identifies the destination for the reply and contains the

information items requested by the “A” function identification character in
the LRF sentence.

F The LR2 sentence contains the information items requested by the “B, C,

E, and F” function identification characters in the LRF sentence.

F The LR3 sentence contains the information items requested by the “I, O,

P, U, and W” function identification characters in the LRF sentence.

Feb. 01/05

Initial Issue165M0601-00

Page 1–17

Aviation Recorders

Table 1–6. Long Range Output Data and Formats

Data IEC 61162-1 Sentences

Long Range Function identification
Requestor MMSI and Name
Request for:

- Ship’s name, call sign and IMO number (A)

- Date and time of message composition (B)

- Position (C)

- Course over ground (E)

- Speed over ground (F)

- Destination and ETA (I)

- Draught (O)

- Ship / Cargo (P)

- Ship’s length, breadth and type (U)

- Number of persons on board (W)
MMSI of Responder

MMSI or Requestor
Ship’s name
Ship’s call sign
IMO number

MMSI of Responder
Date and time of message composition
Position
Course over ground
Speed over ground

MMSI of Responder
Destination and ETA
Draught
Ship / Cargo
Ship’s length, breadth and type
Number of persons on board

Marine Systems

LRF - Long Range Function

LR1 - Long Range Response, Line 1

LR2 - Long Range Response, Line 2

LR3 - Long Range Response, Line 3

Initial Issue 165M0601-00
Page 1–18

Feb. 01/05

Aviation Recorders

Marine Systems

1.4.7. Sensor Input Data and Formats

The L-3 ProTec Shipborne Class A Transponder supports input data sentences from
various ship sensors, refer to Table 1–7.

Table 1–7. Sensor Input Data and Formats

Sensor Data IEC 61162-1 Sentences

GNSS Positions system:

- Time of position

- Latitude /Longitude

- Accuracy (and integrity status)
Course Over Ground (COG)
Speed Over Ground (SOG)
RAIM Indicator

Log Course Over Ground (COG)

Speed Over Ground (SOG)

Gyro Heading

Rate of Turn (ROT)

DTM, GBS, GGA, GLL, GNS, GRS, GSA,
GST, GSV, HDT, RMC, ROT, VBW, VTG,
ZDA

VBW

HDT, ROT

1.5. Data Field Assignments

1.5.1. GPS and Sensor Input Sentences

1.5.1.1 DTM - Datum Reference

If Local and Reverence Datum codes are not WGS84, then the positions report from
that sensor is discarded.

Field Notes

Local Datum Code Check for WGS84
Local Datum Subdivision Code Ignored
Lat Offset (2 fields) Ignored
Long Offset (2 fields) Ignored
Altitude Offset Ignored
Reference Datum Code Check for WGS84

Feb. 01/05

Initial Issue165M0601-00

Page 1–19

Aviation Recorders

Marine Systems

1.5.1.2 GBS - GNSS Satellite Fault Detection

If this sentence is received from the position source, with Latitude error or Longitude
error specified, the RAIM flag will be set to TRUE. If both are Null or 60 seconds
goes by without a GBS sentence, RAIM flag goes to False

Field Notes

UTC Time of GGA or GNS Ignored
Expected Error in Latitude Check for Null
Expected Error in Longitude Check for Null
Expected Error in Altitude Ignored
ID Number of Most LIkely

Failed Satellite Ignored
Probability of MIssed Detection Ignored
Estimate of Bias in Meters Ignored
Standard Deviation of Bias Estimate Ignored

1.5.1.3 GGA - Global Positioning System Fix Data
Field Notes

UTC of Position UTC Second is used to

indicate Time Stamp
Latitude (2 fields) Used
Longitude (2 fields) Used
GPS Quality Indicator Used
Number of Satellites in Use Ignored
Horizontal Dilution of Precision (HDOP) Ignored
Altitude RE: Main Sea Level (2 fields) Ignored
Geoidal Separation (2 fields) Ignored
Age of Diff Data Ignored
Diff Reference Station Ignored

1.5.1.4 GLL - Geographic Position - Latitude / Longitude
Field Notes

Latitude (2 fields) Used
Longitude (2 fields) Used
UTC of Position UTC Second is used to

indicate Time Stamp
Status Used
Mode Indicator Used

Initial Issue 165M0601-00
Page 1–20

Feb. 01/05

1.5.1.5 GNS - GNSS Fix Data

If the Mode Indicator is a NULL field, the sentence is ignored.

Field Notes

UTC of Position UTC Second is used to

Latitude (2 fields) Used
Longitude (2 fields) Used
Mode Indicator Used
Total Number of Satellites in Use Ignored
HDOP Ignored
Antenna Altitude Ignored
Geoidal Separation Ignored
Age of Diff Data Ignored
Diff Reference Station ID Ignored

1.5.1.6 HDT - Heading True

Aviation Recorders

Marine Systems

indicate Time Stamp

Message is ignored if Talker is “HC”.

Field Notes

Heading Used if Valid indicator is “T”
Valid Indicator Used

1.5.1.7 RMC - Recommended Minimum Specific GNSS Data
Field Notes

UTC of Position Fix UTC Second is used to

indicate Time Stamp
Status Must be “A”
Latitude (2 fields) Used
Longitude (2 fields) Used
SOG, knots Used
COG, degrees Used
Date Ignored
Magnetic Variation (2 fields) Ignored
Mode Indicator Used

Feb. 01/05

Initial Issue165M0601-00

Page 1–21

Aviation Recorders

Marine Systems

1.5.1.8 ROT - Rate of Turn

The rate of turn value is only used if the talker identifier is “TI”. Otherwise the value
will only be used to determine if the vessel is “Moving Right” or “Moving Left”.

Field Notes

Rate of Turn Used when status is “A”. If Talker

Status Must be “A”

1.5.1.9 VBW - Dual Ground / Water Speed

The current position source must be external GPS, and heading must be available
for the transponder to accept this sentence.

Field Notes

Longitudinal Water Speed Ignored
Transverse Water Speed Ignored
Status: Water Speed Ignored
Longitudinal Ground Speed Used if Status is set to “A”
Transverse Ground Speed Used if Status is set to “A“
Status: Ground Speed Used
Stern Transverse Water Speed Ignored
Status Stern Water Speed Ignored
Stern Transverse Ground Speed Ignored
Status Stern Ground Speed Ignored

is “TI”, value is converted ascending

to 1371 msg 1, 2, 3 spec. If talker is not

“TI”, value is set to - 127, 0, or + 127,

based on ROT value.

1.5.1.10 VTG - Course Over Ground and Ground Speed
Field Notes

GOG, degrees True (2 fields) Used
COG, degrees Magnetic (2 fields) Ignored
SOG, knots (2 fields) Used
SOG, km/h (2 fields) Ignored
Mode Indicator Used

Initial Issue 165M0601-00
Page 1–22

Feb. 01/05

Aviation Recorders

Marine Systems

1.5.1.11 ZDA - Time and Date

This message is only processed if it is received from the internal GPS (the time
synchronization source).

Field Notes

UTC Used
Day Used
Month Used
Year Used
Local Zone Hours Ignored
Local Zone Minutes Ignored

1.5.2. AIS Specific Input Sentences

1.5.2.1 ABM - Addressed Binary and Safety-Related Message
Field Notes

Total Number of Sentences Used if in interval 1..9,

otherwise the sentence
is ignored.

Sentence Number Used if in interval 1..total

sentence, otherwise the
sentence is ignored.

Sequential Message Identifier Used if in interval 0..3,

otherwise the sentence

is ignored.
MMSI of Destination Used
AIS Channel Used
Message ID Used if in 6 or 12,

otherwise the sentence

is ignored.
Encapsulated Data Used
Number of Filled Bits Used

Feb. 01/05

Initial Issue165M0601-00

Page 1–23

Aviation Recorders

Marine Systems

1.5.2.2 ACA - AIS Regional Channel Assignment Message

The zone created of this sentence must be accepted by the channel management
rules (size of zone, distance to own position, etc.) If the zone isn’t accepted, the
zone will be ignored.

Field Notes

Sequence Number Ignored
NE Latitude (2 fields) Used
NE Longitude (2 fields) Used
SW Latitude (2 fields) Used
SW Longitude (2 fields) Used
Transitional Zone Size Used
Channel A Used
Channel A Bandwidth Used
Channel B Used
Channel B Bandwidth Used
Tx/Rx Mode Used
Power Level Used
In Use Flag Ignored
Time of In Use Change Ignored

1.5.2.3 ACK - Acknowledge Alarm
Field Notes

ID of the Alarm Source Used

1.5.2.4 AIQ - Query Sentence
Field Notes

Approved Sentence Formatter of
Data being Requested It is possible to query the

ACA Sentence

Initial Issue 165M0601-00
Page 1–24

Feb. 01/05

Aviation Recorders

Marine Systems

1.5.2.5 AIR - AIS Interrogation Request
Field Notes

MMSI 1 Used
Message ID 1.1 Used
Message Subsection Ignored
Message ID 1.2 Used, may be NULL
Message Subsection Ignored
MMSI 2 Used, may be NULL
Message ID 2.1 Used, may be NULL
Message Sub Section Ignored

1.5.2.6 BBM - Broadcast Binary Message
Field Notes

Total Number of Sentences Used if in interval 1..9,

Sentence Number Used if in interval 1..total

Sequential Message Identifier Used if in interval 0..9,

AIS Channel Used
Message ID Used if 8 or 14
Encapsulated Data Used
Number of Filled Bits Used

otherwise rejected.

number of sentences,
otherwise rejected.

otherwise rejected.

1.5.2.7 SSD - Ship Static Data
Field Notes

Call Sign Ignored, use the proprietary

Name Same as Call Sign
Pos Ref A This is the EXTERNAL

Pos Ref B Same as Pos Ref A
Pos Ref C Same as Pos Ref A
Pos Ref D Same as Pos Ref A
DTE Used
Source Identifier Ignored

Feb. 01/05

password protected sentence
instead (used by the MKD)

Position reference, use
proprietary sentence for
the internal Position reference.
May be NULL

Initial Issue165M0601-00

Page 1–25

1.5.2.8 VSD - Voyage Static Data
Field Notes

Type of Ship and Cargo Used
Maximum Present Draught Used
Persons On-Board Used
Destination Used
Estimated UTC of Arrival Used
Estimated Day of Arrival Used
Estimated Month of Arrival Used
Navigational Status Used
Regional Application Flags Used

Aviation Recorders

Marine Systems

Initial Issue 165M0601-00
Page 1–26

Feb. 01/05

Aviation Recorders

Marine Systems

SECTION 2

ProTec

AUTOMATIC IDENTIFICATION SYSTEM (AIS)

OPERATION

Feb. 01/05

Initial Issue165M0601-00

Page 2–1

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 2–2

Feb. 01/05

Aviation Recorders

Marine Systems

ProTec AIS Operation

2.1. Operation

The L-3 ProTec has been designed to require minimal user interaction during normal
operation. The interface consists of an integral alphanumeric display with alphanu­meric keypad providing for data entry, retrieval and display.

2.1.1. Minimum Keyboard Display

The L-3 ProTec includes and integral MKD which is fully IMO compliant. The MKD is
designed to be used for configuration of the hardware, entry of vessel and voyage
specific data, and be used to monitor the AIS system. The MKD provides numerous
functions, which can be accessed via the controls located on the front face of the
ProTec AIS system. The MKD provides a fully functional menu structure that allows
the user to Logon / Logoff , configure System Information, Vessel / Voyage data, and
the Antenna Position. The user may also view Alarm Status, General Status, Down­Time Log, and the Safety Text Log. In addition, the AIS Channels can be configured,
along with changing user passwords, setting Baud rate, adjust the LCD viewing
angle, and managing the Change Management Settings. The front face of the L-3
ProTec contains the following controls.

Feb. 01/05

communications

Figure 2–1. AIS Transponder

STATUS

ON/OFF/DIM

PILOT

Initial Issue165M0601-00

Page 2–3

2.1.1.1 Power/Dim Control

A single control knob controls both the on/off function and backlighting level for the
LCD. To turn the unit ’On’, rotate the knob clockwise. To turn unit ’Off’ rotate counter­clockwise fully. The degree of rotation determines the brightness of the LCD back­light and rotation to the right will dim the backlighting.

2.1.1.2 Liquid Crystal Display

The display is an alphanumeric LCD with backlighting which will display data entry
forms and AIS target data for the nearest three vessels.

2.1.1.3 Key Pad

The keypad contains dedicated function buttons and alphanumeric buttons which
allow for data entry and retrieval.

2.1.1.4 Pilot Port

The Pilot Port is an IEC high speed (38400 Kbs), RS422, data port which can be
used to connect any external display such as an ECS, or other PC-based software
package.

Aviation Recorders

Marine Systems

2.1.2. Keypad Description

The keypad allows the user to access the menu system built into the transponder
interface. The keys are defined below:

NAV AIS Target Data Display

Pressing this button will bring the user to the main default screen which
will display the AIS target data for the nearest three vessels, or allows
the user to switch back to the “Own Ship” display if the nearest three
vessels are already displayed.

ENT Enter Key

Allows user to enter Edit mode, or to save data if already performing an
Edit operation.

CLR Clear Key

Used to clear data from a data entry field before entering new data .
Pressing once will clear the entire field.

Initial Issue 165M0601-00
Page 2–4

Feb. 01/05

Directional ARROW Keys

Used to navigate between data entry fields on a data entry form and
scroll right/left and up/down in an alphanumeric display field. When in
Closest Vessel (default) screen, the Left or Right Arrow Keys will allow
the user to toggle between the Ship Name display and the MMSI
screen. (The MMSI screen will always be displayed for a vessel if the
ship name is not known.

FNC Function Key

Used as the initial key in a key sequence to access the various secon­dary functions of the interface.

CAN Cancel Key

Used to cancel any edit made in a data entry field and revert data back
to preexisting data.

MSG Message Key

Aviation Recorders

Marine Systems

Used to access the text messaging window, in order to send Safety Text
Messages.

ESC Escape Key

Will bring user up one level on the menu system.

The blue text above some of the keys identify the secondary definitions for each but­ton. These secondary definitions are activated by pressing of the FNC button in a
key sequence.

SETUP Enters the AIS Main System Menu menu system.
HOME Returns cursor to start position in a data entry field
END Moves cursor to last position in a data entry field
ALL System Information Menu
The alphanumeric keypad is used to enter both numbers and letters. When alphanu-

meric text entry is expected, the nonnumerical options are presented before the nu­meric value of the key. For example, the number “2” key provides for entry of “A”,
“B”, and “C”. When the cursor is positioned in a display field location that expects an
alphanumeric character, the first press of the “2” key will result in the display of an
“A”. Another press (in less than one second) will cause a “B” to be displayed. The
next press shows a “C”, while the forth press shows a “2”.

Feb. 01/05

Initial Issue165M0601-00

Page 2–5

Aviation Recorders

Marine Systems

Repeated key presses will result in cycling through the character options repeatedly.
When the operator stops pressing keys for longer than the preset timeout, the last
value is retained and the cursor moves to the next location in the field. Pressing a
different key forces acceptance of the last character for the field and moves the cur­sor along.

FNC-ENT Own Ship display

(NAV Key will also bring up this screen if already showing the Closest
Vessel display.)

2.1.3. Data Display Screens

The AIS interface consists of the following display screens each of which is ac­cessed using the defined key sequence.

2.1.3.1 NAV Display Screen (Default Screen)

Figure 2–2. NAV Display Screen

MKD will default to this screen after 30 seconds when the unit is idle.
This display shows closest three (3) targets by MMSI number or ship name, the

range in nautical miles, and bearing of each target. Using the up (↑) or down (↓) ar­row keys you may scroll through every target that is detected.

Targets xxx: Number of targets detected by the transponder.
Date: Current date.
Time: Current time derived by the internal GPS receiver.

GPS status can be found in lower right corner of display.
I = Internal Time: Valid time from the internal GPS (normal operating

condition).

S = Slot Time: Lost internal GPS time but is deriving timing

information from the slot timing on the VHF Data Link
(VDL).

F= Flywheel: Transponder is depending on the internal CPU clock

for timing, after losing internal and slot timing. It will

Initial Issue 165M0601-00
Page 2–6

Feb. 01/05

Aviation Recorders

Marine Systems

run for approximately one minute and then go to “N”.

N= No time available
Text messaging can be disabled by pressing the FNC → 1 button. When text mes-

saging is disabled a “Tx Disabled” message will appear in the upper right hand area
of the display window.

The AIS can be set to use it’s internal GPS by pressing the FNC → 4 button. When
using the internal GPS a “+” symbol will appear in the lower center area of the dis­play window (as shown in Figure 2–2).

Figure 2–3. Own Ship Data Display

2.1.3.2 Own Ship Information

Press the NAV button repeatedly from any menu to cycle the displays until the Own
Ship Information menu appears. The data that is displayed is as follows:

MMSI: Maritime Mobile Service ID: Nine digit unique identification number

that registers the boat information in the U.S. Coast Guard’s national
distress database for use in emergency situations

NavS: Navigational Status:

UNDFND Undefined
UW-ENG Underway Using Engine
AANCHR At Anchor
NOCMD Not Under Command
RMANUV Restricted Maneuverability
CBDRFT Constrained by Draught
MOORED Moored
AGRND Aground
FISHNG Engaged in Fishing
SAILNG Underway sailing

Feb. 01/05

Name: Vessel Name: Any alphanumeric characters up to 20 in length.

Initial Issue165M0601-00

Page 2–7

Aviation Recorders

Marine Systems

PSrc: Positional Data Source: The following options may be seen in the

order of their priority:
Ext DGNSS - External GPS in use (corrected).
Int M17Corr - Internal GPS in use (corrected, message 17).
Int Bcncorr - Internal GPS in use (corrected, beacon).
Ext Uncorr - External GPS in use (uncorrected).
Int Uncorr - Internal GPS in use (uncorrected).

No Pos Src - No sensor position in use.
PA: Positional Accuracy: 0 = uncorrected, 1 = corrected.
RF: RAIM Flag: (Receiver Autonomous Integrity Monitoring)

0 = normal operation, 1 = in use.
Lat: Latitude: North or South in degrees.
Lon: Longitude: East or West in degrees.
Hdg: Heading: in degrees true from Gyrocompass.
ROT: Rate of turn: in degrees/sec (- denotes port, + denotes starboard).
COG: Course Over Ground: in degrees true from dGPS.
SOG: Speed Over Ground: in knots from dGPS.

2.1.4. Data Entry Screens

The AIS interface provides the following three data entry screens for completing in­put of required vessel and voyage data and for modifying the administrator pass­word. The required data entry screen can be accessed from the main AIS Main Sys­tem Menu menu. This menu is accessed by the key sequence FNC SETUP. The re­quired screen can be selected by using the DOWN / UP arrow keys to scroll through
the list and pressing ENT to select the highlighted screen name. This will open and
display the screen and free all fields for editing.

Use the LEFT, RIGHT, UP, DOWN arrows to navigate between fields. Use the ENT
key to select a field to edit. Use the alphanumeric keypad to enter the required data
into the field. Use ENT to save the data entered into the field. Use CAN to cancel
any changes made to edited fields and revert to preexisting data. Once the data
entry is completed, pressing ESC will exit the user to the AIS Main System Menu
screen, allowing the user to go to another menu selection.

2.1.4.1 AIS Main System Menu

Press FNC → NAV button from any menu to access this screen.

Initial Issue 165M0601-00
Page 2–8

Feb. 01/05

Aviation Recorders

Marine Systems

The AIS Main System Menu contains the following options:

F Logon / Logoff
F System Information and Config
F Vessel / Voyage Setup
F Antenna Position Setup
F View Alarm Status
F View General Status
F View Down-Time Log
F View Safety Text Log
F Set AIS Channels
F Edit Channel Mgmt Settings
F Change Password
F Set Baud Rates
F LCD Viewing Angle

NOTE

: Figure 2–4 shows the AIS Main System Menu screen as it

appears as the user initially enters this menu. Not shown is
the Logon option.

Figure 2–4. AIS Main System Menu

2.1.4.2 Logon / Logoff Screen

Feb. 01/05

Passwords allow the user to change the information contained within the AIS Trans­ponder. Users with an Administrative password can change any of the information

Initial Issue165M0601-00

Page 2–9

Aviation Recorders

Marine Systems

contained within the AIS Transponder; however, users with a User password, cannot
change the MMSI number, IMO number, Name of the ship, Call Sign, passwords, or
anything contained in the Channel management screen.

Press FNC → NAV button from any menu and use the up (↑) or down (↓) arrow
keys.

This screen will appear prior to entry of any menu besides the NAV menu. After en­tering the proper password, press ESC to continue.

Table 2–1. ProTec AIS Default Passwords

Default Passwords

Administrative L3AIS

User L3USR

Table 2–2. Password Type Menu Screen Access

Menu Item Read Access Write Access Comments

Logon - Password Entry G, U, A G, U, A

System Info and Config G, U, A A

Vessel/Voyage Setup G, U, A U, A Update of MMSI, IMO No,

Call Sign, and Name of

Ship Limited to A

Antenna Position Setup G, U, A A

View Alarm Status G, U, A Not Applicable

View General Status G, U, A Not Applicable
View Down-Time Log G, U, A Not Applicable
View Safety Text Log G, U, A Not Applicable

Set AIS Channels G, U, A A

Edit Chan Mgmt Settings G, U, A U, A

Change Password G, U, A A

Set Baud Rates G, U, A A

Adj LCD Viewing Angle G, U, A A

(G)eneral Access, (U)ser Access, (A)dmin Access

Initial Issue 165M0601-00
Page 2–10

Feb. 01/05

Aviation Recorders

Marine Systems

To log on perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Select Logon, and press the ENT key. The System Password Entry screen will

appear.
(4) Press the ENT key, and enter the password, and press the ENT again.
(5) Press the ESC key to return to the AIS Main System Menu screen.

To log off from any menu other than the UAIS Main System menu perform the
following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Select Logoff, and press the ENT key. The user is now logged off of the AIS

Transponder.

Figure 2–5. Password Entry Screen

2.1.4.3 System Information and Configuration

Press FNC → CLR button from any menu.
Powerup: Number of power ups and length of current power up.

ChkSums: Checksums of internal processors. Used for information and

troubleshooting.

NOTE

Feb. 01/05

: To be compatible with older versions of NMEA 0183 (ver-

sion 1.X and lower) the checksum requirement must be dis­abled. This can be done by setting the ChksmRqd (Check­sum Required) field to “NO” by using the up and down ar­rows.

Initial Issue165M0601-00

Page 2–11

Aviation Recorders

Marine Systems

SW Rev: Software Revision of transponder.
Pwd Rqrd: Password required. Determines whether or not a password is

required at power up.
Al Popup: Alarm Popups. Yes = popups enabled, No = disabled.
Scrn Tmt: Screen Timeout. Yes = default to NAV screen after 30 seconds,

No = disable
LR RsPns: Long Range Response. All long range requests cause an alarm to be

displayed.
IEC Trc: IEC Trace. Turns on up to five levels of troubleshooting messages,

0 = off.
VDL Trc: VDL Trace. Turns on up to five levels of troubleshooting messages,

0 = off.

To enter System Information and Configuration information, perform the fol­lowing:

(1) Press the FNC key, press the NAV key. The AIS Main System Menu screen will

appear.

(2) Using the down Arrow key, select System Info and Config, and press the ENT

key. (Refer to Figure 2–6.)
(3) Using the arrow keys, highlight an entry point, and press the ENT key.
(4) Enter the data by using the arrow keys, press the ENT key, and move to the

next data entry point.
(5) Press the ESC key to return to the AIS Main System Menu screen.

Figure 2–6. System Information and Configuration Screen

Initial Issue 165M0601-00
Page 2–12

Feb. 01/05

2.1.4.4 Vessel/Voyage Setup

The Vessel/Voyage Setup screen allows the user to enter the following information,
which is required to be completed during the installation of the AIS.

MMSI: Maritime Mobile Service ID: Maximum nine (9) numbers.
NavS: Navigational Status:

UNDFND Undefined
UW-ENG Underway Using Engine
AANCHR At Anchor
NOCMD Not Under Command
RMANUV Restricted Maneuverability
CBDRFT Constrained by Draught
MOORED Moored
AGRND Aground
FISHNG Engaged in Fishing
SAILNG Underway sailing

IMO#: IMO Number: Official IMO designation ID for Vessel. 0 = default =

not available.
MaxD: Maximum Draft: Maximum draft in meters from 0.1 to 25.5 meters.
CSgn: Radio Call Sign: Maximum seven (7) characters.
Type: Vessel Type: (Refer to Table 2–3.)
Name: Vessel Name: Any alphanumeric characters up to 20 in length.
Dest: Destination. The current destination of this voyage.
POB: People on Board. The number of persons currently on board the

vessel.
ETA: Estimated Time of Arrival.

Aviation Recorders

Marine Systems

Feb. 01/05

To enter vessel and voyage information, perform the following:

(1) Press FNC and then NAV to get to the AIS Main System Menu screen. (Refer

to Figure 2–4.)

(2) Use DOWN ARROW key to scroll down to Vessel Voyage Setup. Press ENT.

Use the following instructions to enter data for Steps (3) through (9). (Refer to
Figure 2–7.)

F Use the LEFT, RIGHT, UP, DOWN arrows to navigate between fields.
F Use the ENT key to select a field to enter.
F Use the alphanumeric keypad to enter the required data into the field.
F Use ENT to save the data entered into the field.

Initial Issue165M0601-00

Page 2–13

Aviation Recorders

Marine Systems

(3) Enter Data in MMSI Field ( MMSI ).
(4) Enter Data in Navigational Status Field ( NavS ).
(5) Enter Data in IMO Number Field ( IMO# ).
(6) Enter Data in Maximum Sailing Draft Field ( MaxD ).
(7) Enter Data in Radio Callsign Field ( CSgn ).
(8) Enter Data in Vessel Type Field ( Type ). (Refer to Table 2–3.)
(9) Enter Data in Vessel Name Field ( Name ).

NOTE

: Destination (Dest), ETA, and POB are optional fields and

can be entered at this time if known.

(10) Press ESC to return to the AIS Main System Menu screen.

Figure 2–7. Vessel Data Setup

Initial Issue 165M0601-00
Page 2–14

Feb. 01/05

Aviation Recorders

8

Marine Systems

Table 2–3. Vessel Type Codes

Special Crafts Other Ships

First Digit Second Digit

50 Pilot Boats
51 Search and Rescue Vessels
52 Tugs
53 Port Tenders
54 Vessels with anti-pollution

facilities or equipment
55 Law Enforcement Vessel
56 Spare - for assignment to

local vessels

57 Spare - for assignment to

local vessels

58 Medical Transport (as defined

in the 1949 Geneva
Conventions)

59 Spare - Ships according to

RR Resolution No. 1
(Mob-83)

DG: Dangerous Goods
HS: Harmful Substances
MP: Marine Pollutants

1 reserved for

future use
2 WIG
3 See Below
4 HSC
5 See Special

Crafts
6 Passenger Ships
7 Cargo Ships
8 Tankers
9 Other types of

ships

First Digit Second Digit

3 Vessel

0 All ships of this type
1 Carrying DG HS or MP

IMO hazard or pollutant
category A

2 Carrying DG HS or MP

IMO hazard or pollutant
category B

3 Carrying DG HS or MP

IMO hazard or pollutant
category C

4 Carrying DG HS or MP

IMO hazard or pollutant

category D
5 Reserved for future use
6 Reserved for future use
7 Reserved for future use
8 Reserved for future use
9 No additional information

0 Fishing
1 Towing
2 Towing and length of the

tow exceeds 200 m or

breadth exceeds 25 m
3 Engaged in dredging or

underwater operations
4 Engaged in diving

operations
5 Engaged in military

operations
6 Sailing
7 Pleasure craft
8 Reserved for future use
9 Reserved for future use

Feb. 01/05

Initial Issue165M0601-00

Page 2–15

2.1.4.5 Channel Management

This page displays all of the relevant information regarding the regions established
either by manual entry, a governing authority’s VTS station broadcasting region infor­mation, or another Universal AIS broadcasting the data. These regions determine
the authorized operating frequencies for the coverage area. The user can set these
different configurations at the initial setup; however, the L-3 ProTec Transponder will
acquire the data for a new region once it has entered the region.

Edit Chan Mgmt Settings

Aviation Recorders

Marine Systems

NE: N 91’00.0 E 181’00.0
SW: N 91’00.0 E 181’00.0
ChA: 2087 Bw0 ChB:2088 Bw0
PLvl:H Md:TxRxAB TZn: Nm
Src:Intrnl MMSI:--------­FNC: ← Prv. → Nxt. FNC Save

Press FNC → NAV button from any menu and use the up (↑) or down (↓) arrow
keys.

NE: Indicates the North East corner of the region.
SW: Indicates the South West corner of the region.
ChA: Channel Frequency for Channel A.
Bw: Bandwidth 0 = 25 kHz, 1 = 12.5 kHz.
ChB: Channel Frequency for Channel B.
Bw: Bandwidth 0 = 25 kHz, 1 = 12.5 kHz.
Plvl: Power Level H = high power (12.5 Watts), L = low power (2 Watts)
Md: TxRxAB, TARxAB, TBRxAB, RxAB, RAOnly, and RBOnly.
TZn: Transition zone size, defined in nautical miles.
Src: Intrnl = Internal command, Extrnl = External command

(governing authority).

MMSI: MMSI of the authority that has issued the command (blank if internal).

For the initial setup perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “Edit Chan Mgmt Settings”, and press the

ENT key. The Channel Management Table Entry screen will appear. (Refer to
Figure 2–8.)

Initial Issue 165M0601-00
Page 2–16

Feb. 01/05

Aviation Recorders

Marine Systems

(4) Use the up and down arrow keys and the left and right arrow keys to highlight

an entry point, and press the ENT key.
(5) Enter the data, press the ENT key, and move to the next data entry point.
(6) After all of the data is entered for that region, press the FNC key twice and then

press the ENT key to save the data.
(7) Press the ESC key to return to the AIS Main System Menu screen.

Figure 2–8. Channel Management Settings Screen

2.1.4.6 Antenna Position

This setup provides for data entry of location of the antenna for each of the GPS an­tennas required for the system. The ‘Int’ refers to the antenna dedicated to the AIS’
internal GPS and the ‘Ext’ refers to the antenna dedicated to the ship’s external
GPS. The screen layout is as follows:

Figure 2–9. Antenna Position Screen

Feb. 01/05

Initial Issue165M0601-00

Page 2–17

Aviation Recorders

Marine Systems

To enter the antenna position, perform the following:

(Refer to Figure 2–9 and Figure 2–10)
(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “Antenna Position Setup”, and press the ENT

key. The Antenna Position Reference screen will appear.
(4) Use the up and down arrow keys and the left and right arrow keys to highlight

an entry point, and press the ENT key.
(5) Enter the data, press the ENT key, and move to the next data entry point.
(6) Press the ESC key to return to the AIS Main System Menu screen.

NOTE

: The INT antenna is the antenna dedicated to the GPS re-

ceiver internal to the AIS. The EXT antenna is the antenna
dedicated to the ship’s dGPS. The dimensions are to be
entered in Meters and are defined as follows: (Refer to
Figure 2–10.)

A Distance in meters from Forward

Perpendicular (FP)

B Distance in meters from After

Perpendicular (AP)

C Distance in meters inboard from

port side

D Distance in meters inboard from

starboard side

Figure 2–10. Antenna Position Measurements

A

CD

B

Initial Issue 165M0601-00
Page 2–18

Feb. 01/05

2.1.4.7 Text Messaging

Text messages include specific addressed messages, broadcast messages, and
safety messages. To send a particular type of message perform the steps as de­scribed below:

MMSI: Maritime Mobile Service ID: Nine digit unique identification number
Mode: Mode:

Broadcast: 0 = Default
Addressed: Enter MMSI

TXch: Transmit Channel:

Auto Select: Default
ChanA: Send on channel A
ChanB: Send on channel B
Chan A and B: Send on both channels

Text: Safety Message Text to be Sent: Up to 156 alphanumeric characters

To send an addressed message, perform the following:

Aviation Recorders

Marine Systems

(1) Press MSG key (From any menu).
(2) Ensure the MMSI is highlighted.
(3) Press the ENT key, and enter the MMSI number of the ship to be addressed,

press the ENT key.
(4) Press the down arrow key to highlight “Mode” and press the ENT key.
(5) Using the down arrow key, highlight “Addressed”, and press the ENT key.
(6) Using the down arrow key, highlight the text portion of the screen, press the

ENT key, and type in the message.
(7) Press the MSG key to broadcast the message.

To broadcast a message, perform the following:

(1) Press MSG key.
(2) Verify that the MMSI number is a zero.
(3) If the MMSI is not a zero, press the down arrow key until the MMSI is high-

lighted.

Feb. 01/05

(4) Press the ENT key, and press the CLR key.
(5) Press the down arrow key to highlight “Mode” and press the ENT key.

Initial Issue165M0601-00

Page 2–19

Aviation Recorders

Marine Systems

(6) Using the down arrow key, highlight “Broadcast”, and press the ENT key.

: Unless instructed, leave TxCh to Auto Select.

NOTE

(7) Using the down arrow key, highlight the text portion of the screen, press the

ENT key, and type in the message.
(8) Press the MSG key to broadcast the message.

: “Successful Transmission” should be displayed at the

NOTE

bottom of the screen.

Figure 2–11. Safety Text Message

2.1.4.8 View Safety Text Log

This log shows any safety text messages that have been received during the pres­ent power up.

To review Safety Text Messages that have been received,
perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “View Safety Text Log”, and press the ENT

key. The Safety Text Review screen will appear.
(4) Use the left and right arrows to view previous or next messages respectively.
(5) Press the ESC key to return to the AIS Main System Menu screen.

Initial Issue 165M0601-00
Page 2–20

Feb. 01/05

Figure 2–12. Safety Text Review Screen

2.1.4.9 Change Password

Aviation Recorders

Marine Systems

NOTE

: Only users with an administrative password can change

passwords

To change the transponder’s access password, perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select Change Password, and press the ENT key.

The System Password Change screen will appear.
(4) Enter the new password, and press the ENT key.
(5) Enter the new password in the Verify field, and press the ENT key. This will

save the new password.
(6) Use the Up (↑) and Down (↓) keys too select type of Access, and press the

ENT key.

PassWd: New password.
Verify: Confirmation of new password
Access: ADMIN = administrator, USER = user.

Feb. 01/05

(7) Press the ESC key to go back to the AIS Main System Menu screen.

Initial Issue165M0601-00

Page 2–21

Figure 2–13. Password Change Screen

2.1.4.10 System Alert Screen

This screen will appear when a system alert is received. Press the ENT key to ac­knowledge the alert.

Aviation Recorders

Marine Systems

2.1.4.11 Alarm Status

The ProTec AIS unit does not support a “General Failure” alarm since all detected
failures are reported with an explicit discrete alarm message. Refer to Table 2–4 for
an explanation of the alarm codes. Table 2–4 explains the codes that are referenced
on this page.

Figure 2–14. System Alert Screen

Initial Issue 165M0601-00
Page 2–22

Feb. 01/05

Aviation Recorders

Marine Systems

To review Safety Text Messages that have been received, perform the
following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “View Alarm Status”, and press the ENT key.
(4) Use the up (↑) or down (↓) arrow keys to view previous or next messages re-

spectively.
(5) Press the ESC key to return to the AIS Main System Menu screen.

AA: Alarm is active and has been acknowledged.
AV: Alarm is active and has not been acknowledged.

Figure 2–15. Alarm Status Screen

Feb. 01/05

Initial Issue165M0601-00

Page 2–23

Aviation Recorders

Marine Systems

Table 2–4. Integrity Alarm Conditions Signalled Using ALR Sentence Formatter

As per IEC 61193–2

Reaction of the system to the alarm

Alarm’s description

text

Alarm ID

exceeded

Alarm condition

Alarm condition

threshold exceeded

Text Identifier

AIS: Tx malfunction A V 001 Stop transmission
AIS: Antenna VSWR exceeds limit A V 002 Continue operation
AIS: Rx channel 1 malfunction A V 003 Stop transmission on affected channel
AIS: Rx channel 2 malfunction A V 004 Stop transmission on affected channel
AIS: Rx channel 70 malfunction A V 005 Stop transmission on affected channel

condition threshold exceeded

AIS: general failure A V 006 Stop transmission
AIS: MKD connection lost A V 008 continue operation with “DTE” set to “1”
AIS: external EPFS lost A V 025 continue operation
AIS: no sensor position in use A V 026 continue operation
AIS: no valid SOG information A V 029 continue operation using default data
AIS: no valid COG information A V 030 continue operation using default data
AIS: Heading lost/invalid A V 032 continue operation using default data
AIS: no valid ROT information A V 035 continue operation using default data

2
2

2
2

AIS: IEC Com Error A V 051 indicates miswired NMEA port, continue

operation

If applicable

1

When so configured

2

1

Initial Issue 165M0601-00
Page 2–24

Feb. 01/05

2.1.4.12 General Status Screen

This menu page displays a table of events describing the general status of the oper­ating unit along with a time stamp of when each automatic entry was made.
Table 2–5 explains the codes that are referenced on this page. Refer to Table 2–5
for an explanation of the General Status codes.

To review the ProTec General status, perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “View General Status”, and press the ENT

key. The General Status screen will appear. (Refer to Figure 2–16.)
(4) Press the ESC key to return to the AIS Main System Menu screen.

Aviation Recorders

Marine Systems

Feb. 01/05

Figure 2–16. General Status Screen

Initial Issue165M0601-00

Page 2–25

Aviation Recorders

Marine Systems

Table 2–5. Sensor Status Indications Signalled Using TXT Sentence Formatter

As per IEC 61193–2

Text Message

Text Identifier

AIS: UTC clock lost 007 Continue operation using indirect or semaphore

synchronization
AIS: external DGNSS in use 021 Continue operation
AIS: external GNSS in use 022 Continue operation
AIS: internal DGNSS in use (beacon) 023 Continue operation
AIS: internal GNSS in use (message 17) 024 Continue operation
AIS: internal GNSS in use 025 Continue operation
AIS: external SOG/COG in use 027 Continue operation
AIS: internal SOG/COG in use 028 Continue operation
AIS: Heading valid 031 Continue operation
AIS: Rate of Turn Indicator in use 033 Continue operation
AIS: Other ROT source in use 034 Continue operation

Reaction of the system

AIS: Channel management parameters changed 036 Continue operation

Initial Issue 165M0601-00
Page 2–26

Feb. 01/05

2.1.4.13 Down-Time Log

This screen shows the date, time and duration that the transponder has been pow­ered off.

To review Down-Time Log, perform the following:

(1) Press the FNC key.
(2) Press the NAV key. The AIS Main System Menu screen will appear.
(3) Using the down Arrow key, select “View Down-Time Log”, and press the ENT

key.
(4) Use the down arrow to view the down times that are further down the list.
(5) Press the ESC key to return to the AIS Main System Menu screen.

Aviation Recorders

Marine Systems

Figure 2–17. Down-Time Log Screen

2.1.4.14 LCD Viewing Angle Adjustment

This menu page allows the user to adjust the contrast of the LCD display on all
pages and screens.

Use the up (↑) or left (←) arrow keys to decrease the viewing angle.
Use the down (↓) or right (→) arrow keys to increase the viewing angle.

To enter adjust the LCD viewing angle, perform the following:

(1) Press the FNC key, press the NAV key. The AIS Main System Menu screen will

appear.
(2) Using the down Arrow key, select Adj LCD Viewing Angle, and press the ENT

key. The LCD Viewing Angle Adjust screen will appear. (Refer to Figure 2–18.)
(3) Use the Left or Up arrows to decrease the viewing angle, or use the Right or

Down arrows to increase the viewing angle.

Feb. 01/05

Initial Issue165M0601-00

Page 2–27

(4) Press the ESC key to return to the AIS Main System Menu screen.

Figure 2–18. LCD Viewing Angle Adjust Screen

2.1.4.15 Baud Rate Setup

IEC Sensor Input Channels: Valid baud rates for CH1, CH2, and CH3 - 4800,

IEC Bidirectional Channels: Valid baud rates for CH4, CH5, CH8, and Pilot

Aviation Recorders

Marine Systems

9600, 19200, and 38400. (Default = 4800)

(front panel) are 4800, 9600, 19200, 38400.
(Default = 38400)

To setup the Baud Rate, perform the following:

(1) Press the FNC key, press the NAV key. The AIS Main System Menu screen will

appear.
(2) Using the down Arrow key, select Set Baud Rate, and press the ENT key. The

Baud Rate Setup screen will appear. (Refer to Figure 2–19.)
(3) Using all of the arrow keys, highlight an entry point, and press the ENT key.
(4) Enter the data, press the ENT key, and move to the next data entry point.
(5) Press the ESC key to return to the AIS Main System Menu screen.

Figure 2–19. Baud Rate Setup Screen

Initial Issue 165M0601-00
Page 2–28

Feb. 01/05

2.1.4.16 Set AIS Channels

This menu page allows the administrator to set the default, Open Seas, transmit and
receive frequencies as well as the operating power level.

AIS Channel A: 2087 should be default (Channel 87B, 161.975 MHz)
AIS Channel B: 2088 should be default (Channel 88B, 162.025 MHz)
Power Level: Hi = high power, Lo = low power

To enter System Information and Configuration information, perform the fol­lowing:

(1) Press the FNC key, press the NAV key. The AIS Main System Menu screen will

appear.
(2) Using the down Arrow key, select Set AIS Channels, and press the ENT key.

The AIS Channel Setup screen will appear. (Refer to Figure 2–20.)
(3) Using all of the arrow keys, highlight an entry point, and press the ENT key.

Aviation Recorders

Marine Systems

(4) Enter the data, press the ENT key, and move to the next data entry point.
(5) Press the ESC key to return to the AIS Main System Menu screen.

Figure 2–20. AIS Channel Setup Screen

Feb. 01/05

Initial Issue165M0601-00

Page 2–29

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 2–30

Feb. 01/05

Aviation Recorders

Marine Systems

SECTION 3

ProTec

AUTOMATIC IDENTIFICATION SYSTEM (AIS)

INSTALLATION

Feb. 01/05

Initial Issue165M0601-00

Page 3–1

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 3–2

Feb. 01/05

3.1. Installation

The L-3 ProTec Transponder has been designed for easy installation into any exist­ing bridge layout. Figure 3–1 gives a general representation of the system layout.
Installation can be broken down into 5 distinct operations as follows:

F Transponder

F VHF Antenna

F GPS Antenna

F Data Interface

F Powerup and Configuration

Each operation will be discussed in detail below. In regards to 3rd part components
such as VHF and GPS antennas and Gyro interfaces, it is suggested that the
installation procedures suggested by the manufacturer be followed in lieu of these
procedures.

Aviation Recorders

Marine Systems

ProTec AIS Installation

VHF Antenna

150M-W2VN

communications

AUTOMATIC IDENTIFICATION SYSTEM

TRANSPONDER UNIT

Junction

(Optional)

GPS

Box

Power

24VDC - 10 Amp

STATUS

ON / OFF / DIM

PILOT

IEC 61162 HDG, SOG, COG, ROT, POSN

AIS DATA

AIS DATA

AIS DATA

(Optional)

PILOT/PC

IEC 61162 HDG, ROT

POSN, SOG, COG

SHIP

SENSORS

RADAR

ECDIS

PILOT/PC

Feb. 01/05

24 VDC

Figure 3–1. AIS Transponder Interconnection Diagram

Initial Issue165M0601-00

Page 3–3

3.1.1. Transponder

The L-3 ProTec is a single box design which is easily installed into any existing
bridge layout. The compact design requires minimal clearance (refer to Section 4
Figure 4–1 and Figure 4–2) and can be mounted in a trunion bracket or mounted
flush using the available flush–mount bracket.

F Mount the transponder in a position which provides easy access to the key-

board and display.

F If using the trunion bracket, the mount itself may be used to mark the screw

holes on the mounting surface. When locating the transponder, consider that

the IMO mandates that the AIS keyboard and display be easily accessed from

a navigable position on the bridge.

F If used, Mount the transponder in the trunion utilizing the trunion knobs pro-

vided, otherwise mount transponder in flush mount bracket.

F Locate and mount the terminal block or junction box in a position near the

transponder. The IEC cable provided with the unit is 100 inches (2.54 m) long.

Locate the terminal block in a fashion which allows for easy access to the termi-

nals for making the connections to required input/output feeds.

Aviation Recorders

Marine Systems

F When connecting the power cable, the “Red“ lead goes to positive and “Black“

to negative. Ensure proper ground wire attachment to ships structure. The oth-

er two leads can be used to connect to an external alarm system. This alarm

system can provide an audio and/or visual alarm in the event of an internal sys-

tem malfunction, or if the AIS loses power or is turned off.

Install the transponder, and complete the AIS Installation Checklist found it Ap­pendix A, as follows:

(1) Mount the transponder. (In trunion, if used.)

NOTE

: A junction box may be used in place of the terminal block.

(2) Locate an ideal position for the terminal block.

F Protected from weather.

F Protected from high heat.

F Protected from accidental contact with conductive material.

F Within 100 inches (2.5 m) of the transponder due to IEC data cable length.

F Grounding of terminal block to ship’s structure.

F Need to feed cables from navigational sensors.

(3) Mount terminal block or junction box with self tapping screws.
(4) Ground terminal block to ship’s structure using grounding cable provided.

Initial Issue 165M0601-00
Page 3–4

Feb. 01/05

Aviation Recorders

Marine Systems

For steps (5) through (9) refer to Paragraph 3.1.2.

(5) Connect the IEC cable to data port on back of Transponder.

NOTE

: If an interface adapter must be used to convert either Gyro

output and/or dGPS output to IEC (NMEA 0183) standard,
the output from the interfaces should be located as near as
possible to the sending unit (Gyro or dGPS) and the output
cables led to the IEC terminal block.

(6) Lead data cables from Gyrocompass data output port to terminal block.
(7) Lead data cables from ship’s DGPS data output port to terminal block.
(8) Feed the IEC data cable to the terminal block.

NOTE

: The metallic shielding of each of the three shielded cables

containing the twisted pairs must be connected to the ter­minal block using the shield drain wire connected to the
shield. The shields from Cables 1 and 2 do not have to be
connected. The shield from Cable 3 must be connected to
TB pin ID 30, which is grounded to the ship’s hull.

(9) Connect each wire in the IEC data cable to the terminal block. (Refer to

Table 3–2 and Figure 3–2.)
(10) Connect power cable to transponder. (Refer to Figure 3–3.)

Feb. 01/05

NOTE

: Due to the stringent transmit attack and release times spe-

cified in ITU 1371, a robust power source is required for
proper operation. Recommended current ratings for power
sources are:

24 VDC – 10 Amp
The transponder may operate improperly if the power
source does not have the recommended minimum current
ratings.

(11) Connect power cable to ships 24 Vdc, 10 Amp minimum power supply is rec-

ommended. ( Red + , Black – )
(12) Connect the other two leads to external alarm system if desired.
(13) If an external display system is to be connected, lead the pilot port cable from

the display unit to the terminal block. (Refer to Figure 3–4.)

CAUTION

: Do not power up the unit at this time.

(14) Go to Paragraph 3.1.3. for VHF antenna installation steps.

Initial Issue165M0601-00

Page 3–5

Aviation Recorders

Marine Systems

3.1.2. Connecting the IEC Data Interface Cable

The AIS Transponder receives data from the ship’s sensors through a data interface
cable which is connected to the back of the transponder through a data port. IMO
regulations require that the ship heading, speed–over–ground (SOG), course–over–
ground (COG), rate–of–turn (ROT) and position be transmitted from the AIS. In or­der to meet these requirements, the L-3 ProTec provides six (6) data channels to al­low the AIS to be connected to the ships Gyrocompass and DGPS system in accor­dance with NMEA 0183.

The L3 AIS is shipped with one IEC interface cable P/N 024M0599-00. All IEC/Pilot
communications with the AIS is referenced with the L-3 ProTec considered the
“MASTER” in that transmit data is OUTPUT from the L-3 ProTec, and receive data is
INPUT to the L-3 ProTec. All channels are isolated with individual shielded twisted
pair cables. For more inforomation, refer to Figure 4–3. The IEC connector (J4) is
located on the back of the L-3 ProTec. (Refer to IEC 61993–2 annex D. and NMEA

0183) IEC channels 1, 2, and 3 are RECEIVE ONLY sensor inputs. Differential data
(RS422) is received on each of these channels and internally converted to TTL for
input to a standard UART. Channels 4, 5, and 8 are all RS422 interfaces. IEC chan­nels 4 and 5 are TRANSMIT/RECEIVE channels for AIS data. IEC channel 8 is the
AIS long range port.

3.1.2.1 Data Channels

Data enters the Transponder through six (6) available data channels. Three data
channels are low speed unidirectional (4800 baud) channels suitable for data input
to the transponder. The other three data channels are high speed bidirectional
channels (38400 baud) which support both input and output to/from the transponder.

The channels are described below by channel number and type. Suggested uses of
each channel are provided but it is not required that a user define the channels in
this fashion. The internal software in the transponder is able to distinguish the type
of data feeding from each channel provided all data streams subscribe to the IEC
61162 format (NMEA 0183).

Table 3–1. Data Channels

Channel BAUD Type Suggested Use

1 4800 Receive dGPS (COG, SOG, LAT, LON)
2 4800 Receive Rate of Turn
3 4800 Receive Heading (Gyro)
4 38400 Transmit / Receive PC Application
5 38400 Transmit / Receive ARPA/ECDIS
8 38400 Transmit / Receive Long Range Tracking (Dedicated)

Initial Issue 165M0601-00
Page 3–6

Feb. 01/05

Aviation Recorders

Marine Systems

The IEC I/O electrical characteristics are as follows:

The “A”, “B” and “C” leads are as defined in IEC 61162–1, 61162–2 and V.11.
“A” and “B” are both signal leads with “C” being the effective return for both the “A”

and “B” leads.
“A” and “B” operate differentially to each other.
High–level output voltage is 4V minimum from the “A” lead to the “C” lead and from

the “B” lead to the “C” lead. Low–level output voltage is 0.4V maximum.
Recommended maximum output current capability is 110mA.
Input is differential from “A” to “B”. Effective input resistance is 4.9k ohm across “A”

and “B” and 96k from “A” or “B” to “C”.
Differential input voltage threshold is 250mV maximum.
Inputs will meet the requirement of withstanding +/–15V between any two leads, “A”,

“B” or “C”.

3.1.2.2 Data Cable

Each transponder will come shipped with an 100 inches long IEC data cable (P/N
024M0599-00) terminated at one end by a J4 connector. (Refer to NO TAG,
Figure 4–3 and Figure 3–2.) The IEC data cable is shielded and contains three
smaller diameter cables, each of which is also shielded. Each of these smaller
cables contains three shielded twisted pairs (STP) each and each STP includes a
drain wire. A low speed unidirectional (input only) data channel (4800 Kbs) is carried
through one STP, and a high speed bidirectional (input/output) data channel (38400
Kbs) will require two pairs.

3.1.2.3 Terminal Block

A terminal block is the preferred installation method for completing the data interface
(NMEA) because data output from a ship sensor ( dGPS, ROT, Gyro) may not sub­scribe to a standard pinout definition. As such, each installation may require that
the installer identify and cross reference the sensor pinouts with the IEC pinouts,
which is a well defined standard pinout description. The terminal block allows for
greater flexibility in completing the connection to the ship’s sensors.

Feb. 01/05

Initial Issue165M0601-00

Page 3–7

Aviation Recorders

Marine Systems

A junction box may be made available which terminates the data cable on the termi­nal block and provides serial connectors to allow for easy connection to ship sen­sors. However, the installer will need to confirm the pinout definitions for the sensor
outputs before completing the connection correctly.

Initial Issue 165M0601-00
Page 3–8

Feb. 01/05

Aviation Recorders

Marine Systems

11

12

13

CH2

GND

CH2

RXB

CH2

RXA

10

23

24

14

CH3
RXA

CH4
TXB

CH8

GND

CH1

GND

22

29

25

15

RX

A
B

RX

RATE OF TURN

A
B

RX

A
B

POSITION

NMEA 0183

RS 422 CH 1

NMEA 0183

RS 422 CH 2

HEADING

NMEA 0183

RS 422 CH 3

RX

TX

TX

TX

RX

RX

A
B

A
B

A
B

A
B

A
B

A
B

PC/EXT APP .

NMEA 0183

RS 422 CH 4

ECDIS/ARPA

NMEA 0183

RS 422 CH 5

LONG RANGE

NMEA 0183

RS 422 CH 8

1
2
3

4
5
6

7
8
9

10

11
12
13

14
15
16

17
18
19

20

21
22
23

24
25
26

27
28
29

30

31

spkr

+

CH8
TXA

CH8

RXA

CH1
RXA

20

27

17

8

CH3
GND

CH4

721

RXA

CH5
TXB

spkr

–

19

CH5
TXA

CH4

6

RXA

CH4

5

GND

18

CH8
TXB

CH5

3

RXB

CH5

2

GND

CH5

4

RXA

CH3

9

RXB

CH4
TXA

28

26

CH8

RXB

16

CH1
RXB

1

1

BLACK

15

RED

14

SHIELD

CABLE GROUP 1

7

BLACK

6

GREEN

5

SHIELD

13

BLACK

12

BLUE

11

SHIELD

10

BLACK

9

WHITE

8

SHIELD

CABLE GROUP 2 CABLE GROUP 3

4

BLACK

3

BROWN

2

SHIELD

16

BLACK

25

YELLOW

24

SHIELD

22

ORANGE

23

BLACK

21

SHIELD

19

GREEN

20

RED

18

SHIELD

26

WHITE

17

RED

29

SHIELD

Feb. 01/05

Figure 3–2. IEC Data Cable External Wiring Diagram

NOTE: Each shielded twisted pair of wires is shielded as well by

metallic shielding and a drain wire connected to this shield­ing is to be connected in accordance with Table 3–2.

Initial Issue165M0601-00

Page 3–9

Aviation Recorders

Cable

Group1

Cable

Group 2

Cable

Group 3

Marine Systems

Table 3–2. IEC Cable and Junction Box Pinouts

Cable STP Wire Color IEC Pin TB Pin

1 Black 1 1

Red 15 2

Shield 14 3

2 Black 7 4

Group1

3 Black 13 7

4 Black 10 11

5 Black 4 14

Group 2

6 Black 16 17

7 Orange 22 21

8 Green 19 24

Group 3

9 White 26 27

Green 6 5

Shield 5 6

Blue 12 8

Shield 11 9

Shield Drain NC 10

White 9 12

Shield 8 13

Brown 3 15

Shield 2 16

Yellow 25 18

Shield 24 19

Shield Drain NC 20

Black 23 22

Shield 21 23

Red 20 25

Shield 18 26

Red 17 28
Shield 29 29
Shield NC 30

Initial Issue 165M0601-00
Page 3–10

Feb. 01/05

Aviation Recorders

220VDC/ 2ADC/ 60W

Marine Systems

Line Color Name Description Function Power

1 Black B(–) Battery, negative Power return ––
2 Red B(+) Battery, positive Power input +24VDC/10A

3 Green BIIT 1 BIIT relay, terminal 1 BIIT Status Contact closure
4 White BIIT 2 BIIT relay, terminal 2

Feb. 01/05

Signal Table for “Cable Assembly, Power/BIIT, External”

(nominal voltages)

maximum

Figure 3–3. AIS Transponder Power Cable

Initial Issue165M0601-00

Page 3–11

Aviation Recorders

Marine Systems

4

2

7

5

3

8

6

J1 Pilot Port Connector

NOTE: A Digital Volt Meter may be used to determine the “A” and “B” polarities. A

negative voltage when referenced to ground would indicate “A”, while a positive
voltage when referenced to ground would indicate “B”.

91

P2 DB9 Connector

72 in.  2 1.8 m  0.05 m

Figure 3–4. Pilot Port Cable

Table 3–3. Pilot Port Pinout

J1 Pin Name Description Pair Color P2 Pin

1 PILOT_TXA RS4–22 Compliant Output A Blue 2
2 GND Signal/Power 0 Volt Reference Black 5
3 + 8V + 8.0 Volt ( 5%) Output Used to Power External

Test Equipment. External Equipment should be

Current Limited to 300mA
4 PILOT_TXB RS–422 Compliant Output B Black 7
5 PILOT_RXA RS–422 Compliant Input A Green 8
6 PILOT_RXB RS–422 Compliant Input B Black 3
7 TRACE/BOOT_TX TTL–Level RS–232 Serial Output (Trace Message/

Bootload Output)
8 RX_SINAD TDMA / DSC FM Discriminator Output used to

Test Receiver Performance during Special Test

Modes.
9 NO CONNECT Not Used

Initial Issue 165M0601-00
Page 3–12

Feb. 01/05

Aviation Recorders

3.1.3. Installing the VHF Antenna

Installation of a VHF antenna is as important to reliable communications as the
transceiver itself. It is recommended that a high quality antenna be purchased from
an established source and that all manufactures instructions be followed with partic­ular attention to cable routing and connector installation. Some important consider­ations in antenna installation are:

F In general, antennas should be located as high as practical on the vessel

and separated as much as possible from each other.

F The VHF antenna should be placed in an elevated position with a mini-

mum of 2 meters clearance from any construction that is made with con­ductive material. In addition, it should not be installed close to any large
vertical obstruction, and the VHF antenna should have a 360° line of sight
to the horizon.

F It is preferable that the VHF antenna is installed at least 3 meters away

from high power energy sources such as radar and other transmitting ra­dio antennas, and out of the transmitting beam.

Marine Systems

F There should not be more than one antenna on the same level. The AIS

VHF antenna should be mounted directly above or below the ship’s prima­ry VHF radiotelephone antenna, with no separation and with a minimum of
2 meters vertical separation. If the VHF antenna is located on the same
level as other antennas, the distance between them should be at least 10
meters.

To install the VHF antenna, perform the following:

(Refer to Figure 3–5 and Figure 3–6.)
(1) Position the antenna mounting bracket on a rigid and structurally sound sur-

face.

(2) Install the antenna on the antenna mount.

NOTE

: Use only high quality RG213/RG214 coaxial cable and keep

cable length as short as possible to reduce signal attenua­tion.

(3) Run the coaxial cable from the antenna to the transponder location.
(4) Trim cable to length leaving a few inches slack at the transponder.

Feb. 01/05

(5) Attach the connectors to the end of the coaxial cable.
(6) Connect the cables to the transponder. Soldering the connection is

recommended.

Initial Issue165M0601-00

Page 3–13

Aviation Recorders

Marine Systems

3.1.4. Installing the GPS Antenna

The correct installation of a GPS antenna is crucial to the operation of the trans­ponder because the internal transmission synchronization relies on the accuracy of
the time signal obtained from the GPS. It is recommended that a high quality GPS
antenna be purchased from an established source and that all manufactures instruc­tions be followed with particular attention to cable routing and connector installation.
Some important considerations in GPS antenna installation are:

F GPS antennas should be located to provide a clear, unobstructed view of

the sky.

F GPS signals can be affected by RADAR and SATCOM transmissions. As

such, GPS antennas should be positioned below and at least 5 meters
away from RADAR and SATCOM antennas and outside of the beam path.

F GPS signals can also be affected negatively by VHF and HF transmis-

sions, and the GPS antenna should be positioned at least 3 meters from
these types of antennas.

F The GPS antennas can be flat mounted onto any surface but it is recom-

mended that it be elevated from the deck surface (20–30 cm.) to prevent
ice or spray from negatively impacting the signal reception.

F Recently, it has been identified that certain makes/models of TV antennas

can drastically interfere with GPS reception. As such, the installer should
place the GPS antenna as far away from any shipboard TV antennas as
possible and confirm that any antennas used on board are not ones which
have been exhibited GPS interference problems.

To install the GPS antenna, perform the following:

(Refer to Figure 3–5 and Figure 3–6.)
(1) Position the antenna mounting bracket and/or antenna mast on a rigid and

structurally sound surface.

(2) Install the antenna on the antenna mount.

NOTE: Use only high quality RG213/RG214 coaxial cable and keep cable

length as short as possible to reduce signal attenuation.

(3) Run the coaxial cable from the antenna to the transponder location through an

existing throughhull.
(4) Trim cable to length leaving a few inches slack at the transponder.
(5) Attach the connectors to the end of the coaxial cable.
(6) Connect the cable to the transponder. Soldering the connection is

recommended.

Initial Issue 165M0601-00
Page 3–14

Feb. 01/05

RG213/RG214

COAXIAL

CABLE

100 FEET

30 METERS

Aviation Recorders

Marine Systems

Feb. 01/05

RG213/RG214

COAXIAL

CABLE

30 FEET

9 METERS

Figure 3–5. AIS Transponder Antenna Diagram

Initial Issue165M0601-00

Page 3–15

Aviation Recorders

Marine Systems

Power Consumption: 24 VDC

12 Watts nominal – 50 Watts max.

NOTES:

Back Panel Mating Connectors
VHF Antenna – L3 PN: PL–259 (Generic) (20 ft. cable supplied)

TELEGARTNER J01041A0004
Power BIIT – L3 PN: 063–98–02108 (6 ft. cable supplied)

CONXALL PN: 6382–4SG–522

GPS – L3 PN: TNC (Generic) (20 ft. cable supplied)
IEC NMEA – L3 PN: 063–98–02106 (100 in. cable supplied)

HIROSE PN: HR22–12TPD–20S

Figure 3–6. AIS Transponder Rear View

COG

DGPS

TERMINAL BLOCK

ECS

ARPAROT

IEC/NMEA DATA

OTHER

PILOT/PC

Initial Issue 165M0601-00
Page 3–16

Feb. 01/05

Aviation Recorders

Marine Systems

3.1.5. PowerUp and Configuration

At this stage you should have the following steps completed:

F Transponder installed and 10–28 Vdc power connected.

F VHF antenna installed and connected to transponder.

F GPS antenna installed and connected to transponder.

F IEC data cable installed and connected to transponder and terminal block.

The next step in the installation of the AIS transponder involves setup and configura­tion. A complete description of the interface and menu system is previously given in
Section 2. Figure 3–7 presents a view of the layout of the integral Minimum Key­board Display. This display includes a backlit LCD screen and keypad which allows
the user to enter the required static and voyage related vessel data. A complete de­scription of the user interface and menu system is presented in Section 2. The con­figuration process is summarized below.

communications

Display Window

Figure 3–7. AIS Transponder MKD

3.1.5.1 PowerUp the Transponder

The following procedure should be followed to carry out final setup and testing of the
AIS Transponder.

(1) Rotate the POWER button clockwise to turn on the transponder.

STATUS

ON / OFF / DIM

Status Light

Power/Dim

Pilot Port

Feb. 01/05

(2) Check the STATUS light for a steady light to ensure power is supplied to unit.

Initial Issue165M0601-00

Page 3–17

Table 3–4. ProTec AIS Default Passwords

Administrative L3AIS

User L3USR
(3) Press FNC and then the NAV button.
(4) Enter Password. Press ENT.
(5) Verify password entry confirmation message is present.
(6) Press ESC to continue.

3.1.5.2 Vessel / Voyage Setup

The Vessel Data Setup screen allows the user to enter the following information
which is required to be completed during the installation of the AIS.

Aviation Recorders

Marine Systems

Default Passwords

MMSI: Maritime Mobile Service ID: Maximum nine (9) numbers.
NavS: Navigational Status:

UNDFND Undefined
UW–ENG Underway Using Engine
AANCHR At Anchor
NOCMD Not Under Command
RMANUV Restricted Maneuverability
CBDRFT Constrained by Draught
MOORED Moored
AGRND Aground
FISHNG Engaged in Fishing
SAILNG Underway sailing

IMO#: IMO Number: Official IMO designation ID for Vessel. 0 = default =

not available.
MaxD: Maximum Draft: Maximum draft in meters from 0.1 to 25.5 meters.
CSgn: Radio Call Sign: Maximum seven (7) characters.
Type: Vessel Type: (Refer to Table 3–5.)
Name: Vessel Name: Any alphanumeric characters up to 20 in length.
Dest: Destination. The current destination of this voyage.
POB: People on Board. The number of persons currently on board the

vessel.
ETA: Estimated Time of Arrival.

NOTE

Initial Issue 165M0601-00
Page 3–18

: Destination, ETA, and POB are optional fields.

Feb. 01/05

Aviation Recorders

Marine Systems

Perform the following to setup the Vessel/Voyage data:

(1) If already on the UAIS Main System Menu screen, go to Step (2).

Otherwise, press FNC and then NAV to get to the UAIS Main System Menu
screen. (Refer to Figure 3–8.)

NOTE

: Figure 3–8 shows the UAIS Main System Menu screen as it

appears as the user initially enters this menu. Not shown is
the Logon option.

Figure 3–8. UAIS Main System Menu

Feb. 01/05

Initial Issue165M0601-00

Page 3–19

Aviation Recorders

Marine Systems

(2) Use DOWN ARROW key to scroll down to Vessel/Voyage Setup. Press ENT.

Figure 3–9. Vessel/Voyage Setup

Use the following instructions to enter data for Steps (3) through (9). (Refer to
Figure 3–9.)

F Use the LEFT, RIGHT, UP, DOWN arrows to navigate between fields.
F Use the ENT key to select a field to enter.
F Use the alphanumeric keypad to enter the required data into the field.
F Use ENT to save the data entered into the field.

(3) Enter Data in MMSI Field ( MMSI ).
(4) Enter Data in Navigational Status Field ( NavS ).
(5) Enter Data in IMO Number Field ( IMO# ).
(6) Enter Data in Maximum Sailing Draft Field ( MaxD ).
(7) Enter Data in Radio Callsign Field ( CSgn ).
(8) Enter Data in Vessel Type Field ( Type ). (Refer to Table 3–5.)
(9) Enter Data in Vessel Name Field ( Name ).

NOTE

: Destination (Dest), ETA, and POB are optional fields and

can be entered at this time if known.

(10) Press ESC to return to the UAIS Main System Menu screen.

Initial Issue 165M0601-00
Page 3–20

Feb. 01/05

Aviation Recorders

8

Marine Systems

Table 3–5. Vessel Type Codes

Special Crafts Other Ships

First Digit Second Digit

50 Pilot Boats
51 Search and Rescue Vessels
52 Tugs
53 Port Tenders
54 Vessels with anti–pollution

facilities or equipment
55 Law Enforcement Vessel
56 Spare – for assignment to

local vessels

57 Spare – for assignment to

local vessels

58 Medical Transport (as defined

in the 1949 Geneva
Conventions)

59 Spare – Ships according to

RR Resolution No. 1
(Mob–83)

DG: Dangerous Goods
HS: Harmful Substances
MP: Marine Pollutants

1 reserved for

future use
2 WIG
3 See Below
4 HSC
5 See Special

Crafts
6 Passenger Ships
7 Cargo Ships
8 Tankers
9 Other types of

ships

First Digit Second Digit

3 Vessel

0 All ships of this type
1 Carrying DG HS or MP

IMO hazard or pollutant
category A

2 Carrying DG HS or MP

IMO hazard or pollutant
category B

3 Carrying DG HS or MP

IMO hazard or pollutant
category C

4 Carrying DG HS or MP

IMO hazard or pollutant

category D
5 Reserved for future use
6 Reserved for future use
7 Reserved for future use
8 Reserved for future use
9 No additional information

0 Fishing
1 Towing
2 Towing and length of the

tow exceeds 200 m or

breadth exceeds 25 m
3 Engaged in dredging or

underwater operations
4 Engaged in diving

operations
5 Engaged in military

operations
6 Sailing
7 Pleasure craft
8 Reserved for future use
9 Reserved for future use

Feb. 01/05

Initial Issue165M0601-00

Page 3–21

Aviation Recorders

Marine Systems

3.1.5.3 Antenna Position Configuration

(1) On the UAIS Main System Menu screen, use DOWN ARROW key to scroll

down to Antenna Position. Press ENT to select. (Refer to Figure 3–10.)

Figure 3–10. Antenna Position

NOTE: The INT antenna is the antenna dedicated to the GPS re-

ceiver internal to the AIS. The EXT antenna is the antenna
dedicated to the ship’s dGPS. The dimensions are to be
entered in Meters and are defined as follows: (Refer to
Figure 3–11.)

A Distance in meters from Forward

Perpendicular (FP)

B Distance in meters from After

A

Perpendicular (AP)

C Distance in meters inboard from

port side

D Distance in meters inboard from

starboard side

CD

B

Figure 3–11. Calculating Antenna Position

(2) Enter AIS Internal GPS Position. (Refer to Figure 3–11.)

F Enter AIS Internal GPS “A” Position
F Enter AIS Internal GPS “B” Position
F Enter AIS Internal GPS “C” Position

Initial Issue 165M0601-00
Page 3–22

Feb. 01/05

Aviation Recorders

Marine Systems

F Enter AIS Internal GPS “D” Position

(3) Press ENT to save data.
(4) Enter External GPS Antenna Position. (Refer to Figure 3–11.)

F Enter External GPS Antenna “A” Position
F Enter External GPS Antenna “B” Position
F Enter External GPS Antenna “C” Position
F Enter External GPS Antenna “D” Position

(5) Press ENT to save data.
(6) Press ESC to return to the UAIS Main System Menu screen.
(7) Press ESC again to return to the Navigational Display Screen.

3.1.5.4 Verify Transponder Linkup to Ship’s dGPS & GYRO (1) Press NAV to go to the Own Ship Information Screen. (2) Confirm ship positional data, heading and SOG/COG/ROT data is correct by

referencing the equipment repeater display.
(3) Confirm that there are no alarms after one minute.
(4) Press ESC to return to the Navigational Display Screen.
The AIS is now placed in service. It is to remain operational at all times when the

vessel is operating unless given specific authorization to discontinue operation by
local maritime authorities. The only interaction with the interface will be to view sur­rounding ship traffic identification information and to enter voyage specific data at
the start of each voyage.

Feb. 01/05

Initial Issue165M0601-00

Page 3–23

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 3–24

Feb. 01/05

Aviation Recorders

Marine Systems

SECTION 4

ProTec

AUTOMATIC IDENTIFICATION SYSTEM (AIS)

DRAWINGS

Feb. 01/05

Initial Issue165M0601-00

Page 4–1

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 4–2

Feb. 01/05

Aviation Recorders

Marine Systems

6.40 in.  .06
163 mm

 1.5

7.23 in.  .12

6.87 in.  .12
174 mm

 3

31.75 mm

31.75 mm

31.75 mm

0.88 in.
22 mm

184 mm  3

1.25 in.

1.25 in.

1.25 in.

7.81 in.  .12
198 mm

 3

3.73 in.
 .12

95 mm

 3

0.625
in.

16 mm

83 mm

 1.5

3.28 in.
 .06

3.14 in.
 .06

80 mm

 1.5

Figure 4–1. AIS Transponder O&D Drawing with Trunion Bracket

2.937 in.
 .06

75 mm

 1.5

Feb. 01/05

Initial Issue165M0601-00

Page 4–3

Aviation Recorders

Marine Systems

6.40  .06
163 mm

 1.5

0.625
in.

15.875 mm

7.23 in.  .12

184 mm  3

83 mm

 1.5

3.28 in.
 .06

3.14 in.
 .06

80 mm

 1.5

2.937 in.
 .06

75 mm

 1.5

Figure 4–2. AIS Transponder O&D Drawing

Initial Issue 165M0601-00
Page 4–4

Feb. 01/05

Aviation Recorders

Marine Systems

11

12

13

CH2

GND

CH2

RXB

CH2

RXA

10

23

24

14

CH3
RXA

CH4
TXB

CH8

GND

CH1

GND

22

29

25

15

RX

A
B

RX

RATE OF TURN

A
B

RX

A
B

POSITION

NMEA 0183

RS 422 CH 1

NMEA 0183

RS 422 CH 2

HEADING

NMEA 0183

RS 422 CH 3

RX

TX

TX

TX

RX

RX

A
B

A
B

A
B

A
B

A
B

A
B

PC/EXT APP .

NMEA 0183

RS 422 CH 4

ECDIS/ARPA

NMEA 0183

RS 422 CH 5

LONG RANGE

NMEA 0183

RS 422 CH 8

1
2
3

4
5
6

7
8
9

10

11
12
13

14
15
16

17
18
19

20

21
22
23

24
25
26

27
28
29

30

31

spkr

+

CH8
TXA

CH8

RXA

CH1
RXA

20

27

17

8

CH3
GND

CH4

721

RXA

CH5
TXB

spkr

–

19

CH5
TXA

CH4

6

RXA

CH4

5

GND

18

CH8
TXB

CH5

3

RXB

CH5

2

GND

CH5

4

RXA

CH3

9

RXB

CH4
TXA

28

26

CH8

RXB

16

CH1
RXB

1

1

BLACK

15

RED

14

SHIELD

CABLE GROUP 1

7

BLACK

6

GREEN

5

SHIELD

13

BLACK

12

BLUE

11

SHIELD

10

BLACK

9

WHITE

8

SHIELD

CABLE GROUP 2 CABLE GROUP 3

4

BLACK

3

BROWN

2

SHIELD

16

BLACK

25

YELLOW

24

SHIELD

22

ORANGE

23

BLACK

21

SHIELD

19

GREEN

20

RED

18

SHIELD

26

WHITE

17

RED

29

SHIELD

Feb. 01/05

Figure 4–3. IEC Data Cable Interconnect Diagram

Initial Issue165M0601-00

Page 4–5

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue 165M0601-00
Page 4–6

Feb. 01/05

Aviation Recorders

Marine Systems

APPENDIX A

ProTec

AUTOMATIC IDENTIFICATION SYSTEM (AIS)

INSTALLATION CHECKLIST

165M0601-00
Feb. 01/05

Initial Issue

Page A–1

Aviation Recorders

Marine Systems

THIS PAGE IS INTENTIONALLY LEFT BLANK.

Initial Issue
Page A–2

165M0601-00

Feb. 01/05
