Kyoritsu Electrical Instruments 3123A User manual

KEW 3121A, 3122A, 3123A
KEW3121A, 3122A KEW3123A
INSTRUCTION MANUAL
HIGH VOLTAGE INSULATION TESTER
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com

CONTENTS

1Safety warnings …………………………………………………1
2Features …………………………………………………………2
3Specifications ………………………………………………3 4
4Instrument Layout ………………………………………………5
5Operating Instructions …………………………………………6
5-1Mechanical Zero Adjustment ……………………………6
5-2Battery Check ……………………………………………6
5-3Insulation Resistance Measurement ……………………7
5-4Continuous Measurement ………………………………7
5-5Use of Guard Terminal ……………………………………8
6Battery Replacement ……………………………………………9
7Accessories and options ………………………………………9
7-1.Metal part for Line Probe, and replacement ……………9
7-2.How to use the adaptor for recorder …………………10
8How to fix the Meter to the Hard case ………………………11
9Cleaning Meter Cover …………………………………………12
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1

1. Safety warnings

Please read through these operating instructions before using the instrument to avoid any dangers such as electrical shock and to ensure safe operation of the instrument.
Pay particular attention to all WARNING and CAUTION in this instruction manual. WARNING indicates warnings to avoid electrical shock and CAUTION indicates cautions to avoid damage to the instrument.
#
WARNING
Th
is instrument cannot test live conductors. Ensure that the
circuit to be tested is powered off before performing a test.
Never open the Battery cover or remove the Instrument panel
during a measurement.
Confirm that the Rotary switch is at the OFF position, and then
connect the test leads.
Do not attempt to make measurement in the presence of
flammable gasses. Otherwise, the use of the inst
rument may
cause sparking, which can lead to an explosion.
Never attempt to make any measurement if any abnormal
conditions, such as a broken cover or exposed metal parts are present on the Instrument or test leads.
Set the Function switch to OFF position after use, and ensure
the Test button is released and unlocked.
#
CAUTION
Do not ex pose the ins trume nt t o dire ct sunli ght, hi gh
temperature
s, humidity or dew.
Never leave the instrument in the environment of 60˚C or
higher temperatures.
Do not use the instrument if it or test lead is wet.
Remove the batteries if the instrument is to be stored and will
not be in use for a long period.
Use a damp cloth with neutral detergent or water for cleaning
the instrument. Do not use abrasives or solvents.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2

2. Features

●  Battery powered, the inst ruments test insula tion up to 100000MΩ at 2500V for KEW 3121A, 200000MΩ at 5000V for KEW 3122A and 200GΩ at 5000V and 400GΩ at 10000V for KEW 3123A.
●  Suited for heavy duty electrical maintenance and servicing of industrial installations, cables, transformers, generators and switchgear where high voltage insulation tests are required.
●  Dual sc a l e s fo r l o w a n
d high ranges wh i c h ch a ng e automatically. Colour coded scales for easy reading plus LED's that illuminate in matching colour.
●  Drip proof construction. The case is sealed with rubber
gaskets to protect internal circuit against rain.
●  Hard carrying case furnished as standard accessory. Houses
both instrument and test leads in compact form. Made of plastic, it is highly water resistant.
●  Designe
d for low power consumption. Since the maximum
current consumption is 90mA eight pieces of 1.5V SUM-3or equivalent ) permit about 6 hours of continuous operation even when the instrument is used on maximum load or twice longer on minimum load.
●  Rated output voltage is maintained down to 100MΩ for KEW 3121A, 200MΩ for KEW 3122A and 0.2GΩ/0.4GΩ for KEW 3123A. This permits accurate measurements of
low insulation
resistance.
●  Optional adapter MODEL8324 is available for connection to recorder and enables cable insulation monitoring.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4
05GΩ/2200GΩ
(automatic change)
010GΩ/4400GΩ
(automatic change)
±5% of reading
0.2100GΩ)
±10% of reading
or 0.5% of scale length
ranges other than
listed above
at 23 ±5
±5% of reading
0.4200GΩ)
±10% of reading
or 0.5% of scale length
ranges other than
listed above
at 23 ±5
±10% of reading
0.2100GΩ)
±20% of reading
or 1.0% of scale length
ranges other than
listed above
at 10℃〜+40
±10% of reading
0.4200GΩ)
±20% of reading
or 1.0% of
scale length
ranges other than
listed above
at 10℃〜+40
5000V ±5%
0.2~100GΩ)
10000V ±5%
0.4~200GΩ)
& housing case
Hard Carrying Case:M-9158 Batteries, Test Leads (Line Probe:M- 7165A, Earth Cord :M-7224 A, Guard Cord:M­7225A) Pickel type prod:M-8019
Line cord with alligator clipM-7168A Optional adapterM-8324
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3
KEW 3121A KEW 3122A KEW 3123A
DC Test Voltage 2500V 5000 V 5000V 10000V
Measuring Ranges
02000MΩ/
1000100000MΩ
automatic change
05000 MΩ/
2000 200000MΩ
(automatic change)
05GΩ/2200GΩ
(automatic change)
010GΩ/4400GΩ
(automatic change)
Accuracy
Insulation Resistance
±5% of reading
10050000MΩ)
±10% of reading
or 0.5% of scale length
ranges other than
listed above
at
23 ±5
±5% of reading (200〜 100000MΩ) ±10% of reading
or 0.5% of scale length
( ranges other than
listed above
at 23 ±5
±5% of reading
0.2100GΩ)
±10% of reading
or 0.5% of scale length
ranges other than
listed above
at 23 ±5
±5% of reading
0.4200GΩ)
±10% of reading
or 0.5% of scale length
ranges other than
listed above
at 23 ±5
±10% of reading
10050000
MΩ)
±20% of reading
or 1.0% of scale length
ranges other than
listed above
at 10℃〜+40
±10% of reading (200〜 100000MΩ) ±20% of reading
or 1.0% of scale length
( ranges other than
listed above
at 10 40
±10% of reading
0.2100GΩ)
±20% of reading
or 1.0% of scale length
ranges other than
listed above
at 10℃〜+40
±10% of reading
0.4200GΩ)
±20% of reading
or 1.0% of
scale length
ranges other than
listed above
at 10℃〜+40
Output Voltage
2500V ±5%
10050000MΩ)
5000V ±5% (200〜 100000MΩ)
5000V ±5%
0.2~100GΩ)
10000V ±5%
0.4~200GΩ)
Operating Temperature & Humidity
10 40 at 85% max. relative humidity
Storage Temperature & Humidity
20 60 at 90% max. relative humidity
Insulation Resistance 1000MΩ max./ 1000V between electrical circuit
& housing case
Withstand Voltage 5000V AC for one minute between electrical circuit & housing case Dimensions 200L×140W×80Dmm Weight Approx. 1kgincluding batteries
Power Source 8 pcs of R6P (AA) battery or equivalent
Accessories
Hard Carrying Case:M-9158 Test Leads (Line Probe:M-7165A,
Earth
Cord:M-7224A, Guard Cord:M-7225A)
Hard Carrying Case:M-9158 Batteries, Test Leads (Line Probe:M- 7165A, Earth Cord :M-7224 A, Guard Cord:M- 7225A) Pickel type prod:M-8019
Optional accessories
Line cord with alligator clipM-7168A Optional adapterM-8324 Pickel type prod:M-8019
Line cord with alligator clipM-7168A Optional adapterM-8324
3. Specifications
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
5

4. Instrument Layout

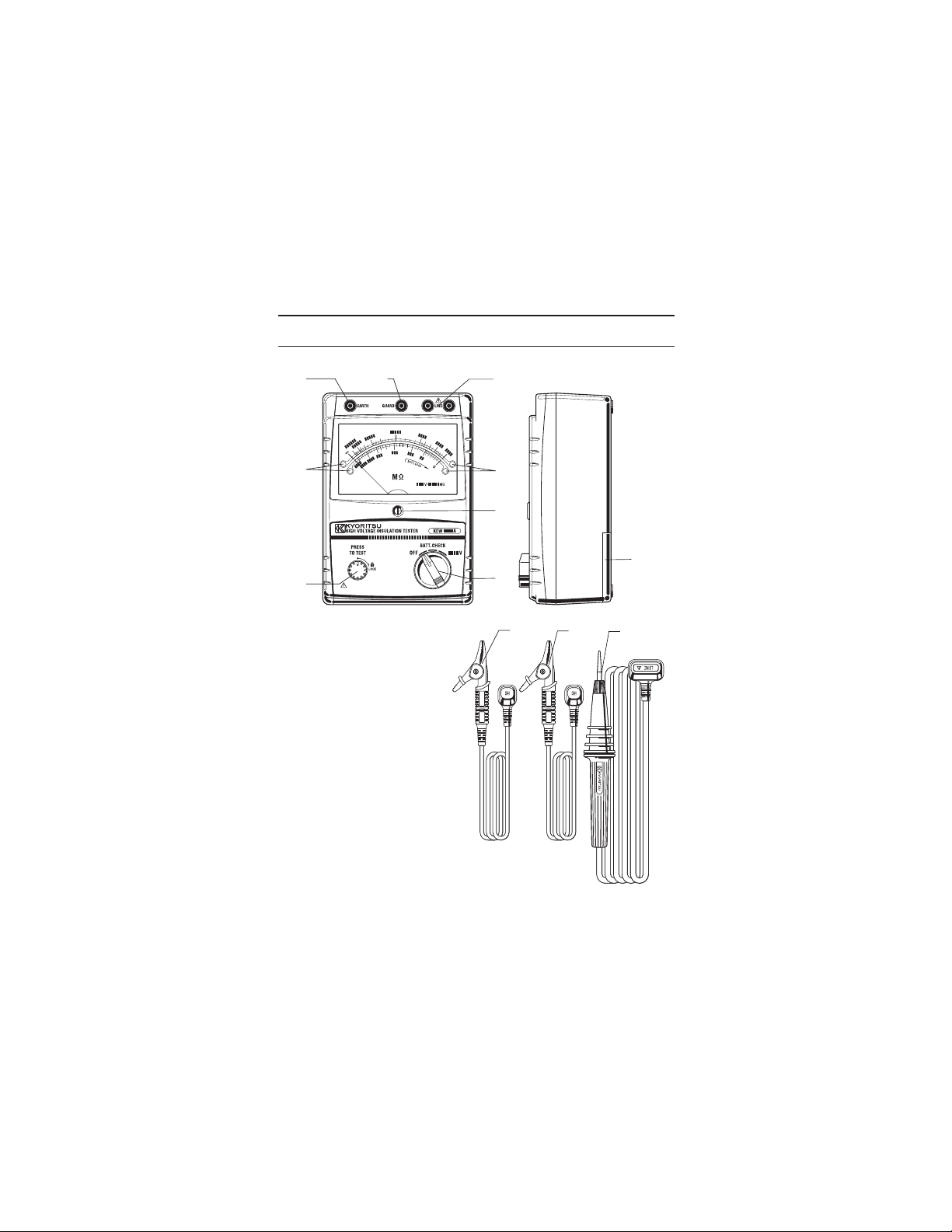

Line Terminal Guard Terminal Earth Terminal LE D's for Hi gh & Low
Range Indication
Press to Test Button Function Switch Me ter Movem ent Ze ro
Adjust
Bat t ery Co mpartme n t
Cover
Line Probe (Red) Earth Cord (Black) Guard Cord (Green)
Fig.1
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6
CAUTION: BE CAREFUL ABOUT HIGH VOLTAGE PRESENT ACROSS LINE AND EARTH TERMINALS OF INSTRUMENT WHEN PRESS TO TEST BUTTON IS OPERATED. MAKE SURE TO EARTH CIRCUIT UNDER TEST. ALWAYS CONNECT EARTH TERMINAL OF INSTRUMENT TO EARTH. THE BUZZER WILL KEEP SOUNDING DURING INSULATION RESISTANCE MEASUREMENT.

5-1. Mechanical Zero Adjustment

With the function switch set at OFF position, adjust the meter pointer to
∞ mark on the scale. Use a screwdriver to turn the
zero adjust screw located at the center of the front panel.

5-2. Battery Check

With the function switch set at BATT. CHECK position, operate the press to test button. The batteries are good when the pointer stays in BATT. GOOD area or to the right of this area. If not, replace them.
Note:  Refrain from holding down or locking the press to
test butt
on during this test as it will result in current co nsump tion larger tha n insula tion re sist ance measurement while the batteries are still new.

5. Operating Instructions

Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
7
5-3. Insulation Resistance Measurement
With the function switch set at OFF position, always connect the circuit under test to earth. Attach the test lead to the earth terminal of the instrument and connect to the earthed side of the circuit under test. With the function switch set at 2500V and 5000V for KEW 3121A and 3122A or 5000V or 10000V for KEW 3123A, connect the black earth code to the earth
terminal (EARTH) and place the line probe in contact with the circuit under test and press the Test button. When the green LED illuminates, read insulation resistance on the outer scale (for high range). Use the inner scale where the red LED illuminates. For insulation testing at 5000V and 10000V, read the black and red scales respectively (for KEW 3123A). After a test, release the press to test b
utton and wait for several seconds without disconnecting the line probe from the circuit tested. This is intended to discharge the charge stored in the circuit tested.

5-4. Continuous Measurement

Make sure that the circuit under test is earthed and that the test lead attached to the earth terminal of the instrument is connected to the earthed side of the circuit under test. Push the press to test bu
tton and turn clockwise to lock for continuous measurement. When making this measurement, good care must be taken against the high voltage continuously present across the line and earth terminals of the instrument.
Note:  Make certain that the circuit under test does not
include components which will be damaged by the high voltage applied.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
8

5-5. Use of Guard Terminal

When measuring the insulation resistance of a cable, Ieakage current flowing on the surface of cable jacket and the current flowing inside the insulator are mixed and may cause error in insulation resistance value. In order to prevent such error, wind a conductive wire around the point where leakage current flows. Then connect it to the Guard terminal as shown in below Fig
.2. This is to move out the surface leakage resistance of the cable insulation to measure only the volume resistance of insulator. Make sure to use the Guard cord supplied with this instrument to connect the instrument to Guard terminal. Connect the terminals with reference to the following figure of an equivalent circuit. * Wind a protective wire, any conductive bare wires are ok, around
the point
where leakage currents flow. Then connect it to the
Guard terminal as follows.
* It is possible to move out the surface leakage resistance of the
insulation and measure only the volume resistance by using the Guard terminal. This is helpful when performing tests in humid air.
Fig.2
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
9
Remove the battery compartment cover by loosening the screw located on the back of the housing case. Replace the whole battery pack. Alkaline batteries are recommended where the instrument is used at a temperature below the freezing point. The ordinary manganese batteries will deteriorate below the freezing point.
6. Batttery Replacement

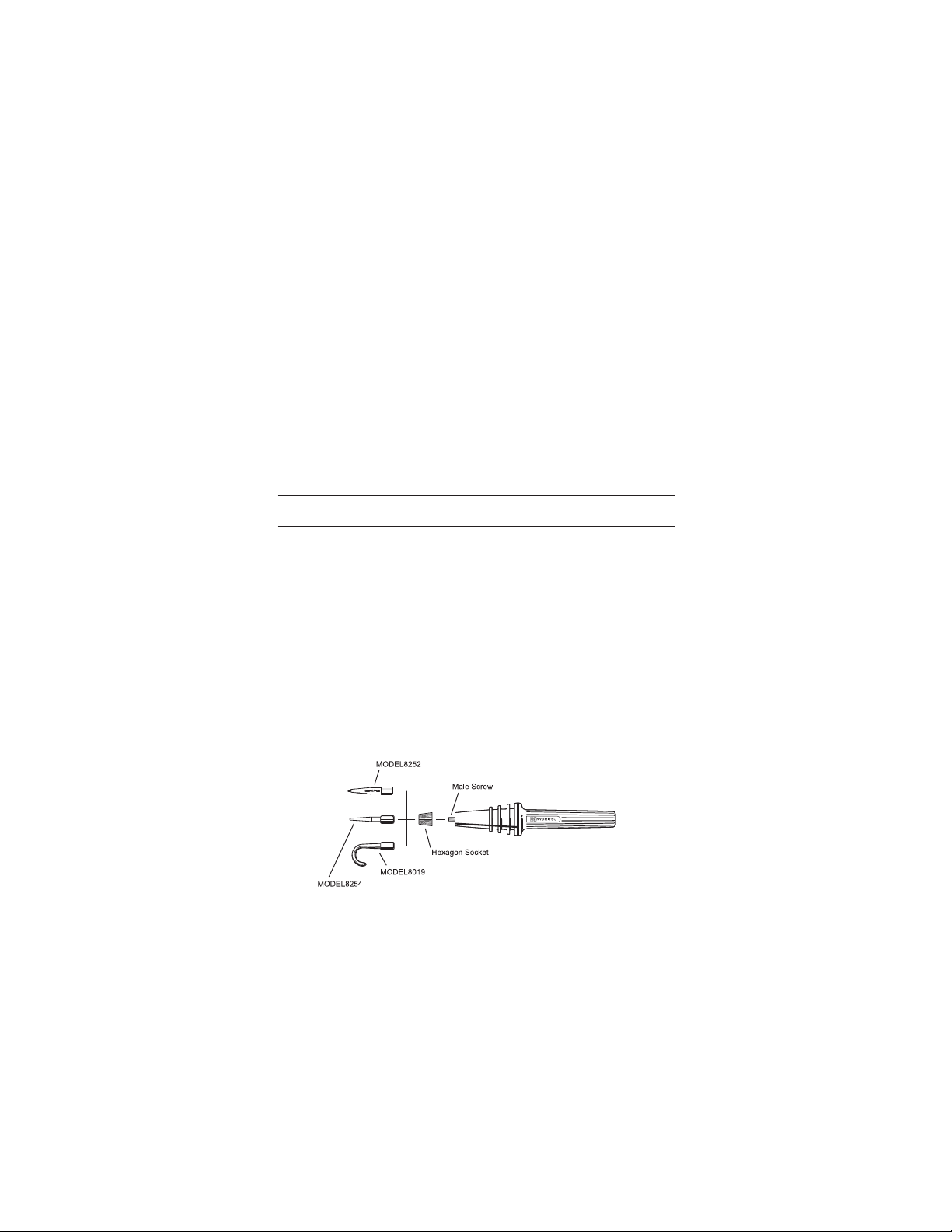

7-1. Metal part for Line Probe, and replacement

1Tip metal parts
MODEL8252: Standard Prod (straight type, with molded parts) MODEL8254: Straight Type Prod MODEL8019: Pickel Type Prod (accessory) To be used to hook the instrument.
  Note:Option KEW3121A, KEW3122A
2How to replace it
Turn the Line probe counterclockwise to remove the attached tip
metal. Put the
tip metal you want to use to the hexagon socket and turn it to clockwise together with the tip of probe, and tight up screws.

7. Accessories and options

Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
10
To shield or Earth
To recorder
Fig.3

7-2. How to use the adaptor for recorder

MODEL8324 is the adaptor for recorder for output current measurement. Connect
it as shown in the below Fig.3.
Output is DC10mV when current of 1μA is flowing
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
11
8. How to fix the Meter to the Hard case
Please f ollow the instr uctions below t o fix MODEL9159 main unit to MODEL9158 Hard case with Dual lock fastener.
1. Place a hard board beneath the Hard case. The board should be located under the fastener attached to the Hard
case.
2. Put the unit in place, and then press down the sides of the unit so that
the mushroom-shaped stems on the fastener are engaged each other with audible snap sound.
Duallockfastener
Ahardboardshouldbeplacedinthe locationasindicatedbydottedlines.
Pressingdownthesidesofunit(as indicatedbyarrowmarks)engages thestemsonthefastener.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
12

9. Cleaning Meter Cover

This earth tester is managed by our company's quality standard and is delivered in the best condition after passed the inspection. But in the dry time of winter static electricity sometimes builds up on the meter cover due to the characteristic of plastic. When the pointer deflects by touching the surface of this tester or zero adjustment can not be made, do not try to make measurement. When static electricity builds up on the meter cover and affects the meter reading, use a cloth dampened with off-the-shelf anti-statics agent or detergent to wipe the meter cover surface.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
