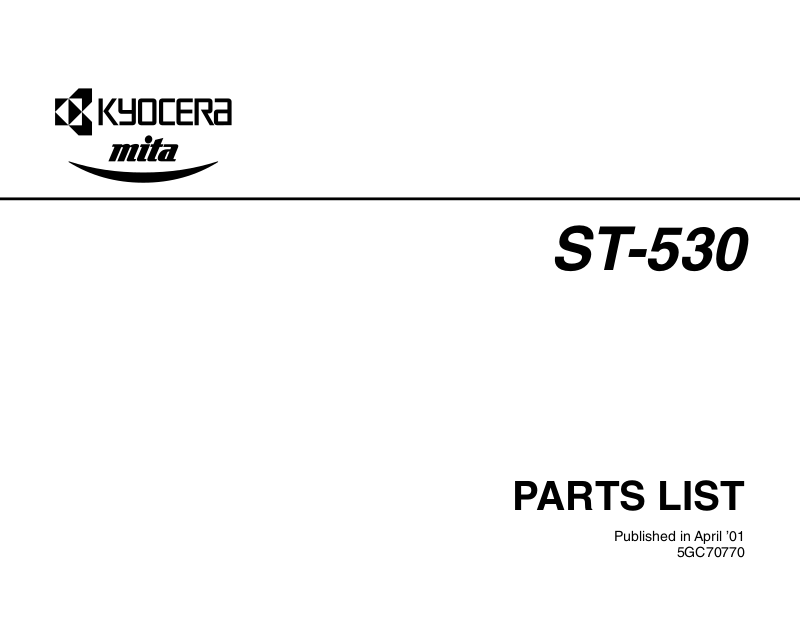

ST-530

PARTS LIST

Published in April ’01

5GC70770

NOTE

1.Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity

5GC10400 COVER ST-530 60Hz 1

2.Service calls and freight will be charged separately.

3.Symbols in the "Parts Number" column.

• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.

4.See the last page of this parts list for the classification of the screws in the illustrations.

Parts List

ST-530

CONTENTS

FIG. 1 HOUSING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
FIG. 2 PAPER TAKE-UP SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG. 3 PAPER TRAY UNIT· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6

• INDEX· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8

– 1 –

FIG. 1 HOUSING

3704

5GC

3704

04

17

3704

02

3704

1305

3704

03

PWB-A

3704

05

02

3704

SW A

06

SW D

3704

SW B

05

3504

01

1305

3704

07

SW C

3504

3704

05

3504

09

PC4

08

16

3504

15

3704

02

13

14

3704

11

3714

3704

UN1

12

3704

02

3704

– 2 –

3714

10

3704

FIG. 1 HOUSING

Ref.

SP Part. No. Description

No.

'

1 5F931080 SWITCH 1
2 5GC10420 STOP PLATE 4

'

3 5F901190 PWB ASSY (PWB-A) 1
4 5GC10400 COVER 1

'

5 5F931070 PUSHBUTTON SWITCH 3
6 5GC10330 PLATE SPRING 1
7 5GC10350 PLATE SPRING 1
8 5GC10340 PLATE SPRING 1

9 5GC10470 SPACER 1
10 5GC10460 BRACKET 1
11 5GC10380 PLATE SPRING 1

'

12 5F901240 PWB ASSY (UN-101) 1
13 5F930610 COLLAR 1

'

14 5GC10580 DOOR 1
15 5GC10590 PLATE SPRING 1

'

16 5F930370 PHOTO INTERRUPTER 1

'

17 5GC10010 HEATER ASSY 1

Quantity

Ref.

SP Part. No. Description

No.

5GC

Quantity

• Parts with "'" indicates the Service parts.

– 3 –

FIG. 2 PAPER TAKE-UP SECTION

5GC

1305

3501

9301

18

9302

M1

17

16

3501

CL1

15

1305

14

19

9301

9302

0510

9301

20

13

3501

12

25

21

9301

9302

9301

PC3

3501

11

9302

22

10

24

05

09

23

05

0509

08

PC5

25

3501

3501

0509

06

07

03

0509

25

PC2

03

3501

26

03

27

05

28

05

04

29

0513

30

3704

04

04

31

05

3501

03

03

3501

02

0509

03

25

PC1

23

01

05

06

05

08

09

3701

9302

9301

– 4 –

FIG. 2 PAPER TAKE-UP SECTION

Ref.

SP Part. No. Description

No.

'

1 5GC10560 GUIDE 1

'

2 5GC10430 GUIDE 1

'

3 5GC10620 ROLL 6

'

4 5GC10610 ROLLER 3

5 5GC10450 STOP RING 7

6 5GC10600 KNOB 2

7 5GC10280 COLLAR 1

'

8 5GC10570 TENSION SPRING 2

'

9 5GC10650 BUSHING 2

'

10 5GC10550 GEAR 1

'

11 5GC10540 GEAR 1

'

12 5F901040 TORSION SPRING 1

'

13 5GC10500 GEAR 1

'

14 5GC10510 COLLAR 1

'

15 5GC10490 GEAR 1

'

16 5F930990 CLUTCH 1

'

17 5GC10630 BUSHING 1

'

18 5F930910 MOTOR 1

'

19 5GC10480 GEAR 1

'

20 5F930160 PRESSURE SPRING 1

'

21 5F930150 PAWL 1

'

22 5GC10520 GEAR 1

'

23 5GC10640 BUSHING 2
24 5GC10370 LEVER 1

'

25 5F930370 PHOTO INTERRUPTER 4
26 5GC10440 TORSION SPRING 1
27 5GC10410 ACTUATOR 1
28 5GC10360 ACTUATOR 1

'

29 5GC10530 ROLLER 1
30 5GC10390 TORSION SPRING 1
31 5GC10320 LEVER 1

Quantity

Ref.

SP Part. No. Description

No.

5GC

Quantity

• Parts with "'" indicates the Service parts.

– 5 –

FIG. 3 PAPER TRAY UNIT

5GC

48

3704

11

49

50

17

16

21

15

14

20

19

18

10

12

9301

13

12

18

3704

38

10

0224

11

09

05

26

08

26

07

04

06

03

9303

3701

17

04

39

3701

46

38

9301

40

02

37

45

01

44

1620

42

36

41

37

12

12

43

15

14

9303

35

34

33

32

23

22

24

47

3705

47

3705

25

– 6 –

27

28

3701

29

30

31

FIG. 3 PAPER TRAY UNIT

Ref.

SP Part. No. Description

No.

Quantity

Ref.

SP Part. No. Description

No.

5GC

Quantity

1 5GC10280 COLLAR 1

2 5GC10230 BRACKET 1

'

3 5F901030 ROLLER ASSY 1

'

4 5GC10260 GUIDE 2

'

5 5GC10070 GUIDE 1

'

6 5GC10050 GUIDE PLATE 1

'

7 5GC10060 GUIDE 1

8 5F930670 SHOULDER SCREW 1

9 5GC10120 GEAR 1
10 5GC10160 MEMBER 2
11 5F930630 STOPPER 2
12 5GC10250 SCREW 4
13 5F930490 LABEL 1
14 5GC10290 GUIDE 2
15 5GC10300 STOPPER 2
16 5GC10100 REGURATING PLATE 1
17 5GC10670 LABEL 2
18 5GC10150 PLATE SPRING 2
19 5GC10130 REGURATING PLATE 1
20 5GC10140 REINFOCE PLATE 1

'

21 5F930020 FRICTION SHEET 1
22 5GC10170 LIFTING PLATE 1
23 5GC10190 LIFTING PLATE 1

'

24 5GC10200 PRESSURE SPRING 1

'

25 5GC10180 PRESSURE SPRING 1
26 5F930680 SCREW 2
27 5F930600 LEVER 1
28 5F930620 TENSION SPRING 1
29 5GC10020 HANDLE 1
30 5GC10680 LABEL 1
31 5GC10110 SHAFT 1
32 5F930650 LEVER 1
33 5F930660 PRESSURE SPRING 1
34 5F930640 KNOB 1
35 5GC10090 REGURATING PLATE 1
36 5GC10030 LABEL 1
37 5GC10270 STOP RING 2

'

38 50209030 BUSHING 2
39 5GC10660 LABEL 1

'

40 5GC10080 GUIDE 1

'

41 5F901020 ROLLER 1

'

42 5GC10210 DRUM 1
43 5GC10040 PLATE SPRING 1
44 5GC10220 HOLDER 1

'

45 5GC10240 PRESSURE SPRING 1
46 50330330 HOLDER 1
47 5GC10310 SPACER 2
48 50354170 WIRING SADDLE 5.2H 5
49 50354190 WIRING SADDLE 6.4H 5
50 50354060 EDGE COVER 8.5H 7

• Parts with "'" indicates the Service parts.

– 7 –

INDEX

5GC

Part. No.SP Description

'

5F901020 ROLLER 1 3

'

5F901030 ROLLER ASSY 1 3

'

5F901040 TORSION SPRING 1 2

'

5F901190 PWB ASSY (PWB-A) 1 1

'

5F901240 PWB ASSY (UN-101) 1 1

'

5F930020 FRICTION SHEET 1 3

'

5F930150 PAWL 1 2

'

5F930160 PRESSURE SPRING 1 2

'

5F930370 PHOTO INTERRUPTER 5 1,2
5F930490 LABEL 1 3
5F930600 LEVER 1 3
5F930610 COLLAR 1 1
5F930620 TENSION SPRING 1 3
5F930630 STOPPER 2 3
5F930640 KNOB 1 3
5F930650 LEVER 1 3
5F930660 PRESSURE SPRING 1 3
5F930670 SHOULDER SCREW 1 3
5F930680 SCREW 2 3

'

5F930910 MOTOR 1 2

'

5F930990 CLUTCH 1 2

'

5F931070 PUSHBUTTON SWITCH 3 1

'

5F931080 SWITCH 1 1

'

5GC10010 HEATER ASSY 1 1
5GC10020 HANDLE 1 3
5GC10030 LABEL 1 3
5GC10040 PLATE SPRING 1 3

'

5GC10050 GUIDE PLATE 1 3

'

5GC10060 GUIDE 1 3

'

5GC10070 GUIDE 1 3

'

5GC10080 GUIDE 1 3
5GC10090 REGURATING PLATE 1 3
5GC10100 REGURATING PLATE 1 3
5GC10110 SHAFT 1 3
5GC10120 GEAR 1 3
5GC10130 REGURATING PLATE 1 3
5GC10140 REINFOCE PLATE 1 3
5GC10150 PLATE SPRING 2 3
5GC10160 MEMBER 2 3
5GC10170 LIFTING PLATE 1 3

Quantity

Fig. No.

Part. No.SP Description

'

5GC10180 PRESSURE SPRING 1 3
5GC10190 LIFTING PLATE 1 3

'

5GC10200 PRESSURE SPRING 1 3

'

5GC10210 DRUM 1 3
5GC10220 HOLDER 1 3
5GC10230 BRACKET 1 3

'

5GC10240 PRESSURE SPRING 1 3
5GC10250 SCREW 4 3

'

5GC10260 GUIDE 2 3
5GC10270 STOP RING 2 3
5GC10280 COLLAR 2 2,3
5GC10290 GUIDE 2 3
5GC10300 STOPPER 2 3
5GC10310 SPACER 2 3
5GC10320 LEVER 1 2
5GC10330 PLATE SPRING 1 1
5GC10340 PLATE SPRING 1 1
5GC10350 PLATE SPRING 1 1
5GC10360 ACTUATOR 1 2
5GC10370 LEVER 1 2
5GC10380 PLATE SPRING 1 1
5GC10390 TORSION SPRING 1 2
5GC10400 COVER 1 1
5GC10410 ACTUATOR 1 2
5GC10420 STOP PLATE 4 1

'

5GC10430 GUIDE 1 2
5GC10440 TORSION SPRING 1 2
5GC10450 STOP RING 7 2
5GC10460 BRACKET 1 1
5GC10470 SPACER 1 1

'

5GC10480 GEAR 1 2

'

5GC10490 GEAR 1 2

'

5GC10500 GEAR 1 2

'

5GC10510 COLLAR 1 2

'

5GC10520 GEAR 1 2

'

5GC10530 ROLLER 1 2

'

5GC10540 GEAR 1 2

'

5GC10550 GEAR 1 2

'

5GC10560 GUIDE 1 2

'

5GC10570 TENSION SPRING 2 2

Quantity

Fig. No.

• Parts with "'" indicates the Service parts.

– 8 –

5GC

Part. No.SP Description

'

5GC10580 DOOR 1 1
5GC10590 PLATE SPRING 1 1
5GC10600 KNOB 2 2

'

5GC10610 ROLLER 3 2

'

5GC10620 ROLL 6 2

'

5GC10630 BUSHING 1 2

'

5GC10640 BUSHING 2 2

'

5GC10650 BUSHING 2 2
5GC10660 LABEL 1 3
5GC10670 LABEL 2 3
5GC10680 LABEL 1 3

'

50209030 BUSHING 2 3
50330330 HOLDER 1 3
50354060 EDGE COVER 8.5H 7 3
50354170 WIRING SADDLE 5.2H 5 3
50354190 WIRING SADDLE 6.4H 5 3

Quantity

Fig. No.

Part. No.SP Description

Quantity

Fig. No.

• Parts with "'" indicates the Service parts.

– 9 –

CLASSIFICATION OF THE SCREWS IN ILLUSTRATION

REF. ITEM # DESCRIPTION

0224 5F931520 SPRING ROLL PIN
0509 50355070 PIN M20X12(STAINLESS)
0510 5F931470 TAPPING SCREW
0513 5BL10510 PIN M20X14(STAINLESS)
1208 50355130 SCREW M3X6(P-ZN(C))
1305 50355160 SCREW M3X6 (P-ZN(C)
1620 50355380 SCREW M4X6(P-NI)
3501 50355570 TAPPING SCREW M3X6(P-ZN(C))
3504 50355590 TAPPING SCREW M3X8(P-ZN(C))
3701 50355680 TAPPING SCREW M4X8(P-ZN(C))
3704 50355700 TAPPING SCREW M3X8(P-ZN(C))
3705 50355710 TAPPING SCREW M3X6(P-ZN(C))
3714 5F931420 TAPPING SCREW
9301 50356060 RETAINING RING M11X51(P-NI)
9302 50356070 RETAINING RING M30X1(P-NI)
9303 50356080 RETAINING RING M30X2(P-NI)
