Page 1
PRINTER OPTIONS
PF−5
PARTS CATALOGUE
24−01−2000
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 1
Page 2
PF−5 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
3Feeding Unit (Fig.1)
5Base Assembly (Fig.2)
7Cover Top Assembly (Fig.3)
10Paper cassette (PC−8) (Fig.4)
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 2
Page 3
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 3
01−004
01−003
01−002
Fig.1 − Feeding Unit
301−001
01−001
301−002
Page 4
QuantityDescriptionPart CodeRef No.
1BASE ASSY5SNSP000868601−001
1COVER TOP ASSY5SNSP000870001−002
1COVER TOP ASSY5SNSP000877501−003
1SHEET COVER5SNSP000877601−004
1FEED UNIT5SNSP0008685301−001
1CASETTE ASSY5SNSP0008744301−002
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 4
Page 5
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 5
02−010
02−012
02−008
02−003
02−001
02−005

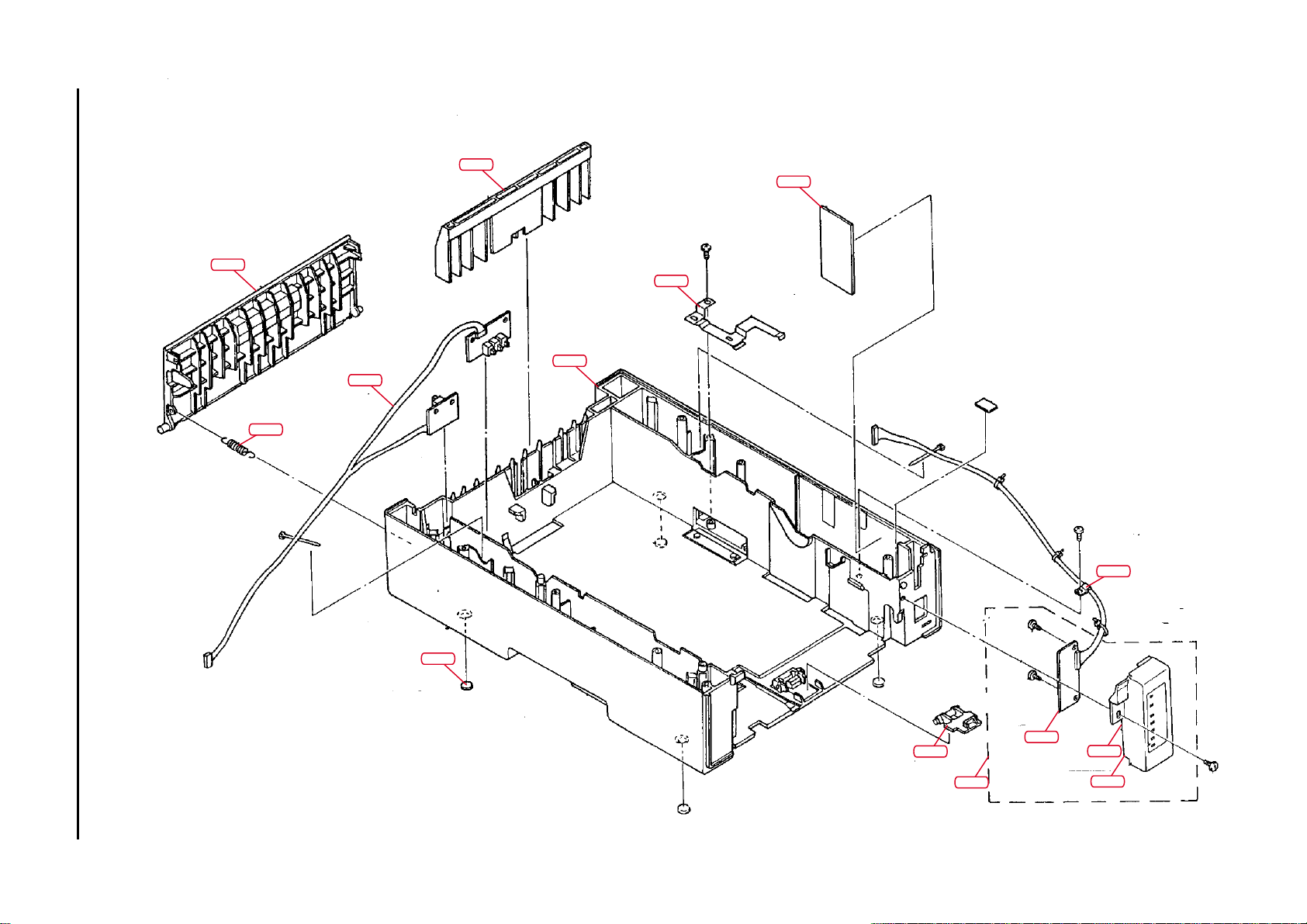

Fig.2 − Base Assembly
02−009
02−002
02−007
02−004
02−011
03−002
03−001
03−003
Page 6
QuantityDescriptionPart CodeRef No.
1BASE5SNSP000868702−001
4FOOT5SNSP000868802−002
1PLATE EARTH CASETTE5SNSP000868902−003
1COVER PANEL ASSY5SNSP000869002−004
1SWITCH ASSY5SNSP000869402−005
1LEVER LOCK ON5SNSP000960802−007
1COVER REAR5SNSP000869702−008
1SPRING COVER REAR5SNSP000869802−009
1GUIDE SLIDE5SNSP000869902−010
1NYLON CLAMP5MVX211NN02402−011
1LABEL SERIAL5MVVSPF5***102−012
1COVER PANEL5SNSP000869103−001
1PWB PANEL ASSY5SNSP000869203−002
1SHEET PANEL5SNSP000869303−003
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 6
Page 7
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 7
04−012
09−002
04−022
09−001
05−002
04−020
Fig.3 − Cover Top Assembly
06−006
06−007
06−002
06−003
07−001
06−001
07−002
06−005
06−004
05−006
05−004
08−002
12−003
04−005
12−005
05−003
04−006
08−004
08−001
08−003
12−002
04−017
12−001
04−019
04−014
12−004
11−001
10−002
10−001
10−003
04−013
04−015
04−010
04−009
04−023
04−021
04−001
04−018
04−011
04−007
04−008
04−003
04−002
Page 8
QuantityDescriptionPart CodeRef No.
1COYER TOP N5SNSP000960704−001
1LEVER SENS PA−15SNSP000870204−002
1SPRING LEVER SENS5SNSP000870304−003
1BRACKET COYER TOP N5SNSP000961204−005
1SHAFT ROLL A ASSY5SNSP000871704−006
1BRACKET SENSOR FEED5SNSP000872204−007
1SENSOR5SNSP000871504−008
1ACTUATER SENSOR N5SNSP000960404−009
1LEVER SOLENOID5SNSP000872404−010
1SPRING SOLENOID5SNSP000872504−011
1SOLENOID ASSY5SNSP000872604−012
1CONNECTER ASSY5SNSP000872904−013
1SHAFT ROLLER ASSY5SNSP000873204−014
1STOPPER5SNSP000873404−015
1COYER FRONT L5SNSP000873904−017
1COYER FRONT R5SNSP000874004−018
1ROLL PICK UP ASSY5SNSP000874104−019
1PLATE EARTH5SNSP000874204−020
1PWB MAIN5SNSP000874304−021
1CONN.CORD S007025AACCNLZ2GEA04−022
1SNAP BAND5MVX717NN00504−023
1SENSOR ENCODER ASSY5SNSP000871305−002
1SENSOR5SNSP000871505−003
1CONN.CORD S007015AACCNLZlGEA05−004
1EDGING SADDLE5MVK121NB00205−006
1BRACKET MOTOR5SNSP000870606−001
1GEAR H16−P565SNSP000870906−002
1GEAR Z20−H565SNSP000870806−003
1GEAR Z325SNSP000870706−004
1MOTOR ASSY5SNSP000871006−005
1PULLEY ENCODER P165SNSP000871106−006
1BELT DRIVE Z865SNSP000871206−007
1BRACKET ENCODER5SNSP000871407−001
1SENSOR5SNSP000871507−002
1SHAFT ROLL A5SNSP000871808−001
1CLUTCH FEED DRIVE5SNSP000872108−002
1BUSHING A5SNSP000871908−003
1BUSHING B5SNSP000872008−004
1SOLENOID5SNSP000872709−001
1BRACKET SOLENOID5SNSP000872809−002
1HOLDER CONNECTER5SNSP000873010−001
2SPACER5SNSP000873110−002
1CONN. COAD S007035AACCNLZ3GEA10−003
1SHAFT ROLLER5SNSP000873311−001
1ROLLER FEED5SNSP000873612−001
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 8
Page 9
QuantityDescriptionPart CodeRef No.
1GEAR JOINT Z165SNSP000873712−002
1GEAR FEED Z165SNSP000873812−003
1BUSHING A5SNSP000871912−004
1BUSHING B5SNSP000872012−005
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 9
Page 10
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 10
43−003
43−002
42−011
43−001
Fig.4 − Paper cassette (PC−8)
41−001
41−002
47−001
42−013
45−001
45−002
47−003
47−004
42−003
47−005
42−004
42−002
45−003
47−002
42−006
45−003
42−005
42−007
42−010
42−010
42−004
42−003
42−002
44−002
42−001
44−001
42−012
42−014
46−003
46−002
46−001
42−008
42−009
Page 11
QuantityDescriptionPart CodeRef No.
1BASE CASETTE ASSY5SNSP000874541−001
1COVER FRONT ASSY5SNSP000877041−002
1BASE CASETTE5SNSP000874642−001
2LEVER LOCK CASETTE5SNSP000874742−002
2FLAT WASHER5SNSP000874842−003
2SPRING LEVER LOCK5SNSP000874942−004
1SHEET GUIDE A5SNSP000875042−005
1SHEET GUIDE BN5SNSP000961442−006
1SHEET GUIDE ON5SNSP000961542−007
1PLATE SPRING EARTH5SNSP000875342−008
1KNOB SIZE SELECT5SNSP000875442−009
2SPRING CASETTE N5SNSP000961342−010
1PLATE BOTTOM ASSY5SNSP000875642−011
1PLATE SIDE L ASSY5SNSP000875942−012
1PLATE SIDE R ASSY5SNSP000876242−013
1BACK END ASSY5SNSP000876642−014
1PLATE BOTTOM N5SNSP000961143−001
2PAD FRICTION5SNSP000875843−002
1LABEL INSTRUCTION5MVVL662WN0243−003
1PLATE SIDE L5SNSP000876044−001
1NAIL LN5SNSP000960944−002
1PLATE SIDE R5SNSP000876345−001
1NAIL RN5SNSP000961045−002
2SPRING ADJUST SIDE5SNSP000876545−003
1BACK END5SNSP000876746−001
2SPRING ADJUST REAR5SNSP000876846−002
1COVER BACK END5SNSP000876946−003
1COVER FRONT5SNSP000877147−001
4SPRING TENSION5SNSP000877247−002
2ROLLER PINCH5SNSP000877347−003
2SHAFT ROLLER PINCH5SNSP000877447−004
4COLLOR5SNSP000901747−005
PRINTER OPTIONS − Parts Catalogue KYOCERA PF−5 Page 11
