CUTTING EDGE TECHNOLOGY

As a pioneer with over 35 years in the solar energy
industry, Kyocera demonstrates leadership in the
development of solar energy products. Kyocera’s

Kaizen

Philosophy, commitment to continuous
improvement, is shown by repeatedly achieving
world record cell efficiencies.

QUALITY BUILT IN

• UV stabilized, aesthetically pleasing black

anodized frame

• Supported by major mounting structure

manufacturers

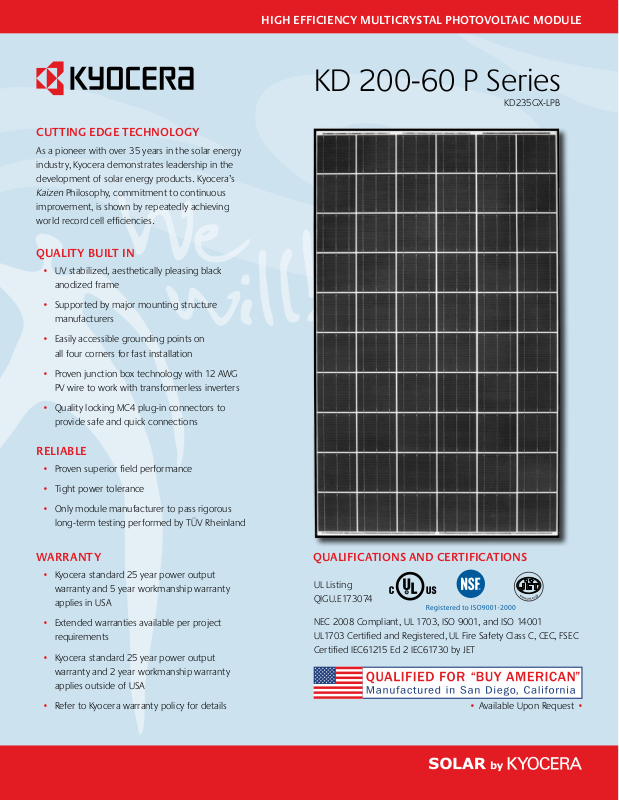

HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE

KD 200-60 P Series

KD235GX-LPB

• Easily accessible grounding points on

all four corners for fast installation

• Proven junction box technology with 12 AWG

PV wire to work with transformerless inverters

• Quality locking MC4 plug-in connectors to

provide safe and quick connections

RELIABLE

• Proven superior field performance

• Tight power tolerance

• Only module manufacturer to pass rigorous

long-term testing performed by TÜV Rheinland

WARRANTY

• Kyocera standard 25 year power output

warranty and 5 year workmanship warranty
applies in USA

• Extended warranties available per project

requirements

• Kyocera standard 25 year power output

warranty and 2 year workmanship warranty
applies outside of USA

QUALIFICATIONS AND CERTIFICATIONS

UL Listing
QIGU.E173074

NEC 2008 Compliant, UL 1703, ISO 9001, and ISO 14001
UL1703 Certified and Registered, UL Fire Safety Class C, CEC, FSEC
Certified IEC61215 Ed 2 IEC61730 by JET

• Refer to Kyocera warranty policy for details

• Available Upon Request •

KD 200-60 P Series

11.06in

281mm

KD 200-60

ELECTRICAL SPECIFICATIONS MODULE CHARACTERISTICS

Standard Test Conditions (STC)

STC = 1000 W/M2 irradiance, 25oC module temperature, AM 1.5 spectrum*

KD235GX-LPB

P

mp

V

mp

I

mp

V

oc

I

sc

P

tolerance

235 W

29.8 V

7.89 A

36.9 V

8.55 A

+5/-3 %

Nominal Operating Cell Temperature Conditions (NOCT)

NOCT = 800 W/M2 irradiance, 20oC ambient temperature, AM 1.5 spectrum*

T

NOCT

P

max

V

mp

I

mp

V

oc

I

sc

45

169 W

26.8 V

6.31 A

33.7 V

6.92 A

o

Dimensions: 65.43in/38.98in/1.8in

length/width/height

(1662mm/990mm/46mm)

Weight: 46.3lbs (21.0kg)

PACKAGING SPECIFICATIONS

Modules per pallet: 20

Pallets per 53’ container: 36

Pallet box dimensions: 66.54in/39.76in/47.24in

length/width/height

Pallet box weight: 1050 lbs (480kg)

C

11.06in

281mm

21.65in

550mm

65.43in
1662mm

(1690mm/1010mm/1200mm)

1.8in

46mm

3.23in

82mm

37.8in
960mm

4.45in

113mm

(

IP65

46.9in
1190mm

STABILIZER BAR

)

PTC

212.6 W

Temperature Coefficients

P

max

V

mp

I

mp

V

oc

I

sc

Operating
Temp

-0.46 %/oC

-0.52 %/oC

0.0065 %/oC

-0.36 %/oC

0.060 %/oC

-40 to +90

System Design

Series Fuse Rating

Maximum DC System Voltage (UL)

Hailstone Impact 1in (25mm) @ 51mph (23m/s)

Subjec t to simulator measurement uncertainty of +/- 3%.

*
KYOCERA reserve s the right to modif y these specifications without notice.

NEC 2008 COMPLIANT
UL 1703 LISTED
CERTIFIED IEC61215 ED2 IEC61730 BY JET

15 A

600 V

WARNING: Read the instruction

o

C

manual in its entirety prior to
handling, installing & operat-

ing Kyocera Solar modules.

21.65in

550mm

STABILIZER BAR

11.06in

281mm

.47in

12mm

.35in (9mm

1.8in

12.5mm

46mm

10.3mm

.79in

20mm

.49in

Short Side

.41in

1.8in
46mm

)

38.98in
990mm

1.18in
30mm

Long Side

Expanded View of Grounding Holes Frame Cross Section Diagrams

MOUNTING HOLES DRAINAGE HOLES GROUND SYMBOL

.35in (9mm

)

KYOCERA Solar, Inc. 800-223-9580 800-523-2329 fax www.kyocerasolar.com
