User’s Manual
DMS-1616 Matrix Switcher
Distributed By:
Distributed By:Distributed By:
Distributed By:
KVMSwitchTech
KVMSwitchTechKVMSwitchTech
KVMSwitchTech
2000 Auburn Drive, Suite 200
Beachwood, OH 44122
Tel: 1-866-865-7737 Intl: 1-216-378-7866
sales@kvmswitchtech.com
Thanks for your selection of KVMSwitchTech products.
For safety consideration, please read the following “Safety
Guide” before operating the equipment
DMS-1616 MATRIX SWITCHER
Version 1.0 JAN 2006
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher

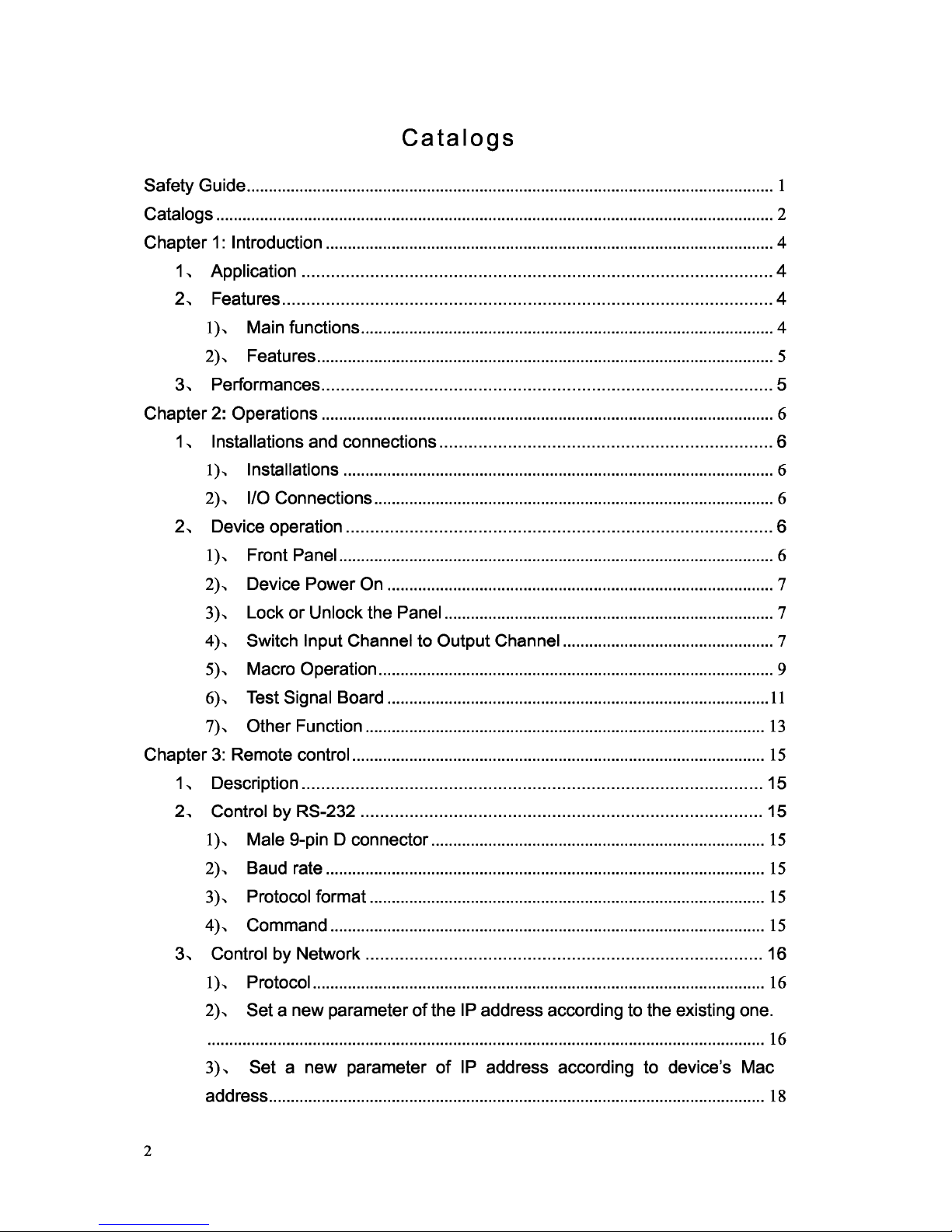

Chapter 1: Introduction
1,Application
It is a really good idea to increase the engineering application system that is
whole system adopts digitization. With the developing and popularizing of digital
technology, most of the signal processors of middle and high level and display
equipment are equipped with the Digital Visual Interface (DVI). This means
digitized multi-media application system will be an important development trend
in the field of multi-media application.
DVIS-1616 is specially designed for switching sixteen input DVI signals to
sixteen output destinations. It is available for many applications that need DVI
operation, such as big screen TV, television education, TV and telephone
conference, multi-media meeting room and so on.
2,Features
1),
Main functions
• Support 16 DVI-D input channel and 16 DVI-D output channels.
• The EDID parameter of the monitor can be preset or default. Power-off
status protection.
• Save the last operation parameters when power suddenly shut off.
• Input signal monitor and indication.
• Output load monitor and indication.
• Support RS-232 control.
• Support Network control based on TCP/IP.
• Support WEB control.
• Has a circuit in device to generate signals for testing and debugging
systems.
——
EDID:VESA EXTENDED DISPLAY INDENTIFICATION DATA
.
4

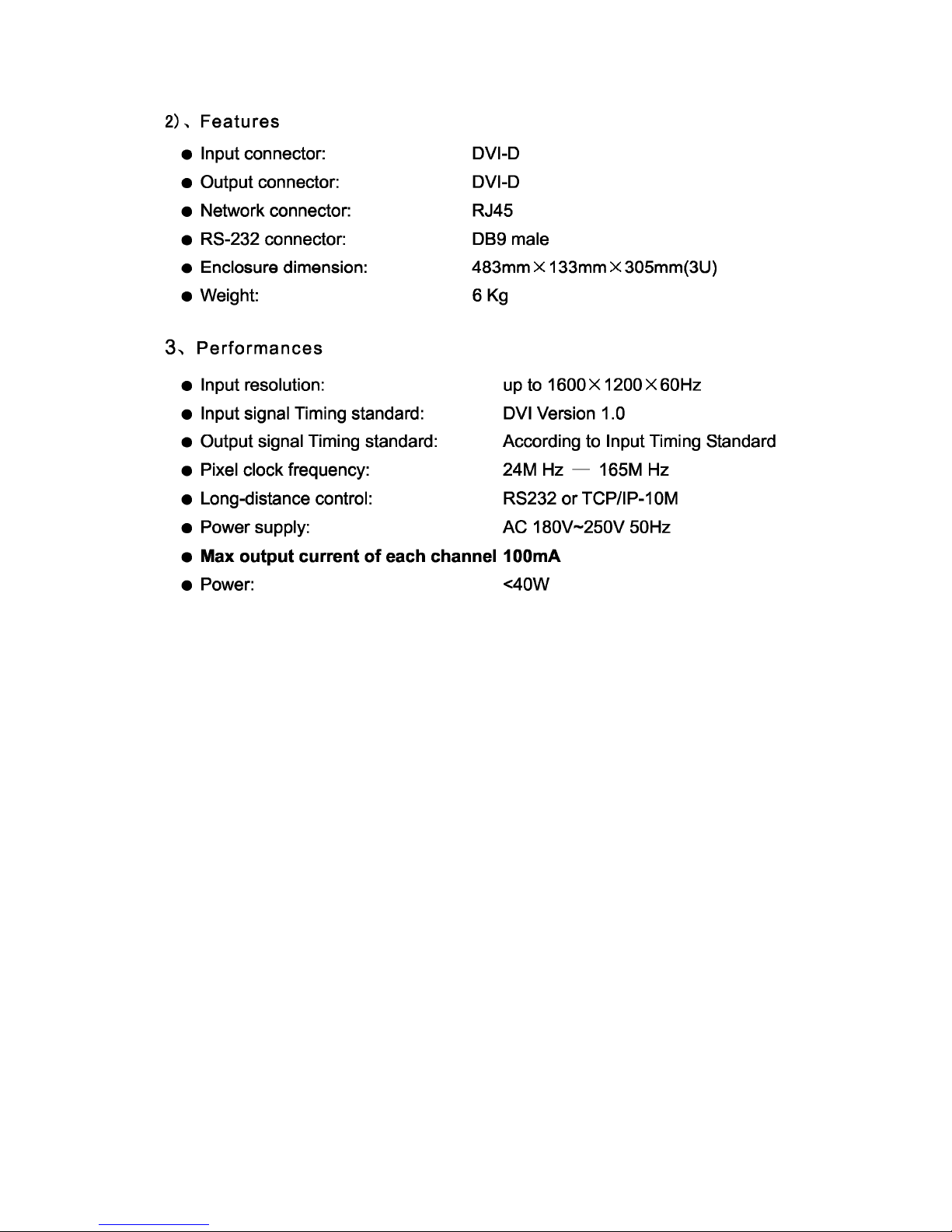

DMS-
1616 Matrix Switcher
5
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher
14
DMS-1616 Matrix Switcher
DMS-1616 Matrix Switcher
Chapter 3: Remote control
1
、
Description
DVIS-16*16 has two kinds of remote control methods, of which one is
realized through RS232 serial communication port and another is by net port.
DMS-1616 Matrix Switcher
1)、Protocol
DVIS-
16*16 supports the network control based on TCP/IP protocol, RJ
port offers physical connect between the equipment and net. Actually, the
equipment has a default IP address that is 192.168.0.104
labeled at the back of equipment. There are two indicator lights reflect the net
connecting state. The closer light shows the power is on or not. The steady
shining indicator light shows power on. The blinking light shows the net is
the going out light means the power does not connect. Another indicator light
shining means connection of the net port is common; otherwise the light going out
is abnormal.
and the MAC address is
-45
working,
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher
4),
Control device by net control command
If user need control equipment via net, then the equipment must connect to
Internet, and DVIS-16*16 must be host computer, controlling equipment must be
assistant computer. Before using command, controlling equipment need send
connection request to DVIS-16*16 via TCP/IP protocol, and then build a net. After
that, send commands to host computer, data are all binary system,
communication command and protocol formats same as RS232 controlling
format, the supporting commands are same as RS232’s commands.
5),
Control device by WEB mode
• Introduction of WEB control mode
DVIS-16*16 has a WEB server inside, this server supplies supervision
function about working state data, such as device’s inside temperature and
power voltage, and control device’s input and output via web. After set up a
correct net control parameter (IP address), the device can be available
18
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
31
DMS-1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
DMS-
1616 Matrix Switcher
37
DMS-1616 Matrix Switcher
39
DMS-1616 Matrix Switcher
Quality Guaranty
The device owns one-year guaranty with the exception of man-made
damages and if over one year material cost and repair fee are charged. Please
contact our management department in case of quality fault and device flaw. If
technology questions appear, please inform us by telephone, email, or fill out the
return form at http://www.kvmswitchtech.com/shipping-and-rma-r231.htm
TEL: 1-866-865-7737
;
Intl
: 1-216-378-7866
EMAIL: sales@kvmswitchtech.com
4 0
DMS-1616 Matrix Switcher
Packing List
Device DMS-1616
Power Cord One User’s Manual One
Certificate One Software No
Other parts No
