KVM Discovery KL-151, KL-153 User Manual

Download

KVM Discovery powered by

Haitwin-Delphin Technologie GmbH,

Kieselstraße 15, 41472 Neuss / Germany

phone: 0049(0)2131/7421652 email: info@kvm-discovery.com

VGA Extender

KL-151 / KL-153

User Manual

PACKING LIST

 KL-151/KL-153 switch

 Power Adapter

 User Manual

 Can simultaneously control two 8-port or 16-port RJ45 type KVM

 Be compatible with PS/2 / USB mouse and keyboard.



Superior video quality.

1. RJ45 Port of Transmitting End

 Put one side CAT5 cable into this RJ45 port, put another side CAT5 interface into Receivers RJ45 port

2. LED on-line instruction light

 The light is on when it’s connected with Receiver

3. LED Power Light

 The light is on when it’s connected with PC

4. VGA Port

 Connect with HDB-15 port of PC

5. Mouse & Keyboard Interface

 Connect with USB port of PC

The complete KL-151/KL-153 switch package consists of

Please check to make sure that all the components are present and that nothing was damaged in shipping. If you encounter a problem, contact your dealer. Read this manual thoroughly and follow the installation and operation procedure carefully to prevent any damage to the unit, and/or any of the devices that connect to it.

FEATURES

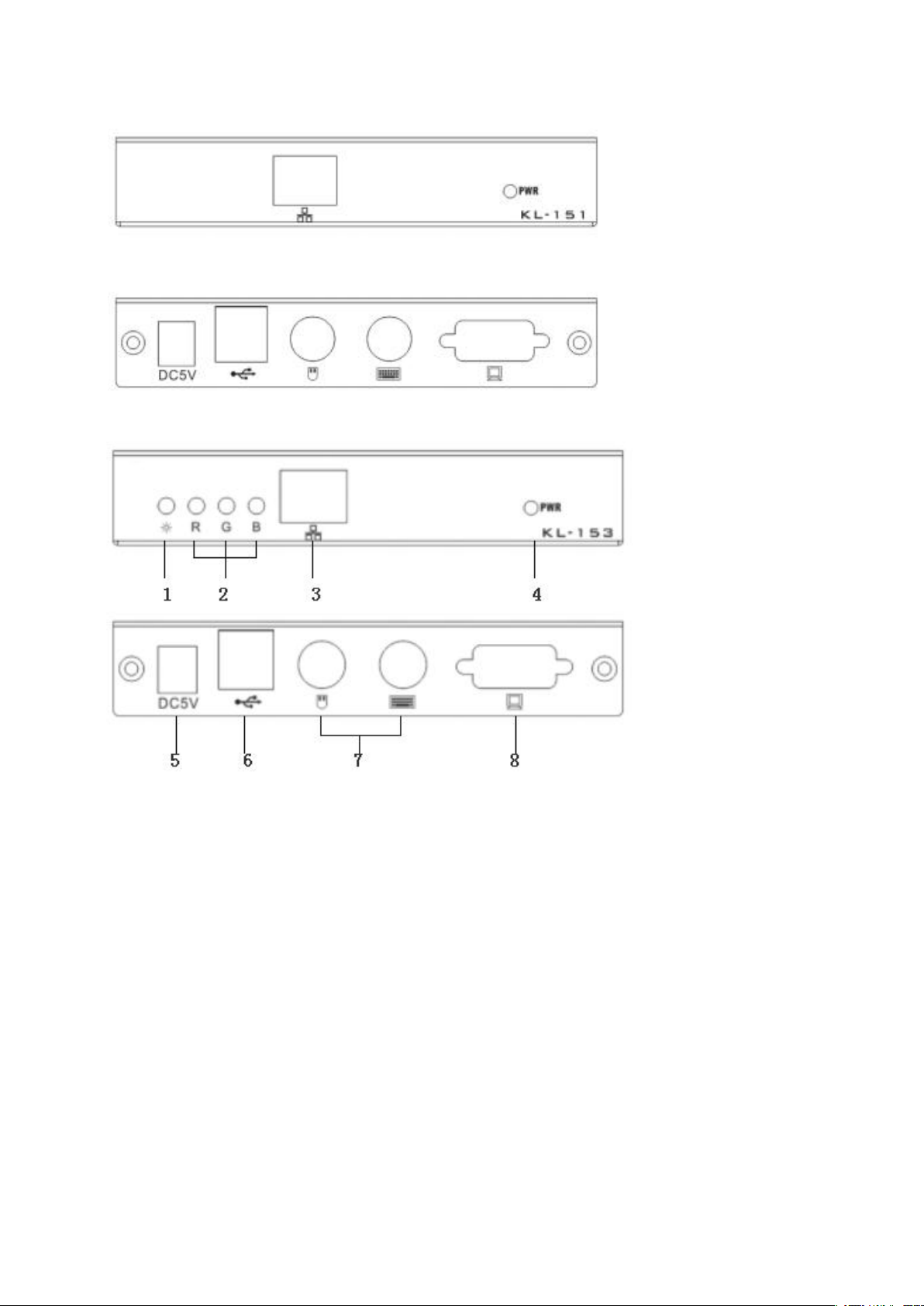

OVERVIEW

Transmitting End:

Receiving End:

1. Adjustable Turn-knob

 Video Contrast adjustment

2. Adjustable Turn-knob

 Three color primaries adjustment

3. Receiver RJ45 Port

 Receive the signal from transmitting end.

 LED is light when it’s powered on.

 DC port

 The USB mouse & keyboard plug into these ports.

 The PS/2 mouse & keyboard plug into these ports.

 It is used to plug the monitor.

KL-151

KL-153

4. LED Power Instruction

5. Power Interface

6. USB Port

7. PS/2 Port

8. VGA Port

INSTALLATION

1. Plug your PS/2 / USB keyboard, PS/2 / USB mouse and monitor into the console port section located on the

2. Plug one end of the CAT5 UTP into the available RJ45 port on the switch.

3. Plug the other end of the CAT5 UTP into the RJ45 port on the matching dongle. Connect the dongle to the

1. Plug your PS/2 / USB keyboard, PS/2 / USB mouse and monitor into the console port section located on

2. Plug one end of the CAT5 UTP into the available RJ45 port on the switch.

3. Plug the other end of the CAT5 UTP into the RJ45 port on KS-3108 / KS-3116.

SINGLE INSTALLATION

unit’s rear panel.

computer.

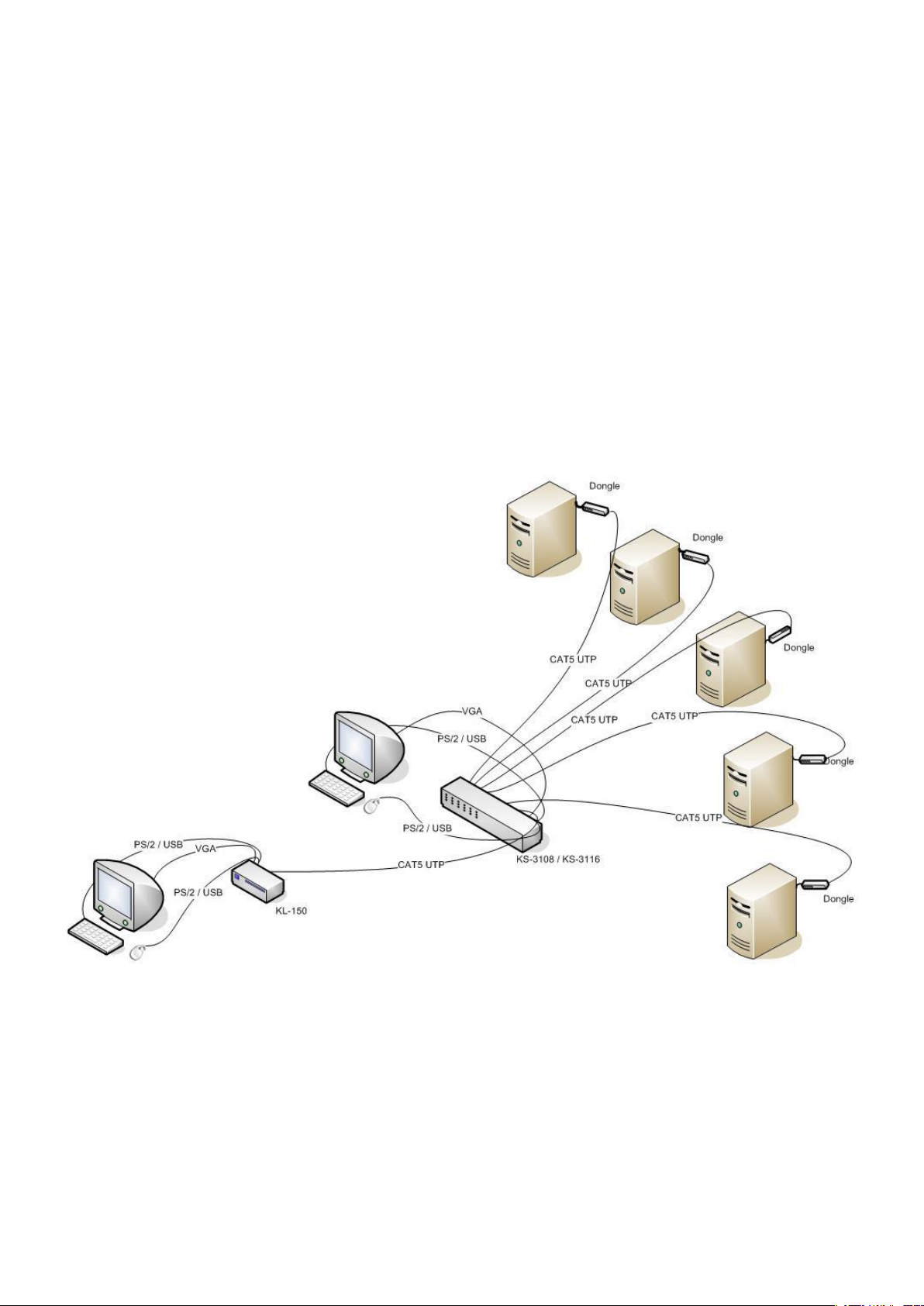

INSTALLATION TOGETHER WITH KS-3108 / KS-3116

the unit’s rear panel.

ILLUSTRATION

OPEARTION

User can use hot key to do some switching operation.

Port Switch: Quickly press L CTRL and release it, and then press R CTRL to switch between the two ports.

Remote and Local Switch: When connected to KS-3108 / KS-3116, double click F12 to shift between local control and remote

control.

SPECIFICATION

Type

KL-151

KL-153

Connectors

Keyboard, Mouse

PS/2,USB Female

Video

1 x HDB-15 Female(Blue)

CAT5

RJ45

Video Adjustable

Adjustable Knobs

Video

Signal type

VGA

Minimum input

level

0.5Vp-p

Max input level

1.0Vp-p

I/O impedance

75Ω

Resolution

1280*1024

Line Frequency

30-100KHz

Field Frequency

40-120Hz

Standard

Distance

MAX 100M

MAX 300M

Power

DC5V 2000mA

DC5V 2500mA

Storage Temp

-20˚C~60˚C

Working Temp

-10˚C~50˚C

0˚C~50˚C

Dimension

125mm*74mm*23mm

Weight

580g

600g

Color

Black

Housing

Metal

Cable

Distance (m)

Resolution（60Hz）

CAT5/5e-CAT6

1920*1080

150
