1 About this manual
This manual is intended for Kvaser Memorator Light HS v2 users. This document
contains a description of the hardware’s properties and general instructions for
connecting the device to a computer.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 5 (19)
2 Introduction
This section will describe the functions and features of the Kvaser Memorator Light
HS v2.
You must charge the battery before using your Kvaser Memorator
Light HS v2 for the first time. See Section 3.4, Power supply, on
Page 8 for more information.
2.1 Welcome to Kvaser Memorator Light HS v2
Figure 1: Kvaser Memorator Light HS v2
The Kvaser Memorator Light HS v2 is an advanced portable CAN data logger. The
device features two CAN message buffers that are used as ring (FIFO) buffers.
One buffer logs all messages on the bus. The other buffer logs approximately 1000
messages before and 1000 messages after any error frame.
When a ring buffer is full, it is automatically overwritten from the beginning. An
external LED indicates when either of the ring buffers is being overwritten.
The Kvaser Memorator Light HS v2 automatically determines the correct CAN bus
bit rate, removing the need for configuration – just plug and play.
Also, the Kvaser Memorator Light HS v2 has a built-in flash disk that cannot be
accidentally lost, misplaced, or mixed up with other disks.
This guide applies to Kvaser Memorator Light HS v2 devices listed in Table 1 on
Page 6.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 6 (19)
Device Product Number (EAN) Firmware
Kvaser Memorator Light HS v2 73-30130-01058-1 v3.14
Table 1: Kvaser Memorator Light HS v2 devices and their product numbers.
2.2 Major features
• Data logger
• Quick and easy plug-and-play installation.
• Pre-configured data logging.
• Runs in silent mode – logs bus traffic without interference.
• Automatically adjusts to the CAN bus signaling rate (autobaud feature).
• Logger status is indicated with externally visible LEDs.
• Fixed 1 GB internal disk.
• Data logger with two fixed-size ring buffers – one for all messages, and one
for error frames with pre- and post-trigger buffers.
• Built-in real time clock (calendar) with battery backup.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Fully compatible with J1939, CANopen, NMEA 2000
R
and DeviceNet.
2.3 Additional software and documentation
The Kvaser CANlib SDK includes everything you need in order to develop software
applications interacting with Kvaser CAN hardware. The SDK contains full
documentation and many sample programs, written in C, C++, C#, Delphi, Python
and Visual Basic. Kvaser CAN hardware is built around the same common
software API. Applications developed using one device type will run without
modification on other device types.
The latest versions of documentation, software and drivers can be downloaded for
free at www.kvaser.com/download.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 7 (19)
3 Kvaser Memorator Light HS v2 hardware
In this section you can read more about the CAN channels, power supply and LED
indicators.
3.1 Hardware installation
For the Kvaser Memorator Light HS v2 to communicate with the host computer, a
compatible version of the Kvaser driver and firmware must be installed.
After the driver has been installed on the host computer, the firmware may then be
downloaded and installed on the Kvaser Memorator Light HS v2.
The latest version of the driver and firmware can be downloaded from
www.kvaser.com/download.
The driver is installed by running the file
kvaser_drivers_setup.exe
.
The Kvaser Memorator Light HS v2 may be inserted in any free USB socket on the
host computer. You do not need to switch the power off before inserting or
removing the device.
For information on how to upgrade the firmware, see Section 4.5, Updating the
firmware, on Page 14.
3.2 USB connector
The Kvaser Memorator Light HS v2 has a standard USB type “B” female connector.
Connect the device to your computer using any high quality USB 2.0 certified
cable. The maximum USB cable length is 5 m (∼ 16 ft). If you need a longer cable,
you can use USB hubs or USB extension cables with a built-in hub. By chaining up
to 5 hubs, you can achieve an effective cable length of up to 25 m (∼ 82 ft).
As USB cables become longer they are more sensitive to EMI,
because they make a longer antenna that can pick up more
noise. These issues can be mitigated by using higher quality
cables with better shielding. Thicker cables tend to be better than
thin ones, and braided shielding tends to be more reliable than
only foil. Furthermore, longer cables may introduce signal
degradation and timing issues that, if necessary, can be mitigated
using shorter cable segments combined with hubs that amplify
the signal and handle delays on a per-cable basis.
3.3 CAN channels
The Kvaser Memorator Light HS v2 has one CAN Hi-Speed channel with a 9-pin
D-SUB CAN connector (see Figure 2 on Page 8). See Section 4.2, CAN
connectors, on Page 12 for pinout information.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 8 (19)
Figure 2: CAN connector on Kvaser Memorator Light HS v2
3.4 Power supply
The device does not have internal galvanic isolation, therefore
supplying power on both USB and CAN side at the same time
may damage the device unless both power sources have the
same electric ground potential.
The Kvaser Memorator Light HS v2 can be powered through the CAN connector or
through the USB connector.
To operate the Kvaser Memorator Light HS v2 in logger mode, you must supply
power through the CAN connector. To configure the device, power the device via
USB.
The Kvaser Memorator Light HS v2 contains a battery that needs to be fully
charged before using the device for the first time. Connect the Kvaser Memorator
Light HS v2 to either a powered USB port or supply power through the CAN
connector and let the battery charge overnight.
The battery inside the Kvaser Memorator Light HS v2 is used for powering the real
time clock and ensuring a safe shutdown of the device when disconnected.
To maintain a healthy battery you need to:
• Always connect the Kvaser Memorator Light HS v2 to a properly powered
USB hub, using the supplied cable, when connected to a computer.
• If the Kvaser Memorator Light HS v2 is not used regularly, ensure the device
is recharged at least twice a year overnight at room temperature.
All charging times are given at temperatures between −10◦C to
+40◦C. In warmer and colder temperatures the charging time will
increase.
See Section 4.2, CAN connectors, on Page 12 for information on how to connect
power to the connector. The supply power should be in the range specified in
Section 4.1, Technical data, on Page 12.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 9 (19)
3.5 Flash disk
The disk in the Kvaser Memorator Light HS v2 is permanently installed inside the
device and cannot be replaced by the user.
3.6 LED Indicators
The Kvaser Memorator Light HS v2 is equipped with four LED indicators. The
following tables describe the status functions of the LEDs.
Figure 3: LEDs on the Kvaser Memorator Light HS v2.
LED General meaning
PWR (Green) Power and general status
CAN (Yellow) Status for CAN channel
ERR FR (Yellow) Error frames, and FIFO status
ERR (Red) Indicates temporary or permanent errors
Table 2: LED indicators overview
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 10 (19)
PWR
(Green)
CAN
(Yellow)
ERR FR
(Yellow)
ERR
(Red)
Meaning
short flash Receiving CAN messages on the
CAN channel
blink blink The CAN channel is error passive
slow flash slow flash The CAN channel is bus off
short flash Receiving Error frames on the CAN
channel
steady Autobaud successfully completed.
The device is logging to disk.
slow blink (1 Hz) Autobaud in progress
flash steady Error. Using the device as a CAN
interface is not supported by the
hardware.
Table 3: LED indicators: CAN bus status
ERR FR
(Yellow)
Meaning
steady One or both of the FIFOs (ring buffers) are full and are being overwritten
Table 4: LED Indicators: FIFO status
ERR Meaning
constant red, one yellow flash CAN overrun
constant red, two yellow flashes (this error code is not used)
constant red, three yellow flashes Configuration file missing or corrupt
constant red, four yellow flashes Disk error
constant red, five yellow flashes Internal error; please contact support
Table 5: LED indicators: Error conditions
PWR
(Green)
Meaning
steady Autobaud successfully completed. The device is logging to disk.
Table 6: LED indicators: Logging status
PWR
(Green)
CAN
(Yellow)
ERR FR
(Yellow)
ERR
(Red)
Meaning
“Running lights” on all LEDs The device is communicating with the tool
blink Disk activity such as formatting
Table 7: LED indicators: When connected to Kvaser Memorator Tools
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 11 (19)
PWR
(Green)
ERR
(Red)
Meaning
flash every few seconds No USB communication. Check USB cables and
communication. Unplug the device and reconnect it after a
few seconds. Check that the device driver is installed
correctly.
flash steady Firmware configuration error. This should not normally
happen. Please contact the support.
Table 8: LED indicators: Other light patterns
3.7 Troubleshooting
Use “Kvaser Device Guide” in the Control Panel to verify that the computer can
communicate with the Kvaser Memorator Light HS v2. If the firmware version
shown is all zeros, there are communication problems. If the LEDs are not flashing
or do not light up at all, check the power supply. If the battery has been depleted,
no LEDs will light up. Connect the Kvaser Memorator Light HS v2 to either a
properly powered USB port or supply power through the CAN connector and let the
battery charge overnight.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 12 (19)
4 Appendices
In this section you will find technical information about the Kvaser Memorator Light
HS v2 and its connectors.
4.1 Technical data
In Table 9 below you will find the Kvaser Memorator Light HS v2’s technical
specifications.
CAN Channels 1
CAN Transceivers MCP2561FD (Compliant with ISO 11898-2)
CAN Controller Kvaser CAN IP in FPGA
Galvanic isolation No
CAN Bit Rate 50 kbit/s to 1 Mbit/s
CAN FD Bit Rate No
Time stamp resolution 2 µs
Max message rate 20000 msg/s
Error Frame Detection Yes
Error Frame Generation No
Autobaud Yes
Silent mode Yes - Always on
Kvaser MagiSync No
PC interface USB 2.0
External power 9–40 V
Power consumption Up to 3W
Hardware configuration Done by software (Plug & Play).
Software requirements Windows Vista or later. (For other operating systems, contact Kvaser
support.)
Dimensions 46 x 127 x 22 mm for body incl. strain relief
Weight 150 g
Operating temperature −40◦C to +85◦C
Storage temperature −40◦C to +85◦C
Relative humidity 0% to 85 % (non-condensing.)
Table 9: Technical Specifications
4.2 CAN connectors
Kvaser Memorator Light HS v2 devices that use the 9-pin D-SUB connector (see
Figure 4 on Page 13) have the pinning described in Table 10 on Page 13.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 13 (19)

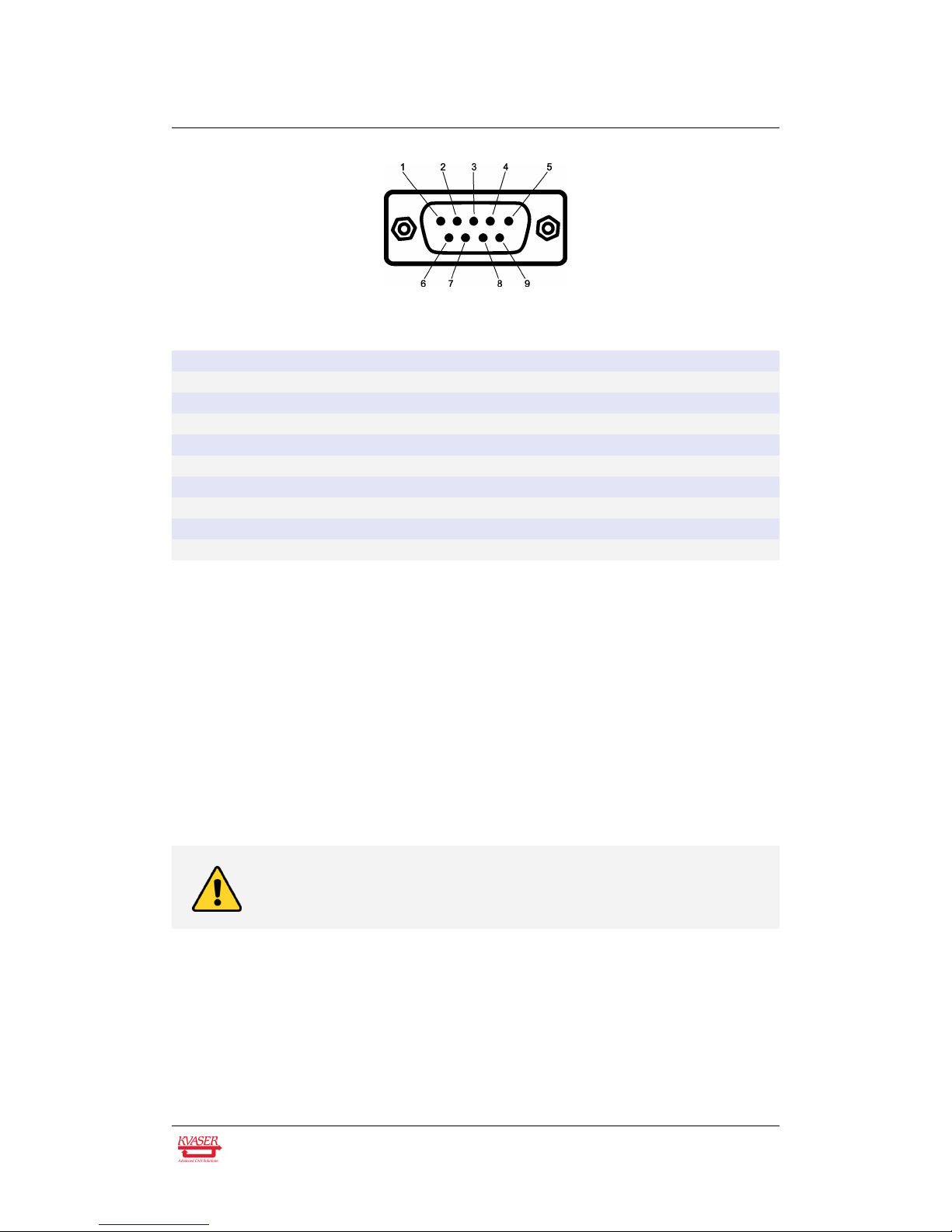

Figure 4: The D-SUB 9 connector pin numbers
D-SUB pin number Function
1 Not connected
2 CAN_L
3 GND
4 Not connected
5 Shield
6 Not connected
7 CAN_H
8 Not connected
9 Power supply to the device
Table 10: Configuration of the 9-pin D-SUB
4.3 CAN bus termination
Every CAN bus must be terminated with a 120 Ohm resistor at each end of the
bus. The Kvaser Memorator Light HS v2 does not contain any CAN bus
termination, because their inclusion could cause severe disturbance in a system
which is already correctly terminated.
For laboratory or testing use, the exact value of the termination resistors is not
always critical. Sometimes a single terminator is sufficient. For production, proper
termination is essential. If you see error frames on the bus, you should check the
termination.
To save yourself a lot of trouble, always terminate the CAN
bus properly.
4.4 Kvaser Memorator Config Tool
The Kvaser Memorator Config Tool is required for two tasks:
1. To extract logged data
2. To clear or reinitialize the built-in disk
For further information about the Kvaser Memorator Tools, please refer to the
program’s online help.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 14 (19)
4.5 Updating the firmware
For the Kvaser Memorator Light HS v2 to communicate with the host computer,
compatible versions of the Kvaser CANlib (including driver) and firmware must be
installed.
The latest versions of firmware and drivers can be downloaded for free at
www.kvaser.com/download.
Connect the Kvaser Memorator Light HS v2 to your PC with the USB cable and
start the update.exe application. A window opens showing the Firmware Update
Instructions, read and follow those carefully.
To check the current firmware version, open “Kvaser Device Guide” which can be
found in the Control Panel. Select “Kvaser Memorator Light HS v2” in the tree view
to the left, and click on the channel. The firmware revision information now
appears in the right half of the window.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 15 (19)
5 Disposal and Recycling Information
When this product reaches its end of life, please dispose of it
according to your local environmental laws and guidelines.
Dispose of batteries according to your local environmental laws
and guidelines.
For information about Kvaser’s recycling programs, visit:
http://www.kvaser.com/en/kvaser/recycling-policy.html
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 16 (19)
6 Legal acknowledgements
6.1 Usage warning
WARNING FOR ALL USERS
WARNING! - YOUR USE OF THIS DEVICE MUST BE DONE WITH CAUTION AND A FULL
UNDERSTANDING OF THE RISKS!
THIS WARNING IS PRESENTED TO INFORM YOU THAT THE OPERATION OF THIS DEVICE
MAY BE DANGEROUS. YOUR ACTIONS CAN INFLUENCE THE BEHAVIOR OF A CAN-BASED
DISTRIBUTED EMBEDDED SYSTEM, AND DEPENDING ON THE APPLICATION, THE
CONSEQUENCES OF YOUR IMPROPER ACTIONS COULD CAUSE SERIOUS OPERATIONAL
MALFUNCTION, LOSS OF INFORMATION, DAMAGE TO EQUIPMENT, AND PHYSICAL
INJURY TO YOURSELF AND OTHERS. A POTENTIALLY HAZARDOUS OPERATING
CONDITION IS PRESENT WHEN THE FOLLOWING TWO CONDITIONS ARE
CONCURRENTLY TRUE: THE PRODUCT IS PHYSICALLY INTERCONNECTED TO A REAL
DISTRIBUTED EMBEDDED SYSTEM; AND THE FUNCTIONS AND OPERATIONS OF THE
REAL DISTRIBUTED EMBEDDED SYSTEM ARE CONTROLLABLE OR INFLUENCED BY THE
USE OF THE CAN NETWORK. A POTENTIALLY HAZARDOUS OPERATING CONDITION MAY
RESULT FROM THE ACTIVITY OR NON-ACTIVITY OF SOME DISTRIBUTED EMBEDDED
SYSTEM FUNCTIONS AND OPERATIONS, WHICH MAY RESULT IN SERIOUS PHYSICAL
HARM OR DEATH OR CAUSE DAMAGE TO EQUIPMENT, DEVICES, OR THE SURROUNDING
ENVIRONMENT.
WITH THIS DEVICE, YOU MAY POTENTIALLY:
• CAUSE A CHANGE IN THE OPERATION OF THE SYSTEM, MODULE, DEVICE,
CIRCUIT, OR OUTPUT.
• TURN ON OR ACTIVATE A MODULE, DEVICE, CIRCUIT, OUTPUT, OR FUNCTION.
• TURN OFF OR DEACTIVATE A MODULE, DEVICE, CIRCUIT, OUTPUT, OR
FUNCTION.
• INHIBIT, TURN OFF, OR DEACTIVATE NORMAL OPERATION.
• MODIFY THE BEHAVIOR OF A DISTRIBUTED PRODUCT.
• ACTIVATE AN UNINTENDED OPERATION.
• PLACE THE SYSTEM, MODULE, DEVICE, CIRCUIT, OR OUTPUT INTO AN
UNINTENDED MODE.
ONLY THOSE PERSONS WHO:
(A) ARE PROPERLY TRAINED AND QUALIFIED WITH RESPECT TO THE USE OF THE
DEVICE,
(B) UNDERSTAND THE WARNINGS ABOVE, AND
(C) UNDERSTAND HOW THIS DEVICE INTERACTS WITH AND IMPACTS THE FUNCTION
AND SAFETY OF OTHER PRODUCTS IN A DISTRIBUTED SYSTEM AND THE APPLICATION
FOR WHICH THIS DEVICE WILL BE APPLIED, MAY USE THE DEVICE.
PLEASE NOTE THAT YOU CAN INTEGRATE THIS PRODUCT AS A SUBSYSTEM INTO
HIGHER-LEVEL SYSTEMS. IN CASE YOU DO SO, KVASER AB HEREBY DECLARES THAT
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND
KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE
REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE
ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH
MAY BE DEFECTIVE.
THIS PRODUCT CONTAINS A RECHARGEABLE LI-ION BATTERY THAT
MUST BE DISPOSED OF PROPERLY. IT MAY EXPLODE IF DAMAGED OR
DISPOSED OF IN FIRE. DO NOT SHORT CIRCUIT.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 17 (19)
6.2 EU Regulatory Compliance
Company Name:
Postal address:
Postcode:
City:
Telephone number:
E-mail address:
Product:
EU Declaration of Conformity (DoC)
We
Kvaser AB
Aminogatan 25
431 53
M¨olndal
+46 31 886344
sales@kvaser.com
declare that the DoC is issued under our sole responsibility and belongs to the following product:
Kvaser Memorator Light HS v2
Object of the declaration (identification of apparatus allowing traceability):
Product: Kvaser Memorator Light HS v2
Type: 73-30130-01058-1
The object of the declaration described above is in conformity with the relevant Union harmonisation
legislation:
Electromagnetic Compatibility (EMC) Directive 2014/30/EU (Art. 6)
RoHS recast Directive 2011/65/EU (Art. 4.1)
The following harmonised standards and technical sp ecifications have been applied
(title, date of standard/specification):
EN 55024 (2010) EN 55032 (2012)
EN 61000-6-3 (2007 + A1:2011) EN 50581 (2012)
Signed for and on b ehalf of:
M¨olndal
Place of issue
2019-02-11
Date of issue Claes Haglund, Supply Chain and Quality director
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 18 (19)
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his/her own expense.
6.3 Patents, Copyrights and Trademarks
All trademarks are the property of their respective owner. Windows is a registered
trademark of Microsoft Corporation in the United States and other countries.
Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks
of Adobe Systems Incorporated in the United States and/or other countries.
MagiSync is a trademark of Kvaser AB.
DeviceNet is a trademark of Open DeviceNet Vendor Association, Inc.
NMEA 2000 is the registered trademark of the National Marine Electronics
Association, Inc.
For information about Kvaser related CAN patents, see www.kvaser.com/patent.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Memorator Light HS v2 User’s Guide 19 (19)
7 Document Revision History
Version history for document UG_98214_memo_light:
Revision Date Changes
1.0 2019-02-11 Initial version
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Loading...
