OWNER’S MANUAL
KG110 GUITAR AMPLIFIER
Congratulations on the purchase of your new Kustom guitar amplier.
Your KG Model draws on decades of amp design and manufacturing
experience at Kustom. This model was built from the ground up to offer
world-class tone, useful features and reliable performance. Inside this manual,
you’ll nd valuable information about the amp’s controls and specications.
Being familiar with its features will help you effectively dial in different tones.
We wish you many years of enjoyment with your Kustom amplier.
kustom.com
FCC Statements
1. Caution: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ENGLISH
kustom.com
FRENCH
kustom.com
KG110 Control Panel
1
1. Input: ¼-inch 2-conductor input jack that is intended for electric guitar but will accept other instruments as well.
2. On (Lead): Adjust this control clockwise to increase the amount of distortion. Use in its lower ranges to produce less
distorted tones. As you increase the amount of gain, the tonality will shift from a classic rock-type sound to a heavier,
modern tone.
3. Volume (Lead): This controls the overall volume level of the Lead channel only.
4. Channel: This switch selects between the Lead and Rhythm channels.
5. Volume (Rhythm): This controls the overall volume level of the Rhythm channel only.
6. Bass: This controls the bass frequencies for both channels. This passive controls adjusts frequencies at 800 Hz and
below.
7. Treble: This controls the treble frequencies for both channels. This passive control adjusts frequencies at 3 kHz and
above.
8. Aux In: This is a 3-conductor, 1/8-inch, stereo jack that allows playback from a Compact Disc, MP3 player or other
audio device. The overall volume level will be determined by the audio device, so start with lower volume levels and
increase as needed.
2
3
4
5
6
7
8
9 10
9. Headphones: This is a 3-conductor, 1/8-inch input jack intended for headphone use. The amplier’s internal speaker
is disconnected when this jack is used.
10. Power Switch: This dual-function component is both an On/Off power switch and a status indicator light. When
illuminated, it shows that your amplier is ready to be played. To turn amplier on, press switch upward. To turn amp off,
press switch downward.
kustom.com

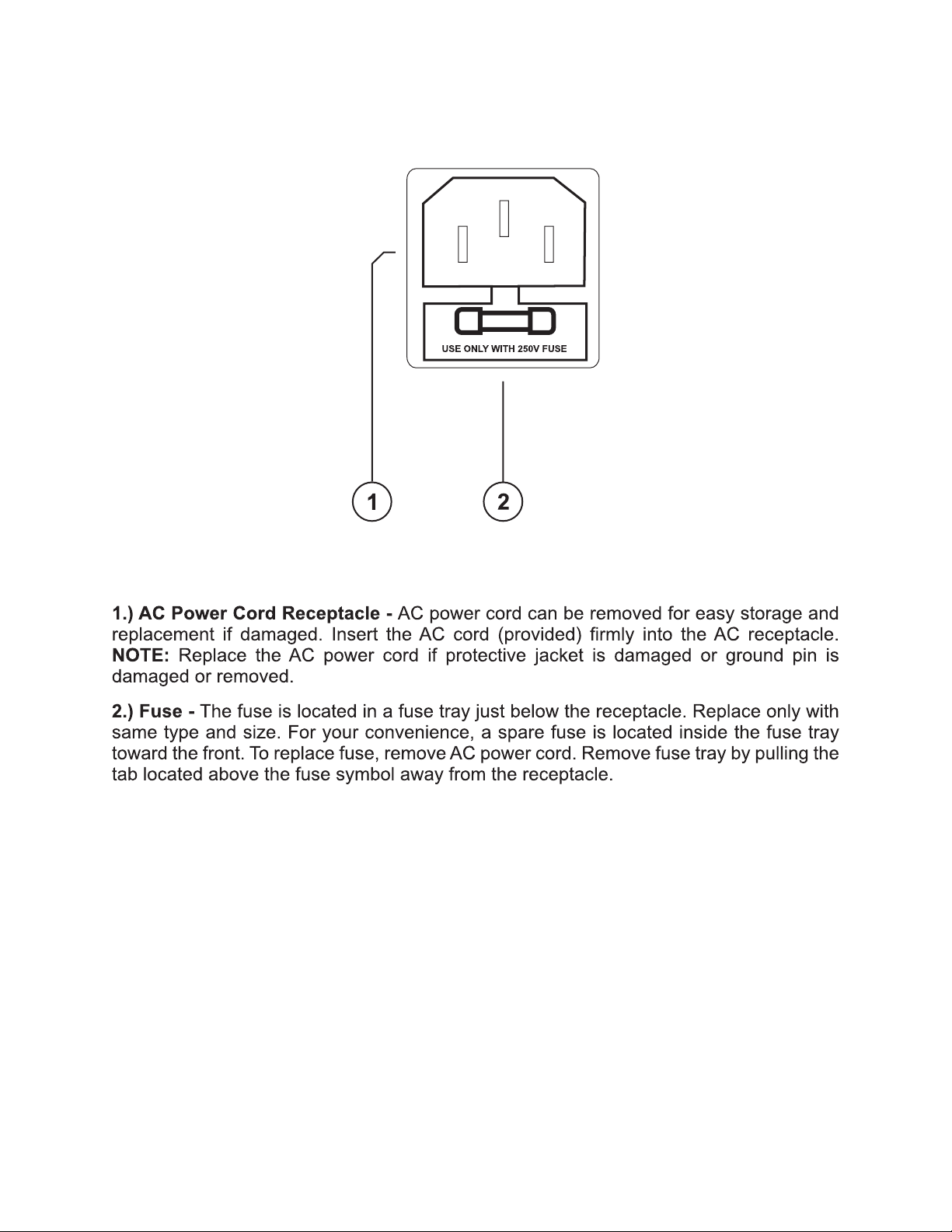

KG110 AC Mains
kustom.com

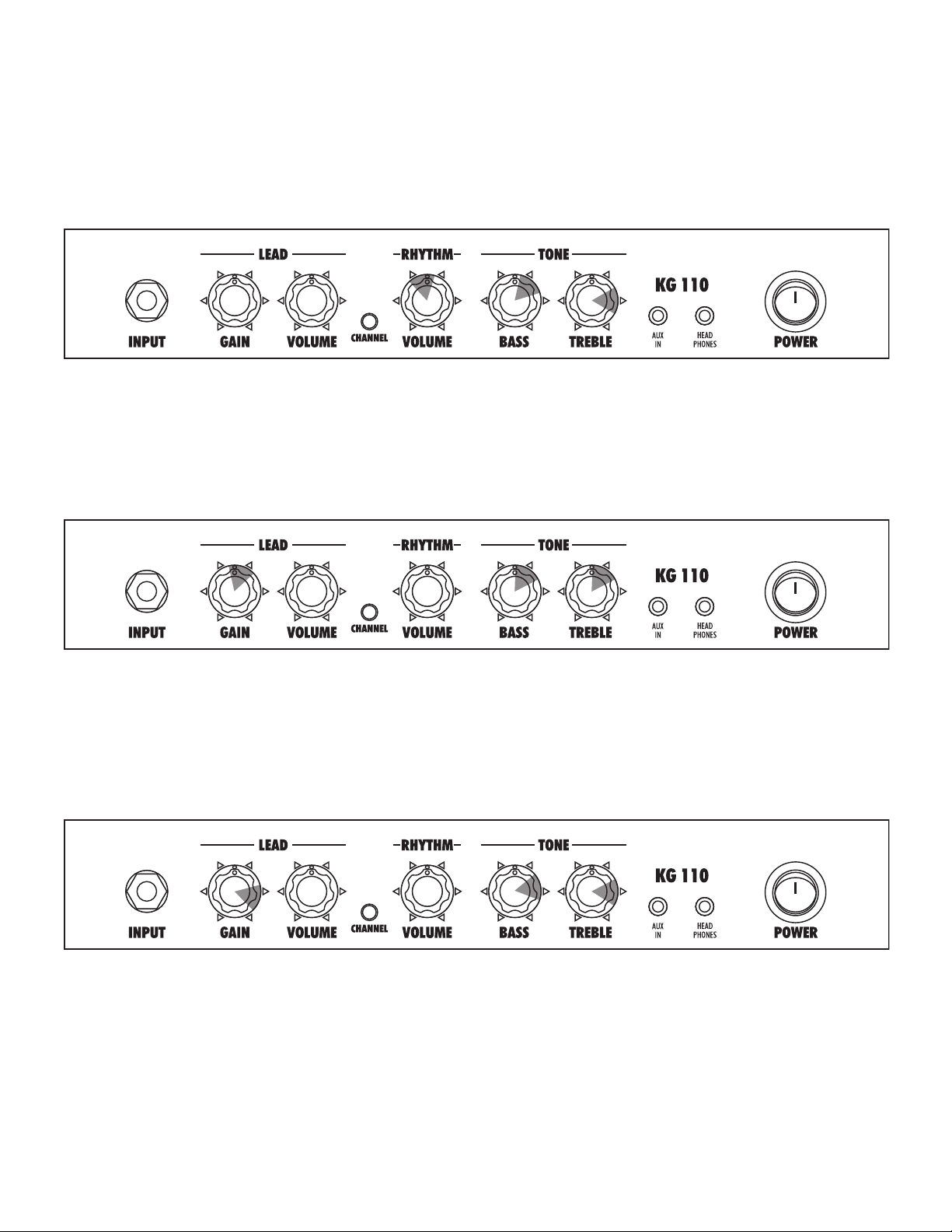

KG110 Suggested Settings
The following suggested settings will help you dial in a variety of popular tones. Keep in mind, these are starting points to
get you up and running with your KG amplier. Feel free to experiment to achieve your own signature sounds.
CLEAN GUITAR
These settings are for punchy clean tones that are commonly used in Pop, Country, Alternative and many other genres
of music. Use the Rhythm channel with the tone controls set to emphasize brighter sounds. The Bass control should be
adjusted to maintain the clarity of the overall tone.
MEDIUM-GAIN GUITAR
These settings are appropriate for Rock, Blues or other music styles that require a moderate amount of distortion. Use
the Lead channel with the Gain set to its middle ranges. Increase the amount of Treble if needed for darker sounding
guitars.
HIGH-GAIN GUITAR
Try these setting ranges when you want to produce the heaviest tones. Notice that the Gain control is cranked up and
Bass is increased for a modern, heavy-music vibe.
kustom.com
Kustom® KG110 Specications
Output Power
Equalizer
Channels
Speaker
Effects
Inputs/Outputs
Amplier Type
Dimensions/Weight
10 Watts
2 Band Bass Treble
2
1 x 10” 4 Ohm 15W
N/A
Aux In Head Phones
Bi-Polar Transistor
mm/Kilogram 366 (Height) X 333 (Width) X 198 (Depth),
5.4 Kilogram
Inches/Pounds 14.4 (Height) X 13.1 (Width) X 7.8 (Depth),
12 Lbs
kustom.com
19 November 2009
KG110
kustom.com
kustom.com
www.kustom.com
Kustom Amplication, Inc.
3015 Kustom Drive
Hebron, Kentucky
USA 41048
888-4-KUSTOM (888-458-7866)
All specications are subject to change without prior notice. ©2009 Kustom
