INSTRUCTION MANUAL

POWER SAVE TIMER

A TIMER TO LIMIT THE OPERATING TIME

OF AN A.C. LOAD

MODEL# 091-191-115

INPUT: 115 VOLTS, A.C.

OUTPUT: 115 VOLTS AC, 20 AMPS AC

3 YEAR WARRANTY

KUSSMAUL ELECTRONICS CO., INC.

170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796

TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: [phone] EMAIL:[e-mail]

INTRODUCTION

The Power Save T imer may be installed in vehicles with a Block Heater. These
heaters normally consume approximately 1200 watts. In many installations this
amount of power is not required continuously in order to maintain the engine
temperature. It thus may be desirable to periodically turn the heater “OFF” to
conserve power. The Model 091-191-115 Power Save Timer performs that
function. The heater is powered for 1 hour and then turned “OFF” for 1 hour.
The process repeats for as long as power is applied to the heater circuit. The
1200 watt heater thus consumes an average of only 600 watts, considerably
saving in the operating cost of the Block Heater.

An optional bypass switch may be installed to bypass the timer for those
instances in which full power is required.

INSTALLATION

1. Mount the unit using the four holes provided (see Figure 2)

2. Wire the unit in accordance with the wiring diagram Figure 1.

3. Note that a fuse must be installed in the 115 volt power line to provide
protection for heater shorts.

4. An optional switch shown may be installed to bypass the POWER SA VE
TIMER to permit operation of the load at full power if this is required. Note
that this switch must have a voltage and current rating to carry the load
current.

5. Check all wiring before applying power.

6. Test operation by applying 115 volts AC and noting that the heater is
energized for one hour and then cycles 1 hour OFF and 1 hour ON.

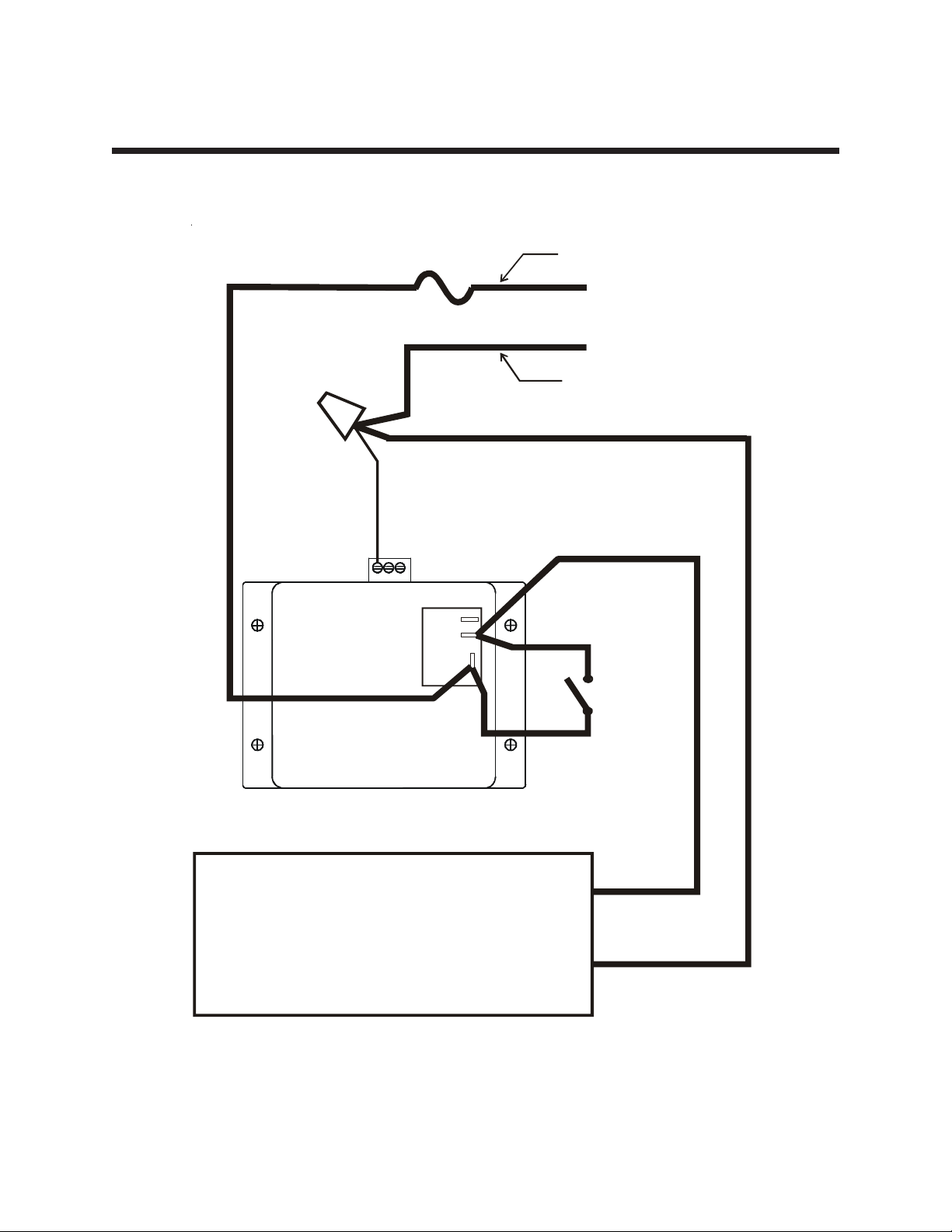

WIRING DIAGRAM

FUSE
20 Amp.

Black, 12 AWG

115 VAC Line

WIRE

NUT

16 AWG

NEUTRAL

NO CONNECTION

NC
NO

NO CONNECTION

COM

091-191-115

POWER SAVE TIMER

115 VAC Neutral

White, 12 AWG

BYPASS
SWITCH
(Optional)

A.C. LOAD, 20 amps max

(Block Heater)

Figure 1

SPECIFICATIONS & OUTLINE

Input Power: 115 VAC
Input Current Draw: 20 ma. with heater ON, 5 ma. with heater OFF.
Relay Contact Rating: 30 amps @ 115 VAC
Weight: 1 lb
Warranty: 3 Years

4.75

4.25

NC

0.725

NO

COM

2.00

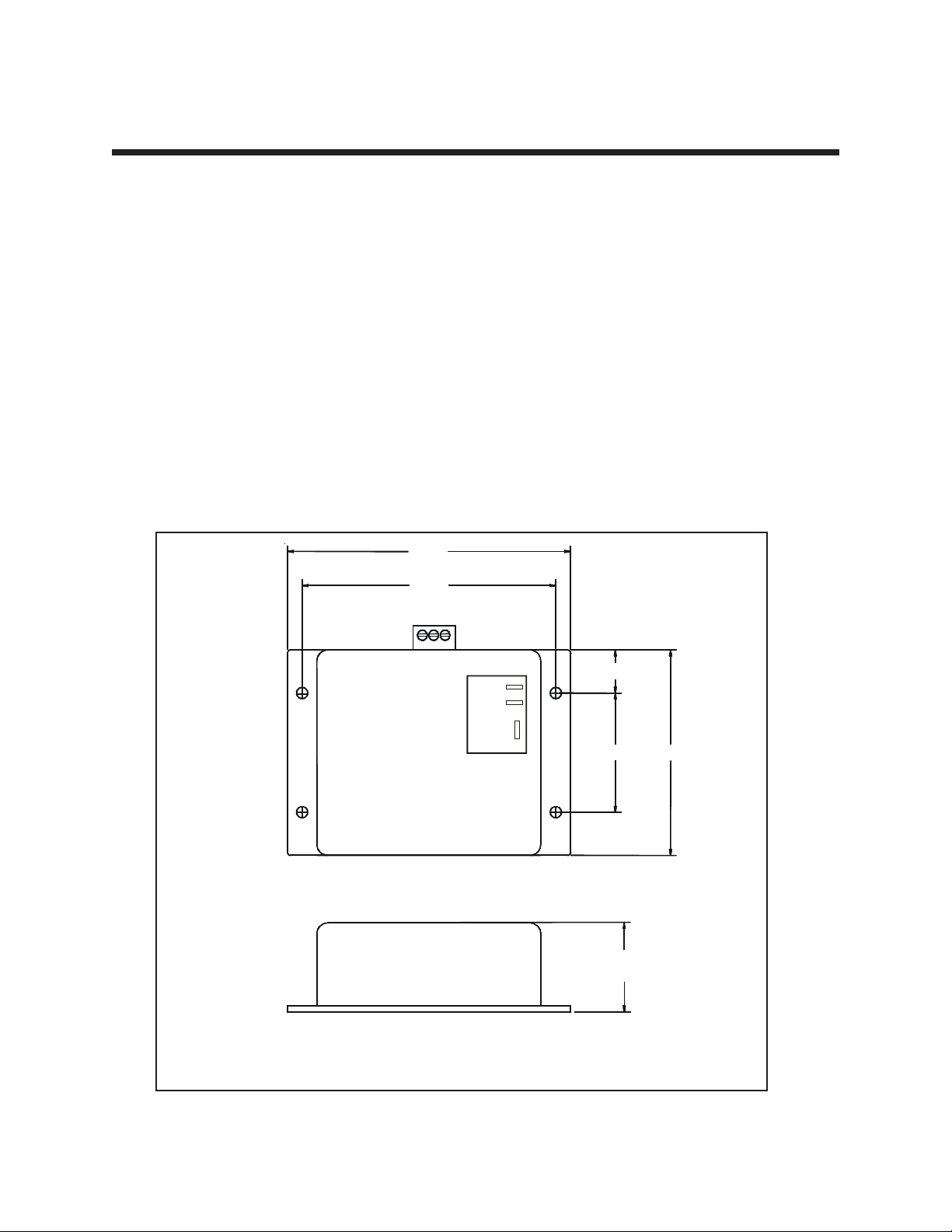

Figure 2

Outline Dimensions

3.45

1.80

INSTALLATION RECORD & WARRANTY

Date Installed

Installed By

Vehicle Identification

Vehicle Owner

WARRANTY

All product of Kussmaul Electronics Company Inc. are warranted to be free
of defects of material or workmanship. Liability is limited to repairing or
replacing at our factory, without charge, any material or defects which
become apparent in normal use within 3 years from the date the equipment
was shipped.

Kussmaul Electronics Company, Inc. shall have no liability for damages of
any kind to associated equipment arising from the installation and /or use of
the Kussmaul Electronics Company, Inc. products. The purchaser, by the
acceptance of the equipment, assumes all liability for any damages which
may result from its installation, use or misuse, by the purchaser, his or its
employees or others.
