INSTRUCTION MANUAL
DUAL 12 Volt-20 Amp
AUTOMATIC BATTERY CHARGER
MODEL #091-145HO-12
INPUT: 120 Volts, 50/60 Hz AC
OUTPUT 1: 12 Volts, DC, Isolated
OUTPUT 2: 12 Volts, DC, Isolated
3 YEAR WARRANTY
KUSSMAUL ELECTRONICS CO., INC.
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826
1
INTRODUCTION
The Auto Charge Dual 12 volt-20 amp. Battery Charger is a compact, completely automatic
charger designed specifically for installations that require 24 volts for starting and 12 volts
for accessories. The two batteries are connected in series to obtain 24 volts and the output
of each charger is connected to each battery. Each output of the charger is individually
controlled to charge it's particular battery and is electrically isolated from the other. Two
separate ammeters indicate the output current to each battery.
Construction of the Auto Charge Dual 12 volt-20 amp Battery Charger is extremely rugged
to withstand the shock and vibration encountered in vehicle mounted equipment. Each
output operates completely automatically and stops charging its battery when the battery is
fully charged. There is no trickle charge, and therefore no danger of overcharging and water
boil-off. Any parasitic loads on the batteries such as radios, lights, etc., are automatically
supplied by the respective charger output.
2
INSTALLATION
The Auto Charge Dual 12 Volt-20 amp Automatic Battery Charger should be installed in an
area with adequate ventilation. Wiring is illustrated in figure 1 and figure 2.
1. Mount the charger using the four holes provided for this.
2. Connect the wiring from the batteries to the Output Terminal Strip.
3. Double- check all wiring before proceeding.
4. Connect the A.C. power through the provided line cord (attached to the charger).
5. Pilot light will show that the charger has power.
Figure 2 illustrates this charger connected to two batteries in series. Each battery is
individually charged and charging ceases automatically when that battery is fully charged.
Thus if battery 1 requires more charging due to the accessory load, charging to battery 1 will
continue even after the charger has stopped charging battery 2. This ensures that both
batteries will be fully charged but neither will be over-charged.
3
INSTALLATION
2 INDIVIDUAL BATTERIES
BATTERY 1
POWER
BATTERY 2
FUSE
#12 AWG WIRE
TO CHARGER
OUTPUT 1
BAT
OUTPUT 2
BAT
+
+
115 Volts, A.C.
Figure 1
4
INSTALLATION
24 Volt Starter, 12 Volt Accessories
BATTERY 1
POWER
BATTERY 2
FUSE
#12 AWG WIRE
TO CHARGER
NOTE:
THE SERIES CONNECTION OF
THE TWO 12 VOLT BATTERIES
PRODUCES 24 VOLTS.
OUTPUT 1
BAT
+
12 VOLT
ACCESSORIES
OUTPUT 2
BAT
+
115 Volts, A.C .
TO STARTER &
OTHER 24 Volt
CIRCUITS
BATTERIES CONNECTED IN SERIES
EACH BATTERY IS INDIVIDUALLY
CHARGED AT 12 VOLTS. THUS,
EVEN THOUGH THE BATTERIES
MAY SUPPLY DIFFERENT LOADS,
EACH BATTERY IS AUTOMATICALLY
SUPPLIED WITH THE CORRECT
CHARGING CURRENT. WHEN EACH
OF THE BATTERIES IS FULLY CHARGED
IT’S CHARGER STOPS CHARGING.
Figure 2
5

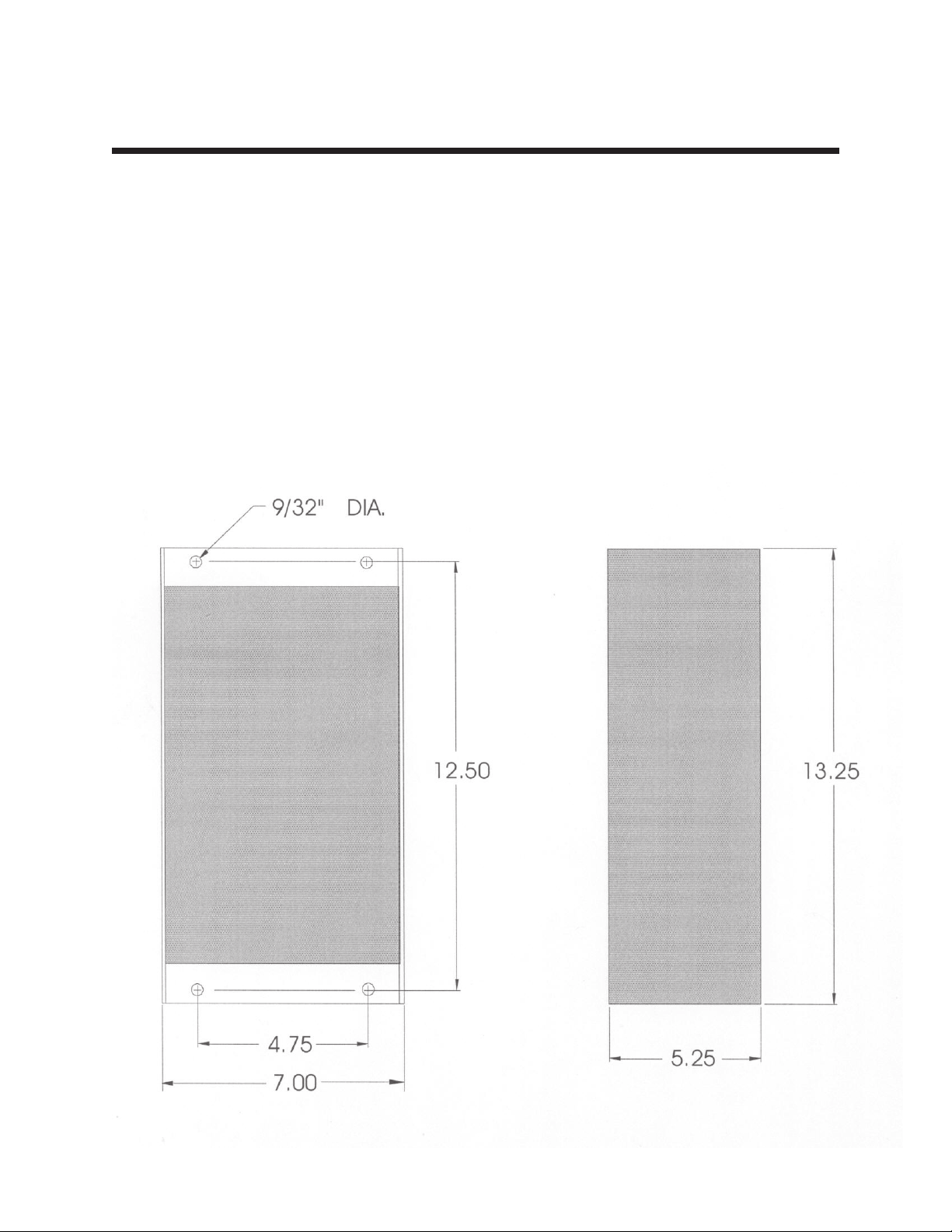

SPECIFICATIONS & OUTLINE
Input Voltage: 115 VAC, 50/60 Hertz
Input Fuse: 15 Amperes (normal blow)
Input Current: 8 Amperes A.C.
Output Voltage: Dual 12-volt outputs
Output Current: 20 Amperes D.C. per output
Charge Indicators: 0 to 25 Amperes per output
Weight: 22 lbs
6
INSTALLATION RECORD & WARRANTY
Date Installed
Installed By
Vehicle Identification
Vehicle Owner
WARRANTY
All products of Kussmaul Electronics Company Inc. are warranted to be
free of defects of material or workmanship. Liability is limited to repairing or
replacing at our factory, without charge, any material or defects which
become apparent in normal use within 3 years from the date the equipment
was shipped. Equipment is to be returned, shipping charges prepaid and will
be returned, after repair, shipping charges paid.
Kussmaul Electronics Company, Inc. shall have no liability for damages
of any kind to associated equipment arising from the installation and /or use
of the Kussmaul Electronics Company, Inc. products. The purchaser, by the
acceptance of the equipment, assumes all liability for any damages which
may result from its installation, use or misuse, by the purchaser, his or its
employees or others.
7
