INSTRUCTION MANUAL
AUTO CHARGE 11HO
AUTOMATIC BATTERY CHARGER
MODEL #091-11HO
REV. B
NOTE :
This charger is designed for
vehicles with dual batteries
and negative ground.
3 YEAR WARRANTY
KUSSMAUL ELECTRONICS CO., INC.
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826
INTRODUCTION
The Auto Charge 11HO Battery Charger is a compact completely automatic charger
designed for installation on vehicles with two batteries. Two separate charging circuits
monitor the charge requirements of each battery and charge each battery individually. A
current limiter protects the charger when charging deeply discharged batteries by limiting
the total charger output current. An ammeter provides continuous indication of the charger
output.
Construction of the Auto Charge 11HO is extremely rugged to withstand the shock and
vibration normally encountered by vehicle mounted equipment. The unit operates comÂpletely automatically and stops charging the batteries when they are fully charged. There
is no trickle charge and therefore no danger of overcharging and water boil-off. Any parasitic
loads on the battery such as radio, lights, etc., are automatically supplied with current by
the charger.
INSTALLATION
The Auto Charge 11HO Automatic Battery Charger should be installed in an area with
adequate ventilation.
1. Mount the charger using the four holes provided for this.
2. Connect the wiring from the batteries to the Output Terminal Strip.
3. Double check all wiring before proceeding.
4. Wire the A.C. power to the A.C. Input Terminal Strip.
5. Pilot light will light to show that the charger has power.
page 1

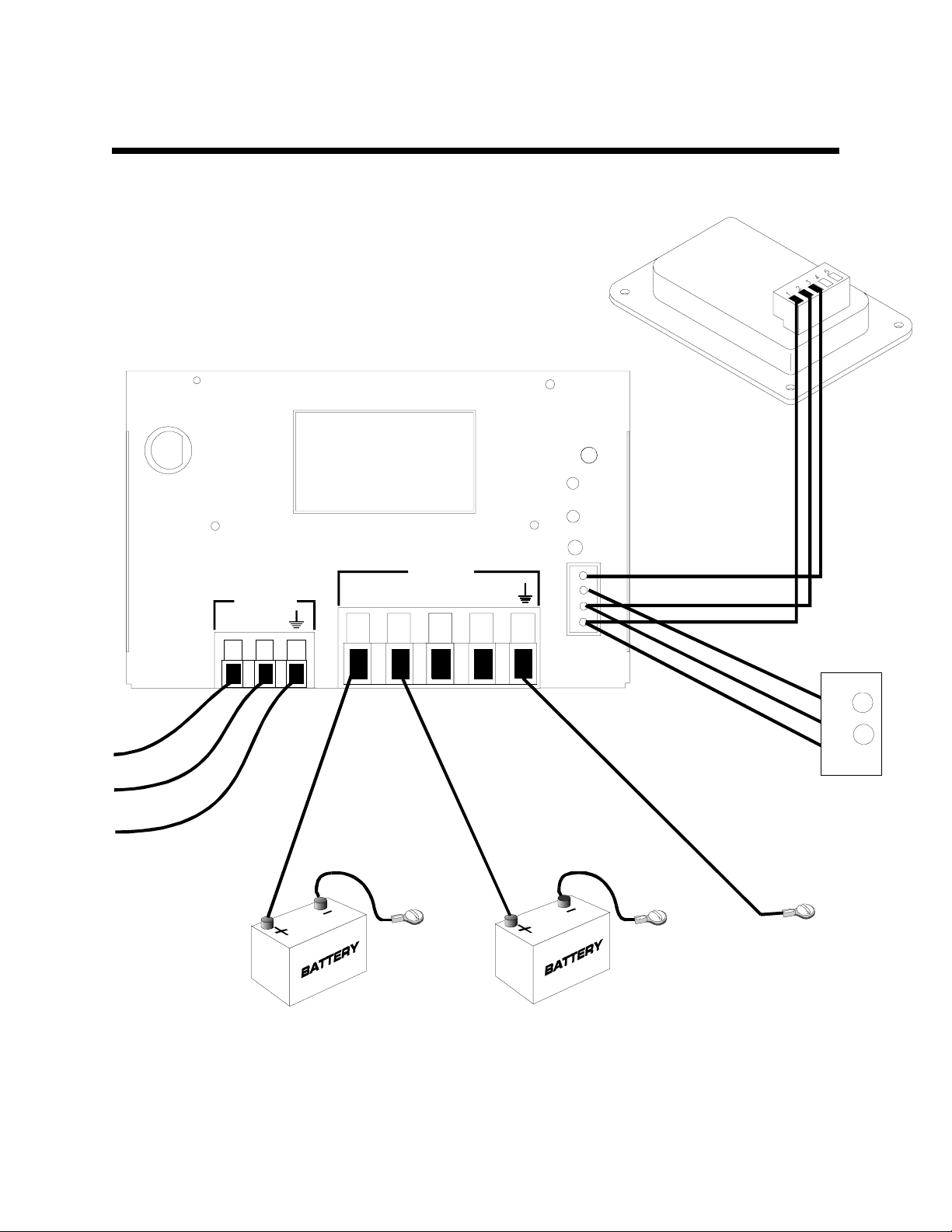

INSTALLATION WIRING DIAGRAM
OptionalBar-Graph
Indicator
091-11-127
POWER
FUSE
A.C. Input Power
Line
Neutral
Ground
INPUT
LN
BAT1 BAT2
++
Chassis
Ground
OUTPUT
REMOTE
Chassis
Ground
Yellow
Black
Red
Optional
Economy
Indicator
091-11-102-XX
Chassis
Ground
IMPORTANT: Charger output wire size is 12 awg. Wire size is for a maximum length of 20
feet. If wiring is to be longer, larger wiring is required. Additional information is available on
request.
page 2
SPECIFICATION & OUTLINE
SPECIFICATION CHART
SPECIFICATIONS:
Input: see chart
Output: see chart
Output Current: see chart
Charge Indicator: 0-25 amps 5%
Weight: 23 lbs
6.75
AUTO CHARGE
MODEL # AMPS
OUTPUT
091-11HO-6 20 120 A.C. 6
091-11HO-12 20 120 A.C. 12
091-11HO-24 11 120 A.C. 24
091-11HO-6-220 20 220 A.C 6
091-11HO-12-220 20 220 A.C 12
091-11HO-24-220 11 220 A.C 24
VOLTAGE
INPUT
VOLTAGE
OUTPUT
12.00
12.75
4.75
9/32" DIA. 4 HOLES
4.25

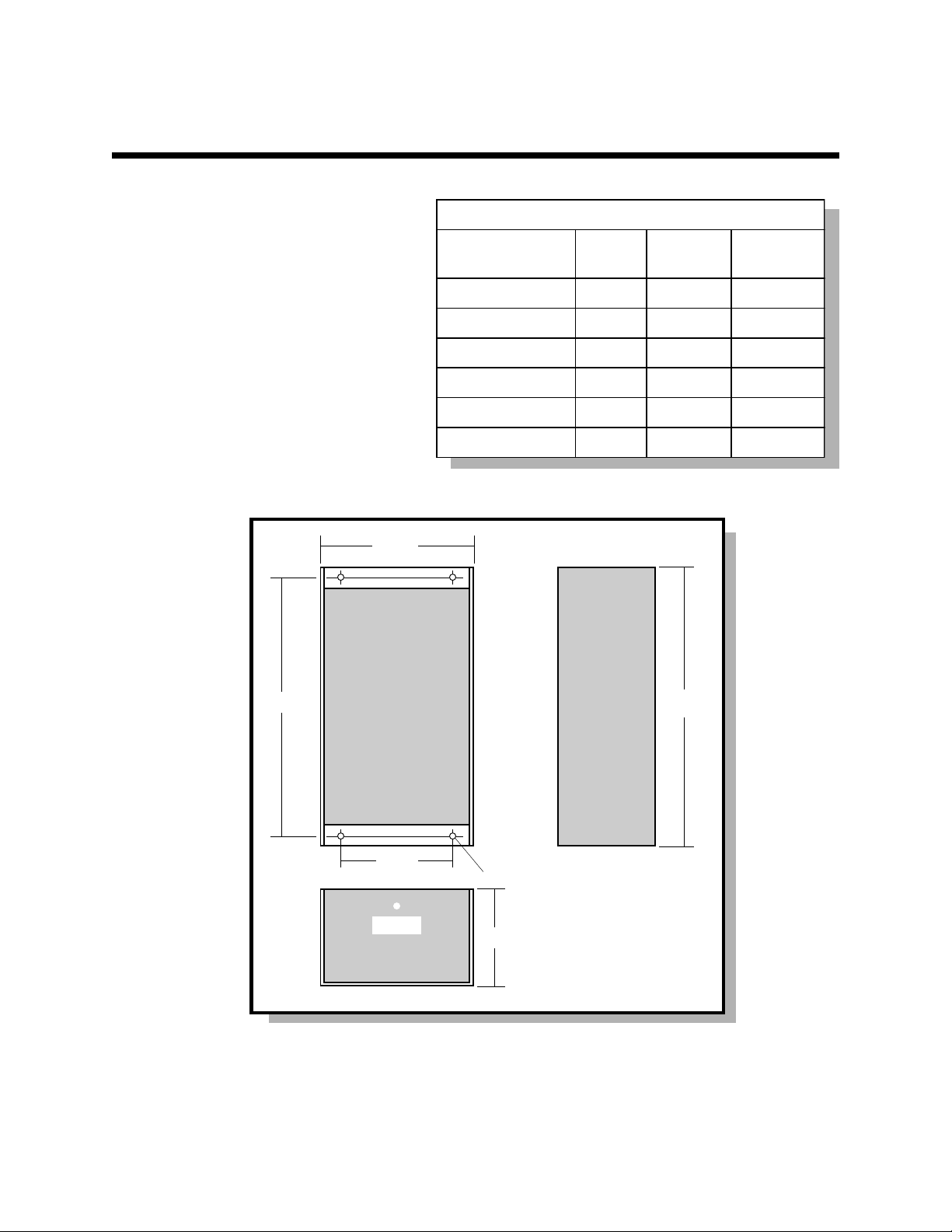

OUTLINE DRAWING
page 3
INSTALLATION RECORD & WARRANTY
Date Installed
Installed By
Vehicle Identification
Vehicle Owner
WARRANTY
All products of Kussmaul Electronics Company Inc. are warranted to be free
of defects of material or workmanship. Liability is limited to repairing or
replacing at our factory, without charge, any material or defects which
become apparent in normal use within 3 years from the date the equipment
was shipped.
Kussmaul Electronics Company, Inc. shall have no liability for damages of
any kind to associated equipment arising from the installation and /or use of
the Kussmaul Electronics Company, Inc. products. The purchaser, by the
acceptance of the equipment, assumes all liability for any damages which
may result from its installation, use or misuse, by the purchaser, his or its
employees others.
page 4
