KUNBUS REVPI FLAT Instructions

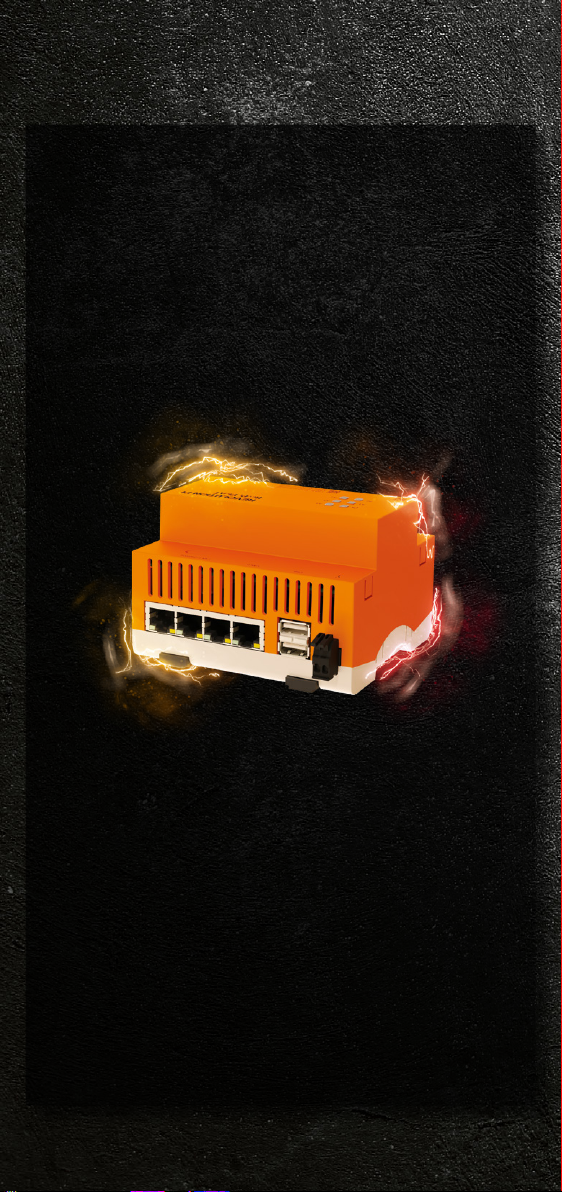

RevPi Flat

The open source platform

for the energy industry

Revolutionize the

energy industry

Possible application ideas that are just
waiting to be implemented by you with
the RevPi Flat:

• Modern, decentralized energy management

• Virtual power plants

• Providing balancing power/controlling power
range in the control of small power plants

• Energy trading

• Control of photovoltaic, biogas and wind
power plants

• Control of charging stations and hydrogen

cells

• Cost- and time-optimized charging of
electric cars/charging time optimization

• Management of alternative temporary buer
stores, such as for electric cars

• One-site administration of digital master

data, les and maintenance protocols

• Remote meter-reading

• Cloud solutions

• IT security with trusted platform module
(TPM)

The energy industry today faces enormous
challenges. Renewable energies, electromobility
and grid expansion are just some of the buzzwords
being discussed in politics, the media and society.
In addition, the liberalisation of the electricity
market and the resulting increase in competition
as well as digitalisation allow completely new
structures and business models.

The associated complex requirements and tasks
can be realized by using our RevPi Flat. This
module basing on Raspberry Pi convinces with
its genuine industrial suitability and a large num­ber of interfaces. Thanks to the open platform
concept (including full root rights), the device
guarantees maximum design freedom when
implementing your projects.

The RevPi Flat forms a versatile, Raspberry Pi
and LINUX-based and freely programmable

platform for process optimization, more ecient

data handling and the implementation of new
marketing strategies in the energy industry.

In addition, we support you with comprehensive
services, such as programming, sensor selection
and much more.

Talk to us!

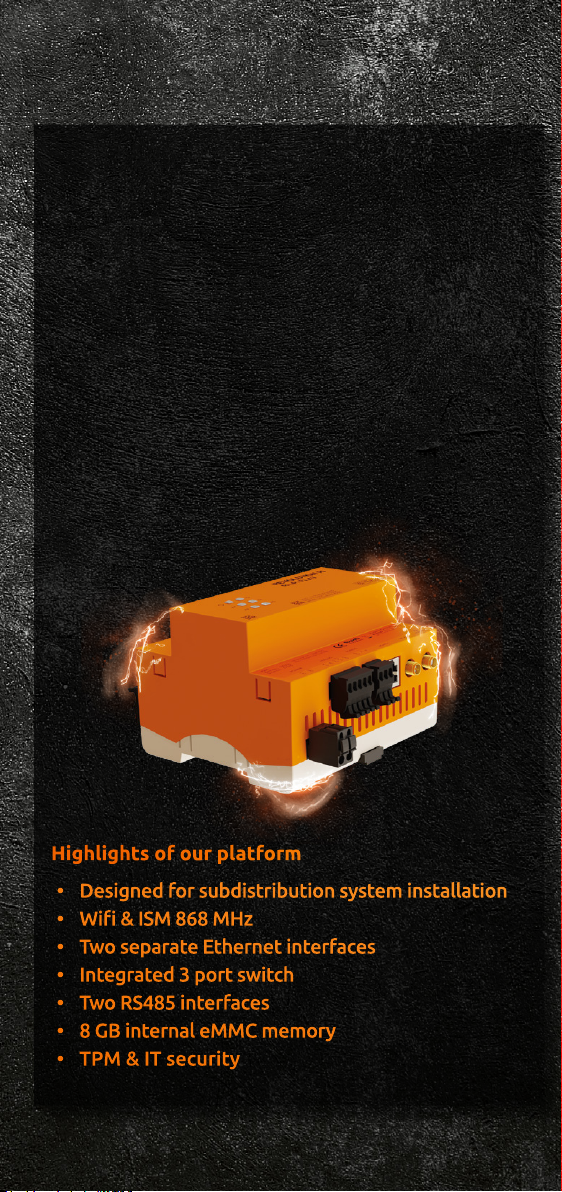

Highlights of our platform

• Designed for subdistribution system installation

• Wi & ISM 868 MHz

• Two separate Ethernet interfaces

• Integrated 3 port switch

• Two RS485 interfaces

• 8 GB internal eMMC memory

• TPM & IT security

Interfaces

4 x RJ45 10/100 Ethernet (two separate MAC addresses for LAN0 and

LAN1 -> LAN0: 1 x Ethernet; LAN1: 3 x Ethernet switched)

2 x USB A

1 x RS485 (spring-loaded terminal)

1 x RS485 (RJ12 socket)

1 x digital output (potential free)

1 x analog output (0-10 V DC)

1 x analog input (0-10 V DC)

1 x Wi (RP-SMA socket)

1 x ISM 868 MHz (SMA socket)

Specications

Size (H x W x D) 90 x 106 x 70 mm (w/o connector)

Housing type DIN rail housing

Housing material Polycarbonate

Protection class IP20

Weight approx. 248 g

Processor

Clock rate 1.2 GHz

RAM 1 GB

eMMC ash memory 8 GB (16 GB and 32 GB on request)

Power supply

Max. power consumption 16 W (incl. 5 W USB)

Operating temperature -20 °C…+55 °C

Humidity 93 %, non-condensing

EMC interference
emission

EMC immunity according to EN 61000-6-2

RoHS conformity Yes

CE conformity Yes

Broadcom BCM2837B0 with
quad-core processor ARM Cortex A53

typ. 24 V DC (12.0 … 28.8 V DC), reverse

polarity protected

according to EN 61000-6-4
