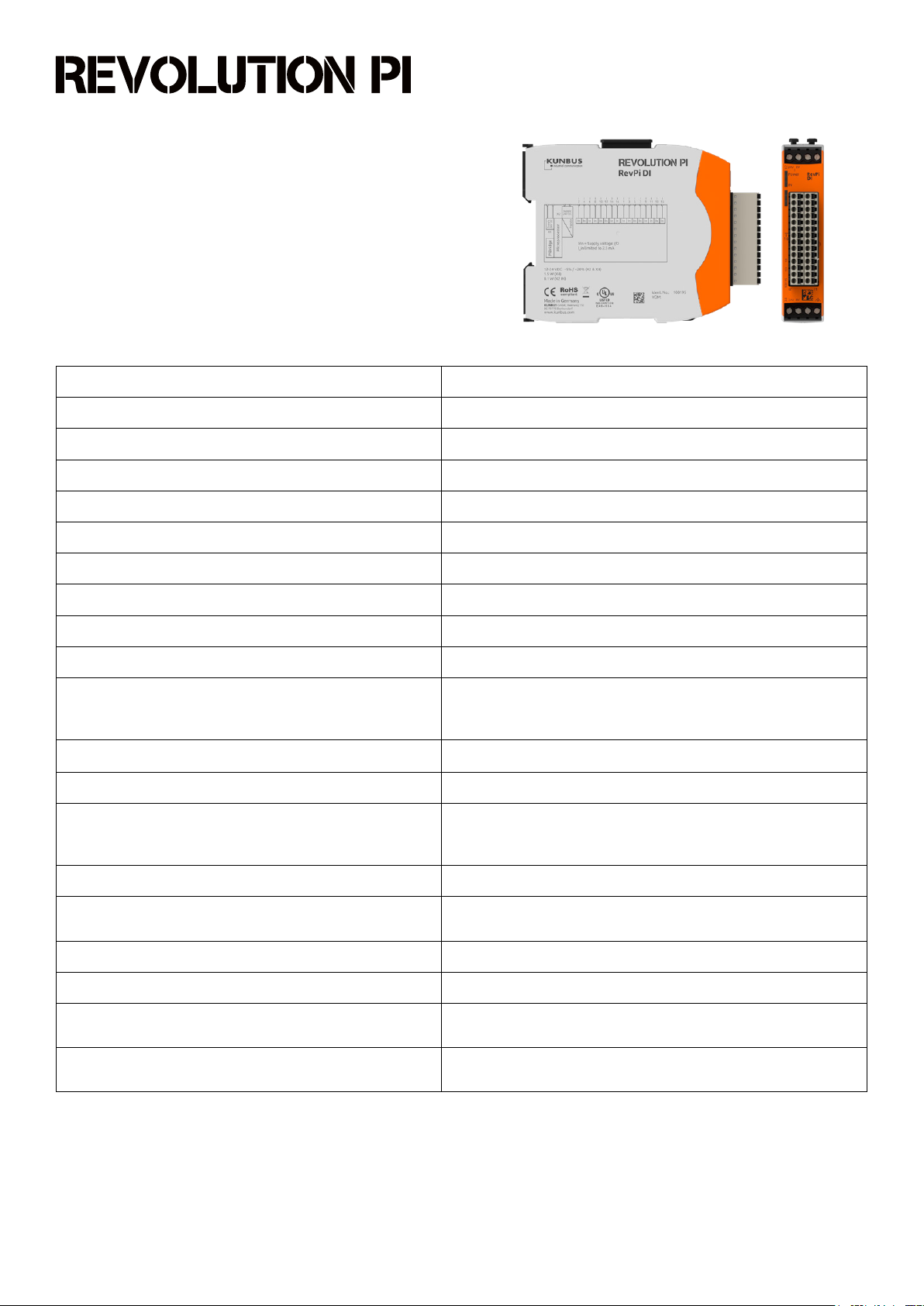

KUNBUS REVPI DI Datasheet

RevPi DI

Article No.: 100195

Technical Data

Housing dimensions (H x W x D) 96 x 22.5 x 110.5 mm

Housing type DIN rail housing (for DIN rail version EN 50022)

Housing material Polycarbonate

Weight approx. 100 g / 130 g (incl. connectors)

IP Code IP20

Power supply 12-24 VDC -5 % / +20 % (X2 and X4)

1

Max. power consumption 1.5 Watt (X4/power supply)

Operating temperature -40 °C....+55 °C

Storage temperature -40 °C....+85 °C

Humidity (at 40 °C) 93 % (non-condensing)

2 x 4-pole screw-type terminal for power supply

Connectors

2 x 14-pin socket connectors with spring clamp contacts (0.2 - 1.5

mm²) for IOs, pitch 3.5 mm (Wieland Item No. 27.630.4453.0)

Optical indicator 3 status LEDs (bi-color)

Number of digital input channels 16

Galvanically isolated from the system bus, individually congu-

Input type

rable as direct digital input, counter rising edge, counter falling
edge or together with neighboured input as encoder

2

Input current limitation 2.4 mA (at 24 V power supply)

Input thresholds

At 24 V compatible according to EN 61131-2 to Type I and III
sensors

Digital debounce circuit Collectively adjustable for all inputs: o, 25 µs, 750 µs or 3 ms

Maximum frequency resolution of the counter inputs 2 kHz (corresponding to 500 Hz encoder sequence)

Alarm

Input protection

1

Two independent supply voltage sources must be available for galvanic isolation of the inputs.

2

For each module, a maximum of 6 inputs can be dened as 6 counters or 12 inputs as 6 decoders. Counters and decoders are stored as 32-bit integers in the

process image. Reset of counters/encoders via ioctl calls from the kernel driver piControl.

KUNBUS GmbH, Heerweg 15C, 73770 Denkendorf, Germany | Tel: [phone] | Fax: [phone] | Email: [e-mail] | Web: www.kunbus.com

For auxiliary voltages below 19 V and below 9 V,
overtemperature

According to EN 61131-2 (IEC 61000-4-4, -5, -6, and -2) against
burst, RF injection, external voltages from -3 V to +36 V

Version: EN 1.5

page 1/2Errors excepted and possible alterations without prior notice.

RevPi DI

Article No.: 100195

Technical Data

Compatible modules for system expansion

Protection of the power supply inputs Reverse polarity protected, transient overvoltages

Conformity CE, RoHS

UL certication Yes, UL-File-No. E494534

Surge/Burst tests Passed (according to EN 61131-2 and IEC 61000-6-2)

All RevPi base module, expansion modules and RevPi Gate
modules (connected via overhead PiBridge connector)

KUNBUS GmbH, Heerweg 15C, 73770 Denkendorf, Germany | Tel: [phone] | Fax: [phone] | Email: [e-mail] | Web: www.kunbus.com

page 2/2Errors excepted and possible alterations without prior notice.

Version: EN 1.5
