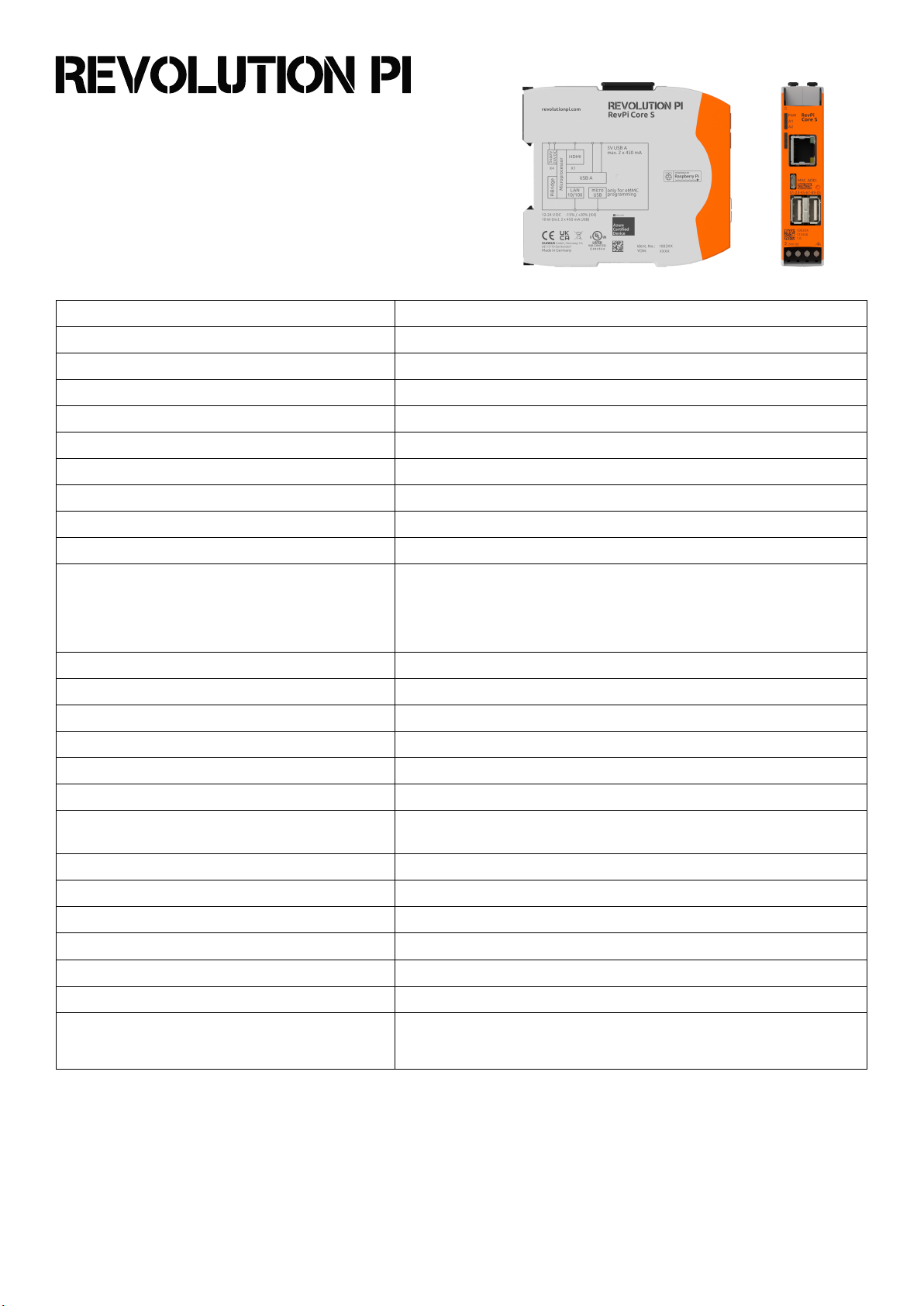

KUNBUS REVPI CORE S8 Datasheet

RevPi Core S

Article no.: 100359 (8 GB version)
Article no.: 100360 (16 GB version)
Article no.: 100361 (32 GB version)

Technical Data

Housing dimensions (HxWxD) 96 x 22.5 x 110.5 mm

Housing type DIN rail housing (for DIN rail version EN 50022)

Housing material Polycarbonate

Weight approx. 115 g

Protection class IP20

Power supply 12-24 V DC -15 % / +20 %, reverse polarity protected

Max. power consumption 10 W (incl. 900 mA total USB load)

Operating temperature -25 °C to +55 °C

Storage temperature -40 °C to +85 °C

Humidity (40 °C) up to 93 % (non-condensing)

2

1

2 x USB A (Total current consumption from both sockets max. 900 mA) 2
1 x RJ45 10/100 Ethernet

Interfaces

1 x Micro-USB (solely for image transfer to eMMC)
1 x Micro HDMI 2.0a (4K)
2 x PiBridge system bus

Connectors 1 x 4-pole screw-type terminal for power supply

Processor Broadcom BCM2711, quad-core Arm Cortex-A72

Clock rate 1.5 GHz

Processor cooling Passive with heat sink

RAM 1 GB LPDDR4

Flash memory 8 GB (article no.: 100359) / 16 GB (article no.: 100360) / 32 GB (article no.: 100361)

Compatible modules for system expansion

All RevPi IO modules and RevPi Gateway modules can be connected via the
PiBridge system bus.

ESD protection 4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2)

EMI tests Passed (according to EN 61131-2 and IEC 61000-6-2)

Surge / Burst tests Passed (according to EN 61131-2 and IEC 61000-6-2)

Buer time RTC min. 24 h

Optical indicator 3 status LEDs (bi-color), two of them freely programmable

Conformity CE, RoHS

Yes, UL-File-No. E494534

UL certication

Note: The device may only be supplied from circuits that comply with Class 2 or
Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1.

1

900 mA USB output current (sum of both USB outputs) is only available at input voltages >11 V. The bridging time required by EN 61131-2 of voltage dips of at least 10 ms is only guaranteed

with a supply voltage of 20.4 to 28.8 V. At 12 V input voltage this time decreases drastically, especially when driving loads by USB ports.

2

The average power consumption without USB loads vary widely and depends on the specic use of interfaces, GPU and CPU. Not using the HDMI interface keeps the power consumption of

generally below 4 W.

KUNBUS GmbH, Heerweg 15C, 73770 Denkendorf, Germany | Tel: [phone] | Fax: [phone] | Email: [e-mail] | Web: www.kunbus.com

Page 1/1Errors excepted and possible alterations without prior notice.

Version: EN 1.0
