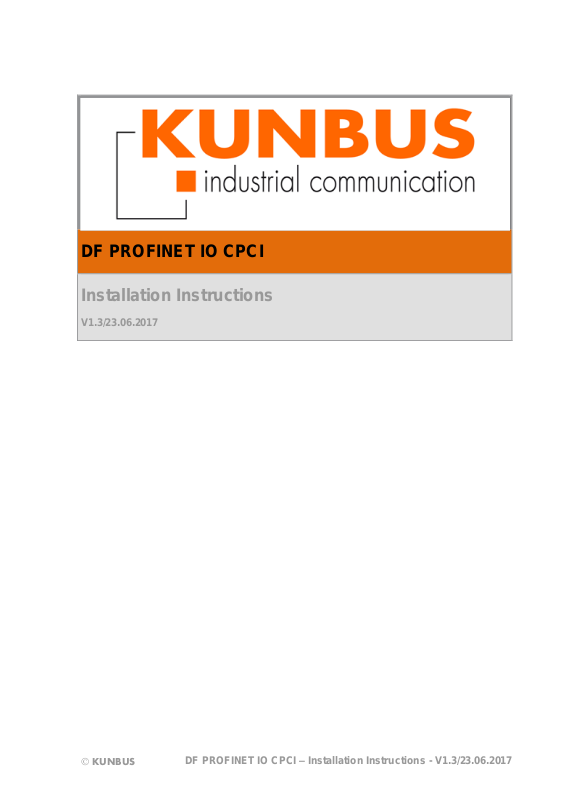

Kunbus DF PROFINET IO CPCI Installation Instructions

DF PROFINET IO CPCI – Installation Instructions - V1.3/23.06.2017
KUNBUS
DF PROFINET IO CPCI
V1.3/23.06.2017
h:\dokumente\project\700361_df_profinet_io_controller\anwenderdoku\installation\cpci\version_1.3\df_profinet_io_cpci_e.doc
Version
Date
Description
Resp.
V1.3
23.06.2017
Device added
JKU
V1.2
05.04.2017
KUNBUS Branding
JKU
V1.1
01.04.2015
Review
SKR/AME
V1.0
13.11.2013
First Release
SF
Version
Product Manager
Project Manager Software
V1.3
Joachim Kurpat
Andreas Metz
KUNBUS GmbH Heerweg 15c 73770 Denkendorf Phone +49 711 300 20 676 Fax +49 711 300 20 677
Copyright 2017 by KUNBUS GmbH
Business Confidential/KUNBUS Proprietary
This document includes data that shall not be duplicated, used, or disclosed - in whole or in part - for any purpose other than to evaluate this document. If, however, a contract with a customer is in force, the customer shall have the right to duplicate, use, or disclose the data to the extent provided in this contract. This restriction does not limit the customer’s right to use th e data in this document if it can also be obtained from another source without restriction. The data subject to this restriction are confidential in all pages of this document.
Revision History
Installation Instructions Contents
Contents
1 Safety Instructions ........................................................................................................ 1
2 Installation of the Board ................................................................................................ 2
3 Description of the LED's................................................................................................ 3
4 Technical Data .............................................................................................................. 4
KUNBUS DF PROFINET IO CPCI-Installation Instructions-V1.3/23.06.2017 i
Business Confidential/KUNBUS Proprietary
Contents Installation Instructions
List of Figures
Figure 1: DF PROFINET IO CPCI - Board ............................................................................. 2
ii DF PROFINET IO CPCI-Installation Instructions-V1.3/23.06.2017  KUNBUS
Business Confidential/KUNBUS Proprietary
Installation Instructions Contents
List of Tables
Table 1: Technical Data ......................................................................................................... 4
KUNBUS DF PROFINET IO CPCI-Installation Instructions-V1.3/23.06.2017 iii
Business Confidential/KUNBUS Proprietary
Contents Installation Instructions
Blank page
iv DF PROFINET IO CPCI-Installation Instructions-V1.3/23.06.2017  KUNBUS
Business Confidential/KUNBUS Proprietary
DF PROFINET IO CPCI - Installation Instructions Safety Instructions
WARNING: Disregarding this
warning may result in damage to equipment and/or serious personal injury. Only qualified personnel may start up and operate this device. According to the safety instructions in this text, qualified personnel are persons who are authorized to start up, to ground, and to mark devices, systems, and equipment according to the standards of safety technology. In addition, these persons must be familiar with all warning instructions and maintenance measures in this text.
WARNING: The DF PROFINET IO PCI board is designed exclusively for PELV operation according to EN 60950/EN 60204/VDE 0805-1.
Shielding
The shielding ground of the connected twisted pair cables is electrically connected to the female connector. When connecting network segments, avoid ground loops, potential transfers, and voltage equalization currents via the braided shield.
i
NOTE: Electrostatic discharge!
The device contains components that can be damaged or destroyed by electrostatic discharge. When handling the device, observe the necessary safety precautions against electrostatic discharge (ESD), in accordance with EN 61340-5-1 and EN 61340-5-2, as well as IEC 61340-5-1 and IEC 61340-5-2.

1 Safety Instructions

KUNBUS V1.3 / 23.06.2017 1
Installation of the Board DF PROFINET IO CPCI - Installation Instructions

2 Installation of the Board

The DF PROFINET IO CPCI is a Plug&Play-compatible board. The configuration entirely takes place by means of the delivered software or the BIOS of your PC respectively. Thus, no jumpers or DIP-switch adjustments are necessary.
To mount the board, please proceed as follows: Please see also the operating instructions of your PC.
Switch off the Compact PCI System and interrupt the power supply Select a free CPCI slot. Plug the DF board into the determined slot Screw down the board.
Note: When mounting, please follow the safety instructions for
electronic modules against electrostatic charge.
The DF PROFINET IO CPCI does not support Hot Plugging. If in­stalling/uninstalling the board the Compact PCI system must be switched off and the power supply must be interrupted.
Figure 1: DF PROFINET IO CPCI - Board
2 V1.3 / 23.06.2017
KUNBUS
DF PROFINET IO CPCI - Installation Instructions Description of the LED's

3 Description of the LED's

Green LED:
On: Firmware loaded and started Off: Firmware not loaded
Yellow LED:
On: PROFINET IO started Off: PROFINET IO stopped
Red LED: Operation as PROFINET IO Controller on Ethernet Interface 1
On: PROFINET IO-Failure (min. one device not connected to the
PROFINET IO network or with external diagnosis)
Off: No PROFINET IO-Failure
Operation as PROFINET IO Device on Ethernet Interface 2
On: PROFINET IO-Failure (No active PROFINET IO controller connected) Off: No PROFINET IO-Failure
KUNBUS V1.3 / 23.06.2017 3
Technical Data DF PROFINET IO CPCI - Installation Instructions
Functionality
PN IO Controller, PN IO Device, also simulteanously
PN IO Specification
V 2.3
PN IO Performance Class
Class B (<= 1 ms)
Processor
1.3 GHz Freescale PowerQUICC III
Memory
1 GB DDR II 32 MB Flash Memory
C-PCI Interface
PCI Rev. 2.2, 32 Bit
Ethernet Interface 1 (Controller)
RJ45 100 Base-T(X)
Ethernet Interface 2 (Device)
RJ45 100 Base-T(X)
Data Size of Process Image
16 KB
Power Consumption
Typical 7W
Ambient Temperature Range
0°C – 55°C
Dimensions
213 mm x 129 mm x 20mm

4 Technical Data

Table 1: Technical Data
4 V1.3 / 23.06.2017
KUNBUS
