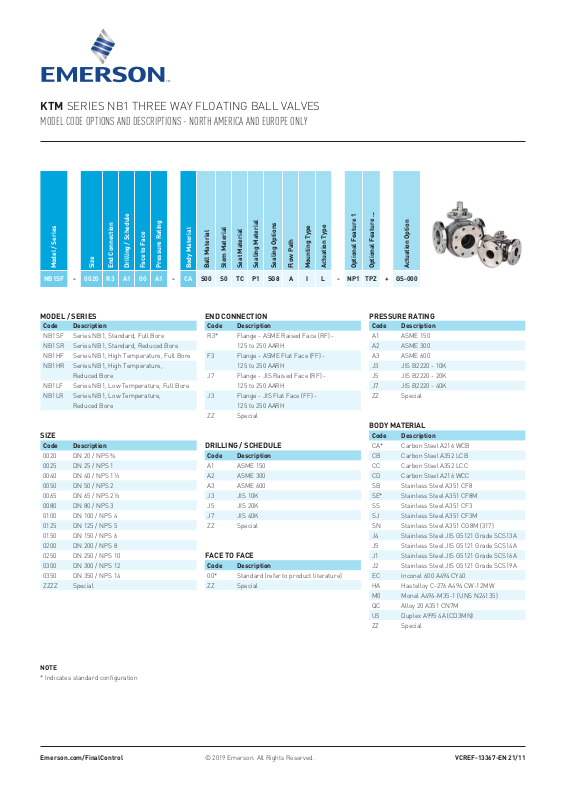

KTM SERIES NB1 THREE WAY FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA AND EUROPE ONLY
Model / Series
NB1SF - 0020 R3 A1 00 A1 - CA S00 S0 TC P1 SG8 A I L - NP1 TPZ + GS-000
MODEL / SERIES
Code Description
NB1SF Series NB1, Standard, Full Bore NB1SR Series NB1, Standard, Reduced Bore NB1HF Series NB1, High Temperature, Full Bore NB1HR Series NB1, High Temperature,
NB1LF Series NB1, Low Temperature, Full Bore NB1LR Series NB1, Low Temperature,
Size
Reduced Bore
Reduced Bore
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Sealing Options
Flow Path
Mounting Type
END CONNECTION
Code Description
R3* Flange - ASME Raised Face (RF) -
125 to 250 AARH
F3 Flange - ASME Flat Face (FF) -
125 to 250 AARH
J7 Flange - JIS Raised Face (RF) -
125 to 250 AARH
J3 Flange - JIS Flat Face (FF) -
125 to 250 AARH
ZZ Special
Actuation Type
Optional Feature 1
Optional Feature ...
PRESSURE RATING
Code Description
A1 ASME 150 A2 ASME 300 A3 ASME 600 J3 JIS B2220 - 10K J5 JIS B2220 - 20K J7 JIS B2220 - 40K ZZ Special
BODY MATERIAL
SIZE
Code Description
0020 DN 20 / NPS ¾ 0025 DN 25 / NPS 1 0040 DN 40 / NPS 1½ 0050 DN 50 / NPS 2 0065 DN 65 / NPS 2½ 0080 DN 80 / NPS 3 0100 DN 100 / NPS 4 0125 DN 125 / NPS 5 0150 DN 150 / NPS 6 0200 DN 200 / NPS 8 0250 DN 250 / NPS 10 0300 DN 300 / NPS 12 0350 DN 350 / NPS 14 ZZZZ Special
DRILLING / SCHEDULE
Code Description
A1 ASME 150 A2 ASME 300 A3 ASME 600 J3 JIS 10K J5 JIS 20K J7 JIS 40K ZZ Special
FACE TO FACE
Code Description
00* Standard (refer to product literature) ZZ Special
Code Description
CA* Carbon Steel A216 WCB CB Carbon Steel A352 LCB CC Carbon Steel A352 LCC CD Carbon Steel A216 WCC SB Stainless Steel A351 CF8 SE* Stainless Steel A351 CF8M SS Stainless Steel A351 CF3 SJ Stainless Steel A351 CF3M SN Stainless Steel A351 CG8M (317) J4 Stainless Steel JIS G5121 Grade SCS13A J5 Stainless Steel JIS G5121 Grade SCS14A J1 Stainless Steel JIS G5121 Grade SCS16A J2 Stainless Steel JIS G5121 Grade SCS19A EC Inconel 600 A494 CY40 HA Hastelloy C-276 A494 CW-12MW M0 Monel A494-M35-1 (UNS N24135) QC Alloy 20 A351 CN7M U5 Duplex A995 4A (CD3MN) ZZ Special
Actuation Option
NOTE
* Indicates standard configuration
Emerson.com/FinalControl © 2019 Emerson. All Rights Reserved. VCREF-13367-EN 21/11
KTM SERIES NB1 THREE WAY FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA AND EUROPE ONLY
Model / Series
NB1SF - 0020 R3 A1 00 A1 - CA S00 S0 TC P1 SG8 A I L - NP1 TPZ + GS-000
BALL MATERIAL
Code Description
S00* Stainless Steel 316 S40 Stainless Steel 316L S05 Stainless Steel 316 - Hard Chrome Plated S06 Stainless Steel 316 - SFNi S08 Stainless Steel 316 - Tungsten Carbide S09 Stainless Steel 316 - Chrome Carbide S10 Stainless Steel 304 S30 Stainless Steel 304L S15 Stainless Steel 304 - Hard Chrome Plated S16 Stainless Steel 304 - SFNi S18 Stainless Steel 304 - Tungsten Carbide S19 Stainless Steel 304 - Chrome Carbide SN0 Stainless Steel 317 E00 Inconel 600 H00 Hastelloy C-276 M00 Monel A494 M35-1 (UNS N24135) QC0 Alloy 20 A351 CN7M U80 Duplex U05 Duplex - Hard Chrome Plated U06 Duplex - SFNi U08 Duplex - Tungsten Carbide U09 Duplex - Chrome Carbide ZZZ Special
Size
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Sealing Options
Flow Path
Mounting Type
STEM MATERIAL
Code Description
S0* Stainless Steel 316 S4 Stainless Steel 316L S1 Stainless Steel 304 S3 Stainless Steel 304L SH Stainless Steel 17-4 PH /
Type 630 H1150 D (NACE compliant) E0 Inconel 600 H0 Hastelloy C-276 M1 Monel K500 U8 Duplex 329 ZZ Special
SEAT MATERIAL
Code Description
TC* PTFE / PFA Co-Polymer T0 PTFE RG RPTFE (Carbon filled) RH RPTFE (Glass filled with MoS2) RJ Special Reinforced PTFE C0 Gratite MA Stainless Steel 316 + Chromium Carbide
MC Stainless Steel 316 + Stellite Overlay MT Stainless Steel 316 + Tungsten Carbide
A0 PEEK (Arlon 1330 or equivalent) ZZ Special
®
(Carbon Metal Alloy)
Coated
Coated
Actuation Type
Optional Feature 1
Optional Feature ...
SEALING MATERIAL
Code
P0* PTFE P4 PTFE / RPTFE / FKM G0 Graphite G2 Graphite / Graphite / FKM ZZ Special
Description (Packing / Body Gasket / Retainer Seal)
SEALING OPTIONS
Code Description
SG8
Inconel (X750) Live loaded washers
FLOW PATH
Code Description
A L - Port 90° Turn, Flow Plan A (Pattern
1 & 2)
OPERATOR MOUNTING TYPE
Code Description
I ISO 5211
ACTUATION TYPE
Code Description
B Bare Stem G Gear L Default Handle / Lever
Actuation Option
NOTE
* Indicates standard configuration
2
KTM SERIES NB1 THREE WAY FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA AND EUROPE ONLY
Model / Series
NB1SF - 0020 R3 A1 00 A1 - CA S00 S0 TC P1 SG8 A I L - NP1 TPZ + GS-000
Size
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Sealing Options
Flow Path
Mounting Type
Actuation Type
Optional Feature 1
Optional Feature ...
OPTIONAL FEATURES
Code Bolting Options
B07 Alloy Steel A193 B7 / A194 2H B08 Stainless Steel A193 B8M / A194 B8M
B09 Alloy Steel A193 B7M / A194 2HM
B10 Stainless Steel A193 B8 / A194 B8 B17 Alloy Steel ASTM A320 L7M / A194 7M
B19 Alloy Steel ASTM A320 L7 / A194 7 B1Z Special Gland Packing Bolting B0Z Special Bolting
Valve Extension Options
ES0 Shaft Extension (Non-Pressure
EH1 E1 Extended Bonnet (Short length) EH2 E2 Extended Bonnet (Long length) EL1 E1 Low Temperature Extended Bonnet
ED1** Extension Bonnet with Double Packing
ED2** Extension Bonnet with Double Packing
ET1** Extension Bonnet with Double Packing
ET2** Extension Bonnet with Double Packing
EZZ Special Extension
Coating / Painting
PZZ Special Painting / Coating
Description
(NACE)
(NACE)
(NACE)
Containing) (Manufacturer Standard)
(Short length)
with Lantern Ring (Short length)
with Lantern Ring (Long length)
+ O-ring with Lantern Ring (Short length)
+ O-ring with Lantern Ring (Long length)
(per Purchase Order)
Code Description Code Description Nameplate / Tagging
NP1 Additional 316 Stainless Steel Tag
(Customer Tag Text)
NP2 Additional Paper Tag
(Customer Tag Text)
NP3 Additional 316 Stainless Steel Tag &
Paper Tag (Customer Tag Text)
NPZ Special Tag / Nameplate
(per Customer PO)
Certificates / Approvals
NA7 NACE - MR0175 / ISO 15156 -
Corrosive exterior only service (Bolting)
NA5 NACE - MR0175 / ISO 15156 &
MR0103 - Corrosive service (Body /
Shell, Ball, Stem, Bolting) PED PED API API 608 Compliance - Manual Valve
Cleaning Procedure
CHH HCL, HF and Oxygen Service
(KTM Class A) CWD Water & Dust Free (Clean Room)
Assembly CL2 Chlorine Service, Oil and Water Free
(KTM Class B) CLZ Special Cleaning (per Purchase Order)
Witness Inspection
WT1 Witness Inspection - Assembly, Test,
Final Visuals (Standard Test Only) WTZ Witness Inspection (per Purchase
Order incl: Packing, painting, NDT,
etc...) WT3 Dimensional Examination
Material Certificates / Traceability
MCZ Special CMTRs (per Purchase Order)
Positive Material Identification
ME6 PMI (Body / Shell, Ball, Stem) MEZ PMI (per Purchase Order)
Magnetic Particle Examination
MP2 MP (On body machined surfaces per
MPZ Magnetic Particle Examination
Liquid Penetrant Examination
LP3 LPE (On body machined surfaces per
LPZ Liquid Penetrant Examination
Radiographic Examination
RG4 RT (On body / bonnet critical areas,
RGZ Radiographic Examination
Pressure Testing
TPN Pressure Test - Nitrogen
TPZ Hydrostatic Test Report
Functional Test
TF2 Functional Test Report (Automated,
TFZ Special Functional Testing
Other Testing
SAP Seat Leak Test - API 598 FET Fugitive Emission Test
SIB Seat Leak Test - ISO 5208 Rate B
Actuation Option
ASME B16.34 Appendix II)
(per Purchase Order)
ASTM B16.34 Appendix III)
(per Purchase Order)
per ASME B16.34 Appendix I)
(per Purchase Order)
(per Purchase Order)
(per Purchase Order)
per Customer Operating Conditions, Manufacturer Standard)
(per Purchase Order)
(per Customer Purchase Order)
NOTES
For more details on the optional features, consult your local Emerson representative. ** Choose lantern ring gauge port option (Rc, NPT, G/BSPP)
3
KTM SERIES NB1 THREE WAY FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA AND EUROPE ONLY
Model / Series
NB1SF - 0020 R3 A1 00 A1 - CA S00 S0 TC P1 SG8 A I L - NP1 TPZ + GS-000
Size
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Sealing Options
Flow Path
Mounting Type
Actuation Type
Optional Feature 1
Optional Feature ...
ADDITIONAL ACTUATION OPTIONS
Code Description
GS-000 Factory Standard Gear Operator
NOTES
1. Additional characters identify specific handle or gear.
NOTE
Consult your local Emerson representative for additional options.
[1]
Actuation Option
VCREF-13367-EN © 2020, 2021 Emerson Electric Co. All rights reserved 11/21. KTM is a mark owned by one of the companies in the Emerson Automation Solutions
unit of Emerson Electric Co. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their prospective owners.
business
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without notice.
Emerson Electric Co. does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Emerson Electric Co. product remains solely with the purchaser.
