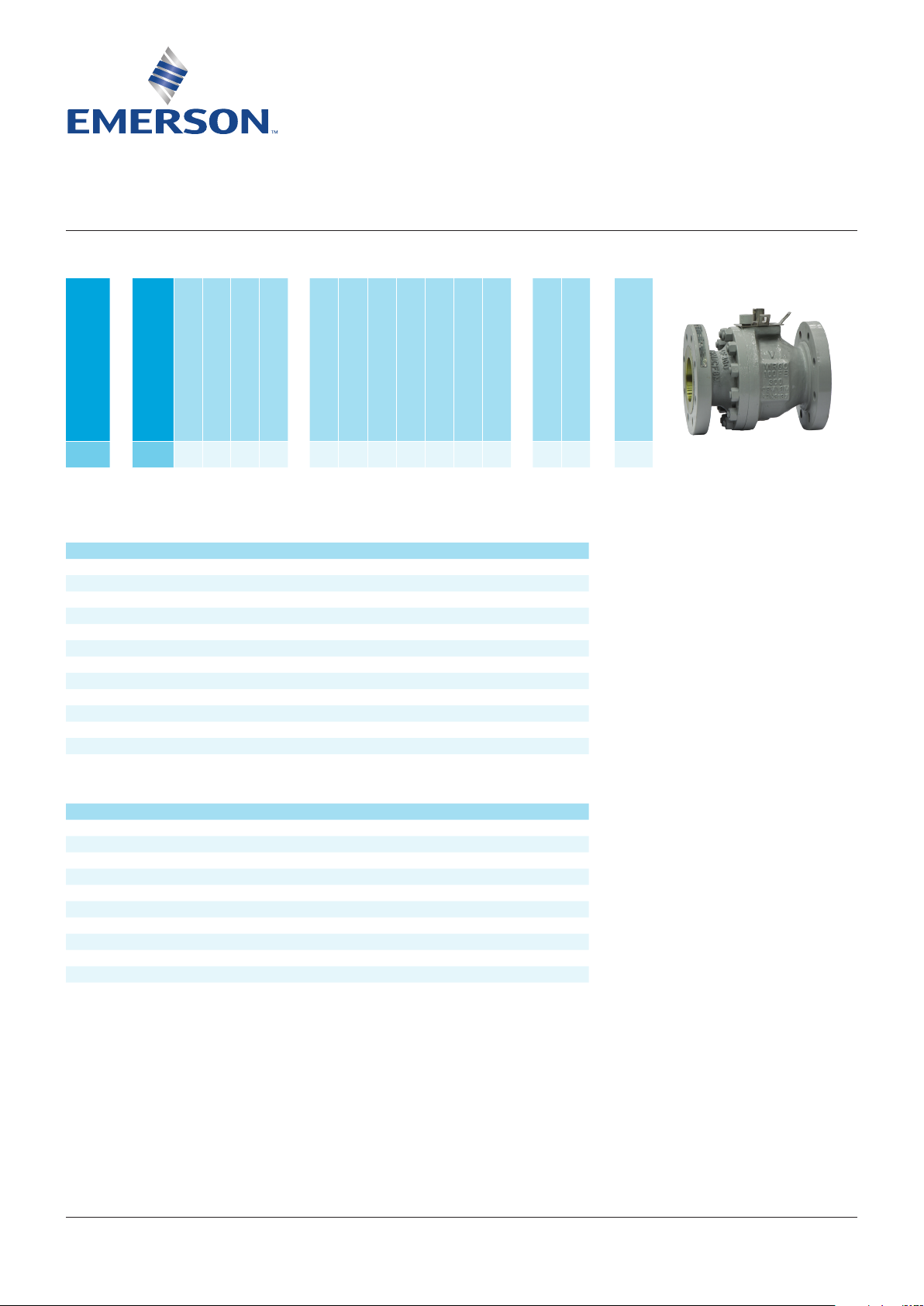

KTM VIRGO SERIES S FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA ONLY
Model / Series
SGSF - 0015 F1 A1 A1 A1 - CE E10 S0 BB NH I L - NP1 TPZ + GS-001
Size
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Mounting Type
Actuation Type
Optional Feature 1
Optional Feature ...
MODEL / SERIES
Code Description
SGSF Series S, Standard - With gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SGSR Series S, Standard - With gland arrangement, ASME B 16.34 + ASME B 16.34, Reduced bore
SLSF Series S, Standard - Without gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SLSR Series S, Standard - Without gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SGHF Series S, High Temperature, ASME B 16.34 + ASME B 16.34, Full bore
SGHR Series S, High Temperature, ASME B 16.34 + ASME B 16.34, Reduced bore
SGCF Series S, Cryogenic, ASME B 16.34 + ASME B 16.34, Full bore
SGCR Series S, Cryogenic, ASME B 16.34 + ASME B 16.34, Reduced bore
SLLF Series S, Low Temperature - Without gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SLLR Series S, Low Temperature - Without gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SGLF Series S, Low Temperature - With gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SGLR Series S, Low Temperature - With gland arrangement, ASME B 16.34 + ASME B 16.34, Full bore
SIZE
Code Description
0015 DN 15 / NPS ½
0020 DN 20 / NPS ¾
0025 DN 25 / NPS 1
0040 DN 40 / NPS 1½
0050 DN 50 / NPS 2
0080 DN 80 / NPS 3
0100 DN 100 / NPS 4
0150 DN 150 / NPS 6
0200 DN 200 / NPS 8
0250 DN 250 / NPS 10
ZZZZ Special
Actuation Option
Emerson.com/FinalControl © 2019 Emerson. All Rights Reserved. VCREF-13371-EN 20/08
KTM VIRGO SERIES S FLOATING BALL VALVES
MODEL CODE OPTIONS AND DESCRIPTIONS - NORTH AMERICA ONLY
Model / Series
SGSF - 0015 F1 A1 A1 A1 - CE E10 S0 BB NH I L - NP1 TPZ + GS-001
Size
End Connection
Drilling / Schedule
Face to Face
Pressure Rating
Body Material
Ball Material
Stem Material
Seat Material
Sealing Material
Mounting Type
Actuation Type
Optional Feature 1
Optional Feature ...
END CONNECTION
Code Description
F1 Flange - ASME Flat Face (FF) -
32 to 63 AARH (Smooth)
F2 Flange - ASME Flat Face (FF) -
63 to 125 AARH
F3 Flange - ASME Flat Face (FF) -
125 to 250 AARH
F4 Flange - ASME Flat Face (FF)-
250 to 500 AARH
R1 Flange - ASME Raised Face (RF) -
32 to 63 AARH (Smooth)
R2 Flange - ASME Raised Face (RF) -
63 to 125 AARH
R3 Flange - ASME Raised Face (RF) -
125 to 250 AARH
R4 Flange - ASME Raised Face (RF) -
250 to 500 AARH
RJ Flange - Ring Type Joint (RTJ)
B1 Butt Weld - ASME B 16.25 -
Fig. 2a / 3a (w/o backup ring)
B2 Butt Weld - ASME B 16.25 - Fig. 2b / 3b
B3 Butt Weld - ASME B 16.25 - Fig. 2c / 3c
B4 Butt Weld - ASME B 16.25 - Fig. 2d / 3d
B5 Butt Weld - ASME B 16.25 - Fig. 5 Type A
B6 Butt Weld - ASME B 16.25 - Fig. 5 Type B
BZ Butt Weld - welded Pipe or Extended Pups
H1 Hub/Clamp - Groove (Type D)
H2 Hub/Clamp - Techlok Hub
H3 Hub/Clamp - Tri-Clamp
H4 Hub/Clamp - I-Line (Waukesha Cherry-
Burrell)
K1 Flange - ASME Female (Large) -
32 to 63 AARH (Smooth)
K2 Flange - ASME Female (Large) -
63 to 125 AARH
Code Description
K3 Flange - ASME Female (Large) -
125 to 250 AARH
K4 Flange - ASME Female (Large) -
250 to 500 AARH
K5 Flange - ASME Male (Large) -
32 to 63 AARH (Smooth)
K6 Flange - ASME Male (Large) -
63 to 125 AARH
K7 Flange - ASME Male (Large) -
125 to 250 AARH
K8 Flange - ASME Male (Large) -
250 to 500 AARH
D1 Flange - ASME Female (Small) -
32 to 63 AARH (Smooth)
D2 Flange - ASME Female (Small) -
63 to 125 AARH
D3 Flange - ASME Female (Small) -
125 to 250 AARH
D4 Flange - ASME Female (Small) -
250 to 500 AARH
D5 Flange - ASME Male (Small) -
32 to 63 AARH (Smooth)
D6 Flange - ASME Male (Small) -
63 to 125 AARH
D7 Flange - ASME Male (Small) -
125 to 250 AARH
D8 Flange - ASME Male (Small) -
250 to 500 AARH
TL Flange - ASME Tongue (Large)
TS Flange - ASME Tongue (Small)
GL Flange - ASME Groove (Large)
GS Flange - ASME Groove (Small)
ZZ Special
Actuation Option
