KTI Networks KS 2028 User Manual

Installation Guide

KTI 10/100 Fast Ethernet Switch

KS2028

P/N:750-0087-001

DOC.971005-KS2028-K

Ó 1997 KTI Networks Inc. All rights reserved. No part of this docu­mentation may be reproduced in any form or by any means or used to
make any directive work (such as translation or transformation) without
permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to
make changes in content from time to time without obligation on the
part of KTI Networks Inc. to provide notification of such revision or
change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008
Houston, Texas 77263-1008

Phone: [phone]
Fax: [phone]
BBS: 713-2663015
E-mail: [e-mail]
WWW: http://www.ktinet.com/

International Fax: [phone]

BBS: 886-2-6983913
E-mail: [e-mail]
WWW: http://www.ktinet.com/

10/100 Fast Ethernet Switch
Installation Guide

DOC.971006-KS2028-NK

P/N: 750-0087-002

The information contained in this document is subject to change without prior notice.

Copyright Ó KTI. All Rights Reserved.

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

WARNING:

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and if not installed and used in accor­dance with the instruction manual may cause harmful interference in which case the user will be re­quired to correct the interference at his own expense.

NOTICE:

(1) The changes or modifications not expressively approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
(2) Shielded interface cables and AC power cord, if any, must be used in order to comply with the
emission limits.

CISPR A COMPLIANCE:

This device complies with EMC directive of the European Community and meets or exceeds the fol­lowing technical standard.
EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information
Technology Equipment. This device complies with CISPR Class A.
WARNING: This is a Class A product. In a domestic environment this product may cause radio inter­ference in which case the user may be required to take adequate measures.

CE NOTICE

Marking by the symbol CE indicates compliance of this equipment to the EMC directive of the
European Community. Such marking is indicative that this equipment meets or exceeds the following

technical standards:

•EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information
Technology Equipment.

•EN 50082/1:Generic Immunity Standard -Part 1: Domestic Commercial and Light Industry.

•EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical equipment

- Part 2: Harmonics.

Table of Contents

1. Introduction ............................................................................... 1

1.1 Features ..................................................................................................................2

1.2 Specifications ......................................................................................................... 3

2. Installing the Switch .................................................................. 4

2.1 Packing List ............................................................................................................ 4

2.2 Mounting the Switch .............................................................................................. 4

2.3 Front Panel and Rear Panel.................................................................................... 6

2.4 Installing Optional Port Module ............................................................................ 7

2.5 Setting the Configuration Switches .......................................................................9

3. Making Network Connections ................................................ 11

3.1 Network Switched Ports ...................................................................................... 11

3.2 10BASE-T Switched Ports .................................................................................. 12

3.3 10/100BASE-TX Switched Ports ........................................................................ 1 4

3.4 100BASE-FX Module .......................................................................................... 1 5

4. LED Indicators ........................................................................ 16

4.1 LED Panel ............................................................................................................ 16

4.2 Interpretation ........................................................................................................16

Figures

1-1 Switch Unit............................................................................................................. 1

2-1 Desktop Mounting ................................................................................................. 4

2-2 Install Rack Mount Brackets ................................................................................. 5

2-3 Install the Switch into a 19-inch Rack .................................................................. 5

2-4 Componets on the Front and Rear Panel............................................................... 6

2-5 10/100BASE-TX Port Module ..............................................................................7

2-6 100BASE-FX Port Module .................................................................................... 7

2-7 Remove the Slot Cover.......................................................................................... 8

2-8 Insert Module into the Slot .................................................................................... 8

2-9 Configuration Switches.......................................................................................... 9

3-1 Network Ports....................................................................................................... 11

3-2 2-pair Straight UTP Cable ...................................................................................1 3

3-3 100BASE-FX Port Module ..................................................................................1 5

4-1 LED Indicators ..................................................................................................... 16

1. Introduction

Driven by recent advances in desktop computing technology, today’s
network applications have grown speed, power and the ability to pro­cess information. To meet the demands of these more powerful applica­tions, the switch has been developed to alleviate congestion and im­prove performance on your Ethernet network. The switch comes with
multiple ports, with each capable of transmitting or receiving informa­tion simultaneously at full wire speed to control and allocate the net­work bandwidth.

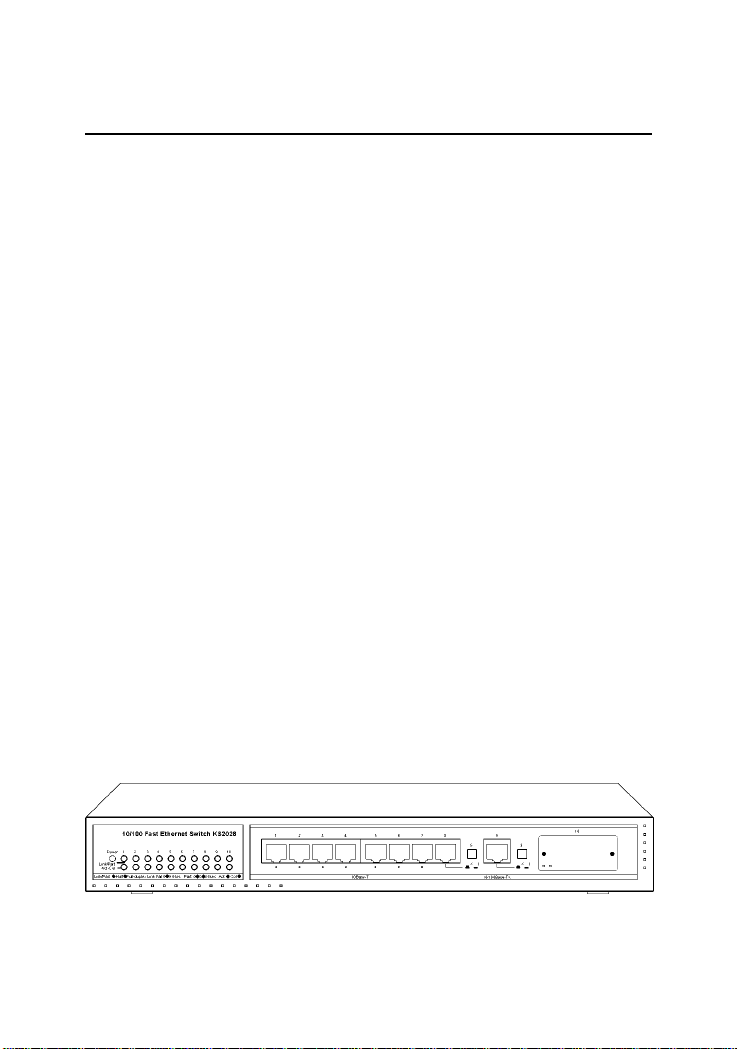

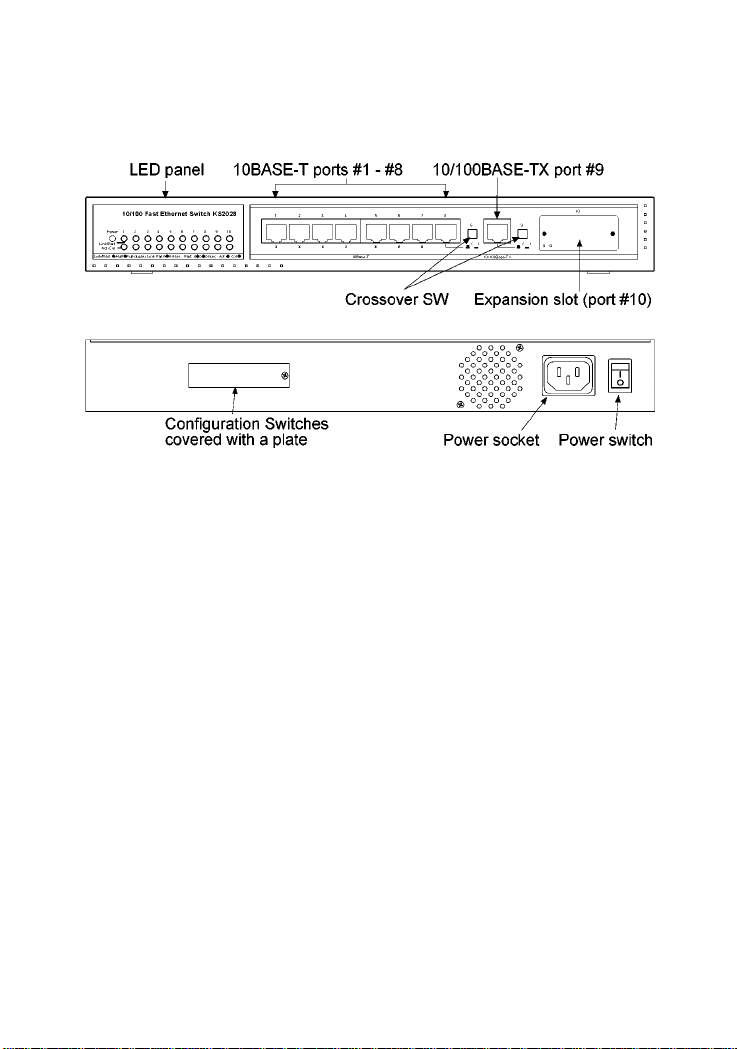

Figure 1-1 Switch Unit

The key features of this switch unit are:

• Combining one fixed 10/100Mbps-based fast Ethernet switched
port, the switch provides a non-disruptive and smooth migration
path from Ethernet to a Fast Ethernet network.

• With one expansion slot, the switch allows you to connect an
additional 10/100Mbps auto sensing port or an optional 100Base­FX fiber optic port module to connect to a Fast Ethernet fiber optic
backbone.

• Combining multiple speeds and multiple media support in the
same unit, the switch can meet your diversified application
requirements.

1

1.1 Features

Designed for resolving congestion problems caused by bandwidth-hun­gry devices and bandwidth-intensive applications as well as a high num­ber of users, the switch not only adheres to the IEEE 802.3 10BASE-T
and 100BASE-T standard, but also features:

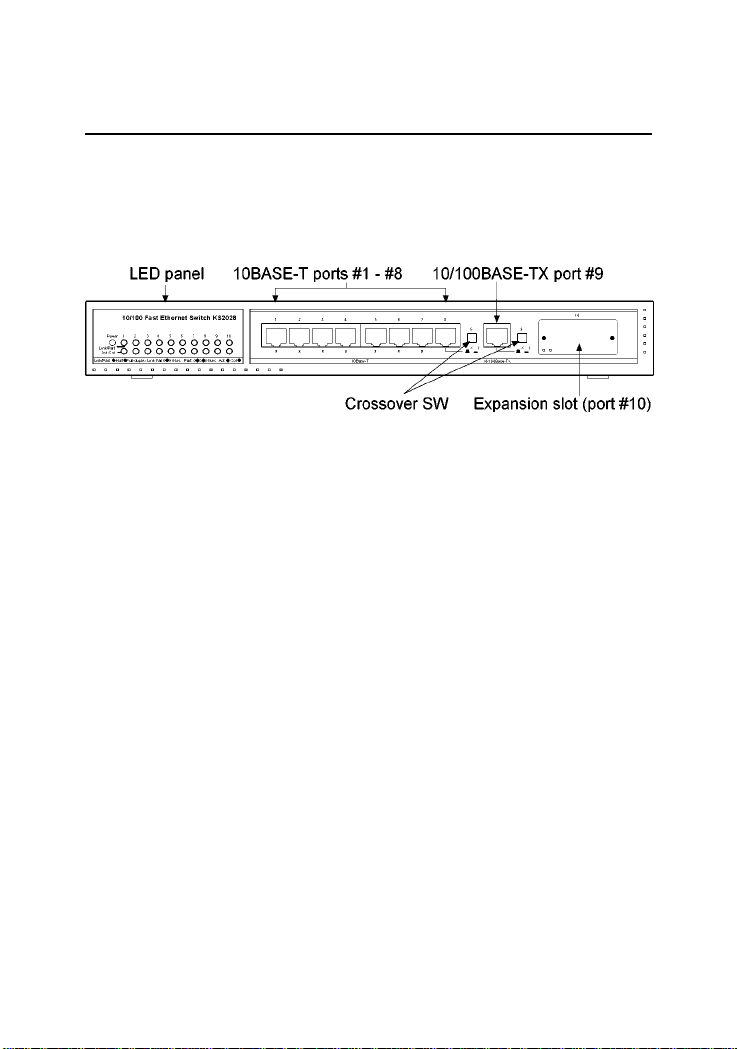

• Various TP ports for flexible connection to servers and hubs.

- eight 10BASE-T ports

- one 10/100BASE-TX port

- one expansion port slot for optional high-speed

10/100BASE-TX module or 100BASE-FX module

• The 10/100BASE-TX port and module support:

- auto speed sensing for 100Mbps or 10Mbps connection

- auto configuration with NWay devices

• Self learning for network configuration

• Store and forward switching to ensure only good packets are forwarded

• Full-duplex or half-duplex operation support for all switched ports

• Support manual settings for the connection with non-NWay devices

• Forwarding and filtering at full wire speed

• User-friendly designs

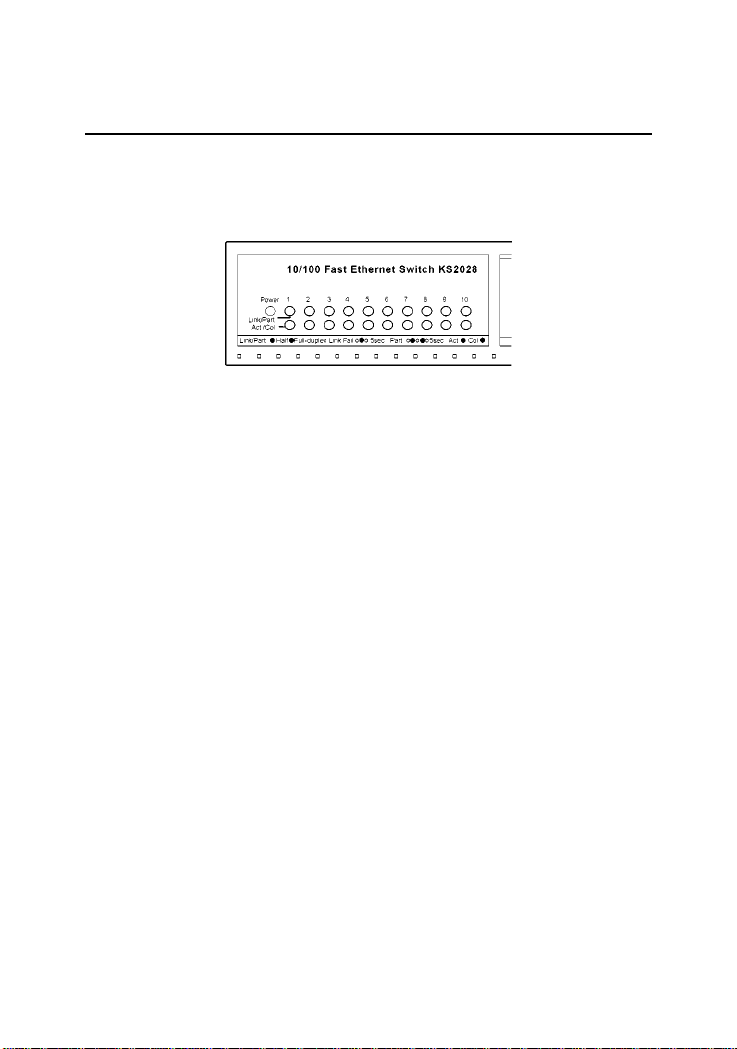

- comprehensive LED indicators provide quick, easy to

read port and hub information

- rack mount kit provided

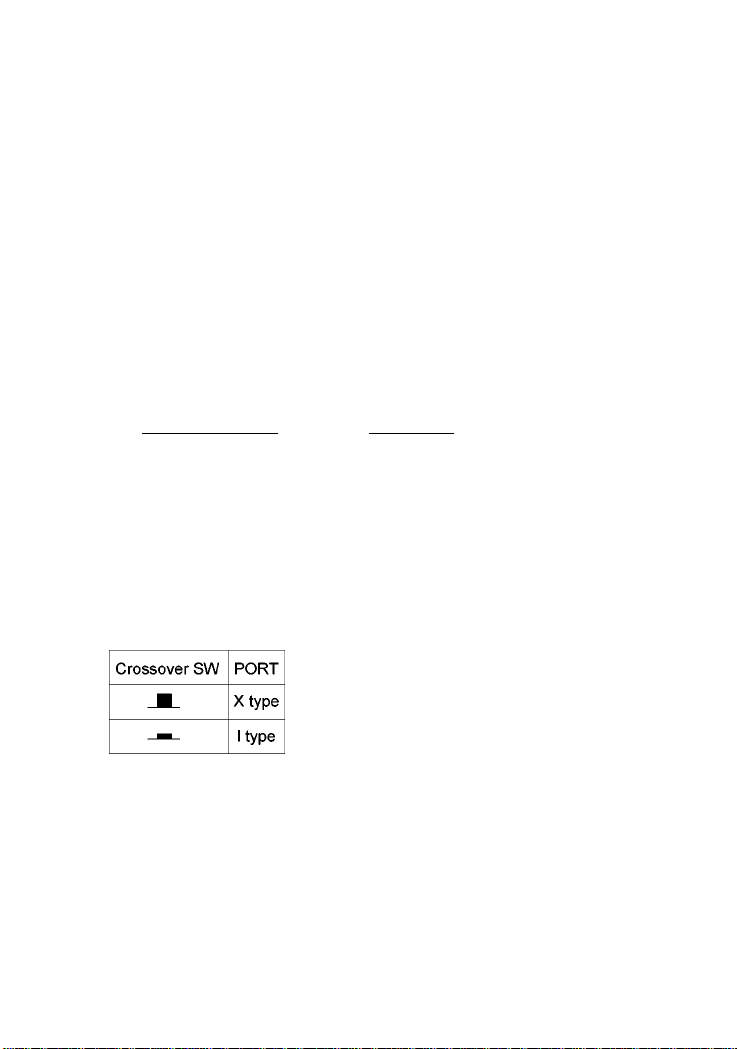

- crossover switches for port #8 and #9 allow connection to

different types of devices with a straight cable instead
of a modified crossover cable

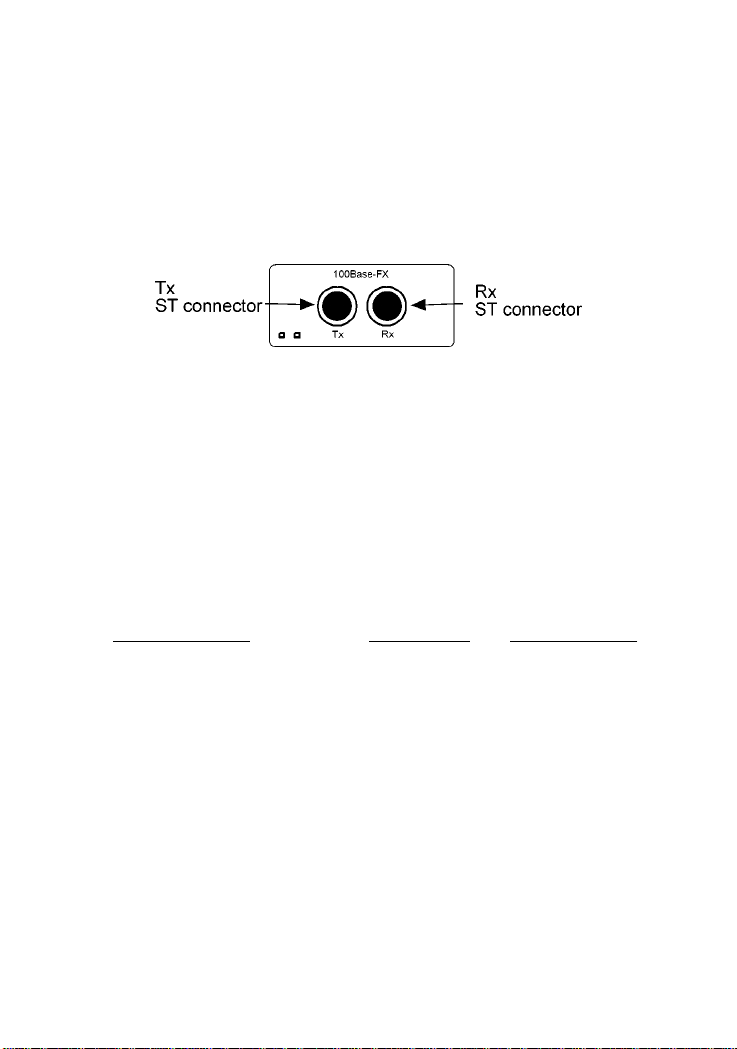

- expansion port slot for adding another 100BASE-TX segment

or a 100BASE-FX fiber segment to a Fast Ethernet fiber

backbone.

2
