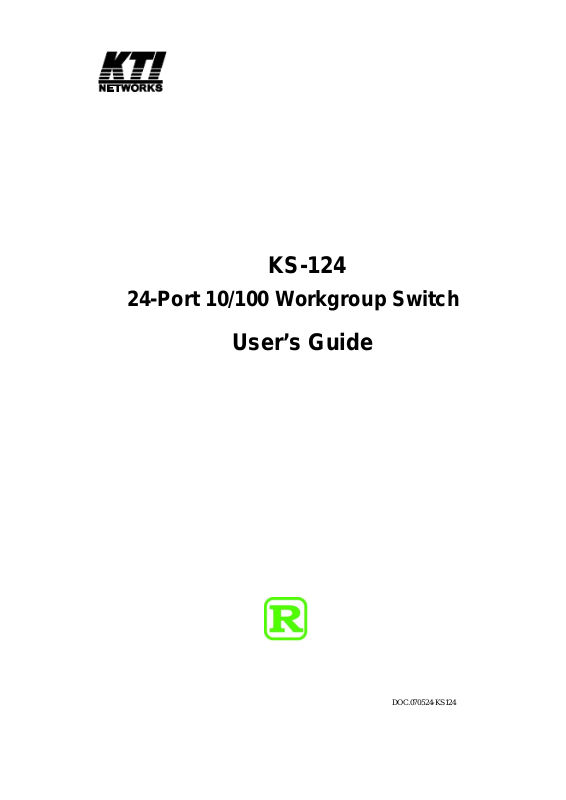

KS-124

24-Port 10/100 Workgroup Switch

User’s Guide

DOC.070524-KS124

1. Introduction

The 10BASE-T/100BASE-TX Switches which are high-performance Fast
Ethernet switches designed for the network core. It provides 24
10BASE-T/100BASE-TX ports that can significantly improve the performance
of your network’s backbone, and deliver the throughput needed to support a
broad range of advanced network applications. With Fast Ethernet Switches
high performance bandwidth, it provides the quickest solution to meeting the
growing demands on your network’s limited resources.

2. Features

z Complies with the IEEE 802.3 10Base-T Ethernet and IEEE 802.3u

100Base-TX Fast Ethernet standard.

z 24-port 10/100Mbps Auto-Negotiation.
z Half/Full duplex capability for each port.
z Support TP interface Auto-MDI/MDI-X function for auto TX/RX swap.
z Automatic Source MAC Address Learning and Aging.
z Support up to total 4K unicast addresses entries.
z Support up to 2Mbits data buffer.
z Support Store & Forward architecture and performs forwarding and

filtering.

z Broadcast Storming Filter.
