KTI Networks KGS-612F User Manual

KGS-612F

Web Smart 6-Port Gigabit Ethernet Switch

with Fiber Connectivity

User,s Ma nual

DOC.071005

-1-

(C) 2007 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced

in any form or by any means or used to make any directive work (such as transla­tion or tra nsf ormation) without permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to make changes in content
from time to time without obligation on the part of KTI Networks Inc. to provide notification of such
revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008
Houston, T exas 77263-1008

Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
URL: http://www.ktinet.com/

International Fax: [phone]

E-mail: [e-mail]
URL: http://www.ktinet.com.tw/

-2-

The information contained in this document is subject to change without prior notice. Copyright (C). All
Rights Reserved.

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

WAR NING:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with the
instruction manual may cause harmful interference in which case the user will be required to correct the
interference at his own expense.

NOTICE:

(1 ) The changes or modifications not expressively approved by the party responsible for compliance
could void the user's authority to operate the equipment.
(2) Shielded interface cables and AC power cord, if any, must be used in order to comply with the
emission limits.

CISPR A COMPLIANCE:

This device complies with EMC directive of the European Community and meets or exceeds the following
technical standard.
EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information
T e chnology Equipment. This device complies with CISPR Class A.
WARNING: This is a Class A product. In a domestic environment this product may cause radio interfer­ence in which case the user may be required to take adequate measures.

CE NOTICE
Marking by the symbol

indicates compliance of this equipment to the EMC directive of the Euro-

pean Community . Such marking is indicative that this equi pment meets or exceeds the following techni­cal standards:

EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information
T echnology Equi pment.

EN 50082/1:Generic Immunity Sta ndard -Part 1: Domestic Commercial a nd Light Industry .
EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical

equipment - Part 2: Harmonics.

-3-

Ta ble of Contents

1. Introduction.................................................................................................. 6

1.1 Features ...................................................................................................................7

1.2 Product Panels.........................................................................................................7

1.3 LED Indicators..........................................................................................................8

1.4 Specifications...........................................................................................................8

2. Installation .................................................................................................. 11

2.1 Un packing...............................................................................................................1 1

2.2 Safety Cautions ...................................................................................................... 1 1

2.3 Mounting the Switch on a Wall................................................................................. 11

2.4 Mounting the Switch on a Din-rail Chassis ..............................................................12

2.5 Applying Power ........................................................................................................12

2.6 Reset Button ..........................................................................................................13

2.7 Making UTP Connections .......................................................................................1 3

2.8 Making Fiber Conne ction ........................................................................................14

2.9 LED Indication ........................................................................................................15

2.10 Configuring IP Address and Password for the Switch ...........................................15

3. Advanced Functions .................................................................................. 16

3.1 Abbreviation .............................................................................................................16

3.2 QoS Function ..........................................................................................................17

3.2.1 Packet Priority Classification ................................................................................18

3.2.2 Priority Class Queues ..........................................................................................18

3.2.3 Egress Service Policy ..........................................................................................18

3.3 VLAN Function.........................................................................................................19

3.3.1 VLAN Operation ....................................................................................................1 9

3.3.2 Ingress Rules .......................................................................................................19

3.3.2.1 802.1Q Tag A ware Per port setting....................................................................19

3.3.2.2 Keep Tag Per port setting..................................................................................19

3.3.2.3 Drop Untag Per Port Setting ..............................................................................20

3.3.2.4 Drop Tag Per Port Setting..................................................................................20

3.3.3 Ingress Default Tag Per Port Setting.....................................................................20

3.3.4 Packet Tag Information .........................................................................................2 0

3.3.5 VLAN Group T able Configuration...........................................................................21

3.3.6 VLAN Classification...............................................................................................21

3.3.7 Packet Forwarding................................................................................................21

3.3.8 Egress Tagging Rules ..........................................................................................22

3.3.8.1 Egress Settings.................................................................................................22

3.3.9 Summary of VLAN Function .................................................................................2 2

3.4 802.1X Authentication..............................................................................................22

-4-

4. Web Management ....................................................................................... 24

4.1 Start Browser Software and Making Connection .....................................................24

4.2 Login to the Switch Unit...........................................................................................24

4.3 Main Ma nagement Menu..........................................................................................25

4.4 System ....................................................................................................................26

4.4.1 Ma nagement VLAN...............................................................................................28

4.5 Ports........................................................................................................................29

4.5.1 SFP DDM Status ..................................................................................................30

4.6 VLANs .....................................................................................................................31

4.6.1 Port-ba sed VLAN Mode.........................................................................................32

4.6.2 Port-ba sed VLAN ISP Mode ..................................................................................3 3

4.6.3 Advanced VLAN Mode ...........................................................................................34

4.6.3.1 Ingress Default Tag............................................................................................35

4.6.3.2 Ingress Settings.................................................................................................3 6

4.6.3.3 Egress Settings.................................................................................................37

4.6.3.4 VLAN Groups .....................................................................................................3 9

4.6.4 Important Notes for VLAN Configuration................................................................40

4.7 Aggregation..............................................................................................................41

4.8 LACP.......................................................................................................................42

4.9 RSTP ......................................................................................................................43

4.10 802.1X Configuration .............................................................................................44

4.10.1 802.1X Re-authentication Para meters................................................................46

4.1 1 Mirroring.................................................................................................................47

4.12 Quality of Service ..................................................................................................4 8

4.12.1 802.1p Ma pping...................................................................................................49

4.12.2 DSCP Mapping ...................................................................................................50

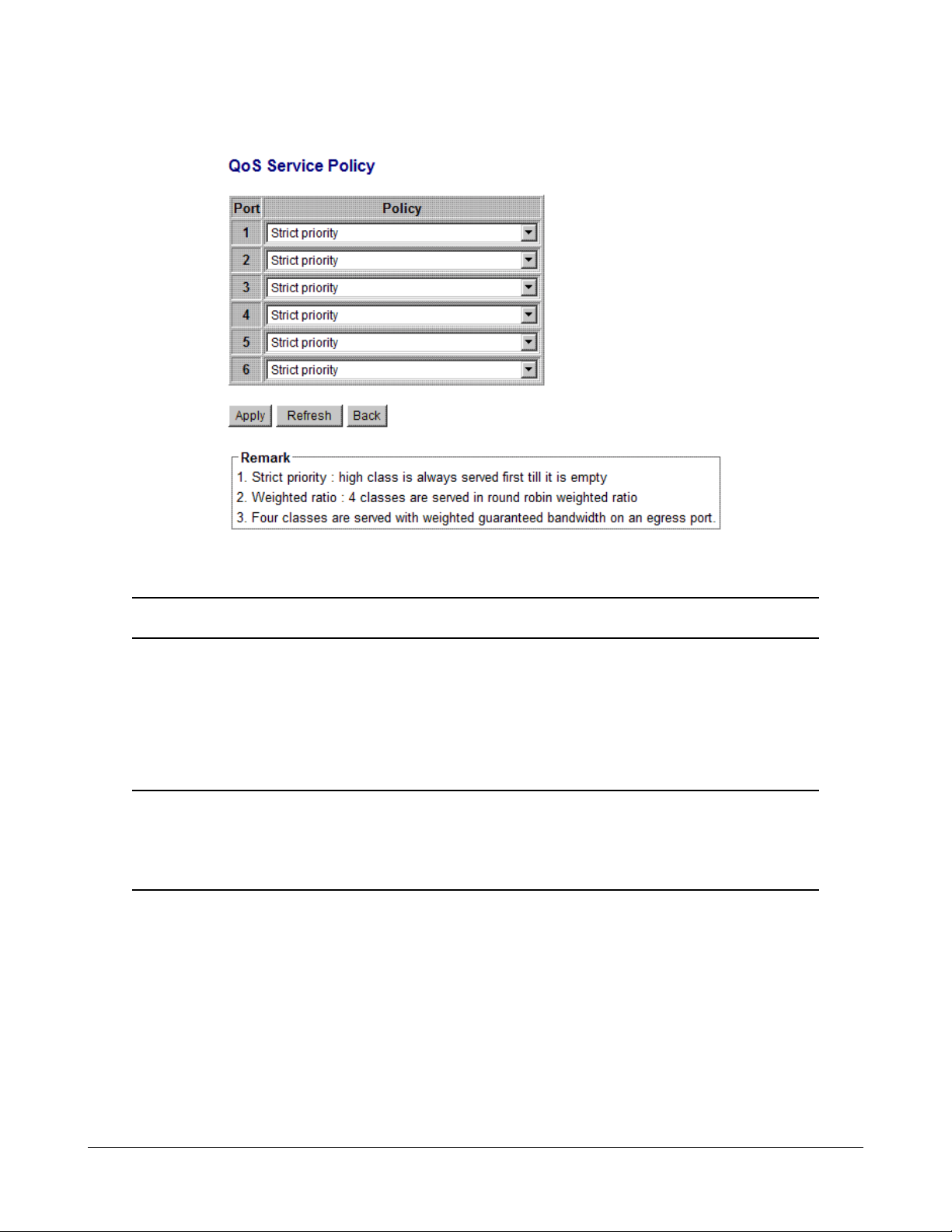

4.12.3 QoS Service Policy ............................................................................................51

4.13 Storm Control........................................................................................................52

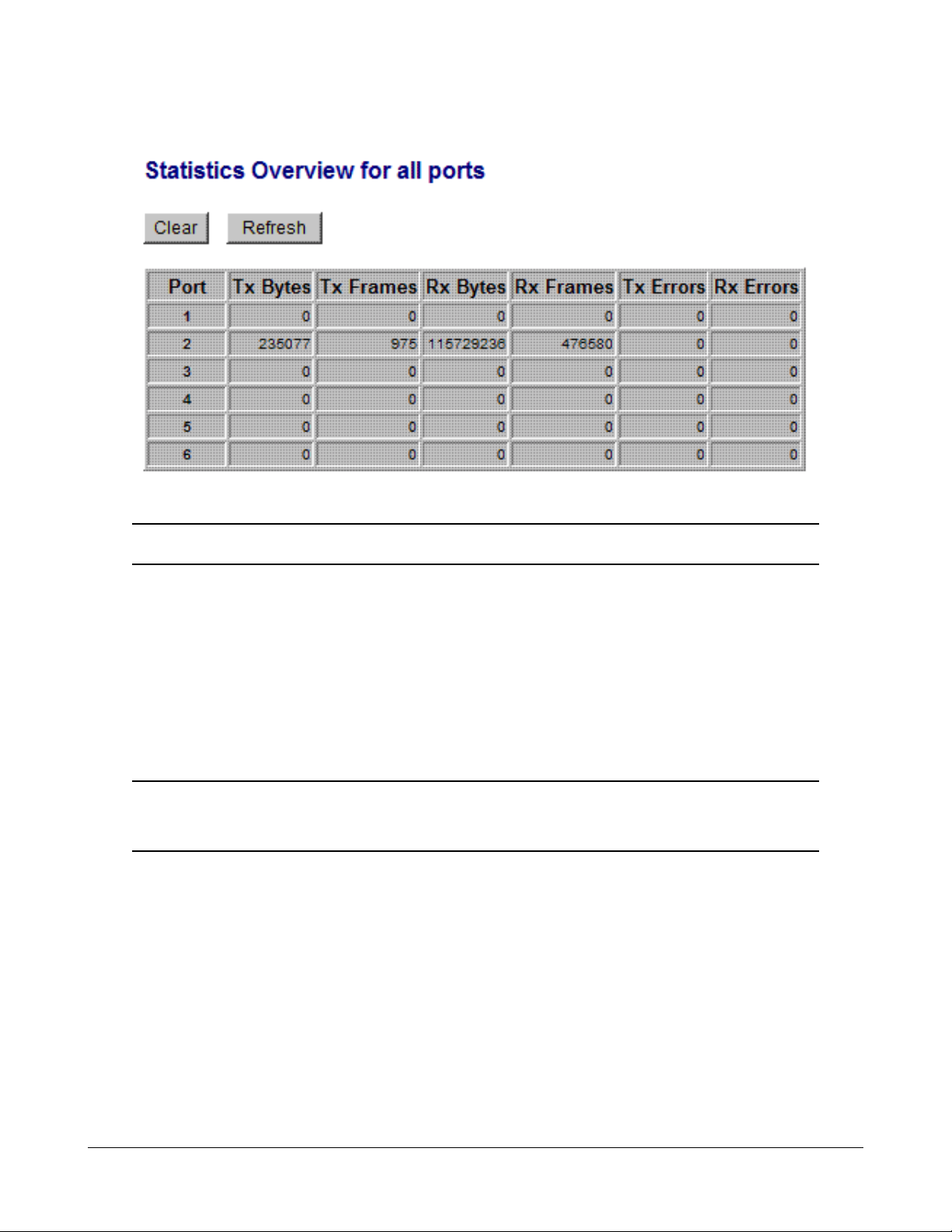

4.14 Statistics Overview................................................................................................53

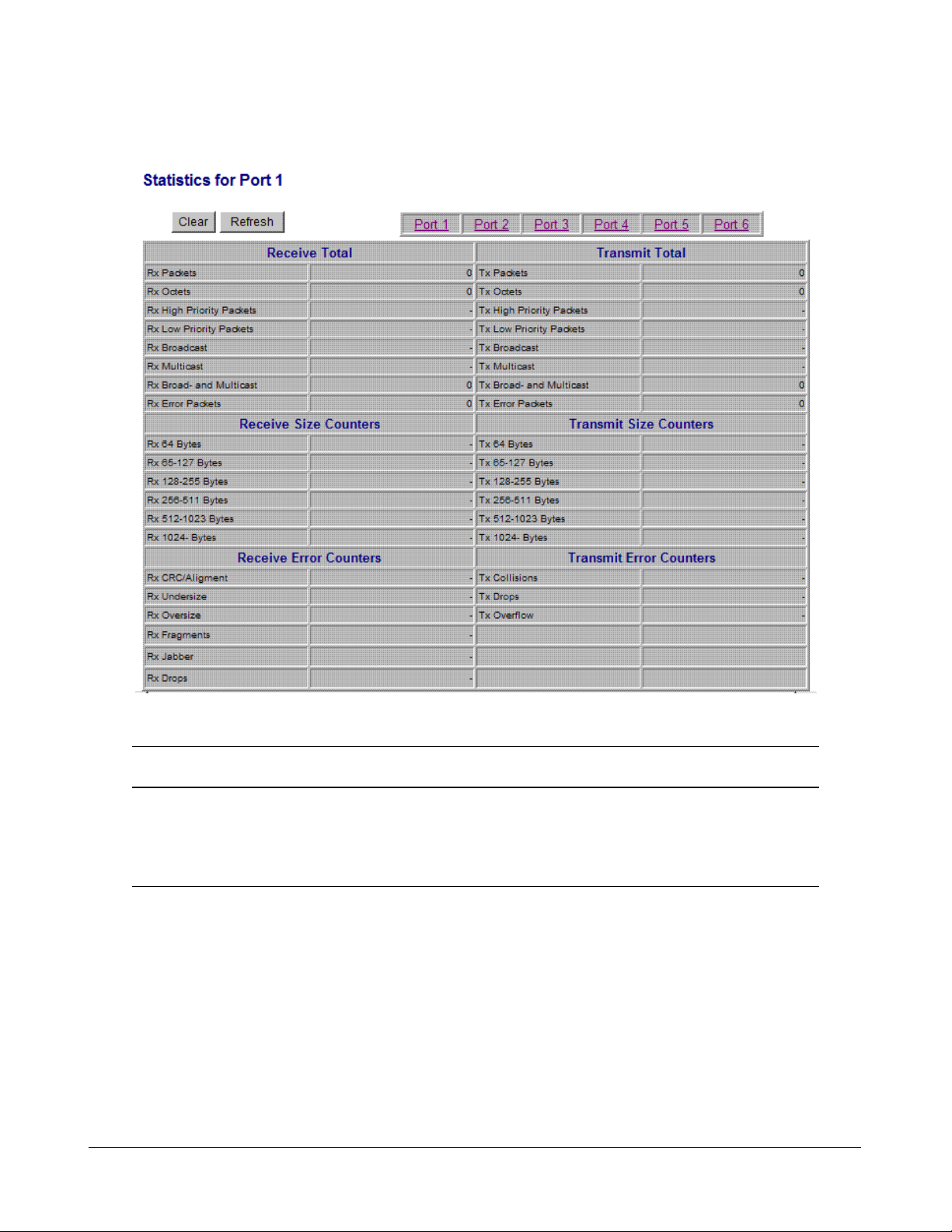

4.15 Detailed Statistics ..................................................................................................5 4

4.16 LACP Status..........................................................................................................55

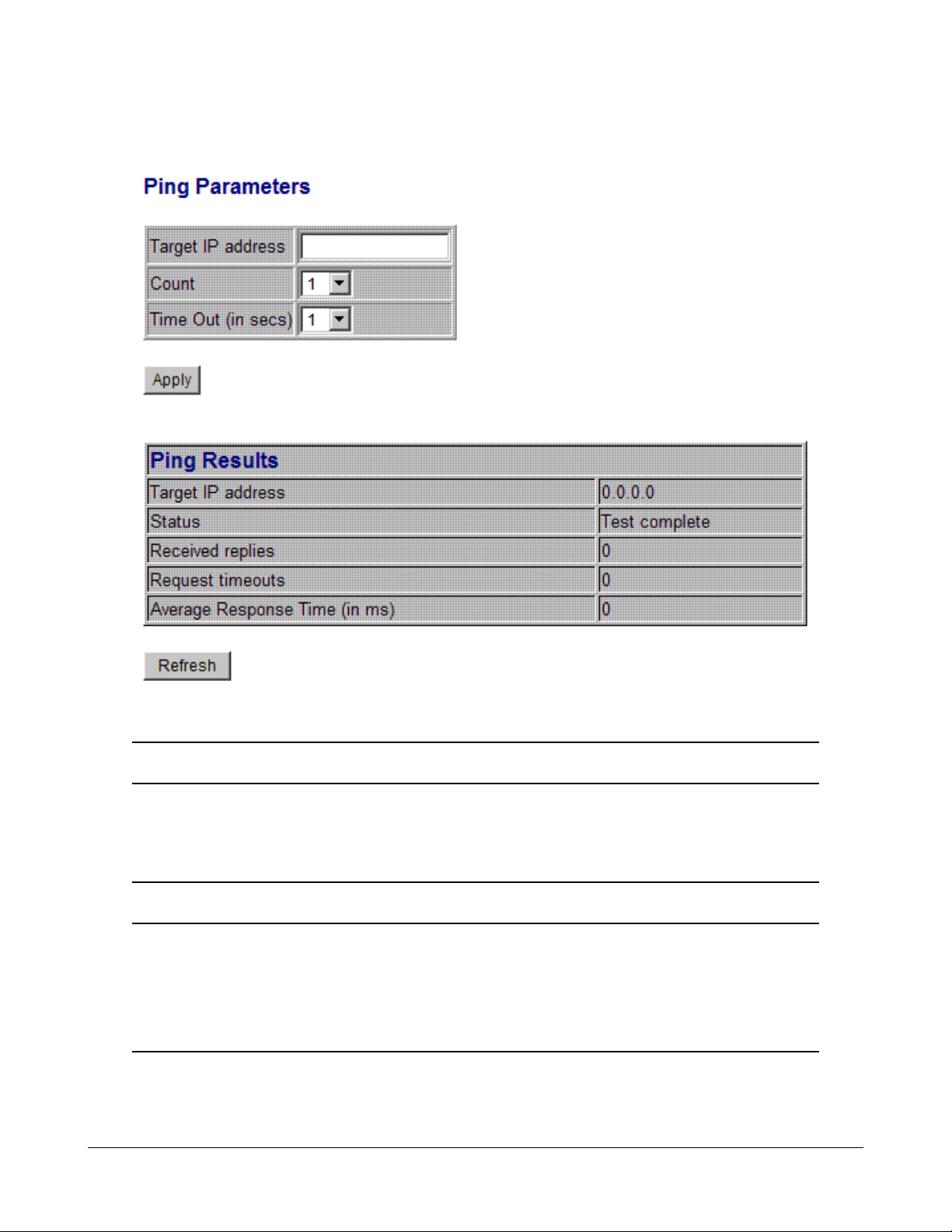

4.17 Ping .......................................................................................................................57

4.18 Reboot System .....................................................................................................58

4.19 Restore Default .....................................................................................................58

4.20 Update Firmware...................................................................................................58

4.21 Logout ...................................................................................................................58

5. SNMP Support ............................................................................................ 5 9

Appendix. Factory Default Settings............................................................... 60

-5-

1. Introduction

The KGS-612F is a managed Gigabit Ethernet switch which is featured with the following switched
ports:

 Three 10/100/1000Mbps Giga bit copper ports
 T wo combo ports - 10/100/1000Mbps copper & 100Base-FX SFP
 One combo port - 10/100/1000Mbps copper & 1000Base-X SFP

a nd the following a dva ntages in a small f ootprint box:

Plug a nd Play

The switch is shipped with factory default configuration which behaves like an unmanaged Gigabit
switch for workgroup. It provides five 10/100/1000Mbps copper ports for connections to Ethernet, Fast
Ethernet, and Gigabit Ethernet devices. With the featured auto-negotiation function, the switch can
detect and configure the connection speed and duplex automatically. The switch also provides auto
MDI/MDI-X function, which can detect the connected cable and switch the transmission wire pair and
receiving pair automatically. This auto-crossover function can simplify the type of network cables
used.

Fiber Connectivity

Two 100M SFP ports can be installed with an optional SFP optical fiber transceiver to support two
100Base-FX fiber connections when needed. One mini-GBIC SFP port can also be installed with an
optional SFP optical fiber transceiver to support one Gigabit fiber connection when needed.

Web Management

The switch is embedded with an Http server which provides management functions for advanced
network functions including Port Control, Quality of Service, a nd V irtual LAN functions. The manage­ment can be performed via Web browser based interface over TCP/IP network.

Quality of Service

For advanced application, the switch is featured with powerful Quality of Service (QoS) function
which can classify the priority for received network frames based on the ingress port and frame
contents. Furthermore, many service priority policies can be configured for egress operation in per-port
basis.

Virtual LAN (VLAN)

For increasing Tagged VLAN applications, the switch is also featured with powerful VLAN function
to fulfill the up-to-date VLAN requirements. The switch supports both port-based VLAN and tagged
VLAN in per-port basis.

802.1x Authentication

IEEE 802.1X port-based network a ccess control function provide a mea ns of authenticating a nd autho­rizing devices attached to the switched port that has point-to-point connection characteristics, and of
preventing access to that port in ca se s in which the authentication and authorization process fails.

-6-

1.1 Features

 Provides 6 10/100/1000Mbps RJ-45, one 1000M SFP and two 100M SFPs
 Provides in-band web-based management interface
 All copper ports support auto-negotiation and auto-MDI/MDI-X detection
 Provides full wire speed forwarding
 Supports 802.3x flow control for full-duplex a nd ba ckpressure for half-duplex
 Provides port status, statistic monitoring a nd control function
 Supports port-based and 802.1Q Tag-based VLAN
 Provides QoS function
 Provides link aggregation (port trunking) function with LACP support
 Provides port mirroring function
 Provides 802.1X authentication for port a ccess
 Supports 802.1w RSTP, 802.1D STP and 802.1S MSTP
 W atchdog timer function
 Supports SFP with Digital Di agnostic Monitoring (DDM)
 Provides packet storm control function
 In-ba nd e mbedded firmware upgrade function

1.2 Product Panels

The following figure illustrates the front panel and rear panel of the switch:

Front panel

Rear panel

-7-

1.3 LED Indicators

LED Function

POWER Power status
LNK/1000M/ACT Network port 1000M link status (Port 1 - Port 6)
LNK/100M/ACT Network port 100M link status (Port 1 - Port 6)
LNK/10M/ACT Network port 10M link status (Port 1 - Port 6)

1.4 Specifications

10/100/1000 Copper Ports

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation or software control
Tra nsmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP

Combo Port with 10/100/1000 RJ-45 and 1000Mbps Mini-GBIC SFP
Copper interface

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation or software control
Tra nsmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP

Fiber interface

Compliance IEEE 802.3z 1000Base-SX/LX (mini-GBIC)
Connectors SFP for optional SFP type fiber transceivers
Configuration Auto/Forced, 1000Mbps, Full duplex
Tra nsmission rate 1000Mbps
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 complia nt

-8-

Combo Ports with 10/100/1000 RJ-45 and 100Mbps SFP
Copper interface

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation or software control
Tra nsmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP

Fiber interface

Compliance IEEE 802.3u 100Base-FX
Connectors SFP for optional SFP type fiber transceivers
Configuration Forced, 100Mbps, Full duplex
Tra nsmission rate 100Mbps
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 complia nt

Switch Functions

MAC Addresses Table 8K entries
Forwarding & filtering Non-blocking, full wire speed
Switching technology Store and forward
Maxi mum packet length 1526 bytes (Jumbo frame support disa bled)
Flow control IEEE 802.3x pause frame ba se for full duplex operation

Back pressure for half duplex operation
VLAN function Port-based VLAN and IEEE 802.1Q Tag-based VLAN
QoS function Port-based, 802.1p-based, IP DSCP-based
Port control Port configuration control vi a software management
Storm control Broadca st, Multicast storm protection control via software management
Aggregation Link aggregation (port trunking)
Port Mirroring Mirror received frames to a sniffer port

LED Indicators

System Power status
Per copper port Port link/activity status, speed status

-9-

Software Management Functions

Interfaces Web browser
Management objects System configuration - IP settings, Name, Password

Port configuration control a nd status

VLAN function settings

Port Link Aggregation function settings

Link Aggregation LACP settings

RSTP settings

802.1X port access control

Port mirroring settings

QoS function settings

Storm protection control settings

Port statistic, LACP status, RSTP status

Reboot, restore factory default, update firmware

DC Power Input

Interfaces DC Jack ( -D 6.3mm / + D 2.0mm)
Operating Input Voltages +7.5VDC(+/-5%)
Power consumption 9W max. @7.5V

Mechanical

Dimension (base) 180 x 114 x 26 mm
Housing Enclosed metal with no fan
Mounting Desktop mounting, wall mounting, Din-rail mounting

Environmental

Operating Temperature Typical 0
Storage Temperature -20

o

C ~ 40oC

o

C ~ 70oC

Relative Humidity 10% ~ 90%

Electrical Approvals

FCC Part 15 rule Class A
CE EMC, CISPR22 Class A

-10-

2. Installation

2.1 Unpacking

The product package contains:

• The switch unit

• One power adapter

• One product CD-ROM

2.2 Safety Cautions

To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the
following precautions.

• Do not service any product except as explained in your system documentation.

• Opening or removing covers may expose you to electrical shock.

• Only a trained service technician should service components inside these compartments.

• If any of the following conditions occur, unplug the product from the electrical outlet and re pla ce

the part or contact your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

• Do not push any objects into the openings of your system. Doing so can cause fire or electric

shock by shorting out interior components.

• Operate the product only from the type of external power source indicated on the electrical

ratings label. If you are not sure of the type of power source required, consult your service
provider or local power compa ny.

2.3 Mounting the Switch on a Wall

The switch can be mounted on a desktop or shelf or a wall. Make sure that there is proper heat
dissipation from and adequate ventilation around the device. Do not place heavy objects on the device.

-11-

2.4 Mounting the Switch on a Din-rail Chassis

The switch also ca n be mounted on a din-rail chassis.

The steps are:

1. Screw the din-rail mounting bracket on the bottom of the switch.

2. Mount the units on a din-rail chassis

The din-rail mounting bracket is optional. Consult the pla ce where you purcha sed the product.

2.5 Applying Power

Before you begin the installation, check the AC voltage of your area. The AC power ada pter which is used
to supply the DC power for the unit should have the AC voltage matching the commercial power voltage in
your area.

The AC Power Adapter Specifications

AC input power: AC power voltage of your area, options -

Rated AC120V/60Hz DC7.5V 1.2A
Rated AC230V/50Hz DC7.5V 1.2A
Rated AC240V/50Hz DC7.5V 2A

The steps to apply the power to the product are:

1. Connect power adapter DC plug to the DC input jack located on the ba ck of the unit before

connecting to the AC outlet.

2. Connect the power adapter to the AC outlet.

3. Check Power LED indication.

Note: Before you begin the installation, check the AC voltage of your area. The AC power

adapter which is used to supply the DC power for the unit should have the AC voltage
matching the commercial power voltage in your area.

-12-

2.6 Reset Button

The reset button is used to perform a reset to the switch. It is not used in normal cases and can be used
for di agnostic purpose. If any network hanging problem is suspected, it is useful to push the button to
reset the switch without turning off the power. Check whether the network is recovered.

The button can also be used to restore the software configuration settings to factory default values.

The operations are:

Operation Function

Press the button more than 5 seconds when power up Restore factory default settings
Press the button and release during switch operation Reboot the switch

2.7 Making UTP Connections

The 10/100/1000 RJ-45 copper ports supports the following connection types and dista nces:

Network Cables

10BASE-T: 2-pair UTP Cat. 3,4,5 , EIA/TIA-568B 100-ohm
100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm
1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm
Link distance: Up to 100 meters

Auto MDI/MDI-X Function

This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid
MDI to MDI-X connection with the remote connected device automatically. No matter a straight
through cable or crossover cable is connected, the ports can sense the receiving pair automatically and
configure itself to match the rule for MDI to MDI-X connection. It simplifies the cable installation.

Auto-negotiation Function

The ports are featured with auto-negotiation function and full capability to support connection to any
Ethernet devices. The port performs a negotiation process for the speed and duplex configuration with
the connected device automatically when each time a link is being established. If the connected device
is also auto-negotiation capable, both devices will come out the best configuration after negotiation
process. If the connected device is incapable in auto-negotiation, the switch will sense the speed and
use half duplex for the connection.

Port Configuration Management

For making proper connection to an auto-negotiation incapable device, it is suggested to use port con­trol function via software management to set forced mode and specify speed and duplex mode which
match the configuration used by the connected device.

-13-

2.8 Making Fiber Connection

The SFP slot must be installed with an SFP fiber transceiver for making fiber connection. Your
switch may come with some SFP transceivers pre-installed when it is shipped.

Installing SFP Fiber Transceiver

To install an SFP fiber transceiver into SFP slot, the steps are:

1. Turn off the power to the switch.

2. Insert the SFP fiber transceiver into the SFP slot. Normally, a bail is provided f or every SFP

tra nsce iver. Hold the bail a nd make insertion.

3. Until the SFP transceiver is seated securely in the slot, place the bail in lock position.

Connecting Fiber Cables

LC connectors are commonly equipped on most SFP transceiver modules. Identify TX and RX
connector before making cable connection. The following figure illustrates a connection example
between two fiber ports:

Make sure the Rx-to-Tx connection rule is followed on the both ends of the fiber cable.

Network Cables

Multimode (MMF) - 50/125, 62.5/125
Single mode (SMF) - 9/125

Fiber Port Configuration

For 100M fiber application on Port 4 and Port 5, it is necessary to configure 100 Full for the port with
fiber connection. For 1000M fiber application on Port 6, just leave the default port configuration Auto
for fiber connection.

-14-

2.9 LED Indication

LED Function State Interpretation

POWER Power status ON The power is supplied to the switch.

OFF The power is not supplied to the switch.

LNK/1000M/ACT Port link status ON A 1000M link is established. (No traffic)

BLINK Port link is up and there is traffic.
OFF Port link is down.

LNK/100M/ACT Port link status ON A 100M link is established. (No traffic)

BLINK Port link is up and there is traffic.
OFF Port link is down.

LNK/10M/ACT Port link status ON A 10M link is established. (No traffic)

BLINK Port link is up and there is traffic.
OFF Port link is down.

2.10 Configuring IP Address and Password for the Switch

The switch is shipped with the following factory default settings for software ma nage ment :

Default IP address of the switch : 192.168.0.2 / 255.255.255.0

The IP Address is an identification of the switch in a TCP/IP network. Each switch should be desig­nated a new and unique IP address in the network. Refer to Web management interface for System
Configuration.

The switch is shipped with factory default password 123 for software management.
The password is used for authentication in accessing to the switch via Http web-based interface. For

security reason, it is recommended to change the default settings for the switch before deploying it to
your network. Refer to Web management interface for System Configuration.

-15-

3. Advanced Functions

T o help a better understanding about the software management interfa ces, this cha pter describe s some
advanced functions provided by the switch.

3.1 Abbreviation

Ingress Port : Ingress port is the input port on which a packet is received.
Egress Port : Egress port is the output port from which a packet is sent out.
IEEE 802.1Q Packets : A packet which is embedded with a VLAN Tag field
VLAN T ag : In IEEE 802.1Q packet format, 4-byte tag field is inserted in the original Ethernet frame

between the Source Address and Type/Length fields. The tag is composed of :

#of bits 16 3 1 12

Frame field TPID User priority CFI VID

TPID : 16-bit field is set to 0x8100 to identify a frame as an IEEE 802.1Q tagged packet
User Priority : 3-bit field refer to the 802.1p priority
CFI : The Canonical Format Indicator for the MAC address is a 1 bit field.
VID : VLAN identifier, 12-bit field identifies the VLAN to which the fra me belongs to.
Untagged packet : A standard Ethernet frame with no VLAN Tag field
Priority-tagged packet : An IEEE 802.1Q packet which VID filed value is zero (VID=0)
VLAN-Tagged packet : An IEEE 802.1Q packet which VID filed value is not zero (VID<>0)
PVID (Port VID)

PVID is the default VID of an ingress port. It is often used in VLAN classification for untagged
packets. It is also often used for egress tagging operation.

DSCP : Differentiated Service Code Point, 6-bit value field in an IP packet
VLAN Table lookup : The process of searching VLAN table to find a VLAN which matches the

given VID index
MAC address table lookup : The process of searching MAC address table to find a MAC entry

which matches the given destination MAC address and the port where the MAC address is located
Packet forwarding : also known as packet switching in a network switch based on MAC address

table and VLAN table information
VLAN forwarding : the operation that a packet is forwarded to an egress destination port based on

VLAN table information
VLAN group : configuration information about a VLAN which can be recognized in the switch. The

information includes a VID associated to the VLAN, member ports, and some special settings.

-16-

3.2 QoS Function

The switch provides a powerful Quality of Service (QoS) function to guide the packet forwarding in
four priority classes. The versatile classification methods can meet most of the application needs. The
following figure illustrates the QoS operation flow when a packet received on the ingress port until it is
transmitted out from the egress port:

-17-

3.2.1 Packet Priority Classification

Each received packet is examined and classified into one of four priority classes, Class 3, Class 2,
Class 1 and Class 0 upon reception. The switch provides the following classification methods:

802.1p classification : use User Priority tag value in the received IEEE 802.1Q packet to map to one
priority class

DSCP classification : use DSCP value in the received IP packet to map to one priority class
Port-based classification : used when 802.1p and DSCP are disabled or fail to be applied

They all can be configured to be activated or not. More than one classification methods can be enabled
at the same time. However, 802.1p classification is superior than DSCP classification.

802.1p mapping tables : Each ingress port has its own mapping table for 802.1p classification.
DSCP mapping table : All ingress ports share one DSCP mapping table for DSCP classification.
Default port priority : A port default priority class is used when port-based classification is applied

All configuration settings are in per port basis except that DSCP mapping table is global to all ports. A
received packet is classified into one of four priority class before it is forwarded to an egress port.

3.2.2 Priority Class Queues

Each egress port in the switch is equipped with four priority class egress queues to store the packets
for transmission. A packet is stored into the class queue which is associated to the classified priority
class. For example, a packet is stored into Class 3 egress queue if it is classified as priority Class 3.

3.2.3 Egress Service Policy

Each port can be configured with an egress service policy to determine the transmission priority among
four class queues. By default, higher class number has higher priority than the lower class numbers.

Four policies are provided for selection as follows:

• Strict priority : Packets in high priority class queue are sent first until the queue is empty

• Weighted ratio priority Class 3:2:1:0 = 4:3:2:1 : four queues are served in 4:3:2:1 ratio

• Weighted ratio priority Class 3:2:1:0 = 5:3:1:1 : four queues are served in 5:3:1:1 ratio

• Weighted ratio priority Class 3:2:1:0 = 1:1:1:1 : four queues are served equally

Strict priority policy lets high priority class queue is served first until it is empty. Lower priority queue
may not get any service (or egress bandwidth) when higher priority traffic is heavy for long time. Three
weighted ratio policies are provided to resolve such problem. Four class queues are served in weighted
round robin basis. Every priority class can get a guaranteed ratio for the egress bandwidth.

-18-

3.3 VLAN Function

The switch supports port-based VLAN, 802.1Q Tag VLAN and eight VLAN groups.

3.3.1 VLAN Operation

The following figure illustrates the basic VLAN operation flow beginning from a packet received on an
ingress port until it is transmitted from an egress port.

The following sections describe the VLAN processes and Advanced VLAN mode settings provided
by the switch. A global setting means the setting is applied to all ports of the switch. A per port setting
means each port can be configured for the setting respectively.

3.3.2 Ingress Rules

When a packet is received on an ingress port, the ingress rules are applied for packet filtering and
packet tag removal. The related Ingress port settings are:

3.3.2.1 802.1Q Tag Aware Per port setting

Tag-aware -802.1Q Tag Aware mode is used. The switch examines the tag content of every

received packets. For a VLAN tagged packet, the packet VLAN tag data is retrieved
as packet tag information for VLAN classification and egress tagging operation. For
untagged packet and priority-tagged packet, port-based mode is used.

Tag-ignore - Port-based mode is used. The switch ignores the tag content of every received

packets. Ingress Port Default Tag is always used as packet tag information for VLAN
classification.

3.3.2.2 Keep Tag Per port setting

Enable - The VLAN tag in the received VLAN tagged packet will be kept as it is and is not

stripped in whole forwarding operation.

Disable - The VLAN tag data in the received VLAN tagged packet is stripped (removed).

-19-

3.3.2.3 Drop Untag Per Port Setting

Enable - All untagged packets and priority-tagged packets are dropped. A priority-tagged packet

is treated as an untagged packet in this switch. Only VLAN-tagged packets are
admitted.

Disable - Disable Untagged packet filtering

3.3.2.4 Drop Tag Per Port Setting

Enable - All VLAN-tagged packets are dropped. A priority-tagged packet is treated as an

untagged packet in this switch. Only untagged packets are admitted.

Disable - Disable VLAN-tagged packet filtering

3.3.3 Ingress Default Tag Per Port Setting

Each port can be configured with one Ingress Default Tag. This ingress port default tag is used when
ingress port is in Tag-ignore mode or for the received untagged packets in Tag-aware mode. The
Ingress Default Tag includes PVID, CFI and User Priority configuration.

When Ingress port default tag is used, it is copied as packet associated Packet Tag Information for
VLAN classification. The PVID is used as index to one VLAN group in VLAN group table.

3.3.4 Packet Tag Information

Under VLAN proce ss, every packet is associated with one Packet Tag information in packet forward­ing operation. The tag information includes VID, CFI and User Priority data and is used for two
purposes:

• The VID in tag is used as index for VLAN classification.

• The tag is used for egress tag insertion if egress tagging is enabled.

The following table lists how the Packet T ag inf ormation is generated:

Tag Aware setting Received Packet Type Packet Tag information source

Tag-ignore Untagged packet Ingress Port Default Tag
Tag-ignore Priority-tagged packet Ingress Port Default Tag
Tag-ignore VLAN-tagged packet Ingress Port Default Tag

Tag-aware Untagged packet Ingress Port Default Tag
Tag-aware Priority-tagged packet Ingress Port Default Tag
Tag-aware VLAN-tagged packet Received packet VLAN Tag

-20-

3.3.5 VLAN Group Table Configuration

The switch provides a table of eight VLAN groups to support up to eight VLANs at the same time.
Each VLAN group is associated to one unique VLAN. The table is referred for VLAN classification.

A VLAN group contains the following configuration settings:

VID : 12-bit VLAN Identifier index to the VLAN to which the group is associated
Member Ports : the admitted egress ports for packets belonging to this VLAN
Source Port Check : the ingress port of the packet must also be the member port of this VLAN.

Otherwise, the packet is discarded.

3.3.6 VLAN Classification

VLAN classification is a process to classify a VLAN group to which a received packet belongs. The
VID of the generated Packet Tag information associated to the received packet is used as an index for
VLAN group table lookup. The VID matched VLAN group will be used for packet forwarding. If no
matched VLAN group is found in table lookup, the packet is dropped.

Refer to section 3.2.4 for details about how the Packet Tag information is generated.

The member ports specified in the matched VLAN group are the admitted egress port range for the
packet. The packet will never be forwarded to other ports which are not in the member ports.

The Source Port Check setting of the matched VLAN group is also referred. If it is enabled, the
ingress port will be checked whether it is a member port of this group.

3.3.7 Packet Forwarding

The forwarding is a process to forward the received packet to one or more egress ports. The process
uses the following information as forwarding decision:

• Member ports of the matched VLAN group : the egress port range for forwarding

• Source Port Check setting of the matched VLAN group : check ingress port membership

• The packet destination MAC address : for MAC address table loop up

• The switch MAC address table : to find the associated port where a MAC address is learned

If the MAC address table lookup is matched and the learned port is the VLAN member port, the
packet is forwarded to the port (egress port). If the lookup failed, the switch will broadcast the packet
to all member ports.

-21-

3.3.8 Egress Tagging Rules

Egress Tagging rules are used to make change to the packet before it is stored into egress queue of an
egress port. Three egress settings are provided for each port and are described as follows:

3.3.8.1 Egress Settings

Insert Tag (per port setting)

Enable - Insert the Tag data of the associated Packet Tag information into the packet
Disable - No tagging is performed.

Untagging Specific VID (per port setting)

Enable - No tag insertion if the VID data of the associated Packet Tag information matches the

Untagged VID configured in next setting even [Insert Tag] is enabled.

Disable - This rule is not applied.

3.3.9 Summary of VLAN Function

VLAN Modes
Port-based VLAN Mode : simple port-based 2-VLAN-groups mode
Port-based VLAN ISP Mode : simple port-based 5-VLAN-groups mode
Advanced VLAN Mode : Full VLAN configuration for port-based and Tag-based VLAN

Advanced VLAN Mode
Egress Settings (per port) : [Tag Aware], [Keep Tag], [Drop Untag], [Drop Tag]
Ingress Default Tag (per port) : [PVID], [CFI], [User Priority]
VLAN Groups (global) : 8 VLAN groups
VLAN Group Settings (per group) : [VID], [Member Ports], [Source Port Check]
Egress Settings : [Insert Tag], [Untagging Specific VID], [Untagged VID]

VLAN range supported : 1 ~ 4095 (eight VLANs at the same time)
[PVID] [VID] [Untagged VID] value range : 1 ~ 4095

3.4 802.1X Authentication

For some IEEE 802 LAN environments, it is desirable to restrict access to the services offered by the
LAN to those users and devices that are permitted to make use of those services. IEEE 802.1X Port­based network access control function provide a means of authenticating and authorizing devices at­tached to a LAN port that has point-to-point connection chara cteristics, a nd of preventing a ccess to that
port in cases in which the authentication and authorization process fails. The 802.1X sta ndard relie s on
the client to provide credentials in order to gain a ccess to the network. The credenti als are not based on
a hardware addre ss. Instead, they ca n be e ither a username/password combination or a certificate. The
credentials are not verified by the switch but are sent to a Remote Authentication Dial-In User Service
(RADIUS) server, which maintains a data ba se of authentication information. 802.1X consists of three
components for authentication excha nge, which are as follows:

-22-

 An 802.1X authenticator: This is the port on the switch that has services to offer to an end device,
provided the device supplies the proper credentials.
 An 802.1X supplicant: This is the end device; for example, a PC that connects to a switch that is
requesting to use the services (port) of the device. The 802.1X supplicant must be able to respond to
communicate.
 An 802.1X authentication server: This is a RADIUS server that examines the credentials provided to
the authenticator from the supplica nt a nd provides the authentication service. The authentication server is respon­sible for letting the authenticator know if services should be granted.

The 802.1X authenticator operates as a go-between with the supplicant and the authentication server to
provide services to the network. When a switch is configured as an authenticator, the ports of the
switch must then be configured for authorization. In a n authenticator-initi ated port authorization, a client
is powered up or plugs into the port, and the authenticator port sends an Extensible Authentication
Protocol (EAP) PDU to the supplica nt requesting the identification of the supplica nt. At this point in the
process, the port on the switch is connected from a physical standpoint; however, the 802.1X process
has not authorized the port and no frames are pa ssed from the port on the supplicant into the switching
engine. If the PC attached to the switch did not understand the EAP PDU that it wa s receiving from the
switch, it would not be able to send a n ID and the port would remain unauthorized. In this state, the port
would never pass any user traffic and would be as good as disabled. If the client PC is running the

802.1X EAP, it would respond to the request with its configured ID. (This could be a username/
password combination or a certificate.)

After the switch, the authenticator receives the ID from the PC (the supplicant). The switch then
passes the ID information to an authentication server (RADIUS server) that can verify the identifica­tion information. The RADIUS server responds to the switch with either a success or failure message.
If the response is a success, the port will be authorized and user traffic will be allowed to pass through
the port like any switch port connected to an access device. If the response is a failure, the port will
remain unauthorized and, therefore, unused. If there is no response from the server, the port will also
remain unauthorized a nd will not pa ss any traffic.

-23-

4. Web Management

The switch features an http server which can serve the management requests coming from any web
browser software over TCP/IP network.

Web Browser

Compatible web browser software with JAVA script support
Microsoft Internet Explorer 4.0 or later
Netscape Communicator 4.x or later

Set IP Address for the System Unit

Before the switch can be managed from a web browser software, make sure a unique IP address is
configured for the switch.

4.1 Start Browser Software and Making Connection

Start your browser software and enter the IP address of the switch unit to which you want to connect.
The IP address is used as URL for the browser software to search the device.

URL : http://xxx.xxx.xxx.xxx/

Factory default IP address : 192.168.0.2

4.2 Login to the Switch Unit

When browser software connects to the switch unit successfully , a Login screen is provided for you to
login to the device as follows:

The switch will accept only one successful management connection at the same time. The other con­nection attempts will be prompted with a warning message.

A new connection will be accepted when the current user logout successfully or auto logout by the
switch due to no access for time out of 3 minutes.

System Configuration is displayed after a successful login.

-24-

4.3 Main Management Menu

Configuration

System Switch information, system and IP related settings
Ports Port link status, port operation mode configuration
VLAN VLAN related configuration
Aggregation Port link aggregation (port trunking) related configuration
LACP LACP confguration for port link aggregation
RSTP RST P (R a pid spa nning tree protocol) related configuration

802.1X 802.1X authentication related configuration
Mirroring Port mirroring related configuration
QoS Quality of Service related configuration
Storm Co ntrol Packet Storm protection control configuration

Monitoring

Statistics Overview List simple statistics for all ports
Detailed Statistics List detailed statistics for all ports
LACP Status LACP port status
RSTP Status RSTP protocol status
Ping Ping command from the switch to other IP devices

Maintenance

Reboot System Command to reboot the switch
Restore Default Command to restore the switch with factory default settings
Update Firmware Command to update the switch firmware
Logout Comma nd to logout from the switch management

-25-

4.4 System

-26-

Configuration Description

MAC Address The MAC address factory configured for the switch

It can not be changed in any cases.
S/W V ersion The firmware version currently running
H/W Version The hardware version currently operating
Active IP Address Currently used IP address for the switch management
Active Subnet Mask Currently used subnet mask for IP address for the switch management
Active Gateway Currently used gateway IP address for the switch management
DHCP Server Current IP address of the DHCP server
Lease Time Left The time left for the lease IP address currently used
DHCP Enabled Use DHCP to get dynamic IP address configuration for the switch
Fallback IP Address IP address used when DHCP mode is not enabled
Fallback Subnet Mask Subnet mask for IP address used when DHCP mode is not enabled
Fallback Gateway Default gateway IP address used when DHCP mode is not enabled
WDT Enable WDT (Watch Dog Timer)
Management VLAN Set management VLAN information

- VID VLAN ID configured for web management to the switch

- CFI CFI value for web reply packets from the switch

- User priority Priority value for web reply packets from the switch
Name * Set the system name for this switch unit
Password Set new password
SNMP enabled Enable SNMP agent
SNMP Trap destination The IP address of the SNMP trap manager
SNMP Read community The community allowed for the SNMP [get] message
SNMP Write community The community allowed for the SNMP [set] message
SNMP Trap community The community used for the SNMP trap messages sent by the switch

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

Note:

1. It is suggested to give each switch unit a system name as an alternative unique identifica-

tion beside IP address.

2. Setting change of DHCP mode takes effective in next bootup.
3 . A watch dog timer (WDT) is a hardware timing device that triggers a system reset if the

system firmware, due to some fault condition, such as a hang, neglects to regularly service
the watch dog timer . The intention is to bring the system back from the hung state into
normal operation. The timer is set to 1.72 seconds in this switch.

-27-

4.4.1 Management VLAN

Management VLAN settings allow administrator to access the switch and perform the switch ma nage­ment over a dedicated VLAN.

The following rules are a pplied with the M anagement VLAN:

1. If the VLAN function is disabled, Management VLAN settings are ignored and no VLAN

limitation is a pplied in accessing the switch web ma nagement interface. The switch web (http)
server only accepts untagged management packets and replies untagged packets to the manage­ment host.

2. If [Management VLAN - VID] settings is zero, no VLAN limitation is applied in accessing the

switch web management interface. The switch web (http) server only accepts untagged manage­ment packets and replies untagged packets to the management host.

3. If [Management VLAN - VID] settings is not zero, The switch web (http) server only accepts

tagged management packets matched [Management VLAN -VID] and replies tagged packets
with tag composed of [Management VLAN] VID, CFI and User Priority settings to the manage­ment host. The egress port will also be limited in the member ports of the matched VLAN group.

Summary of the rules:

VLAN Function Management VID Switch Embedded Web Server operation

VLAN disabled Ignore Accept untagged web packets

Reply untagged packets
No VLAN group member checking

VLAN enabled VID=0 Accept untagged web packets

Reply untagged packets
No VLAN group member checking

VLAN enabled VID<>0 Accept matched tagged web packets only

( 1 ~ 4095) Reply tagged packets with the configured tag

Matched VLAN group member checking

Notes:

1. To apply management VLAN function, be sure to configure a VLAN group that matches the

management VID first.

2. No matter how management VLAN is configured, login password authentication is still

required.

-28-

4.5 Ports

Configuration Function

Enable Jumbo Fra mes Select to enable jumbo fra me support
Port The port number
Link Speed and duplex status with green background - port is link on

Down with red background - port is link down
Mode Select port operating mode

Disabled - disable the port operation

Mode Auto-negotiation Speed capability Duplex capability

Auto Enable 10, 100, 1000M Full, Half

10 Half Disable 10M Half

10 Full Disable 10M Full

100 Half Disable 100M Half

100 Full Disable 100M Full

1000 Full Enable 1000M Full

Force 1000 Full Disable 1000M Full

Flow Control Set port flow control function

v - set to enable 802.3x pause flow control for ingress and egress

[SFP DDM] Click to display DDM information and status of the SFP transceivers
[Apply] Click to apply the configuration cha nge

Notes:

1. For 100M fiber application on Port 4 and Port 5, it is necessary to configure 100 Full for

the port with fiber connection.

2. For 1000M fiber application on Port 6, just leave the default port configuration Auto for

fiber connection.

-29-

4.5.1 SFP DDM Status

DDM (Digital Diagnostic Monitoring) information and status are provided in some SFP transceivers.
Part of the information are retrieved and listed as follows:

Information Function

Port Port number which has SFP slot (Port 4, Port 5, Port 6 come with SFP.)
Identifier The identifier information of the tra nsce iver
Connector The connector type used on the transceiver
SONET Compli ance SONET compliance inf ormation of the transceiver
GbE Compli a nce Gigabit Ethernet complia nce information of the transceiver
Vendor Name The vendor name of the transceiver
Vendor OUI The vendor OUI of the transceiver
Temperature The current temperature sensed inside the transceiver
Voltage The working voltage sensed inside the transceiver
TX Power The tra nsmission optical power sensed

[Refresh] Click to refresh current configuration
[Back] Click to back to previous page

Note:
1 . TX power data is displayed with unit of mW. It can be converted to dBm as remark.

2. N/A: the information is not available

-30-

4.6 VLANs

VLAN Configuration Description

VLAN Disable Select to disable VLAN function

All ports are allowed to communicate with each others freely with

no VLAN limitation.
Port-based VLAN Mode Simple configuration for 2 port-based VLAN groups
Port-based VLAN ISP Mode Simple configuration for 5 port-based VLAN groups
Adva nce VLAN Mode Full VLAN configuration for port-based a nd Tag-based VLAN

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration

-31-

4.6.1 Port-based VLAN Mode

Configuration Description

Group 1, 2 Port-based VLAN group number
Member ports Select member ports for the group

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Operation in this mode:

1. The member ports of two groups are allowed to overlap.

2. The member ports in same group can communicate with other members only.

3. No packet tag is examined.

4. A received packet will not be modified (i.e. tagging or untagging) through VLAN operation till it

is tra nsmitted.

-32-

4.6.2 Port-based VLAN ISP Mode

Configuration Description

Joint port Select a port as the joint port for all 5 port-based VLAN groups

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Example:

If Port 6 is selected as the joint port, the 5 port-based VLAN groups are configured as follows auto­matically:

Group 1 - member [Port 1, Port 6]
Group 2 - member [Port 2, Port 6]
Group 3 - member [Port 3, Port 6]
Group 4 - member [Port 4, Port 6]
Group 5 - member [Port 5, Port 6]

Mode Operation :

1. The joint port is the shared member port for all groups.

2. Two member ports are configured in each group.

3. The member ports in same group can communicate with other only.

4. No packet tag is examined.

5. A rece ived pa cket will not be modified (i.e. tagging or untagging) through VLAN operation till it

is tra nsmitted.

-33-

4.6.3 Advanced VLAN Mode

Configuration Description

Ingress Default Tag Click to configure per port Ingress Default Tag settings
Ingress Settings Click to configure per port ingress settings
Egress Settings Click to configure per port egress settings
VLAN Groups Click to configure VLAN group table

-34-

4.6.3.1 Ingress Default Tag

Configuration Description

Port Port number
PVID Port VID, VID for Ingress Default Tag

1 ~ 4095 - decimal 12-bit VID value

CFI CFI for Ingress Default Tag

0, 1 - 1-bit CFI value

User Priority User priority for Ingress Default Tag

0 ~ 7 - decimal 3-bit value

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

PVID is used as index for VLAN classification (VLAN group table lookup) in one of the following
conditions:

1. Ingress port [Tag Aware] setting = Tag-ignore

2. Ingress port [Tag Aware] setting = Tag-aware

and the received packet is untagged or priority-tagged

[PVID+CFI+User Priority] = Ingress Default Tag for the ingress port
It is used as the tag for insertion in egress tagging operation in one of the following conditions:

1. Ingress port [Tag Aware] setting = Tag-ignore, Egress port [Insert Tag] = Enable

2. Ingress port [Tag Aware] setting = Tag-aware, Egress port [Insert Tag] = En able

and the received packet is untagged or priority-tagged

-35-

4.6.3.2 Ingress Settings

Configuration Description

Port Port number
Tag Aware Check tag data for every received packet

Tag-aware - set to activate Tag-based mode
Tag-ignore - set to use port-based mode and ignore any tag in packet

Keep Tag Tag is removed from the received packet if exists

Enable - set to activate tag removal for VLAN-tagged packets
Disable - set to disable tag removal function

Drop Untag Drop all untagged packets and priority-tagged packets

Enable - drop untagged packets and priority-tagged packets
Disable - admit untagged packets and priority-tagged packets

Drop Tag Drop all VLAN-tagged packets

Enable - drop VLAN-tagged packets
Disable - admit VLAN-tagged packets

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration

-36-

Note:

1. Priority-tagged packet (VID=0) is treated as untagged packet in the switch.

2. [Tag Aware] setting affects the index used for VLAN classification (VLAN table lookup).

The following table lists the index used:

Ingress [Tag Aware] setting

Received packet type Tag-ignore Tag-aware

Untagged PVID PVID
Priority-tagged (VID=0) PVID PVID
VLAN-tagged (VID>0) PVID Packet tag VID

3. Both [Drop Untag] and [Drop Tag] are set to Disable to admit all packets.

4.6.3.3 Egress Settings

-37-

Configuration Description

Port Port number
Insert Tag Activate tagging (Insert a tag to the packet)

Enable - set to activate tagging
Disable - set to disa ble tagging function

Untagging Specific VID No tagging if VID of packet tag information matches [Untagged VID]

Enable - set to enable this function
Disable - set to disable this function

Untagged VID VID for [Untagging Specific VID] setting

1 ~ 4095 - decimal 12-bit VID value

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

The inserted tag sources when [Insert Tag] = Enable are listed as follows:

Received packet type [Tag Aware]=Tag-ignore [Tag Aware]=Tag-aware

Untagged Ingress Default Tag Ingress Default Ta g
Priority-tagged (VID=0) Ingress Default Tag Ingress Default Tag
VLAN-tagged (VID>0) Ingress Default Tag Packet own tag

-38-

4.6.3.4 VLAN Groups

Configuration Description

Group Group number
VI D VID of the VLAN to which this group is associated

1 ~ 4095 - decimal 12-bit VID value

Member Ports Select the admitted egress ports for the packets belong to the VLAN

Port 1 ~ 6 - click to select

Source Port Check Check whether the ingress port is the member port of the VLAN

Enable - set to enable this check, the packet is dropped if ingress port is
not member port of the VLAN.
Disable - set to disable this check

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

-39-

4.6.4 Important Notes for VLAN Configuration

Some considerations should be checked in configuring VLAN settings:

1. Switch VLAN Mode selection

It is suggested to evaluate your VLAN application first and plan your VLAN configuration
carefully before applying it. Any incorrect setting might cause network problem.

2. Aggregation/Trunking configuration

Make sure the members of a link aggregation (trunk) group are configured with same VLAN
configuration and are in same VLAN group.

3. Double Tagged in Advanced VLAN Mode

For a received packet, Ingress port [Keep Tag] setting and Egress port [Insert Tag] setting are
enabled at the same time. It will cause the packet double-tagged when egress. Although, it is
often applied in Q-in-Q provider bridging a pplication. However, such condition should be avoided
in normal VLAN configuration. See table below:

Ingress port Egress port
[Keep Tag] [Insert Tag] Received Packet Packet Transmitted

Enable Enable Priority-tagged Double-tagged
Enable Enable VLAN-tagged Double-tagged

-40-

4.7 Aggregation

Configuration Description

Group Trunk group number
Port # Click to select the port as member port of the trunk group

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Link aggregation function allows to make connection between two switches using more than one
physical links. It ca n increase the connection bandwidth between two switches. The switch supports up
to four trunk groups a nd the number of me mber ports belonging to one trunk group is not li mited.

Notes:

1. The LACP enabled ports are not available in this configuration..

2. One port cannot belong to two trunk groups at the same time.

3. The member ports of one trunk group must also belong to same VLAN group and have same

VLAN configuration settings. Otherwise, abnormal operation might be experienced.

-41-

4.8 LACP

Configuration Description

Port Port number
Protocol Enabled Enable LACP support for the port
Key Value An integer value assigned to the port that determines which ports are

aggregated into an LACP link aggregate. Set same value to the ports in
same LACP link aggregate. Value: 1 ~ 255.
Auto - key value is assigned by the system

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

Notes:

1. This configuration is used to configure LACP aggregate groups.

2. The ports with same key value are in same LACP aggregate group.

3. The ports with Auto key are in same LACP aggregate group.

4. The ports configured in non-LACP aggregation are not available in this configuration.

-42-

4.9 RSTP

Configuration Description

System Priority The lower the bridge priority is the higher priority it has. Usually , the bridge

with the highest bridge priority is the root. Value: 0 ~ 61440

Hello Ti me Hello Time is used to determine the periodic time to send normal BPDU

from designated ports among bridge s. It decides how long a bridge should
send this message to other bridge to tell I am alive.

Max Age When the switch is the root bridge, the whole LAN will apply this setting

as the ir maximum age ti me.

Forward Delay This figure is set by Root Bridge only. The forward delay time is defined as

the time spent from Listening state moved to Learning state and also from
Learning state moved to Forwarding state of a port in bridge.

Force Version Two options are offered for choosing STP algorithm.

Compatible - STP (IEEE 802.1D)
Normal - RSTP (IEEE 802.1w)

-43-

Aggregations Enabled to support port trunking in STP. It means a link aggregate is

treated as a physical port in RSTP/STP operation.
Port Protocol Enabled Port is enabled to support RSTP/STP.
Port Edge An Edge Port is a port connected to a device that knows nothing about

STP or RSTP. Usually, the connected device is an end station. Edge Ports

will immedi ately tra nsit to forwarding state and skip the listening and

learning state because the edge ports cannot create bridging loops in the

network.
Port Path Cost Specifies the path cost of the port that switch uses to determine which port

are the forwarding ports the lowest number is forwarding ports, the rage is

1 ~ 200,000,000 and Auto. Auto means a default cost is automatically

calculated in RSTP operation ba sed on the port link speed.

The default costs are :

Link Speed Auto Default Cost

10Mbps 2000000

100Mbps 200000

1000Mbps 20000

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

4.10 802.1X Configuration

-44-

Configuration Description

Mode Disabled - disable 802.1X function

Enabled - enable 802.1X function

RADIUS IP IP address of the Radius server
RADIUS UDP Port The UDP port for authentication requests to the specified Radius server
RADIUS Secret The encryption key for use during authentication sessions with the Radius

server. It must match the key used on the Radius server.
Port Port number
Admin State Port 802.1X control

Auto - set to the Authorized or Unauthorized state in accordance with the

outcome of an authentication exchange between the Supplicant and the

Authentication Server.

Force Authorized - the port is forced to be in authorized state.

Force Unauthorized - the port is forced to be in unauthorized state.

Port State Port 802.1X state

802.1X Disabled - the port is in 802.1X disabled state

Link Down - the port is in link down state

Authorized (green color) - the port is in 802.1X authorized state

Unauthorized (red color) - the port is in 802.1X unauthorized state

[Re-authenticate] Click to perform a manual authentication f or the port
[Force Reiniti alize] Click to perform a n 802.1X initi alization for the port
[Re-authenticate All] Click to perform ma nual authentication for all ports
[Force Reiniti alize All] Click to perform 802.1X initialization for all ports
[Parameters] Click to configure Re-authentication parameters
[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

-45-

4.10.1 802.1X Re-authentication Parameters

Configuration Description

Reauthentication Ena bled Check to ena ble periodical re-authentication for all ports
Reauthentication Period The period of time after which the connected radius clients must be

re-authenticated (unit: second), Value: 1- 3600

EAP timeout The period of ti me the switch waits for a supplicant response to an

EAP request (unit: second), Value: 1 - 255

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

-46-

4.11 Mirroring

Configuration Description

Mirror Port The port is forwarded all packets received on the mirrored ports
Mirror Source Select the ports which will be mirrored all received pa ckets to the mirror port.

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

-47-

4.12 Quality of Service

QoS Configuration D escription

Port Port number

802.1p 802.1p priority classification

Enable - set to enable this classification to the port for priority-tagged and

VLAN-tagged packets

Disable - 802.1p classification is not applied to the port
DSCP DSCP classification

Enable - set to enable DSCP classification to the port for IP packets

Disable - DSCP classification is not applied to the port

Port Priority Port default priority class, it is used as a port-based QoS mode when

802.1p and DSCP classifications are disabled. It is also used as default

priority class for the received packet when both 802.1p and DSCP classifi-

cation failed in classification.

Class 3 ~ Class 0 - priority class

[802.1p Mapping] Click to configure 802.1p mapping tables.
[DSCP Mapping] Click to configure DSCP mapping table.
[Service Policy] Click to configure per port egress service policy mode.
[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration

Note:

802.1p classification is superior over DSCP classification if both are enabled. That means if a
received packet is classified successfully in 802.1p classification, the classified priority class is
used directly for the packet and the result of DSCP classification is ignored.

-48-

4.12.1 802.1p Mapping

Configuration Description

Port n Port number n
tag m 3-bit User priority tag value m ( ra nge : 0 ~ 7 )
Priority class Mapped priority class for tag m on Port n

Class 3 ~ Class 0

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Every ingress port has its own 802.1p mapping table. The table is referred in 802.1p priority classifica­tion for the received packet.

-49-

4.12.2 DSCP Mapping

Configuration Description

DSCP [0-63] Seven user-defined DSCP values which are configured with a priority class

0 ~ 63 - 6-bit DSCP value in decimal

Priority The priority class configured for the user-defined DSCP value

Class 3 ~ Class 0

All others The other DSCP values not in the seven user-defined values are assigned a

default priority class

Class 3 ~ Class 0

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Only one DSCP mapping table is configured and applied to all ports. The table is referred in DSCP
priority classification.

-50-

4.12.3 QoS Service Policy

Configuration Description

Port Port number
Policy Service policy for egress priority a mong f our egress class queues

Strict priority - high class queue is served first always till it is empty
Weighted ratio priority Class 3:2:1:0 = 4:3:2:1 - weighted ratio 4:3:2:1
Weighted ratio priority Class 3:2:1:0 = 5:3:1:1 - weighted ratio 5:3:1:1
Weighted ratio priority Class 3:2:1:0 = 1:1:1:1 - weighted ratio 1:1:1:1

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration
[Back] Click to go back to upper menu

Notes:

1. Queue with higher class number has higher priority than queue with lower class number.

That means Class 3 > Class 2 > Class 1 > Class 0 by default.

2. In weighted ratio policies, a weighted fairness round robin service is guaranteed normally.

However, when excess bandwidth exists higher class queue will take advantage on band­width allocation.

-51-

4.13 Storm Control

Configuration Description

Broadcast Rate The rate limit of the broadcast packets transmitted on a port.
Broa dca st Rate The rate limit of the Multicast pa ckets transmitted on a port.
Flooded Unicast Rate The rate limit of the flooded unicast pa ckets transmitted on a port. The

flooded unicast packets are those unicast packets whose destination

address is not learned in the MAC address table.

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

Notes:

1. The unit of the rates is pps (packets per second).
2 . No Limit - no protection control

-52-

4.14 Statistics Overview

Statistics Description

Port Port number
Tx Bytes Total of bytes transmitted on the port
Tx Frames Total of packet frames transmitted on the port
Rx Bytes Total of bytes received on the port
Rx Frames Total of packet frames received on the port
Tx Errors Total of error packet frames transmitted on the port
Rx Errors Total of error packet frames received on the port

[Clear] Click to reset all statistic counters
[Refresh] Click to refresh all statistic counters

-53-

4.15 Detailed Statistics

Button Description

[Port #] Click to display the detailed statistics of Port #.
[Clear] Click to reset all statistic counters
[Refresh] Click to refresh the displayed statistic counters

-54-

4.16 LACP Status

Status Description

Port The port number
Normal Display the ports not LACP enabled.
Group # The LACP group
Status The LACP port status presented with color and a number

<Down> - the port is link down

<Blocked & #> - the port is blocked by RSTP and the # is the port

number of LACP link partner

<Learning> - the port is learning by RSTP

<Forwarding> - the port is link up and forwarding frames

<Forwarding & #> - the port is link up and forwarding frames and the # is

the port number of LACP link partner
Partner MAC address The MAC address of the link partner at the other end of the LACP

aggregate
Local Port Aggregated The ports at local end which are aggregated in same LACP group

[Refresh] Click to refresh the status

Note: the figure shows an example that two LACP link aggregates are configured.

-55-

Status Description

Port The port number
Protocol Active yes - the port is link up and in LACP operation

no - the port is link down or not in LACP operation
Partner Port Number The port number of the remote link partner
Operation Port Key The operation key generated by the system

-56-

4.17 Ping

Ping Description

Target IP Address The target IP address to which the ping command issues
Count The number of ping commands generated
Time Out (in secs) The ti me out for a reply (in seconds)

[Apply] Start the ping comma nd

Status The command status
Received replies The number of replies received by the system
Request time-outs The number of requests time out
Average Response Time The average reponse time of a ping request (in mini-seconds)

-57-

4.18 Reboot System

This menu is used to reboot the switch unit remotely with current configuration. Starting this menu will
make your current http connection lost. You must rebuild the connection to perform any management
operation to the unit.

4.19 Restore Default

This menu is used to restore all settings of the switch unit with factory default values. Note that this
menu might change the current IP address of the switch and make your current http connection lost.

4.20 Update Firmware

This menu is used to perform in-ba nd firmware (switch software) upgra de. Enter the path a nd file na me
of new firmware image file for uploading.

Configuration Description

Filename Path and filename (warp format)

[Browse] Click to browse your computer file system for the firmware image file
[Upload] Click to start uploa d

4.21 Logout

This menu is used to perform a logout from the switch management. If current user does not perform
a ny ma nage ment operation over 3 minutes, the switch will execute a n auto logout and abort the current
connection.

-58-

5. SNMP Support

SNMP version support Snmp v1, v2c management
Managed Objects MIB-II

system OBJECT IDENTIFIER ::= { mib-2 1 }
interfaces OBJECT IDENTIFIER ::= { mib-2 2 }
ip OBJECT IDENTIFIER ::= { mib-2 4 }
snmp OBJECT IDENTIFIER ::= { mib-2 11 }
dot1dBridge OBJECT IDENTIFIER ::= { mib-2 17 }
ifMIB OBJECT IDENTIFIER ::= { mib-2 31 }

RFC RFC 3418 - Management Information Base (MIB) for the Simple

Network Management Protocol (SNMP)
RFC 1907 - Management Information Base for Version 2 of the

Simple Network Management Protocol (SNMPv2)
RFC 1213 - Management Information Base for Network Manage-

ment of TCP/IP-based internets:MIB-II
RFC 1158 - Management Information Base for network manage-

ment of TCP/IP-based internets: MIB-II
RFC 1493 - Definitions of Managed Objects f or Bridges
RFC 2863 - The Interfaces Group MIB
RFC 1573 - Evolution of the Interfaces Group of MIB-II

SNMP Trap Support TRAP_COLDSTART - the device boot up trap

TRAP_LINKUP - the port link recovery trap
TRAP_LINKDOWN - port link down trap

-59-

Appendix. Factory Default Settings

System Configuration

DHCP Enabled Not select (disabled)
Fallback IP Address 192.168.0.2
Fallback IP Subnet mask 255.255.255.0
Fallback Gateway IP 192.168.0.1
Management VLAN - VID 0
Management VLAN - CFI 0
Management VLAN - User priority 0
WDT Enable Not select (disabled)
Name Null
Password 123
SNMP enabled Not select (disabled)
SNMP T rap destination 0.0.0.0
SNMP Read community public
SNMP W rite community private
SNMP T rap community public

Ports Configuration

Enable Jumbo Fra mes Not select (disabled)
Mode Auto for all ports
Flow Control v : Enable

VLAN Configuration

Main Mode VLAN Disable

Port-based VLAN Mode setting

Member Ports Port 1, 2, 3, 4, 5, 6 for Group 1

None for Group 2

Port-based VLAN ISP Mode setting

Joint Port Port 6

Advanced VLAN Mode Settings

Ingress Default Tag - PVID 1 for all ports
Ingress Default Tag - CFI 0 for all ports
Ingress Default Tag - User Priority 0 for all ports

-60-

Ingress Setting - Tag Aware Tag-ignore for all ports
Ingress Setting - Keep Tag Enable for all ports
Ingress Setting - Drop Untag Disable for all ports
Ingress Setting - Drop Tag Disable for all ports
Egress Setting - Insert Tag Disable for all ports
Egress Setting - Untagging VID Disable for all ports
Egress Setting - Untagged VID 1 for all ports
VLAN Group 1 - VID 1
VLAN Group 1 - Member Ports Port 1, 2, 3, 4, 5, 6
VLAN Group 1 - Source Port Check Disable
VLAN Group 2 - VID 2
VLAN Group 2 - Member Ports None
VLAN Group 2 - Source Port Check Disable
VLAN Group 3 - VID 3
VLAN Group 3 - Member Ports None
VLAN Group 3 - Source Port Check Disable
VLAN Group 4 - VID 4
VLAN Group 4 - Member Ports None
VLAN Group 4 - Source Port Check Disable
VLAN Group 5 - VID 5
VLAN Group 5 - Member Ports None
VLAN Group 5 - Source Port Check Disable
VLAN Group 6 - VID 6
VLAN Group 6 - Member Ports None
VLAN Group 6 - Source Port Check Disable
VLAN Group 7 - VID 7
VLAN Group 7 - Member Ports None
VLAN Group 7 - Source Port Check Disable
VLAN Group 8 - VID 8
VLAN Group 8 - Member Ports None
VLAN Group 8 - Source Port Check Disable

Aggregation/Trunking Configuration

Group 1 -4 Member Ports None

LACP Port Configuration

-61-

Protocol Enabled Not select (disabled) for all ports
Key Value auto for all ports

RSTP System Configuration

System Priority 32768
Hello Ti me 2
Max Age 20
Forward Delay 15
Force Version Normal

RSTP Port Configuration

Protocol enabled Not select (disabled) for all ports
Edge v: Select for all ports
Max Age 20
Forward Delay 15
Force Version Normal

802.1X Configuration

Mode Disabled
RADIUS IP 0.0.0.0
RADIUS UDP Port 1812
RADIUS Secret None
Admin State Force Authorized for all ports
Reauthentication EnabledNo
Reauthentication Period 3600
EAP T imeout 30
Port 1~Port 6 - tag 1 Class 0
Port 1~Port 6 - tag 2 Class 1
Port 1~Port 6 - tag 3 Class 1
Port 1~Port 6 - tag 4 Class 2
Port 1~Port 6 - tag 5 Class 2
Port 1~Port 6 - tag 6 Class 3
Port 1~Port 6 - tag 7 Class 3

Mirroring Configuration

Mirror source Not select for all ports
Mirror Port 1 (Port 1)

-62-

Quality of Service Configuration

802.1p Classification Disable for all ports
DSCP Cla ssification Disable for all ports
Port Priority Class 3 for all ports

QoS 802.1p Mapping

Port 1~Port 6 - tag 0 Class 0
Port 1~Port 6 - tag 1 Class 0
Port 1~Port 6 - tag 2 Class 1
Port 1~Port 6 - tag 3 Class 1
Port 1~Port 6 - tag 4 Class 2
Port 1~Port 6 - tag 5 Class 2
Port 1~Port 6 - tag 6 Class 3
Port 1~Port 6 - tag 7 Class 3

QoS DSCP Mapping

DSCP 1 / Priority 0, Class 0
DSCP 2 / Priority 0, Class 0
DSCP 3 / Priority 0, Class 0
DSCP 4 / Priority 0, Class 0
DSCP 5 / Priority 0, Class 0
DSCP 6 / Priority 0, Class 0
DSCP 7 / Priority 0, Class 0
All others DSCP Class 0

QoS Service Policy

Port 1 Strict priority
Port 2 Strict priority
Port 3 Strict priority
Port 4 Strict priority
Port 5 Strict priority
Port 6 Strict priority

QoS DSCP Mapping

DSCP 1 / Priority 0, Class 0
DSCP 2 / Priority 0, Class 0
DSCP 3 / Priority 0, Class 0
DSCP 4 / Priority 0, Class 0

-63-

DSCP 5 / Priority 0, Class 0
DSCP 6 / Priority 0, Class 0
DSCP 7 / Priority 0, Class 0
All others DSCP Class 0

QoS Service Policy

Port 1 Strict priority
Port 2 Strict priority
Port 3 Strict priority
Port 4 Strict priority
Port 5 Strict priority
Port 6 Strict priority

Storm Control Configuration

Broadcast Rate No limit
Multicast Rate No limit
Flooded Unicast Rate No limit

-64-
